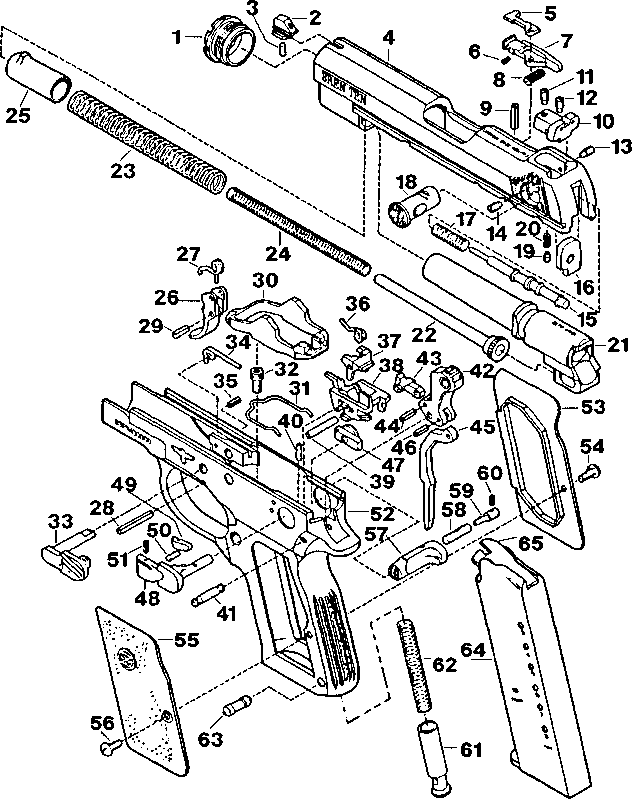

Bren Ten Pocket Auto

Bren Ten Pocket Auto



20 Firing Pin Błock Detent Spring

44

Hook Pin

21 Barrel

45

Hammer Strut

1

Barrel Bushing

22 Recoil Spring Guide

46

Strut Pin

2

Front Sight

23 Recoil Spring, Outer

47

Thumb Safety Bushing

3

Front Sight Pług

24 Recoil Spring, Inner

48

Thumb Safety-Lever

4

Slide

25 Recoil Spring Tube/Barrel Bushing

49

Thumb Safety-Lever Detent

5

Loaded Chamber Indicator

Lock

50

Thumb Safety-Lever Detent Spring

6

Loaded Chamber Indicator Spring

26 Trigger

51

Thumb Safety-Lever Detent Pin

7

Extractor

27 Trigger Return Spring

52

Receiver (Frame)

8

Extractor Spring

28 Trigger Pivot Pin

53

Right Stock

9

Extractor Pin

29 Trigger Bar Pivot Pin

54

Right Stock Screw

10

Rear Sight

30 Trigger Bar

55

Left Stock

11

Forward Rear Sight Elevation

31 Trigger Bar Spring

56

Left Stock Screw

Adjustment Screw

32 Trigger Bar Spring Screw

57

Magazine Release

12

Rearward Rear Sight Elevation

33 Slide Stop

58

Magazine Release Spring

Adjustment Screw

34 Slide Stop Spring

59

Magazine Release Lock

13

Right Rear Sight Windage

35 Slide Stop Spring Pin

60

Magazine Release Lock Pin

Adjustment Screw

36 Sear Spring

61

Mainspring Retainer

14

Left Rear Sight Windage

37 Sear

62

Mainspring

Adjustment Screw

38 SearHousing

63

Mainspring Retainer Pin

15

Firing Pin

39 Sear Pin

64

Magazine Body

16

Firing Pin Retainer

40 Hammer Pin Retainer

65

Magazine Follower

17

Firing Pin Spring

41 Hammer Pin

18

Firing Pin Błock

42 Hammer

Parts Not Shown

19

Firing Pin Błock Detent

43 Double Action Hook

Magazine Spring
