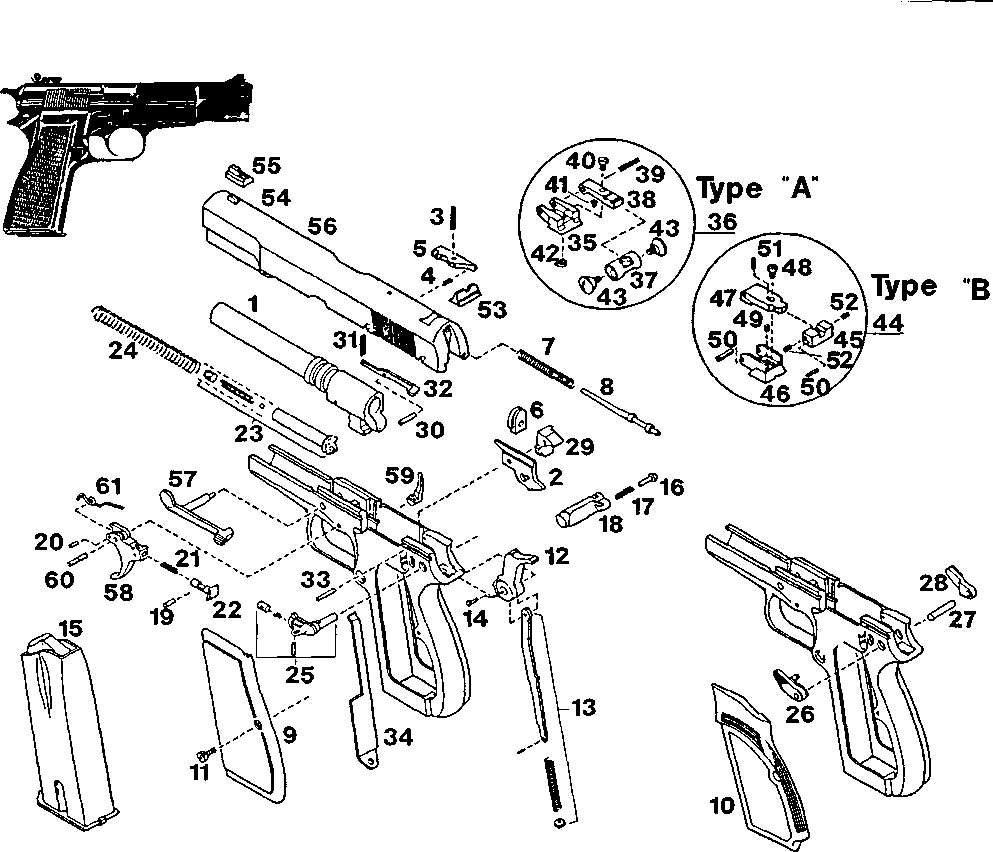

Browning 9mm Hi Power Auto

Browning 9mm Hi Power Auto




1    Barrel

2    Ejector

3    Extractor Pin

4    Extractor Spring

5    Extractor

6    Firing Pin Retaining Piąte

7    Firing Pin Spring

8    Firing Pin

9    Grip, Lett—Black Plastic

10    Grip, Left—Moulded Contour

11    GripScrew

12    Flammer

13    Hammer Strut Assembly with Mainspring, Mainspring Support Pin and Nut

14    Hammer Strut Pin

15    Magazine

16    Magazine Latch Spring Guide

17    Magazine Latch Spring

18    Magazine Latch

19    Trigger Spring Pin

20    Magazine Safety Pin

21    Magazine Safety Spring

22    Magazine Safety

23    Recoil Spring Guide Assembly wił Slide Stop Retaining Bali, Spring and Cap

24    Recoil Spring

25    Safety Assembly, Complete

26    Safety-Lever, Left

27    Safety-LeverPin

28    Safety-Lever, Right

29    Sear

30    Sear Lever Pin

31    Sear Lever Spring

32    SearLever

33    Sear Pin

34    Sear Spring with Button

35    Rear Sight Base, Adjustable

36    Rear Sight Complete, Adjustable

37    Sight Aperture Rear, Adjustable

38    Sight Aperture Housing Rear, Adjustable

39    Sight Aperture Housing Pin Rear, Adjustable

40    Sight Elevation Screw Rear, Adjustable

41    Sight Elevation Screw Spring Rear Adjustable

42    Sight Elevation Spring, Adjustable

43    Sight Windage Screw Rear, Adjustable

44    Rear Sight, Complete

45    Rear Sight Blade

46    Rear Sight Complete, Adjustable A7 Rear Sight Leaf

; Rear Sight Elevation Screw

49    Rear Sight Elevation Spring

50    Rear Sight Leaf/Friction Pin >1 Rear Sight Detent Pin

52    Rear Sight Windage Screw

53    Sight, Rear

54    Sight, Front

55    Sight, Adjustable Front

56    Slide with Fixed Front Sight

57    Slide Stop

58    Trigger

59    Trigger Lever

60    Trigger Pin

61    Trigger Spring

Parts Not Shown

Grip, Right—Black Plastic Grip, Left—Moulded Contour
