Pusan KoravÞP

KOREAN NAVIGATION VOLUME

KORAV	NORTH DEPARTURE MMarchOZ
TACAN:	TWR:	TRANS. LEVEL:	TRANS. ALT:	GPS: N35°l 4,46'	ELEV:
08 7X	N.A.	FL140	14.000ft	E13CP29.29'	58

PUSAN AB (RKPP) SOUTH KOREA

Notę: Min holding altitude: óOOOft / A

£ '

KORAV (exit point)

R020 DME 11

N35 24.38' El 30 34.46'

151 OOft I

-090 —4^—270 -j3700lt|l2700ftTi

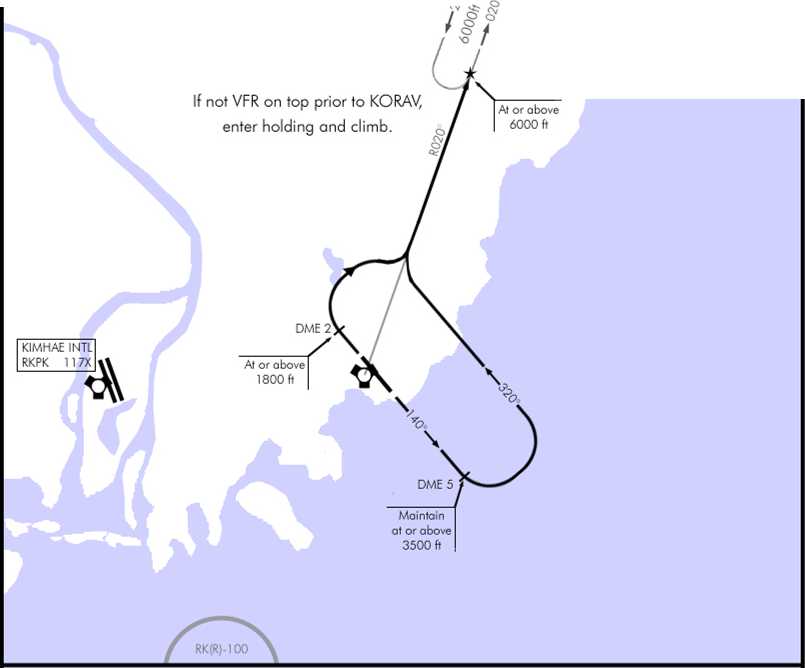

DEPARTURE ROUTE DESCRIPTION

TAKE-OFF RWY 14: Climb on runway heading direct DME 5 PUSAN tacan. Cross at or above 3500 ft. LEFT climbing turn heading 320°. Intercept R-020⁰ outbound PUSAN tacan proceed to KORAV INT. Cross at or above 6000 ft, Thence...

TAKE-OFF RWY 32: Climb on runway heading direct DME 2 PUSAN tacan. Cross at or above 1 800 ft. RIGHT climbing turn heading to Intercept R-020⁰ outbound PUSAN tacan proceed to KORAV INT. Cross at or above 6000 ft, Thence...

KORAV NORTH DEPARTURE ©^{com8atsimcheckust52W7}    pusan ab (RKPP)

NOT FOR REAL NAVIGATION - F4 ALLIED FORCE ONLY    SOUTH KOREA
