Motorola V235 Testpoint(1)

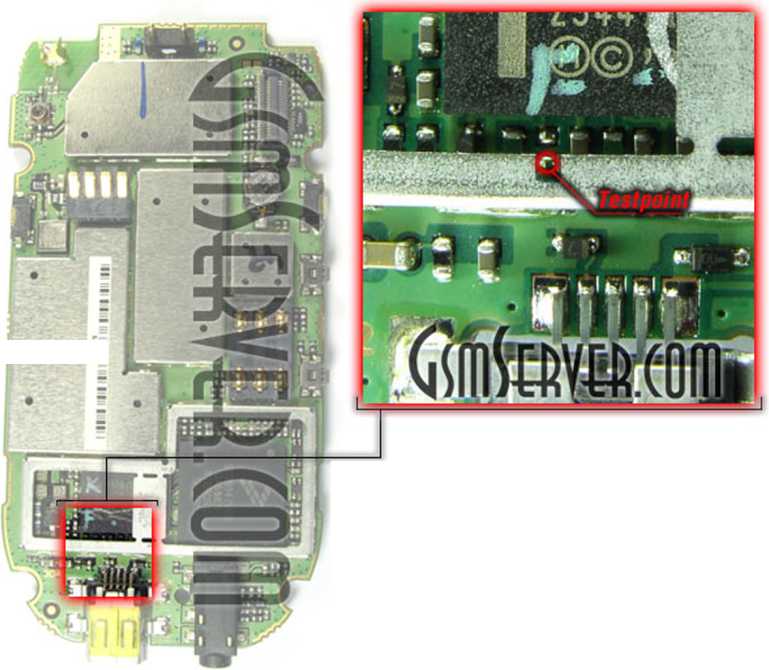

Testpoint for Motorola - V235
7.
8.
III I
1.
2.
3.
4.
5.
6.
Disassemble the phone Connect USB cable (not repair one)
Connect testpoint to ground
Connect phone battery
Press 'Search button in SmartMoto
SmartMoto should find "S Blank Neptune LTE or
“S Blank Paragon POG’, or “S Blank Rainbow POG”
Disconnect testpoint
The phone is ready for flash/repair operations now
