The Alcatel-Lucent 7705 SAR portfolio
is optimized for multiservice adaptation,
aggregation and routing, especially
onto a modern Ethernet and IP/MPLS
infrastructure. Leveraging the powerful
Service Router Operating System (SR OS)
and 5620 Service Aware Manager
(SAM), it is available in compact, low
power consumption platforms delivering
highly available services over resilient
and flexible network topologies.
The 7705 SAR is well suited to the
aggregation and backhaul of 2G, 3G and
LTE mobile traffic — providing cost-
effective scaling and the transformation
to IP/MPLS networking. Business services
modernization is supported in the
transition from legacy to consolidated,
packet-based operation. Hugely reduced
equipment footprints are achievable
with reduced energy costs. Industries,
enterprises and government organi-
zations can deploy with confidence,
achieving reliable and resilient support
of legacy and advanced services.
The Alcatel-Lucent 7705 SAR owes much
of its development heritage to the
Alcatel-Lucent Service Router (SR)
product line. Sharing much of the
market-leading feature set of that
product line, the Alcatel-Lucent 7705 SAR
brings a powerful, service-oriented
capability to the RAN, specifically in
form factors and at-price points that
are particularly appropriate for cell
sites and hub locations in addition to
denser points of concentration. With
end-to-end service management under
the Alcatel-Lucent 5620 management
portfolio, the Alcatel-Lucent 7705 SAR
greatly augments the IP/MPLS RAN
transport solution from Alcatel-Lucent.
Service aggregation and
networking
To provide the most efficient transport
solution, the Alcatel-Lucent 7705 SAR
can employ pseudowire encapsulation
methods to map services end to end.
The use of pseudowires ensures that the
key attributes of the service are main-
tained, while using a cost-effective
packet environment to aggregate
services. In addition to pseudowire
transport, IP routing and forwarding
and Virtual Private LAN Service (VPLS)
are supported. Services such as
Asyn chronous Transfer Mode (ATM),
inverse multi plexing over ATM (IMA),
Ethernet and TDM traffic can be natively
switched across the 7705 SAR.
The Alcatel-Lucent 7705 Service Aggregation Router (SAR) portfolio delivers industry-leading IP/MPLS and
pseudowire capabilities in compact platforms with the ability to reliably groom and aggregate multiple media,
service and transport protocols onto an economical packet transport infrastructure.
Alcatel-Lucent 7705 SAR-F
Alcatel-Lucent 7705 SAR-8
Alcatel-Lucent 7705 SAR-18
"MDBUFM-VDFOU4"3]Release]%BUB4IFFU
2
The Alcatel-Lucent 7705 SAR supports
RFC 5086 — Structure-Aware TDM
Circuit Emulation Service over Packet
Switched Network (CESoPSN) and also
RFC 4553 — Structure-Agnostic TDM
over Packet (SAToP) for the encapsulation
and transport of TDM traffic; for
example, from mobile 2G, TDM-attached
base stations. The use of circuit
emulation service (CES) ensures that
only the active time slots are trans-
ported, keeping bandwidth usage to
a minimum. Also, the Alcatel-Lucent
7705 SAR supports RFC 4717 — Encap-
sulation Methods for Transport of ATM
over MPLS networks; N:1 cell mode is
supported. Multiple access ATM ports
are bundled together to attain higher
speeds using IMA. The IMA protocol is
terminated on the Alcatel-Lucent 7705 SAR,
and only the cells containing user data
that belong to a virtual circuit/virtual
path (VC/VP) structure are trans-
ported. RFC 4448 — Encapsulation
Methods for Transport of Ethernet
over MPLS Networks is also supported.
To offer greater scalability, all the
traffic out of an Ethernet port can
be carried over a single Ethernet
pseudowire or, alternatively, a pseudo-
wire can be created for each VLAN
that is assigned to a different service
or end customer. IP pseudowires are
supported and provide the ability
to deterministically carry IP traffic
between disparate media. For example,
IP traffic can be carried between a
Point-to-Point Protocol (PPP) (or
Multi-Link Point-to-Point Protocol
(MLPPP)) access and an Ethernet
connection. The 7705 SAR product line
supports Border Gateway Protocol
(BGP)/MPLS Virtual Private Networks
(VPNs) to allow the separation of Layer 3
traffic between different groups of
users or organizations. Virtual Private
LAN Service (VPLS) is supported for the
delivery of Layer 2 VPNs. Analog voice
encoding and transport is available on
the 7705 SAR-8 and the 7705 SAR-18.
Voiceband analog traffic can be carried
over a modern network infrastructure
between two analog devices using either
traditional T1/E1 network interfaces or
over Ethernet or MLPPP interfaces.
Highly flexible network infrastructure
options include the use of MPLS, IP or
GRE (Generic Routing Encapsulation)
tunneling for aggregated traffic. When
dynamic MPLS signaling is deployed,
the end-to-end pseudowire is estab-
lished using targeted label distribution
protocol (T-LDP) and the MPLS tunnel
using LDP. In addition to efficient
LDP-based dynamic signaling, static
provisioning of both the MPLS tunnel
and the pseudowire is supported.
GRE or IP tunneling allows low-cost,
ubiquitous IP networks to be used
for backhauling; for example, for the
transport of HSPA (High Speed Packet
Access) off-loaded traffic using DSL
access media.
Label switched routing
The 7705 SAR can be configured as
either a Label Edge Router (LER) or
a full Label Switched Router (LSR).
Label Switched Paths (LSPs) can be
signaled using either the Label
Distribution Protocol (LDP) or the
Resource Reservation Protocol with
Traffic Engineering (RSVP-TE). The
7705 SAR brings a strong suite of
traffic engineering and resiliency
capabilities using functions such as
Constraint-based Shortest Path First
(CSPF) routing, Fast Reroute (FRR),
primary and secondary LSPs and
redundant pseudowires.
Quality of service and
traffic management
It is critical to maintain the end-to-end
quality of service (QoS) for packet
traffic. Not all types of traffic have the
same set of requirements. Voice traffic
in particular requires low latency and
jitter (latency variation) as well as low
loss, whereas data traffic often has less
stringent delay requirements but may
be very sensitive to loss, as packet loss
can seriously constrain application
throughput. To offer the required
treatment throughout the network,
traffic flows with different require-
ments are identified at the access and
marked in-line with the appropriate
QoS metrics. Traffic classification and
marking are carried out based on the
following categories:
Classification (Layer 1/Layer 2/Layer 2.5
and/or Layer 3 header):
t 5JNFTMPUQPSU
t &UIFSOFUQPSU7-"/
t "5.TFSWJDFDBUFHPSZ $#3SU7#3
nrt-VBR/UBR)
t "5.7$
t &UIFSOFUQ7-"/
t *1%4$1.1-4&91
Marking:
t -BZFS Q
t -BZFS &91
CPUIGPSUVOOFM
and PWE3
t -BZFS %JGG4FSW
The Alcatel-Lucent 7705 SAR utilizes
extensive traffic management policies to
ensure fairness with detailed classification
and hierarchical scheduling including:
minimum/maximum, queue type-based
weighted round robin or strict priority
and profiled scheduling, as well as
multi-tier policing to differentiate and
prioritize individual services and flows.
Operations, administration
and maintenance
In order to ensure continuity of services,
the Alcatel-Lucent 7705 SAR has a full
set of operations, administration and
maintenance (OAM) features including:
t -41QJOH
t -41USBDFSPVUF
t 4FSWJDFEJTUSJCVUJPOQBUI 4%1
QJOH
¬ Verifies, for example, tunnel con-
nectivity and round-trip delay
t 7JSUVBMDJSDVJUDPOOFDUJWJUZWFSJmDBUJPO
(VCCV)
¬ Verifies, for example, service level
existence and round-trip time
¬ Extends OAM to pseudowire
services
t &UIFSOFU0".GVODUJPOT GPSFYBNQMF
¬ 802.3ah: Ethernet in the First Mile
¬ 802.1ag: Connectivity Fault
Management
¬ Y.1731: Ethernet OAM mechanisms
for fault management — mainly
at a service level
"MDBUFM-VDFOU4"3]Release]%BUB4IFFU
3
t 4FSWJDF"TTVSBODF"HFOU 4""
¬ Runs in background, periodically
collecting network ‘health’
information from OAM mechanisms
(such as VCCV) and monitoring for
problems (such as SLA transgressions)
These features, when under the
control of the Alcatel-Lucent 5620
management portfolio, ensure rapid
fault detection as well as efficient
troubleshooting. In particular, SLAs
can be proactively monitored by the
SAA. This powerful capability allows
the specification of test suites, policies
and schedules. The tests are then
auto-created, and the results obtained
are automatically compared to pre-
defined SLA metrics. Any transgressions
detected are automatically reported
through the SAA to operations staff.
An auto-discovery protocol is sup-
ported to allow rapid commissioning
of remote devices.
Synchronization
Cell sites rely on the backhaul network
to provide synchronous interfaces for
the proper delivery of data. In addition,
cell sites may rely on the network
interfaces as stable references with
which to derive radio frequencies and
to ensure reliable subscriber handover
between cell towers. Accurate synchro-
nization is also important in wireline
networks in maintaining network
operational integrity; for example,
avoiding data underflows and over-
flows and transmission ‘slips.’
The Alcatel-Lucent 7705 SAR supports
external reference timing, line timing,
adaptive clock recovery (ACR) timing,
synchronous Ethernet and also timing
distribution using 1588v2. The 1588v2
Master Clock and Boundary Clock
functions are also supported. Accuracy
and high performance of timing over
packet solutions, such as ACR and
IEEE 1588v2, are accomplished by a
combination of built-in architectural
features, efficiently tuned algorithms
and powerful QoS mechanisms to
minimize the delay experienced by
synchronization traffic. These capabilities
are cornerstones of the design of the
Alcatel-Lucent 7705 SAR. A built-in
Stratum-3 clock is provided to assist in
synchronization maintenance during
unavailability of a primary source.

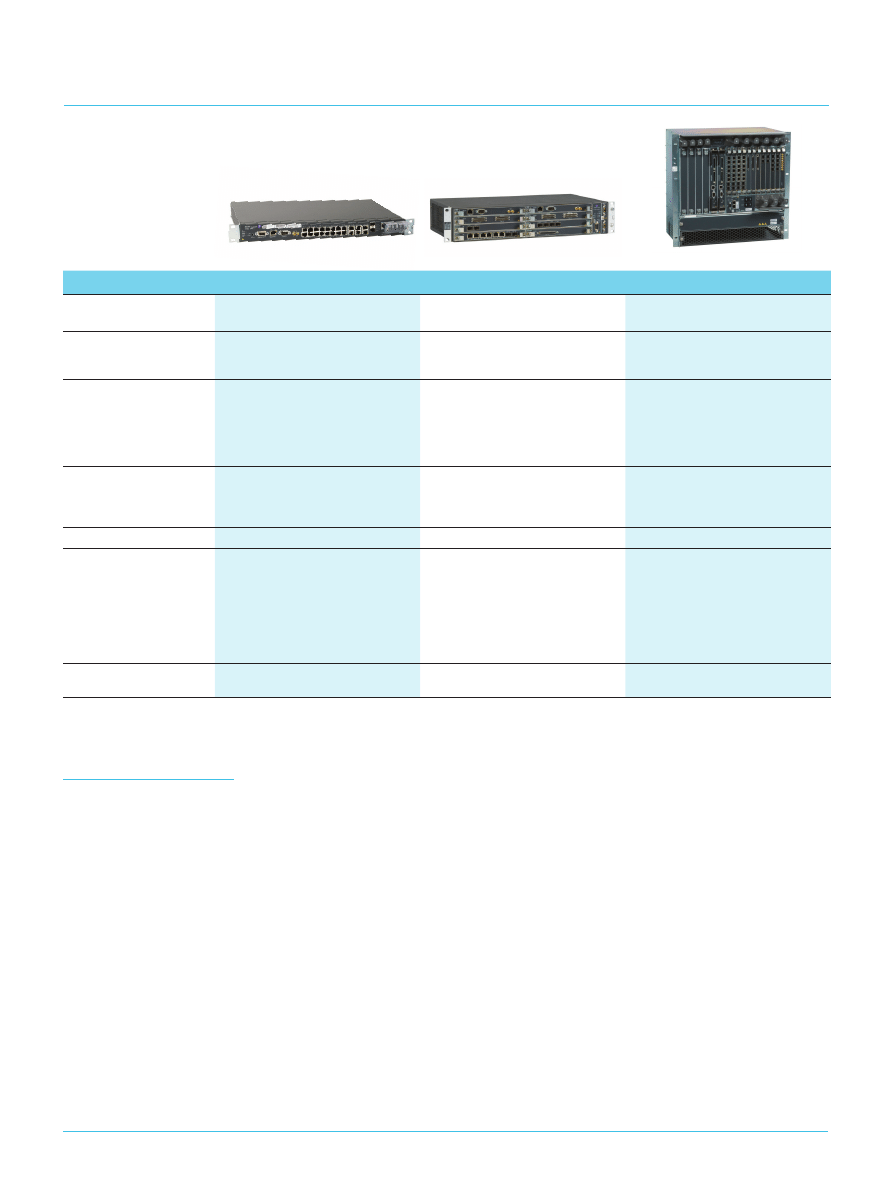

7705 SAR Family Chassis options
7705 SAR-F
The 7705 SAR-F is a fixed configuration
version of the Service Aggregation
Router packaged in a one-rack unit
(1 RU) high form factor that supports
up to 16 T1/E1 any service any port
(ASAP) ports. The ASAP ports can be
configured to support ATM, ATM IMA,
TDM and MLPPP. Six 10/100 Base-T
auto-sensing Ethernet ports are
provided, plus two further ports
TVQQPSUJOH#BTF59XJUI
small form factor plug gable optics
(SFPs). Network uplink connectivity
options are: Ethernet, Fast Ethernet
(FE), Gigabit Ethernet (GigE), n × T1/ E1
MLPPP or n × T1/E1 ATM IMA. Integrated
DS3 point-to-point trunking is supported
using a SFP device.
Table 1. Features and benefits
FEATURES
BENEFITS
$PTUFGGFDUJWFNJHSBUJPOGSPN&5CBTFECBDLIBVMUPFDPOPNJDBMBOEGMFYJCMF
*1.1-4CBTFEUSBOTQPSU
MFWFSBHJOH&UIFSOFUPS*41OFUXPSLTFSWJDFTPWFSB
XJEFSBOHFPGGJSTUNJMFNFEJB
5SBOTJUJPOGSPN1%)CBTFEDPOOFDUJWJUZUPNPEFSO&UIFSOFUBOEPS*1CBTFE
OFUXPSLJOHJOGSBTUSVDUVSFTDBOHSFBUMZSFEVDFSFDVSSJOHPQFSBUJOHFYQFOEJUVSFT
TVDIBTMJOFMFBTFDPTUT
3FTJMJFODZBOESFEVOEBODZJODMVEJOH0OFGPSPOFIJUMFTTDPOUSPMBOETXJUDI
NPEVMFGBJMPWFS 4"3BOE4"3
TZODISPOJ[BUJPOSFEVOEBODZ
OFUXPSLVQMJOLSFTJMJFODZBOESFEVOEBODZPGQPXFSGFFETQMVTUFNQFSBUVSF
IBSEFOJOH 4"3BOE4"3'
"EWBODFESFTJMJFODZGFBUVSFTMFBEUPJNQSPWFEOFUXPSLVQUJNF
XIJDIDBO
QPTJUJWFMZJNQBDUDVTUPNFSSFUFOUJPOBOEBMMPXDSJUJDBMTFSWJDFTUPCFPGGFSFE
GPSJODSFBTFESFWFOVF
1PXFSGVM
TFSWJDFBXBSF0".DBQBCJMJUJFTDPNQMFNFOUFECZUIF"MDBUFM-VDFOU
NBOBHFNFOUQPSUGPMJPGPS(6*CBTFEOFUXPSLBOEFMFNFOUDPOGJHVSBUJPO
QSPWJTJPOJOH
BOEGBVMUBOEQFSGPSNBODFNBOBHFNFOU
3BQJEGBVMUEFUFDUJPOBOEQPXFSGVMDPNNJTTJPOJOHBOEUSPVCMFTIPPUJOHUPPMT
DBOJNQSPWFQSPEVDUJWJUZPGPQFSBUJPOTTUBGGBOESFEVDFOFUXPSLEPXOUJNF
%FOTFBEBQUBUJPOPGNVMUJQMFDPOWFSHFETFSWJDFTPOUPBOFGGJDJFOUFDPOPNJDBM
QBDLFUJOGSBTUSVDUVSF
.VMUJQSPUPDPMBOEDPOWFSHFODFDBQBCJMJUJFT XJUIGMFYJCMFBOEHSBOVMBS2P4
SFEVDFFRVJQNFOUJOTUBODFTOFFEFEUPDBSSZNVMUJQMFUSBGGJDUZQFT$PNQBDU
FOFSHZFGGJDJFOUQMBUGPSNTSFEVDFQPXFSBOEDPPMJOHDPTUT
&YUFOETTFSWJDFSPVUJOH*1.1-4EZOBNJDDBQBCJMJUJFTUPUIFSFNPUFTJUF
IVCT
BOEOFUXPSLFEHFJODPNQBDUGPSNGBDUPSTXJUIMPXQPXFSDPOTVNQUJPO
.PEVMBS
GMFYJCMFBSDIJUFDUVSFBMMFWJBUFTUIFCVSEFOPGDPNQMFYQSFFOHJOFFSJOH
BOEGVUVSFTDFOBSJPQMBOOJOH$PNQBDU
SVHHFEGPSNGBDUPSTBMMPXSFNPUFTJUFT
UPCFBEESFTTFE
#SFBEUIPGTZODISPOJ[BUJPOTPMVUJPOTXJUIGMFYJCMFPQFSBUJPO
SFEVOEBODZ
BOEJOEFQFOEFOUWBMJEBUJPOPGBDDVSBDZ
"DDVSBUFTZODISPOJ[BUJPOBMMPXTDPTUFGGFDUJWFEFQMPZNFOUPWFSQBDLFU
JOGSBTUSVDUVSFBOEJNQSPWFTUIFVTFSFYQFSJFODF GPSFYBNQMF
MFTTEBUBMPTT
BOENJOJNBMESPQQFEDBMMTJONPCJMFBQQMJDBUJPOT
"MDBUFM-VDFOU4"3]Release]%BUB4IFFU
4
7705 SAR-8
The 7705 SAR-8 is a two-rack unit
(2 RU) version of the 7705 SAR with
industry-leading access density. The
platform can be optionally configured
with a redundant control and switch
module and uplinks. The Alcatel-
Lucent 7705 SAR-8 has eight slots;
two are allocated for control and
switch modules (CSMs), with the
remaining six being available for
user traffic adapter cards. The Alcatel-
Lucent 7705 SAR-8 has a compact,
modular architecture, constructed
to allow flexible use of line adapter
cards so operators can optimize the
configuration to meet the specific
requirements of a site. With the
modular architecture comes additional
resilience and flexibility. The platform
can optionally support 1+1 fully redun-
dant CSMs. This industry-leading,
independently validated High Avail-
ability feature has been inherited from
the Service Router product line and is
a strong contributor to overall network
uptime. Network uplink connectivity
options are: Ethernet, FE, GigE, n × T1/
E1 MLPPP or n × T1/E1 ATM IMA.
Integrated DS3 point-to-point trunking
is supported using the 4-port DS3
adapter card. OC-3/STM-1 trunking is
supported using Packet over SONET/
SDH (POS) on the 4-port OC-3/STM-1
clear channel adapter card.
7705 SAR-18
The 7705 SAR-18 is a 10 RU version of
the 7705 SAR with industry-leading
scalability. The platform can be
optionally configured with a redun-
dant control and switch module and
uplinks. The Alcatel-Lucent 7705 SAR-18
has 18 slots; two are allocated for
control and switch modules (CSMs),
with the remaining 16 being available
for user traffic adapter cards. Twelve of
the adapter card slots have full duplex
2.5 Gb/s connectivity to the switching
fabric, the remaining four have full
duplex 10 Gb/s connectivity. The
platform can optionally support 1+1
fully redundant CSMs for High
Availability. The twelve 2.5 Gb/s
adapter card slots support the same
adapter cards as the 7705 SAR-8.
Network connectivity options are:
Ethernet, FE, GigE, n × T1/ E1 MLPPP
or n × T1/E1 ATM IMA. Integrated DS3
point-to-point trunking is supported
using the 4-port DS3 adapter card.
OC-3/STM-1 trunking is supported
using POS on the 4-port OC-3/STM-1
clear channel adapter card.
7705 SAR adapter cards
Each of the six adapter card slots in
the 7705 SAR-8 or the twelve 2.5 Gb/s
adapter card slots in the 7705 SAR-18, can
be used to house the following adapter
card types, this flexibility alleviates the
burden of complex pre-engineering and
future scenario planning:
t QPSU0$45.DMFBSDIBOOFM
adapter card, supporting ATM and
POS with ports configurable for
SONET or SDH operation
t QPSU0$45.DIBOOFMJ[FE
adapter card, supporting ATM,
ATM IMA, TDM and MLPPP with
ports configurable for SONET
or SDH operation
t QPSU"4"15&BEBQUFSDBSE
supporting ATM, ATM IMA,
TDM and multiclass MLPPP
t QPSU"4"15&BEBQUFSDBSE
supporting ATM, ATM IMA,
TDM and multiclass MLPPP
t QPSU&UIFSOFUBEBQUFSDBSE
supporting six ports of auto-sensing
#BTF59QPSUTQMVTUXPGVSUIFS
ports supporting 10/100/1000
Ethernet with SFP optics
t QPSU%4&BEBQUFSDBSE
supporting clear channel PPP
and ATM service (ATM on DS3 only)
t QPSU&BSBOE.PVUI &.
adapter card supporting selectable
μ-Law or A-Law encoding
t QPSU4FSJBM%BUB*OUFSGBDF 4%*
card, which can be configured for
34
7PS9PQFSBUJPO
t "OBVYJMJBSZBMBSNDBSEXJUI
26 digital alarm inputs, 2 analog
inputs and 8 output relays
/PUF4%*BOE&.DBSETXJMMCFTVQQPSUFEPO
the 7705 SAR-18 in a future release.
"MDBUFM-VDFOU4"3]Release]%BUB4IFFU
5
Chassis-dependent specifications
7705 SAR-F
7705 SAR-8
7705 SAR-18
$BQBDJUZGPSBEBQUFS
DBSETQFSDIBTTJT
o
(CTGVMMEVQMFY
(CTGVMMEVQMFY
3FEVOEBODZBOESFTJMJFODZ
4ZODISPOJ[BUJPO
VQMJOLT
.1-4UVOOFM
QTFVEPXJSFT
QPXFSGFFET
DPPMJOHGBOT
$POUSPM
GBCSJD
TZODISPOJ[BUJPO
VQMJOLT
.1-4UVOOFM
QTFVEPXJSFT
QPXFSGFFET
DPPMJOHGBOT
$POUSPM
GBCSJD
TZODISPOJ[BUJPO
VQMJOLT
.1-4UVOOFM
QTFVEPXJSFT
QPXFSGFFET
DPPMJOHGBOT
1IZTJDBMEJNFOTJPOT
t )FJHIU36DN JO
t %FQUIDN JO
t 8JEUIDN JO
t 3BDLNPVOUBCMFJOBDNSBDL
DNEFQUI TUBOEBSEJODI
FRVJQNFOUSBDL
JODIEFQUI
t )FJHIU36
DN JO
t %FQUIDN JO
t 8JEUIDN JO
t 3BDLNPVOUBCMFJOBDNSBDL
DNEFQUI TUBOEBSEJODI
FRVJQNFOUSBDL
JODIEFQUI
t )FJHIU36
DN JO
t %FQUIDN JO
t 8JEUIDN JO
t 3BDLNPVOUBCMFJOBDNSBDL
DNEFQUI TUBOEBSEJODI
FRVJQNFOUSBDL
JODIEFQUI
1PXFS
t 5XPGFFET7%$PS
UXPGFFET 7%$
t 5IJSEQBSUZTPVSDFE"$QPXFS
TPMVUJPOTBWBJMBCMFo7"$
t 5XPGFFET7%$PS
UXPGFFET 7%$
t 5IJSEQBSUZTPVSDFE"$QPXFS
TPMVUJPOTBWBJMBCMFo7"$
t 5XPGFFET7%$
t 5IJSEQBSUZTPVSDFE"$QPXFS
TPMVUJPOTBWBJMBCMFo7"$
$PPMJOH
#VJMUJOGJWFGBOBSSBZXJUISFEVOEBODZ
0OFUSBZPGFJHIUGBOTXJUISFEVOEBODZ
0OFUSBZPGFJHIUGBOTXJUISFEVOEBODZ
0QFSBUJOHFOWJSPONFOU
t /PSNBMPQFSBUJOHUFNQFSBUVSFSBOHF
¡$UP ¡$ ¡'UP ¡'
TVTUBJOFE
t /PSNBMIVNJEJUZUP
OPODPOEFOTJOH
t /PSNBMPQFSBUJOHUFNQFSBUVSFSBOHF
¡$UP ¡$ ¡'UP ¡'
TVTUBJOFE
t /PSNBMIVNJEJUZUP
t 4IPSUUFSN IPVST
FYUFOEFE
IVNJEJUZSBOHFUP
t /PSNBMPQFSBUJOHUFNQFSBUVSFSBOHF
¡$UP ¡$ ¡'UP¡'
TVTUBJOFE
¡$UP ¡$ ¡'
UP¡'
FYUFOEFE IPVST
t /PSNBMIVNJEJUZUP
OPODPOEFOTJOH
t 4IPSUUFSN IPVST FYUFOEFE
IVNJEJUZSBOHFUP
4IJQQJOHBOETUPSBHF
UFNQFSBUVSF
¡$UP ¡$ ¡'UP ¡'
¡$UP ¡$ ¡'UP ¡'
¡$UP ¡$ ¡'UP ¡'
Service Aggregation
Router specifications
Services
t 5%.QTFVEPXJSFT
3'$4USVDUVSF"XBSF5JNF
%JWJTJPO.VMUJQMFYFE 5%.
$JSDVJU&NVMBUJPO4FSWJDFPWFS
1BDLFU4XJUDIFE/FUXPSL
$&4P14/
3'$4USVDUVSF"HOPTUJD
5JNF%JWJTJPO.VMUJQMFYJOH
5%. PWFS1BDLFU 4"5P1
t "5.QTFVEPXJSFT
3'$&ODBQTVMBUJPO.FUIPET
GPS5SBOTQPSUPG"TZODISPOPVT
5SBOTGFS.PEF "5. PWFS
.1-4/FUXPSLT
/DFMMNPEF WJSUVBMDJSDVJU
DPOOFDUJPOBOEWJSUVBMQBUI
DPOOFDUJPO
"5.*."
t &UIFSOFUQTFVEPXJSFT
3'$&ODBQTVMBUJPO.FUI
PETGPS5SBOTQPSUPG&UIFSOFU
PWFS.1-4/FUXPSLT
3BXBOEUBHHFENPEF
.&'BOE.&'DFSUJGJFE
t *1QTFVEPXJSFT
111 BTQFS3'$ BOE
.-111 BTQFS3'$
BDDFTTUP*1QTFVEPXJSFT
&UIFSOFU OVMM UBHHFE BDDFTT
UP*1QTFVEPXJSFT
t "OBMPHWPJDFFODPEJOHBOE
USBOTQPSU
"MBX
çMBX
5SBGGJDUSBOTQPSUFEPOB
5%.QTFVEPXJSF*1PS.1-4
JOGSBTUSVDUVSF
t *171/
3'$#(1.1-4*17JSUVBM
1SJWBUF/FUXPSLT 71/T
t 71-4
3'$7JSUVBM1SJWBUF
-"/4FSWJDFT6TJOH-%1
Synchronization
t &YUFSOBMSFGFSFODFUJNJOH
t -JOFUJNJOH
t "EBQUJWFUJNJOH
t 4ZODISPOPVT&UIFSOFU
t #VJMUJO4USBUVNDMPDL
t *&&&W
t 4ZODISPOJ[BUJPO4UBUVT.FTTBHFT
44.T TVQQPSUGPSRVBMJUZMFWFM
EFUFSNJOBUJPO TPVSDFTFMFDUJPO
BOEUJNJOHMPPQBWPJEBODF
Traffic management and QoS
t )JFSBSDIJDBMRVFVJOH
t .VMUJUJFSTDIFEVMJOH
t 1SPGJMFE JOBOEPVUPGQSPGJMF
TDIFEVMJOH
t 2VFVFUZQFCBTFETDIFEVMJOH
t *OHSFTTQPMJDJOHBOEFHSFTTTIBQJOH
t 6QUPRVFVFTQFSTFSWJDF
t .FNPSZBMMPDBUJPOQFSRVFVF
$#4 .#4QFSRVFVF
t 1SFNJVN BTTVSFEBOECFTUFGGPSU
GPSXBSEJOHDMBTTFT
t 83&%POJOHSFTTBOEFHSFTT
t $MBTTJGJDBUJPOCBTFEPO
-BZFS-BZFS-BZFS
BOEPS-BZFSIFBEFS
5JNFTMPUQPSU
&UIFSOFUQPSU7-"/
"5.TFSWJDFDBUFHPSZ
$#3SU7#3SU7#36#3
"5.7$
&UIFSOFUQ7-"/
*1%4$1.1-4&91
"MDBUFM-VDFOU4"3]Release]%BUB4IFFU
6
t .BSLJOHCBTFEPO
-BZFS Q
-BZFS &91
CPUIGPSUVOOFM
BOE18&
-BZFS %JGG4FSW
Security (node access)
t 6TFS*%QBTTXPSECBTFEBVUIFOUJ
DBUJPOBOEBVUIPSJ[BUJPO
&YQPOFOUJBMMPHJOCBDLPGGGPS
CSVUFGPSDFBUUBDLT
-PDBMPSSFNPUFTUPSJOHPG
VTFSJOGPSNBUJPO
t 3FNPUFBVUIFOUJDBUJPOBVUIPSJ[B
UJPOVTJOH3FNPUF"VUIFOUJDBUJPO
%JBM*O6TFS4FSWJDF 3"%*64
BOE5FSNJOBM"DDFTT$POUSPMMFS
"DDFTT$POUSPM4ZTUFN 5"$"$4
t 4FDVSF4IFMMW 4FDVSF'JMF5SBOTGFS
1SPUPDPMBOE4JNQMF/FUXPSL
.BOBHFNFOU1SPUPDPM 4/.1
7FSTJPO
4FDVSFPQFOJOUFSGBDFT
t 4ZTMPH
$BQUVSFTFDVSJUZMPHTPOMPDBM
PSSFNPUFTFSWFS
t "MBSNPOTVTQJDJPVTTFRVFODF
PGøPQFSBUJPOT
t /PEBMBUUBDL
t #BTJDGJSFXBMMXJUIGJMUFSJOHPG
DPOUSPMQMBOFUSBGGJD
t %FOJBMPGTFSWJDF %P4 BUUBDL
QSFWFOUJPO SBUFMJNJUJOHBOE
QSJPSJUJ[BUJPO
t %BUBTFDVSJUZ
t 5SBOTGFSPWFSQFFSUPQFFSUVOOFM
.1-4
t .%BVUIFOUJDBUJPO
t 4FRVFODFOVNCFSTQSFWFOU
SFQMBZJOHPGEBUB
t 4UBUJTUJDTBWBJMBCMFPOTVTQJDJPVT
CFIBWJPS
Management
t 'VMMZGFBUVSFE
JOEVTUSZTUBOEBSE
DPNNBOEMJOFJOUFSGBDF
t 4FSWJDFBTTVSBODFUPPMT JODMVEJOH
-41QJOH -41USBDFSPVUF 4%1
QJOH 7$$7
t "5.*OCBOE.BOBHFNFOU
t 44)BOE5FMOFU
t '51
5SJWJBM'JMF5SBOTGFS1SPUPDPM
BOE4FDVSF$PQZ1SPUPDPM
t 3"%*64 """
t 5"$"$4
t 4/.1WW
Safety, EMC, environmental
and telecom compliance
t 4BGFUZ
6-$4"
*&$&/
"4/;4
*&$&/BOE
-"4&34BGFUZ
t &.$
&/ $MBTT"
'$$1BSU $MBTT"
*$&4*TTVF $MBTT"
&/7
"4/;4$*413 $MBTT"
5FMDPSEJB(3*TTVF
33-/PUJDF/P $MBTT"
33-/PUJDF/P
t 5FMFDPN
*$$4*TTVF
"$5"5*""
"4"$*'4 "VTUSBMJB
/FX;FBMBOE
*565(
*565(
*565(
*565(
*565734
*5657
*5659
t 1PXFS6UJMJUZ4VCTUBUJPO
*&&& 'BOSFRVJSFE
*&$ )B[BSEPVT
TVCTUBODFTFYDFQUJPO TFBTBMU
NJTU PJM
t 3BJMXBZ
&/
t /FUXPSL&RVJQNFOUBOE#VJMEJOH
4UBOEBSET /
/-FWFMBOE
5FMDPSEJB(3$03&
*TTVF
5FMDPSEJB(3$03&
*TTVF
5FMDPSEJB(3
*TTVF
"5551
7;513
"/4*5
t &OWJSPONFOUBM
5FMDPSEJB(3$03&
*TTVF
&54*&/W
$MBTT
&54*&/W
$MBTT
&54*&/W
$MBTT
&54*W
t %JSFDUJWFT
&6%JSFDUJWF&$355&
&6%JSFDUJWF&$8&&&
&6%JSFDUJWF&$3P)4
$IJOB.JOJTUSZPG*OGPSNBUJPO
*OEVTUSZPSEFS/Po$SP)4
Standards and protocols
Standards compliance Ethernet
t *&&&Q27-"/5BHHJOH
t *&&&BC4UBUJPOBOE.FEJB
"DDFTT$POUSPM$POOFDUJWJUZ
%JTDPWFSZ --%1
t *&&&Y&YUFOTJCMF
"VUIFOUJDBUJPO1SPUPDPM &"1
t *&&&BH4FSWJDF-BZFS0".
t *&&&#BTF5
t *&&&BI&UIFSOFU0".
t *&&&V#BTF59
t *&&&Y'MPX$POUSPM
t *&&&[#BTF49-9
t *565:0".GVODUJPOTBOE
NFDIBOJTNTGPS&UIFSOFUCBTFE
OFUXPSLT
Protocol support
LDP
t 3'$-%14QFDJGJDBUJPO
MPLS
t 3'$.VMUJQSPUPDPM-BCFM
4XJUDIJOH"SDIJUFDUVSF
t 3'$.1-4-BCFM4UBDL
&ODPEJOH
t 3'$%FUFDUJOH.VMUJ
QSPUPDPM-BCFM4XJUDIFE .1-4
%BUB1MBOF'BJMVSFT
t 3'$(SBDFGVM4IVUEPXO
JO.1-4BOE(FOFSBMJ[FE.1-4
5SBGGJD&OHJOFFSJOH/FUXPSLT
RSVP-TE and Fast Reroute
t 3'$"1SPWJEFS"SDIJUFDUVSF
%JGG4FSWBOE5&
t 3'$3FRVJSFNFOUTGPS5SBGGJD
&OHJOFFSJOHPWFS.1-4
t 3'$3471$SZQUPHSBQIJD
"VUIFOUJDBUJPO
t 3'$3471$SZQUPHSBQIJD
"VUIFOUJDBUJPO
t 3'$&YUFOTJPOTUP3471GPS
5VOOFMT
t 3'$'BTUSFSPVUFFYUFOTJPOT
UP34715&GPS-415VOOFMT
OSPF
t 3'$041'%BUBCBTF
0WFSGMPX
t 3'$041'7FSTJPO
t 3'$0QBRVF-4"4VQQPSU
t 3'$041'/44"0QUJPO
t 3'$041'4UVC3PVUFS
"EWFSUJTFNFOU
t 3'$5SBGGJD&OHJOFFSJOH 5&
&YUFOTJPOTUP041'7FSTJPO
t 3'$4IBSFE3JTL-JOL(SPVQ
43-( TVC5-7
BGP
t 3'$#(1%FGBVMU3PVUF
"EWFSUJTFNFOU
t 3'$#(1$PNNVOJUJFT
"UUSJCVUF
t 3'$1SPUFDUJPOPG#(1
4FTTJPOTWJB.%
t 3'$#(13PVUF'MBQ
%BNQFOJOH
t 3'$CJT#(1.1-471/T
t 3'$3PVUF3FGSFTI
$BQBCJMJUZGPS#(1
t 3'$$BSSZJOH-BCFM
*OGPSNBUJPOJO#(1
t 3'$$BQBCJMJUJFT
"EWFSUJTFNFOUXJUI#(1
t 3'$#(1 QSFWJPVTMZ
3'$
t 3'$#(1&YUFOEFE
$PNNVOJUJFT"UUSJCVUF
t 3'$#(1.1-4*17JSUVBM1SJ
WBUF/FUXPSLT 71/T QSFWJPVTMZ
3'$CJT#(1.1-471/T
t 3'$#(13PVUF3FGMFDUJPO
"MUFSOBUJWFUP'VMMNFTI*#(1
QSFWJPVTMZ3'$BOE
t 3'$(SBDFGVM3FTUBSU
.FDIBOJTNGPS#(1o(3IFMQFS
t 3'$.VMUJQSPUPDPM
&YUFOTJPOTGPS#(1 QSFWJPVTMZ
3'$
IPv6
t 3'$*OUFSOFU1SPUPDPM
7FSTJPO *1W 4QFDJGJDBUJPO
t 3'$/FJHICPS%JTDPWFSZ
GPS*1W
t 3'$*1W4UBUFMFTT"EESFTT
"VUPDPOGJHVSBUJPO
t 3'$*OUFSOFU$POUSPM.FTTBHF
1SPUPDPM *$.1W GPSUIF*OUFSOFU
1SPUPDPM7FSTJPO4QFDJGJDBUJPO
t 3'$5SBOTNJTTJPOPG*1W
1BDLFUTPWFS&UIFSOFU/FUXPSLT
t 3'$%ZOBNJD)PTU$POGJH
VSBUJPO1SPUPDPMGPS*1W
3FMBZ"HFOU
t 3'$*1W(MPCBM6OJDBTU
"EESFTT'PSNBU
t 3'$*1W4DPQFE"EESFTT
"SDIJUFDUVSF
t 3'$6OJRVF-PDBM*1W
6OJDBTU"EESFTTFT
t 3'$*1W"EESFTTJOH
"SDIJUFDUVSF
IS-IS
t 3'$04**OUFSNFEJBUF
4ZTUFNUP*OUFSNFEJBUF4ZTUFN
*4*4 *OUSBEPNBJO3PVUJOH
1SPUPDPM *40
t 3'$6TFPG04**4*4GPS
SPVUJOHJO5$1*1BOEEVBM
FOWJSPONFOUT
t 3'$%ZOBNJD)PTUOBNF
&YDIBOHFGPS*4*4
t 3'$%PNBJOXJEF1SFGJY
%JTUSJCVUJPOXJUI5XPMFWFM*4*4
t 3'$*4*4.FTI(SPVQT
t 3'$5ISFFXBZ)BOETIBLF
GPS*4*41PJOUUP1PJOU"EKBDFODJFT
t 3'$*4*4$SZQUPHSBQIJD
"VUIFOUJDBUJPO
t 3'$3FDPNNFOEBUJPOTGPS
*OUFSPQFSBCMF/FUXPSLTVTJOH*4*4
t 3'$*4*4&YUFOTJPOTGPS5&
t 3'$3FDPNNFOEBUJPOTGPS
*OUFSPQFSBCMF*1/FUXPSLT
t 3'$GPS4IBSFE3JTL-JOL
(SPVQ 43-( 5-7ESBGUJFUGJTJT
JHQQQPWFSMBOUYU
t 3'$1PJOUUP1PJOU0QFSBUJPO
PWFS-"/JO-JOL4UBUF3PVUJOH
QSPUPDPMT
BFD
t ESBGUJFUGCGENJCUYUo#JEJ
SFDUJPOBM'PSXBSEJOH%FUFDUJPO
.BOBHFNFOU*OGPSNBUJPO#BTF
t ESBGUJFUGCGECBTFUYUo#JEJ
SFDUJPOBM'PSXBSEJOH%FUFDUJPO
t ESBGUJFUGCGEWWIPQUYUo
#'%*1WBOE*1W 4JOHMF)PQ
t ESBGUJFUGCGENVMUJIPQUYUo
#'%GPS.VMUJIPQ1BUIT
GRE
t 3'$(FOFSJD3PVUJOH
&ODBQTVMBUJPO (3&
Differentiated services
t 3'$%FGJOJUJPOPGUIF%JGGFS
FOUJBUFE4FSWJDFT'JFME %4'JFME
JOUIF*1WBOE*1W)FBEFST
t 3'$"TTVSFE'PSXBSEJOH
1)#(SPVQ
t 3'$"O&YQFEJUFE'PSXBSE
JOH1)#
t 3'$1FS)PQ#FIBWJPS
*EFOUJGJDBUJPO$PEFT
TCP/IP
t 3'$6TFS%BUBHSBN1SPUPDPM
t 3'$5IF5'511SPUPDPM
3FWJTJPO
t 3'$*OUFSOFU1SPUPDPM
t 3'$*OUFSOFU$POUSPM.FTTBHF
1SPUPDPM
t 3'$5SBOTNJTTJPO$POUSPM
1SPUPDPM
t 3'$&UIFSOFU"EESFTT
3FTPMVUJPO1SPUPDPM
t 3'$5FMOFU1SPUPDPM
4QFDJGJDBUJPO
t 3'$3FRVJSFNFOUTGPS
*1W3PVUFST
PPP
t 3'$111*OUFSOFU1SPUPDPM
$POUSPM1SPUPDPM *1$1
t 3'$5IF1PJOUUP1PJOU
1SPUPDPM 111
t 3'$111-JOL2VBMJUZ
.POJUPSJOH
t 3'$5IF111.VMUJMJOL
1SPUPDPM .1
ATM
t 3'$%FGJOJUJPOTPG5FYUVBM
$POWFOUJPOTBOE0#+&$5
*%&/5*5*&4GPS"5..BOBHF
NFOU 'FCSVBSZ
t 3'$%FGJOJUJPOPG.BOBHFE
0CKFDUTGPS"5..BOBHFNFOU
'FCSVBSZ
t BGUN5SBGGJD.BOBHF
NFOU4QFDJGJDBUJPO7FSTJPO
.BSDI
t *5653FDPNNFOEBUJPO*o
#*4%/0QFSBUJPOBOE.BJOUF
OBODF1SJODJQMFTBOE'VODUJPOT
WFSTJPO
t *5653FDPNNFOEBUJPO*øo
#*4%/VTFSOFUXPSLJOUFSGBDFøo
1IZTJDBMMBZFSTQFDJGJDBUJPO
(FOFSBMDIBSBDUFSJTUJDT
t (3$03&o(FOFSJD3FRVJSF
NFOUTGPS0QFSBUJPOTPG"5.
/FUXPSL&MFNFOUT /&T *TTVF
+VOF
t (3$03&o"TZODISPOPVT
5SBOTGFS.PEF "5. "EBQUBUJPO
-BZFS ""- 1SPUPDPMT(FOFSJD
3FRVJSFNFOUT *TTVF +VMZ
VPLS
t 3'$7JSUVBM1SJWBUF-"/
4FSWJDFT6TJOH-%1 QSFWJPVTMZ
ESBGUJFUGMWQOWQMTMEQUYU
Pseudowires
t 3'$1TFVEPXJSF&NVMBUJPO
&EHFUP&EHF 18& $POUSPM
8PSEGPS6TFPWFSBO.1-414/
t 3'$1TFVEPXJSF4FUVQBOE
.BJOUFOBODFVTJOHUIF-BCFM
%JTUSJCVUJPO1SPUPDPM -%1
t 3'$&ODBQTVMBUJPO.FUIPET
GPS5SBOTQPSUPG&UIFSOFUPWFS
.1-4/FUXPSLT
t 3'$4USVDUVSF"HOPTUJD
5JNF%JWJTJPO.VMUJQMFYJOH 5%.
PWFS1BDLFU 4"5P1
t 3'$&ODBQTVMBUJPO.FUIPET
GPS5SBOTQPSUPG"TZODISPOPVT
5SBOTGFS.PEF "5. PWFS.1-4
/FUXPSLT
t 3'$1TFVEPXJSF7JSUVBM
$JSDVJU$POOFDUJWJUZ7FSJGJDBUJPO
7$$7 "$POUSPM$IBOOFMGPS
1TFVEPXJSFT
t 3'$4USVDUVSF"XBSF5JNF
%JWJTJPO.VMUJQMFYFE 5%. $JSDVJU
&NVMBUJPO4FSWJDFPWFS1BDLFU
4XJUDIFE/FUXPSL $&4P14/
RADIUS
t 3'$3FNPUF"VUIFOUJDBUJPO
%JBM*O6TFS4FSWJDF 3"%*64
t 3'$3"%*64"DDPVOUJOH
SSH
t ESBGUJFUGTFDTIBSDIJUFDUVSFUYUo
44)1SPUPDPM"SDIJUFDUVSF
t ESBGUJFUGTFDTIVTFSBVUIUYUo
44)"VUIFOUJDBUJPO1SPUPDPM
t ESBGUJFUGTFDTIUSBOTQPSUUYUo
44)5SBOTQPSU-BZFS1SPUPDPM
t ESBGUJFUGTFDTIDPOOFDUJPOUYUo
44)$POOFDUJPO1SPUPDPM
t ESBGUJFUGTFDTIOFXNPEFTUYUo
44)5SBOTQPSU-BZFS&ODSZQUJPO
.PEFT
TACACS+
t *&5'ESBGUHSBOUUBDBDTUYU
Network management
t *5659*OGPSNBUJPO
UFDIOPMPHZ04*4USVDUVSFPG
.BOBHFNFOU*OGPSNBUJPO
t *5659*OGPSNBUJPO
UFDIOPMPHZ04*4ZTUFNT.BOBHF
NFOU&WFOU3FQPSU.BOBHFNFOU
'VODUJPO
t .&RVJQNFOUBOE
$POOFDUJPO.PEFMT
t 5.'/FUXPSL$POOFDUJWJUZ
.PEFM
t 3'$4/.1W
t 3'$4/.1W.*#
t 3'$*1.*#
t 3'$5$1.*#
t 3'$6%1.*#
t 3'$3"%*64
t 3'$4/.1'SBNFXPSL.*#
t 3'$4/.1.1%.*#
t 3'$4/.1"QQMJDBUJPOT
t 3'$4/.16TFSCBTFE
4..*#
t 3'$4/.17JFXCBTFE
"$..*#
t 3'$4/.1$0..6/*5:
.*#
t 3'$&UIFSOFUMJLF.*#
t 3'$3.0/.*#
t 3'$5IF*OUFSGBDFT
(SPVQ.*#
t 3'$*OWFSUFE4UBDL.*#
t 3'$/PUJGJDBUJPO-PH.*#
t 3'$)$3.0/.*#
t 3'$"O"SDIJUFDUVSFGPS
%FTDSJCJOH4JNQMF/FUXPSL
.BOBHFNFOU1SPUPDPM 4/.1
.BOBHFNFOU'SBNFXPSLT
t 3'$.FTTBHF1SPDFTTJOH
BOE%JTQBUDIJOHGPSUIF4JNQMF
/FUXPSL.BOBHFNFOU1SPUPDPM
4/.1
t 3'$4JNQMF/FUXPSL
.BOBHFNFOU1SPUPDPM 4/.1
"QQMJDBUJPOT
t 3'$6TFSCBTFE4FDVSJUZ
.PEFM 64. GPSWFSTJPOPGUIF
4JNQMF/FUXPSL.BOBHFNFOU
1SPUPDPM 4/.1W
t 3'$4/.1.*#
t ESBGUJFUGEJTNBOBMBSNNJCUYU
t ESBGUJFUGNQMTMEQNJCUYU
t *"/"JG5ZQF.*#
1MVTTVQQPSUGPSBOFYUFOTJWFSBOHF
PGQSPQSJFUBSZ.*#T
www.alcatel-lucent.com
"MDBUFM -VDFOU "MDBUFM-VDFOUBOEUIF"MDBUFM-VDFOUMPHP
BSFUSBEFNBSLTPG"MDBUFM-VDFOU"MMPUIFSUSBEFNBSLTBSFUIFQSPQFSUZPGUIFJSSFTQFDUJWFPXOFST
5IFJOGPSNBUJPOQSFTFOUFEJTTVCKFDUUPDIBOHFXJUIPVUOPUJDF"MDBUFM-VDFOUBTTVNFTOPSFTQPOTJCJMJUZ
GPSJOBDDVSBDJFTDPOUBJOFEIFSFJO$PQZSJHIUª"MDBUFM-VDFOU"MMSJHIUTSFTFSWFE
$1(
Wyszukiwarka
Podobne podstrony:
Datasheet SL4 100
Datasheet QS10 241 C1
Datasheet YR2 DIODE
pdf datasheet 5 id 352824 Nieznany
datasheet (2)
Citroen C4 Picasso Datasheet
datasheet
Datasheet SL5 300
LBB441850 DataSheet plPL E3338100491
Datasheet ML15 051
Datasheet SL10 305
Datasheet SL20 303
PLN 1P1000 DataSheet plPL E3242294027
Datasheet QT20 241 C1
Datasheet SLR2 100
LBC308001 DataSheet plPL E2141295243
1830 switch datasheet
Datasheet SL30 100
więcej podobnych podstron
