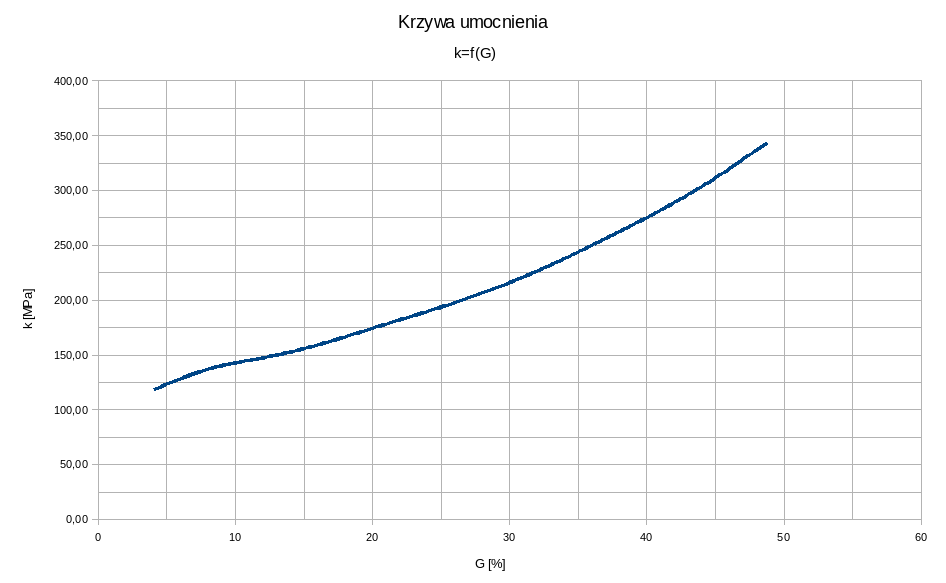

Próbka nr 1 (z pominięciem tarcia) | Próbka nr 3 (d x h = 0,5) | |||||||||||||||
ΔH [mm] | Hi [mm] | G [%] | P [kg] | P [N] | p = k [Mpa] | ΔH [mm] | Hi [mm] | G [%] | P [kg] | P [N] | p [Mpa] | |||||
0.5 | 11.79 | 4.07 | 1360 | 13341.60 | 118.03 | 0.5 | 23.75 | 2.06 | 1420 | 13930.20 | 123.23 | |||||
1.0 | 11.29 | 8.14 | 1580 | 15499.80 | 137.12 | 1.0 | 23.25 | 4.12 | 1580 | 15499.80 | 137.12 | |||||
1.5 | 10.79 | 12.21 | 1700 | 16677.00 | 147.53 | 1.5 | 22.75 | 6.19 | 1660 | 16284.60 | 144.06 | |||||
2.0 | 10.29 | 16.27 | 1840 | 18050.40 | 159.68 | 2.0 | 22.25 | 8.25 | 1740 | 17069.40 | 151.00 | |||||
2.5 | 9.79 | 20.34 | 2020 | 19816.20 | 175.30 | 2.5 | 21.75 | 10.31 | 1800 | 17658.00 | 156.21 | |||||
3.0 | 9.29 | 24.41 | 2200 | 21582.00 | 190.92 | 3.0 | 21.25 | 12.37 | 1880 | 18442.80 | 163.15 | |||||
3.5 | 8.79 | 28.48 | 2400 | 23544.00 | 208.28 | 3.5 | 20.75 | 14.43 | 1960 | 19227.60 | 170.10 | |||||
4.0 | 8.29 | 32.55 | 2640 | 25898.40 | 229.11 | 4.0 | 20.25 | 16.49 | 2040 | 20012.40 | 177.04 | |||||
4.5 | 7.79 | 36.62 | 2920 | 28645.20 | 253.41 | 4.5 | 19.75 | 18.56 | 2140 | 20993.40 | 185.72 | |||||
5.0 | 7.29 | 40.68 | 3220 | 31588.20 | 279.44 | 5.0 | 19.25 | 20.62 | 2220 | 21778.20 | 192.66 | |||||
5.5 | 6.79 | 44.75 | 3560 | 34923.60 | 308.95 | 5.5 | 18.75 | 22.68 | 2300 | 22563.00 | 199.60 | |||||
6.0 | 6.29 | 48.82 | 3960 | 38847.60 | 343.66 | 6.0 | 18.25 | 24.74 | 2400 | 23544.00 | 208.28 | |||||
H0 [mm] | d [mm] | S [mm2] | 6.5 | 17.75 | 26.8 | 2500 | 24525.00 | 216.96 | ||||||||
12.29 | 12 | 113.04 | 7.0 | 17.25 | 28.87 | 2600 | 25506.00 | 225.64 | ||||||||
7.5 | 16.75 | 30.93 | 2700 | 26487.00 | 234.32 | |||||||||||
Próbka nr 2 (d x h = 1) | 8.0 | 16.25 | 32.99 | 2820 | 27664.20 | 244.73 | ||||||||||
ΔH [mm] | Hi [mm] | G [%] | P [kg] | P [N] | p [Mpa] | 8.5 | 15.75 | 35.05 | 2920 | 28645.20 | 253.41 | |||||
0.5 | 11.71 | 4.10 | 1560 | 15303.60 | 134.48 | 9.0 | 15.25 | 37.11 | 3020 | 29626.20 | 262.09 | |||||
1.0 | 11.21 | 8.19 | 1760 | 17265.60 | 151.73 | 9.5 | 14.75 | 39.18 | 3140 | 30803.40 | 272.50 | |||||
1.5 | 10.71 | 12.29 | 1900 | 18639.00 | 163.79 | 10.0 | 14.25 | 41.24 | 3280 | 32176.80 | 284.65 | |||||
2.0 | 10.21 | 16.38 | 2060 | 20208.60 | 177.59 | 10.5 | 13.75 | 43.3 | 3420 | 33550.20 | 296.80 | |||||
2.5 | 9.71 | 20.48 | 2240 | 21974.40 | 193.11 | 11.0 | 13.25 | 45.36 | 3580 | 35119.80 | 310.68 | |||||
3.0 | 9.21 | 24.57 | 2460 | 24132.60 | 212.07 | 11.5 | 12.75 | 47.42 | 3720 | 36493.20 | 322.83 | |||||
3.5 | 8.71 | 28.67 | 2660 | 26094.60 | 229.31 | H0 [mm] | d [mm] | S [mm2] | ||||||||
4.0 | 8.21 | 32.76 | 2900 | 28449.00 | 250.00 | 24.25 | 12 | 113.04 | ||||||||
4.5 | 7.71 | 36.86 | 3140 | 30803.40 | 270.69 | |||||||||||
5.0 | 7.21 | 40.95 | 3480 | 34138.80 | 300.00 | |||||||||||
5.5 | 6.71 | 45.05 | 3840 | 37670.40 | 331.04 | |||||||||||
H0 [mm] | d [mm] | S [mm2] | ||||||||||||||
12.21 | 12.04 | 113.79 | ||||||||||||||
Próbka nr 4 (d x h = 2) | ||||||||||||||||
ΔH [mm] | Hi [mm] | G [%] | P [kg] | P [N] | p [Mpa] | |||||||||||
0.25 | 5.85 | 4.10 | 1140 | 11183.40 | 98.11 | |||||||||||
0.50 | 5.60 | 8.20 | 1920 | 18835.20 | 165.24 | |||||||||||
0.75 | 5.35 | 12.30 | 2080 | 20404.80 | 179.01 | |||||||||||
1.00 | 5.10 | 16.39 | 2220 | 21778.20 | 191.06 | |||||||||||
1.25 | 4.85 | 20.49 | 2400 | 23544.00 | 206.56 | |||||||||||
1.50 | 4.60 | 24.59 | 2640 | 25898.40 | 227.21 | |||||||||||
1.75 | 4.35 | 28.69 | 2860 | 28056.60 | 246.15 | |||||||||||
2.00 | 4.10 | 32.79 | 3120 | 30607.20 | 268.52 | |||||||||||
2.25 | 3.85 | 36.89 | 3460 | 33942.60 | 297.78 | |||||||||||
2.50 | 3.60 | 40.98 | 3820 | 37474.20 | 328.77 | |||||||||||
H0 [mm] | d [mm] | S [mm2] | ||||||||||||||
6.10 | 12.05 | 113.98 | ||||||||||||||

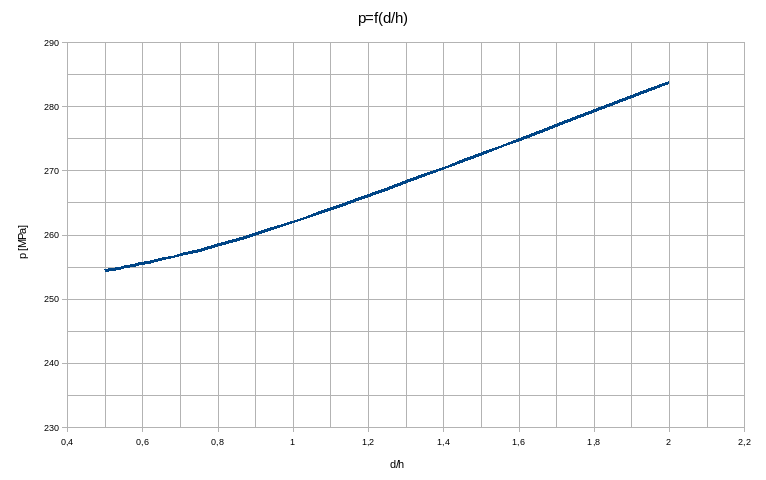

p [Mpa] | d x h | k [MPa] | q [MPa] | μ | ||||||||||||
254.34 | 0.5 | 209.66 | 3.08 | 0.04 | ||||||||||||
261.96 | 1 | |||||||||||||||
283.70 | 2 |

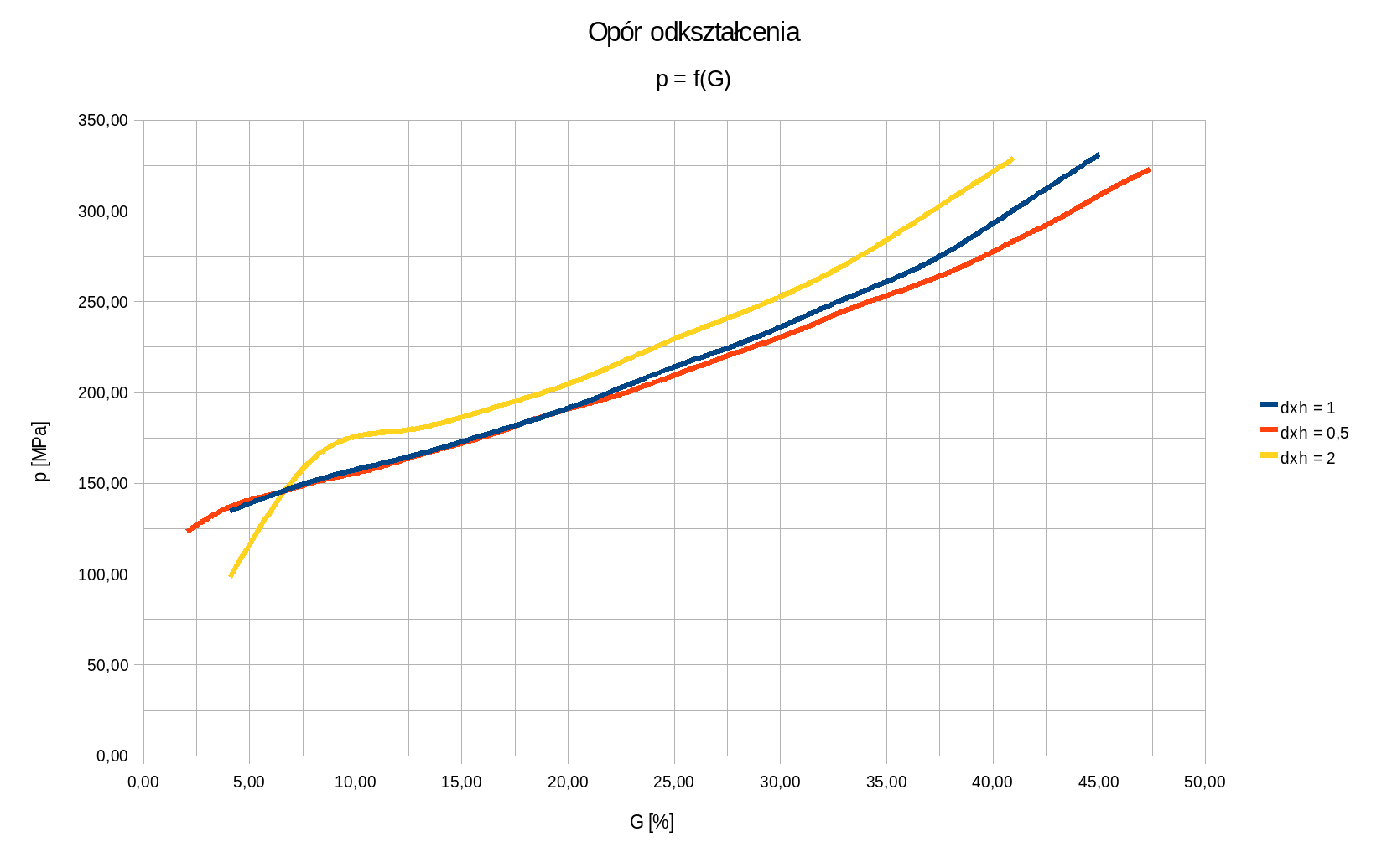

dxh = 1 | 261.96 | ||||||||||||||||||||
dxh = 0,5 | 254.34 | ||||||||||||||||||||
dxh = 2 | 283.70 | ||||||||||||||||||||
209.66 |
