Sheet 1: laborki

2.3.1.	wypełniaj tylko tabele zaznaczone na żółto																	x	y	x'	y'												ta komórka jest wypełniona celem umożliwienia przesunięcia zakresu widzialnego w prawo tak, żeby możliwe było zobaczenie wszystkich wykresów wskazowych.

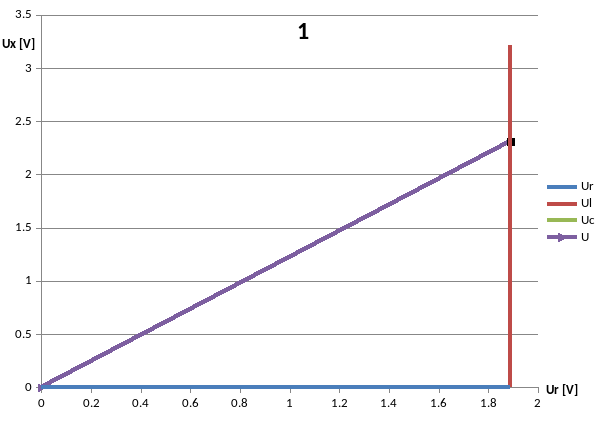

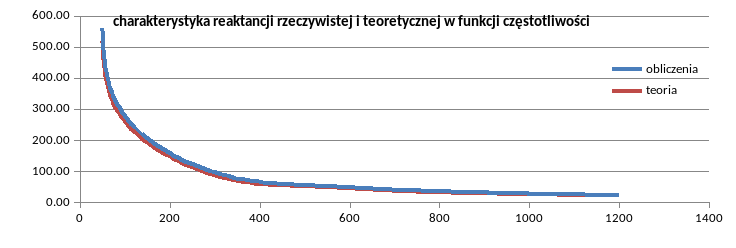

f [Hz]	u [V]	fi [deg]	xcobl [om]	xct [om]	Δxc [om]										tabela potrzebna do wykresów wskazowych [automat]	1	ur	0	0	1.89	0
50	11.187	-90	559.35	519.27	40.08												ul	1.89	0	1.89	3.22
100	5.523	-88	276.15	259.63	16.52												uc	1.89	3.22	1.89	2.31

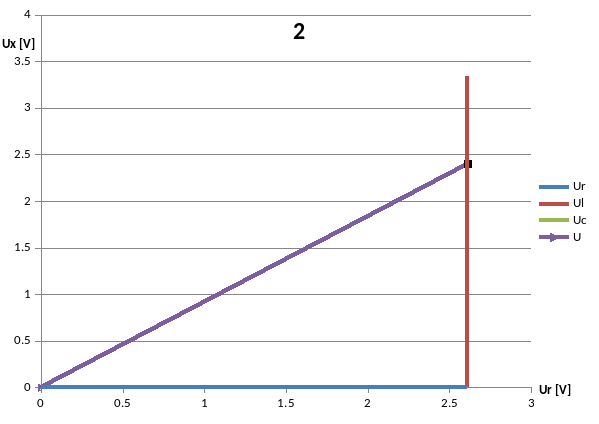

300	1.917	-83	95.85	86.54	9.31											2	ur	0	0	2.61	0
500	1.111	-76	55.55	51.93	3.62												ul	2.61	0	2.61	3.34
700	0.814	-70	40.70	37.09	3.61												uc	2.61	3.34	2.61	2.4

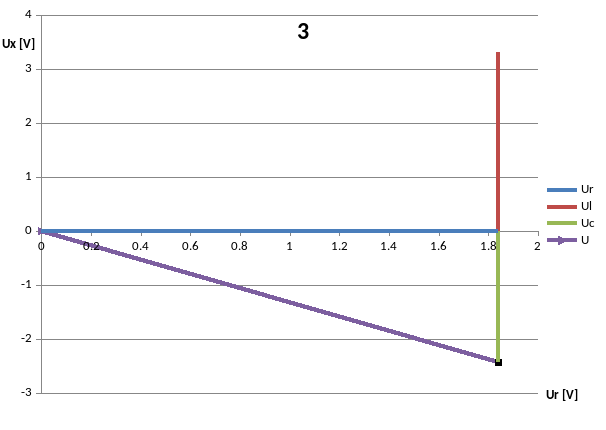

900	0.694	-64	31.55	28.85	2.70											3	ur	0	0	1.84	0
1000	0.67	-62	27.92	25.96	1.95												ul	1.84	0	1.84	3.31
1200	0.642	-57	22.93	21.64	1.29												uc	1.84	3.31	1.84	-2.43

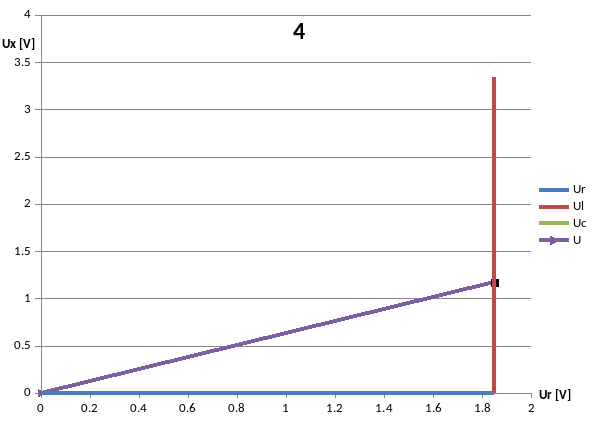

																4	ur	0	0	1.85	0
																	ul	1.85	0	1.85	3.34
2.3.5.																	uc	1.85	3.34	1.85	1.17
R [om]	C [F]	Ur [V]	Ul [V]	Uc [V]	U [V]	fi [deg]	Xc [om]	Xl [om]	X [om]	Z [om]	fi [deg]
75	6,13*10^(-6)	1.89	3.22	0.91	3.07	48	45.5	161	115.5	150.507474897428	50.12	wykresy wskazowe
105	6,13*10^(-6)	2.61	3.34	0.94	3.64	42	47	167	120	174.362409939757	43.49
85	1*10^(-6)	1.84	3.31	5.74	3.31	-48	287	165.5	-121.5	161.568870764142	-48.76
85	3,12*10^(-6)	1.85	3.34	2.17	2.76	33	108.5	167	58.5	121.509258906472	28.78
f = const =	700	Hz	Tabela nr2
I = const =	0.015	A
L = const =	0.015	H
Ra =	15	Ω		zbędne
RL =	6	Ω
ω =	4398.22971502571	rad/s
R [om]	C [F]	Ur [V]	Ul [V]	Uc [V]	U [V]	Xc [om]	Xl [om]	X [om]	Z [om]	fi [deg]
85	1E-06	1.5	0.99	3.410	2.848	227.36	65.97	-161.391	189.86	-58.22
85	3.12E-06	1.5	0.99	1.093	1.504	72.87	65.97	-6.900	100.24	-3.95
85	6.15E-06	1.5	0.99	0.555	1.562	36.97	65.97	29.004	104.12	16.17
105	1E-06	1.8	0.99	3.410	3.017	227.36	65.97	-161.391	201.11	-53.37
105	3.12E-06	1.8	0.99	1.093	1.803	72.87	65.97	-6.900	120.20	-3.29
105	6.15E-06	1.8	0.99	0.555	1.852	36.97	65.97	29.004	123.46	13.59
		Rg =	50	Ω
3.3	U [V]	L [H]	C [F]	fr [Hz]	Q1	Q2
	5	0.04	2.53E-08	5000	13.86	8.918

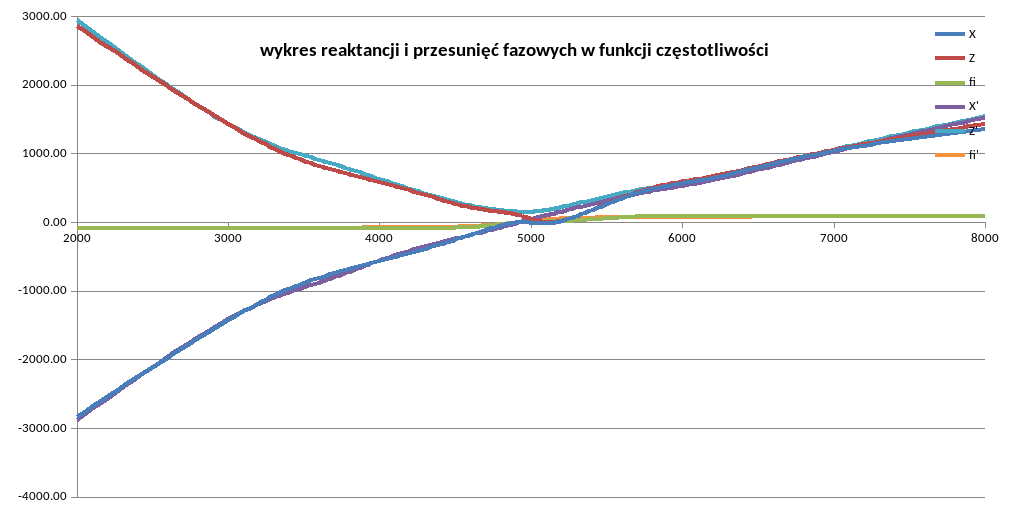

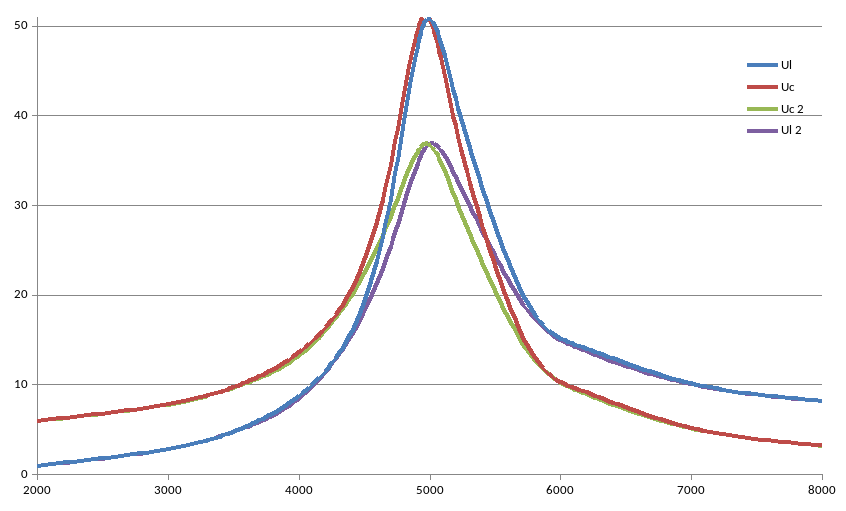

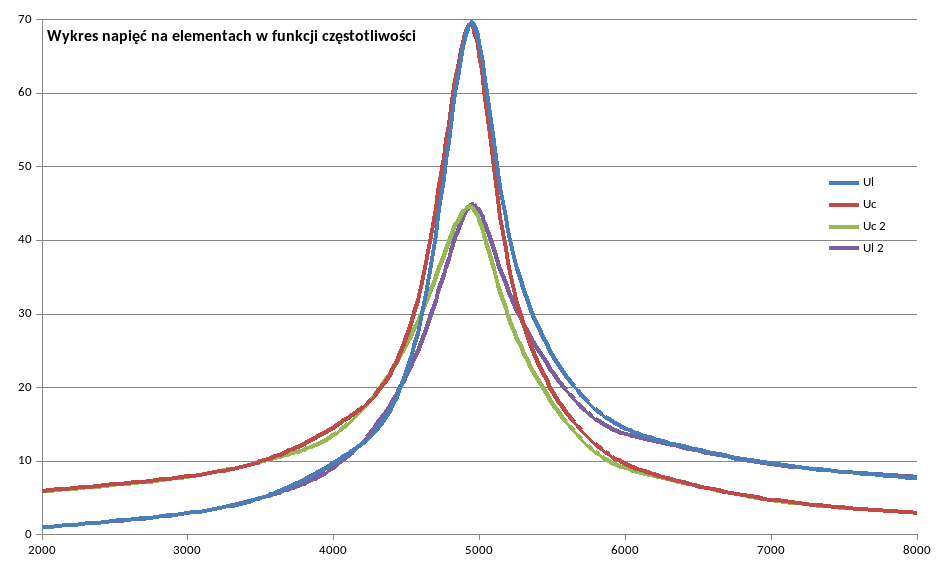

R [om]	f [Hz]	I [A]	Ul [V]	Uc [V]	X [om]	Z [om]	fi [deg]
50	2000	0.00175	0.98	5.95	-2840.00	2857.14	-88.69
50	3000	0.0035	2.89	7.89	-1428.57	1428.57	-87.39
50	3600	0.0061	5.65	10.61	-813.11	819.67	-85.43
50	4100	0.0095	10.94	15.82	-513.68	526.32	-82.79
50	4600	0.023	29.23	33.59	-189.57	217.39	-71.07
50	4933	0.052	69.3	69.24	1.15	96.15	1.02
50	5200	0.27	41.25	36.88	16.19	18.52	13.98
50	5700	0.0115	19	14.18	419.13	434.78	81.18
50	6200	0.0075	13.02	8.18	645.33	666.67	84.25
50	7000	0.00475	9.67	4.74	1037.89	1052.63	86.42
50	8000	0.0035	7.65	2.93	1348.57	1428.57	87.24
100	2000	0.0017	0.97	5.87	-2882.35	2941.18	-87.72
100	3000	0.0035	2.88	7.84	-1417.14	1428.57	-85.36
100	3600	0.0055	5.54	10.39	-881.82	909.09	-82.57
100	4100	0.009	10.65	15.02	-485.56	555.56	-76.68
100	4600	0.0205	25.97	29.86	-189.76	243.90	-58.78
100	4933	0.033	44.59	44.55	1.21	151.52	0.60
100	5200	0.023	33.14	29.66	151.30	217.39	52.76
100	5700	0.01075	17.36	12.94	411.16	465.12	74.37
100	6200	0.00775	12.69	7.96	610.32	645.16	79.33
100	7000	0.00475	9.57	4.7	1025.26	1052.63	83.60
100	8000	0.00325	7.86	2.92	1520.00	1538.46	85.67
Dobroć Q
Praktyczna			Teoretyczna
Q1	13.86		Q1	12.572
Q2	8.918		Q2	8.382
		C	2.53E-08	C	2.53E-08
		L	0.04	L	0.04
		Rg	50	Rg	50
		R	50	R	100
		Ra	0	Ra	0
		Rl	0	Rl	0
		fr	5000	fr	5000
		xl	1256.64	xl	1256.64
		xc	1258.14	xc	1258.14
		Rz	100.00	Rz	150.00
		Z	100.01	Z	150.01
		I	0.05	I	0.03
		Ul	62.82	Ul	41.89
		Uc	62.90	Uc	41.94
		Ql	12.56	Ql	8.38
		Qc	12.58	Qc	8.39
		Q	12.57	Q	8.38

---

Sheet 2: pomiary z kompa

2.3.1.	pomiary wykonane na komputerze																	x	y	x'	y'												ta komórka jest wypełniona celem umożliwienia przesunięcia zakresu widzialnego w prawo tak, żeby możliwe było zobaczenie wszystkich wykresów wskazowych.

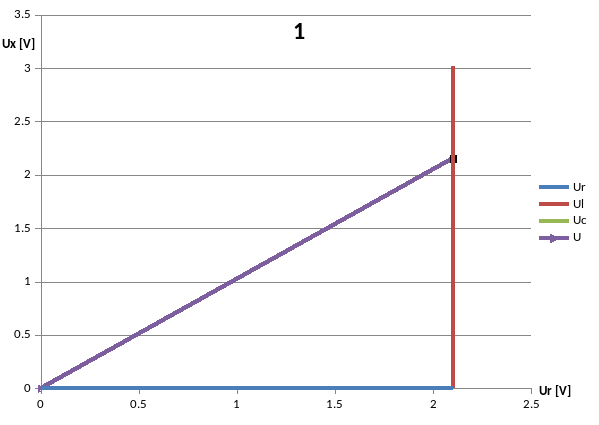

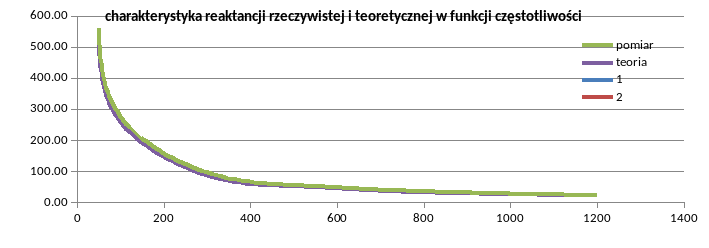

f [Hz]	u [V]	fi [deg]	xcobl [om]	xct [om]	Δxc [om]										tabela potrzebna do wykresów wskazowych	1	ur	0	0	2.102	0
50	10.39	-88.3	519.50	519.27	0.23												ul	2.102	0	2.102	3.021
100	5.193	-86.7	259.65	259.63	0.02												uc	2.102	3.021	2.102	2.154972

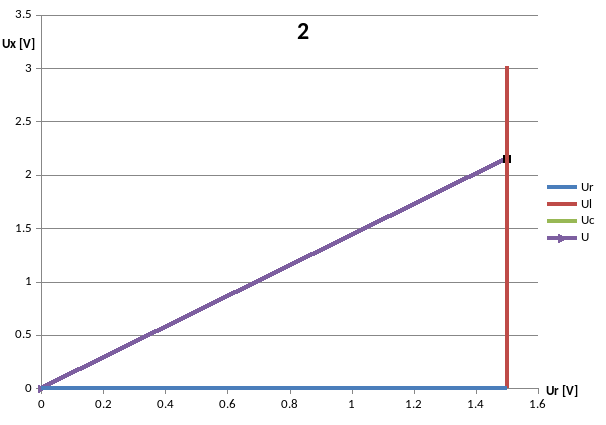

300	1.732	-80.2	86.60	86.54	0.06											2	ur	0	0	1.5	0
500	1.039	-73.9	51.95	51.93	0.02												ul	1.5	0	1.5	3.021
700	0.742	-68	37.10	37.09	0.01												uc	1.5	3.021	1.5	2.155008

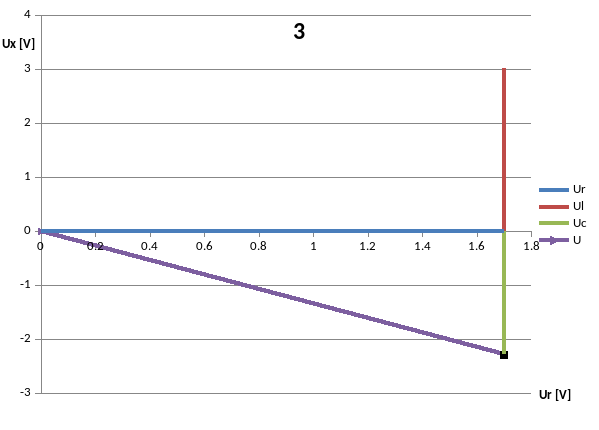

900	0.577	-62.5	26.23	28.85	2.62											3	ur	0	0	1.7	0
1000	0.5192	-60	21.63	25.96	4.33												ul	1.7	0	1.7	3.021
1200	0.4335	-55.3	15.48	21.64	6.15												uc	1.7	3.021	1.7	-2.289

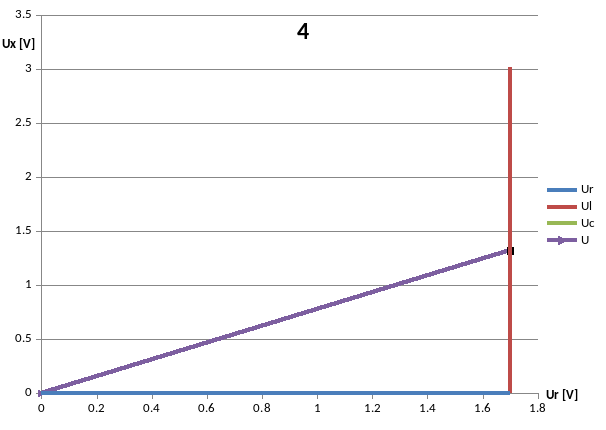

																4	ur	0	0	1.7	0
																	ul	1.7	0	1.7	3.02
2.3.5.																	uc	1.7	3.02	1.7	1.32
R	C	Ur	Ul	Uc	U	fi	Xc	Xl	X	Z	fi
75	6,13*10^(-6)	2.10	3.02	0.87	3.32	40.40	43.30	151.05	107.75	144.64	48.15
105	6,13*10^(-6)	1.50	3.02	0.87	2.89	48.10	43.30	151.05	107.75	166.17	40.42
85	1*10^(-6)	1.70	3.02	5.31	3.13	-47.10	265.50	151.05	-114.45	156.34	-47.06
85	3,12*10^(-6)	1.70	3.02	1.70	2.51	31.70	85.00	151.00	66.00	125.29	31.79
		Rg = 50 Ω
3.3	U	L	C	fr	Q1	Q2
	5	0.04	25,3n	5000	9.8294	7.0976

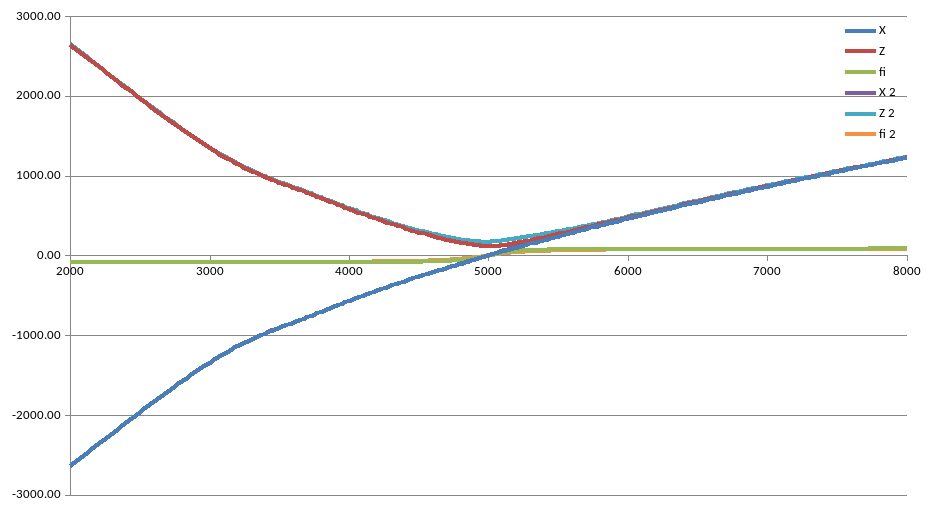

R	f	I	Ul	Uc	X	Z	fi
50	2000	0.001893	0.952	5.953	-2641.84	2641.31	-88.59
50	3000	0.003715	2.802	7.788	-1342.13	1345.90	-87.23
50	3600	0.005886	5.328	10.283	-841.83	849.47	-85.58
50	4100	0.009674	9.972	14.838	-503.00	516.85	-82.64
50	4600	0.02059	23.812	28.148	-210.59	242.84	-72.85
50	4933	0.039627	49.147	50.517	-34.57	126.18	-28.01
50	5200	0.032074	41.932	38.789	97.99	155.89	56.44
50	5700	0.014245	20.414	15.716	329.80	351.00	78.85
50	6200	0.008974	13.989	9.103	544.46	557.17	83.19
50	7000	0.005754	10.127	5.169	861.66	868.96	85.69
50	8000	0.004066	8.178	3.196	1225.28	1229.71	86.96
100	2000	0.001891	0.951	5.947	-2641.99	2644.10	-87.51
100	3000	0.0037	2.791	7.757	-1342.16	1351.35	-85.10
100	3600	0.005828	5.275	10.18	-841.63	857.93	-82.22
100	4100	0.00942	9.71	14.448	-502.97	530.79	-77.12
100	4600	0.018432	21.317	25.199	-210.61	271.27	-61.36
100	4933	0.028614	35.488	36.478	-34.60	174.74	-16.74
100	5200	0.023346	33.136	30.652	106.40	214.17	42.78
100	5700	0.013469	19.301	14.86	329.72	371.22	70.77
100	6200	0.00877	13.671	8.896	544.47	570.13	78.07
100	7000	0.005699	10.03	5.12	861.55	877.35	82.40
100	8000	0.004047	8.139	3.181	1225.11	1235.48	84.64
Dobroć Q
Praktyczna			Teoretyczna
Q1	9.8294		Q1	10.348
Q2	7.0976		Q2	7.331
		C	2.53E-08	C	2.53E-08
		L	0.04	L	0.04
		Rg	50	Rg	50
		R	50	R	100
		Ra	15	Ra	15
		Rl	6.5	Rl	6.5
		fr	5000	fr	5000
		xl	1256.64	xl	1256.64
		xc	1258.14	xc	1258.14
		Rz	121.50	Rz	171.50
		Z	121.51	Z	171.51
		I	0.04	I	0.03
		Ul	51.71	Ul	36.64
		Uc	51.77	Uc	36.68
		Ql	10.34	Ql	7.33
		Qc	10.35	Qc	7.34
		Q	10.35	Q	7.33
