User manual for central

heating controller

Euroster 2000

Functions of a digital thermostat:

1. You can program the heater for a whole week.
2. Every hour may increase and decrease heating.
3. You can keep the temperature at 7 ° C all the time.
4. Has a switching accuracy switch from 0.5oC to 1oC.
5. You can control air-conditioning units.
6. It has 5 fixed programs and 3 programmable programs.

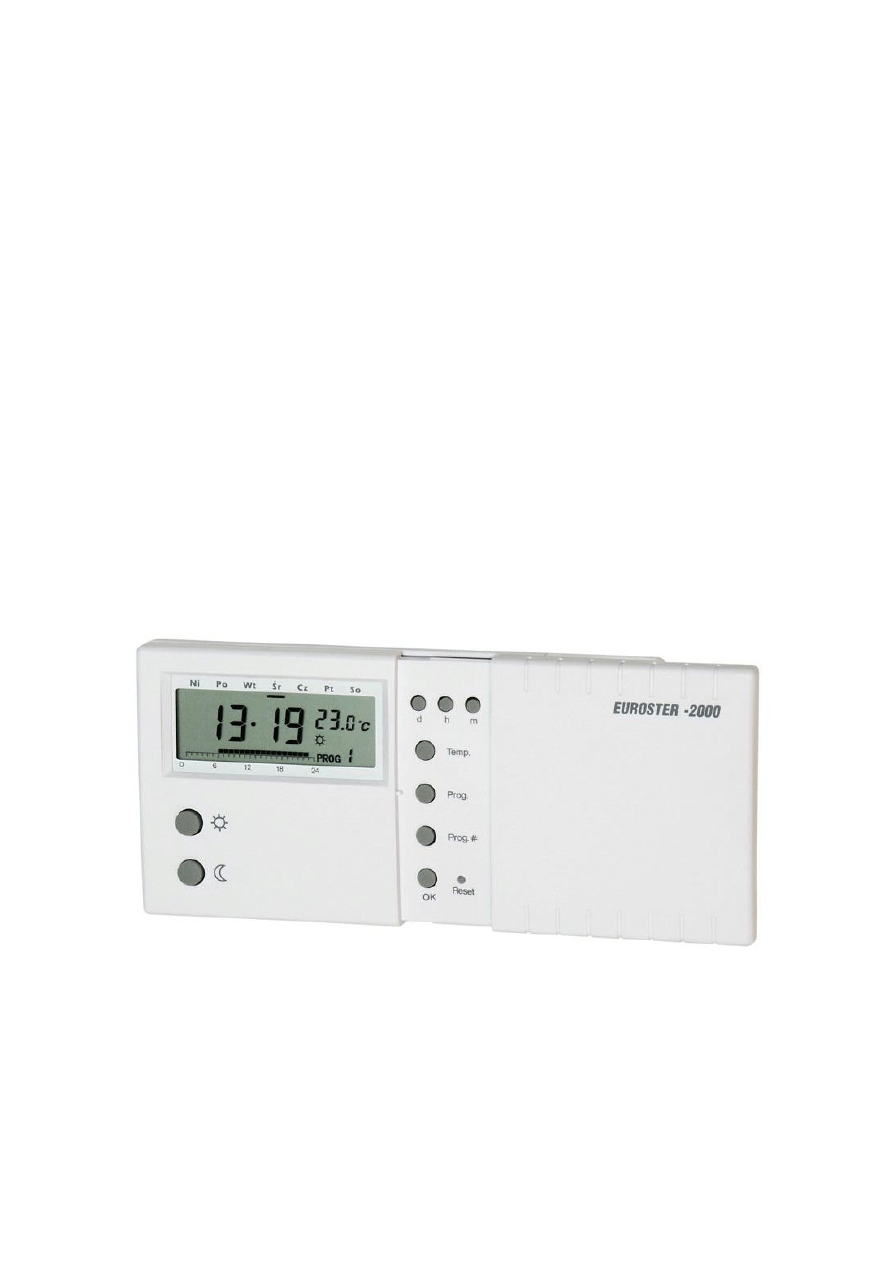

7. Has a display showing the current time, temperature and program.
8. You can control the heater up to 1000W.
9. You can control the induction device up to 400W.

Programming a digital thermostat:

1. Insert the battery according to the marking, the display will show a zero and a flashing dot.

2. Press the "d" button repeatedly until the horizontal bar under the current day of the week is set.

3. If the thermostat does not respond to the buttons (it is locked), press the button located in the
hole marked "Reset", the display will show a zero and a flashing dot.

4. Press the "h" button repeatedly until the display shows the current time.

5. Press the "m" button repeatedly until the display shows the current minute.

6. Press the "Temp" button on the display to blink the programmed temperature.

7. Press the "sun" button repeatedly until the display shows the temperature you need.

8. Wait 15 seconds or press the "OK" button, the thermostat will store the programmed
temperature.

9. Press the "moon" button on the display will show the "moon".

10. Press the "Temp" button on the display will blink the programmed temperature.

11. Press the "moon" button repeatedly until the display shows the temperature you need.

12. Wait 15 seconds or press the "OK" button, the thermostat will store the programmed
temperature.

13. Press the "Prog" button, the display will show zero.

14. Press the "Prog #" button several times, the programs will change in the display (at the bottom of
the display there is a day scale of 0 ... 24, the black squares indicate the hours the higher the daily
temperature, You can choose one of five fixed programs or choose programs 6, 7 or 8 that you can
change.

15. If you have chosen one of the fixed programs, press the "Prog" button, the horizontal bar will
move to the next day of the week.

16. Press the "Prog #" button several times and select the program for the next day of the week.

17. Press the "Prog" button on the display, the horizontal bar will move to the next day of the week,
and then following steps 12 and 13, the remaining days of the week should be programmed.

18. If you want to change program 6, 7 or 8 then you should;
- Press the "Prog" button, the display will show zero,
- Press the "Prog #" button repeatedly until program 6,
- Press the "moon" button several times to program a lower temperature,
- Press the "sun" button several times to program a higher temperature,

19. Wait 15 seconds or press the "OK" button, the thermostat will remember the changed programs.

20. If winter time we leave for the holiday then the thermostat should be set to program 0,
The thermostat will keep the temperature 7 ° C, will not allow frost to appear;
- Press the "Prog" button, the display will show zero,
- Press the "Prog #" button repeatedly until program 0,
- wait 15 seconds or press the "OK" button, the thermostat will memorize the set program.

21. If you want to switch to night or daytime heating earlier than it is programmed;
- Press the "moon" or "sun" button, the character of the selected button and the hand sign will
appear on the display.
The thermostat will return to the programmed programs at the next temperature change.

22. If you want the thermostat to switch so often (it is recommended for blow-up or convection
heating) it should be;

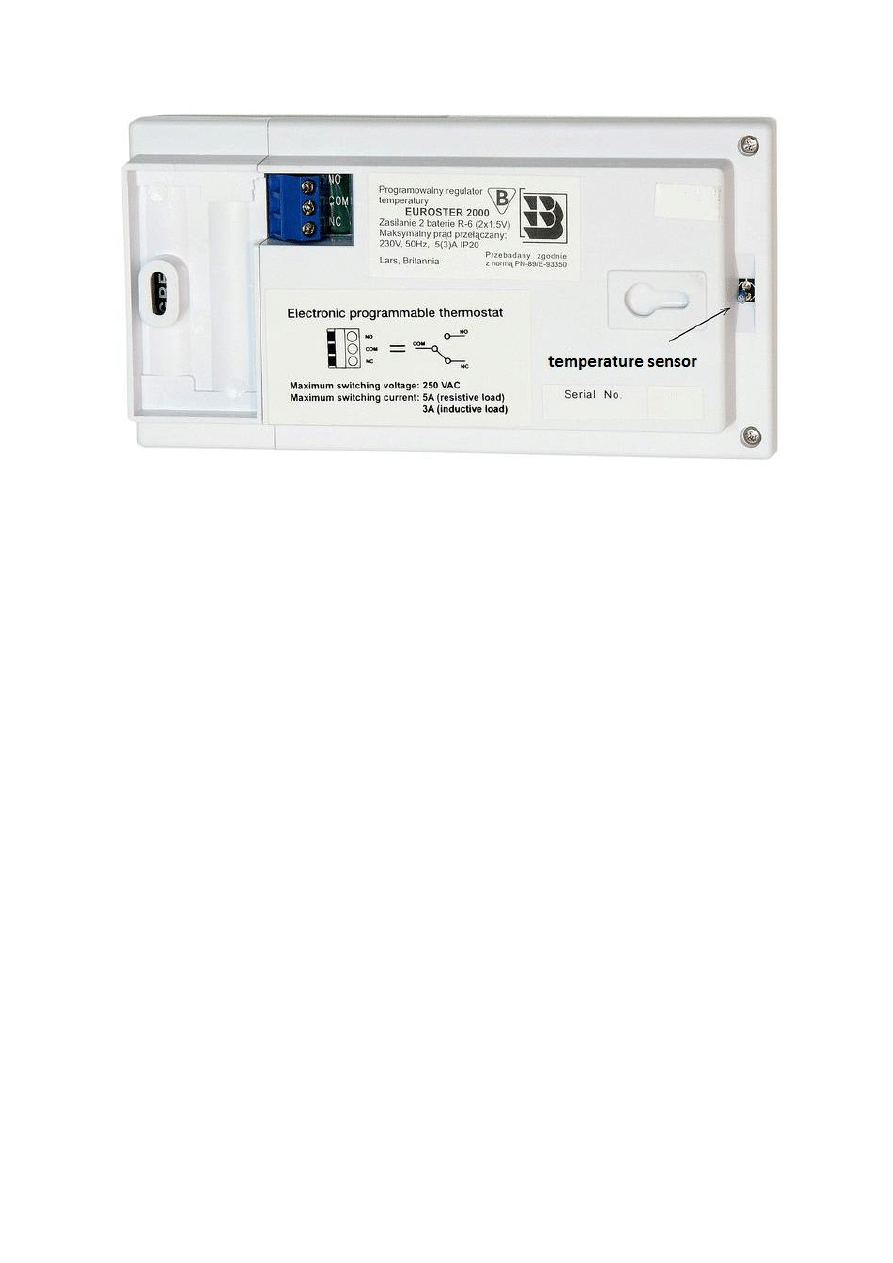

- remove the thermostat cover, move switch 3 to the ON position.

23. If you want to use the thermostat to control the air conditioning, you should;
- remove the thermostat cover, move the switch 1 to the ON position.

24. If you want the thermostat to switch to a 5 minute delay then you should;
- remove the thermostat cover, move the switch 2 to the ON position.
