Porous TiNbZr alloy scaffolds for biomedical applications

background image

Porous TiNbZr alloy scaffolds for biomedical applications

Xiaojian Wang, Yuncang Li, Jianyu Xiong, Peter D. Hodgson, Cui’e Wen

*

Institute for Technology Research and Innovation, Deakin University, Geelong, Vic. 3217, Australia

Received 27 January 2009; received in revised form 31 May 2009; accepted 2 June 2009

Available online 6 June 2009

Abstract

In the present study, porous Ti–10Nb–10Zr alloy scaffolds with different porosities were successfully fabricated by a ‘‘space-holder”

sintering method. By the addition of biocompatible alloying elements the porous TiNbZr scaffolds achieved significantly higher strength
than unalloyed Ti scaffolds of the same porosity. In particular, the porous TiNbZr alloy with 59% porosity exhibited an elastic modulus
and plateau stress of 5.6 GPa and 137 MPa, respectively. The porous alloys exhibited excellent ductility during compression tests and the
deformation mechanism is mainly governed by bending and buckling of the struts. Cell cultures revealed that SaOS2 osteoblast-like cells
grew on the surface and inside the pores and showed good spreading. Cell viability for the porous scaffold was three times higher than the
solid counterpart. The present study has demonstrated that the porous TiNbZr alloy scaffolds are promising scaffold biomaterials for
bone tissue engineering by virtue of their appropriate mechanical properties, highly porous structure and excellent biocompatibility.
Crown Copyright

Ó 2009 Published by Elsevier Ltd. on behalf of Acta Materialia Inc. All rights reserved.

Keywords: Titanium alloy; Scaffold; Mechanical properties; Biocompatibility

1. Introduction

Porous materials are of significant importance for bone

tissue engineering applications, as they provide good bio-
logical fixation to the surrounding tissue through bone tis-
sue ingrowth into the porous network

[1]

. Although porous

ceramics and polymers have been studied as scaffold mate-
rials, they cannot meet the mechanical requirements for
load bearing conditions

[2–5]

. For this reason, porous Ti

and Ti alloys have been developed. The major benefits of
porous Ti and Ti alloys compared with other bone graft
materials include their good mechanical strength, with an
elastic modulus close to that of bone, porous structure,
providing biological fixation, and good biocompatibility

[6,7]

.

A number of approaches to the fabrication of porous Ti

and Ti alloys have been reported, including sintering loose
Ti powder or fibre

[8,9]

, slurry sintering

[10]

and rapid pro-

totyping

[10,11]

. Sintering a mixture of Ti powder and

space-holder particles (e.g. urea or ammonium hydrogen
carbonate) produced porous Ti with a porosity of 70%
which exhibited a plateau stress of 53 MPa and an elastic
modulus of 3.4 GPa

[6]

. However, the compressive strength

of porous Ti is still lower than that of cortical bone (180–
200 MPa)

[12]

. In order to achieve a porous scaffold com-

bined with high strength and high porosity, some porous
Ti alloy scaffolds were therefore developed

[13]

. A porous

Ti–6Al–4V alloy scaffold was reported to achieve higher
strength than unalloyed porous Ti at the same porosity

[9,13]

. However, research on the biological behaviour of

metals has shown that the composition of implant bioma-
terials must be carefully selected to avoid or minimize
adverse reactions

[14]

. The release of metal ions from some

metal materials, e.g. aluminium (Al), nickel (Ni), iron (Fe),
vanadium (V) and chromidium (Co), can generate adverse
biological effects

[14]

. On the other hand, titanium (Ti), zir-

conium (Zr), niobium (Nb) and tantalum (Ta) are believed
to be non-toxic metals with good biocompatibility

[15]

and

they are widely used in low modulus b or a/b Ti implant
materials

[16]

. Thus there is an increasing research interest

in developing porous Ti-based alloys using non-toxic

1742-7061/$ - see front matter Crown Copyright

Ó 2009 Published by Elsevier Ltd. on behalf of Acta Materialia Inc. All rights reserved.

doi:10.1016/j.actbio.2009.06.002

*

Corresponding author. Address: Institute for Technology Research

and Innovation, Deakin University, Pigdons Rd., Waurn Ponds, Geelong,
Vic. 3217, Australia. Tel.: +61 3 5227 3354; fax: +61 3 5227 1103.

E-mail address:

cwen@deakin.edu.au

(C. Wen).

Available online at www.sciencedirect.com

Acta Biomaterialia 5 (2009) 3616–3624

www.elsevier.com/locate/actabiomat

background image

alloying elements. New generation porous Ti-based alloy
scaffolds are expected to combine high mechanical strength
and good biocompatibility.

In the present study Ti–10Nb–10Zr was designed with

the addition of a b stabilizer of Nb and a stabilizer of Zr

[16]

. The TiNbZr alloy is expected to provide high yield

strength due to the addition of Nb and Zr, which ensure
a duplex microstructure of the a/b phase. The structure
and mechanical properties of the porous TiNbZr were
studied. Cell adhesion and proliferation of human osteo-
blast-like cells cultured on the porous alloy scaffolds were
assessed.

2. Materials and methods

2.1. Specimen preparation and characterization

The fabrication method of the porous TiNbZr alloy was

similar to that used in previous studies

[6,17,18]

. Elemental

metal powders of Ti (purity >99.7%, particle size <45 lm),
Nb (purity >99.8%, particle size <45 lm) and Zr (purity
>99.9%, particle size <45 lm) were weighed to give a nom-
inal composition of Ti–10Nb–10Zr (hereafter wt.%). The
powders were blended in a planetary ball milling system
with stainless steel containers and balls (PM400, Retsch)
for 4 h with a weight ratio of ball to powder of 1:2 and
rotation rate of 100 rpm. The blended TiNbZr powder
was mixed with ammonium hydrogen carbonate (NH

4

H-

CO

3

), which was used as the space-holder material. The

size of space-holder particles was selected to be 500–
800 lm. The mixture of Ti, Nb, Zr powder and NH

4

HCO

3

was cold pressed into green compacts in a 50 ton hydraulic
press and the green compacts were sintered in a vacuum of
10

4

–10

5

Torr in two steps. The first step was carried out

at 175

°C for 2 h to burn out the space-holder particles. In

the second step the compacts were heated up to 1200

°C

and held for 10 h. Porous TiNbZr alloys with porosities
of 42%, 50%, 59%, 69% and 74% were fabricated by adding
20, 30, 40, 50 and 60 wt.% ammonium hydrogen carbonate
to the powder mixture.

The general porosity of the porous alloys was calculated

by the formula

e

¼

1

q

q

s

100

ð1Þ

where q and q

s

are the density of the porous alloy and its

corresponding theoretical density, respectively. The density
of the porous alloy was determined from its weight and
dimensional measurements. The theoretical density is
5.1 g cm

3

(based on the alloy composition of Ti–10Nb–

10Zr). The general pores inside the porous alloys consist
of two parts, interconnected pores (open pores) and closed
pores. The interconnectivity of the porous TiNbZr was
evaluated by measuring the weight of paraffin penetrating
into the porous structure when they were boiled in paraffin
in a vacuum chamber. The interconnectivity was calculated
by comparing the volume of paraffin penetrating into the

porous structure and overall pore volume. Scanning elec-
tron microscopy (SEM) combined with quantitative image
analyse using Image-Pro Plus (Media Cybernetics, Inc., Sil-
ver Spring, MD) software were used to characterize the
pore structure and pore size distribution. X-ray diffraction
(XRD) was used to characterize the phase constituents of
the porous alloys. Surface roughness was measured using
Surtronic 3+ Roughness checker.

2.2. Mechanical test and simulation

Cylindrical samples with a diameter of 10 mm and

length of 15 mm were used to examine the mechanical
properties. Five samples were tested for each condition.
The samples were cut by electrical discharge machining
(EDM), which ensures plane and parallel end faces of the
samples. Compression tests were carried out in a 30 kN
Instron, equipped with a non-contact extensometer (resolu-
tion 0.5 lm) and the initial strain rate was set at 10

3

s

1

.

Compression tests were also conducted on solid Ti–
10Nb–10Zr

cylinder

samples

prepared

by

powder

metallurgy.

The elastic modulus and yield strength of porous TiN-

bZr from this study were compared with the predictions
of the Gibson–Ashby (G&A) model

[19]

and Finite Ele-

ment Method (FEM) model proposed by Roberts and Gar-
boczi

[20–22]

. In the Gibson–Ashby model the structure of

the porous material was simplified and it was assumed that
the open-cell foam consists of periodic arranged beams.
Bending of the beams dominated the deformation mecha-
nism. The relationships between plateau stress, elastic mod-
ulus and relative density are given by:

E=E

s

¼ C

1

ðq=q

s

Þ

n

1

ð2Þ

r

pl

=

r

ys

¼ C

2

ðq=q

s

Þ

n

2

ð3Þ

where E is the elastic modulus of the foam, E

s

is the elastic

modulus of the cell surface solid material, r

pl

is the pla-

teau stress of the porous material, r

ys

is the yield strength

of the cell surface solid material and C

1

, C

2

, n

1

and n

2

are

constants, depending on the cell structure. To date, the
complex dependence of C

1

, C

2

, n

1

and n

2

on structure is

not well understood. Experimental evidence suggests that
n

1

= 2, n

2

= 1.5 for open-cell foams, C

1

is a constant of

1 for rigid polymers, elastomers, metals and glasses and
C

2

is a constant of 0.3 for cellular metals and polymers.

Elastic moduli of both open-cell and closed-cell foams

based on the FEM have been proposed by Roberts and
Garboczi

[20–22]

. The ‘‘Gaussian Random Filed” model

was used in the present study, as this model deals with
structures similar to the cellular structures of porous TiN-
bZr scaffolds. The FEM model is assumed to be a highly
irregular structure with curved struts of variable thickness.
Equations to fit the results of their simulations are:

E=E

s

¼ 4:2ðq=q

s

Þ

3:15

for 0:05 <

q

q

s

<

0:20

ð4Þ

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

3617

background image

Eq.

(3)

describes the higher porosity data (relative density

<0.2). For lower porosity, where

q

q

s

> 0.20, the relationship

is:

E=E

s

¼

q=q

s

0:029

0:971

2:15

ð5Þ

2.3. MTT assay

Cell culture was performed on a solid TiNbZr alloy

sample and the porous TiNbZr alloy with a porosity of
69% in 12-well tissue culture plates. SaOS2 osteoblast-like
cells (10,000 per well) were seeded on the top surface of
the samples. The cells were cultured in minimum essential
media (MEM) supplemented with 10% fetal bovine serum,
1% non-essential amino acid, 10,000 U ml

1

penicillin,

10,000 lg ml

1

streptomycin and 0.4% amphostat B at

37

°C in a humidified atmosphere of 5% CO

2

and 95%

air. The media was changed every 3 days.

An MTT assay to measure cell viability and prolifera-

tion was used to quantitatively determine the number of
viable cells that had attached and grown on the samples.
After culture for 14 days the MTT solution was added
and incubated with the cells for 4 h. The cells were then
lysed to release and solubilize purple formazan. Colorimet-
ric analysis and comparison to a standard curve of known
viable cell numbers can be used to calculate viable cell
numbers for each condition. The MTT assay was con-
ducted on a two-dimensional tissue culture-treated surface
(2D Con), cell seeded metal discs (Disc) and the wells that
contained the discs (Well). Disc + Well refers to the sum of
the cell numbers of seeded discs and their respective wells.
n = 3 for all experimental groups. Significant differences in
the cell number were analysed using one-way ANOVA
(P < 0.05). Samples after cell culture for 14 days (n = 2)
were fixed and then rinsed with phosphate-buffered saline,
dehydrated in a graded ethanol series, critical point dried
and examined by SEM.

3. Results and discussion

3.1. Sintering of porous TiNbZr alloy

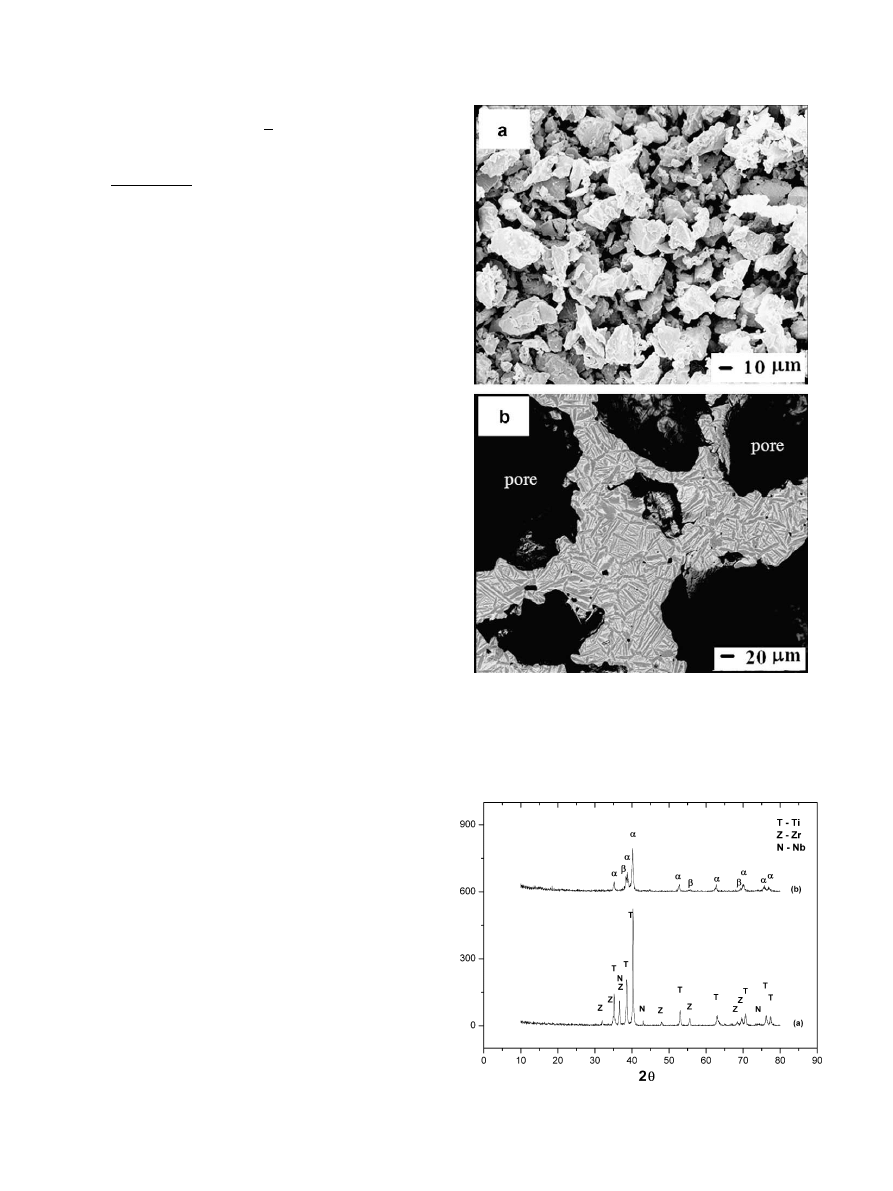

Fig. 1

a shows the morphology of the blended Ti, Nb and

Zr powders. Pre-alloying did not occur during the blending
process, as a low energy ball milling process was adopted in
the present study. The morphology of the blended powder
is similar to that of the raw powders. The size of these pow-
ders is mainly in the range 5–45 lm. XRD showed that the
blended powder is a mixture of Ti, Nb and Zr powders, as
shown in

Fig. 2

. After burning off the space-holder parti-

cles the green compacts were then sintered at 1200

°C in

high vacuum.

A typical powder sintering process comprises three

stages: stage 1 – where the growth of the sintering bond
from initial loose powder occurs and the sintering neck

Fig. 1. (a) Powder morphology of the blended TiNbZr powders. (b)
Backscattering image of porous TiNbZr alloy sintered at 1200

°C for 10 h.

Fig. 2. XRD pattern of the blended powder mixture (a) and the sintered
porous TiNbZr (b).

3618

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

background image

forms; stage 2 – where pore rounding, densification and
grain growth occur simultaneously (densification in this
stage is accomplished by diffusion of the alloying elements,
grain boundary diffusion and growth); stage 3 – where den-
sification is slower than in stages 1 and 2. There are simul-
taneous grain coarsening events that impede densification

[23]

. In general, the densification rate increases with

decreasing particle size and increasing sintering tempera-
ture and time, where the particle size and sintering temper-
ature are much more efficient than the sintering time in
influencing the sintering rate

[23]

. It is shown that Nb

and Zr diffused into the Ti matrix leading to the formation
of a + b phases after sintering for 10 h. This was confirmed
by XRD, as shown in

Fig. 2

. As shown in

Fig. 1

b, there

were no obvious elemental Nb- and Zr-rich areas remain-
ing after sintering and the sintered porous TiNbZr alloy
consists of lamellar a and b phases.

3.2. Structure and pore distribution in porous TiNbZr alloys

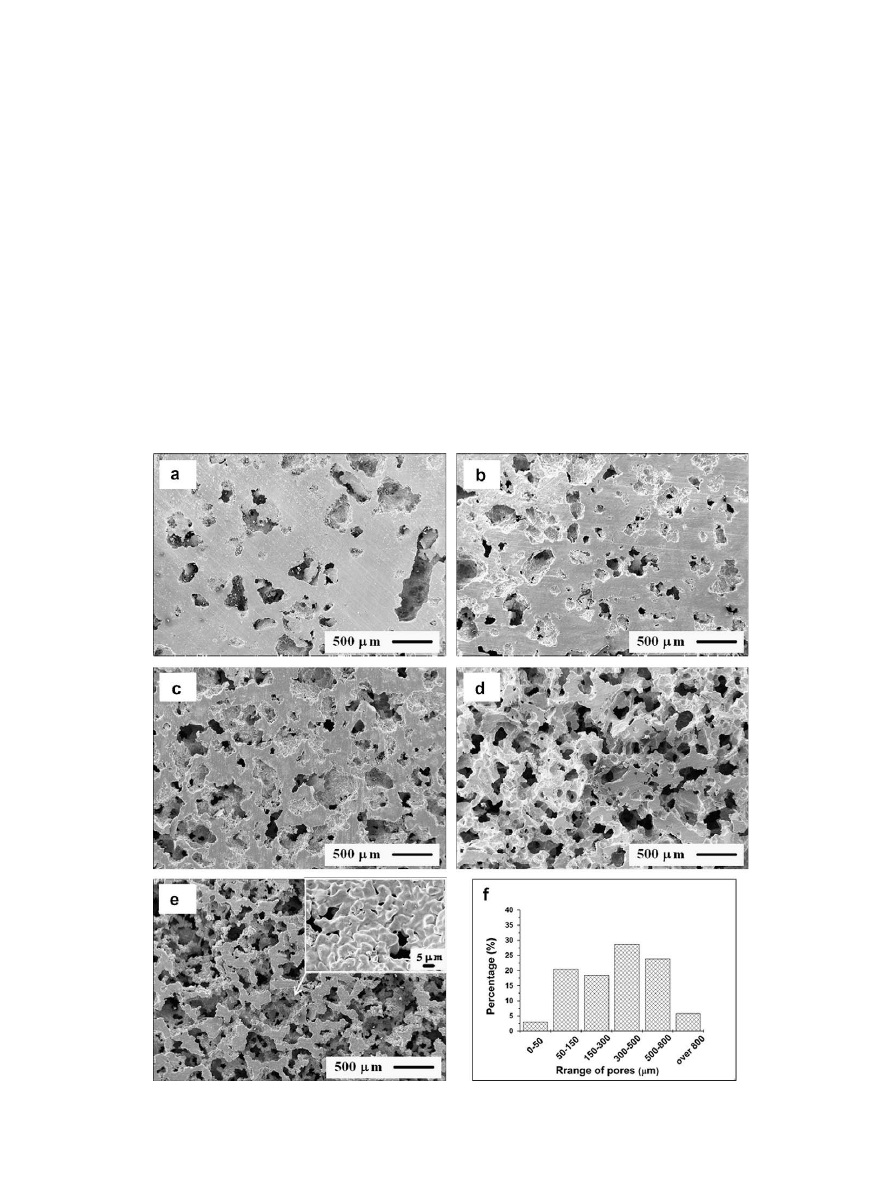

Fig. 3

shows the morphologies of the porous TiNbZr

alloys with porosities ranging from 42% to 74%. The por-
ous alloys were prepared using the same space-holder par-
ticles. Statistical analysis of pore size reveals that the
porous TiNbZr alloy sintered using space-holder particles
of 500–800 lm gave pore sizes ranging from 300 to
800 lm, accounting for 52.4% of the total pores. Beside
macropores, there were also some micropores present on
the cell wall of the porous alloys (

Fig. 3

e). The size of the

micropores was in the range 5–20 lm. It is believed that
the presence of micropores is essential for porous scaffolds
to achieve osteoinduction

[6]

.

By adjusting the amount of space-holder particles the

porosity of the resulting porous TiNbZr alloy can be
altered. The interconnectivity of the porous alloy also

Fig. 3. Morphology of porous TiNbZr alloys with different porosities: (a) 42%; (b) 50%; (c) 59%; (d) 69%; (e) 74% and (f) Statistical analysis of pore size
distribution in (e).

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

3619

background image

increases with porosity. As shown in

Table 1

, the intercon-

nectivity was 40% for the sample with a total porosity of
42%, and the porous sample with a porosity >69% achieved
nearly full interconnectivity. The interconnectivity is very
important for porous biomaterials, as the connected pores
will allow cells to grow inside the material and body fluid to
circulate

[9]

. Thus, high porosity is preferable for porous

scaffold biomaterials. However, high porosity causes a
decrease in the mechanical properties of porous materials

[24]

, which will be discussed in the next section.

3.3. Mechanical properties of porous TiNbZr alloys

The mechanical properties of porous TiNbZr alloys

were investigated by compression tests on cylindrical sam-
ples. The compressive stress–strain curves of the porous
TiNbZr alloys with porosities of 42–74% are shown in

Fig. 4

. The stress–strain curves are smooth, indicating

excellent ductility of the porous alloys during the compres-
sion test. The calculated elastic moduli and plateau stresses
(yield stresses) are shown in

Table 1

. The elastic modulus

and yield strength of dense TiNbZr (porosity 4%) were
68 GPa and 1438 MPa, respectively. The porous TiNbZr
alloy scaffold with a porosity of 59% exhibited an elastic
modulus and plateau stress of 5.6 GPa and 137 MPa,
respectively, which is close to the mechanical properties
of natural bone

[12]

. The plateau stress of the porous TiN-

bZr alloy was significantly higher than that of porous pure

Ti. The compressive strengths of porous TiNbZr scaffolds
with porosities of 59% and 69% were 137 and 67 MPa,
while at the same porosity the compressive strengths for
porous pure Ti were 122 and 53 MPa, respectively

[6]

.

Fig. 5

shows the predicted elastic modulus (E) of the

porous TiNbZr alloy normalized to the elastic modulus
of the solid alloy (E

s

) as a function of the relative density

(q/q

s

). For comparison, the Gibson–Ashby and FEM mod-

els are also included. It can be seen that the experimental
data are better predicted by the FEM model than the Gib-
son–Ashby model in the whole range of relative densities.
The elastic modulus predicted by the FEM model is lower
than that predicted by the Gibson–Ashby model. It should
be noted that the FEM model deals with a highly irregular
structure with curved struts of variable thickness. Since the
elastic modulus of a porous structure is determined by the
thinnest struts, the mass in the thickest regions of the struts
contributes little to the overall elastic modulus. This has
the effect of reducing the elastic modulus of a porous struc-
ture for a given density, compared with models having
struts with a uniform cross-sectional area

[20]

. It is clear

that the experimental data in the present study are slightly
lower than the value predicted by the FEM model in the
higher porosity range (

Fig. 5

). It can deduced from this

Table 1
Summary of the mechanical properties of porous TiNbZr alloys as a function of porosity.

TiNbZr

Elastic modulus (GPa)

Plateau stress (MPa)

Interconnectivity (%)

Ultimate stress (MPa)

Elongation (%)

Solid TNZ

68 (3.5)

1438 (39)

a

N/A

1830 (30)

15.3 (0.5)

42% porosity

21 (0.3)

368 (5.5)

40

50% porosity

7.9 (0.7)

235 (4.6)

82

59% porosity

5.6 (0.3)

137 (2.3)

91

69% porosity

3.9 (0.3)

67 (2.3)

98

74% porosity

1.6 (0.2)

27 (1.5)

99

a

Yield stress; standard deviations are shown in parentheses.

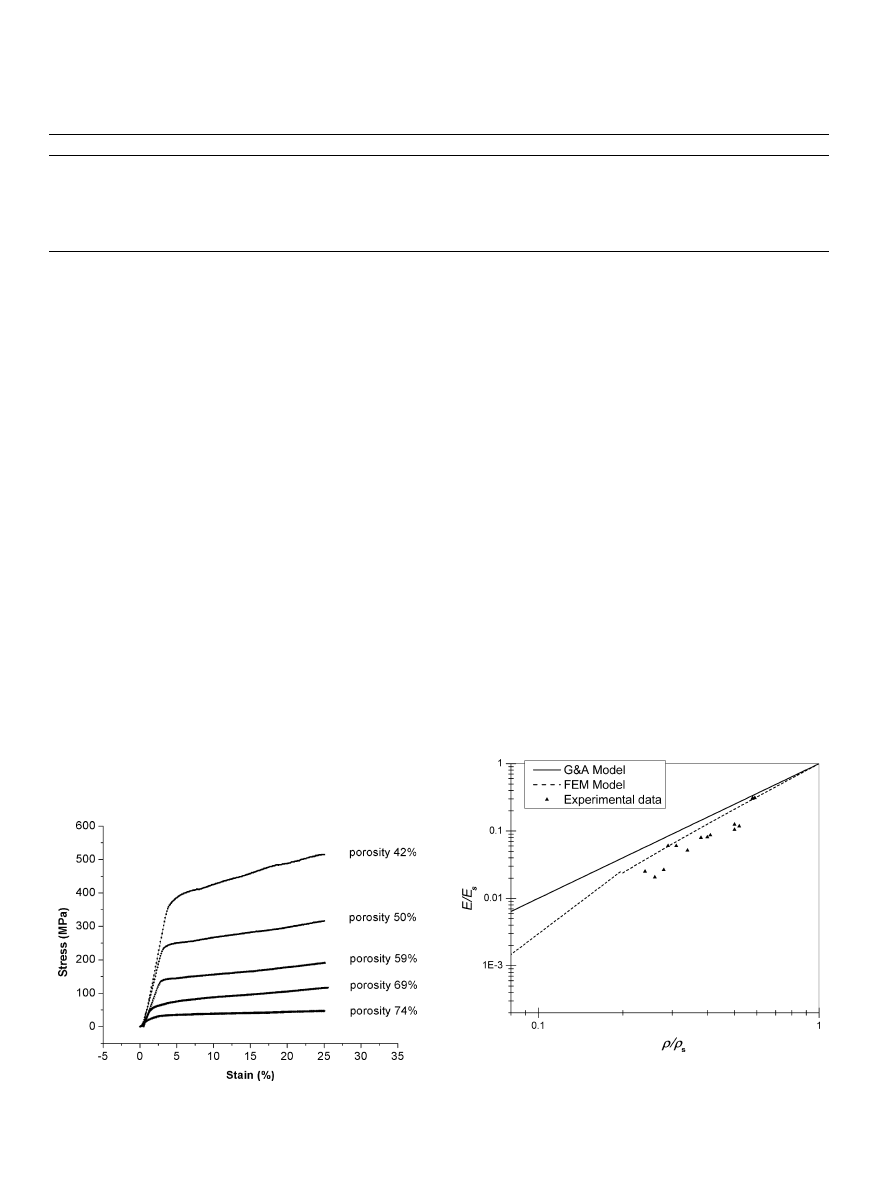

Fig. 4. Compressive stress–strain curves for the porous TiNbZr alloy
scaffolds with various porosities from 42% to 74%.

Fig. 5. Elastic modulus (E) normalized to the solid metal elastic modulus
(E

s

) as a function of relative density for the porous TiNbZr alloys.

Predictions from the Gibson–Ashby model and Finite Element Method
(FEM) model of Roberts and Garboczi.

3620

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

background image

that there are highly non-uniform struts in the porous TiN-
bZr alloy with high porosity and this leads to a decrease in
the elastic modulus of the porous alloy. The elastic modu-
lus of the porous alloys with higher porosities is very sensi-
tive to the homogeneity of strut thickness of the porous
structure.

Fig. 6

shows the plateau strength of the porous TiNbZr

(r) normalized to the yield strength of the solid metal (r

s

)

as a function of relative density (q/q

s

) and that predicted by

the Gibson–Ashby model. It can be seen that the plateau

strength of a porous material depends on the porosity (rel-
ative density). According to Eq.

(2)

, C is a constant for the

geometric effect and n is the density exponent. The varia-
tion in the value of C is probably due to heterogeneity in
pore shape and size. The value of n in the literature varies
over a wide range from 1.0 to 6.3

[25]

. It is reported that the

value of n in Eq.

(2)

is governed by the deformation mode

of the individual cell struts, i.e. yielding, bending and buck-
ling

[19]

. Yamada et al.

[26]

suggested the value of n for cell

wall or strut bending is 2 and that for struts buckling is 3,
while the value of n is 1 for cell strut yielding. In the present
study the value of n is 3 for the porous TiNbZr alloy.
Therefore, this suggests that the deformation mode of the
porous TiNbZr alloy with a porosity ranging from 42%
to 74% mainly comprises bending and buckling of the cell
struts.

3.4. In vitro biocompatibility of porous TiNbZr alloys

The MTT assay was used to determine cell viability and

the proliferation of human osteoblast-like cells on the solid
and porous TiNbZr alloys. For comparison, solid pure
titanium was also assessed.

Fig. 7

shows the cell numbers

on the solid Ti and solid TiNbZr alloy and porous TiNbZr
scaffold after cell culture for 14 days. It can be seen that the
solid TiNbZr alloy shows slightly higher biocompatibility
than pure Ti. However, the total cell number (Well + Disc)
of the porous TiNbZr scaffold is significantly higher than
the solid TiNbZr alloy and solid pure Ti plates. In partic-
ular, the cell number on the samples (Disc) of the porous
TiNbZr scaffold is three times higher than that on the solid

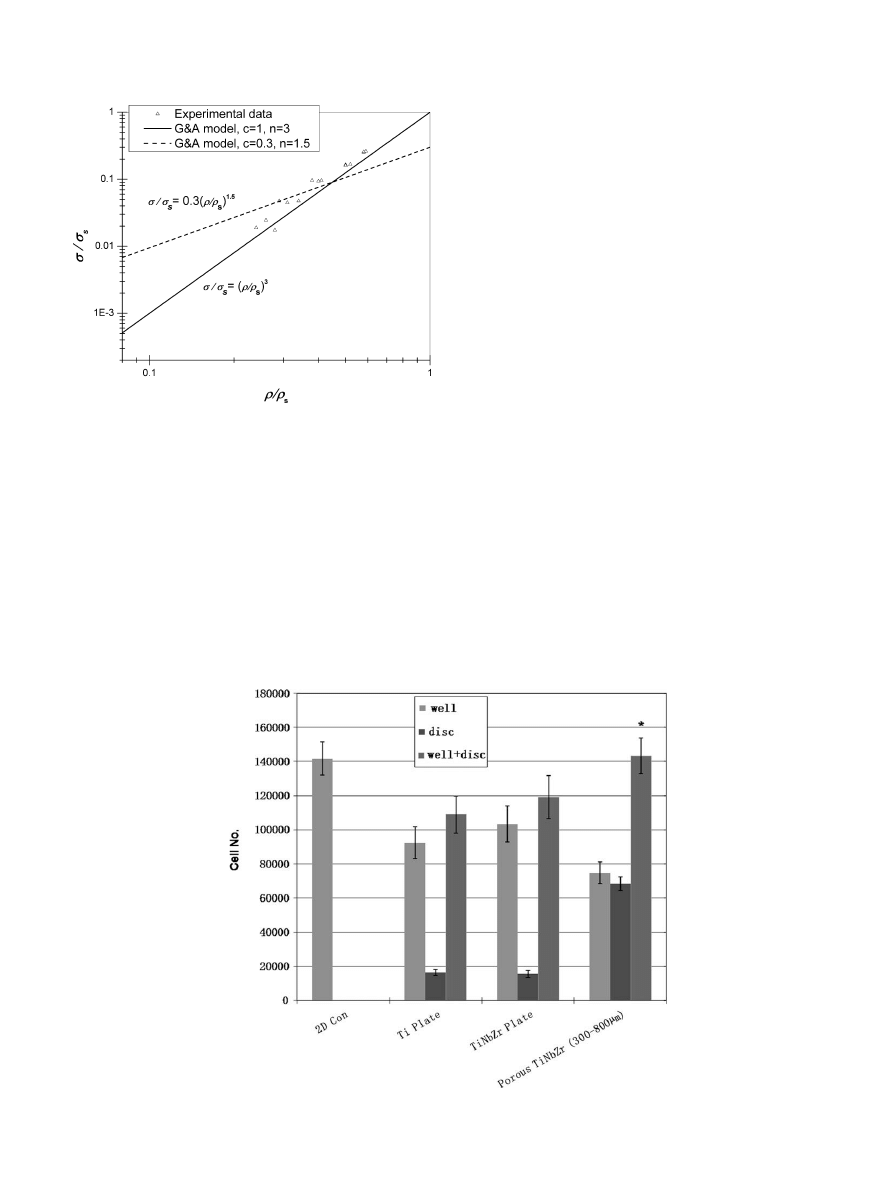

Fig. 6. Plateau stress (r) normalized to the solid metal yield stress (r

s

) as a

function of relative density and the prediction of Gibson–Ashby model for
the porous TiNbZr alloy.

Fig. 7. MTT assay of cells on solid Ti, TiNbZr plates and porous TiNbZr alloy.

*

Significant difference from TiNbZr plates (P < 0.05).

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

3621

background image

samples. This mainly results from the larger surface area of
the porous material over the solid material. The results
indicate that the porous TiNbZr scaffolds are more favour-
able for cell adhesion and proliferation than their solid
counterparts.

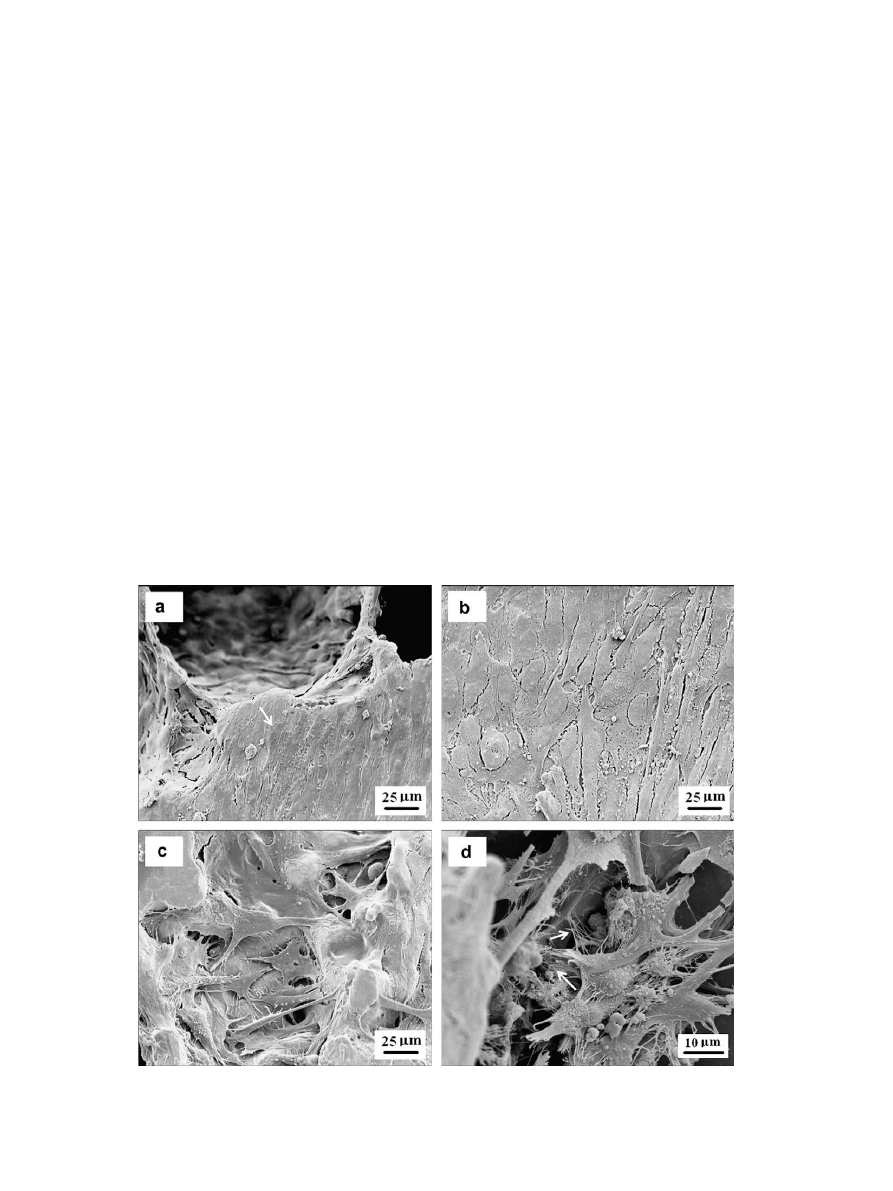

After cell culture for 14 days, cells on the porous TiNbZr

were observed to be spreading well, both on the surface of
the porous scaffold and inside the pores. Cells were
observed growing across the scaffold edge into the pores
(

Fig. 8

a). However, different cell growth behaviours were

observed on the surface of the porous scaffold and inside
the pores. As shown in

Fig. 3

e, the surface of the porous

scaffold had been ground with 600 grit sand paper, resulting
in a rather smooth surface (Ra = 0.21 ± 0.01 lm), while the
surface inside the pores was rougher (Ra = 2.4 ± 0.37 lm).
It is now clear that cell attachment and proliferation are
sensitive to the surface topography and roughness

[27]

.

After culture for 14 days the surface of the porous scaffold
was covered by a monolayer of flat, spread cells (

Fig. 8

a and

b). The cells were observed to grow along the grinding
grooves. Cell growth inside the pores was randomly orien-
tated. Cells started to cover the space between two particles.
It can be seen that fibrous extracellular matrix (ECM) for-
mation was found on the surface of the porous scaffold,
which appears to be collagen (

Fig. 8

d), while on the surface

of the solid samples less ECM could be found. It can be con-

cluded that a rough surface promotes osteoblast-like cell
differentiation towards an osteoblastic phenotype. Previous
studies also found a positive correlation between cell differ-
entiation and roughness

[27,28]

. An increase in alkaline

phosphatase activity and increased ECM formation were
found on rough surfaces compared with smooth surfaces.
Confocal micrographs confirmed that cells grew through-
out the entire porous structure, both on the surface and
inside the pores (

Fig. 9

). It can be seen that the surface of

the porous scaffold was covered by a monolayer of flat
and spread cells, as shown in

Fig. 9

a. Cell growth inside

the pores was randomly orientated and the density of cell
inside the pores was lower than that on the surface of the
porous scaffold (

Fig. 9

b).

4. Conclusions

Porous Ti–10Nb–10Zr alloy scaffolds were successfully

fabricated in the present study. The porous structure,
mechanical properties and in vitro biocompatibility of the
porous alloy scaffolds were investigated. The conclusions
reached are as follows.

The porous TiNbZr scaffolds had a bimodal porous

architecture, with macropores of 300–800 lm and microp-
ores of several micrometres. By adjusting the amount of
space-holder particles, the porosity of the resulting porous

Fig. 8. Morphology of osteoblast cells after 14 days culture. (a) Cell growth across the pore and the surface; (b) a confluent cell layer covering the surface
of porous scaffolds; (c) cell growth inside the pores of the porous TiNbZr alloy scaffold and (d) inside the pores, where cells cover the space between
particles. ECM formation was also found.

3622

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

background image

TiNbZr alloy could be changed over the range 42–74%.
The porous scaffolds with porosity over 69% achieved
nearly fully interconnectivity.

The porous TiNbZr scaffolds presented higher strength,

compared with porous unalloyed Ti scaffolds, for the same
porosity. The porous alloys exhibited excellent ductility
during compression tests and the compressive deformation
was mainly governed by bending and buckling of the struts
of the porous structure.

The SaOS2 osteoblast-like cells grew on the surface and

inside the pores and showed good spreading. The cell via-
bility for the porous TiNbZr scaffold was three times
higher than the solid counterpart.

Acknowledgements

The authors acknowledge financial support for this re-

search through the ARC Discovery Project DP0770021
(Australian Research Council). P. Hodgson was also sup-
ported by the ARC through a Federation Fellowship.

Appendix

Figures with essential color discrimination. Certain

figures in this article, particularly Figure 9, are difficult to
interpret in black and white. The full color images can be
found

in

the

on-line

version,

at

doi:10.1016/

j.actbio.2009.06.002

.

References

[1] Kujala S, Ryhanen J, Danilov A, Tuukkanen J. Effect of porosity on

the osteointegration and bone ingrowth of a weight-bearing nickel–
titanium bone graft substitute. Biomaterials 2003;24:4691–7.

[2] Rezwan K, Chen QZ, Blaker JJ, Boccaccini AR. Biodegradable and

bioactive porous polymer/inorganic composite scaffolds for bone
tissue engineering. Biomaterials 2006;27:3413–31.

[3] Hing KA, Best SM, Tanner KE, Bonfield W, Revell PA. Mediation of

bone ingrowth in porous hydroxyapatite bone graft substitutes. J
Biomed Mater Res 2004;68A:187–200.

[4] De Long WG, Einhorn TA, Koval K, McKee M, Smith W, Sanders

R, et al. Bone grafts and bone graft substitutes in orthopaedic trauma
surgery. A critical analysis. J Bone Joint Surg 2007;89:649–58.

[5] Yoshikawa H, Myoui A. Bone tissue engineering with porous

hydroxyapatite ceramics. J Artif Organs 2005;8:131–6.

[6] Wen CE, Yamada Y, Shimojima K, Sakaguchi Y, Chino Y,

Hosokawa H, et al. Novel titanium foam for bone tissue engineering.
J Mater Res 2002;17:2633–9.

[7] Lopez-Heredia MA, Sohier J, Gaillard C, Quillard S, Dorget M,

Layrolle P. Rapid prototyped porous titanium coated with calcium
phosphate as a scaffold for bone tissue engineering. Biomaterials
2008;29:2608–15.

[8] Oh IH, Nomura N, Masahashi N, Hanada S. Mechanical properties

of porous titanium compacts prepared by powder sintering. Scripta
Mater 2003;49:1197–202.

[9] Li JP, De Wijn JR, Van Blitterswijk CA, De Groot K. Porous

Ti6Al4V

scaffold

directly

fabricating

by

rapid

prototyping:

preparation

and

in

vitro

experiment.

Biomaterials

2006;27:

1223–35.

[10] Li JP, Li SH, Van Blitterswijk CA, De Groot K. A novel porous

Ti6Al4V: characterization and cell attachment. J Biomed Mater Res
2005;73A:223–33.

[11] Hollander DA, Von Walter M, Wirtz T, Sellei R, Schmidt-Rohlfing

B, Paar O, et al. Structural, mechanical and in vitro characterization
of individually structured Ti–6Al–4V produced by direct laser
forming. Biomaterials 2006;27:955–63.

[12] Wang XJ, Li YC, Hodgson PD, Wen CE. Nano- and macro-scale

characterisation of the mechanical properties of bovine bone. Mater
Forum 2007;31:156–9.

[13] Heinl P, Mu¨ller L, Ko¨rner C, Singer RF, Mu¨ller FA. Cellular Ti–

6Al–4V structures with interconnected macro porosity for bone
implants fabricated by selective electron beam melting. Acta Biomater
2008;4:1536–44.

[14] Okazaki Y, Rao S, Tateishi T, Ito Y. Cytocompatibility of various

metals and development of new titanium alloys for medical implants.
Mater Sci Eng A 1998;243:250–6.

[15] Long M, Rack HJ. Titanium alloys in total joint replacement – a

materials science perspective. Biomaterials 1998;19:1621–39.

[16] Niinomi M. Recent research and development in titanium alloys for

biomedical applications and healthcare goods. Sci Technol Adv
Mater 2003;4:445–54.

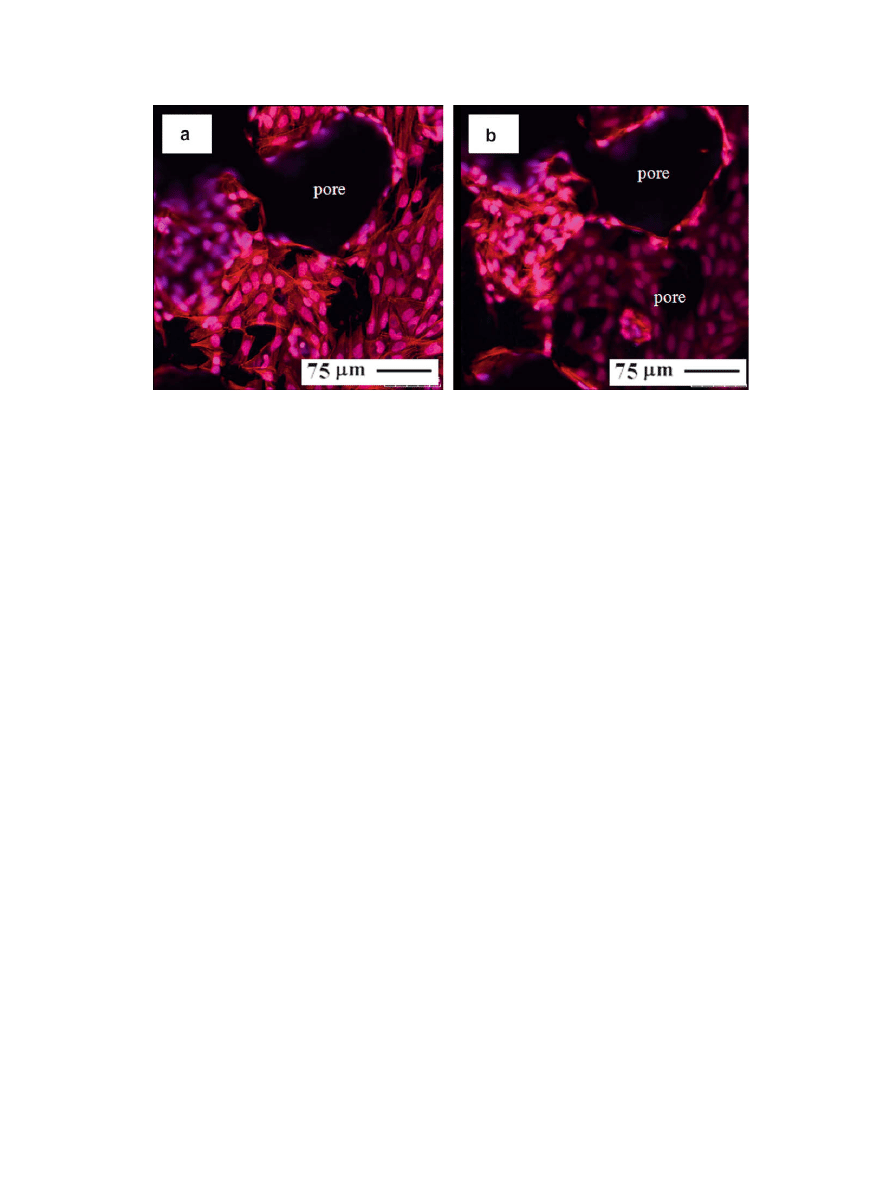

Fig. 9. Confocal micrographs of cell growth. (a) Inside pores of porous TiNbZr alloy and (b) confocal micrographs of cell growth on the surface of the
porous TiNbZr alloy.

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624

3623

background image

[17] Wen CE, Yamada Y, Shimojima K, Chino Y, Asahina T, Mabuchi

M. Processing and mechanical properties of autogenous titanium
implant materials. J Mater Sci Mater Med 2002;13:397–401.

[18] Wen CE, Yamada Y, Shimojima K, Chino Y, Hosokawa H, Mabuchi

M. Compressibility of porous magnesium foam: dependency on
porosity and pore size. Mater Lett 2004;58:357–60.

[19] Gibson LG, Ashby MF. Cellular solids: structure and proper-

ties. Cambridge: Cambridge University Press; 1997, p. 429–52.

[20] Roberts AP, Garboczi EJ. Elastic properties of model random three-

dimensional open-cell solids. J Mech Phys Solids 2002;50:33–55.

[21] Roberts AP, Garboczi EJ. Elastic moduli of model random three-

dimensional closed-cell cellular solids. Acta Mater 2001;49:189–97.

[22] Roberts AP, Garboczi EJ. Elastic properties of model porous

ceramics. J Am Ceram Soc 2000;83:3041–8.

[23] German RM. Sintering theory and practice. New York: Wiley; 1996,

p. 67–141.

[24] Markaki AE, Clyne TW. The effect of cell wall microstructure on the

deformation and fracture of aluminium-based foams. Acta Mater
2001;49:1677–86.

[25] Hakamada M, Asao Y, Kuromura T, Chen Y, Kusuda H, Mabuchi

M. Density dependence of the compressive properties of porous
copper over a wide density range. Acta Mater 2007;55:2291–9.

[26] Yamada Y, Wen CE, Shimojima K, Hosokawa H, Chino Y, Mabuchi

M. Compressive deformation characteristics of open-cell Mg alloys
with controlled cell structure. Mater Trans JIM 2002;43:1298–305.

[27] Postiglione L, Di Domenico G, Ramaglia L, Montagnani S, Salzano

S, Vitale M, et al. Behavior of SaOS-2 cells cultured on different
titanium surfaces. J Dent Res 2003;82:692–6.

[28] Saldana L, Gonzalez-Carrasco JL, Rodriguez M, Munuera L,

Vilaboa N. Osteoblast response to plasma-spray porous Ti6Al4V
coating on substrates of identical alloy. J Biomed Mater Res
2006;77A:608–17.

3624

X. Wang et al. / Acta Biomaterialia 5 (2009) 3616–3624


Document Outline


Wyszukiwarka

Podobne podstrony:
61 881 892 Evaluation of PVD Coatings for Industrial Applications
Intermediate Probability Theory for Biomedical Engineers JohnD Enderle
An Optically Isolated Hv Igbt Based Mega Watt Cascade Inverter Building Block For Der Applications
A compact DCAC inverter for automotive application p
73 1041 1052 PACVD Hard Coatings for Industrial Applications
Global Requirements for Medical Applications of Chitin and its Derivatives
small scale water current turbines for river applications
PCB Layout Design Guide for Analog Applications
Covering Letter for Job Application Samples
Vector Controlled Doubly Fed Induction Generator for Wind Applications
A compact DCAC inverter for automotive application p
Biomedical applications
Advanced Probability Theory for Biomedical Engineers J Enderle, et al , (Morgan and Claypool, 2006)
Applications and opportunities for ultrasound assisted extraction in the food industry — A review
Applications of polyphase filters for bandpass sigma delta analog to digital conversion

więcej podobnych podstron
