SYSTEM WIRING DIAGRAMS

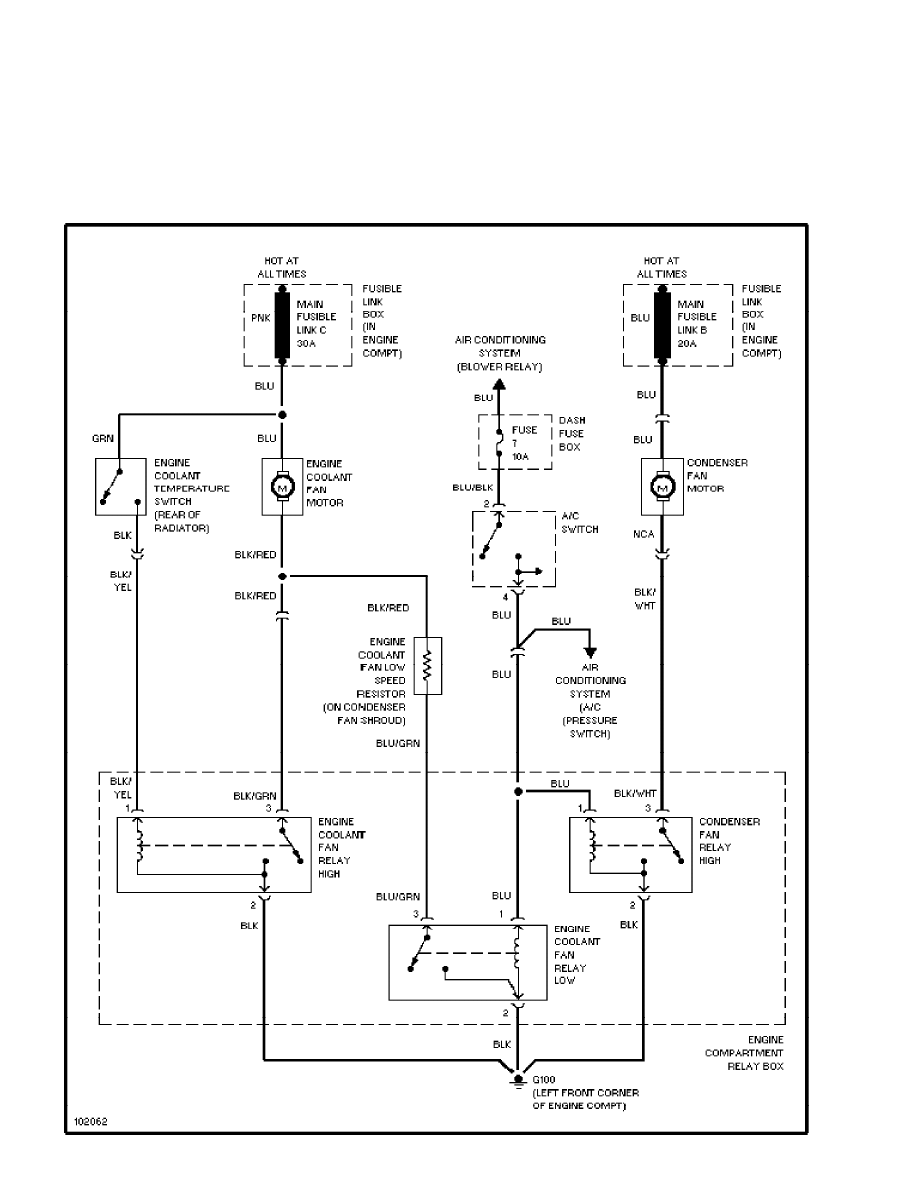

Cooling Fan Circuit

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

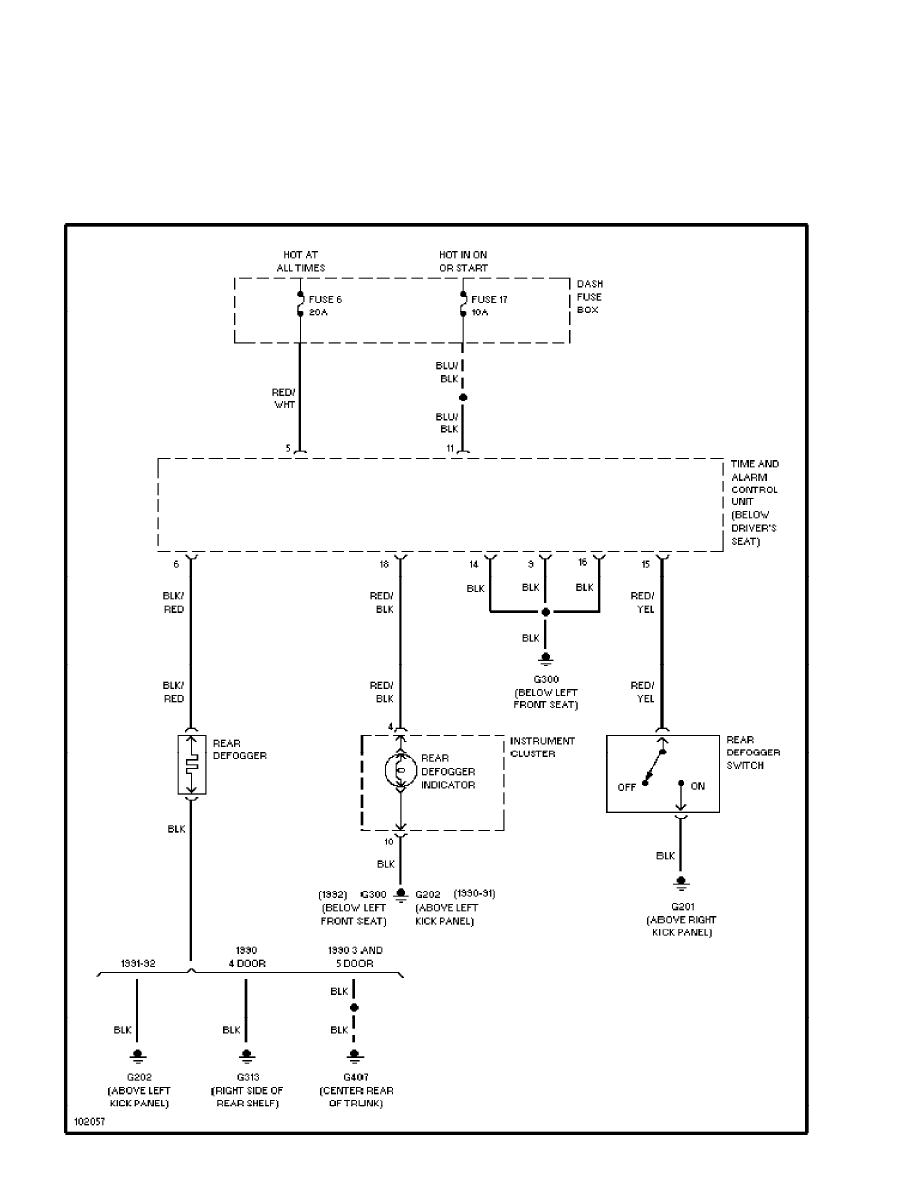

Defogger Circuit (p. 2)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 3)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

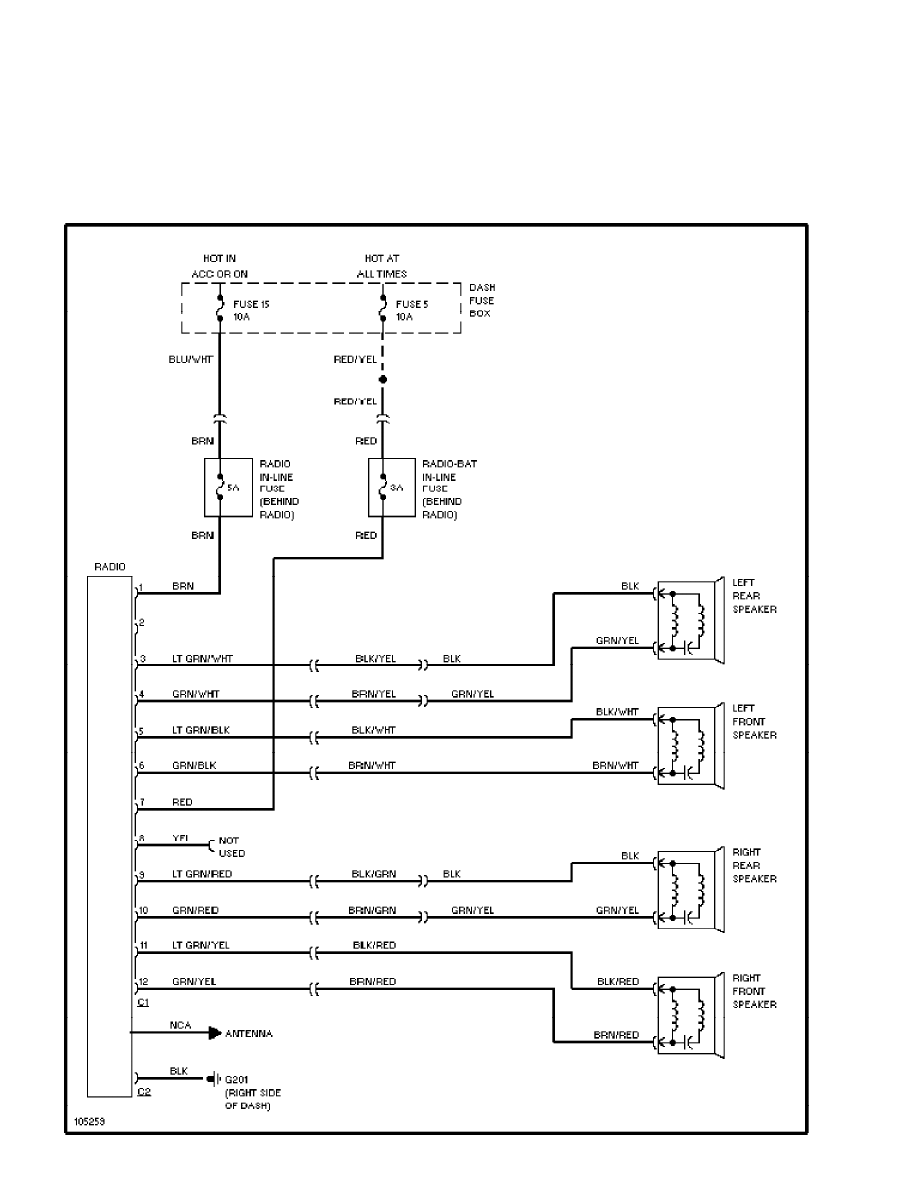

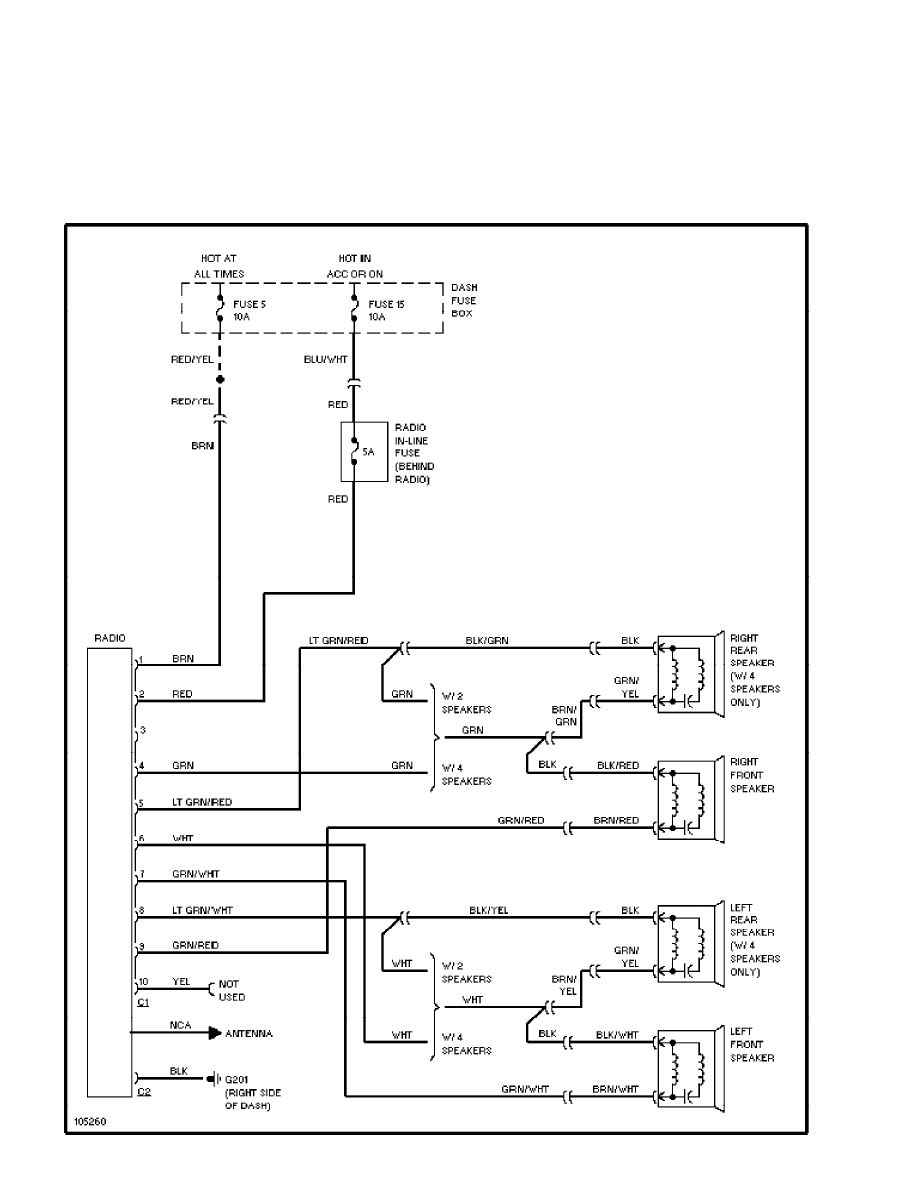

Radio Circuits, Base Radio (p. 4)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

Radio Circuits, Premium Radio (p. 5)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

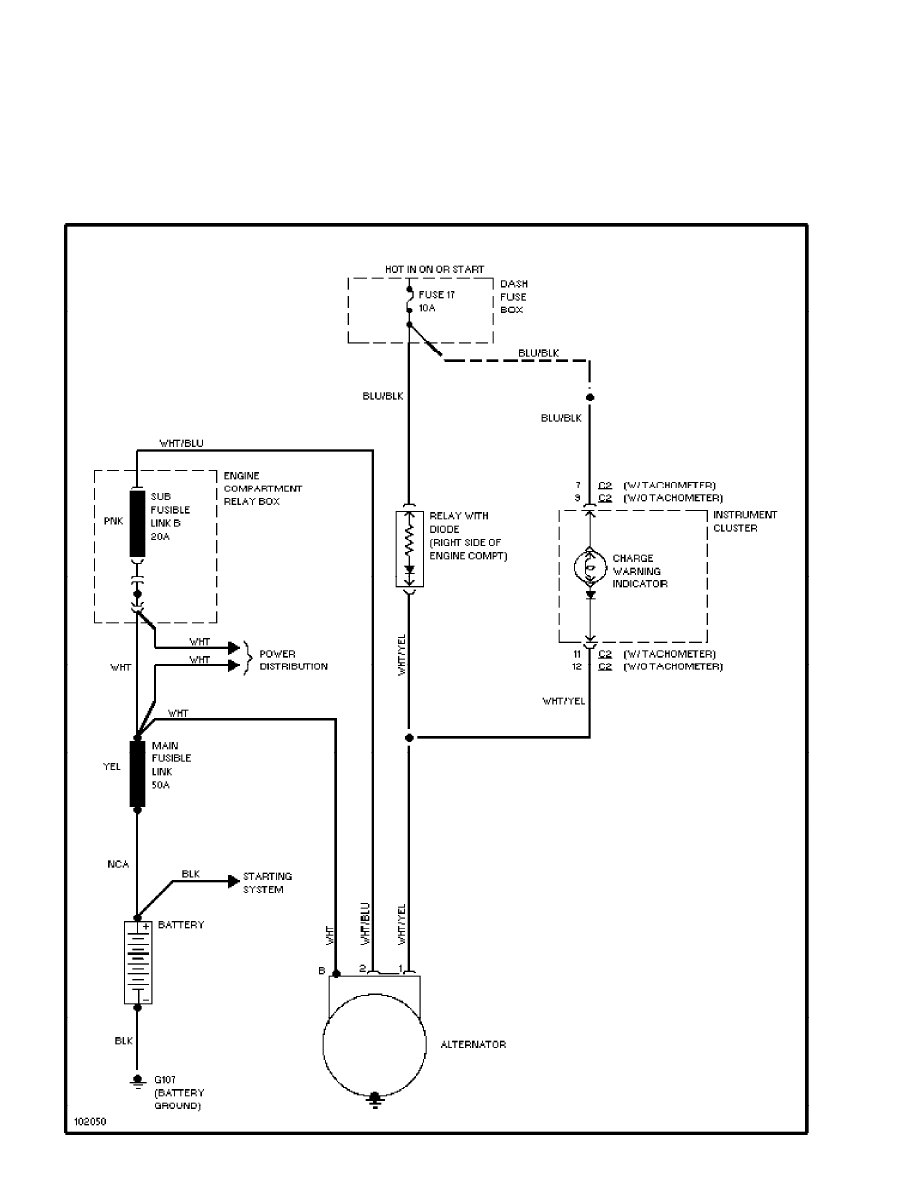

Charging Circuit (p. 6)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

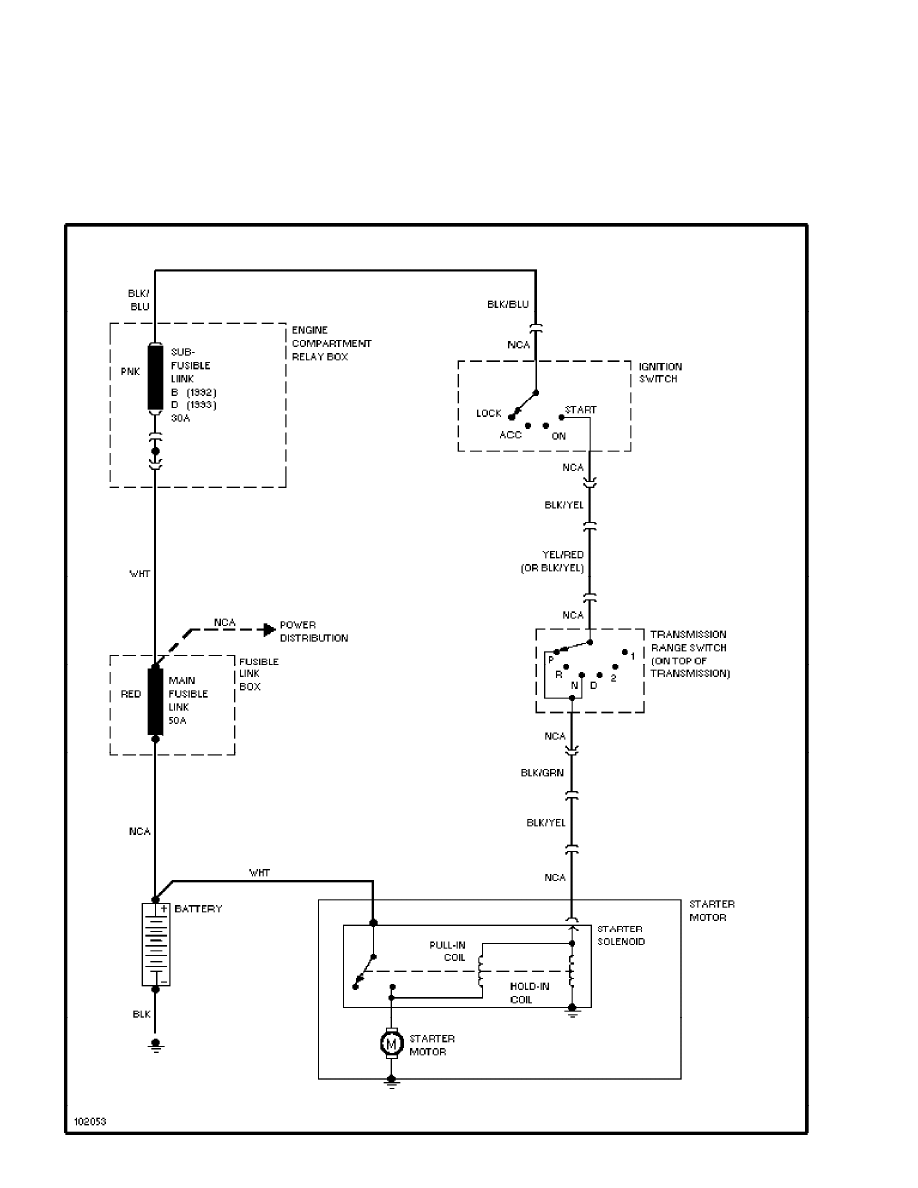

Starting Circuit, A/T (p. 7)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

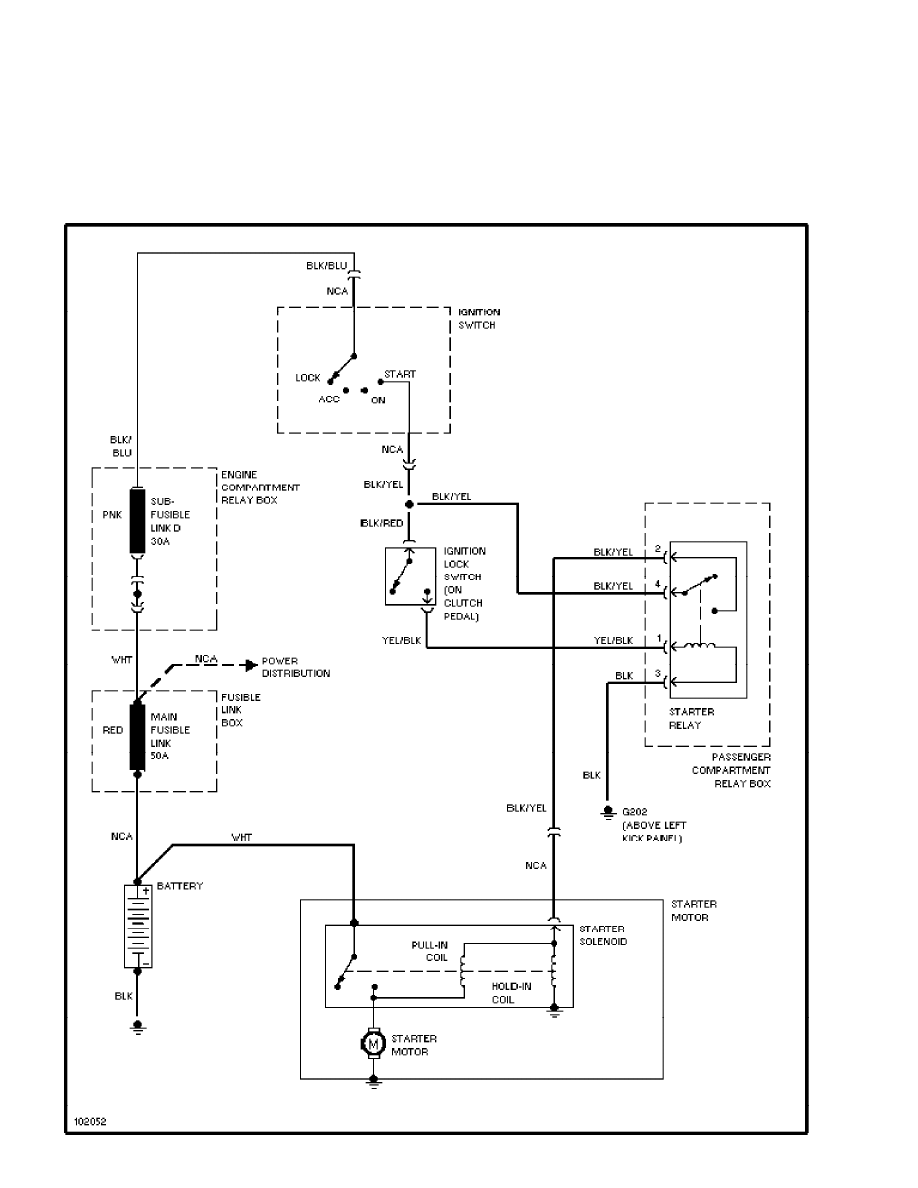

Starting Circuit, M/T (p. 8)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

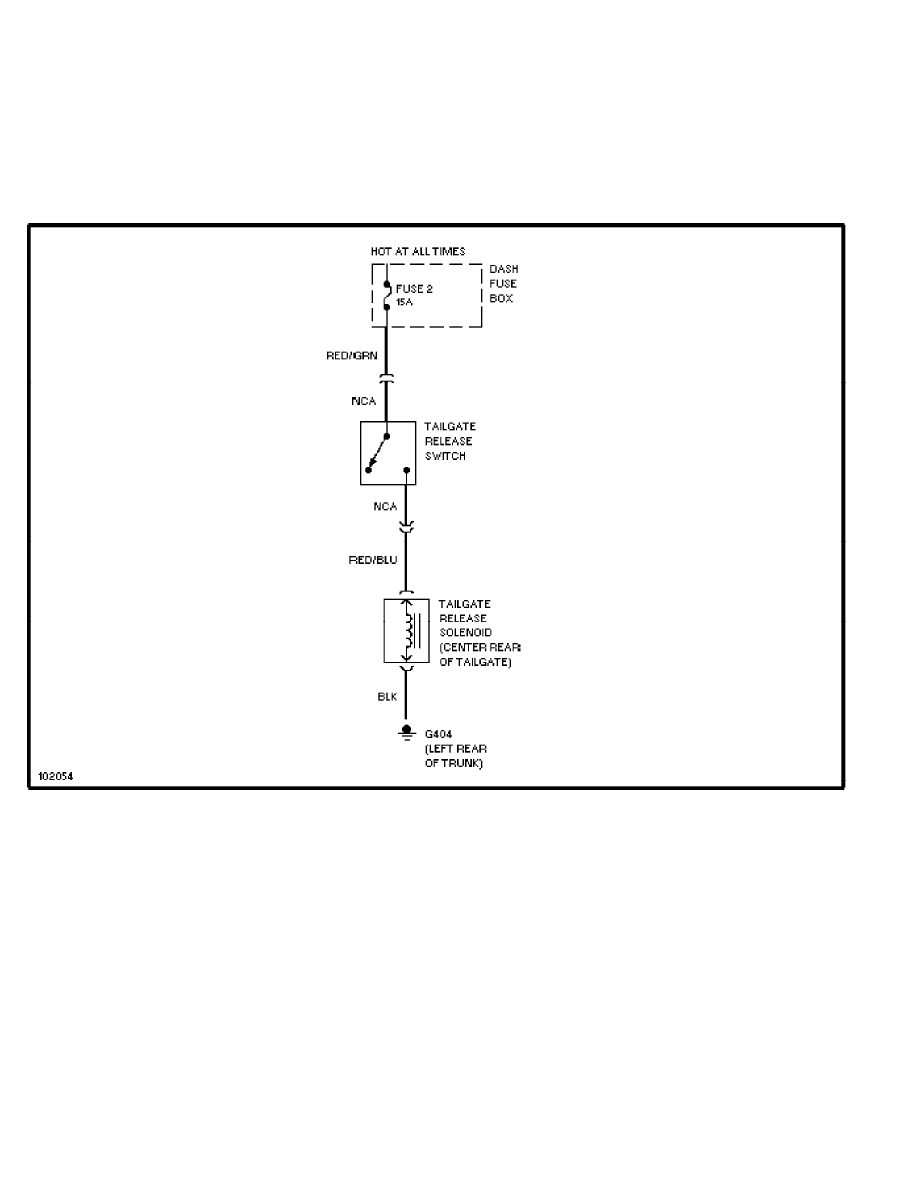

Trunk, Tailgate, Fuel Door Circuits (p. 9)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

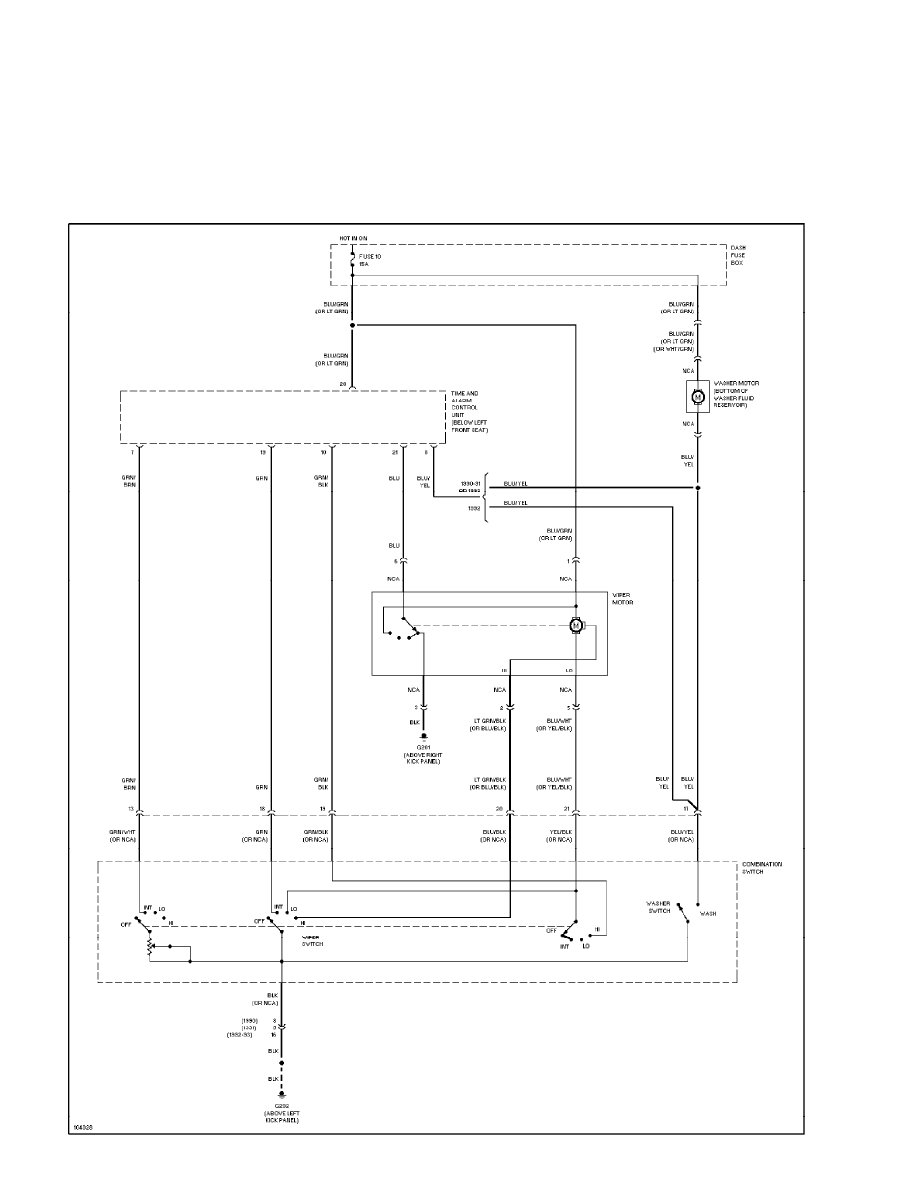

Front Wiper/Washer Circuit (p. 10)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

SYSTEM WIRING DIAGRAMS

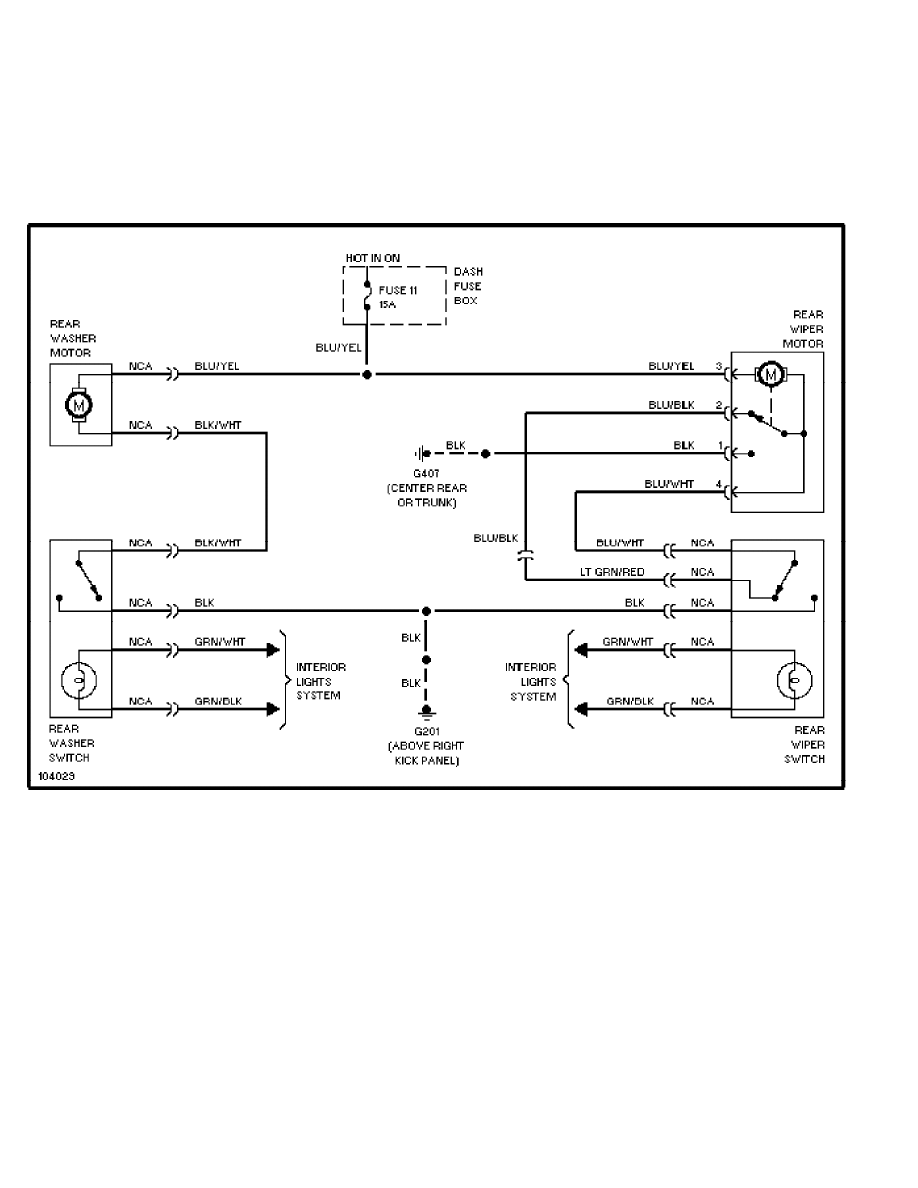

Rear Wiper/Washer Circuit (p. 11)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

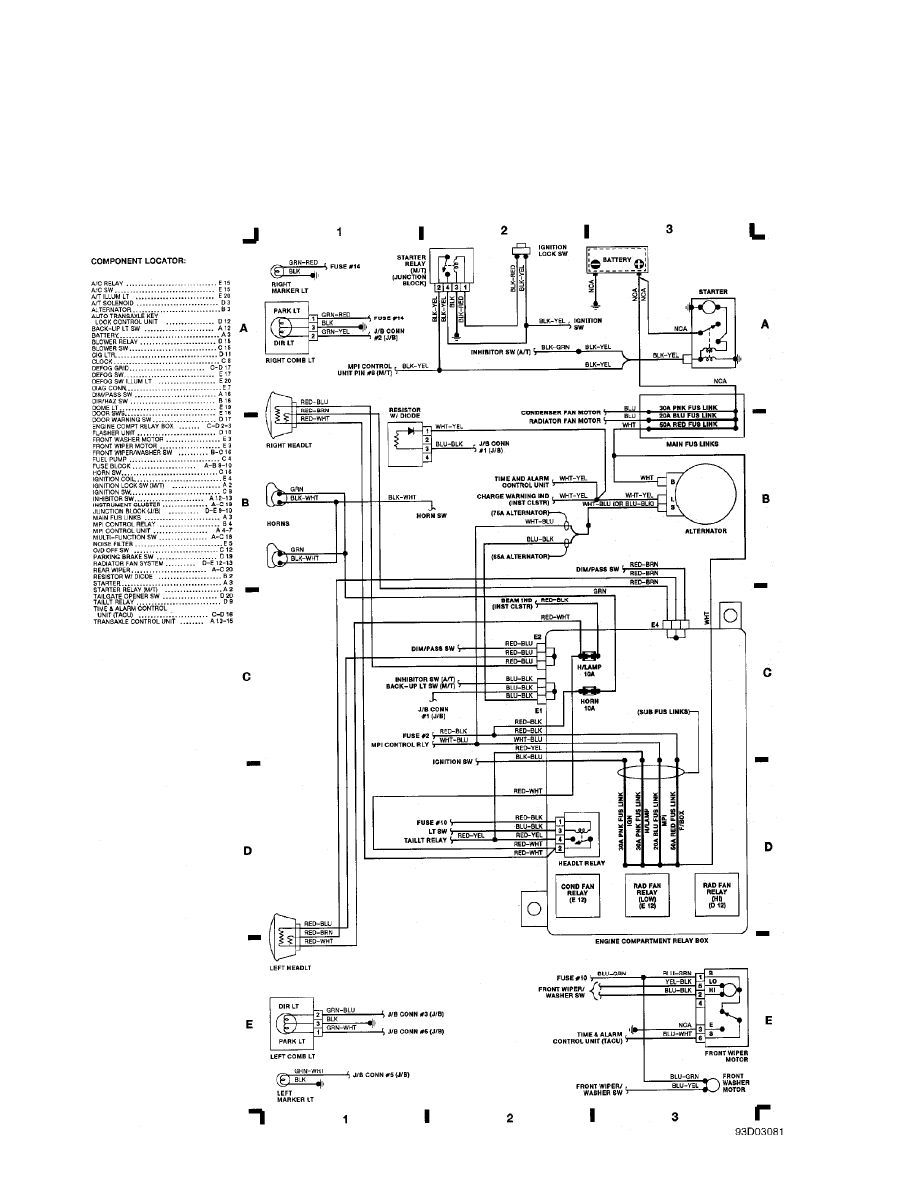

Fig. 1: Headlights, Ignition Lock Sw, Starter (Grid 1-3)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

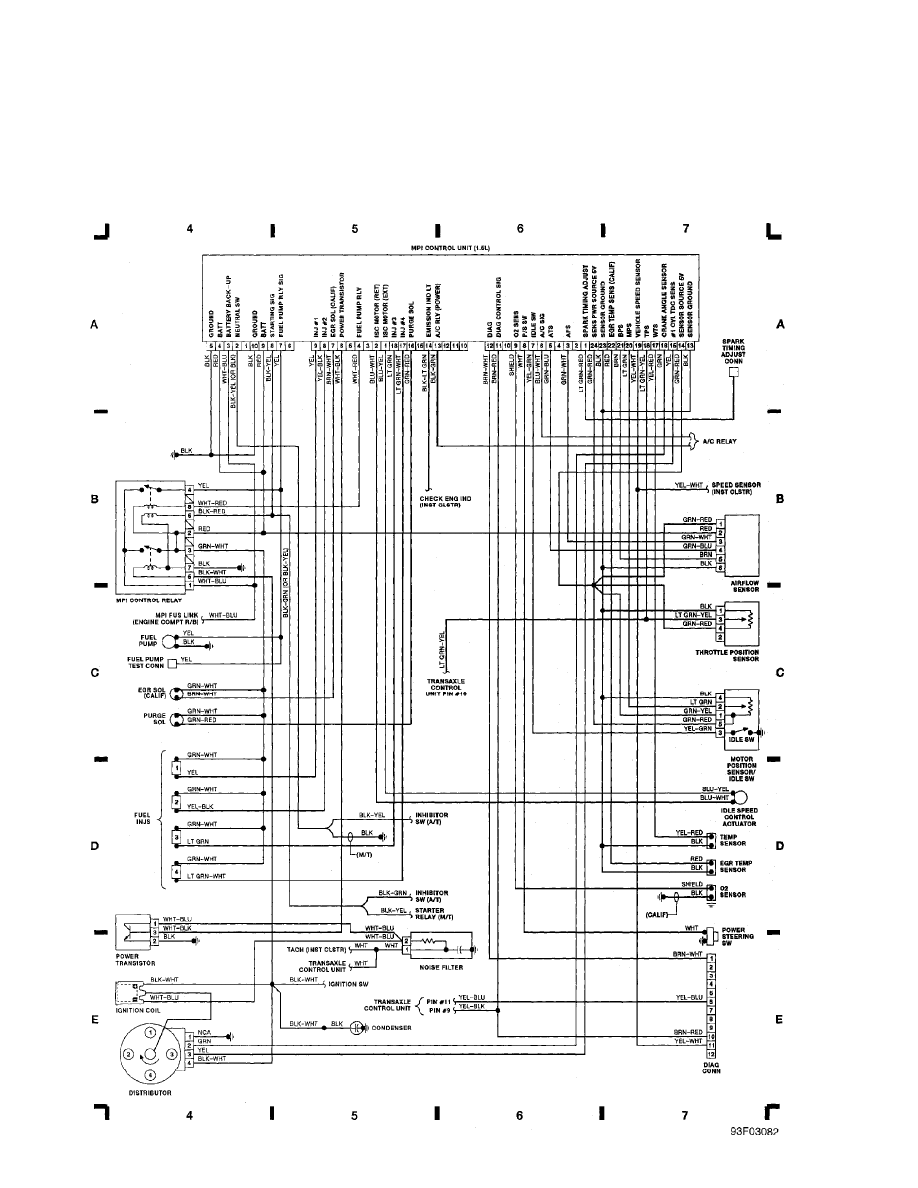

Fig. 2: Fuel Pump, MPI Ctrl Unit, Ignition Coil (Grid 4-7) (p. 2)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

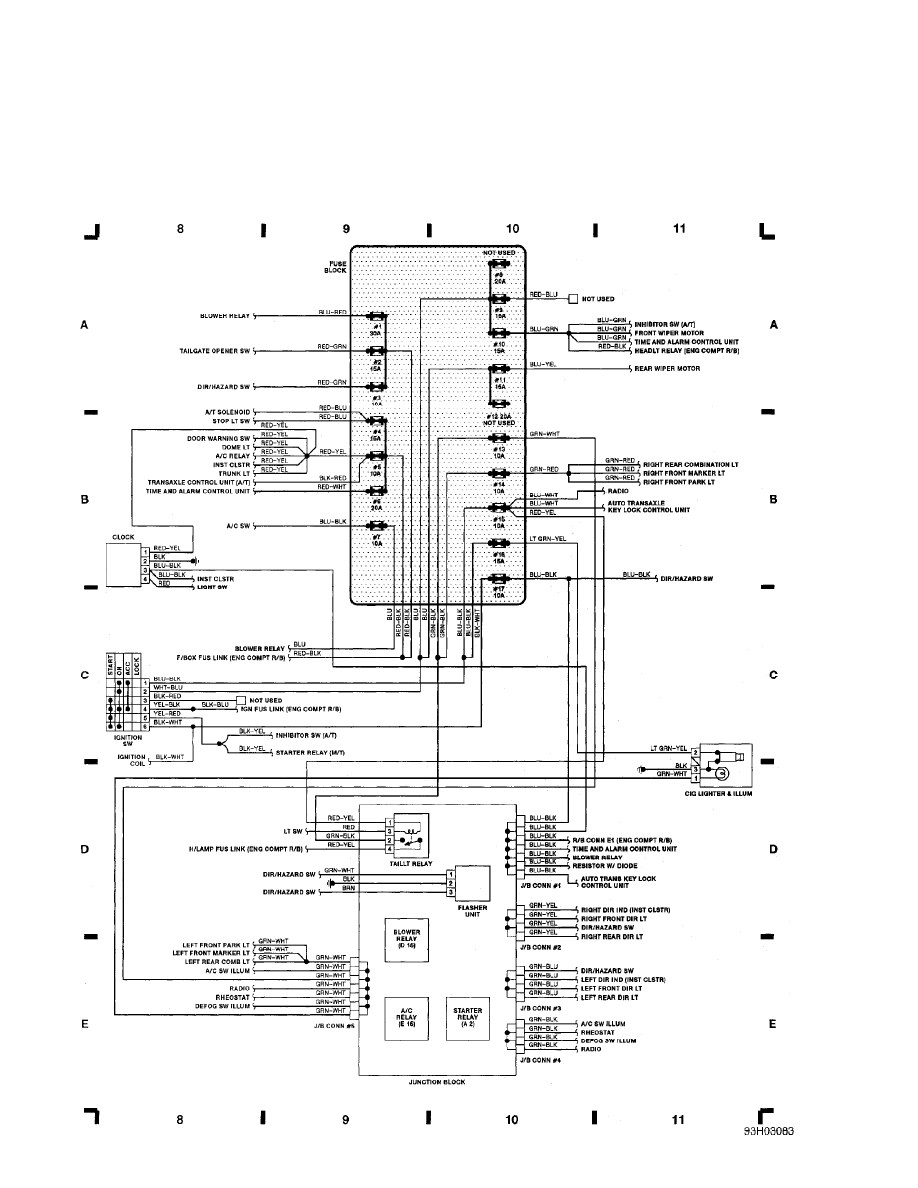

Fig. 3: Clock, Ignition Sw, Fuse Block, Cig Ltr & Illum (Grid 8-11) (p. 3)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

Fig. 4: Transaxle Ctrl Sw, Blower Sw, Pulse Gen (Grid 12-15) (p. 4)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

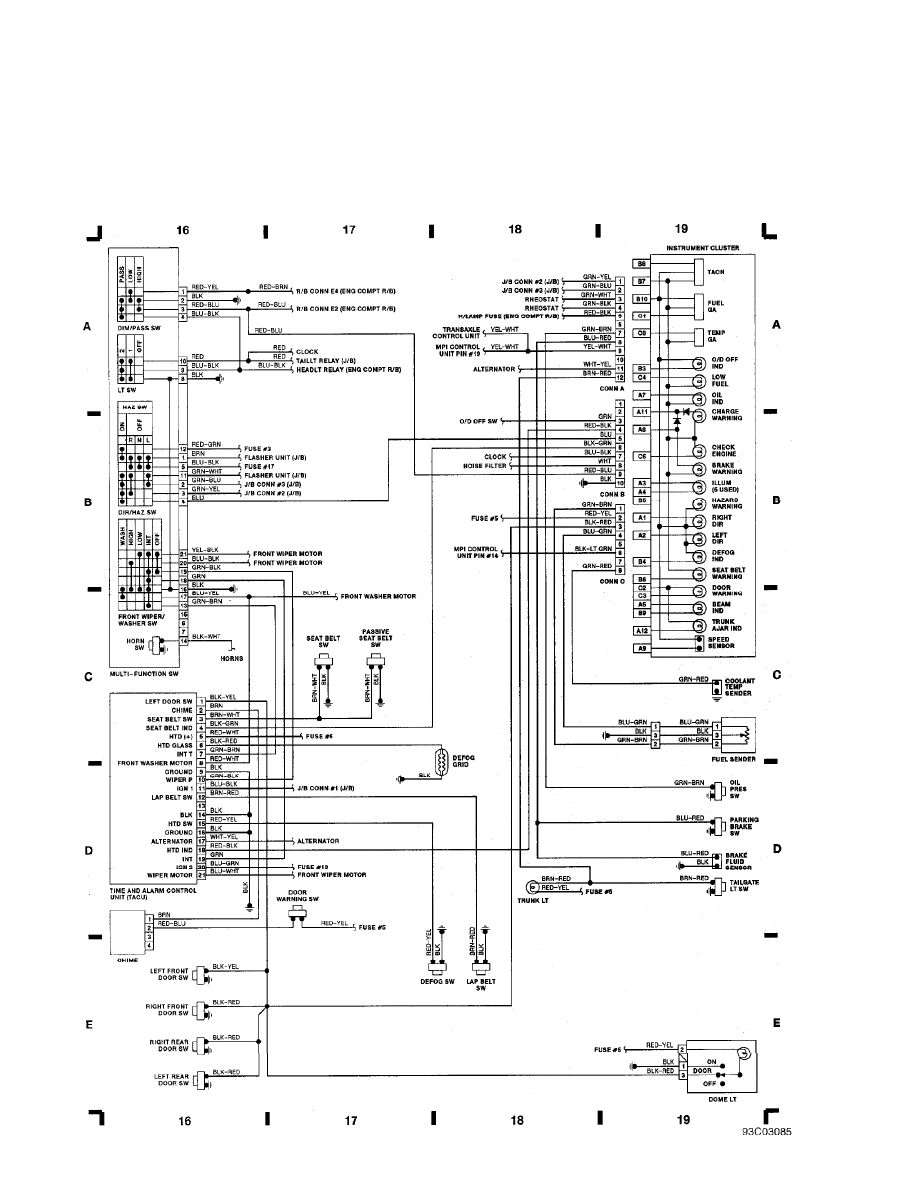

Fig. 5: Instrument Clstr, Multi-Funct Sw, Chime, TACU (Grid 16-19) (p. 5)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM

WIRING DIAGRAMS

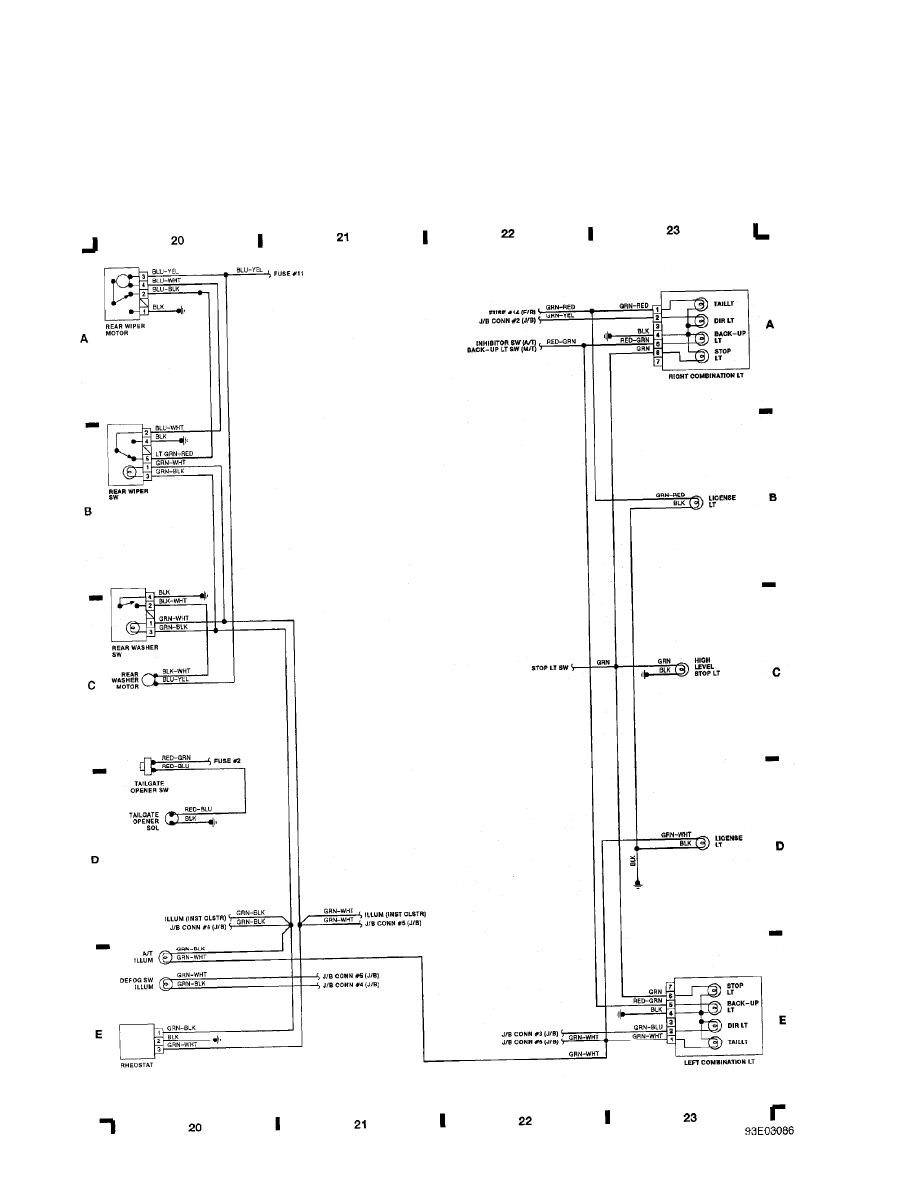

Fig. 6: Rear Wiper/Washer Sws, Taillights, Rheostat, (Grid 20-23) (p. 6)

1992 Hyundai Excel

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:37AM
