MAZDA 626 1983

background image

WIRING DIAGRAMS

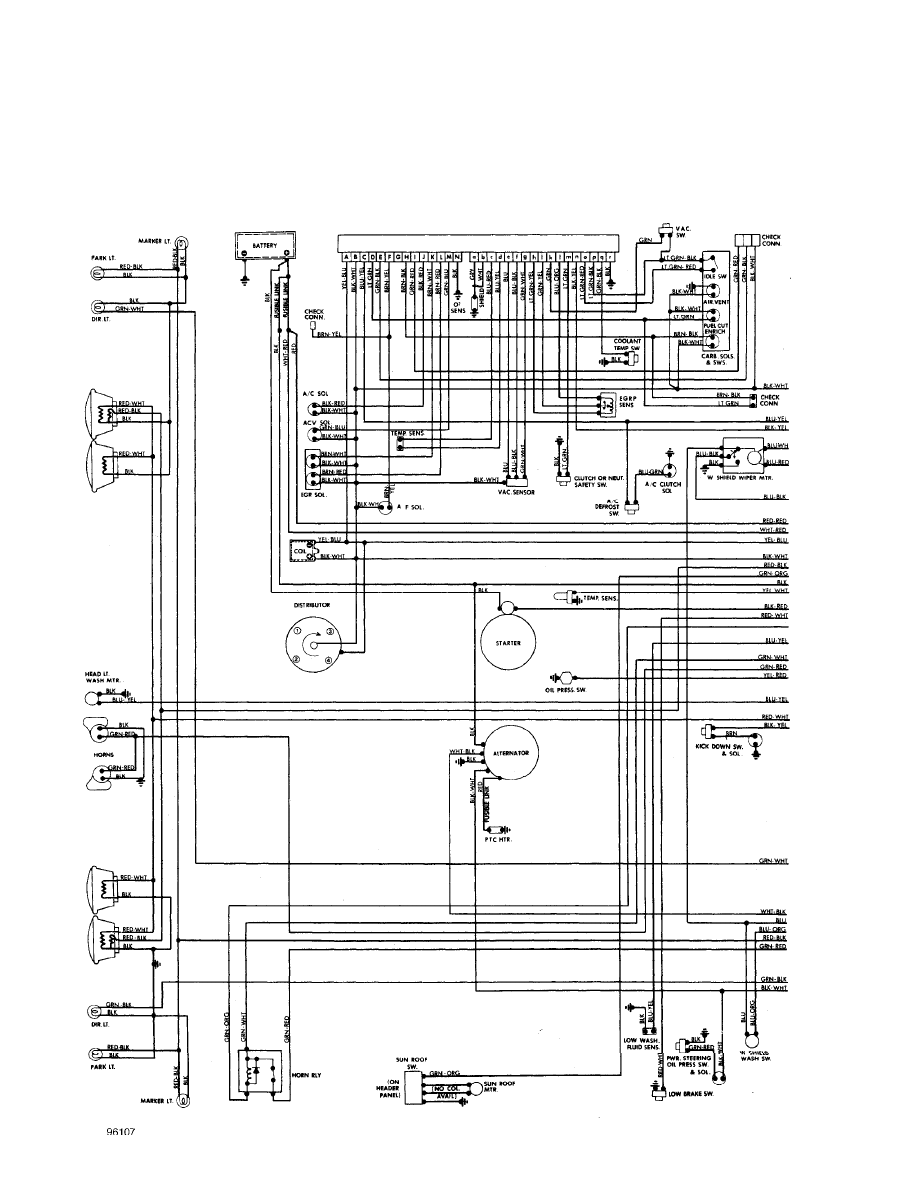

Fig. 1: Engine Compartment

1983 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, September 07, 2004 07:54AM

background image

WIRING DIAGRAMS

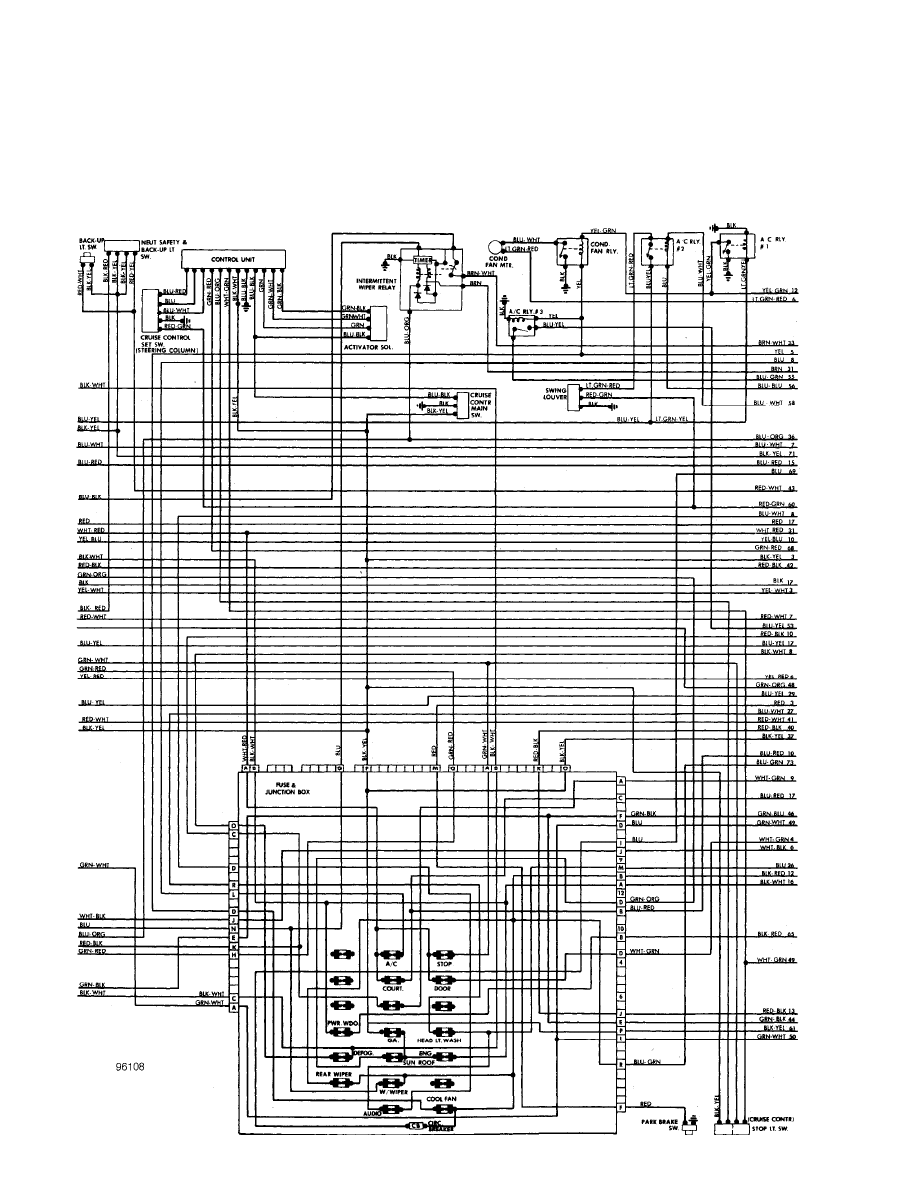

Fig. 2: Fuse Block & Underdash (p. 2)

1983 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, September 07, 2004 07:54AM

background image

WIRING DIAGRAMS

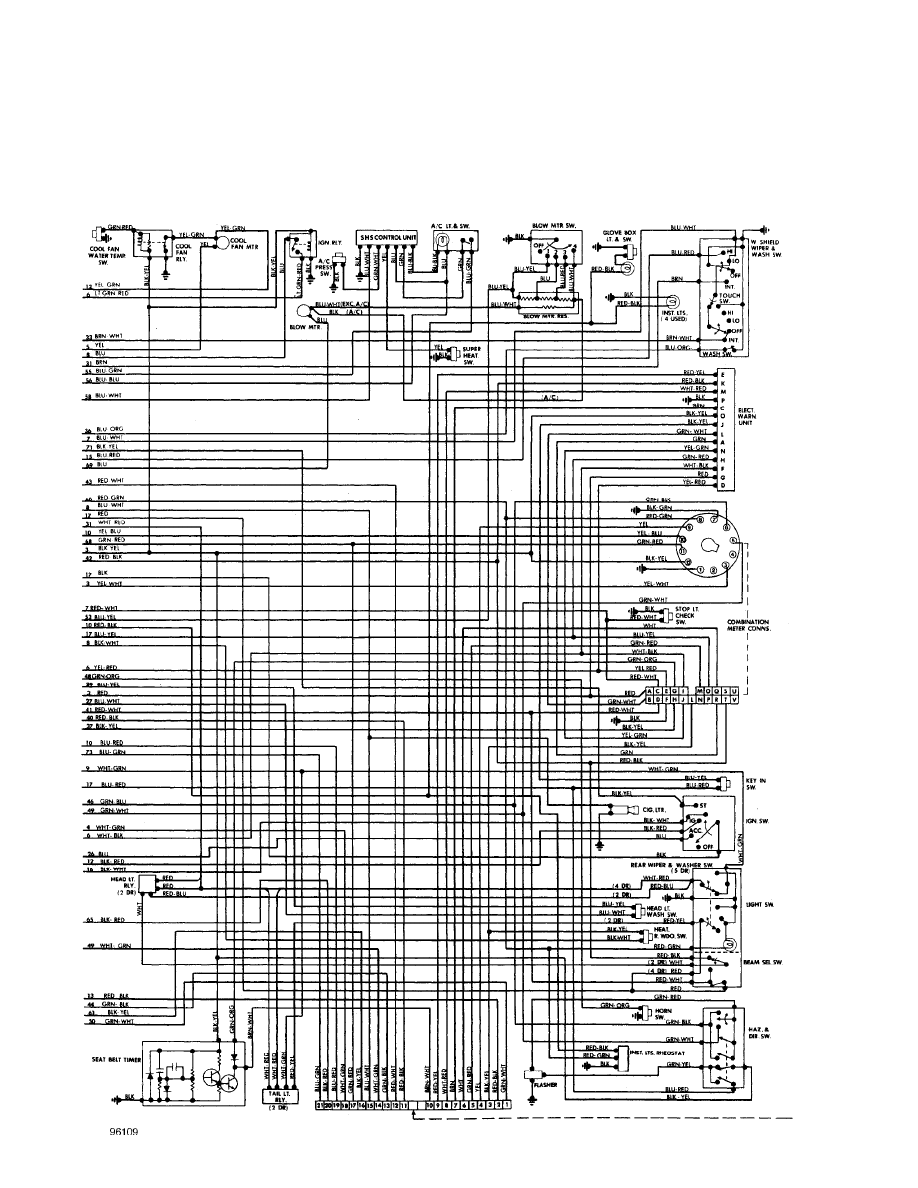

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)

1983 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, September 07, 2004 07:54AM

background image

WIRING DIAGRAMS

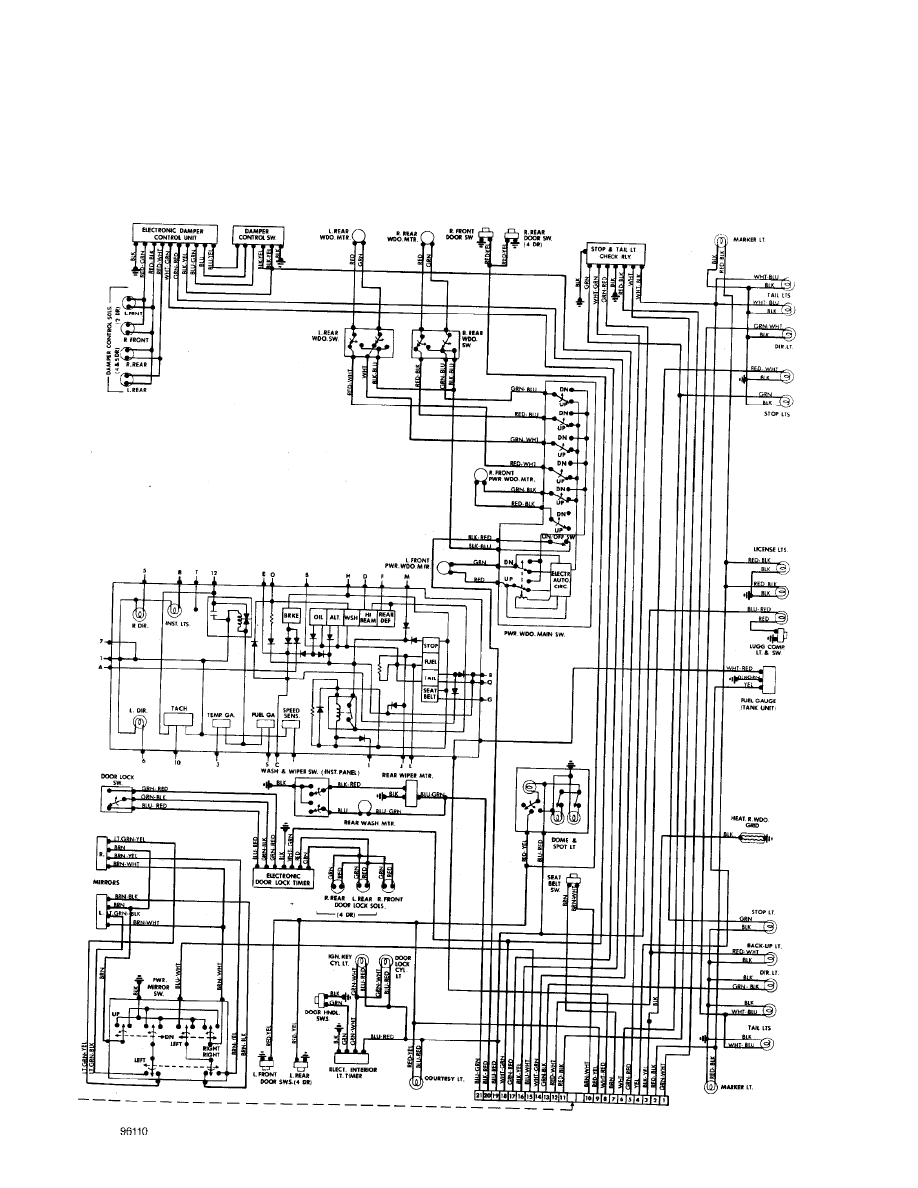

Fig. 4: Instrument Panel (Cont.) Rear Compartment & Accessories (p. 4)

1983 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, September 07, 2004 07:54AM
