Pinouts

Pinouts:

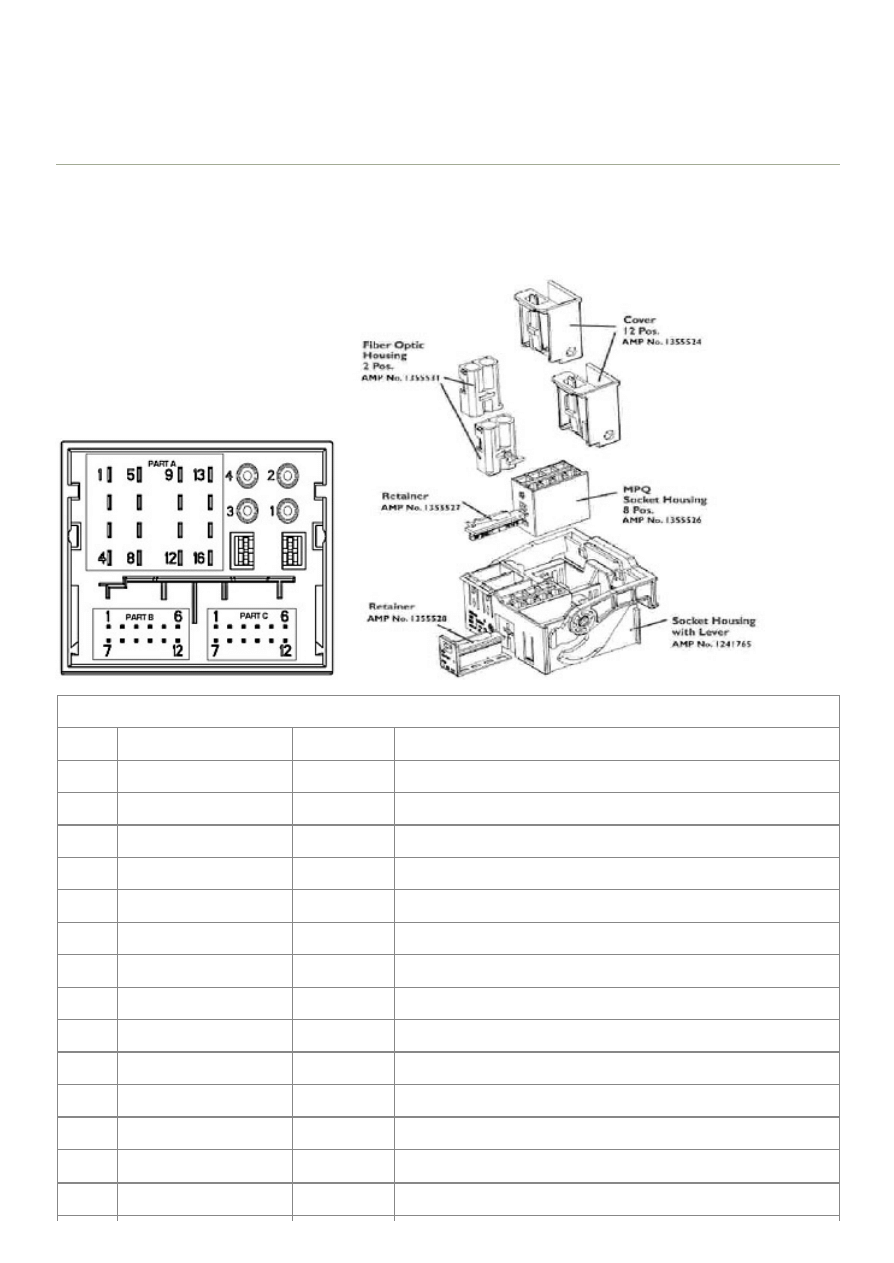

Fakra conector:

Fakra Part A
Pin

Signal

In/Out

Description

1

+SPK-BR

O

Signal Speaker Back Right

2

+SPK-FR

O

Signal Speaker Front Right

3

+SPK-FL

O

Signal Speaker Front Left

4

+SPK-BL

O

Signal Speaker Back Left

5

-SPK-BR

O

Ground Speaker Back Right

6

-SPK-FR

O

Ground Speaker Front Right

7

-SPK-FL

O

Ground Speaker Front Left

8

-SPK-RL

O

Ground Speaker Back Left

9

SUPPLY_C-DeV

O

Power suply of screen

10

CAN_H

E/S

Signal H CAN bus

11

POS

I

Position of rectractile screen

12

+PER COM

I

Main permanent power suply

13

CAN_L

E/S

Signal L CAN bus

14

ON_CT DEPL

O

Open/close signal for the retractile screen

4.5.2014

RT4 Wiki: Pinouts

http://rt4.wikidot.com/printer--friendly//pinouts

2/3

15

GND Screen

O

Ground of screen power suply

16

GND

I

Main ground

Fakra part B
Pin

Signal

In/out

1

Video IN 1 +

I

2

S.O.S call spk -

O

3

Micro -

I

4

Audio IN R

I

5

BackLight Reg.

O

6

Video IN 2 +

I

7

Video IN 1 -

I

8

S.O.S call spk +

O

9

Micro +

I

10

Audio In L

I

11

Audio In GND

I

12

Video IN 2 -

I

*Fakra part C is only for the CD Changer, pinout is not needed.

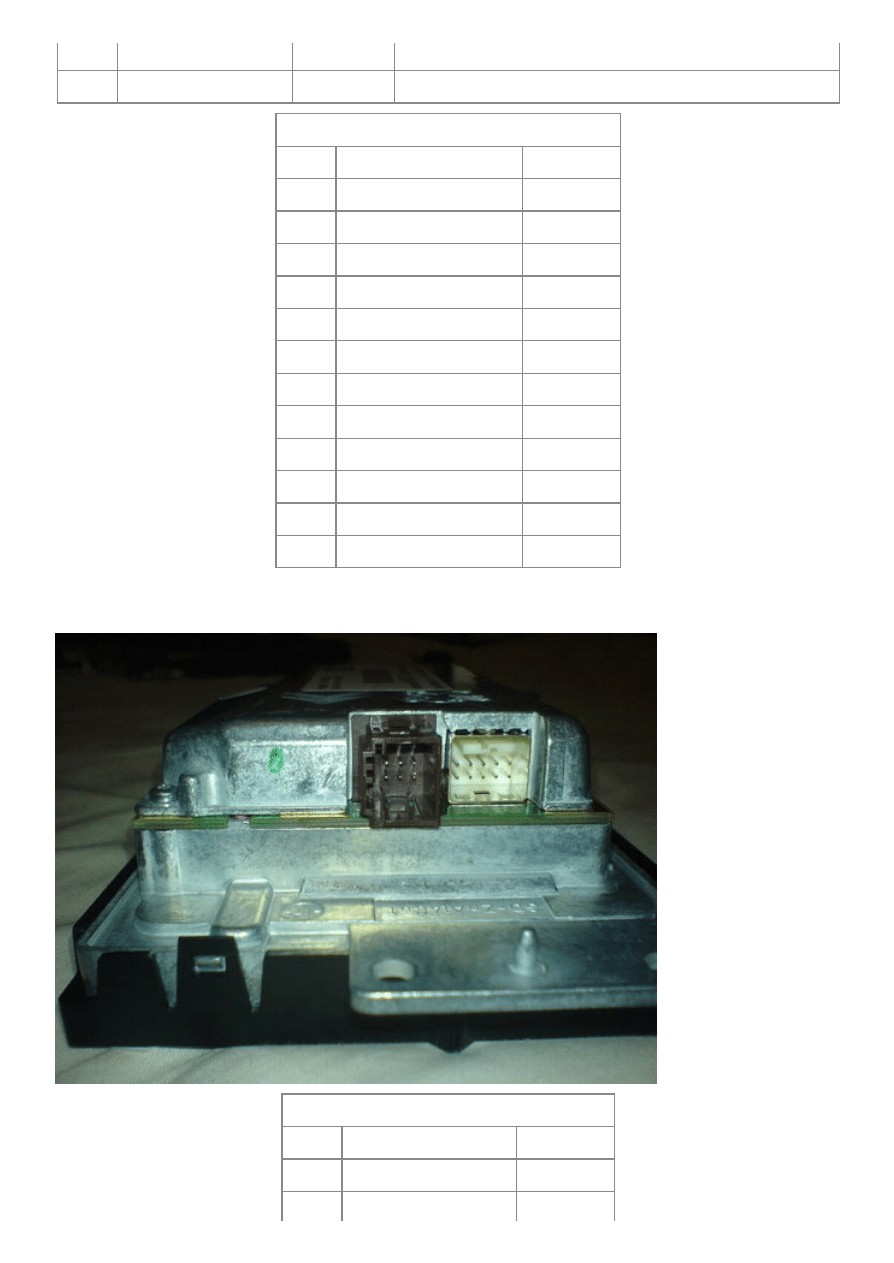

Screen Brown Connector
Pin

Signal

In/out

1

Power +12v

I

2

BackLight Reg.

I

4.5.2014

RT4 Wiki: Pinouts

http://rt4.wikidot.com/printer--friendly//pinouts

3/3

3

GND

I

4

Unused

-

5

Unused

-

6

GND

I

Pin 1 & 3 of screen brown connector must be connected to pins 9 & 15 of
Fackra part A.
Pin 2 of of screen brown connector must be connected to pin 5 of Fackra part
B.

*Screen White conector is the image LDVS connection, pinout is not needed.

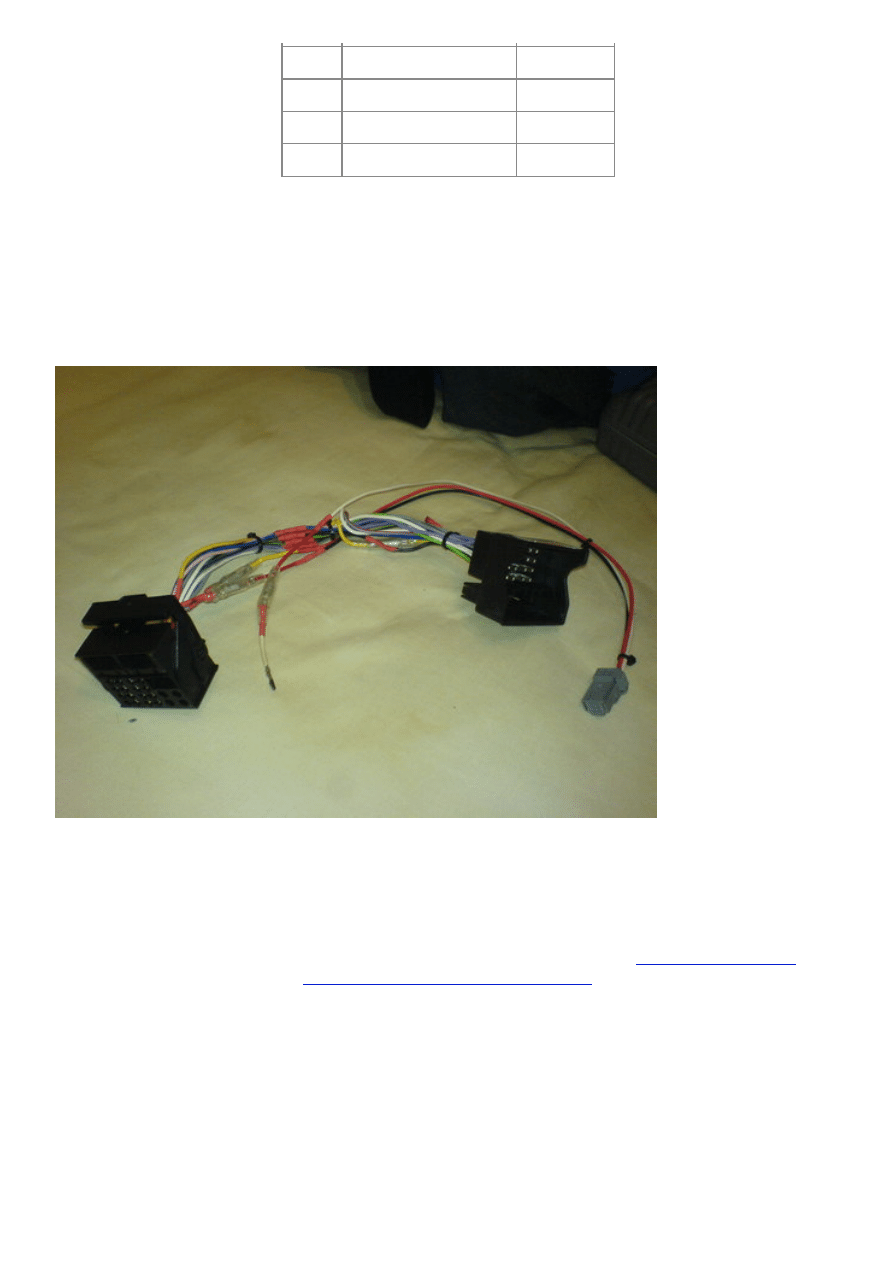

Adapter to install RT4 in a citroen C4, made from a parrot adapter
