Foreword

Jaguar S

-TYPE

Audio Systems Handbook

Published July 2000 by Parts and Service Communications Jaguar Cars Limited Publication Part No. JJM 18 03 16/10

JAGUAR CARS LIMITED,

as manufacturers, are

dedicated to the design and production of vehicles which meet
the expectations of the world's most discerning purchasers.
To complement the features, systems and technology of your
new vehicle we have produced this Audio Systems Handbook.
In it we have undertaken to make the control of complex
systems easy to understand and operate.
The information contained herein applies to a range of
vehicles and not to a specific vehicle. For the specification of a
particular vehicle, owners should consult their Jaguar Dealer.

The Manufacturer reserves the right to vary its specifications
with or without notice, and at such times and in such manner
as it thinks fit. Major as well as minor changes may be involved
in accordance with the Manufacturer’s policy of constant
product improvement.
All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system or transmitted, in any
form, electronic, mechanical, photocopying, recording or
other means without prior written permission from the Service
Division of Jaguar Cars Limited.

Contents

1. Introduction and controls

General information . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Sound system control panel . . . . . . . . . . . . . . . . . . . . 1-2
Steering wheel controls . . . . . . . . . . . . . . . . . . . . . . . 1-3
Sound system display . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Sound controls and adjustments . . . . . . . . . . . . . . . . 1-5
Using the steering wheel controls . . . . . . . . . . . . . . . 1-7

2. Sound system operation

Radio operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Radio broadcast data system . . . . . . . . . . . . . . . . . . . 2-3
RBDS trouble-shooting guide . . . . . . . . . . . . . . . . . . . 2-6
Cassette tape player operation . . . . . . . . . . . . . . . . . . 2-7
Compact disc player operation (where fitted). . . . . . . 2-9
Compact disc player fault diagnosis . . . . . . . . . . . . . . 2-13

3. System care

Sound system control panel . . . . . . . . . . . . . . . . . . . . 3-1
Cassette tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Compact discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

A comprehensive index is located at the back of this handbook

Introduction and controls 1-1

1

Introduction and controls

General information

The sound system is available in two versions: the Base
System, and the Premium System.
The Base System comprises a radio, cassette tape player,
optional CD player, and four door-mounted speakers.
The Premium System has the CD player fitted as standard, and
has extra speakers mounted at the base of the centre console
and on the rear parcel shelf. Both systems have an FM aerial
and an AM aerial within the rear screen. An additional feature
of the Premium System is digital signal processing (DSP) to
enhance the sound quality. It has two functions: occupancy
setting and audio effects.
The system is operated by the controls on the fascia panel, and
the controls on the left-hand side of the multi-function
steering wheel. The control panel has an alphanumeric display
which provides detailed information, including text messages,
relating to the operation of the unit.

1-2 Introduction and controls

JOL.036

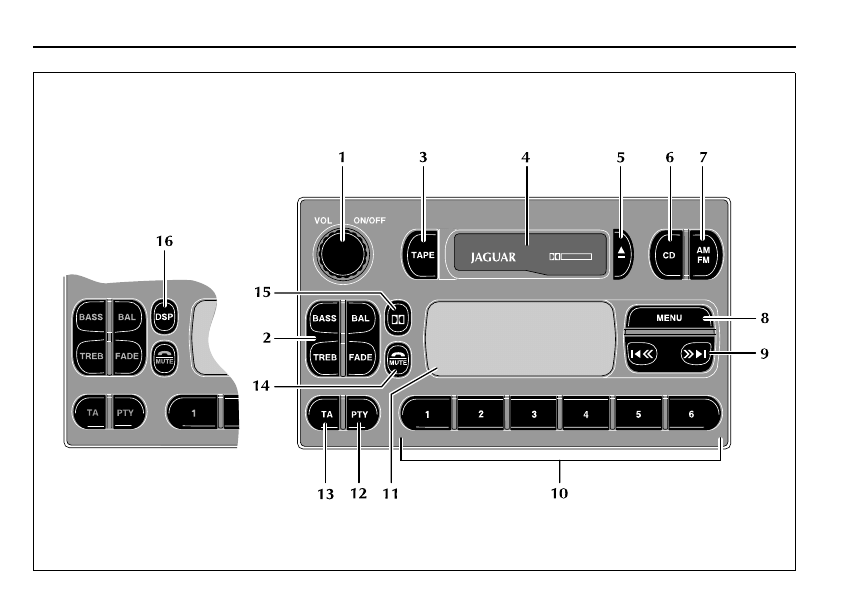

Sound system control panel

Introduction and controls 1-3

Key to illustration on page 1- 2
1.

ON/OFF button and rotary volume control.

2.

Treble, bass, balance and fade selection buttons
(adjustment by volume control).

3.

Cassette tape player button.

4.

Cassette tape aperture.

5.

Cassette tape eject button.

6.

CD player button.

7.

Waveband (AM/FM) selection and Auto-store button.

8.

Menu function button.

9.

Seek/tuning control.

10. Preset selection buttons (1 to 6).
11. Display.
12. Program type (PTY) button.
13. Traffic Announcement (TA) button.
14. Phone/mute button.
15. Dolby B button (Base System only).
16. Digital signal processing (DSP) button (Premium System

only).

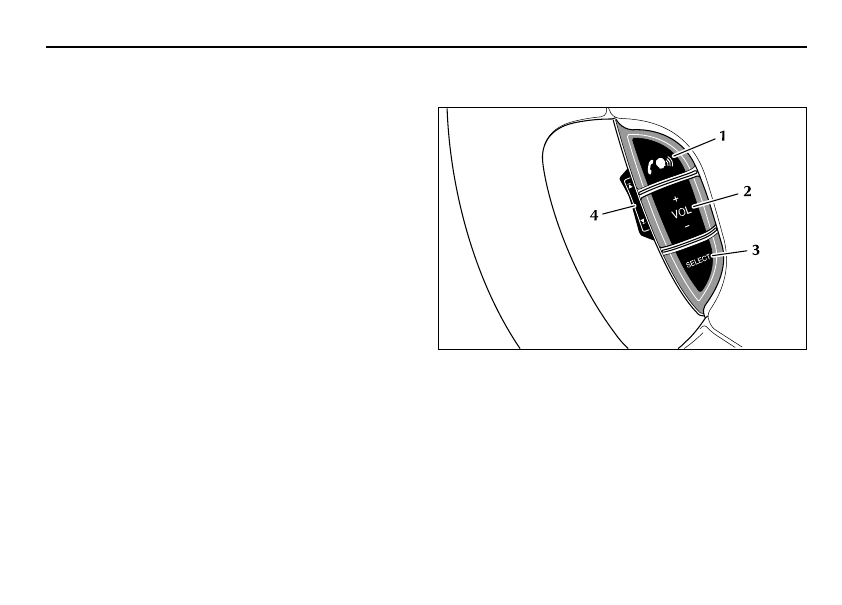

Steering wheel controls

Four controls, located on the left-hand side of the steering
wheel, control the sound system, in-car telephone and voice
activation system (where fitted). See Using the steering
wheel controls.
1. Phone/mute/voice button.
2. Volume control.
3. Select button.
4. Seek control.

JOL.044

1-4 Introduction and controls

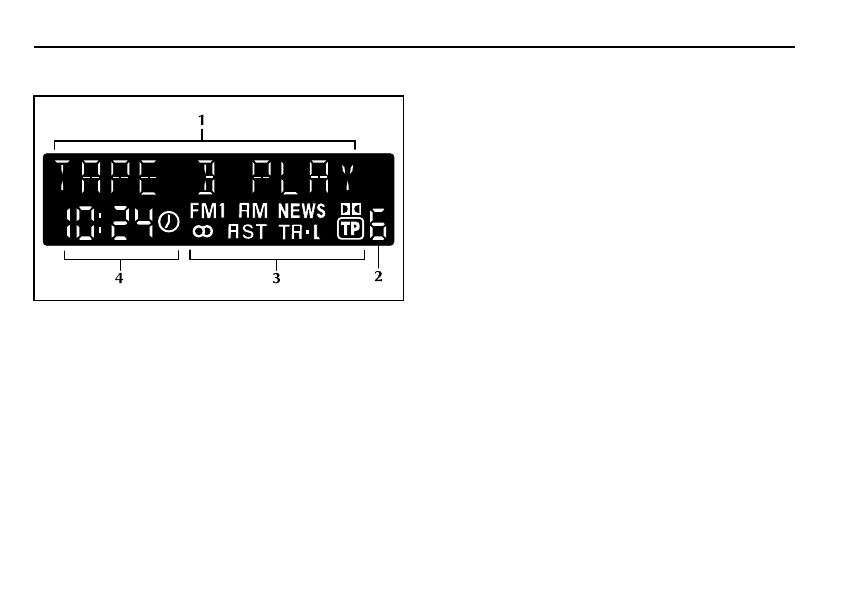

Sound system display

The alphanumeric display provides information relating to the
current mode of the unit and operation of the controls.
1. Radio frequency/station name display.

Text messages: sound system, phone, voice activation
system, navigation system and reverse park control
(where fitted).

2. Currently selected preset.
3. Operating symbols:

Radio: FM1, FM2, FM-AST, AM, AM-AST, Stereo reception,
Tape: Dolby B,
Announcements: TA-L, TP, News.

4. Clock.

Note:
1. AST refers to the auto-store function.
2. For details of the operating symbols, see Section 2.

JOL.102

Introduction and controls 1-5

Sound controls and
adjustments

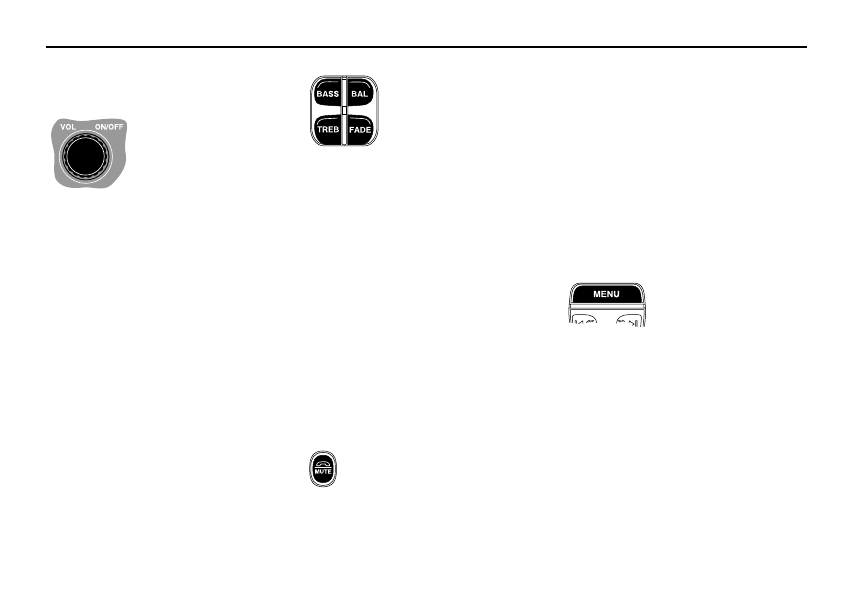

ON/OFF and volume control
Press the control to switch on the unit.
The display will light up.
Press the control again to switch off.
Turn the control to adjust the volume
level. The display shows ‘VOLUME’ and
the level (‘00’ to ‘36’).
Note: If the ignition is turned off, the
sound system will switch off
automatically. If the system is switched
on while the ignition is off, it will switch
off automatically after one hour.

Treble, bass, balance and fade
adjustment
Press the button for the function
required. The display shows the selected
function and level. There are separate
treble and bass settings for AM and
FM wavebands, cassette tape, and CD.
Turn the Volume control to adjust the
level for the function required. The
display shows ‘–7’ to ‘+7’ (treble and
bass), ‘L7’ to ‘R7’ (left to right balance),
and ‘R7’ to ‘F7’ (rear to front

fade).

Note: It is not possible to adjust treble,
bass, balance, or fade while in phone or
voice activation mode: standard settings
apply.

Phone/mute button
In-car Jaguar telephone fitted – Press
the button to enter/exit phone mode
from any current operating mode (radio,

cassette tape or CD). The display shows
‘PHONE’, or ‘NO PORTABLE’ if the
portable is not available. See the In-car
Telephone Handbook for information on
the in-car telephone installation.
In-car telephone not fitted – Press the
button to mute the sound system output.
The display shows ‘MUTE’. Cassette tape
or CD operation is paused.
Press the button again to resume sound
output.

Automatic volume control (AVC)
This feature increases the sound output
level to overcome road noise as the
vehicle speed increases.
Press the Menu button repeatedly until
the display shows ‘AVC’ and the level (‘0’
to ‘7’). Press the Seek/Tuning control
until the required level is shown.
To exit menu – Press any button or wait
four seconds.

1-6 Introduction and controls

Sound controls and
adjustments (continued)

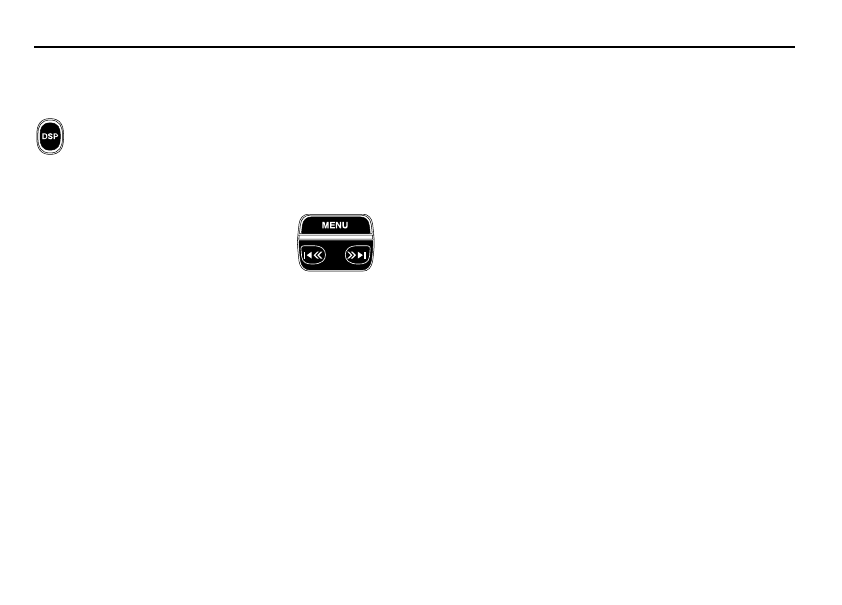

DSP button (Premium System only)
The digital signal processing (DSP) button
has two functions: change occupancy
setting and select special audio effects.
The occupancy setting feature provides
optimum performance of the system
according to the number of vehicle
occupants. The audio effects, which
include News Room, Jazz Club, Concert
Hall, Church and Stadium, may be
selected to enhance the type of music or
programme being played.
Occupancy setting – Press the button
once briefly. The current occupancy
setting is shown on the display. The
settings available are: Driver only,

Rear

seats, and All seats. Turn the Volume
control to select the required occupancy
setting.

Audio effects – Press the button twice
briefly. The current effect (or ‘EFFECTS
OFF’) is shown on the display. Turn the
Volume control to select the required
effect, or ‘EFFECTS OFF’.
To exit – Press any button or wait four
seconds.

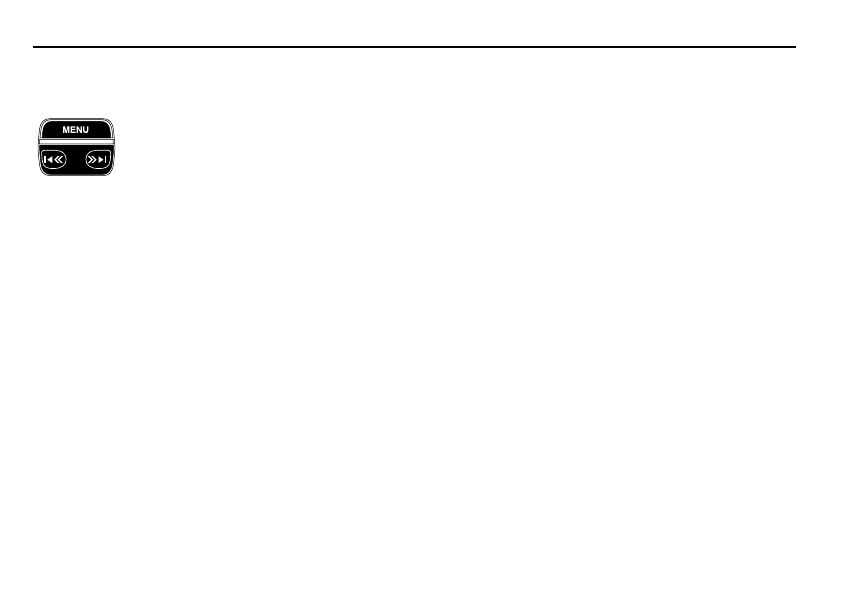

Setting the clock
Press and hold the Menu button for two
seconds to make any of the adjustments
below. The display shows ‘ADJUST
CLOCK’.
Changing hours and minutes – The
display should be showing ‘ADJUST
CLOCK’ with the hours flashing. Press
the Seek/tuning control repeatedly to
change the hour setting.
Press the Menu button briefly. The
display shows the minutes flashing. Press
the Seek/tuning control repeatedly to
change the minute setting.

Changing the time mode – With the
display showing ‘ADJUST CLOCK’, press
the Menu button repeatedly until the
display shows the current time mode.
Press the Seek/tuning control to select
12 hour or 24 hour time mode.
Selecting RBDS time update – The
time can be adjusted automatically from
data transmitted by certain radio
stations, as part of the Radio Broadcast
Data System (RBDS), see Section 2.
With the display showing ‘ADJUST
CLOCK’, press the Menu button
repeatedly until the display shows ‘RBDS
TIME ON’ (or ‘OFF’).
Press the Seek/tuning control to select
RBDS time On or Off.
Note: RBDS time update is automatically
turned off if the clock is adjusted
manually.
To exit menu – Press any button or wait
four seconds.

Introduction and controls 1-7

Using the steering wheel
controls

The controls on the left-hand side of the
steering wheel duplicate the
corresponding functions on the sound
system control panel. For further
information see the radio, cassette tape,
and CD operating information in
Section 2, and the In-Car Telephone
Handbook.

Phone/mute/voice button
If the vehicle has voice activation and the
in-car telephone installation fitted, the
button operates as a voice button except
when the phone is in use.
Note: For more information, see the
Voice Activation Handbook and the
In-Car Telephone Handbook.

Muting the sound output – If the
vehicle does not have the voice
activation system and in-car telephone
installation fitted, the button operates as
a mute button.
Press the button briefly to mute the
sound system output. The display shows
‘MUTE’. Cassette tape or CD operation is
paused.
Press the button again to resume sound
output.
Voice commands – For information on
the voice activation system (where
fitted), see the Voice Activation
Handbook.

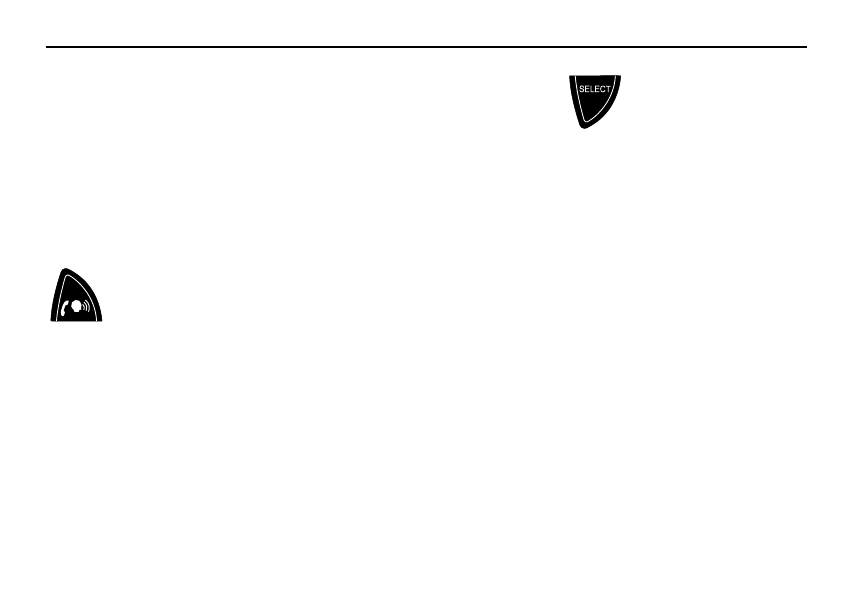

Select button
The button has two functions: select
media, and media functions.
Select media – Press and hold the
button for two seconds repeatedly to
step through the radio wavebands (AM
and FM), cassette tape (if tape loaded),
and CD (where fitted).
Media functions – The media functions
are determined by the current operating
mode (radio, cassette tape, or CD).
Press the button briefly repeatedly to
select the relevant function.
•

Radio mode: Select the next station
preset (1 to 6), in the selected
waveband.

•

Tape mode: Change the side of the
cassette tape being played.

•

CD mode: Select the next CD (1 to 6)
in the magazine.

1-8 Introduction and controls

Using the steering wheel
controls (continued)

Seek control
The function of the control is determined
by the current operating mode (radio,
cassette tape, CD, or phone).
Radio mode – Press the upper or lower
part of the control repeatedly to seek up
or down the selected waveband. For
each press of the control, the next strong
station will be found.
Cassette tape mode – In this mode the
control has two functions: automatic
music search (AMS), and fast tape wind.
The upper part of the control operates in
the forward direction and the lower part
in reverse.
First press: Finds the start of the next or
previous track (AMS).
Second press: Selects tape fast forward
or rewind.
Third press: Returns to tape play.

Note: After operating the control,
pressing the other part of the control will
return immediately to tape play.
CD mode – In this mode the control has
two functions: select next track, and fast
forward/reverse. The upper part of the
control operates in the forward direction
and the lower part in reverse.
Press briefly to select the start of the next
or previous track.
Press and hold as required to select fast
forward or reverse.
Note: Briefly pressing the lower part of
the control for a second time after a track
has been playing for a minimum of four
seconds, will return to the start of the
track.
Phone mode – Press the upper or lower
part of the control repeatedly to step up
or down through the numbers stored in
the phone memory. The sound system
display shows each phone number in
turn. See the In-Car telephone
Handbook for further information.

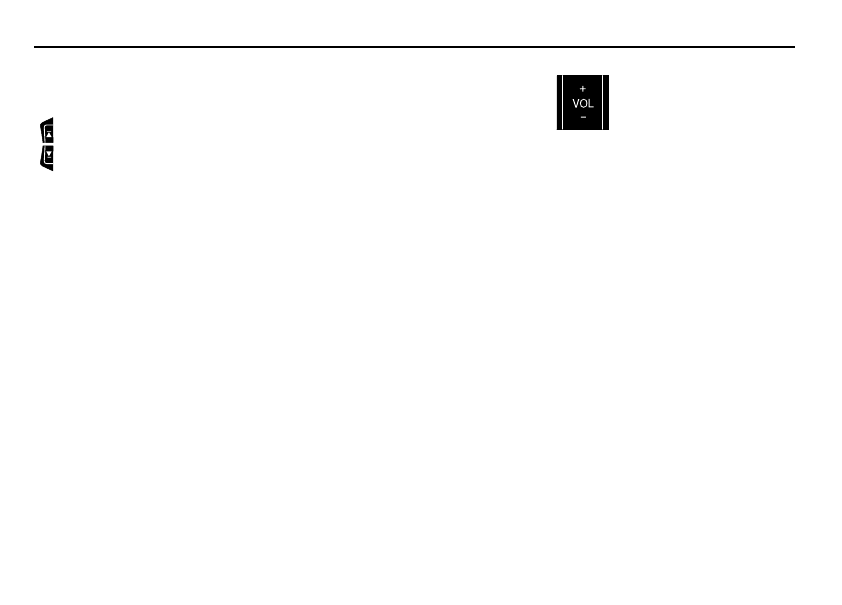

Volume control
Press the upper part of the control to
increase volume, and the lower part to
decrease volume. The display shows
‘VOLUME’ and the level (‘00’ to ‘36’).

Sound system operation 2-1

2

Sound system operation

Radio operation

!

WARNING:

Do not attempt to store new stations
while driving.
See Section 1 for details of the control
panel, and operation of the steering
wheel controls (where fitted).

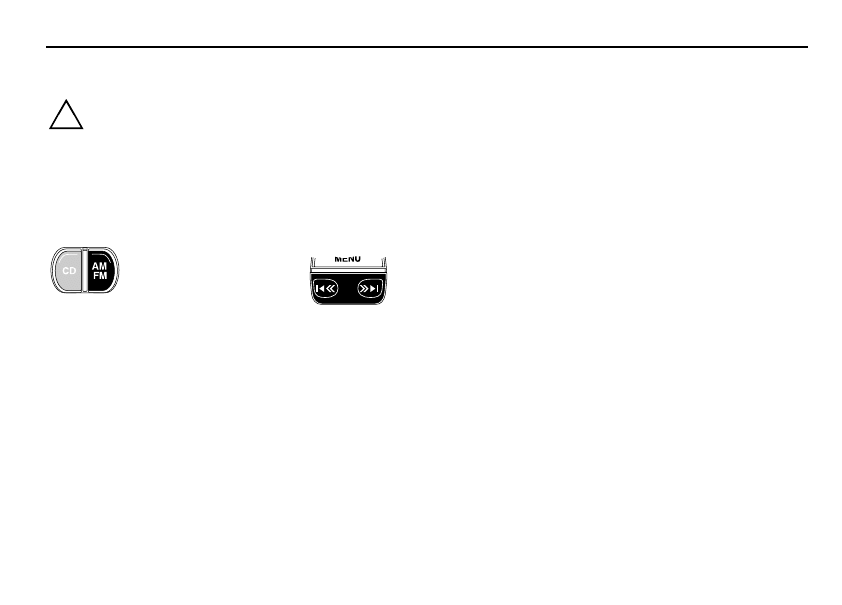

AM/FM button and auto-store
The button has two functions: waveband
selection, and automatic storage of
station presets (AST).
Waveband selection – Press the button
repeatedly to step through the radio
wavebands (FM1, FM2, FM-AST, AM, and
AM-AST). The display shows the
waveband selection. If a cassette tape or
CD is being played, radio operation will
be selected and the tape or CD stopped.

Auto-store – Press and hold the button
for two seconds to initiate the FM-AST or
AM-AST auto-store function. There will
be a brief silence while the current
waveband is searched for the six
strongest stations. The display will show
‘AST’ flashing and the frequency
changing rapidly. When the stations have
been stored, the station stored in preset
one will be selected automatically.

Seek/tuning control
The control has two functions: radio
station selection (seek mode), and
manual tuning.
Pressing the right-hand part of the
control will seek or tune up the selected
waveband, while pressing the left-hand
part will seek or tune down the selected
waveband.

Seek mode – Press the control briefly.
The tuner seeks up or down the selected
waveband and stops at the next station.
(Press and hold to skip stations if
required.) The display shows the
frequency changing rapidly. Repeat the
operation if necessary until the required
station is found.
Note: If programme type (PTY) is
selected, only RBDS stations of the
selected program type will be found, see
Radio broadcast data system.
Manual tuning – Press the Menu
button once briefly. The display shows
‘MAN’ and the current frequency.
Press the Seek/tuning control repeatedly
to step up or down the selected
waveband.

2-2 Sound system operation

Radio operation (continued)

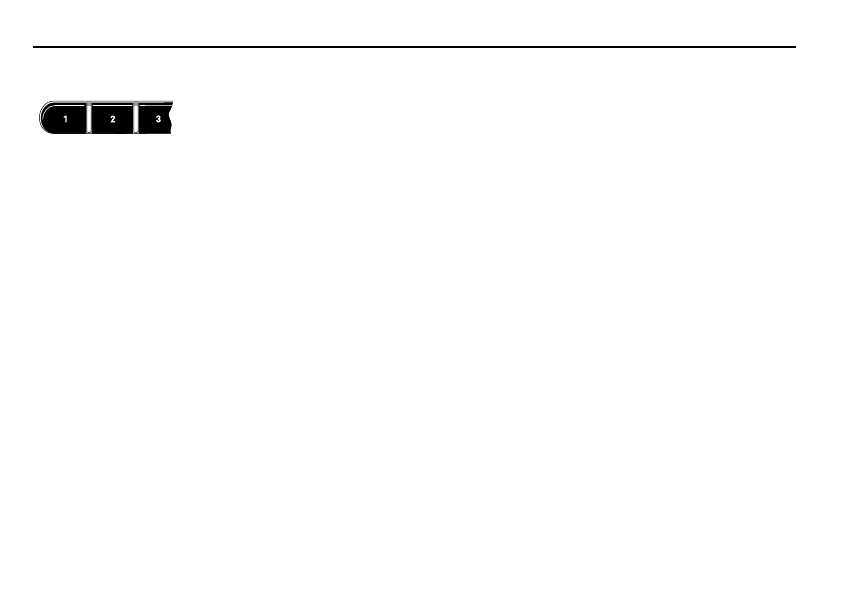

Station presets
For each waveband (FM1, FM2, FM-AST,
AM, AM-AST), six radio stations can be
stored and recalled by pressing one of
the preset buttons.
To store a station – Select the required
waveband and tune to the required
station using the Seek/tuning control.
Press and hold the selected preset button
for two seconds to store the station. The
display shows ‘STORED’ and the preset
number (‘1’ to ‘6’).
Note: For wavebands FM-AST and
AM-AST, the stations can be stored
automatically by using the
Auto-store (AST) function. See AM/FM
button and auto-store.
To recall a station – Press the required
preset button briefly.

Sound system operation 2-3

Radio broadcast data system

Note: Before attempting to use RBDS,
program the preset buttons with the
stations required, see AM/FM button and
auto-store.
The Jaguar sound system is equipped
with the Radio Broadcast Data
System (RBDS). The radio decodes
signals, transmitted with certain stations
on the FM waveband, which provide the
following functions (dependent upon
service provided):
•

Station name display.

•

Local Radio station traffic
announcement interrupts.

•

Station/programme type display and
search.

See RBDS trouble-shooting guide for
assistance if the system does not respond
correctly.

RBDS station identification
When an RBDS station is selected, the
station frequency is displayed, followed
by the station name.
If RBDS data is lost, the radio will stay on
the current frequency and the display
will show the frequency, not the station
name.

Programme type (PTY)
RDS provides information as to the type
of programme being broadcast by the
station, e.g. News, Classical, or Rock,
which is shown on the display. RDS can
also search for a station broadcasting a
particular programme type.

Traffic announcements (TA)
When this function is selected, traffic
announcements, from a station with the
Traffic Programme facility, will interrupt
the current program (radio, tape, or CD).
When a traffic announcement is
received, the display will show ‘TRAFFIC’
and the station name alternately, at the
volume level selected for traffic and
news announcements. The volume will
return to normal after the
announcement.

2-4 Sound system operation

Radio broadcast data system
(continued)

Traffic announcement button
The TA button has three functions:
selecting TA, changing announcement
volume, and skipping announcements.
Selecting TA – Press the TA button
briefly. The display shows the ‘TA-L’
symbol. The radio checks that the
current station has the RBDS Traffic
Programme (TP) facility, and ‘TP’ is
shown on the display.
If the current station does not have the
TP facility available, the display will
show ‘TP SEEK’ and the radio will search
for the next TP station.
To cancel the function, press the TA
button briefly again. The ‘TA’ indicator
will go out.

Changing announcement volume –
The volume level during traffic and news
announcements is adjustable.
Press and hold the TA button for
two seconds. The display will show
‘TA VOLUME’ and the current level (‘05’
to ‘19’). Turn the Volume control until
the required level is shown.
To exit – Press any button or wait four
seconds.

Traffic and news announcement
skip – During an announcement, press
the TA button briefly to skip a traffic
announcement, or return to normal
volume for a news announcement.
Note: This does not cancel the TA or
News feature, which will remain ready
for the next announcement.

News announcements
When this feature is selected, news
announcements on the currently
selected station, are automatically
received at the volume level selected for
traffic and news announcements. The
volume will return to normal after the
announcement.
Press the Menu button briefly repeatedly
until the display shows ‘NEWS ON’
(or ‘OFF’). Press the Seek/tuning control
to select On or Off.
To exit menu – Press any button or wait
four seconds.

Sound system operation 2-5

Radio broadcast data system
(continued)

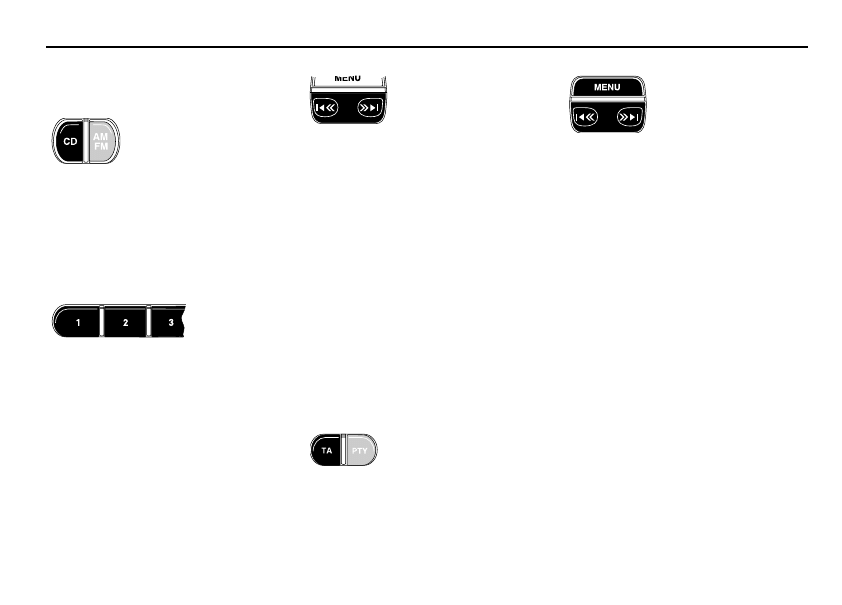

Programme type (PTY) button
Press the button briefly to select PTY
mode. The display shows the program
type of the currently selected station.
To change the program type, turn the
Volume control to scroll through the list
of available program types. The display
shows each program type in turn.
Use the Seek/tuning control to search for
a station of the desired program type. If
no station is found, the radio will show
‘NOT FOUND’.
Press the PTY button briefly again to
cancel PTY mode.

2-6 Sound system operation

RBDS trouble-shooting guide

Incorrect response from RBDS

Reason and rectification

On selecting an RBDS station, the display does not
show the station name.

Either the station is not broadcasting RBDS data, or the vehicle is in
a poor reception area. Try retuning to another station with RBDS.

The station name is lost and displays the frequency
only.

RBDS data has been lost. If the vehicle is in a poor reception area,
the station name will return automatically when reception
improves.

After pressing the TA button, the radio retunes to
another station and displays ‘TP SEEK’.

The station selected does not have Traffic Programme facility. The
radio will retune to one that does.

Sound system operation 2-7

Cassette tape player operation

See Section 1 for details of the control
panel, and operation of the steering
wheel controls.

Loading a cassette tape
Insert a cassette tape into the aperture
and it will start to play automatically. The
display shows the type of tape, followed
by ‘TAPE A PLAY’ or ‘TAPE B PLAY’. After
playing one side of the tape, it will
auto-reverse and play the other side. The
tape equalisation will be set
automatically for the type of tape loaded.

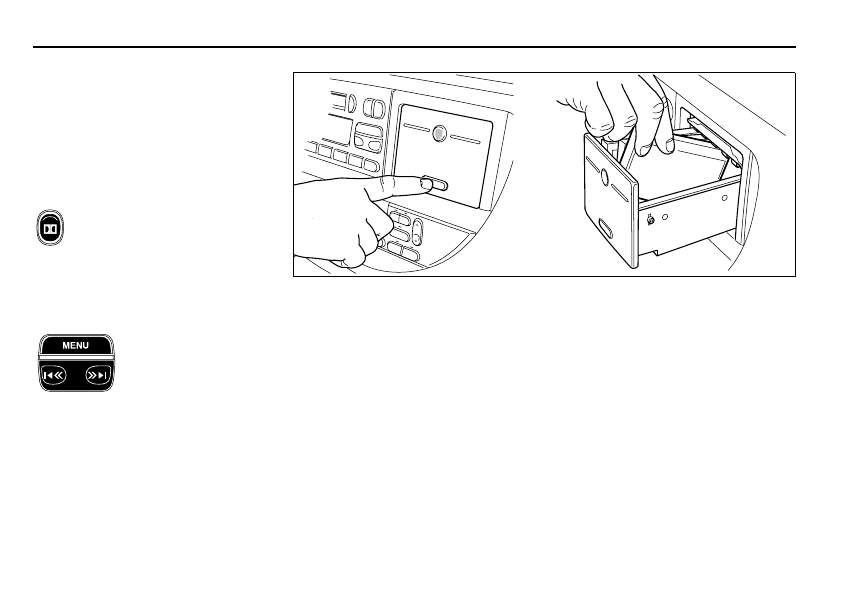

Cassette tape eject button
Press the button to eject the cassette
tape. The display shows ‘TAPE EJECT’.
The button may be pressed while the
tape is playing.

Cassette tape button
Press the button to select tape mode.
The display shows the type of tape,
followed by ‘TAPE A PLAY’ or ‘TAPE B
PLAY’. If no tape is loaded the display
shows ‘NO TAPE’. Any cassette tape that
is currently loaded will start to play.
Changing side of tape – While a tape is
playing, press the button to change to
the other side of the tape. The display
shows ‘TAPE A PLAY’ or ‘TAPE B PLAY’.

Traffic announcements (TA)
During cassette tape play, press the TA
button to skip a traffic announcement.
For full information on the TA function,
see Radio broadcast data system.

Seek/tuning control
The control has two functions: automatic
music search (AMS), and fast tape wind.
The right-hand part of the control
operates in the forward direction and the
left-hand part in reverse.
First press: Finds the start of the next or
previous track (AMS).
Second press: Selects tape fast forward
or rewind.
Third press: Returns to tape play.
Note: After operating the control,
pressing the other part of the control will
return immediately to tape play.

2-8 Sound system operation

Cassette tape player operation
(continued)

Dolby B selection
The Dolby noise reduction system may
be selected when playing any cassette
tape that has a Dolby recording.

Base System – Press the Dolby button.
The display shows the Dolby symbol.
Press the button again to deselect.

Premium System – Press the Menu
button repeatedly until the display shows
‘DOLBY ON’ or ‘DOLBY OFF’. Press the
Seek/tuning control to select On or Off.
To exit menu – Press any button or wait
four seconds.

Cassette tape storage (where fitted)
A compartment is provided for the
storage of cassette tapes.
To open, push and release the front of
the compartment. The compartment will
slide forward.
To close, push the front of the
compartment until it ‘clicks’ into
position.

JOL.693

Sound system operation 2-9

Compact disc player operation (where fitted)

The compact disc (CD) player comprises a CD autochanger
which contains a magazine to take six compact discs, and is
located on the left-hand side of the luggage compartment.
See Section 1 for details of the control panel, and operation of
the steering wheel controls.

Loading discs
Caution: When handling compact discs, take care not to
touch the playing surface.

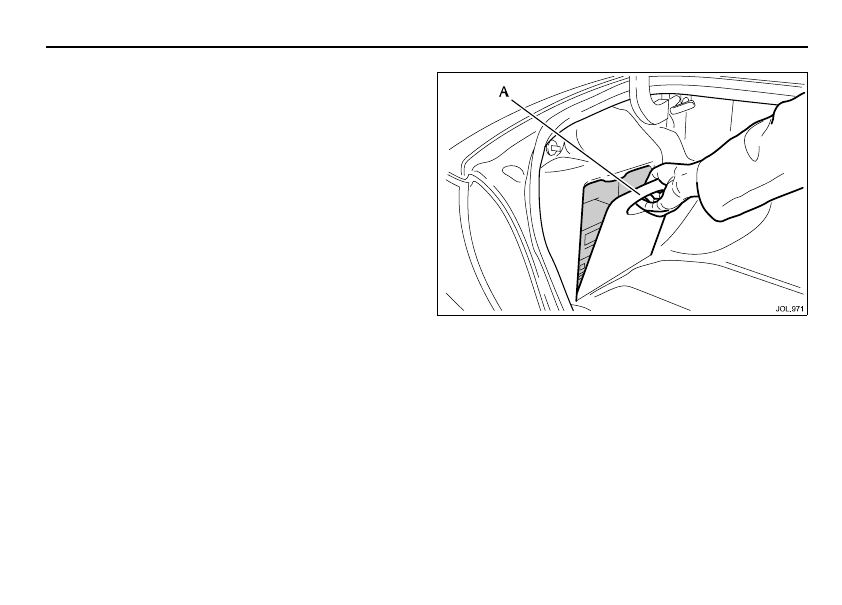

Open the trim access cover using the finger recess below the
top edge (A), pull the top of the cover forward and fold it
downwards to the fully open position.

2-10 Sound system operation

Compact disc player operation (continued)

Loading discs (continued)

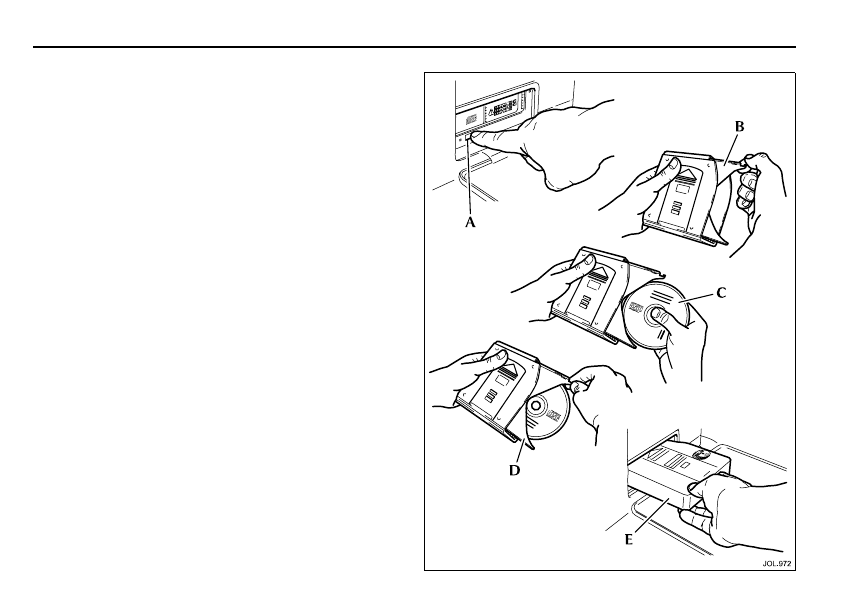

Press the eject button (A). The magazine will be partially
ejected from the autochanger.
To load a disc, pull out a disc tray from the magazine (B), and
load a disc into the tray with the label facing upwards (C). Push
the tray back into the magazine until it ‘clicks’ into
position (D). Repeat for the remaining discs as required.
Insert the loaded magazine into the autochanger (E) with the
arrow mark facing upwards and pointing towards the unit.
Ensure that it ‘clicks’ into position.
Close the trim access cover by folding the cover upwards to the
fully closed position. Check that the magnetic catch is properly
secured.
Note: When selecting compact discs from the preset buttons,
the bottom disc in the magazine is selected by preset one.

Sound system operation

2-11

Compact disc player
operation (continued)

CD button
Press the button to select the compact
disc player. The display shows the CD
and track number. If a cassette tape is
being played, it will be stopped but not
ejected.

CD Selection
The Preset buttons (1 to 6) select the
discs in the corresponding positions in
the autochanger magazine. The current
preset is shown on the display. If there is
no disc in the selected position, ‘NO
DISC’ will be displayed. If there is no
magazine in the autochanger, ‘MAG
EJECTED’ will be displayed.
Note: The bottom disc in the magazine is
selected by preset one.

Seek/tuning control
The control has two functions: select
track, and fast forward/reverse. The
right-hand part of the control operates in
the forward direction and the left-hand
part in reverse.
Press briefly to select the start of the next
or previous track. The display shows
‘SEEK’.
Press and hold as required to select fast
forward or reverse.
Note: Briefly pressing the left-hand part
of the control for a second time after a
track has been playing for a minimum of
four seconds, will return to the start of
the track.

Traffic announcements (TA)
During CD play, press the TA button to
skip a traffic announcement.
For full information on the TA function,
see Radio broadcast data system.

Shuffle function
When the Shuffle function is selected,
the tracks of the currently selected CD
will be played in random order.
Press the Menu button repeatedly until
the display shows ‘SHUFFLE ON’ or
‘SHUFFLE OFF’. Press the Seek/tuning
control to select On or Off.
To exit menu – Press any button or wait
four seconds.

2-12 Sound system operation

Compact disc player
operation (continued)

Selecting compress
When the compress function is selected,
the volume level of quieter music is
increased and the volume level of louder
music is reduced. This can avoid
frequent adjustments of the volume
level.
Press the Menu button repeatedly until
the display shows ‘COMPRESS ON’ or
‘COMPRESS OFF’.
Press the Seek/tuning control to select
On or Off.
To exit menu – Press any button or wait
four seconds.

Sound system operation

2-13

Compact disc player fault diagnosis

If the CD Player does not operate properly, a text message will be displayed. The following table gives a fault diagnosis for each
error message displayed.

Message

Cause

Remedy

CHECK DISC

The CD is unreadable.

Clean the disc, or change to another disc.

NOT MUSIC

The CD is not an audio CD.

Change the disc.

NO DISC

No CD in tray of magazine.

Insert a disc into the tray of the magazine.

MAG EJECTED

No CD magazine in the autochanger.

Load the magazine into the autochanger.

MAG EMPTY

The CD magazine is empty.

Insert discs into the magazine.

NO CD FOUND

The CD autochanger is not fitted.

See your Jaguar dealer.

System care 3-1

3

System care

Sound system control panel

Do not use petrol, solvents or abrasive cleaners on the control
panel. Wipe the surface with a lint-free cloth to remove dust.
Slightly moisten the cloth with clean water to remove any
finger-marks from the outside surfaces of the unit.

Cassette tapes

Always use good quality cassette tapes. Low cost tapes can
cause jamming, the sound quality will be inferior, and they can
create a fast build-up of deposits on the play-back head.
Before playing, check the cassette to ensure that the tape is not
loose on the spools. If necessary, take up the slack by gently
turning the spools with the end of a pencil. A jammed or
sticking tape will cause the auto-reverse mechanism to operate
continuously.
It is best not to use a tape longer than 45 minutes playing time
each side (C90). Cassettes should be stored in their library
cases away from direct sunlight. Do not store cassettes in door
pockets where they could be effected by the magnets in
loud-speakers which might impair the sound quality.

Never insert a cassette that has a torn or loose label, it may
cause the mechanism to jam.
After approximately 15 hours playing time, clean the tape
mechanism using a mechanical type cleaner with a wetting
agent in an approved kit available from your Jaguar dealer.
Do not use abrasive type cleaners as they can cause excessive
wear of the play-back head.

Compact discs

When handling compact discs, do not touch the playing
surface. When they are not being used they should always be
stored in their cases away from direct sunlight, heat and dust.
Scratches, finger-marks or dust on the surface of a disc can
cause the optical pick-up to skip tracks. If the surface is dirty,
use an appropriate CD cleaner.
Do not attempt to play damaged, warped, cracked or oversized
discs. They could seriously damage the play-back mechanism.

Index

Automatic volume control . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

B

Balance adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Bass adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

C

Care of sound system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
– cassette tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
– compact discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
– control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Cassette tape player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
– Dolby B selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
– ejecting tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
– loading tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
– seek/tuning control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
– storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
– tape play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
– compress function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
– disk play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
– disk selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
– disk shuffle function . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
– fault diagnosis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
– loading disks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
– seek/tuning control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Clock setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
– RBDS time update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

D

Digital signal processing. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

F

Fade adjusment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

O

ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

P

Phone/mute button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

R

Radio broadcast data system . . . . . . . . . . . . . . . . . . . . . . . 2-3
– announcement skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
– announcement volume . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
– automatic tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– news announcements. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
– programme type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– programme type button . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
– station identification . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– traffic announcement . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– traffic announcement button . . . . . . . . . . . . . . . . . . . . . 2-4
– trouble-shooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Radio operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
– auto-store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
– seek/tuning control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
– station presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
– waveband selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

S

Index

Steering wheel controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– mute sound output . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
– phone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
– seek control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
– select button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
– voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
– volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

T

Treble adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

V

Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

JJM 18 03 16/10
