Service Engineering & Optimization
C168
Level 3 Board Layout
2006.06.28
Rev. F
Page 1 of 4

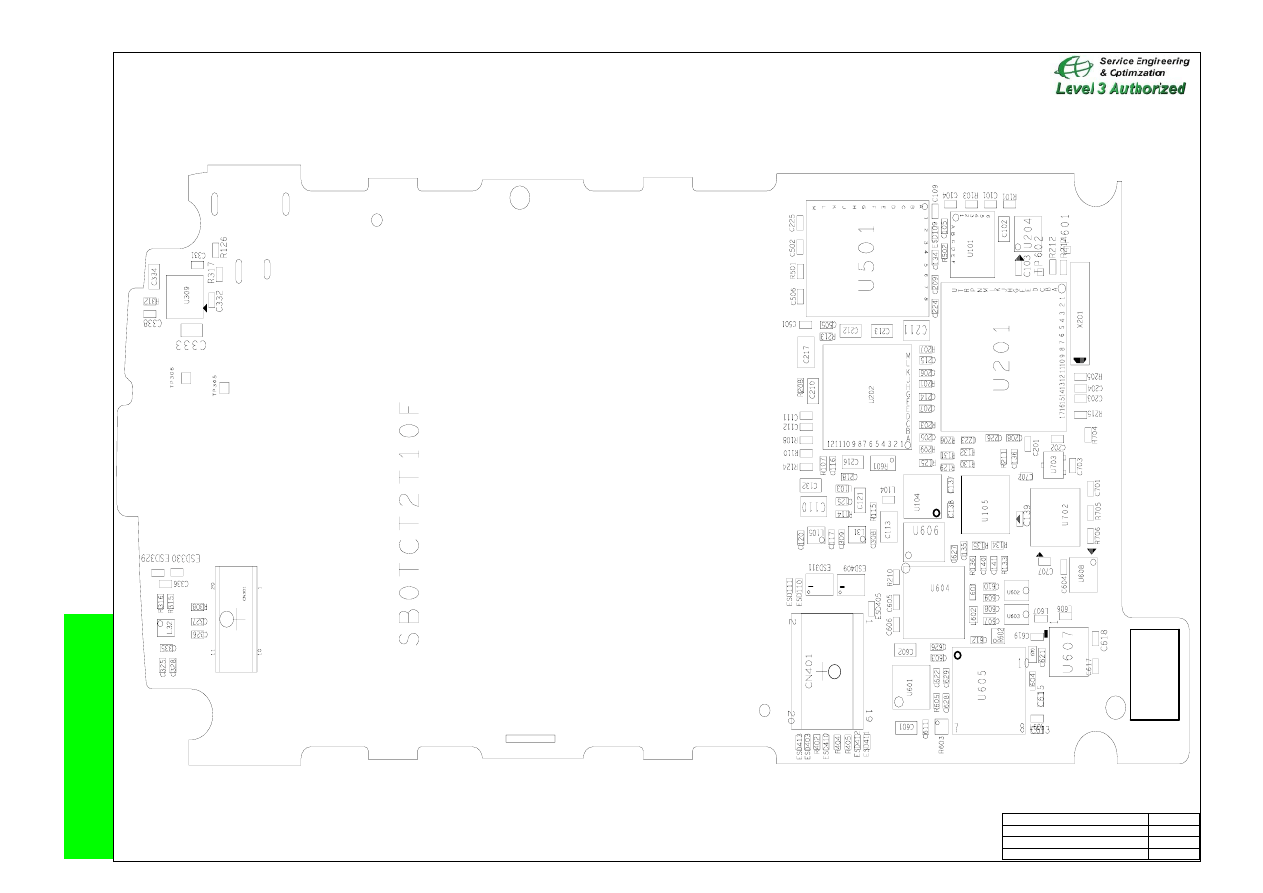

Lower board - top side
+
$&
Service Engineering & Optimization
C168
Level 3 Board Layout
2006.06.28
Rev. F
Page 2 of 4

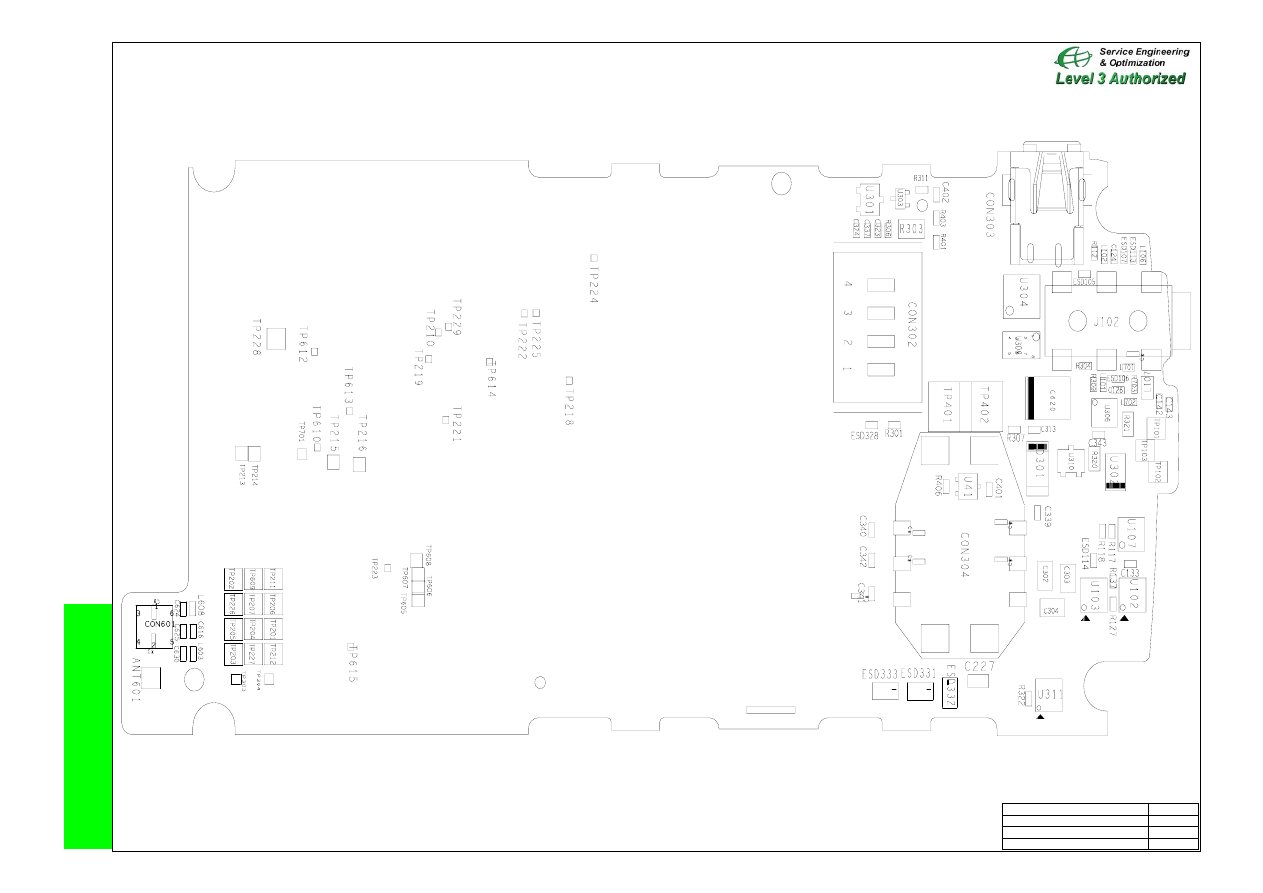

Lower board - bottom side
+
$&
Service Engineering & Optimization
C168
Level 3 Board Layout
2005.10.25
Rev. F
Page 3 of 4

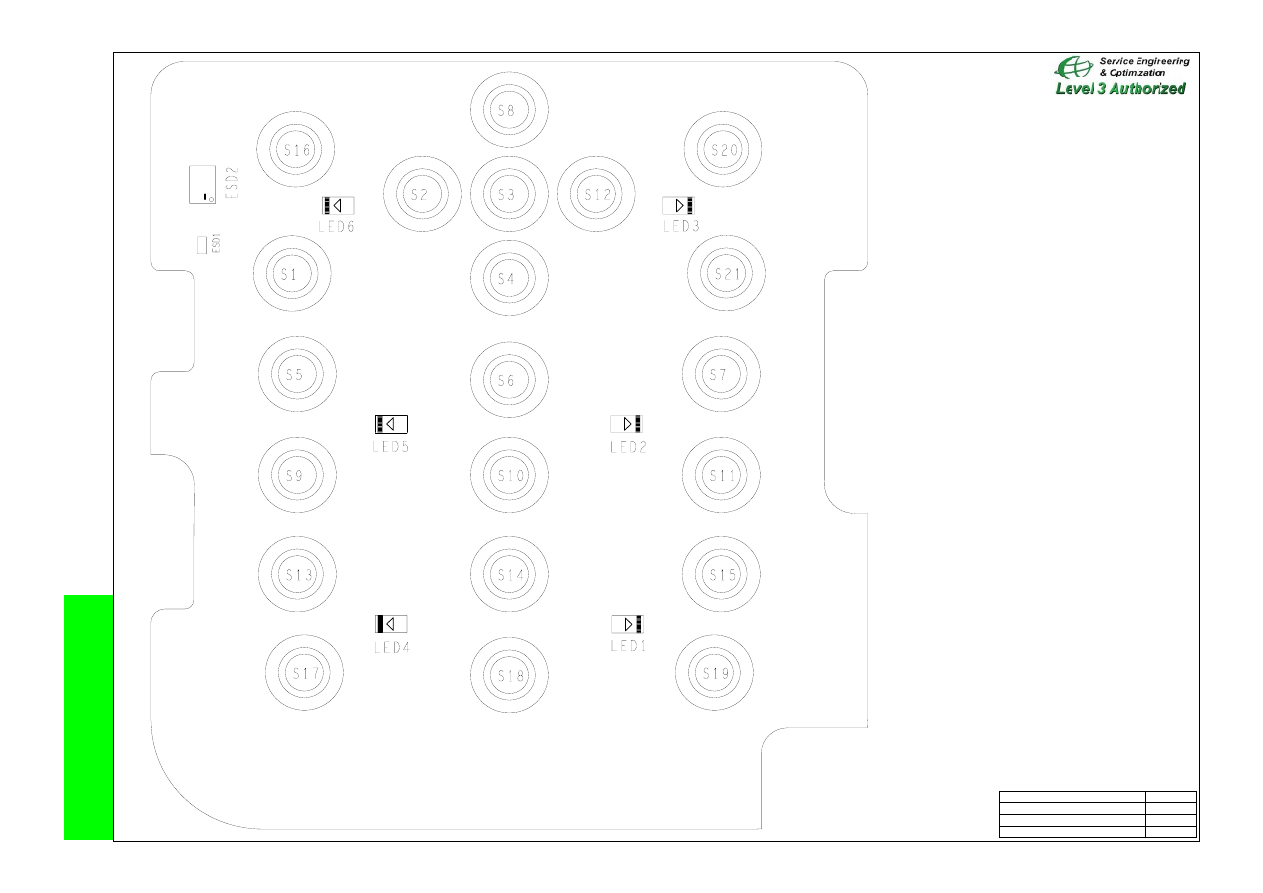

Keypad board - top side
+
$&
Service Engineering & Optimization
C168
Level 3 Board Layout
2005.10.25
Rev. F
Page 4 of 4

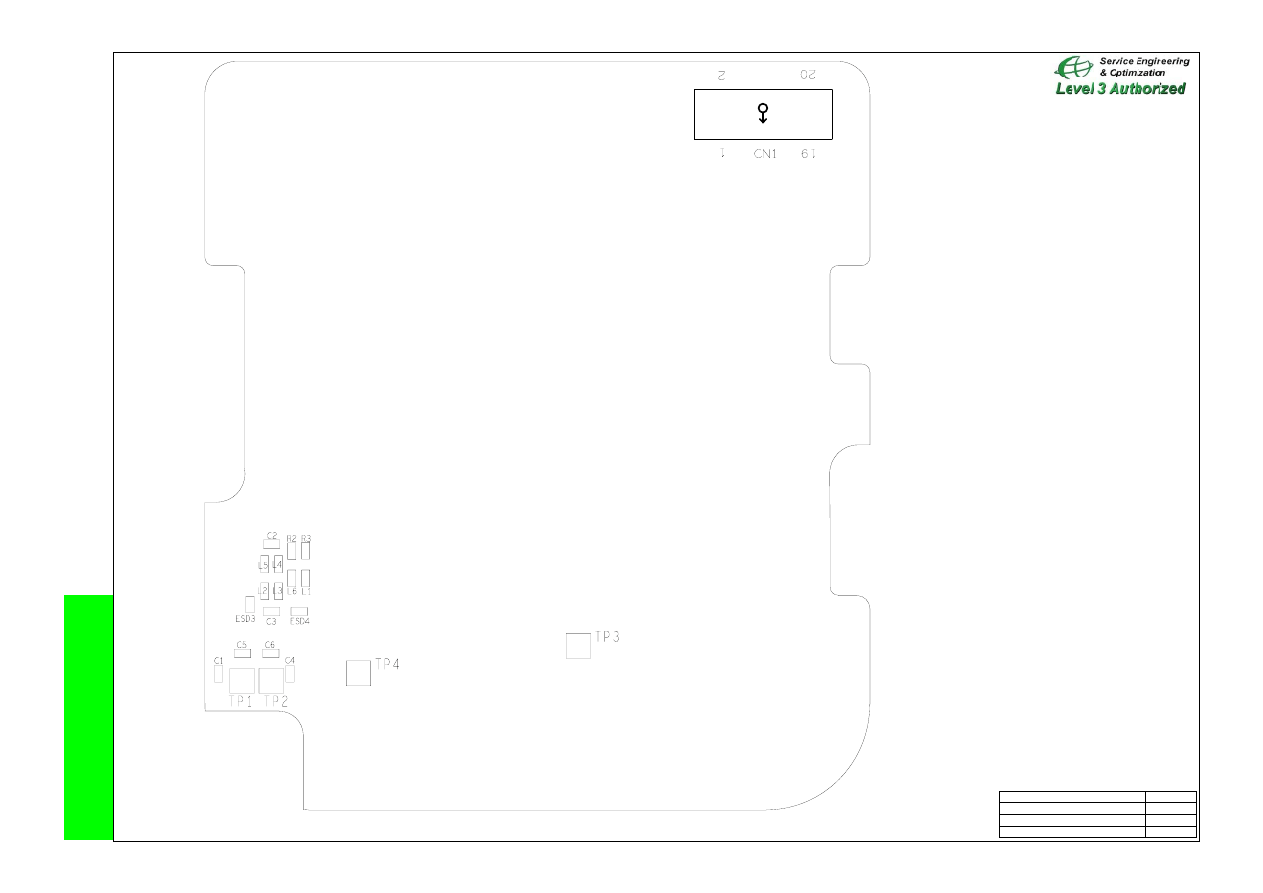

Keypad board - bottom side
+
$&
