JEEP WRANGLER 1995

background image

SYSTEM WIRING DIAGRAMS

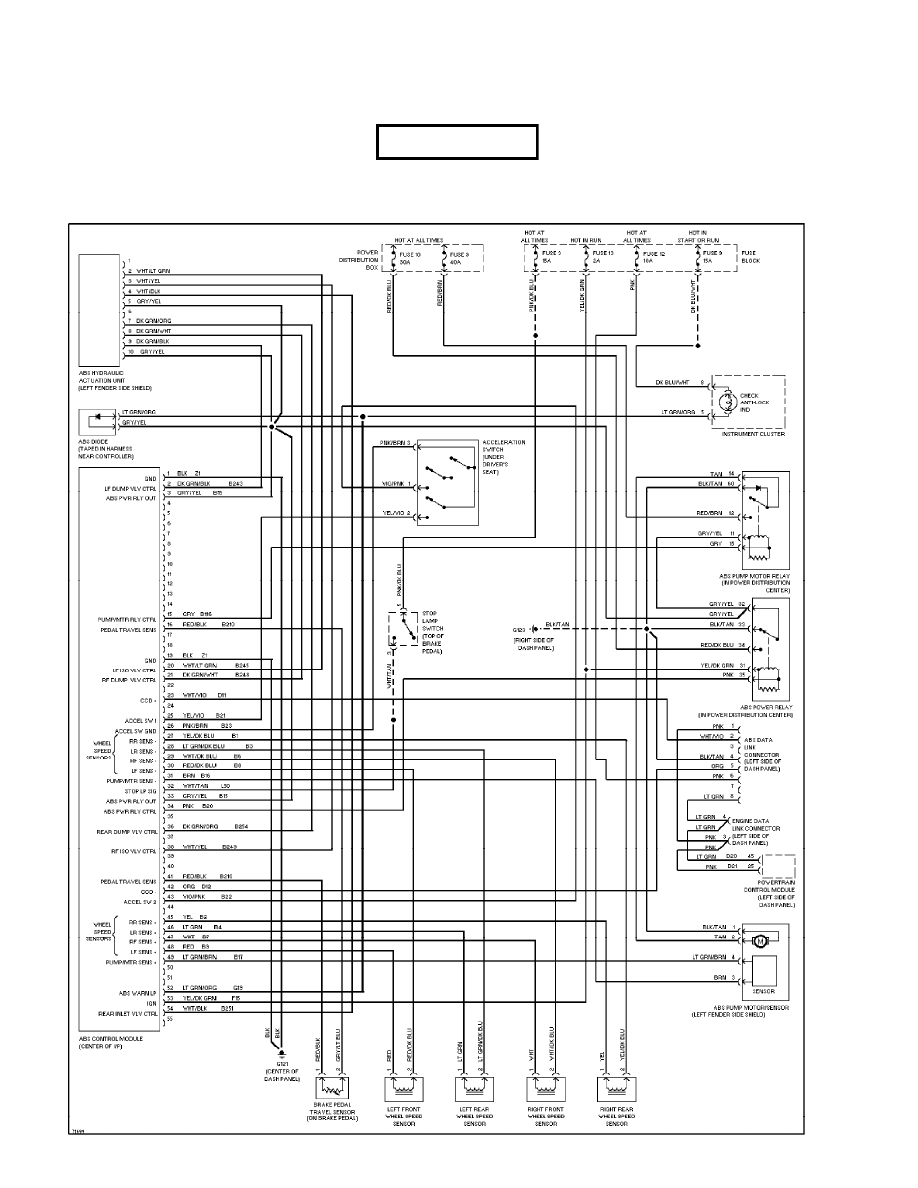

Anti-lock Brake Circuits

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

cdr@wp.pl

background image

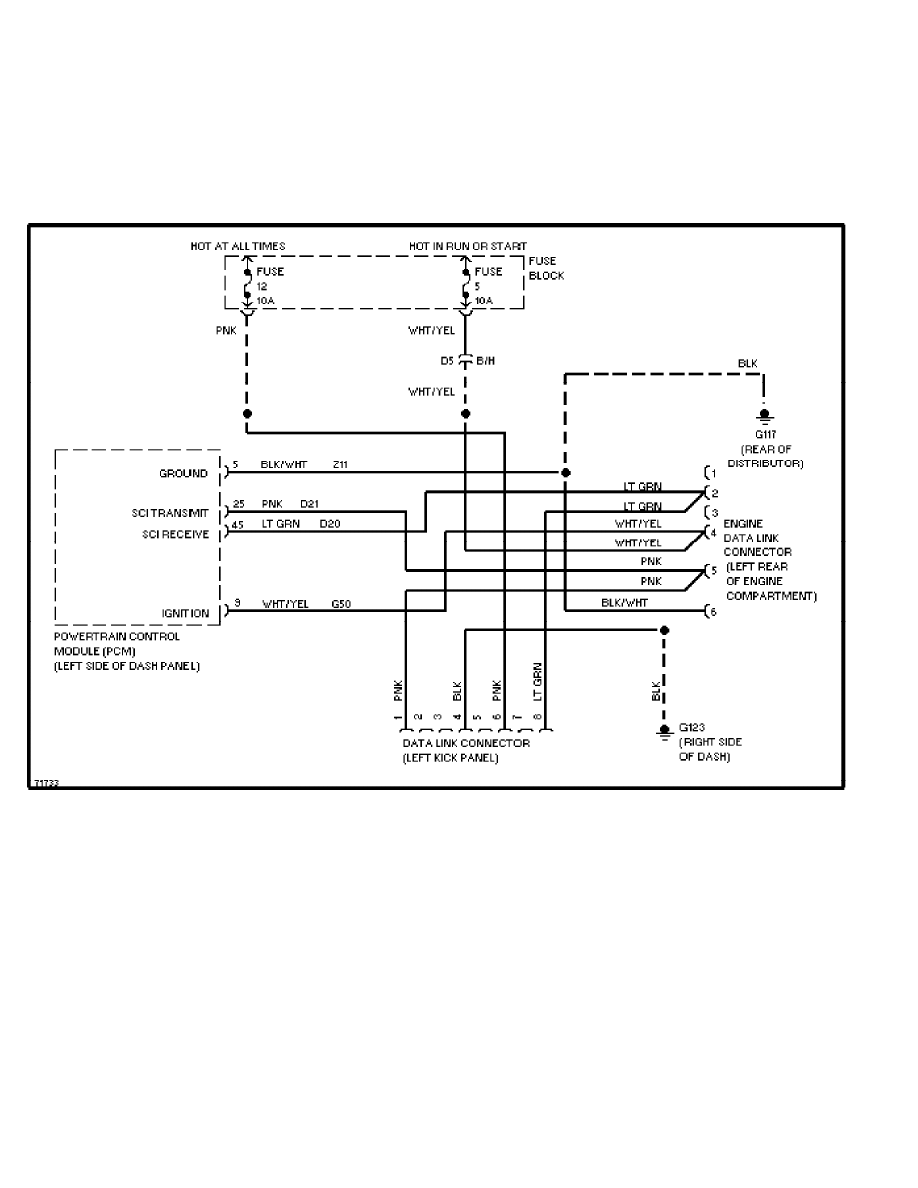

SYSTEM WIRING DIAGRAMS

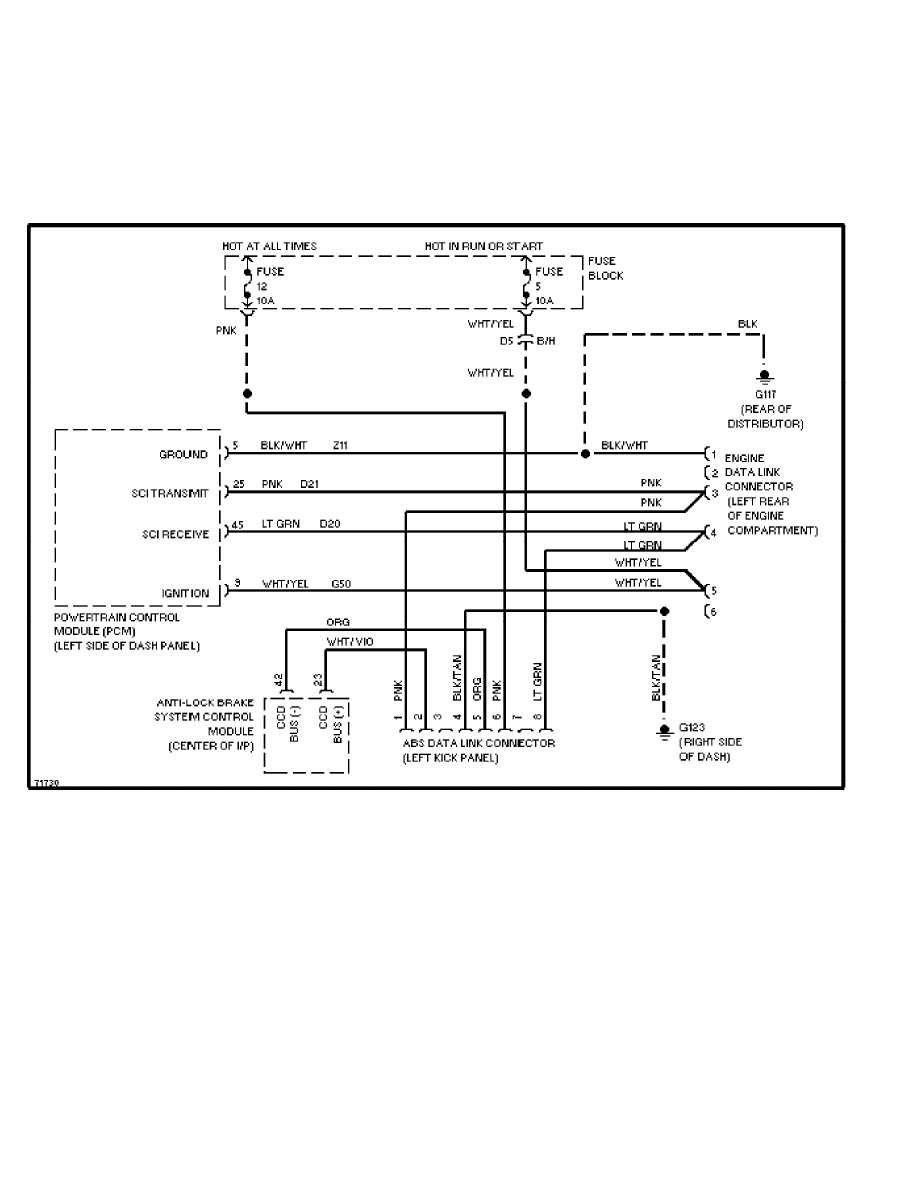

2.5L, Computer Data Lines (p. 2)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

4.0L, Computer Data Lines (p. 3)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

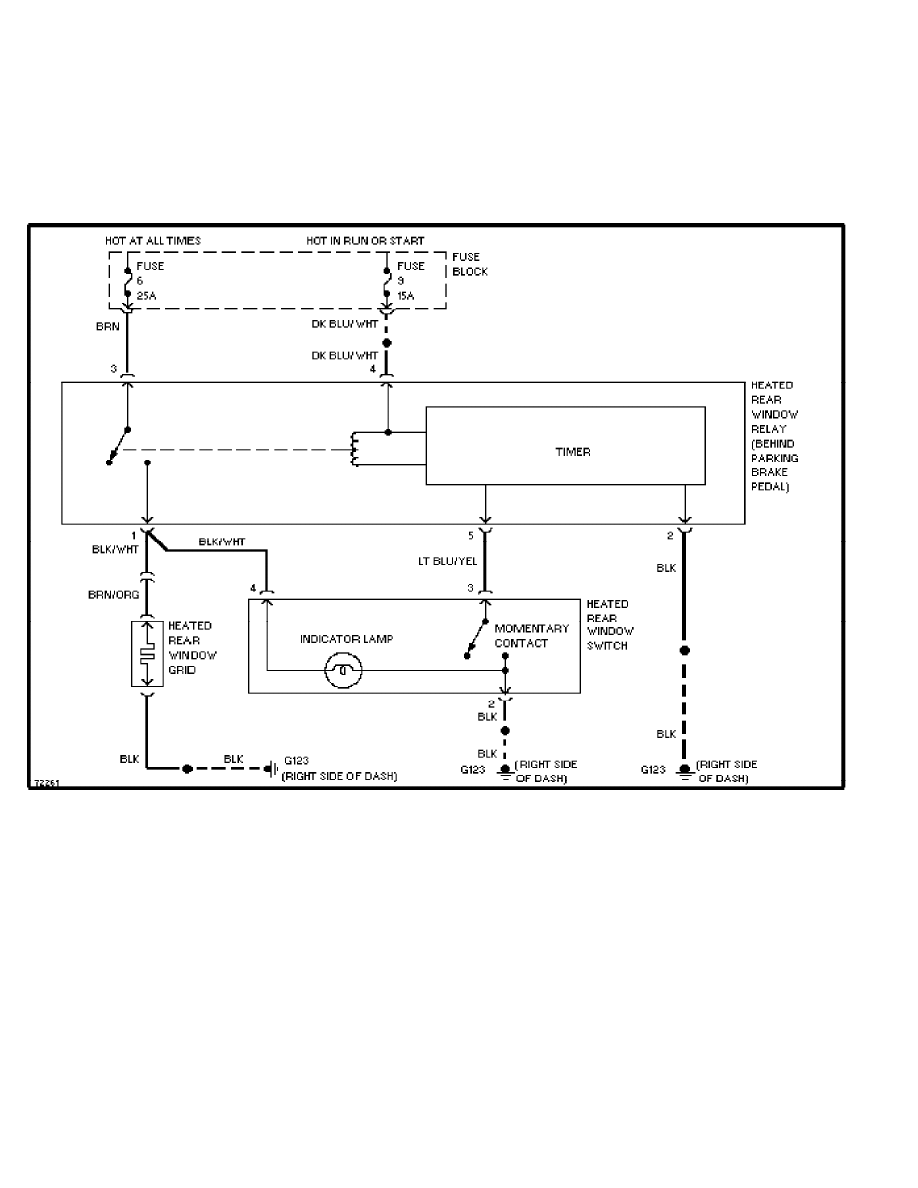

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 4)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

2.5L, Engine Performance Circuits (1 of 2) (p. 5)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

2.5L, Engine Performance Circuits (2 of 2) (p. 6)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

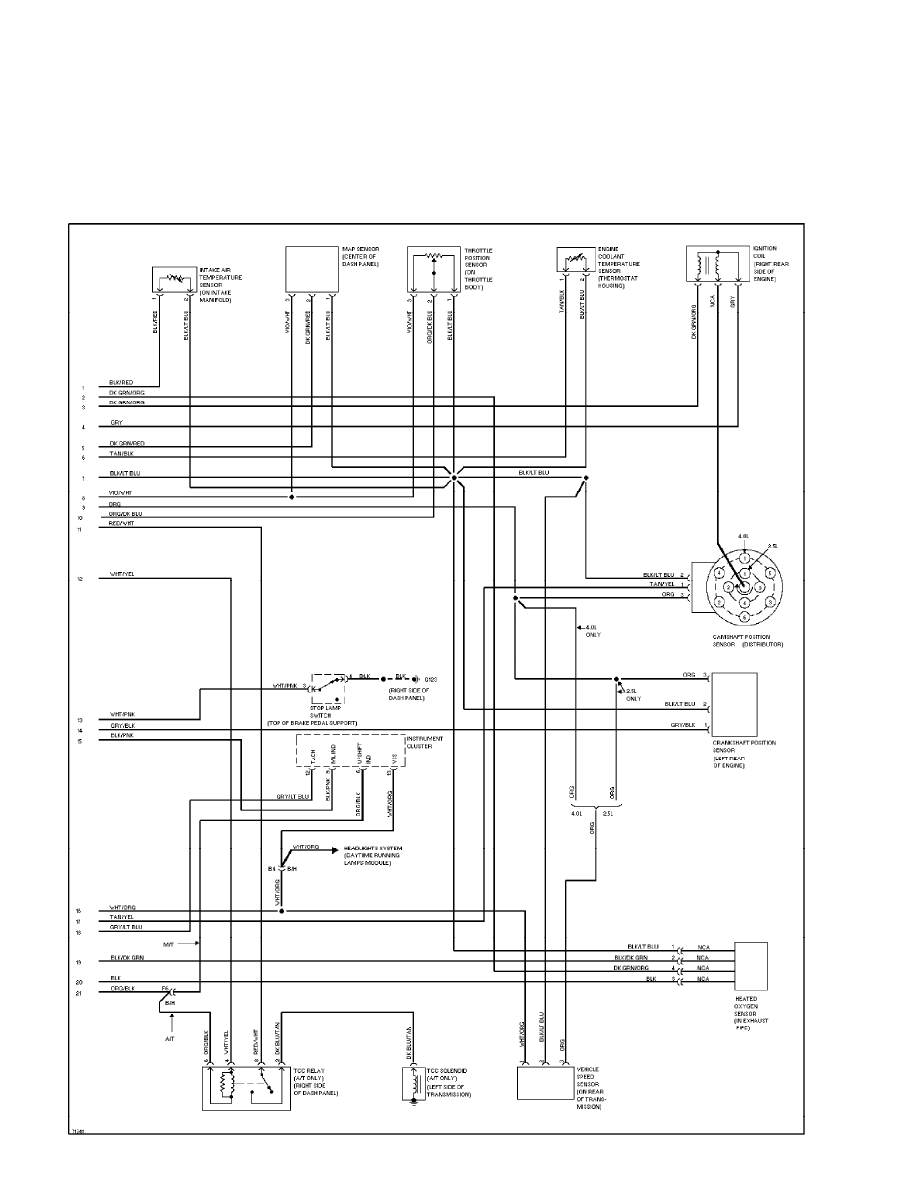

4.0L, Engine Performance Circuits (1 of 2) (p. 7)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

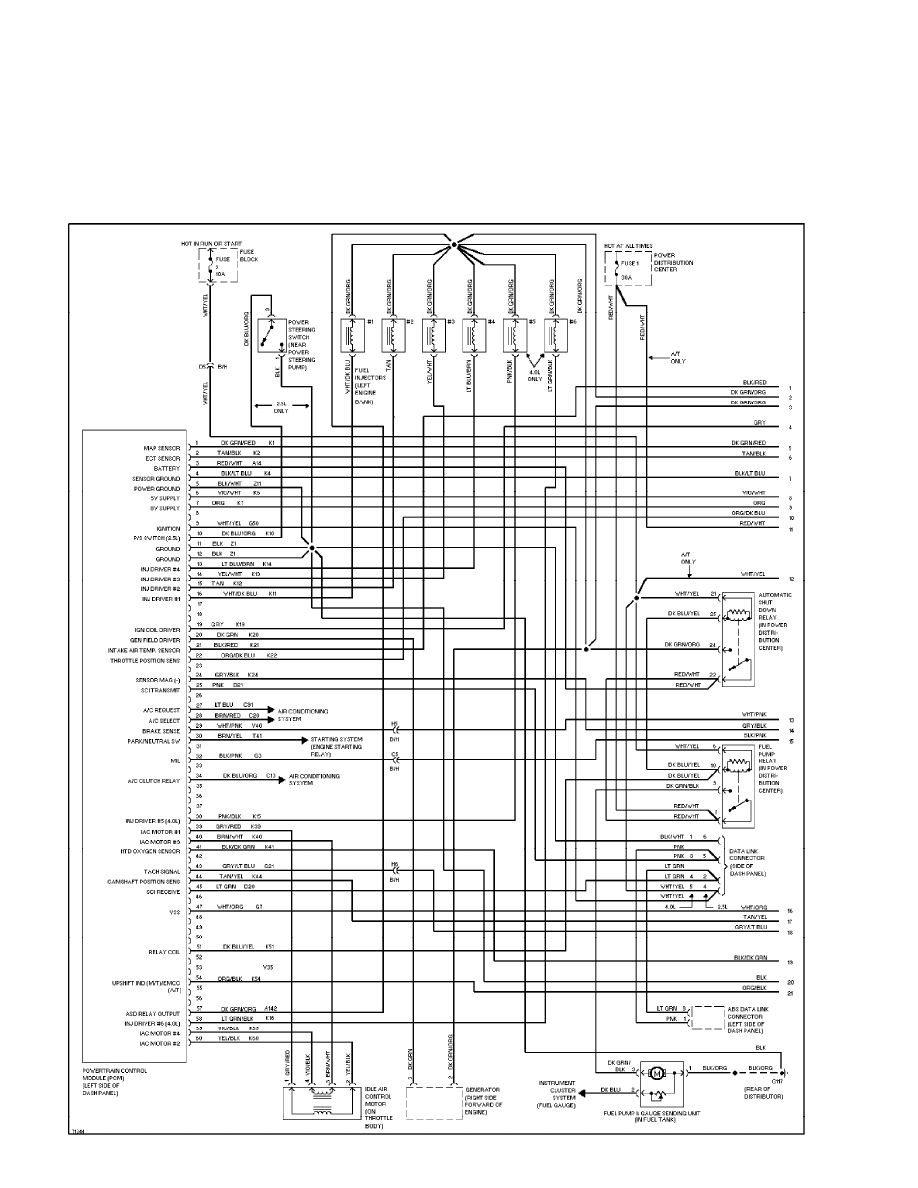

4.0L, Engine Performance Circuits (2 of 2) (p. 8)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

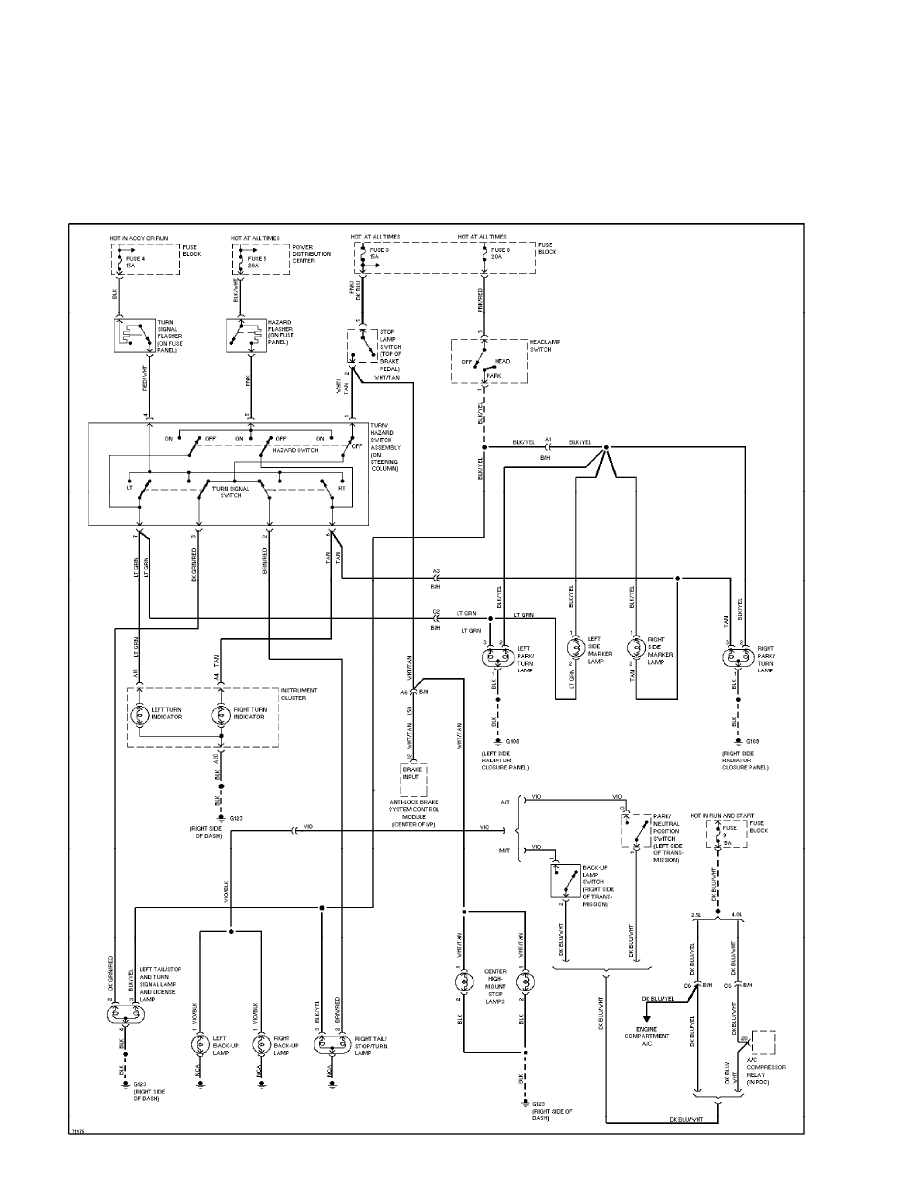

SYSTEM WIRING DIAGRAMS

Exterior Lamps Circuit (p. 9)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

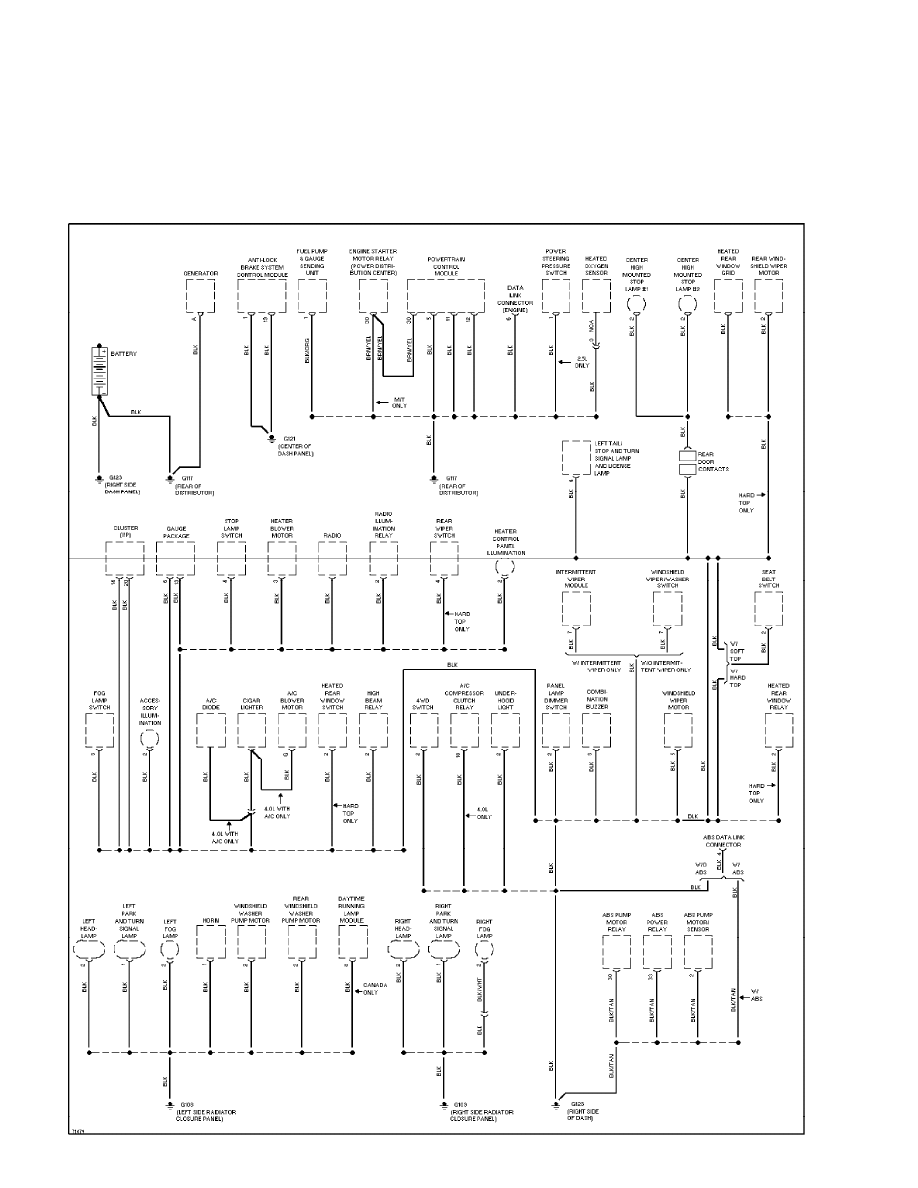

Ground Distribution Circuit (p. 10)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

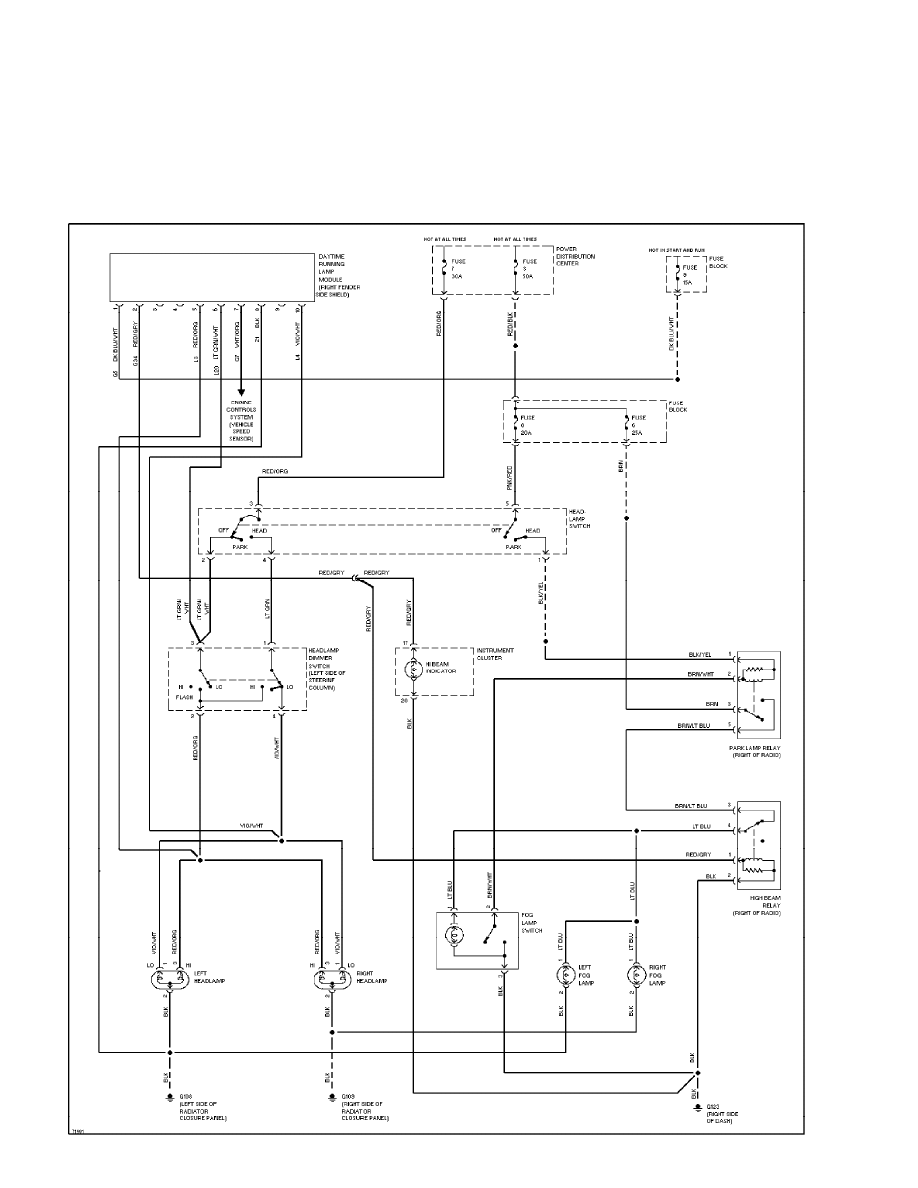

SYSTEM WIRING DIAGRAMS

Headlamps/Fog Lamps Circuit, W/ DRL (p. 11)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

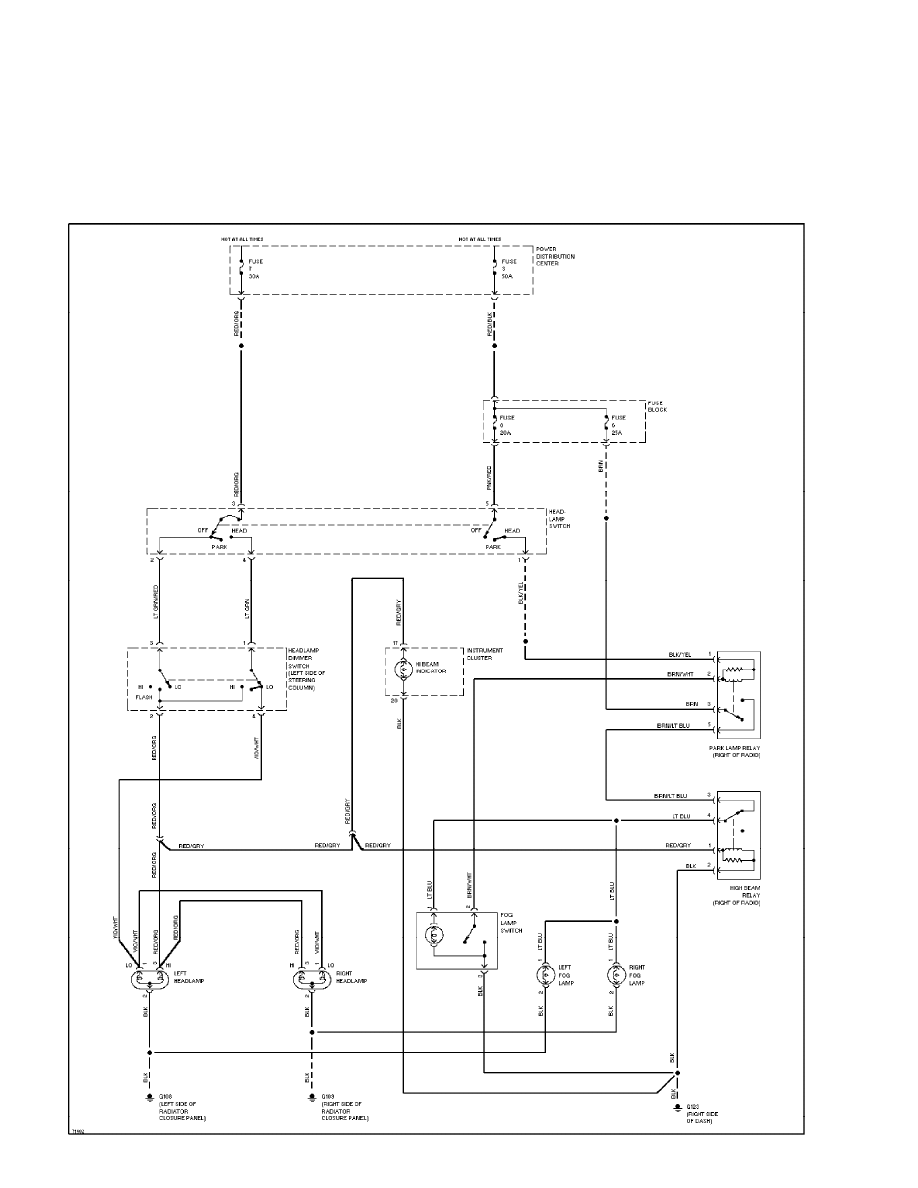

Headlamps/Fog Lamps Circuit, W/O DRL (2 of 1) (p. 12)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

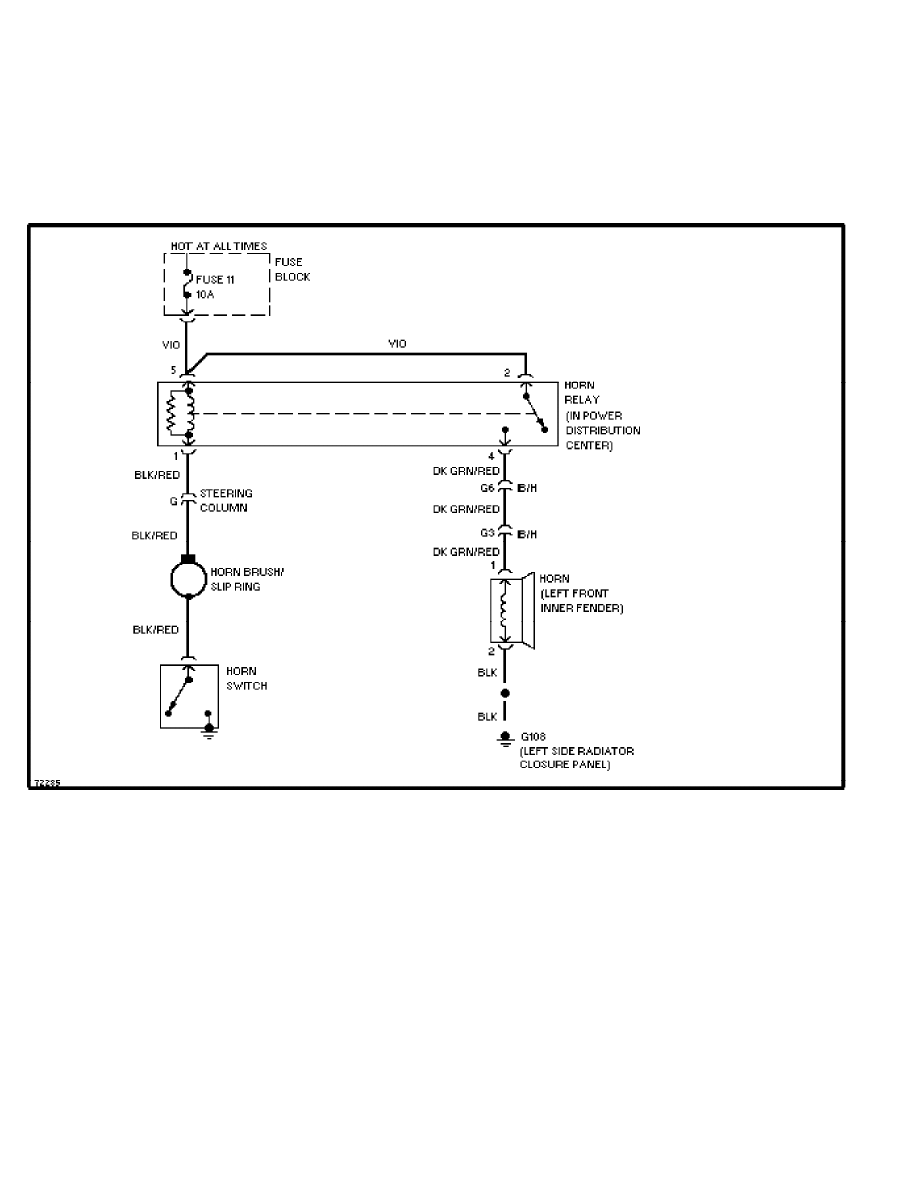

Horn Circuit (p. 13)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

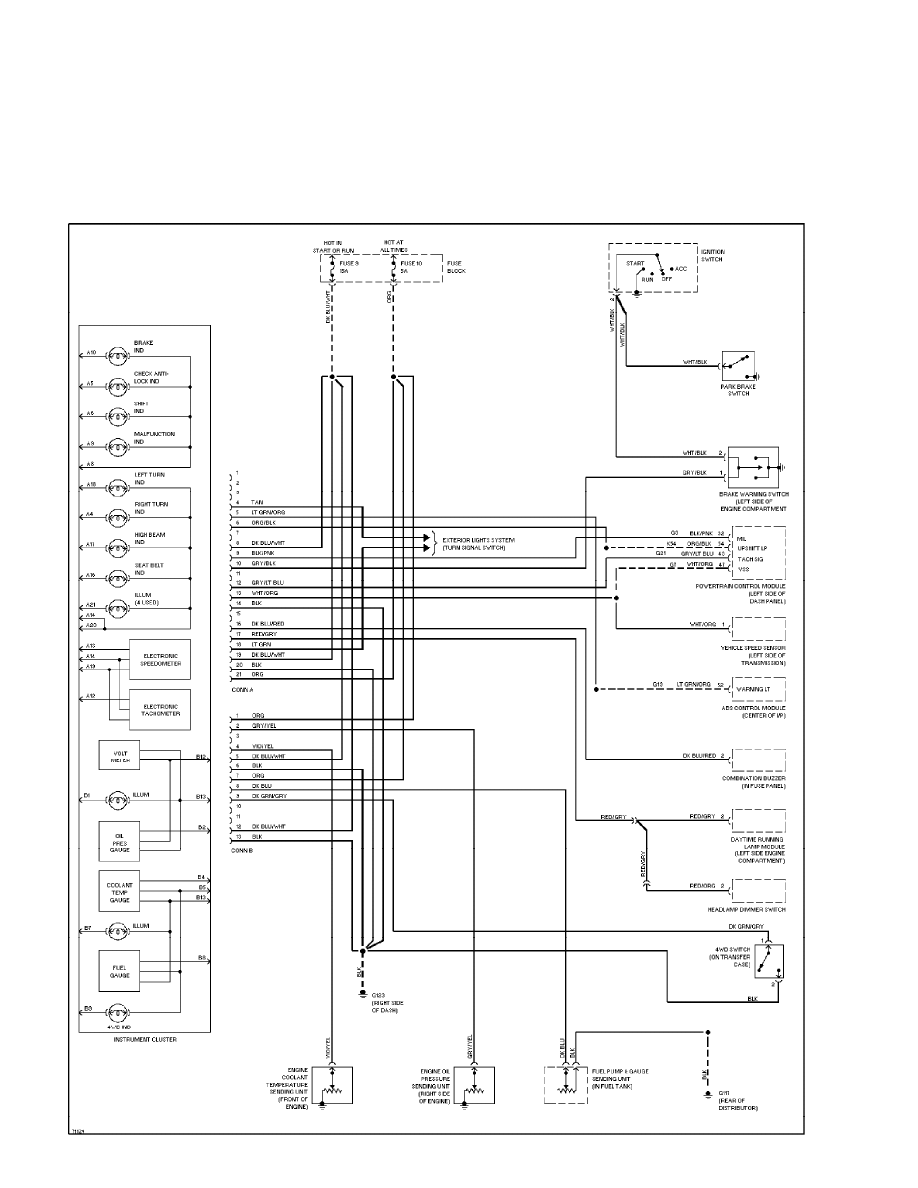

Instrument Cluster Circuit (p. 14)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

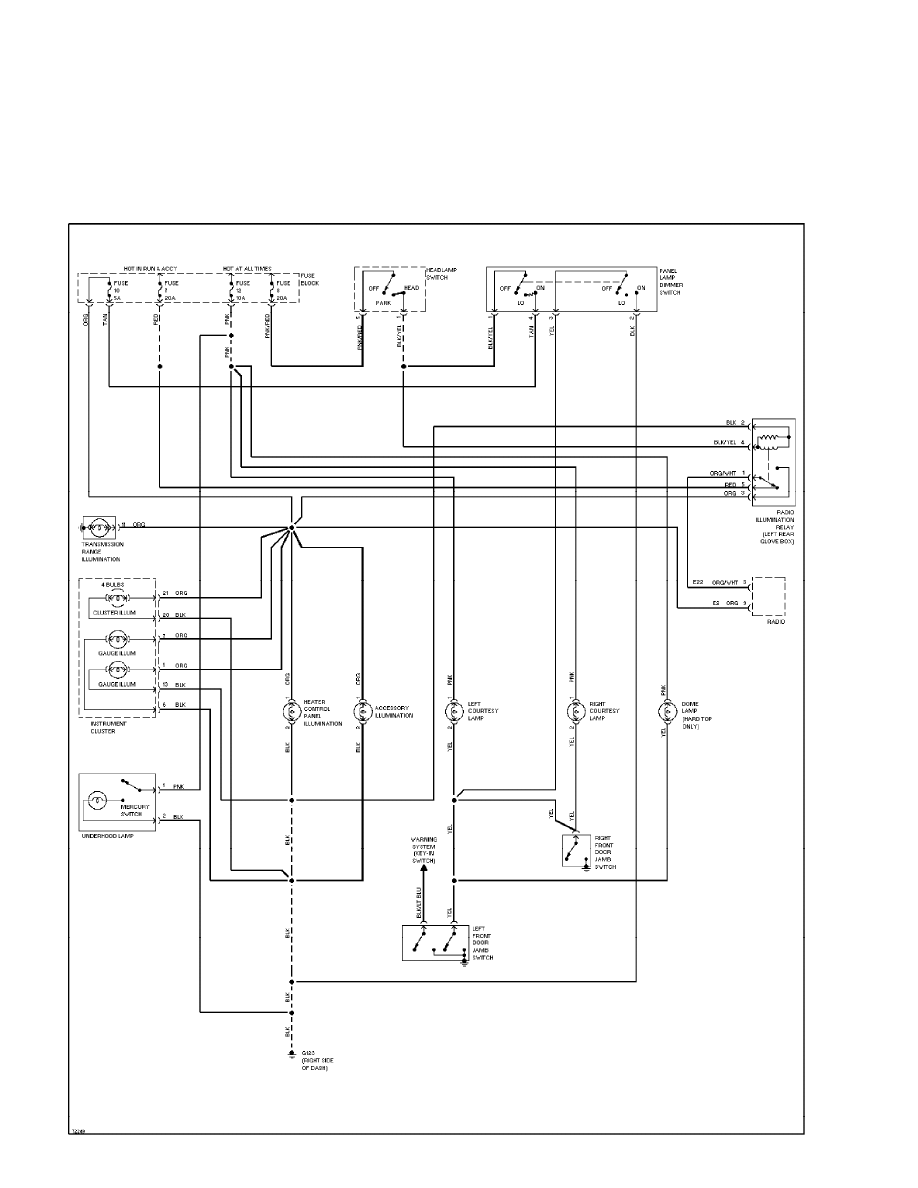

Interior Light Circuit (p. 15)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

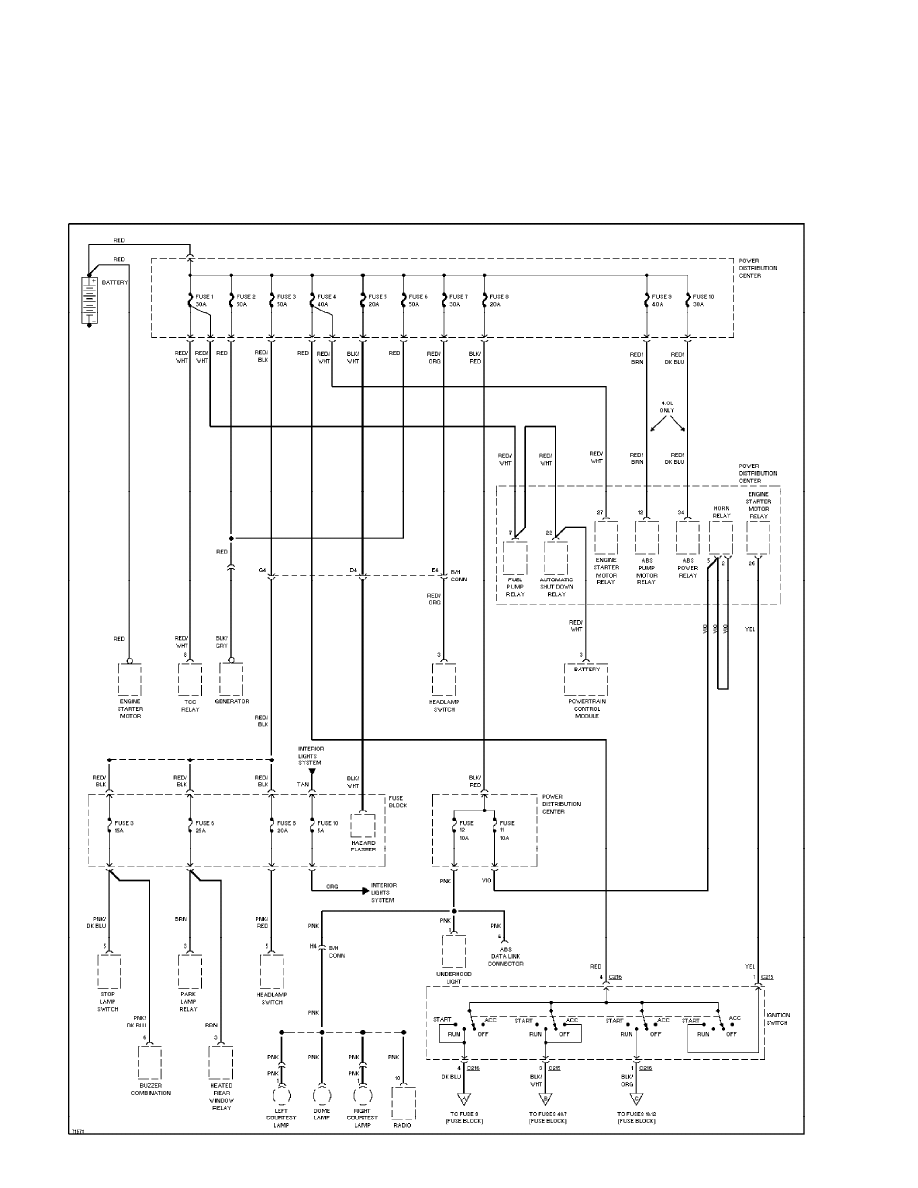

Power Distribution Circuit (1 of 2) (p. 16)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

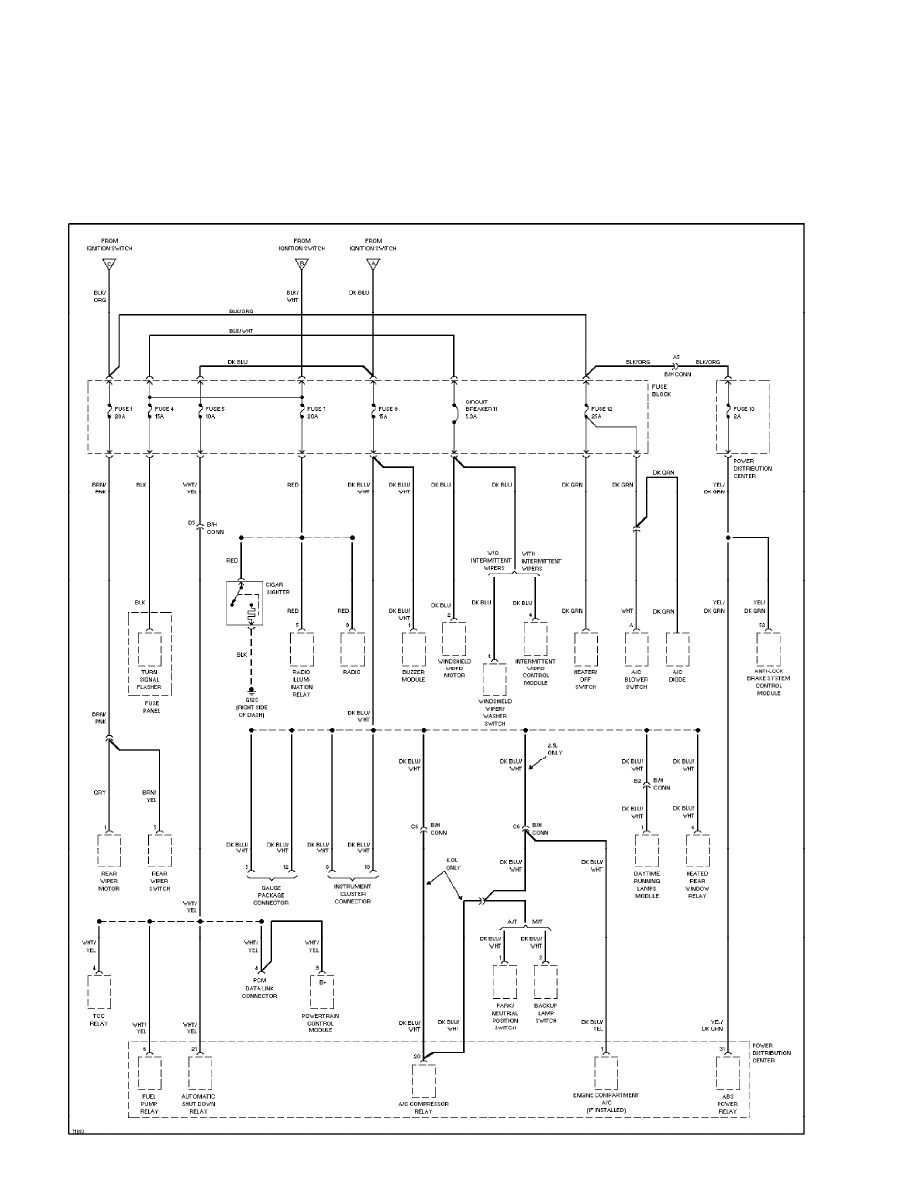

Power Distribution Circuit (2 of 2) (p. 17)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

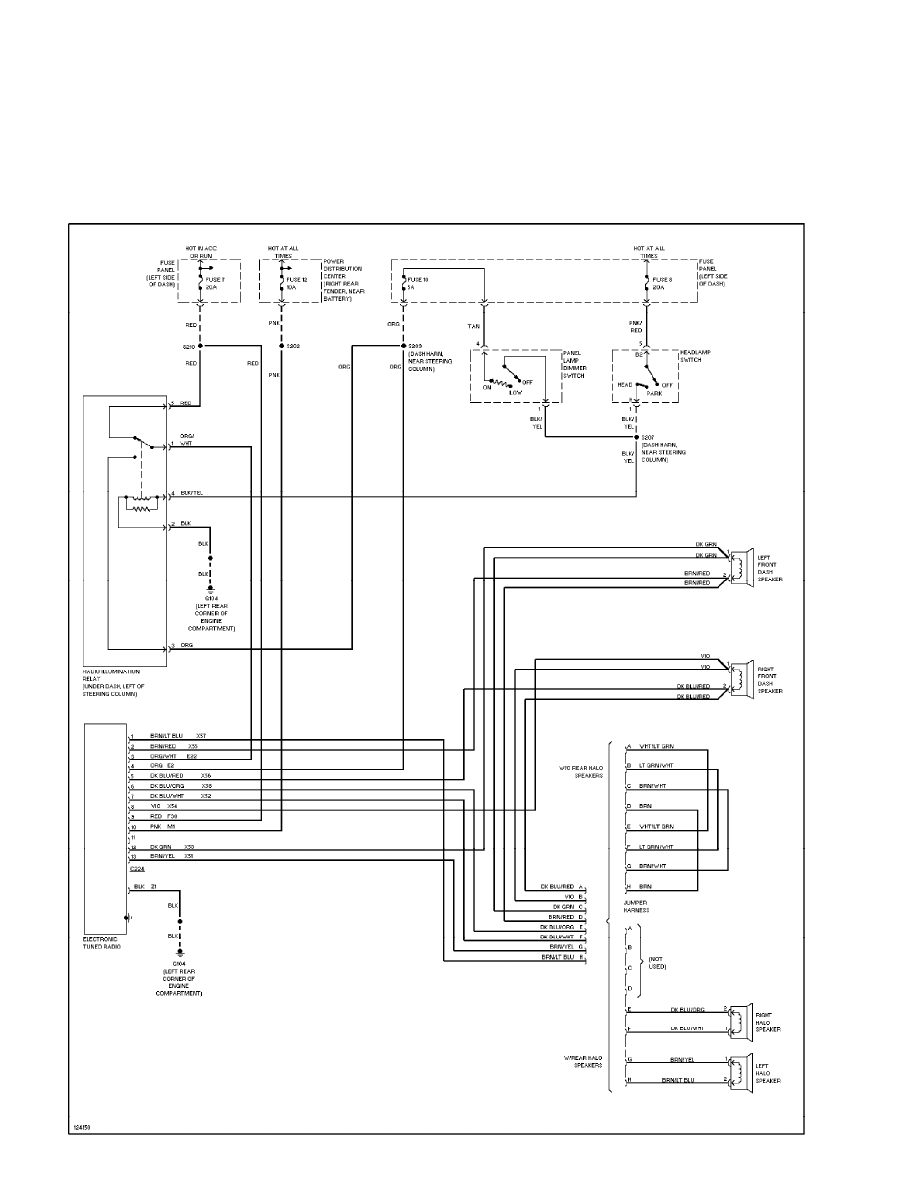

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 18)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 19)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

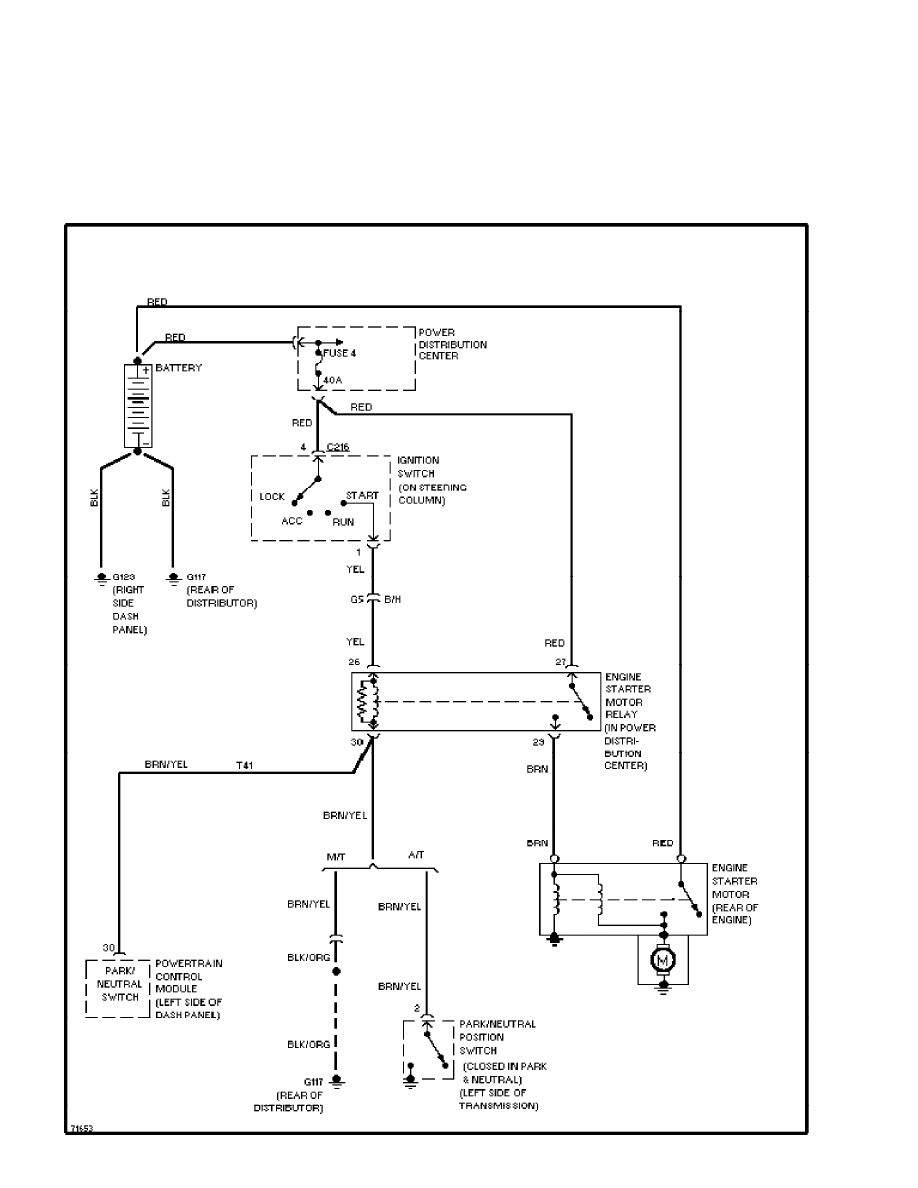

Starting Circuit (p. 20)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

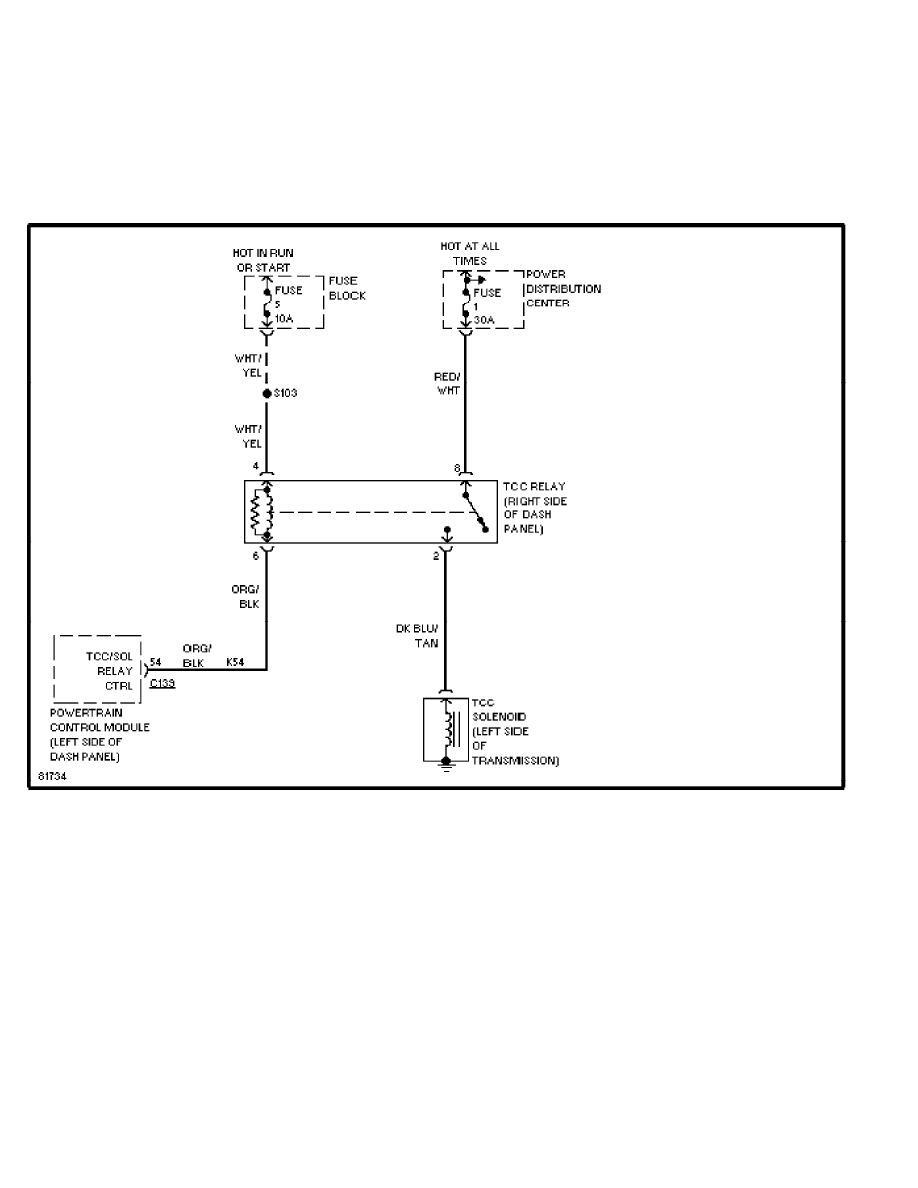

2.5L, Transmission Circuit (p. 21)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

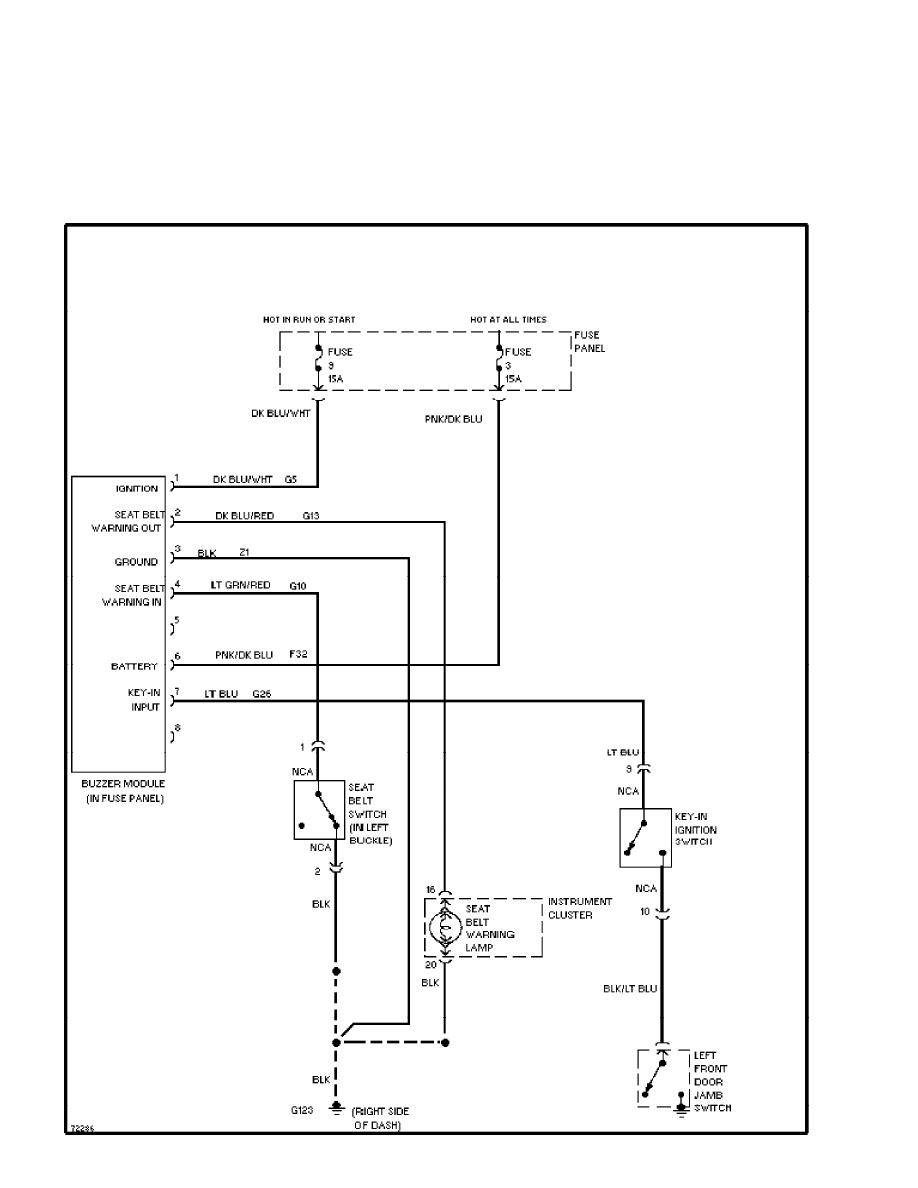

Warning System Circuits (p. 22)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

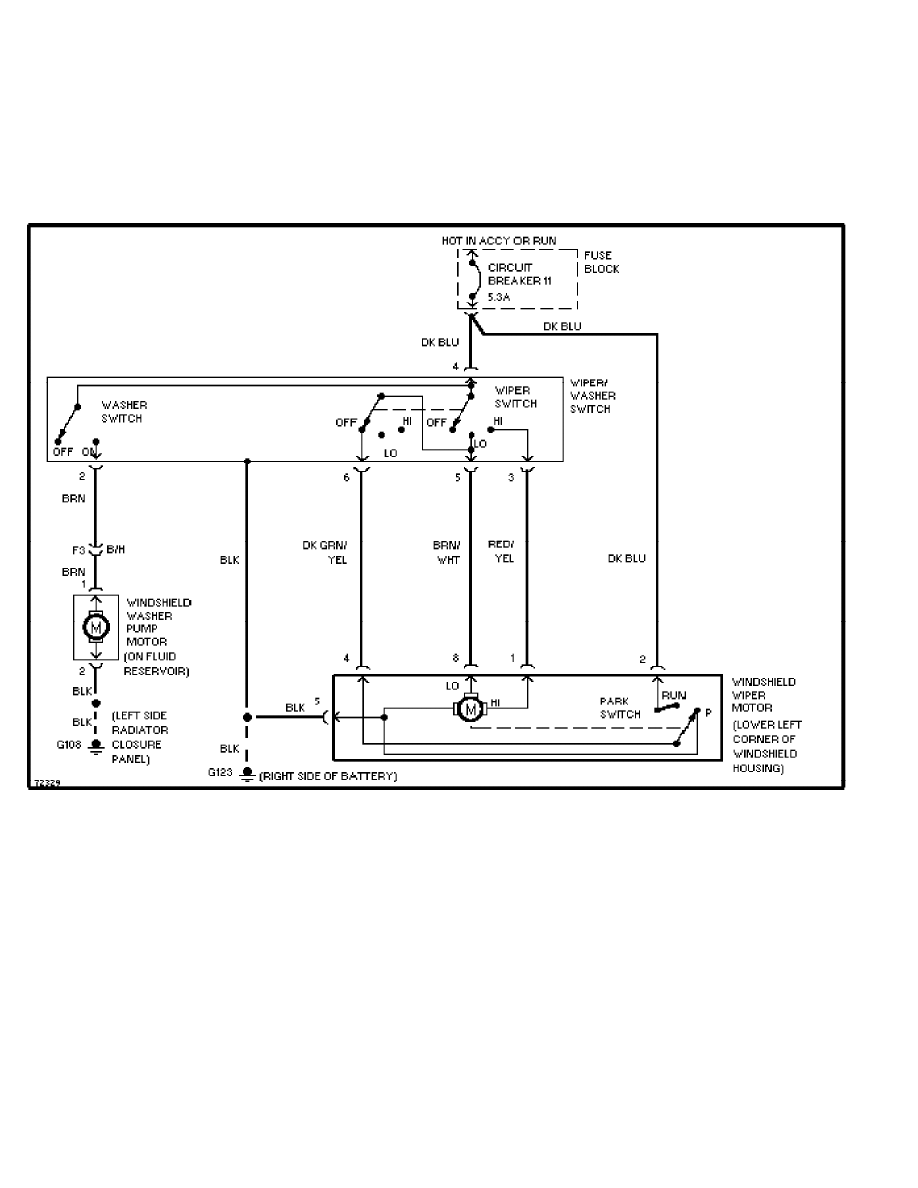

SYSTEM WIRING DIAGRAMS

2-Speed Wiper/Washer Circuit (p. 23)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

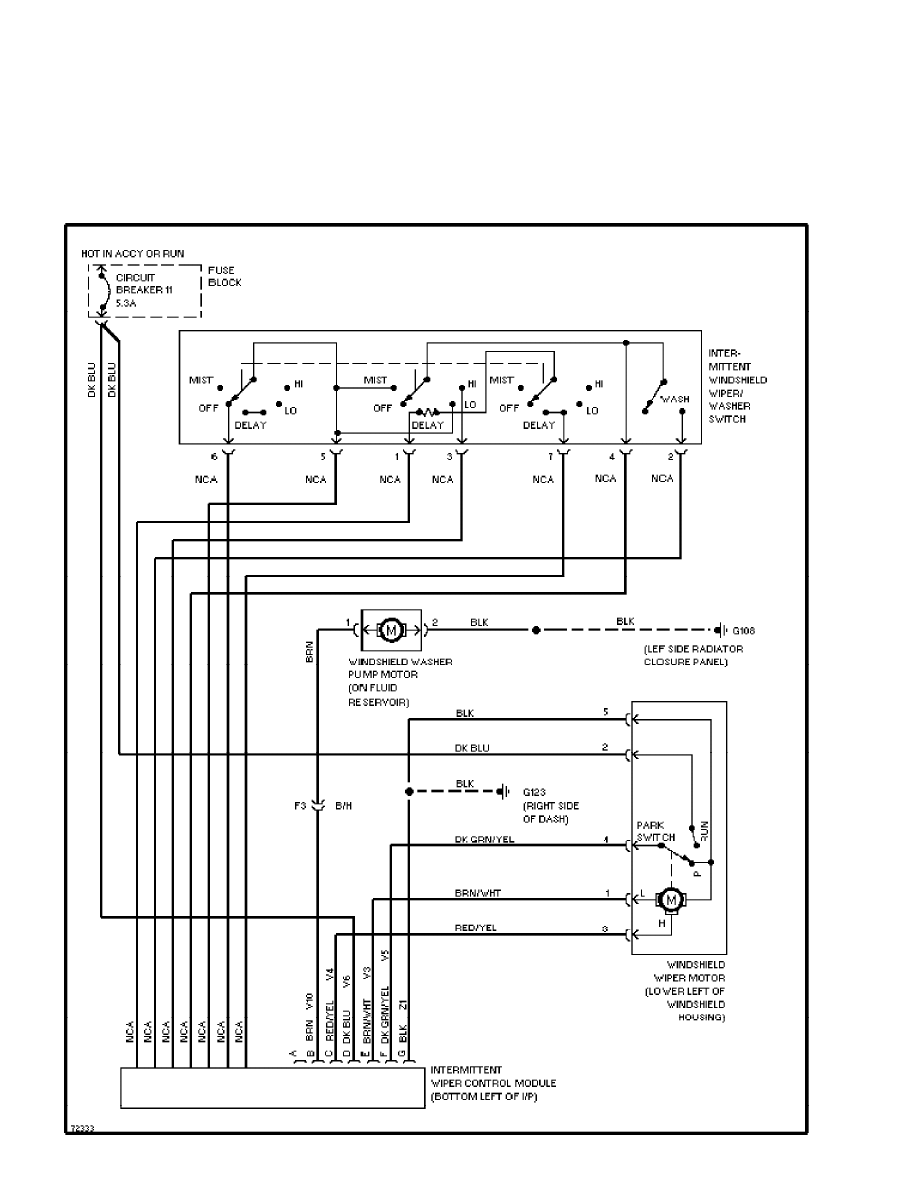

Interval Wiper/Washer Circuit (p. 24)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM

background image

SYSTEM WIRING DIAGRAMS

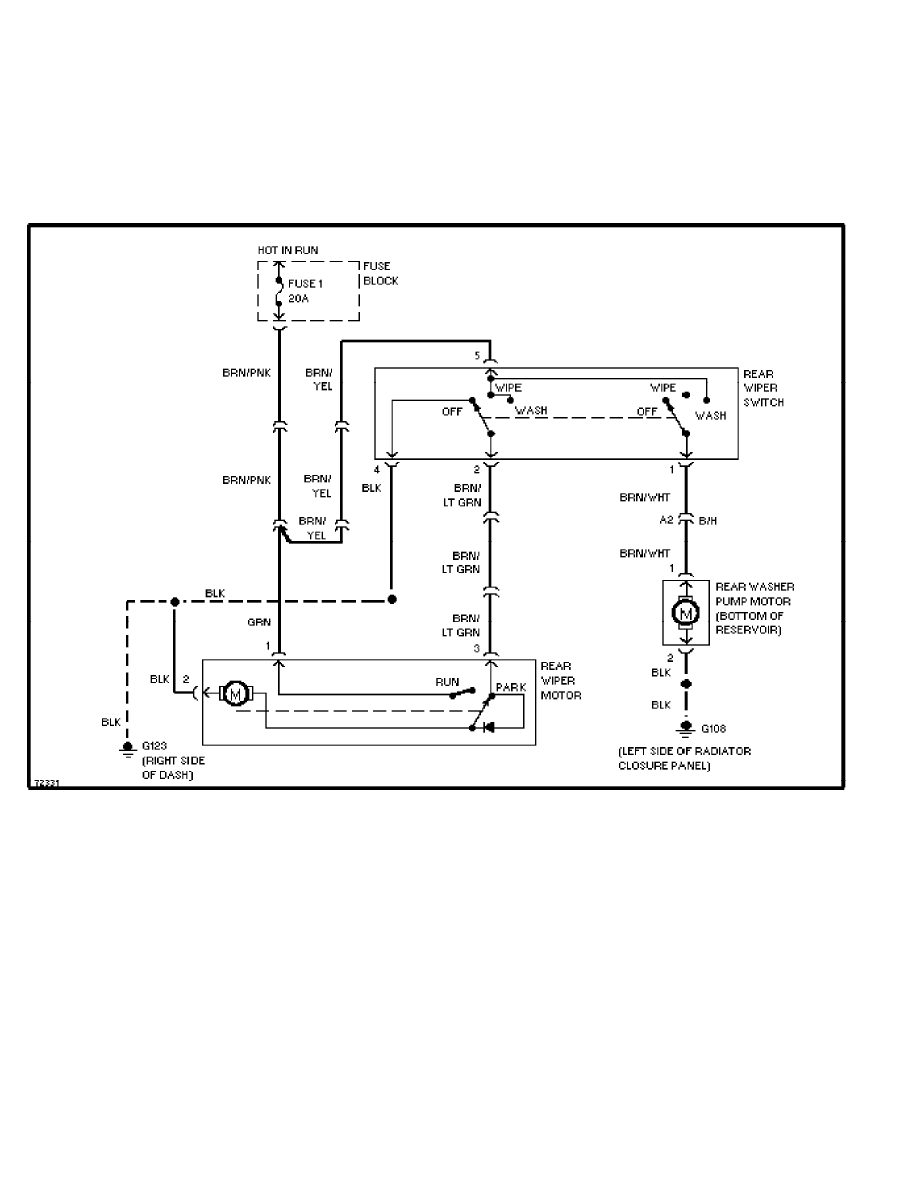

Rear Wiper/Washer Circuit (p. 25)

1995 Jeep Wrangler

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 12:56PM
