SYSTEM WIRING DIAGRAMS

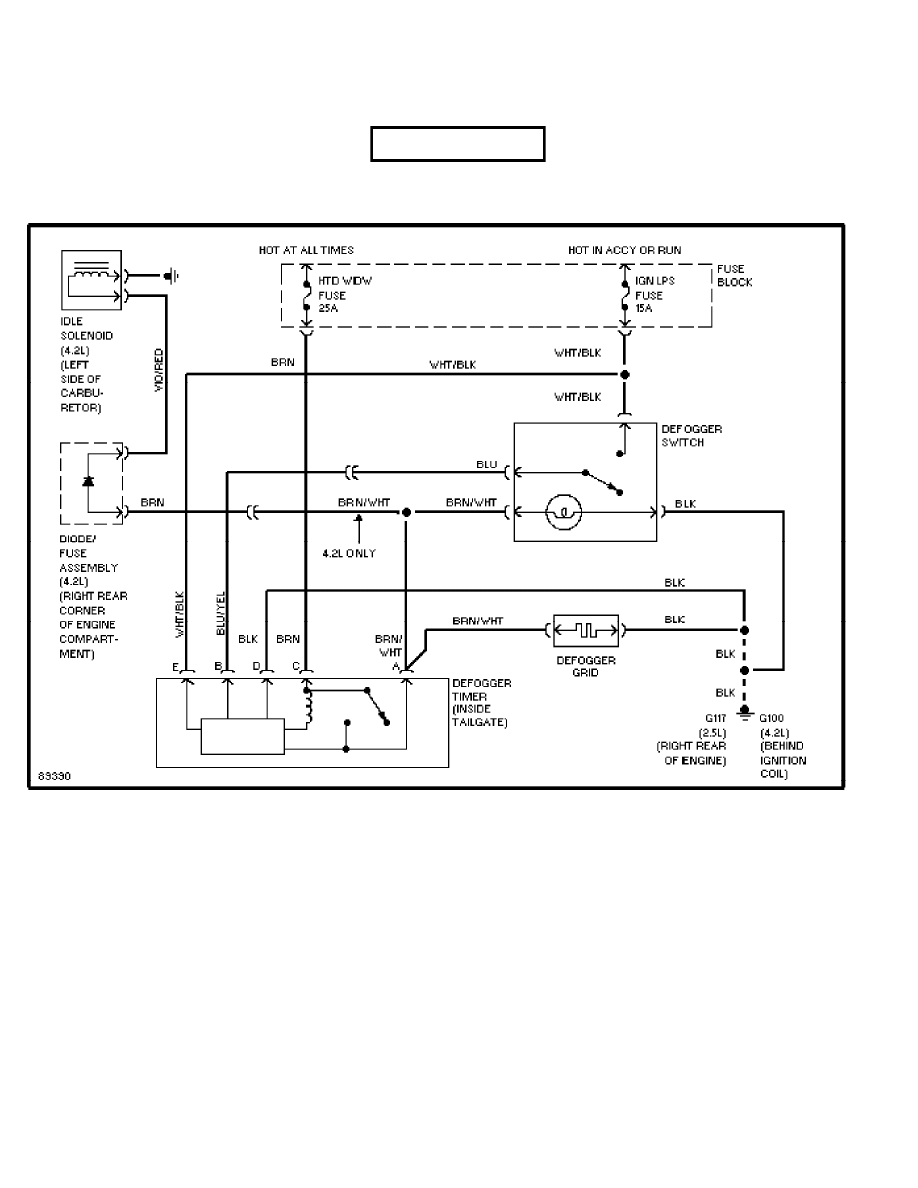

Defogger Circuit
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
CDR@WP.PL
SYSTEM WIRING DIAGRAMS

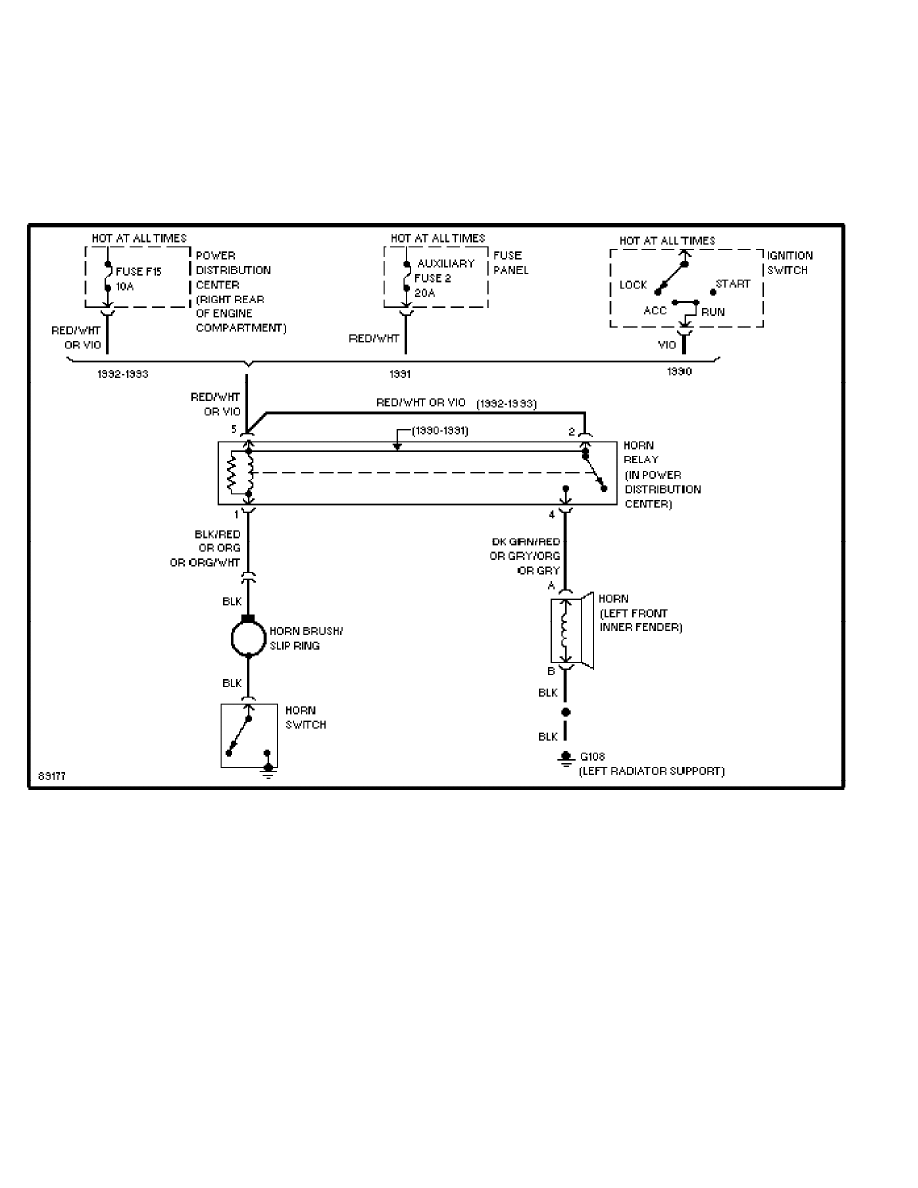

Horn Circuit (p. 2)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

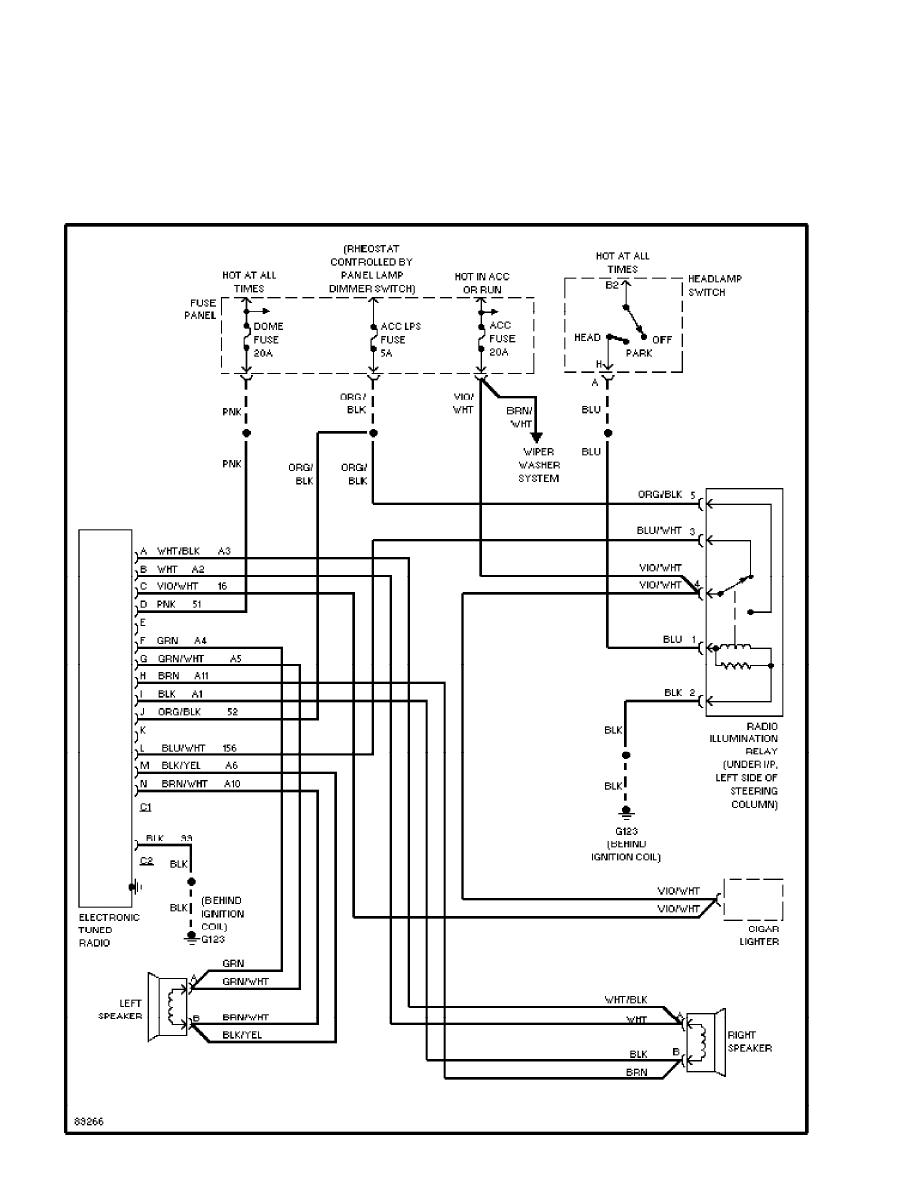

Radio Circuits (p. 3)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

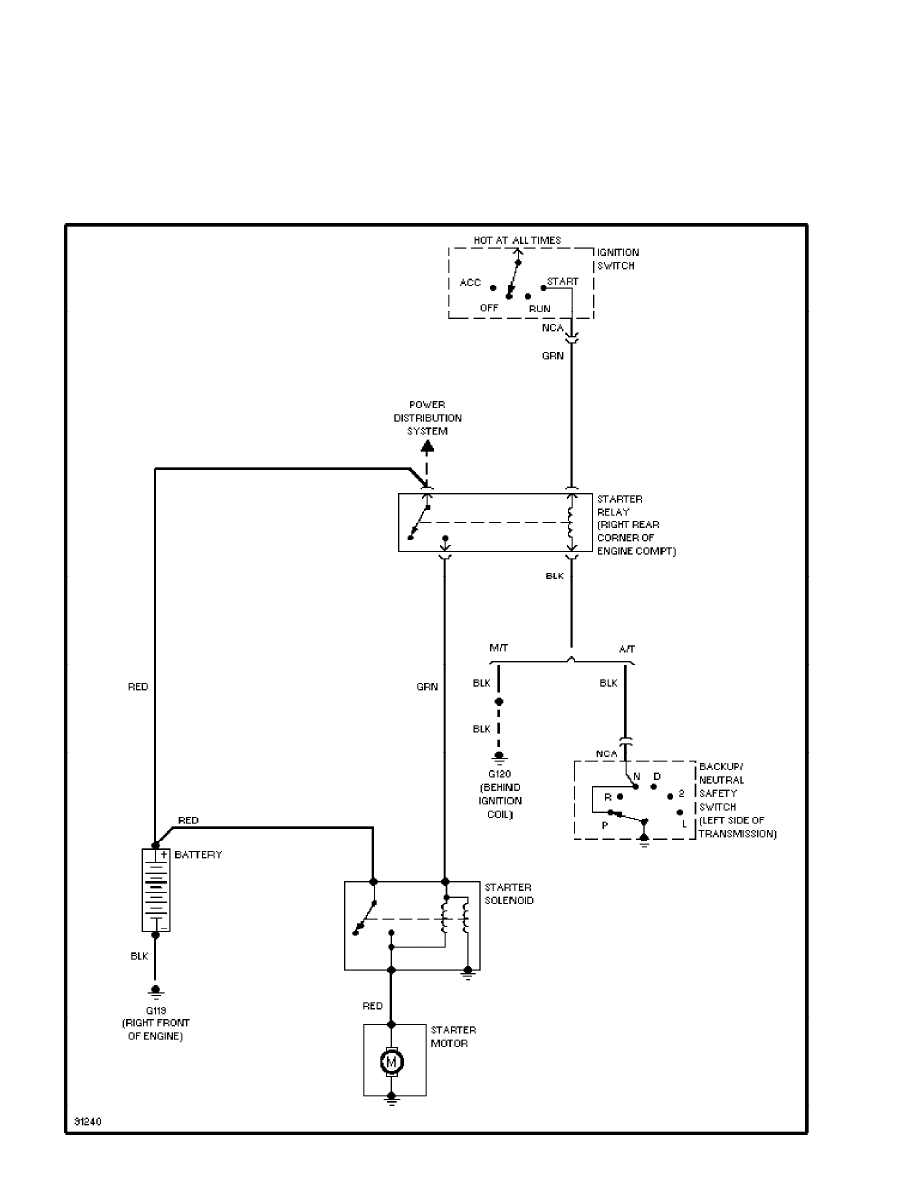

2.5L, Starting Circuit (p. 4)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

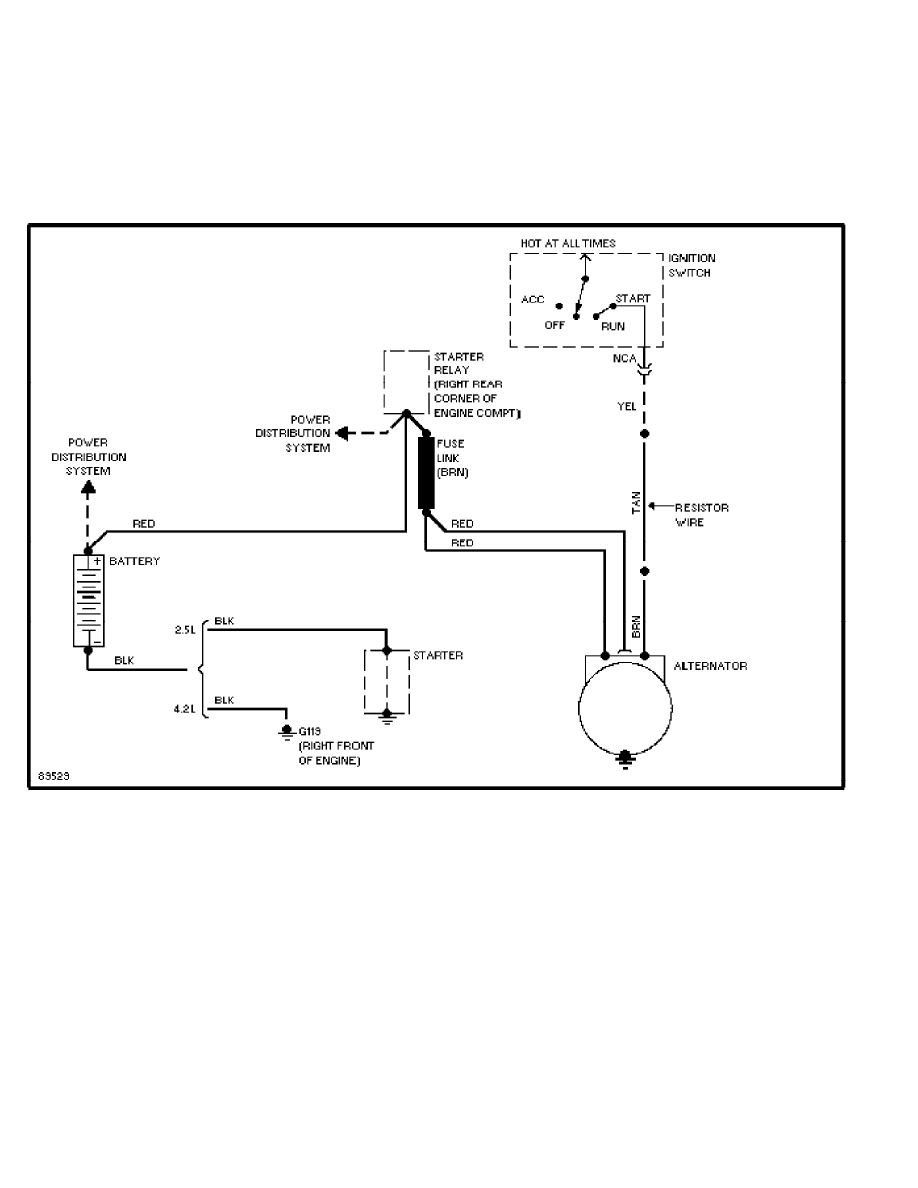

Charging Circuit (p. 5)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

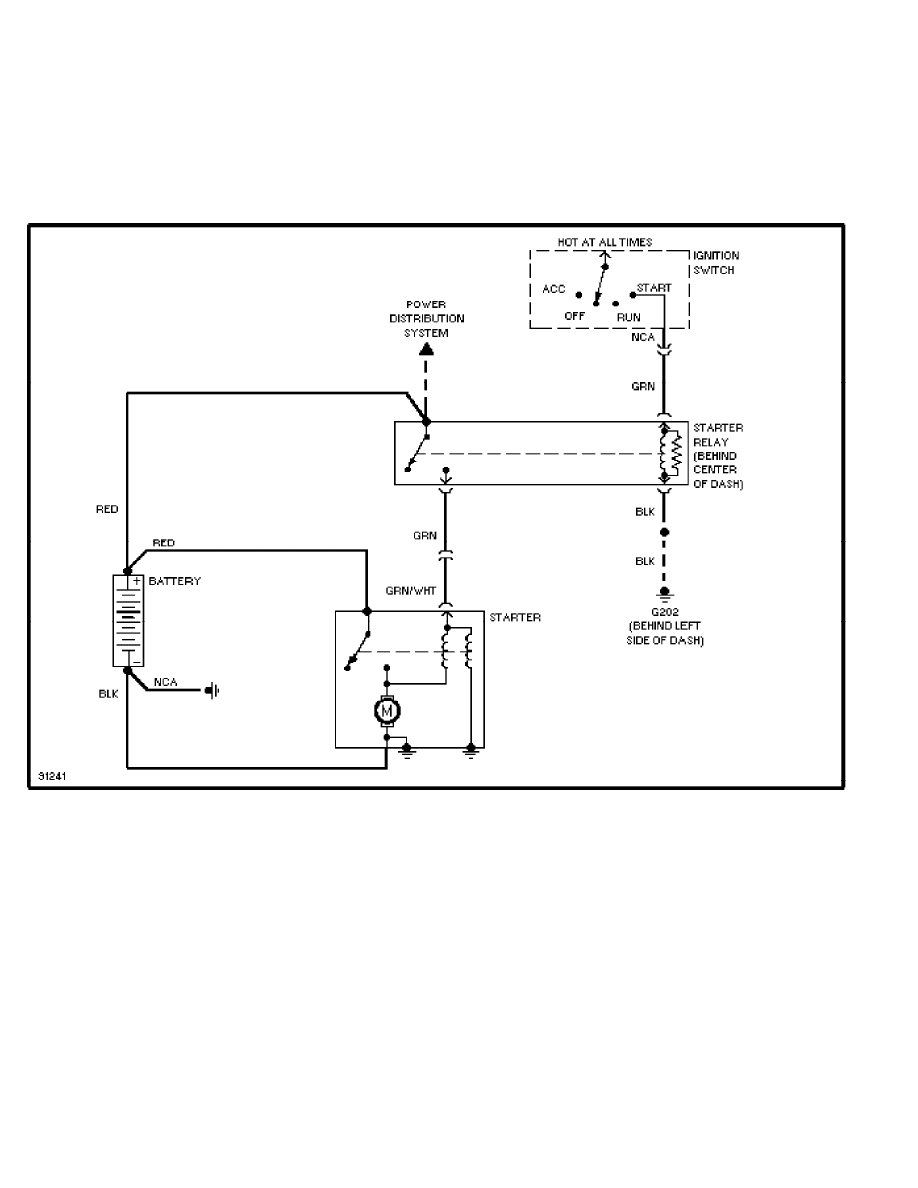

4.2L, Starting Circuit (p. 6)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 7)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

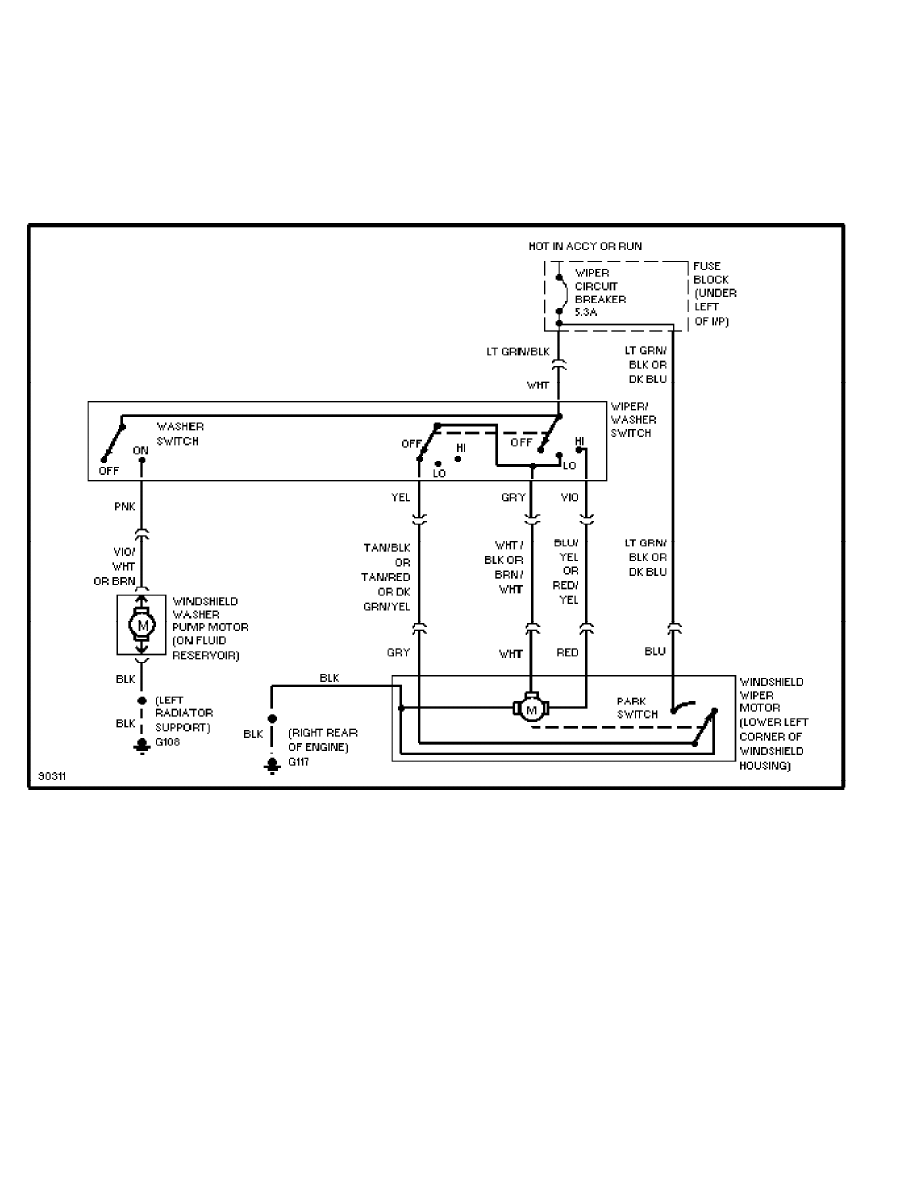

2-Speed Wiper/Washer Circuit (p. 8)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS

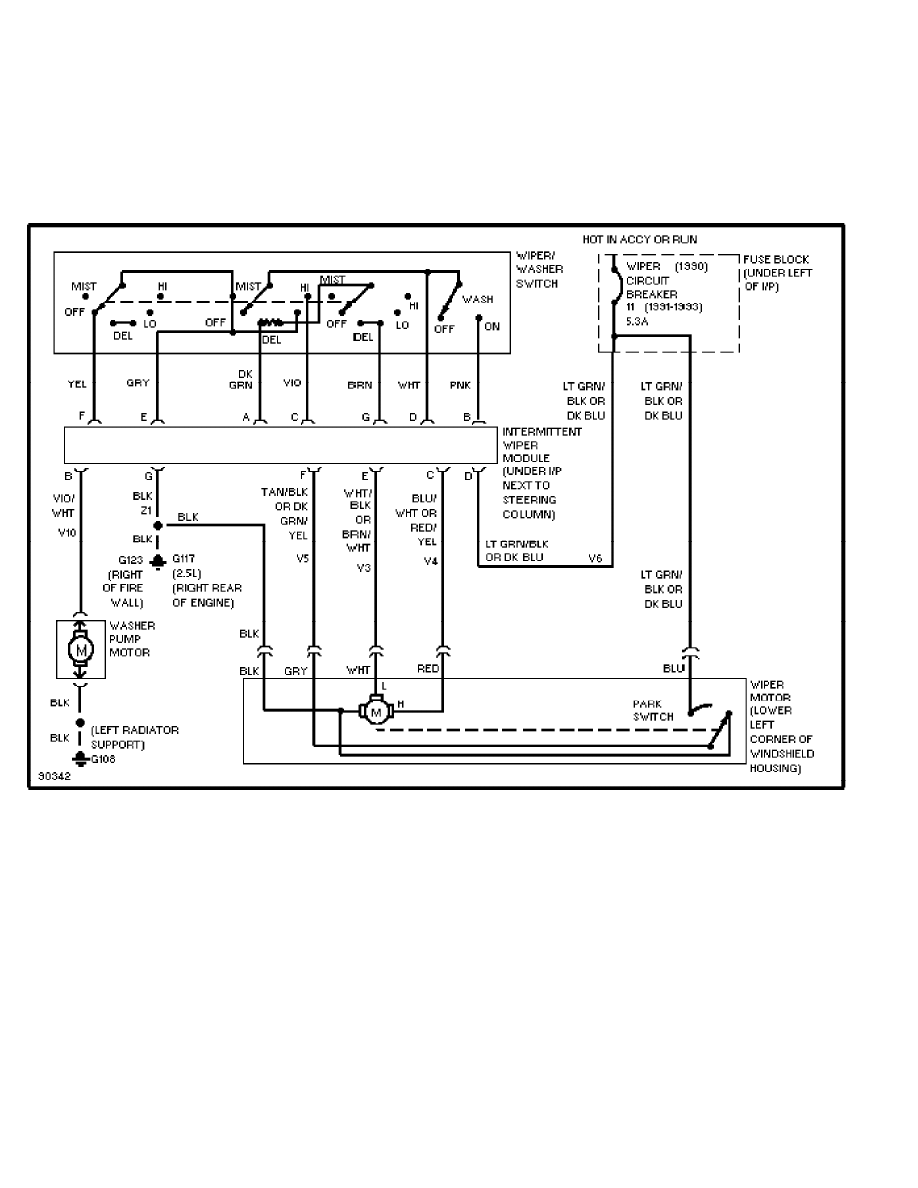

Interval Wiper/Washer Circuit (p. 9)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
SYSTEM WIRING DIAGRAMS
Rear Wiper/Washer Circuit (p. 10)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
WIRING DIAGRAMS

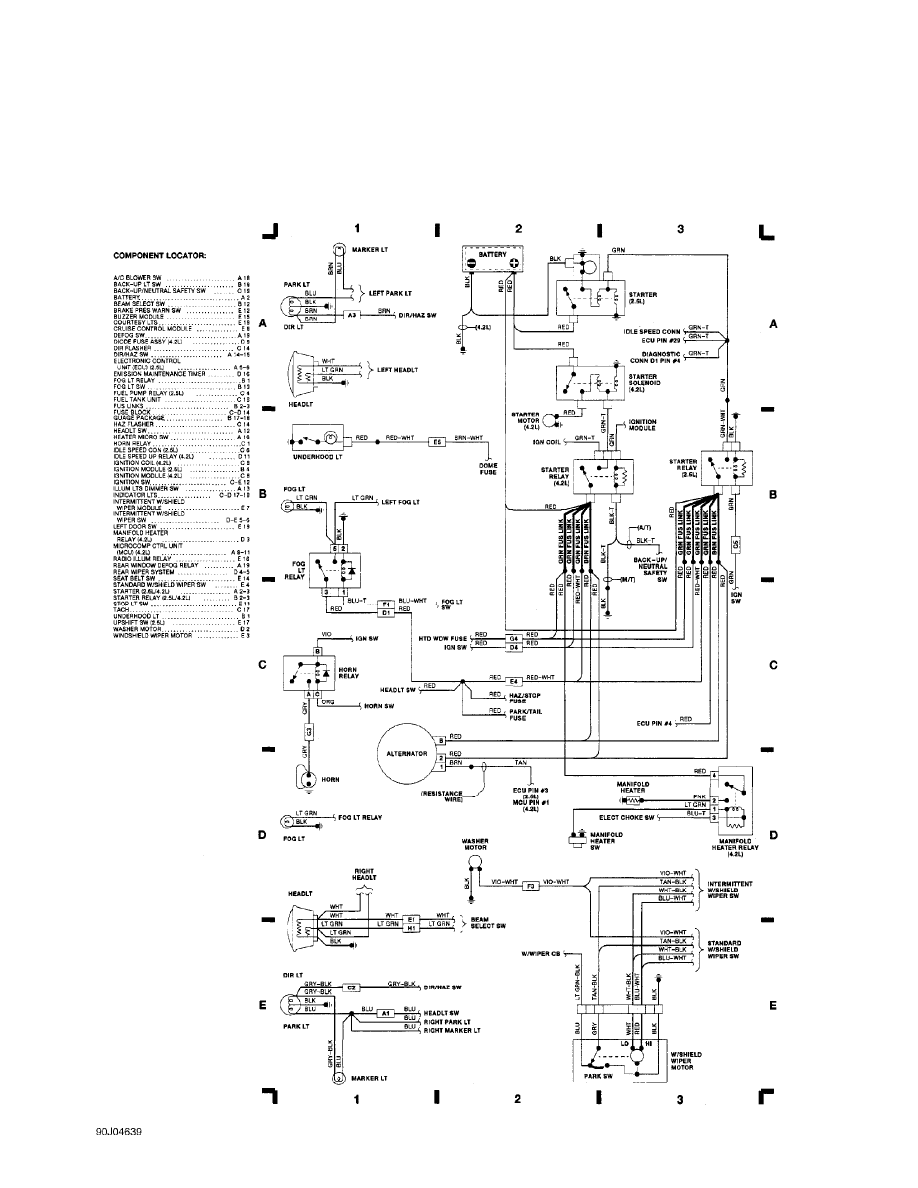

Fig. 1: Engine Compartment & Headlights
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
WIRING DIAGRAMS

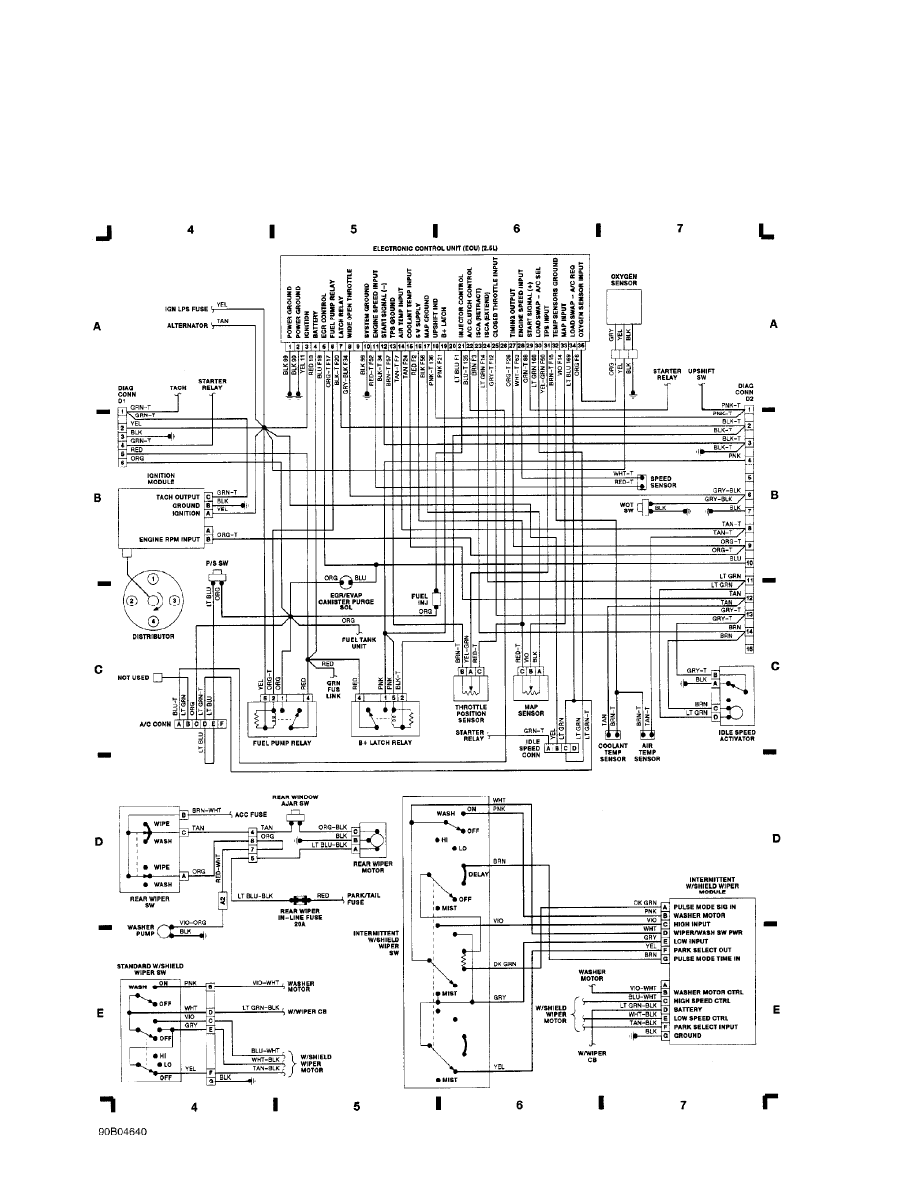

Fig. 2: Electronic Control Unit (ECU) (2.5L) & Washer/Wiper System (p. 2)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
WIRING DIAGRAMS

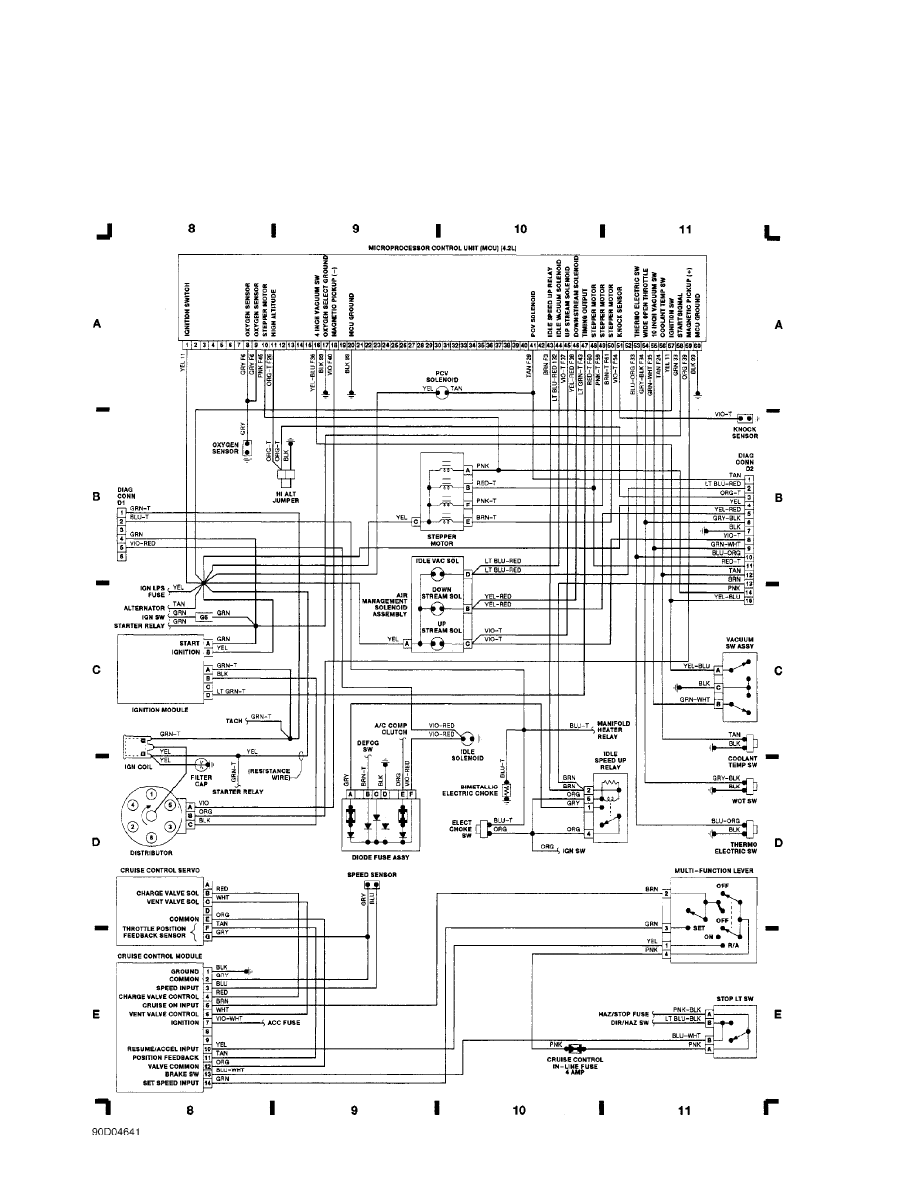

Fig. 3: Microprocessor Control Unit (MCU) (4.2L) & Cruise Control (p. 3)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
WIRING DIAGRAMS
Fig. 4: Fuse Block (p. 4)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
WIRING DIAGRAMS

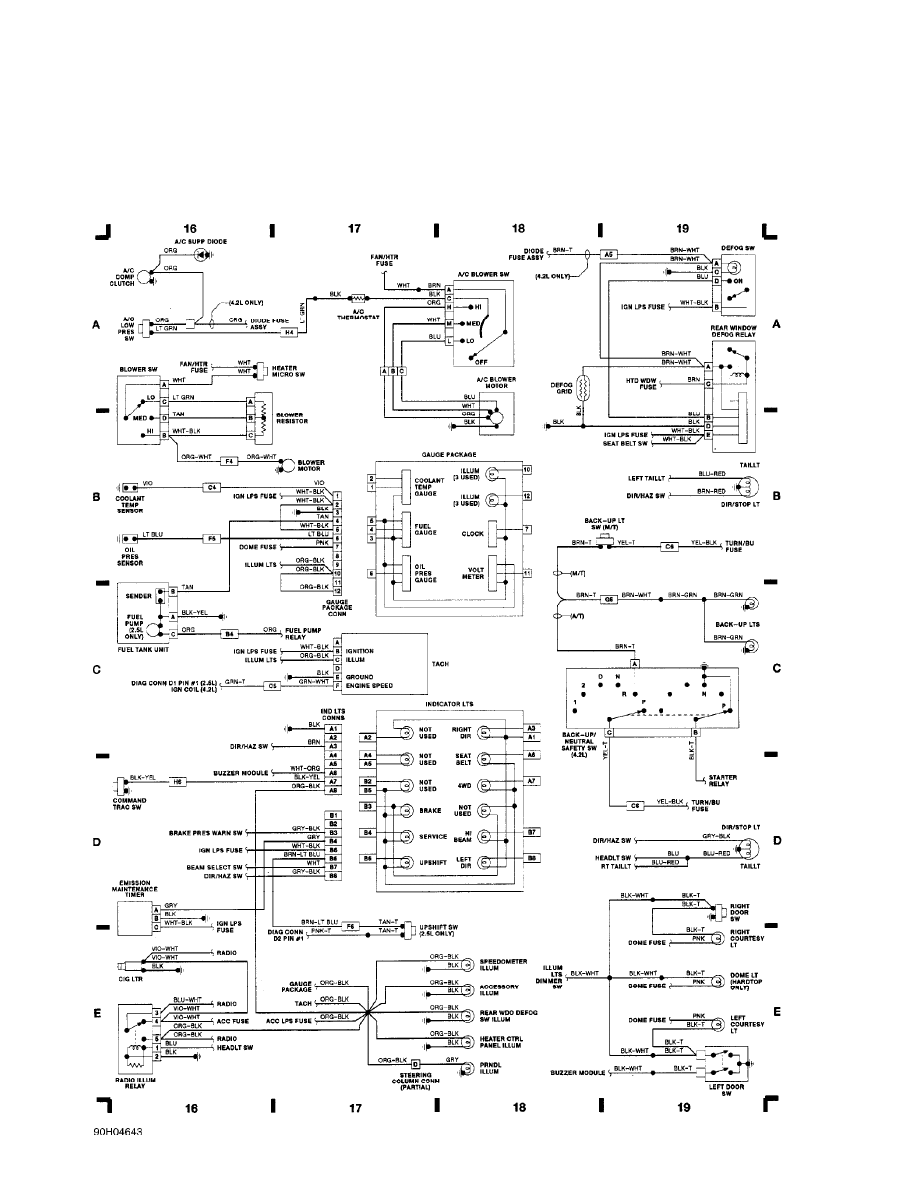

Fig. 5: A/C-Heating & Switches (p. 5)
1990 Jeep Wrangler
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 12:35PM
