JEEP CHEROKEE 1990

SYSTEM WIRING DIAGRAMS

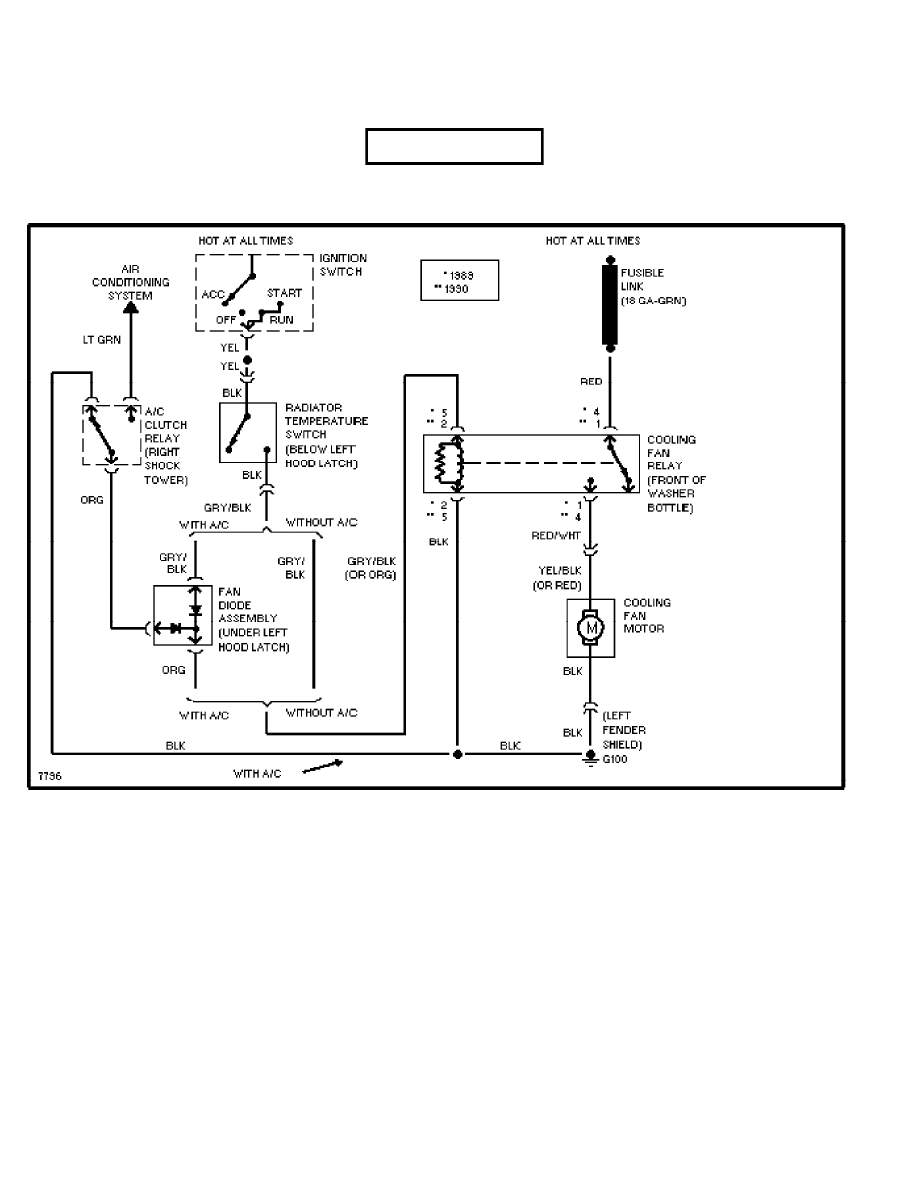

Cooling Fan Circuit

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

CDR@WP.PL

SYSTEM WIRING DIAGRAMS

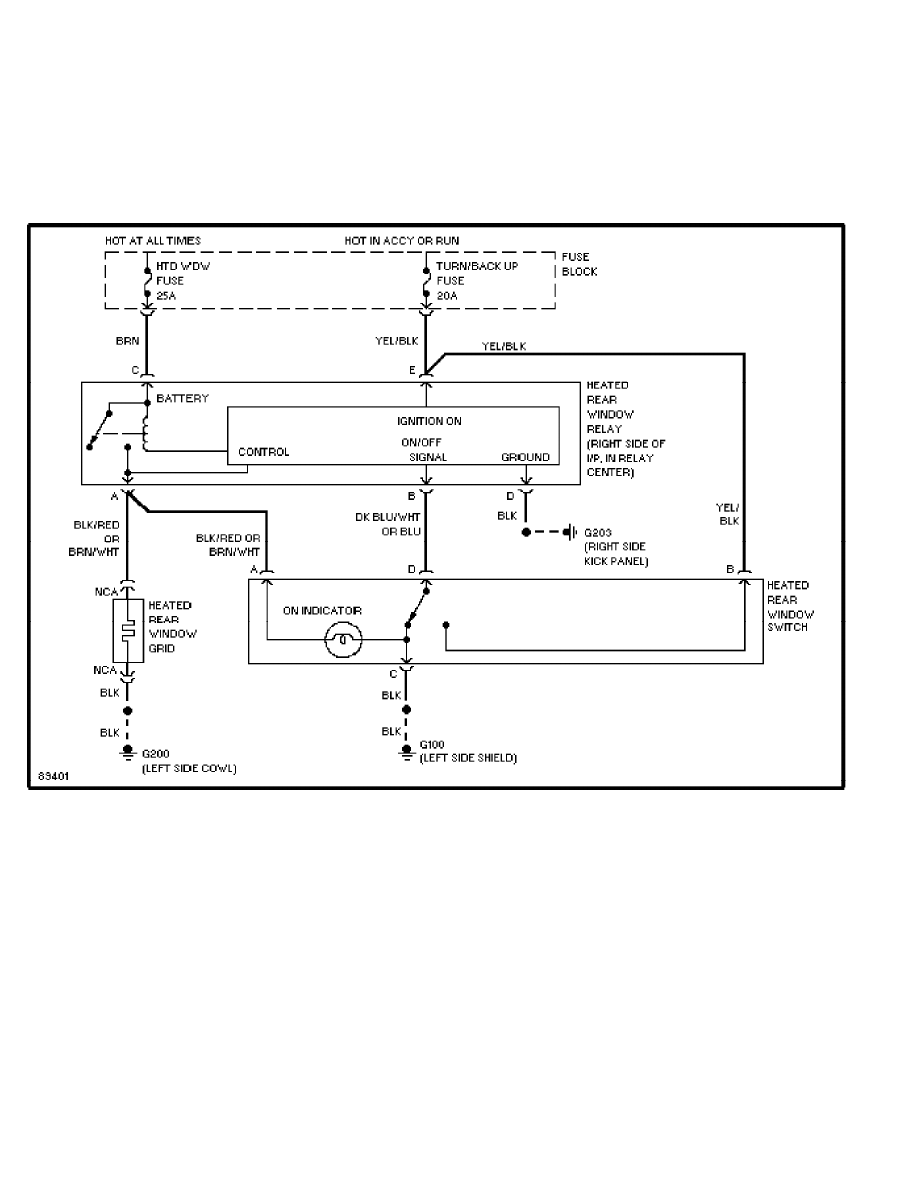

Defogger Circuit (p. 2)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

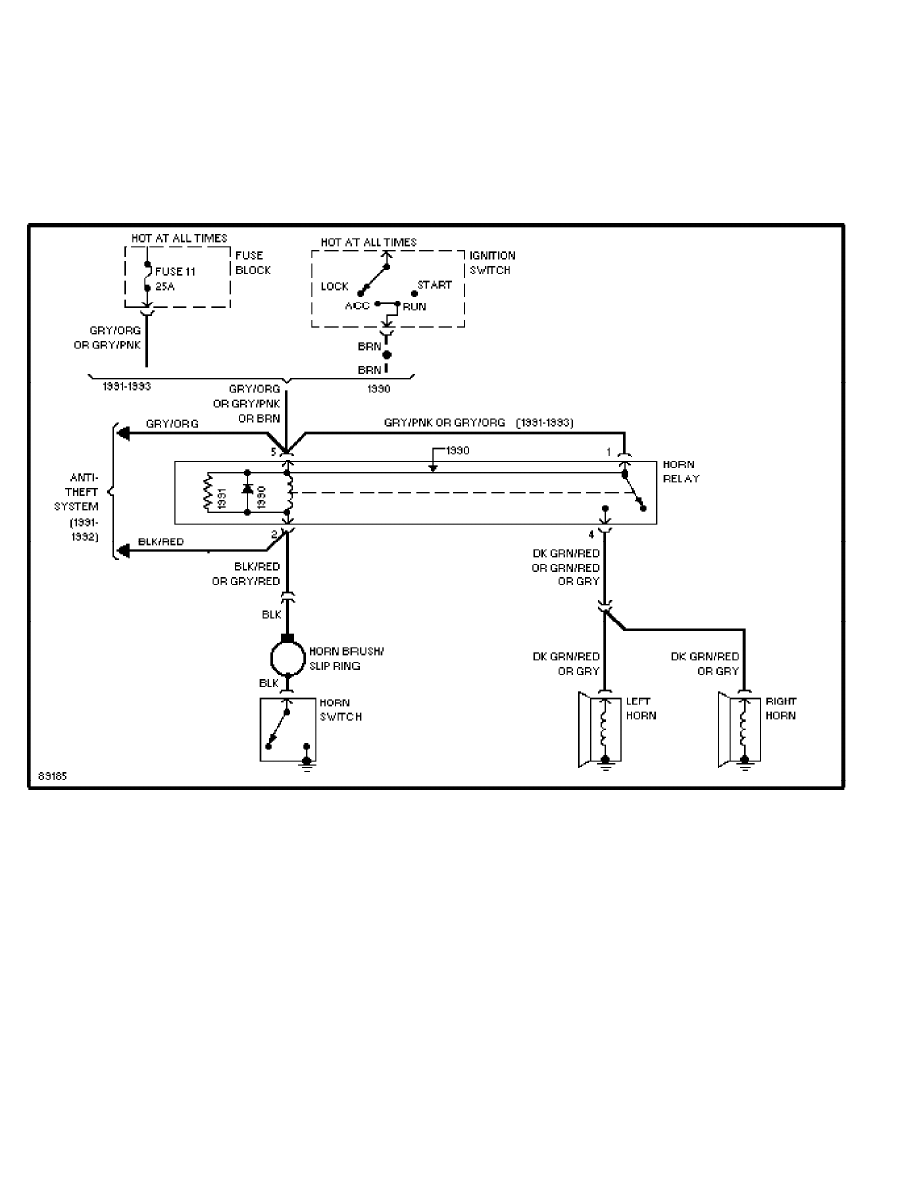

Horn Circuit (p. 3)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit (p. 4)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

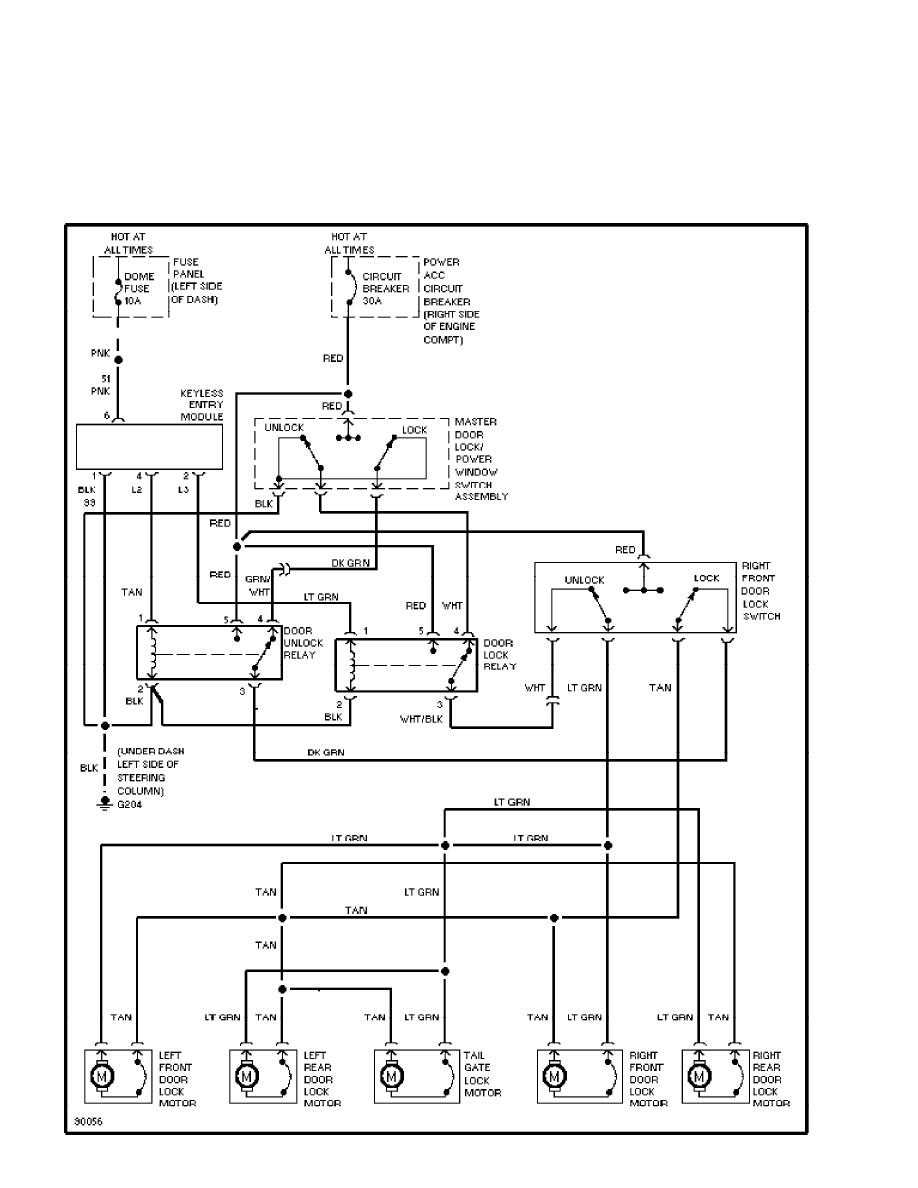

Power Door Lock Circuit (p. 5)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

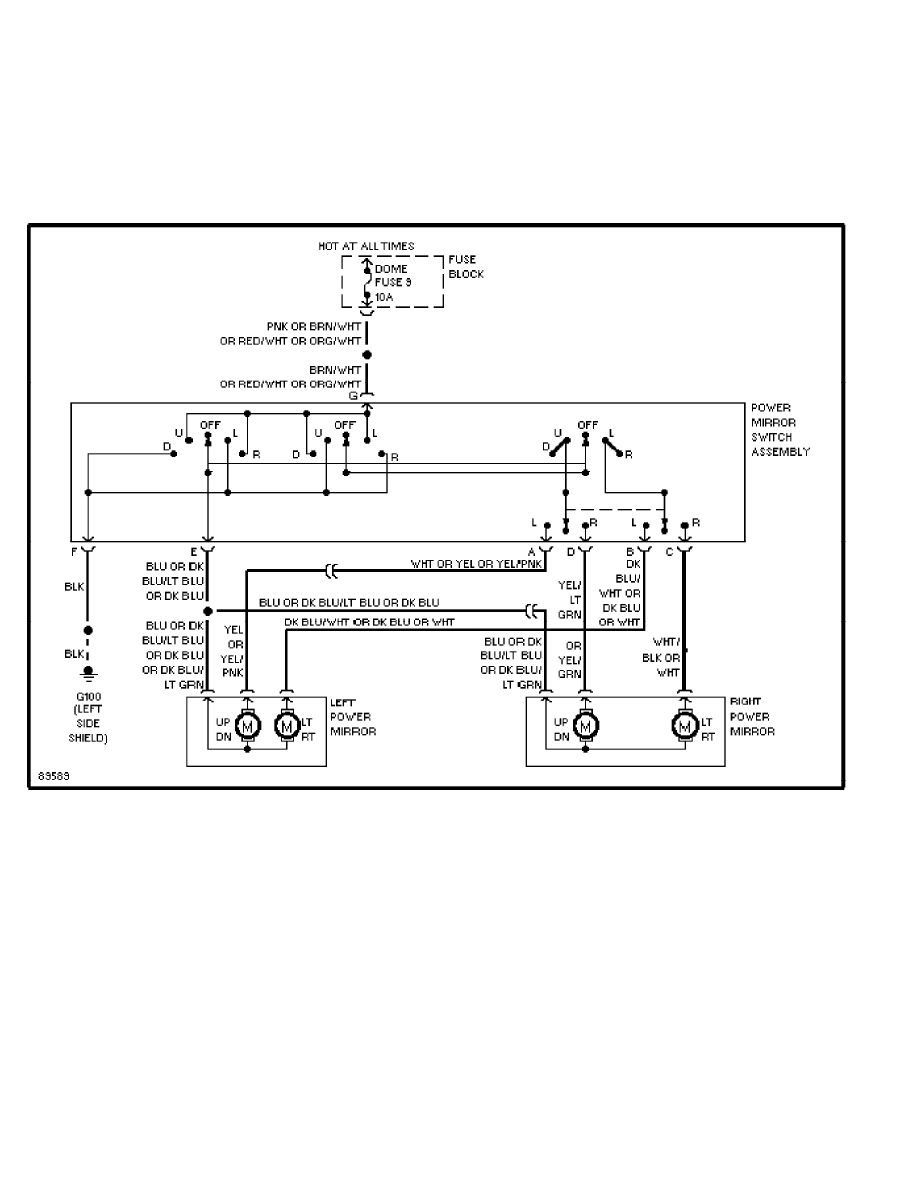

Power Mirror Circuit (p. 6)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

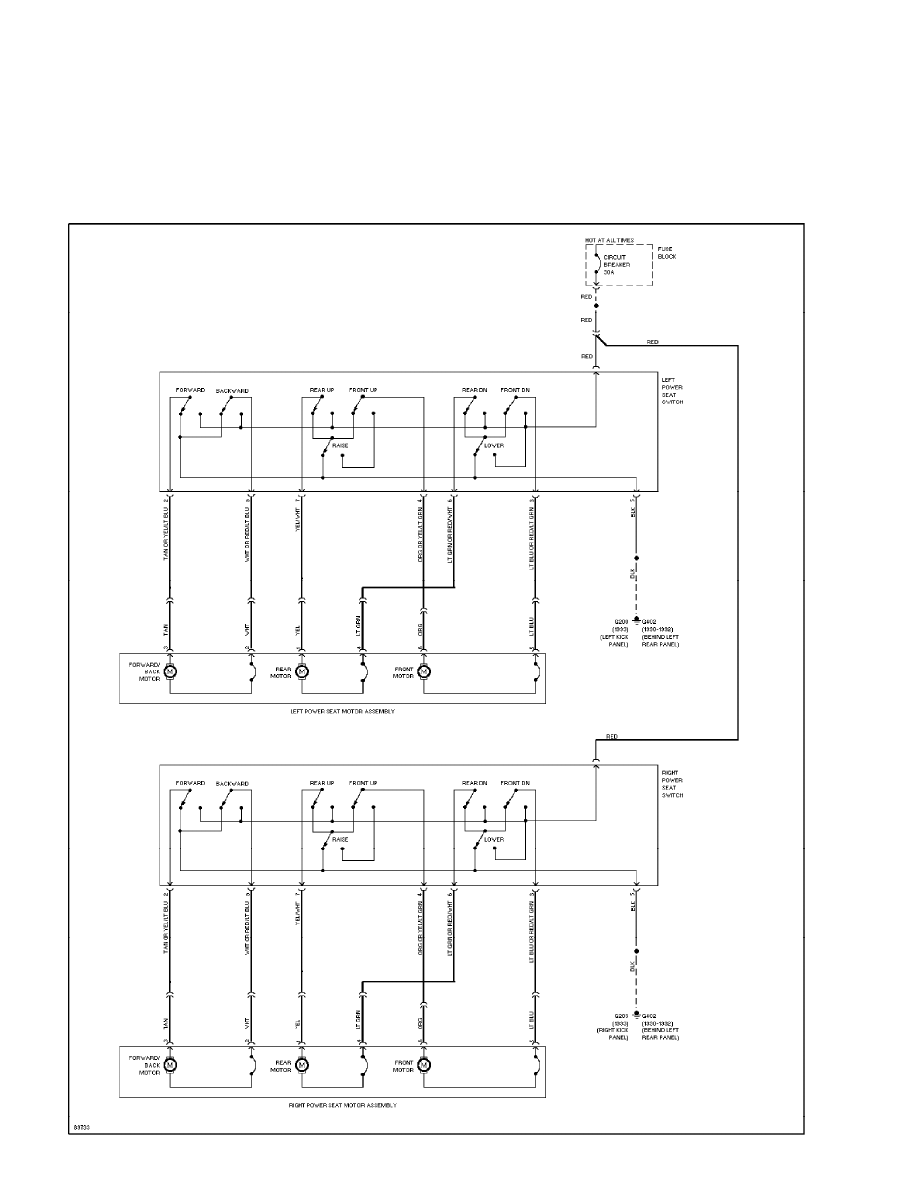

Power Seats Circuit (p. 7)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

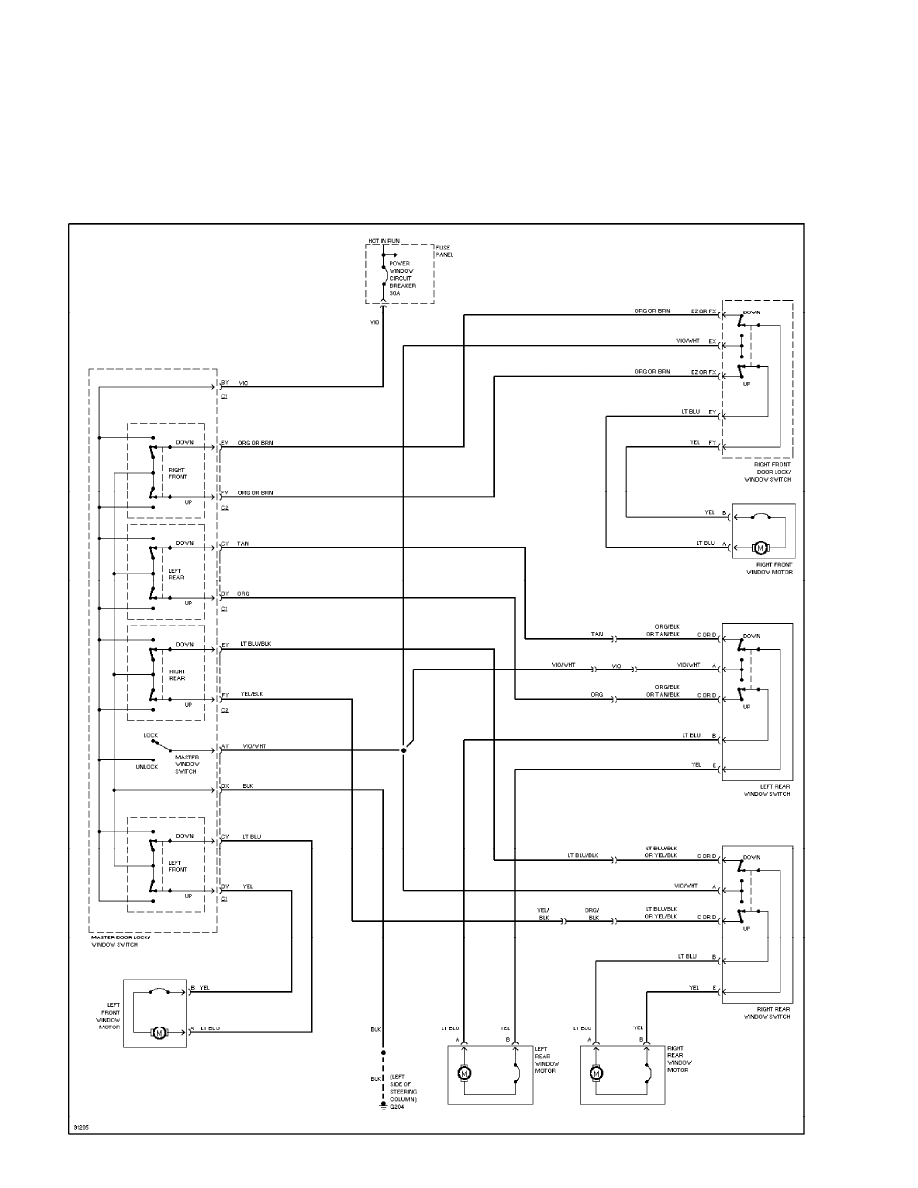

Power Window Circuit (p. 8)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

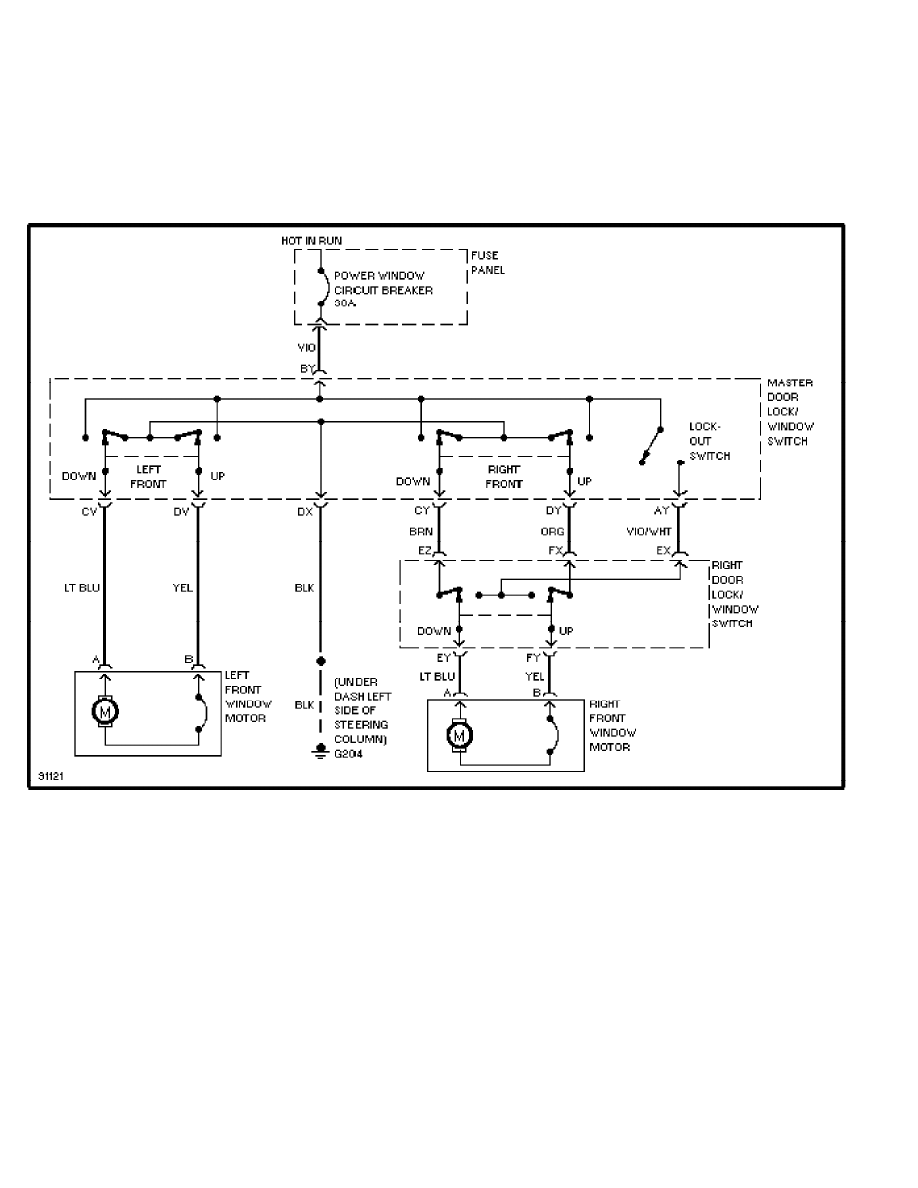

Power Window Circuit, 2 Door (p. 9)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 10)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

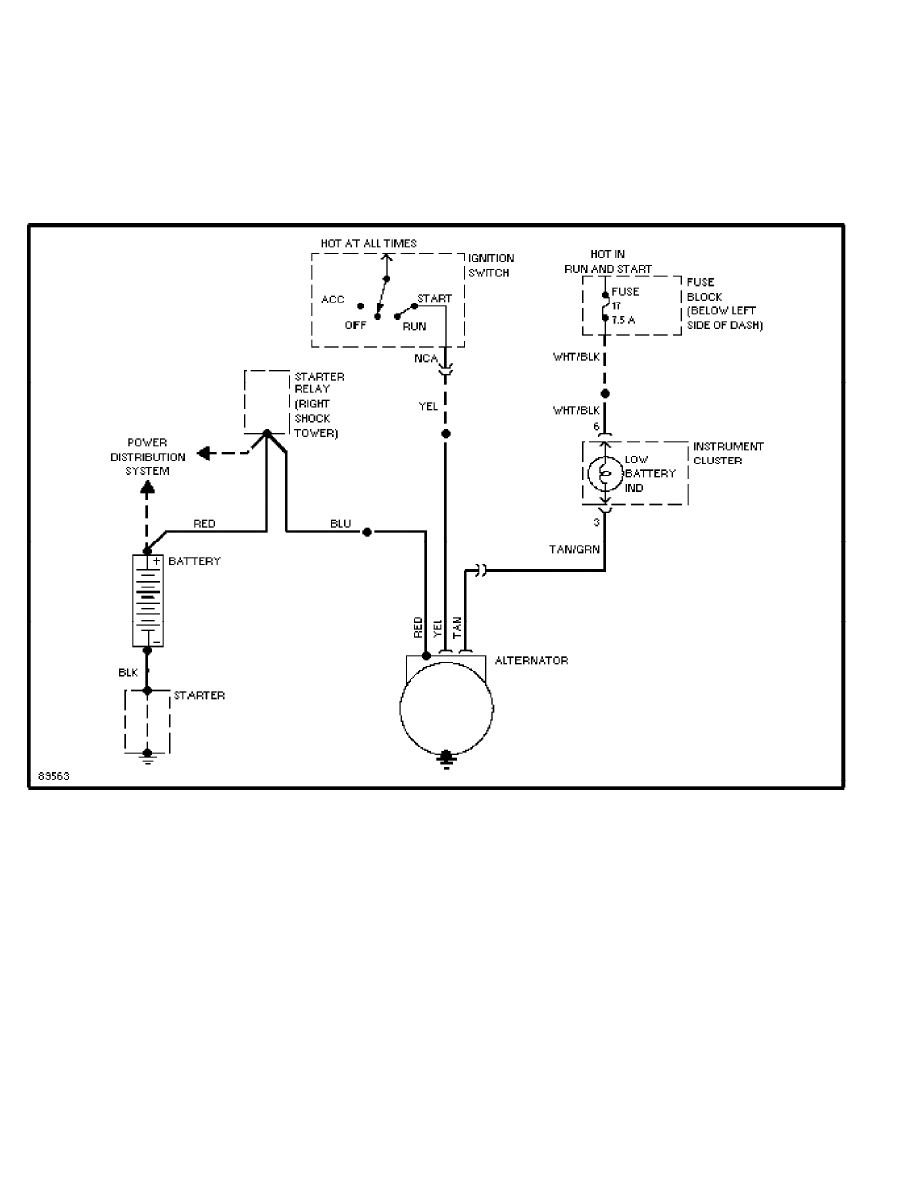

Charging Circuit (p. 11)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

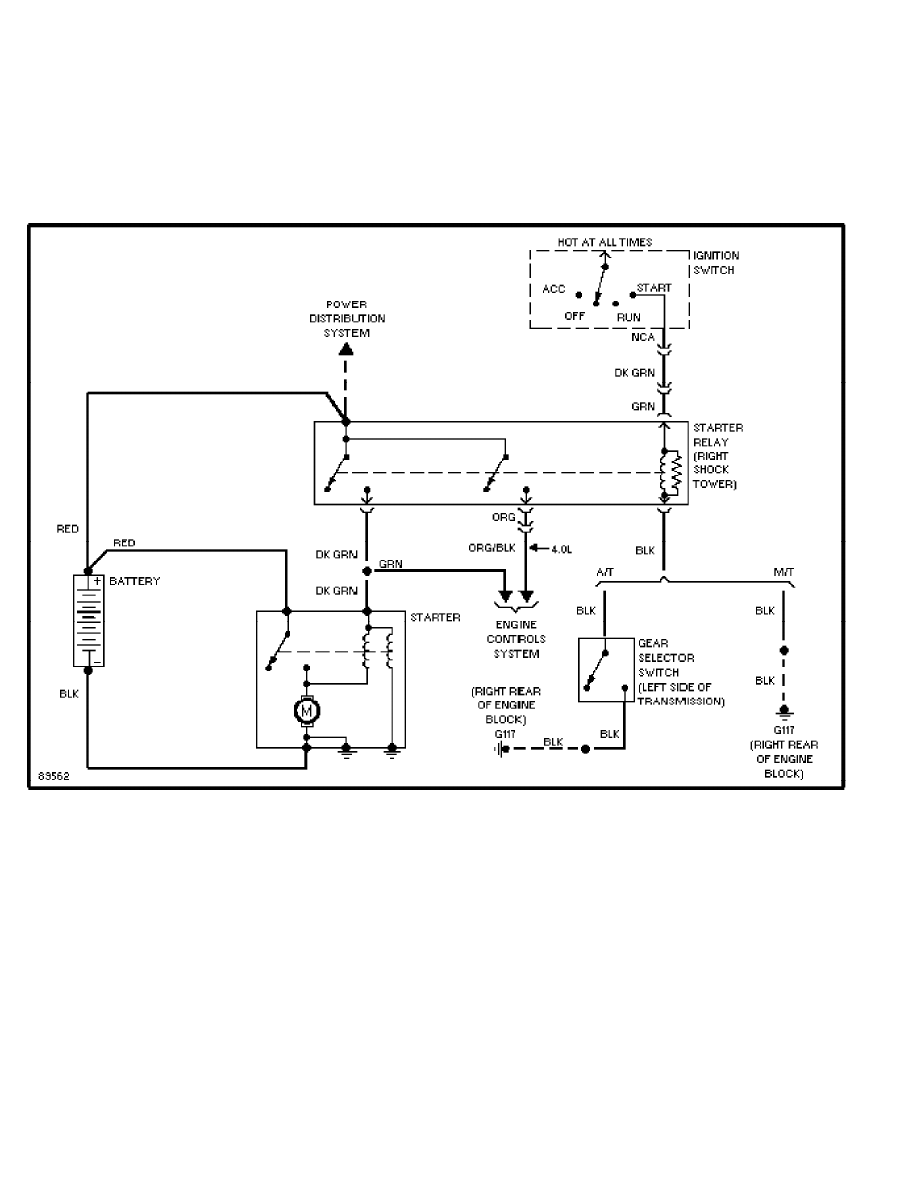

Starting Circuit (p. 12)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

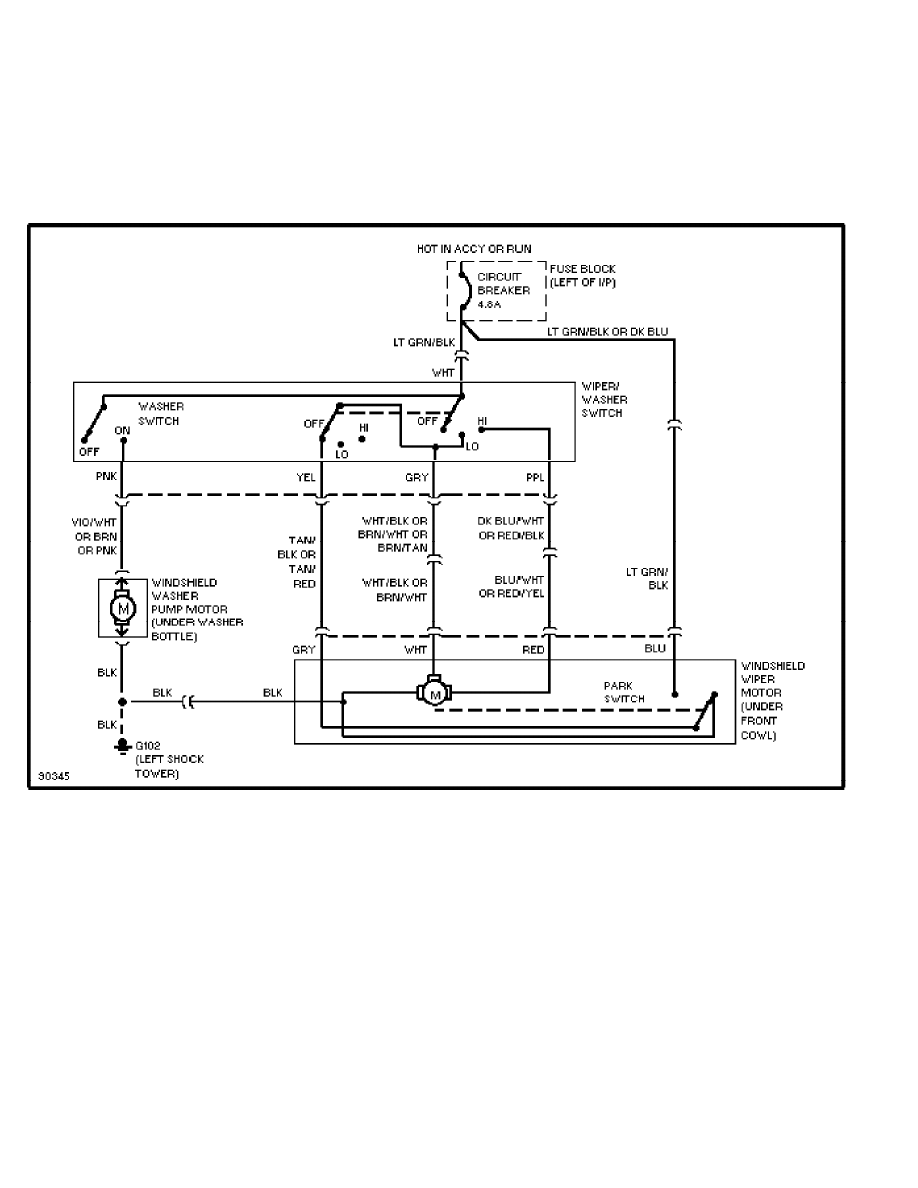

2-Speed Wiper/Washer Circuit (p. 13)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

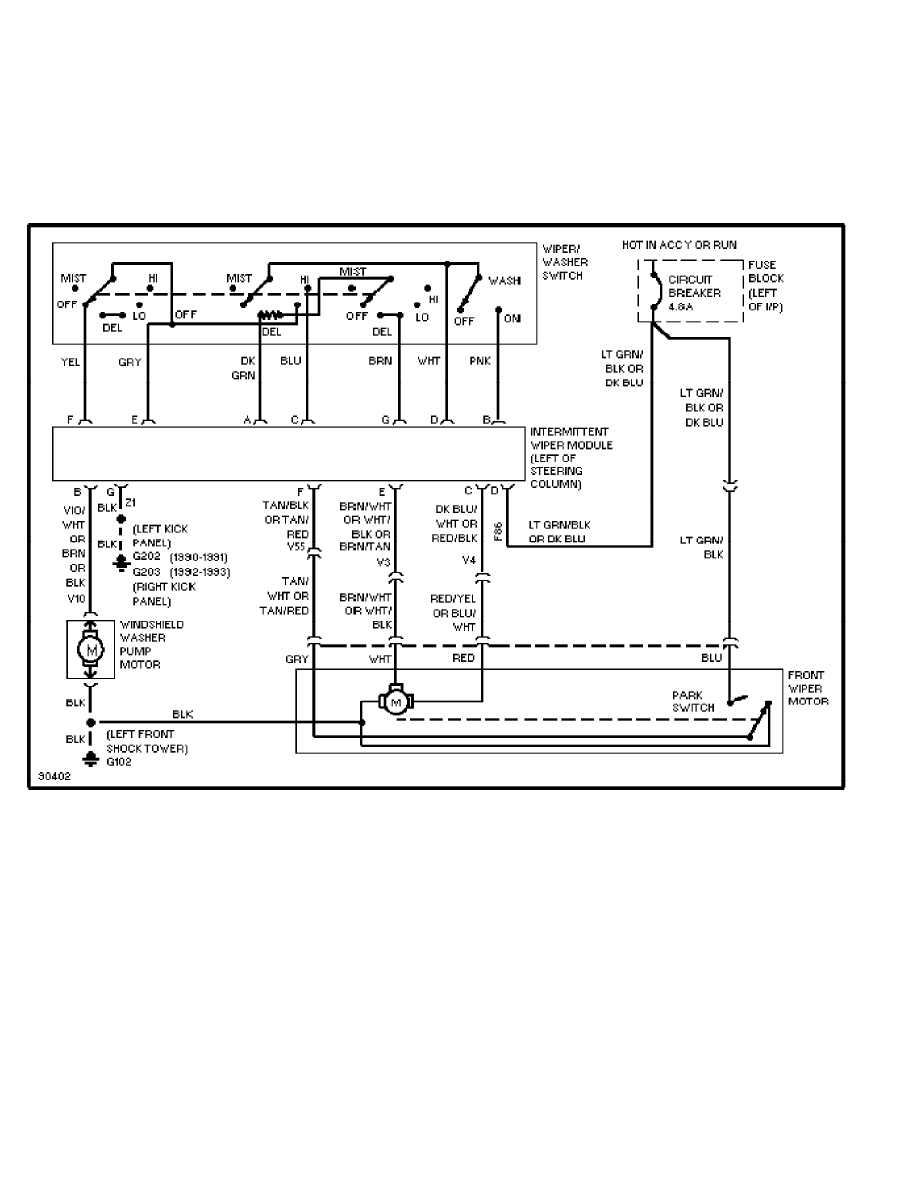

Interval Wiper/Washer Circuit (p. 14)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

SYSTEM WIRING DIAGRAMS

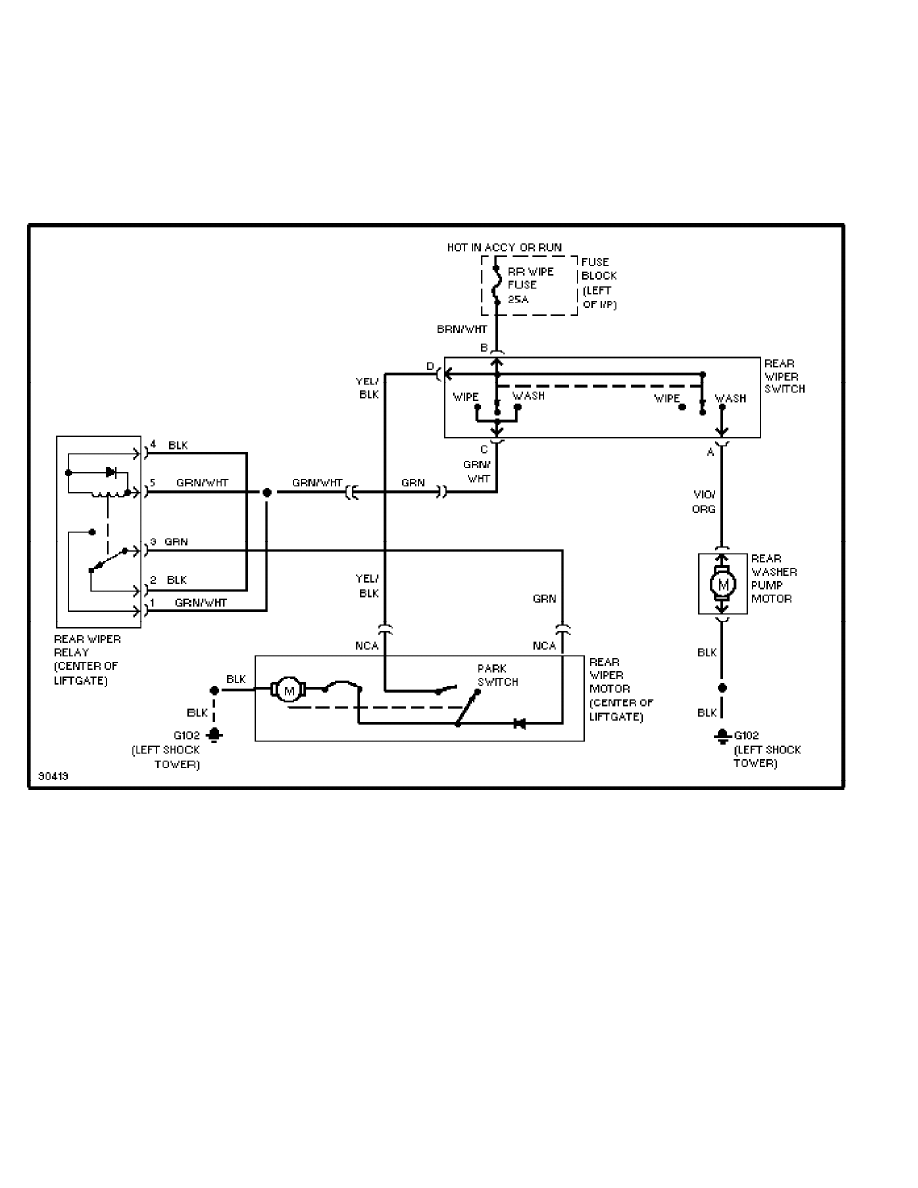

Rear Wiper/Washer Circuit (p. 15)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

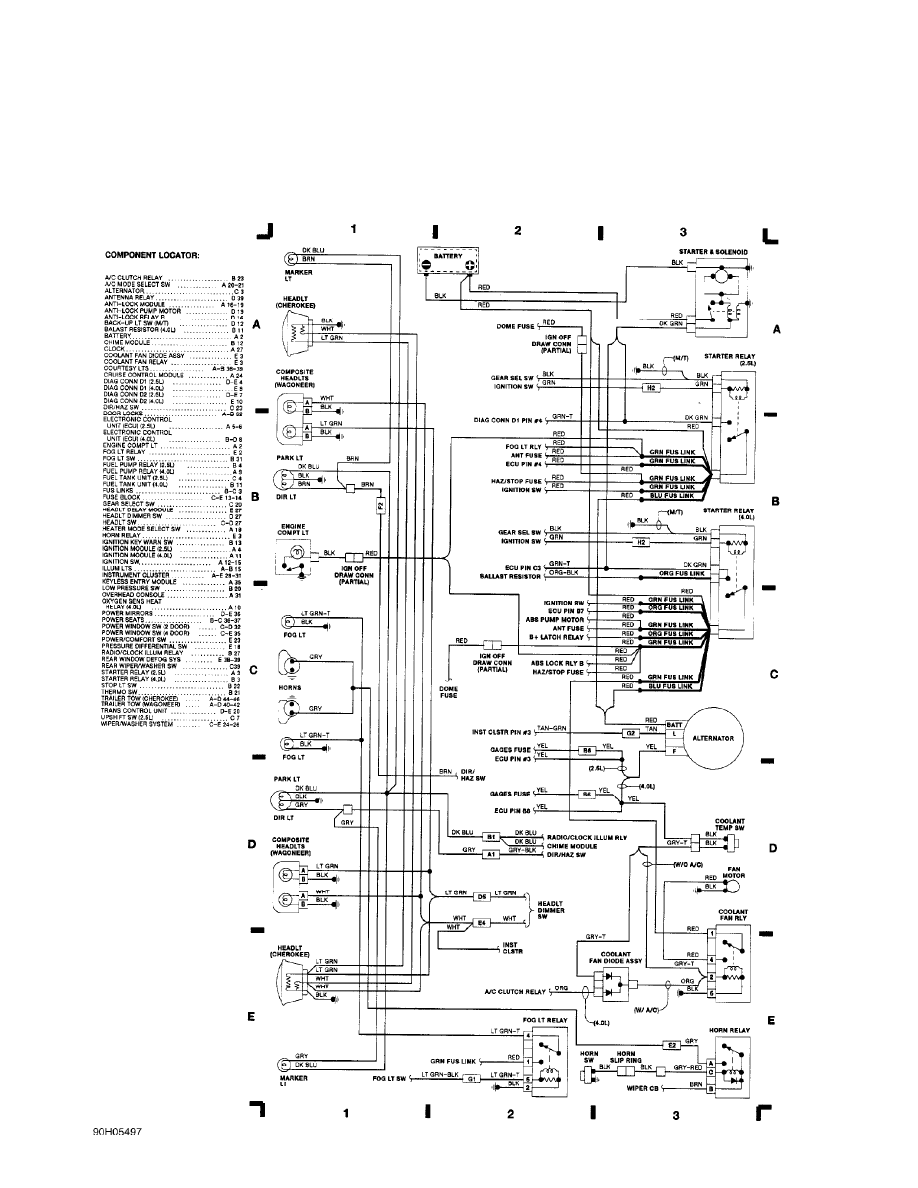

Fig. 1: Engine Compartment & Headlights

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

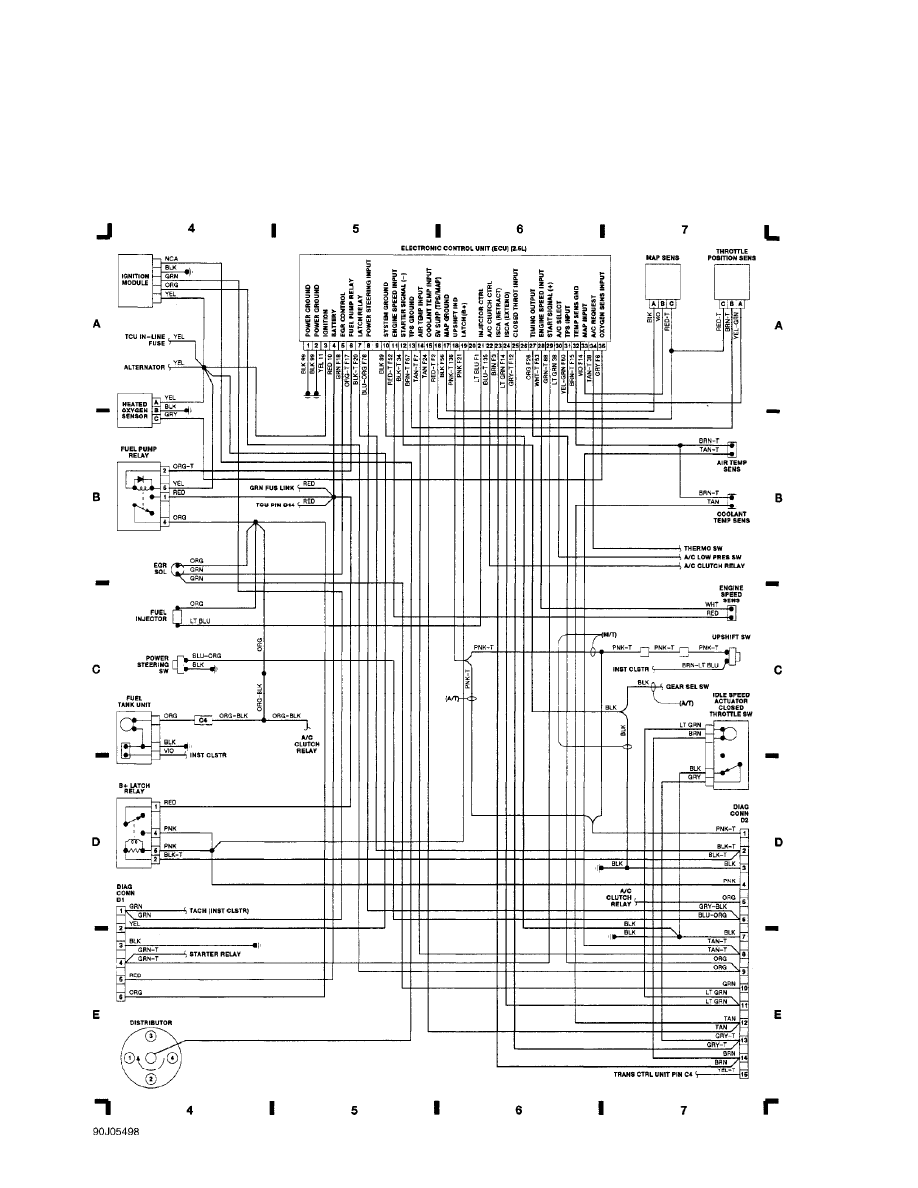

Fig. 2: Electronic Control Unit (ECU) (2.5L) (p. 2)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

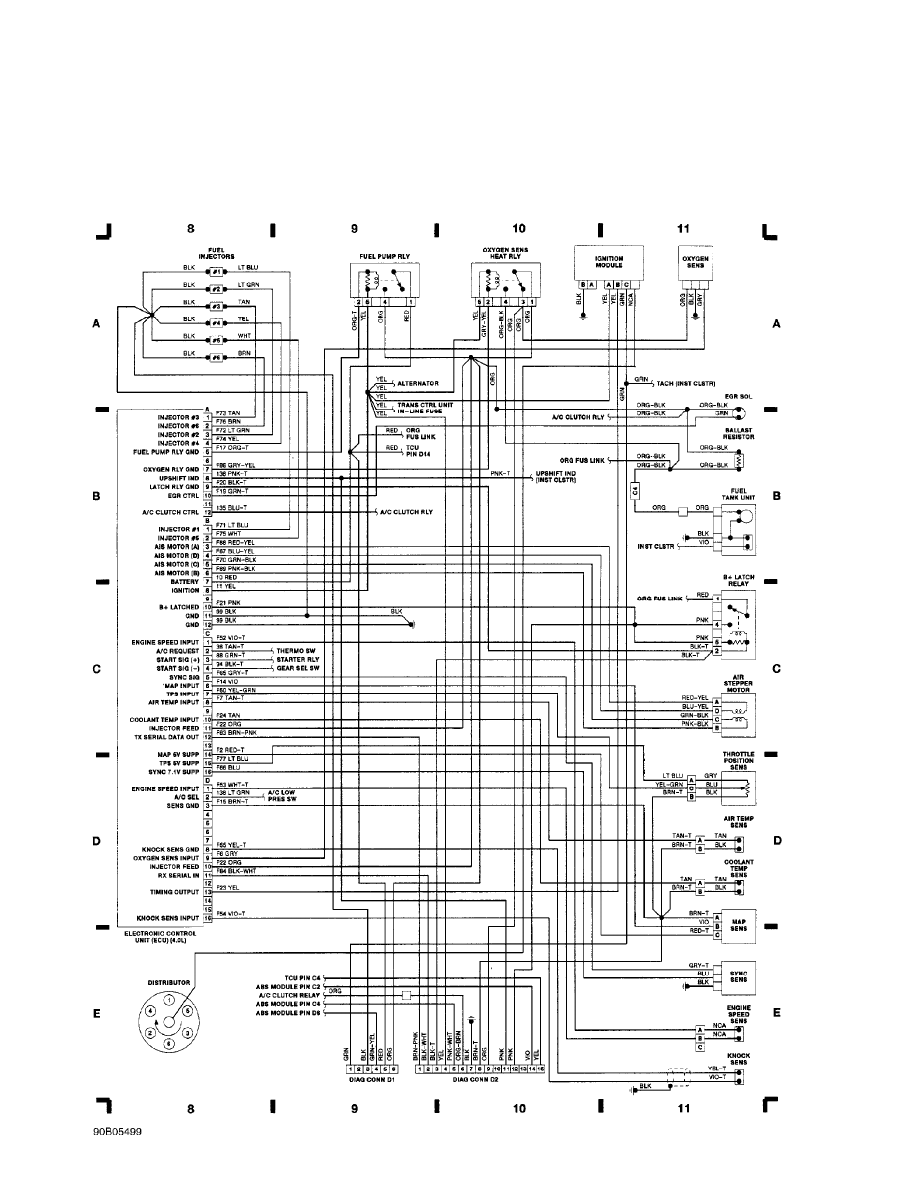

Fig. 3: Electronic Control Unit (ECU) (4.0L) (p. 3)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

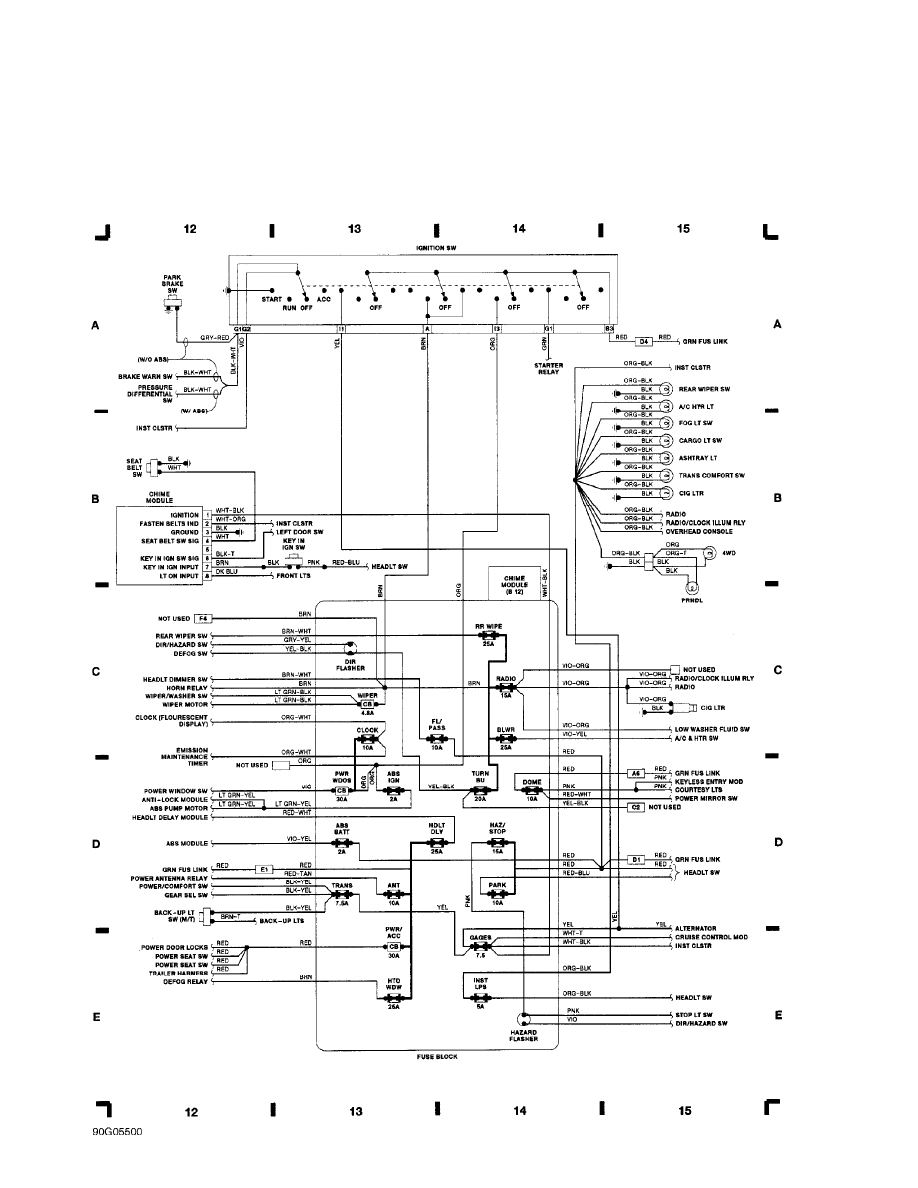

Fig. 4: Fuse Block & Chime Module (p. 4)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

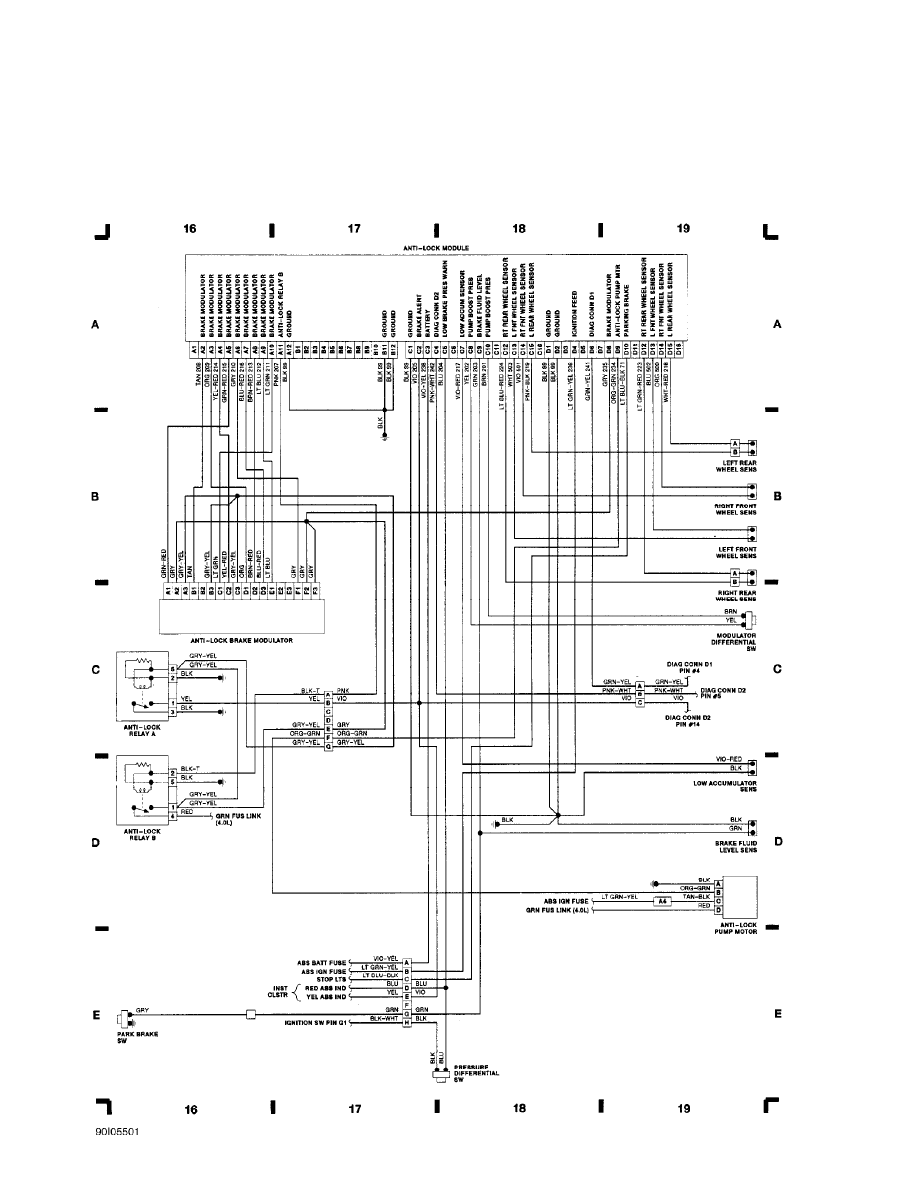

Fig. 5: Anti-Lock Module & Anti-Lock Brake Modulator (p. 5)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

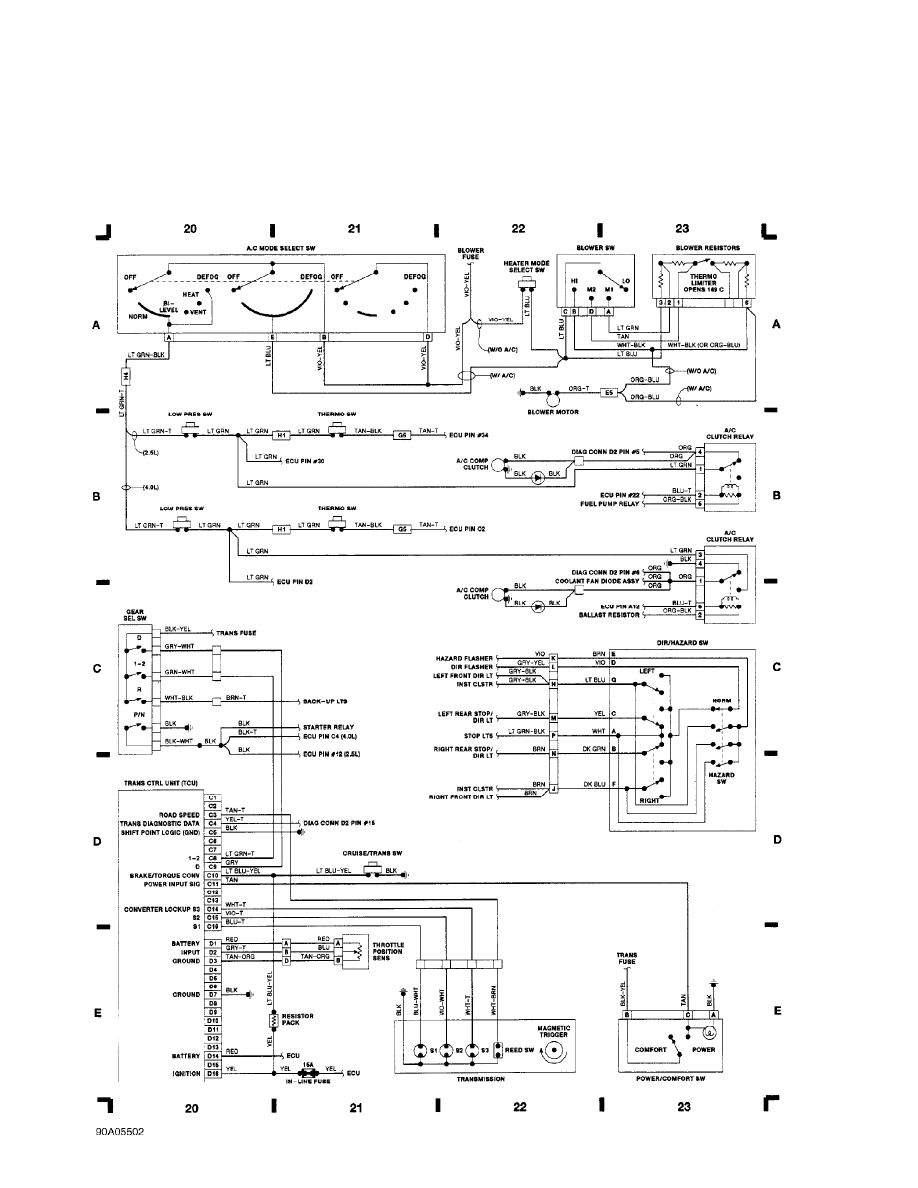

Fig. 6: A/C-Heating & Trans Control Unit (TCU) (p. 6)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

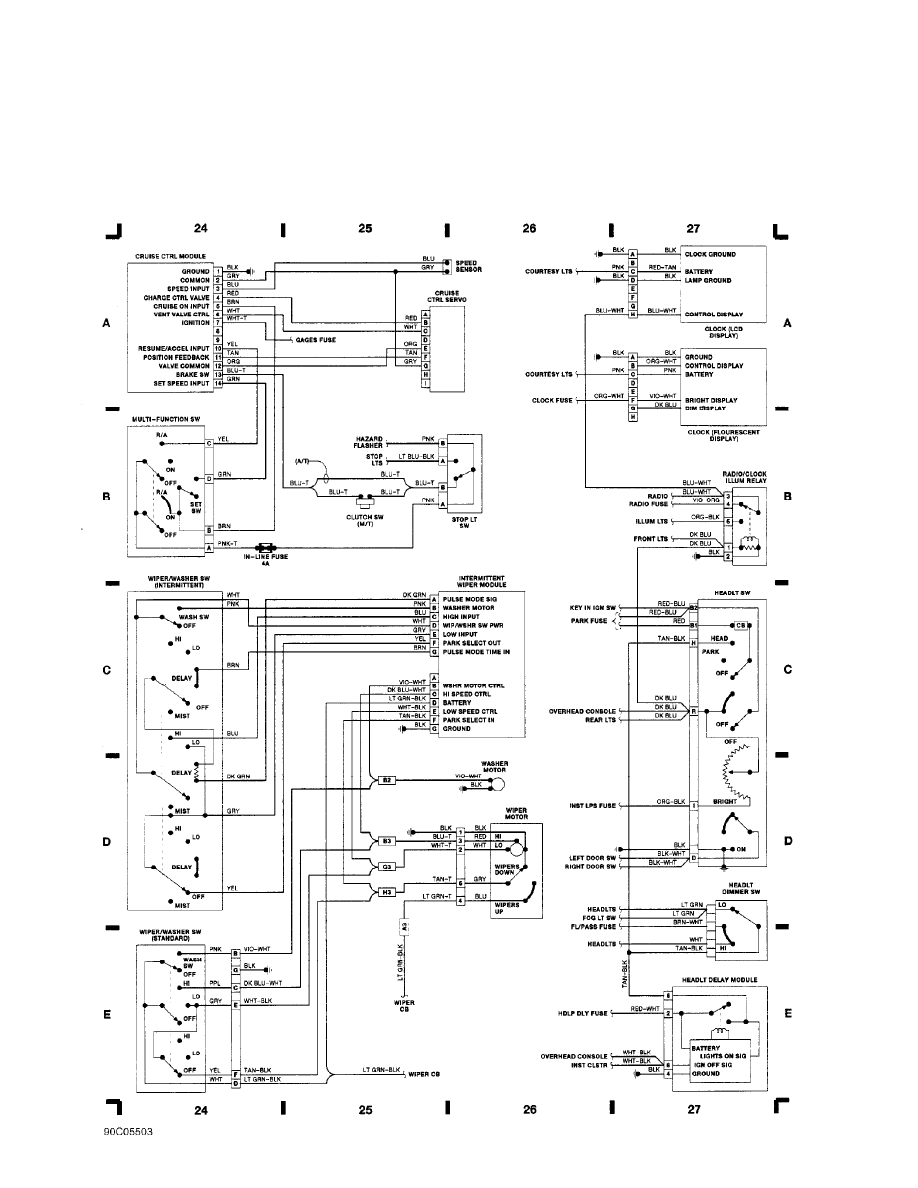

Fig. 7: Cruise Control Module & Wiper/Washer Sys. (p. 7)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

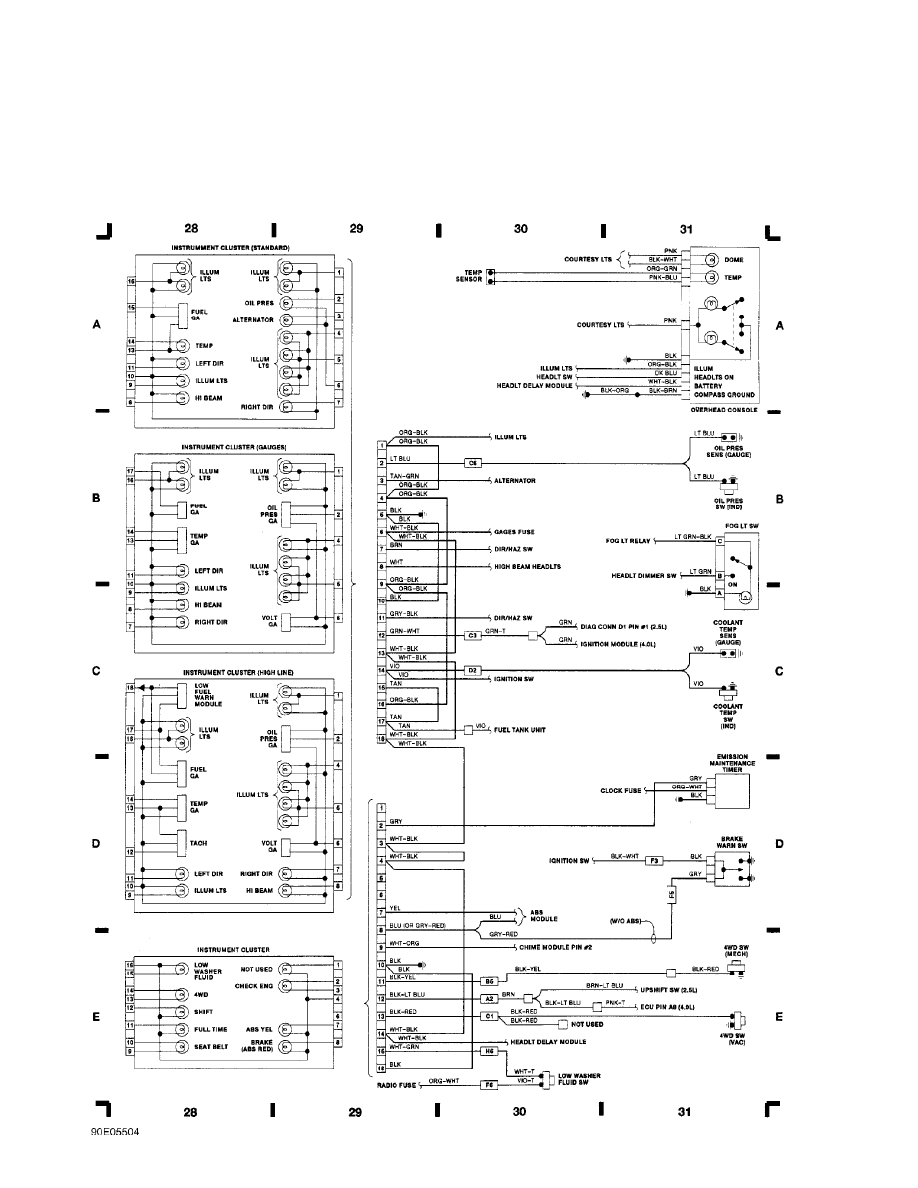

Fig. 8: Instrument Cluster (Standard, Gages, High Line) (p. 8)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

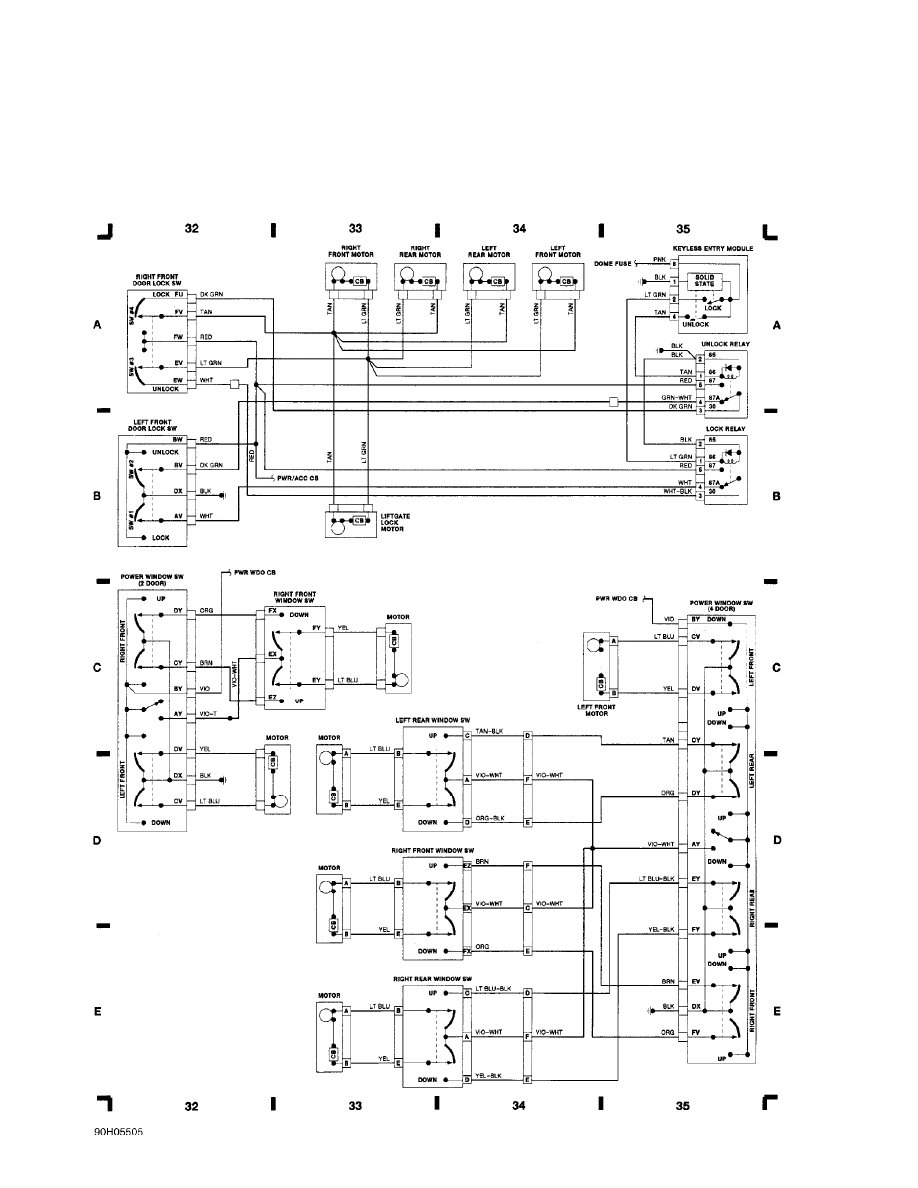

Fig. 9: Power Windows & Keyless Entry Module (p. 9)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

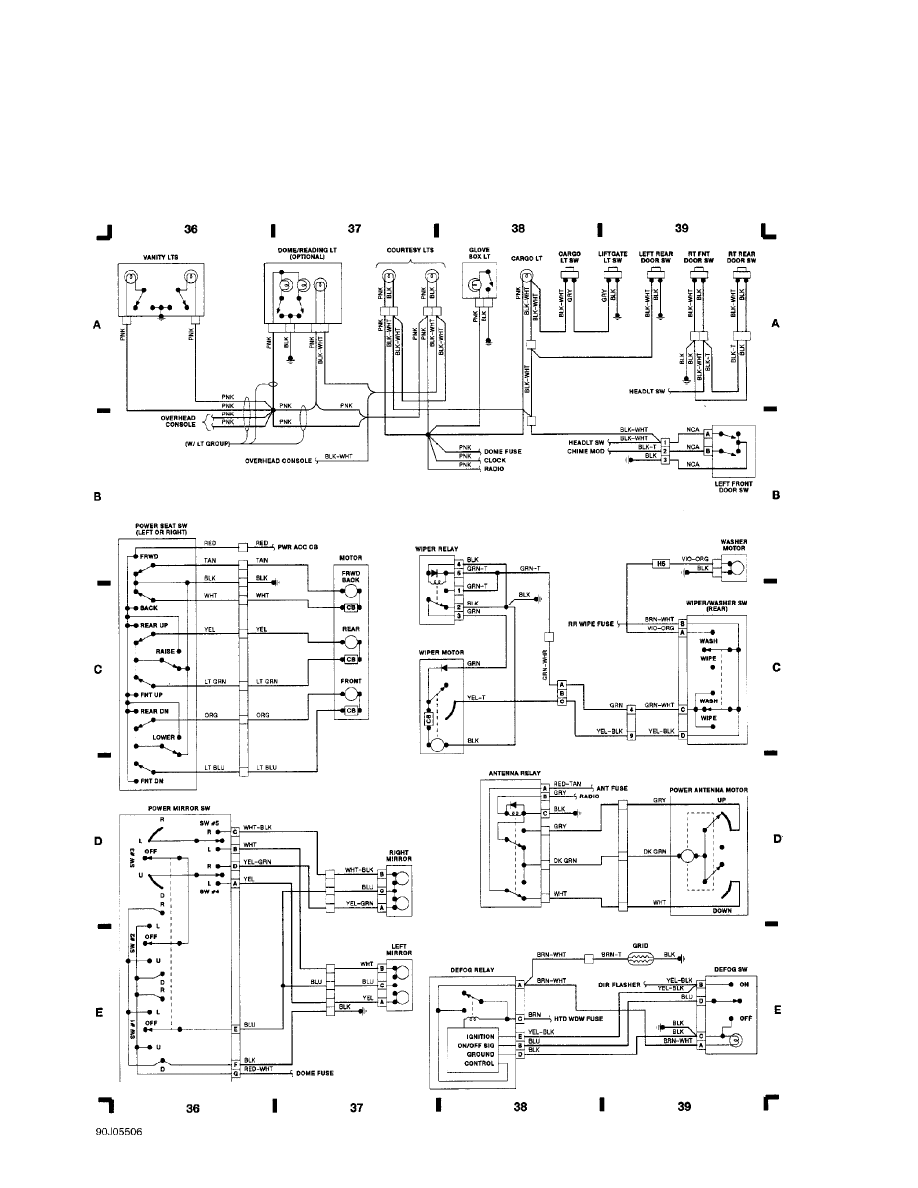

Fig. 10: Power Seats & Mirrors & Passenger Compartment (p. 10)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

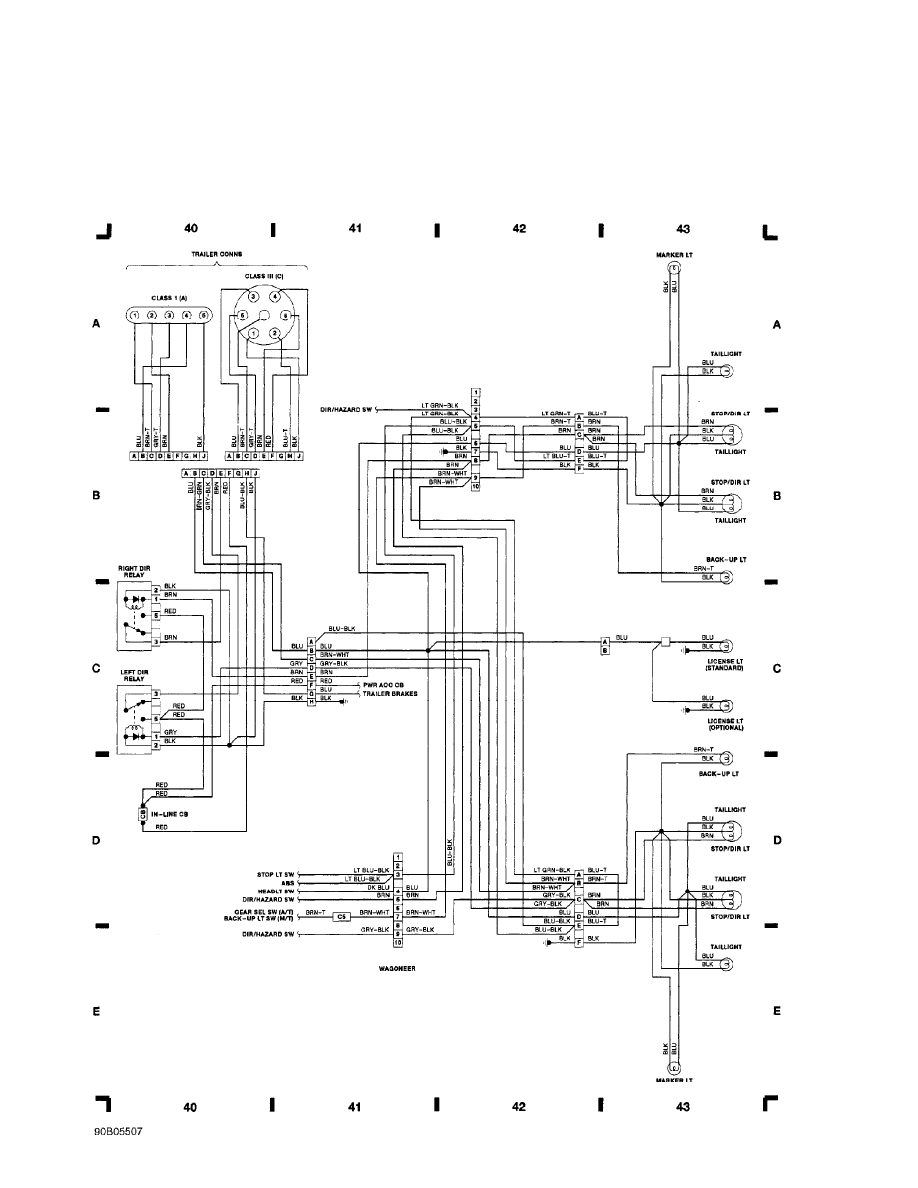

Fig. 11: Passenger Compartment & Taillights (Wagoneer) (p. 11)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM

WIRING DIAGRAMS

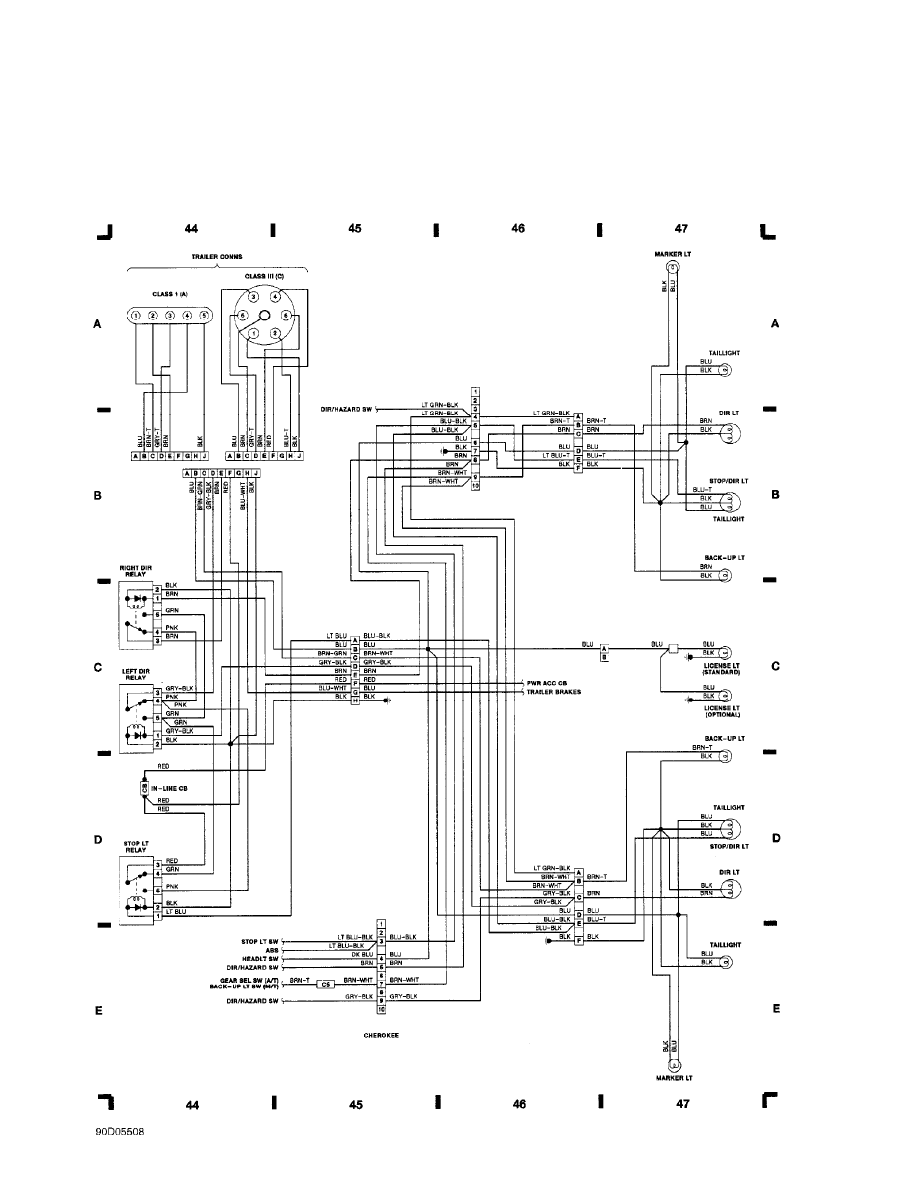

Fig. 12: Passenger Compartment & Taillights (Cherokee) (p. 12)

1990 Jeep Cherokee

For x

Friday, July 30, 2004 11:13AM
