WIRING DIAGRAMS

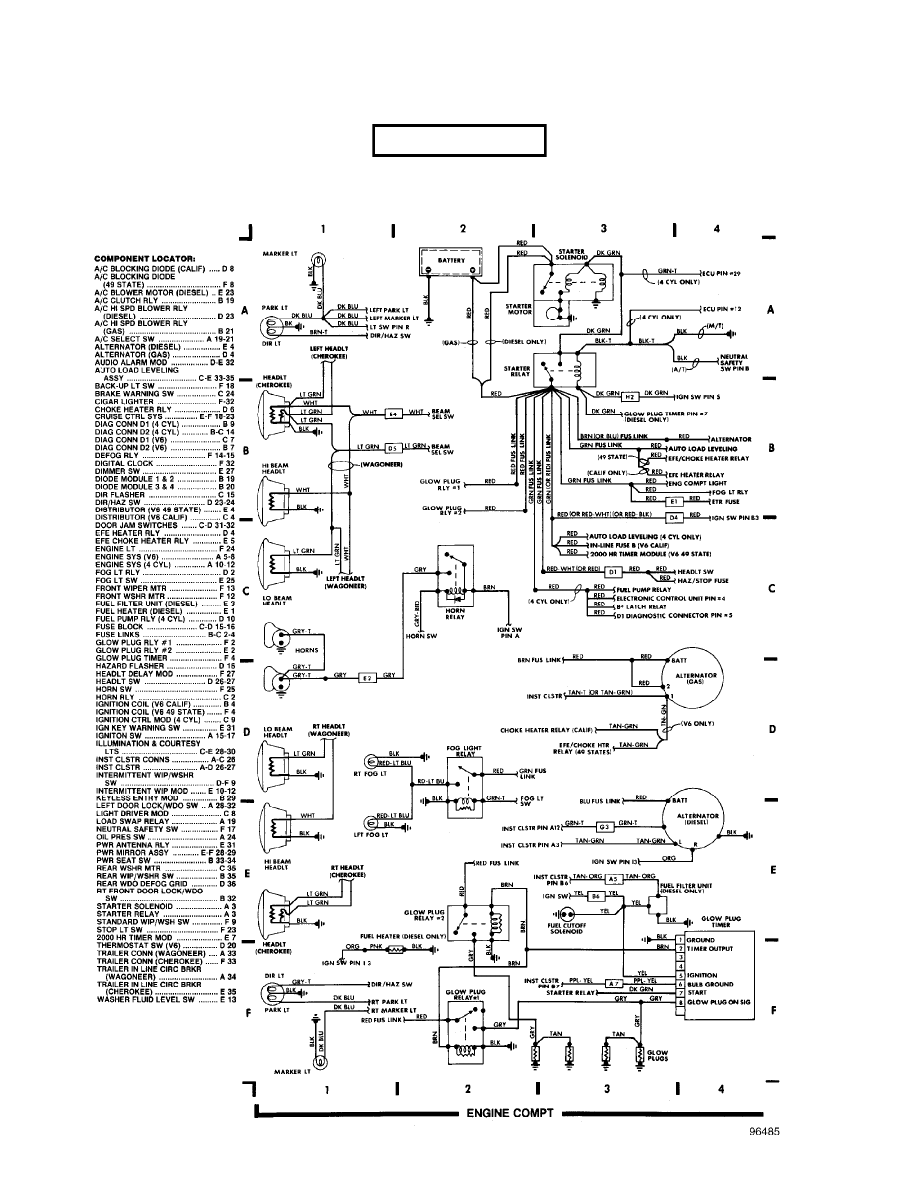

Fig. 1: Engine Compartment
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
CDR@WP.PL
WIRING DIAGRAMS

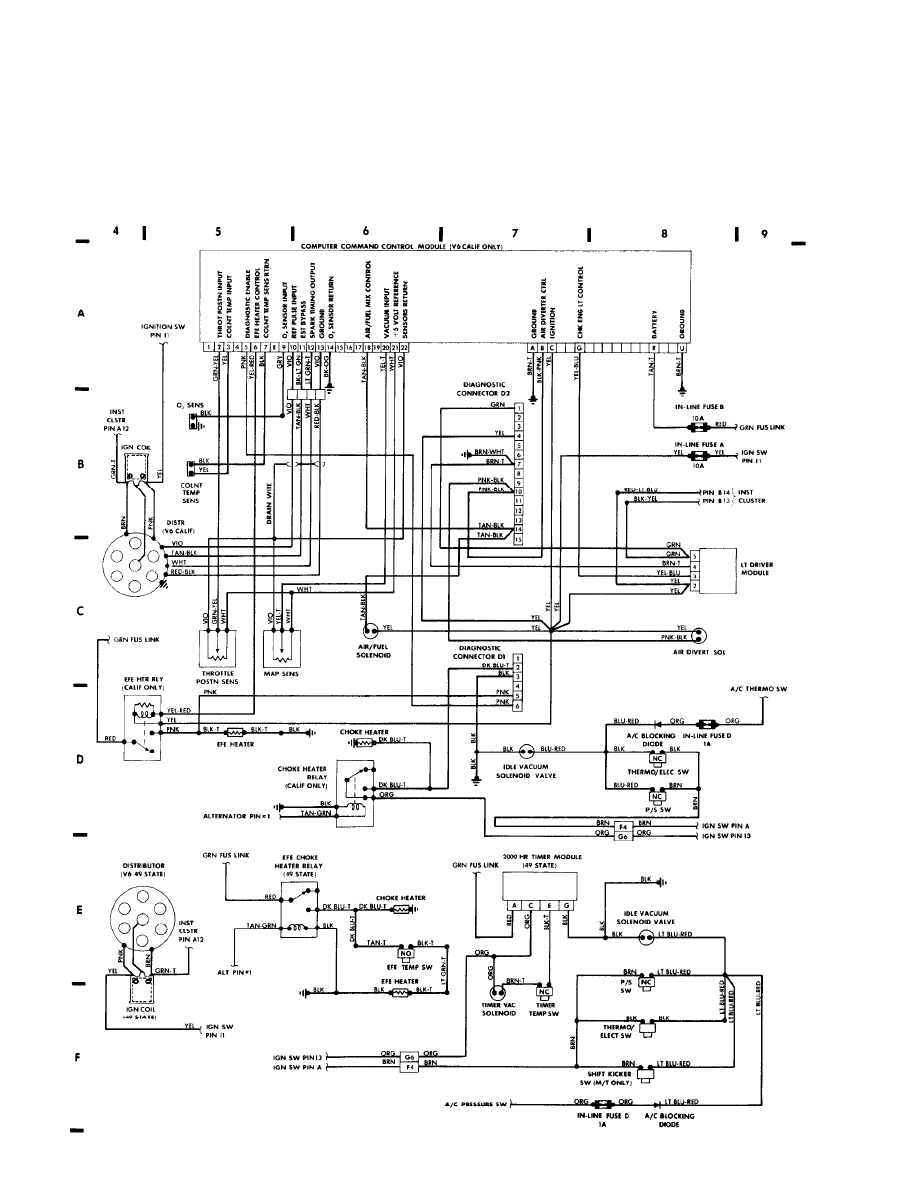

Fig. 2: Engine Compartment (Cont.) (p. 2)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS
Fig. 3: Engine Compartment & Underdash (p. 3)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS

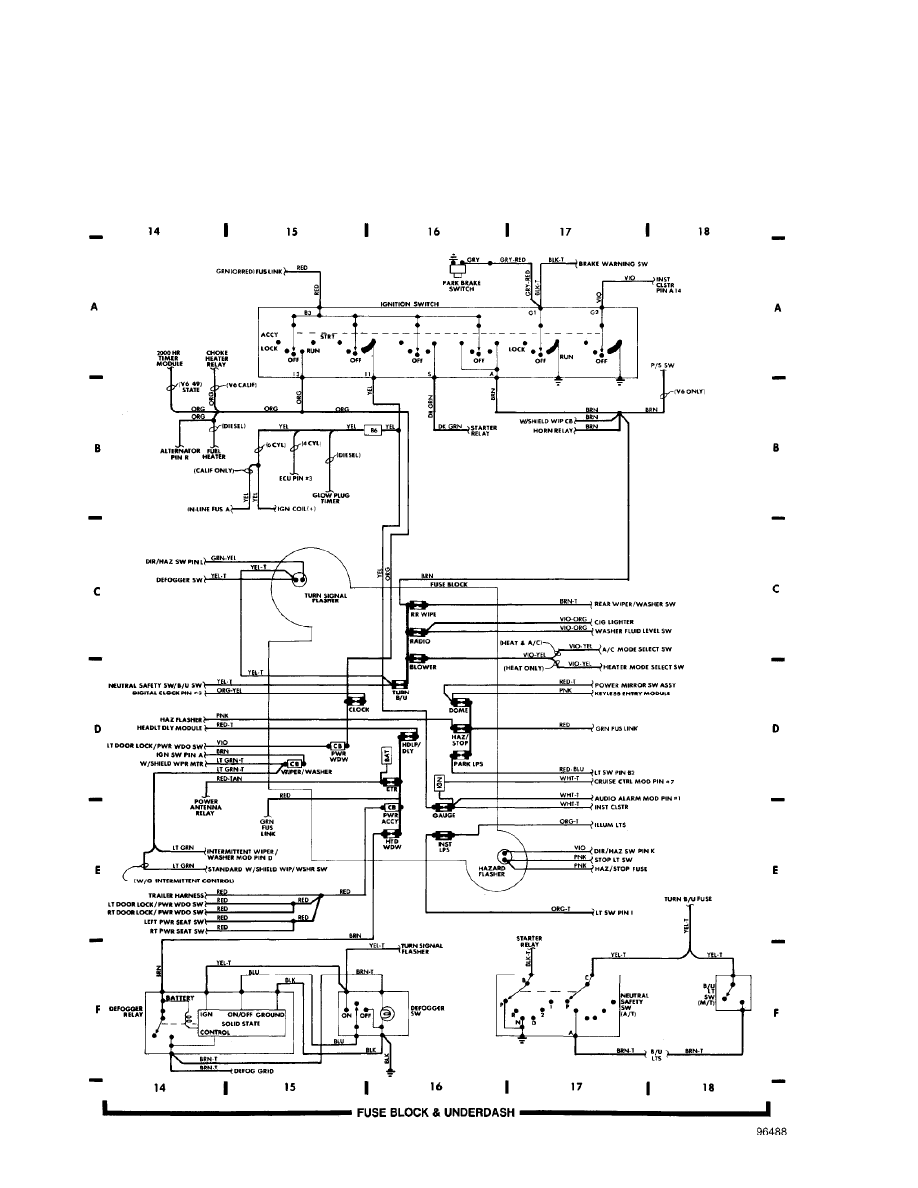

Fig. 4: Fuse Block & Underdash (p. 4)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS

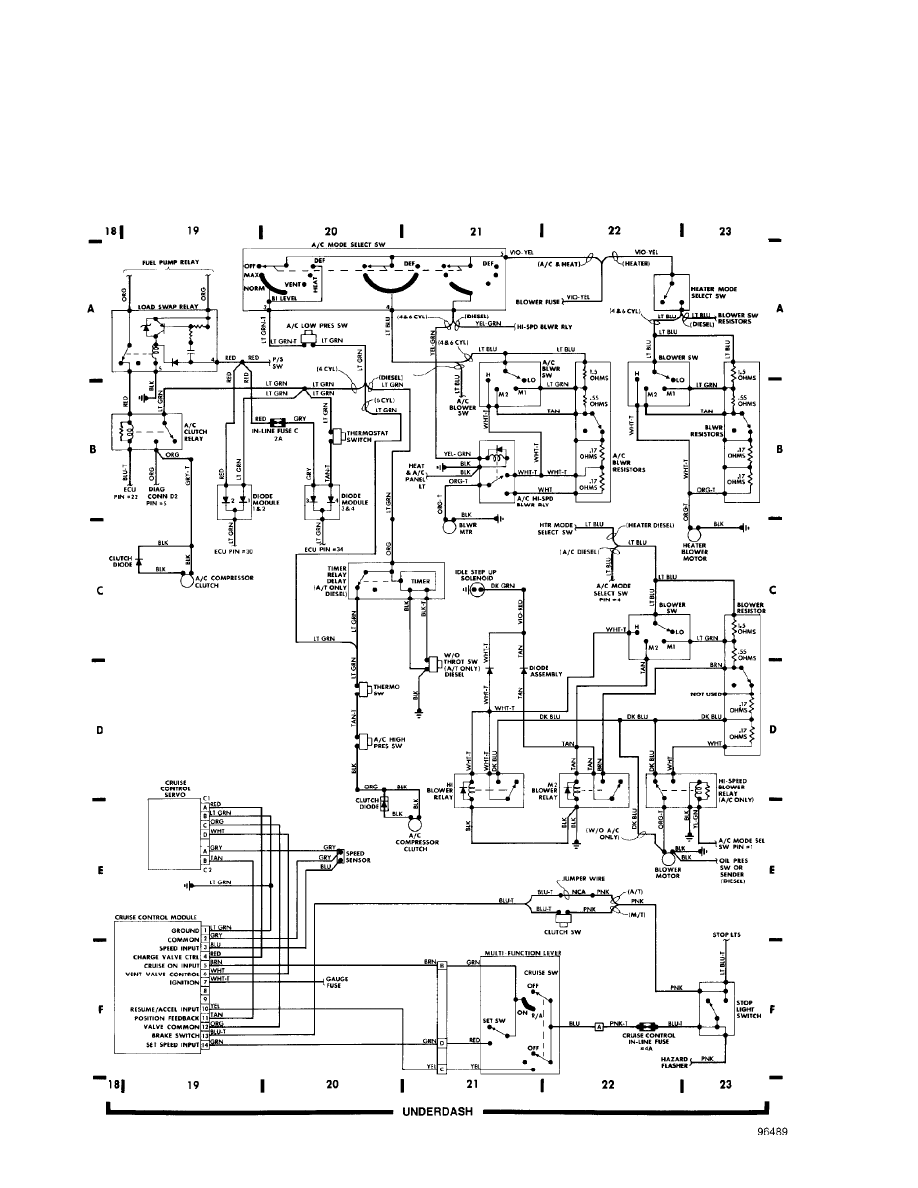

Fig. 5: Underdash (p. 5)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS

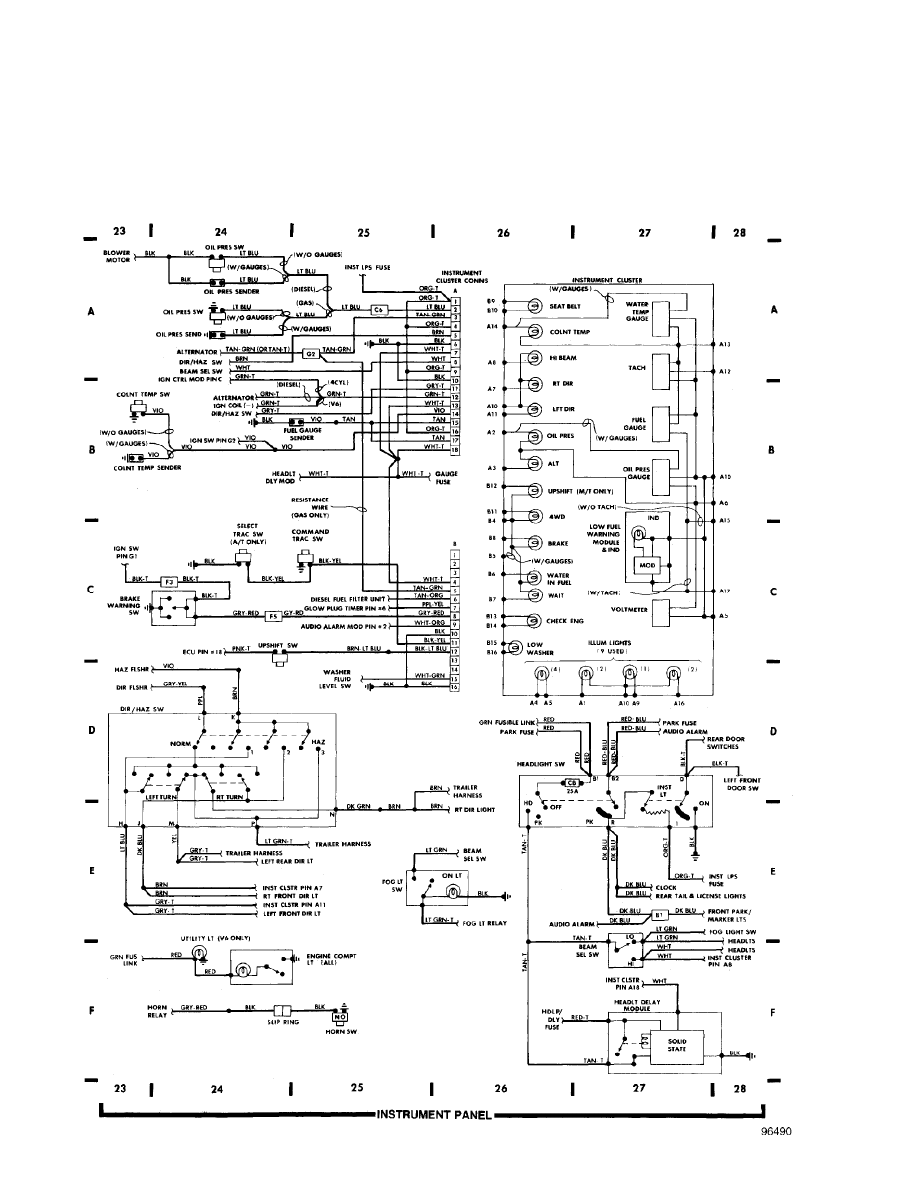

Fig. 6: Instrument Panel (p. 6)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS

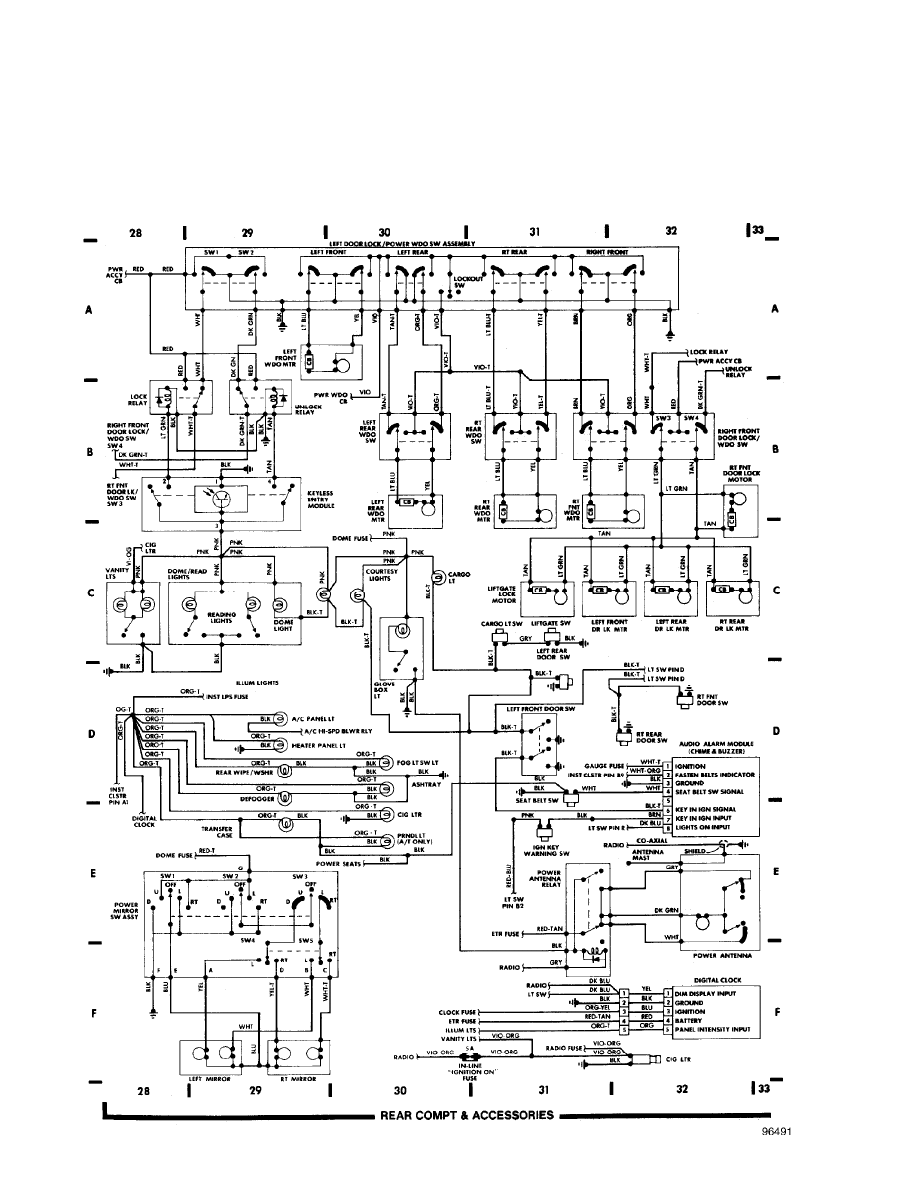

Fig. 7: Rear Compartment & Accessories (p. 7)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
WIRING DIAGRAMS

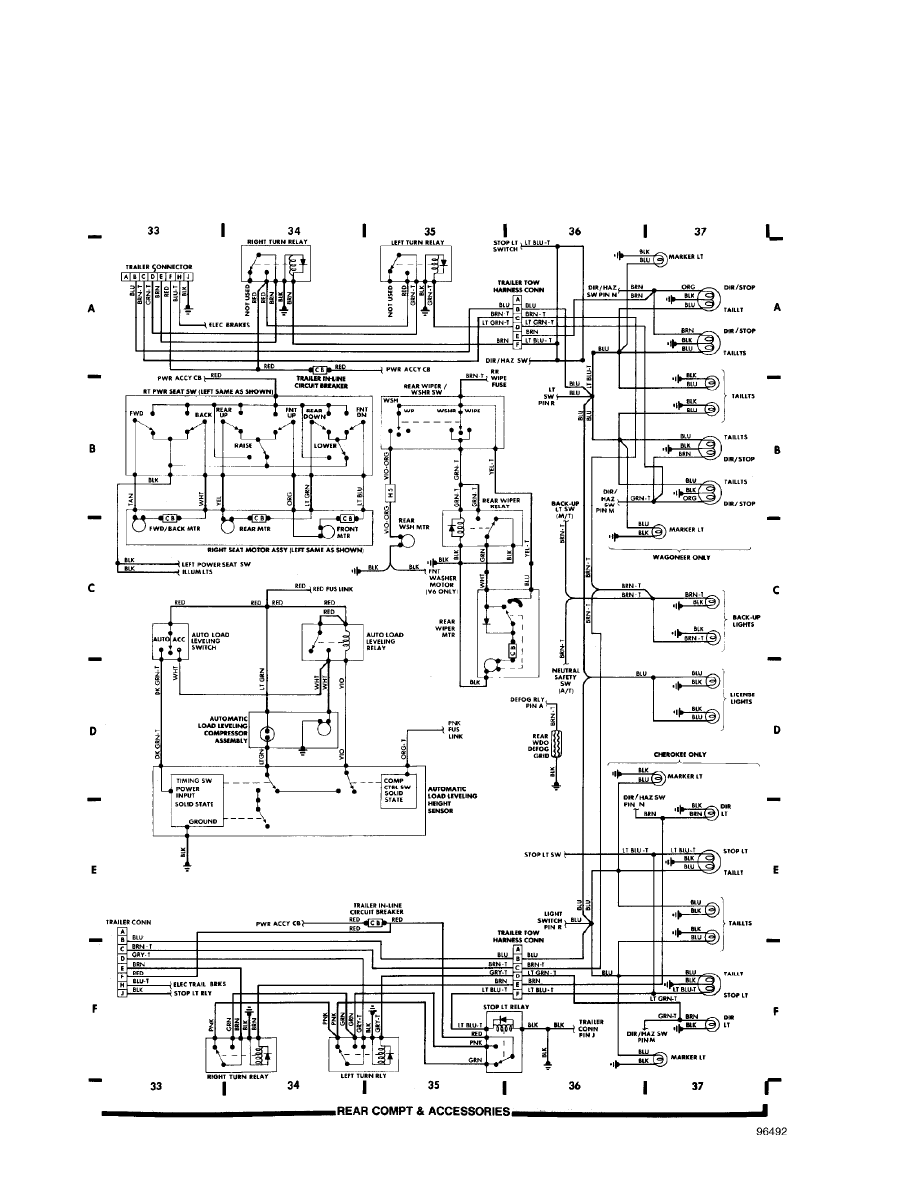

Fig. 8: Rear Compartment & Accessories (Con't) (p. 8)
1986 Jeep Cherokee
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 11:08AM
