EF 20mm 1:2.8 USM
REF.NO. C21-5341

PARTS

CATALOG

REF.No.C21-5341 EF20mm 1:2.8 USM

P A R T S L I S T

Pg.3

NEW

PARTS NO.

CLASS

QTY

D E S C R I P T I O N

PAGE

CA2-2267-000

C

2

SCREW

2

CA2-4377-000(XXX)

E

1

RING, SNAP

2

CA2-4583-000

D

1

CONTACT ASS'Y

1

CA2-4585-000

E

1

SCREW, MOUNT STOPPER

1

CA2-4586-000

E

2

SCREW

1

CA2-5483-000(XXX)

E

1

RING, SNAP

2

CH1-0632-000

E

1

FLEX, CONNECTING

1

CY1-2178-000(XXX)

E

1

WASHER, MOUNT

1

CY1-2180-000(XXX)

C

1

MOUNT, LENS

1

CY1-2414-000

E

1

FOCUSING RING ASS'Y

1

CY1-2461-000

E

1

COVER, BACK

1

CY1-2462-000

E

1

1ST LENS GROUP ASS'Y

2

CY1-2463-000

D

1

2ND LENS GROUP ASS'Y

2

CY1-2580-000

D

1

RING, INDEX

1

CY1-2581-000

D

1

HOLDER, FILTER

1

CY1-2725-000

E

1

LENS, G7/8

2

CY1-2726-000

E

1

LENS, G9/10

2

X91-1737-890

F

1

SCREW, CROSS-RECESS, PH

1

X91-1738-550

F

1

SCREW, CROSS-RECESS, PH

2

XA1-6170-357

F

4

SCREW, PH

2

XA1-6170-507

F

3

SCREW, CROSS-RECESS, PH

1

XA1-7170-207

F

4

SCREW, CROSS-RECESS, PH

2

XA4-6170-507

F

3

SCREW, CROSS-RECESS, PH

1

XA4-7170-407

F

2

SCREW, CROSS-RECESS, PH

2

XA4-9170-557

F

5

SCREW, CROSS-RECESS, PH

1

XA4-9200-606

F

4

SCREW, CROSS-RECESS, PH

1

YA2-0310-000

D

1

RING, RUBBER

1

YA2-0716-000

E

1

BARREL, FIXED

1

YA2-0721-000

E

1

HOLDER, DC/DC CONVERTER

2

YA2-0732-000(XXX)

E

3

COLLAR

2

YA2-0734-000

E

1

SCALE, FOCUSING

1

YA2-0735-000

E

1

SCREW, FOCUSING

2

YA2-1311-000

E

1

BARREL, CAM

2

YA2-1312-000

E

1

BARREL, LENS

2

YA2-1316-000

E

1

COLLAR, ASSEMBLY

2

YA2-1320-000

D

1

COLLAR, ASSEMBLY

1

YA2-1322-000

D

1

SPACER

2

YA2-1323-000(XXX)

E

1

WASHER, ADJUSTING

2

YG2-0060-000

D

1

FOCUSING UNIT

1

YG2-0114-000

D

1

MAIN CBA ASS'Y

1

YG2-0199-000

D

1

CONVERTER, DC/DC

2

YG2-0202-000

D

1

POWER DIAPHRAGM UNIT

2

YG9-0104-000

D

1

A/M SWITCH ASS'Y

1

YG9-0104-030

D

1

A/M SWITCH ASS'Y

1

YH2-0096-000

E

1

CABLE, FLAT

2

YN2-0531-000

E

1

LENS, G11

2

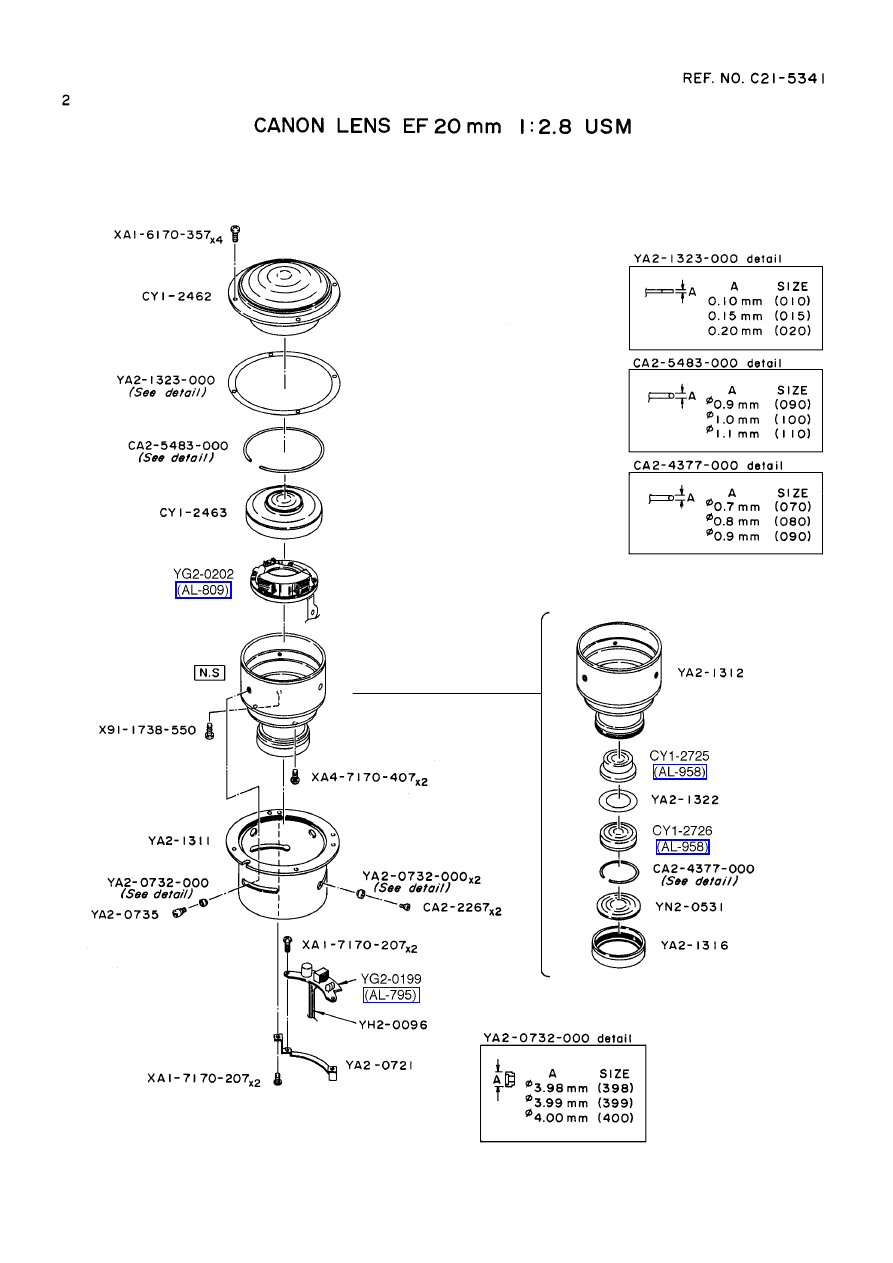

CANON LENS EF 20mm 1:2.8 USM

REF.No.C21-5341

CY1-2462

CY1-2463

YN2-0531

CY1-2726

CY1-2725
