PARTS

CATALOG

EF 20-35mm 1:3.5-4.5 USM
REF.NO.C21-9731

REF.No.C21-9731

P A R T S L I S T

Pg.3

NEW

PARTS NO.

CLASS

QTY

D E S C R I P T I O N

PAGE

CA2-4583-000

D

1

CONTACT ASS'Y

1

CA2-4585-000

F

1

SCREW,MOUNT STOPPER

1

CA2-4586-000

F

2

SCREW

1

CB2-0073-001

E

1

RING, MANUAL FOCUSING

1

CB2-0084-000

E

1

BURUSH,ZOOMING

2

CH1-0632-000

E

1

M-FLX

1

CY1-2178-000(XXX)

E

X

WASHER,MOUNT

1

CY1-2180-000(XXX)

E

1

MOUNT,LENS

1

CY1-2487-000

D

1

1ST LENS GROUP ASS'Y

2

CY1-2488-000

E

1

2ND LENS GROUP ASS'Y

2

CY1-2489-000

E

1

G6 LENS ASS'Y

2

CY1-2490-000

D

1

3RD LENS GROUP ASS'Y

2

CY1-2491-000

D

1

COVER,MOUNT

1

CY1-2493-000

E

1

REAR LENS UNIT

2

CY1-2690-000

D

1

RING, ZOOMING

1

CY1-2691-000

D

1

RING,FILTER

1

CY1-2692-000

D

1

BARREL,FIXED ASS'Y (Old)

1

CY1-2777-000

D

1

BARREL,FIXED ASS'Y (New)

1

X91-1738-350

F

1

SCREW,CROSS-RECESS

1

X91-1738-520

F

3

SCREW,CROSS-RECESS,PH

2

XA1-6170-169

F

1

SCREW,CROSS-RECESS,PH

2

XA1-7170-259

F

2

SCREW,CROSS-RECESS,PH

2

XA4-6170-229

F

1

SCREW,CROSS-RECESS,PH

2

XA4-9170-357

F

1

SCREW,CROSS-RECESS,PH

2

XA4-9170-409

F

8

SCREW,CROSS-RECESS,PH

1,2

XA4-9170-507

F

3

SCREW,CROSS-RECESS,PH

2

XA4-9200-606

F

4

SCREW,CROSS-RECESS,PH

1

YA2-0839-000

E

1

KEY

2

YA2-1415-000

E

1

RING,RUBBER (Old)

1

YA2-1491-000

E

1

BARREL,GUIDE

2

YA2-1492-000

E

1

BARREL,CAM

2

YA2-1498-000

D

1

RING,FIXED

2

YA2-1499-000

D

1

GUIDE,FOCUSING KEY

2

YA2-1500-000

E

1

STOPPER

2

YA2-1504-000

E

1

HOLDER,FLX

2

YA2-1505-000

E

1

KEY,ZOOMING

2

YA2-1506-000

F

1

SCREW

1

YA2-1507-000

E

1

SCALE,FOCUSING

1

YA2-1510-000(XXX)

E

2

COLLER

2

YA2-1511-000

F

2

SCREW,SHOULDER

2

YA2-1515-001

D

1

COVER,FILTER RING

1

YA2-2836-000

D

1

RING,RUBBER (New)

1

YG2-0151-000

D

1

POWER DIAPHRAGM UNIT

2

YG2-0152-000

D

1

FOCUSING UNIT (Old)

1

YG2-0152-050

D

1

FOCUSING UNIT (New)

1

YG2-0268-000

D

1

MAIN CBA

1

YH1-0238-000

E

1

FLEX,ZOOMING

2

REF.NO.C21-9731

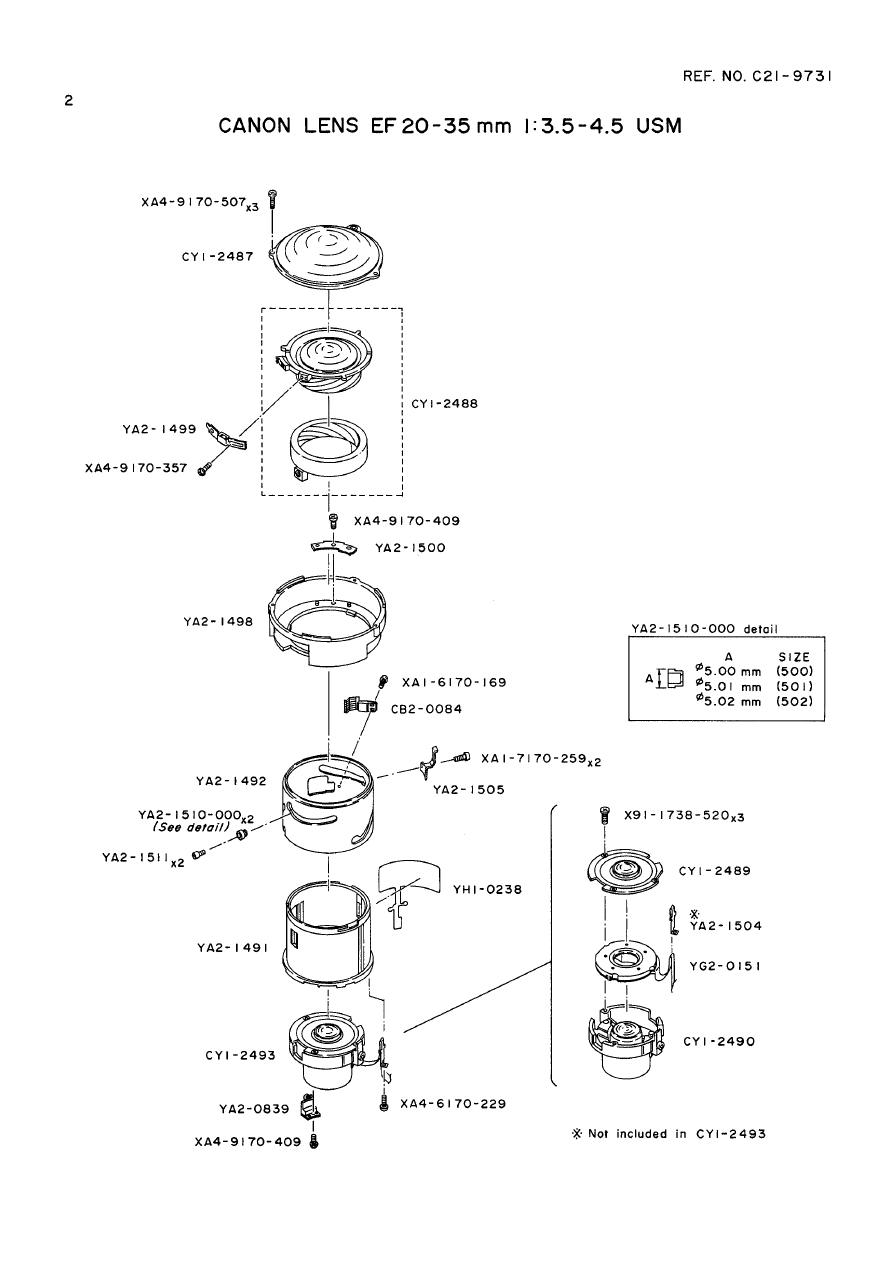

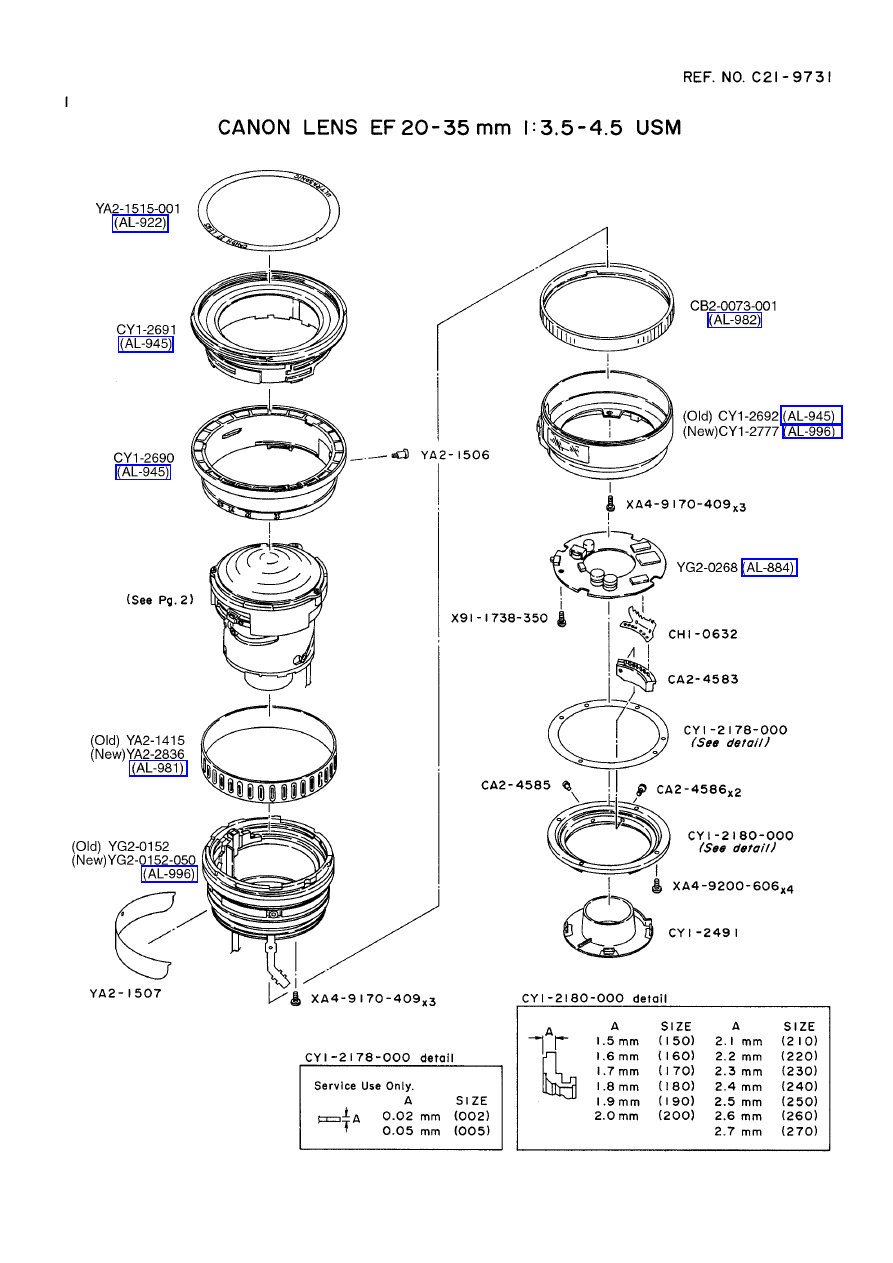

CANON LENS EF 20-35mm 1:3.5-4.5 USM

CY1-2490

CY1-2489

CY1-2488

CY1-2487
