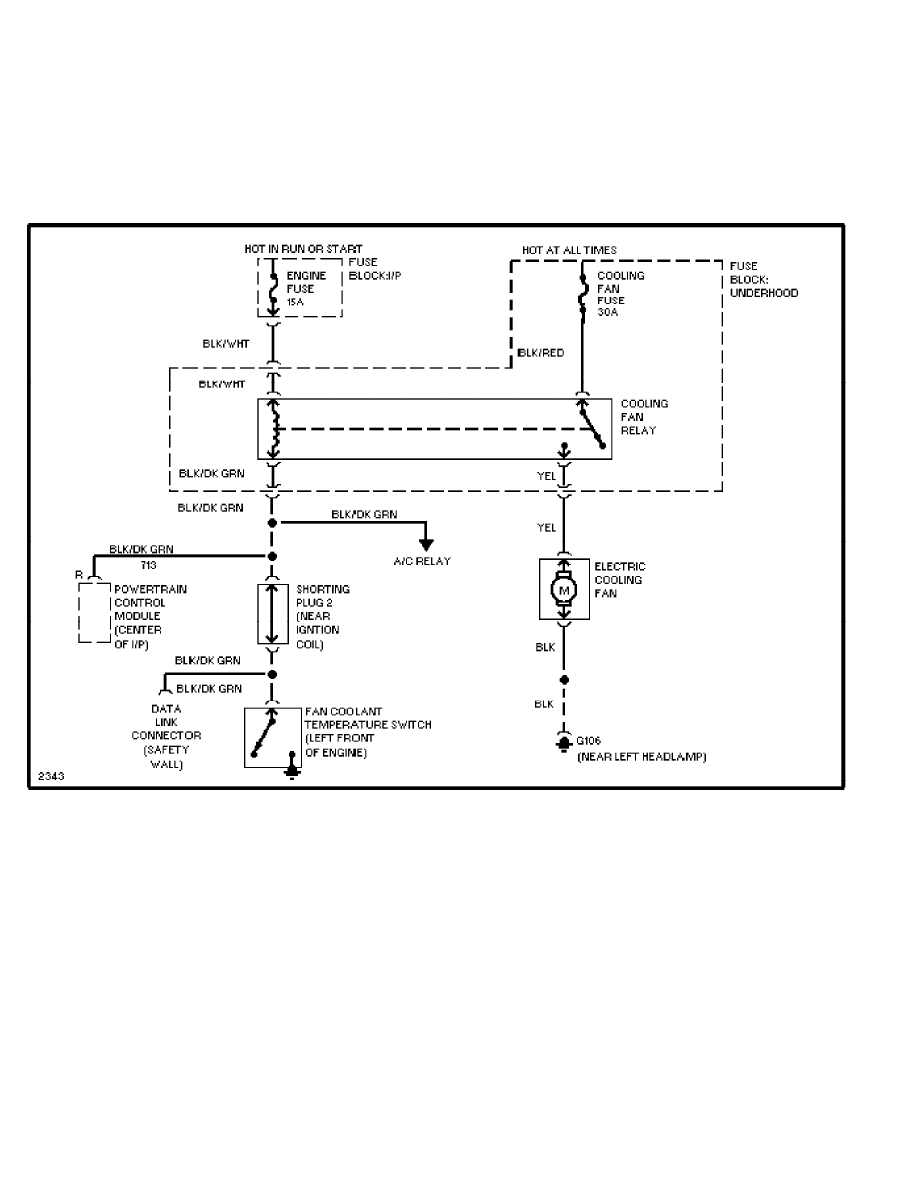

SYSTEM WIRING DIAGRAMS
1.8L, Cooling Fan Circuit, A/T
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
1.8L, Cooling Fan Circuit, M/T (p. 2)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM

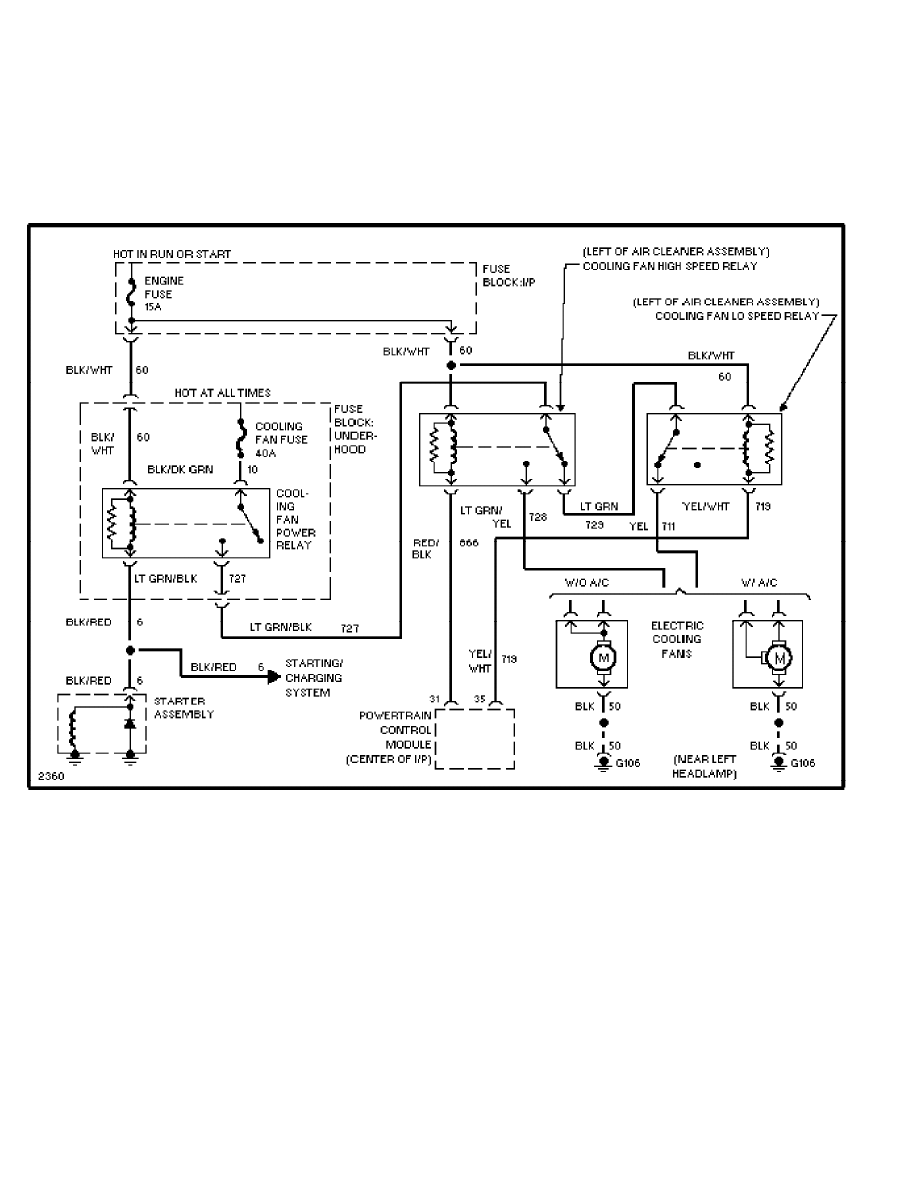

SYSTEM WIRING DIAGRAMS
1.9L, Cooling Fan Circuit (p. 3)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS

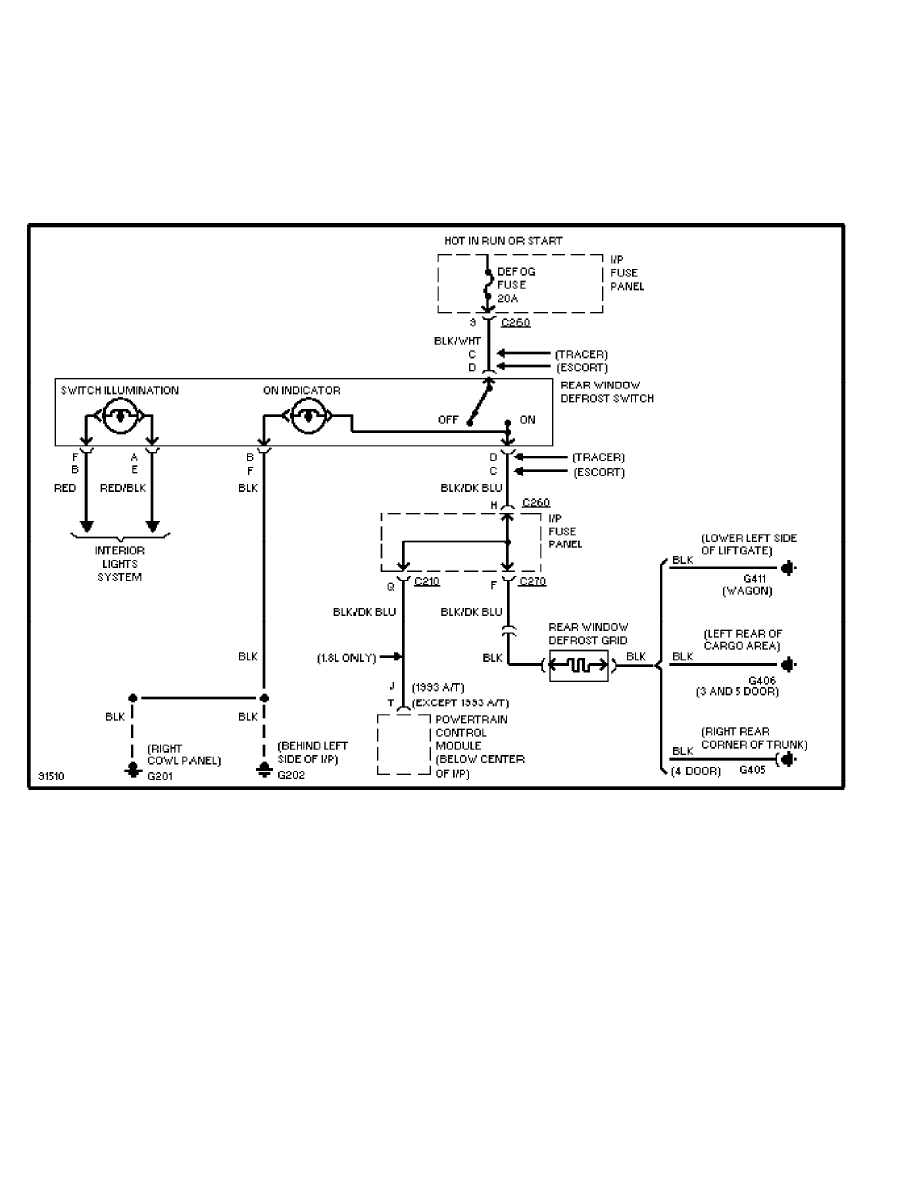

Defogger Circuit (p. 4)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 5)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS

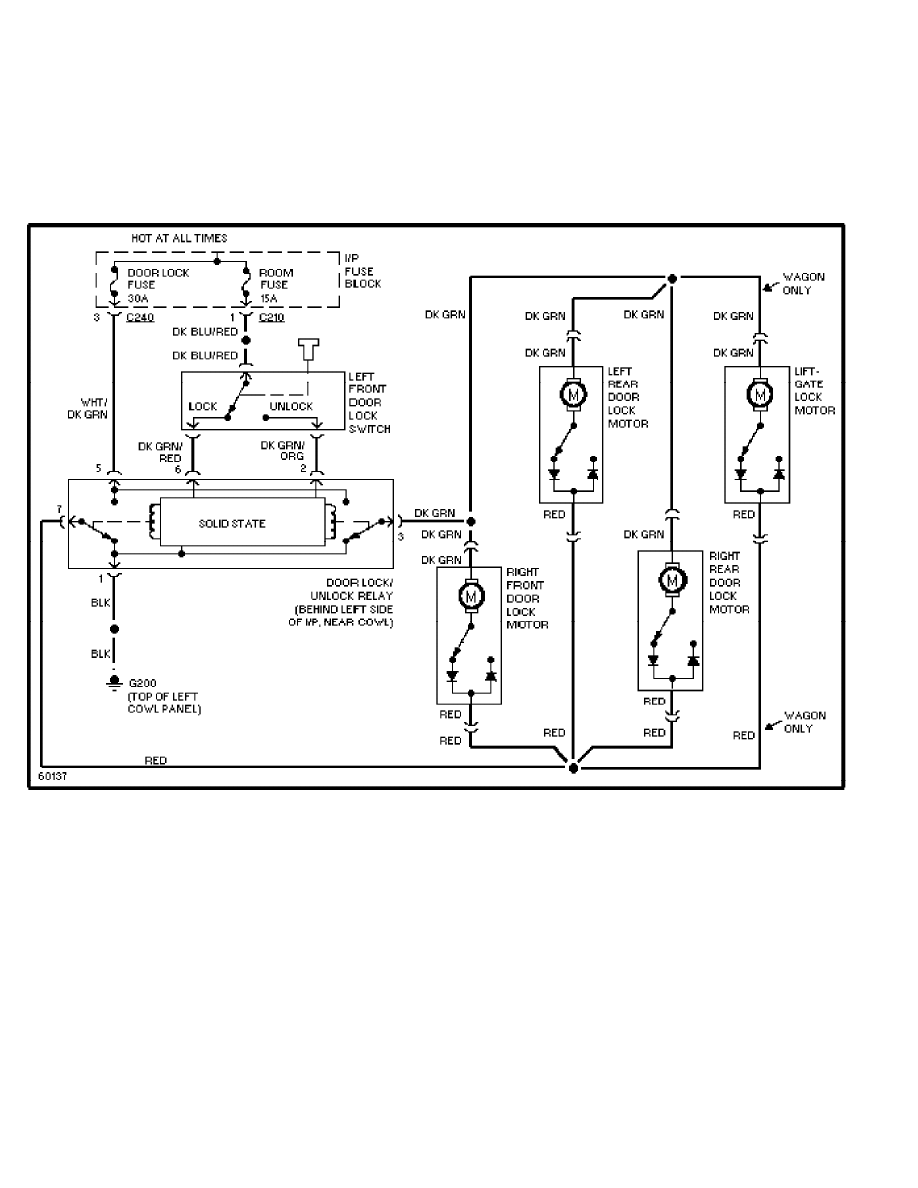

Power Door Lock Circuit (p. 6)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Power Mirror Circuit (p. 7)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Radio Circuits, Base Radio (p. 8)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS

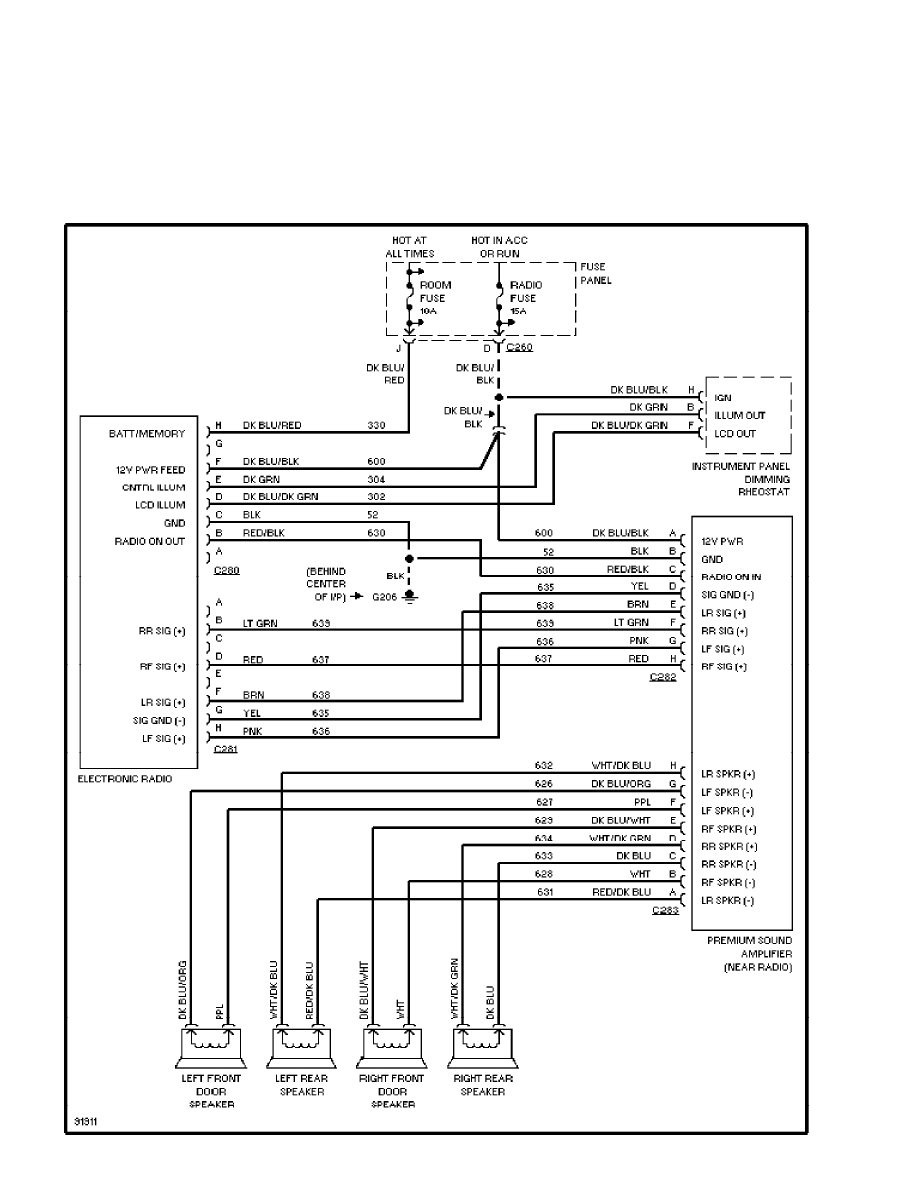

Radio Circuits, Premium Radio (p. 9)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 10)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS

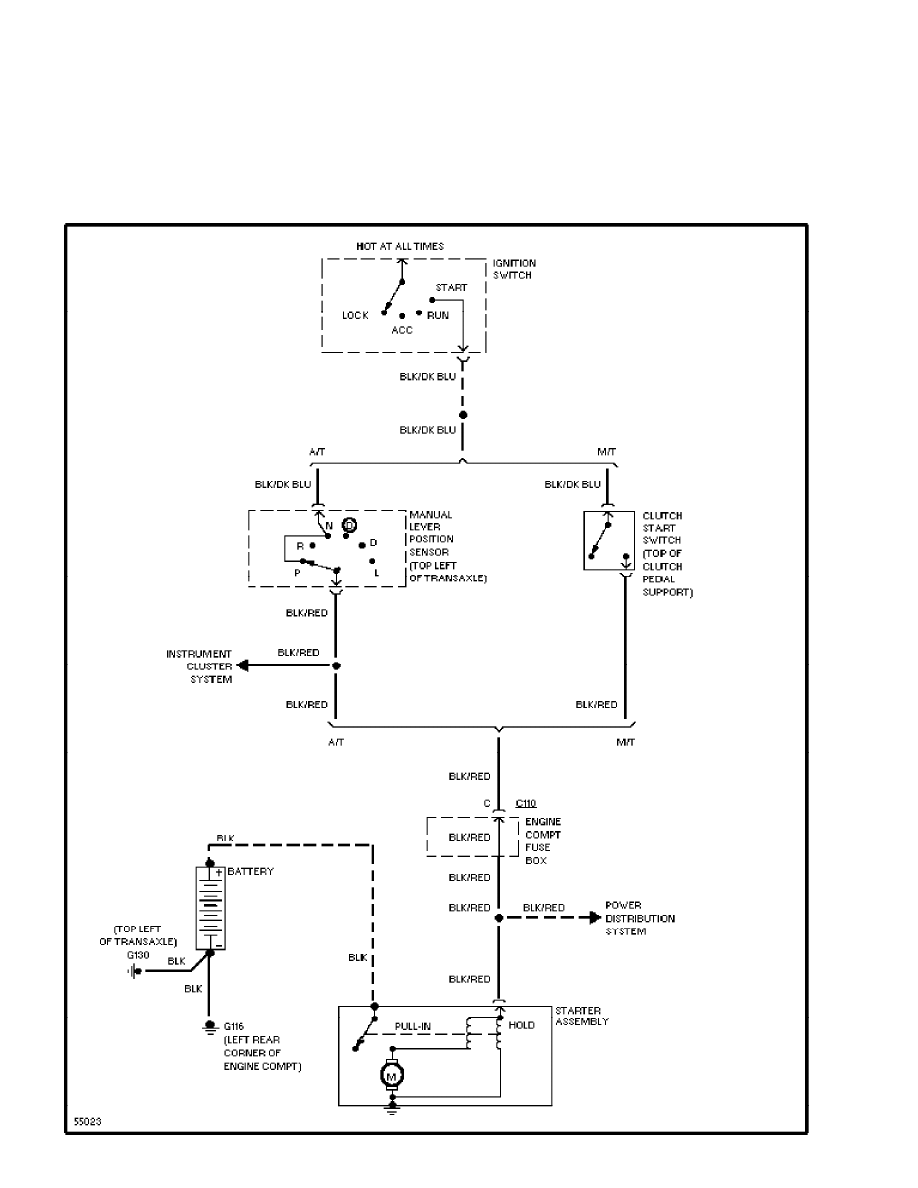

Starting Circuit (p. 11)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Interval Wiper/Washer Circuit (p. 12)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
SYSTEM WIRING DIAGRAMS
Rear Wiper/Washer Circuit (p. 13)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS

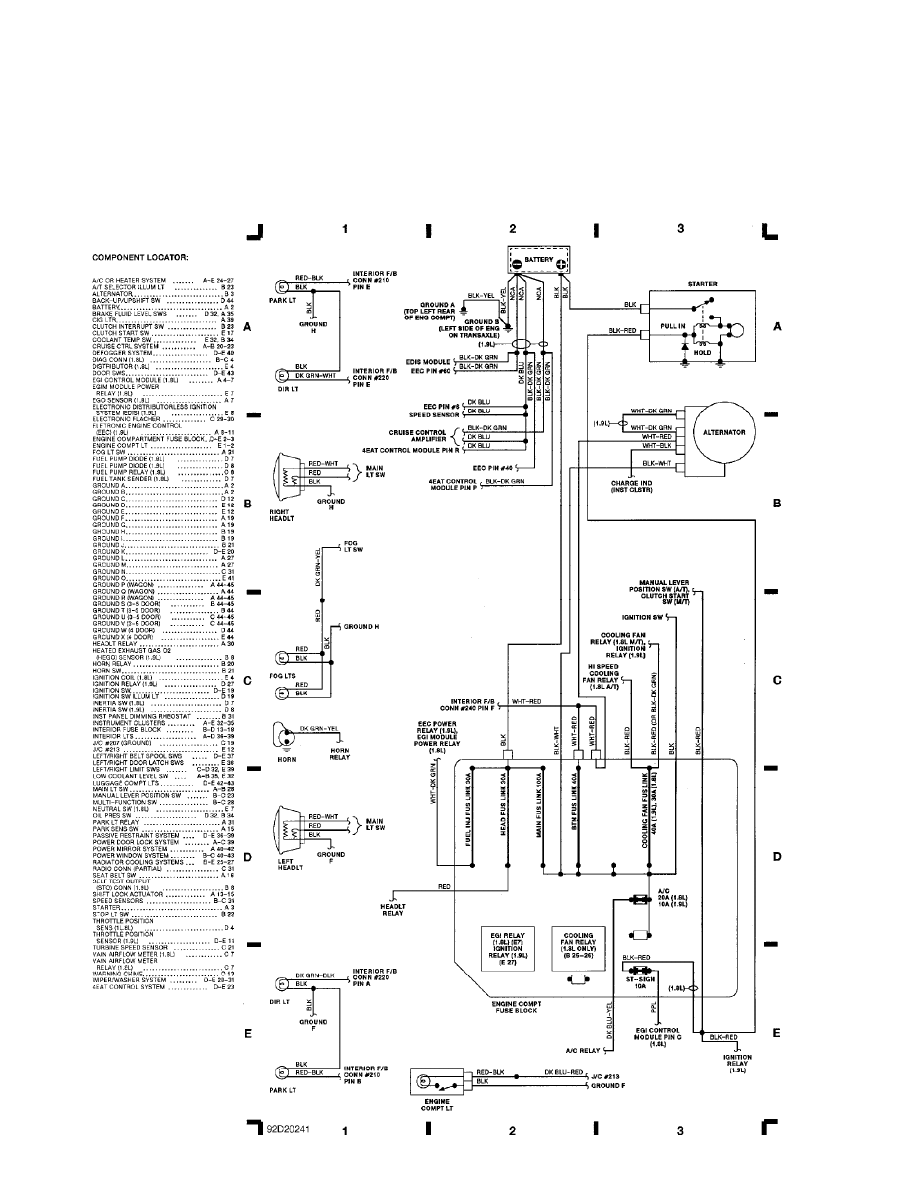

Fig. 1: Engine Compartment & Headlights (Grid 1-3)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 2: EGI Module (1.8L), Airflow Meter, TPS (Grid 4-7) (p. 2)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 3: Electronic Engine Control (EEC) (1.9L) (Grid 8-11) (p. 3)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 4: Fuse Block (Partial), J/C #213, Warning Chime (Grid 12-15) (p. 4)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS

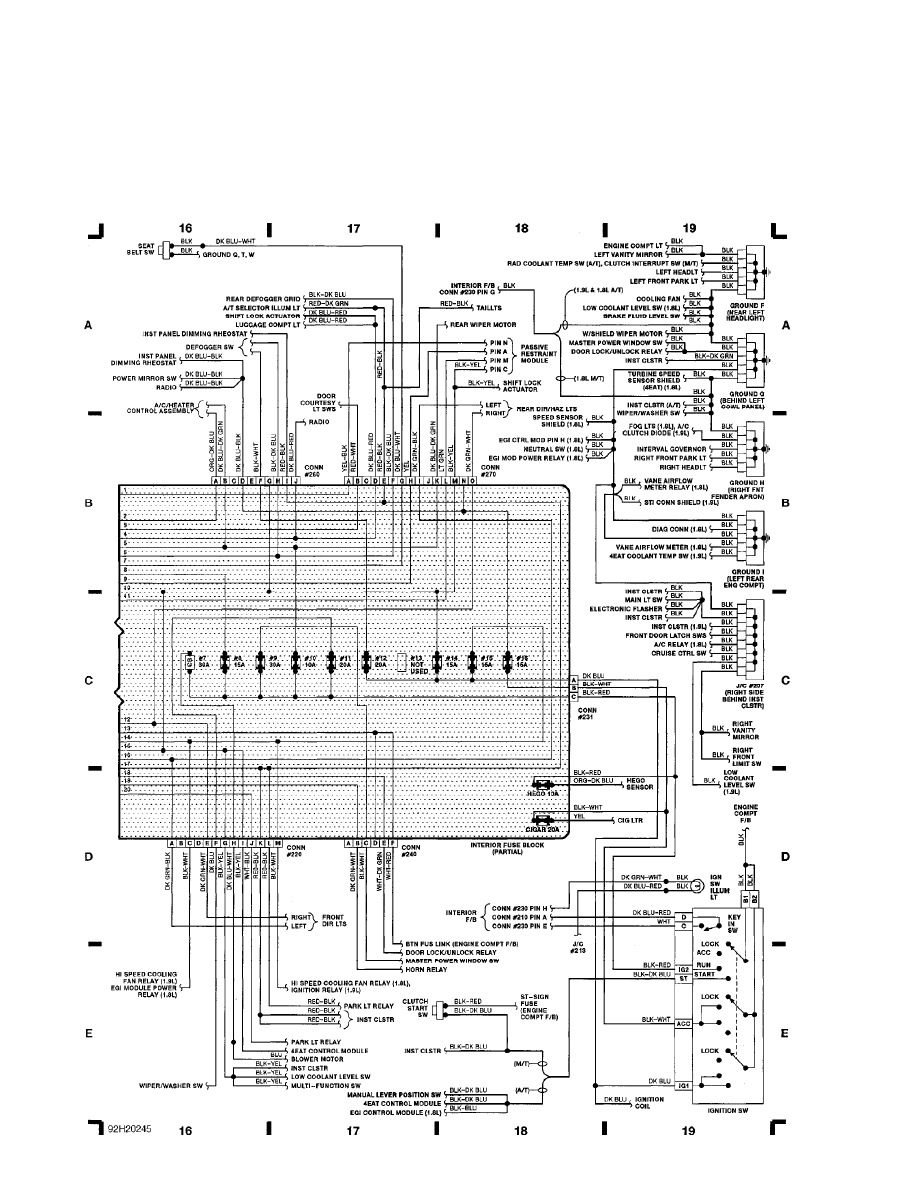

Fig. 5: Fuse Block (Cont), J/C #207, Ignition Switch (Grid 16-19) (p. 5)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 6: Cruise Control System, 4EAT System (Grid 20-23) (p. 6)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 7: A/C/Heater (Grid 24-27) (p. 7)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS

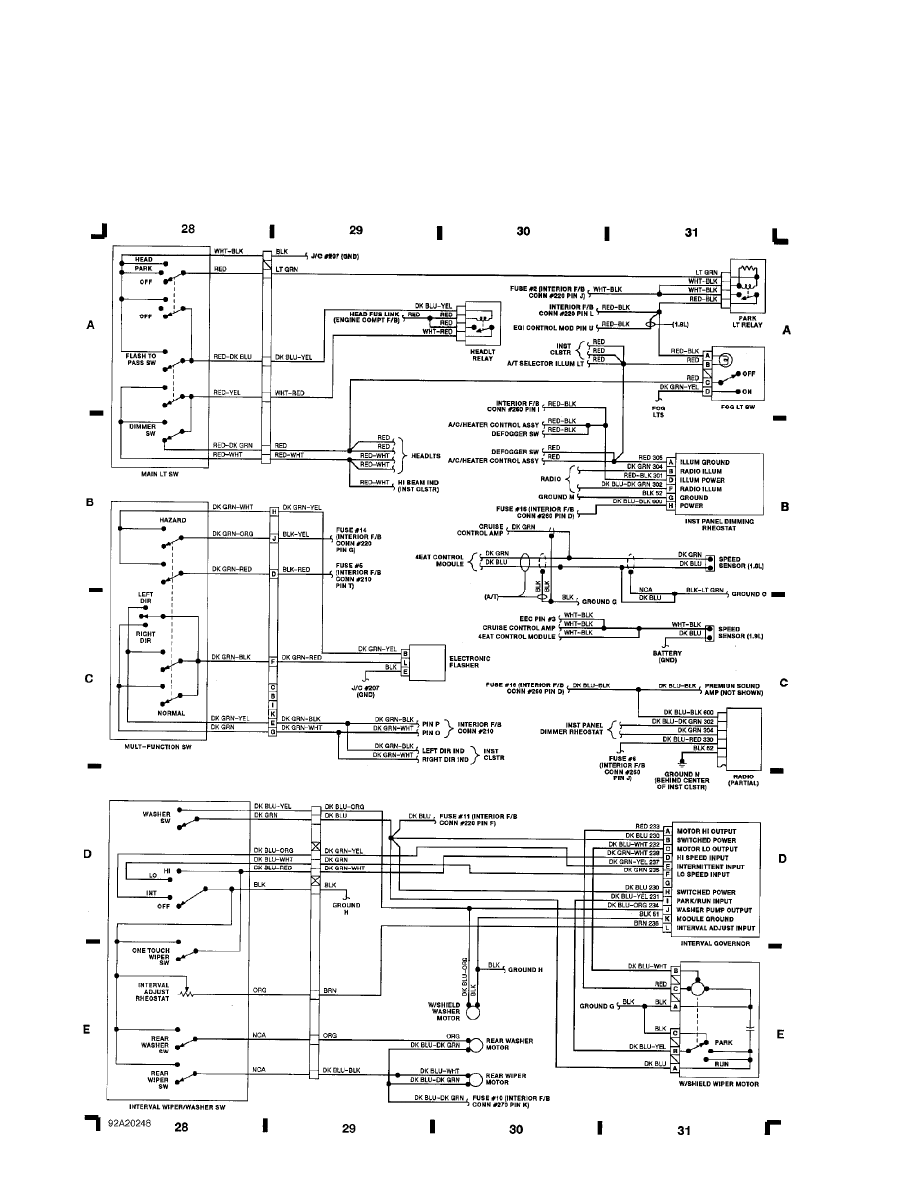

Fig. 8: Wiper/Washer, Main Lt Sw, Multi-Function Sw (Grid 28-31) (p. 8)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 9: Instrument Clusters, Sensors & Switches (Grid 32-35) (p. 9)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM

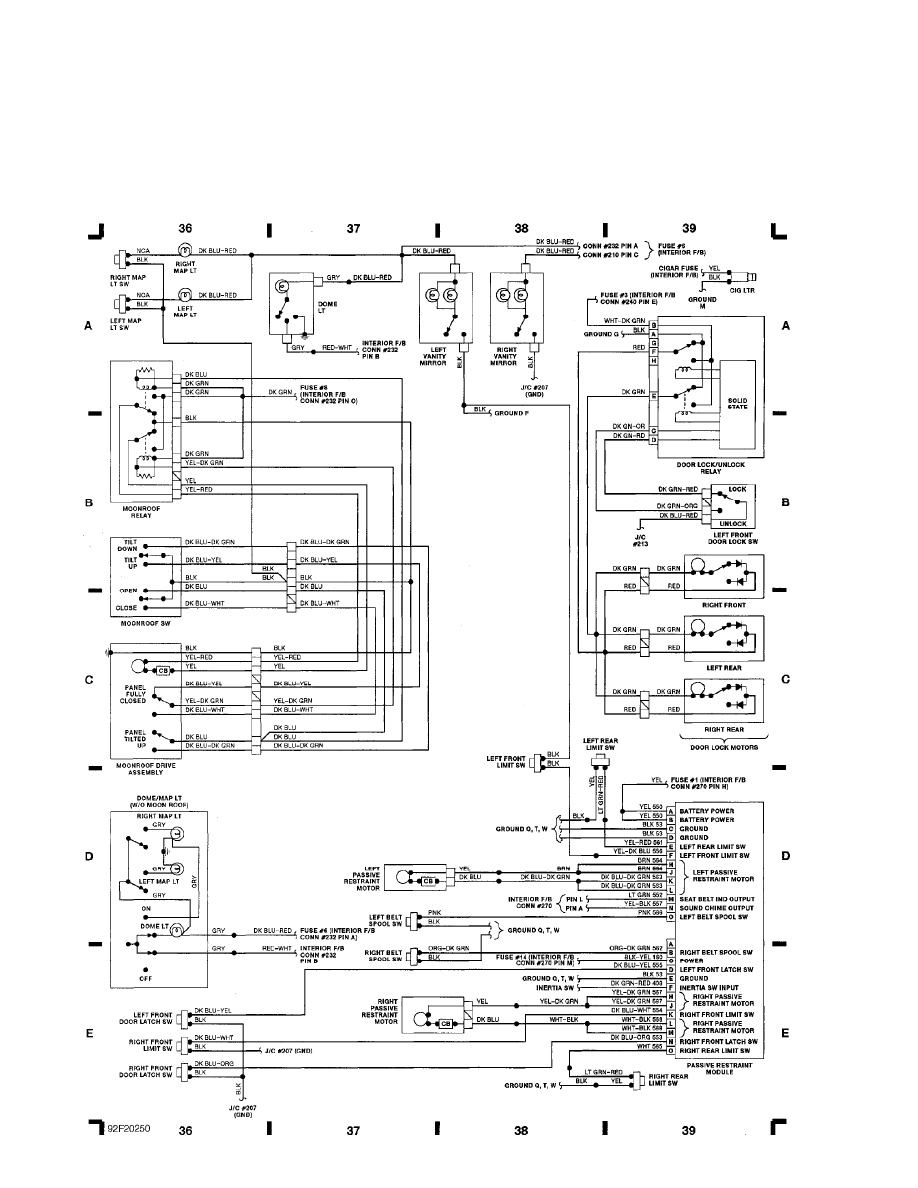

WIRING DIAGRAMS
Fig. 10: Passive Restraint, Moonroof, Door Locks (Grid 36-39) (p. 10)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS
Fig. 11: Power Mirrors/Windows, Door Light Switches (Grid 40-43) (p. 11)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
WIRING DIAGRAMS

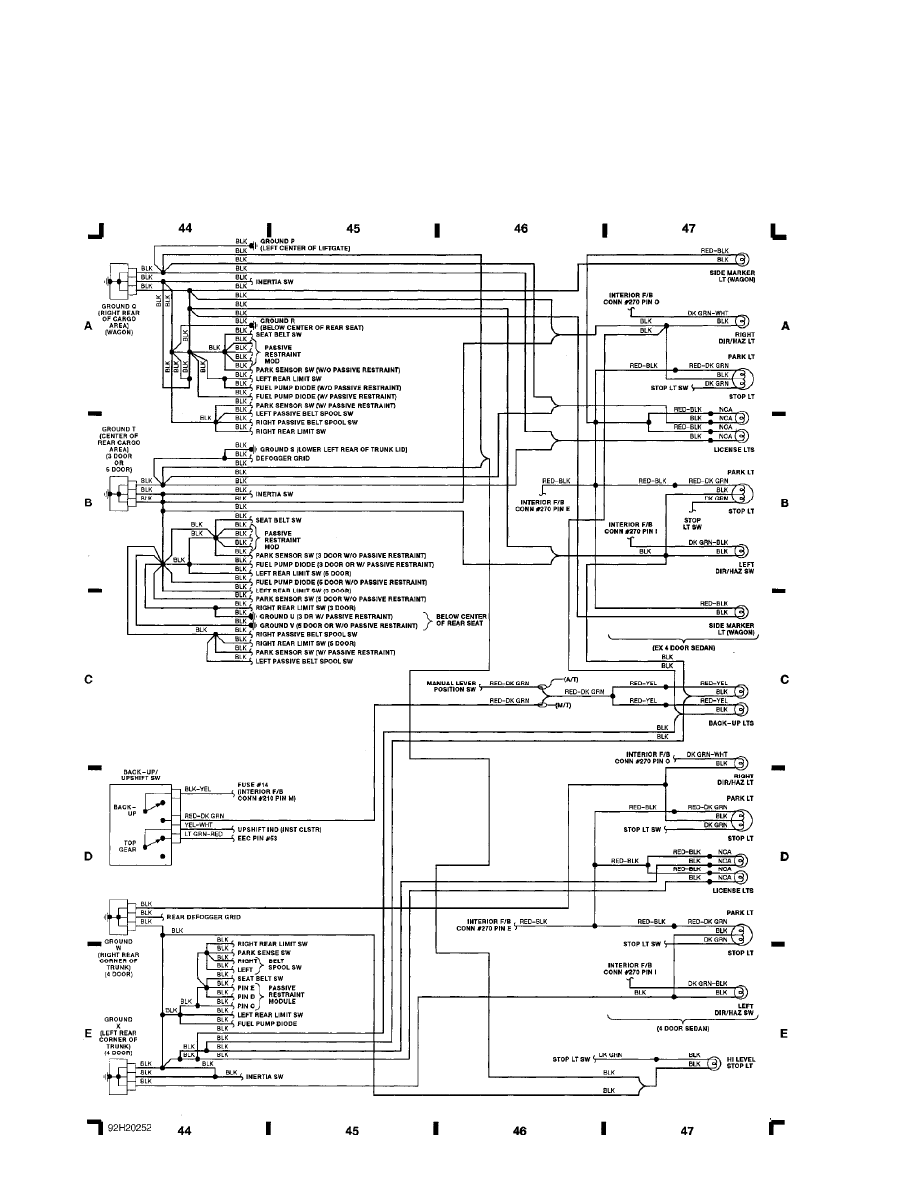

Fig. 12: Back-Up/Upshift Sw, Rear Lights (Grid 44-47) (p. 12)
1992 Ford Escort
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:49PM
