MITSUBISHI PRECIS 1992

SYSTEM WIRING DIAGRAMS

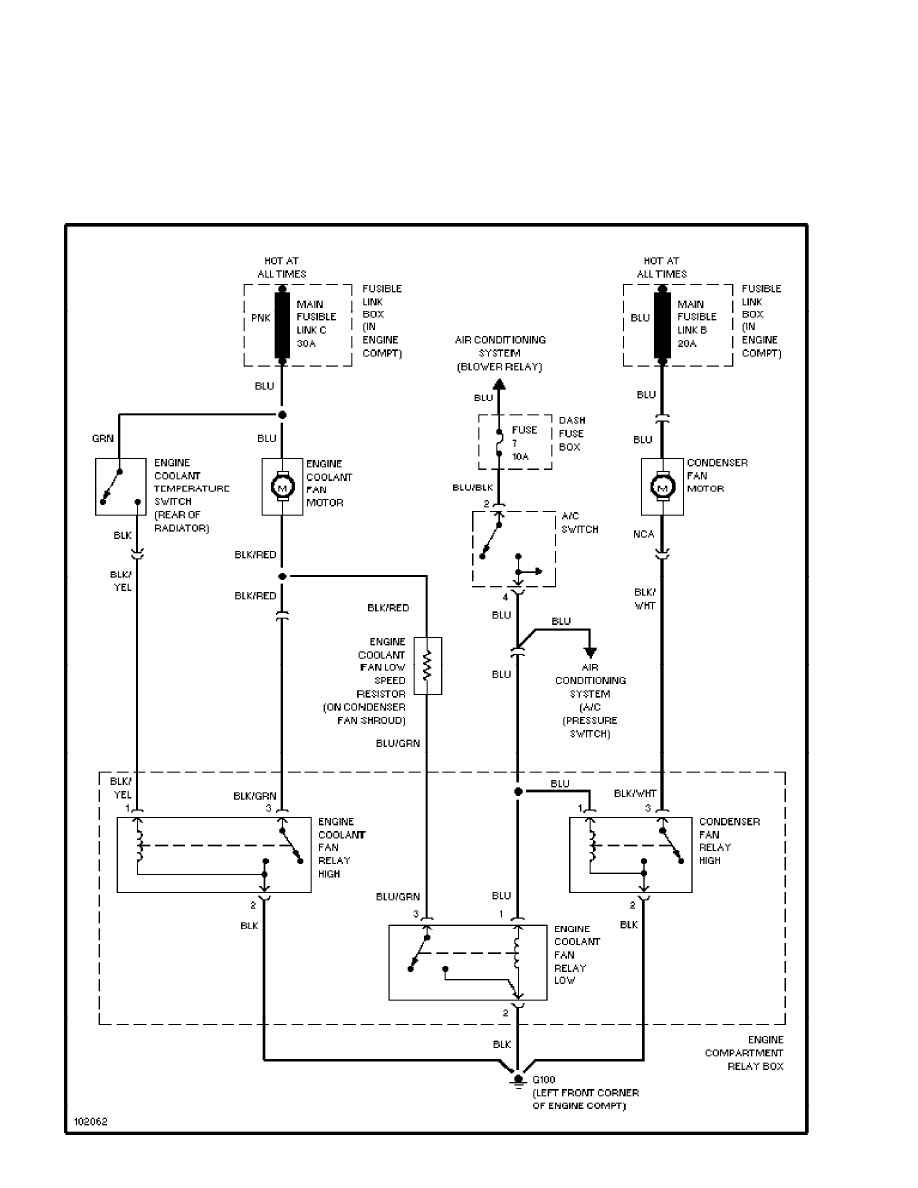

Cooling Fan Circuit

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

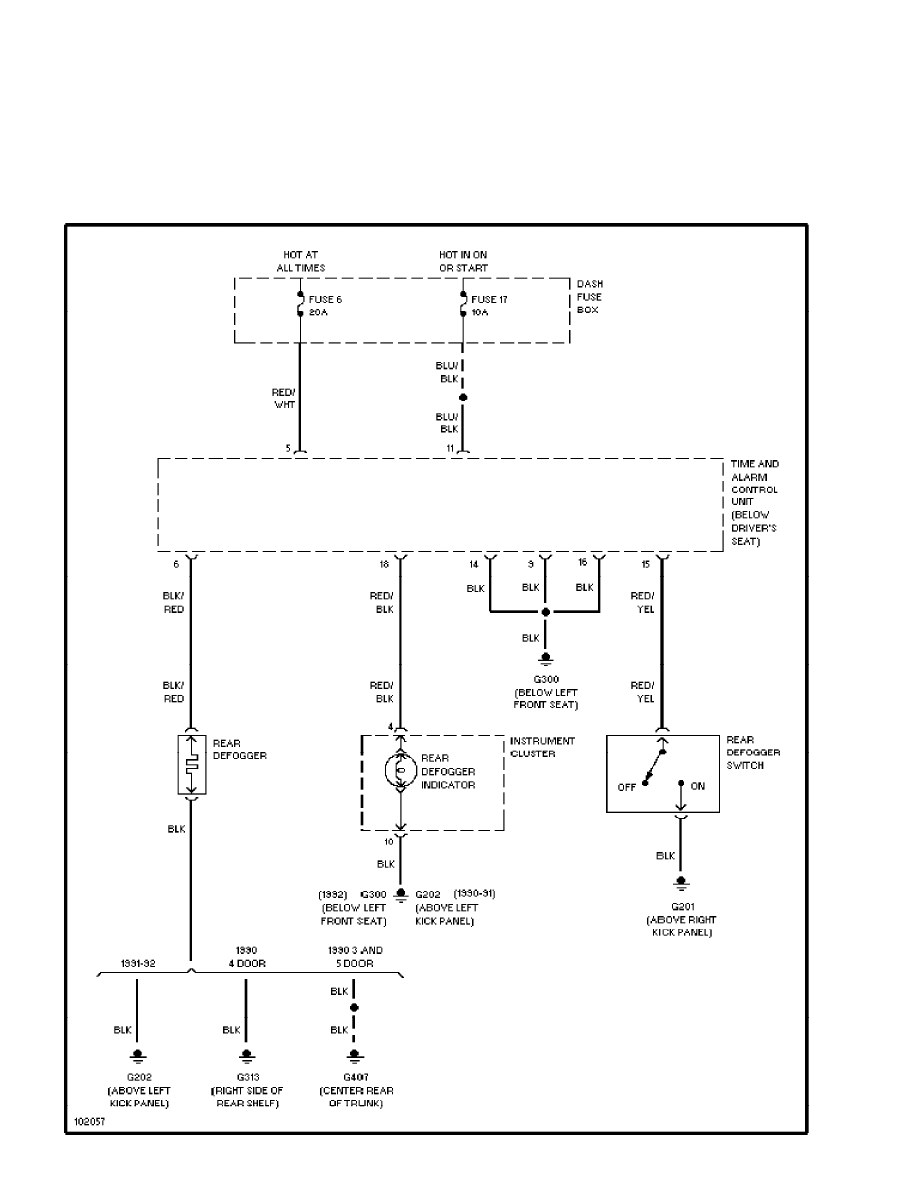

Defogger Circuit (p. 2)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

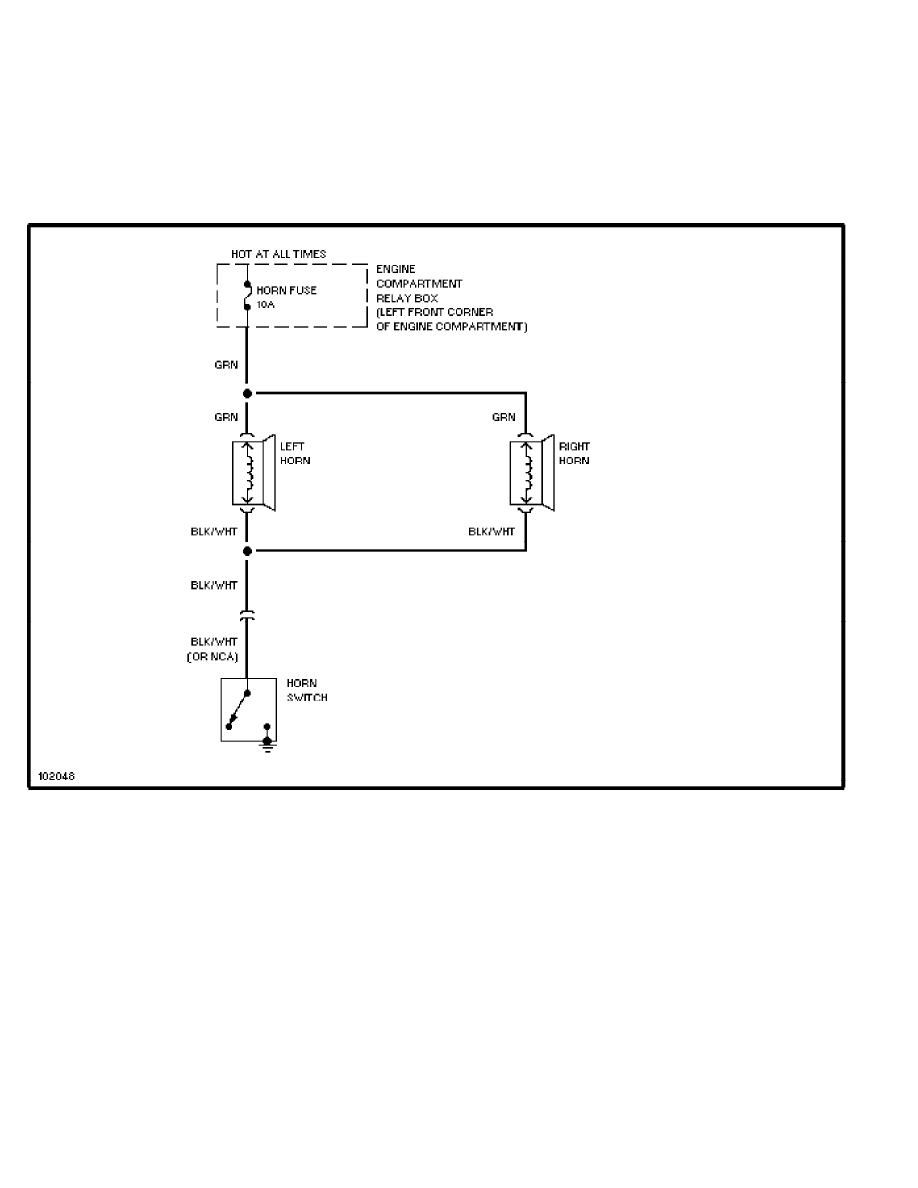

Horn Circuit (p. 3)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

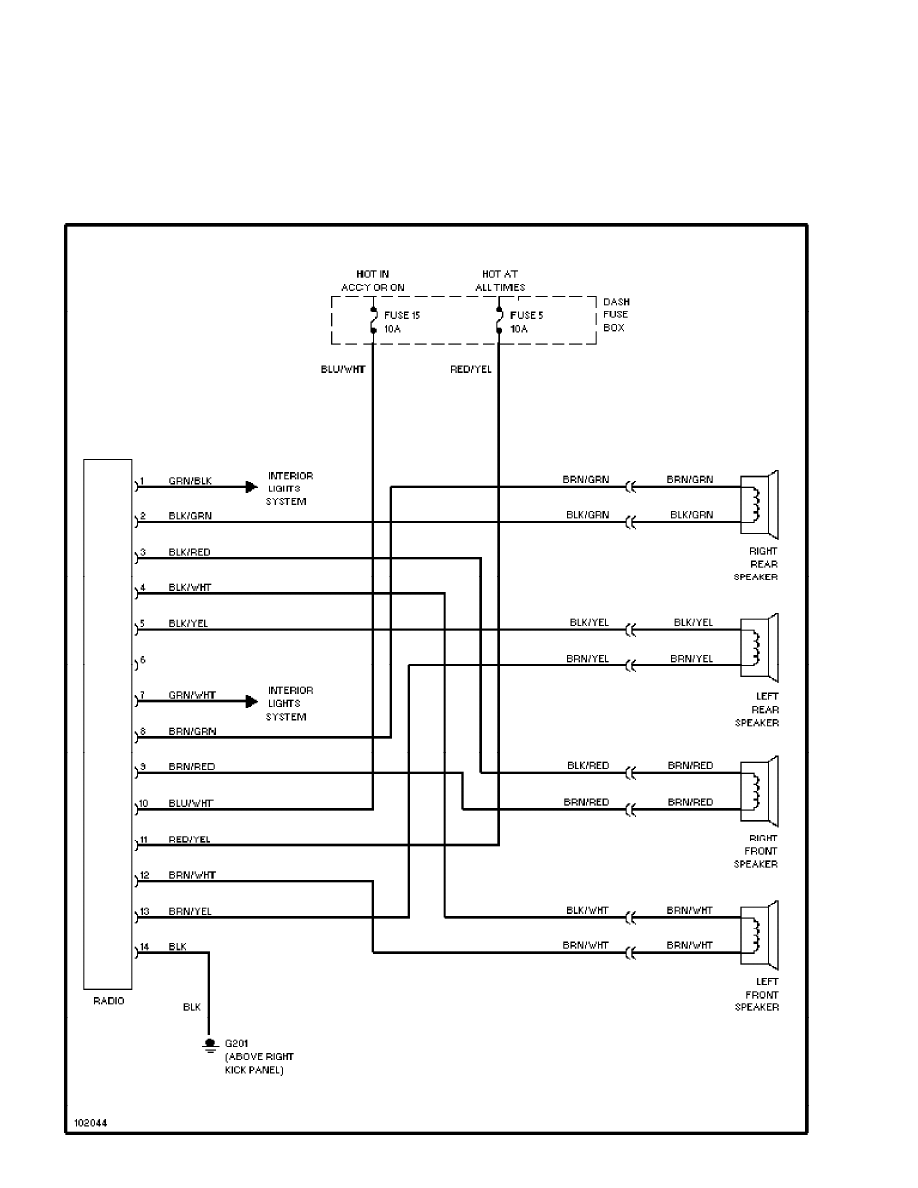

Radio Circuits (p. 4)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

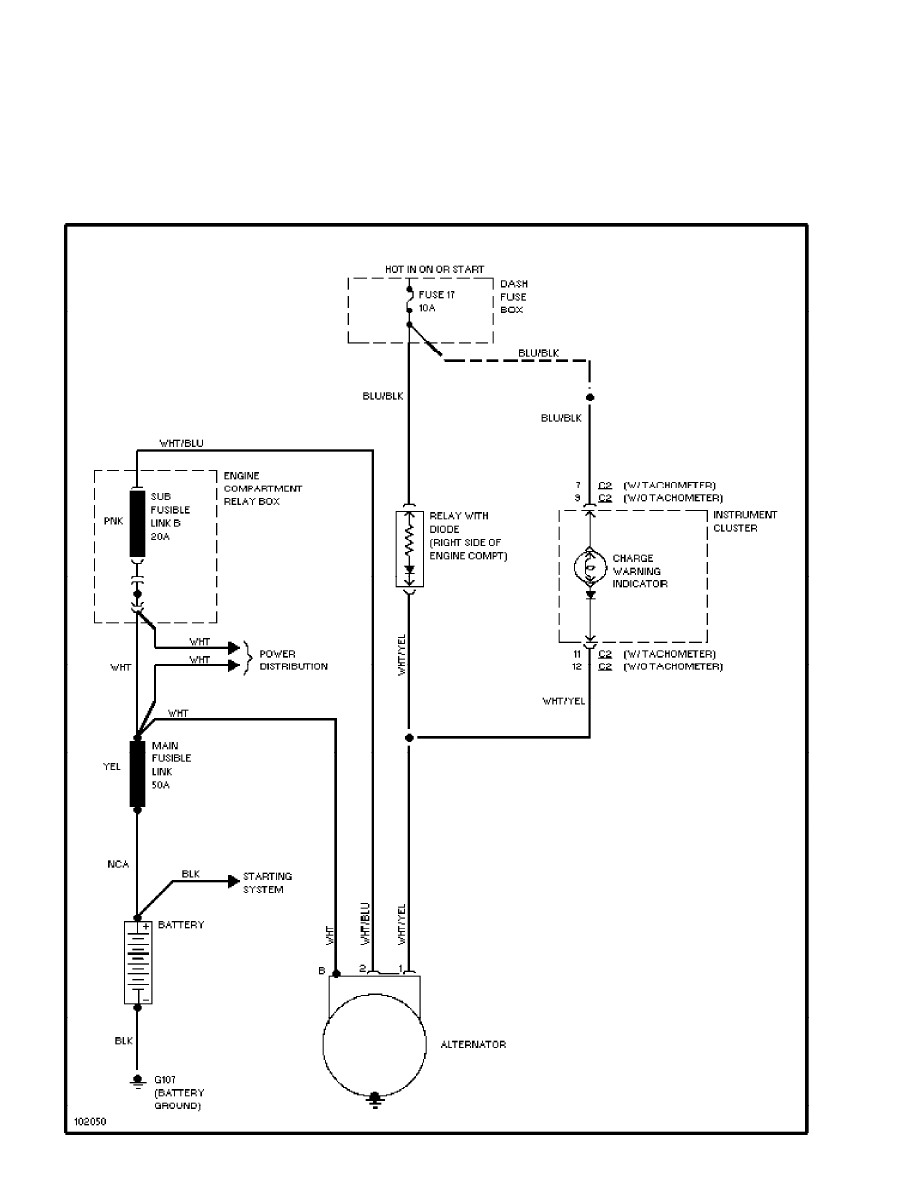

Charging Circuit (p. 5)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, A/T (p. 6)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, M/T (p. 7)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

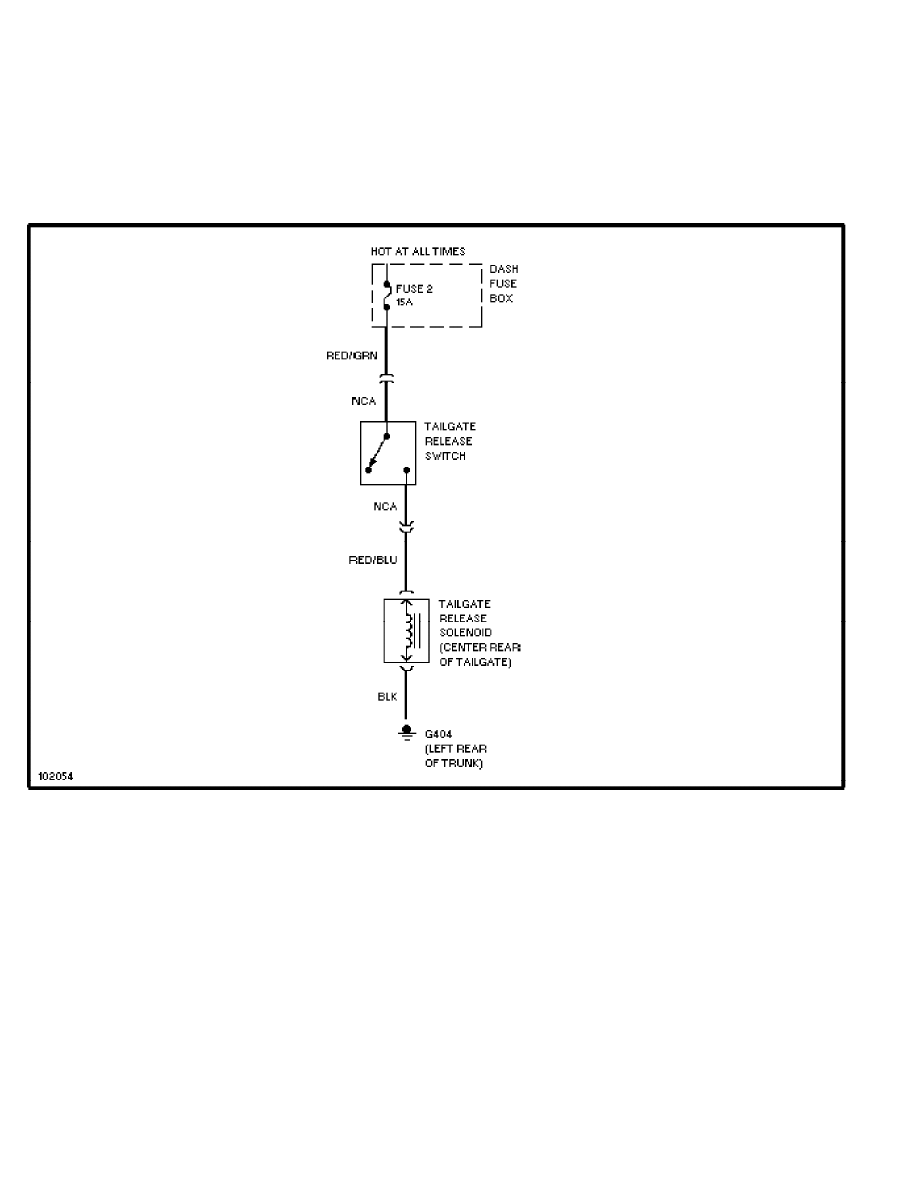

Trunk, Tailgate, Fuel Door Circuits (p. 8)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

SYSTEM WIRING DIAGRAMS

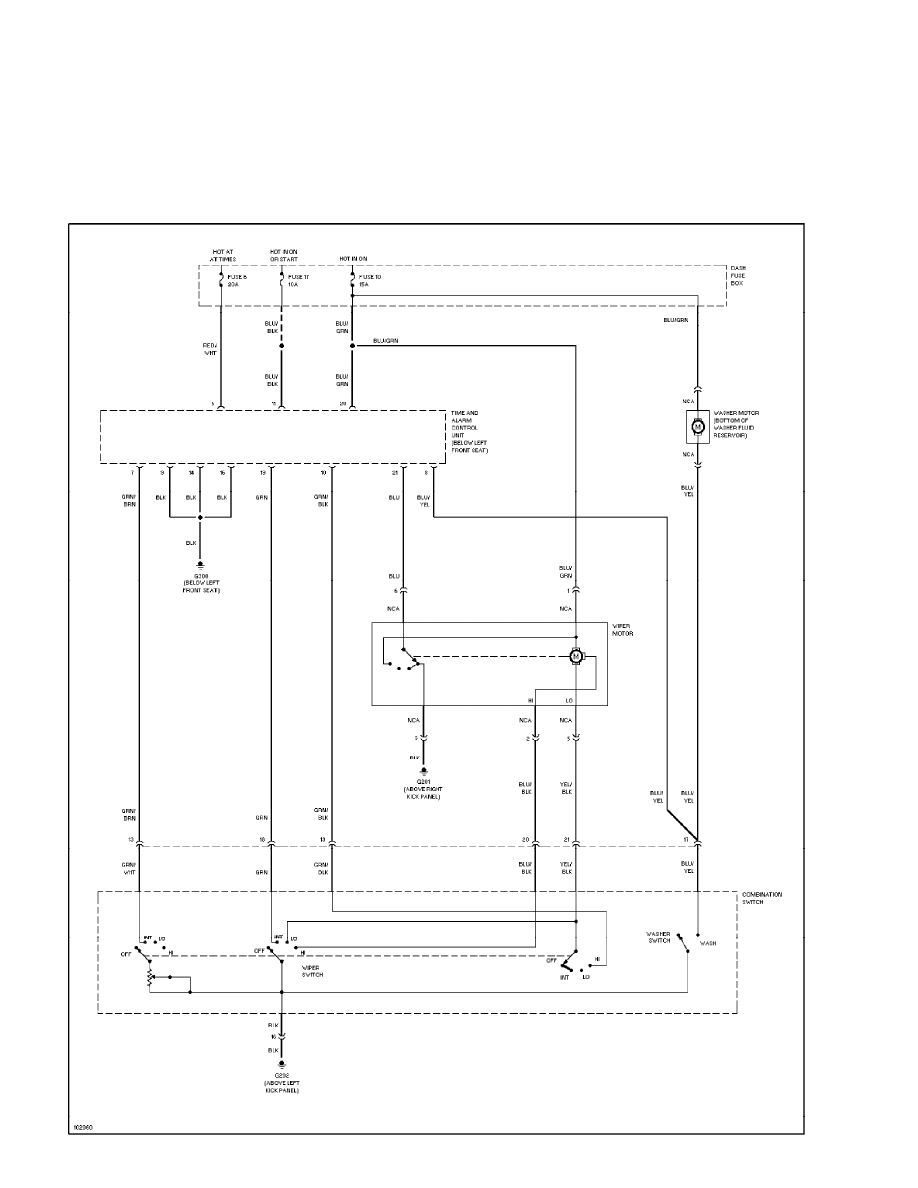

Wiper/Washer Circuit (p. 9)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

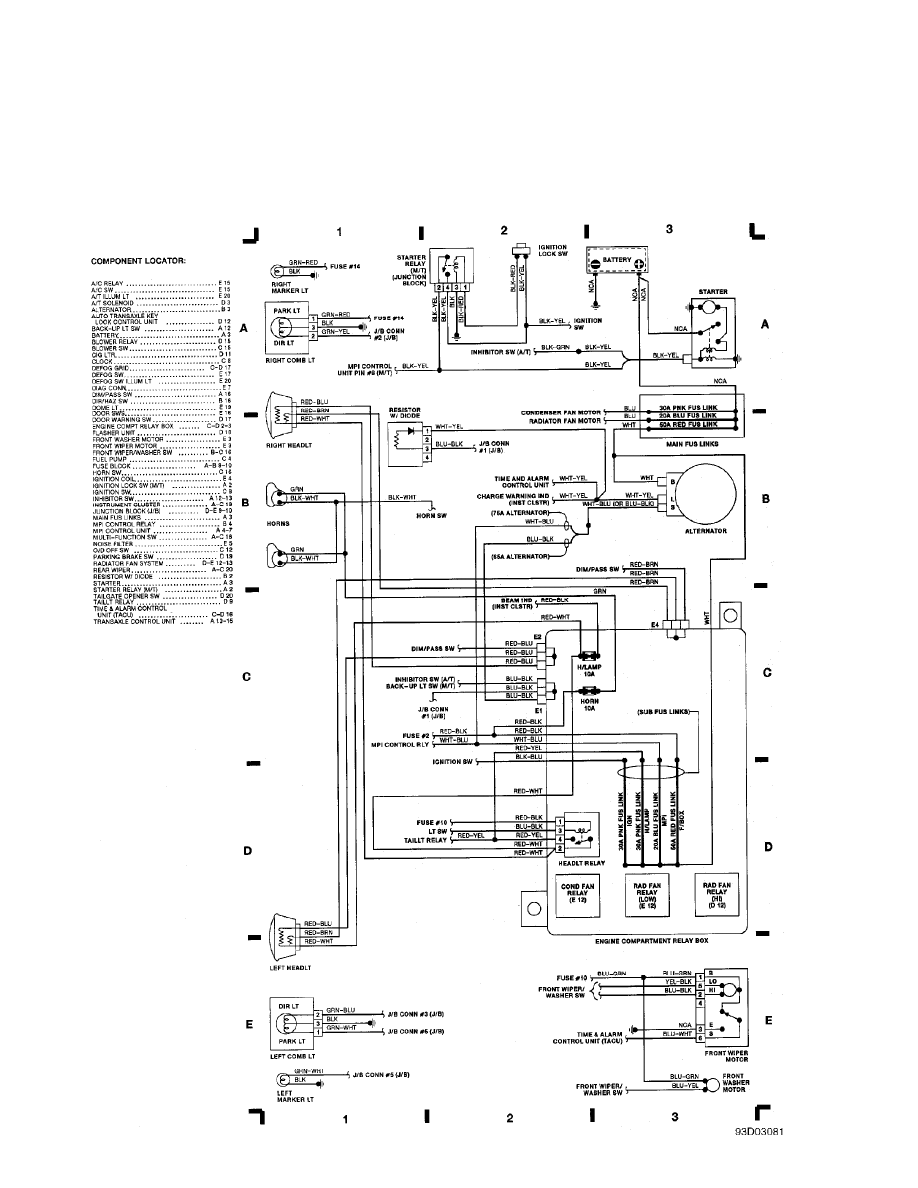

Fig. 1: Engine Compartment, Alternator, Headlights (Grid 1-3)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

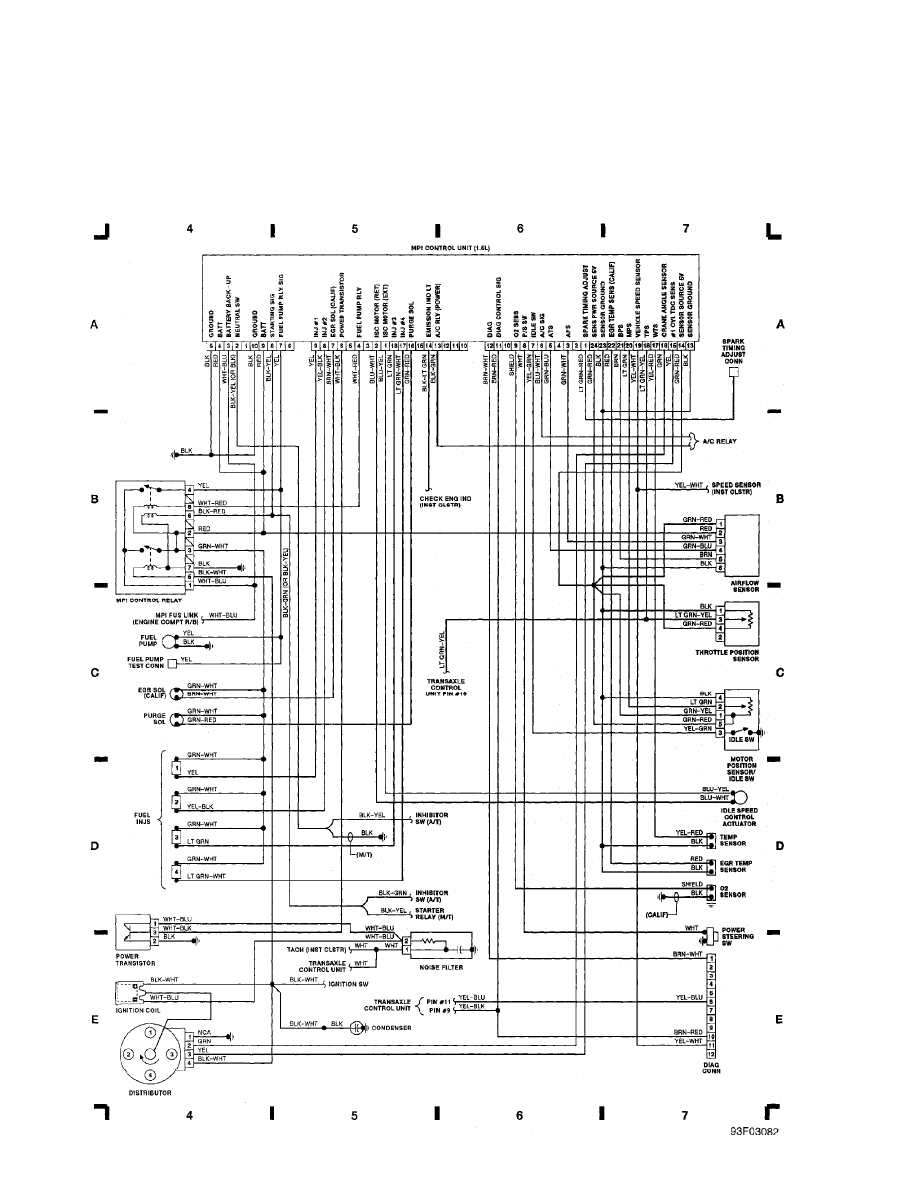

Fig. 2: MPI Control Unit (1.5L) (Grid 4-7) (p. 2)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

Fig. 3: Fuse Block, Junction Block, Clock (Grid 8-11) (p. 3)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

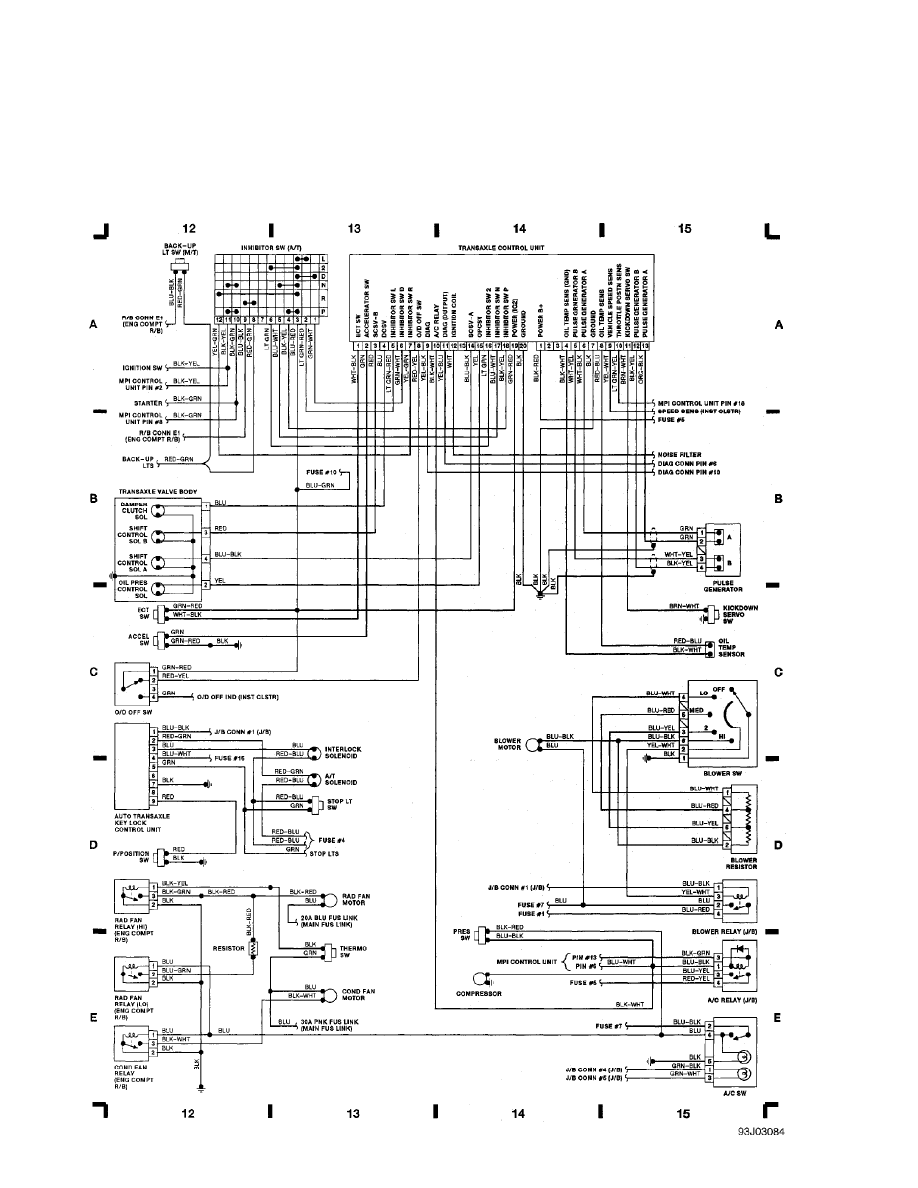

Fig. 4: Transaxle Control Unit, A/C System (Grid 12-15) (p. 4)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

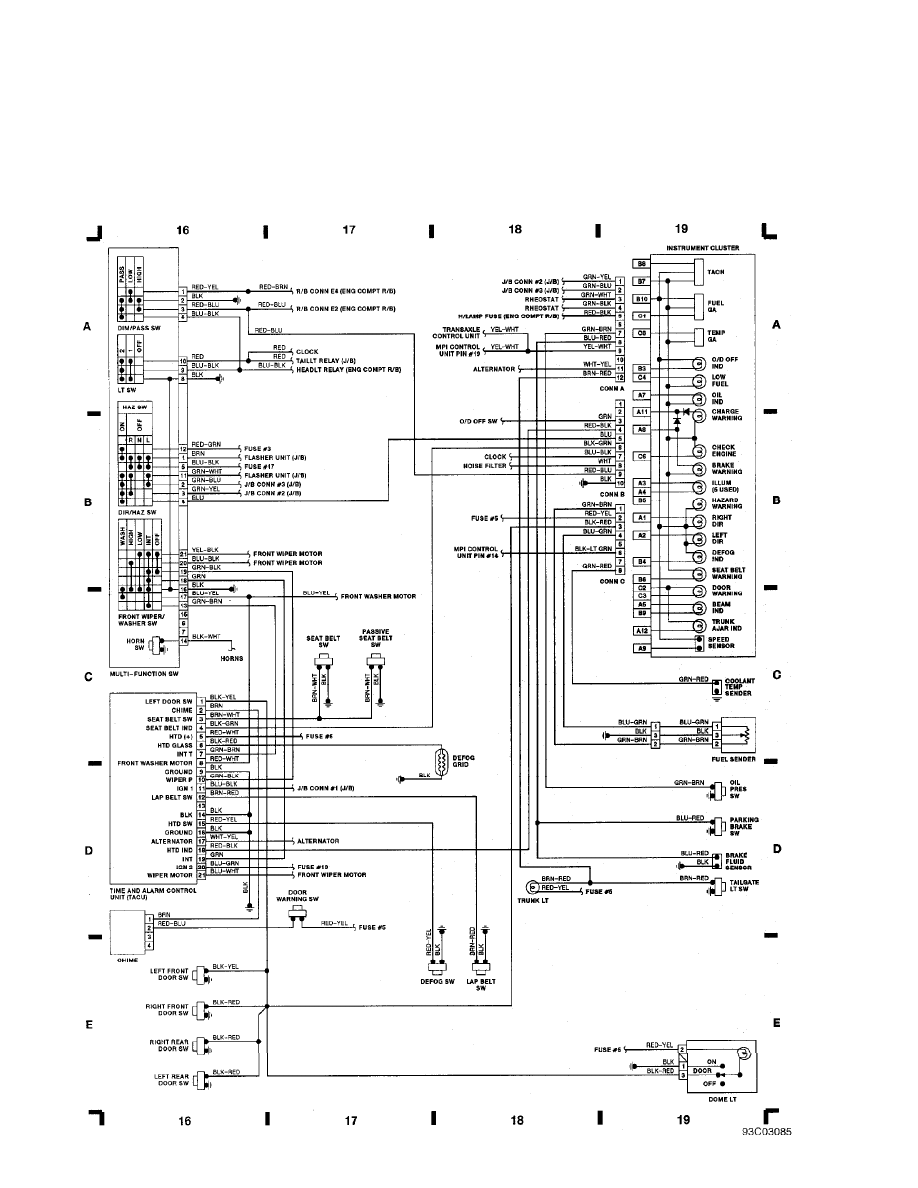

Fig. 5: Instrument Cluster, Multi-Function Switch (Grid 16-19) (p. 5)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM

WIRING DIAGRAMS

Fig. 6: Rear Wiper, Rheostat, Taillights (Grid 20-23) (p. 6)

1992 Mitsubishi Precis

For x

Thursday, March 17, 2005 09:21AM
