SUZUKI SWIFT 1997

SYSTEM WIRING DIAGRAMS

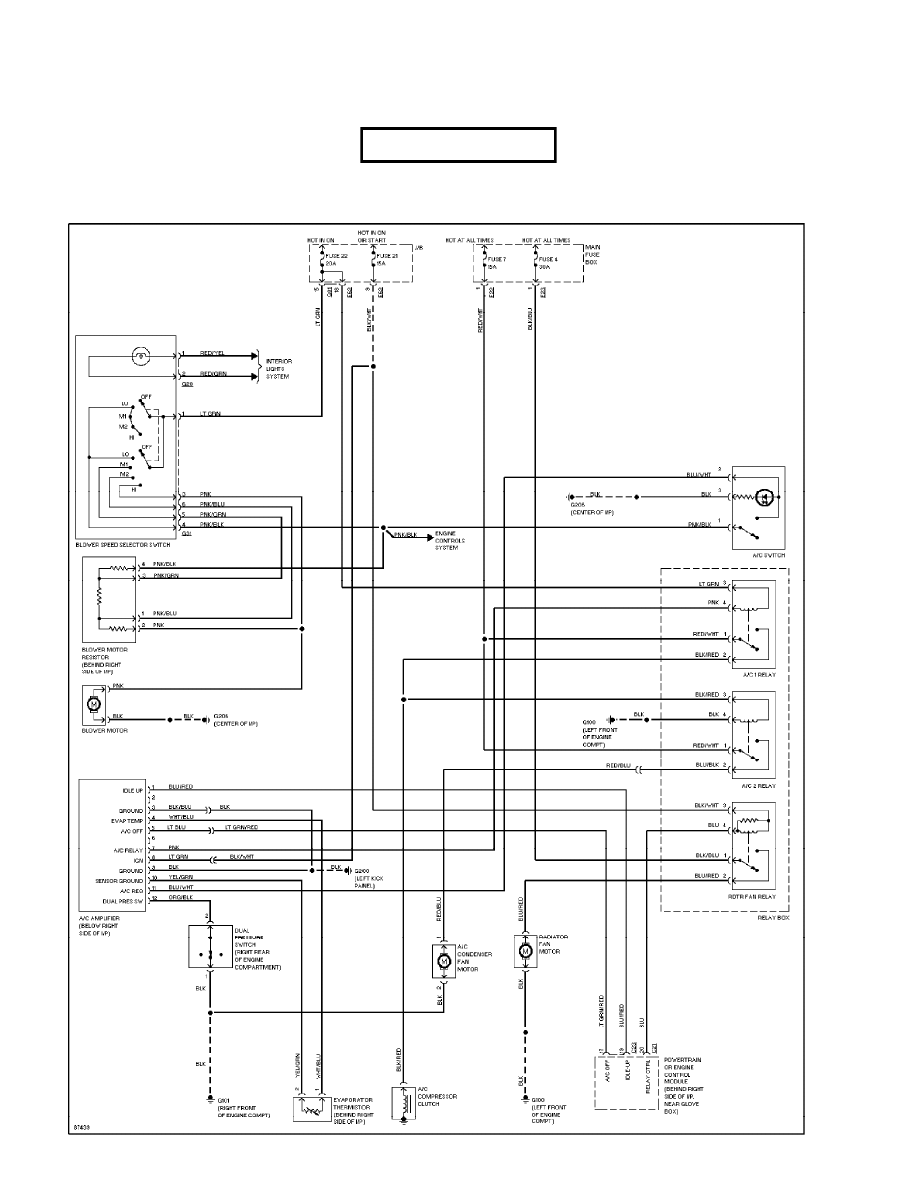

A/C Circuit

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

CDR@WP.PL

SYSTEM WIRING DIAGRAMS

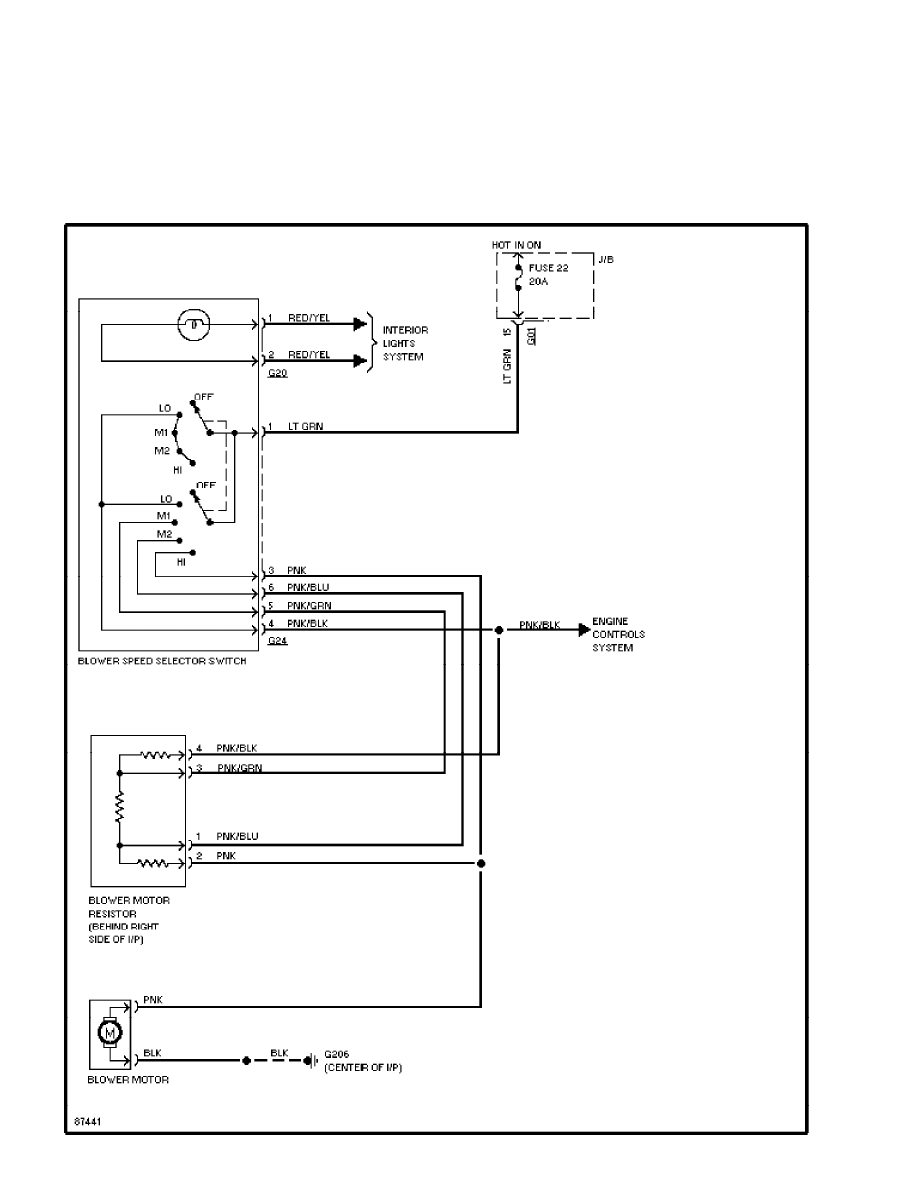

Heater Circuit (p. 2)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

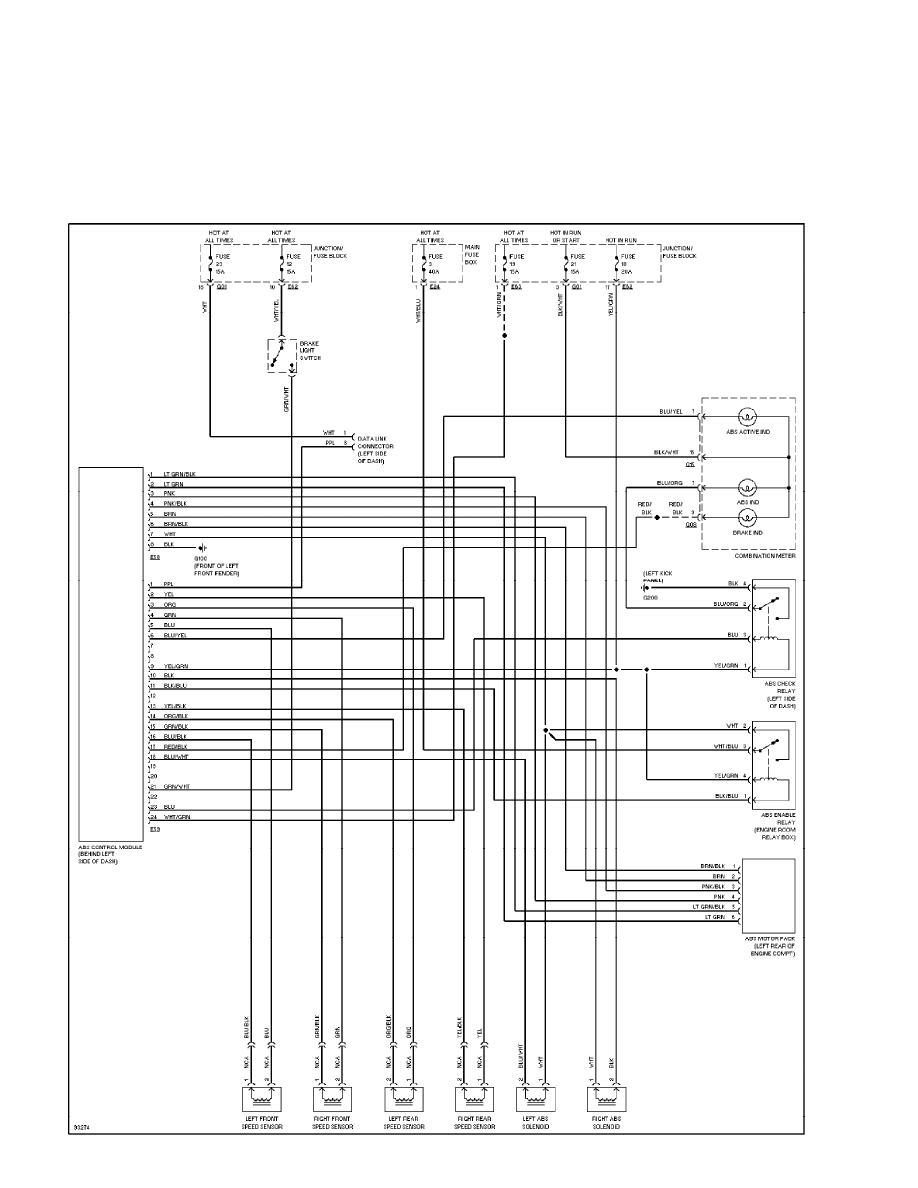

Anti-lock Brake Circuits (p. 3)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

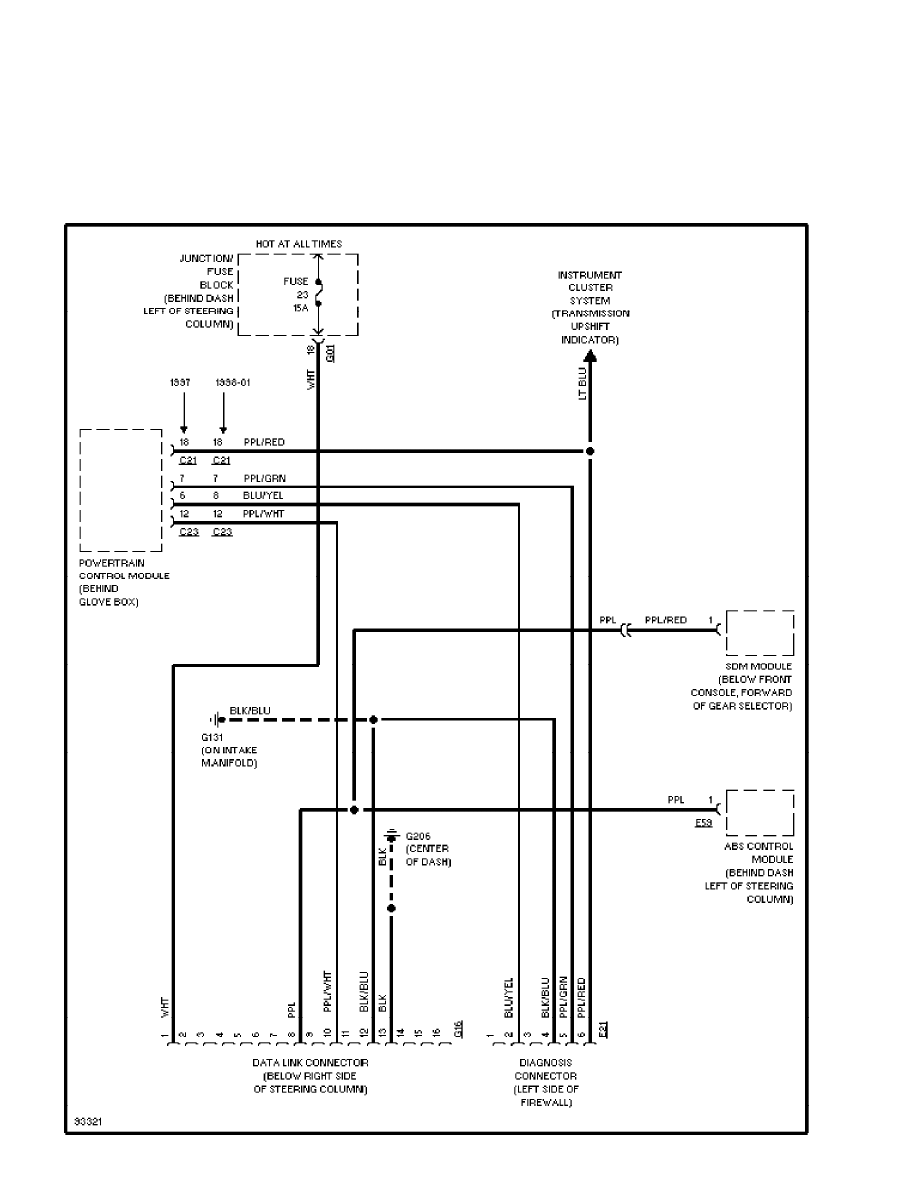

Computer Data Lines (p. 4)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

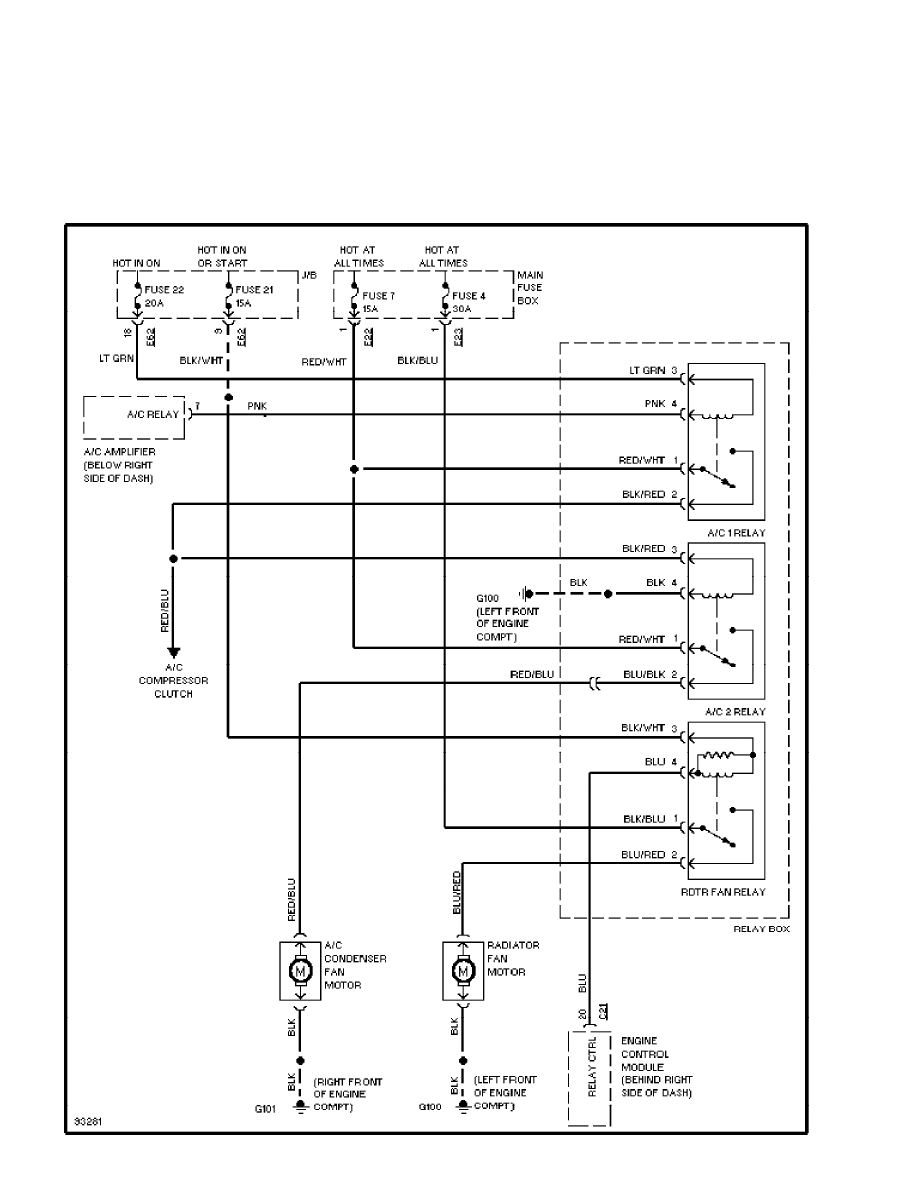

Cooling Fan Circuit (p. 5)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

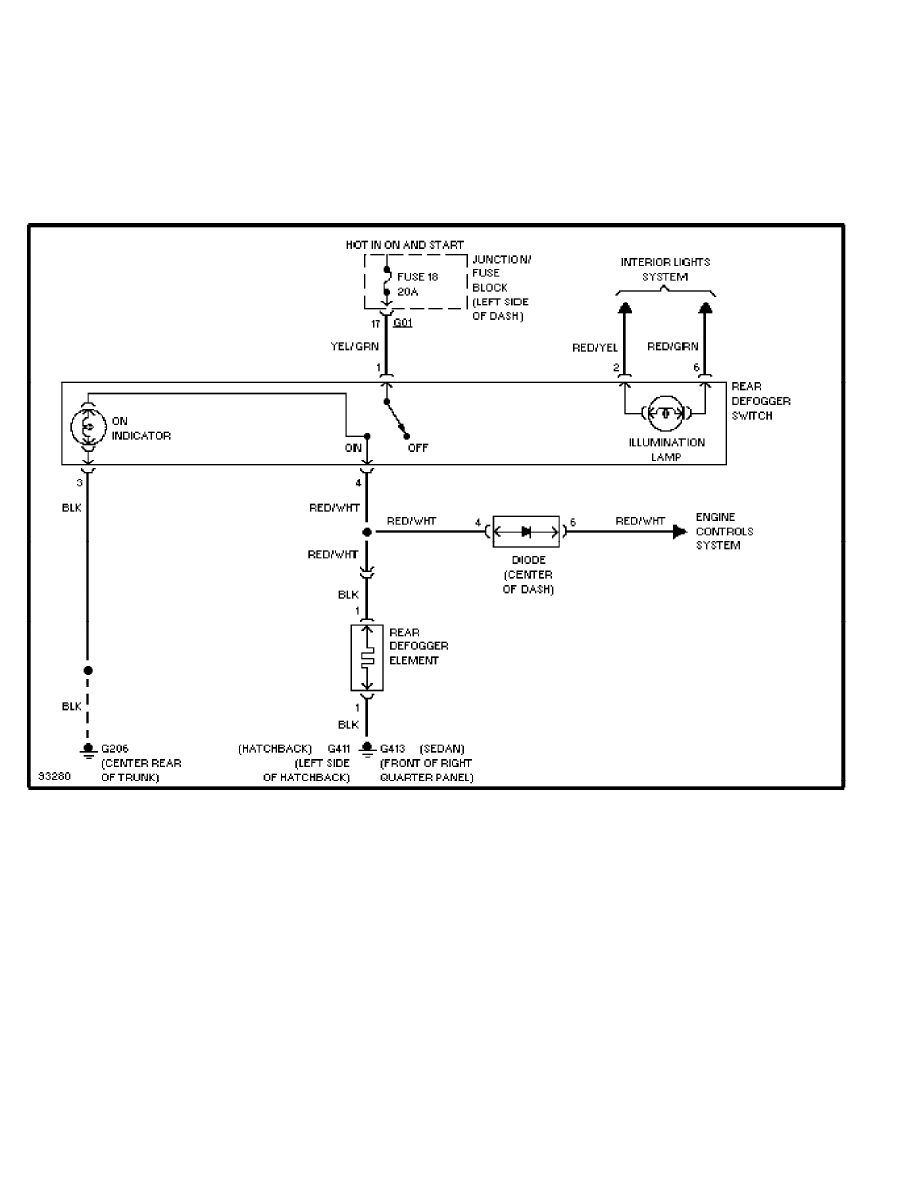

Defogger Circuit (p. 6)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

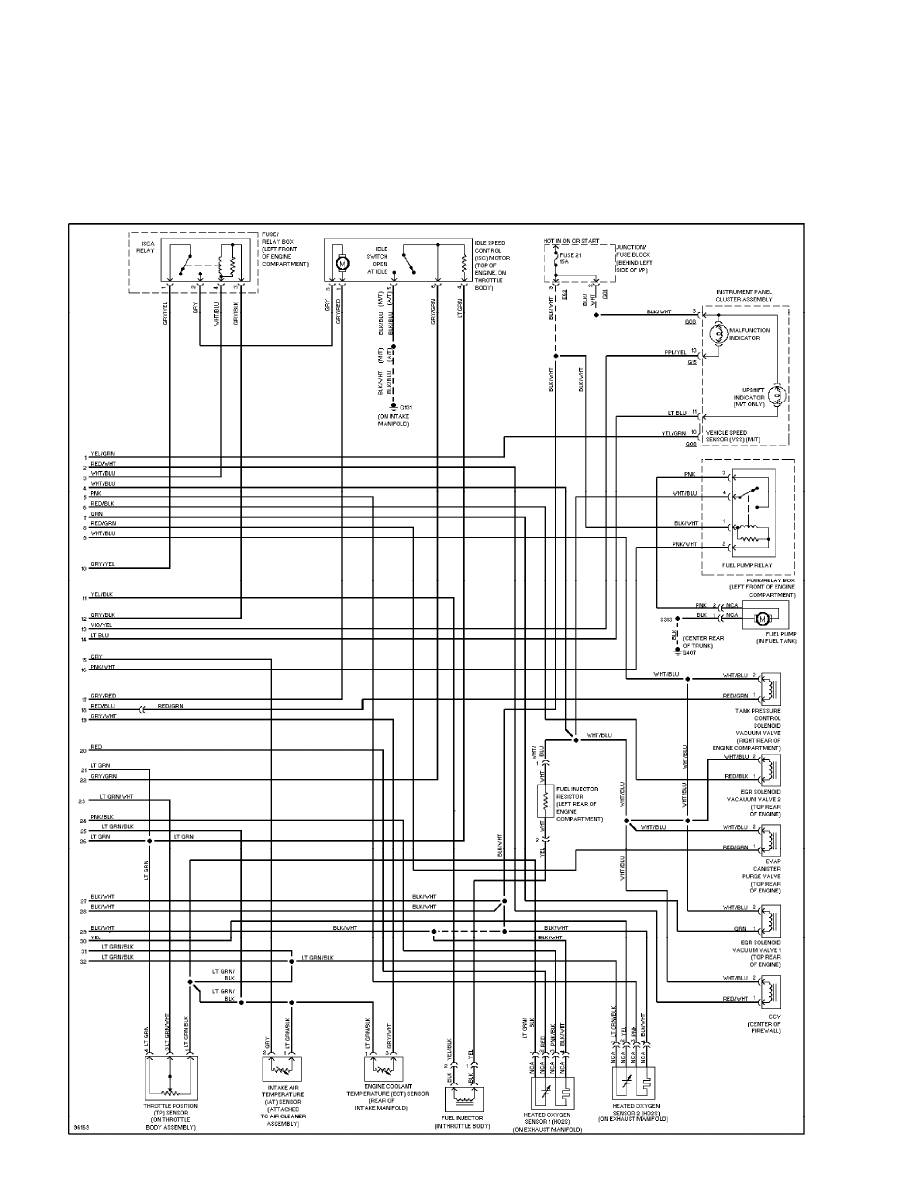

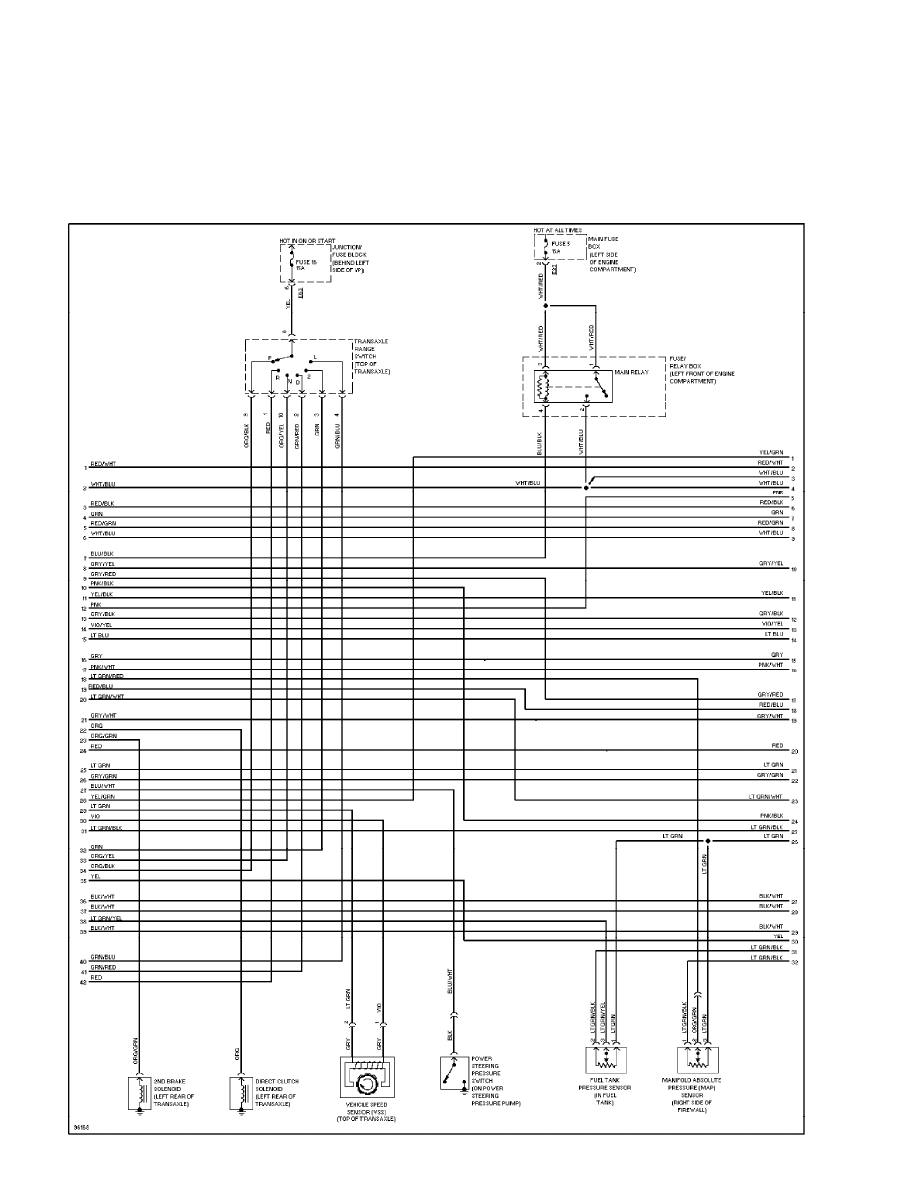

1.3L, Engine Performance Circuits (1 of 3) (p. 7)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

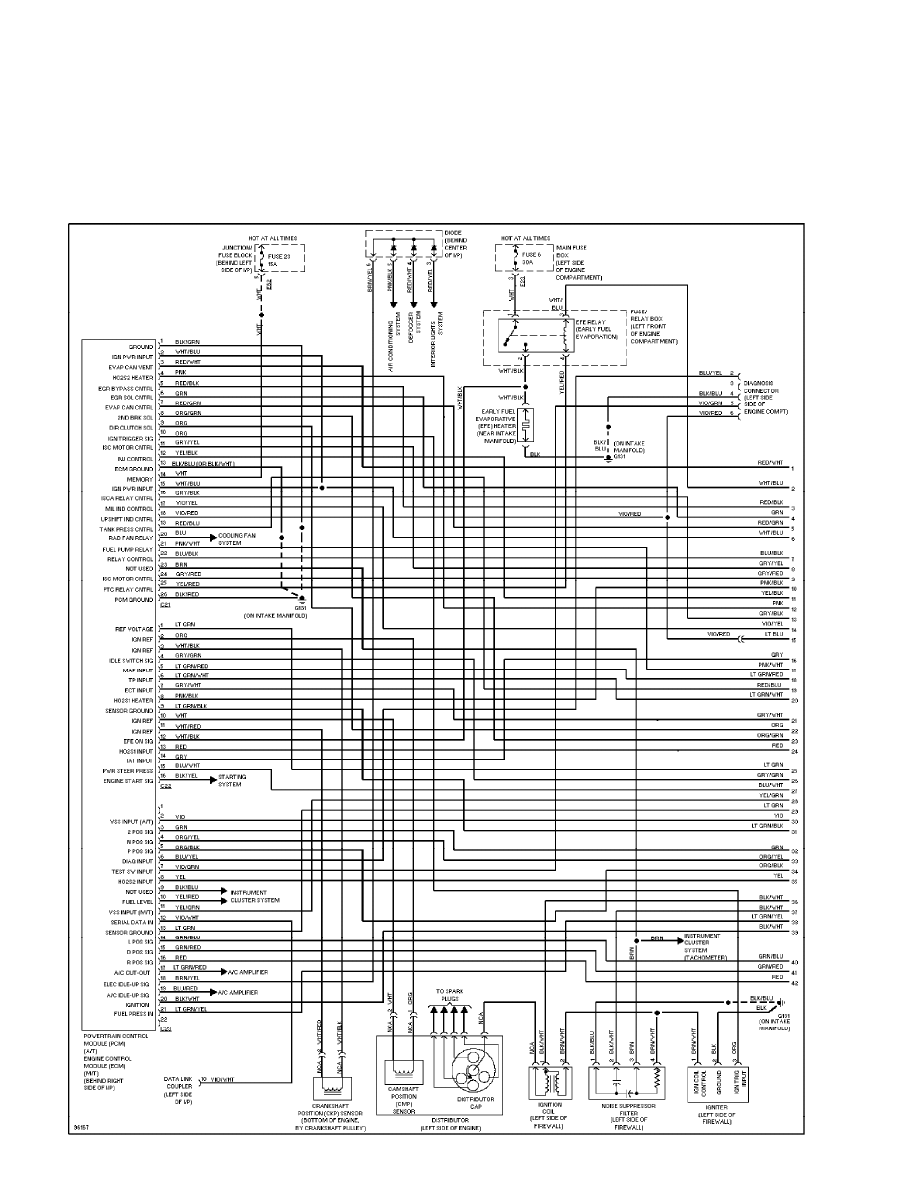

1.3L, Engine Performance Circuits (2 of 3) (p. 8)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

1.3L, Engine Performance Circuits (3 of 3) (p. 9)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

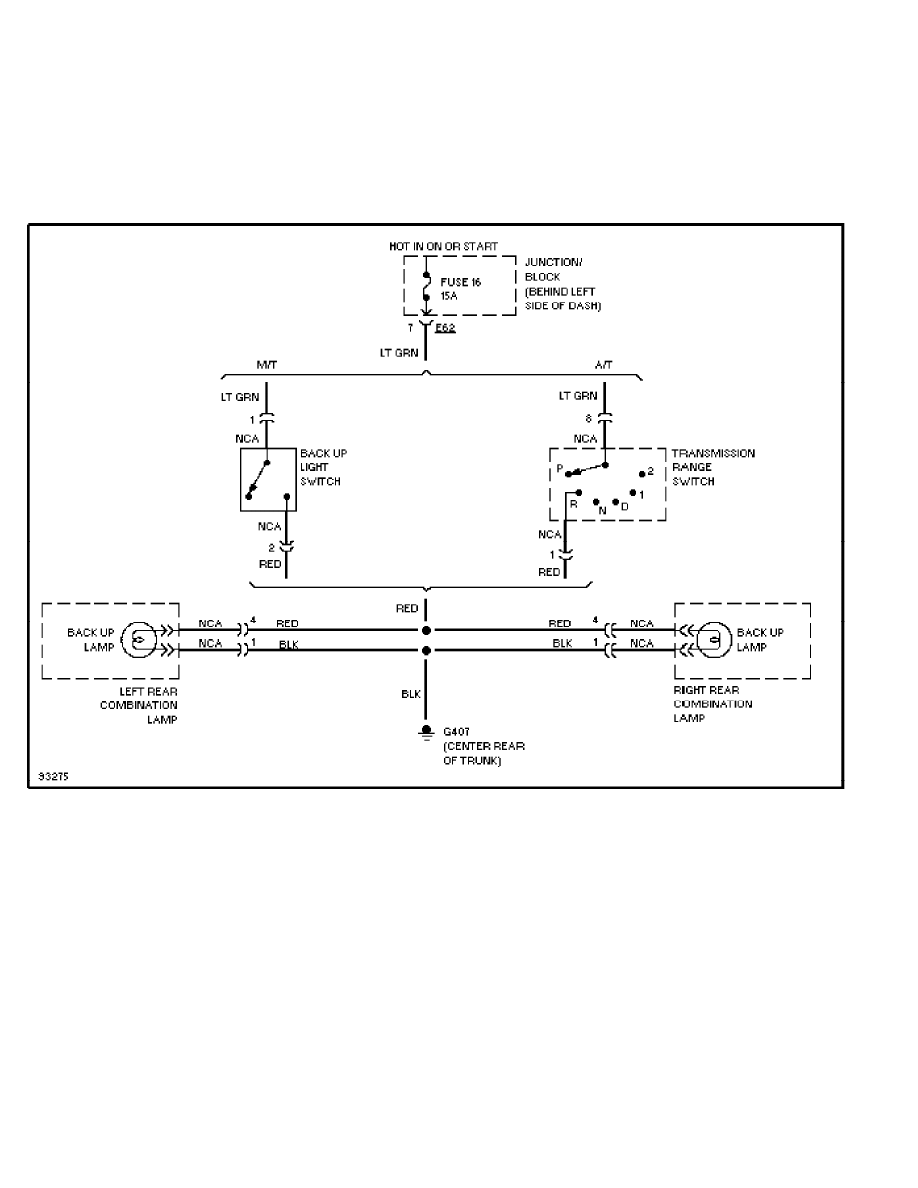

Back-up Lamps Circuit (p. 10)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

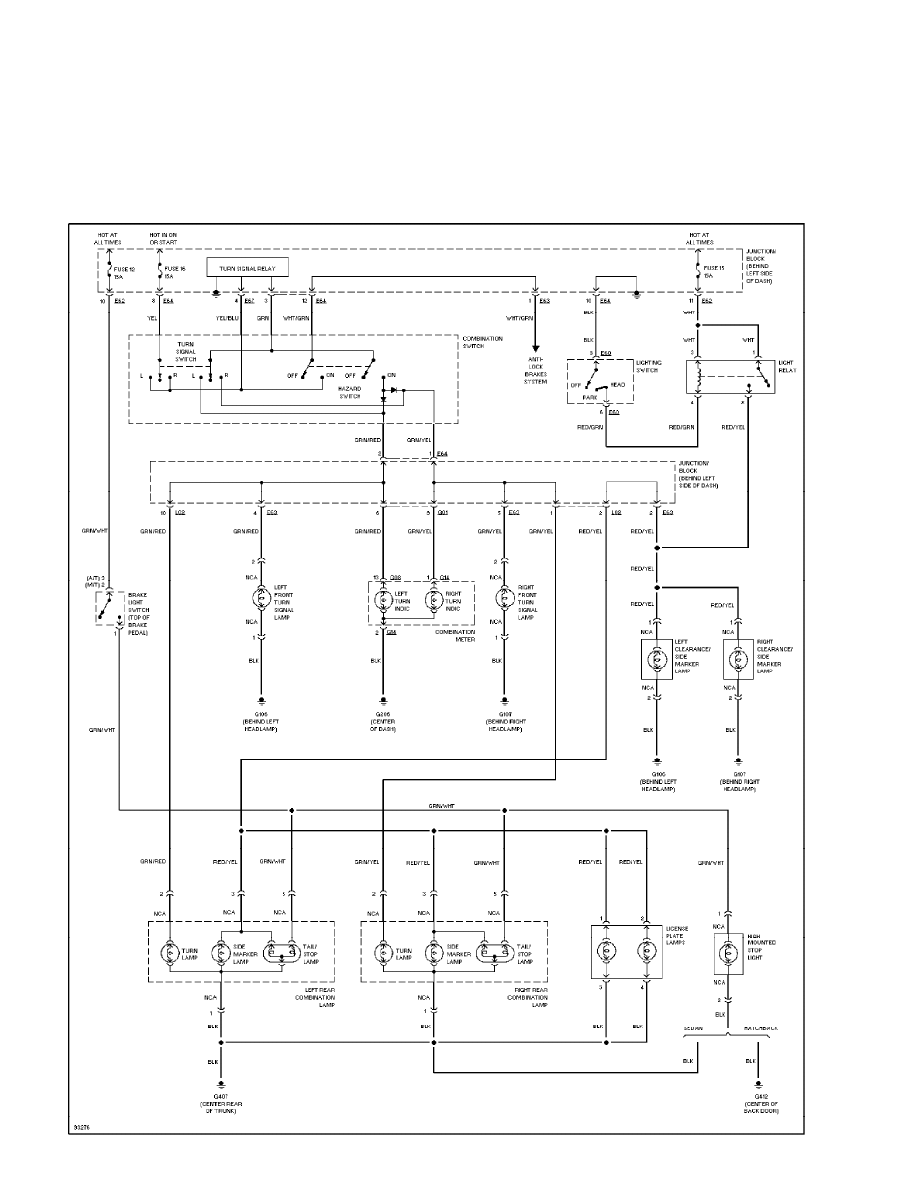

Exterior Lamps Circuit (p. 11)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

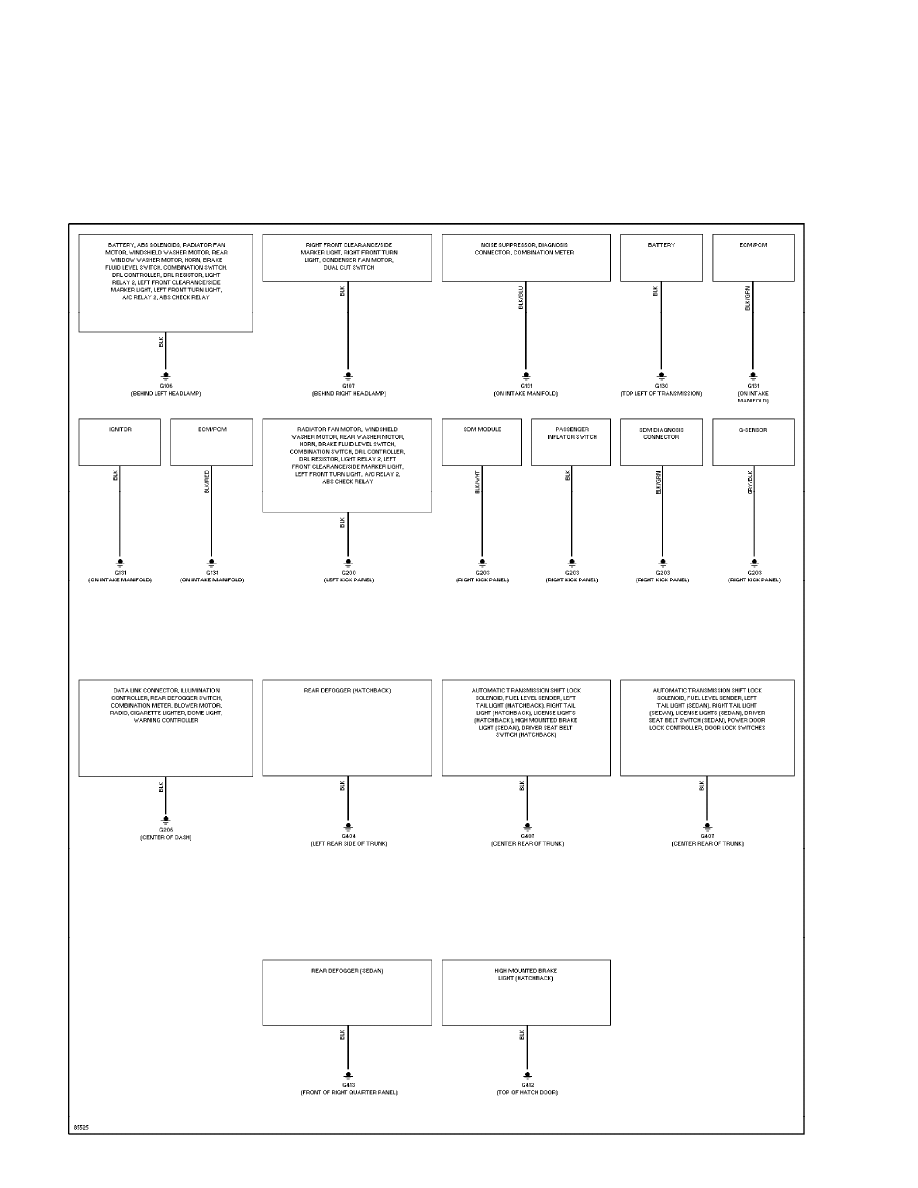

Ground Distribution Circuit (p. 12)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

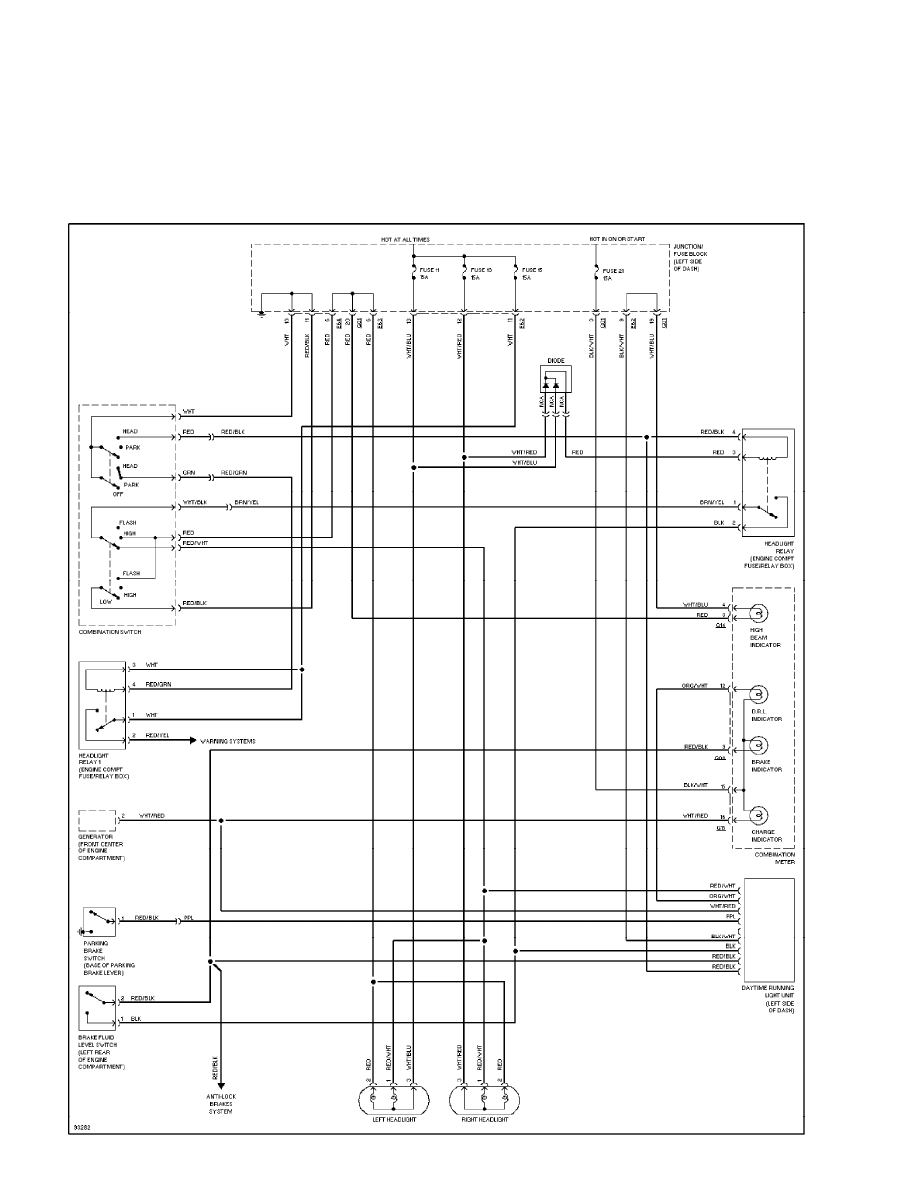

Headlight Circuit (p. 13)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

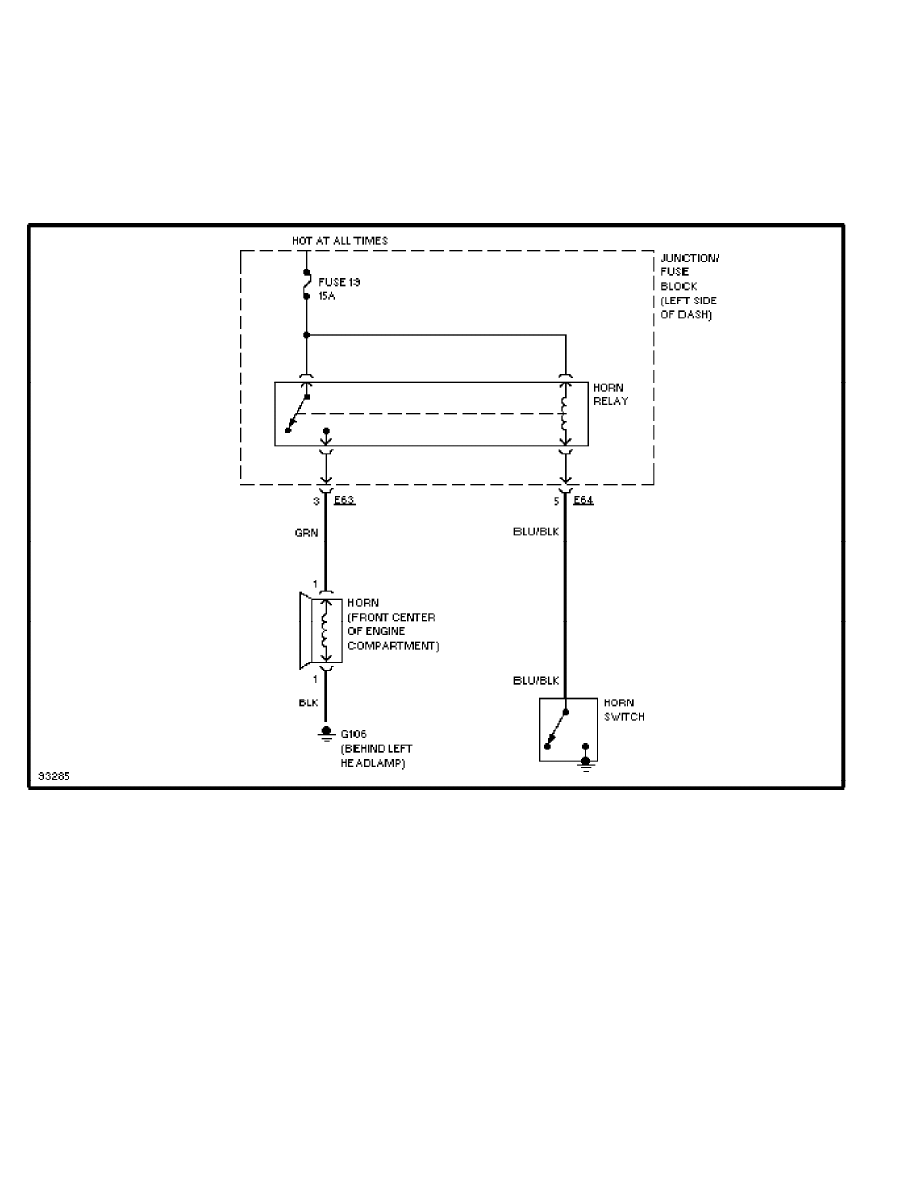

Horn Circuit (p. 14)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

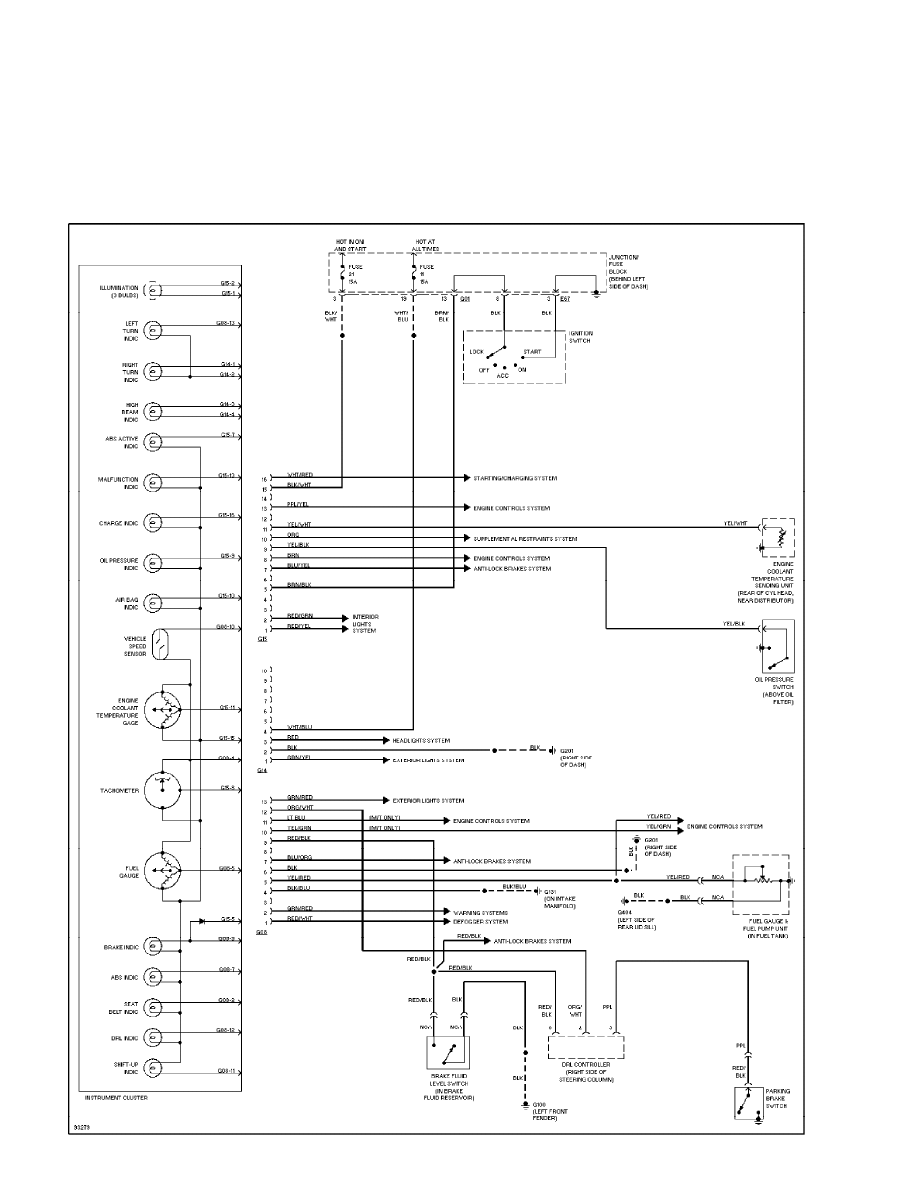

Instrument Cluster Circuit (p. 15)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

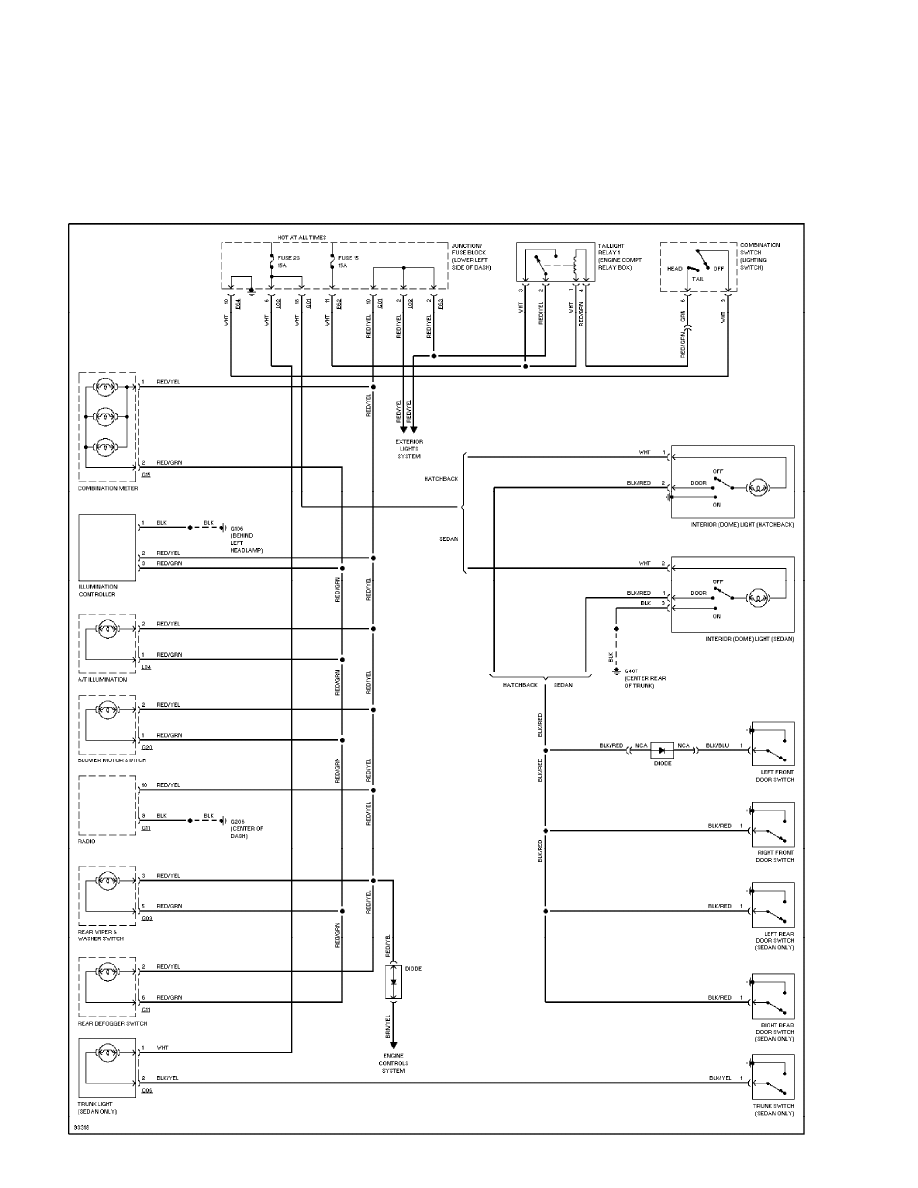

Interior Light Circuit (p. 16)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

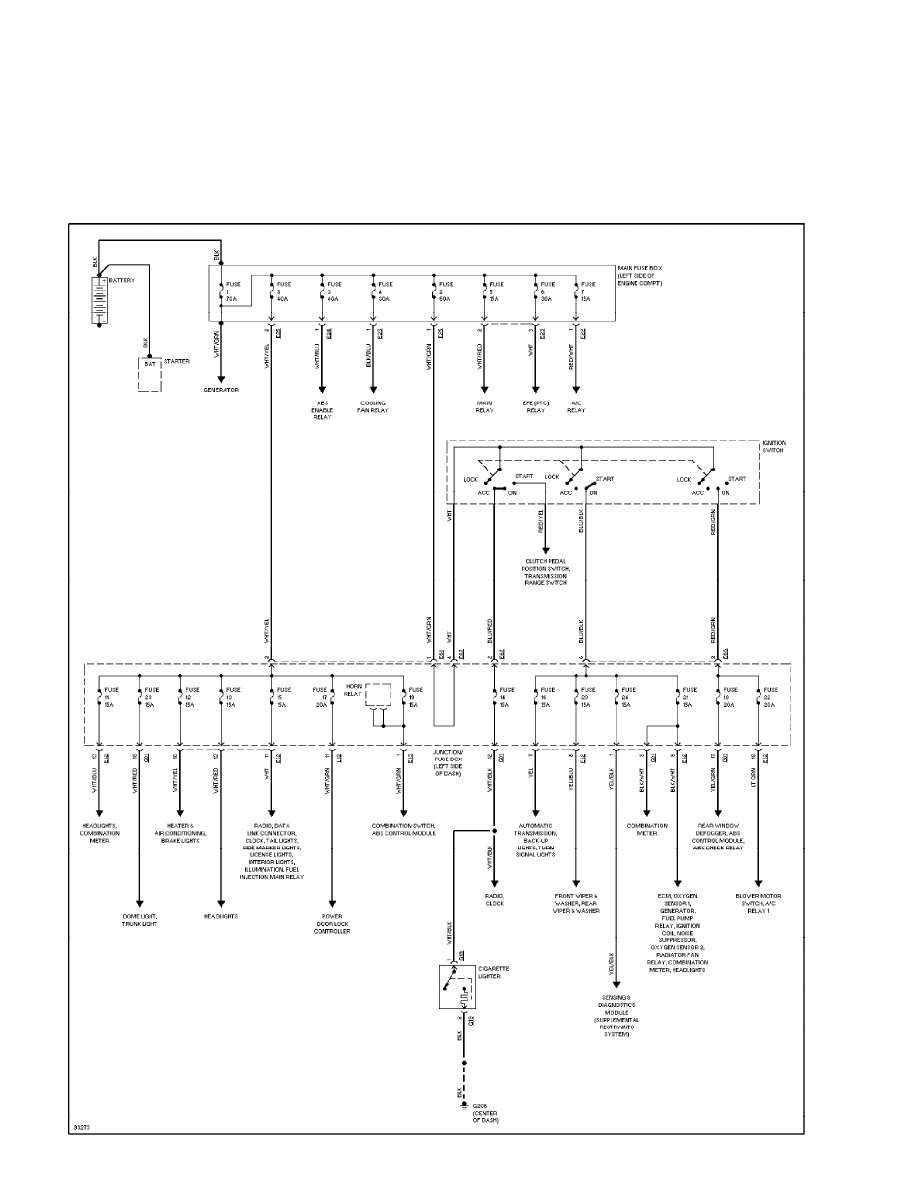

Power Distribution Circuit (p. 17)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

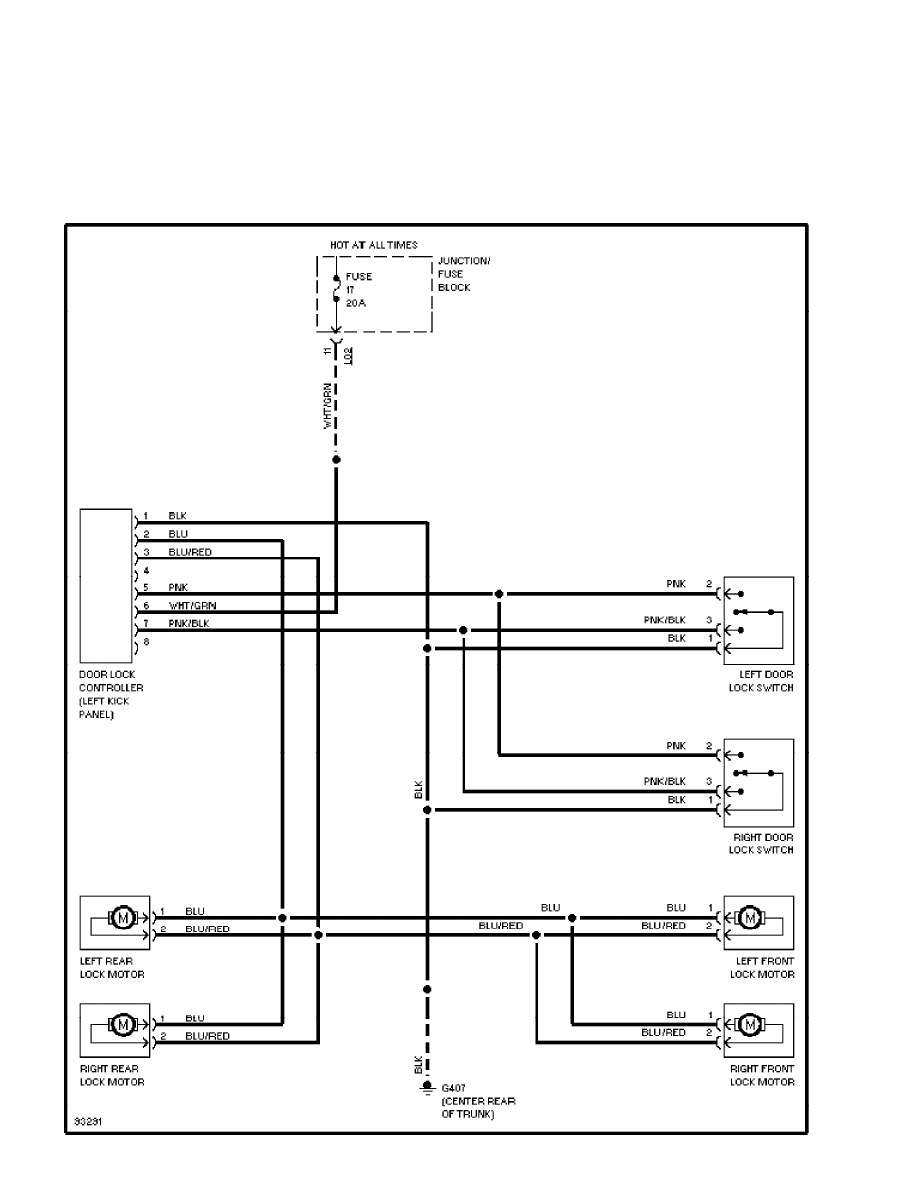

Power Door Lock Circuit (p. 18)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

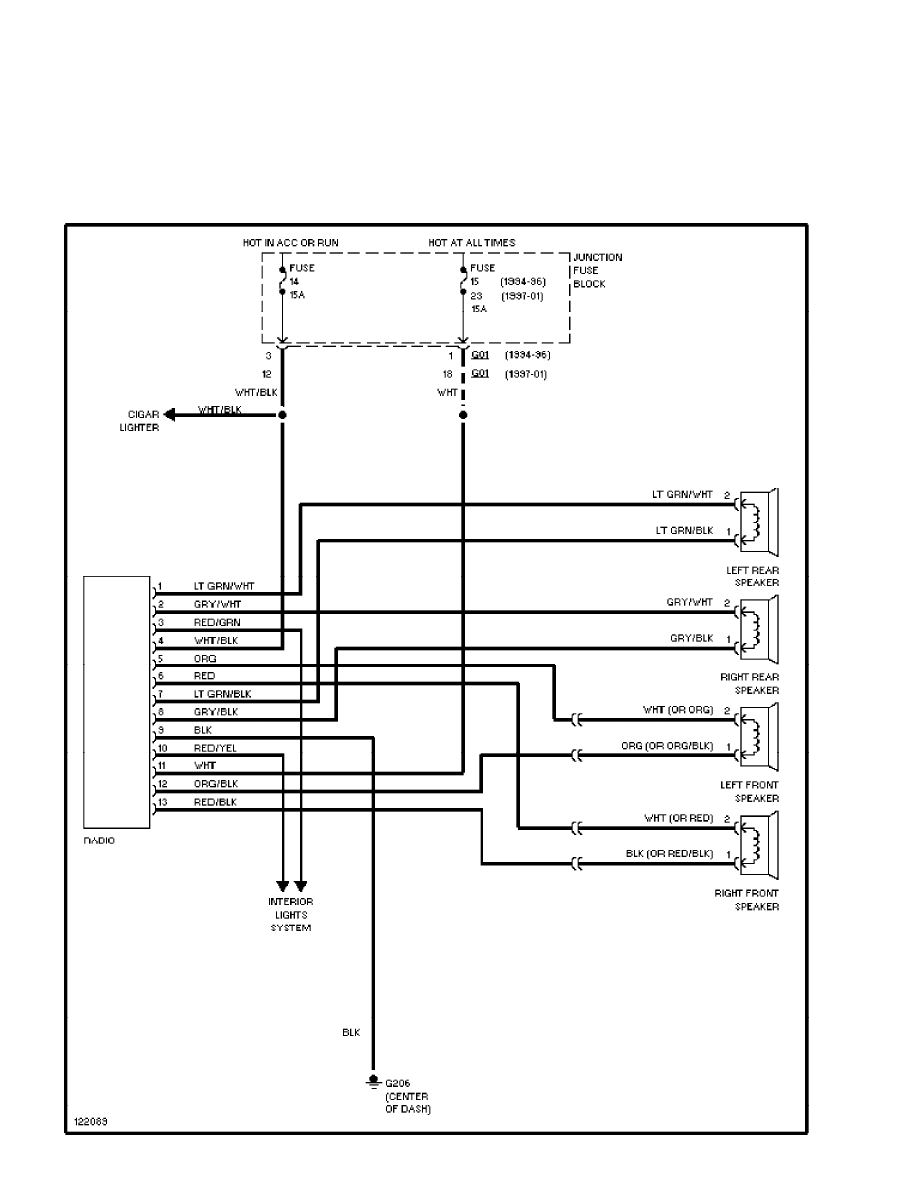

Radio Circuits (p. 19)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

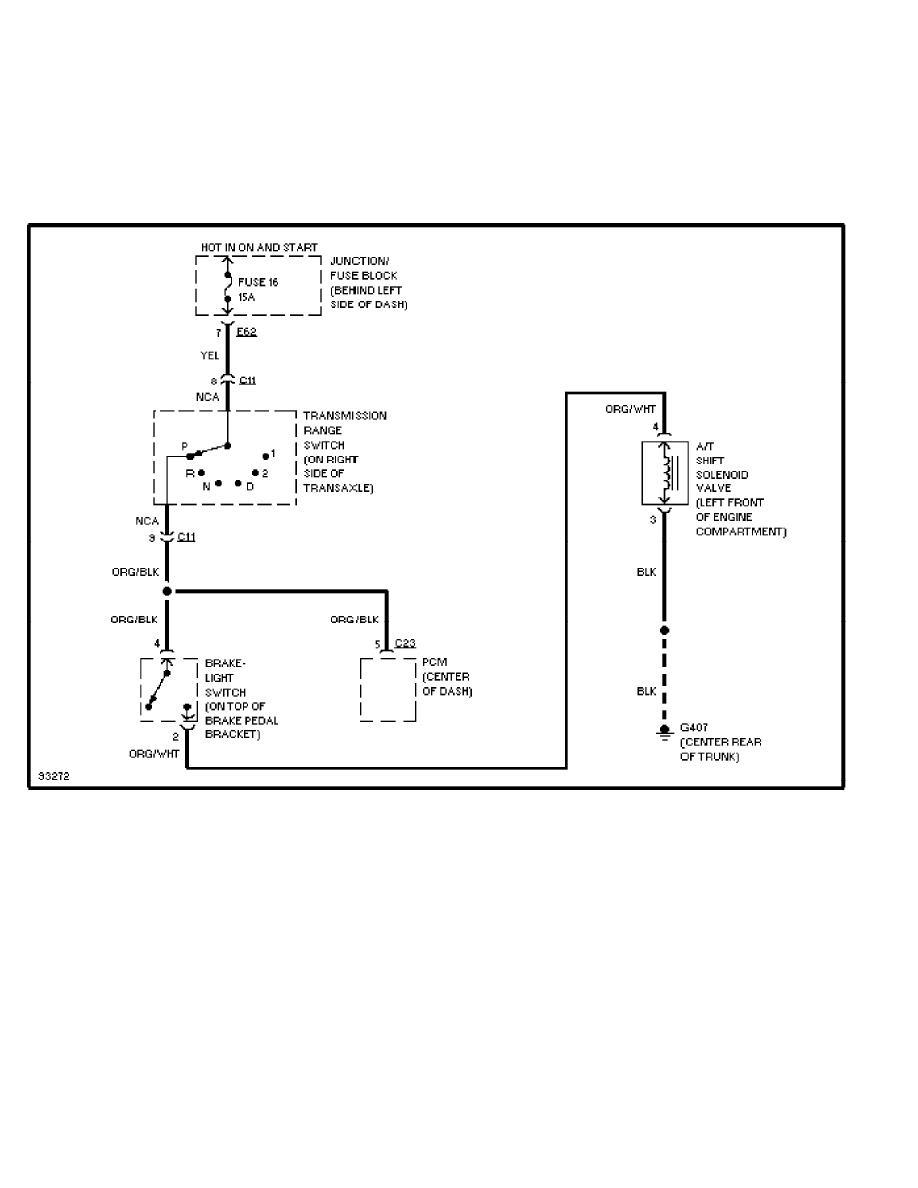

Shift Interlock Circuit (p. 20)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

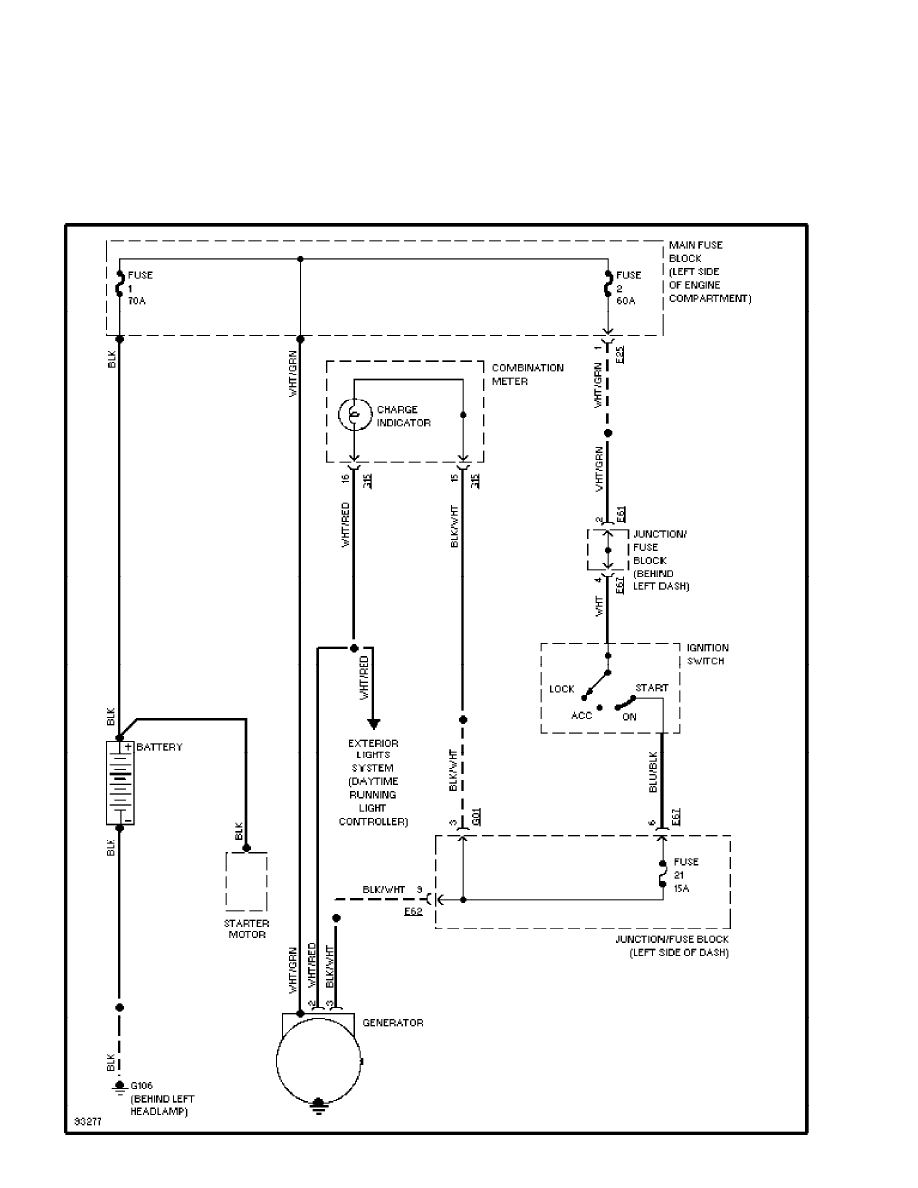

Charging Circuit (p. 21)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

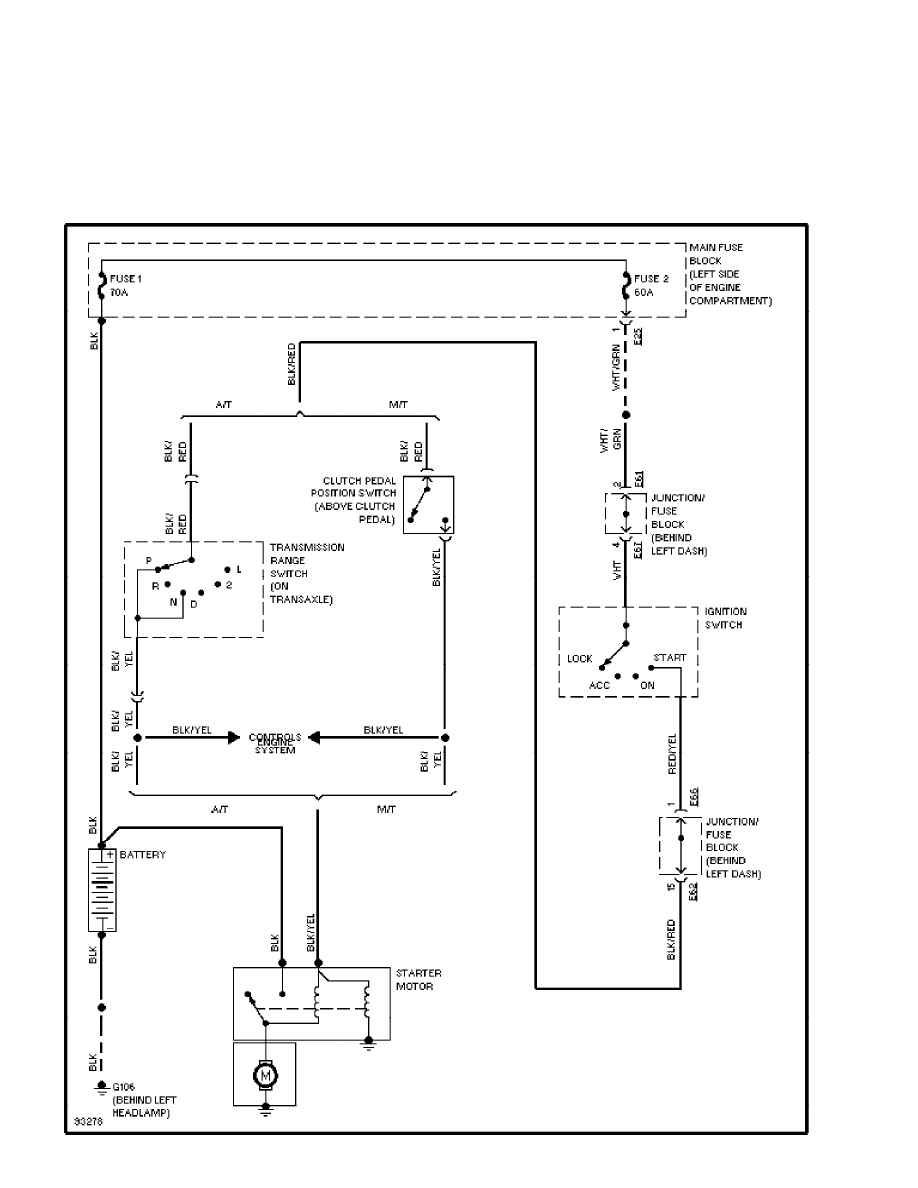

Starting Circuit (p. 22)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

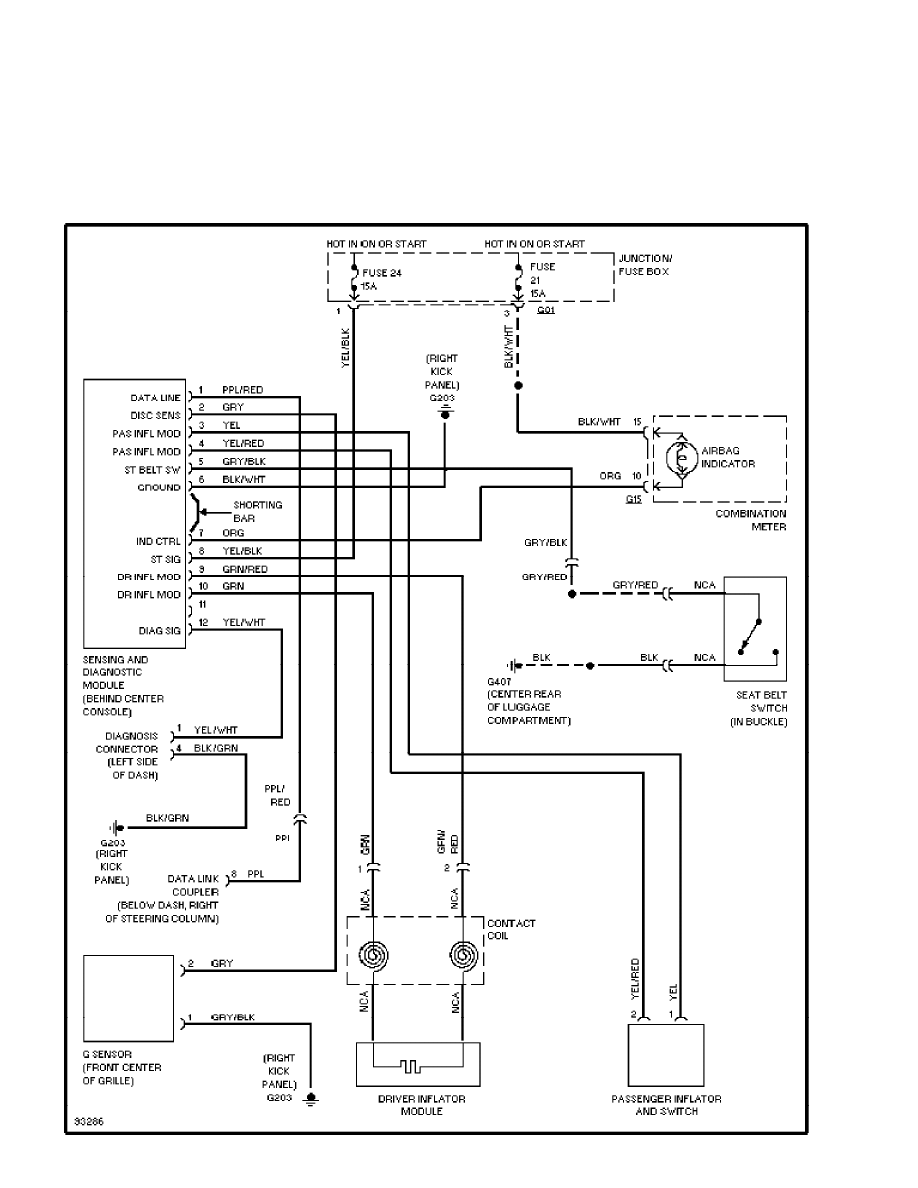

Supplemental Restraint Circuit (p. 23)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

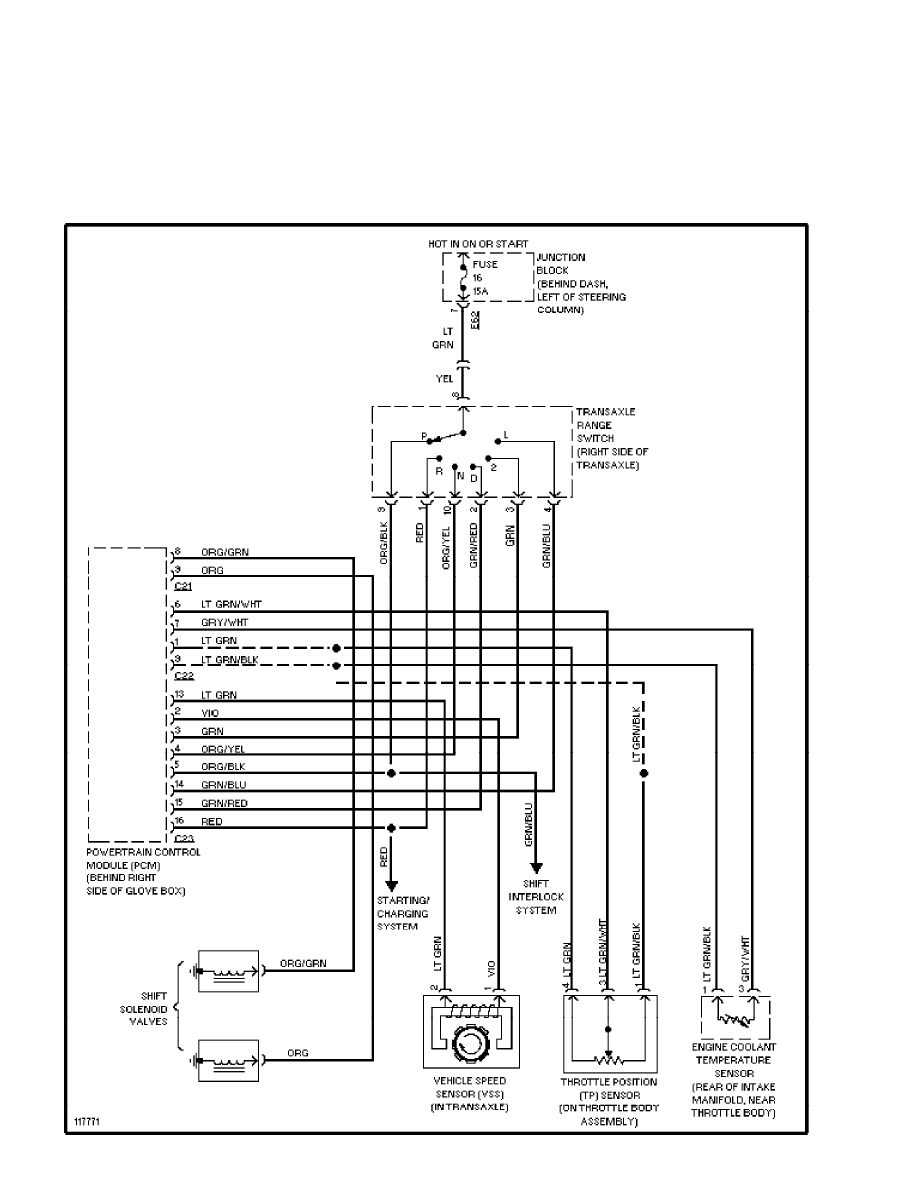

A/T Circuit (p. 24)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

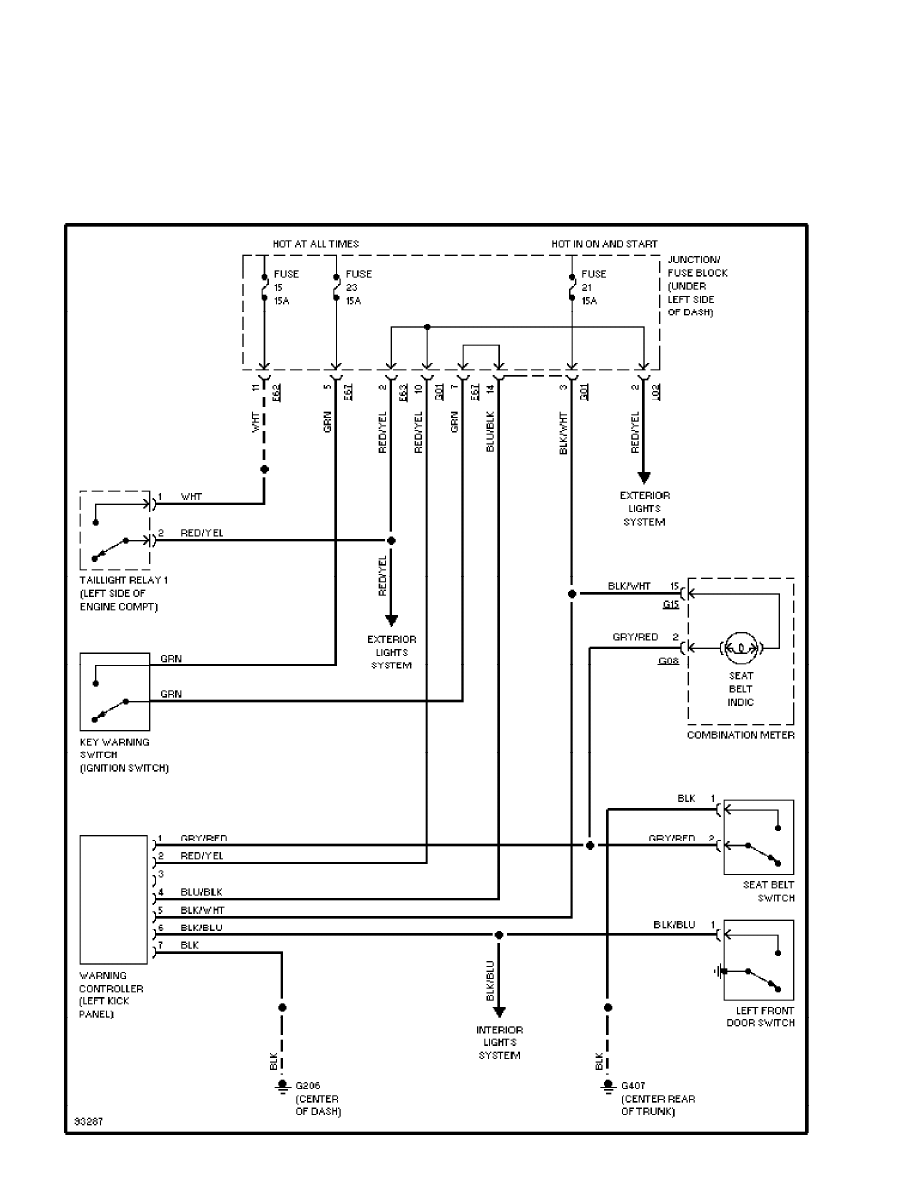

Warning System Circuits (p. 25)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

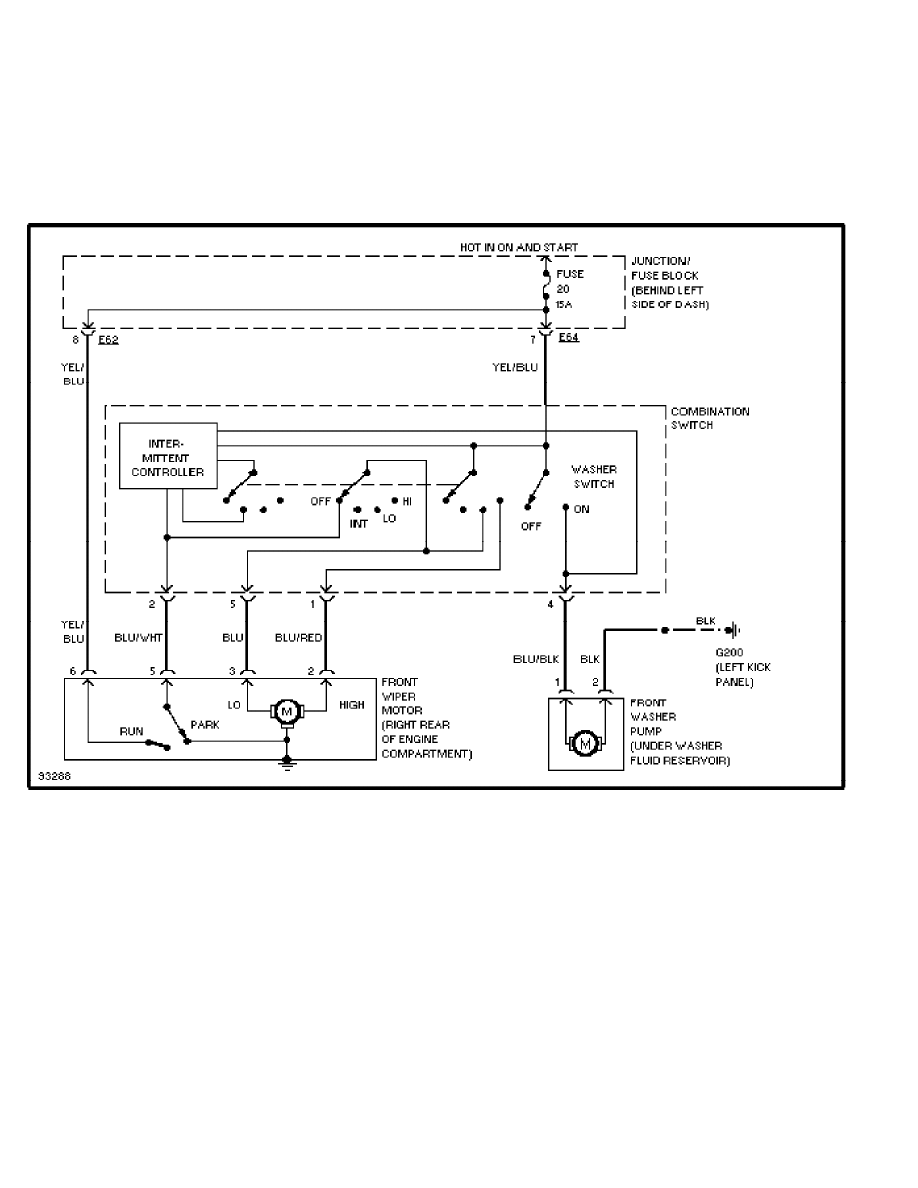

Front Wiper/Washer Circuit (p. 26)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM

SYSTEM WIRING DIAGRAMS

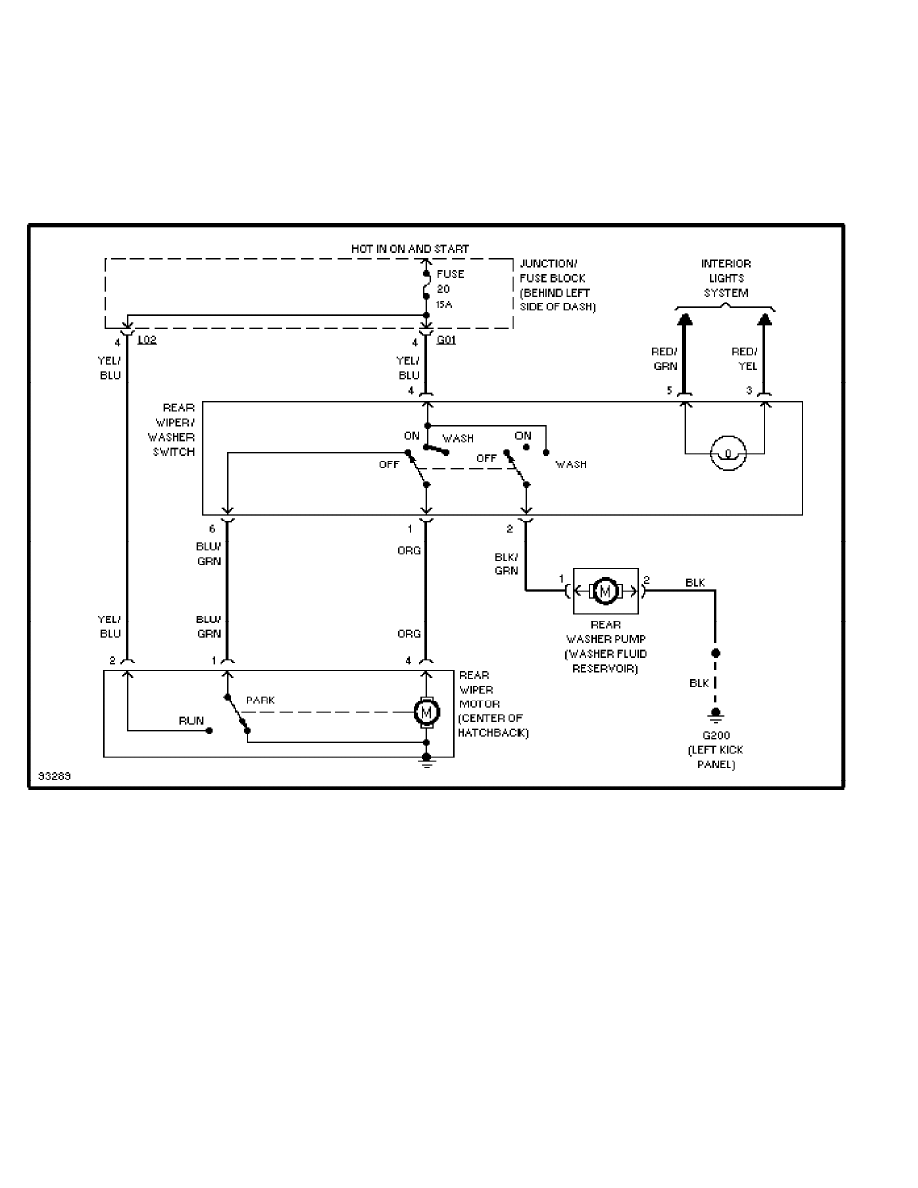

Rear Wiper/Washer Circuit (p. 27)

1997 Suzuki Swift

For x

Saturday, July 31, 2004 11:15AM
