MAZDA NAVAJO 1991(1)

SYSTEM WIRING DIAGRAMS

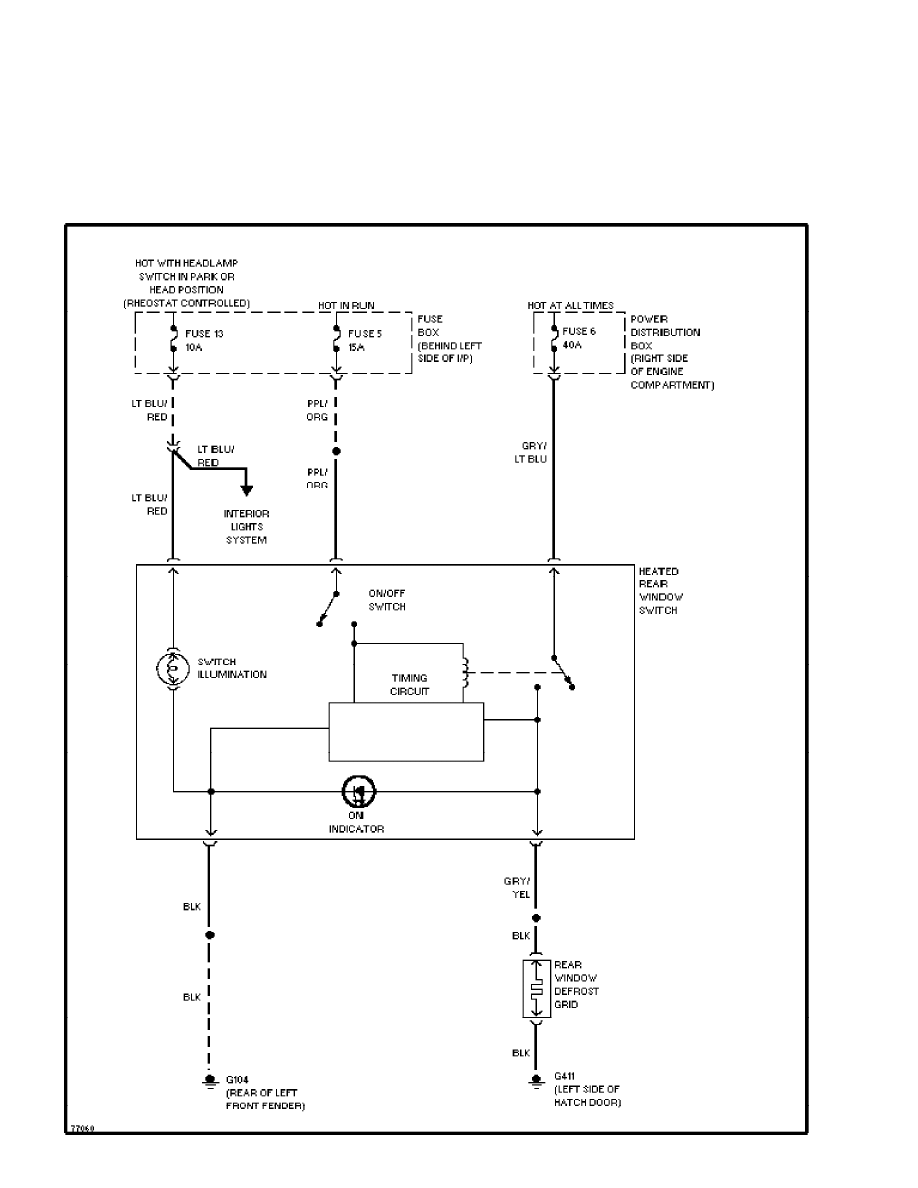

Defogger Circuit

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

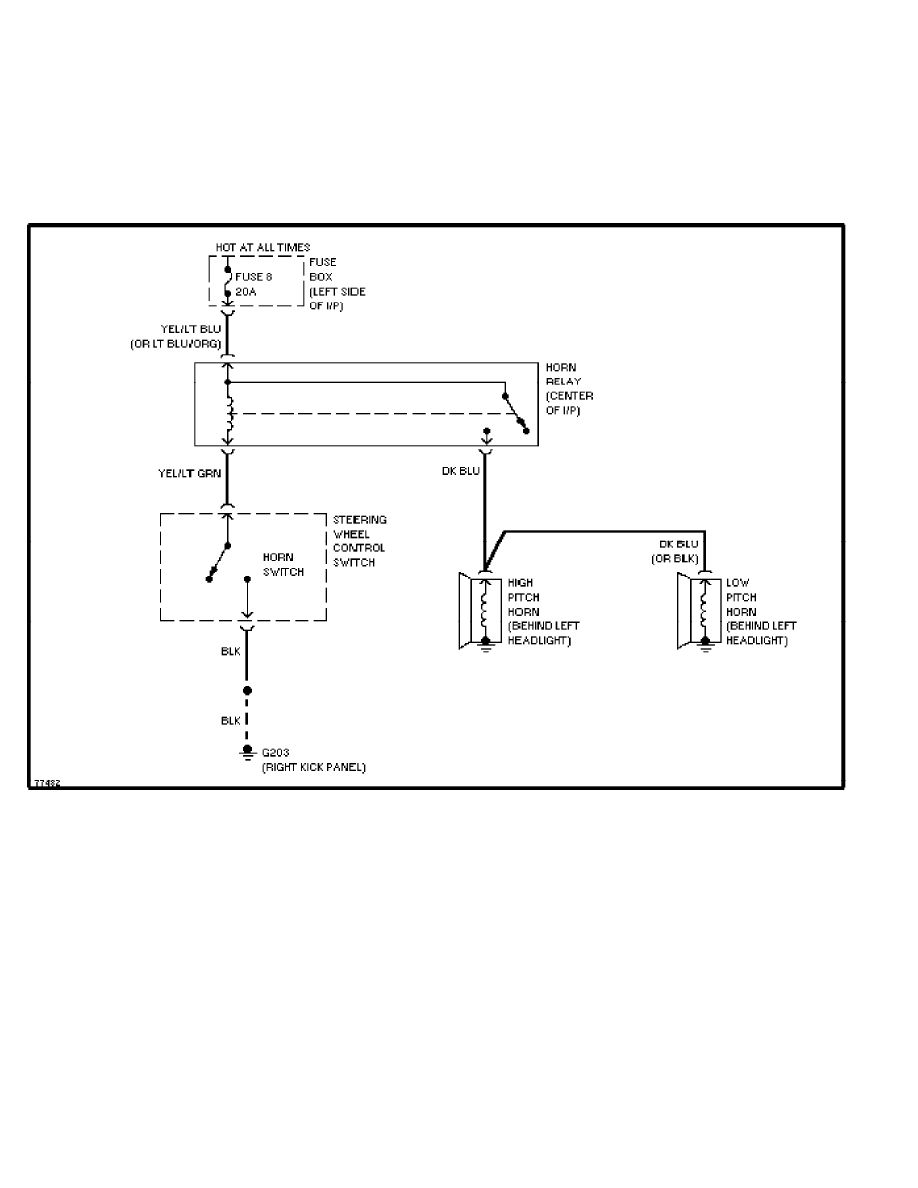

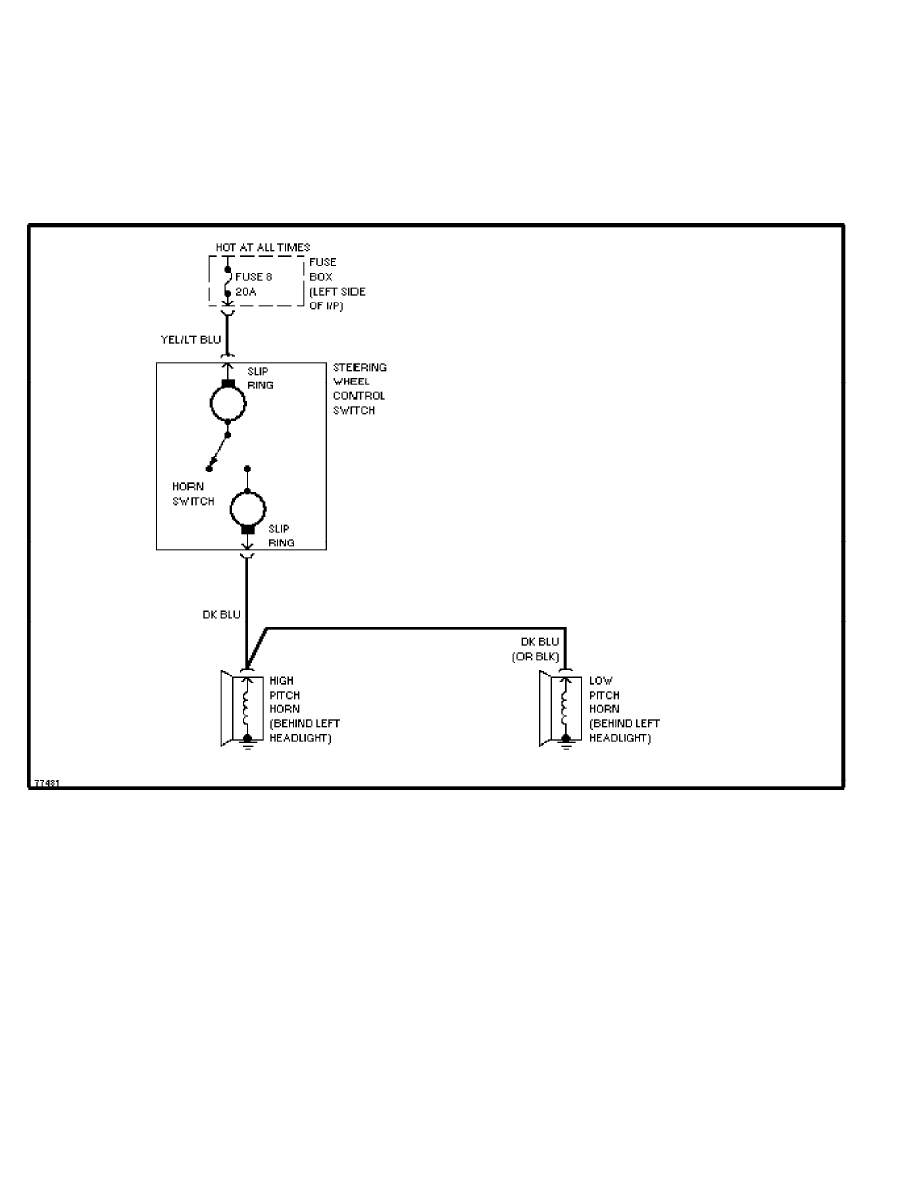

Horn Circuit, W/ Speed Control (p. 2)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

Horn Circuit, W/O Speed Control (p. 3)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

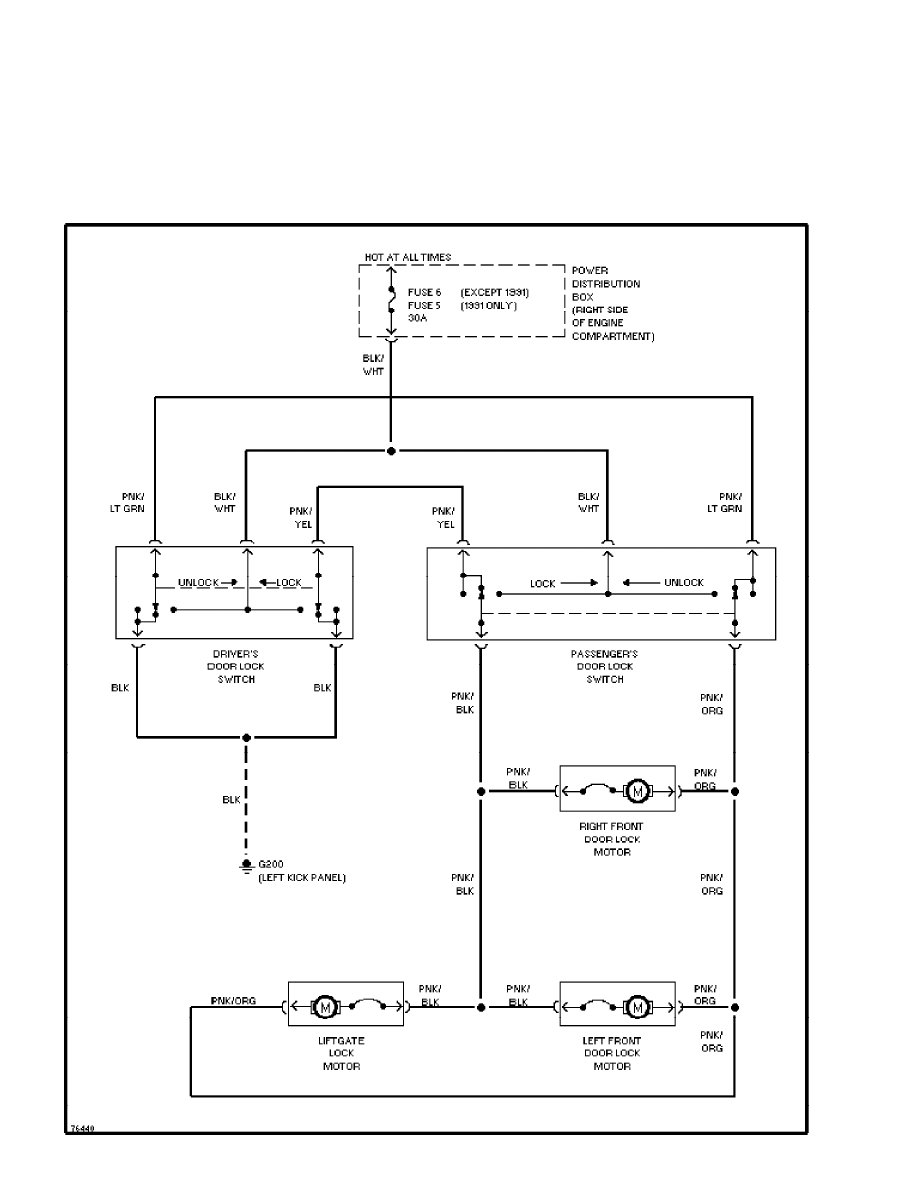

Power Door Lock Circuit (p. 4)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

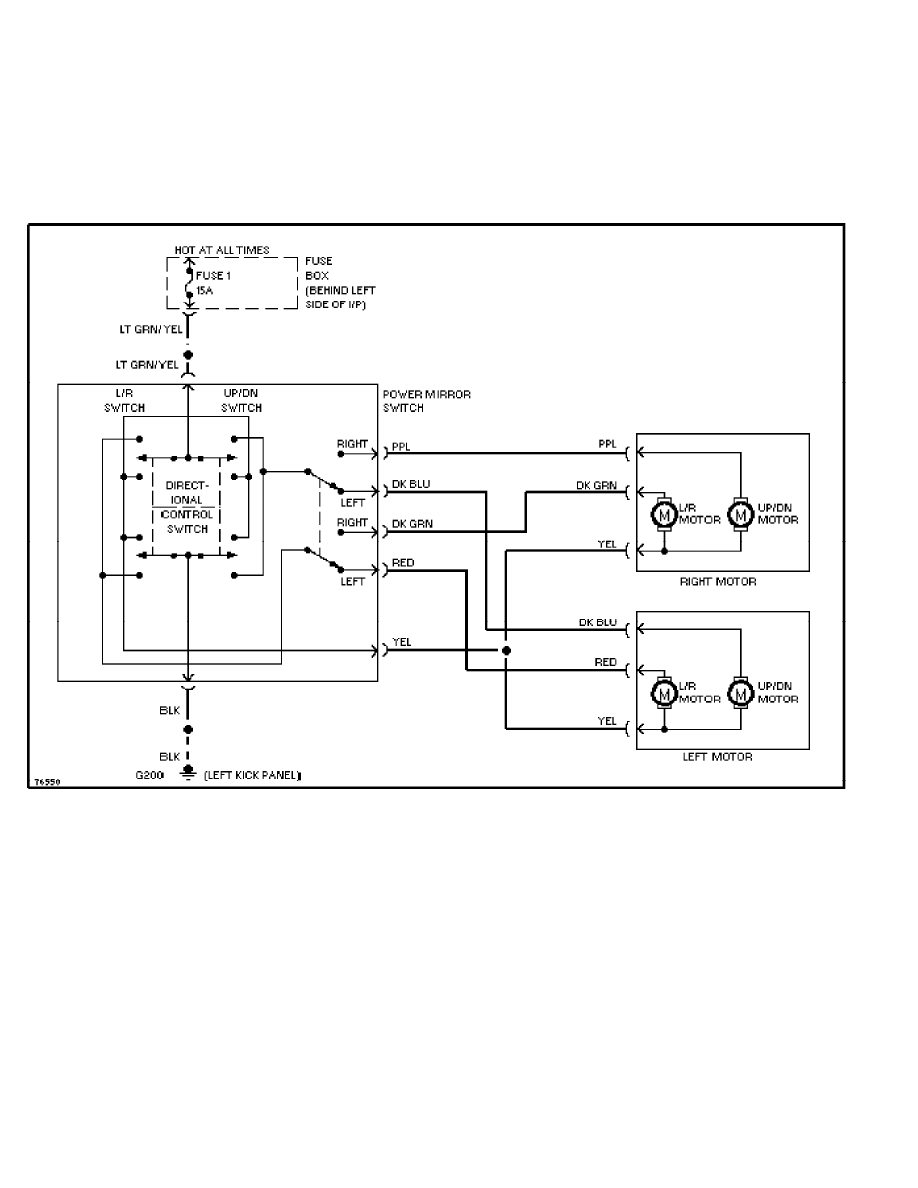

Power Mirror Circuit (p. 5)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

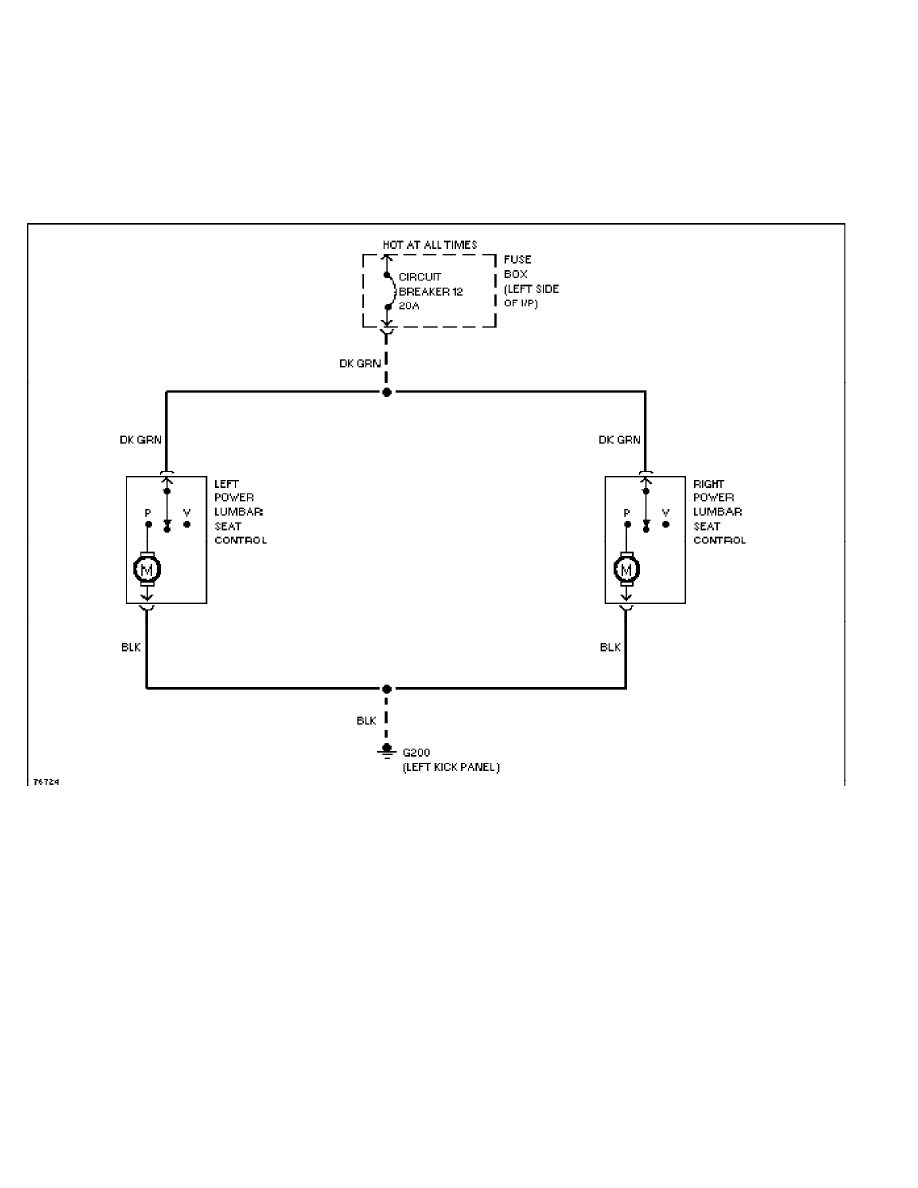

Power Seat Circuits (p. 6)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

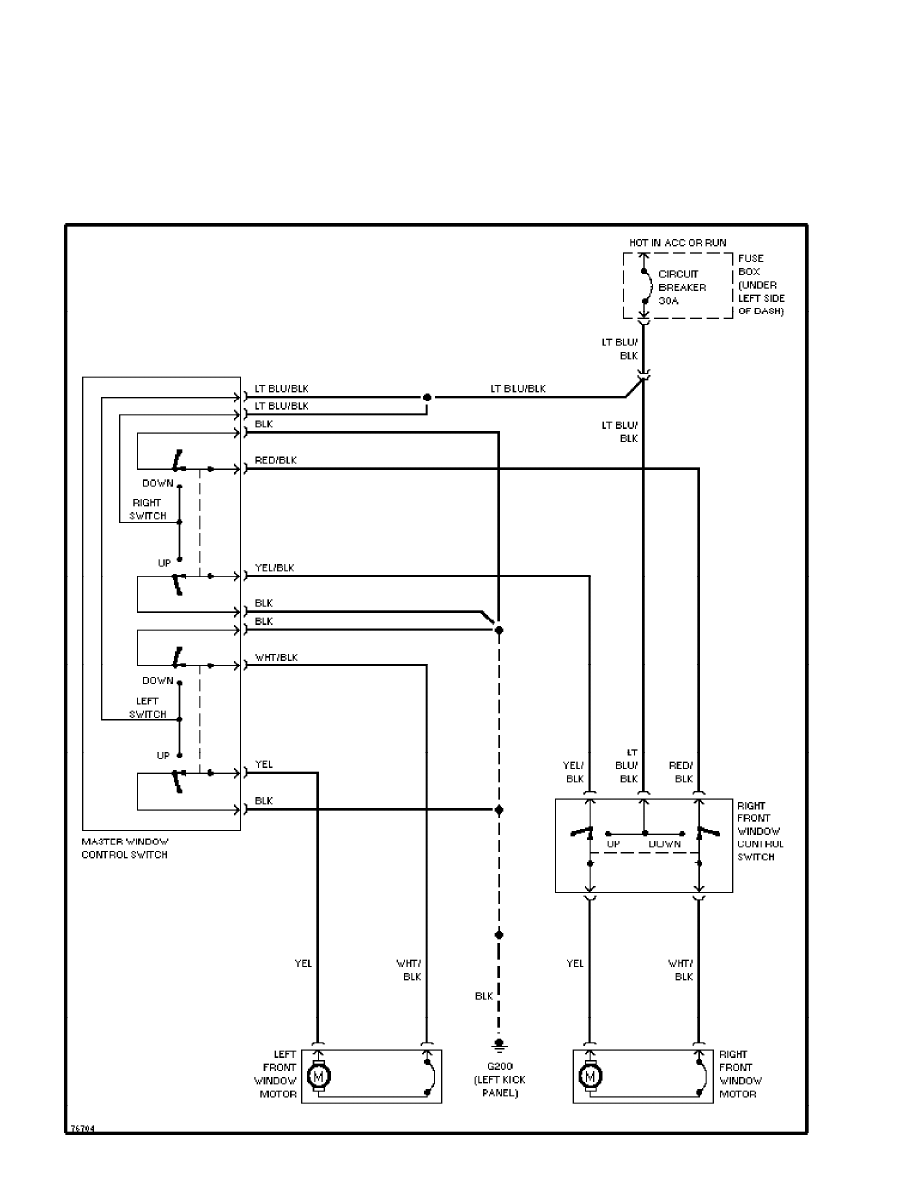

Power Window Circuit (p. 7)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

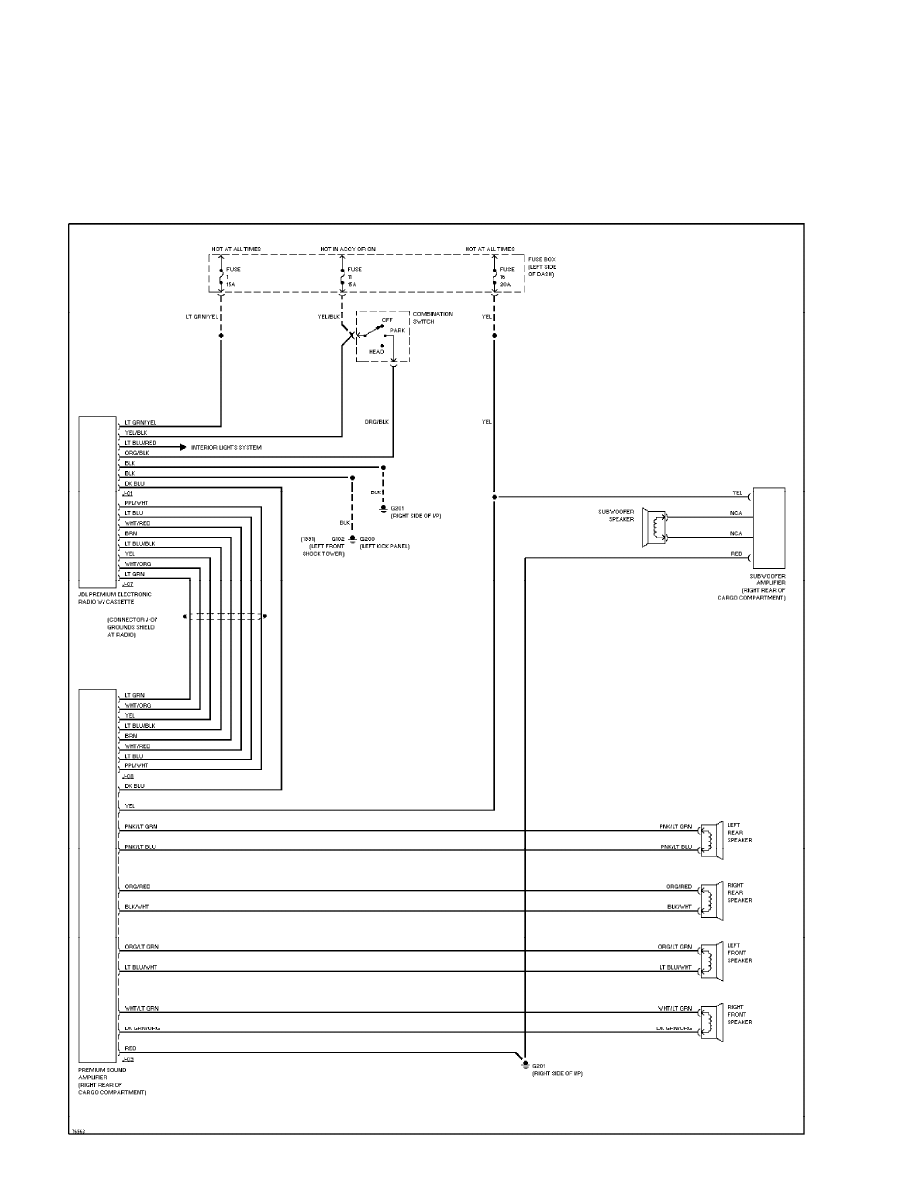

Radio Circuits, W/ JBL (p. 8)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

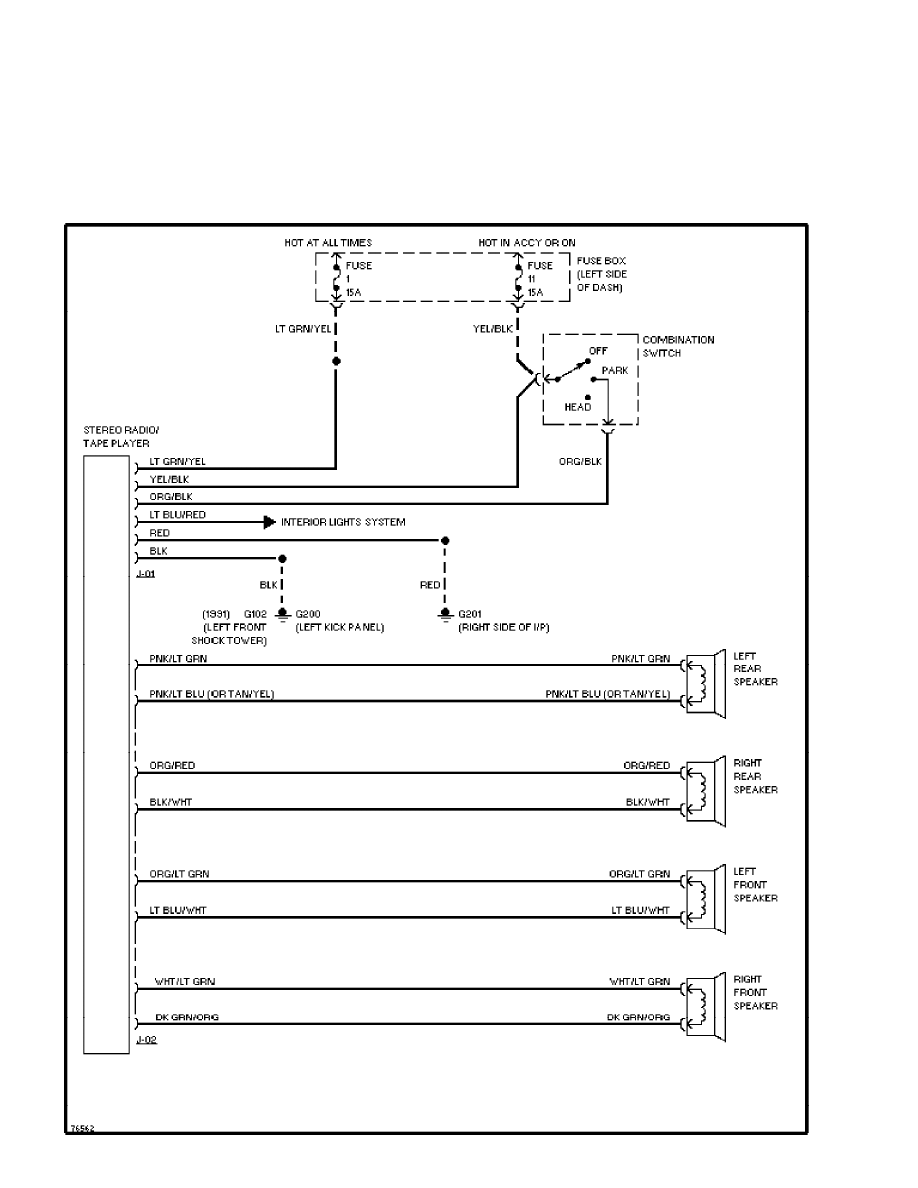

Radio Circuits, W/O JBL (p. 9)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

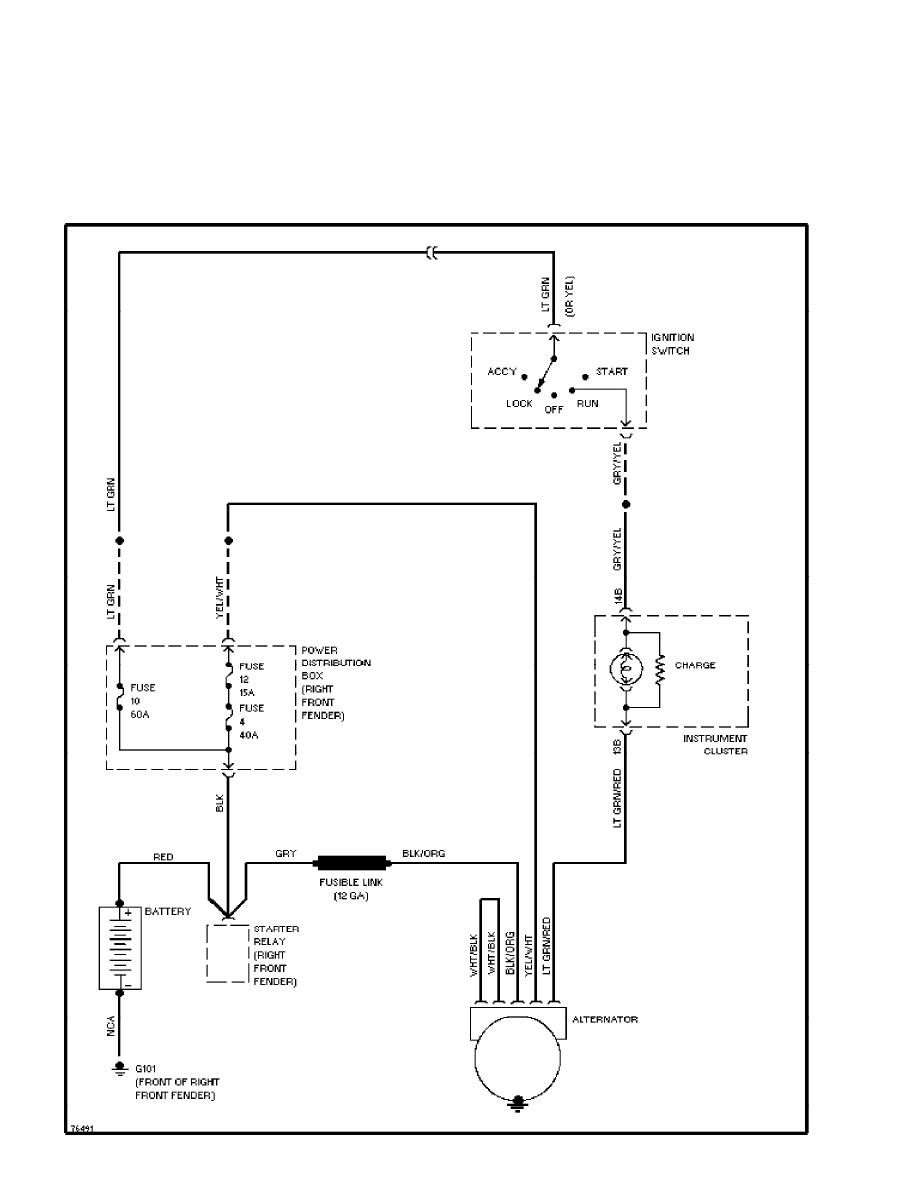

Charging Circuit (p. 10)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

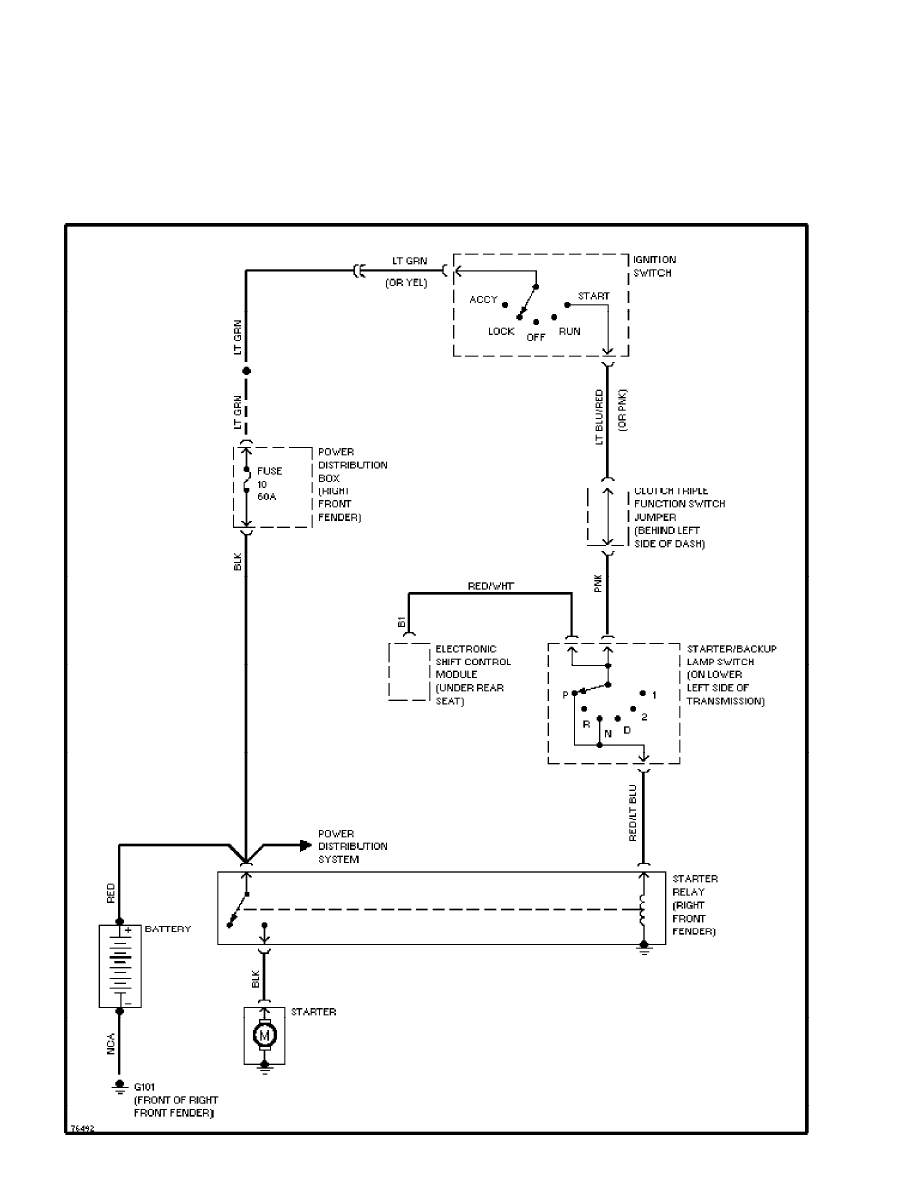

Starting Circuit, A/T (p. 11)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

Starting Circuit, M/T (p. 12)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

Front Washer/Wiper Circuit (p. 13)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

SYSTEM WIRING DIAGRAMS

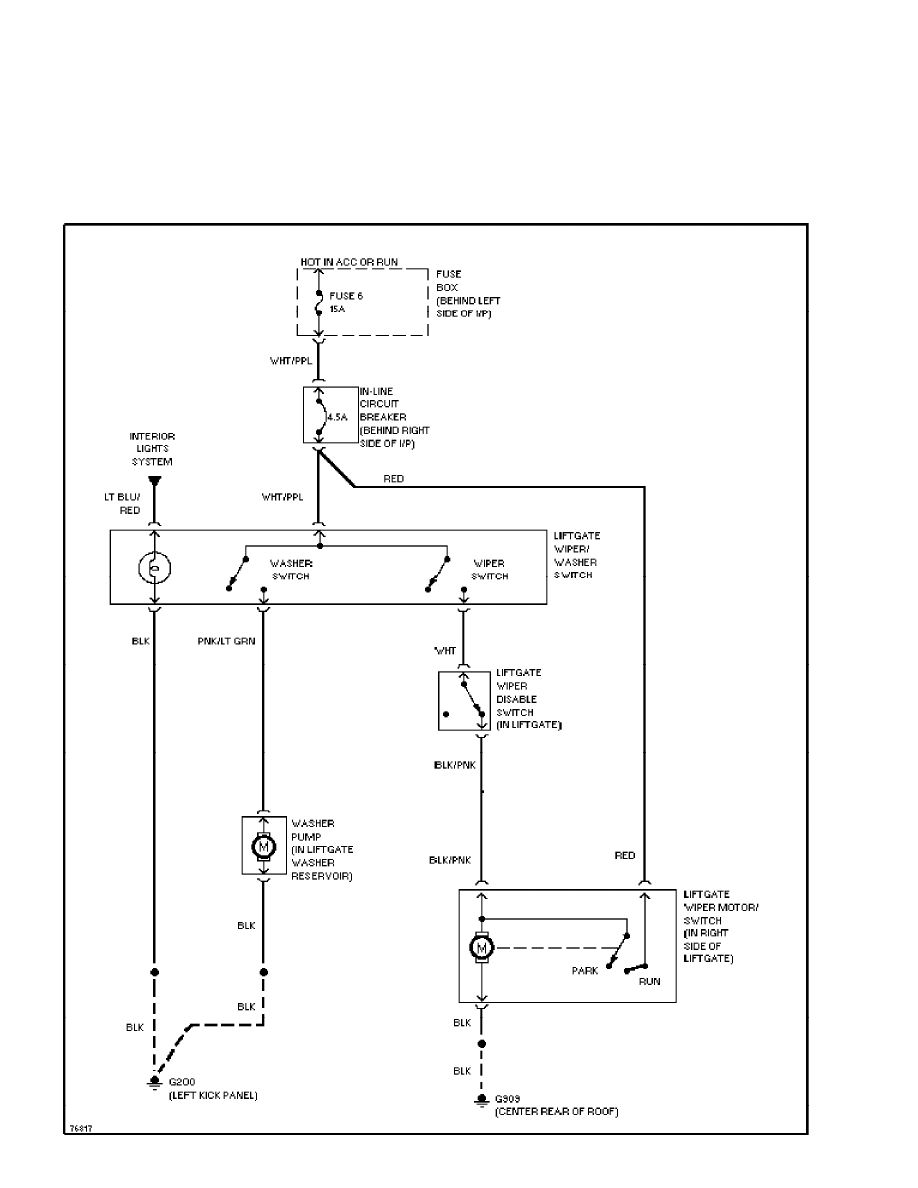

Rear Washer/Wiper Circuit (p. 14)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

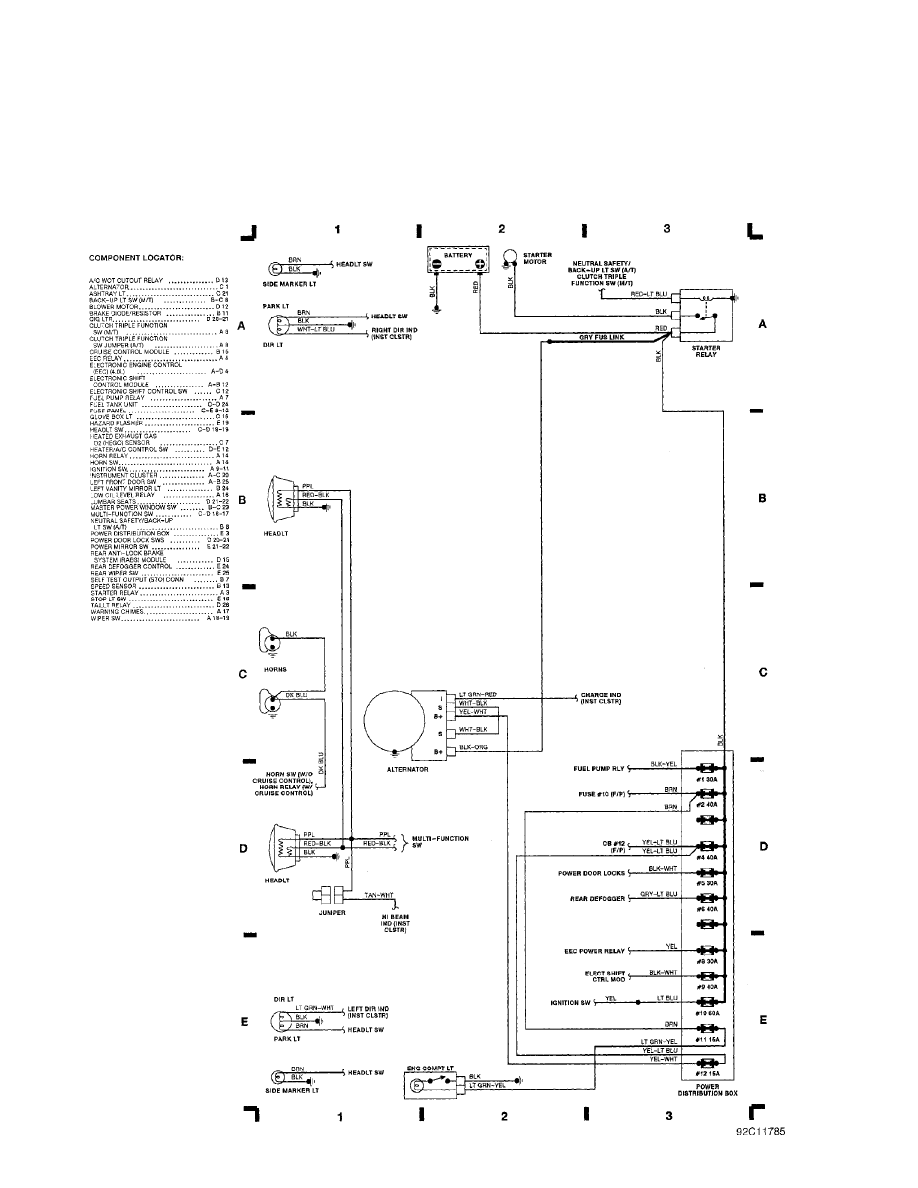

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

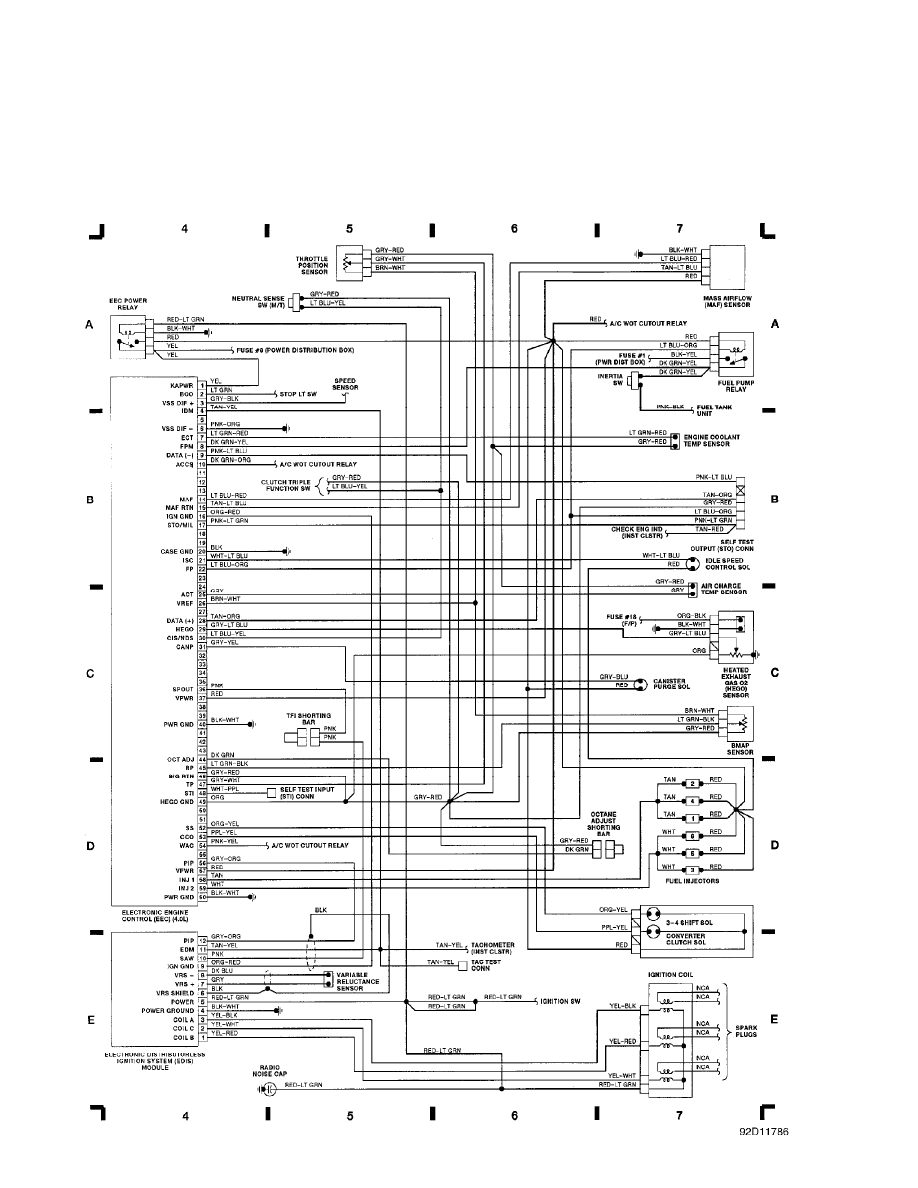

Fig. 2: Computer Engine Control (4.0L) (Grids 4-7) (p. 2)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

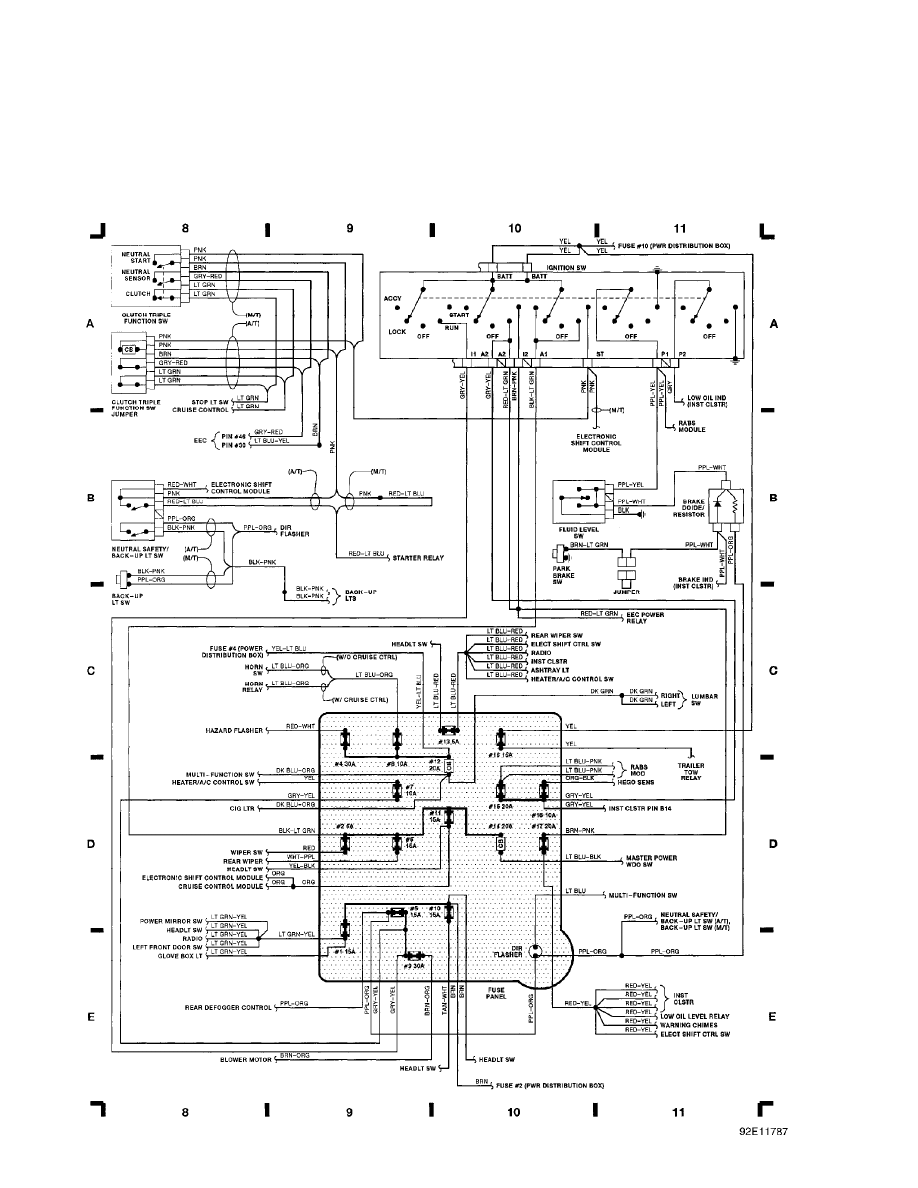

Fig. 3: Fuse Panel, Power Distribution Box (Grids 8-11) (p. 3)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

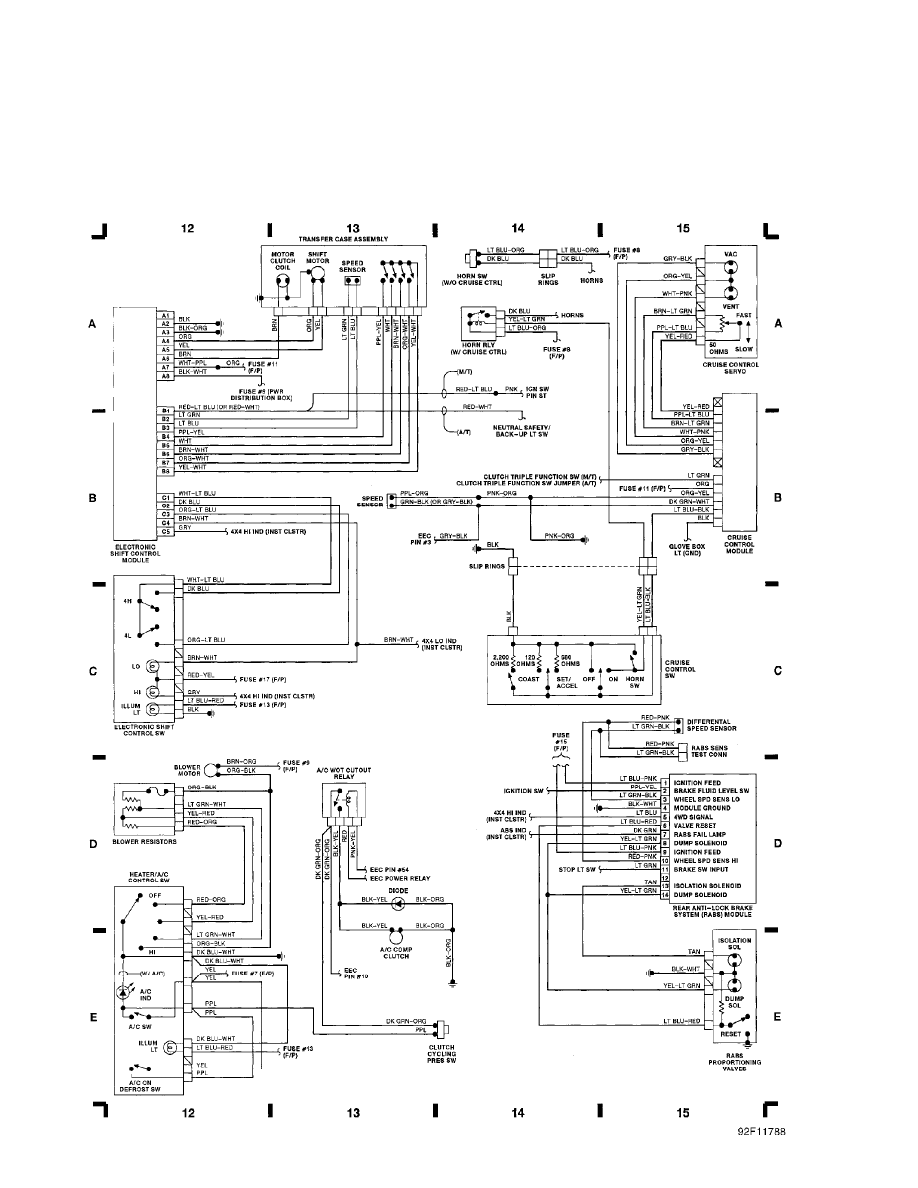

Fig. 4: Cruise Ctrl, Elect Shift Ctrl Mod, A/C & Heat (Grids 12-15) (p. 4)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

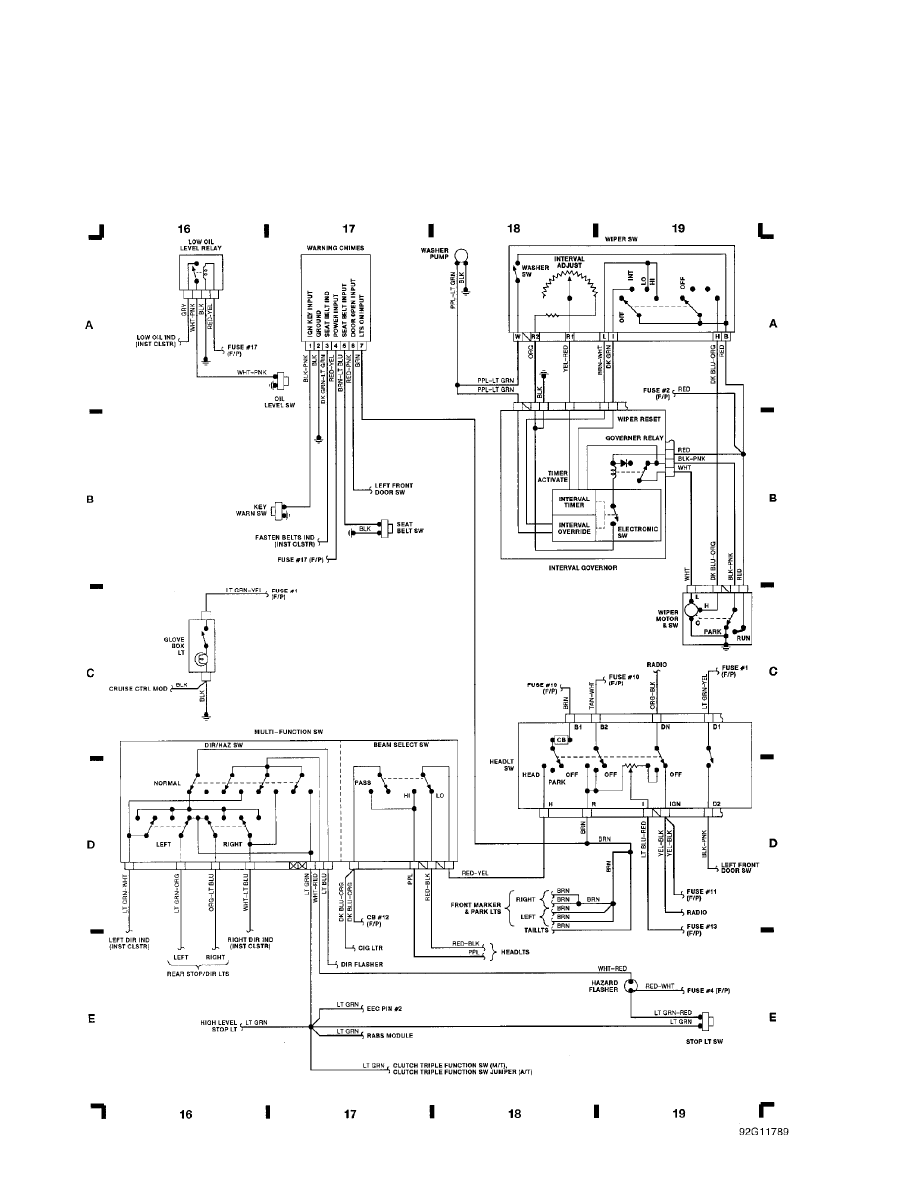

Fig. 5: Wiper Sw, Multi-Function Sw (Grid 16-19) (p. 5)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

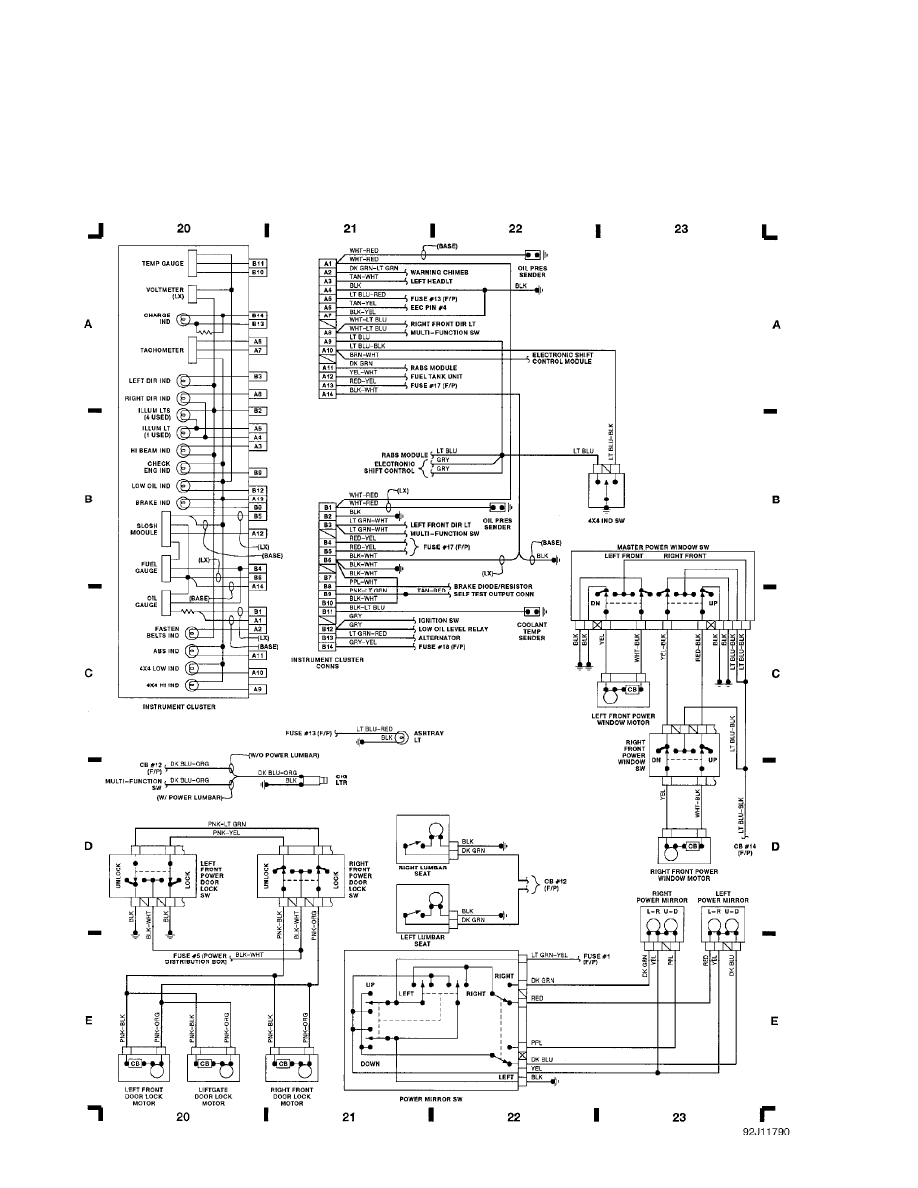

Fig. 6: Instrument Cluster, Power Window (Grids 20-23) (p. 6)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM

WIRING DIAGRAMS

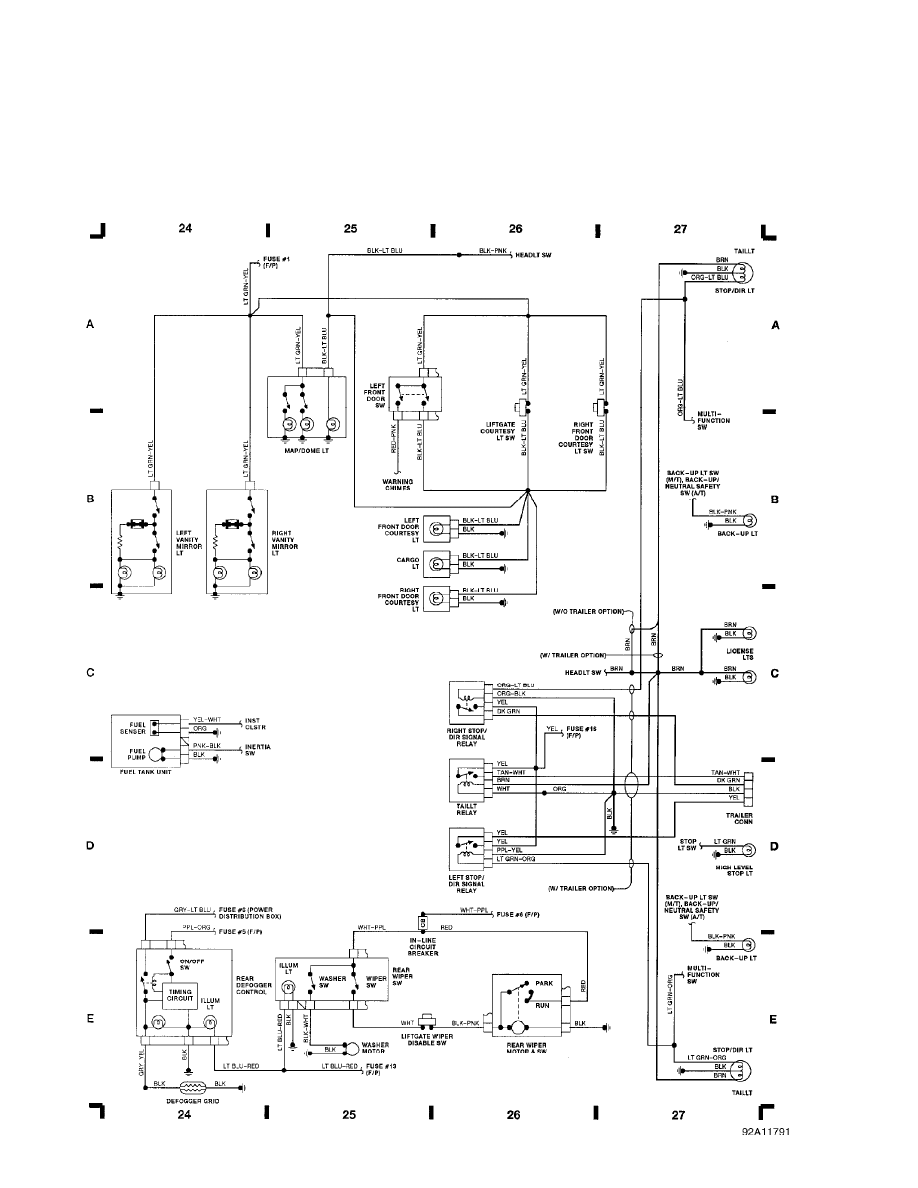

Fig. 7: Warning Chimes, Taillight, Rear Wiper (Grids 24- 27) (p. 7)

1991 Mazda Navajo

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:00PM
