SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 2)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

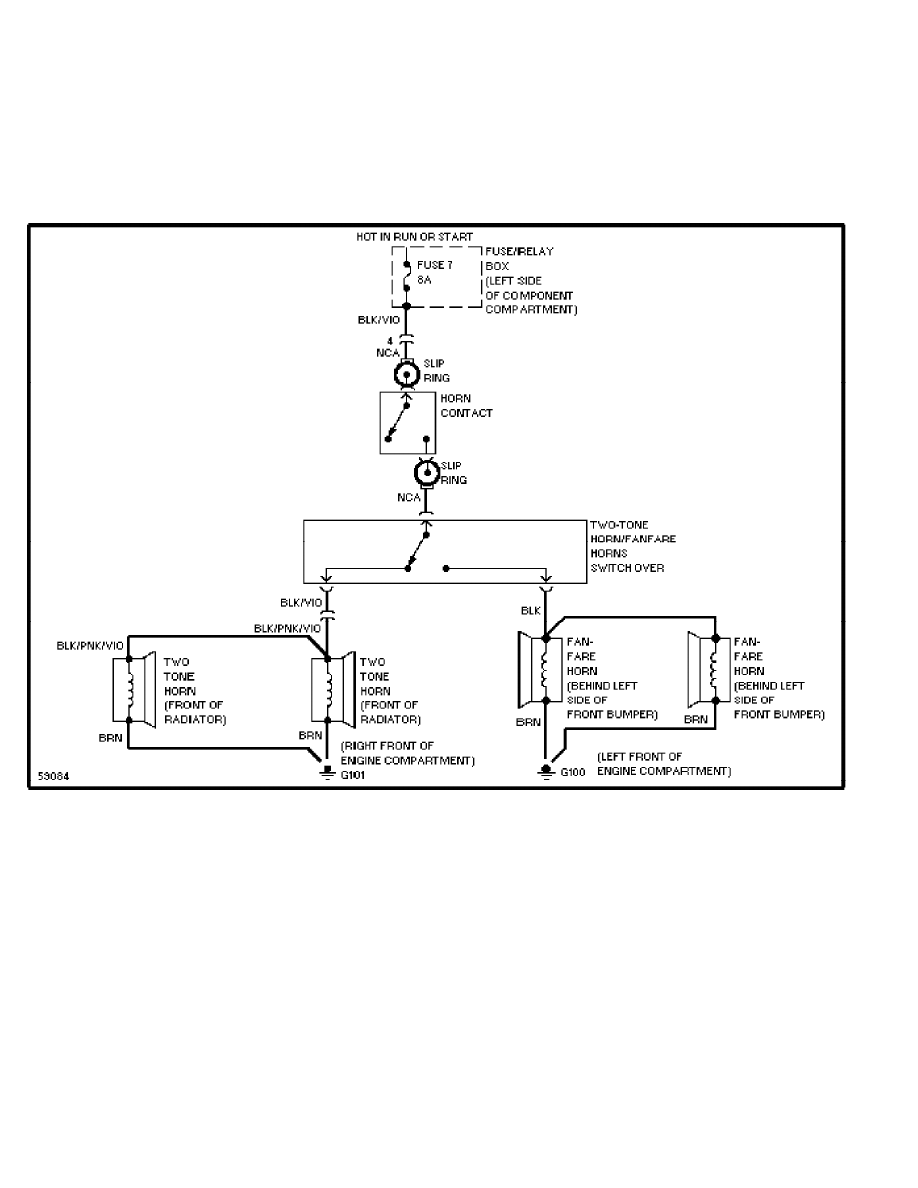

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 3)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, Base Radio (p. 4)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

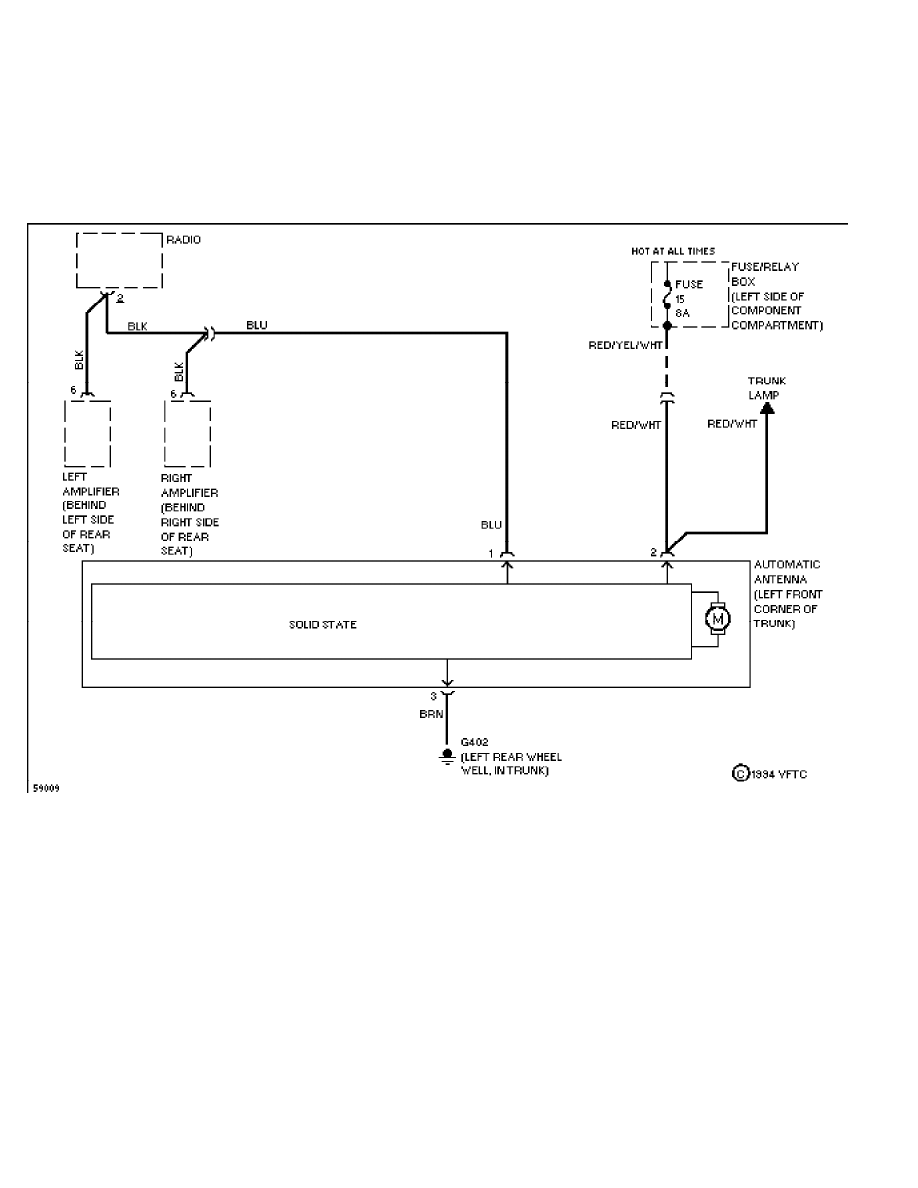

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, One Piece Radio W/ Sound System (p. 5)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

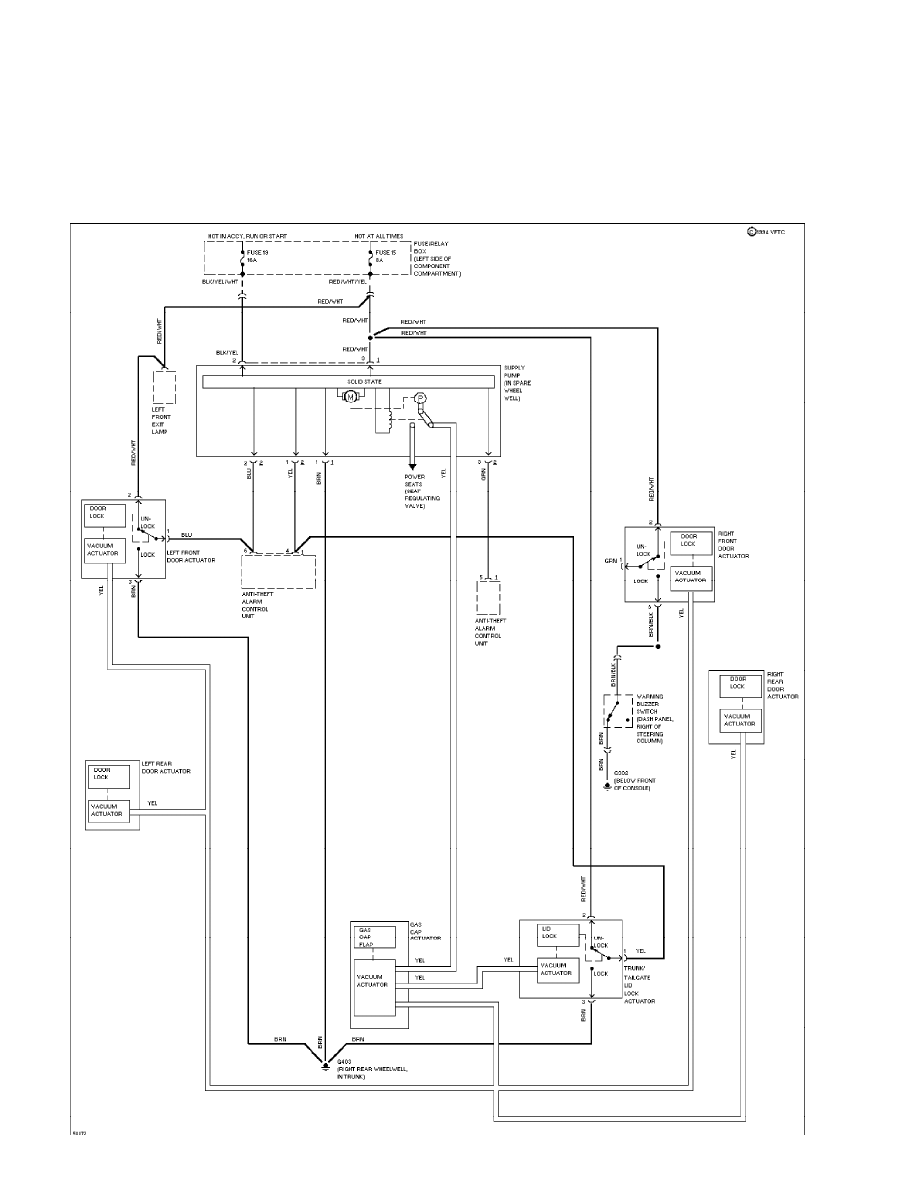

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit (p. 6)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit (p. 7)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

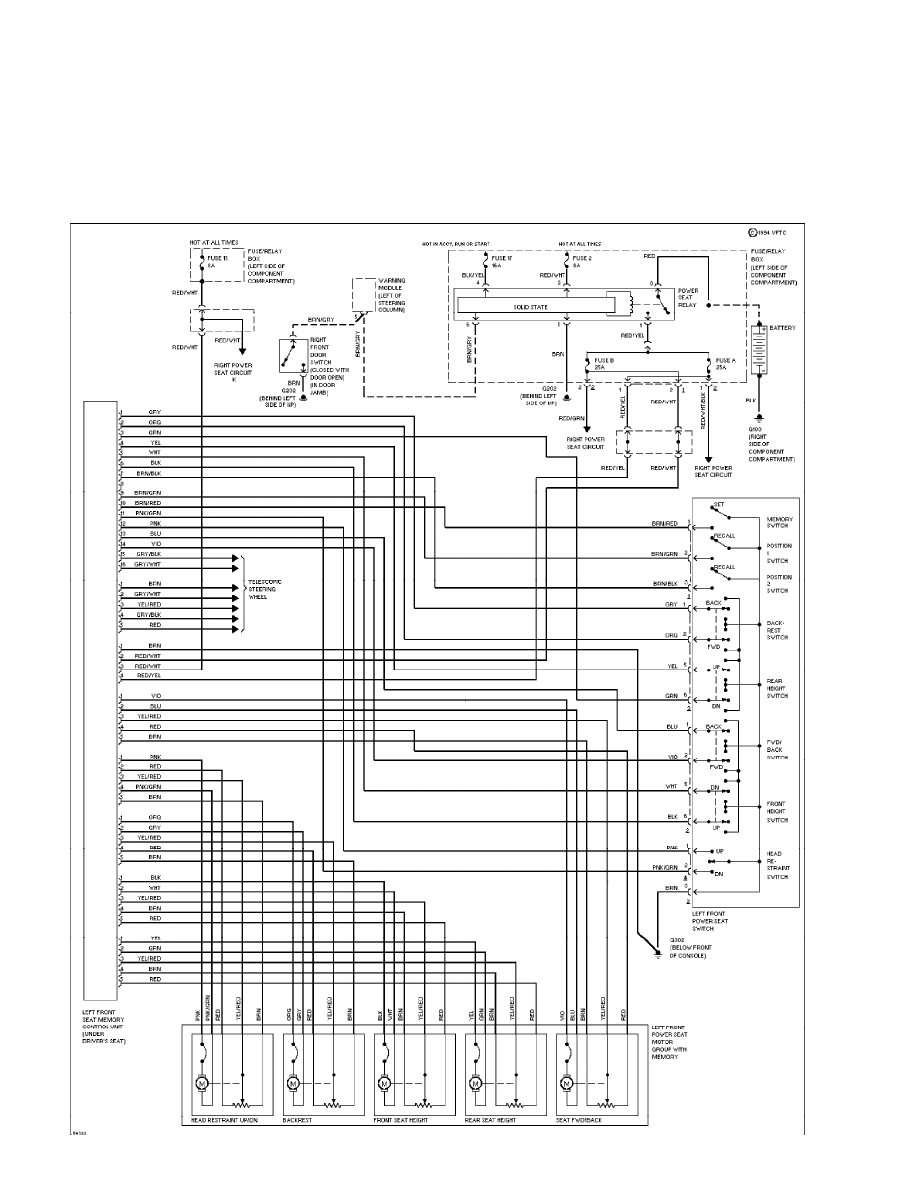

Driver Power Seat Circuit (p. 8)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Front Seat Heater Circuit (p. 9)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

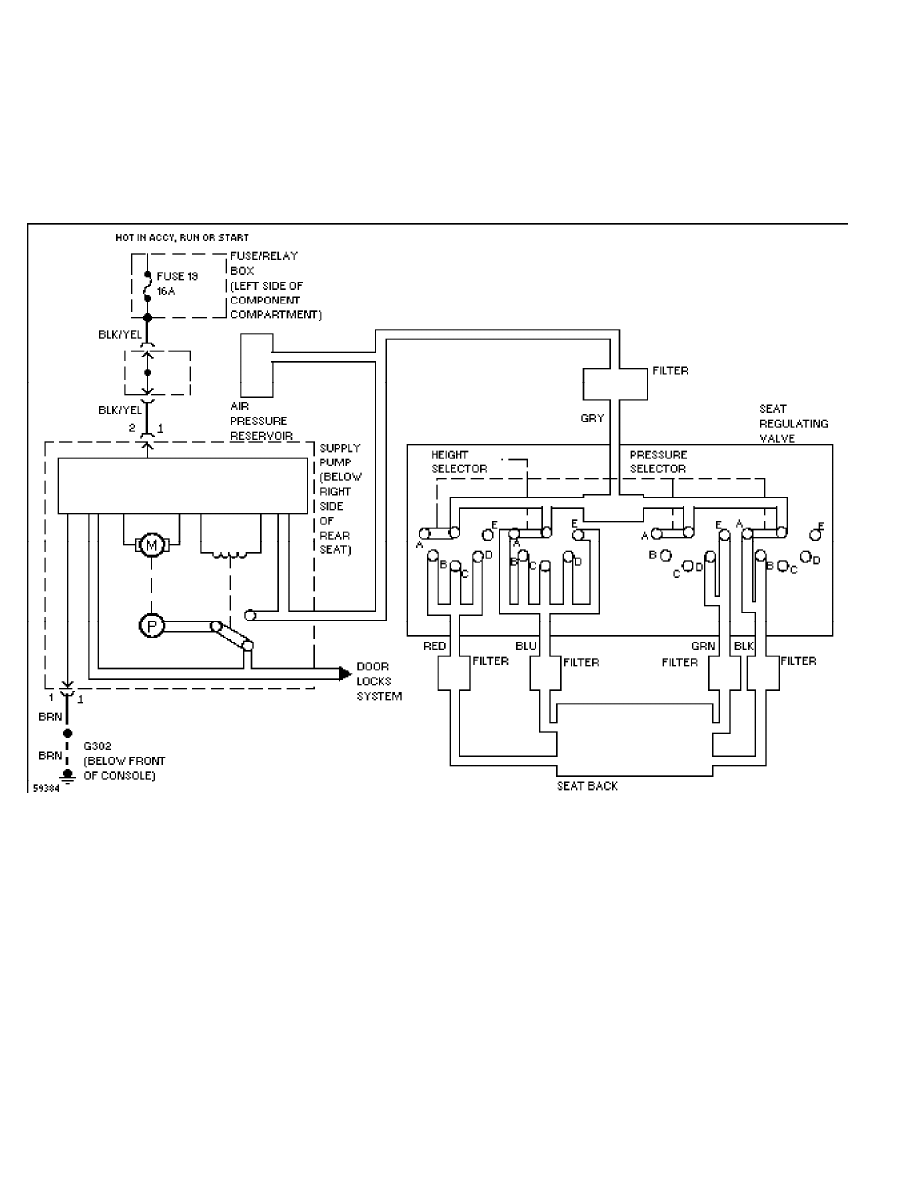

SYSTEM WIRING DIAGRAMS

Orthopedic Seats (p. 10)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

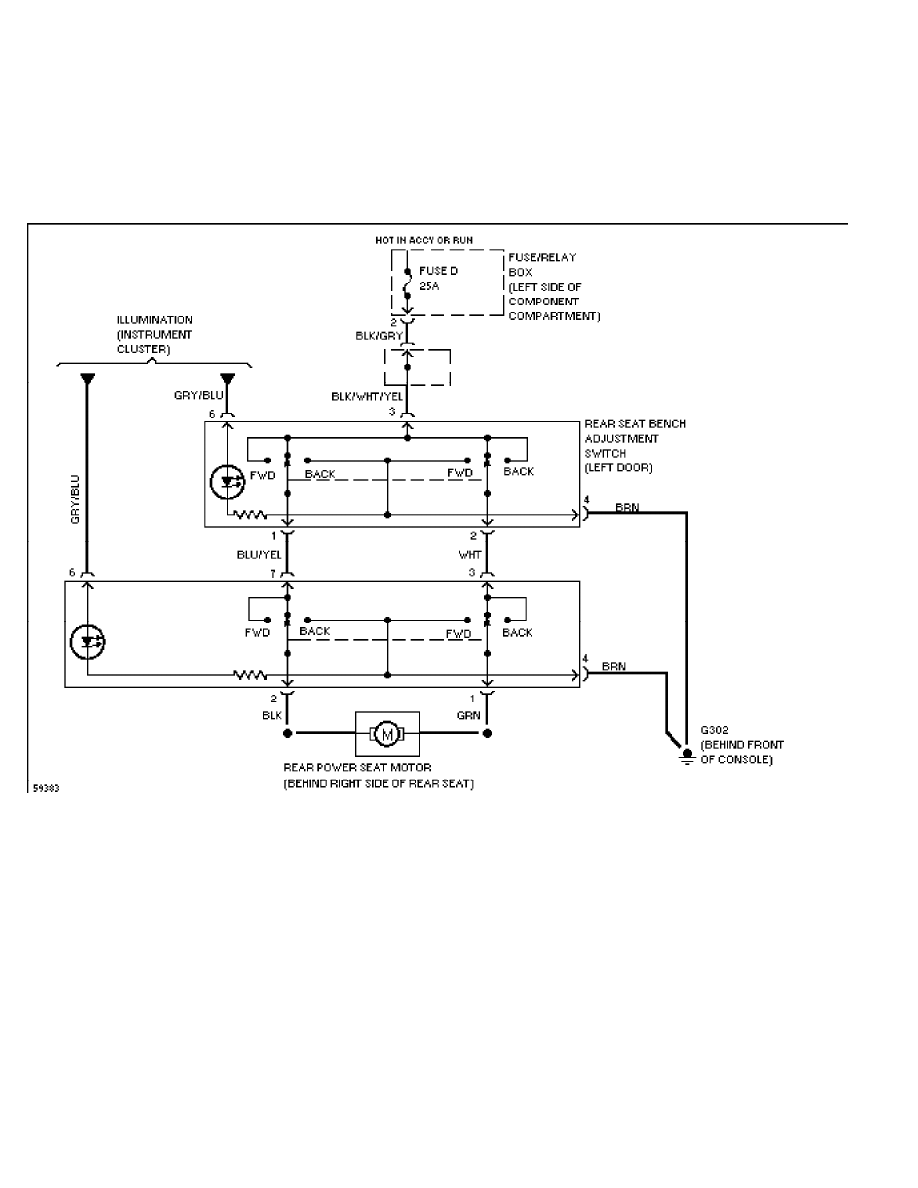

Rear Seat Adjuster Circuit (p. 11)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

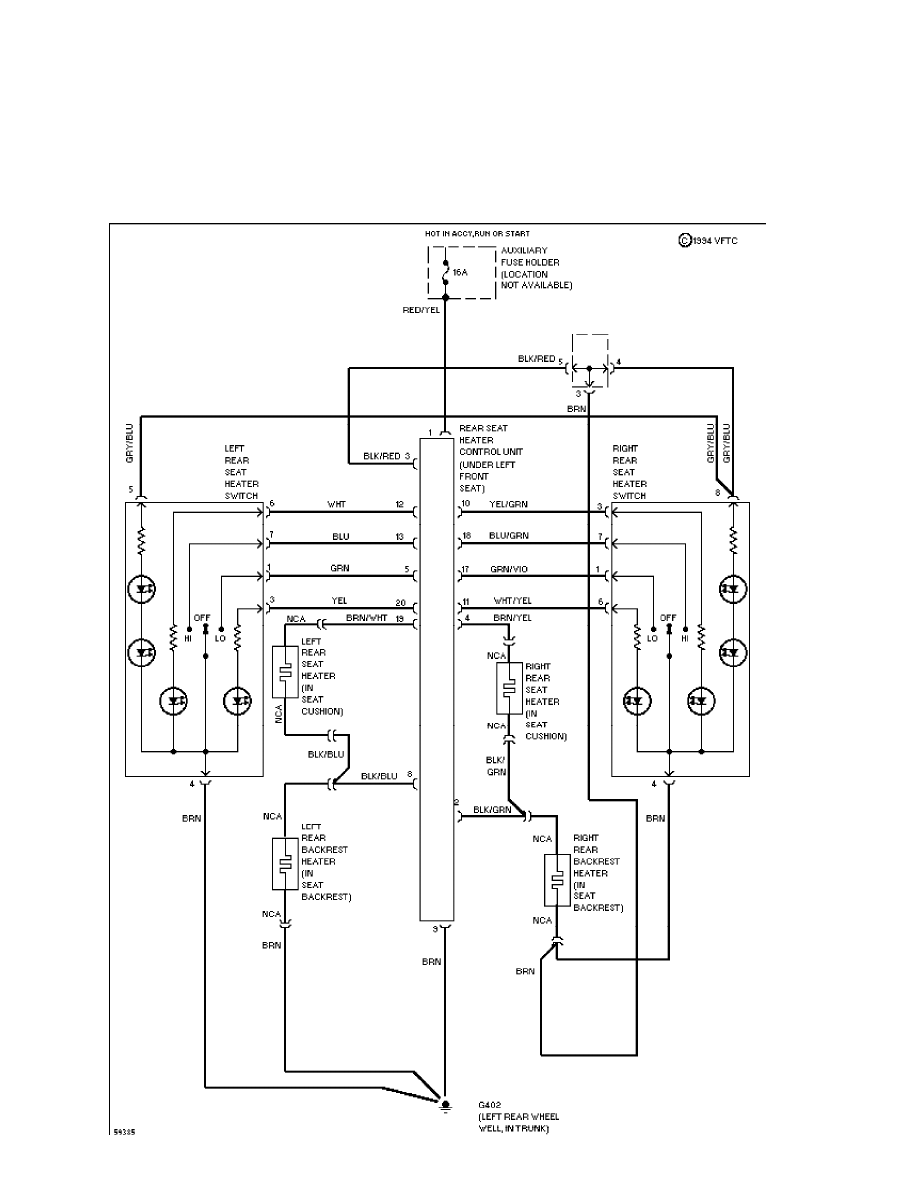

SYSTEM WIRING DIAGRAMS

Rear Seat Heater Circuit (p. 12)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

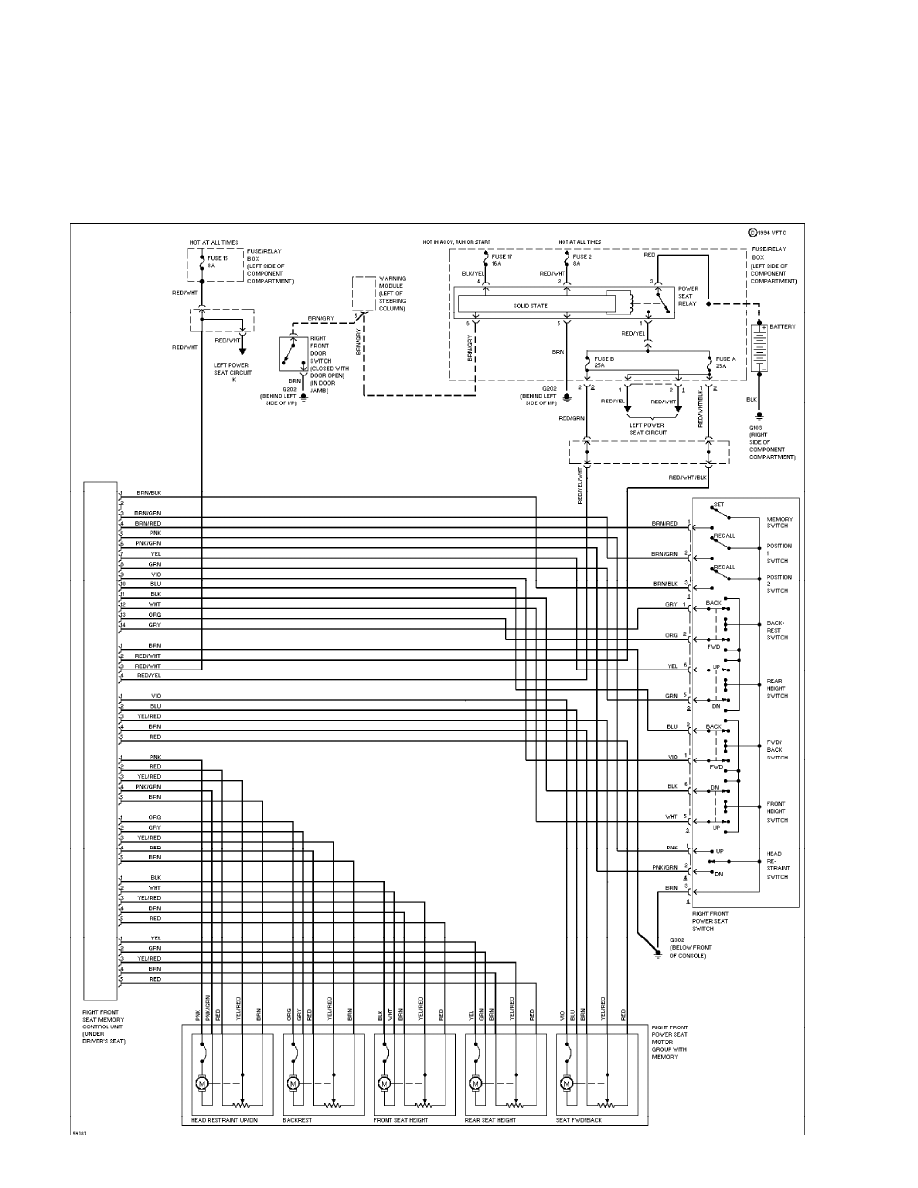

SYSTEM WIRING DIAGRAMS

Right Seat Circuit (p. 13)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

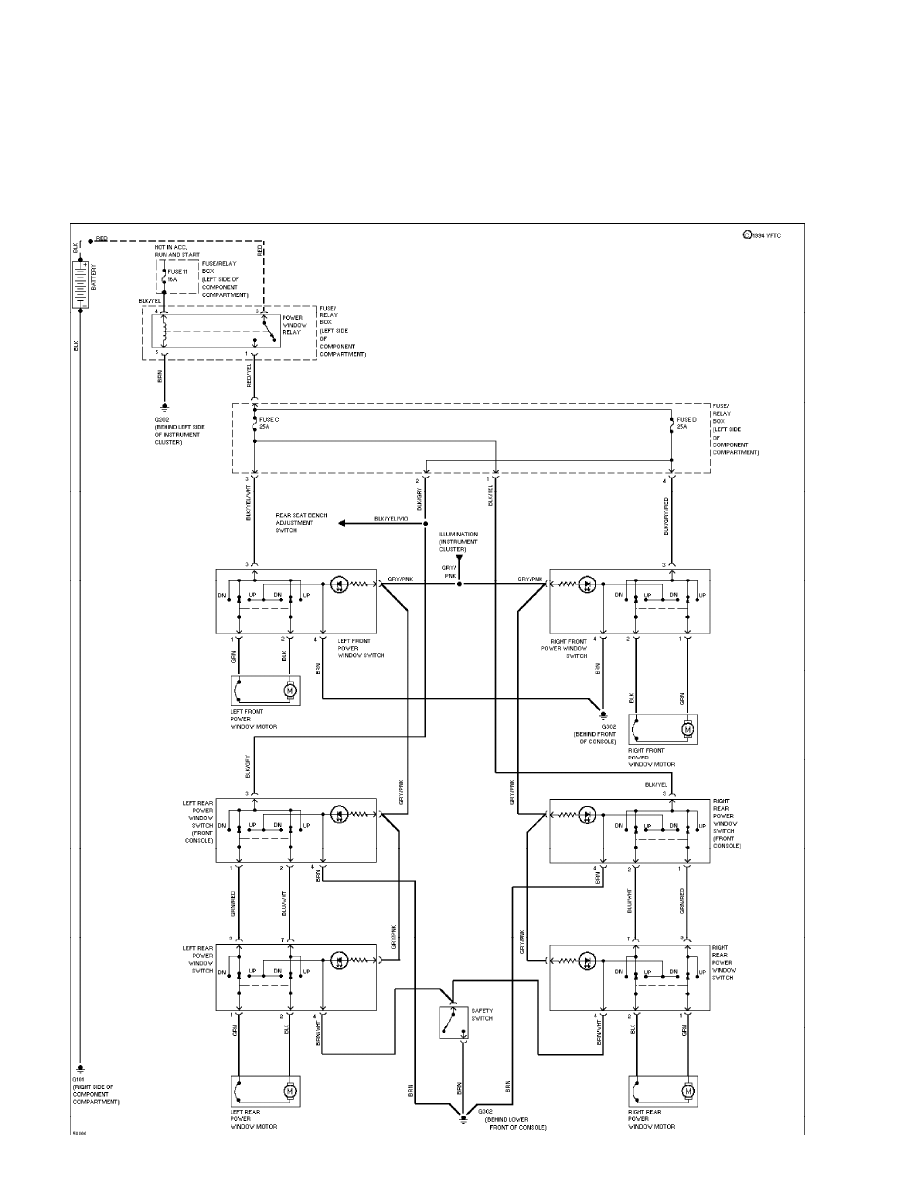

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 14)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 15)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 16)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

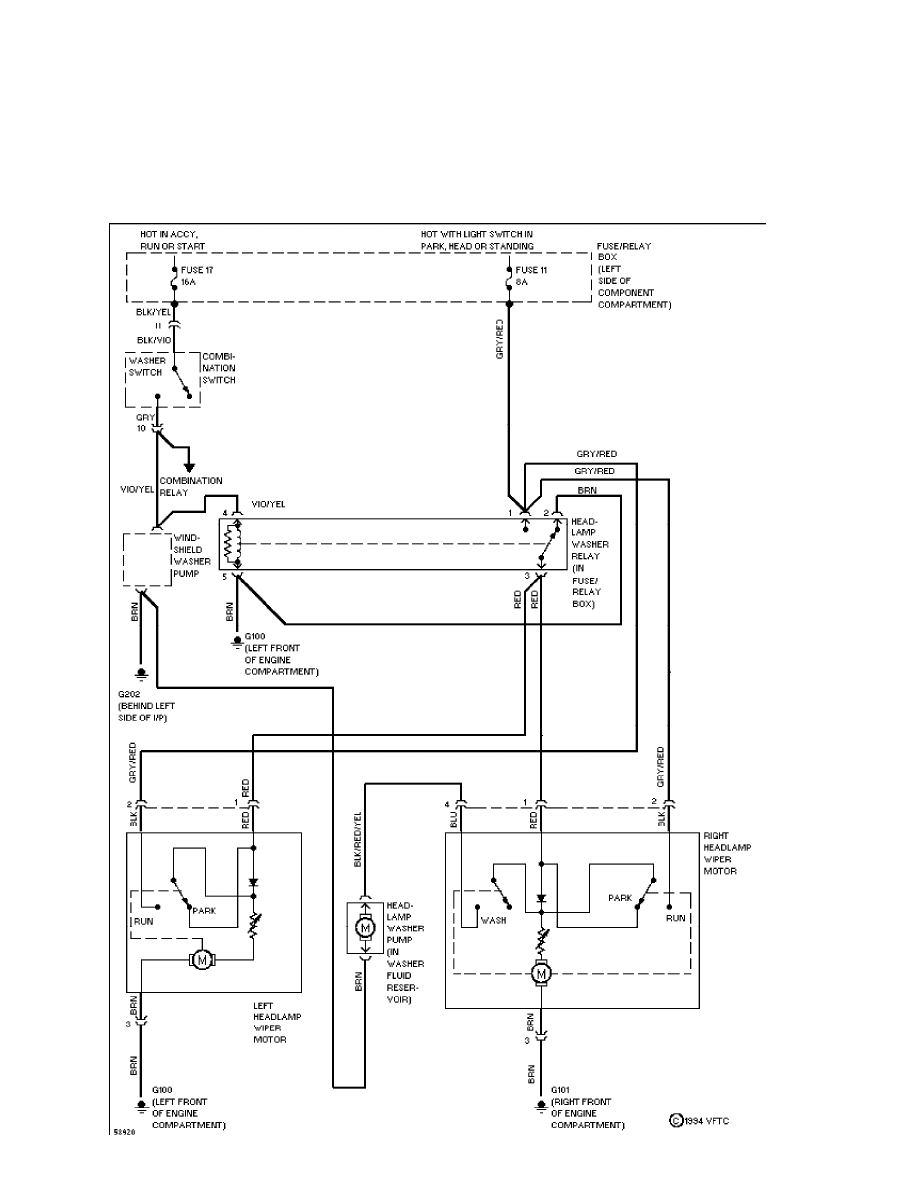

SYSTEM WIRING DIAGRAMS

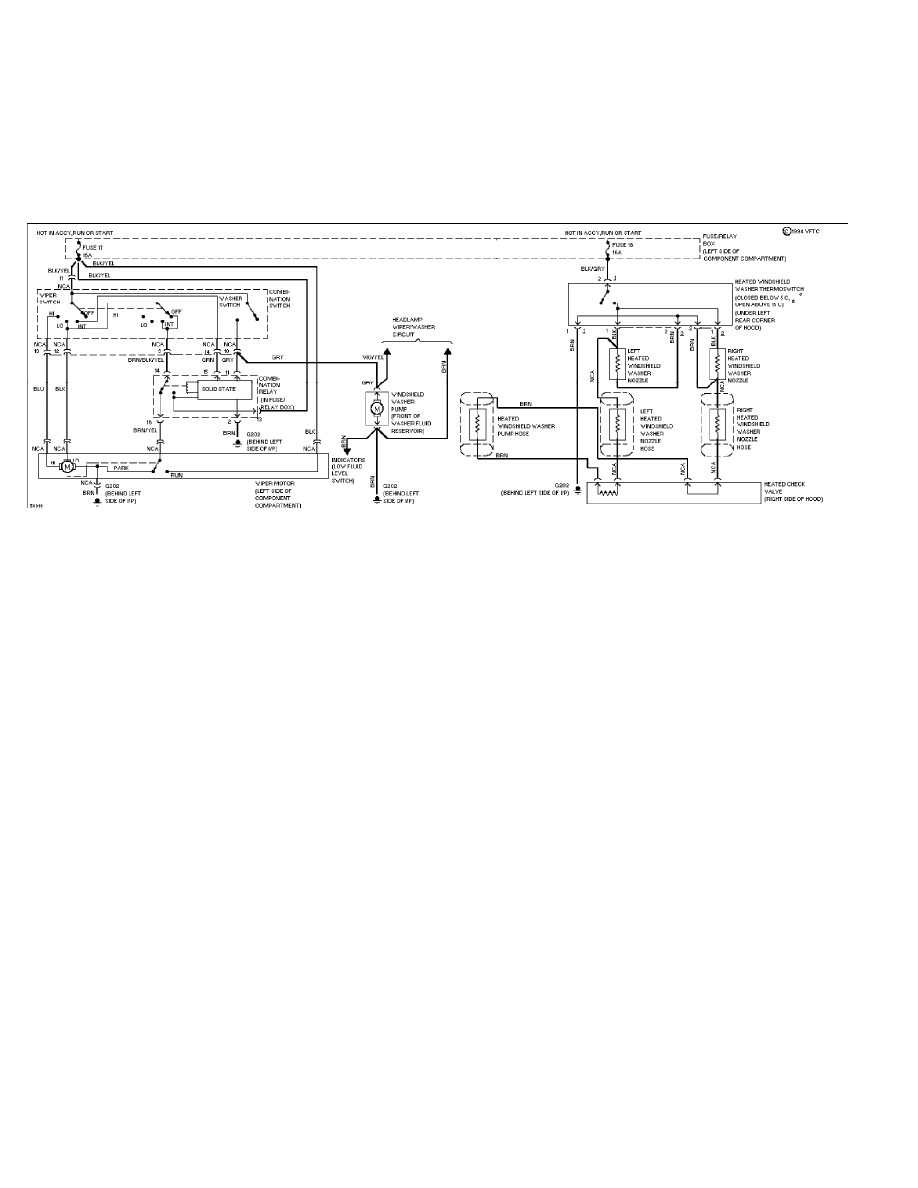

Headlight Washer/Wiper Circuit (p. 17)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit (p. 18)

1991 Mercedes-Benz 300SEL

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 02:13PM
