KIA RIO 2002

background image

SYSTEM WIRING DIAGRAMS

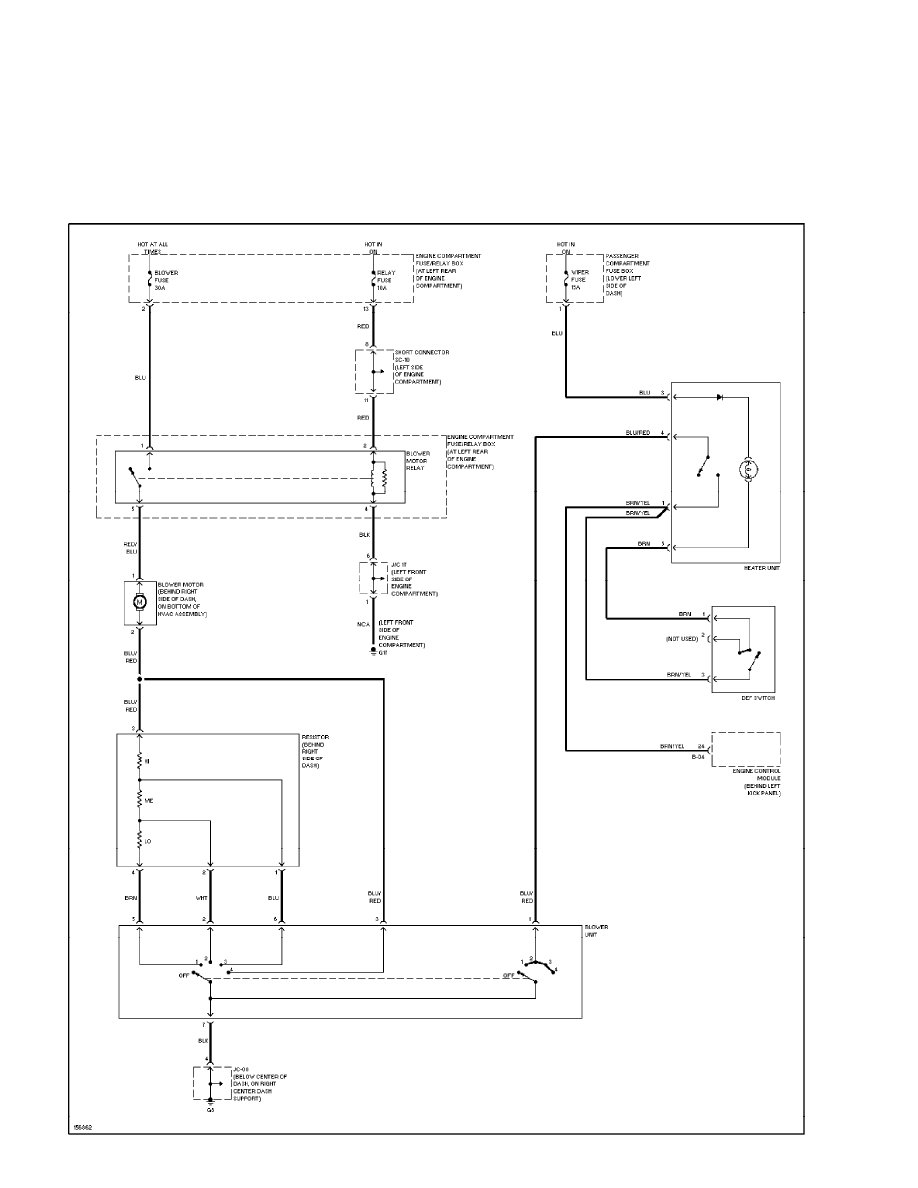

Heater Circuit

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Manual A/C Circuit (p. 2)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

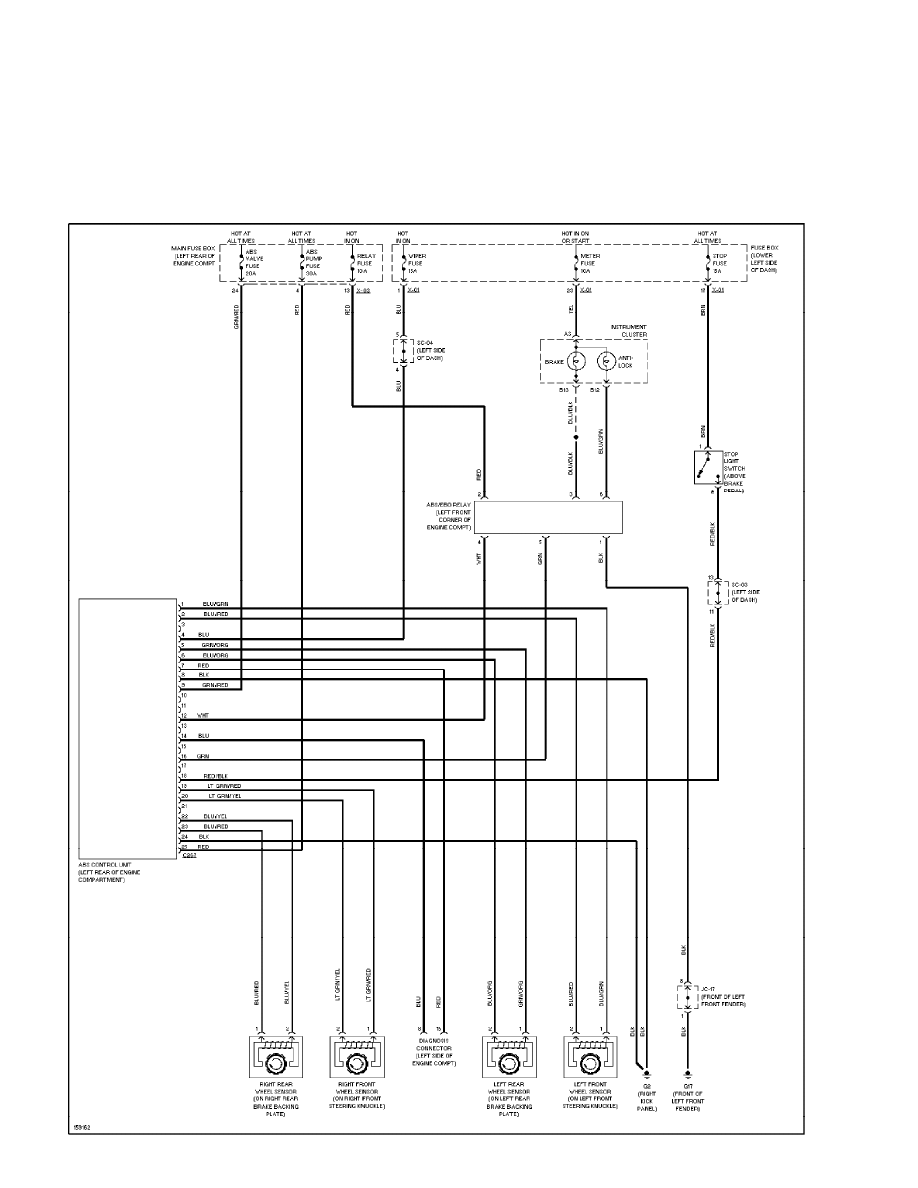

Anti-lock Brake Circuits (p. 3)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Computer Data Lines (p. 4)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

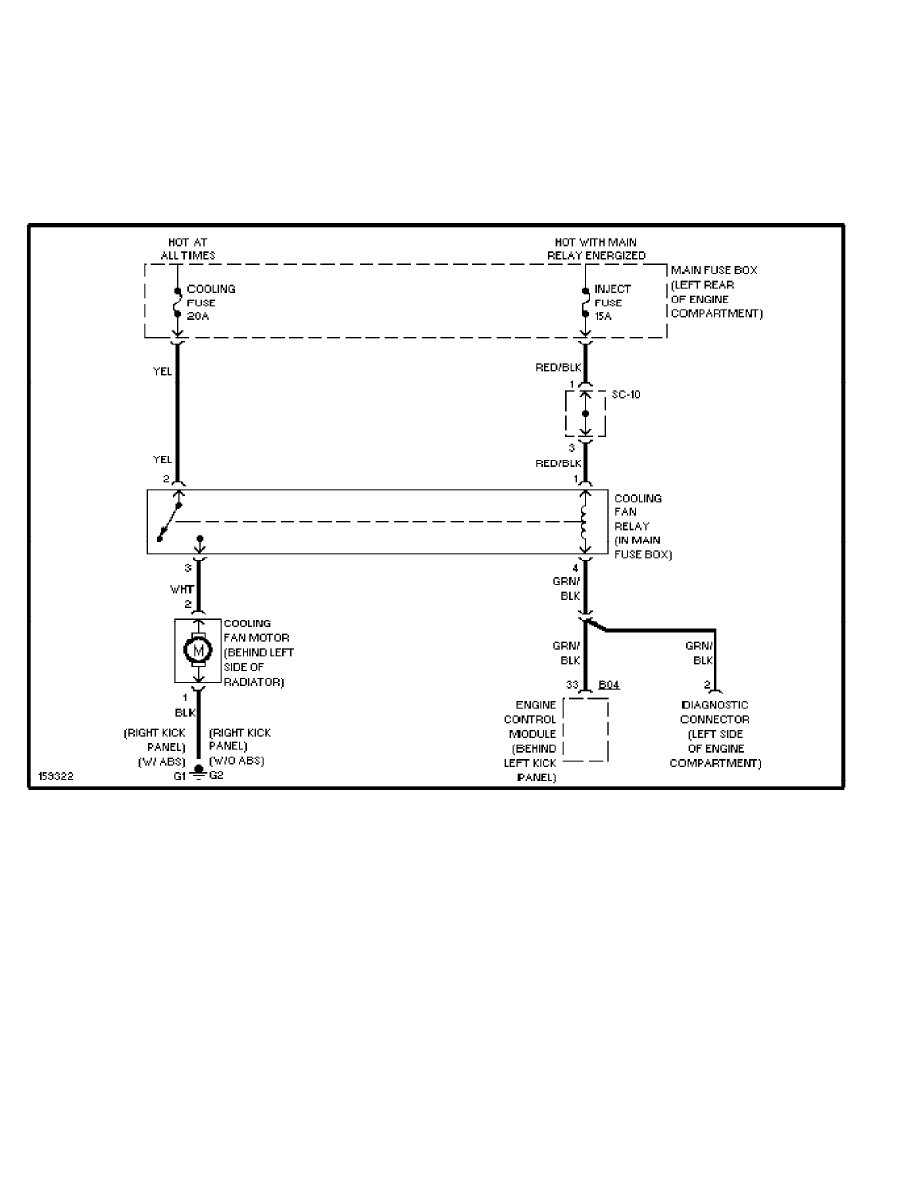

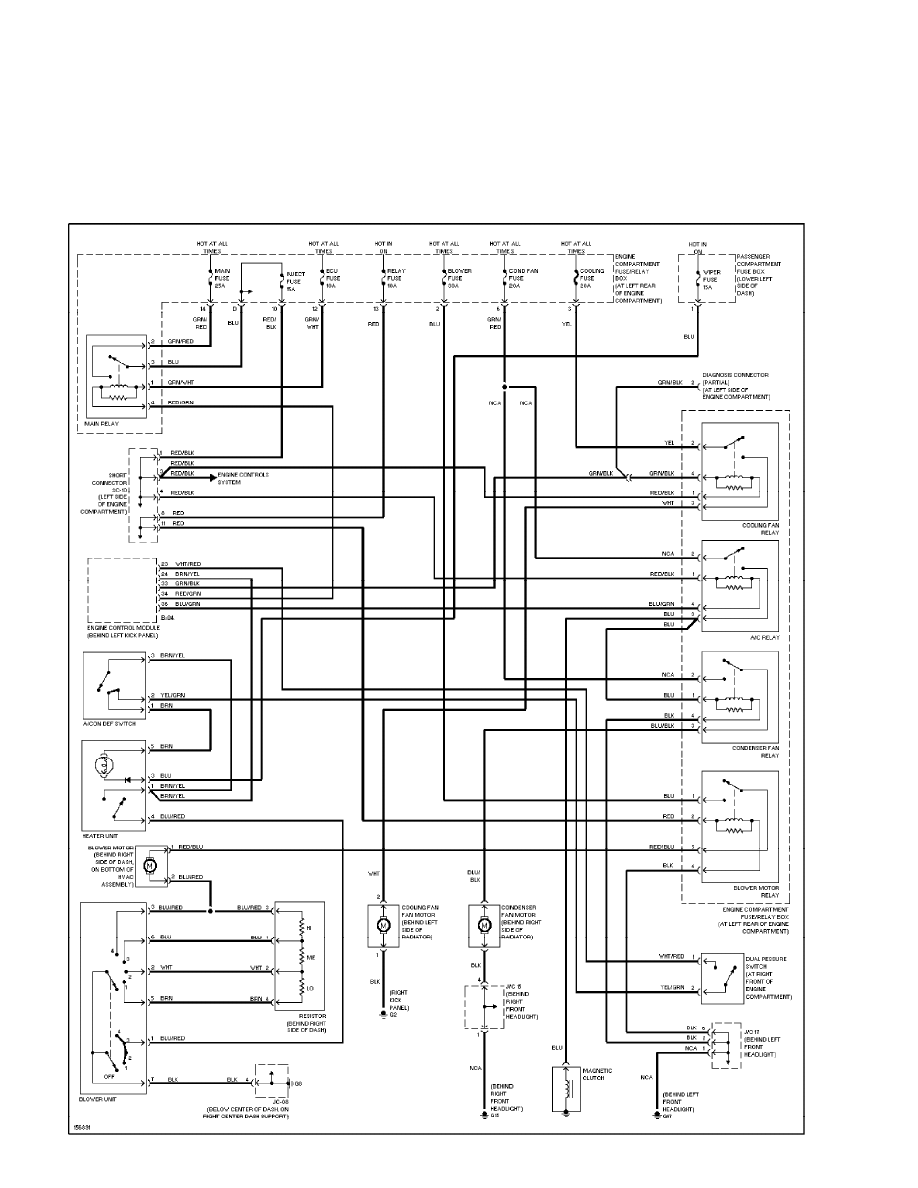

Cooling Fan Circuit (p. 5)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

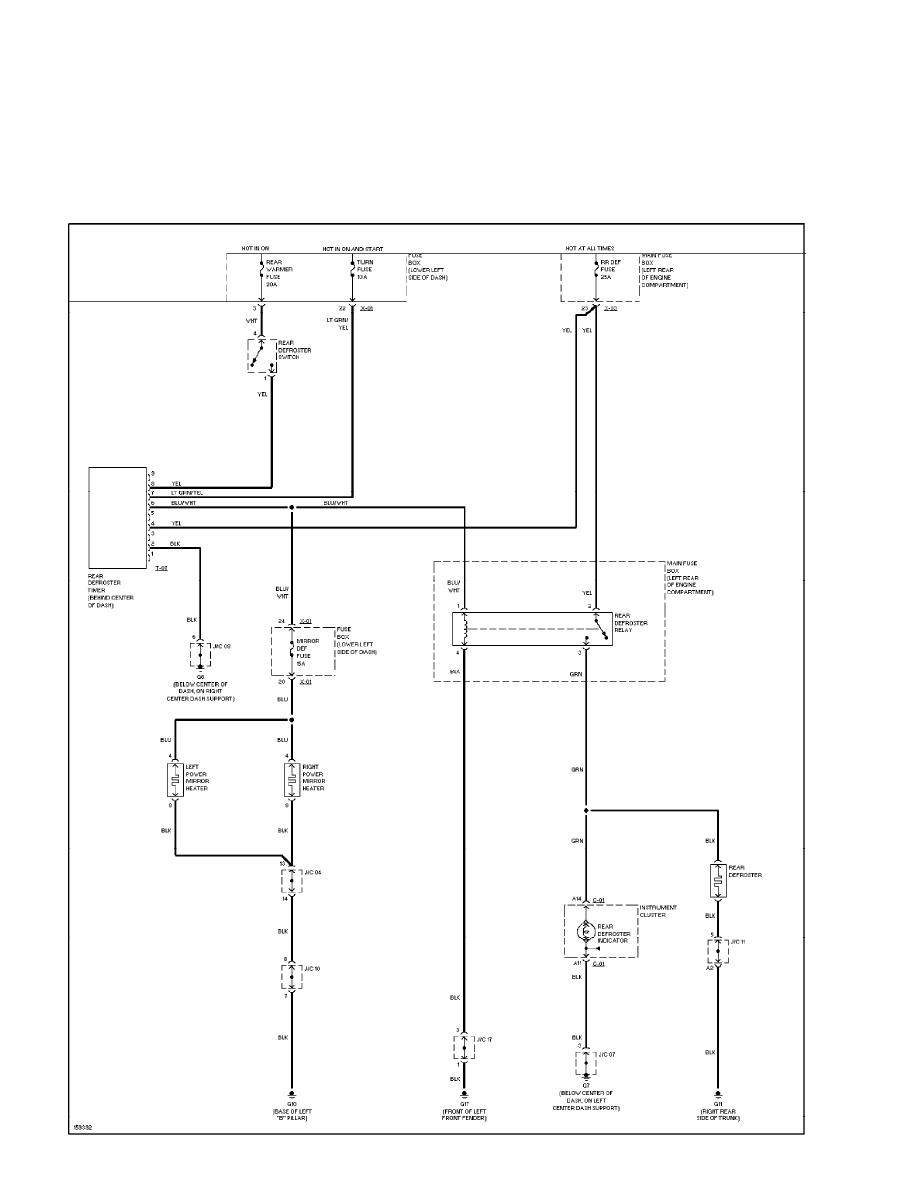

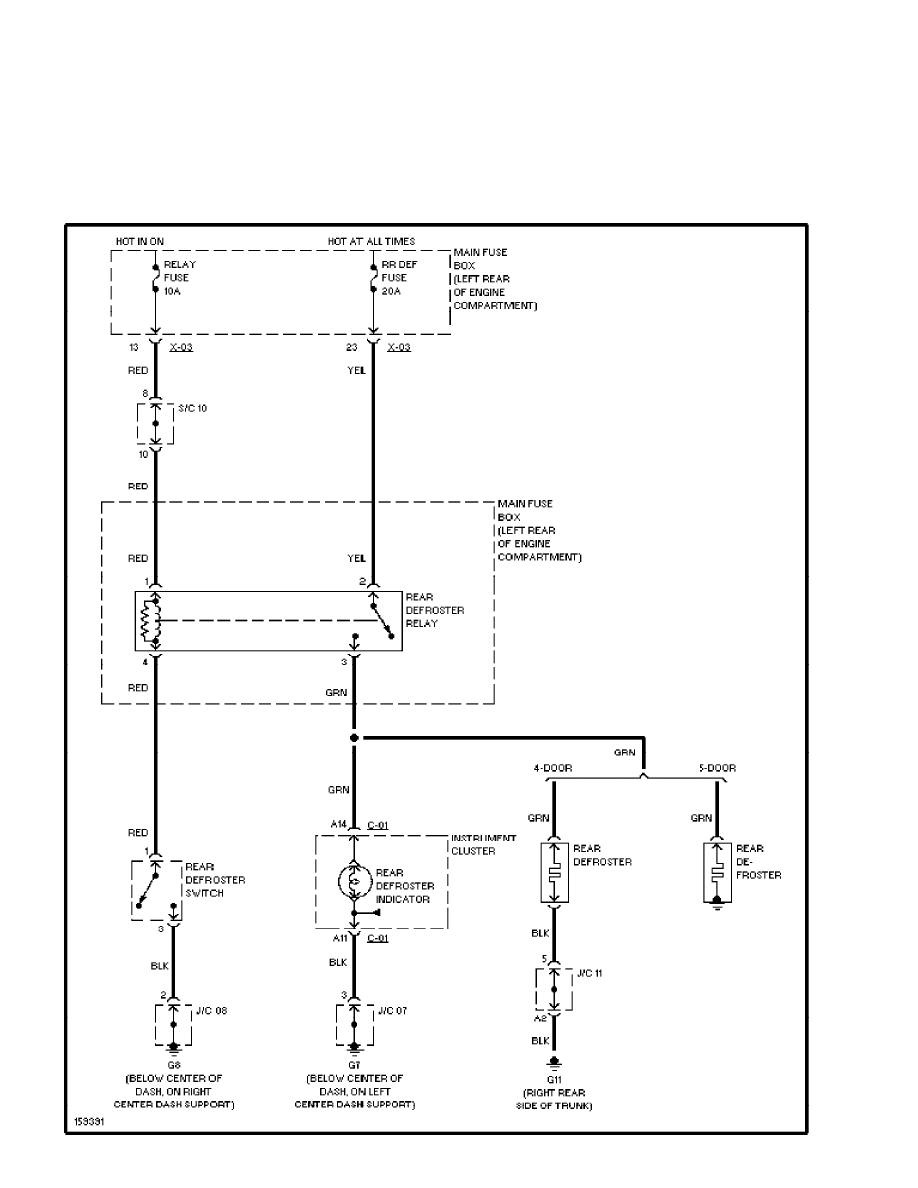

Defogger Circuit, W/ Mirror Defoggers (p. 6)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Defogger Circuit, W/O Mirror Defoggers (p. 7)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

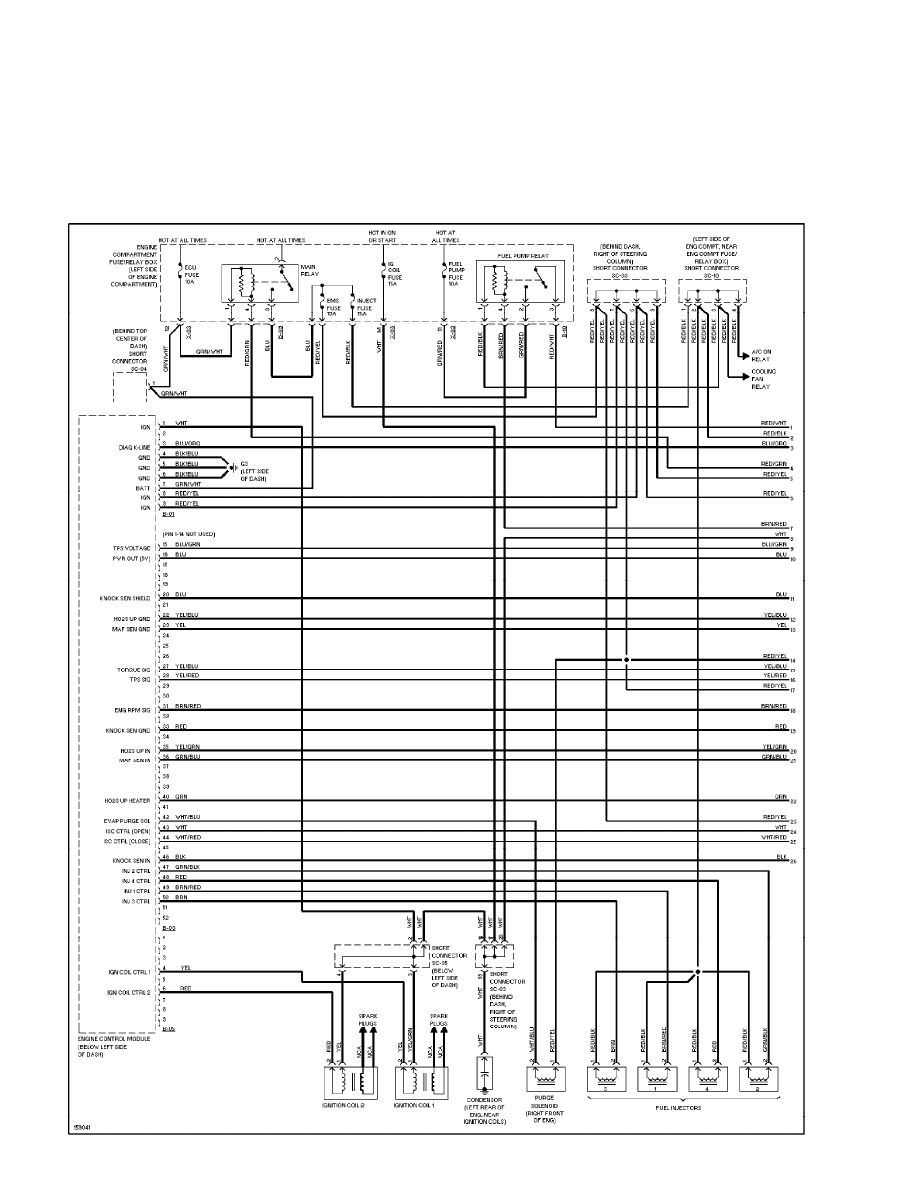

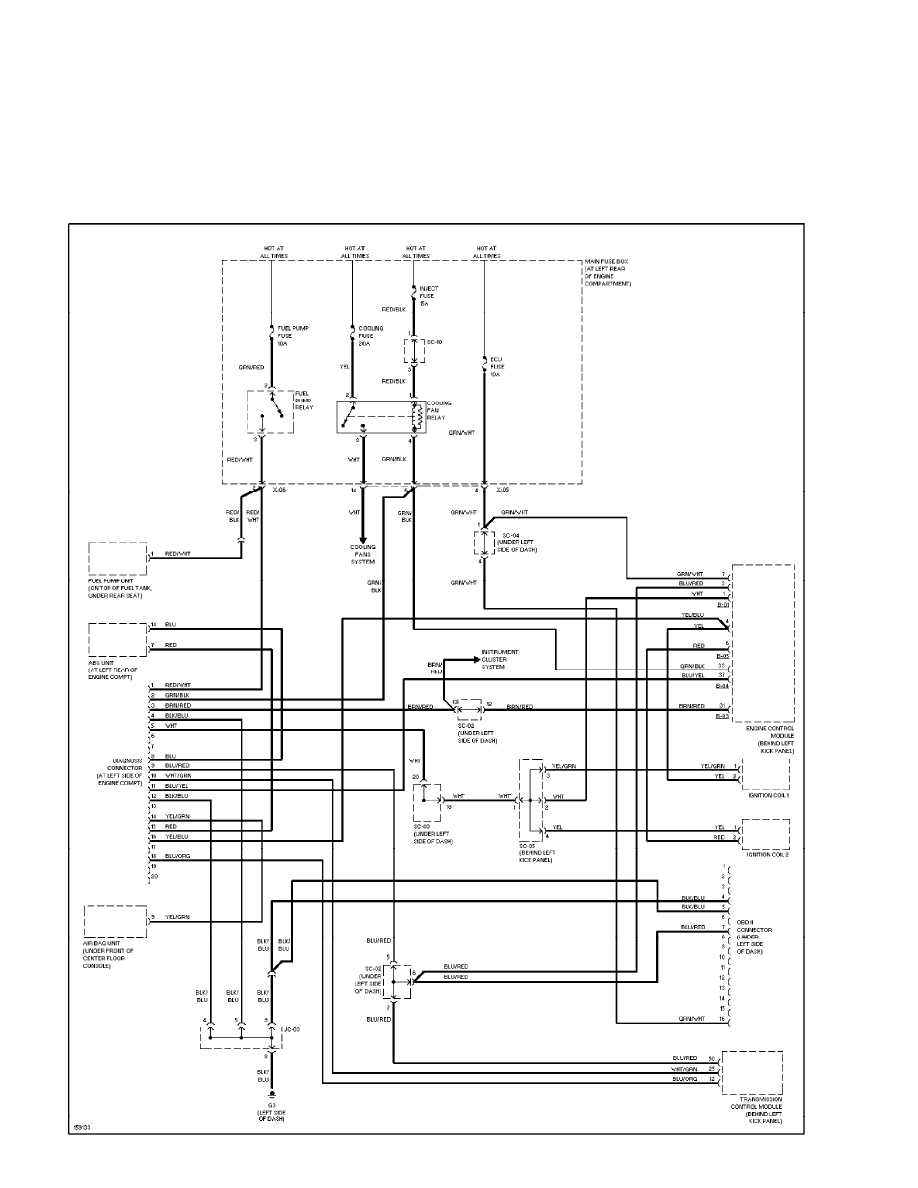

1.5L, Engine Performance Circuits (1 of 3) (p. 8)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

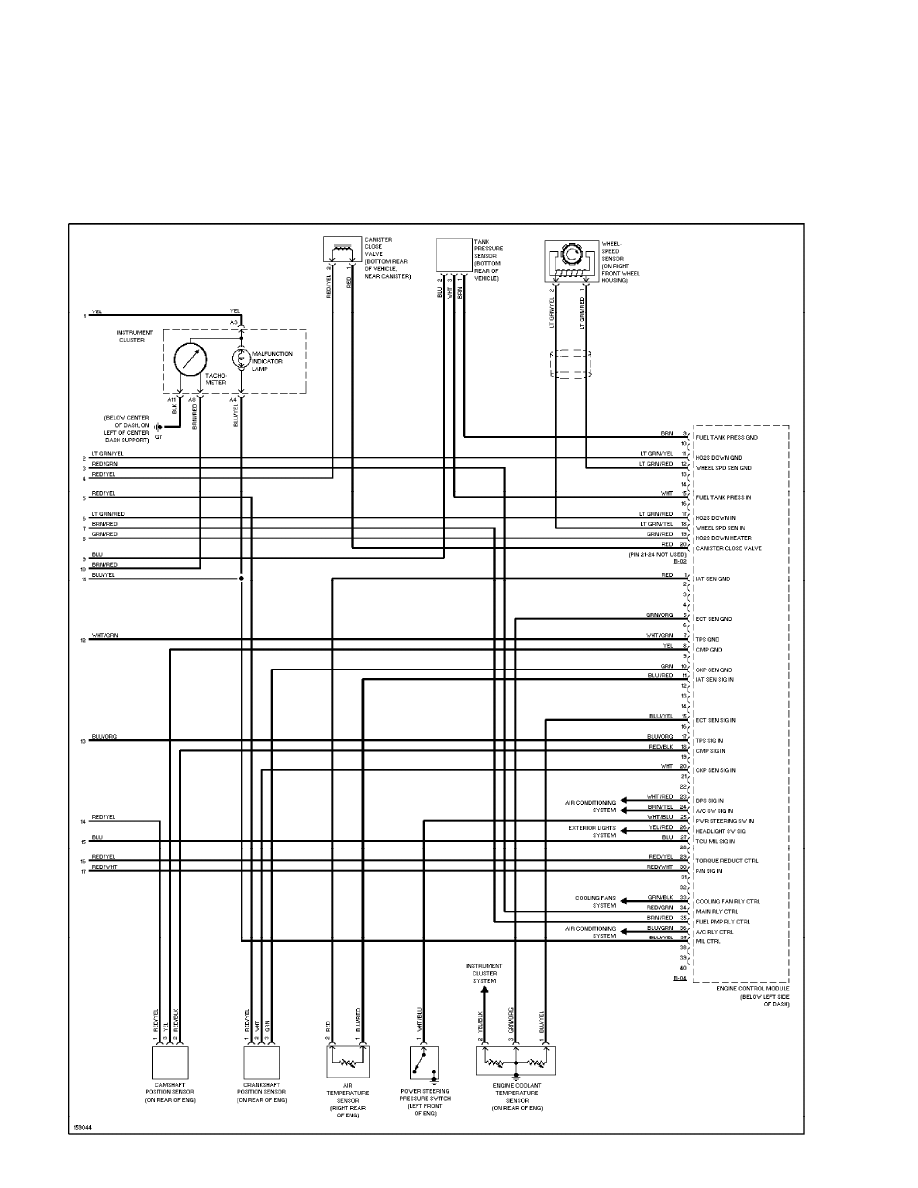

1.5L, Engine Performance Circuits (2 of 3) (p. 9)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

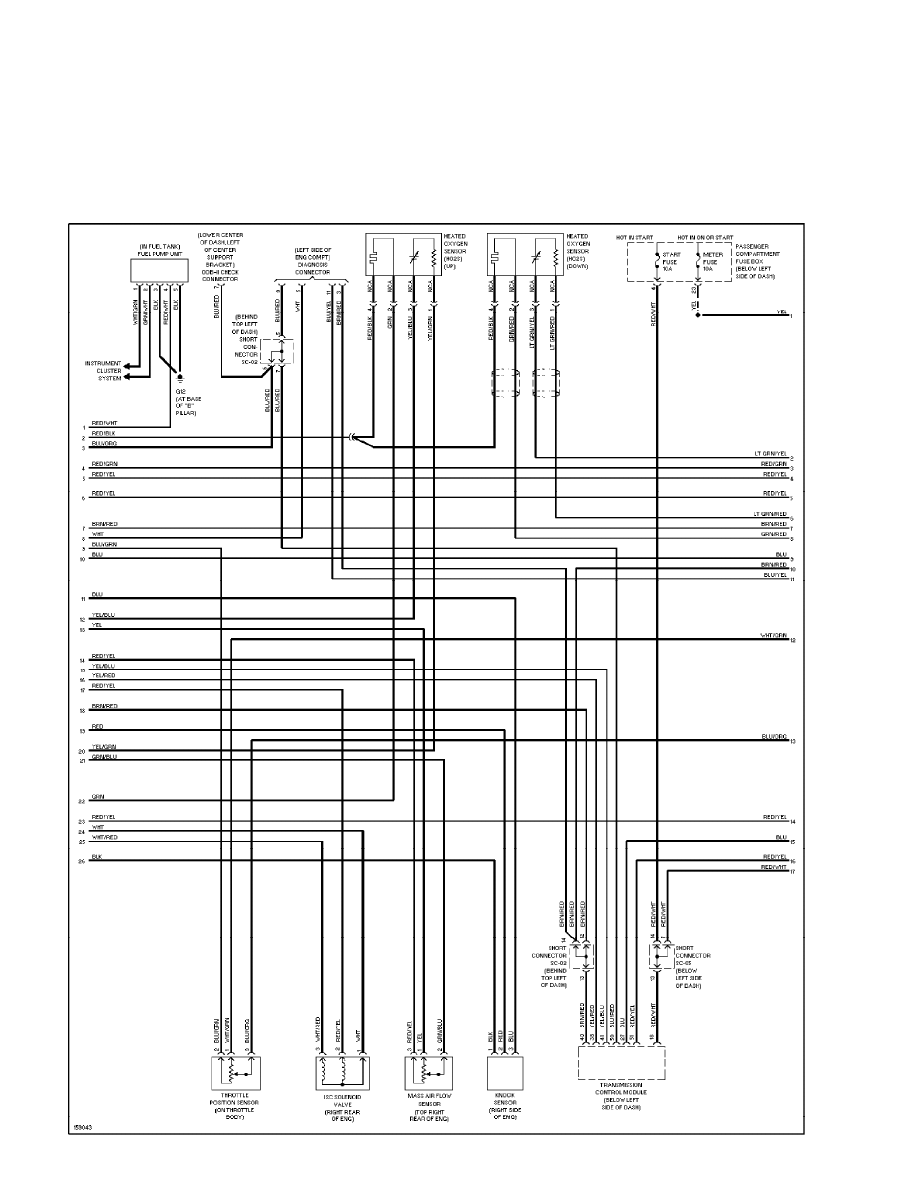

1.5L, Engine Performance Circuits (3 of 3) (p. 10)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

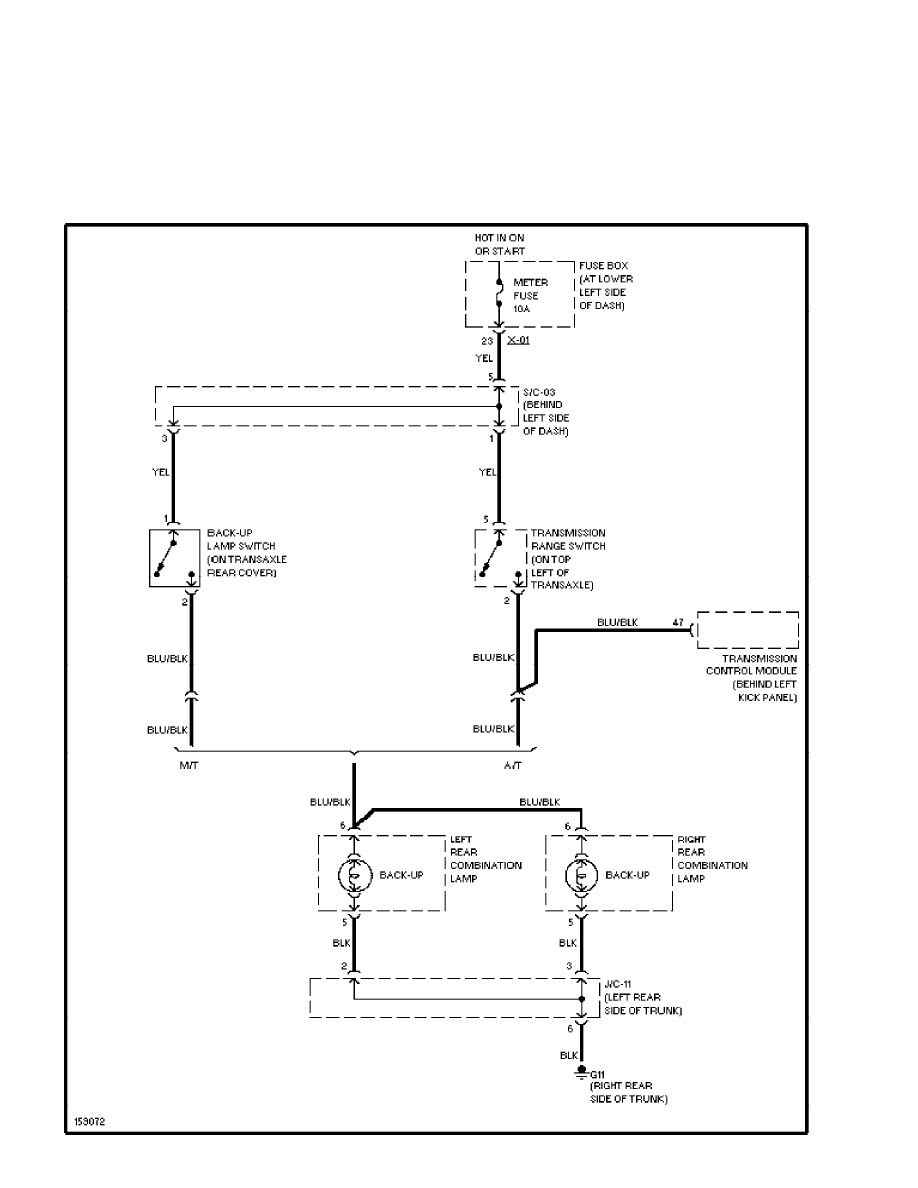

Back-up Lamps Circuit (p. 11)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

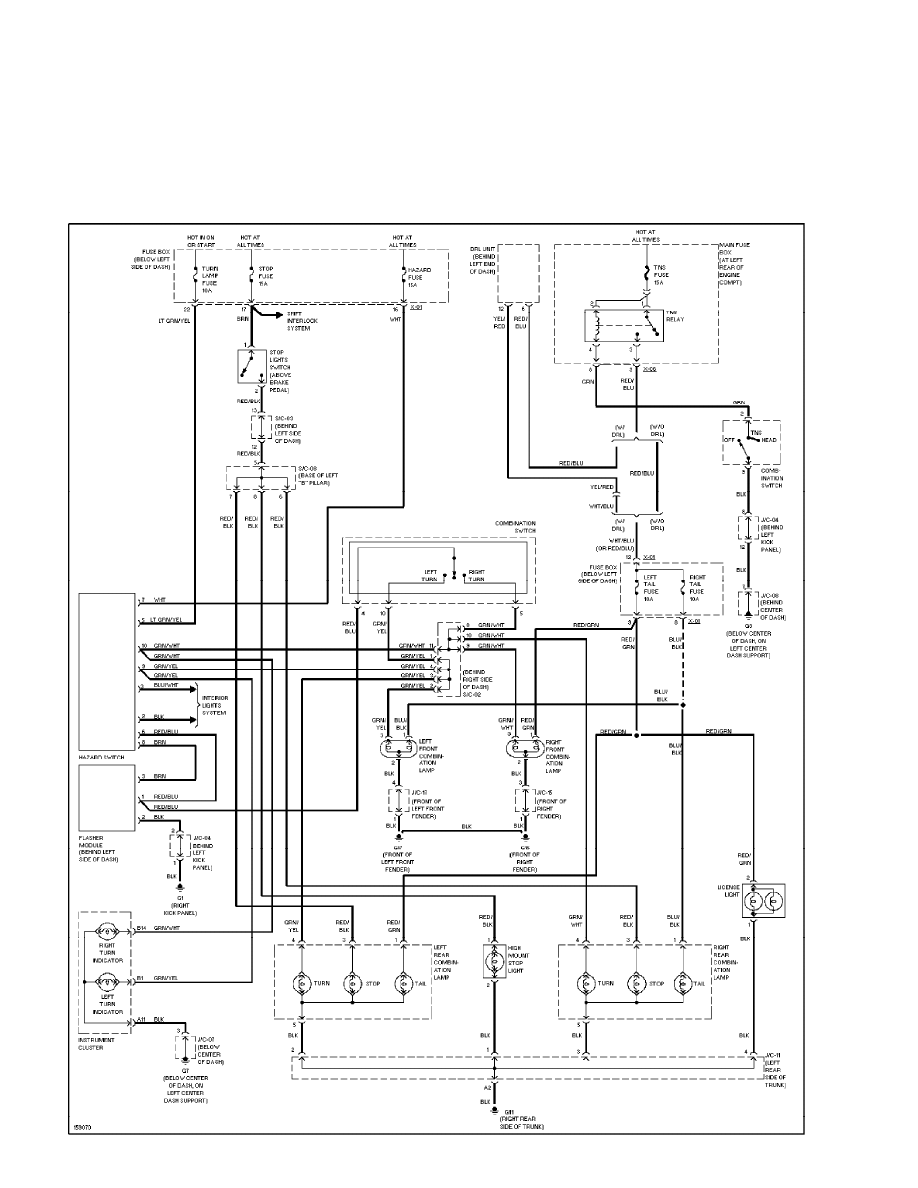

Exterior Lamps Circuit, 4 Door (p. 12)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

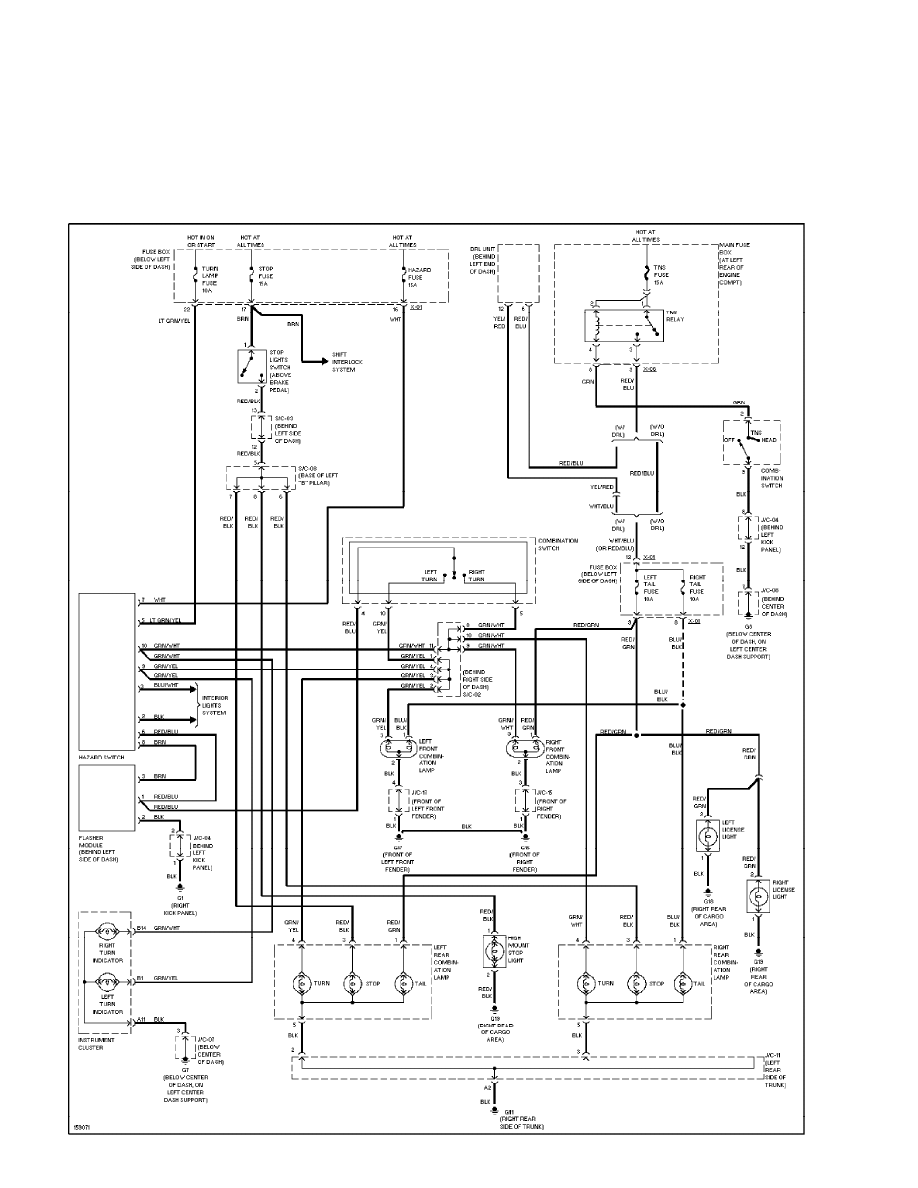

Exterior Lamps Circuit, 5 Door (p. 13)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

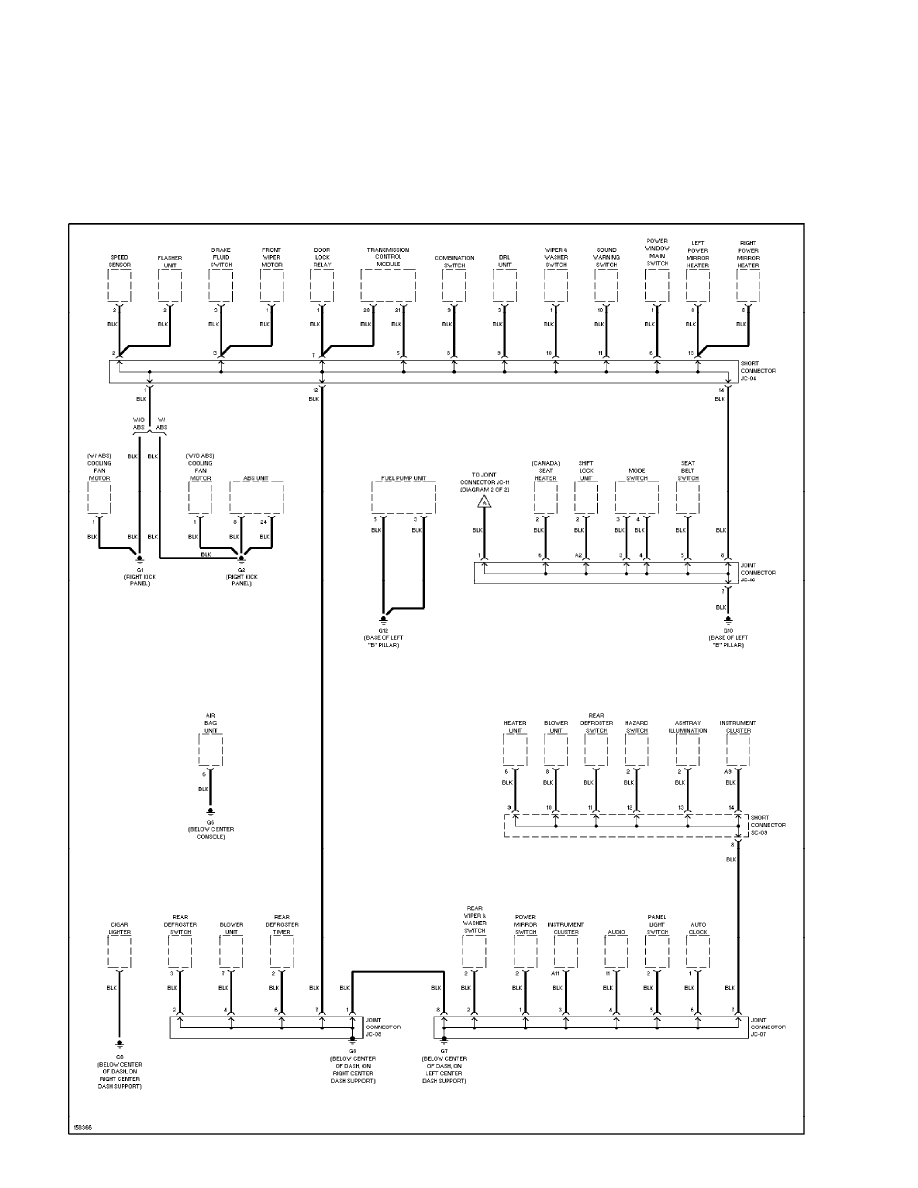

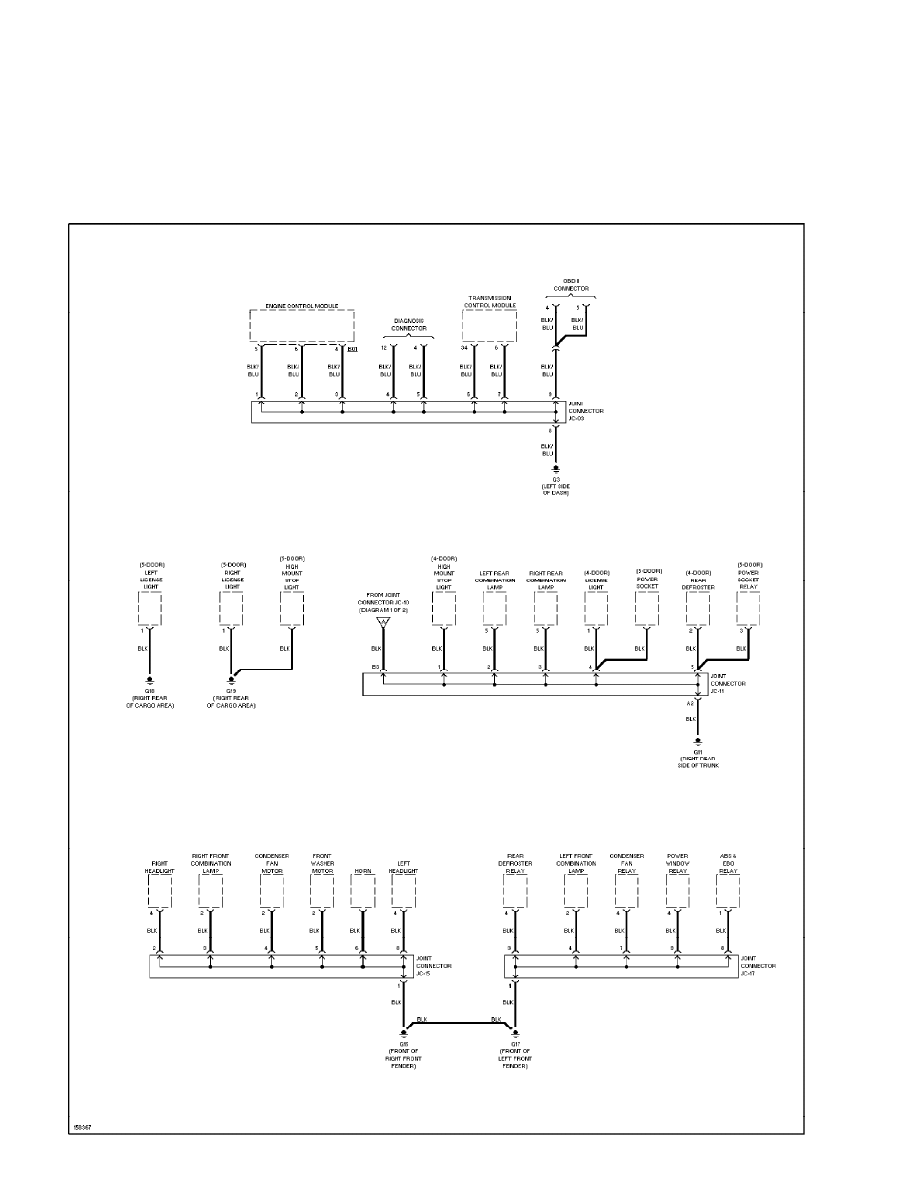

Ground Distribution Circuit (1 of 2) (p. 14)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 2) (p. 15)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

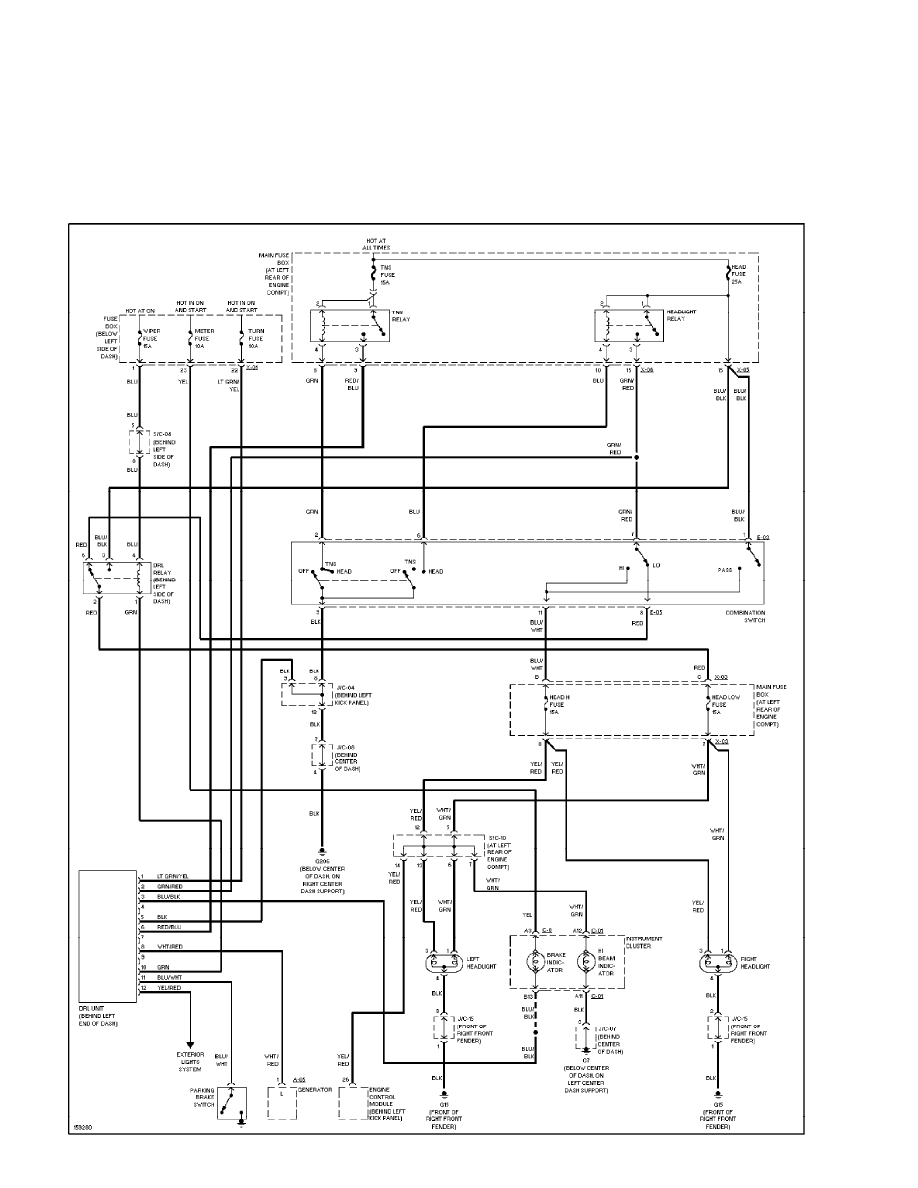

Headlight Circuit, W/ DRL (p. 16)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

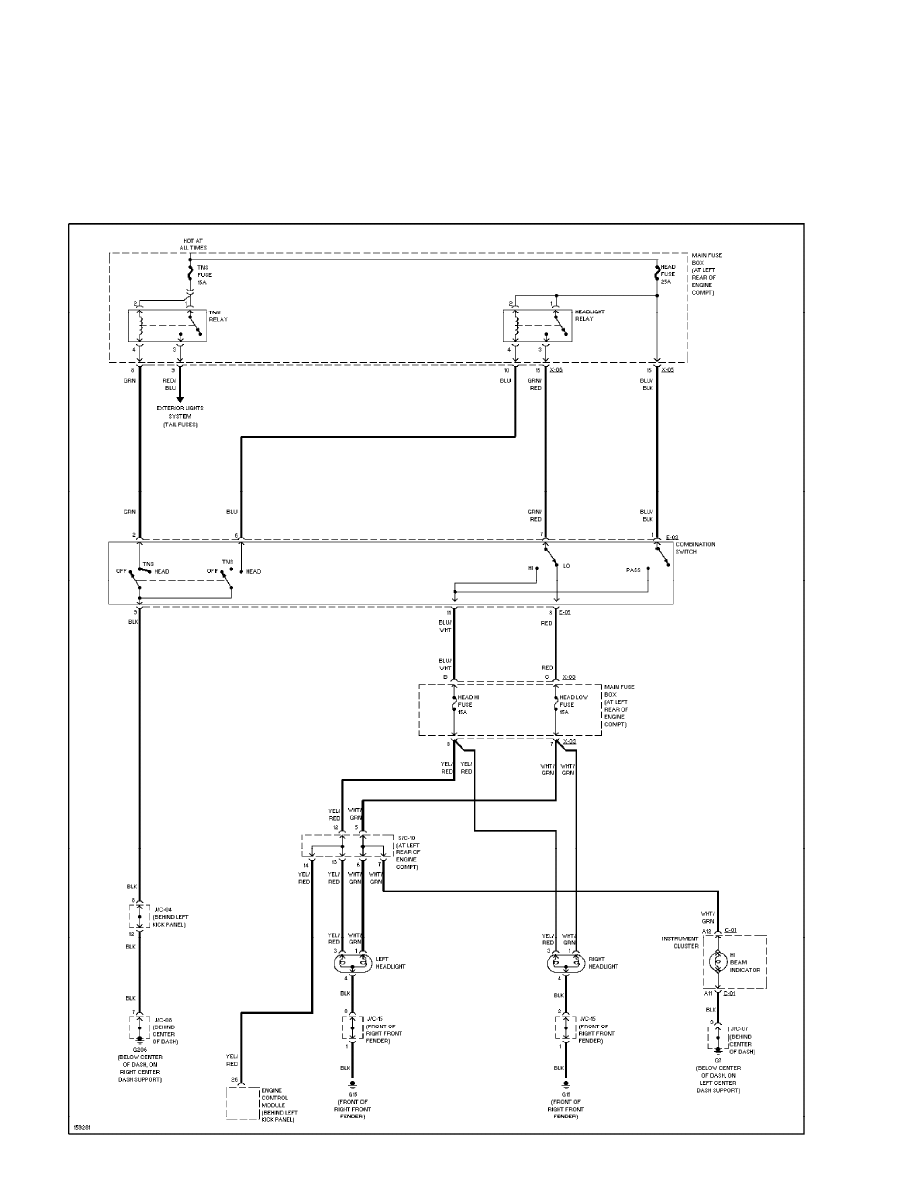

Headlight Circuit, W/O DRL (p. 17)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

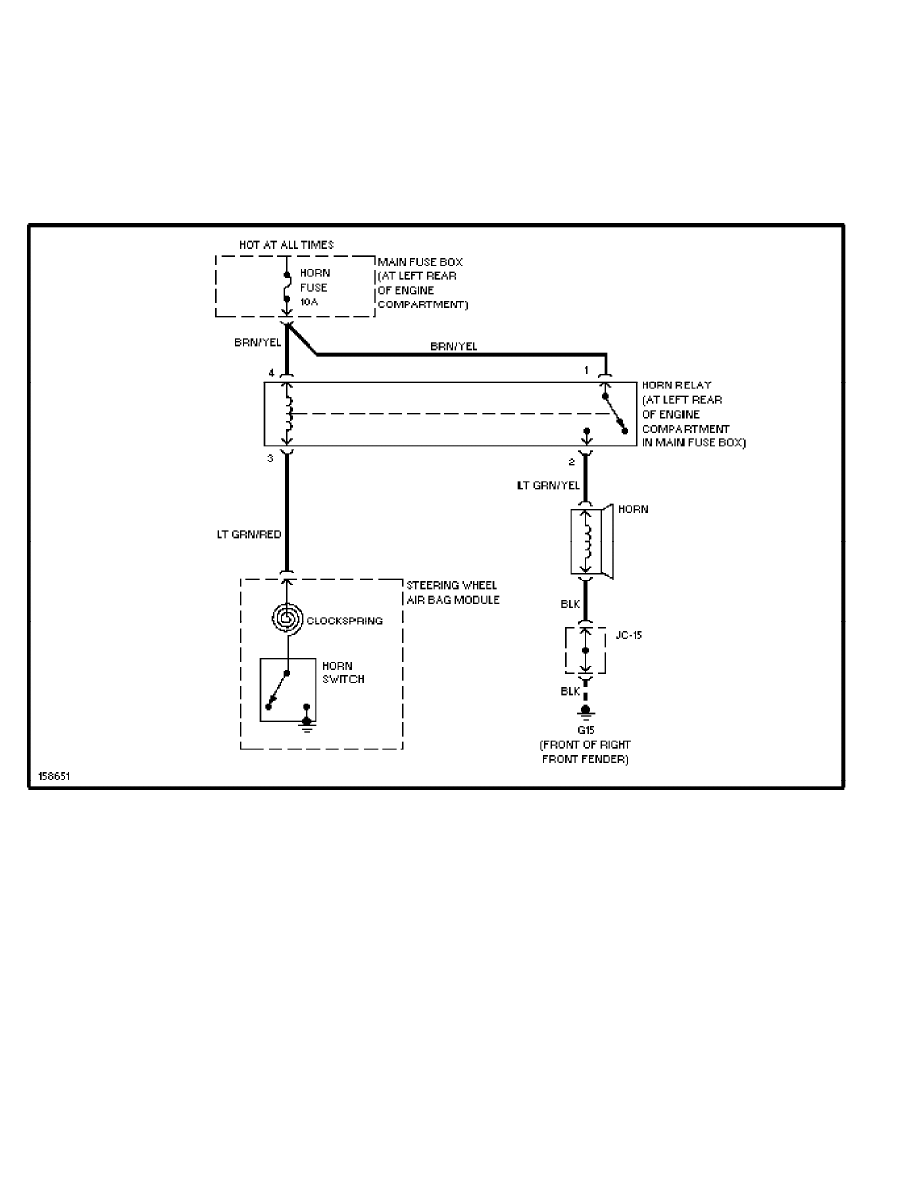

Horn Circuit (p. 18)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

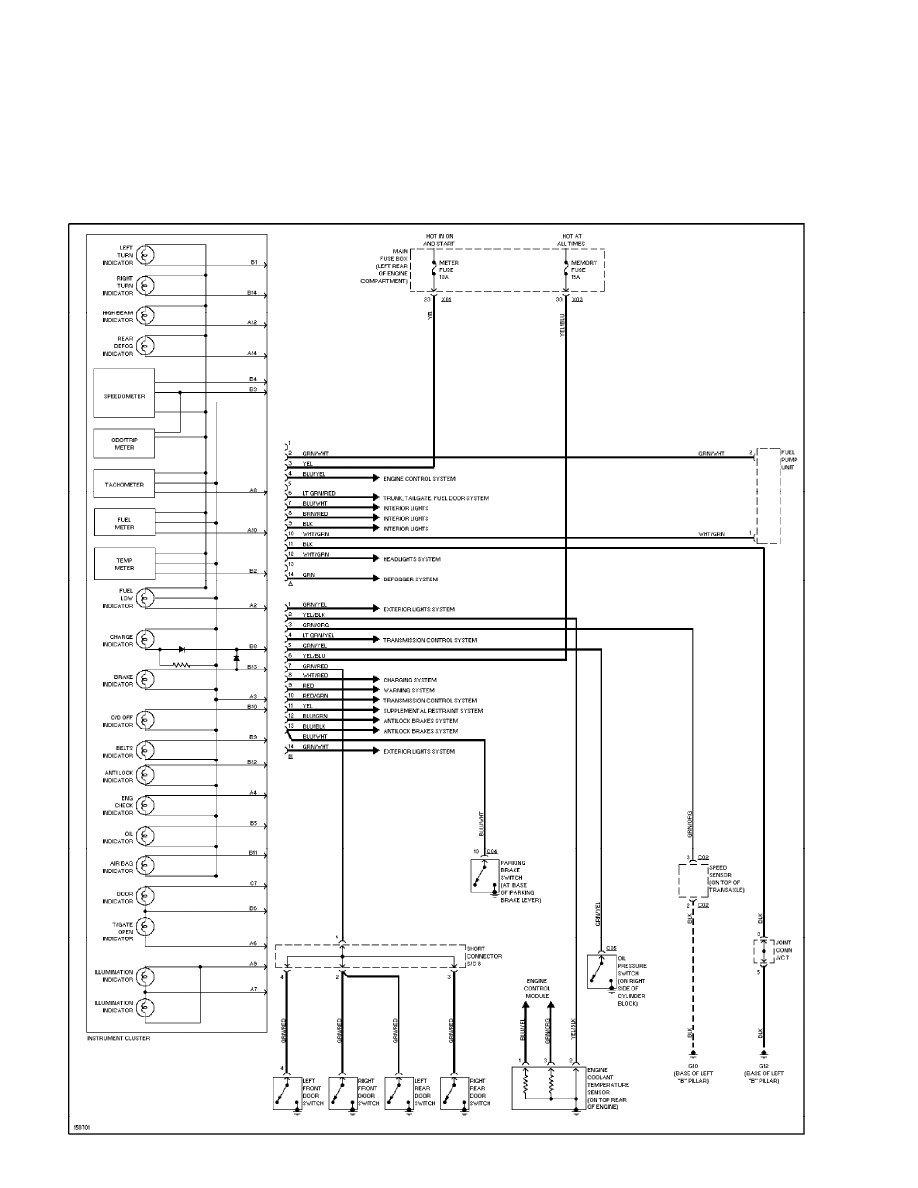

Instrument Cluster Circuit (p. 19)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

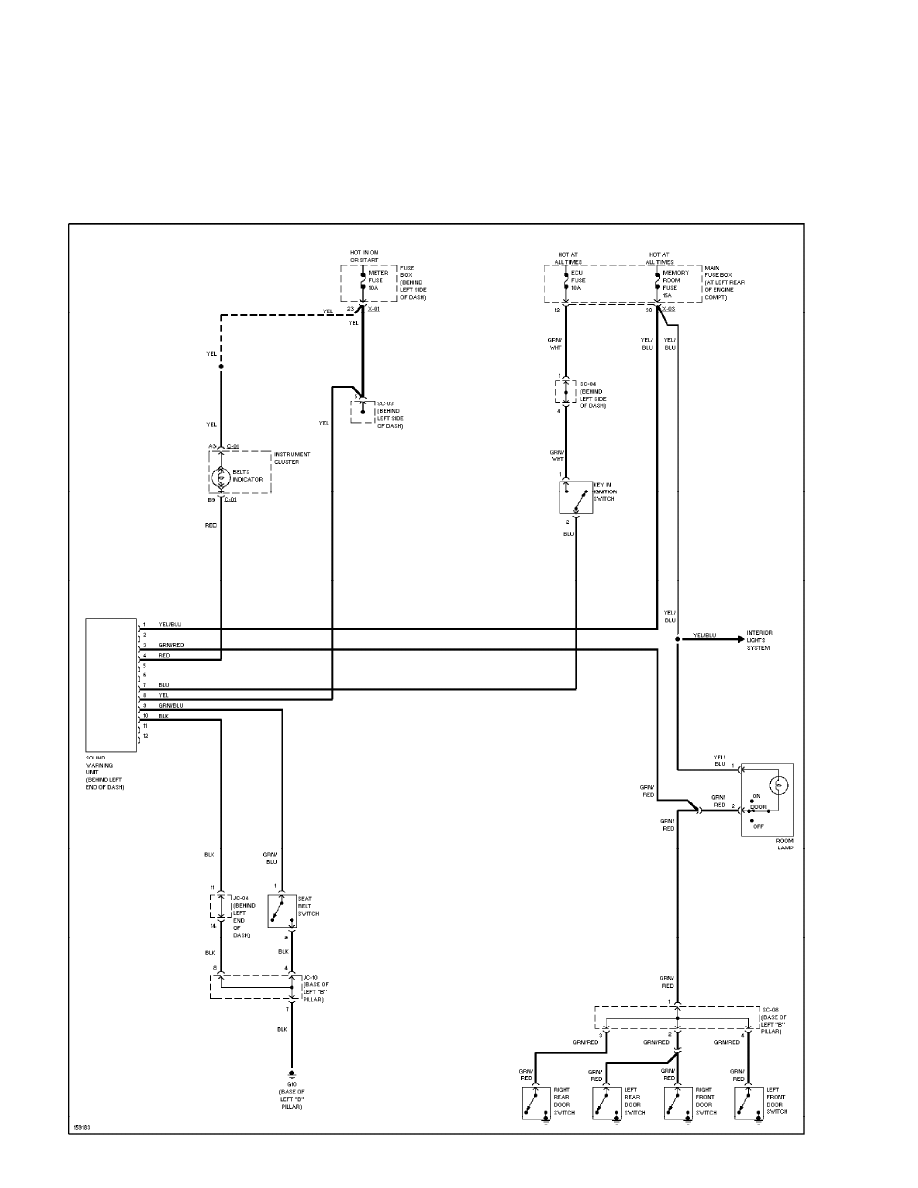

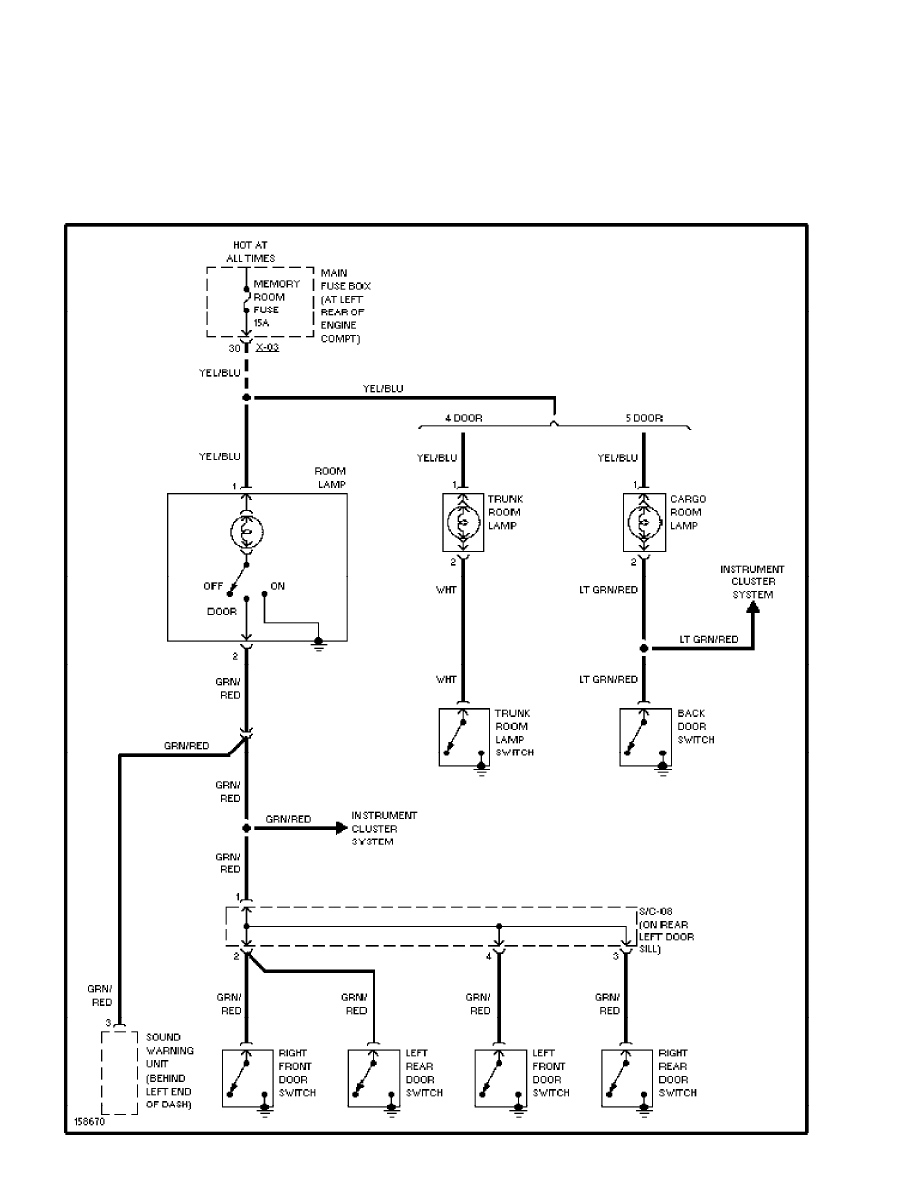

Courtesy Lamp Circuit (p. 20)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

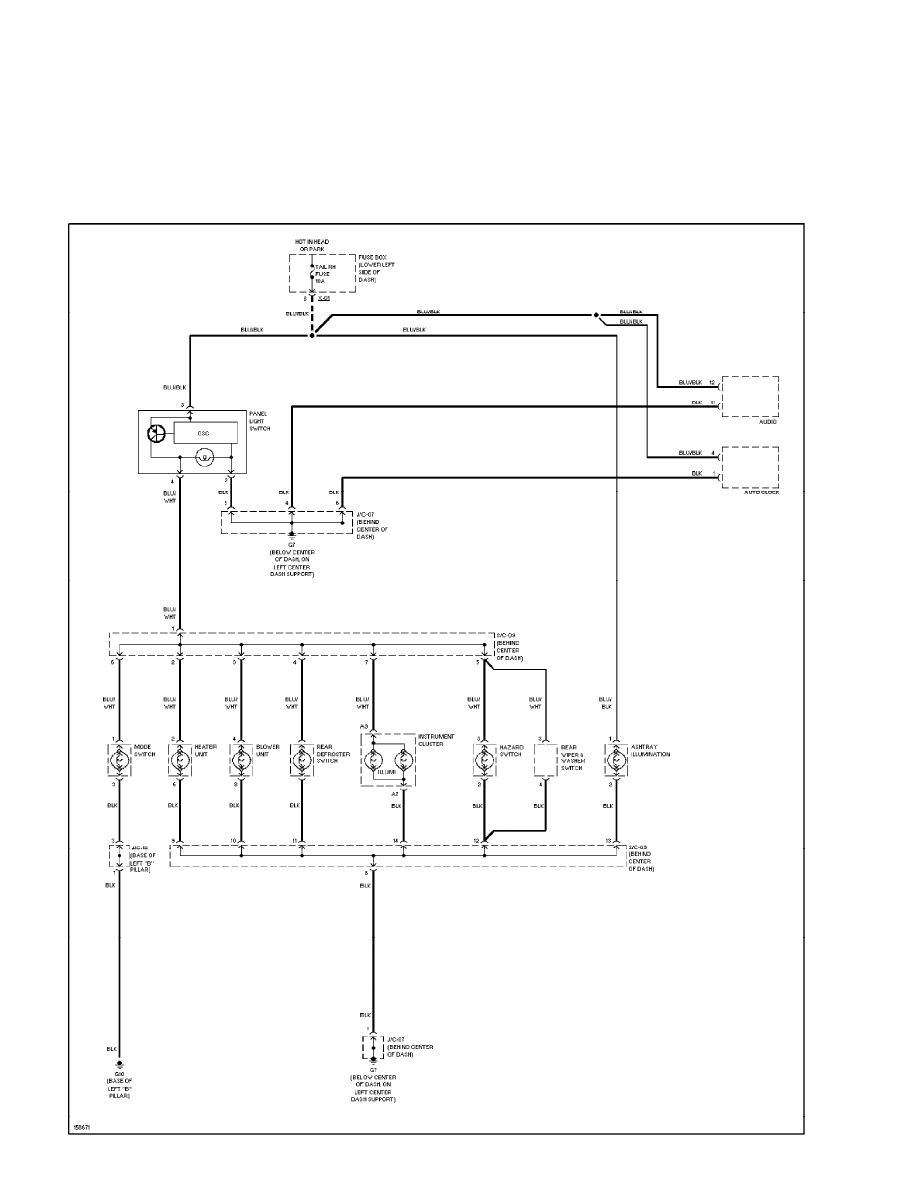

Instrument Illumination Circuit (p. 21)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

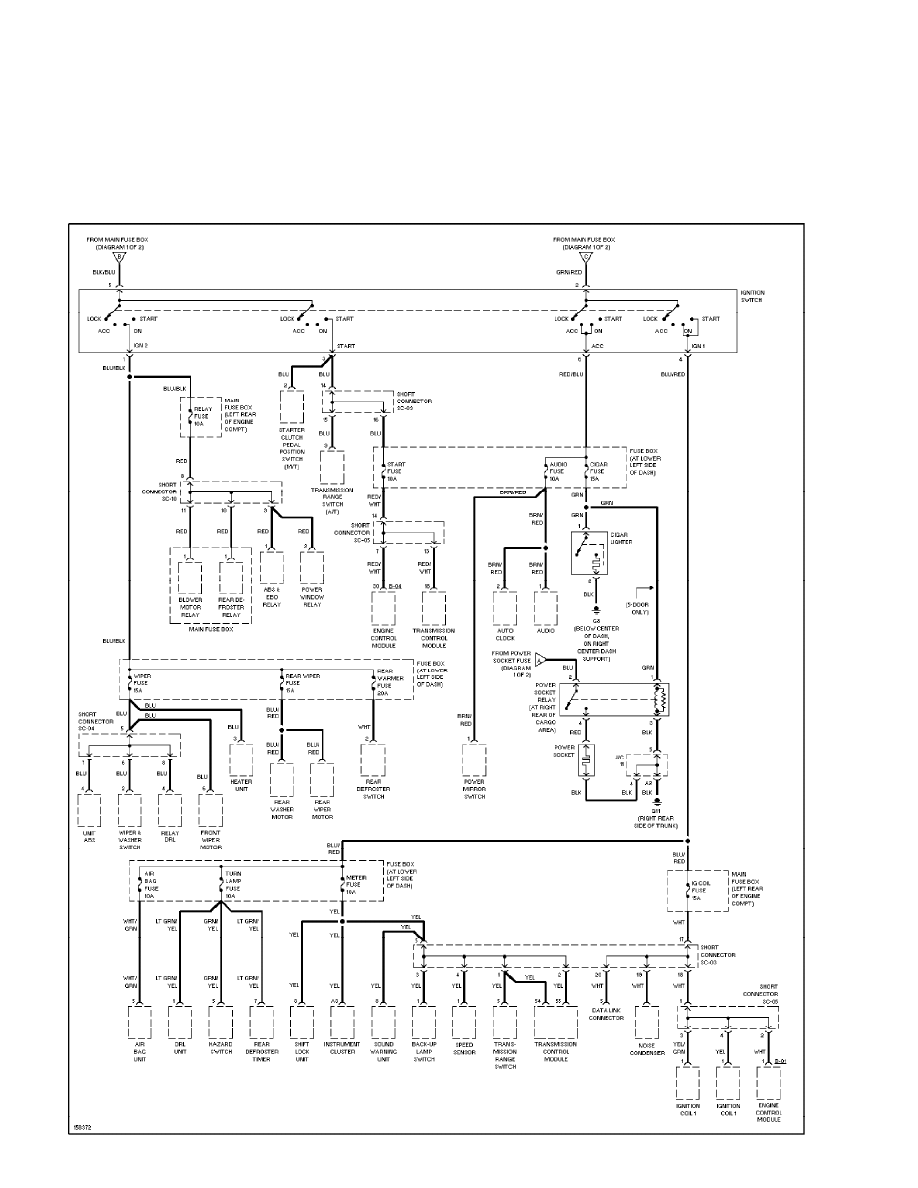

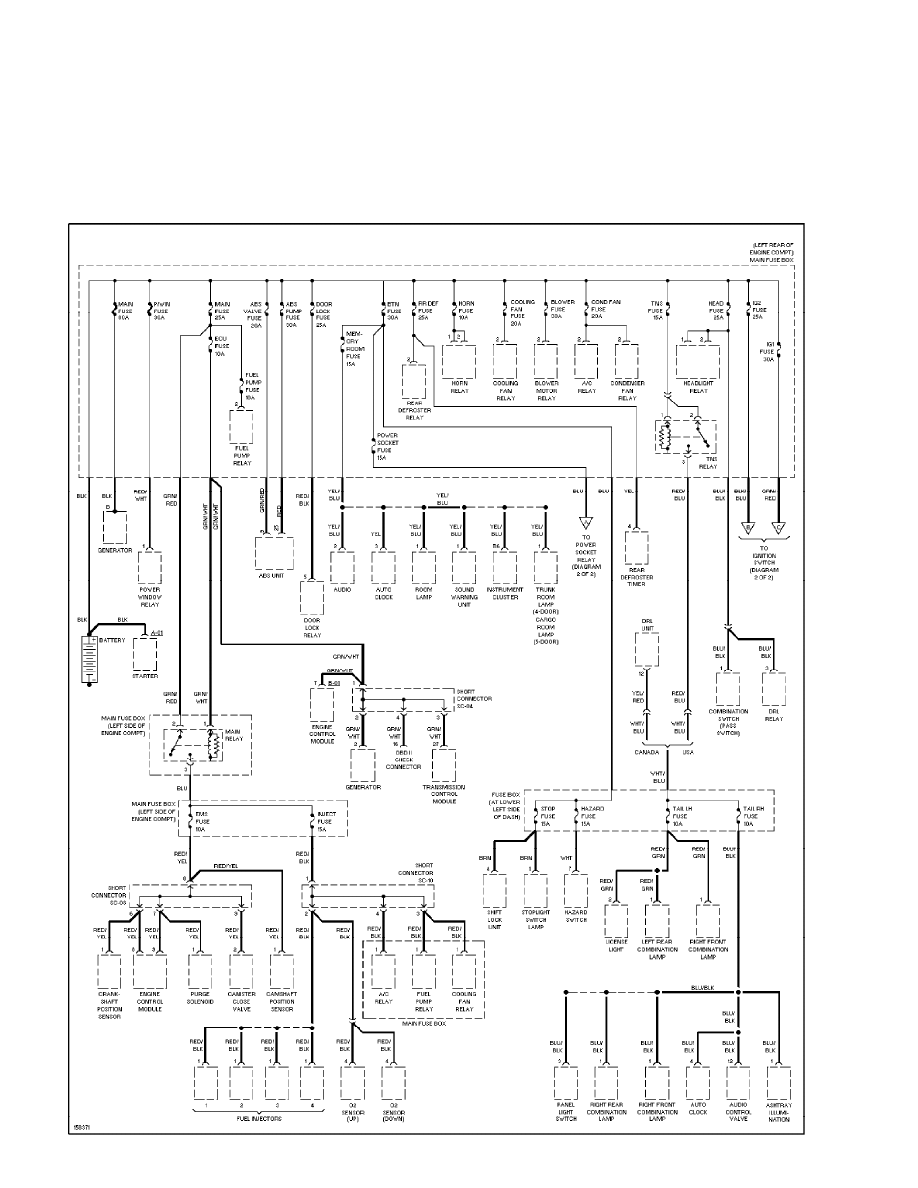

Power Distribution Circuit (1 of 2) (p. 22)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 2) (p. 23)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

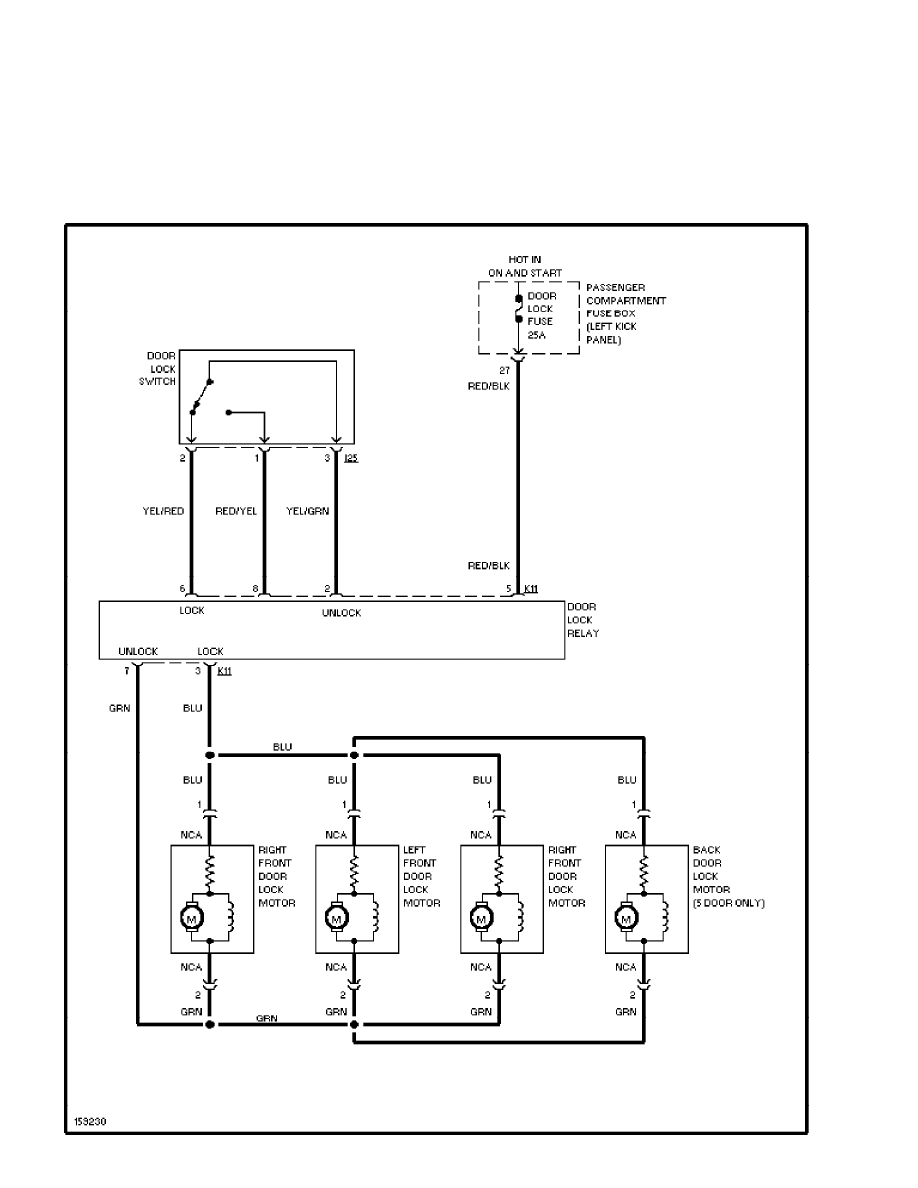

Power Door Lock Circuit (p. 24)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

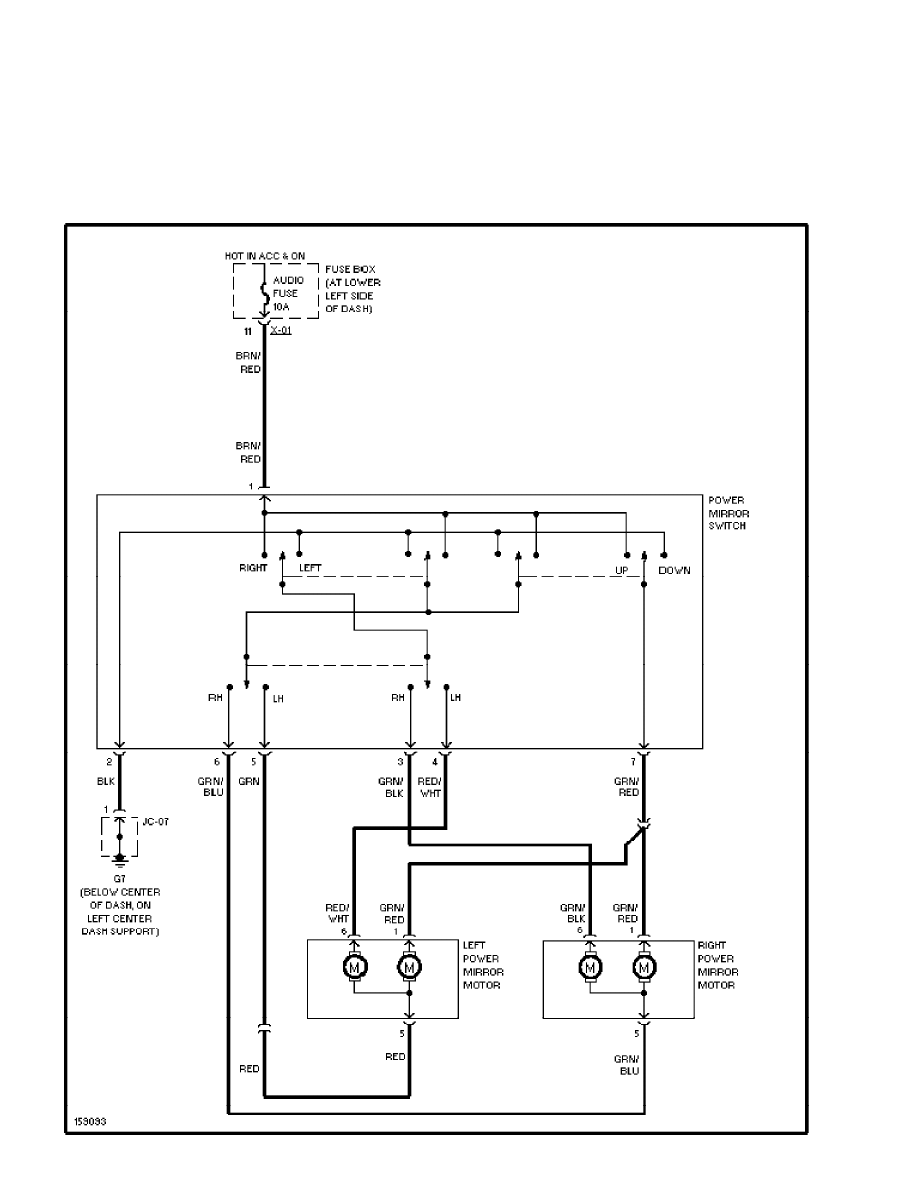

Power Mirror Circuit (p. 25)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

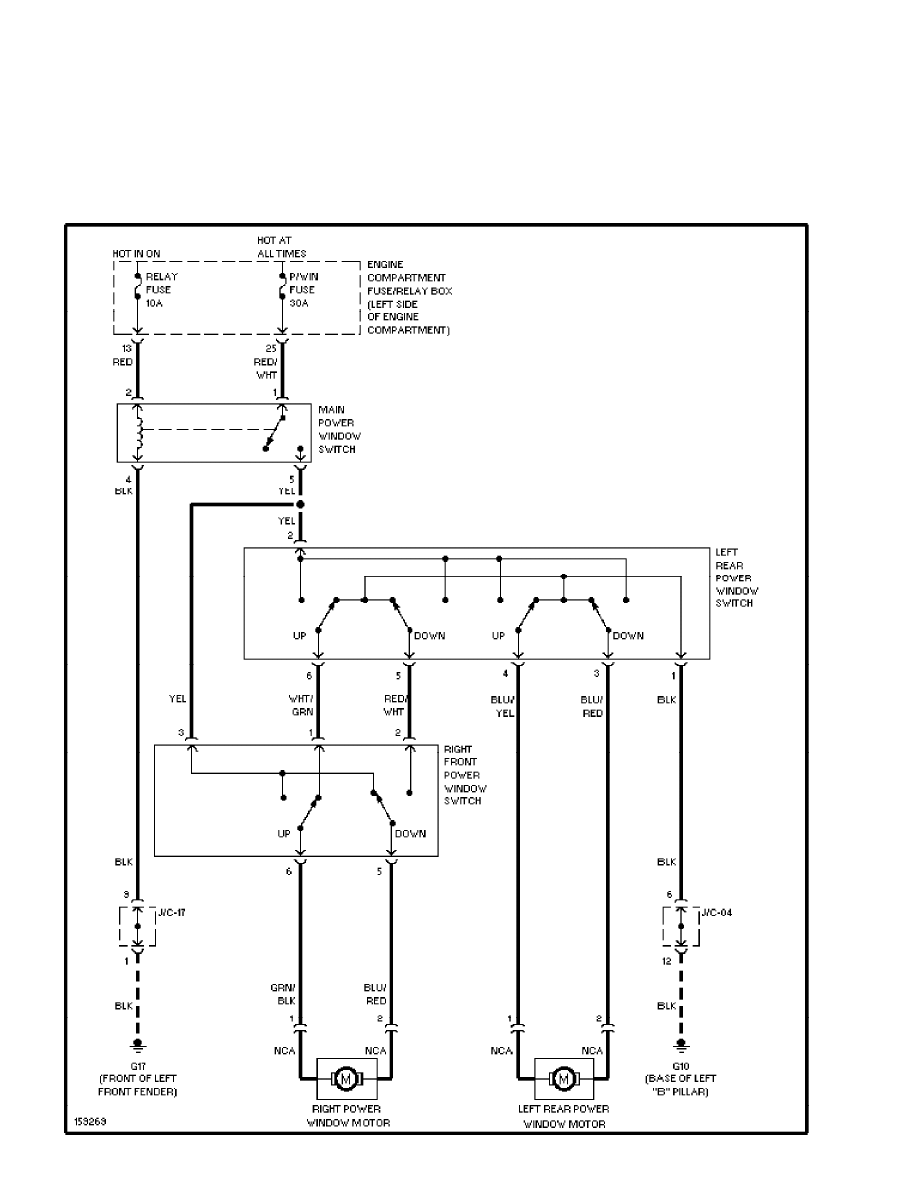

Power Window Circuit (p. 26)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

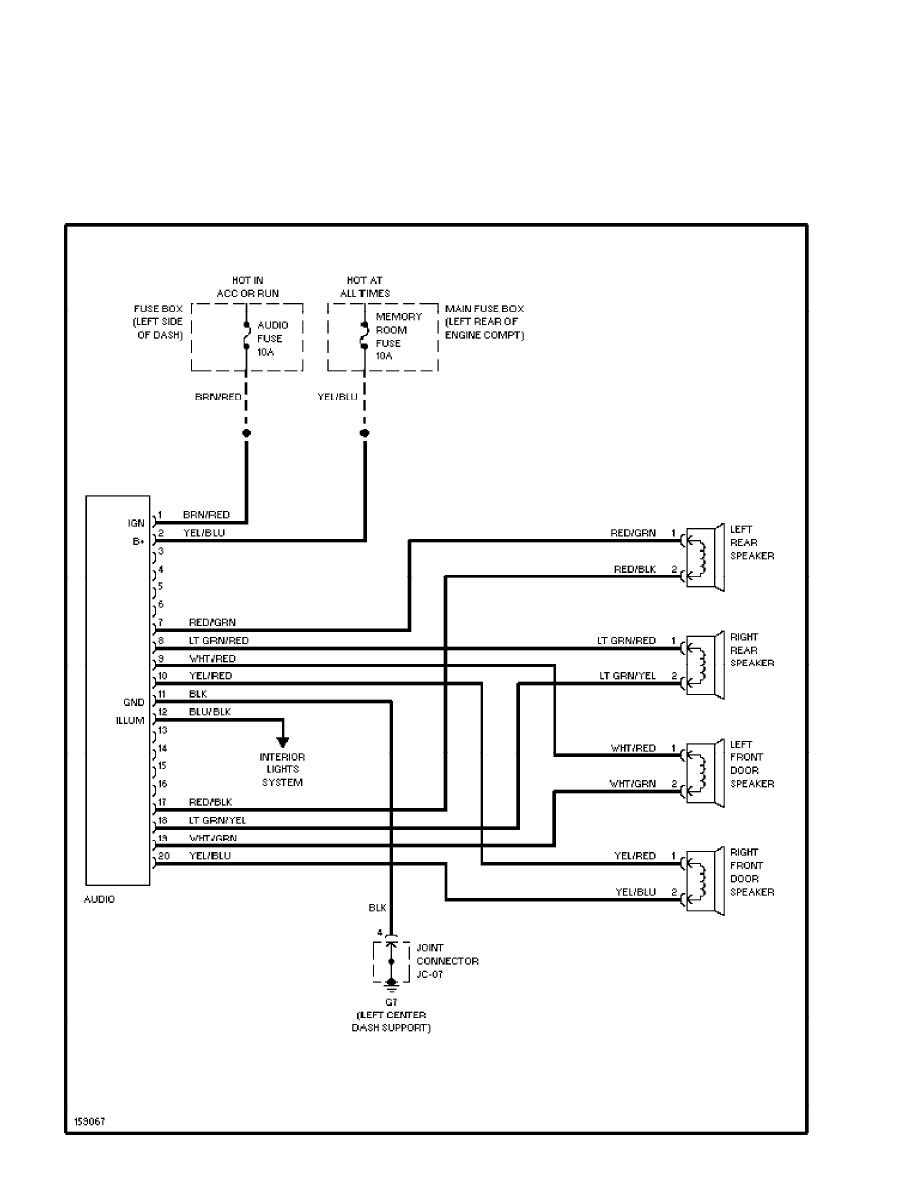

Radio Circuits (p. 27)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

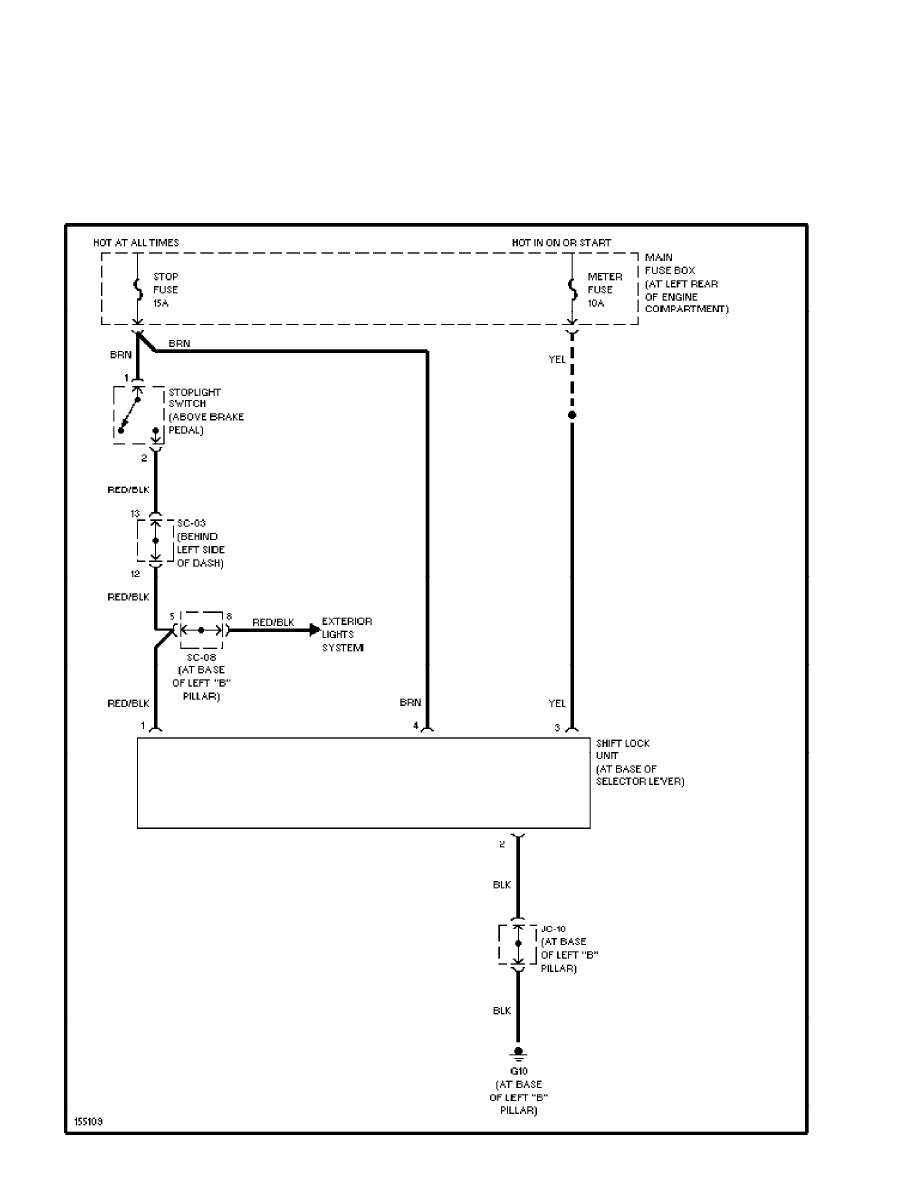

Shift Interlock Circuit (p. 28)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

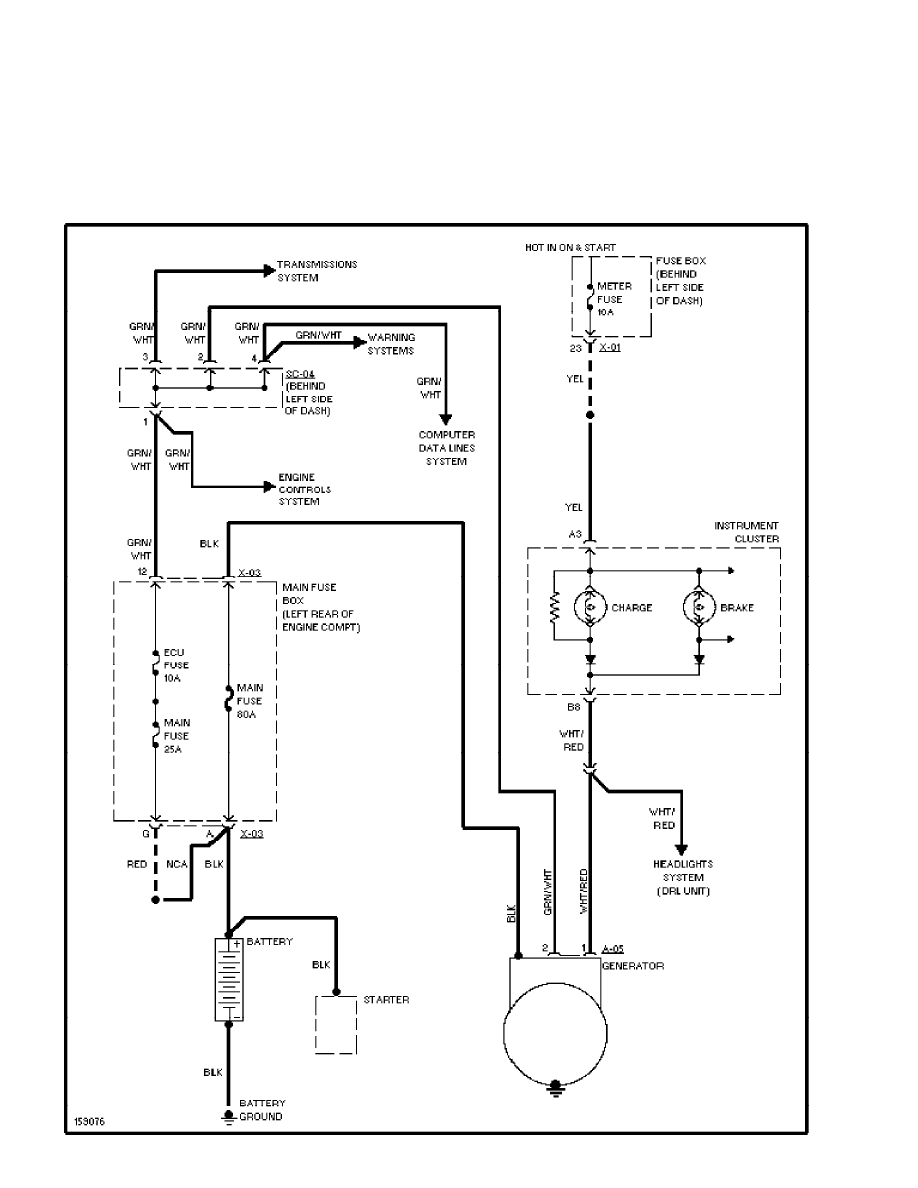

Charging Circuit (p. 29)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

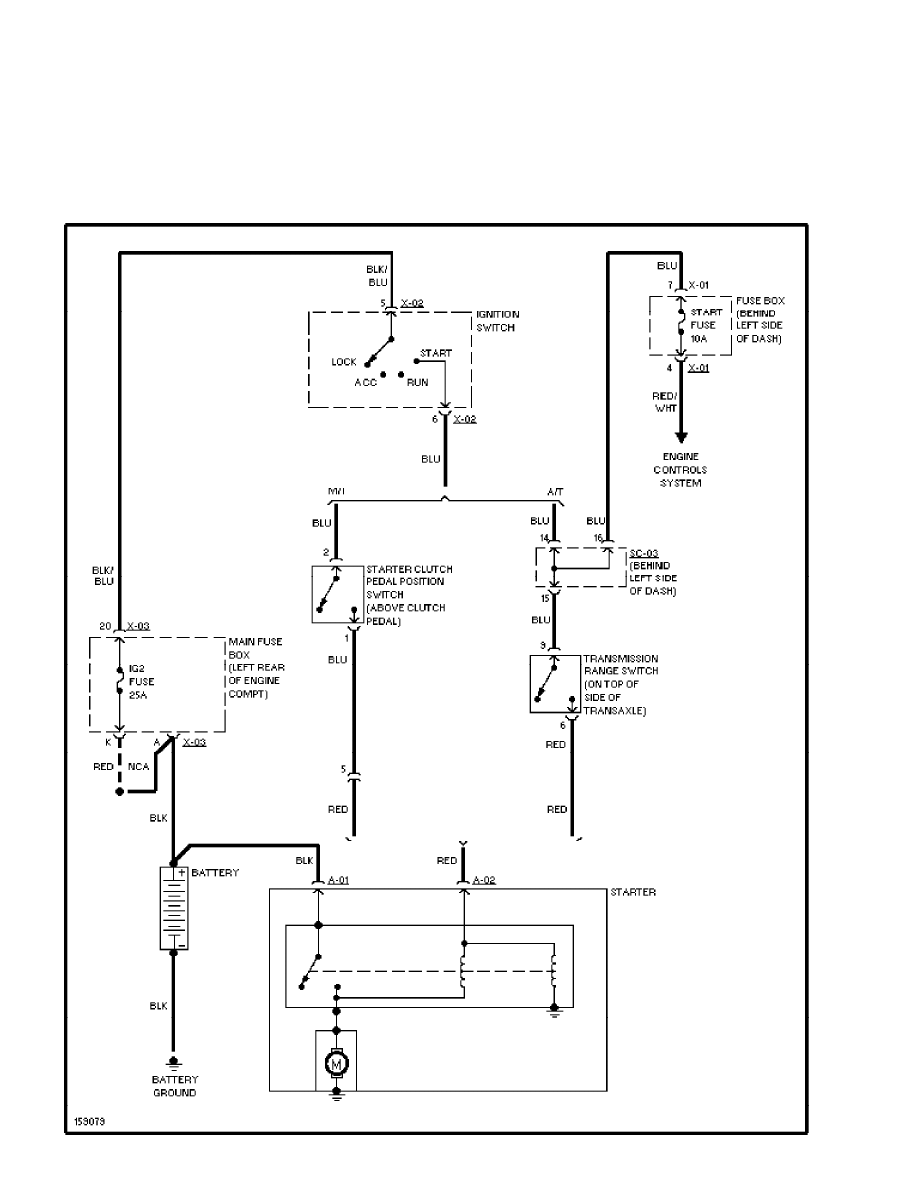

Starting Circuit (p. 30)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

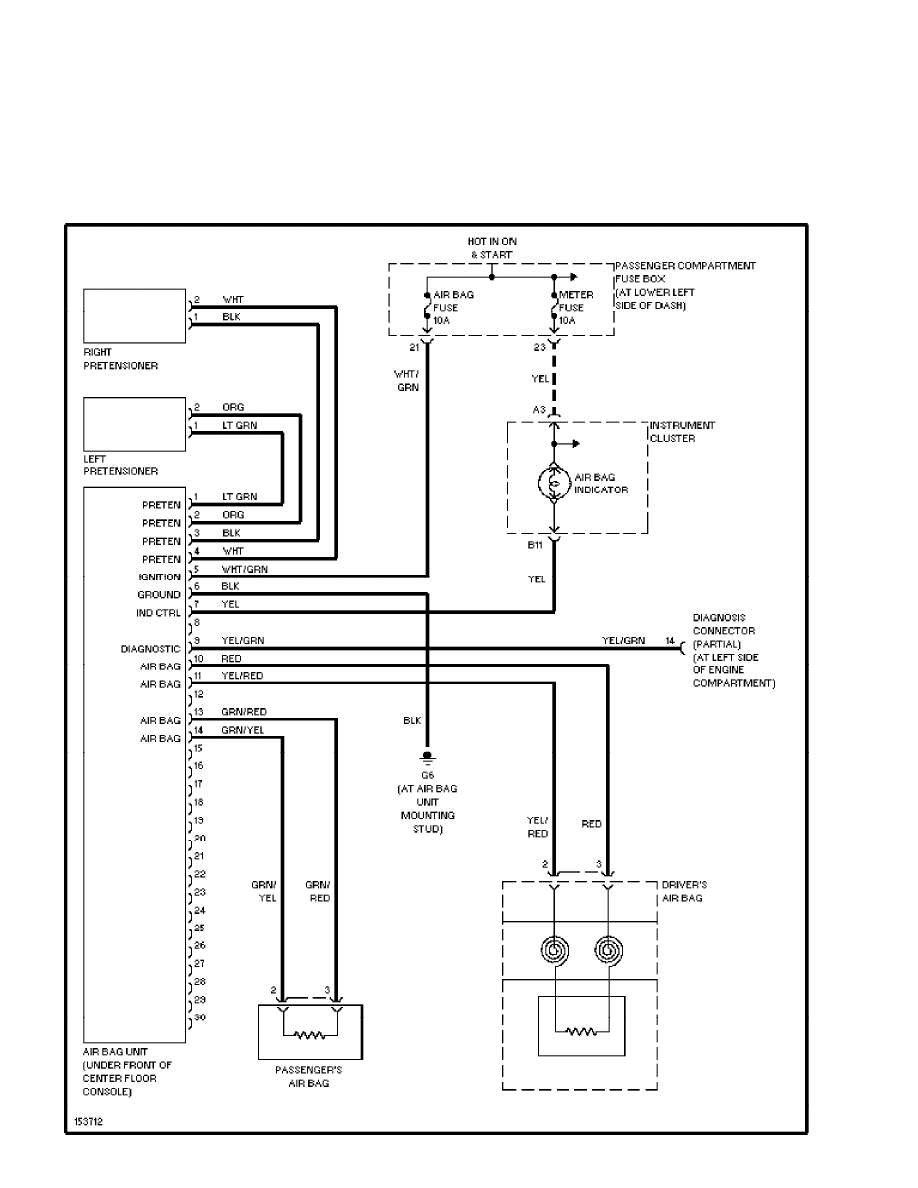

Supplemental Restraint Circuit (p. 31)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

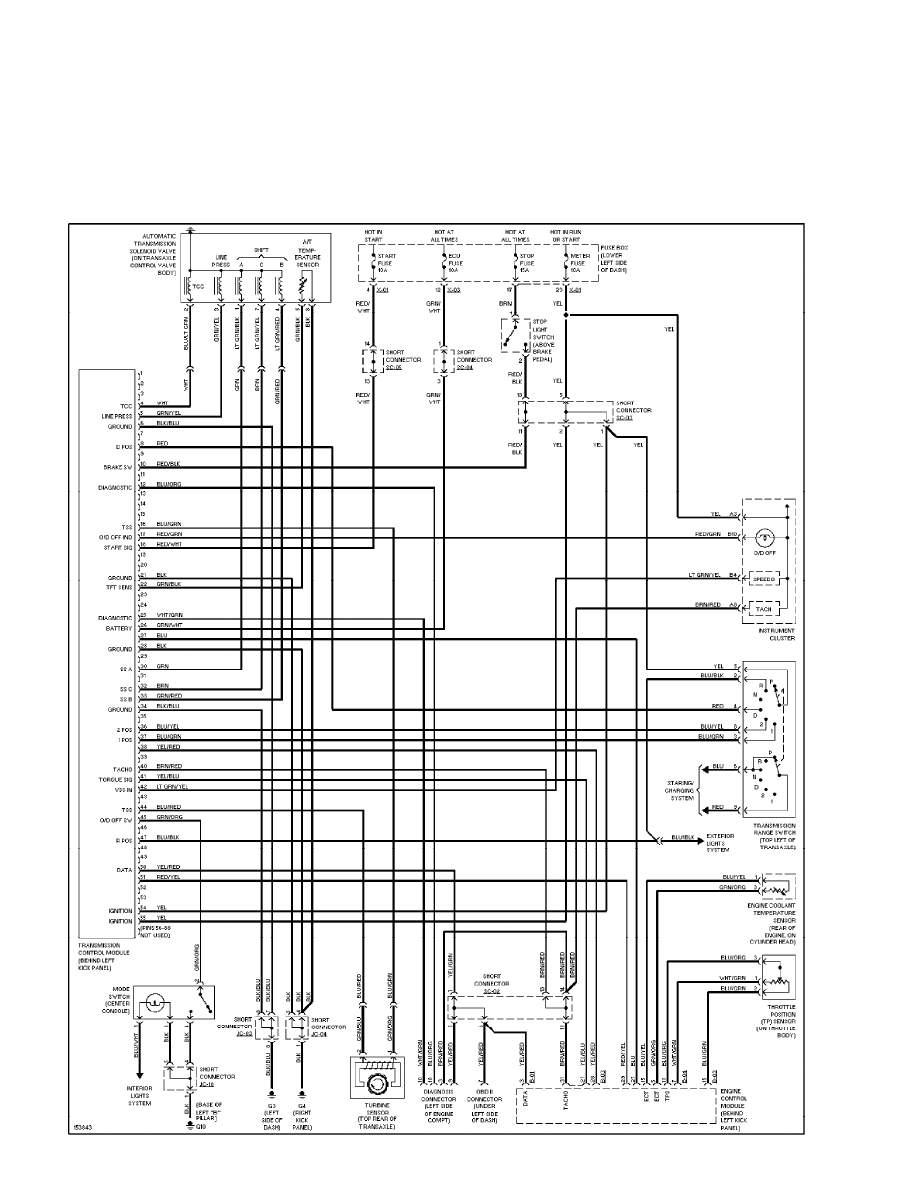

A/T Circuit (p. 32)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

Warning System Circuits (p. 33)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

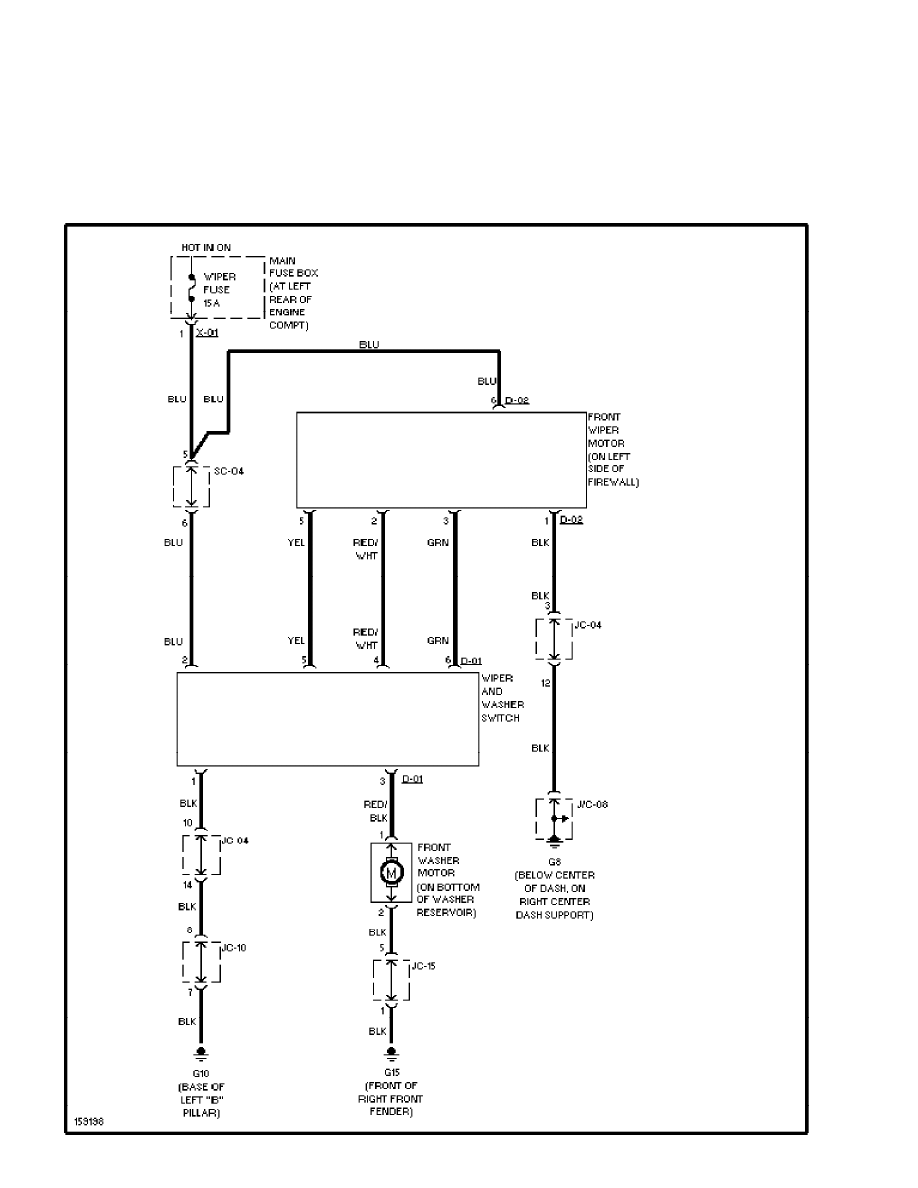

Front Washer/Wiper Circuit (p. 34)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM

background image

SYSTEM WIRING DIAGRAMS

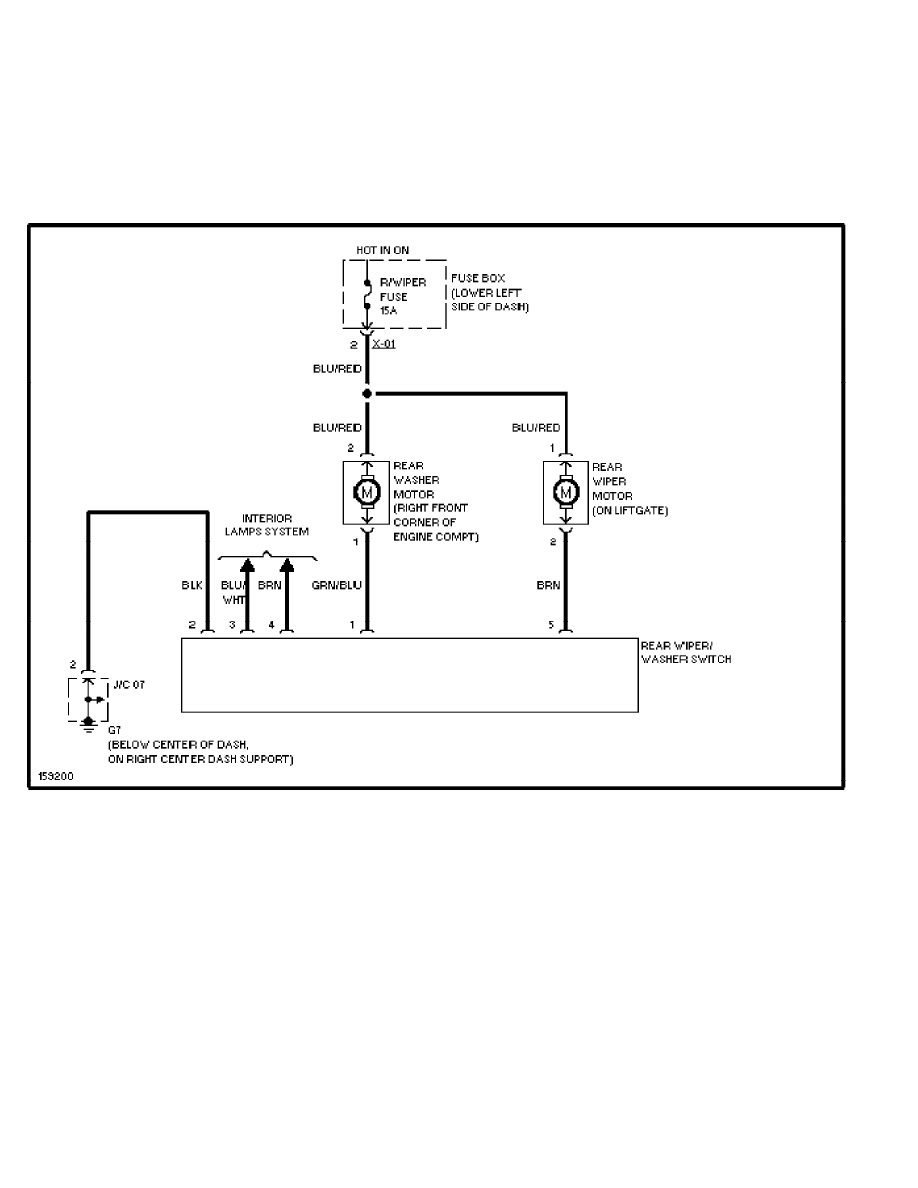

Rear Wiper/Washer Circuit (p. 35)

2002 Kia Rio

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, December 08, 2004 08:43AM
