Marine Centrifugal Pump
Model CG

Hamworthy Pump Systems

MARINE PUMPS - MODEL CG

Best value-for-money in the class.

Well proven - More than 15000 pumps in service.

Known for reliability and easy maintenance – Preferred by ship owners world wide.

Radially split, flexible spacer coupling – Easy dismantling of rotor element without removal of motor.

Compact design – Minimum floor space requirement.

Three fixing points – Minimal support structure needed.

Spares are available from stock in Europe, Far East and U.S.A.

Materials:

Impeller:

Ni Al Bronze – Superior sea water resistance.

Casing:

Sea Water; Ni Al Bronze or RG6Ni with nickel for improved resistance.

Fresh water; Cast Iron.

Shaft:

Duplex stainless steel.

Other materials are available on request.

FLANGE DIMENSIONS TO DIN2501 PRESS.RATING 10 BAR

Pump

Size

Delivery flange

Suction flange

Main dimensions

ND

OD

PCD

d

X

ND

OD

PCD

d

X

A

C

D

CGA 50

CGA 65

CGB 80

CGB 100

CGC 125

CGC 150

CGD 200

CGD 250

CGE 300

CGE 350

50

65

80

100

125

150

200

250

300

350

165

185

200

220

250

285

340

395

445

505

125

145

160

180

210

240

295

350

400

460

18

18

18

18

18

22,5

22,5

22,5

22,5

22,5

4

4

8

8

8

8

8

12

12

16

65

80

100

125

150

200

250

300

350

400

185

200

220

250

285

340

395

445

505

565

145

160

180

210

240

295

350

400

460

515

18

18

18

18

22,5

22,5

22,5

22,5

22,5

26,5

4

8

8

8

8

8

12

12

16

16

420

420

450

450

500

560

630

710

800

900

195

196

218

224

247

260

332

382

490

560

578

584

643

657

744

768

970

1020

1257

1327

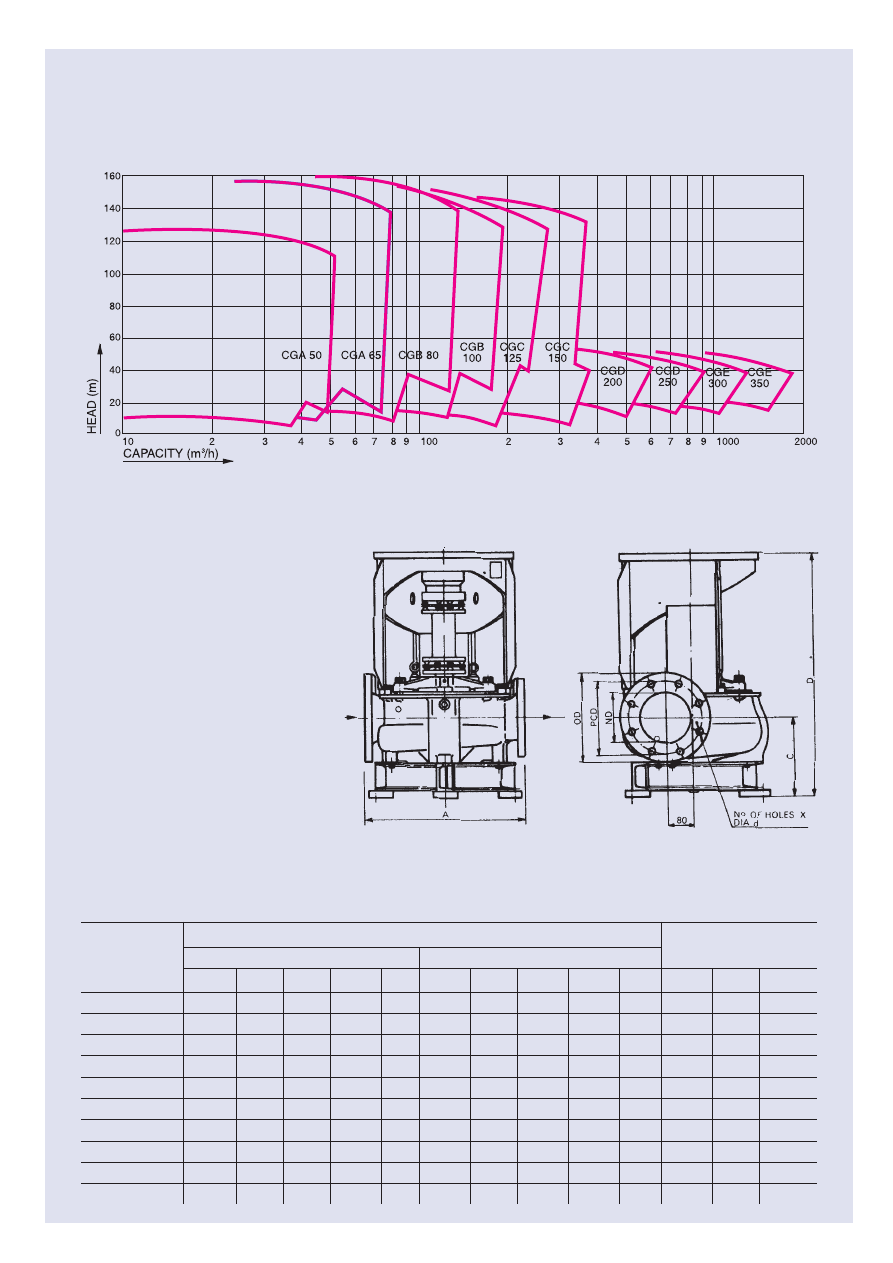

Head/Capacity/Curves

Outline Dimensions

3)

(

&%

2

Hamworthy Pte. Ltd
15 Benoi Crescent, Jurong,
Singapore 629 978

tel: [phone]
fax: [phone]
e-mail: [e-mail]

Hamworthy Pump Systems AS
Solbraaveien 10
Po Box 144
NO-1371 Asker, Norway

tel: [phone]
fax: [phone]
e-mail: [e-mail]

a Hamworthy plc company
