WIRING DIAGRAMS

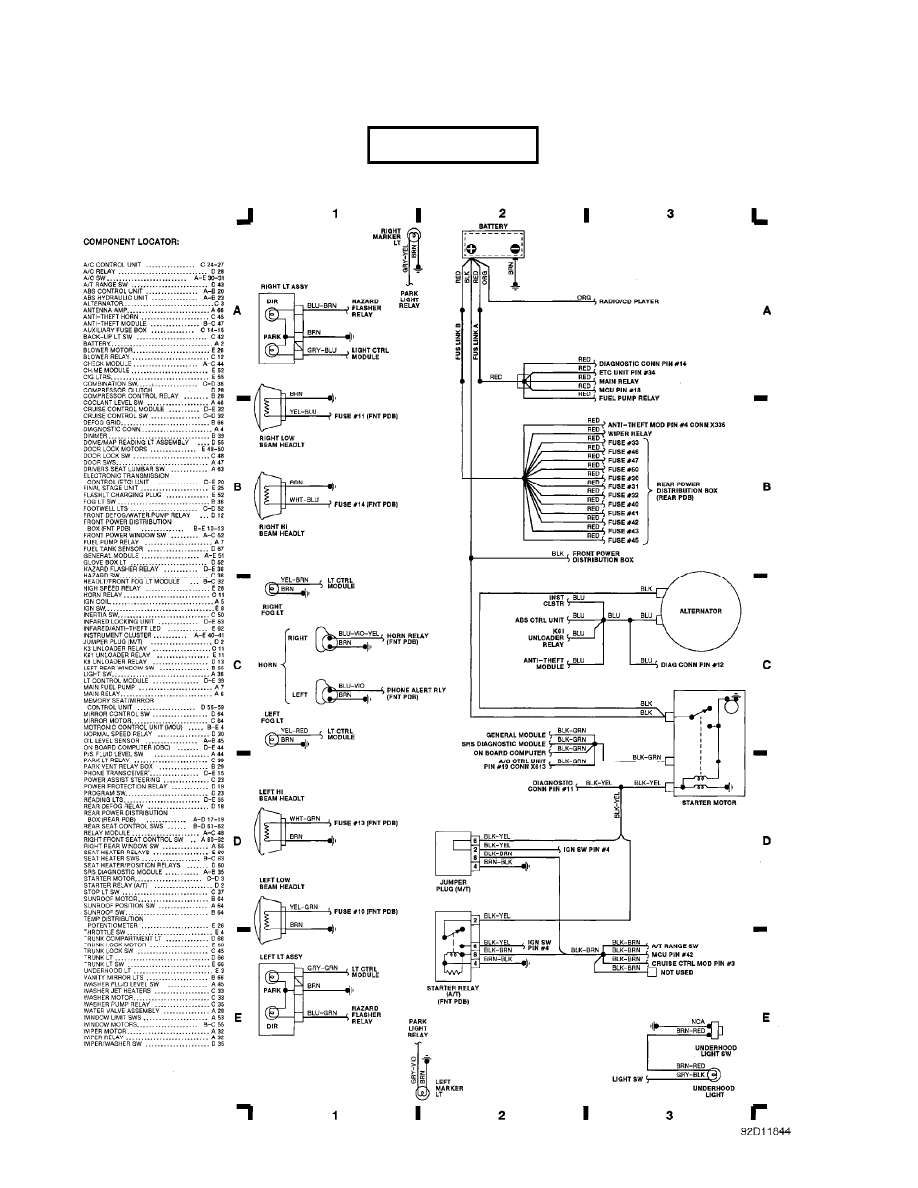

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:41PM

[e-mail]

WIRING DIAGRAMS

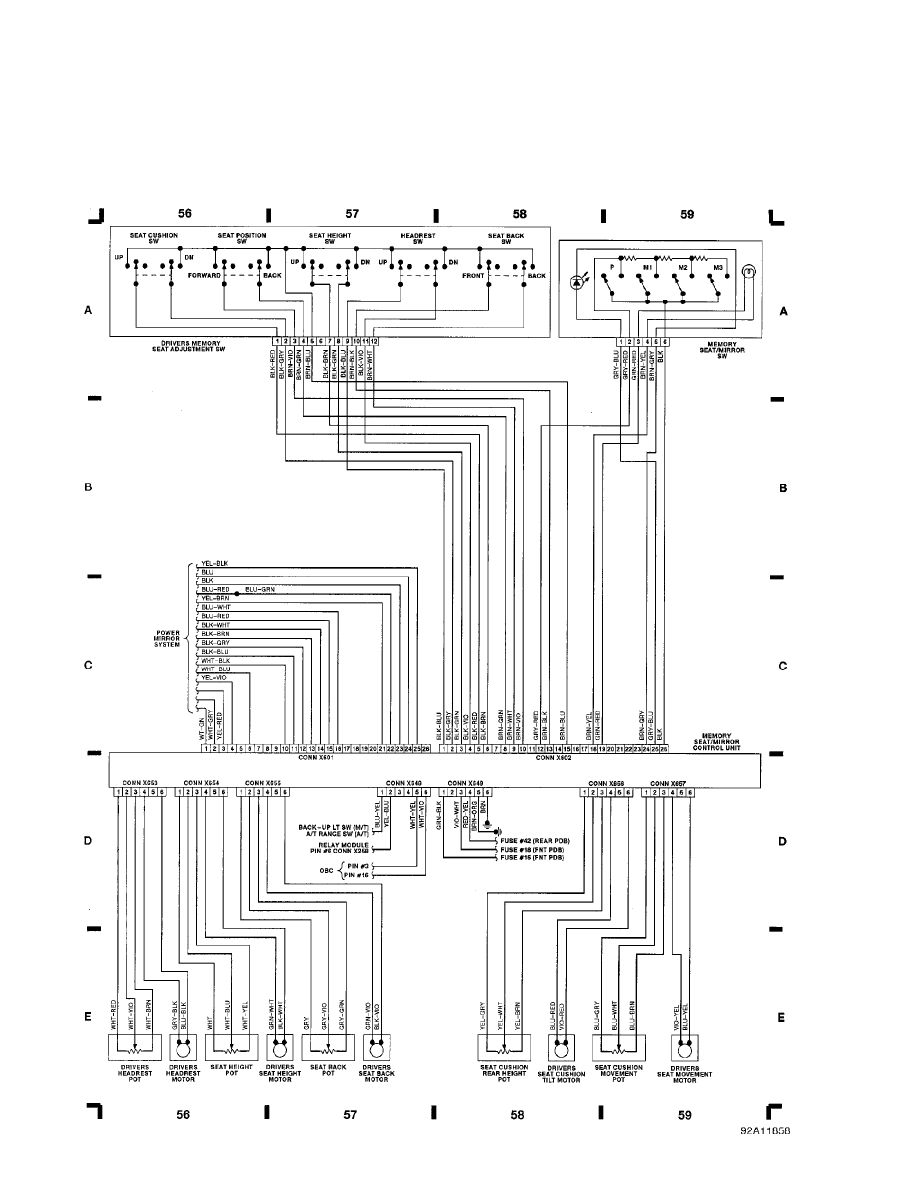

Fig. 15: Memory Seat/Mirror System (Grid 56-59)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:43PM

WIRING DIAGRAMS

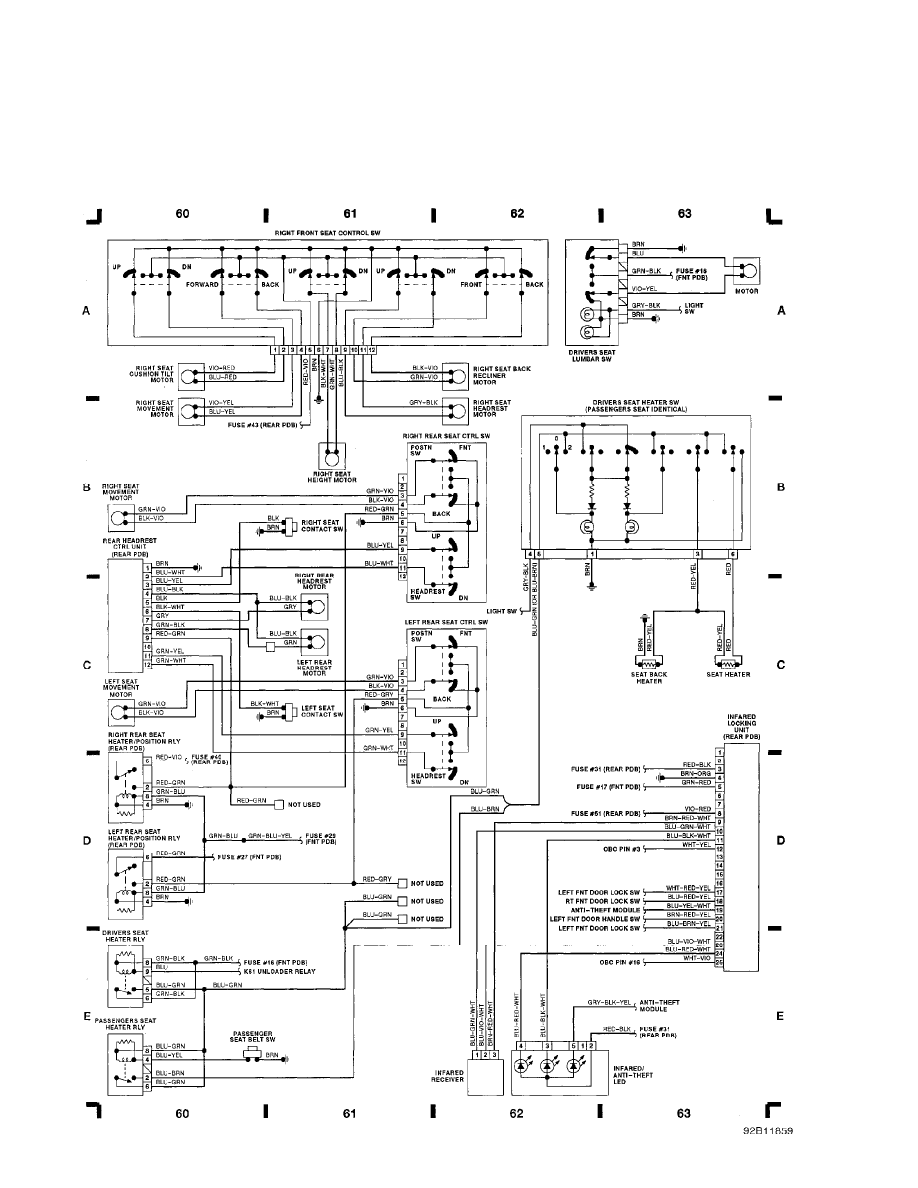

Fig. 16: Power Seats/Heaters, Infared Locking Unit (Grid 60-63)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:44PM

WIRING DIAGRAMS

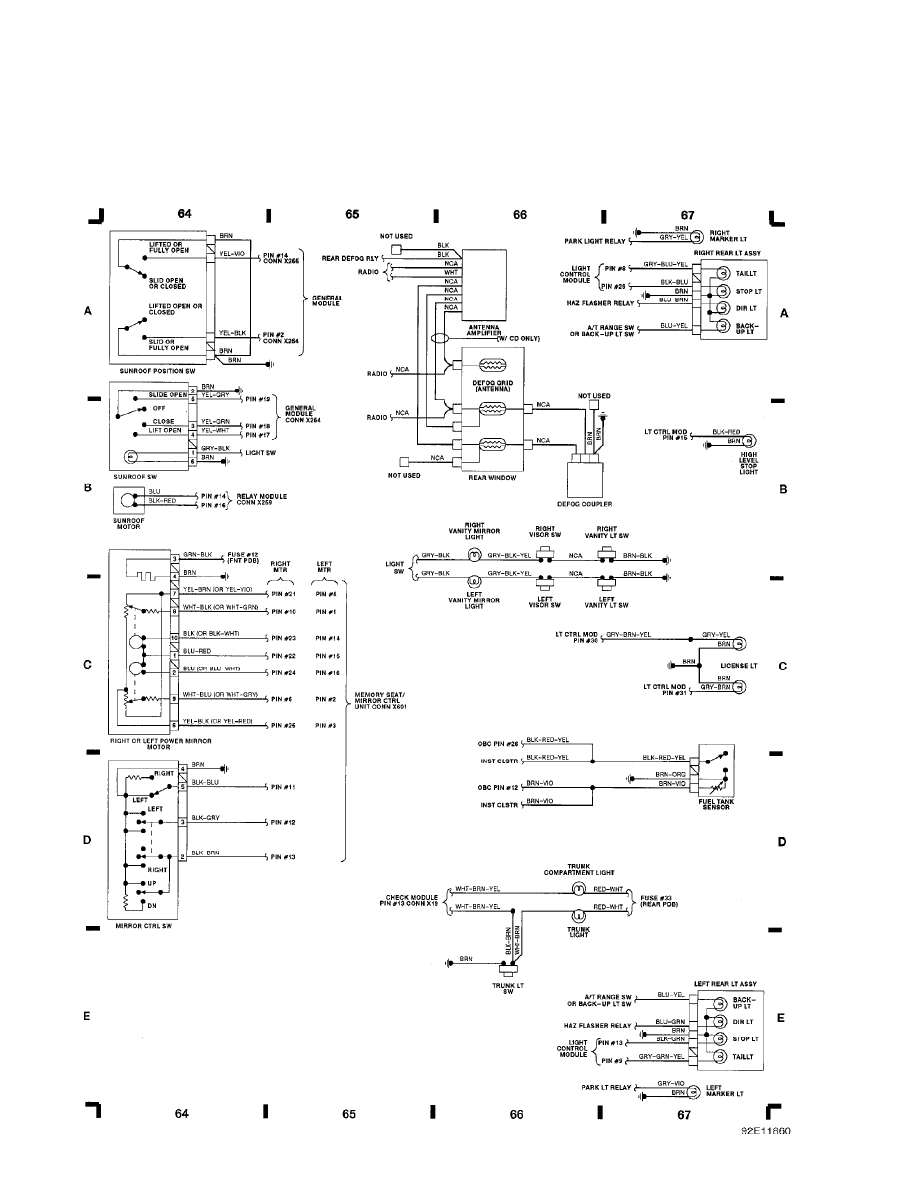

Fig. 17: Power Mirrors, Sunroof, Antenna, Taillights (Grid 64-67)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:44PM

WIRING DIAGRAMS

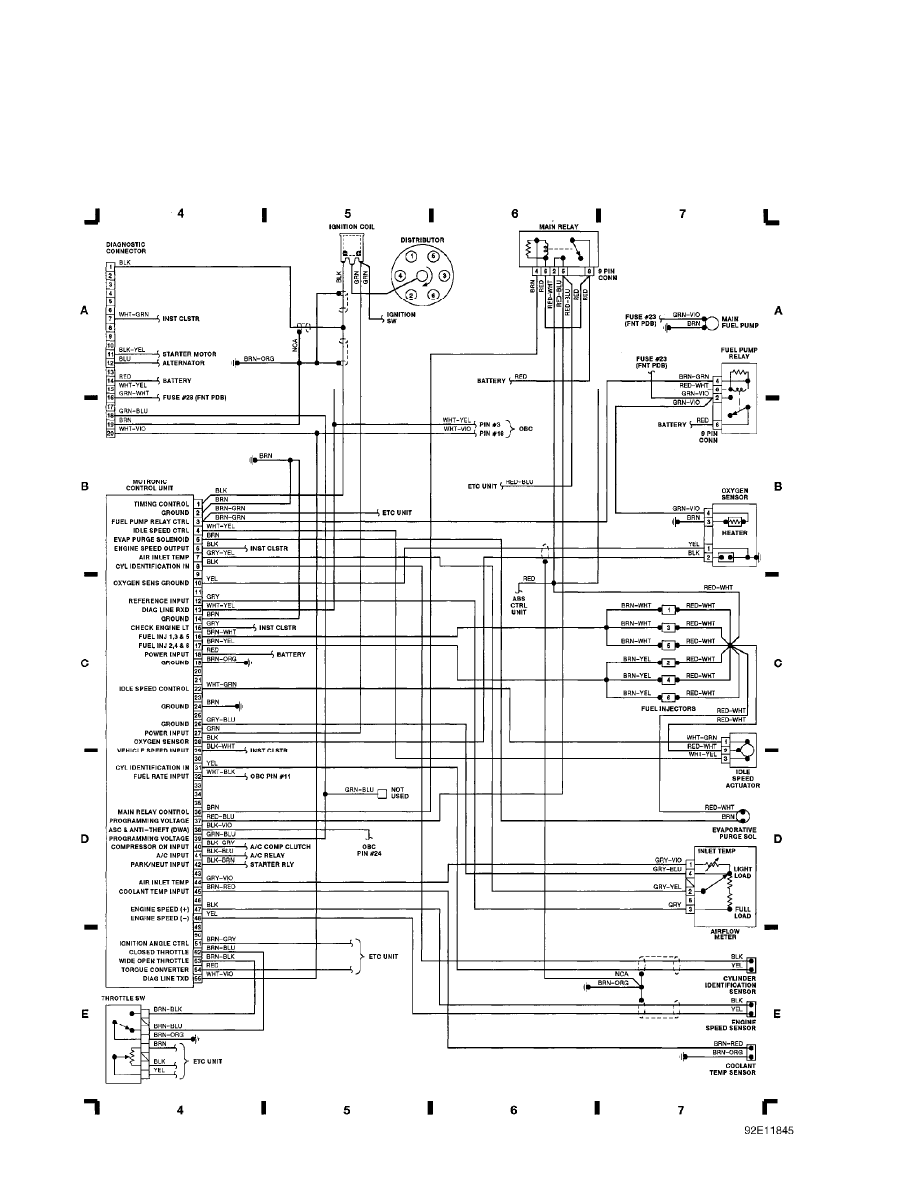

Fig. 2: Computer Engine Control (Grid 4-7)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:41PM

WIRING DIAGRAMS

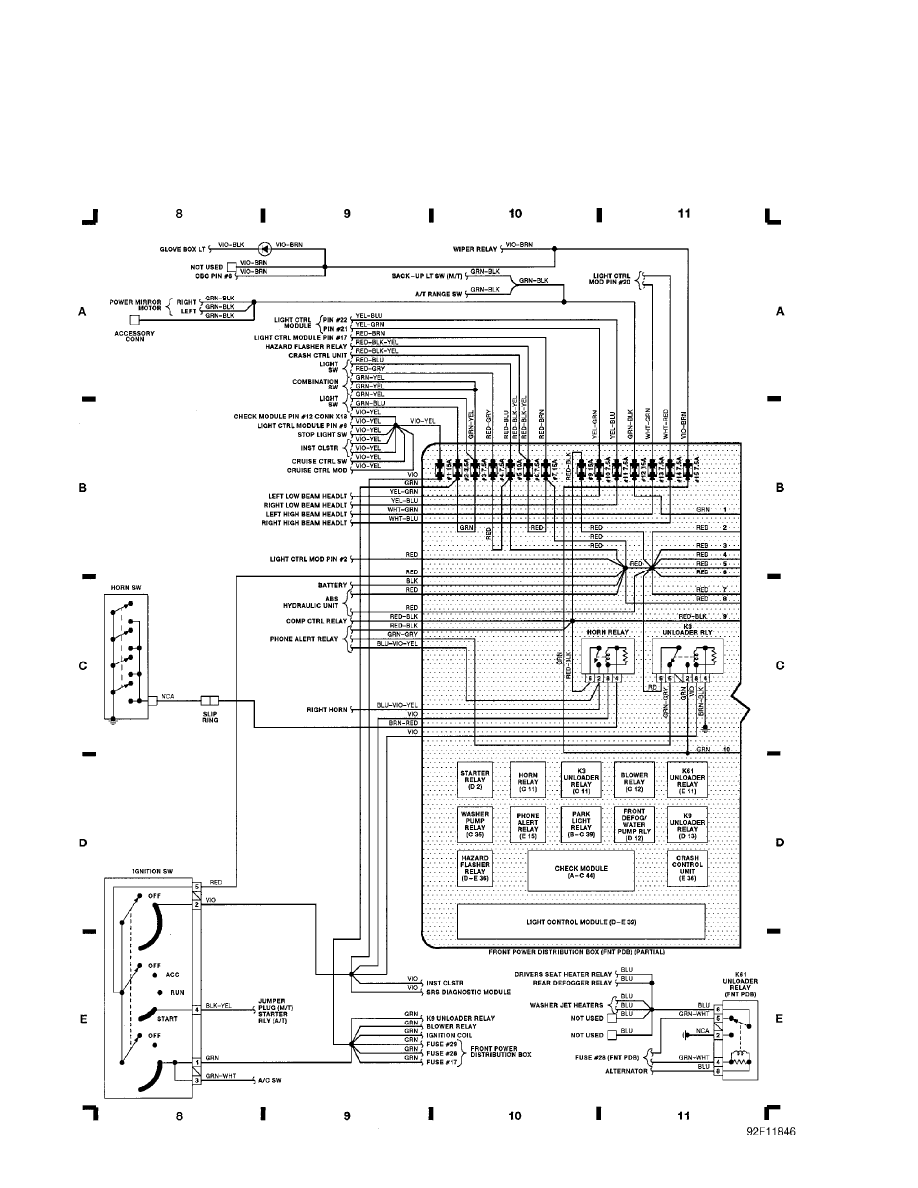

Fig. 3: FNT PDB (Partial), Ignition Sw, Horn Sw (Grid 8-11)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:41PM

WIRING DIAGRAMS

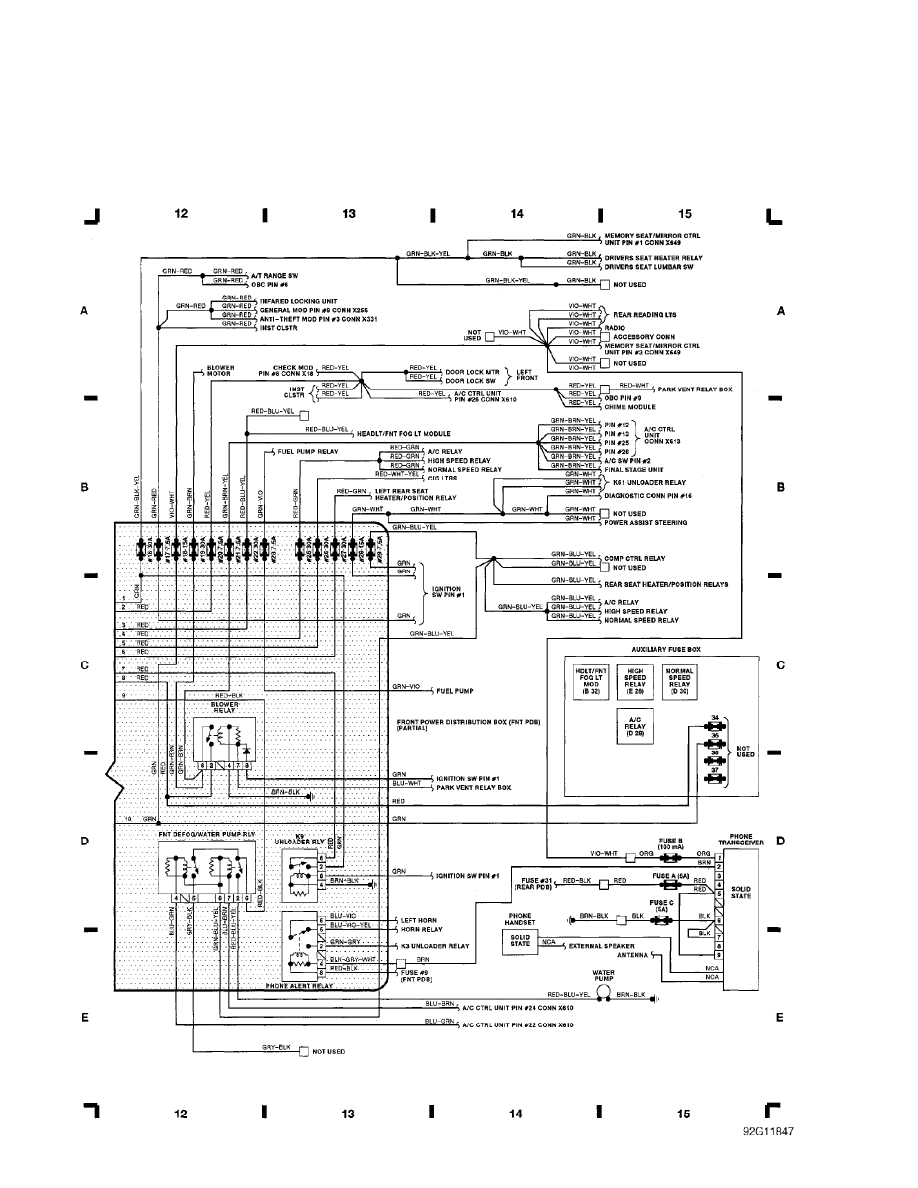

Fig. 4: FNT PDB (Partial), AUX Fuse Box, Phone (Grid 12-15)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:41PM

WIRING DIAGRAMS

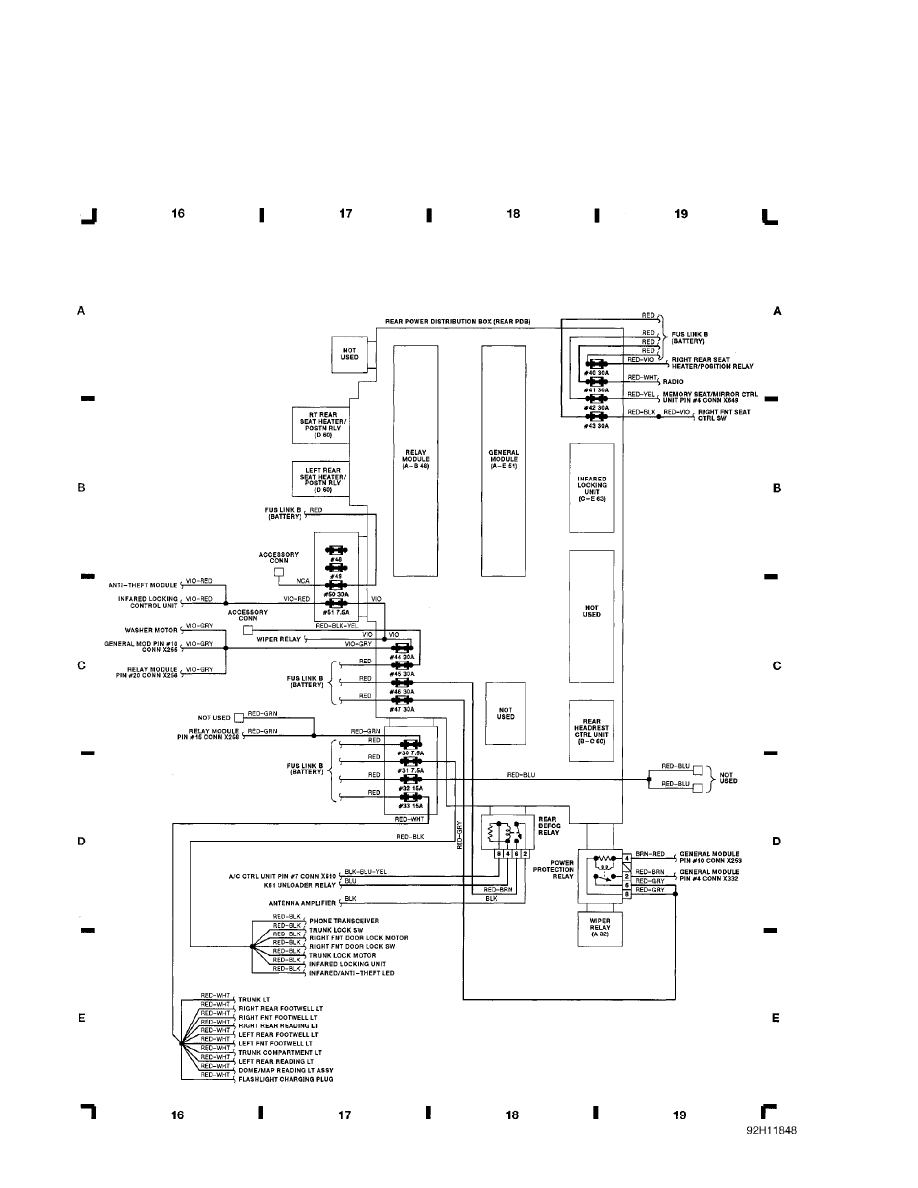

Fig. 5: Rear Power Distribution Box (Grid 16-19)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:41PM

WIRING DIAGRAMS

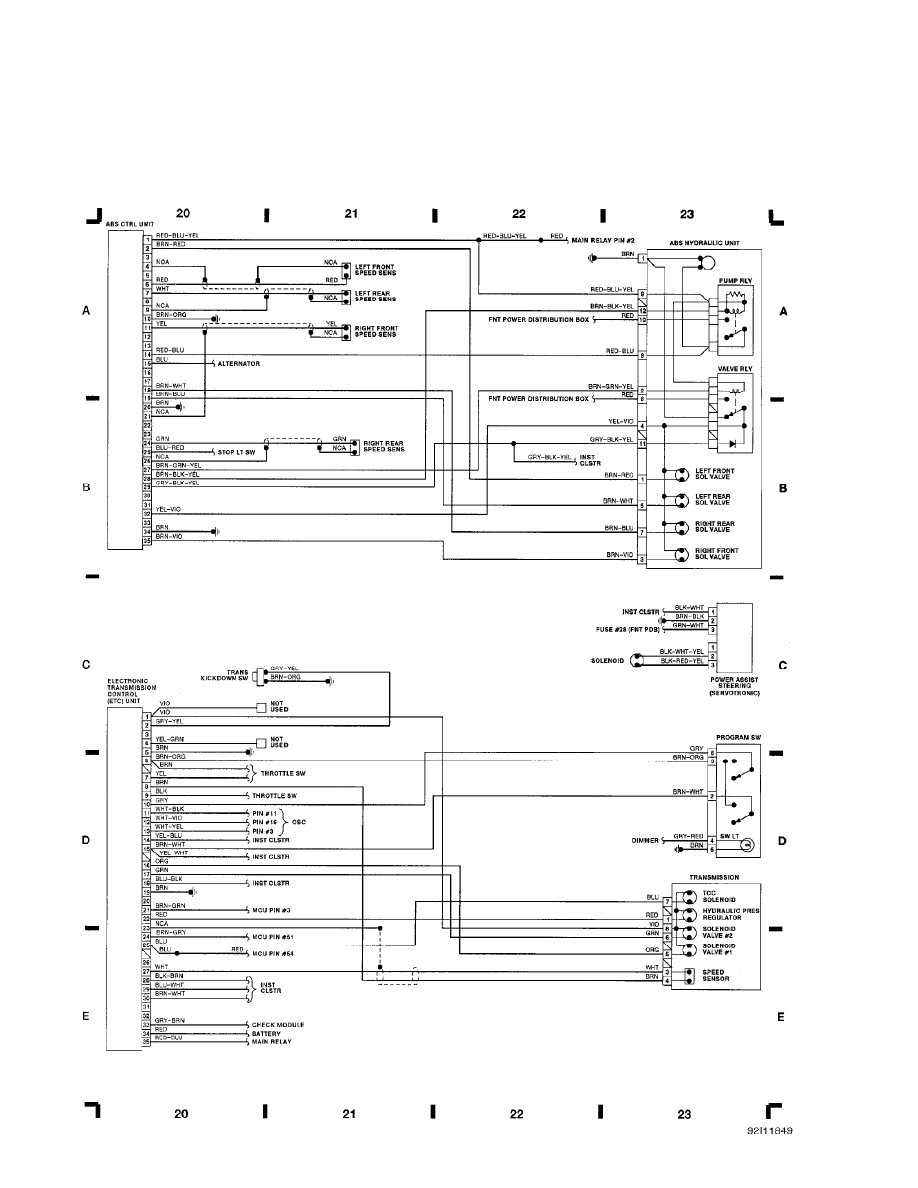

Fig. 6: Anti-Lock Brake System, ETC Unit (Grid 20-23)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

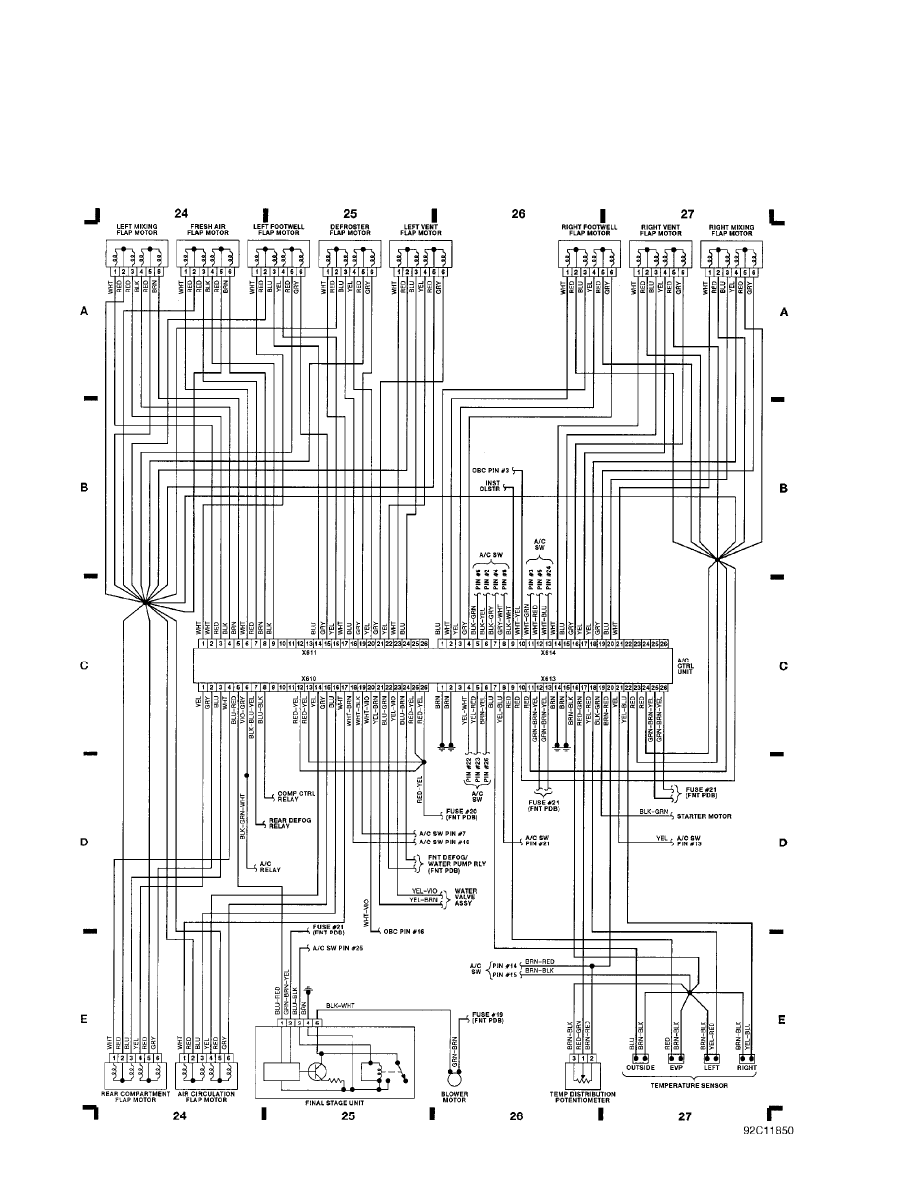

Fig. 7: A/C & Heating Control System (Grid 24-27)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

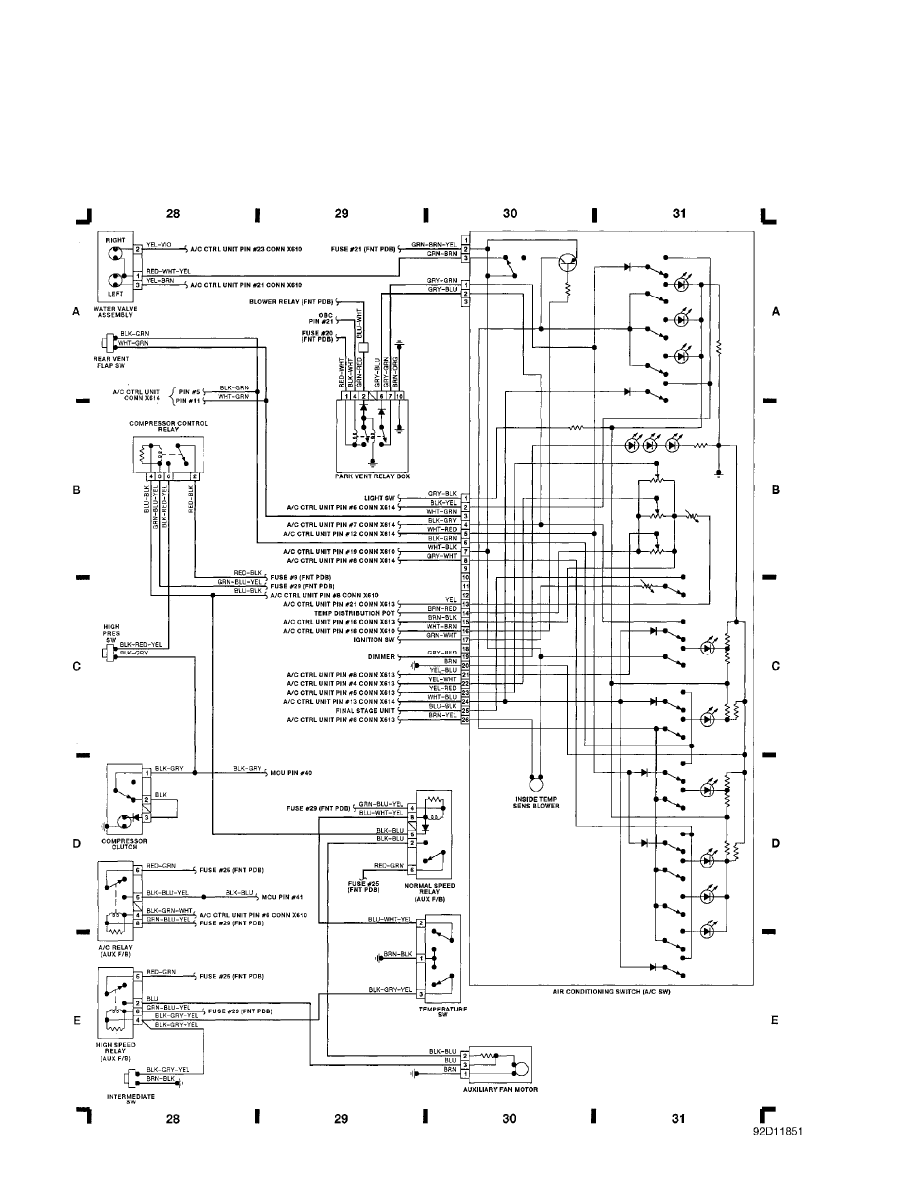

Fig. 8: A/C & Heating Control System (Cont) (Grid 28-31)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

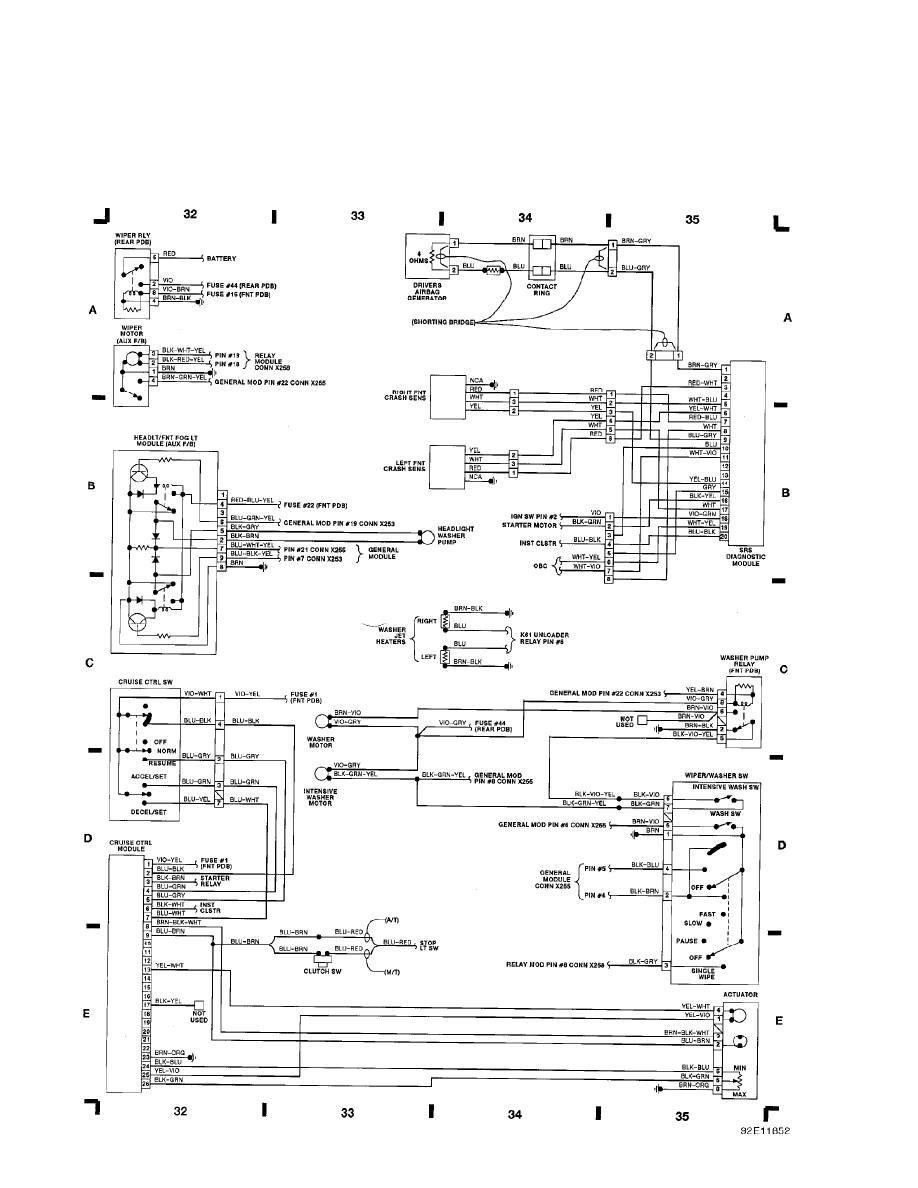

Fig. 9: Wiper/Washer, Cruise Control, SRS System (Grid 32-35)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

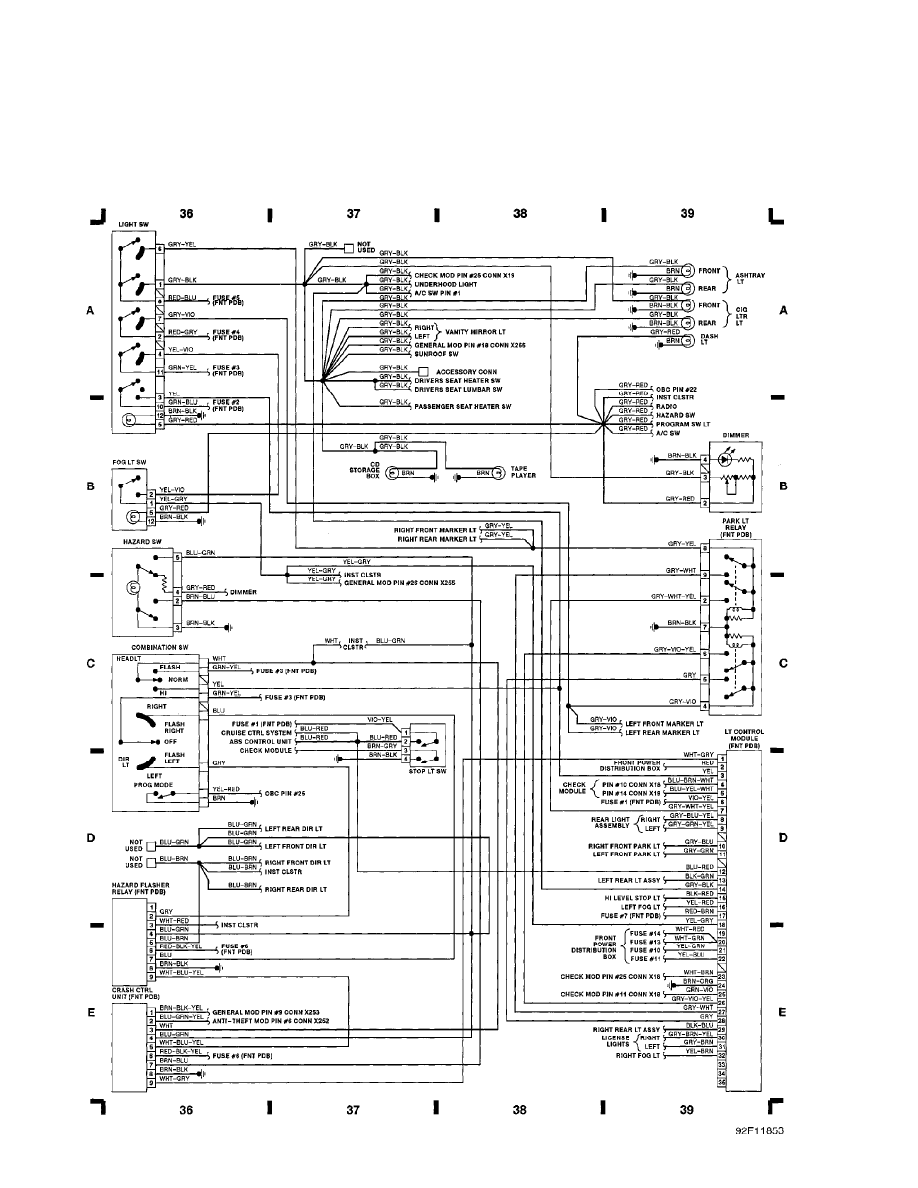

Fig. 10: Light Control System, Crash Control Unit (Grid 36-39)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

Fig. 11: Inst Cluster, A/T Range Sw, Veh Speed Sens (Grid 40-43)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:42PM

WIRING DIAGRAMS

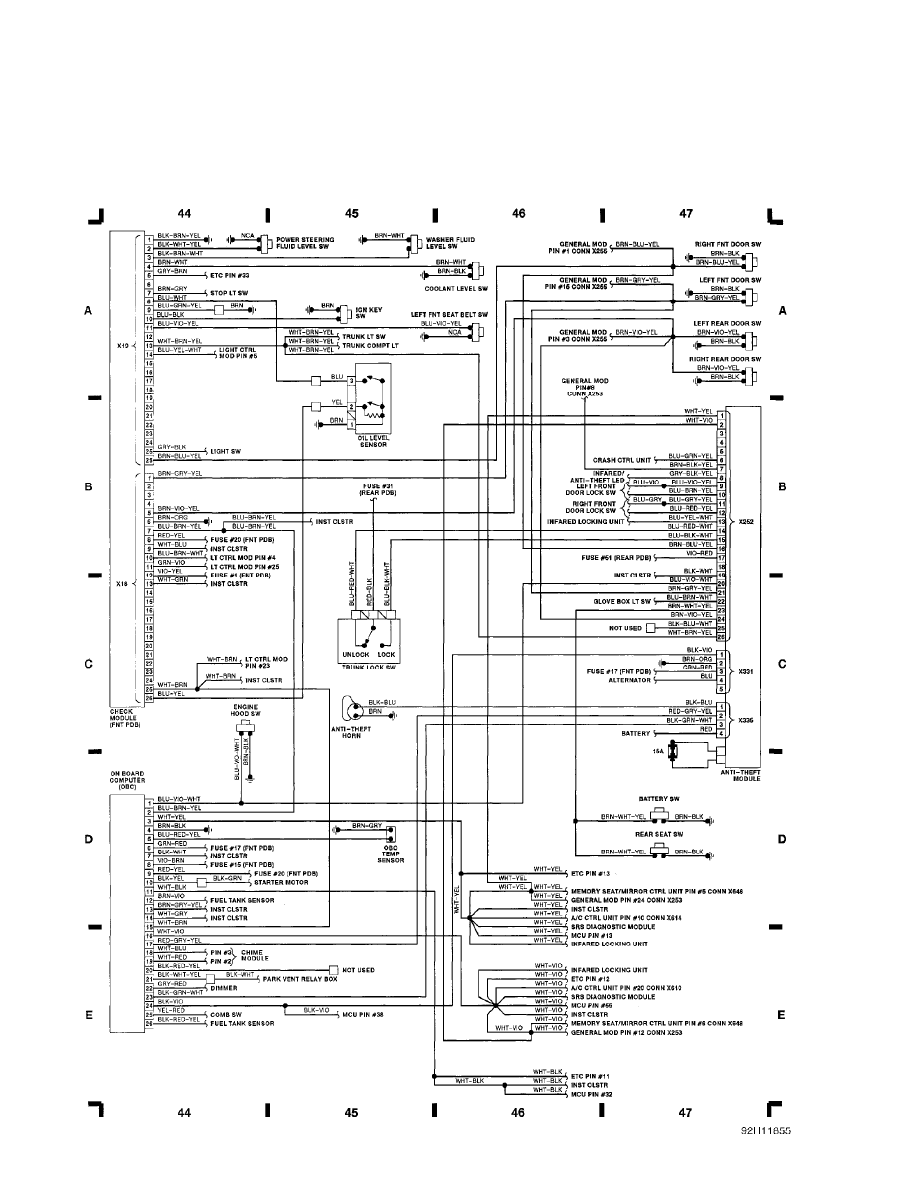

Fig. 12: Check Module, Anti-Theft Sys, OBC (Grid 44-47)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:43PM

WIRING DIAGRAMS

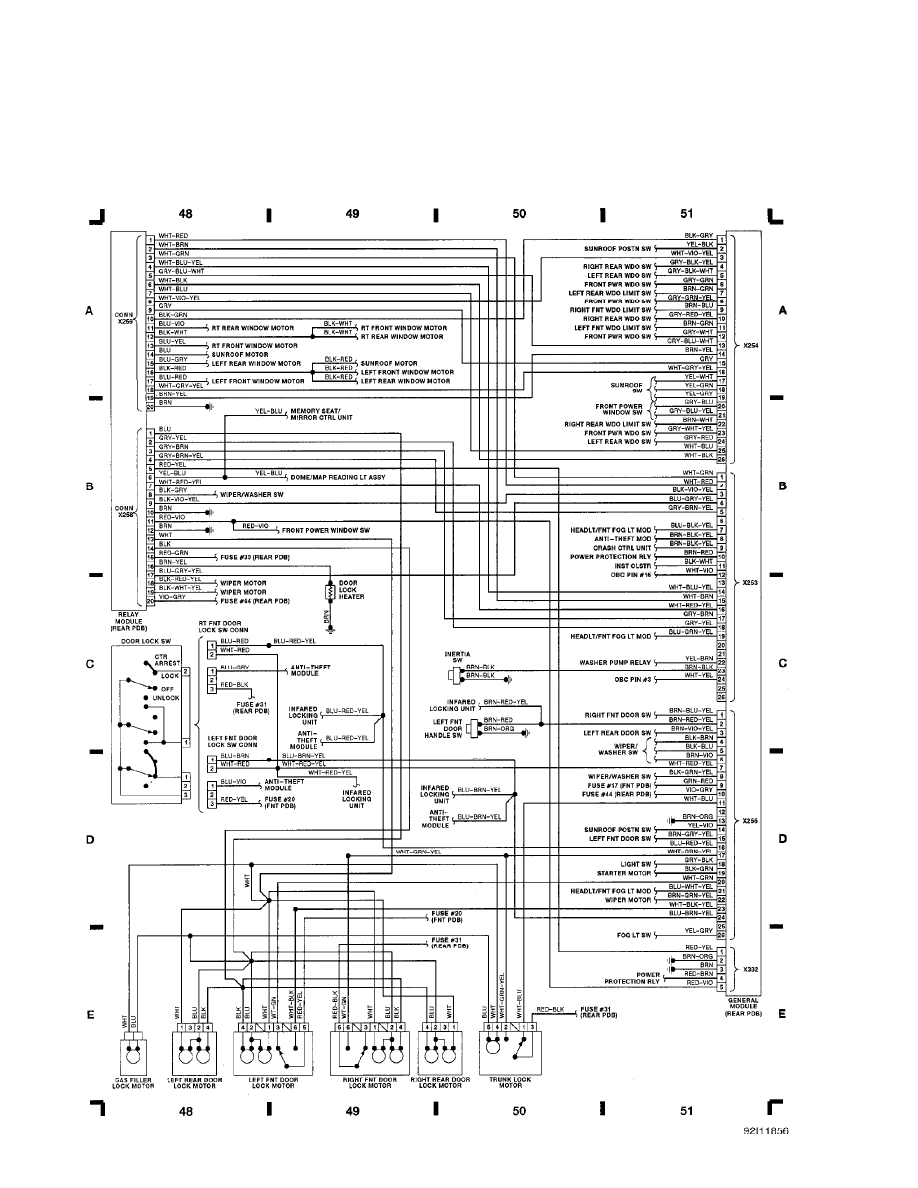

Fig. 13: Door Lock, Relay Module, General Module (Grid 48-51)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:43PM

WIRING DIAGRAMS

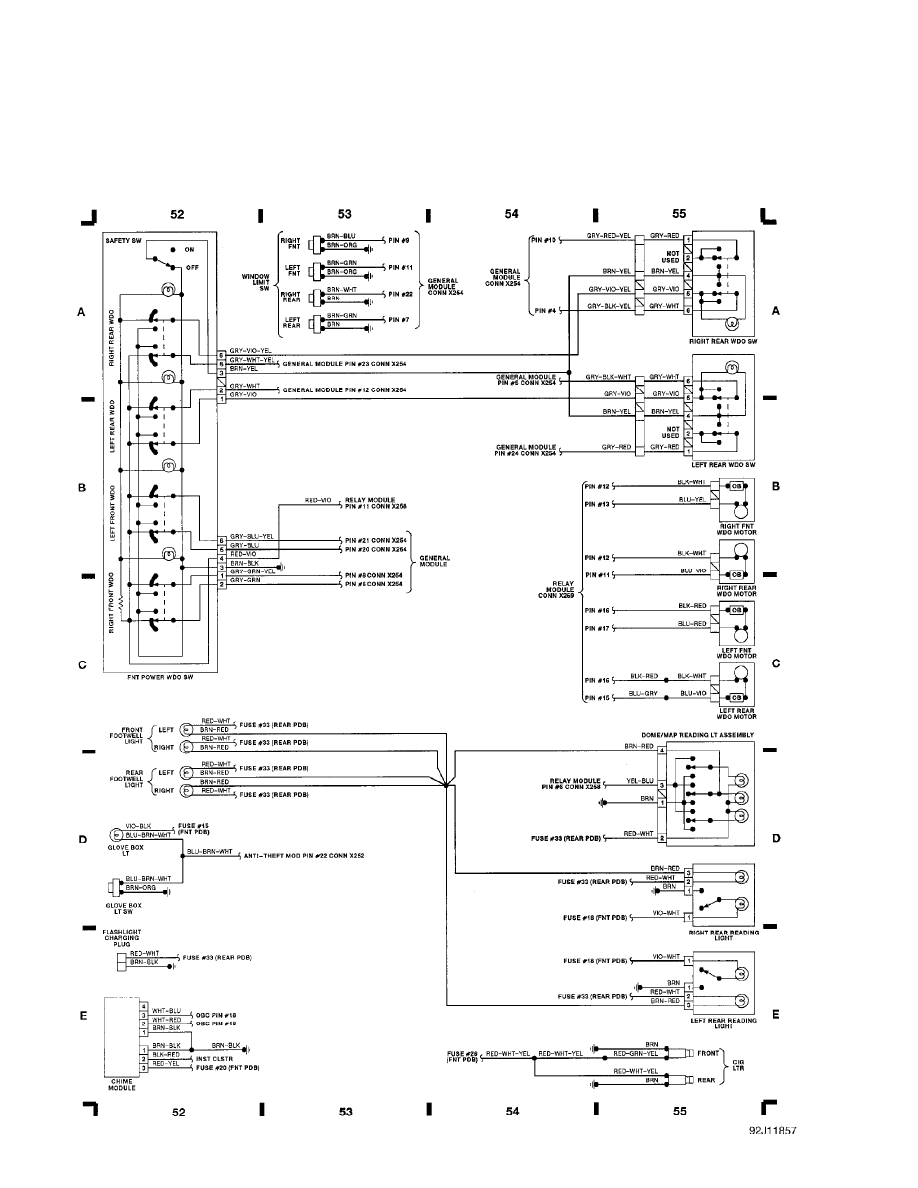

Fig. 14: Power Windows, Dome/Map Reading Lt Assy (Grid 52-55)

1991 BMW 735i

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:43PM
