WIRING DIAGRAMS
Fig. 1: Engine Compartment
1983 Mercedes-Benz 300TD
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:24PM
CDR@WP.PL
WIRING DIAGRAMS

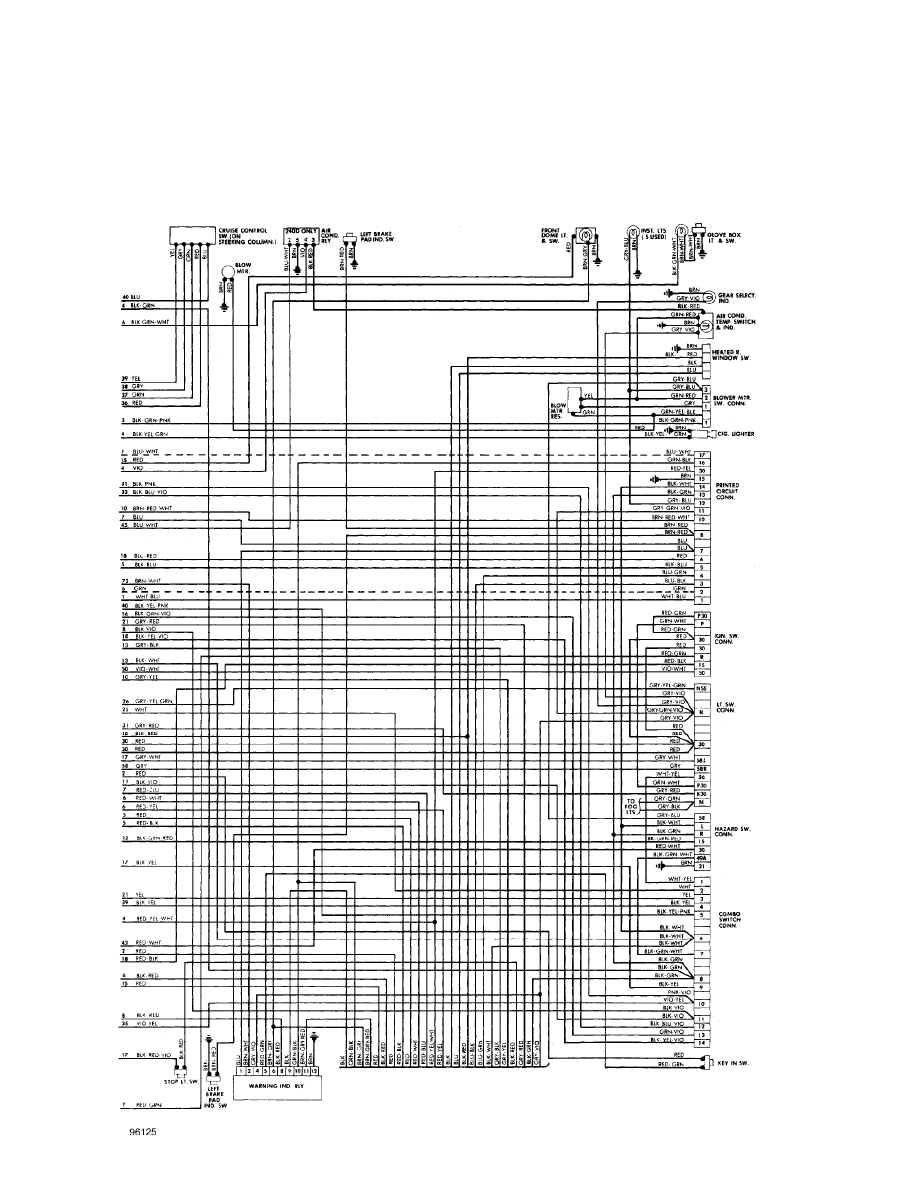

Fig. 3: Underdash (Cont.) & Instrument Panel
1983 Mercedes-Benz 300TD
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:24PM
WIRING DIAGRAMS

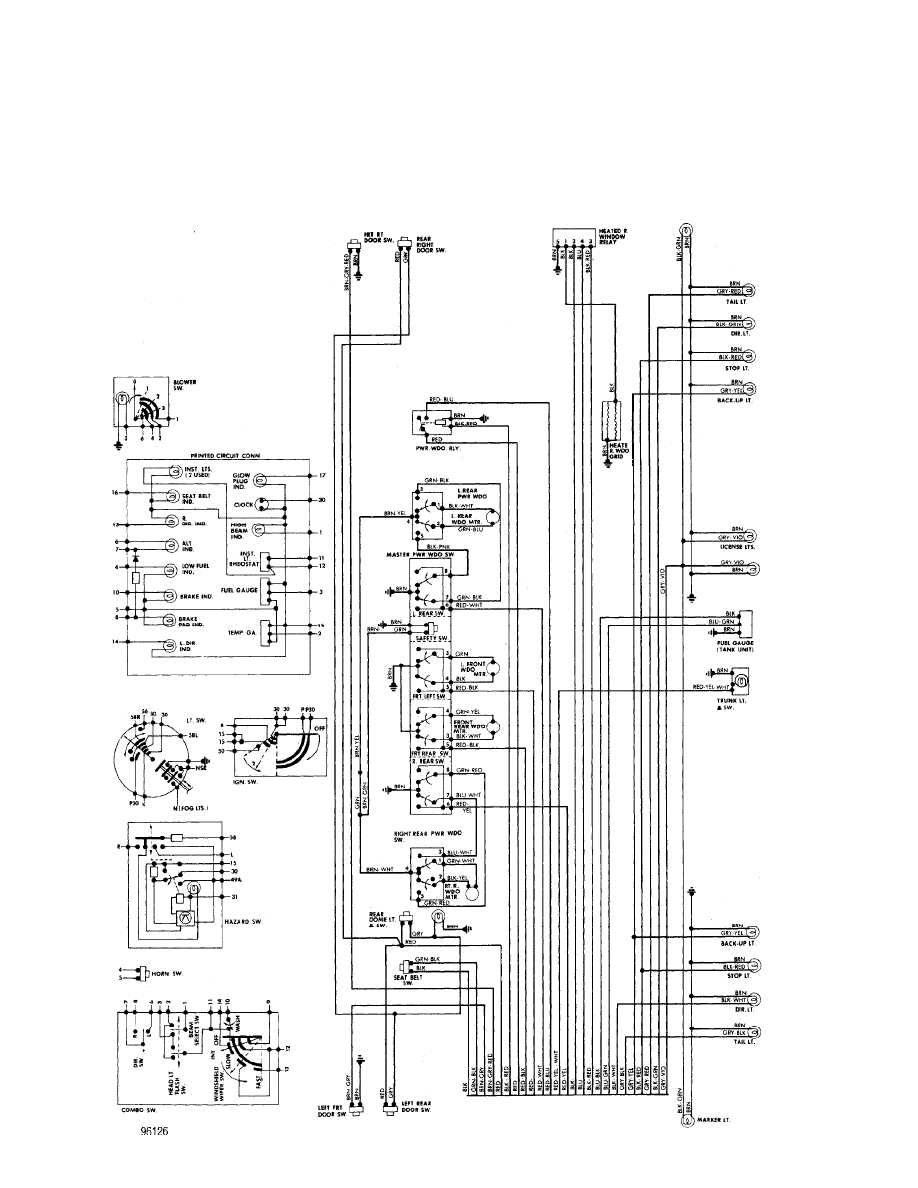

Fig. 4: Rear Compartment & Accessories
1983 Mercedes-Benz 300TD
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:24PM
WIRING DIAGRAMS

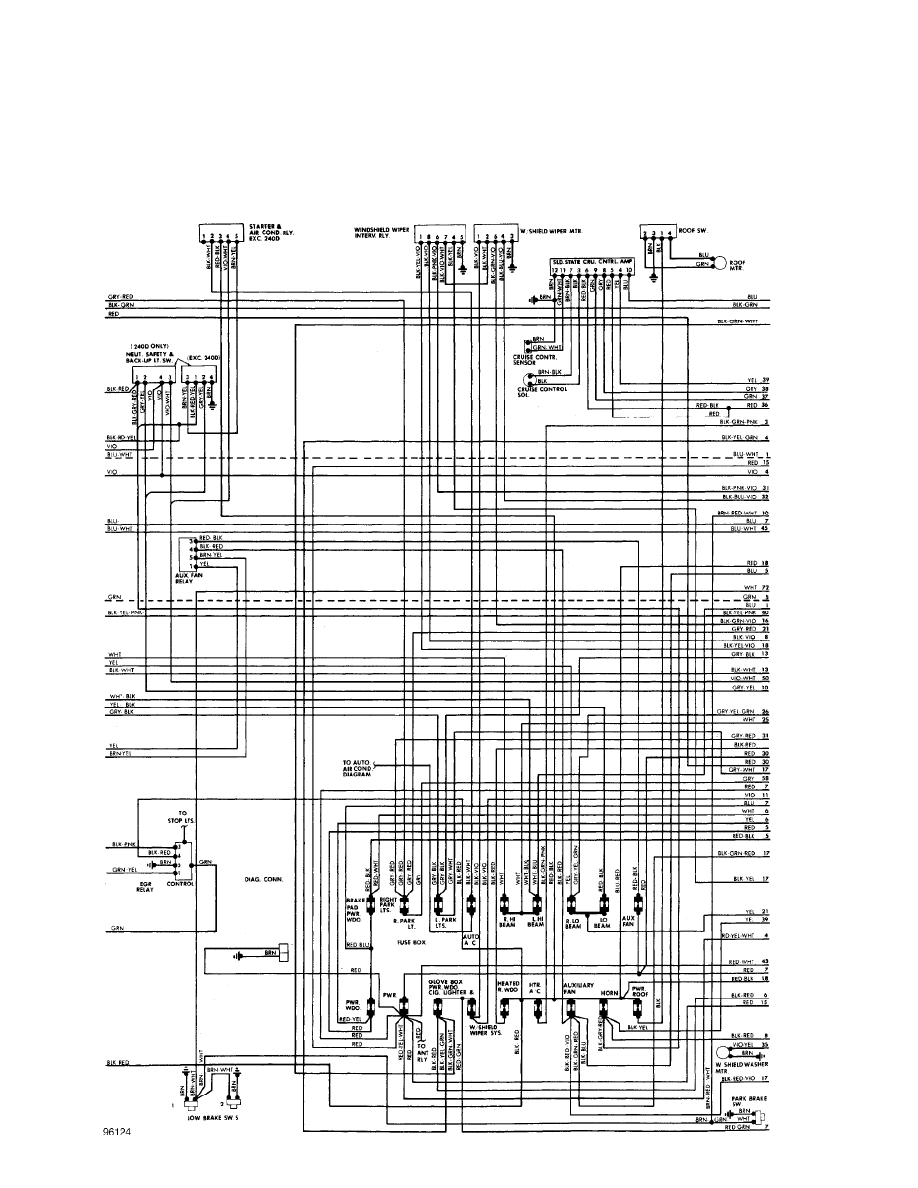

Fig. 2: Underdash & Fuse Block
1983 Mercedes-Benz 300TD
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:24PM
