Husqvarna 142

background image

S E R V I C E

Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar

I0601902

IPL,

2006-01

11

142/ 142e

background image

1

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248

142 North America

DATE

01/11/06

Replaces

r

PARTS LIST

9/19/05 -- 530165248

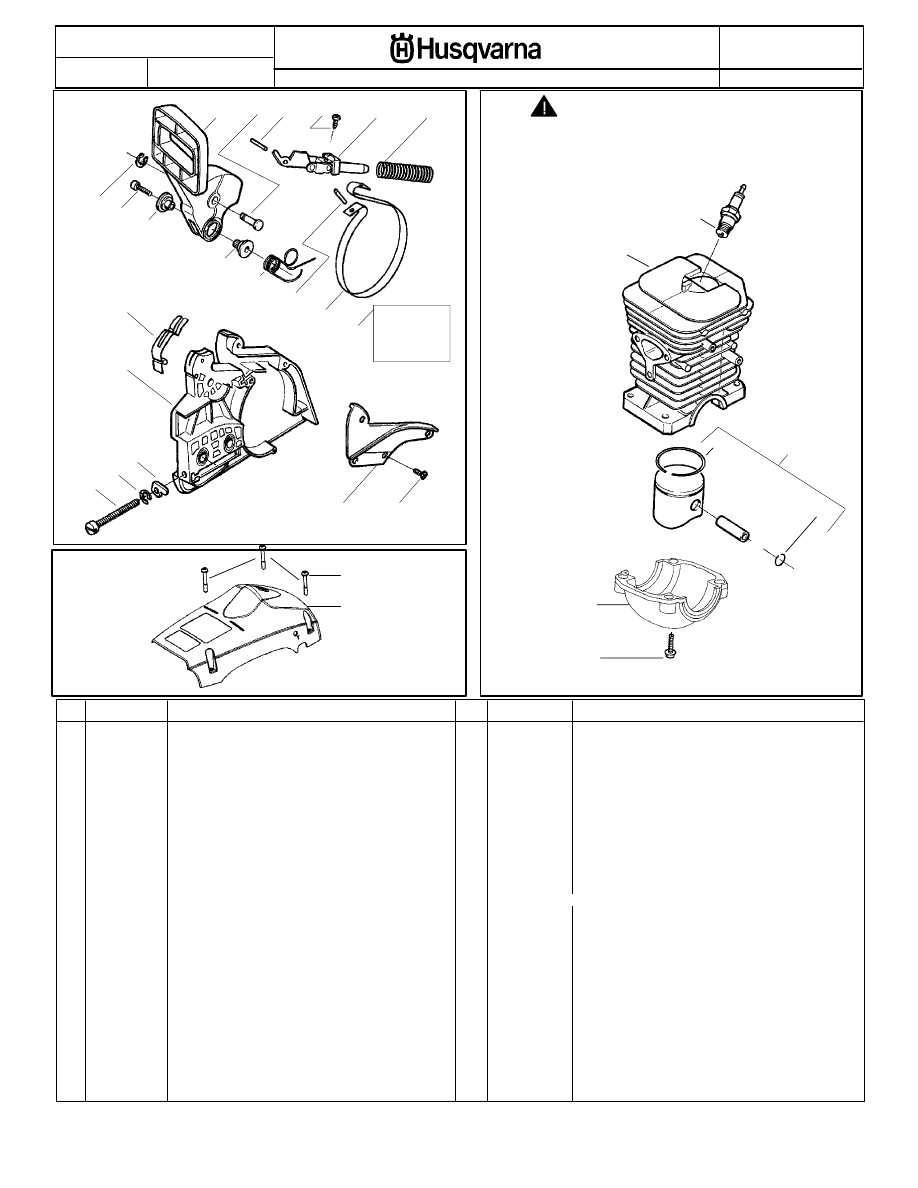

1

530071348

Kit-- Lever & Link Assy.

2

530029879

Pin--Pivot

3

530015915

Pin--Link

4

530015911

Screw

5

530054741

Assy--Front Link

6

530016237

Spring--Chain Brake

7

530024419

Retainer

8

530016384

Screw

9

530056531

Journal--Right

10

530029881

Journal--Left

11

530015910

Spring--Handguard

12

530015913

Pin--Spring

13

530052232

Band--Brake

14

530054802

Assy--Chain Brake

15

530029878

Spring--Position

16

530049483

Cover--Clutch

17

530015826

Pin--Bar Adjusting

18

530038593

Retainer

19

530016110

Screw--Bar Adjusting

20

530053035

Cover--Chain Brake Spring

21

530015911

Screw

22

530016154

Screw

23

530059960

Shield--Cylinder

24

952030150

Spark Plug (RCJ--7Y)

25

530069941

Kit--Cylinder (40cc) (incl.#29 pg. 1 & #23 pg. 2)

Description

26

530069454

Kit--Piston (40cc) (Includes pin and 27, 28)

27

530029982

Ring--Piston (40cc)

28

530015697

Piston Pin Retainer

29

530049794

Cap--Crankcase

30

530015897

Screw

530165144

Manual--Operator’s

530031135

Scrench

530047839

Decal--Warning

Part No.

Ref.

Part No.

Description

Ref.

22

23

25

26

30

29

Not Shown

Chain

Brake

Assembly

1

3

4

5

6

13

11

10

2

9

8

7

15

16

21

18

19

20

14

=

NEW PART NUMBER FOR THIS IPL

n

=

REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

K

12

27

28

24

17

WARNING

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.

background image

2

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248

142 North America

DATE

01/11/06

Replaces

r

PARTS LIST

9/19/05 -- 530165248

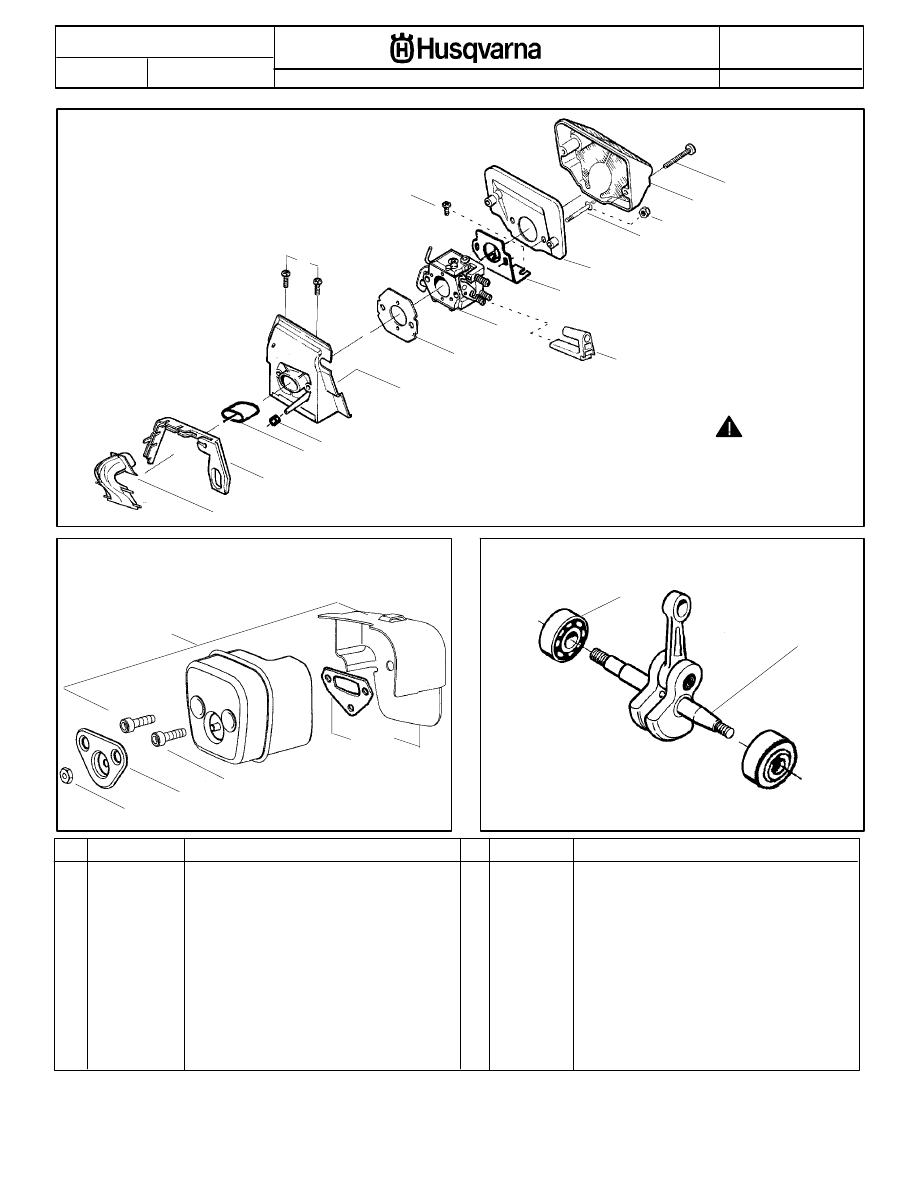

1

530029813

Assy--Turbo Air Cleaner

2

530019203

Seal -- Turbo Clean

3

530029814

Sleeve--Intake

4

530053435

Seal--Impulse

5

530015814

Screw

6

530037465

Adapter -- Carb.

7

530019172

Gasket--Carburetor

8

530071987

Carburetor--W--29

9

530035587

Grommet--Final

10

530047767

Plate -- Support

11

530015896

Screw

12

530036582

Air Filter -- Bottom

Description

13

530015968

Stud -- Carb.

14

530016008

Nut

15

530029811

Air--Filter -- Top

16

530015899

Screw

17

530071511

Kit--Muffler (Includes 20,21 & 22)

18

530016359

Nut--Brass

19

530055600

Cover--Bolt

20

530016338

Bolt--Muffler

21

530055128

Gasket--Muffler

22

530055171

Backplate--Muffler

23

530056363

Assy. --Bearing and Seal

24

530029794

Assy--Crankshaft & Rod

Part No.

Ref.

Part No.

Description

Ref.

6

3

7

8

9

13

16

15

12

5

19

20

22

21

23

24

17

4

1

2

=

NEW PART NUMBER FOR THIS IPL

n
D

=

THESE PARTS ARE ILLUSTRATED FOR CLARITY.

ORDER COMPLETE ASSEMBLY.

10

11

14

18

WARNING

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.

background image

3

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248

142 North America

DATE

01/11/06

Replaces

r

PARTS LIST

9/19/05 -- 530165248

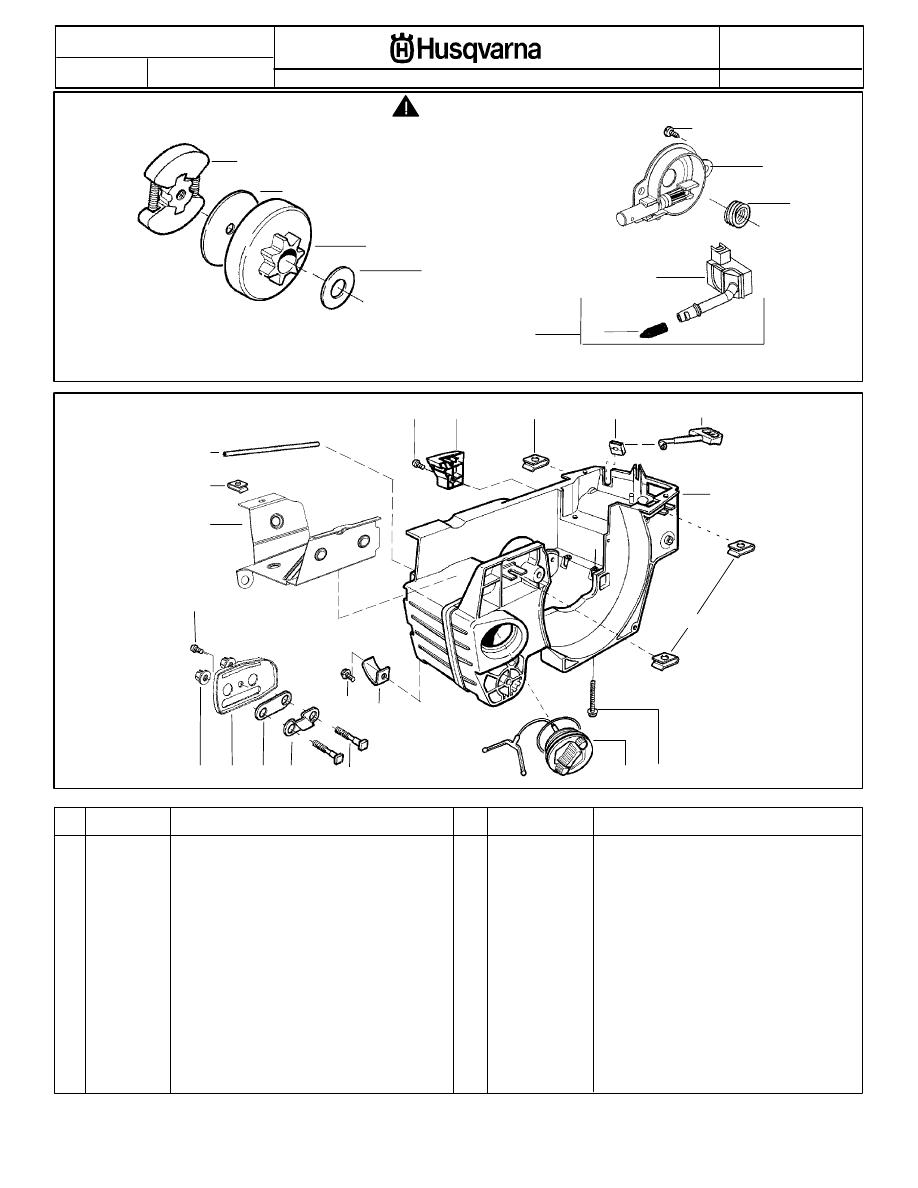

1

530014949

Assy--Clutch

2

530015611

Washer--Clutch

3

530047061

Assy--Clutch Drum w/Bearing

4

530015907

Washer--Thrust

5

530014776

Assy--Oil Pick--Up and Screen (Incl 6,7)

6

530056533

Filter--Oil

7

545037101

Assy--Pickup

8

530015896

Screw

9

530014410

Assy--Oil Pump

10

530029833

Worm Gear--Oil Pump

11

545033501

Tube--Oil Vent

12

530055322

Clip--Retainer

13

530055174

Shield--Heat

14

530015896

Screw (optional)

15

530015917

Nut

Description

16

530047855

Plate--Bar

17

530019228

Gasket

18

530036043

Plate--Bar Stud

19

530015877

Bar Bolt

20

530015878

Screw

21

530029850

Chain Catcher

22

530015893

Screw

23

530052428

Cover

24

530015922

Nut--Type ”U” Speed

25

530029830

Grommet

26

530029831

Lever--Choke

27

530071991

Kit -- Chassis Ass’y.

28

530015922

Nut--Type ”U” Speed

29

530016037

Screw

30

501765602

Assy.-- Oil Tank Cap

Part No.

Ref.

Part No.

Description

Ref.

1

3

4

27

14

16

26

24

29

30

17 18

15

21

20

11

28

=

NEW PART NUMBER FOR THIS IPL

n

=

REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

D

K

=

THESE PARTS ARE ILLUSTRATED FOR CLARITY.

ORDER COMPLETE ASSEMBLY.

23

22

25

2

19

13

12

WARNING

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.

7

10

6

8

9

5

n

n

background image

4

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248

142 North America

DATE

01/11/06

Replaces

r

PARTS LIST

9/19/05 -- 530165248

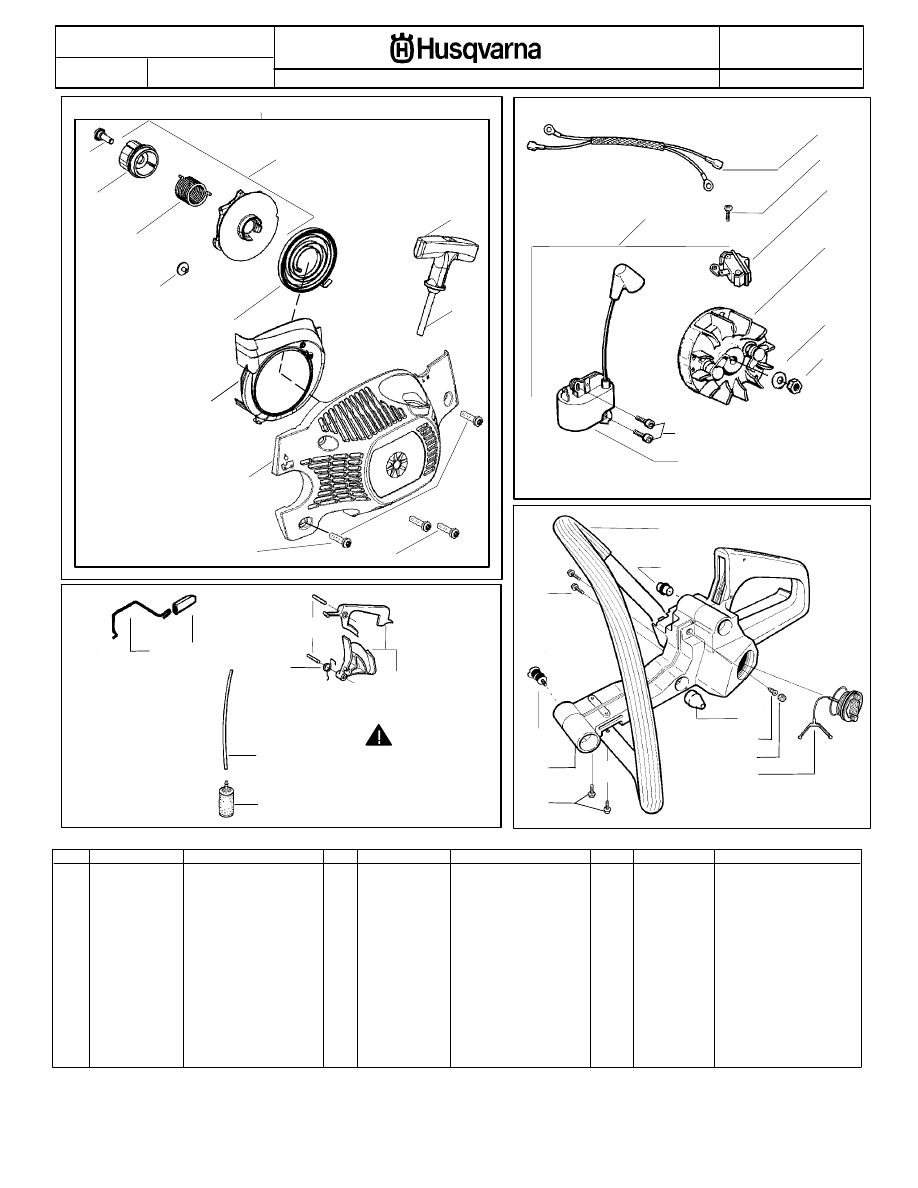

1

530071968

Kit--Fan Hsg / Starter

(Incl. 2, 3, 4, 5, 6, 7

8, 9, 10, 11)

2

530071966

Kit--Starter EPS

(Incl. 5,6,7,8)

3

530150318

Handle--Starter

4

530069232

Kit--Rope

5

530021179

Screw--shoulder

6

530059677

Hub

7

530021180

Spring--EPS

8

530016080

Screw

9

530042095

Spring--Starter

10 530059959

Baffle--Air

11

530059958

Assy--Fan Hsg. w/eyelet

12 530015893

Screw

13

530015892

Screw

14

530071967

Kit--EPS ignition

(Incl. 17, 18, 22)

15

530403257

Assy--Leadwire

16

530015896

Screw

17

503717901

Switch--Ignition

18

530059637

Assy. --Flywheel

19

530015127

Washer--Flywheel

20

530016134

Nut

21

545003902

Screw

22

530039239

Module -- Ignition

23

530029869

Wire -- Throttle

24

530029863

Cap -- Wire

25

530029860

Pin

Ref.

Part No.

Description

Ref.

7

5

2

3

9

11

8

16

18

15

22

20

19

Part No.

Description

6

21

32

37

38

36

33

29

24

31

=

NEW PART NUMBER FOR THIS IPL

n

=

REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

D

K

=

THESE PARTS ARE ILLUSTRATED FOR CLARITY.

ORDER COMPLETE ASSEMBLY.

27

26

28

25

39

30

35

34

17

26

530029861

Spring

27

530069587

Kit -- Throttle Trigger

28

530069247

Kit -- Fuel line

29

530014497

Assy.-- Fuel Pickup

30

530015940

Screw

31

530029870

Element -- AV Isolator

32

530055613

Assy. --Tank/Handle

33

530015843

Screw

34

530059961

Handle--Front

35

530052439

Isolator--Front Handle

36

530029984

Isolator

37

530026119

Valve -- Check

38

530038264

Plug -- Vent

39

530071266

Kit--Assy. Fuel Cap

Ref.

Part No.

Description

12

23

4

13

14

10

WARNING

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.

1

n

n

background image

5

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248

142 North America

DATE

01/11/06

Replaces

r

PARTS LIST

9/19/05 -- 530165248

=

NEW PART NUMBER FOR THIS IPL

n

=

REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

D

K

=

THESE PARTS ARE ILLUSTRATED FOR CLARITY.

ORDER COMPLETE ASSEMBLY.

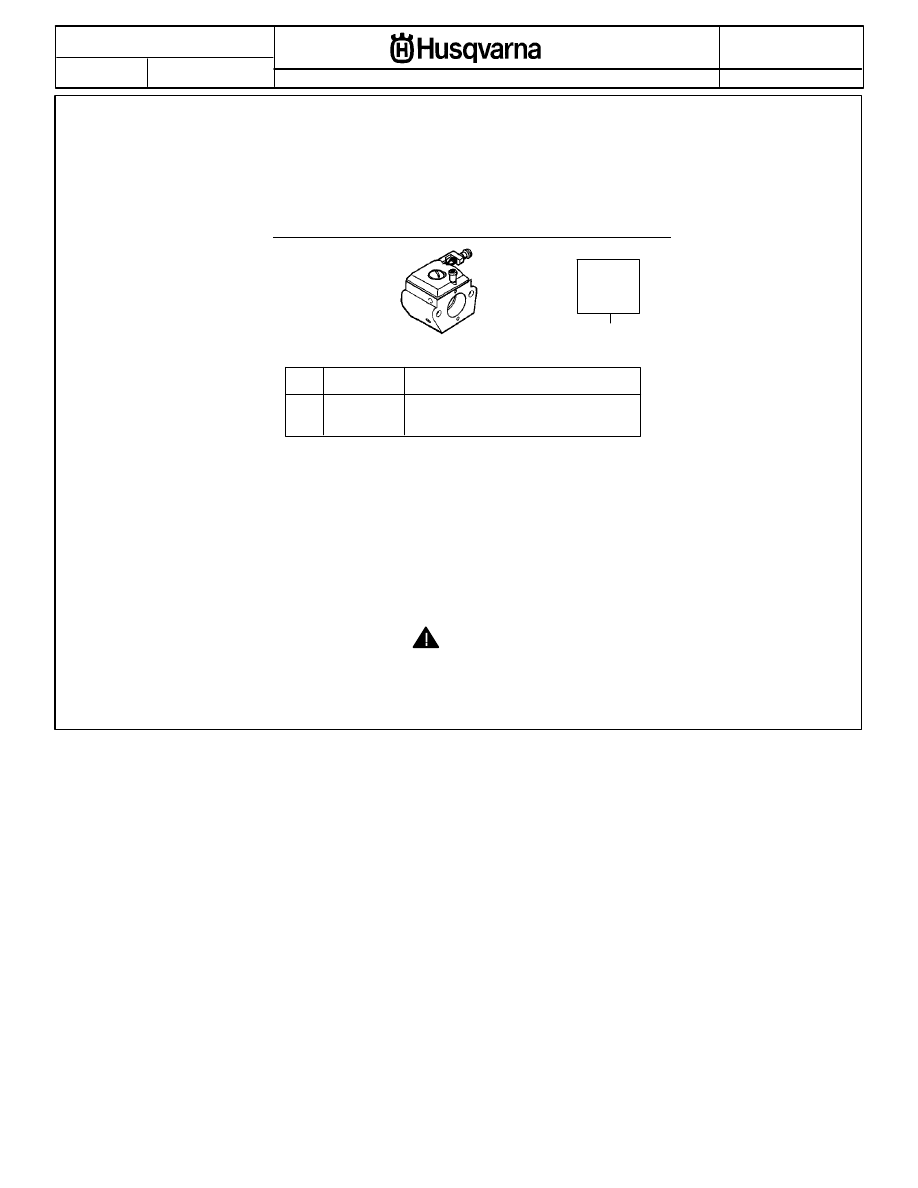

Kit -- Carburetor Assembly No. 530071987 -- Zama W--29

WARNING

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.

1.

530035269

Kit--Carburetor Repair (Zama)

Ref.

Part No.

Description

Carb

Repair

Kit

1
