MERCEDES BENZ 300TE 1988

background image

WIRING DIAGRAMS

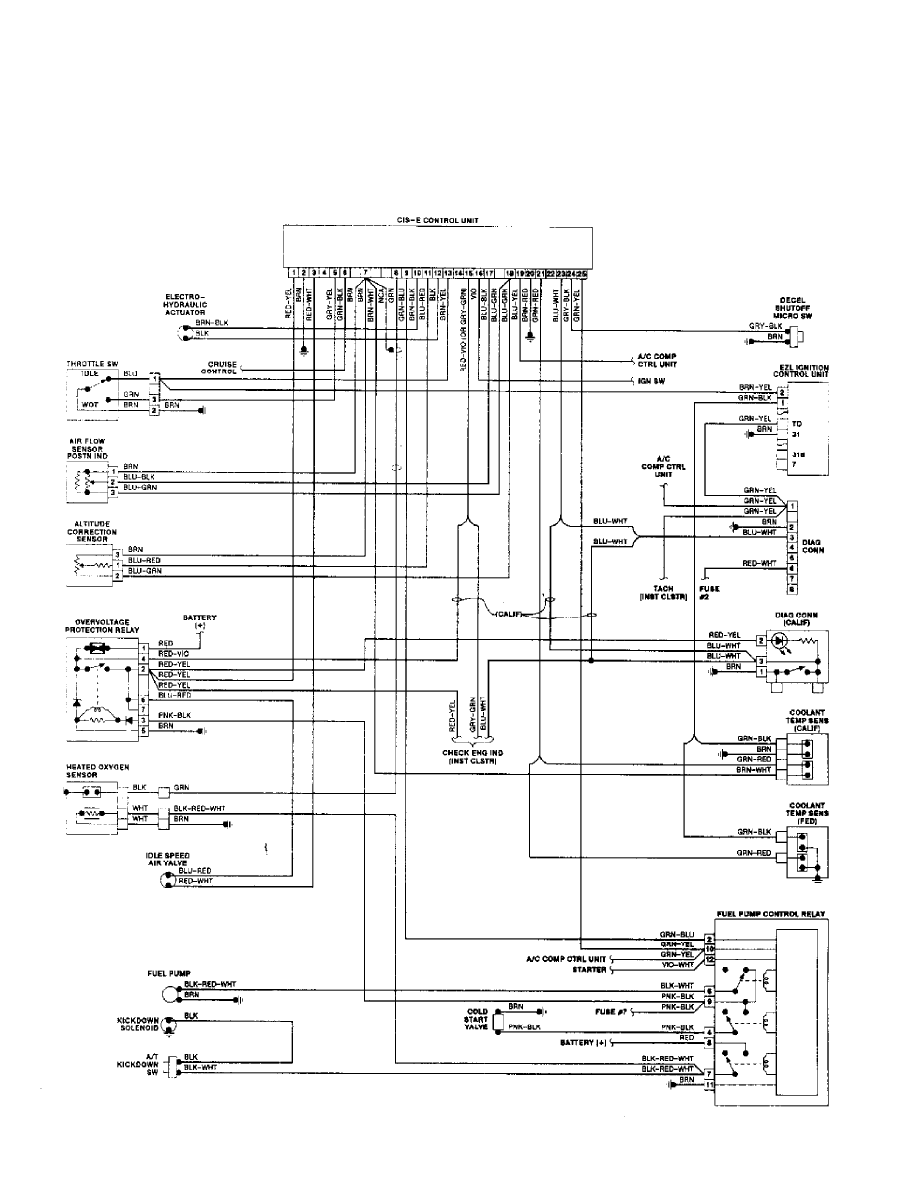

Fig. 1: CIS-E Wiring Diagram - 190E 2.3L & 2.6L (Calif.)

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:22PM

cdr@wp.pl

background image

WIRING DIAGRAMS

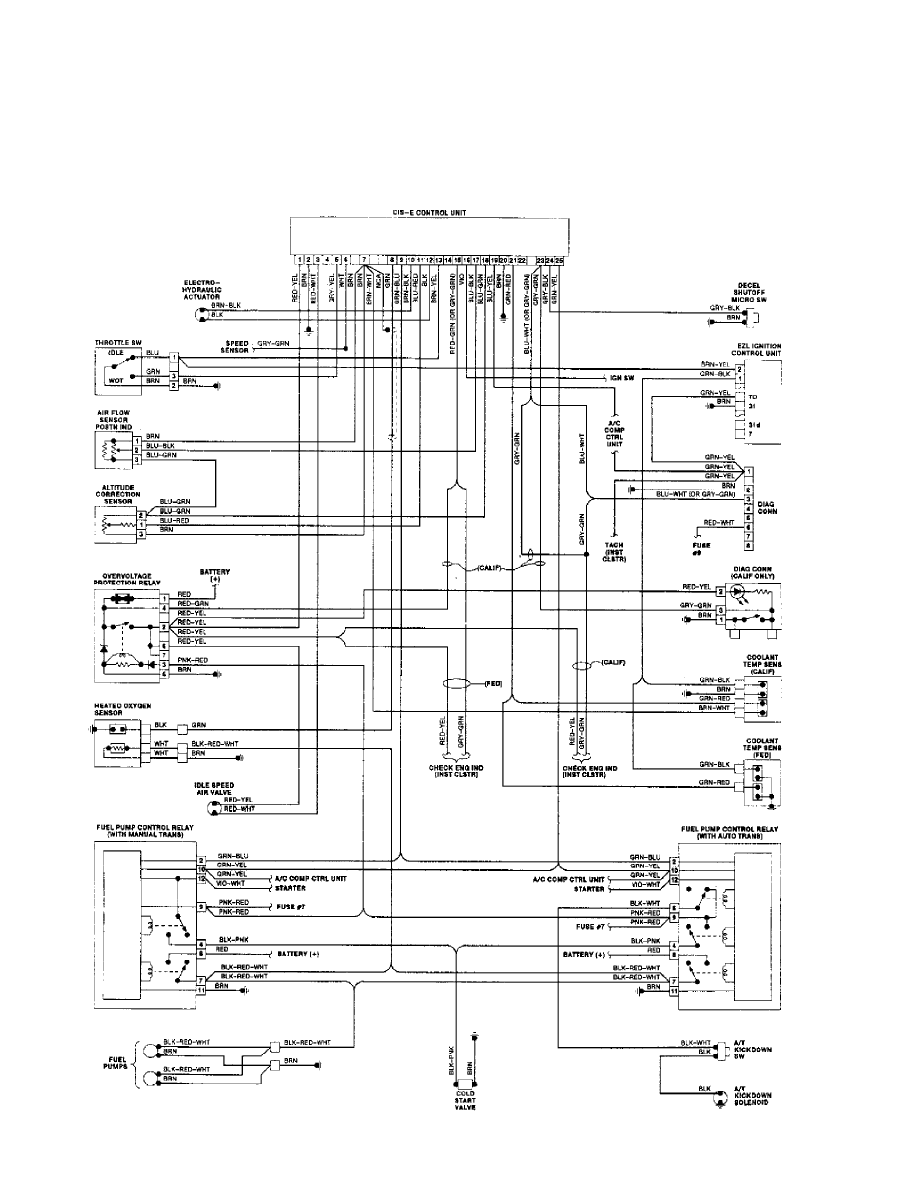

Fig. 5: CIS-E Wiring Diagram - 420 & 560 Series (Ex. 560SL)

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:23PM

background image

WIRING DIAGRAMS

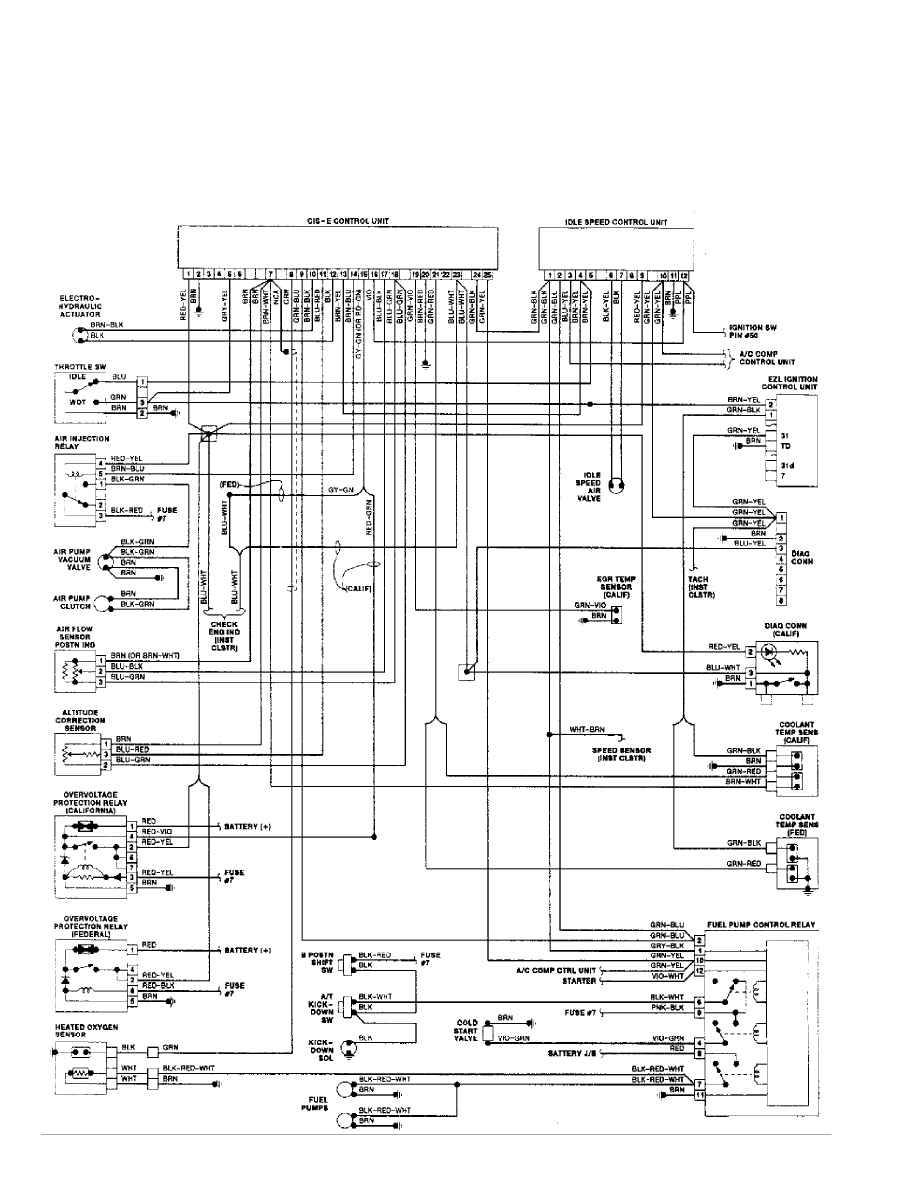

Fig. 6: CIS-E Wiring Diagram - 560SL

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:23PM

background image

WIRING DIAGRAMS

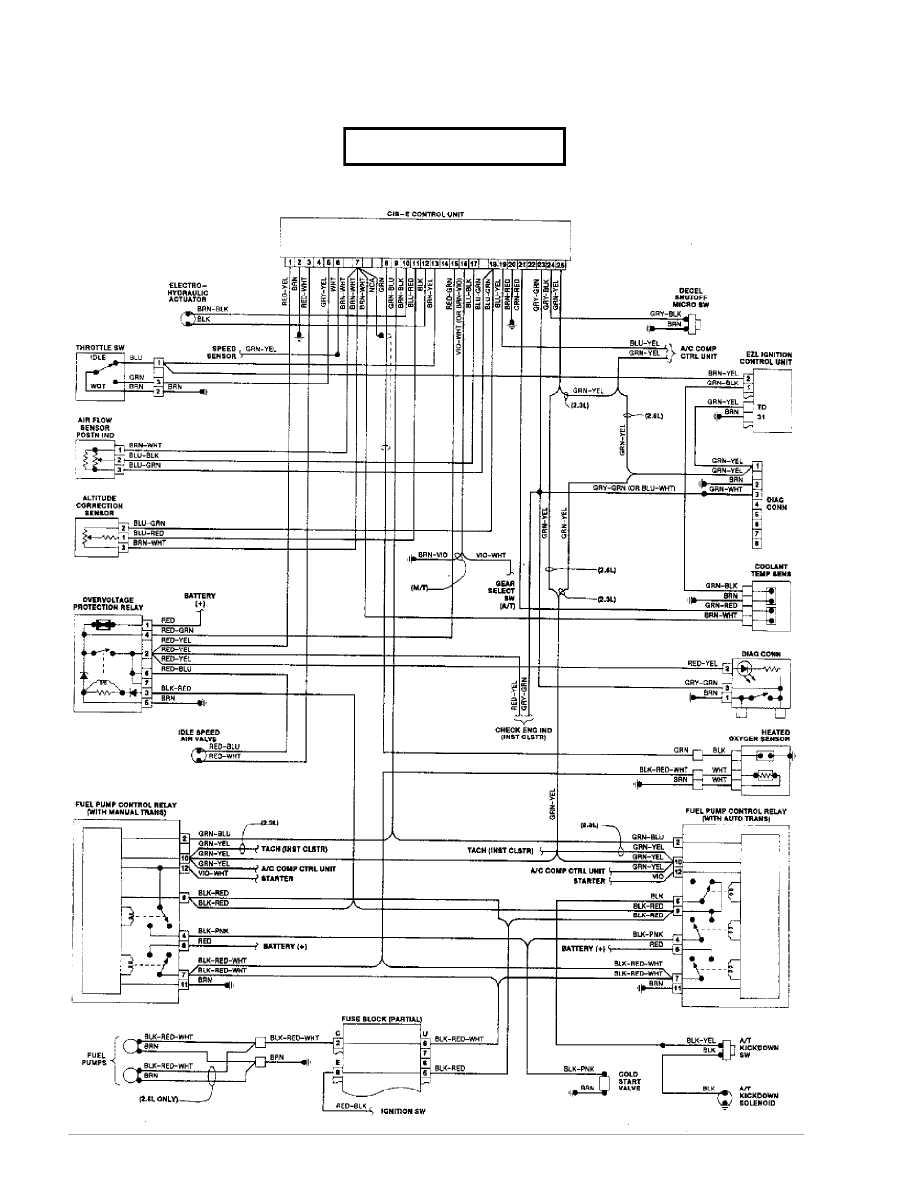

Fig. 2: CIS-E Wiring Diagram - 190E 2.3L & 2.6L (Fed.)

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:22PM

background image

WIRING DIAGRAMS

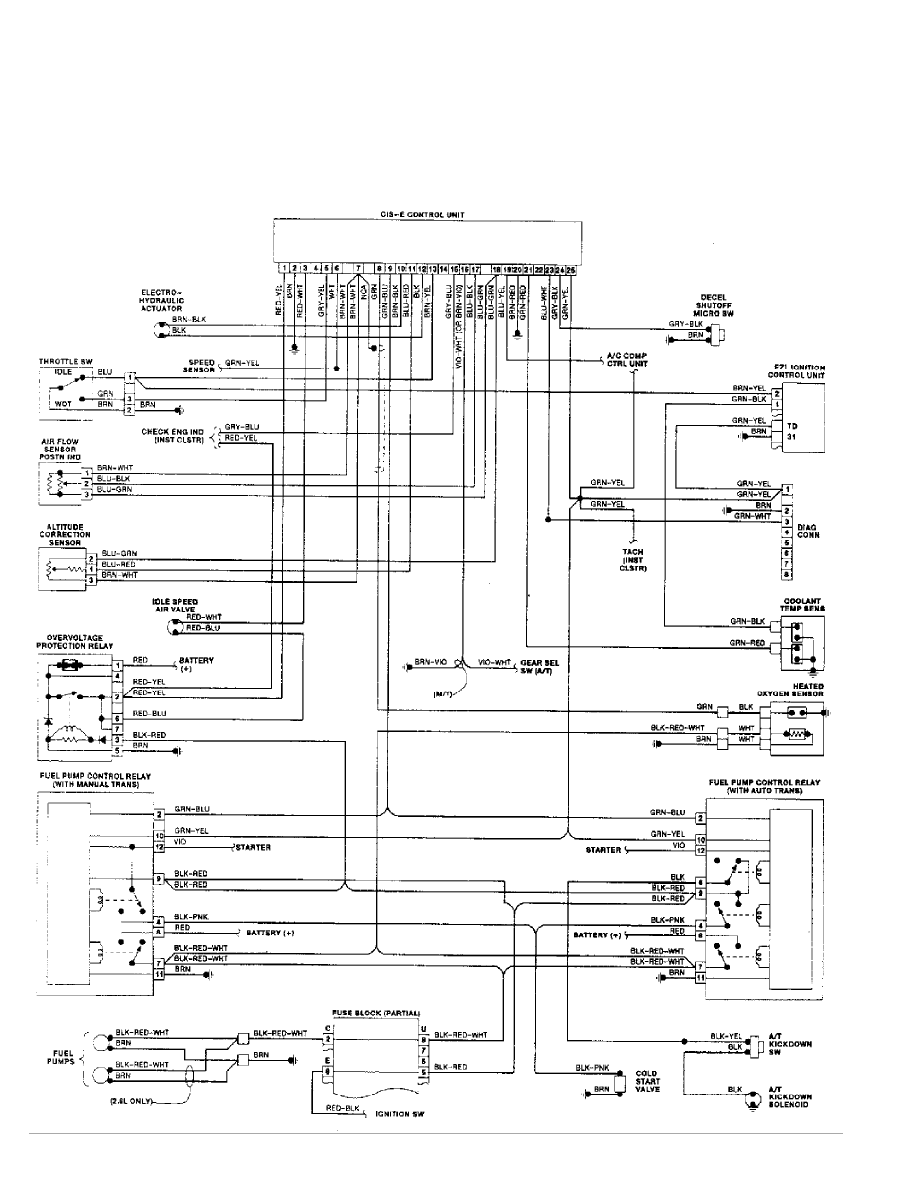

Fig. 3: CIS-E Wiring Diagram - 260E, 300E, 300CE & 300TE

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:22PM

background image

WIRING DIAGRAMS

Fig. 4: CIS-E Wiring Diagram - 300SE & 300SEL

1988 Mercedes-Benz 300TE

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 07:22PM
