MAZDA PICKUP 1987

SYSTEM WIRING DIAGRAMS

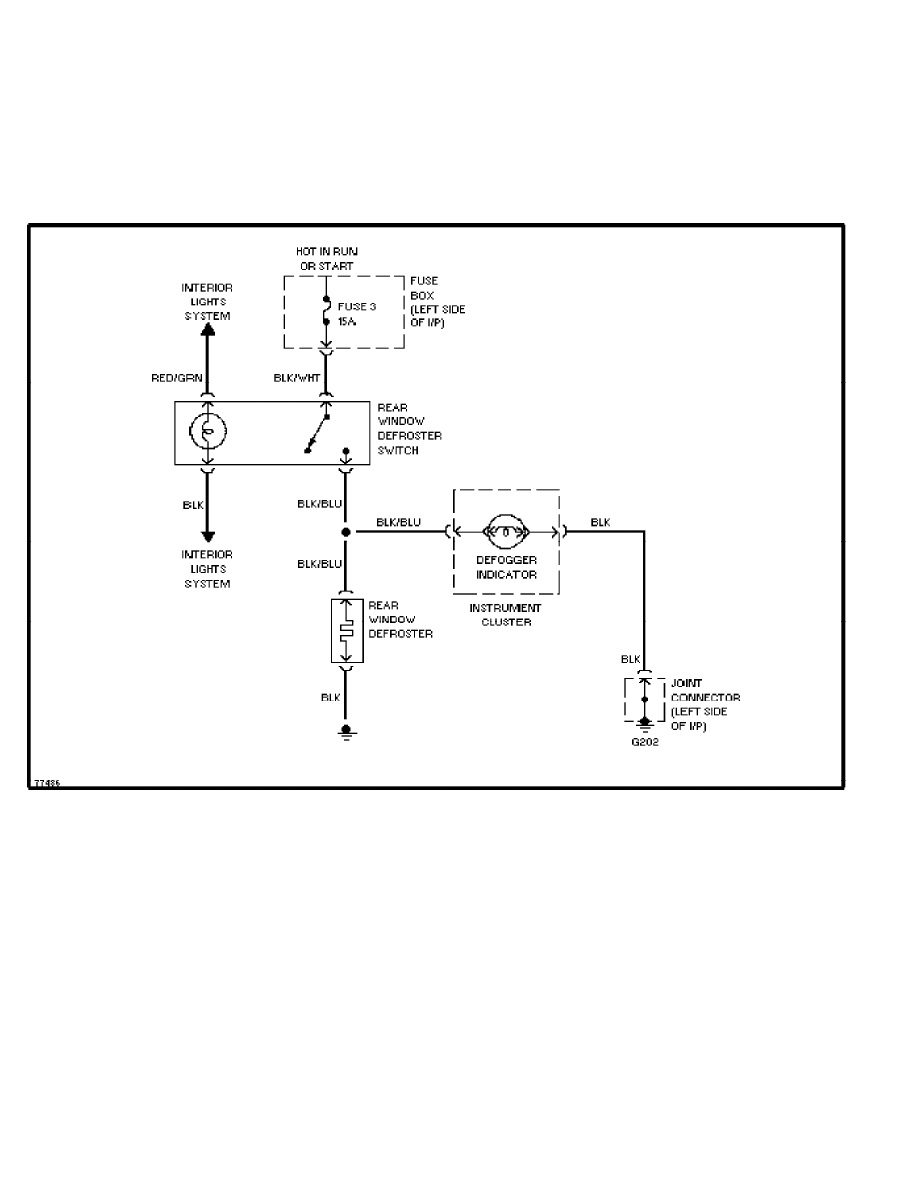

Defogger Circuit

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

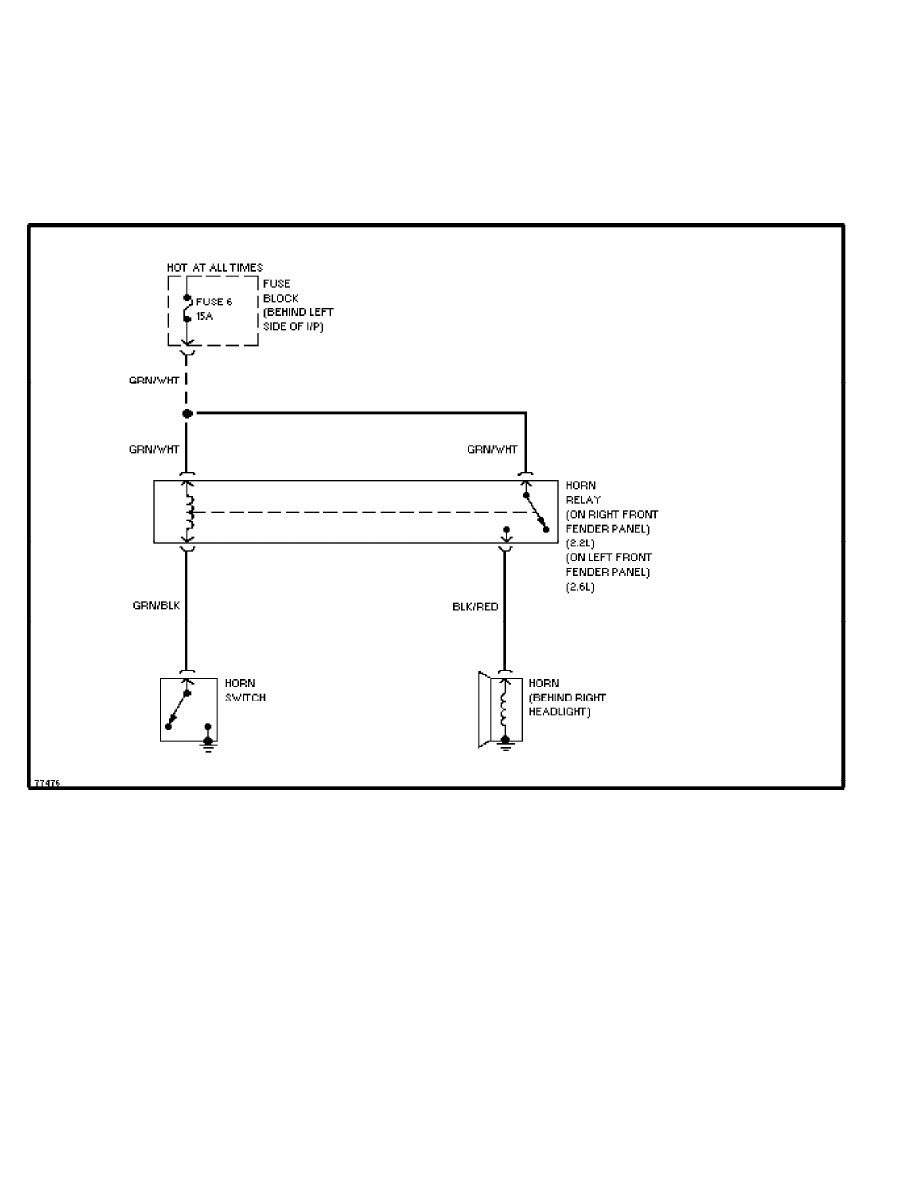

Horn Circuit (p. 2)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

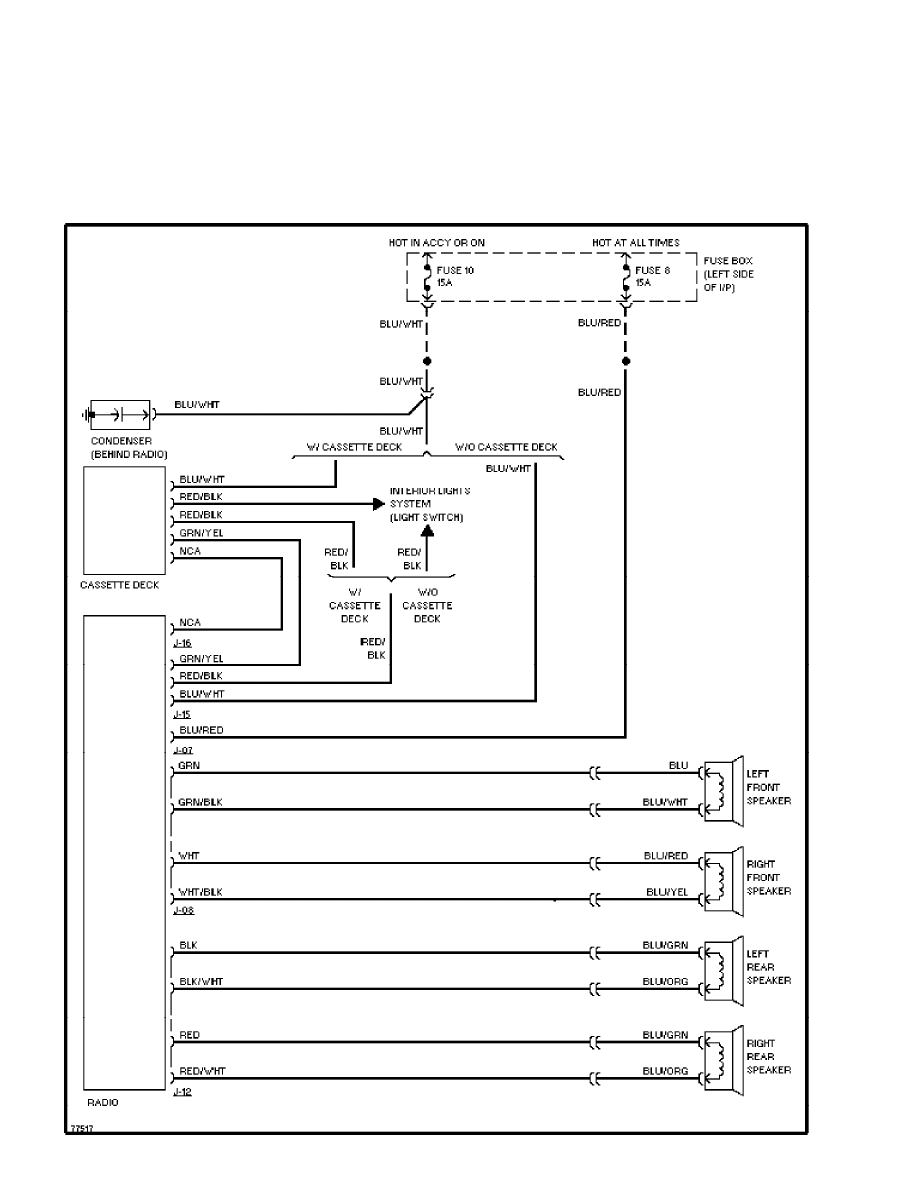

Radio Circuits, ETR (p. 3)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

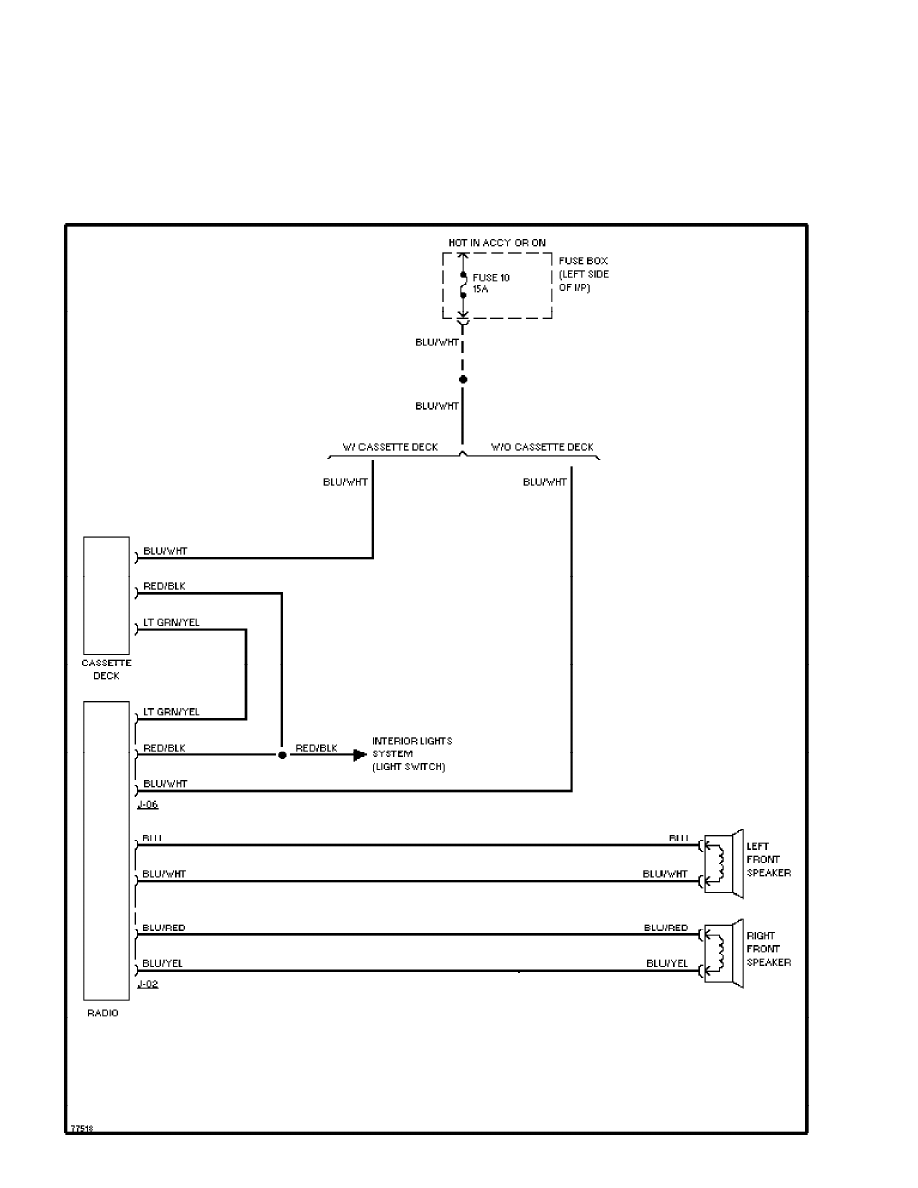

Radio Circuits, MTR (p. 4)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

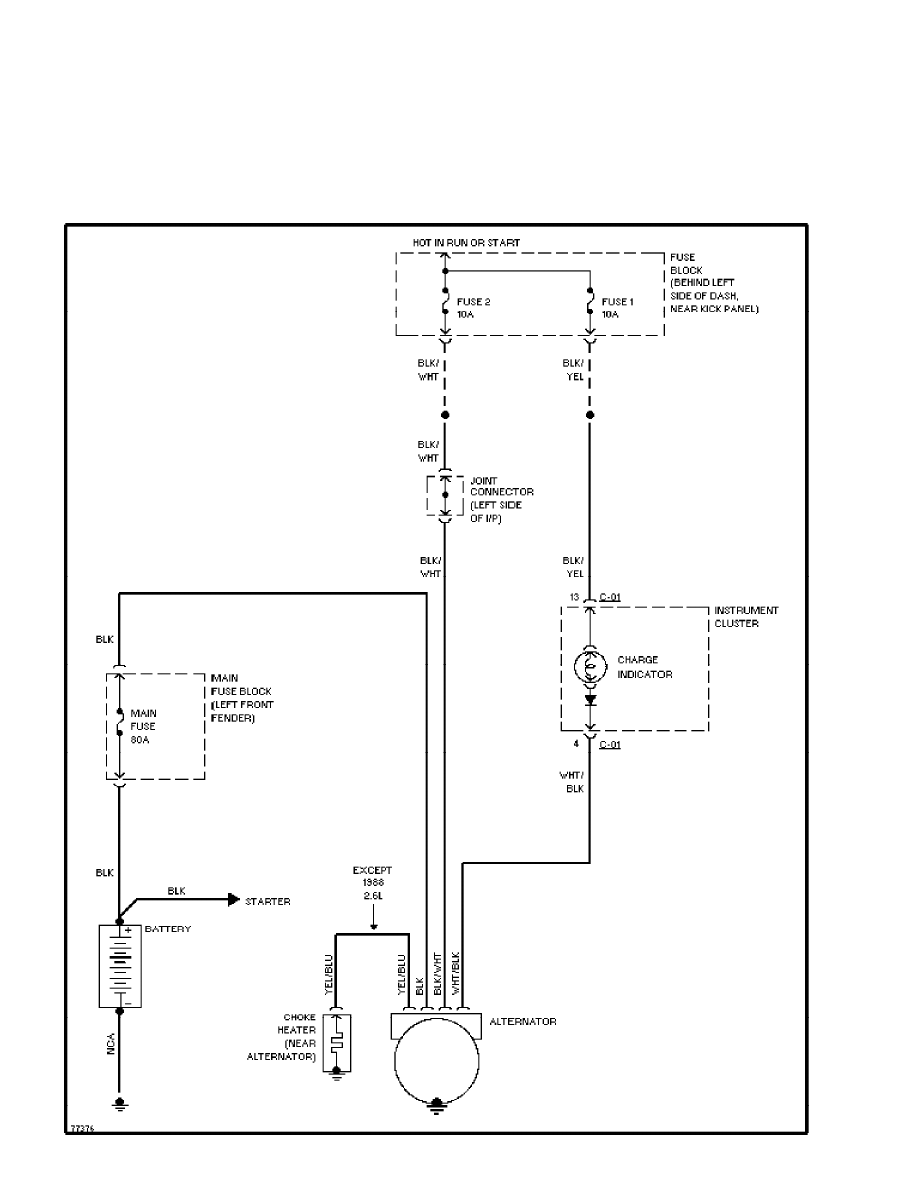

Charging Circuit (p. 5)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

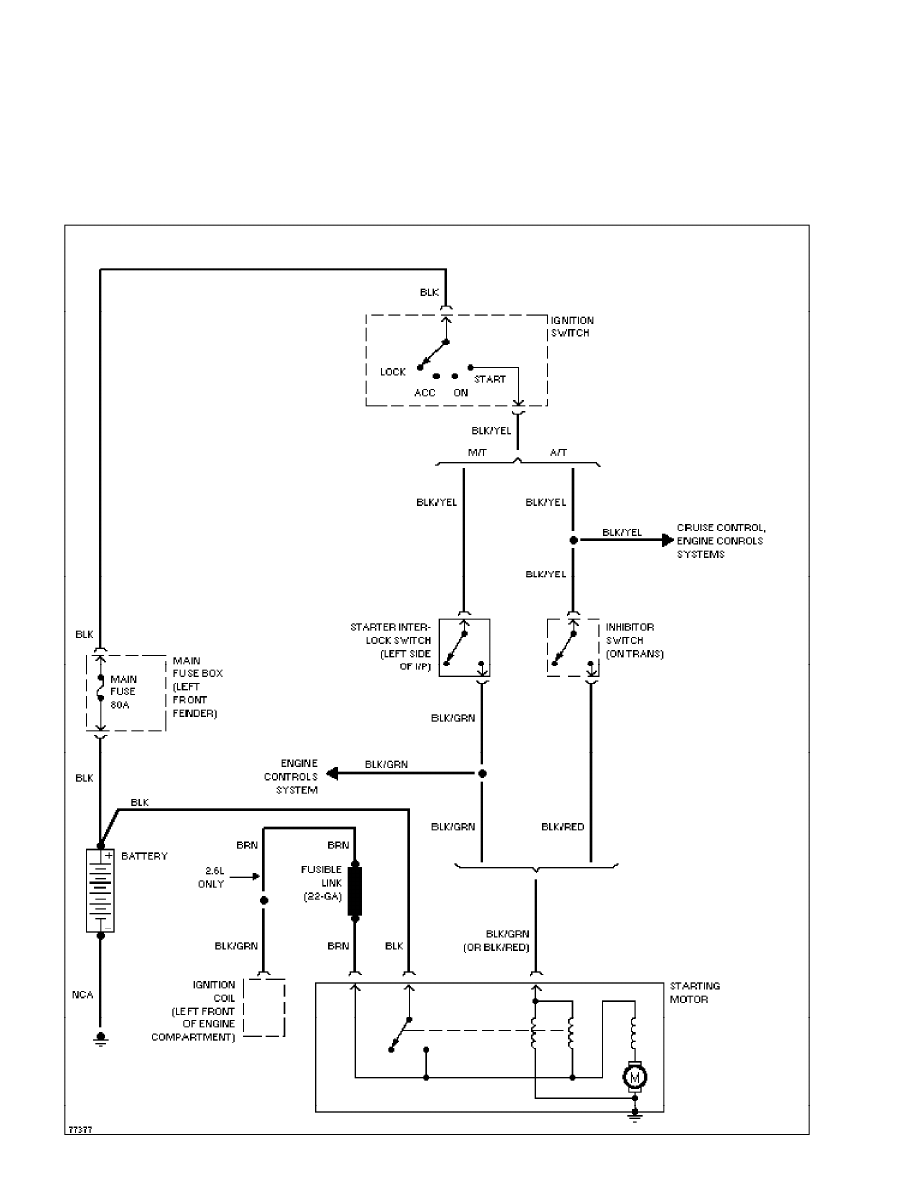

Starting Circuit (p. 6)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

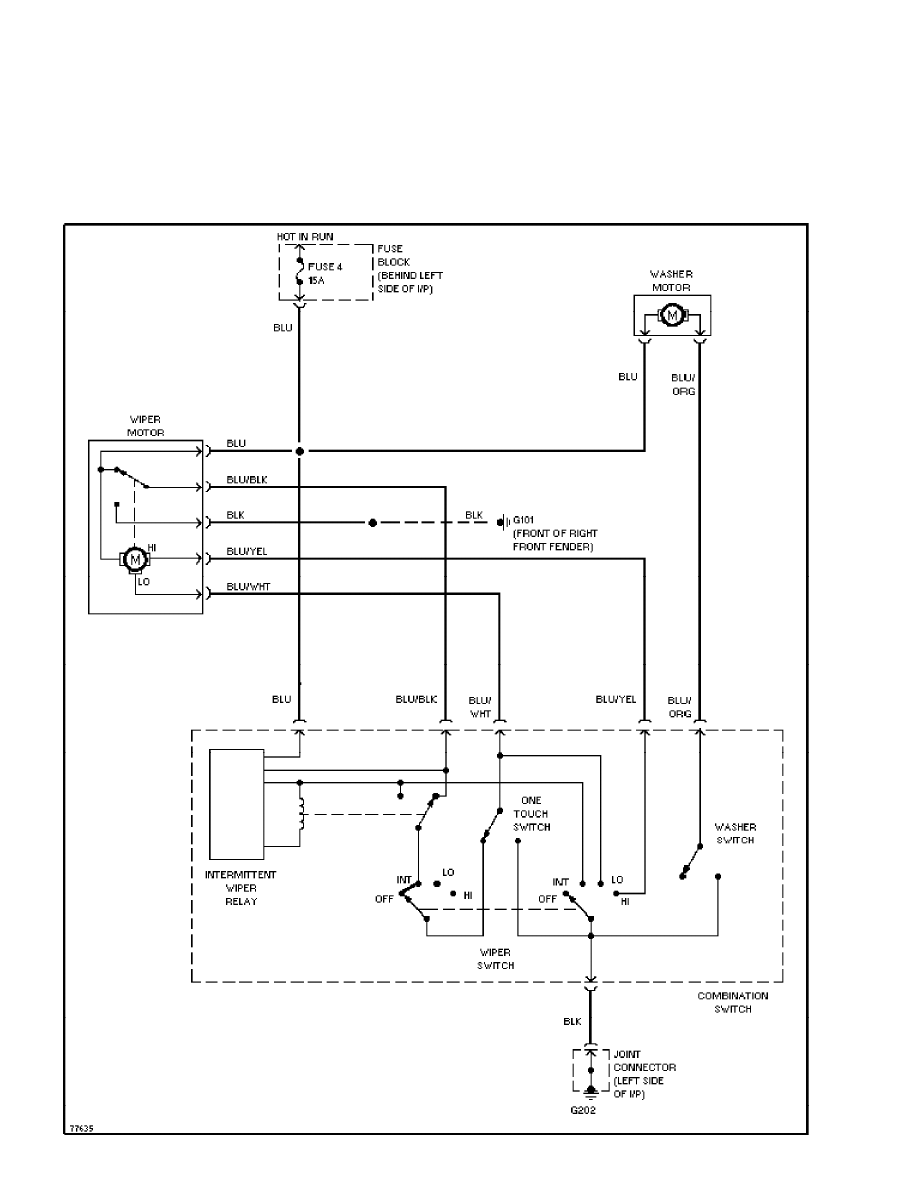

Front Washer/Wiper Circuit (p. 7)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

SYSTEM WIRING DIAGRAMS

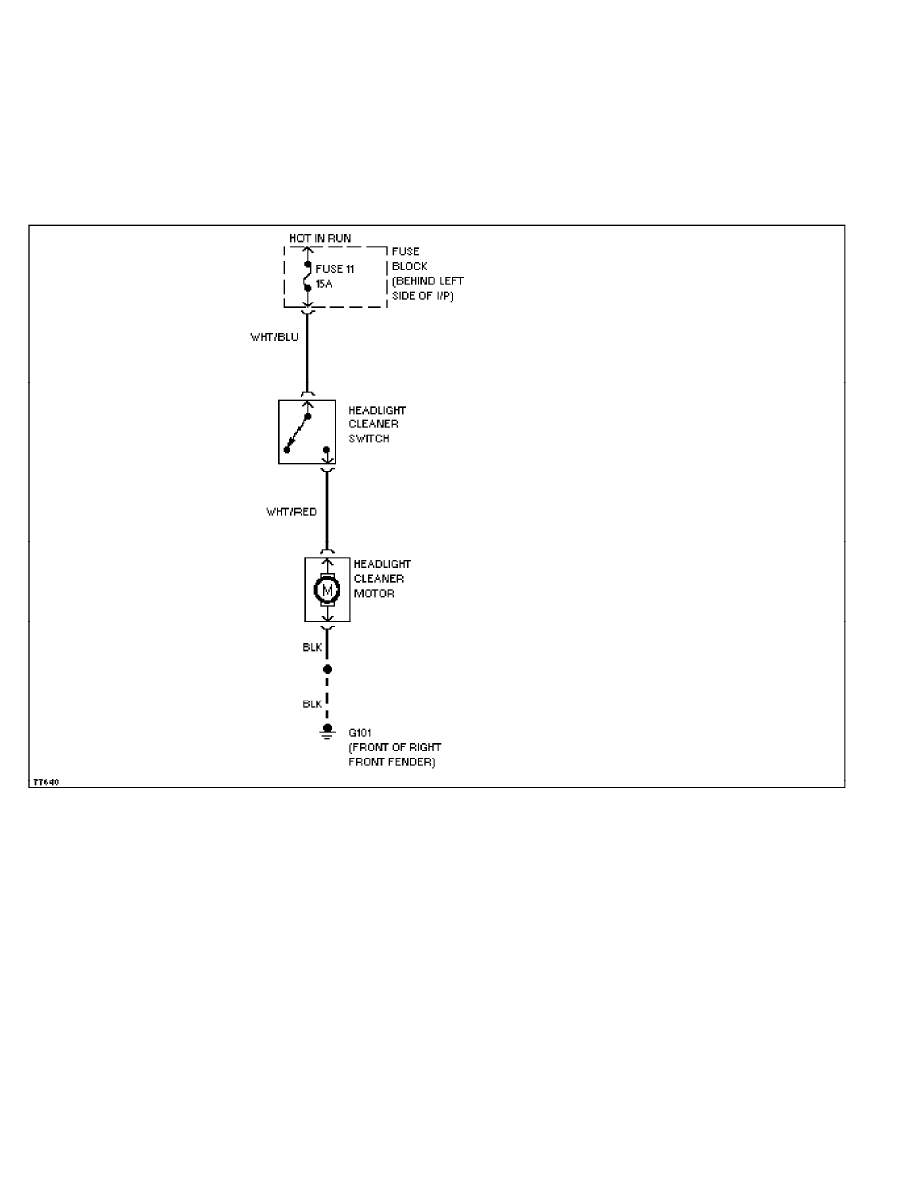

Headlamp Washer Circuit (p. 8)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

WIRING DIAGRAMS

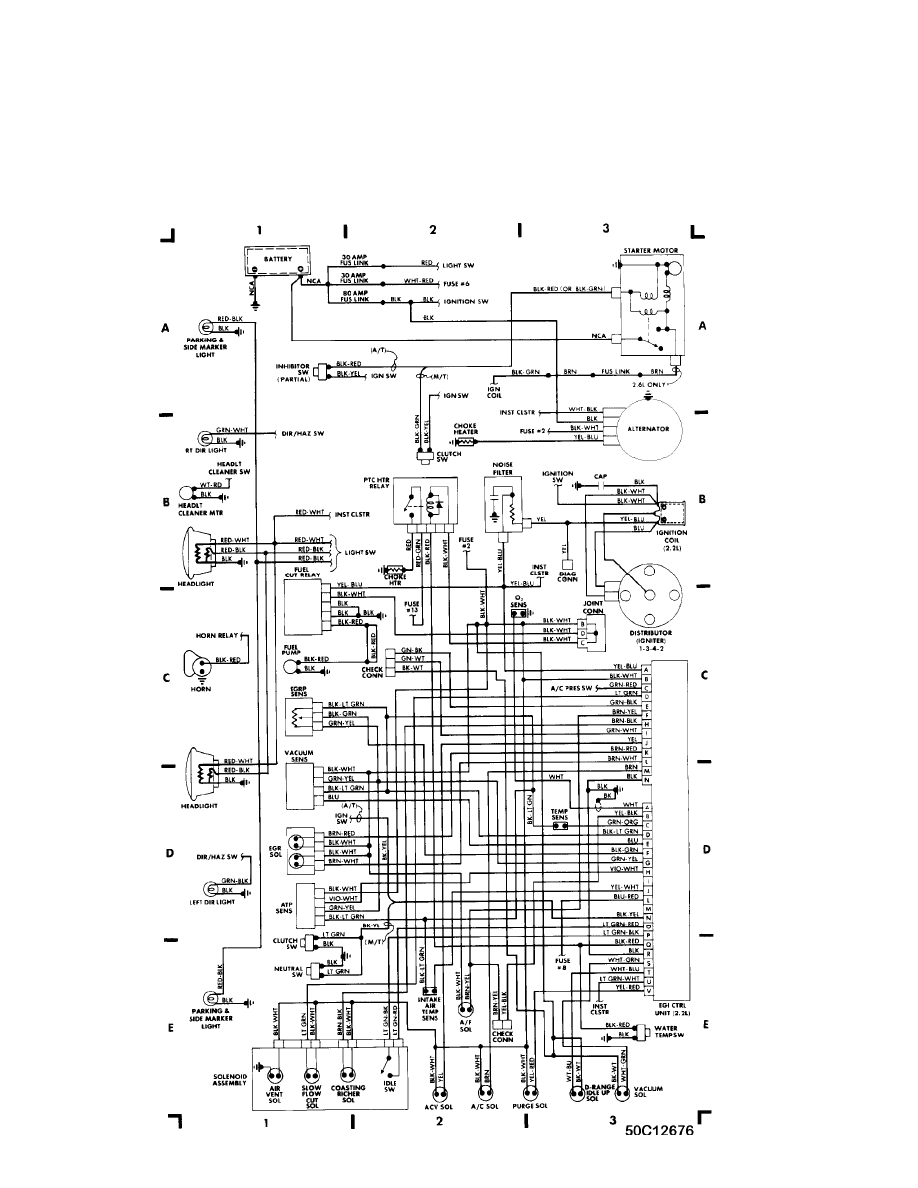

Fig. 1: Engine Compartment (Grids 1-3)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

WIRING DIAGRAMS

Fig. 2: Engine Compartment (Cont.) (Grids 4-7) (p. 2)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

WIRING DIAGRAMS

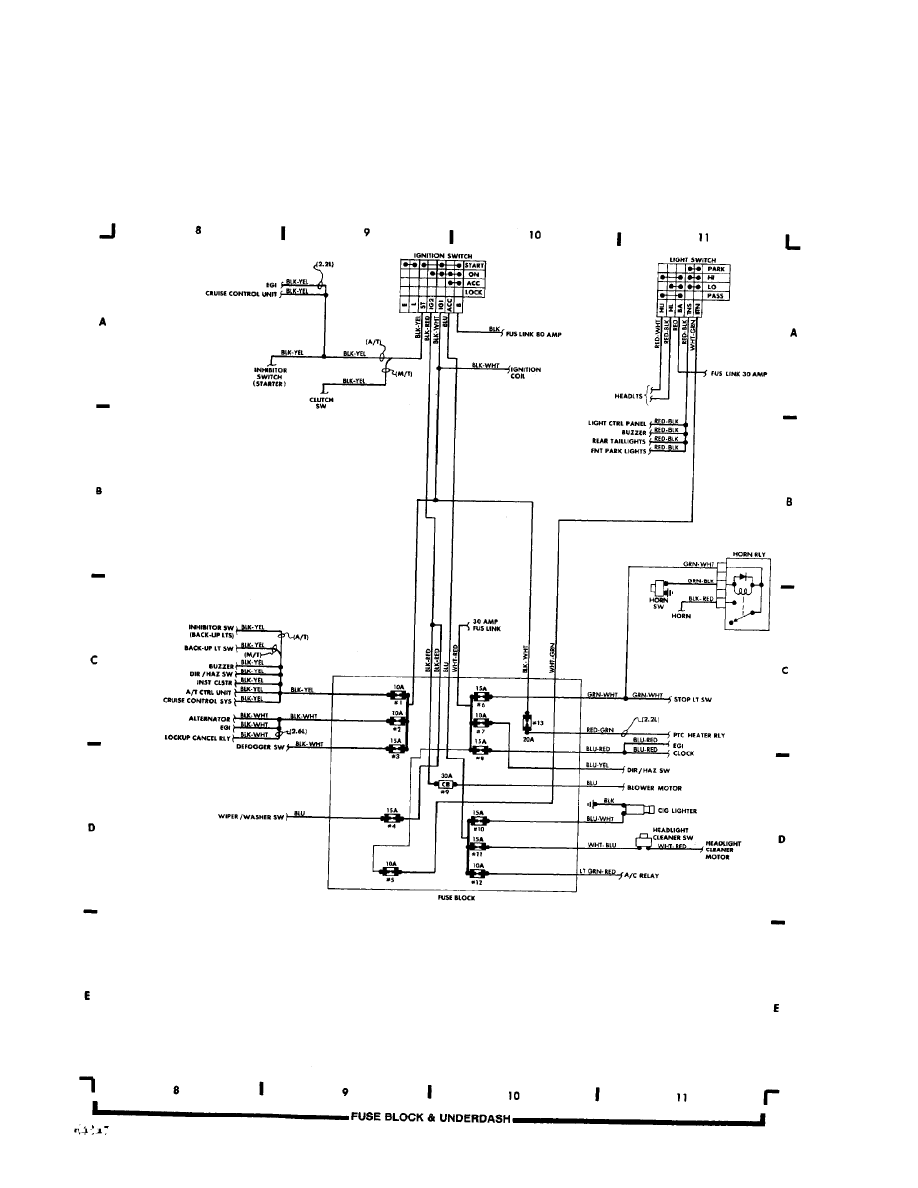

Fig. 3: Fuse Block & Underdash (Grids 8-11) (p. 3)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

WIRING DIAGRAMS

Fig. 4: Underdash (Cont.) & Instrument Panel (Grids 12-15) (p. 4)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM

WIRING DIAGRAMS

Fig. 5: Instrument Panel (Cont.) & Rear Compartment (Grids 16-19) (p. 5)

1987 Mazda Pickup

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:04PM
