MITSUBISHI PICKUP 1987

background image

SYSTEM WIRING DIAGRAMS

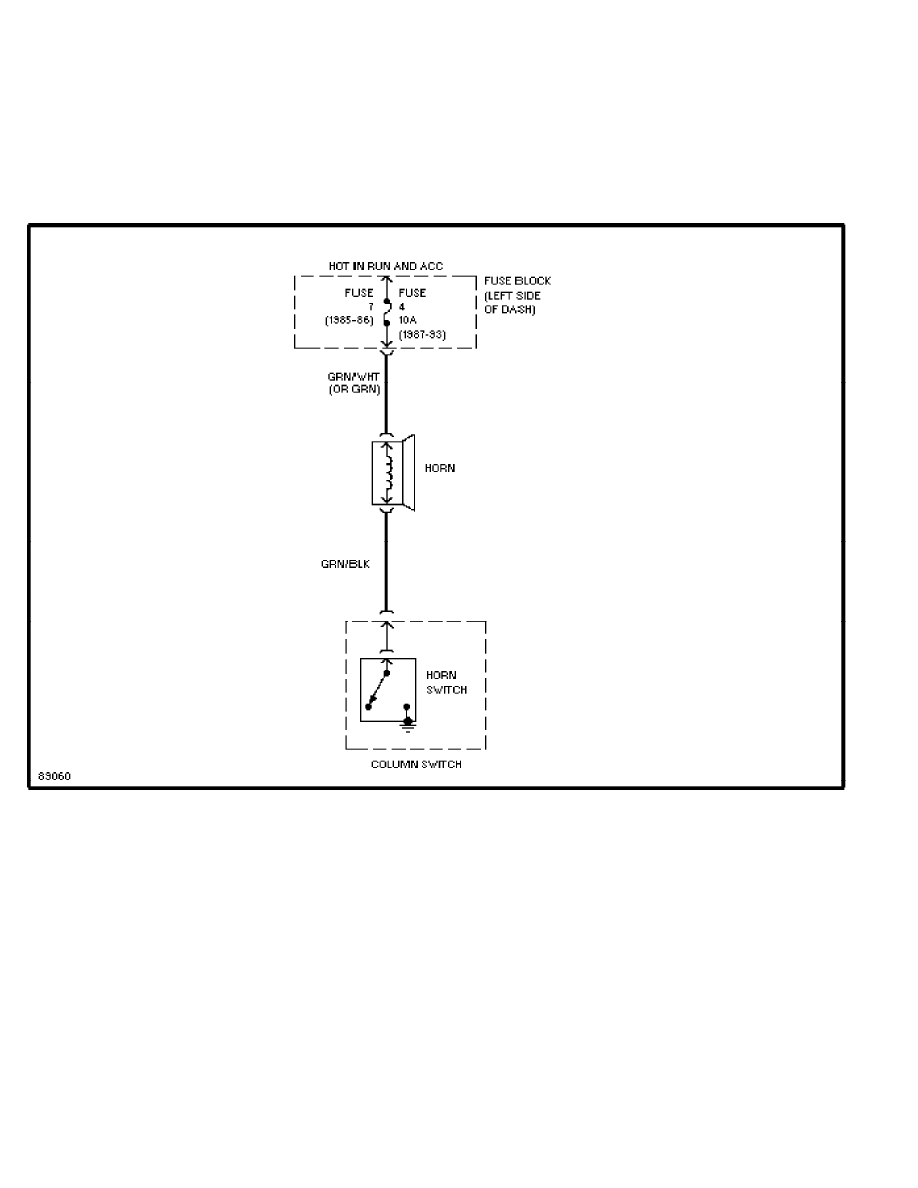

Horn Circuit

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

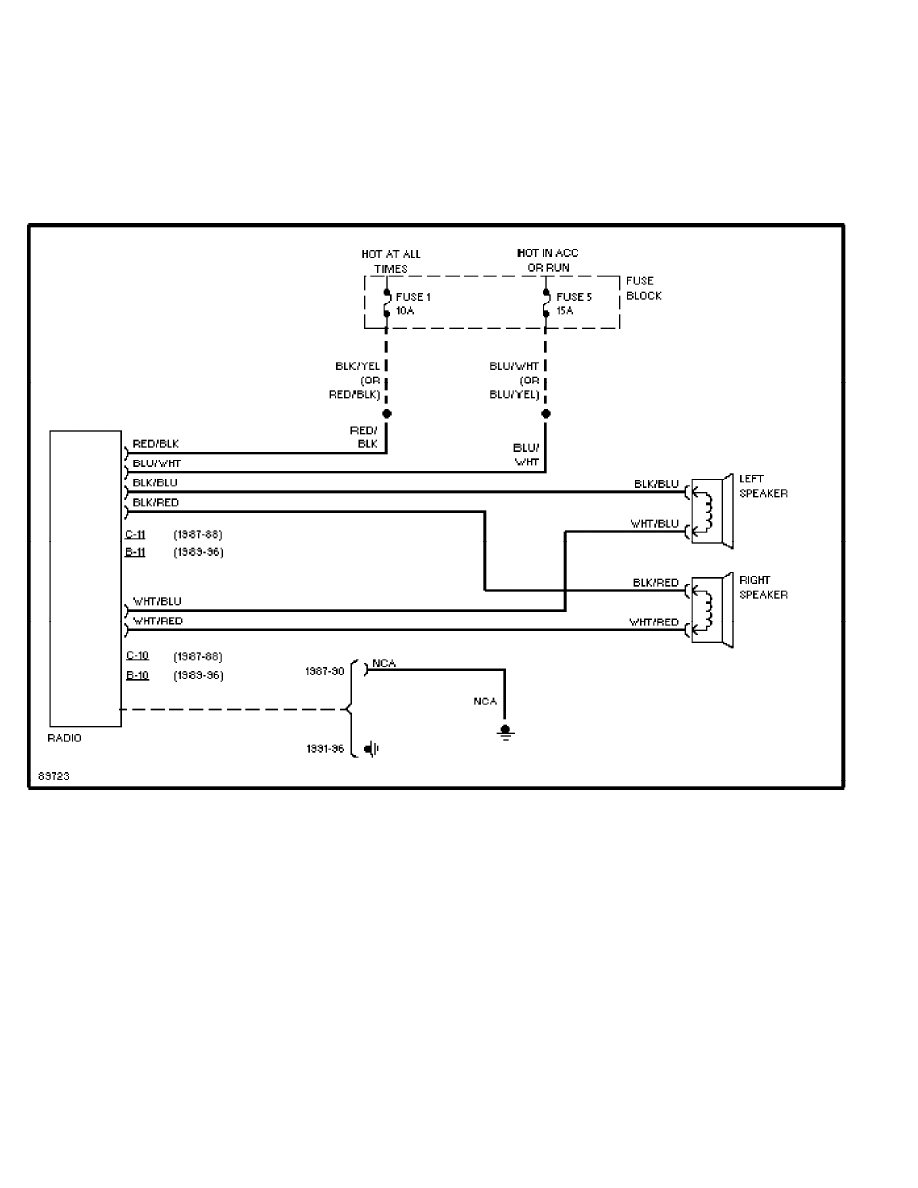

Radio Circuits, 2 Speaker System (p. 2)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

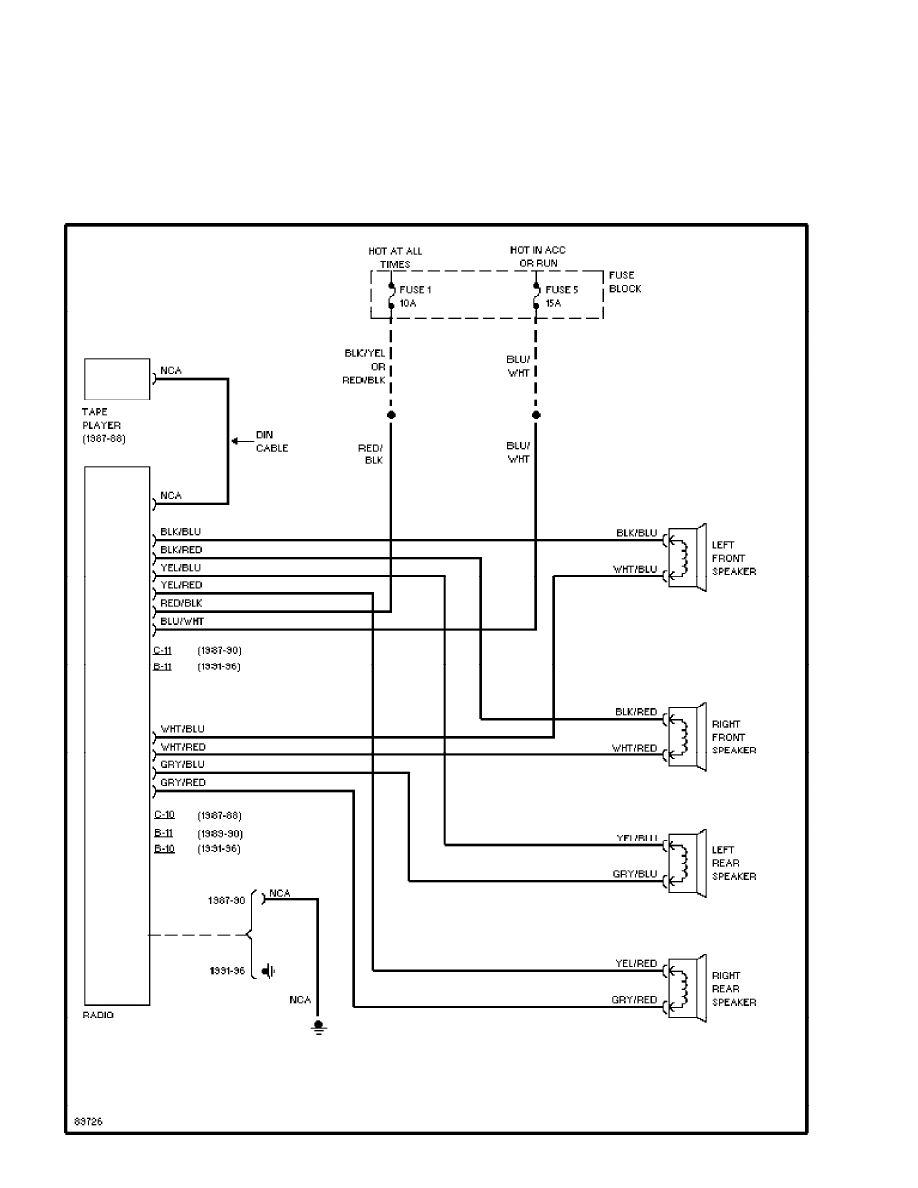

Radio Circuits, 4 Speaker System (p. 3)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 4)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

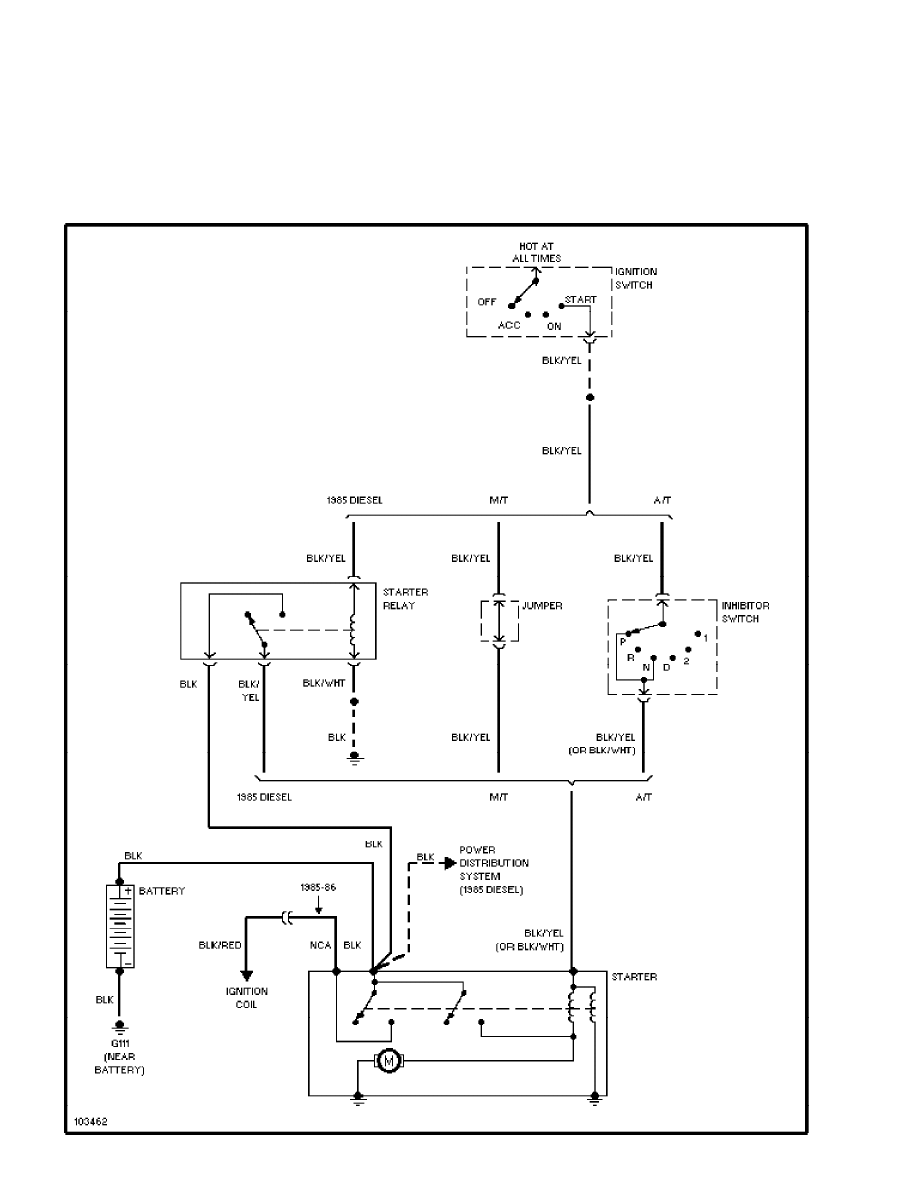

Starting Circuit (p. 5)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

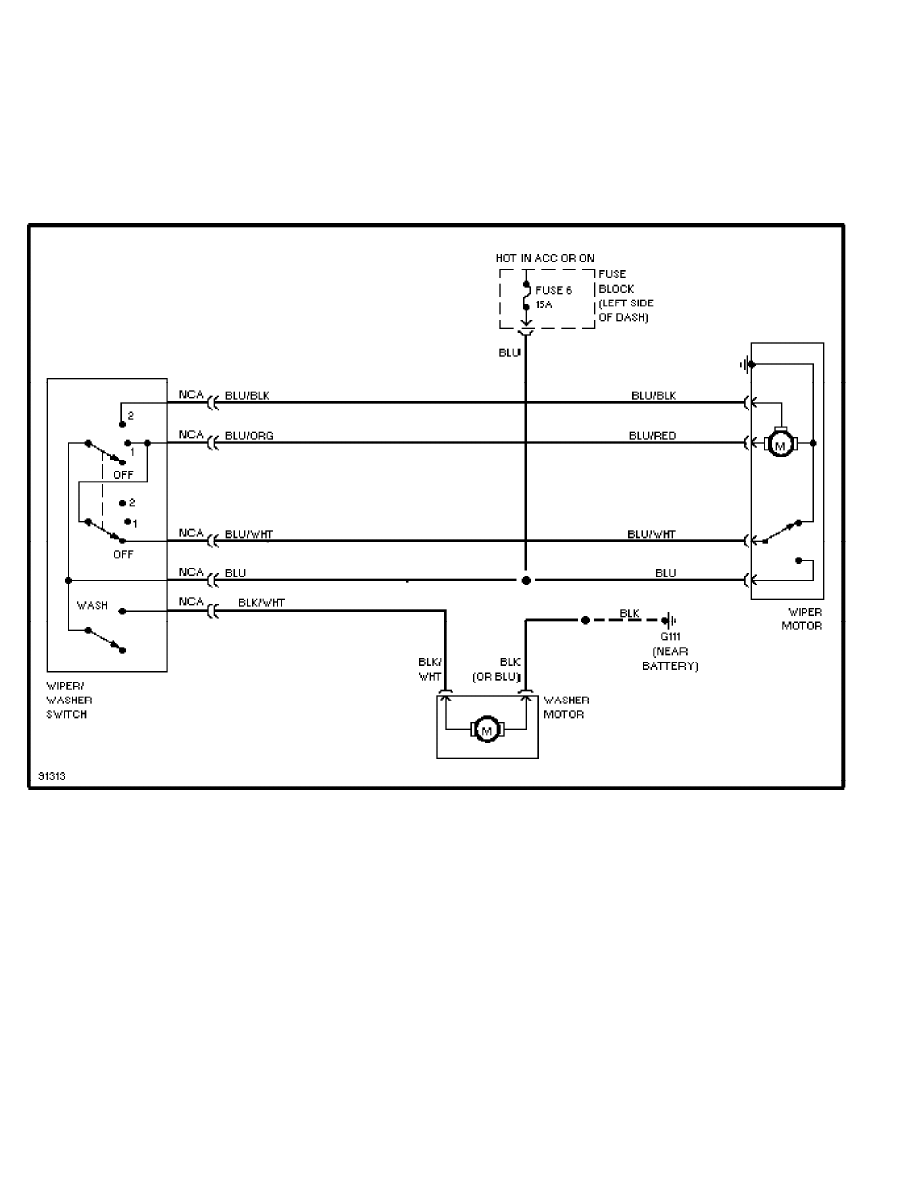

2-Speed Wiper/Washer Circuit (p. 6)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

SYSTEM WIRING DIAGRAMS

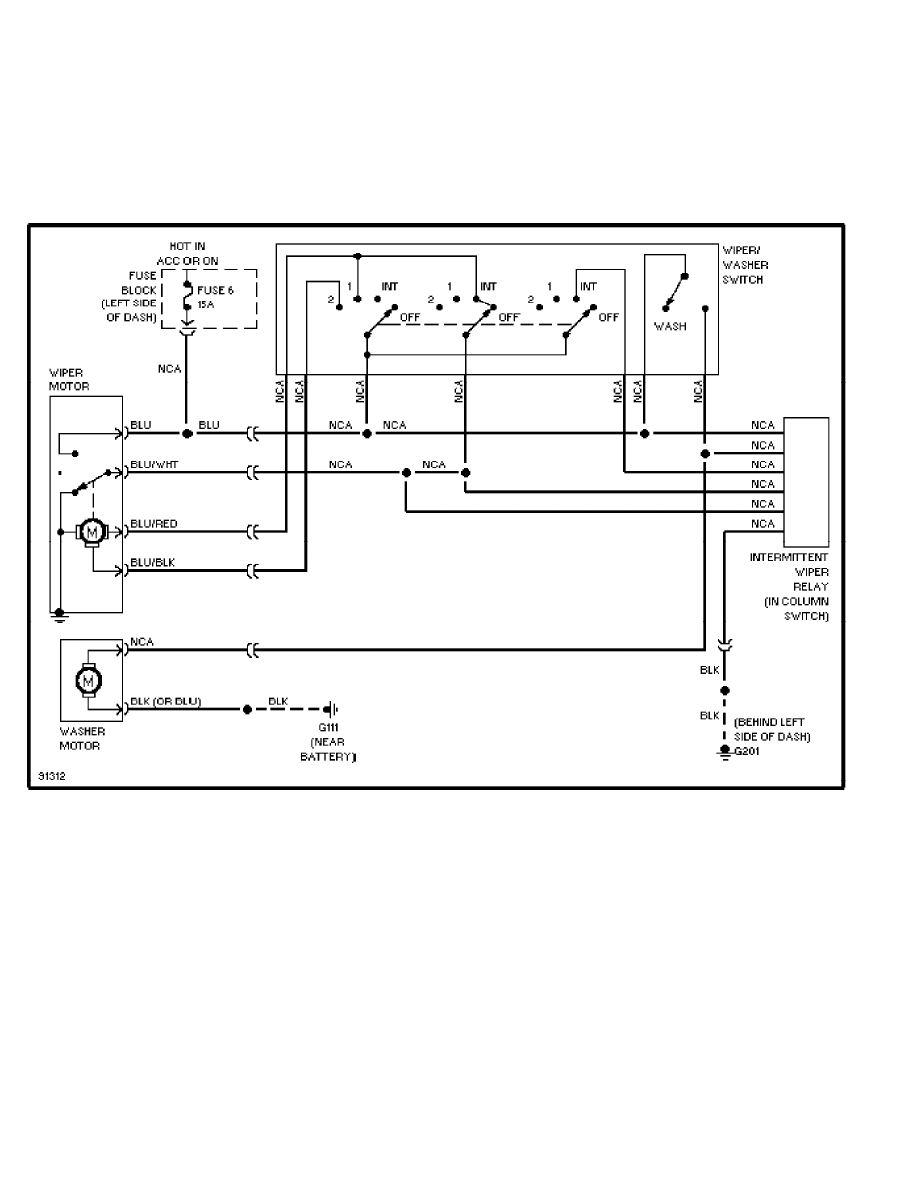

Intermittent Wiper/Washer Circuit (p. 7)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:09PM

background image

WIRING DIAGRAMS

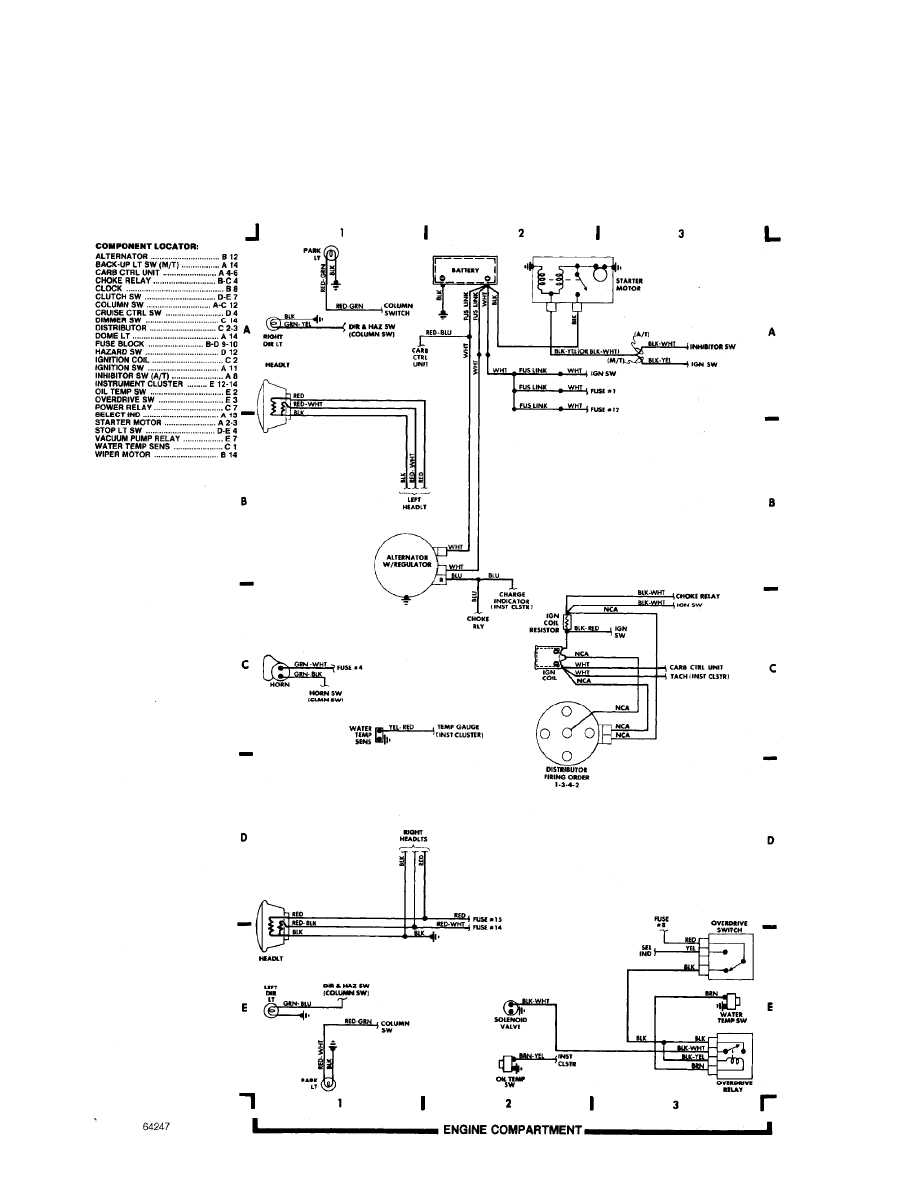

Fig. 1: Engine Compartment (Grids 1-3)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:10PM

background image

WIRING DIAGRAMS

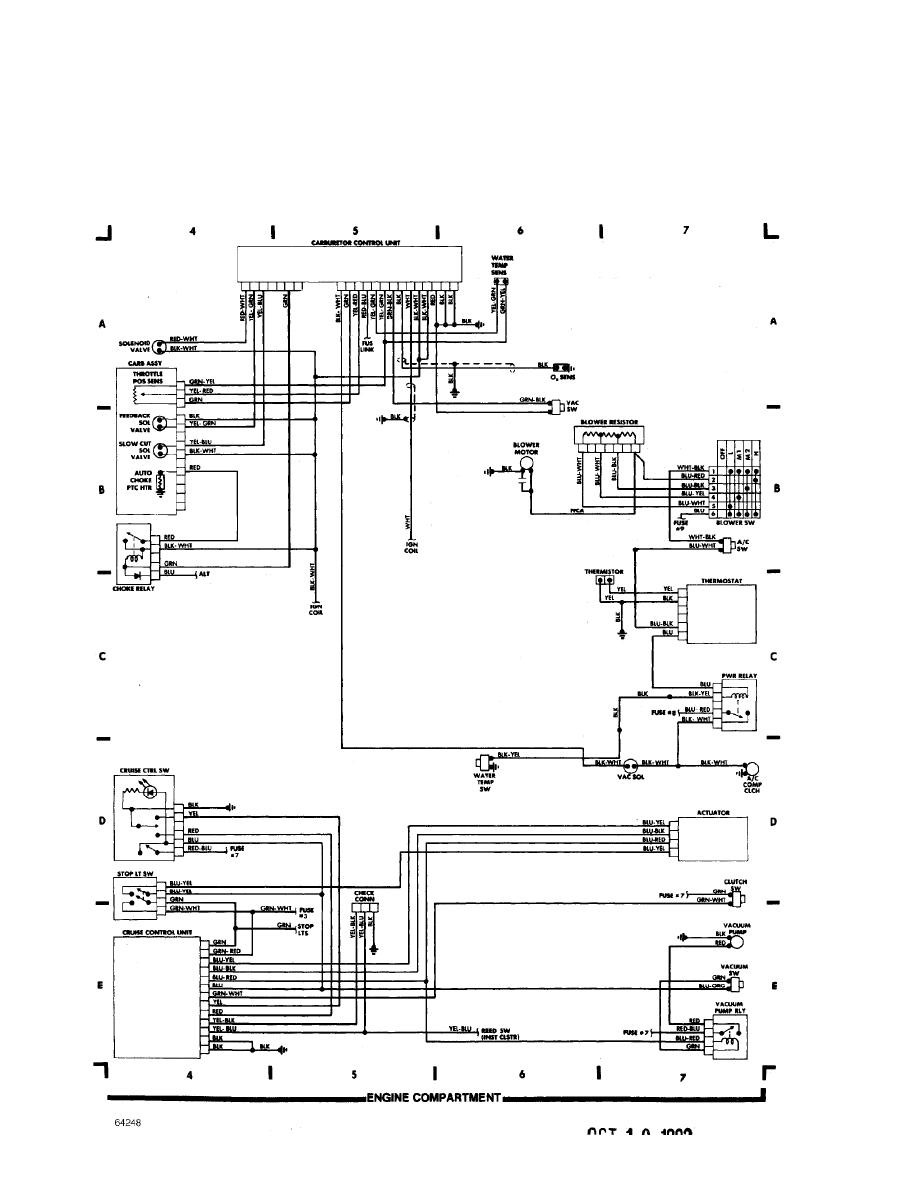

Fig. 2: Engine Compartment (Cont.) (Grids 4-7) (p. 2)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:10PM

background image

WIRING DIAGRAMS

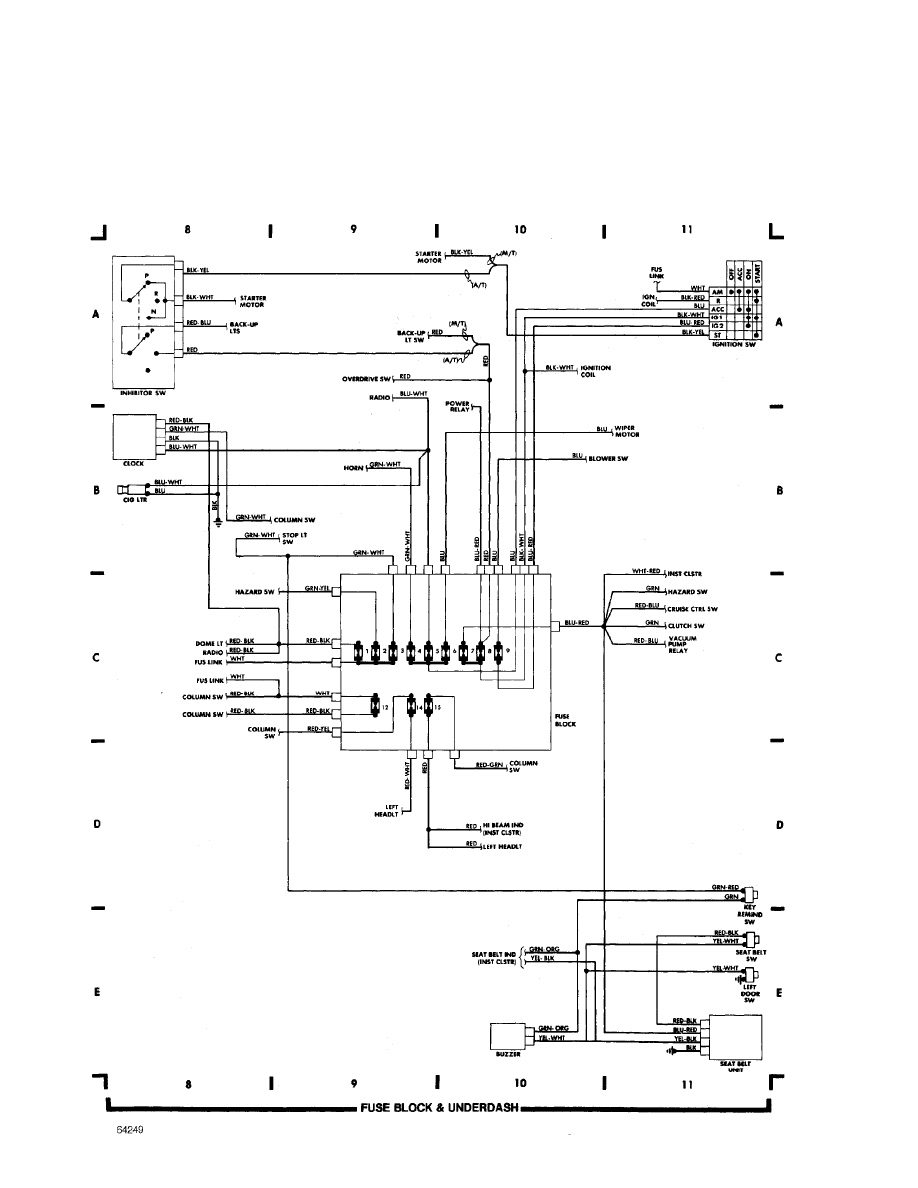

Fig. 3: Fuse Block & Underdash (Grids 8-11) (p. 3)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:10PM

background image

WIRING DIAGRAMS

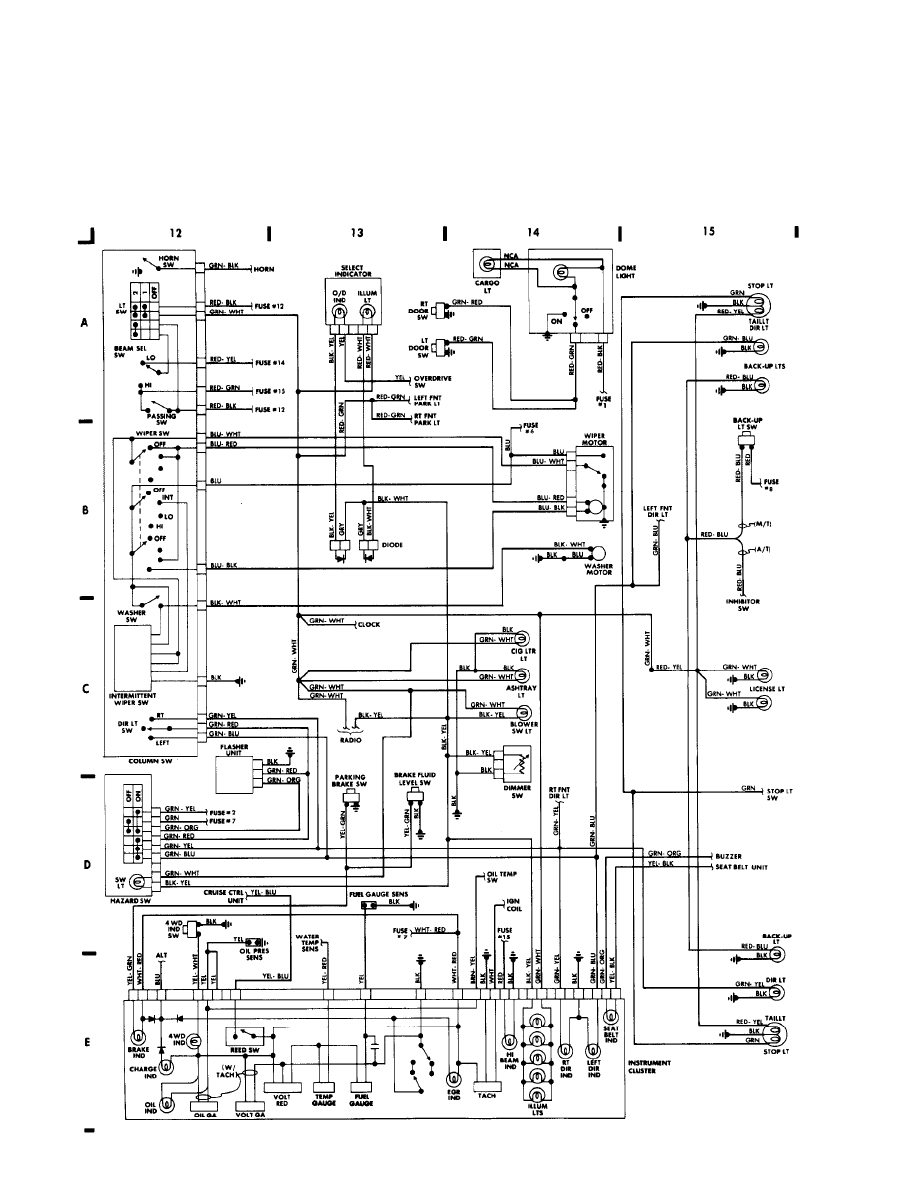

Fig. 4: Instrument Panel & Rear Compartment (Grids 12-15) (p. 4)

1987 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:10PM
