SYSTEM WIRING DIAGRAMS

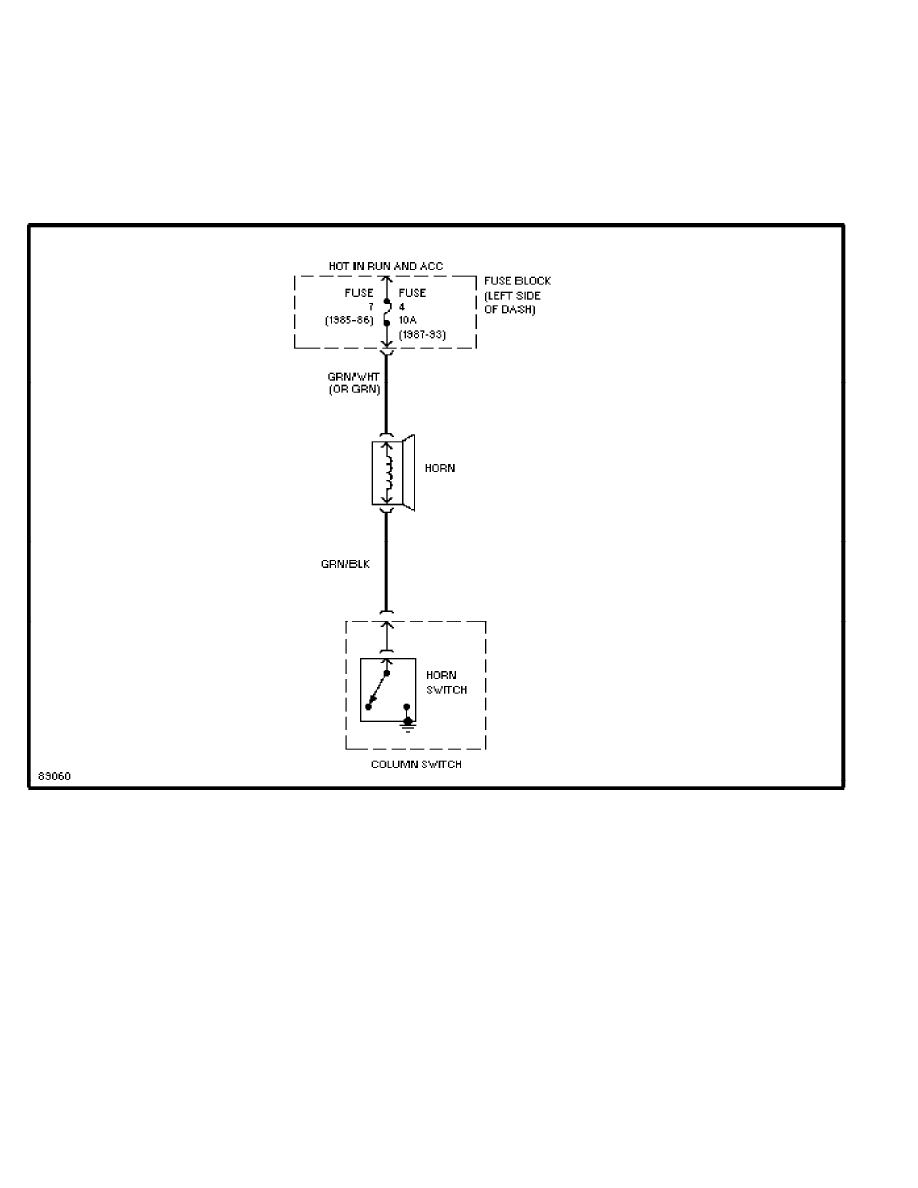

Horn Circuit
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS
Power Door Lock Circuit (p. 2)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

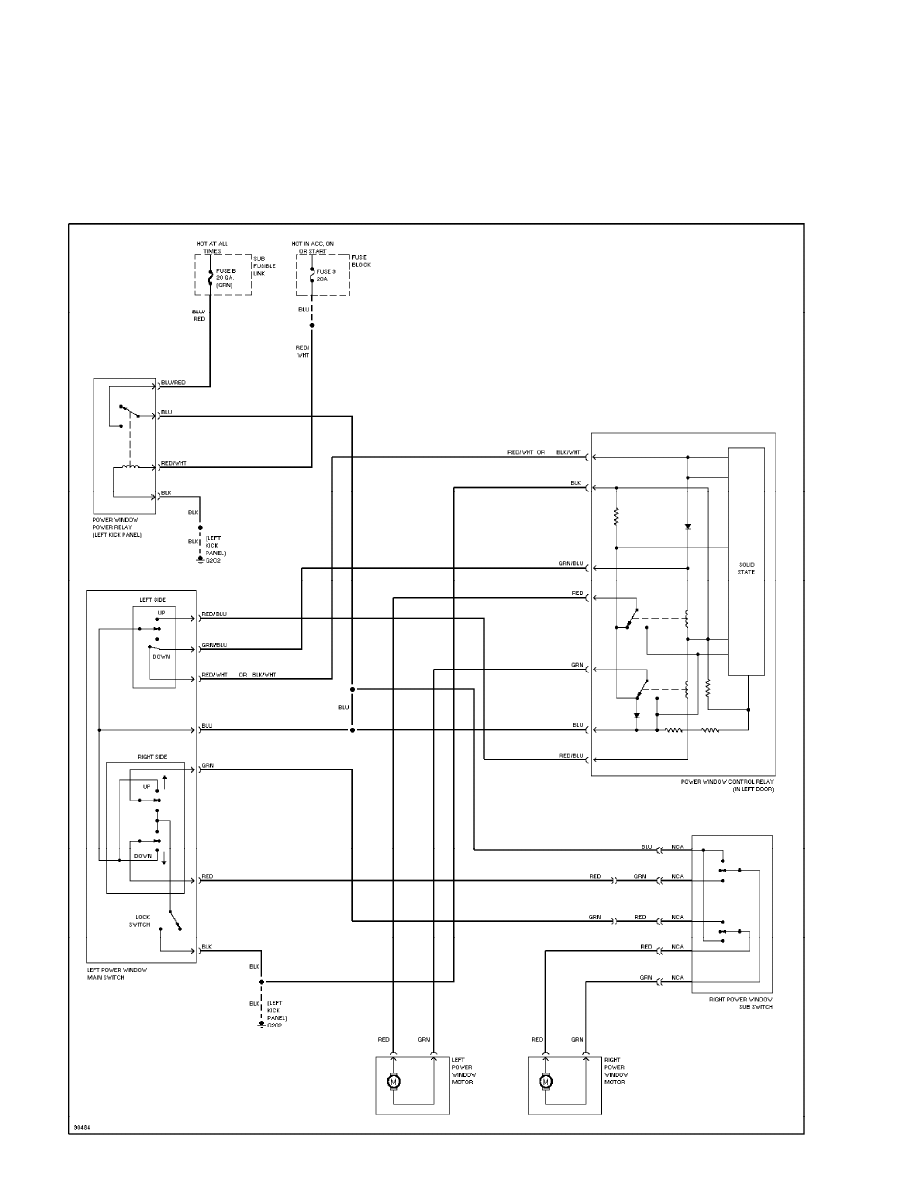

Power Window Circuit (p. 3)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

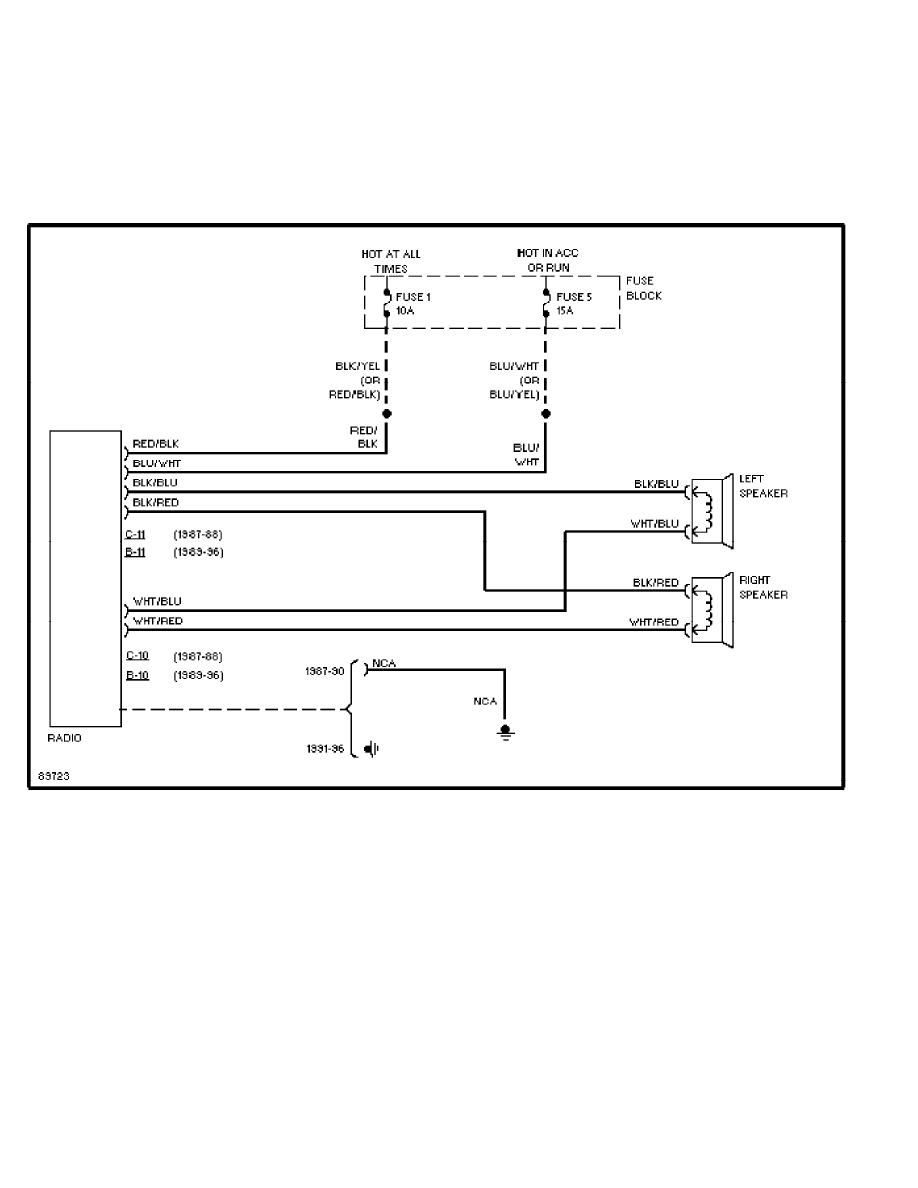

Radio Circuits, 2 Speaker System (p. 4)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

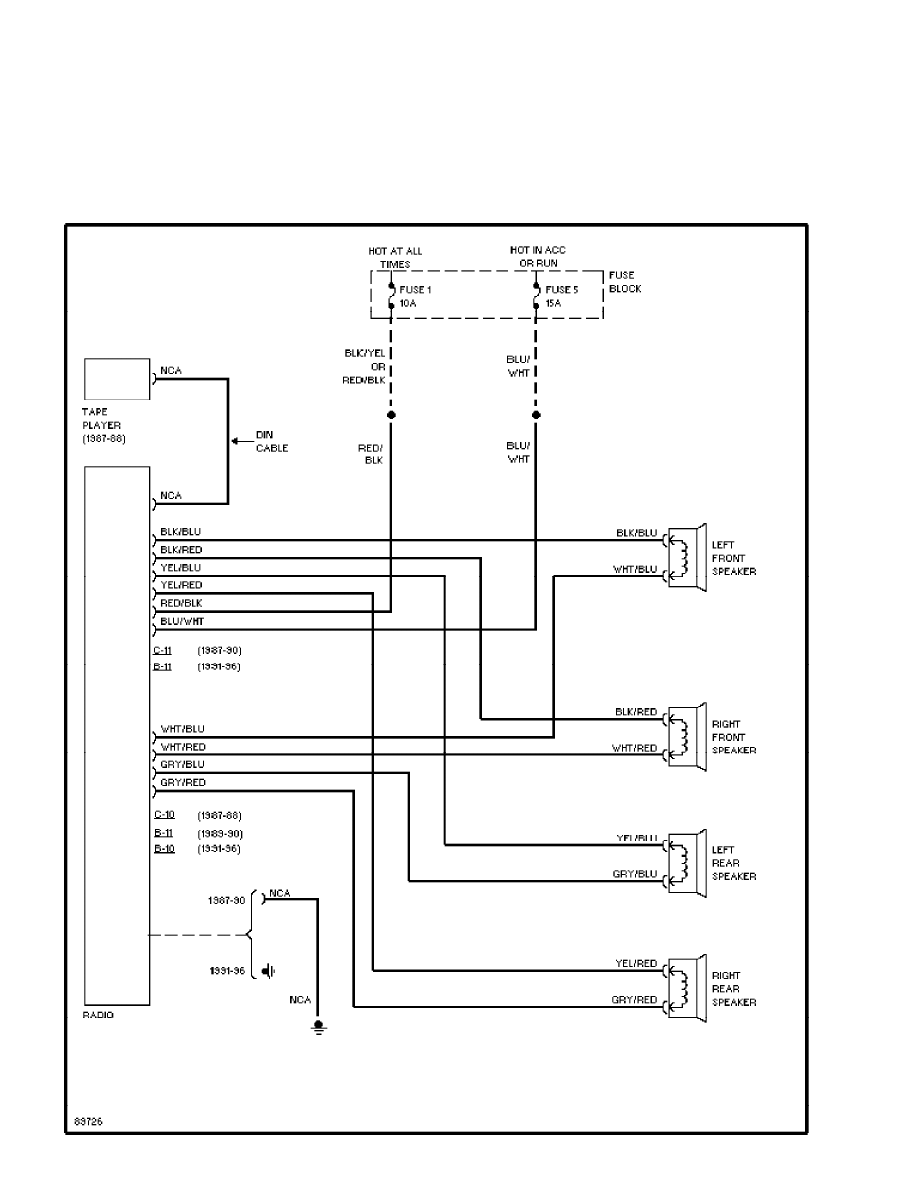

Radio Circuits, 4 Speaker System (p. 5)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

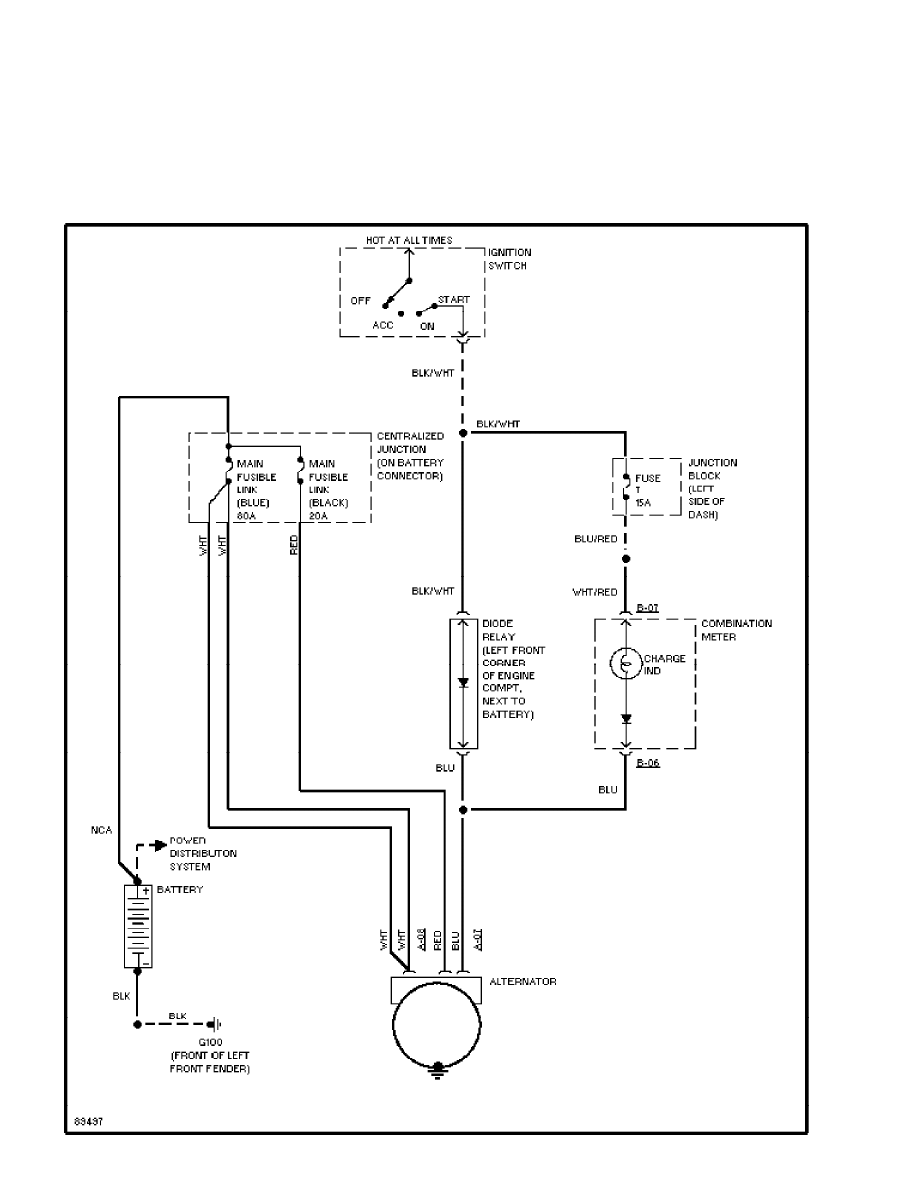

Charging Circuit (p. 6)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

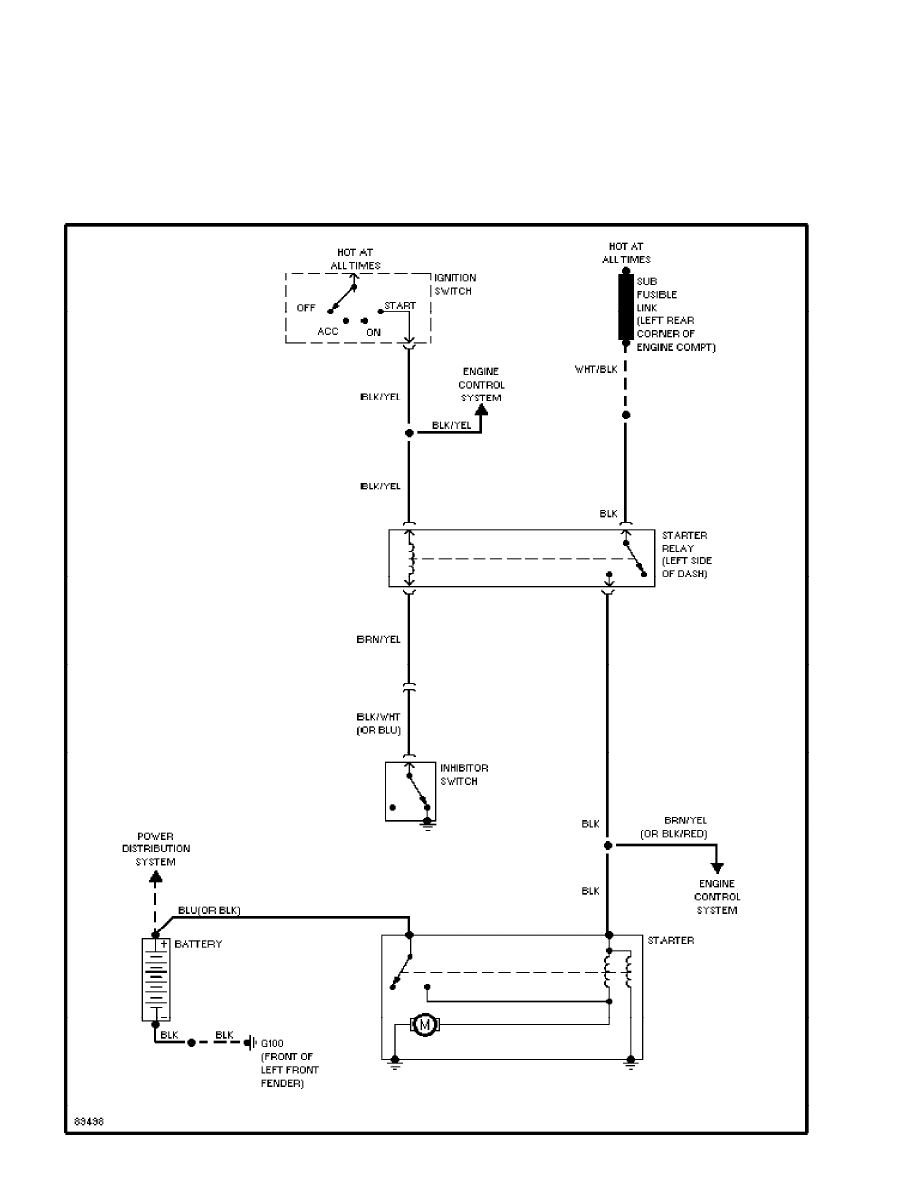

Starting Circuit, W/ A/T (p. 7)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS
Starting Circuit, W/ M/T (p. 8)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

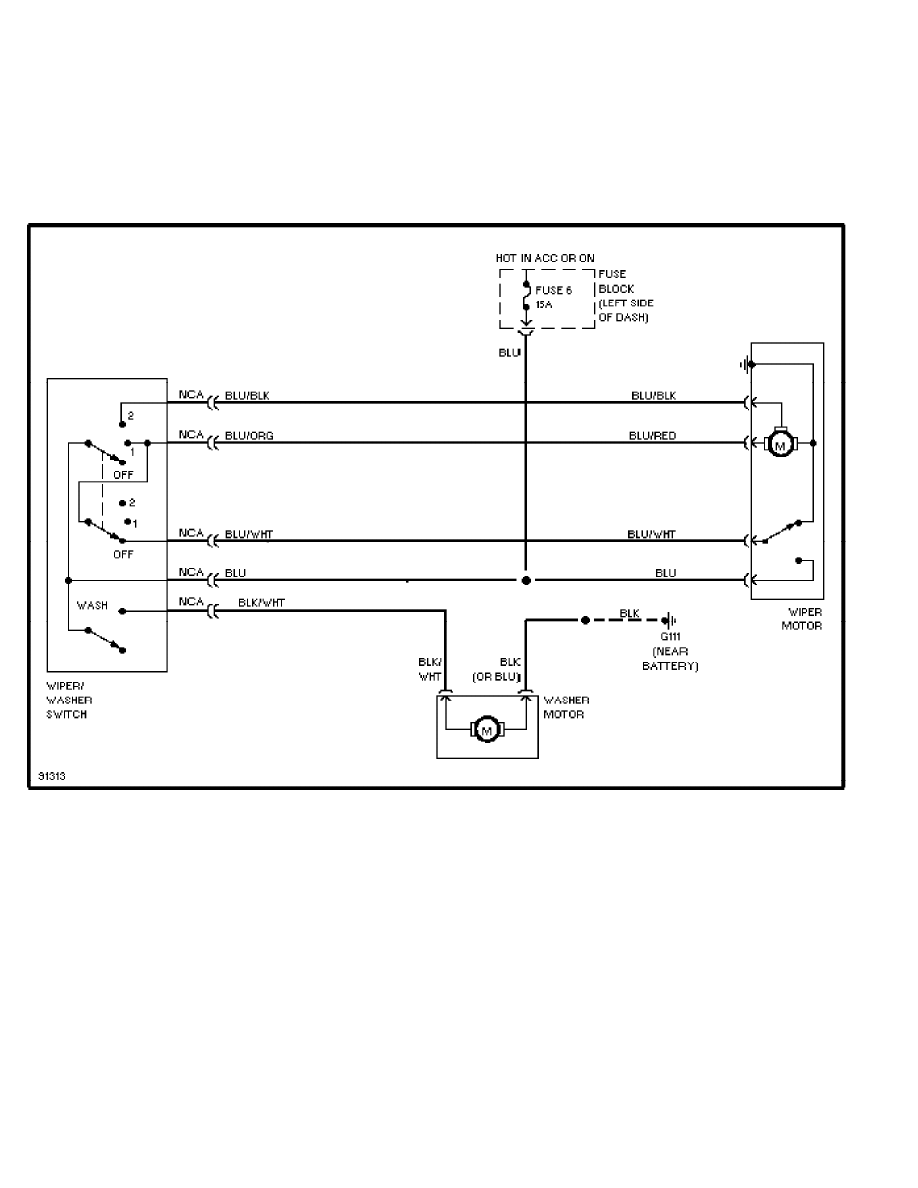

2-Speed Wiper/Washer Circuit (p. 9)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
SYSTEM WIRING DIAGRAMS

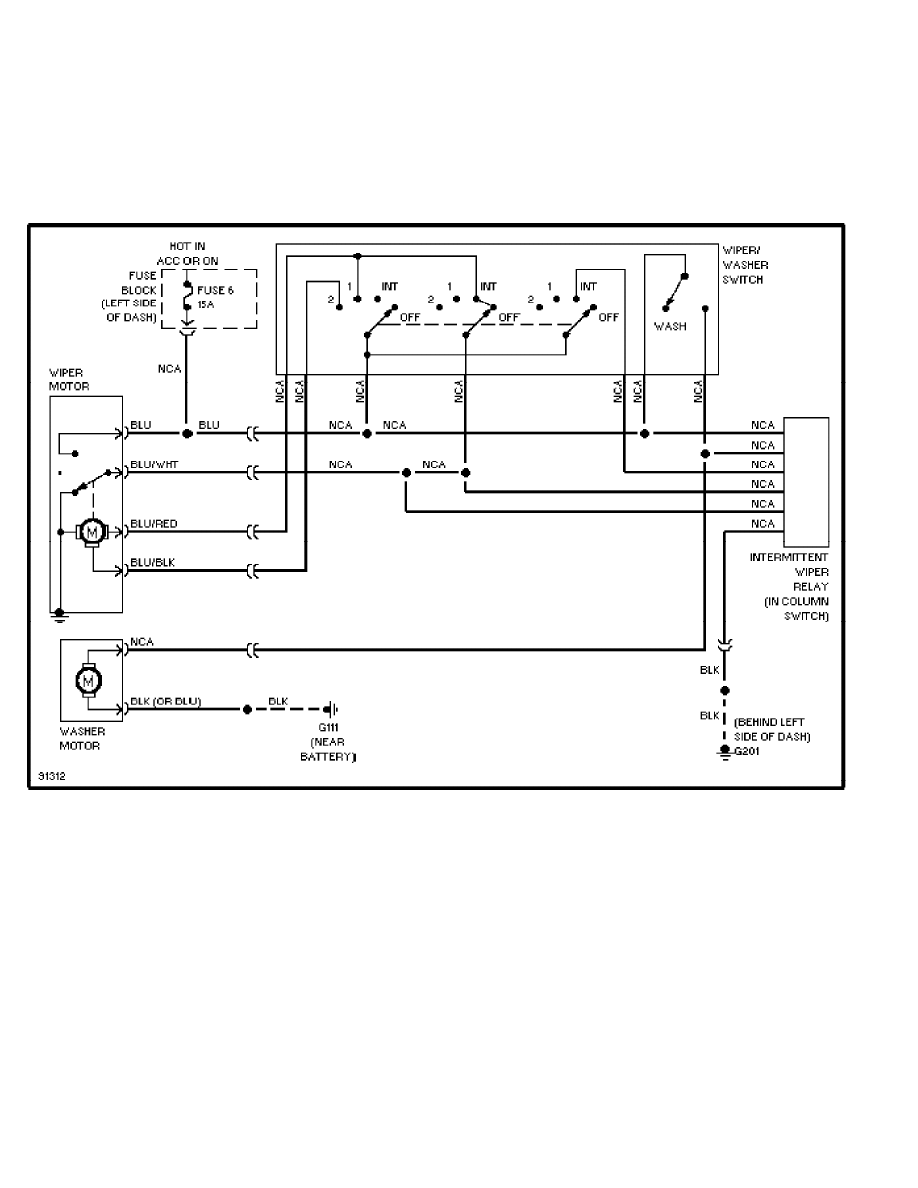

Intermittent Wiper/Washer Circuit (p. 10)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

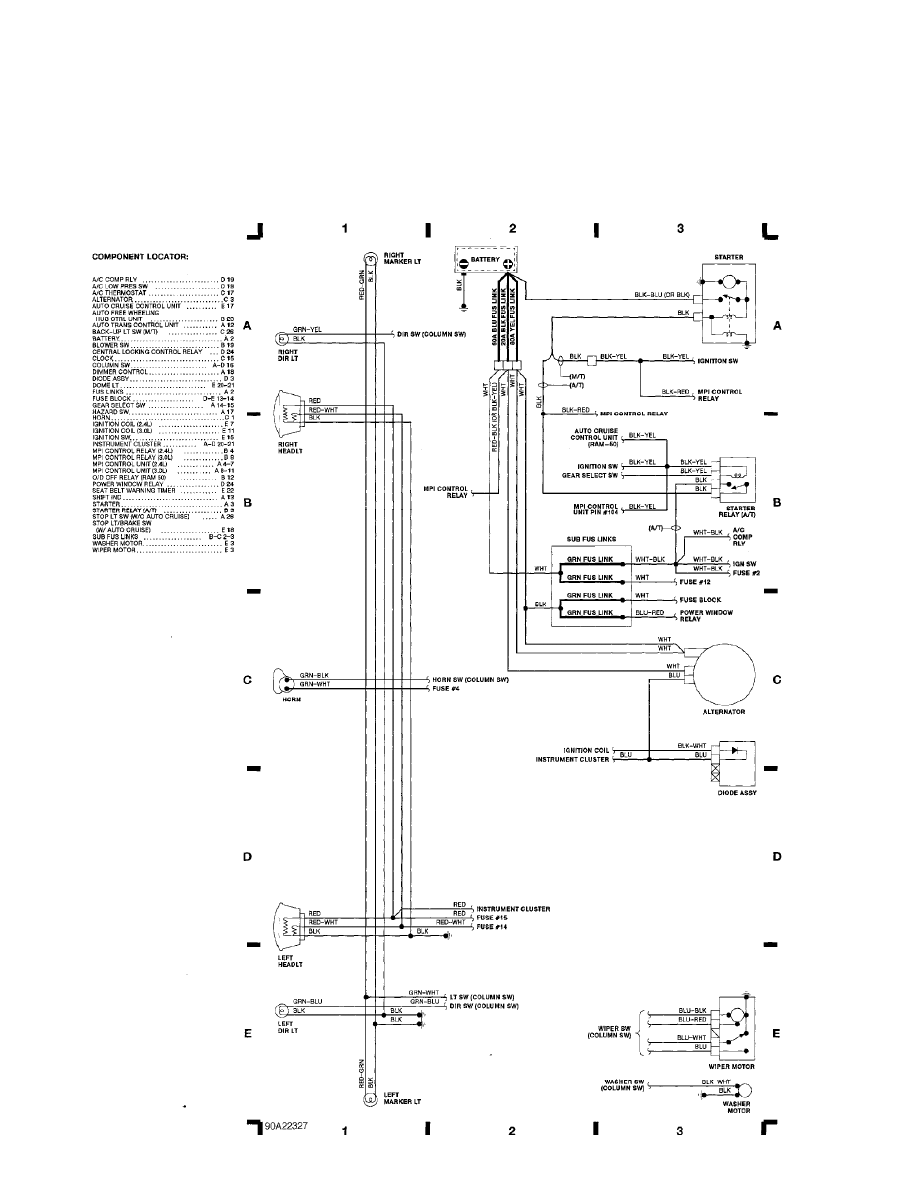

Fig. 1: Engine Compartment, Headlights (Grid 1-3)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

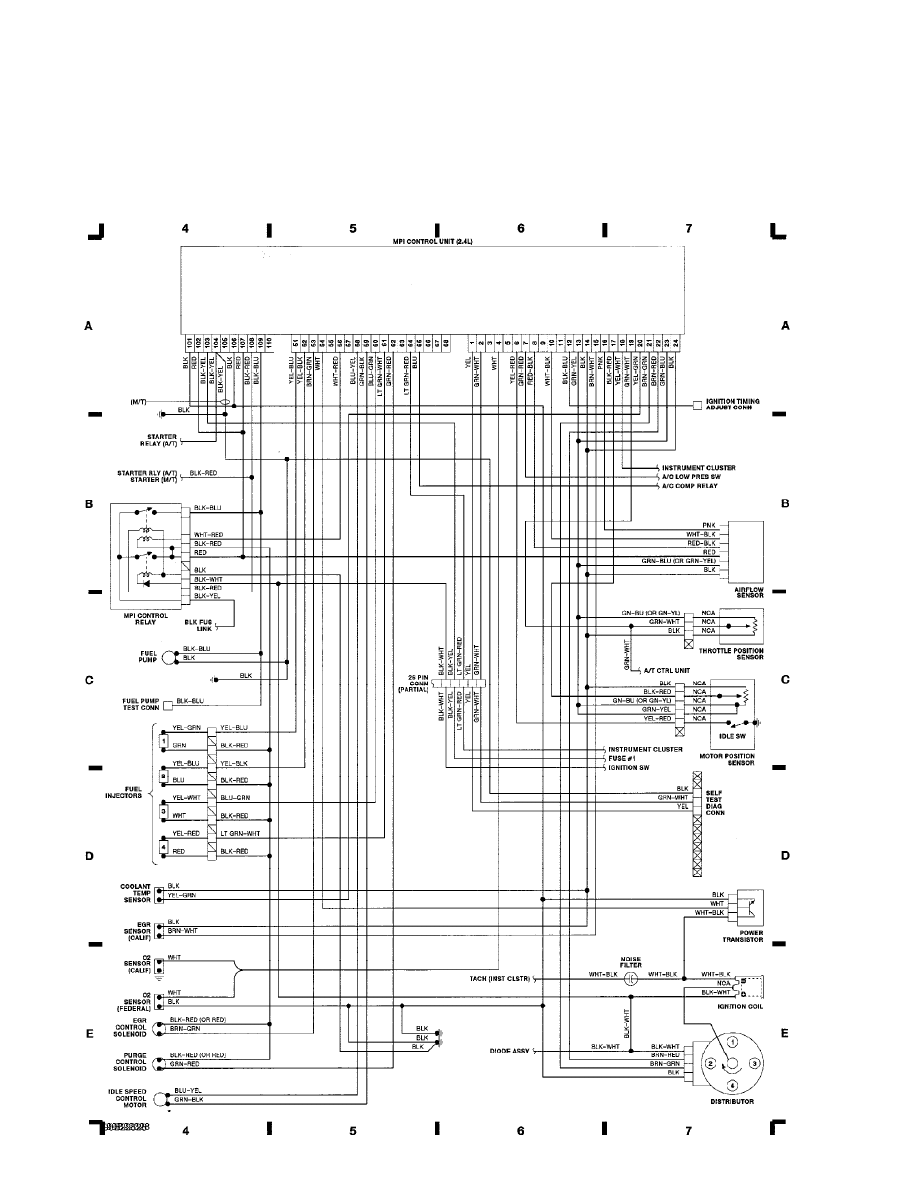

Fig. 2: Computer Engine Control (2.4L) (Grid 4-7) (p. 2)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

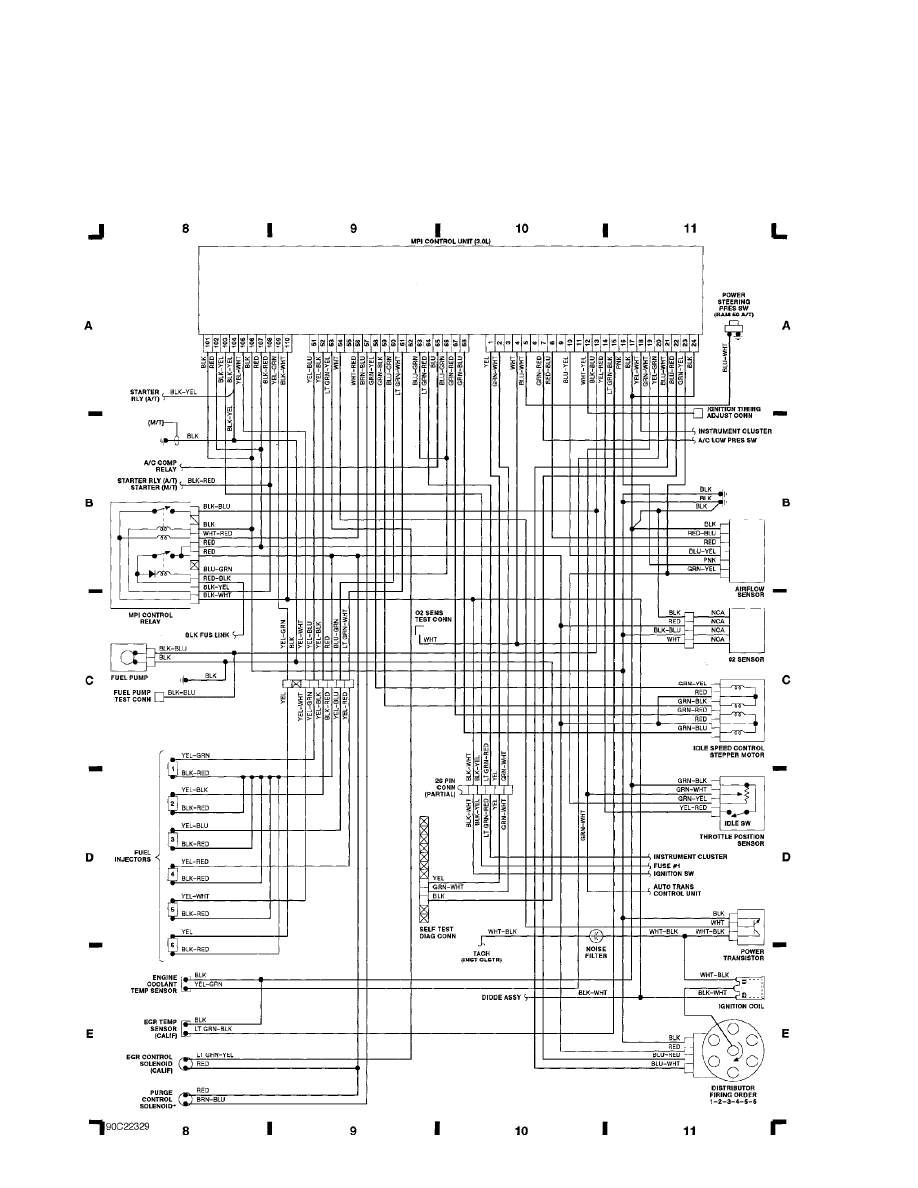

Fig. 3: Computer Engine Control (3.0L) (Grid 8-11) (p. 3)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

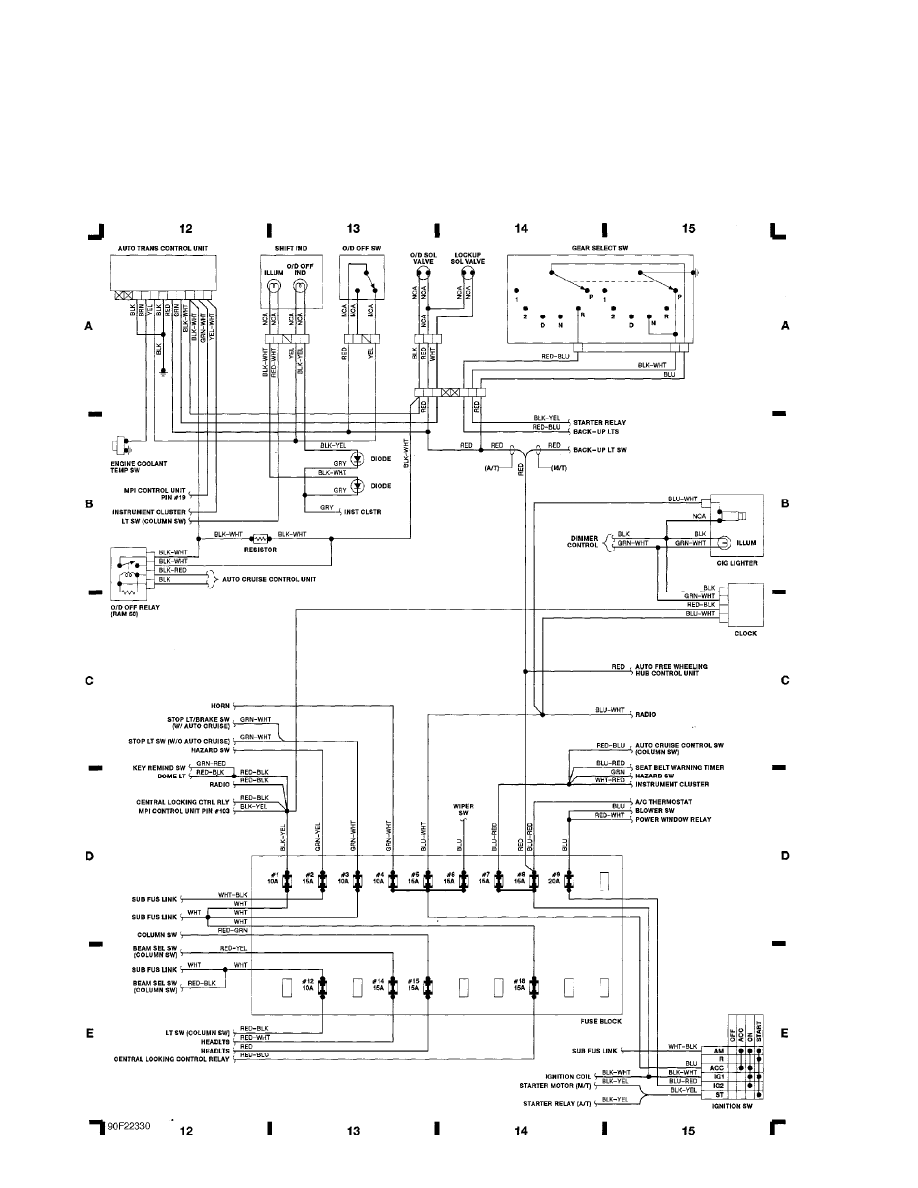

Fig. 4: Fuse Block, A/T Control System, Ignition Sw (Grid 12-15) (p. 4)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS
Fig. 5: Auto Cruise Ctrl, A/C & Heating & Steer Column (Grid 16-19) (p. 5)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

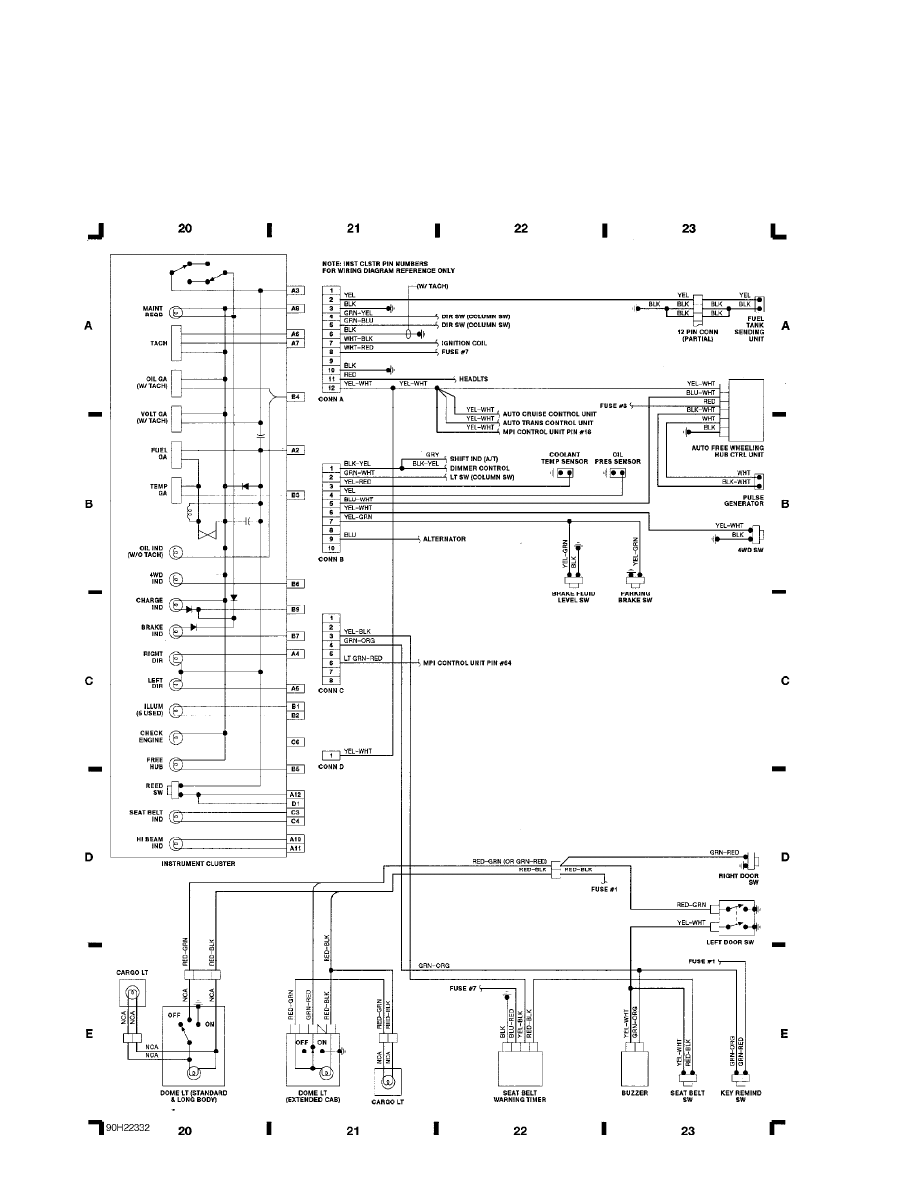

Fig. 6: Instrument Panel,Interior Lights (Grid 20-23) (p. 6)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
WIRING DIAGRAMS

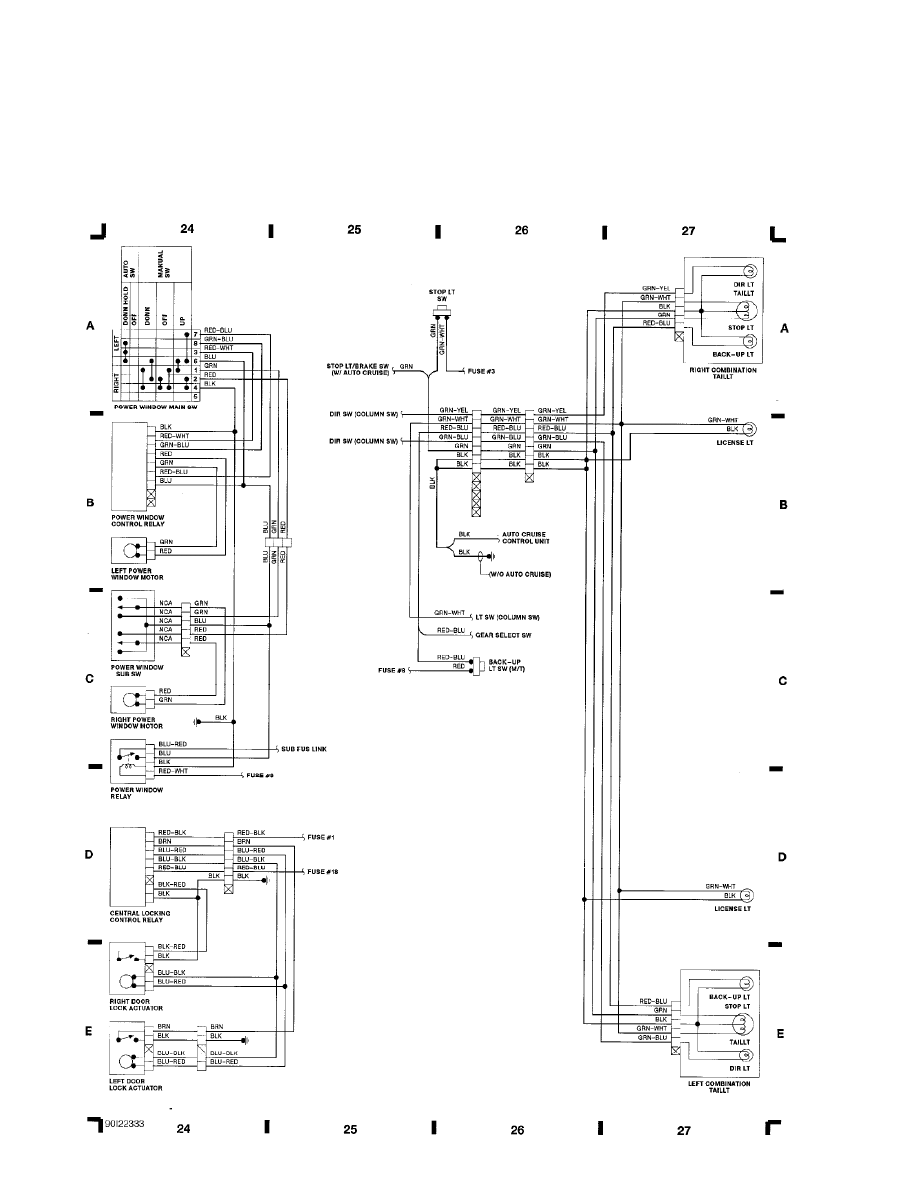

Fig. 7: Power Windows/Door Locks, Taillights (Grid 24-27) (p. 7)
1990 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:07PM
