SYSTEM WIRING DIAGRAMS

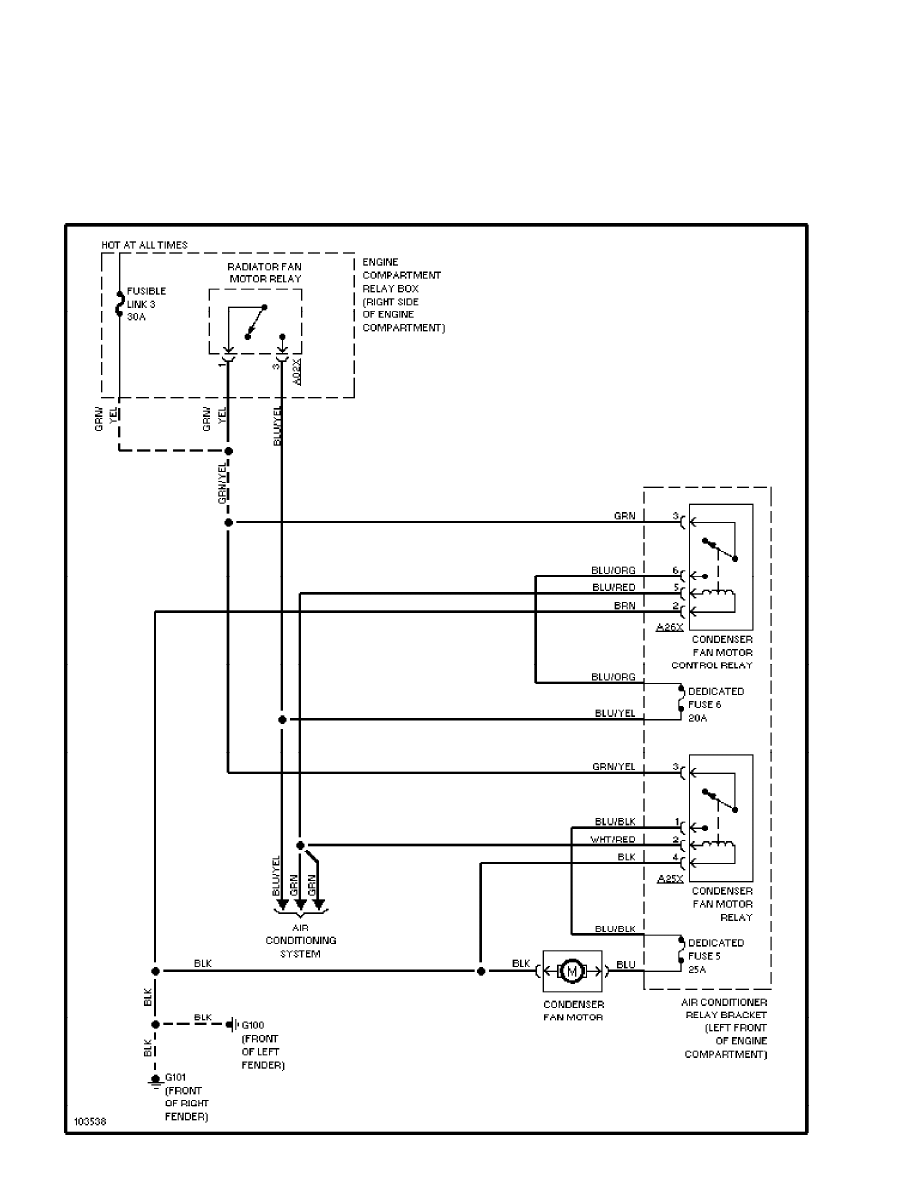

1.5L, Condenser Cooling Fan Circuit

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit (p. 2)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

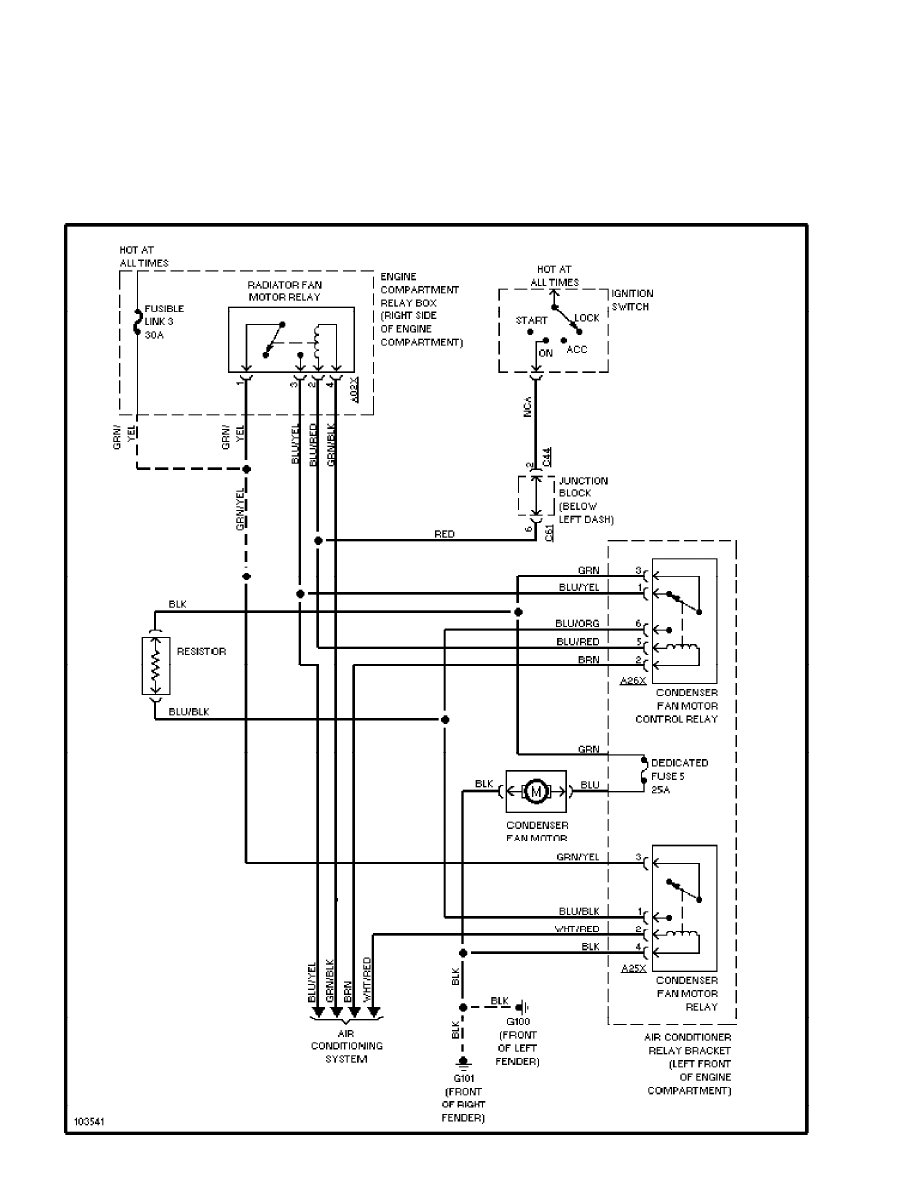

1.6L, Condenser Cooling Fan Circuit (p. 3)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit (p. 4)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

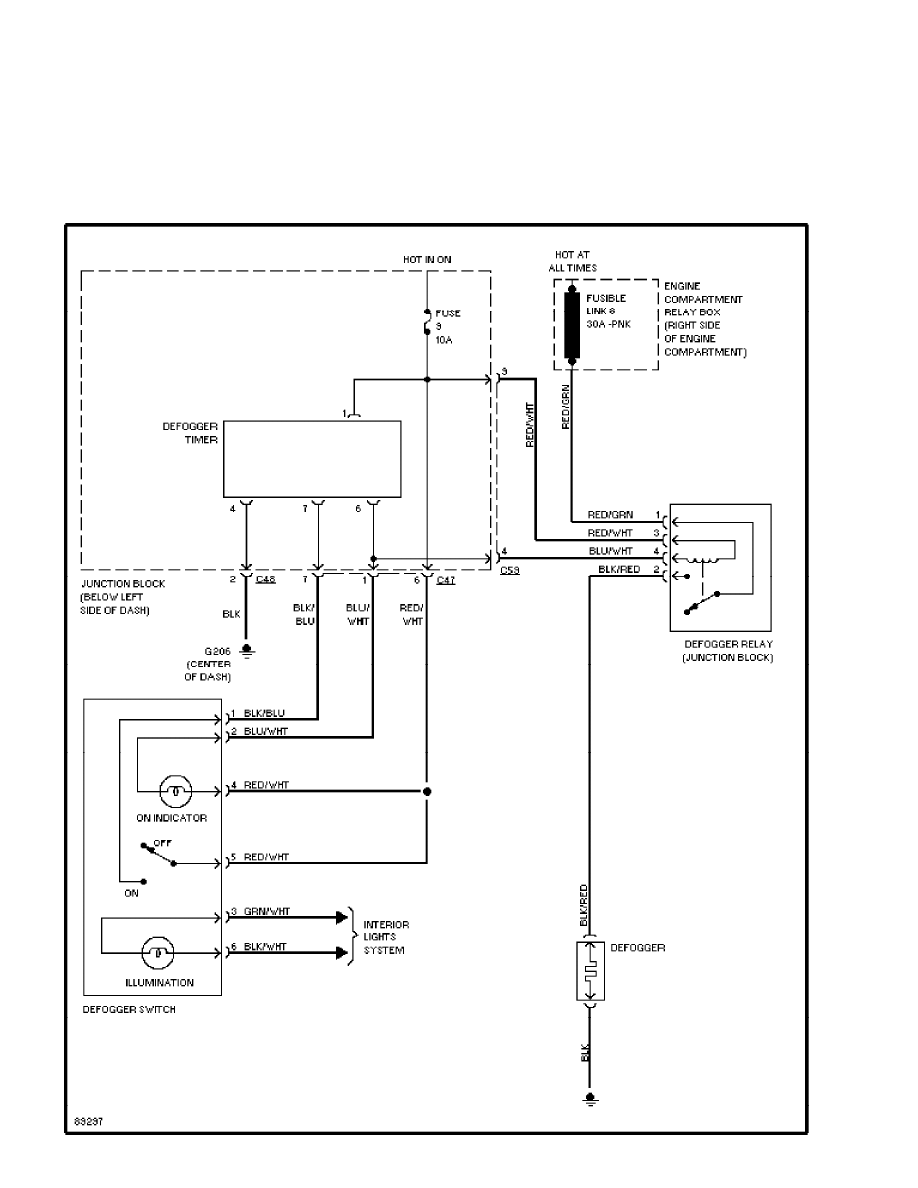

Defogger Circuit (p. 5)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 6)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

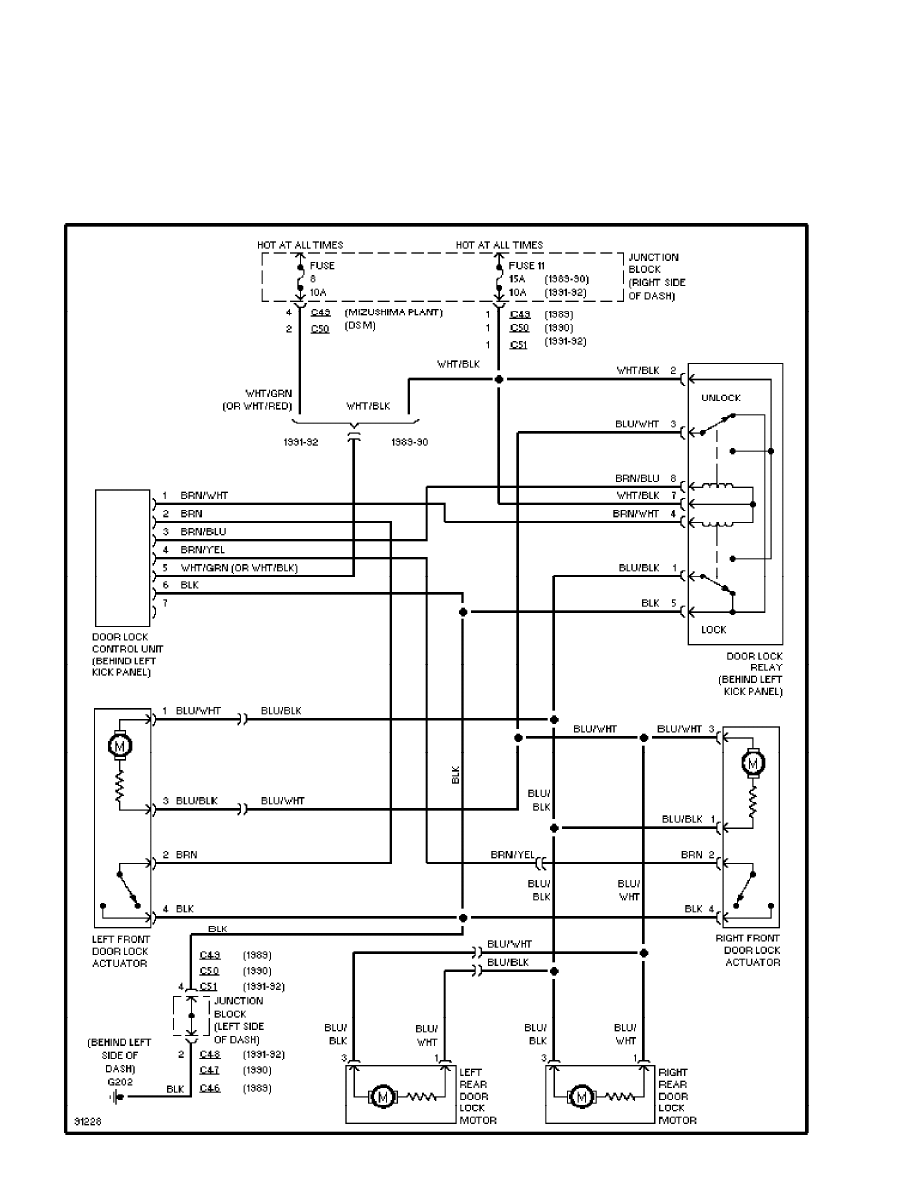

Power Door Lock Circuit (p. 7)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

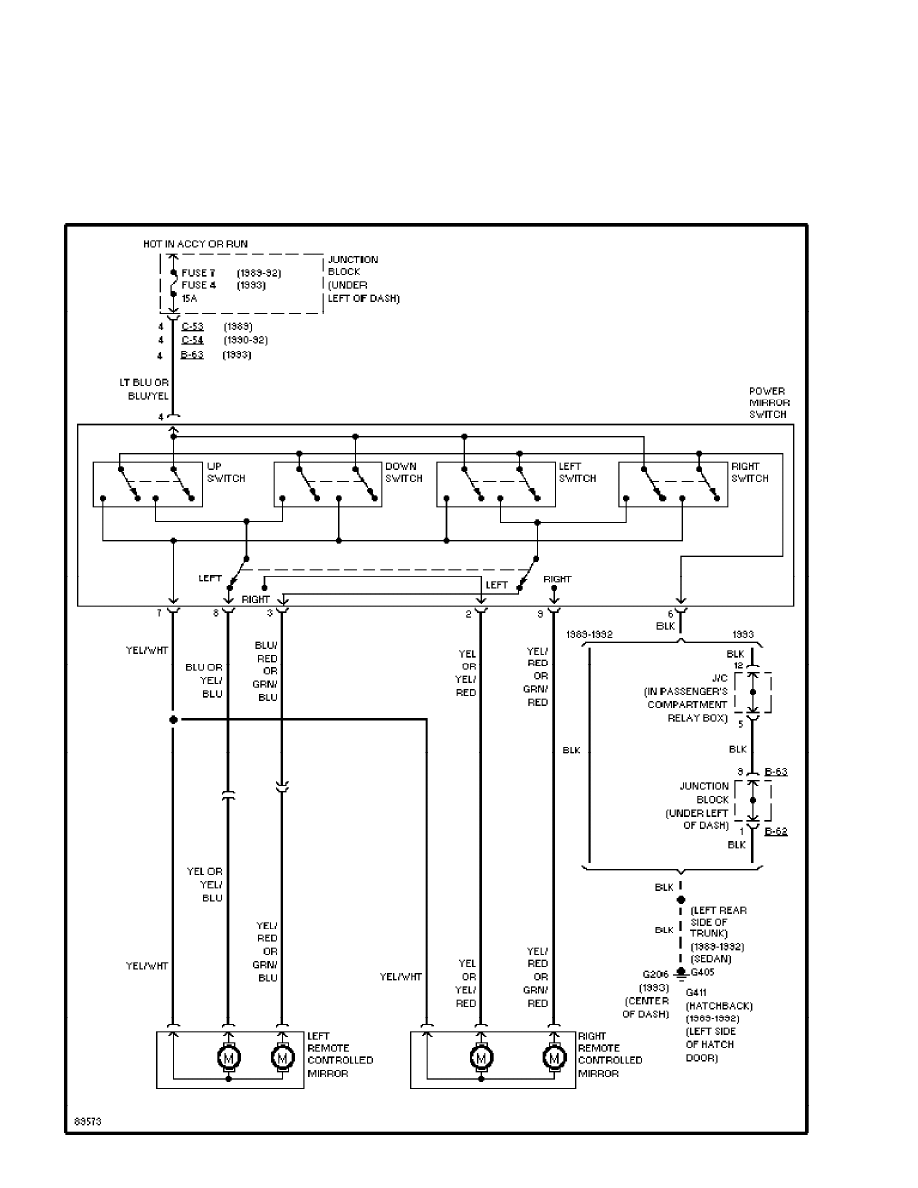

Power Mirror Circuit (p. 8)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

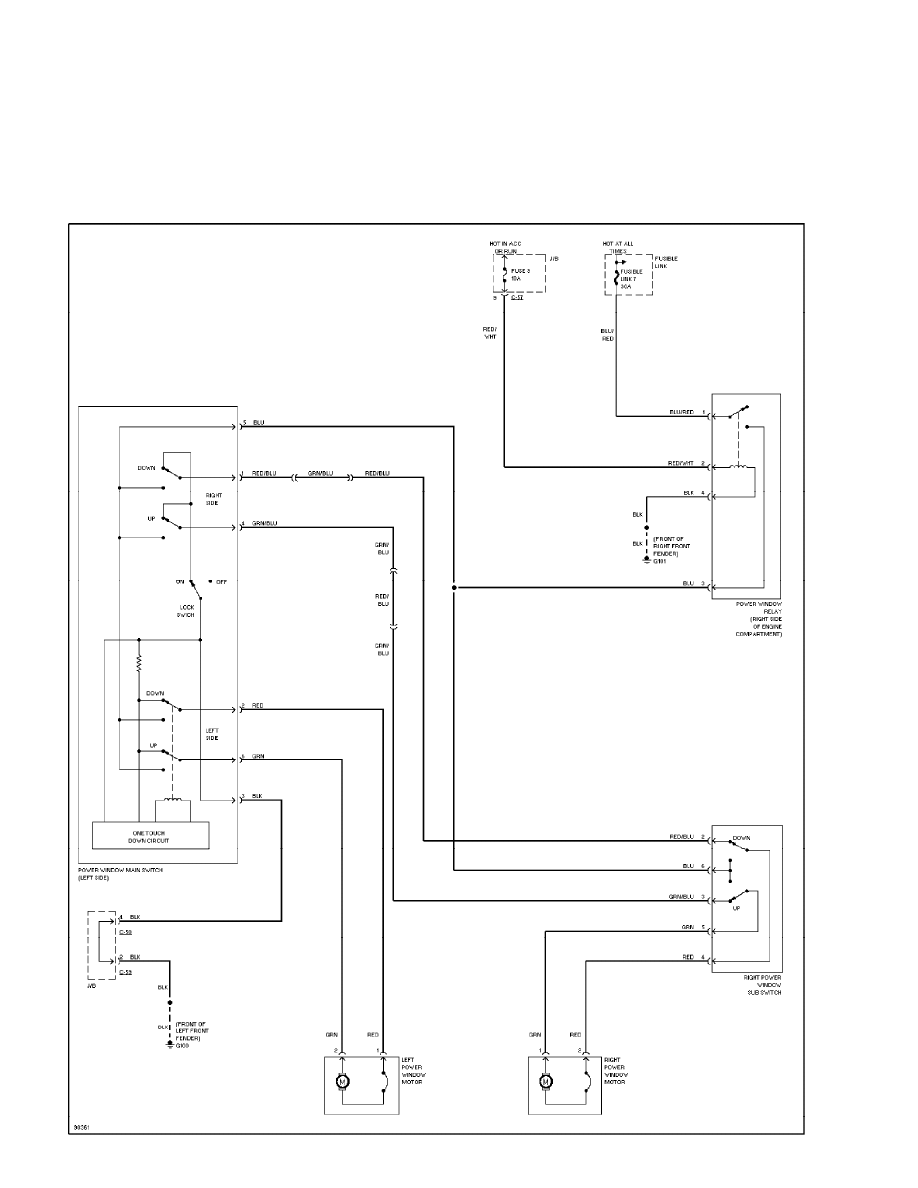

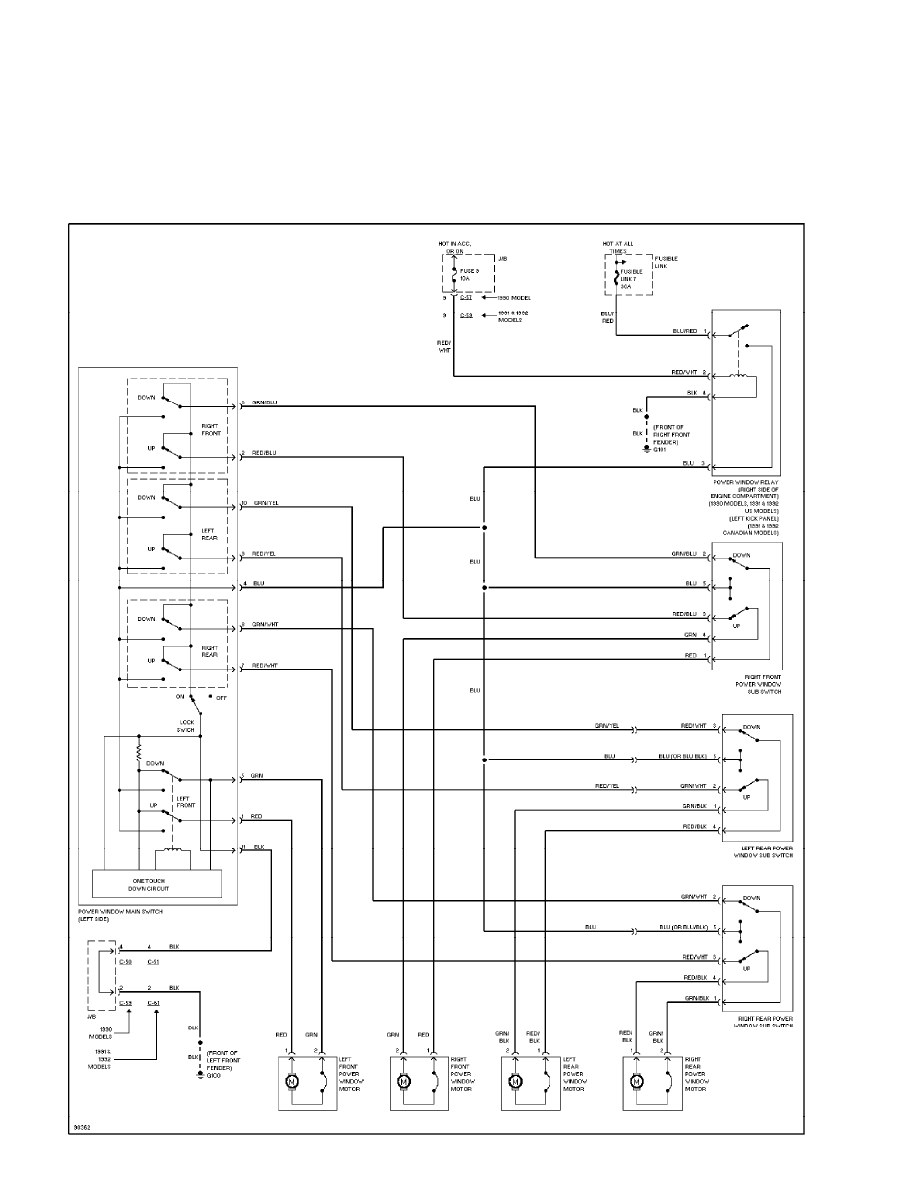

Power Window Circuit, Hatchback (p. 9)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Power Window Circuit, Sedan (p. 10)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

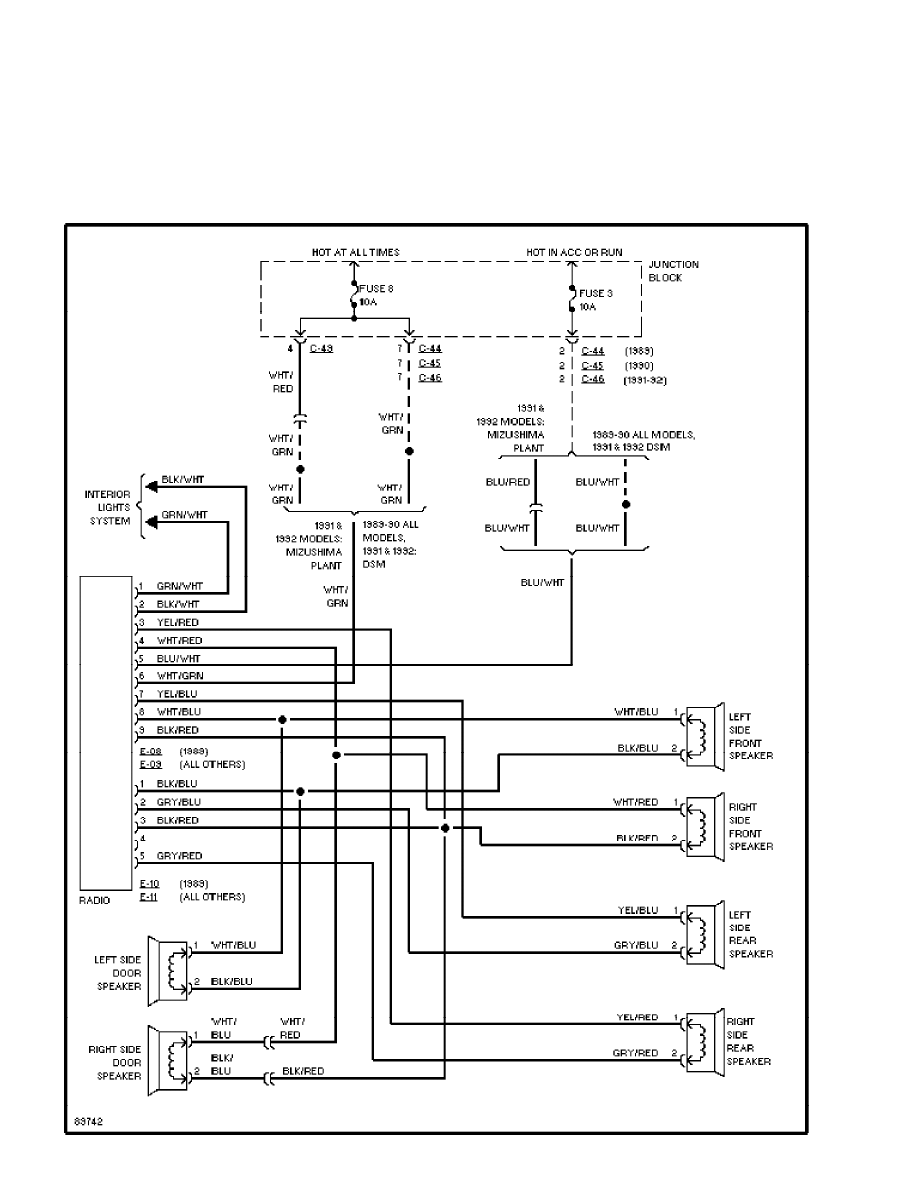

Radio Circuits (p. 11)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

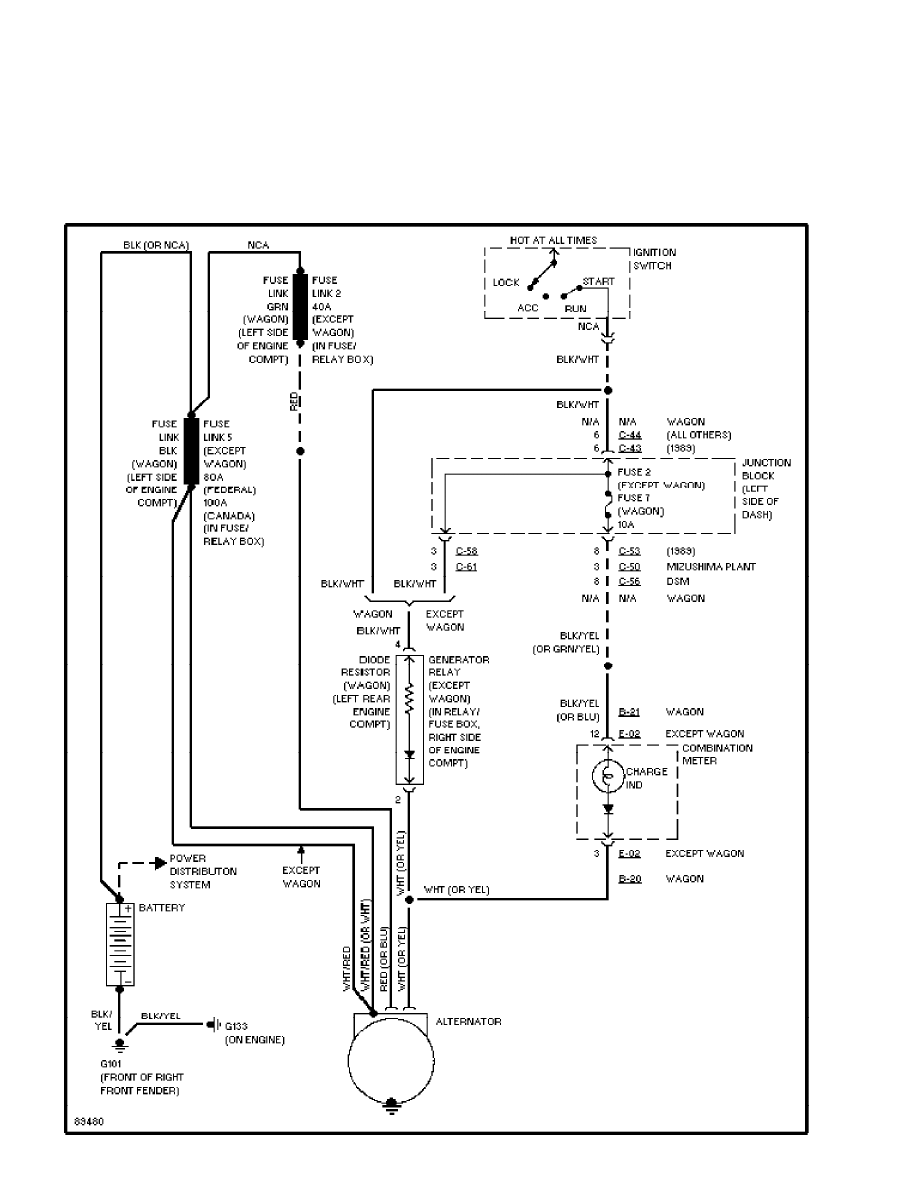

Charging Circuit (p. 12)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 13)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

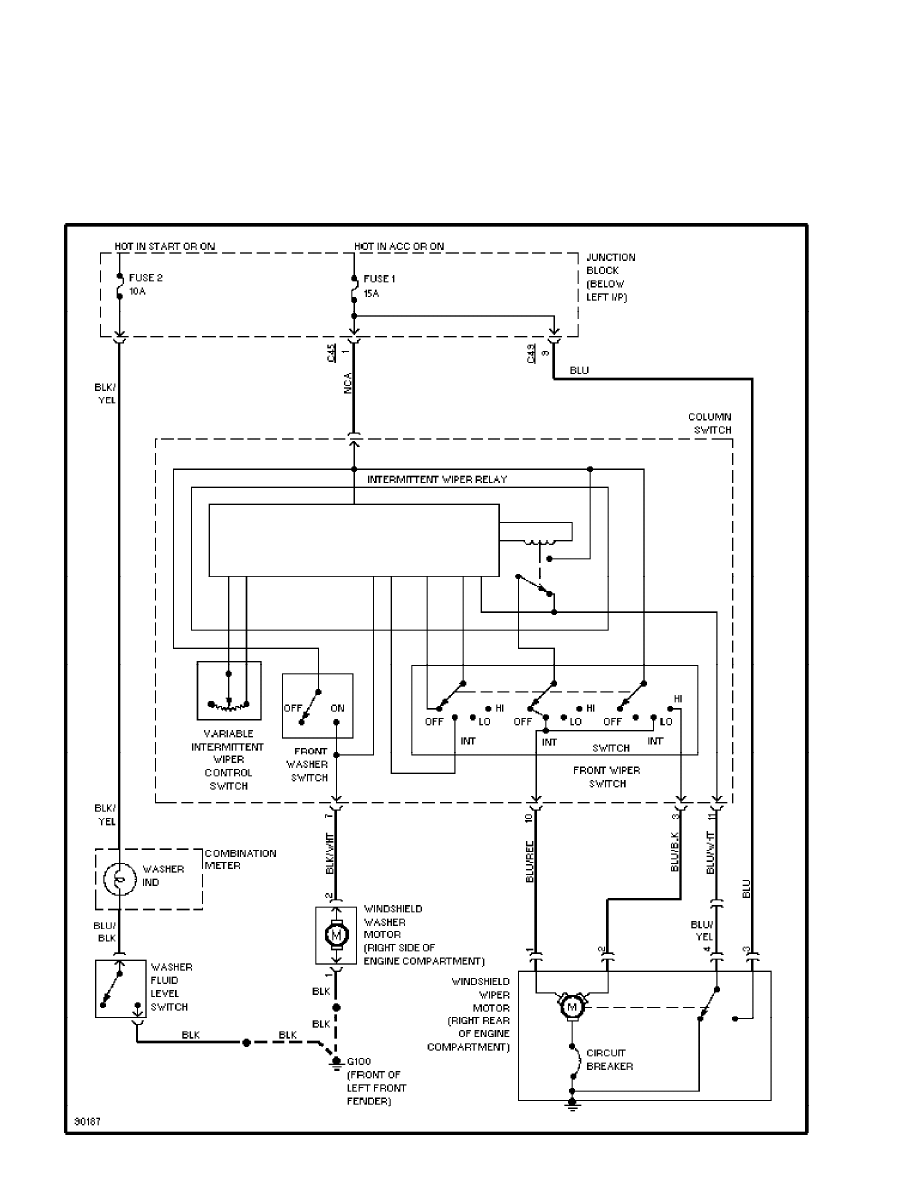

Front Wiper/Washer Circuit (p. 14)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 15)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

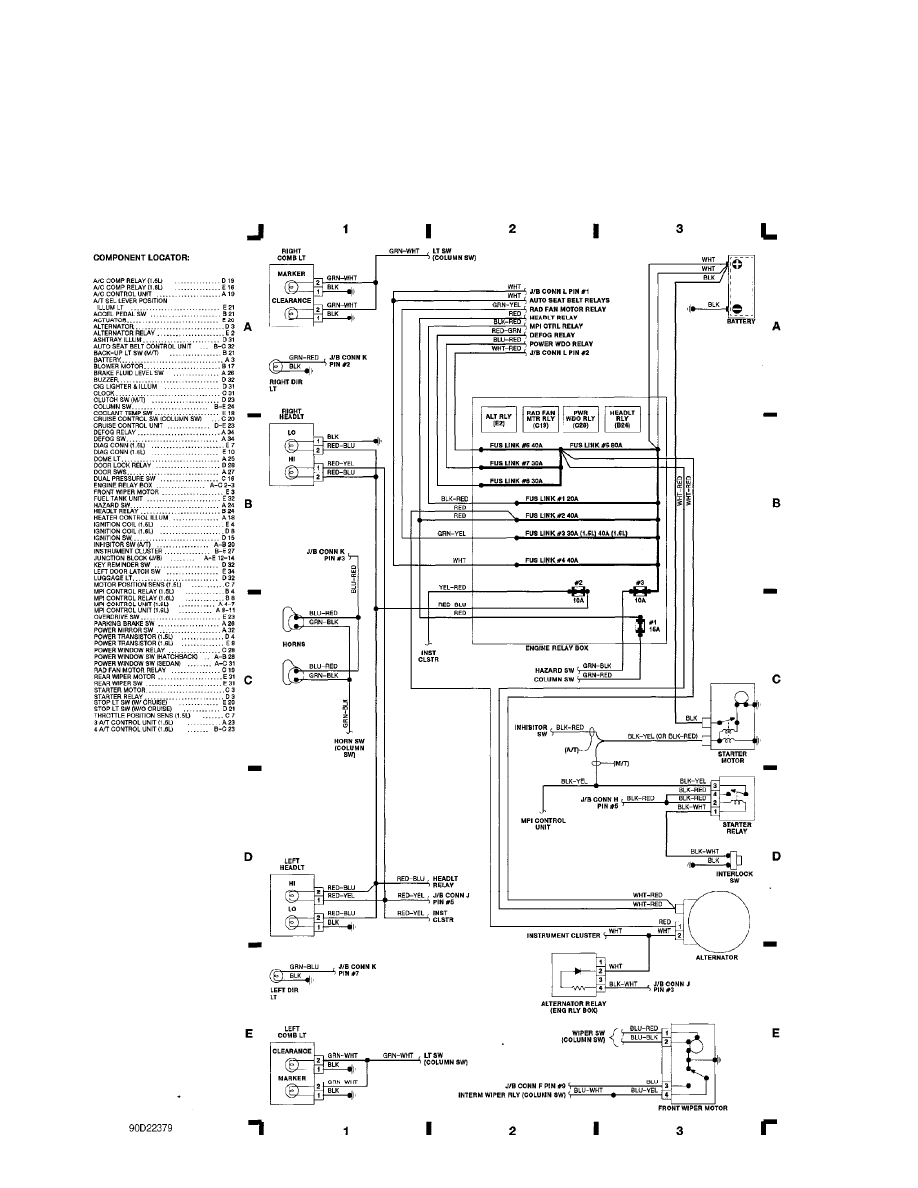

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

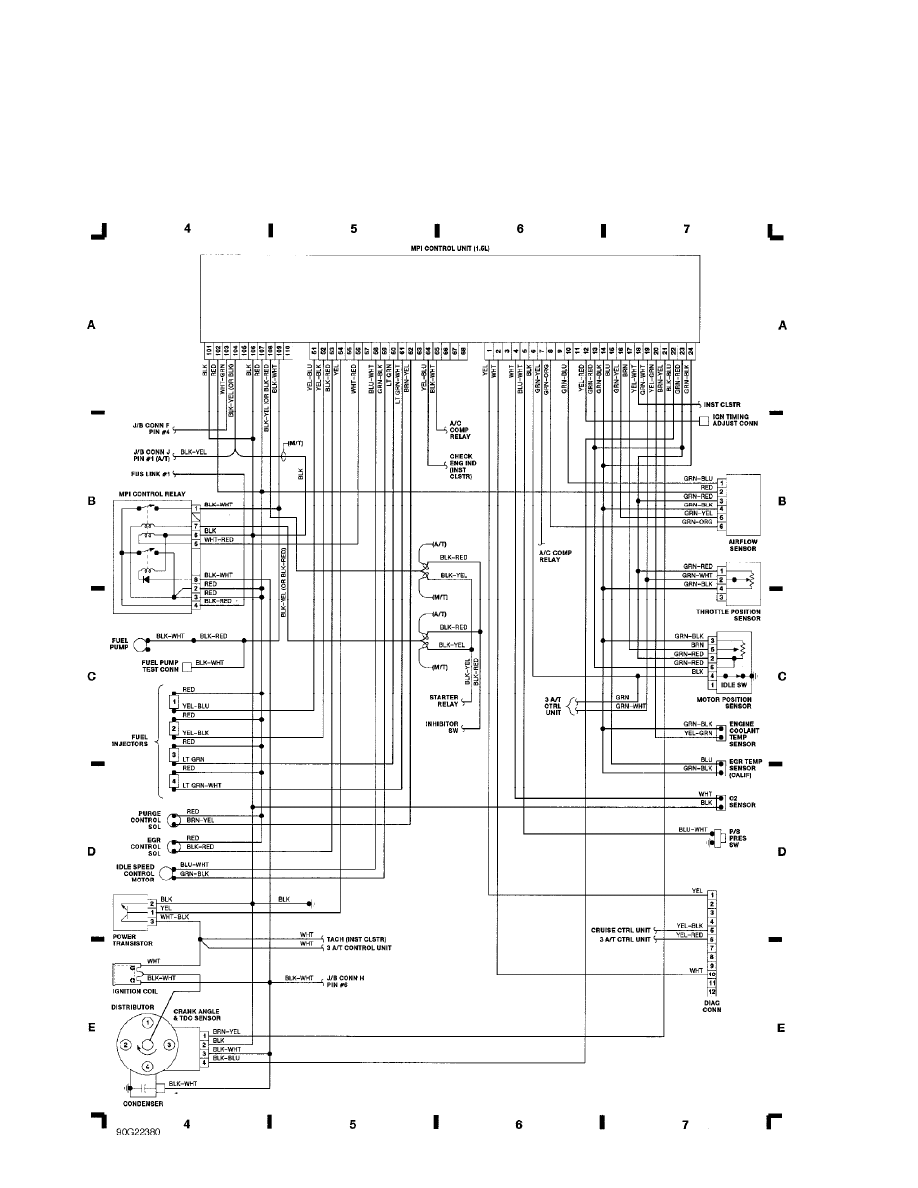

Fig. 2: Computer Engine Control 1.5L) (Grid 4-7) (p. 2)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

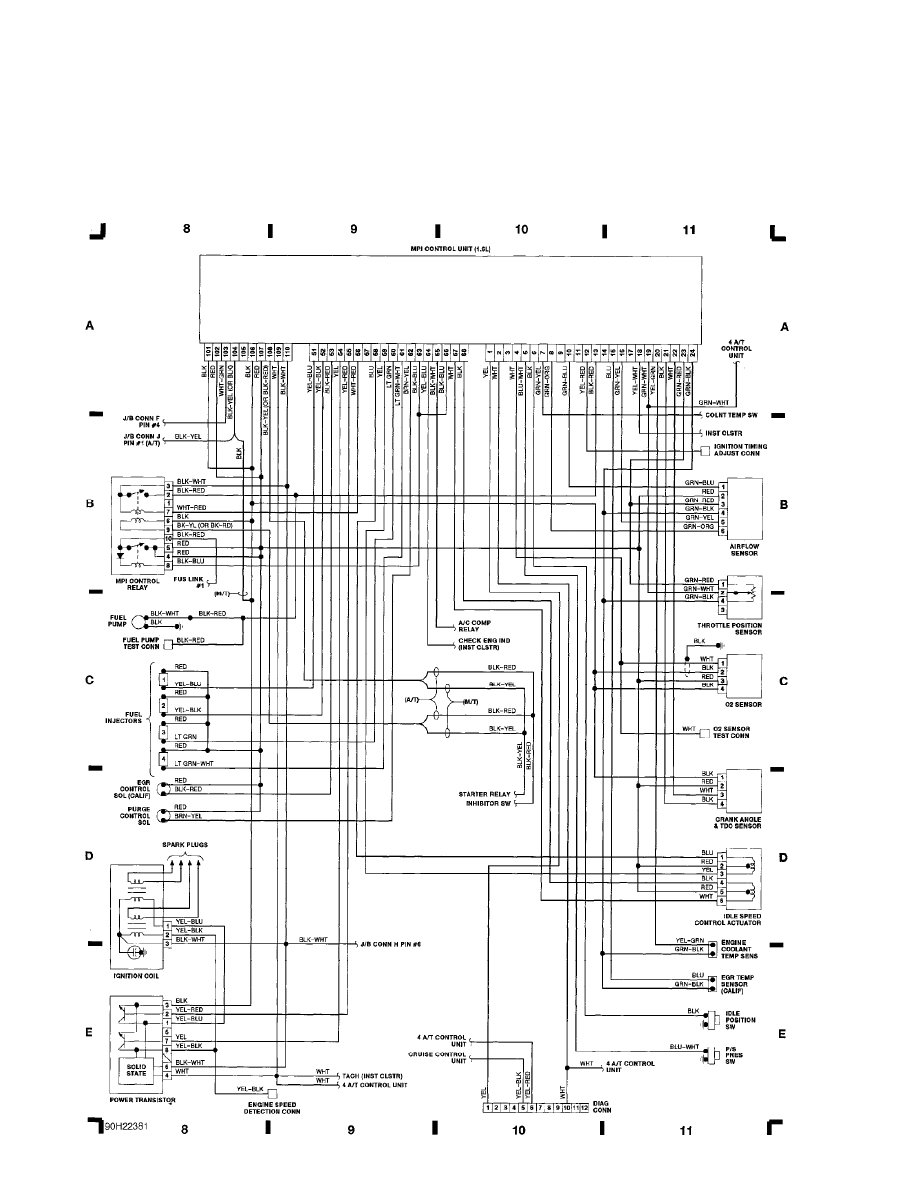

Fig. 3: Computer Engine Control (1.6L) (Grid 8-11) (p. 3)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

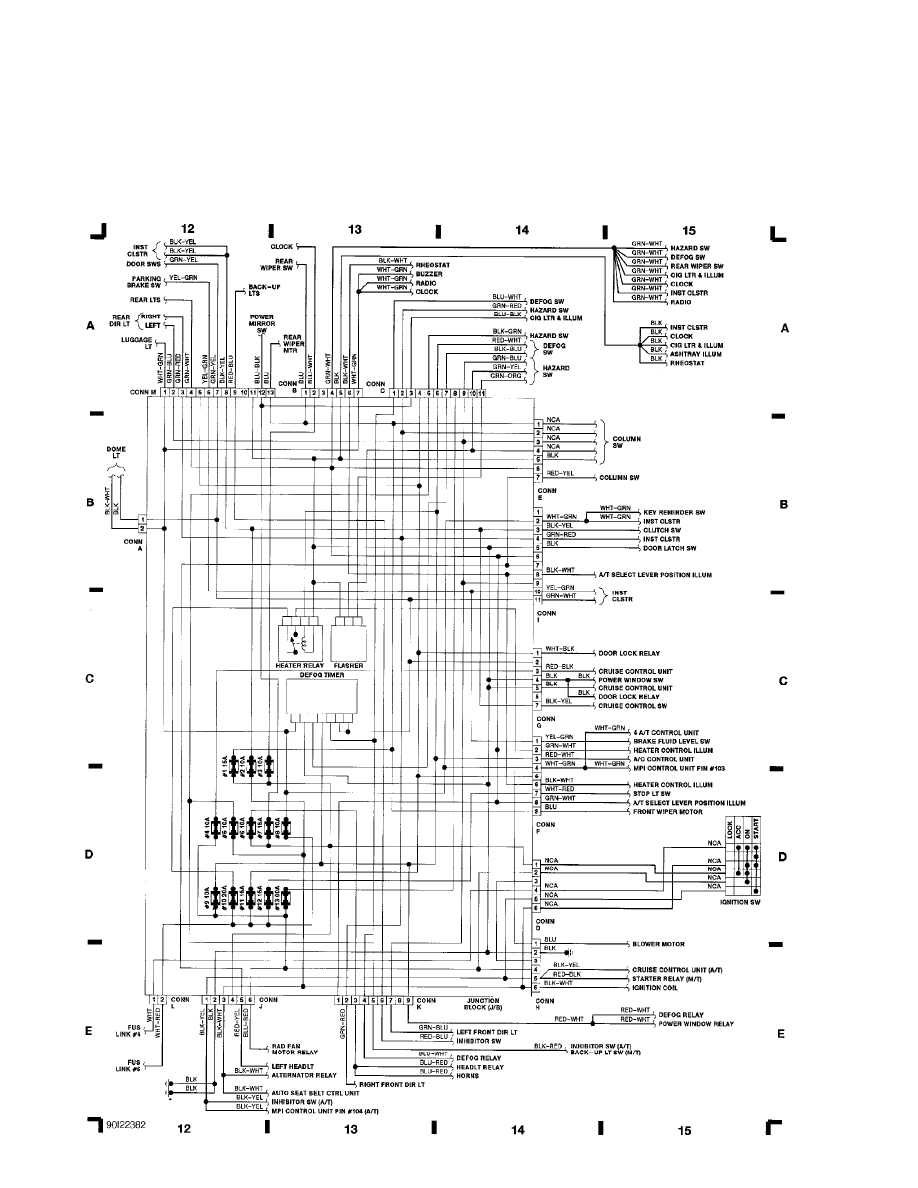

Fig. 4: Fuse Block (Grid 12-15) (p. 4)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

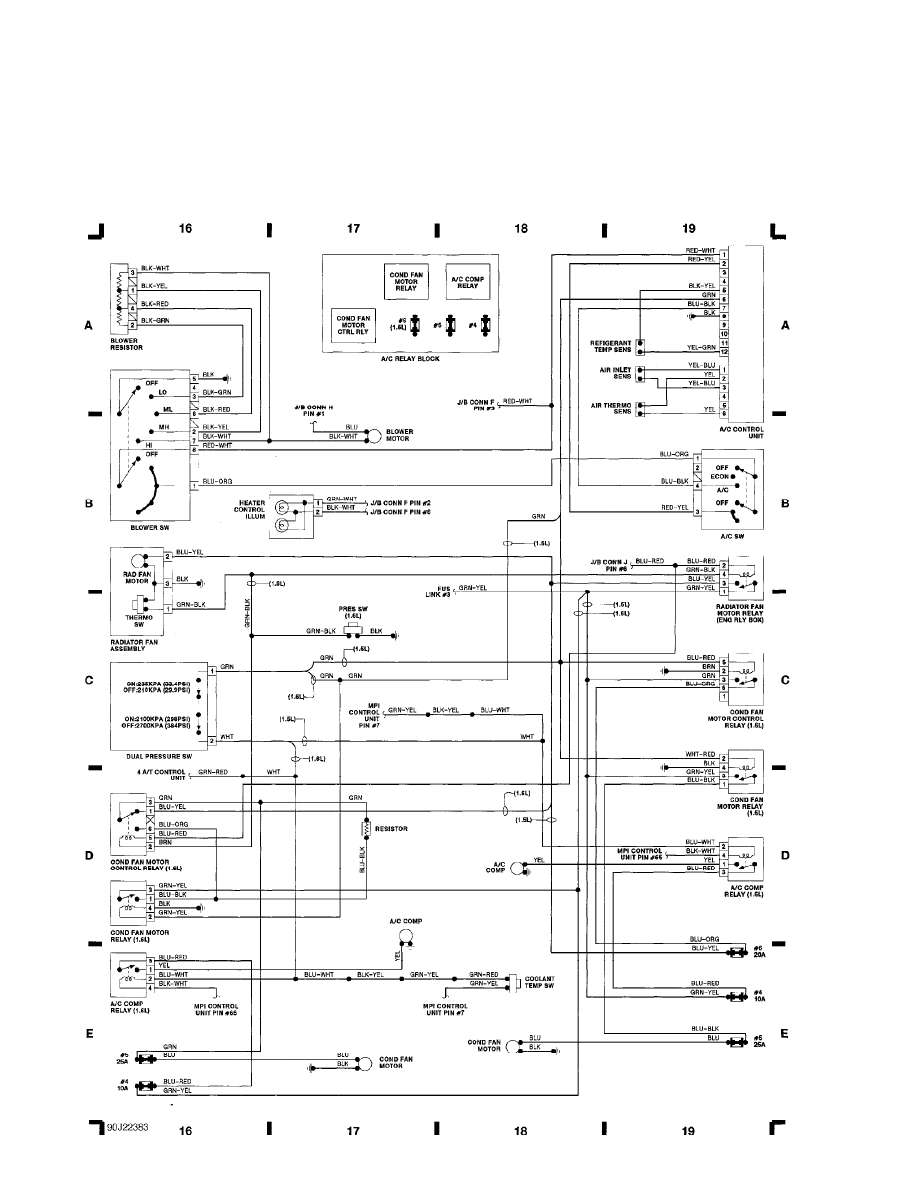

Fig. 5: A/C & Heating (Grid 16-19) (p. 5)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

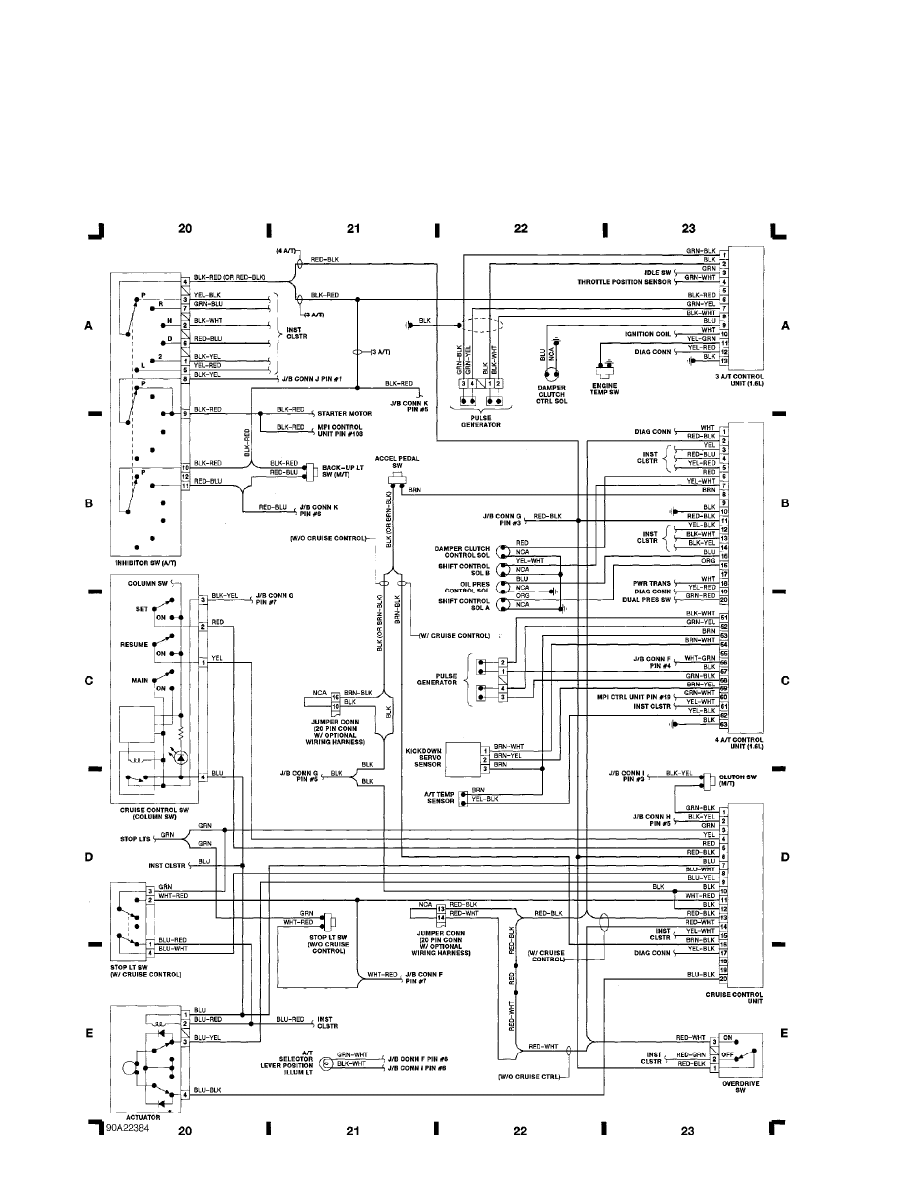

Fig. 6: Cruise Control (Grid 20-23) (p. 6)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

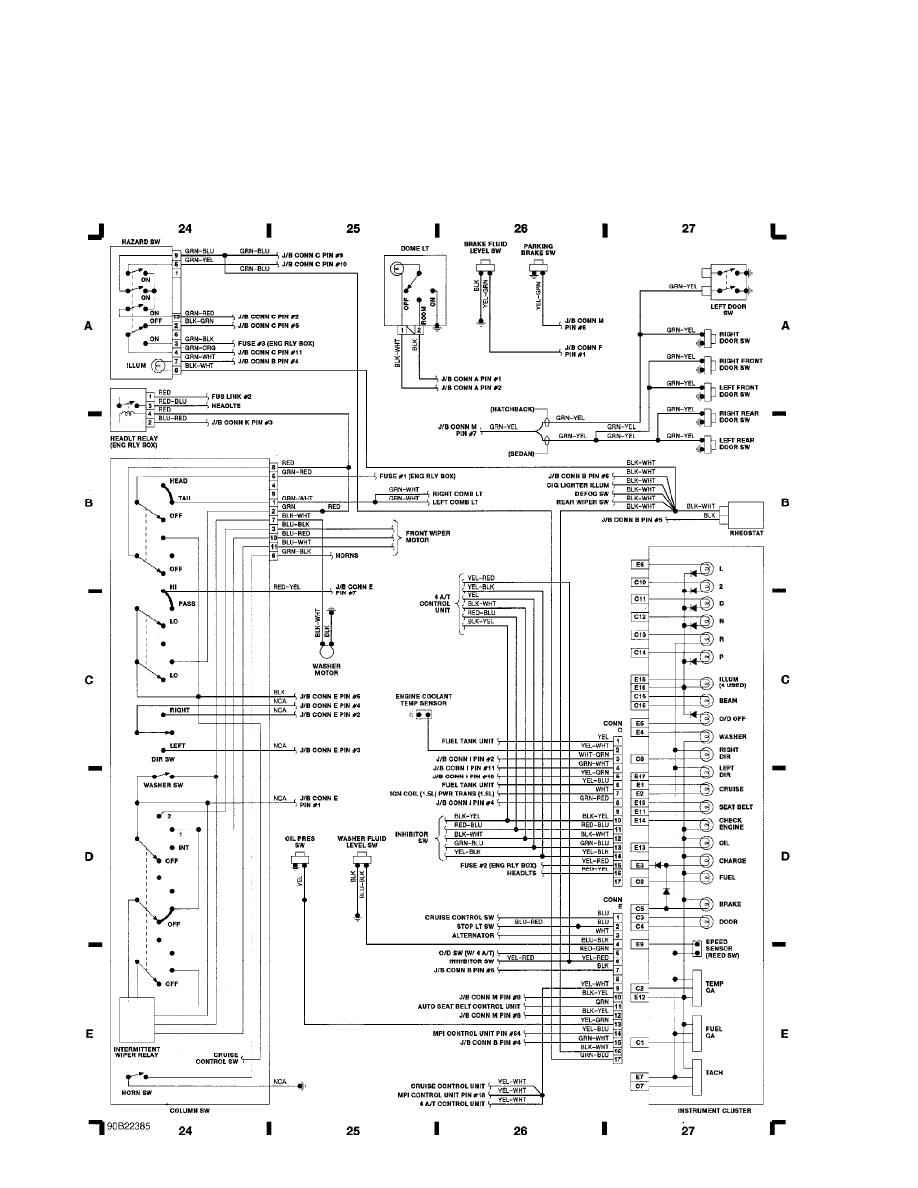

Fig. 7: Instrument Panel (Grid 24-27) (p. 7)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

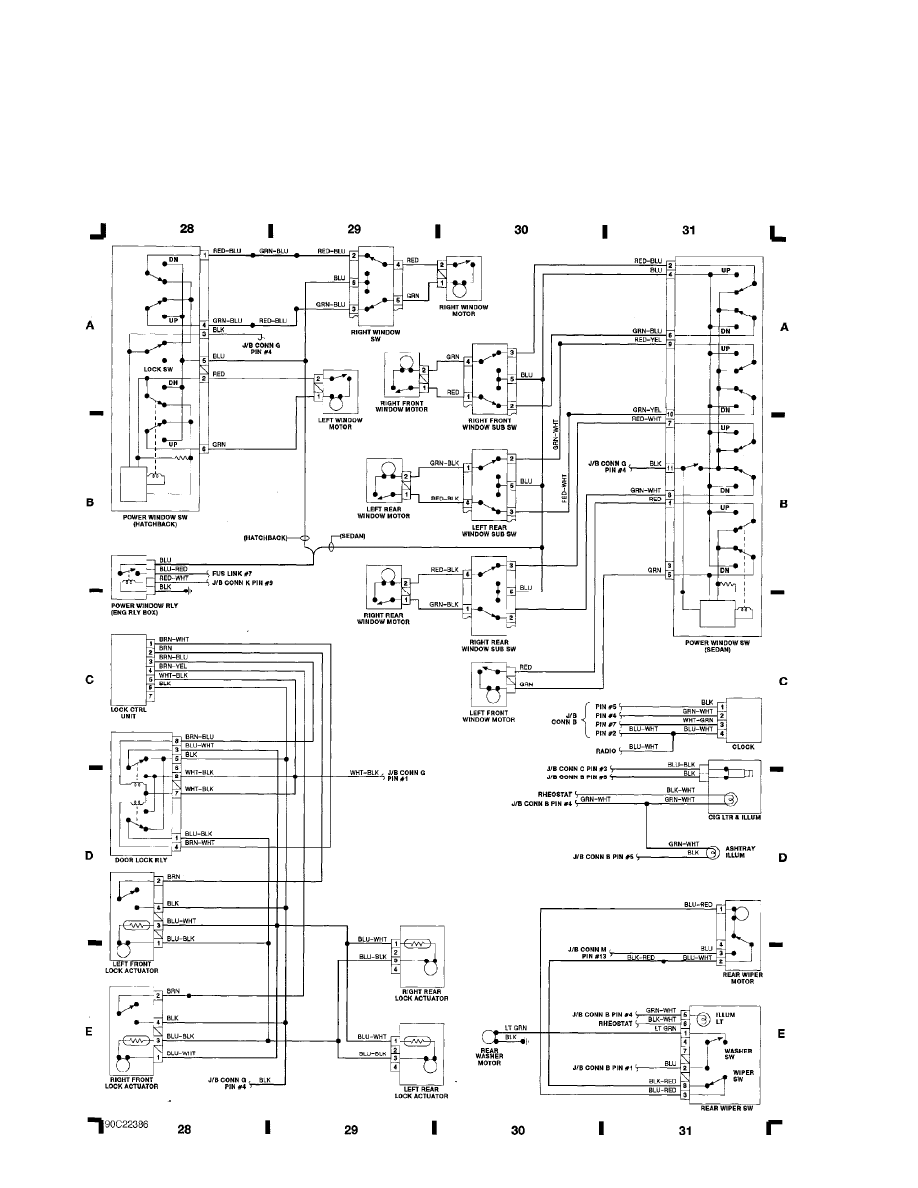

Fig. 8: Accessories (Grid 28-31) (p. 8)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

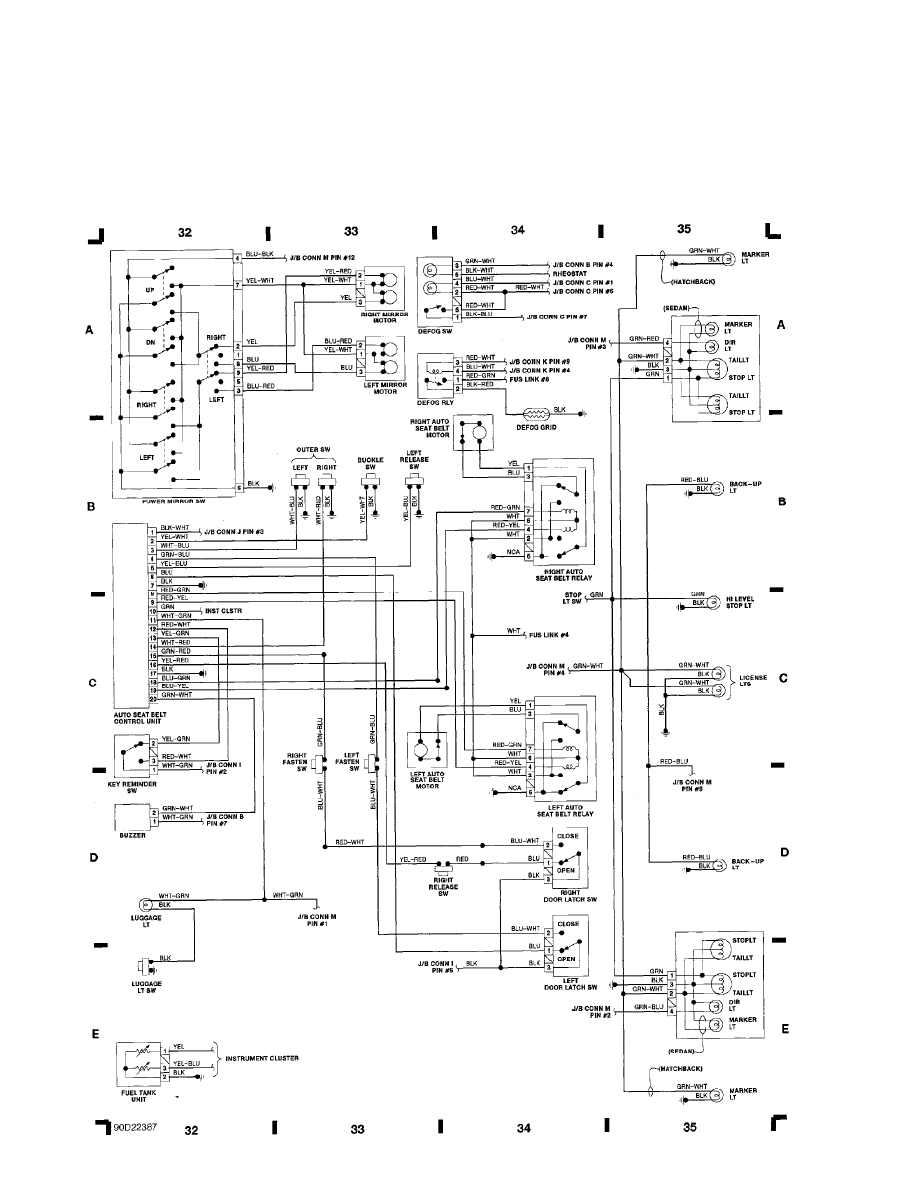

Fig. 9: Passenger Compartment & Taillights (Grid 32-35) (p. 9)

1990 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM
