MITSUBISHI MIRAGE 1997

SYSTEM WIRING DIAGRAMS

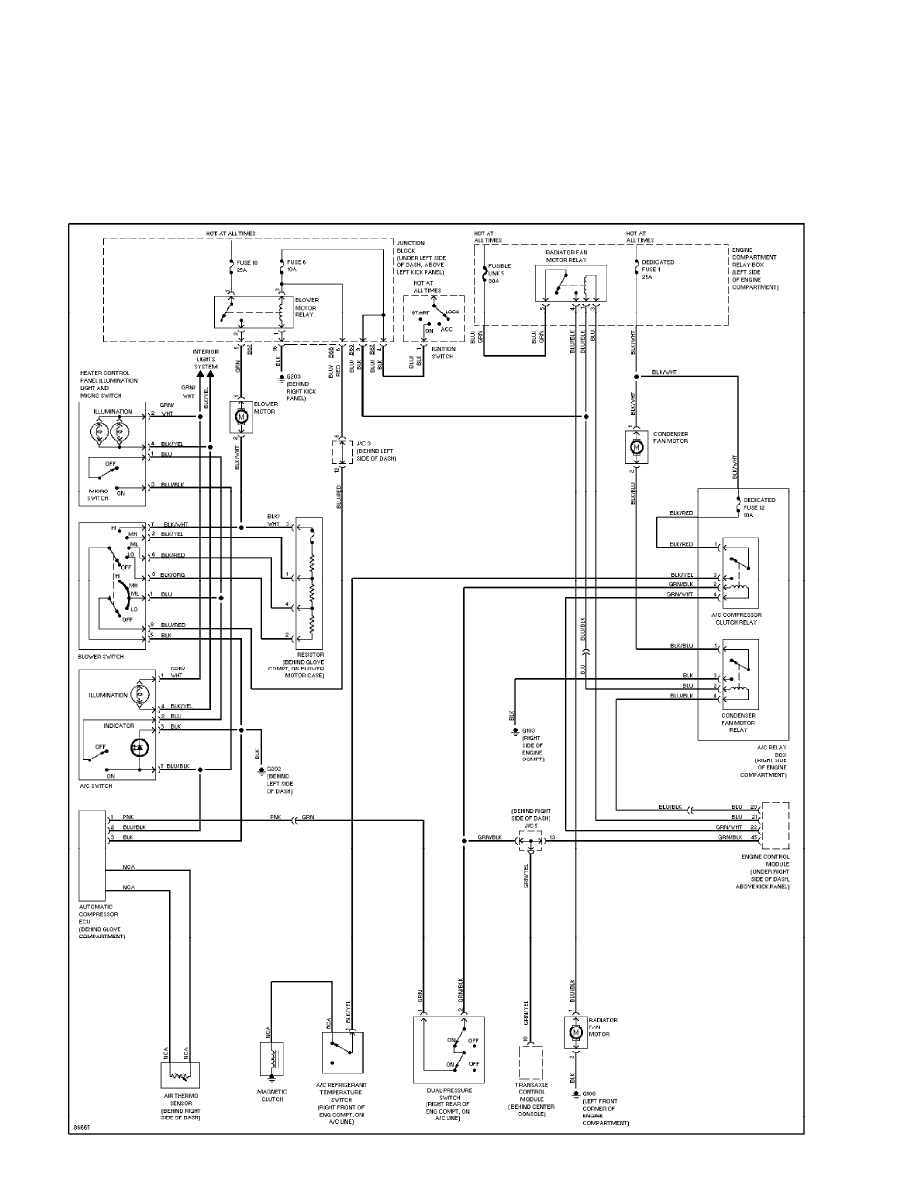

A/C Circuit

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

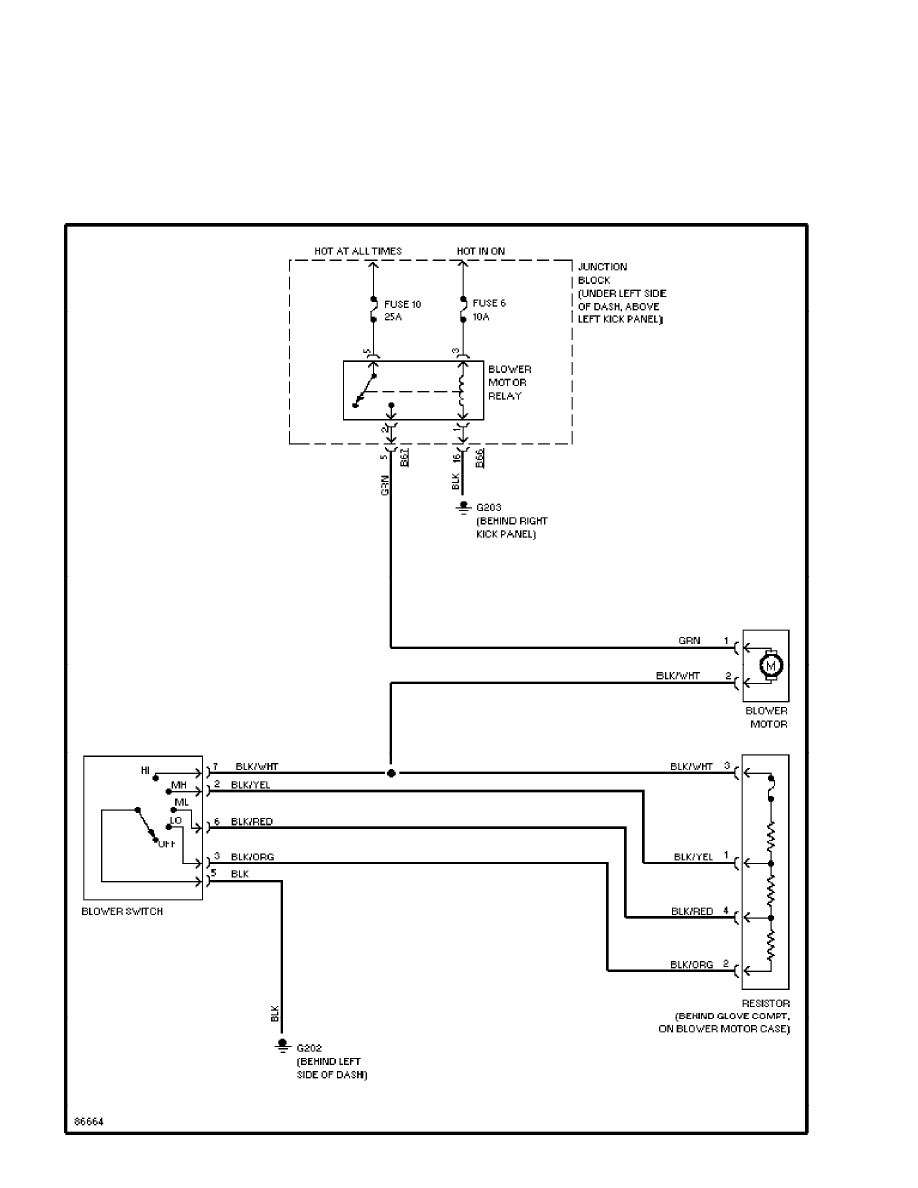

Heater Circuit (p. 2)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

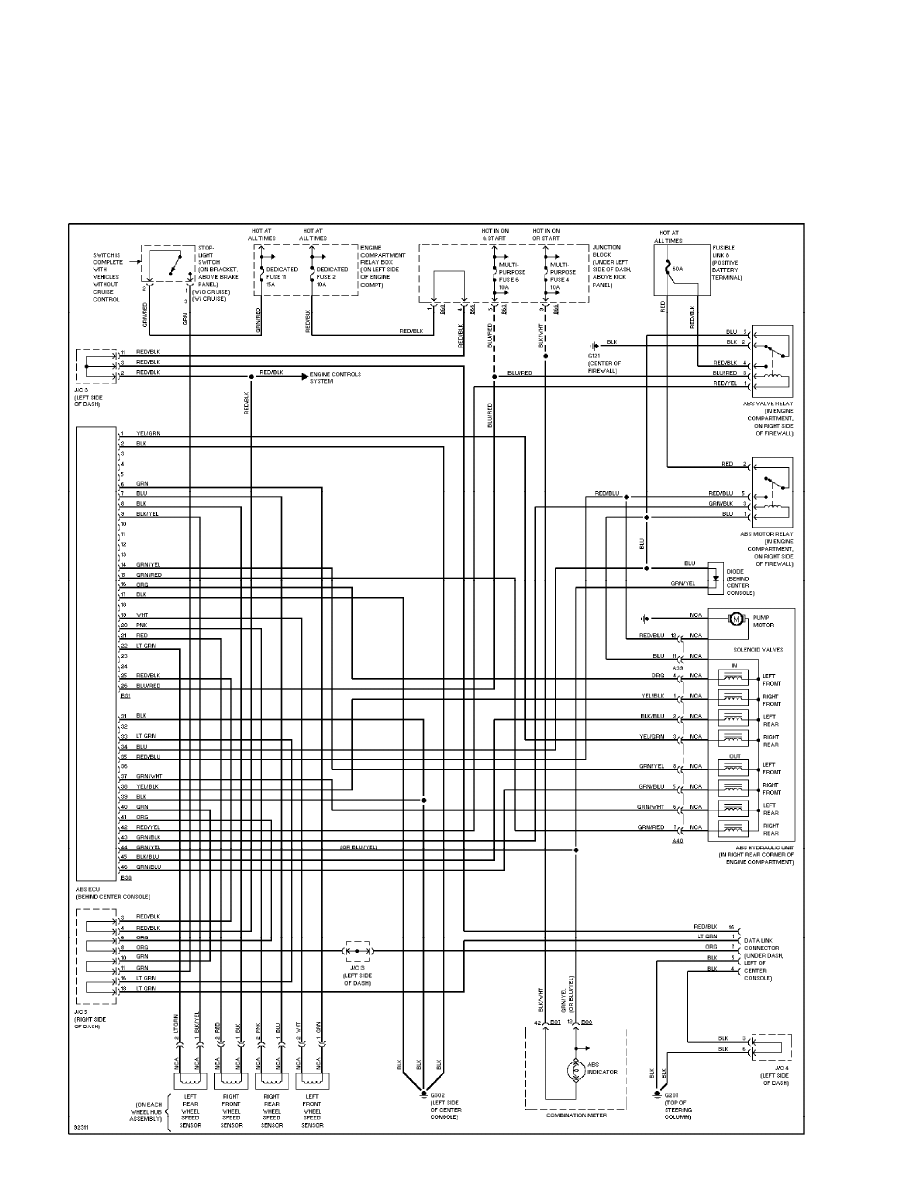

Anti-lock Brake Circuits (p. 3)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

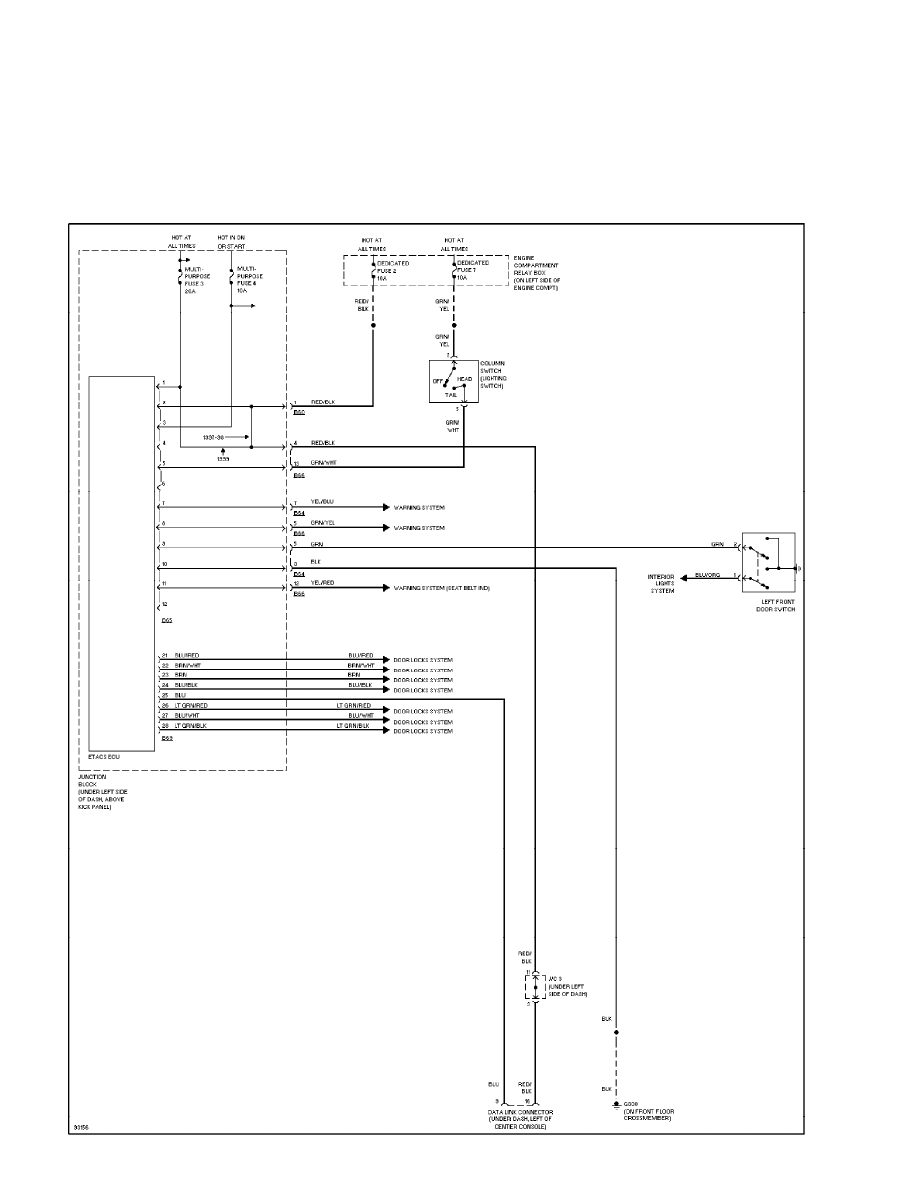

Body Computer Circuits (p. 4)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

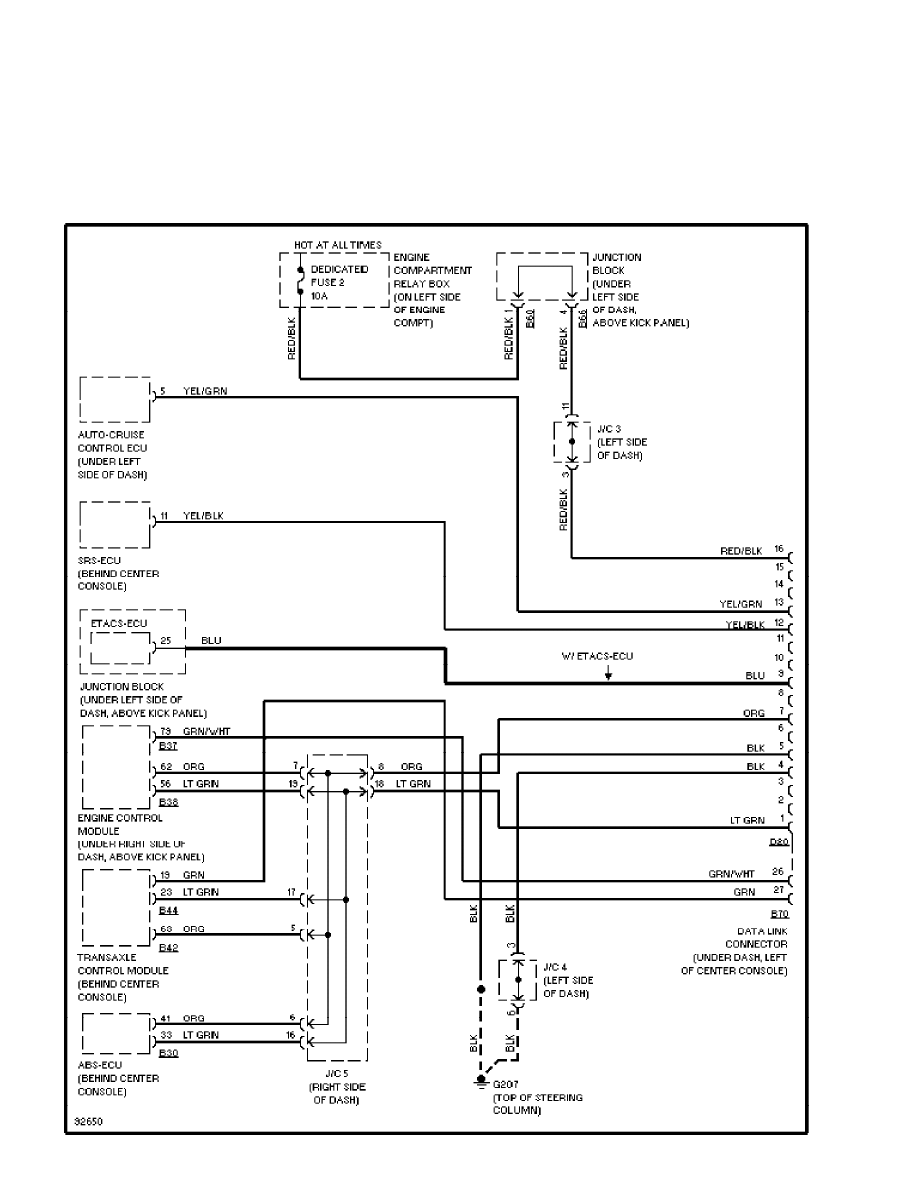

Computer Data Lines (p. 5)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

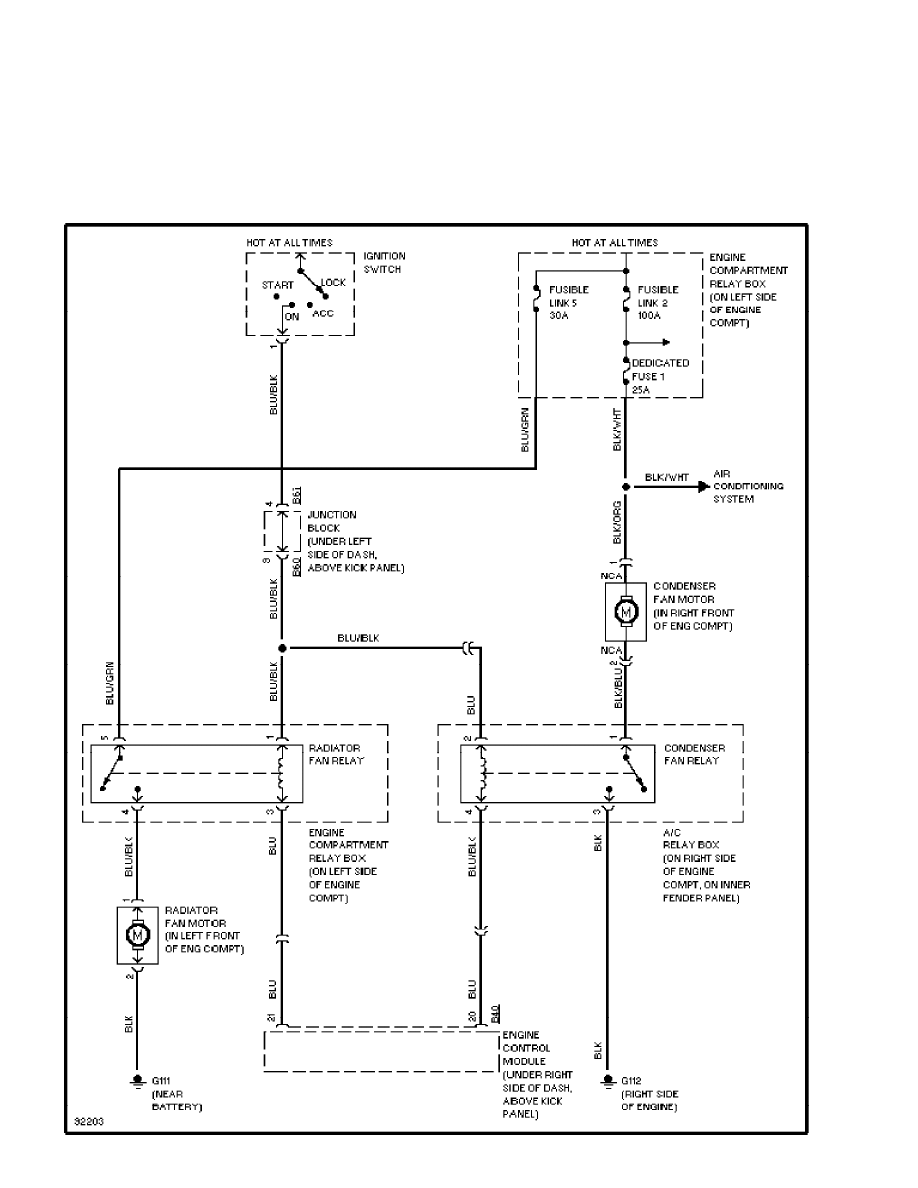

Cooling Fan Circuit (p. 6)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

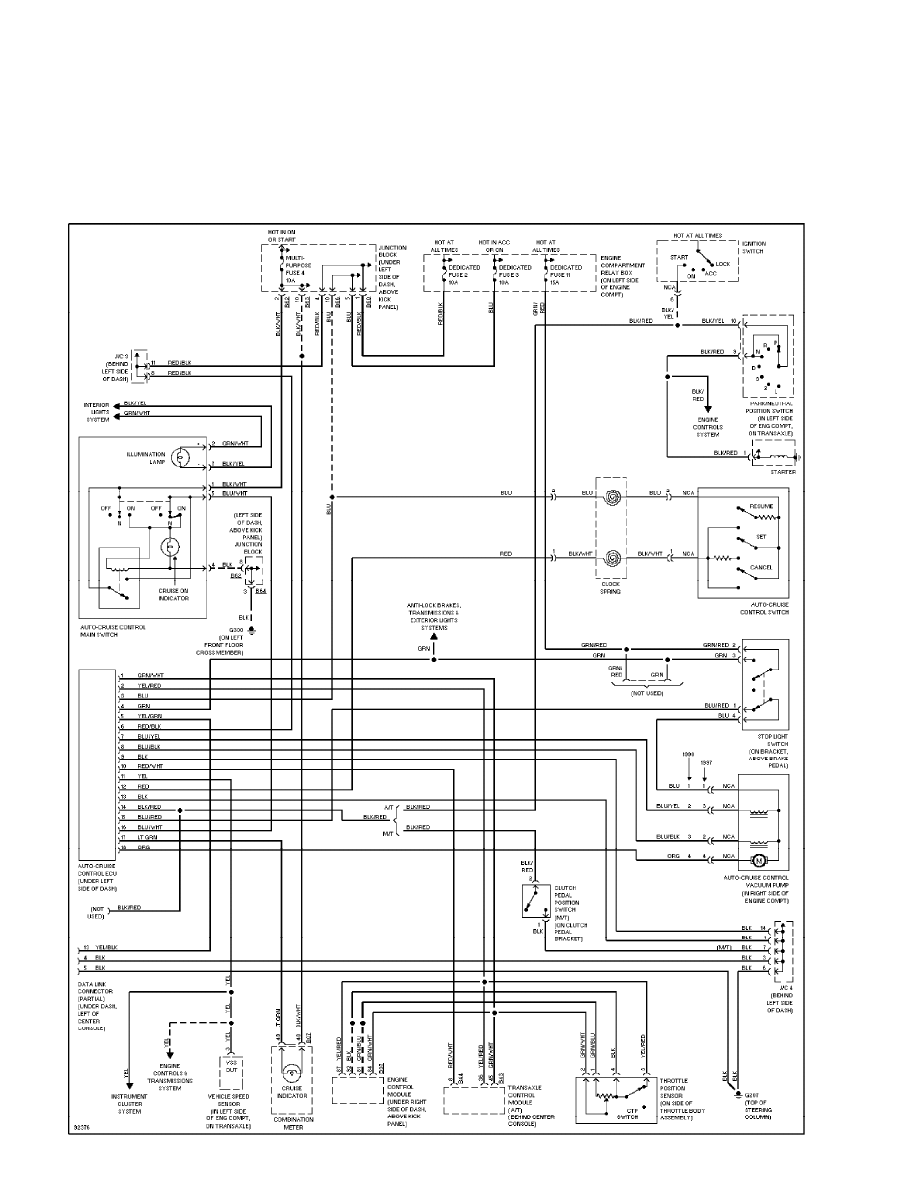

Cruise Control Circuit (p. 7)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

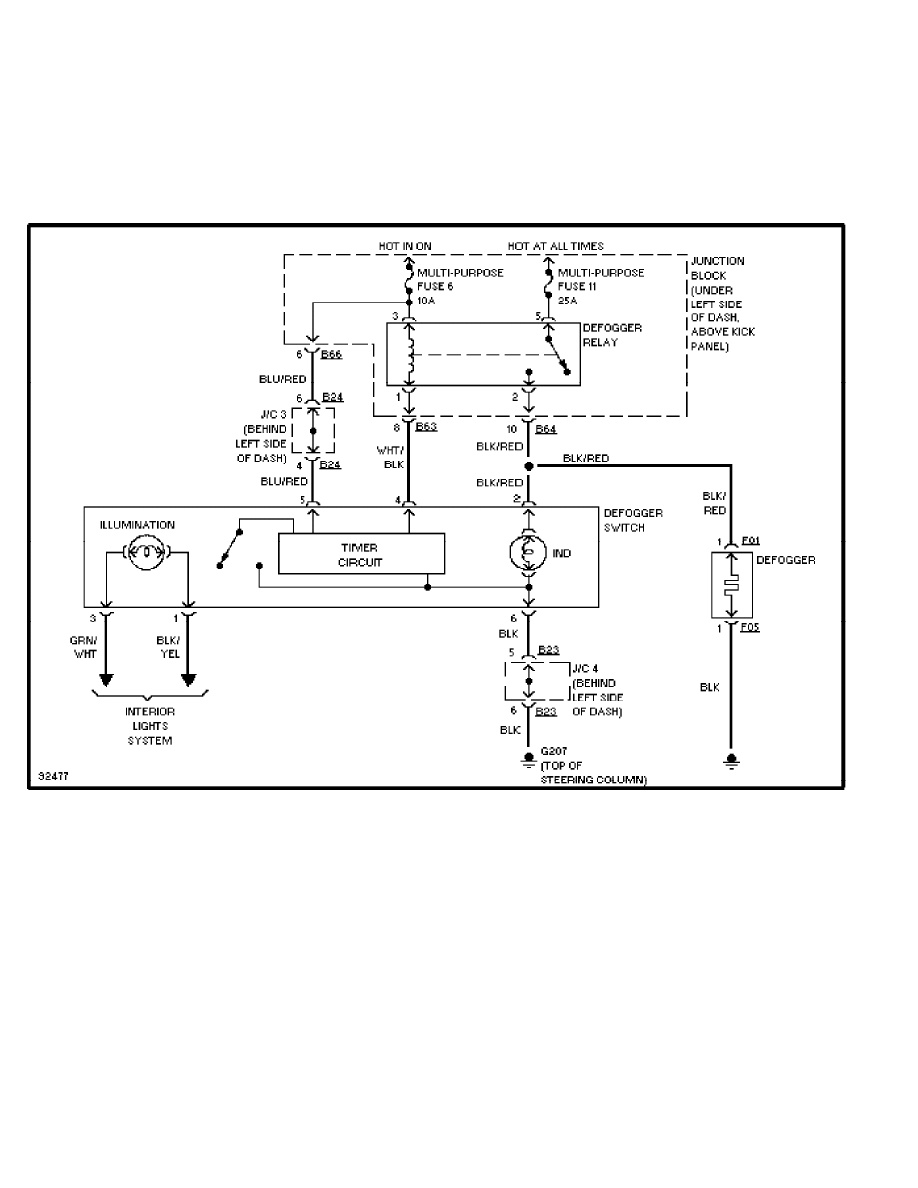

Defogger Circuit (p. 8)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

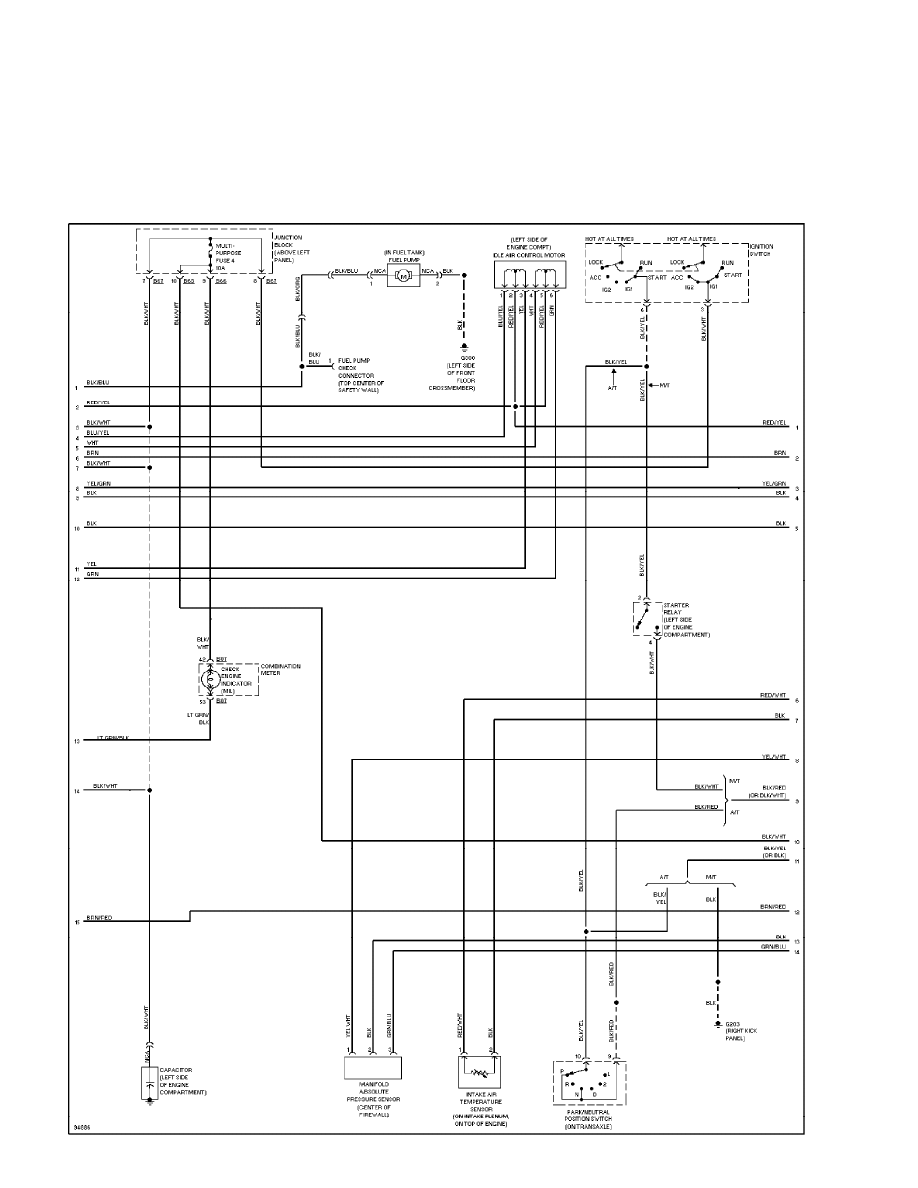

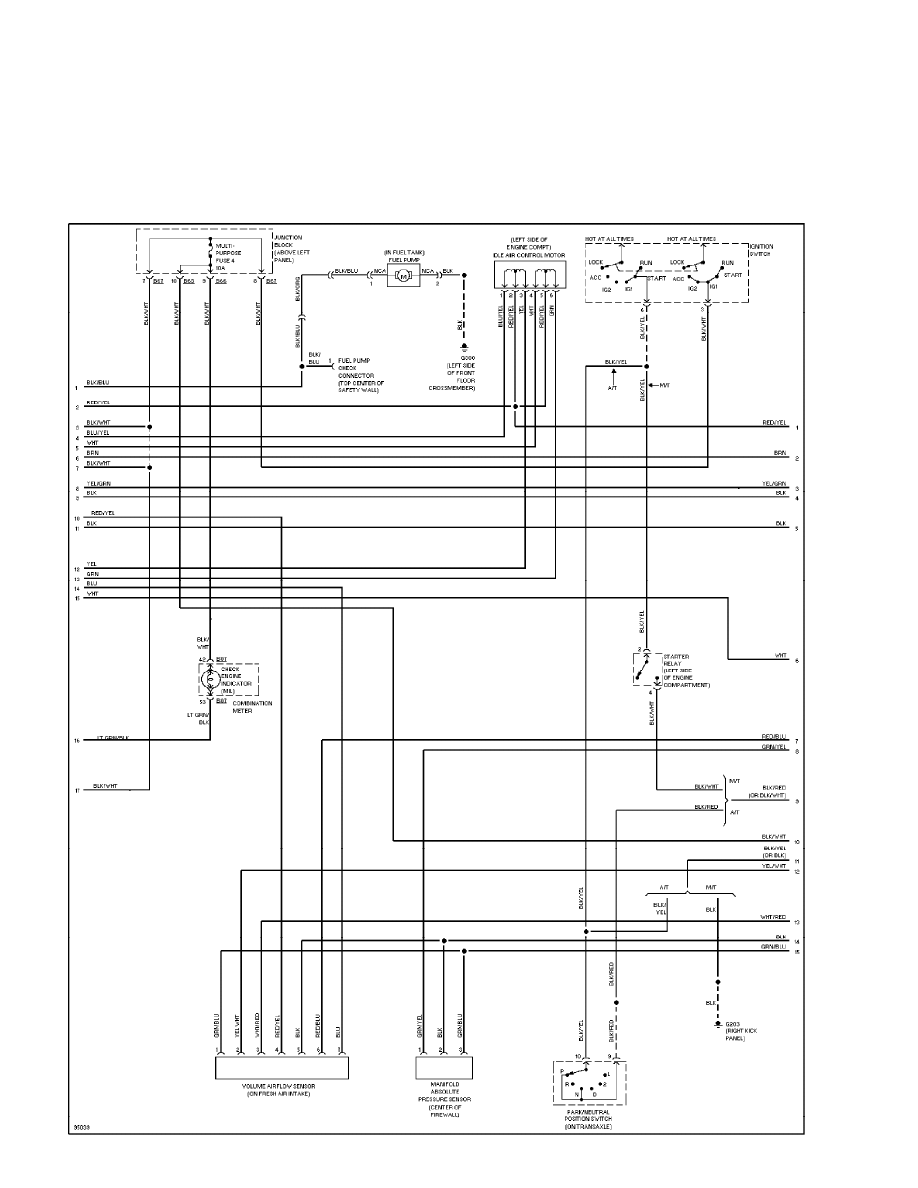

1.5L, Engine Performance Circuits (1 of 3) (p. 9)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

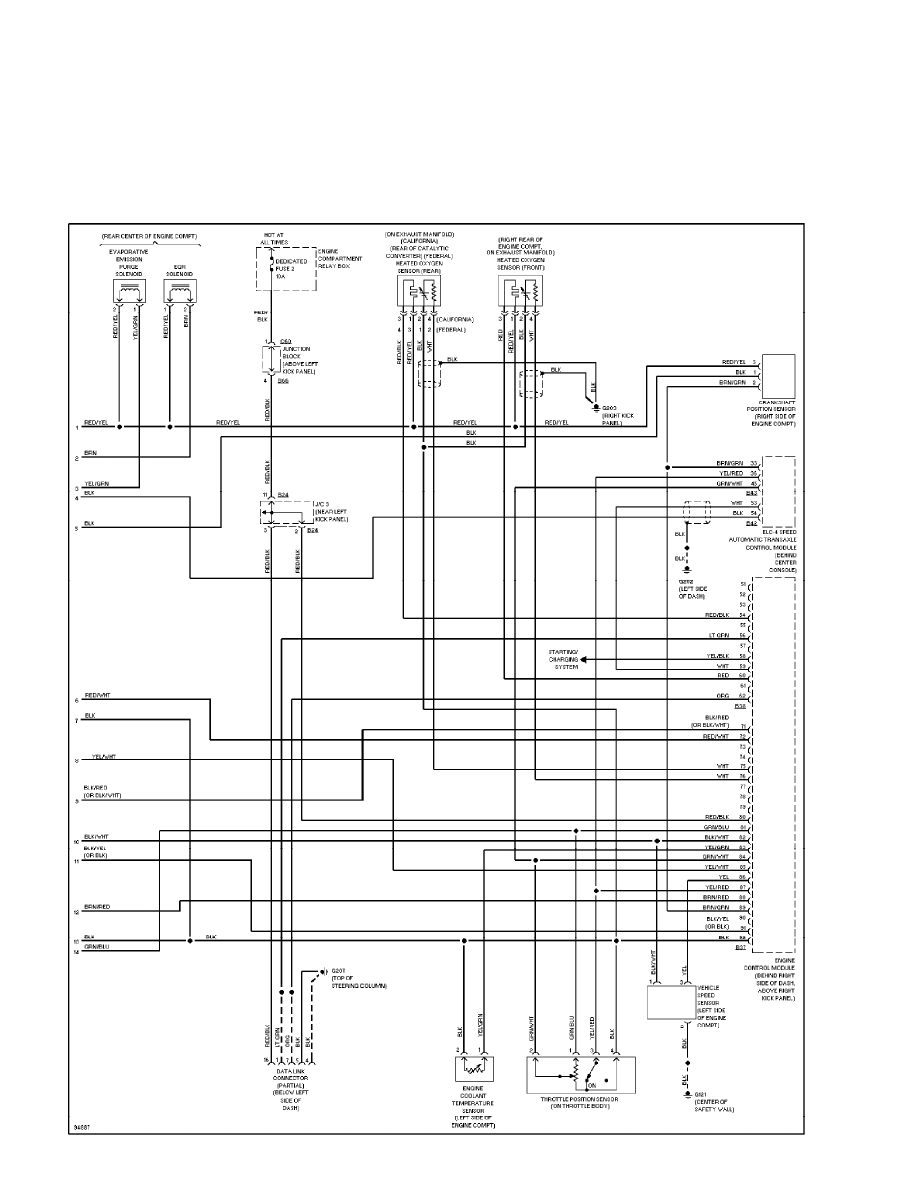

1.5L, Engine Performance Circuits (2 of 3) (p. 10)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

1.5L, Engine Performance Circuits (3 of 3) (p. 11)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

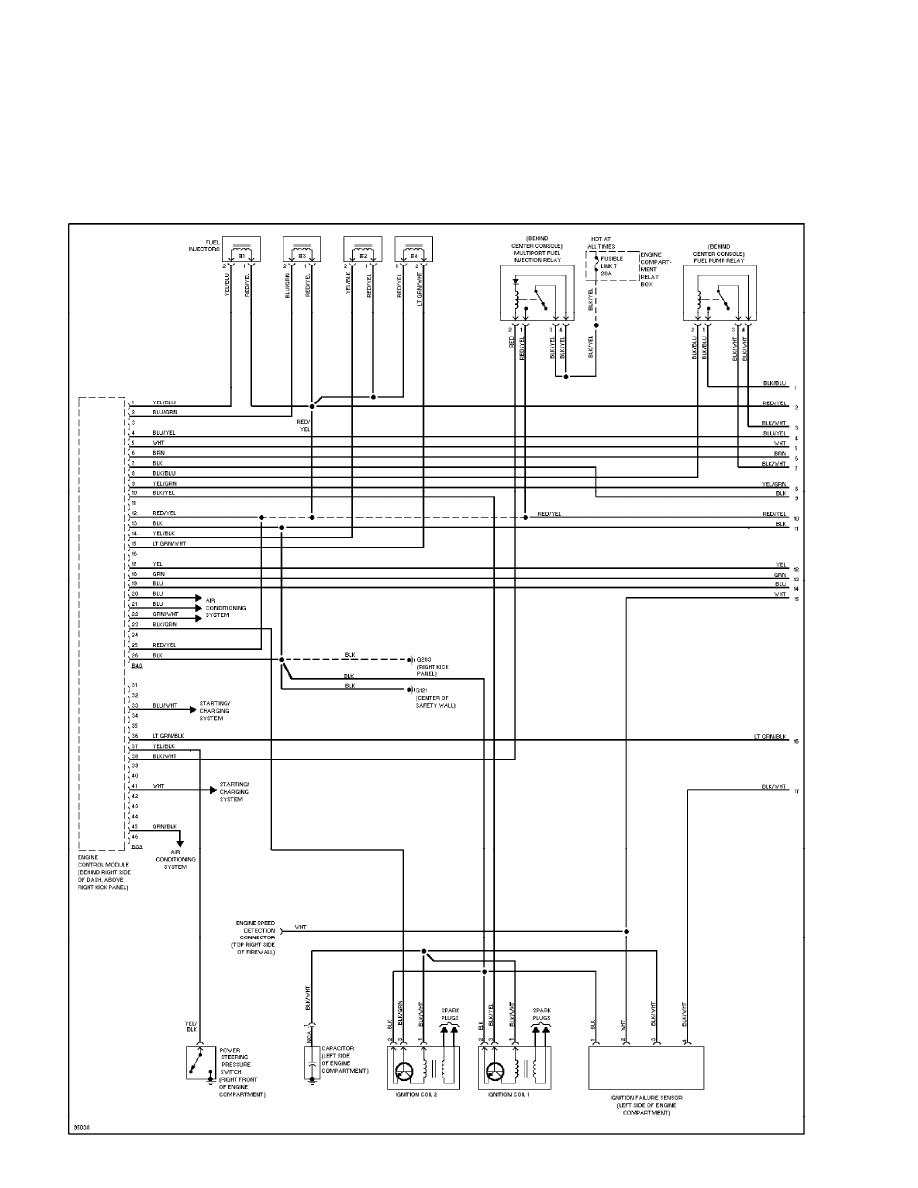

1.8L, Engine Performance Circuits (1 of 3) (p. 12)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

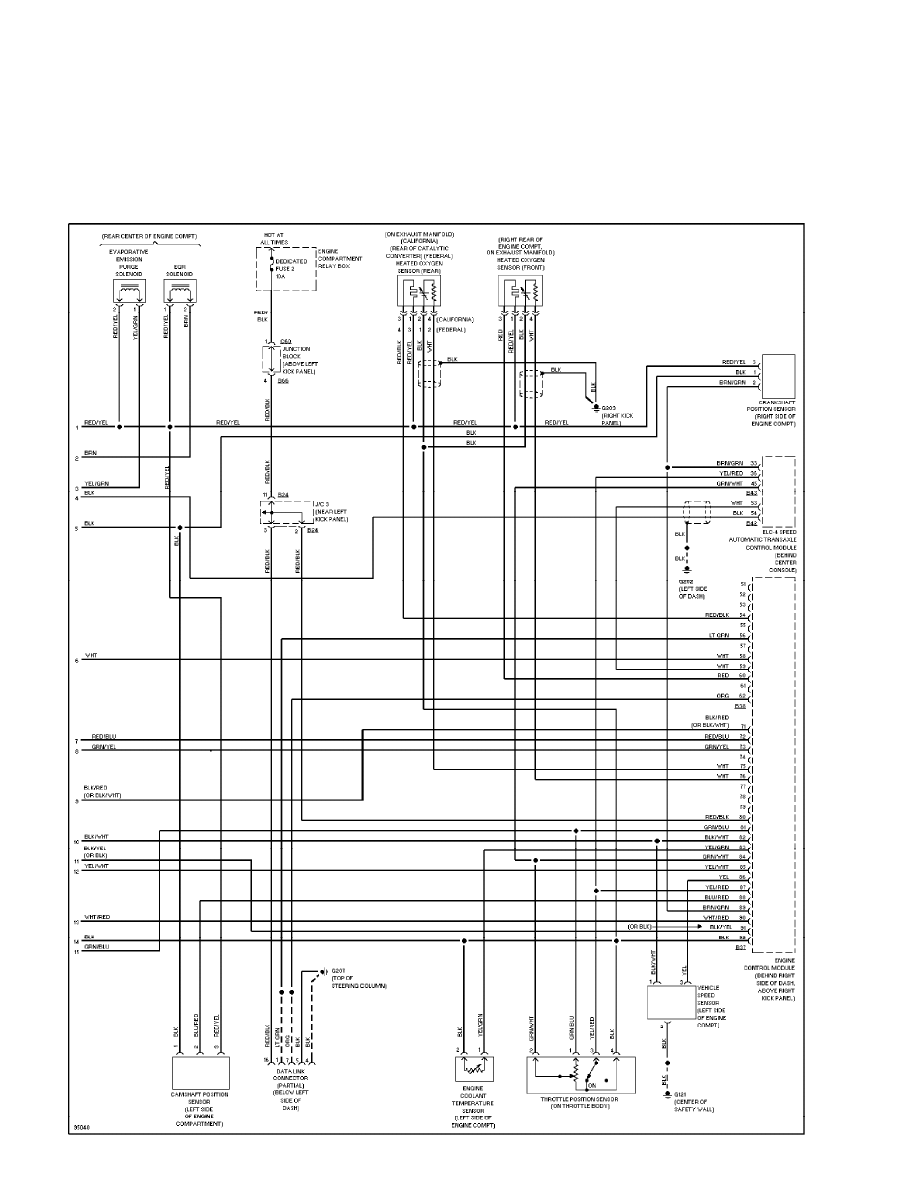

1.8L, Engine Performance Circuits (2 of 3) (p. 13)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

1.8L, Engine Performance Circuits (3 of 3) (p. 14)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

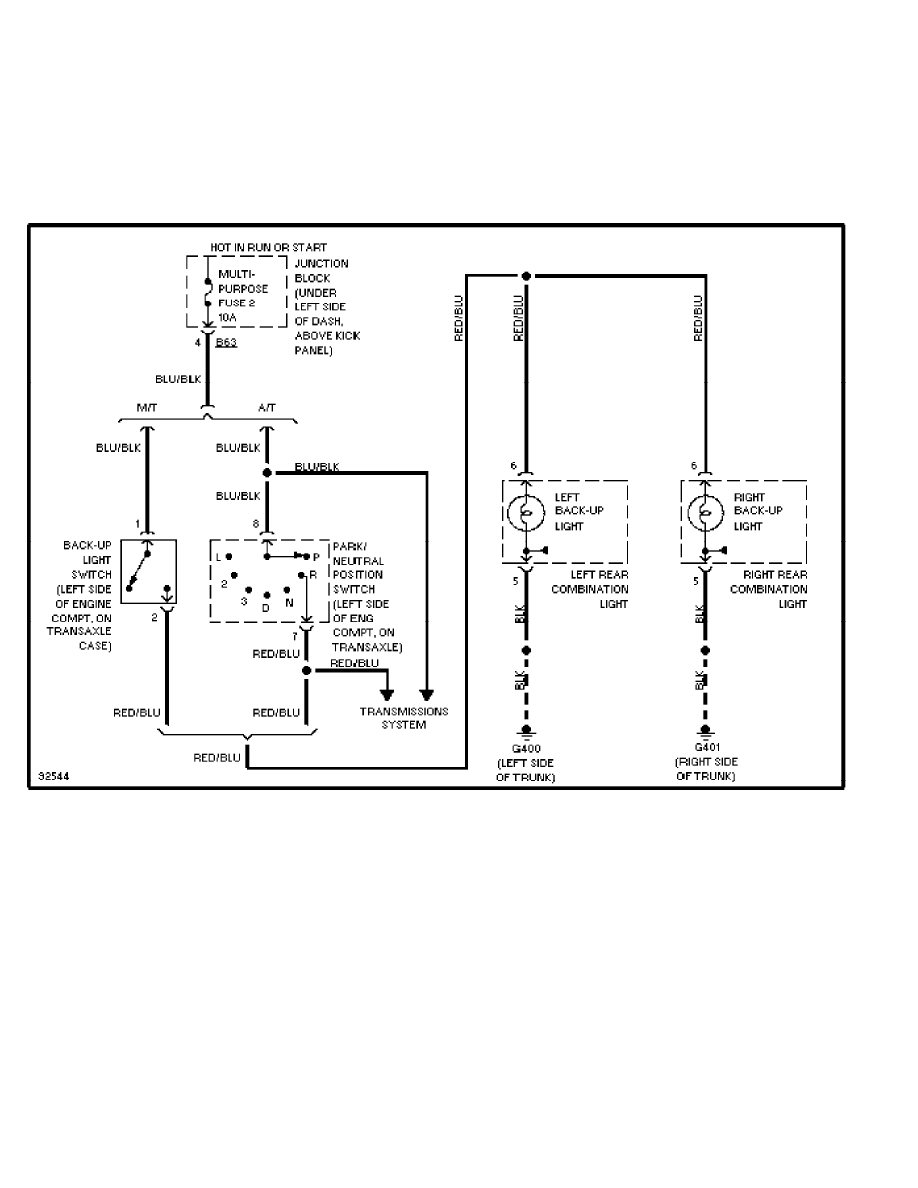

Back-up Lamps Circuit (p. 15)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

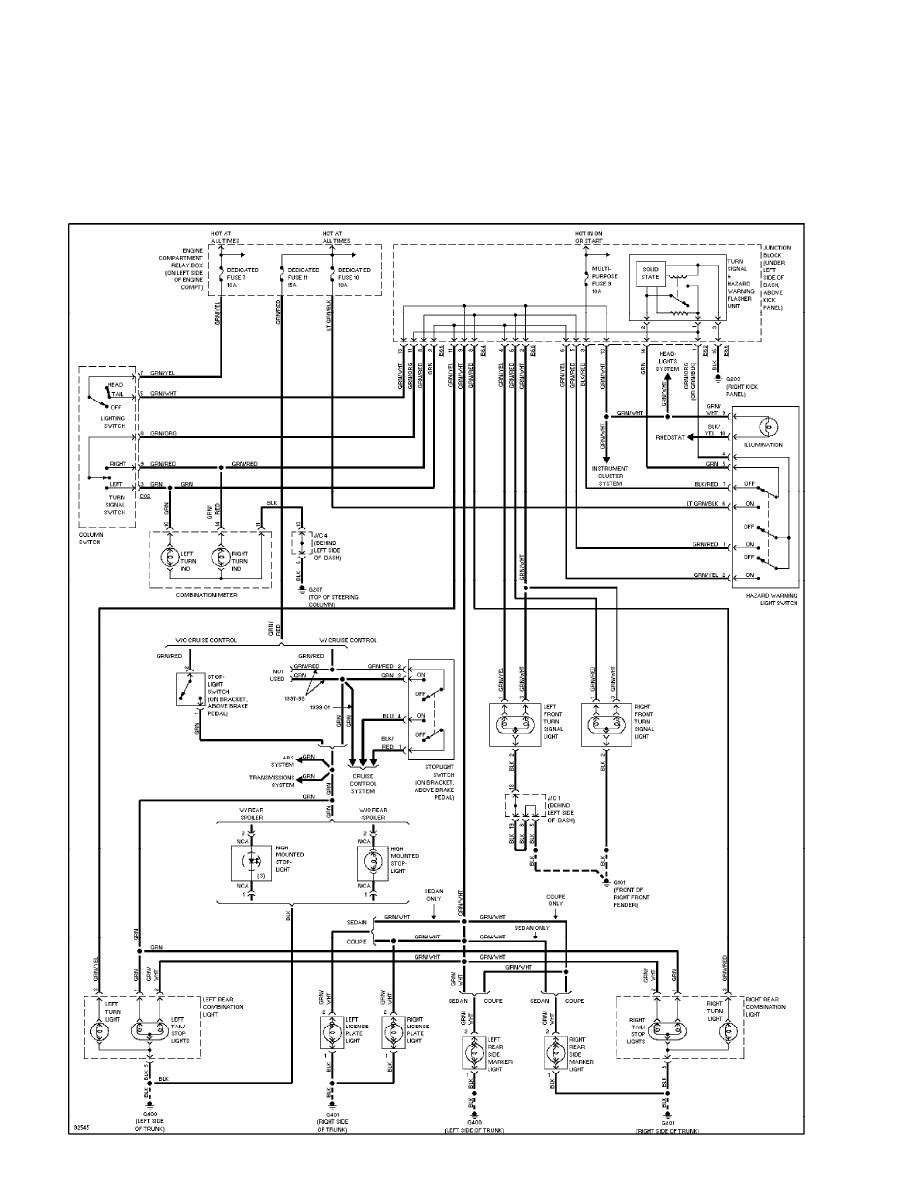

Exterior Lamps Circuit (p. 16)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

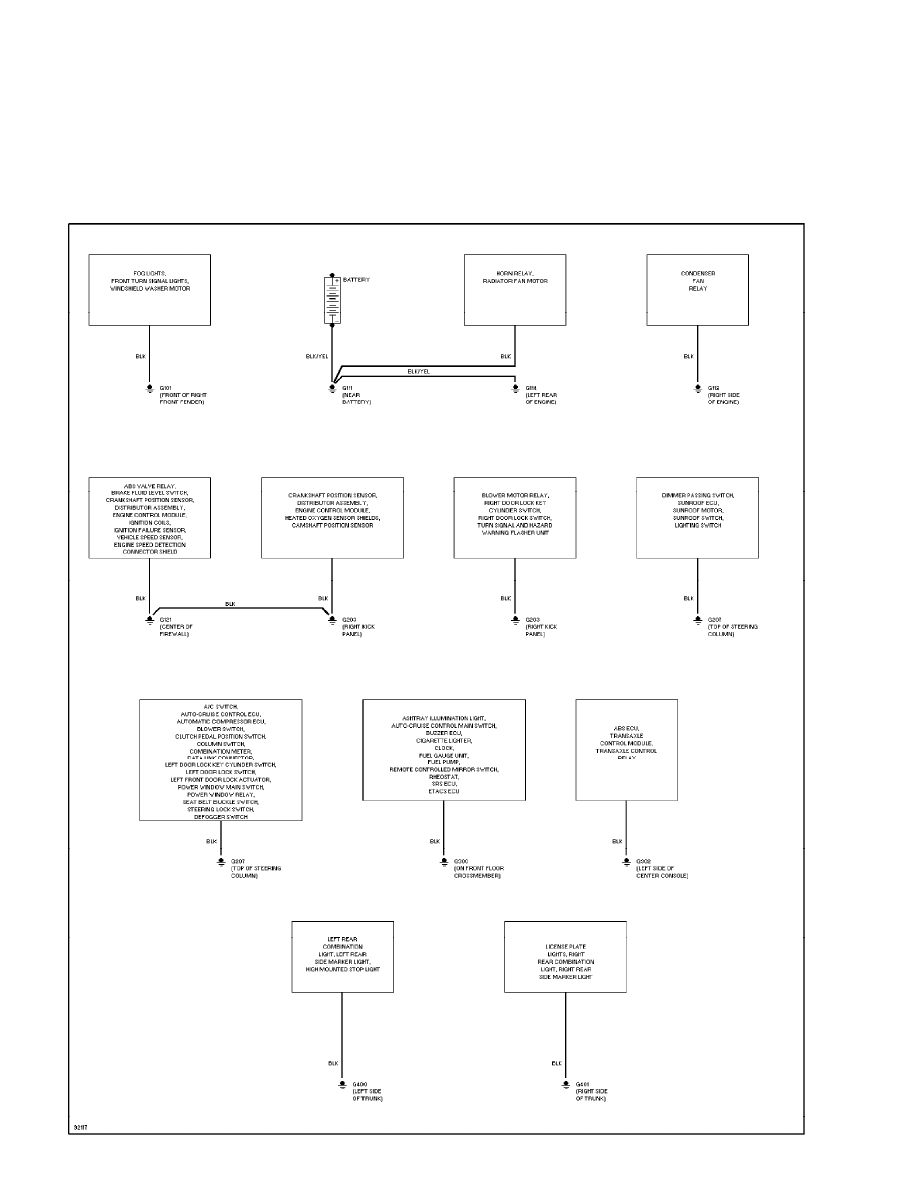

Ground Distribution Circuit (p. 17)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

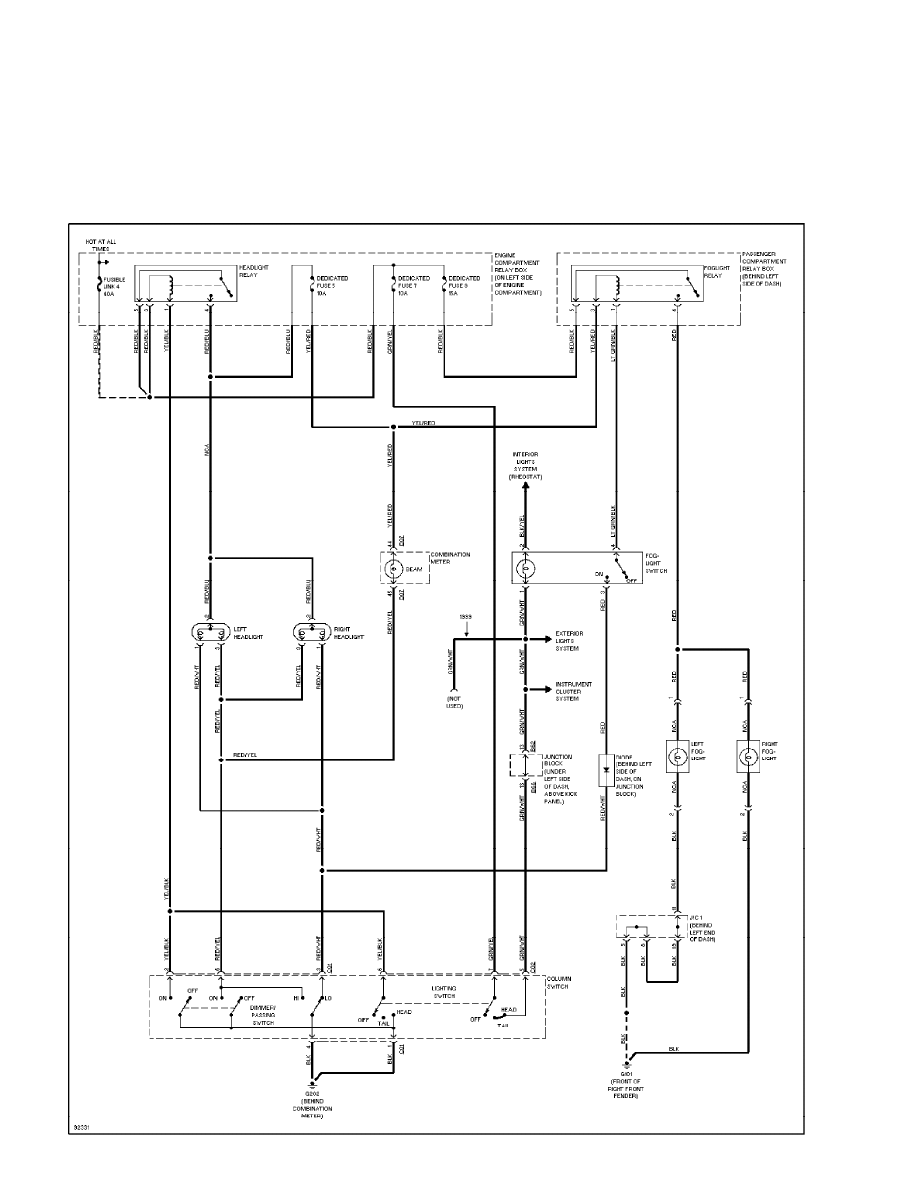

Headlight Circuit (p. 18)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

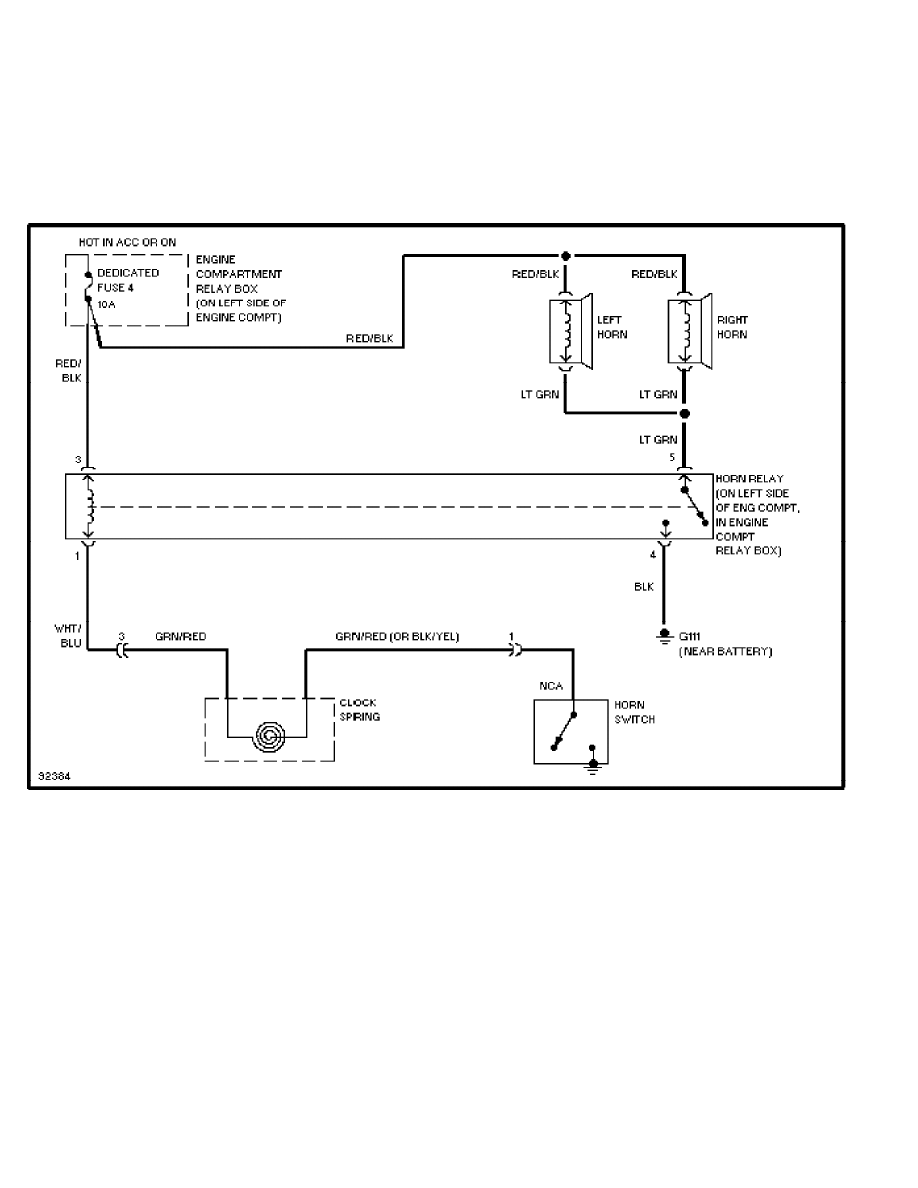

Horn Circuit (p. 19)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

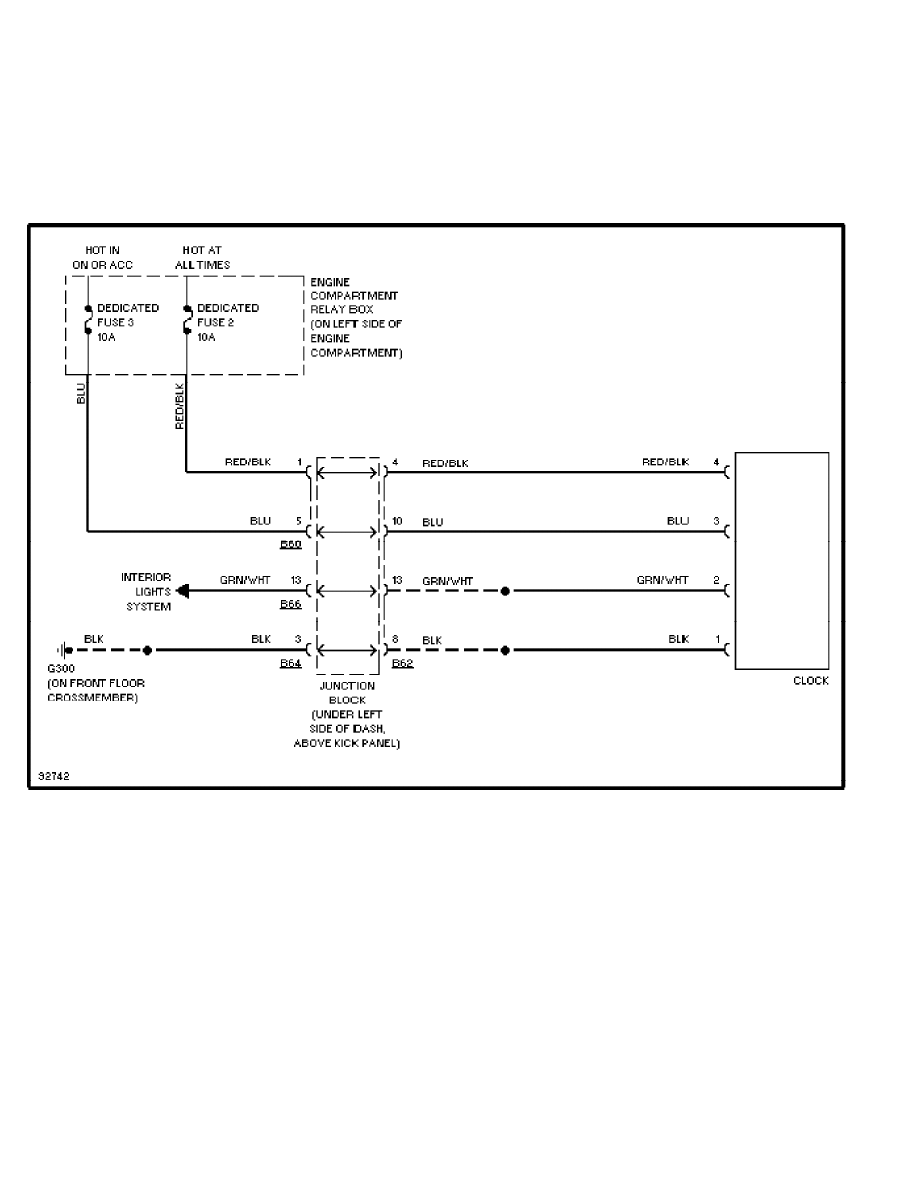

Clock Circuit (p. 20)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

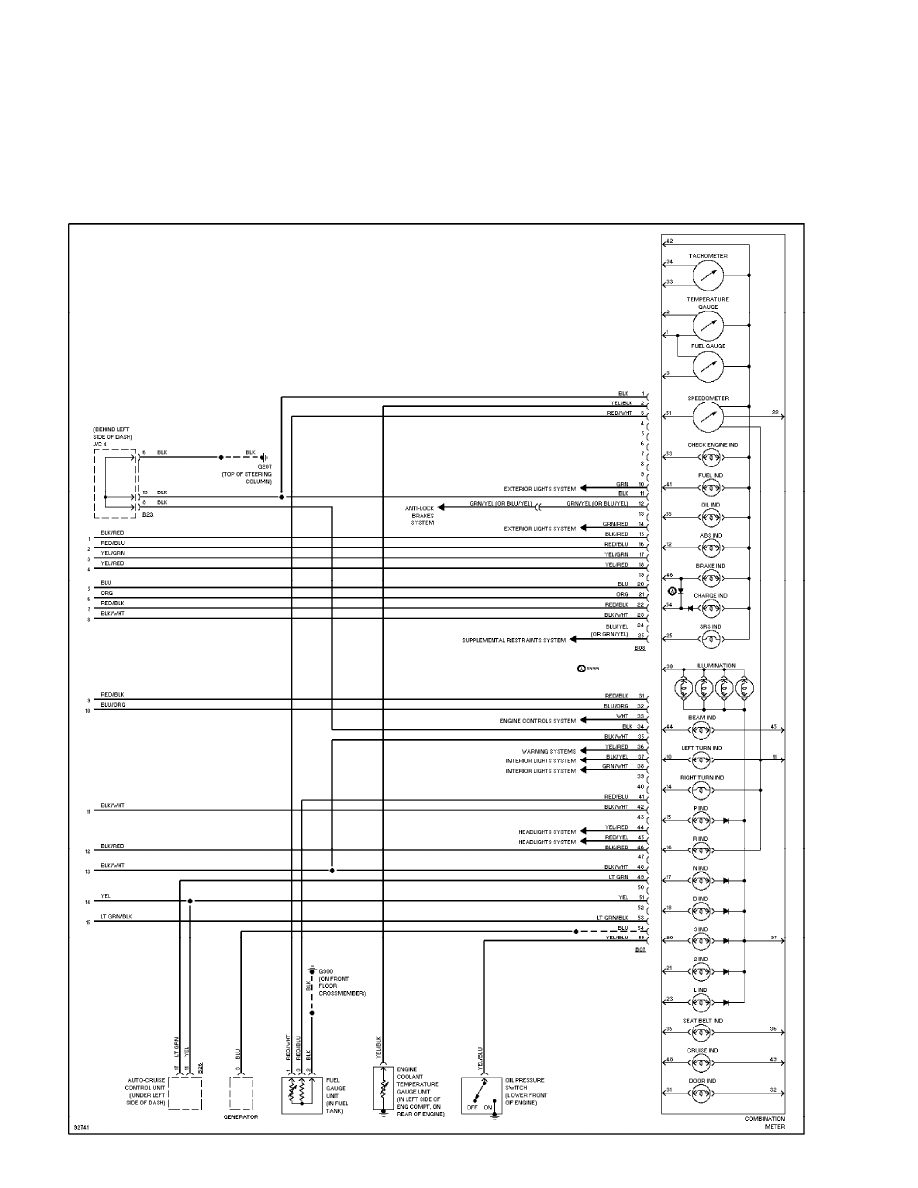

Instrument Cluster Circuit (1 of 2) (p. 21)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

Instrument Cluster Circuit (2 of 2) (p. 22)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

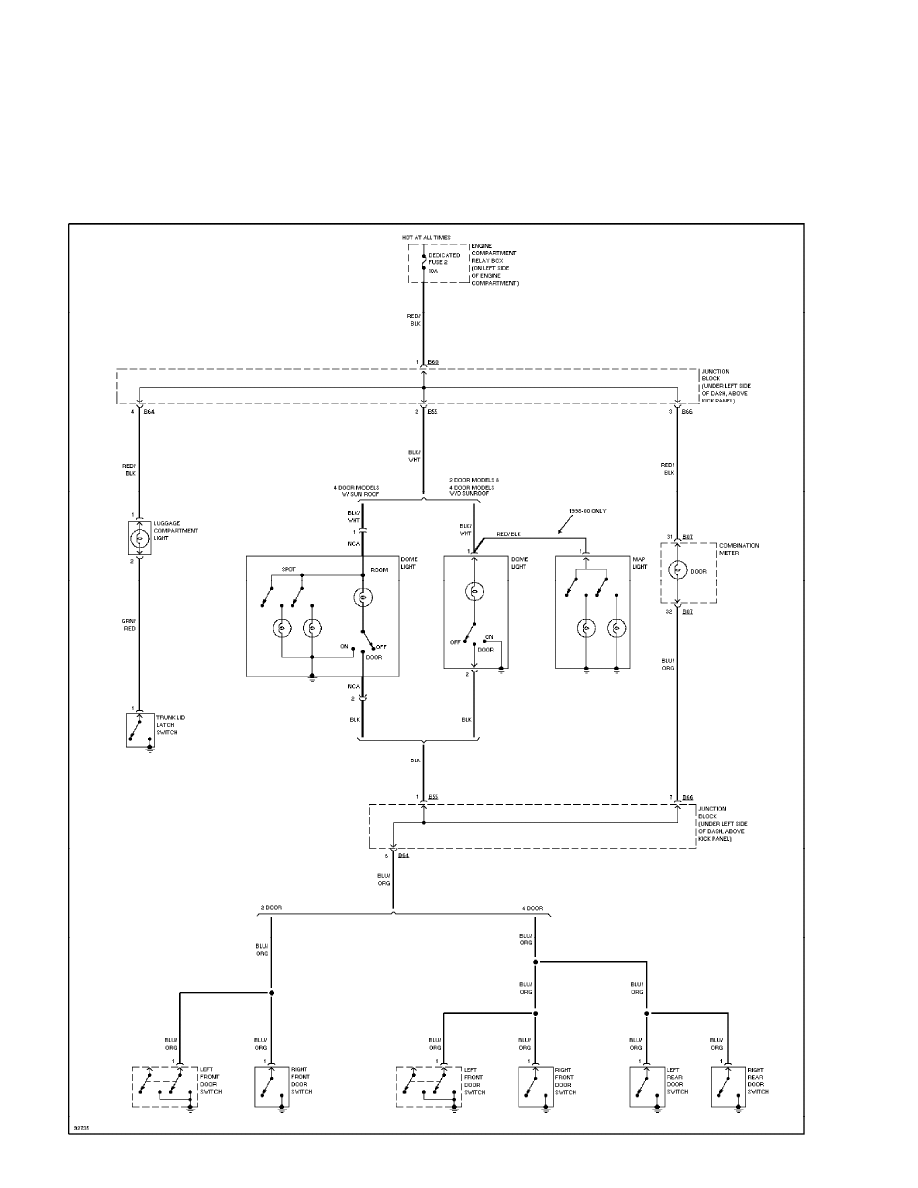

Courtesy Lamps Circuit (p. 23)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

Instrument Illumination Circuit (p. 24)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

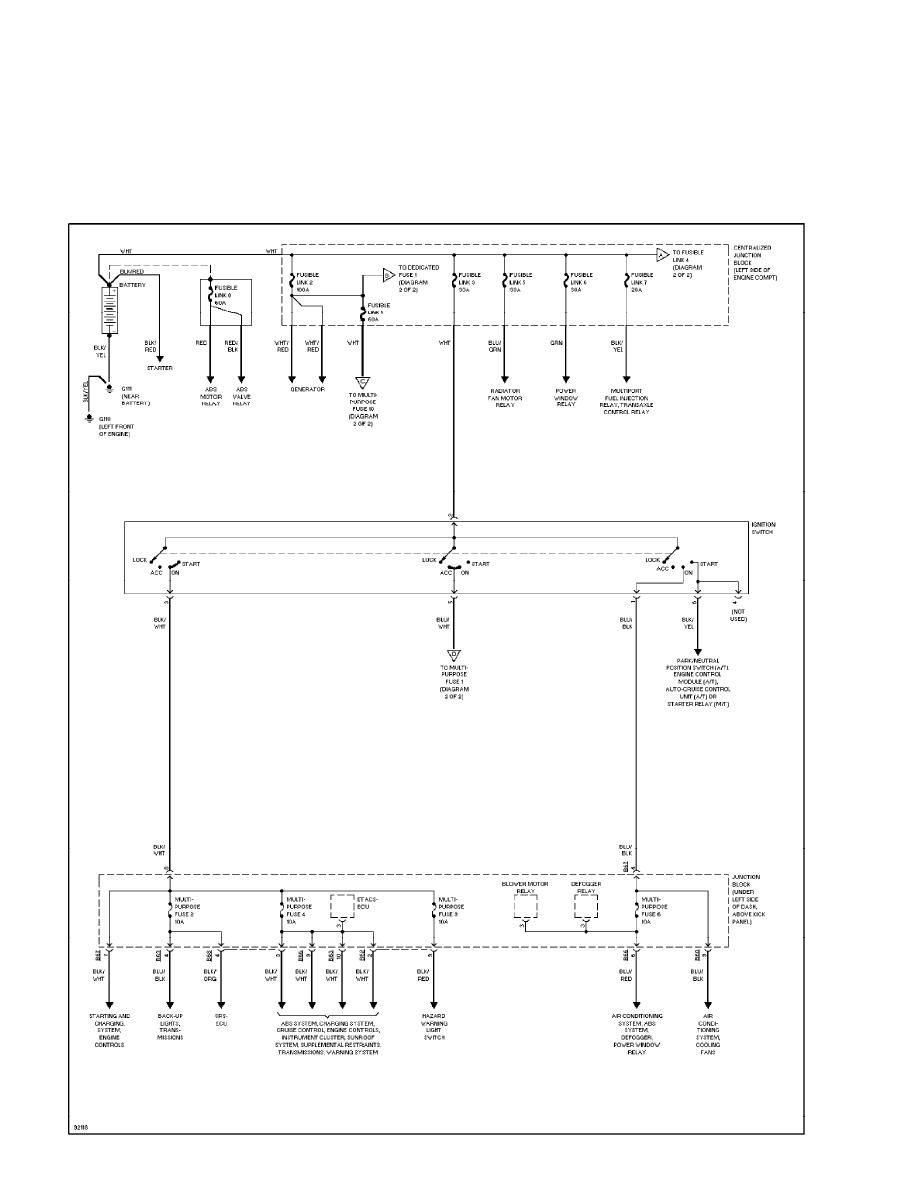

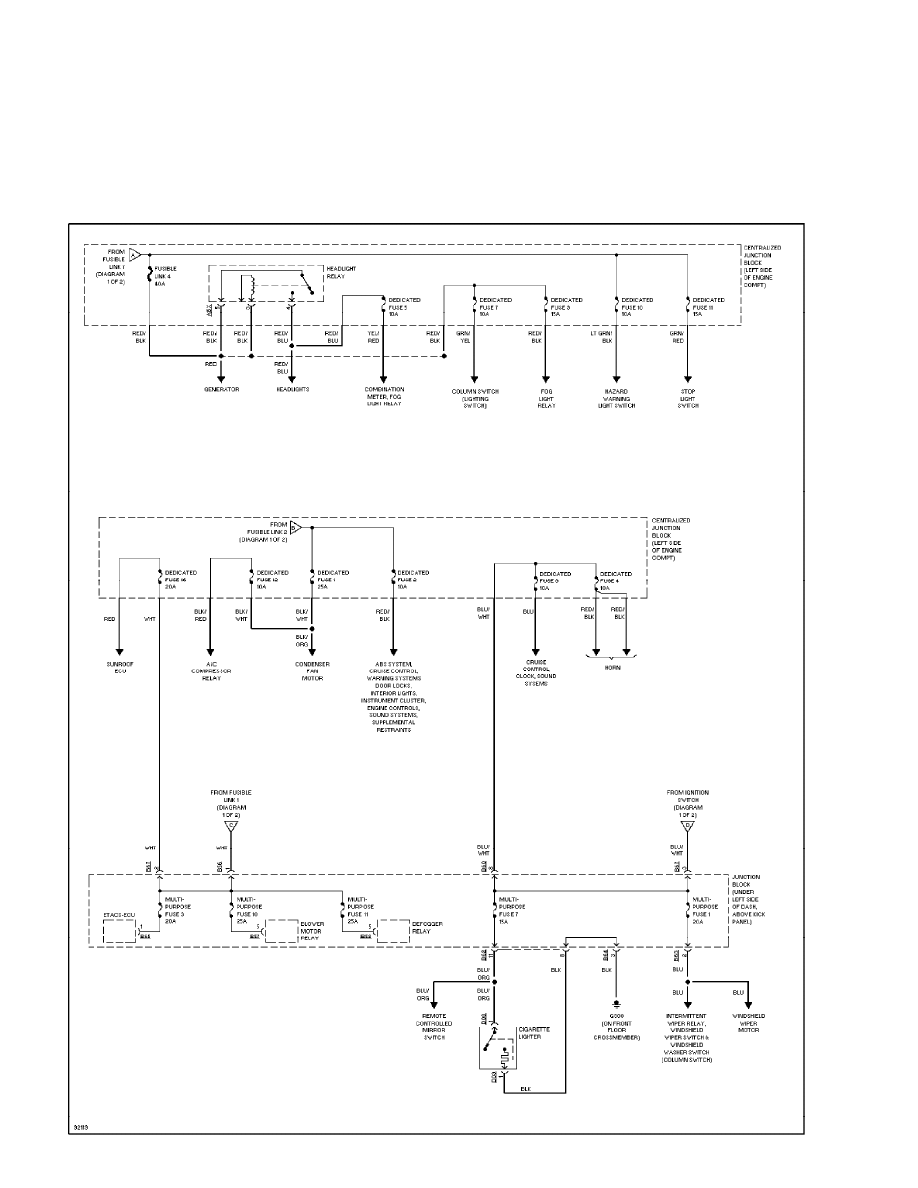

Power Distribution Circuit (1 of 2) (p. 25)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 2) (p. 26)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

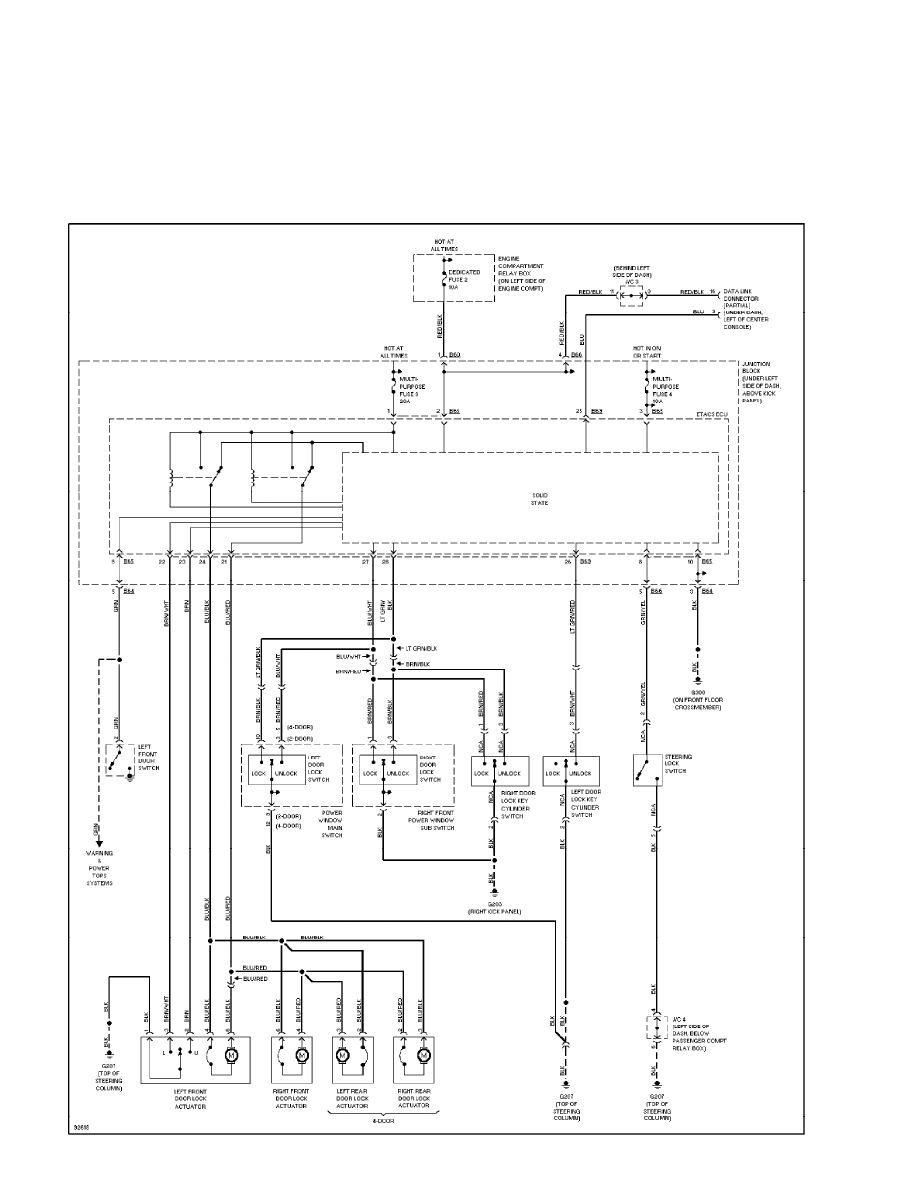

Power Door Lock Circuit (p. 27)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

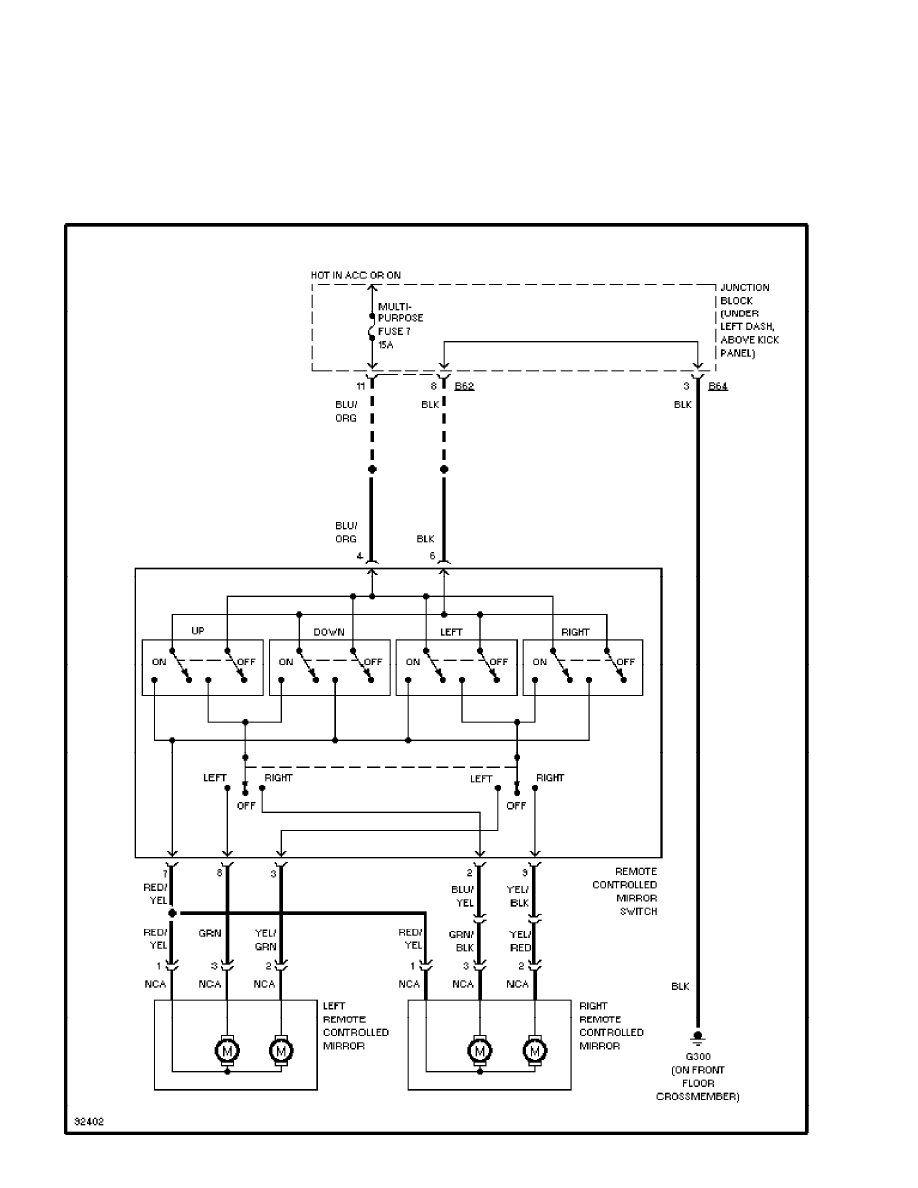

Power Mirror Circuit (p. 28)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

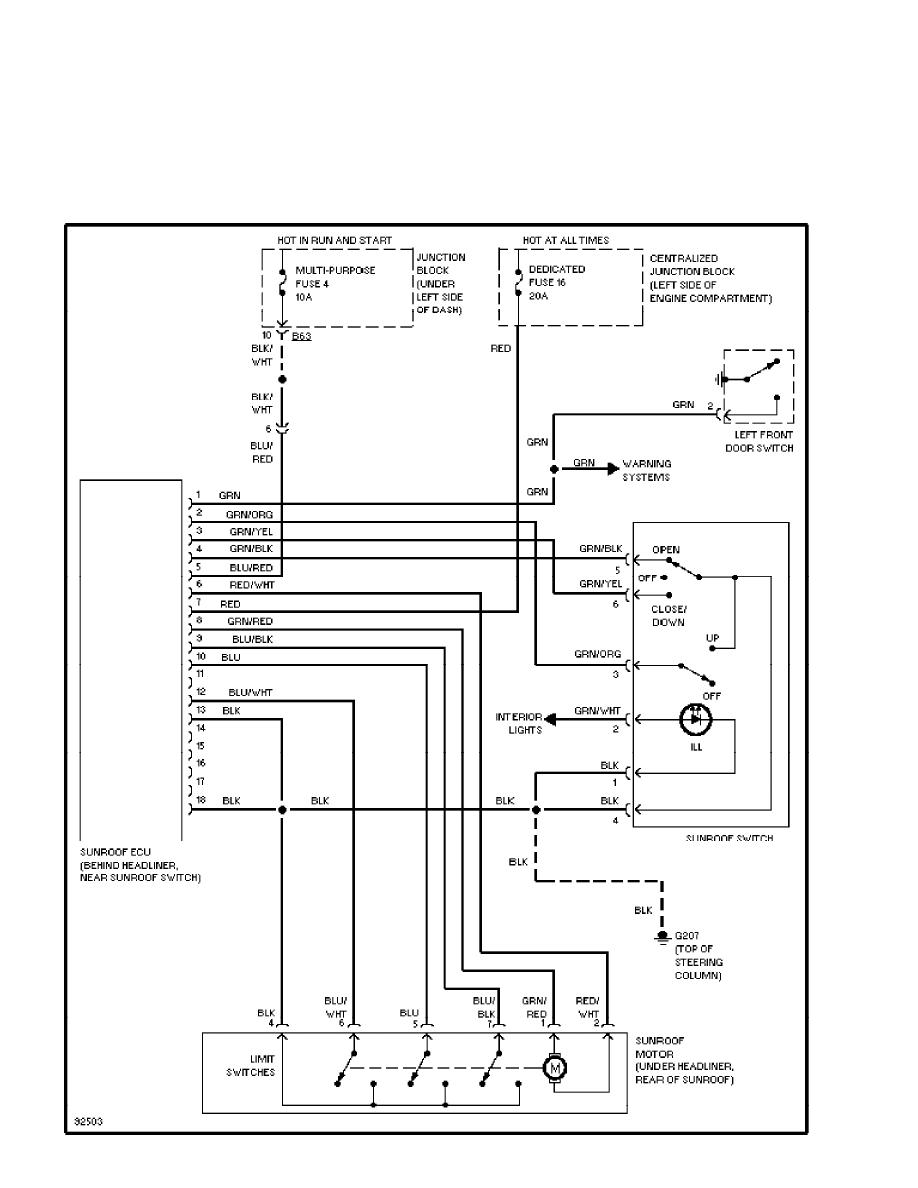

Power Top/Sunroof Circuits (p. 29)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

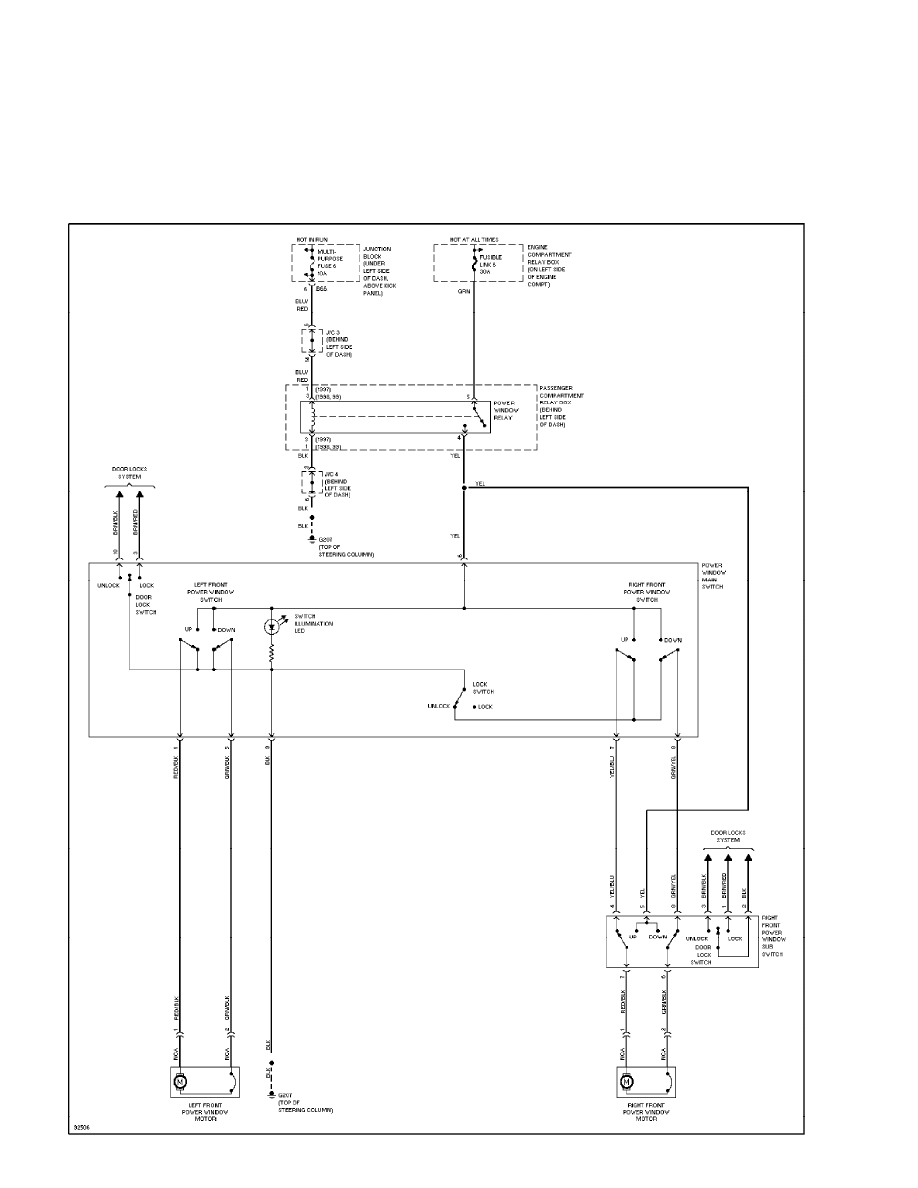

Power Window Circuit, 2 Door (p. 30)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

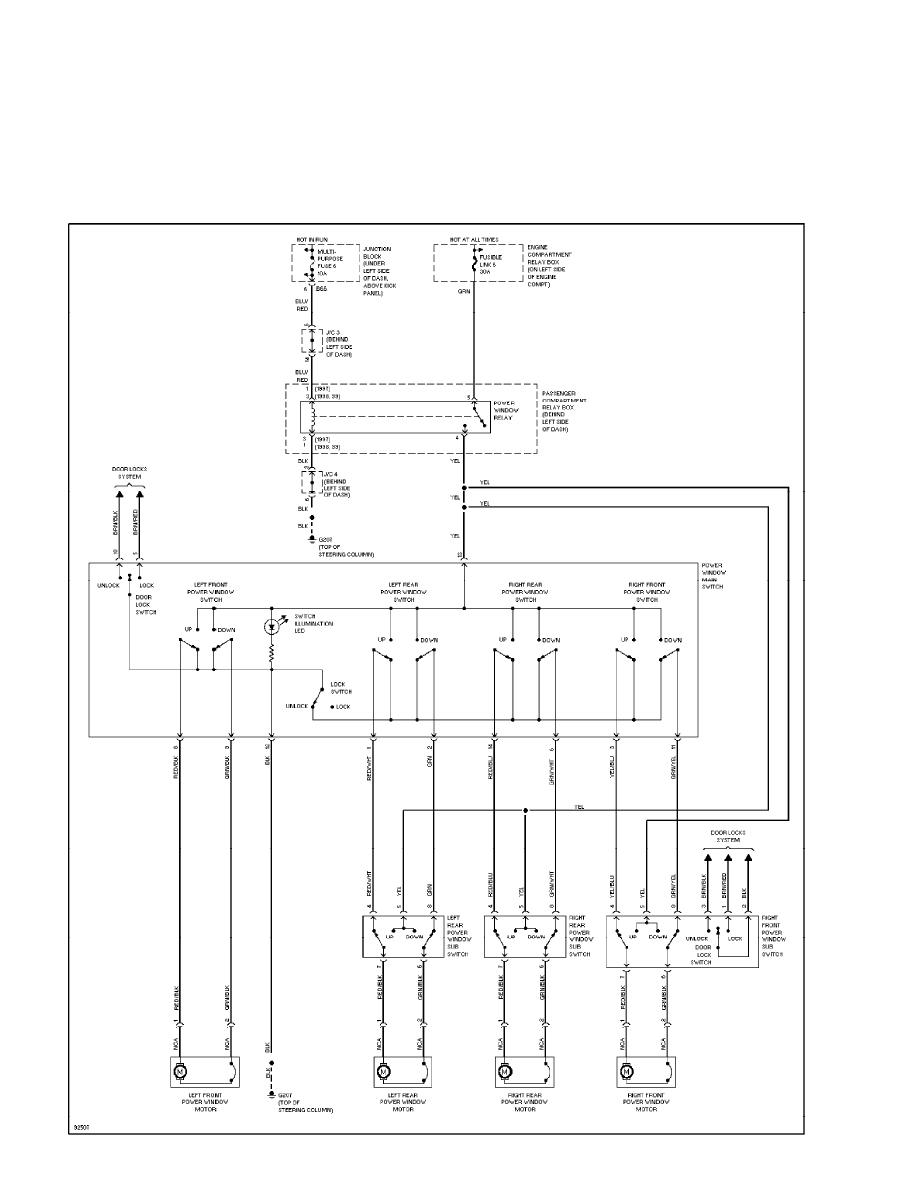

Power Window Circuit, 4 Door (p. 31)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

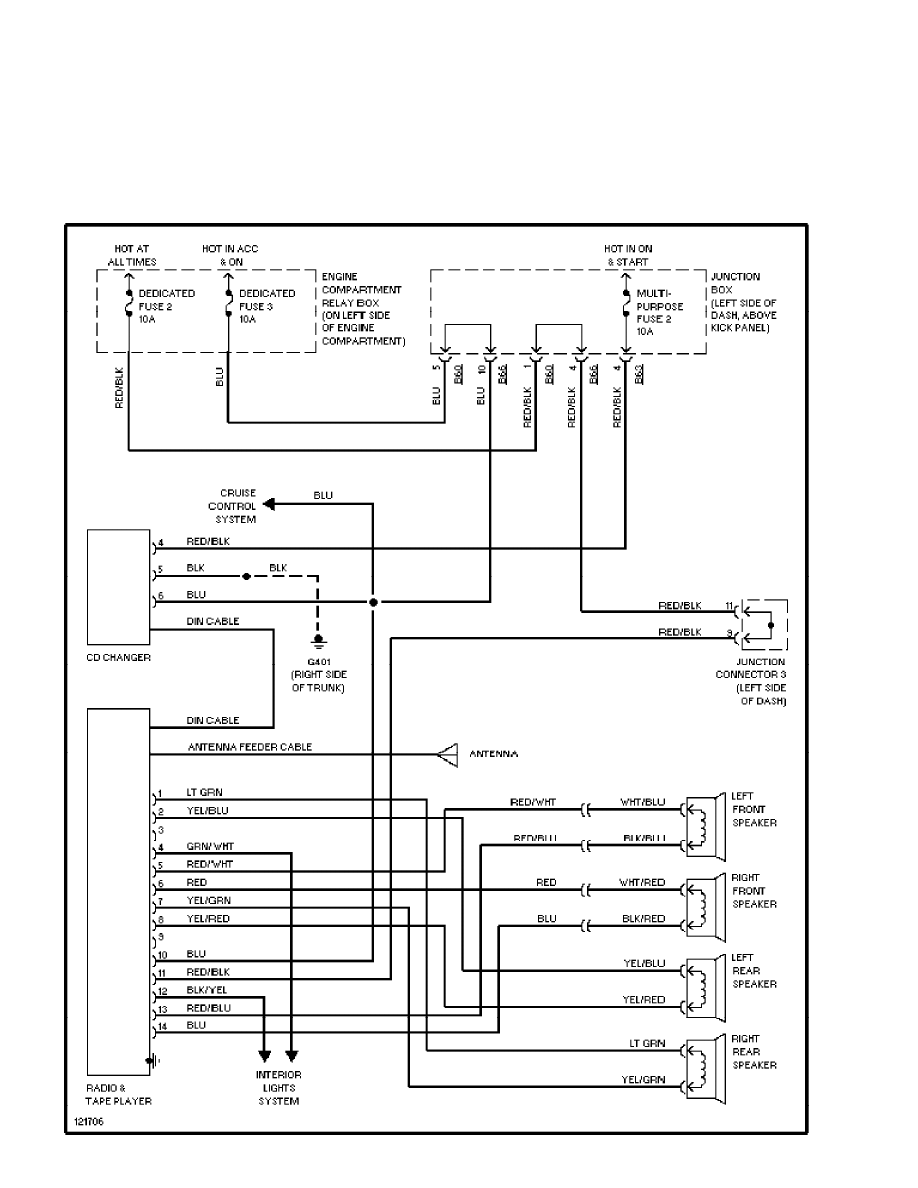

Radio Circuits (p. 32)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

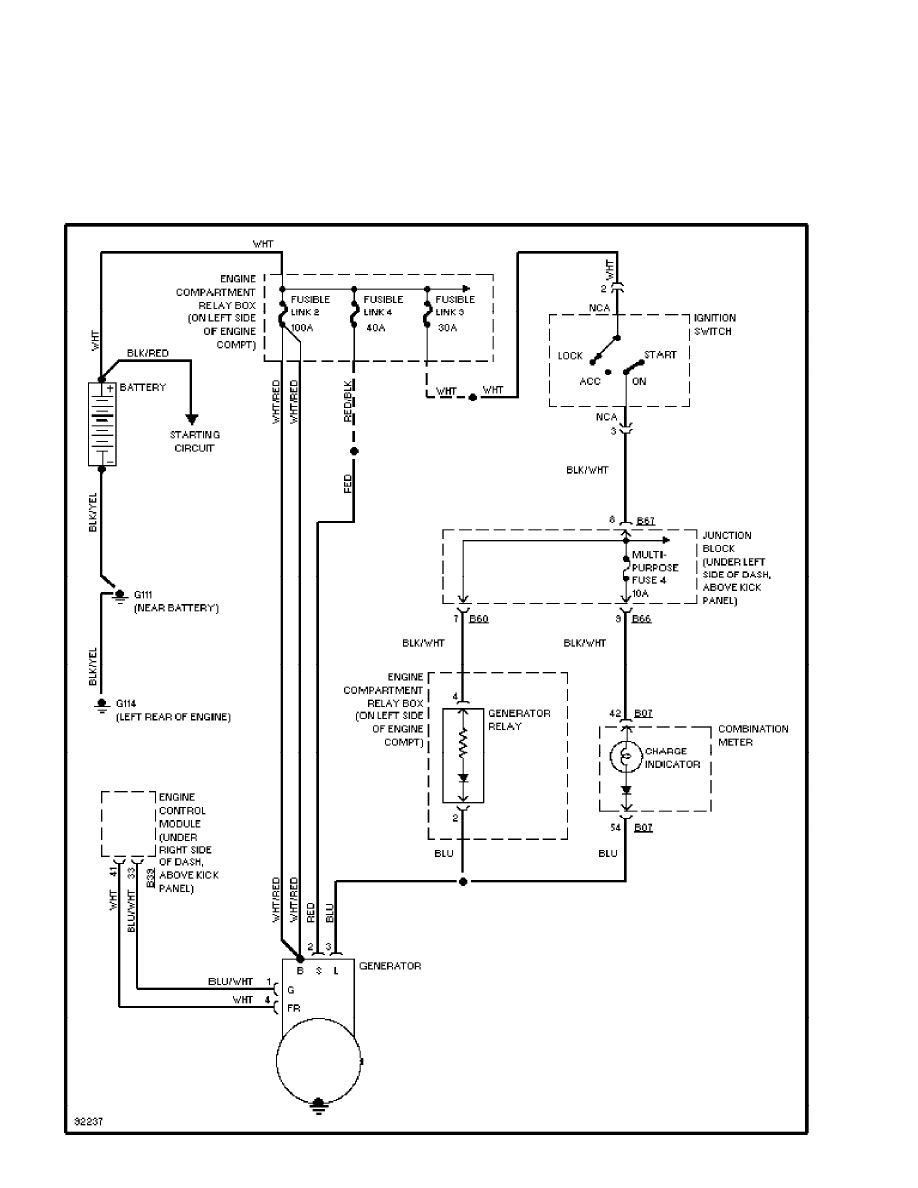

Charging Circuit (p. 33)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

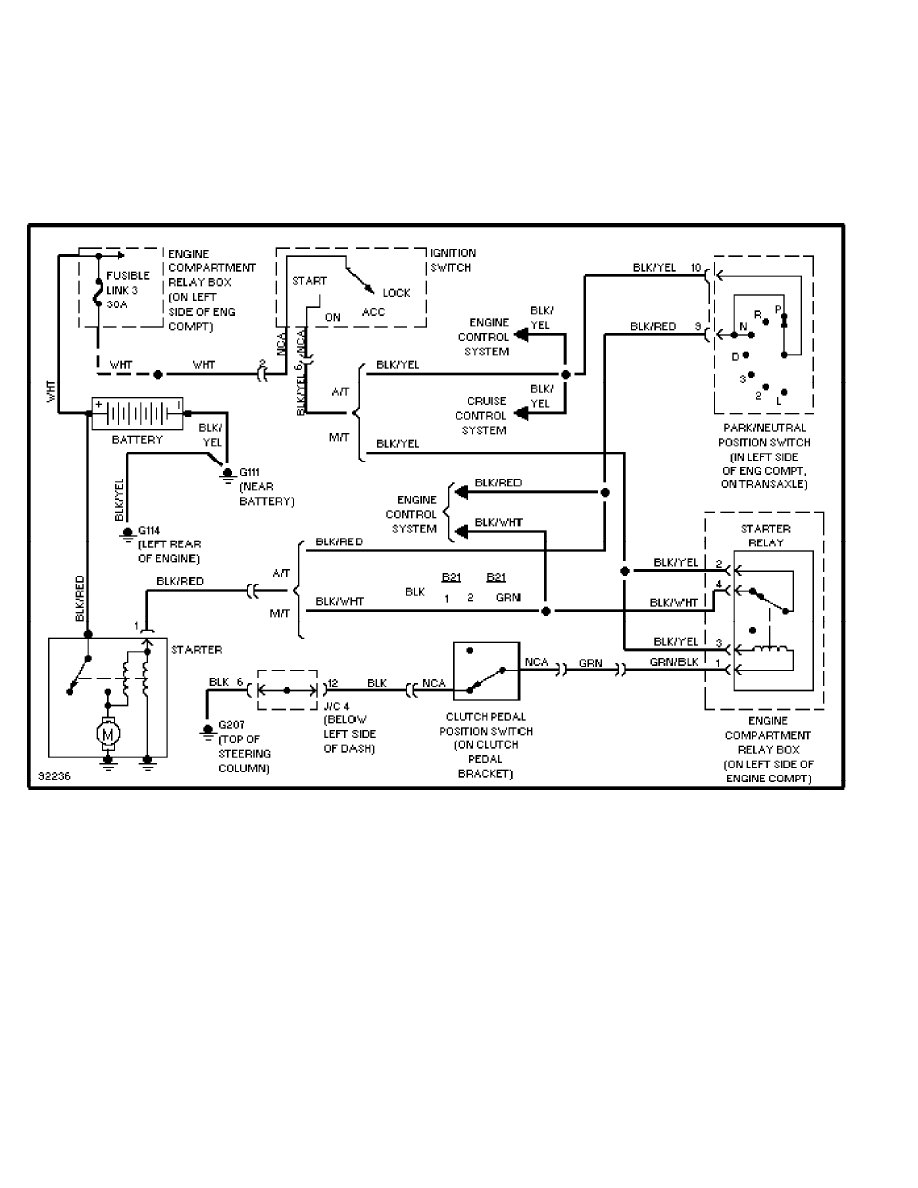

Starting Circuit (p. 34)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

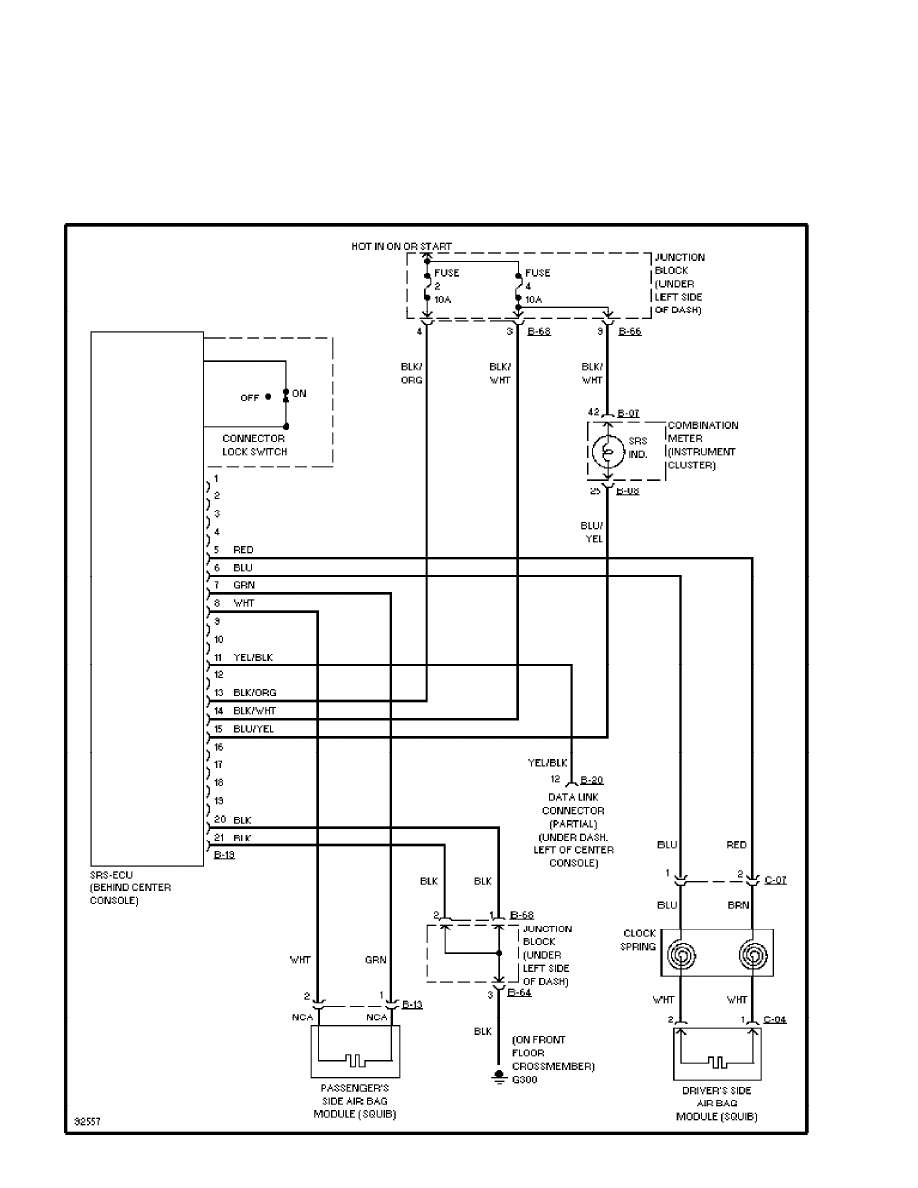

Supplemental Restraint Circuit (p. 35)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

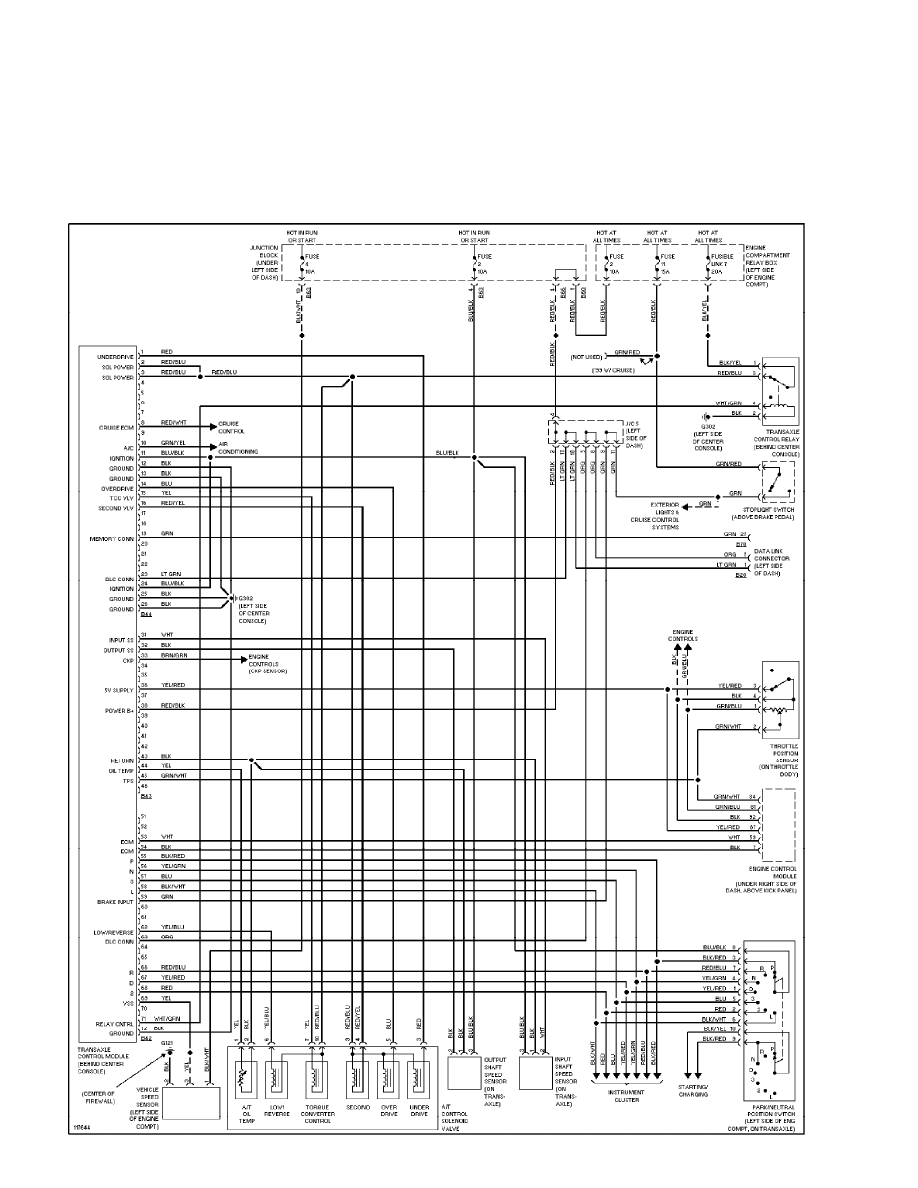

A/T Circuit (p. 36)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

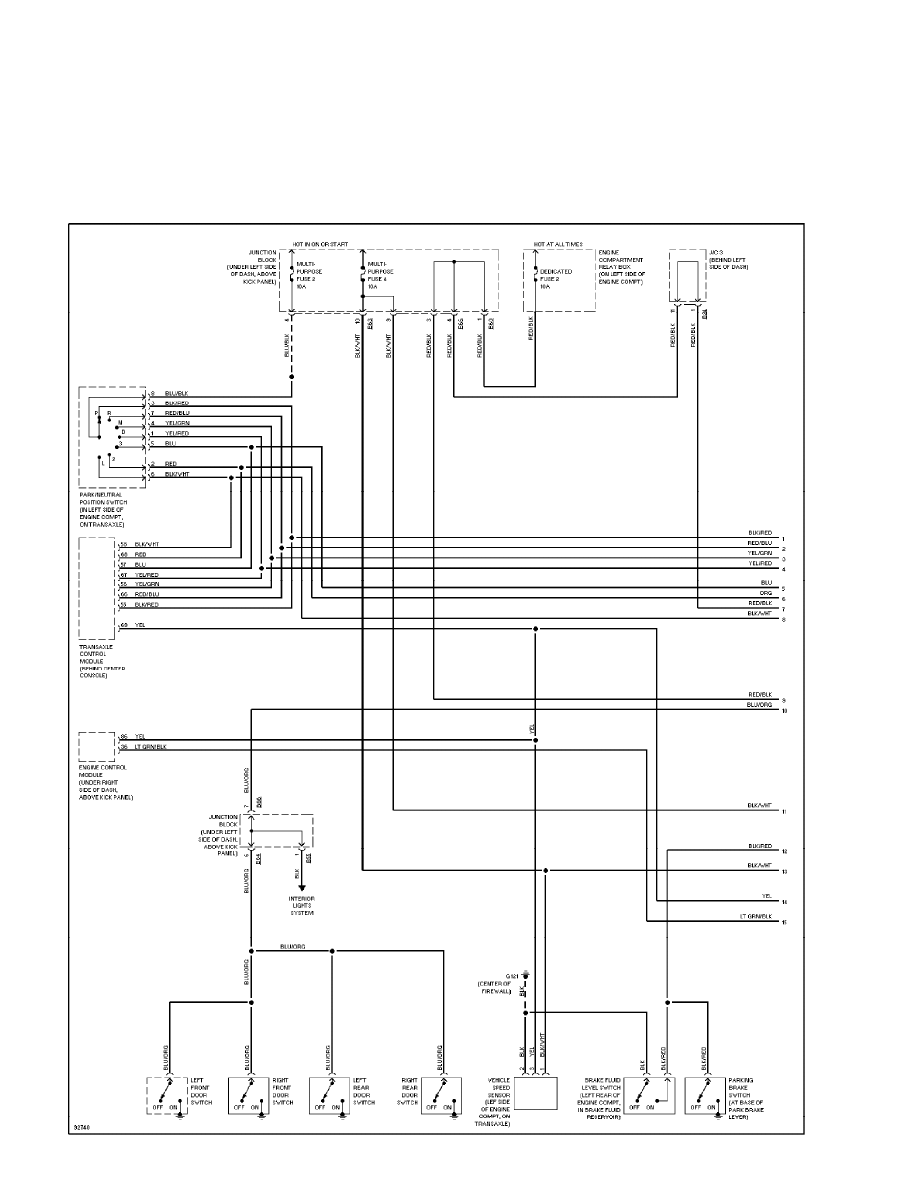

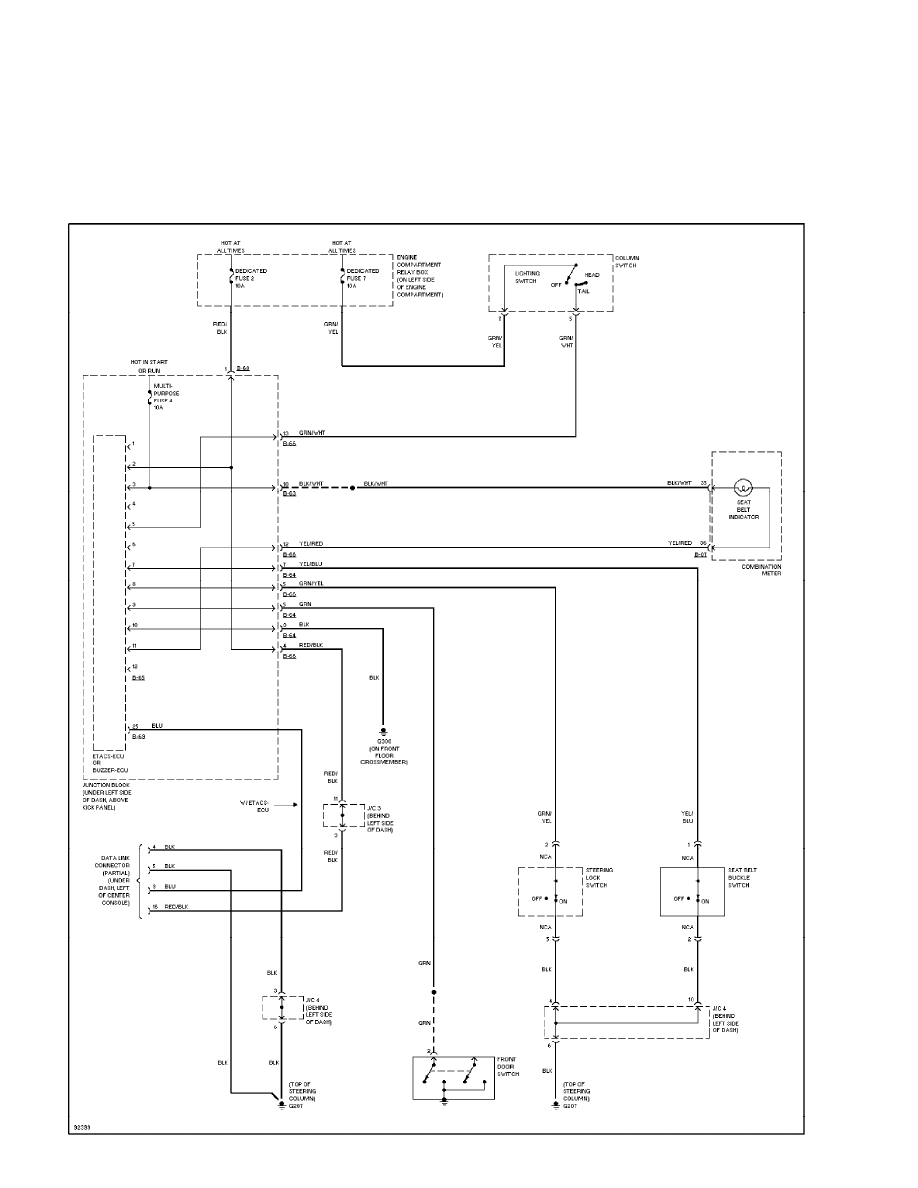

Warning System Circuits (p. 37)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

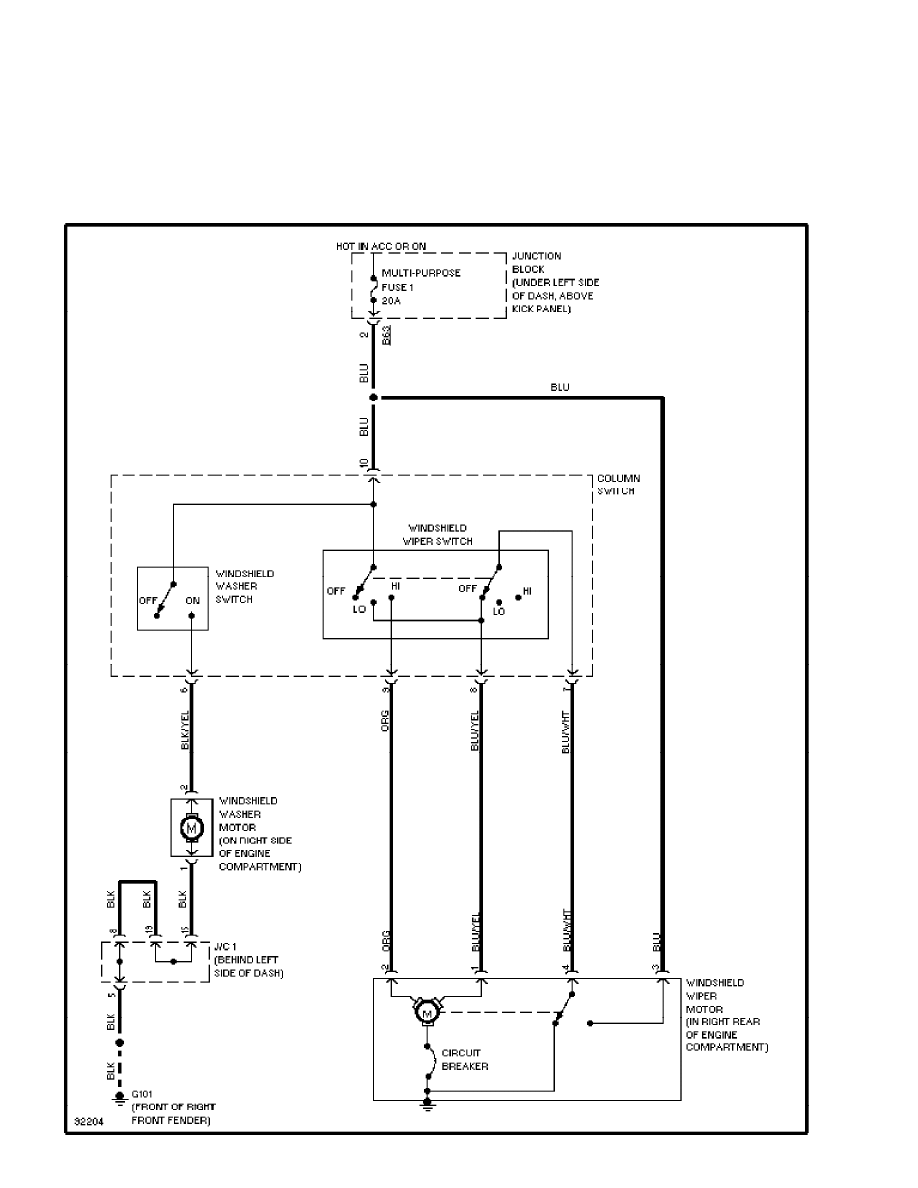

2-Speed Wiper/Washer Circuit (p. 38)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM

SYSTEM WIRING DIAGRAMS

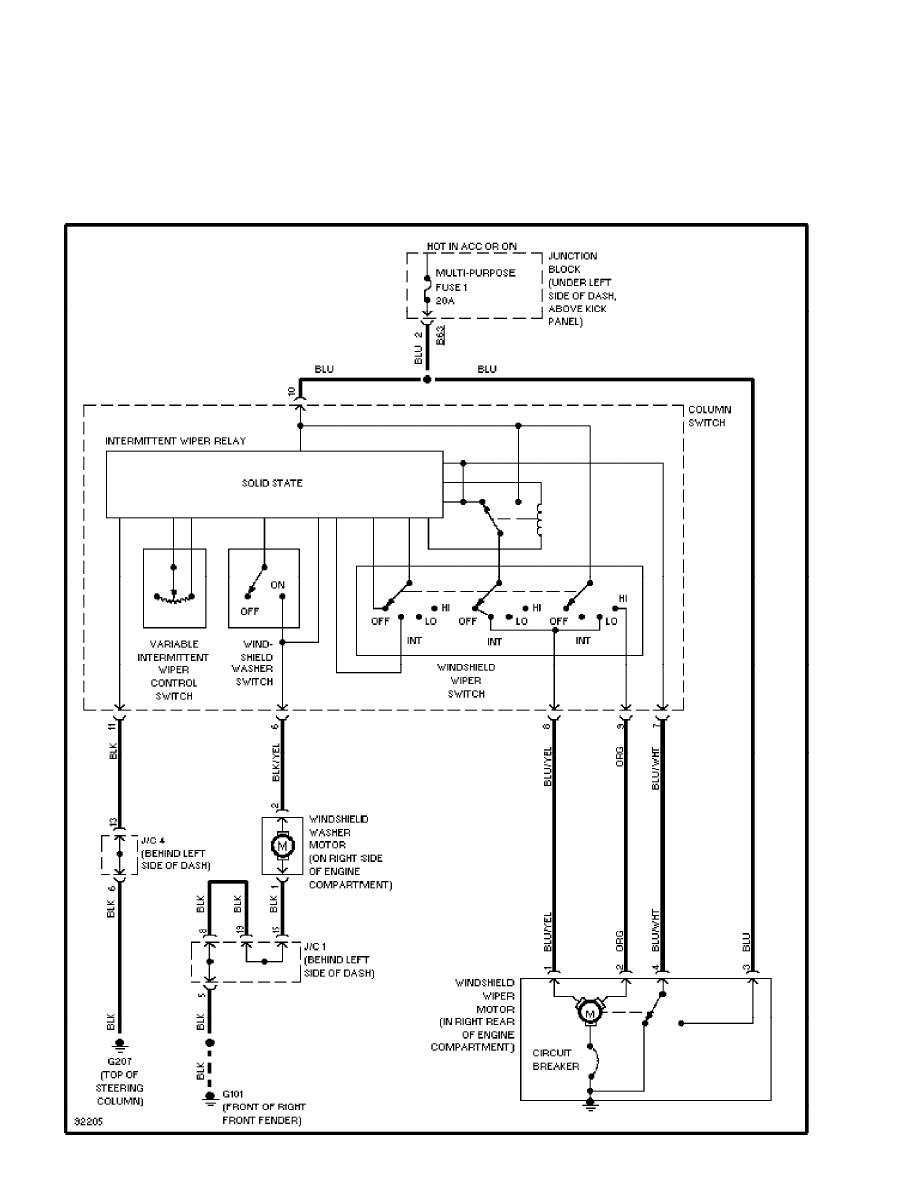

Intermittent Wiper/Washer Circuit (p. 39)

1997 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:40AM
