SYSTEM WIRING DIAGRAMS

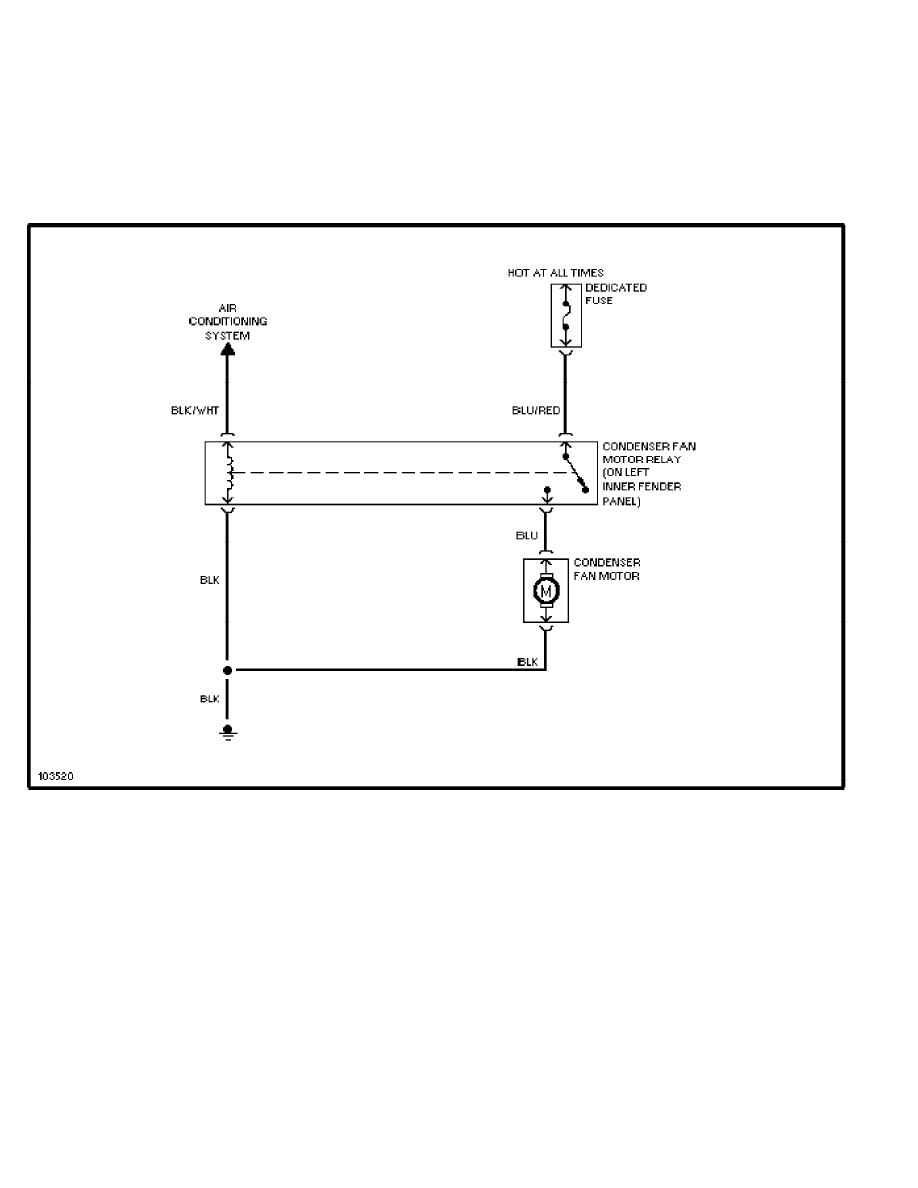

Condenser Cooling Fan Circuit

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

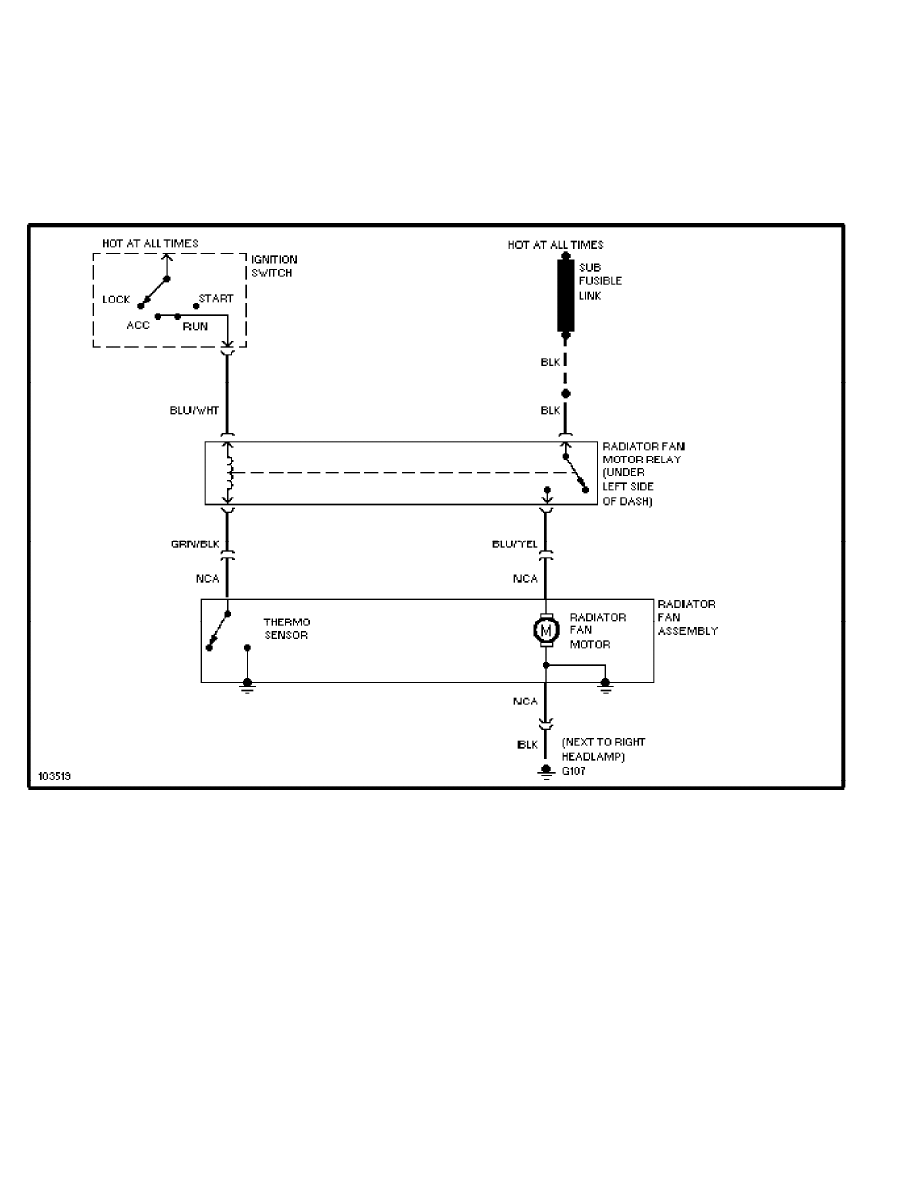

Radiator Cooling Fan Circuit (p. 2)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

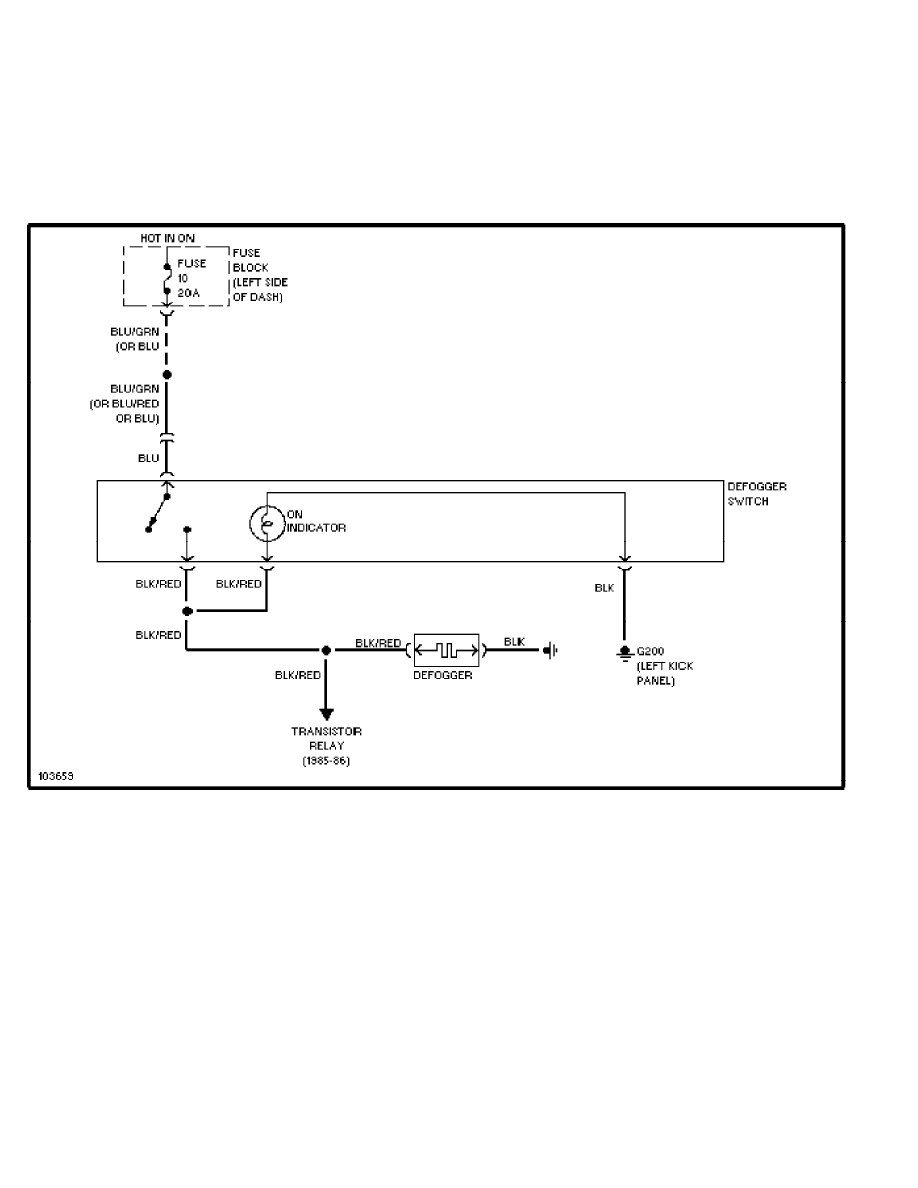

Defogger Circuit (p. 3)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

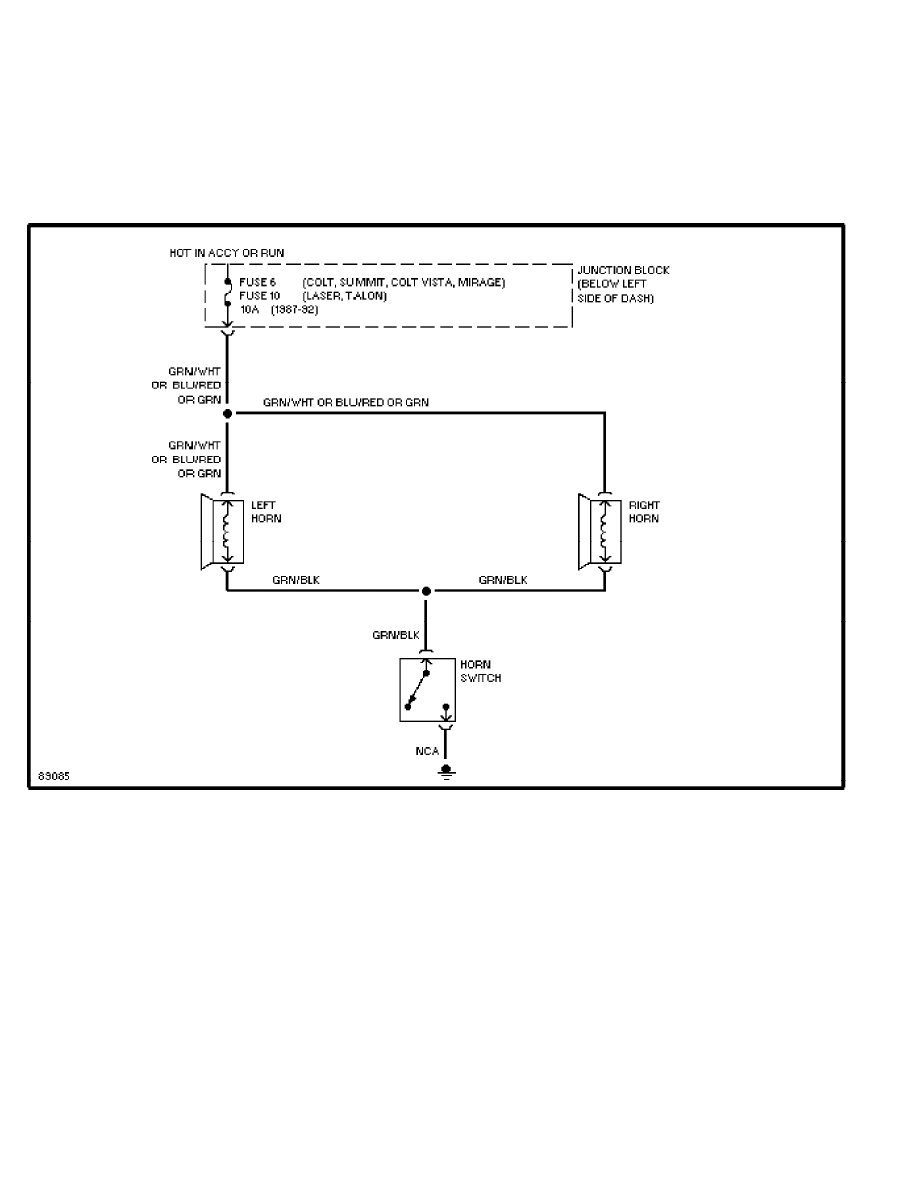

Horn Circuit (p. 4)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

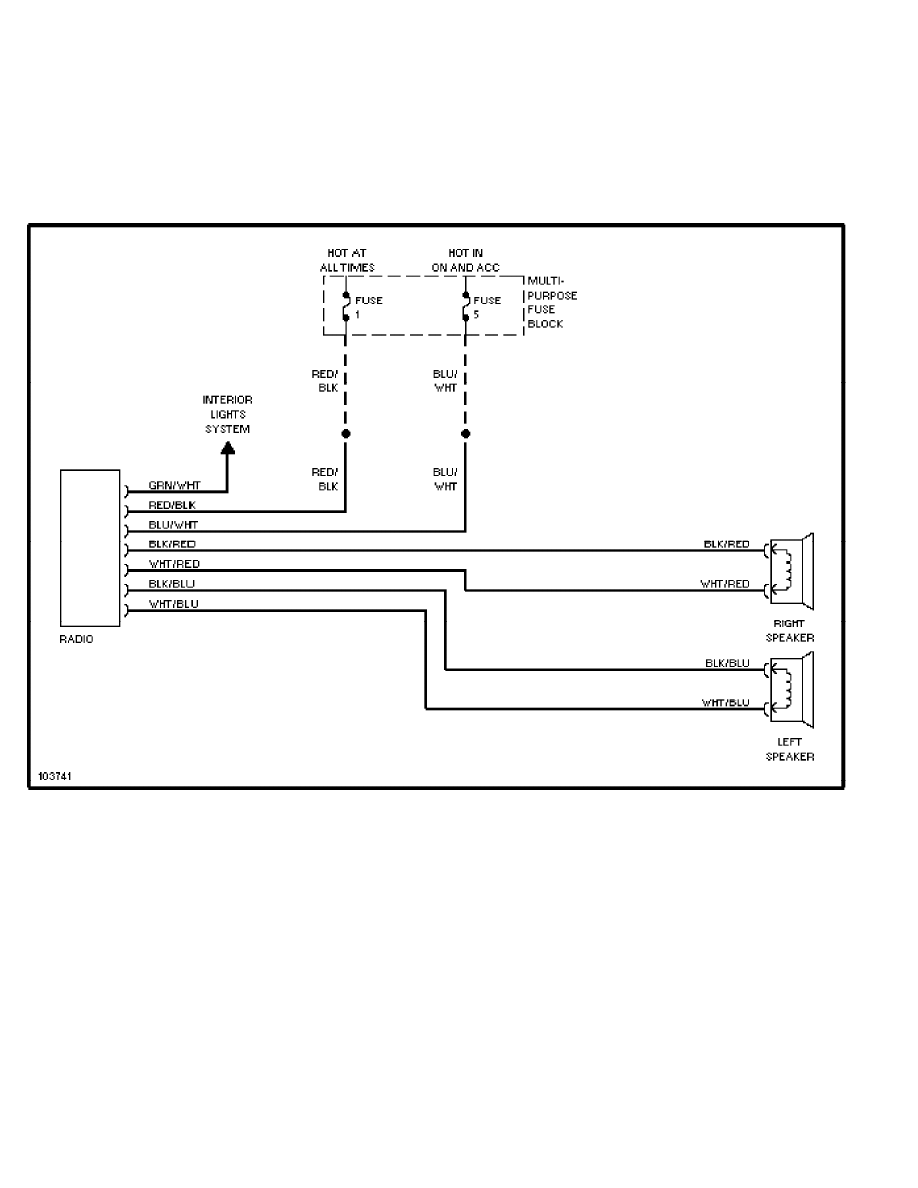

Radio Circuits, W/ 2 Speakers (p. 5)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

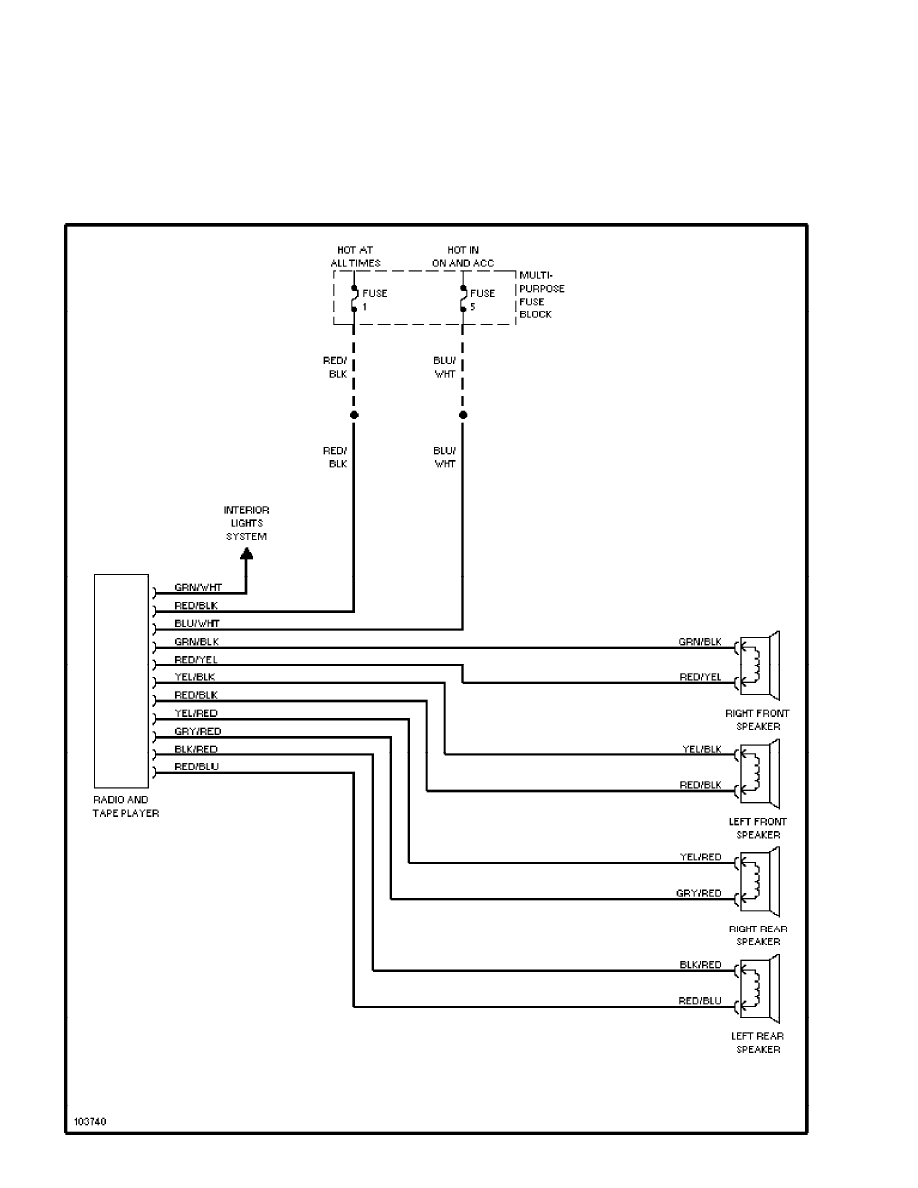

Radio Circuits, W/ 4 Speakers (p. 6)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 7)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

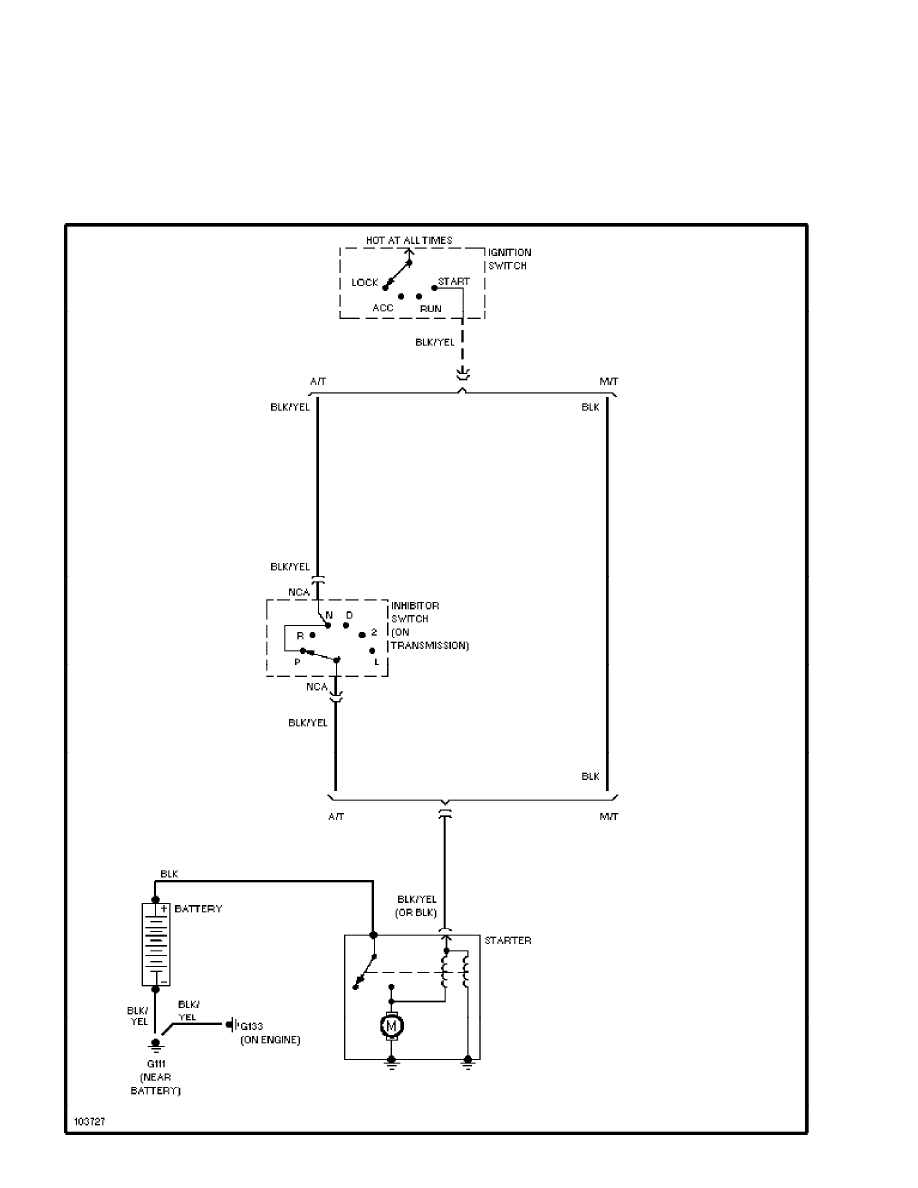

Starting Circuit (p. 8)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

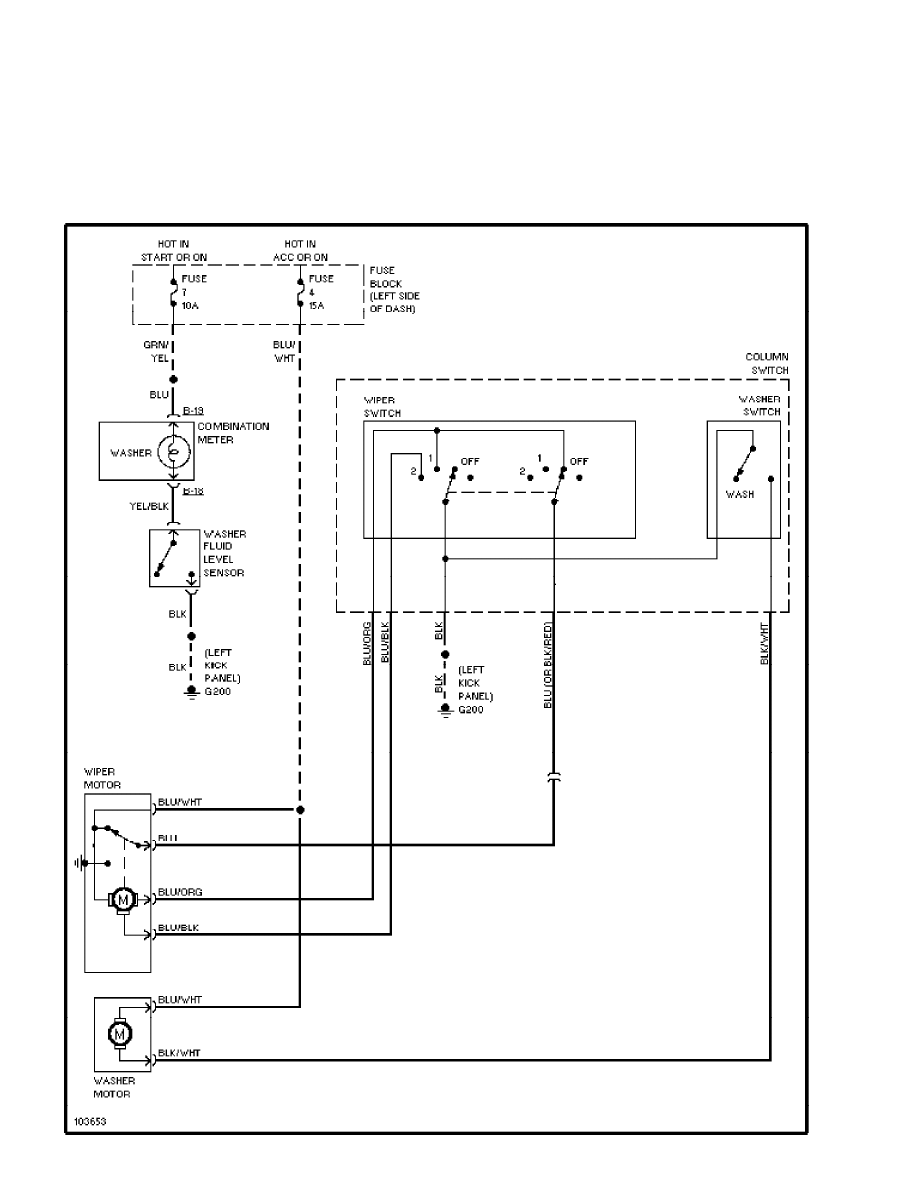

2-Speed Front Wiper/Washer Circuit (p. 9)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

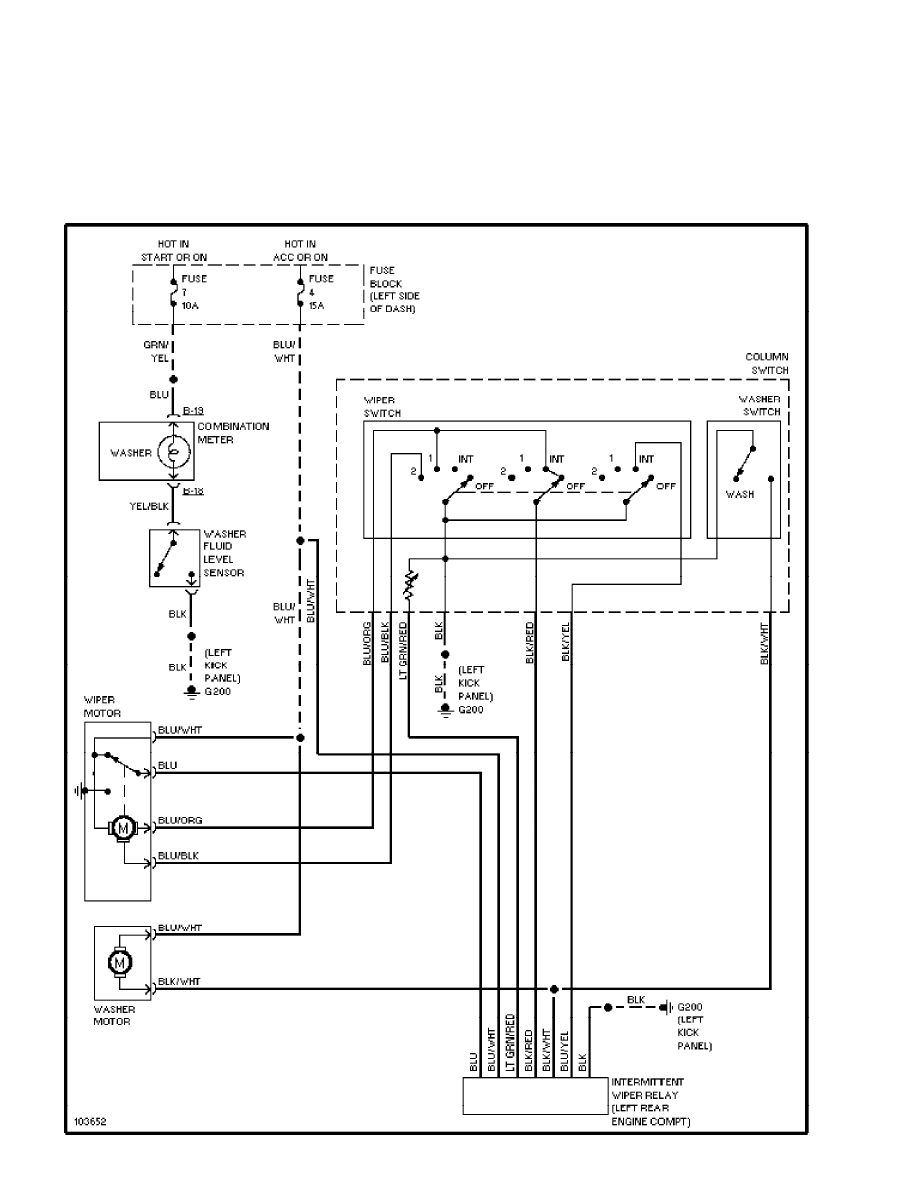

Intermittent Wiper/Washer Circuit (p. 10)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

SYSTEM WIRING DIAGRAMS

Rear Washer/Wiper Circuit (p. 11)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:56AM

WIRING DIAGRAMS

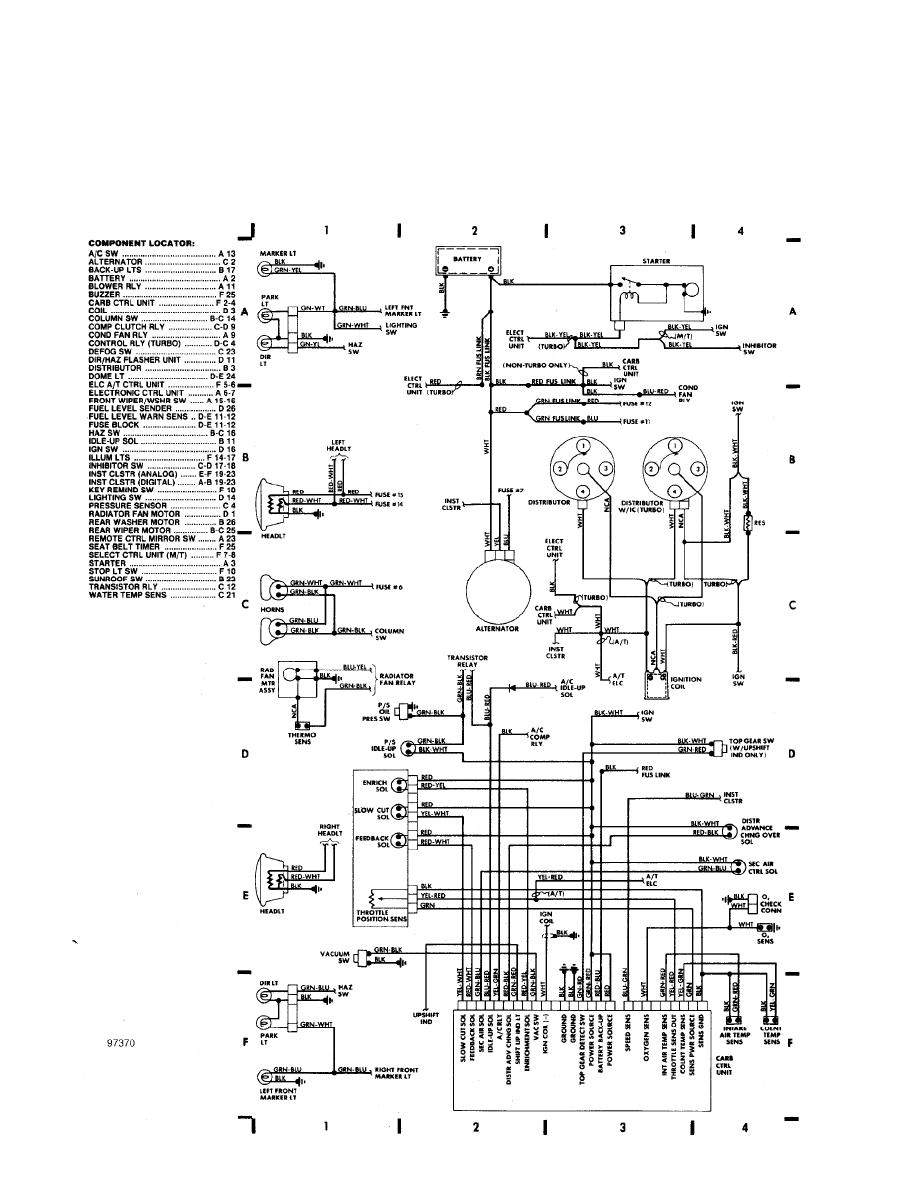

Fig. 1: Engine Compartment (Grids 1-4)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM

WIRING DIAGRAMS

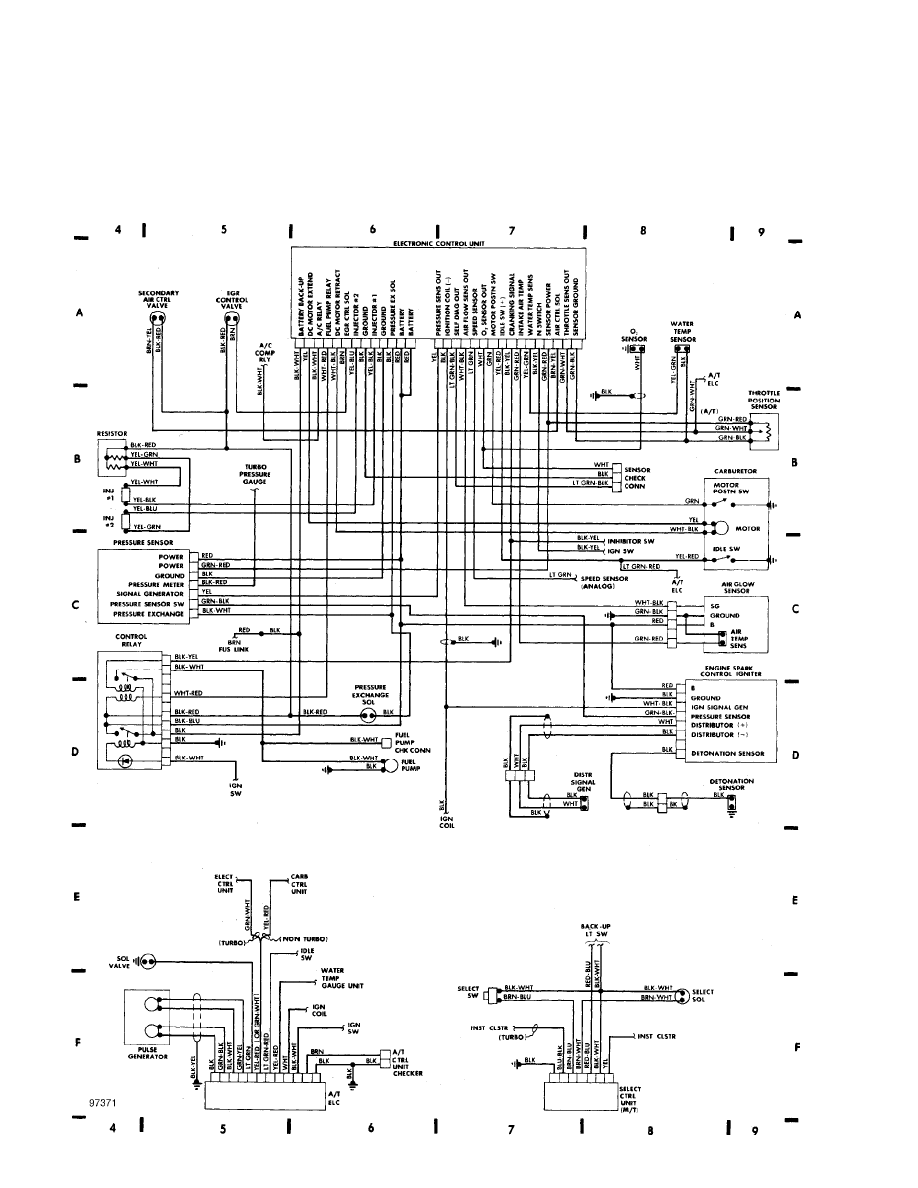

Fig. 2: Engine Compartment (Cont.) (Grids 4-9) (p. 2)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM

WIRING DIAGRAMS

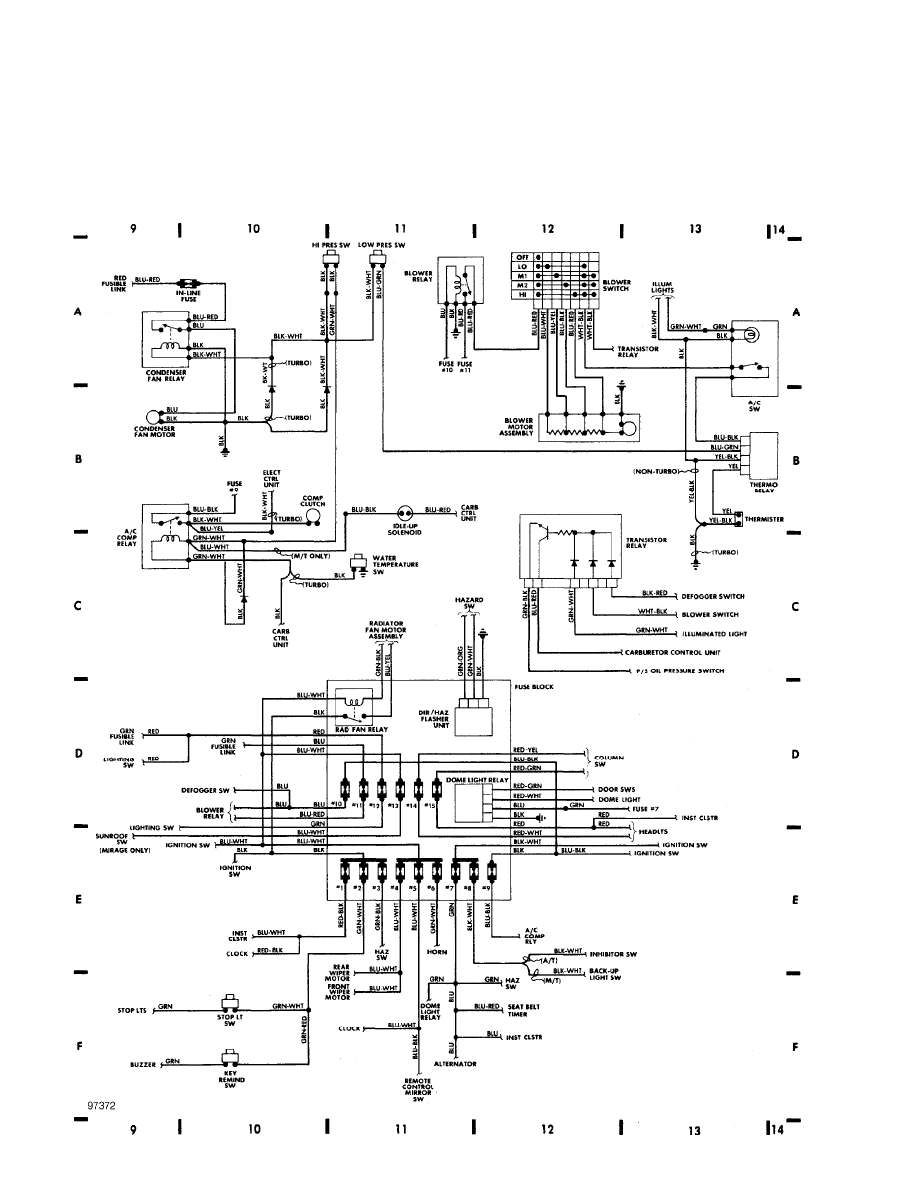

Fig. 3: Fuse Block & Underdash (Grids 9-14) (p. 3)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM

WIRING DIAGRAMS

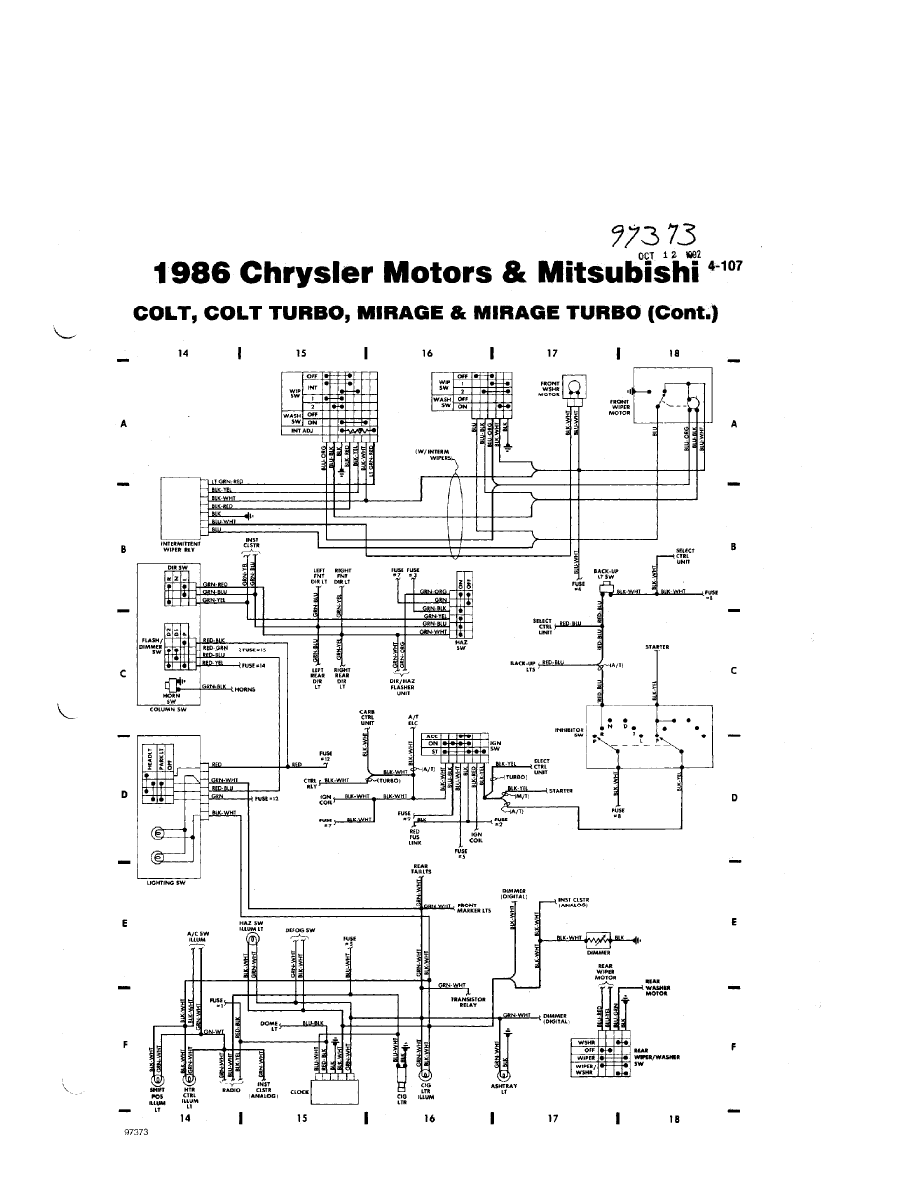

Fig. 4: Underdash (Cont.) (Grids 14-18) (p. 4)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM

WIRING DIAGRAMS

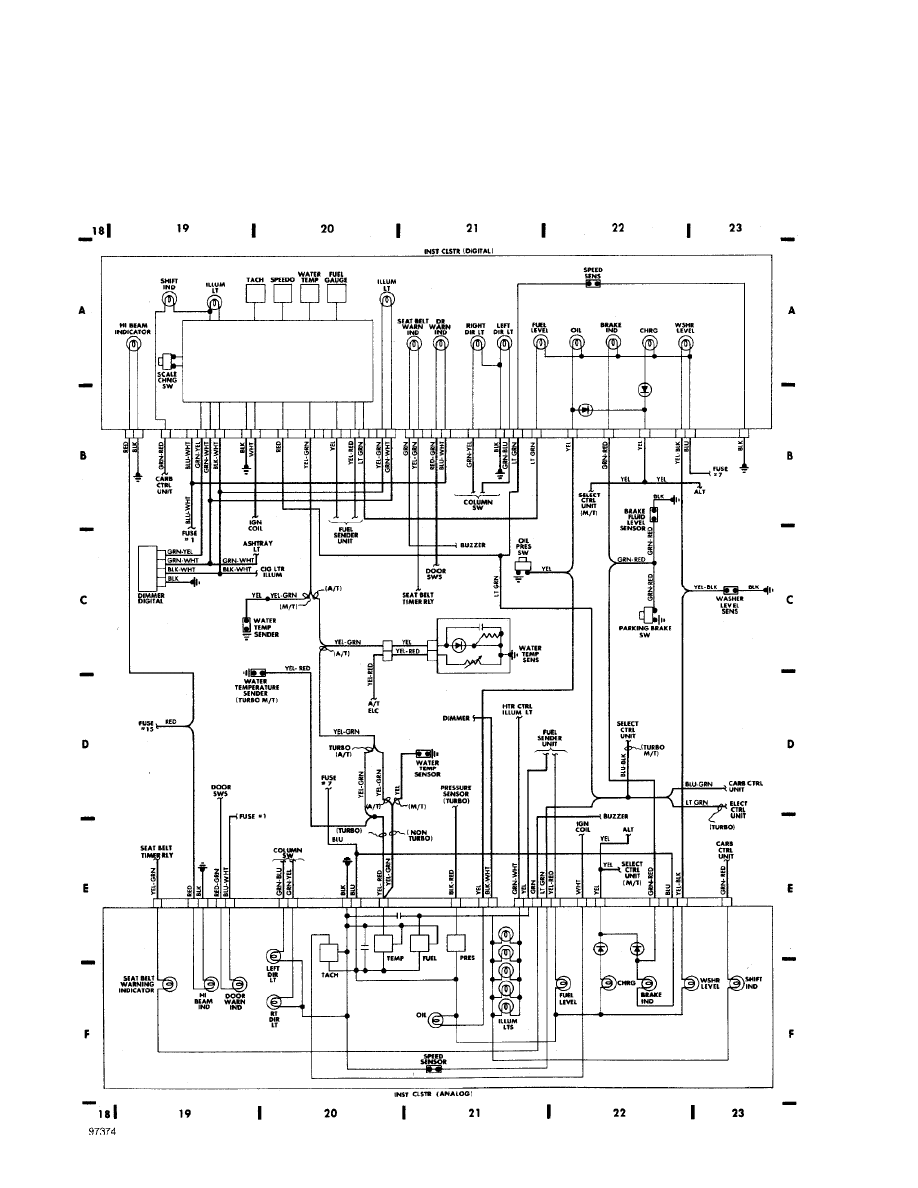

Fig. 5: Instrument Panel (Grids 18-23) (p. 5)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM

WIRING DIAGRAMS

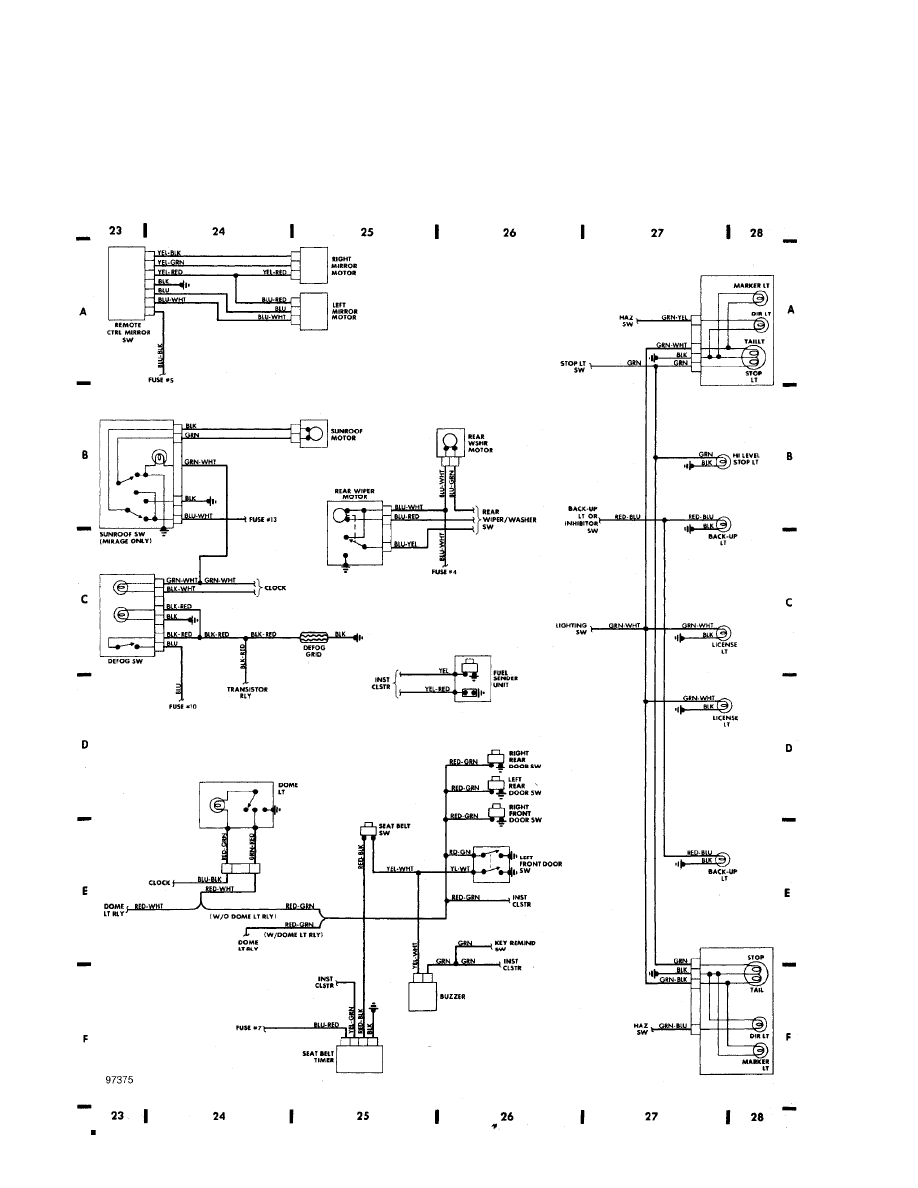

Fig. 6: Rear Compartment & Accessories (Grids 23-28) (p. 6)

1986 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:57AM
