SYSTEM WIRING DIAGRAMS

1.5L, Condenser Cooling Fan Circuit

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit (p. 2)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

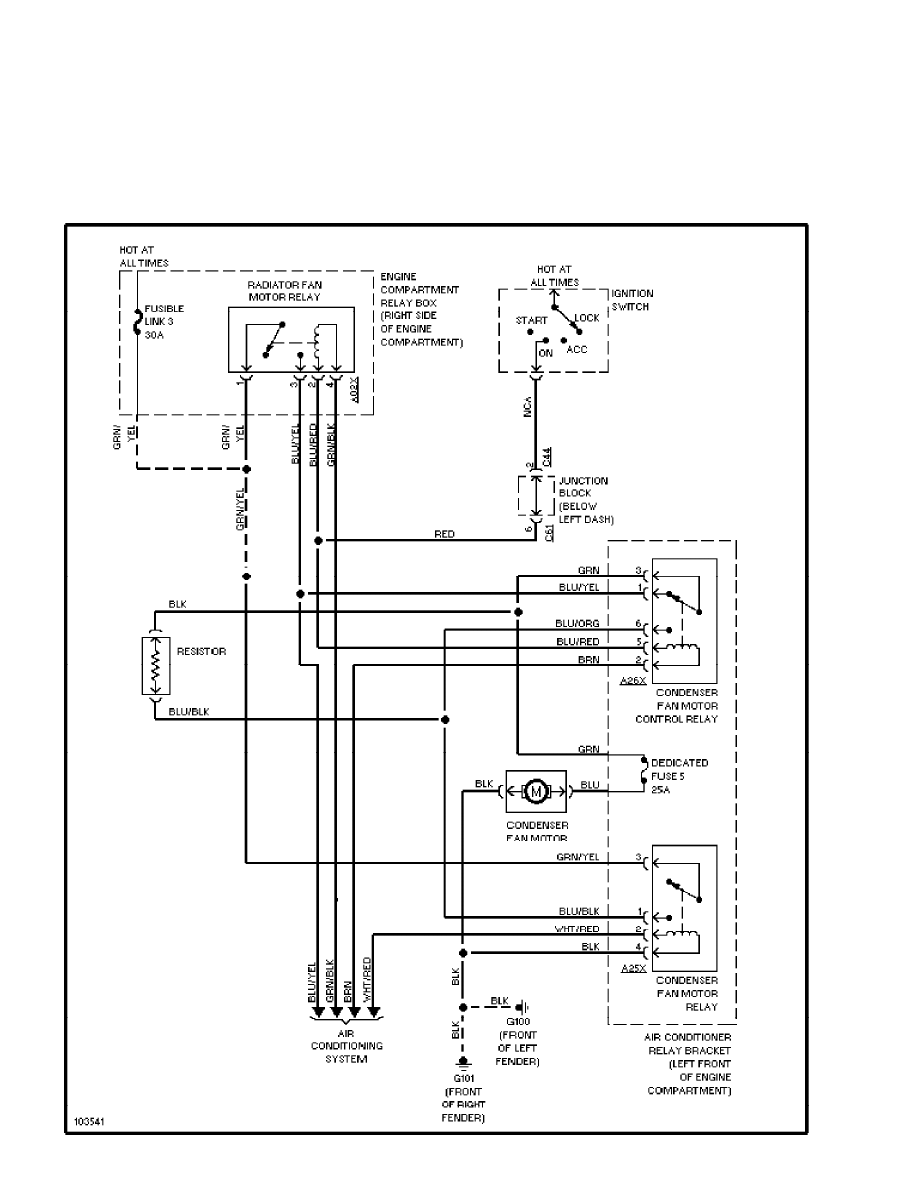

1.6L, Condenser Cooling Fan Circuit (p. 3)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

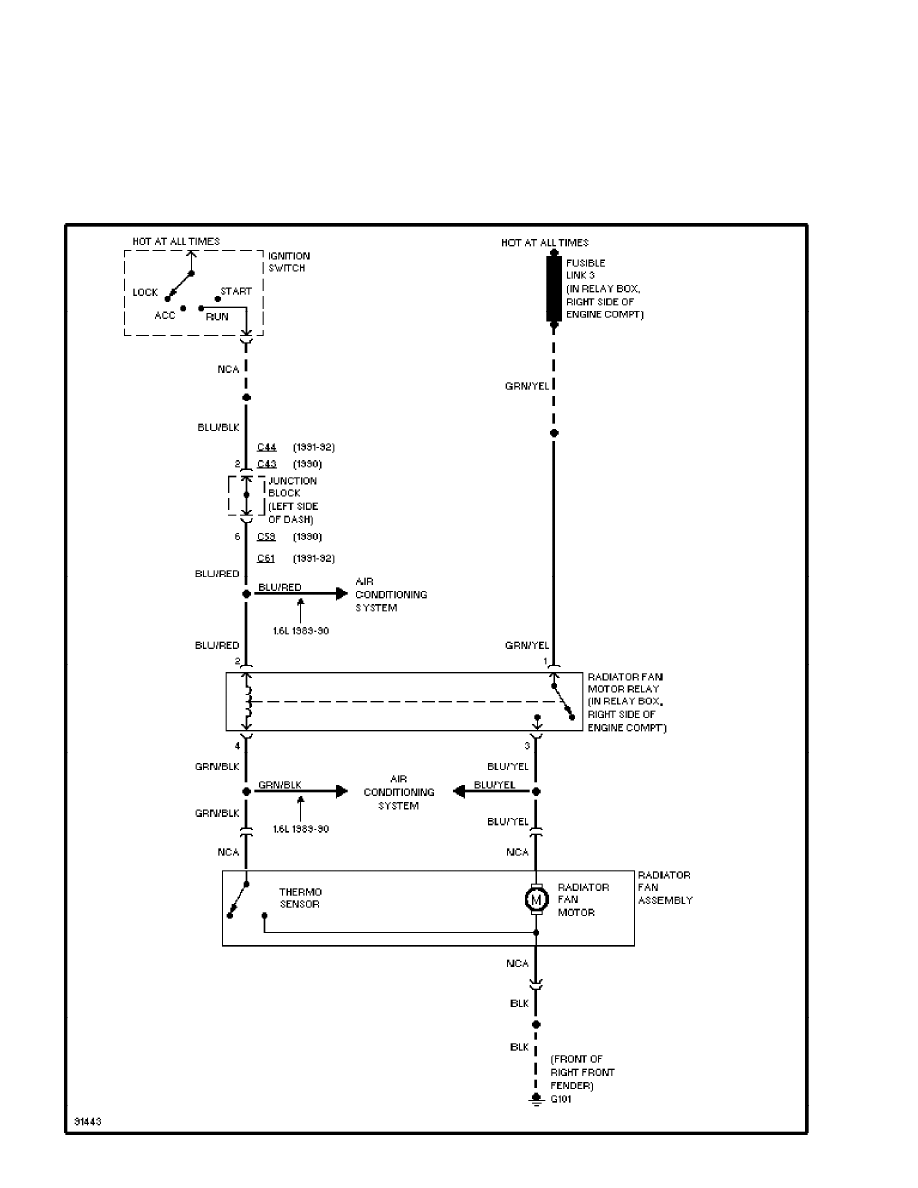

Cooling Fan Circuit (p. 4)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

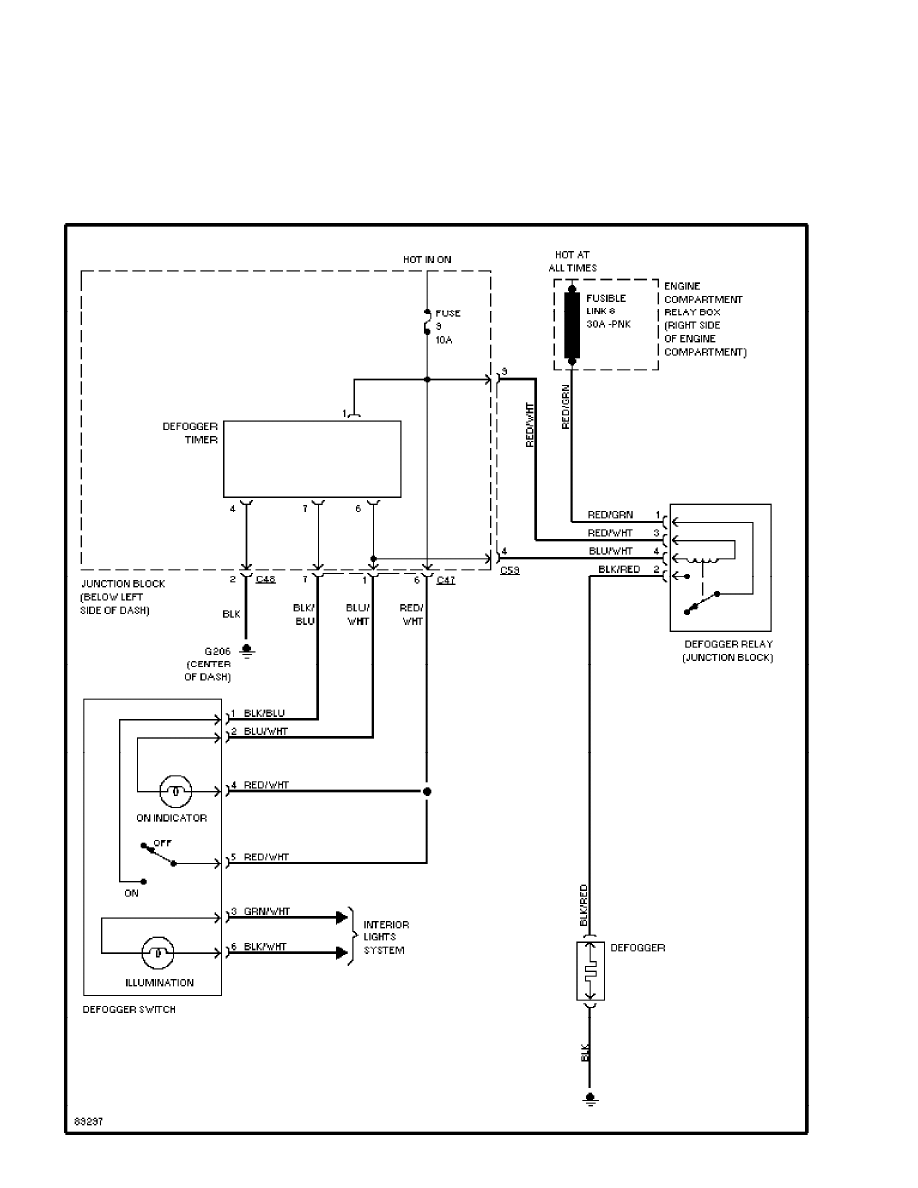

Defogger Circuit (p. 5)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 6)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

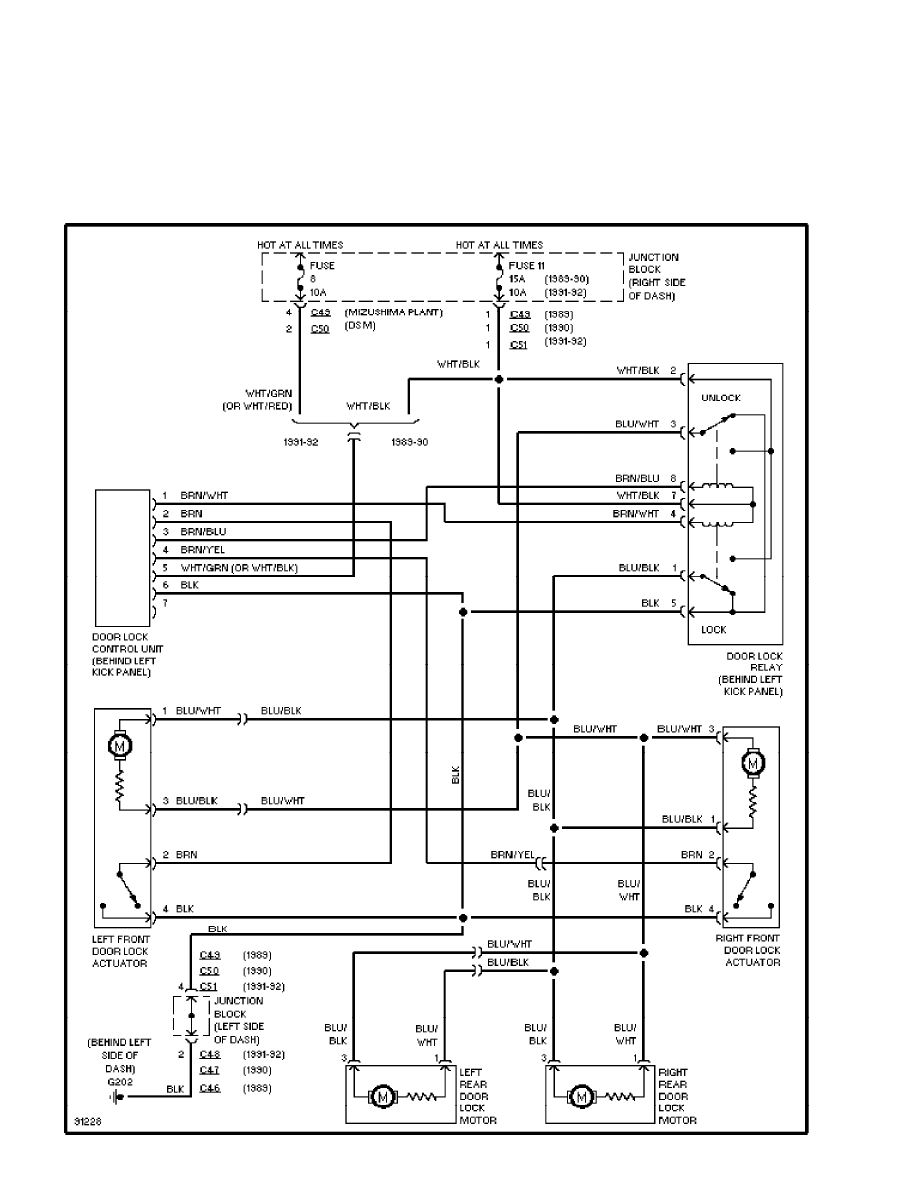

Power Door Lock Circuit (p. 7)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

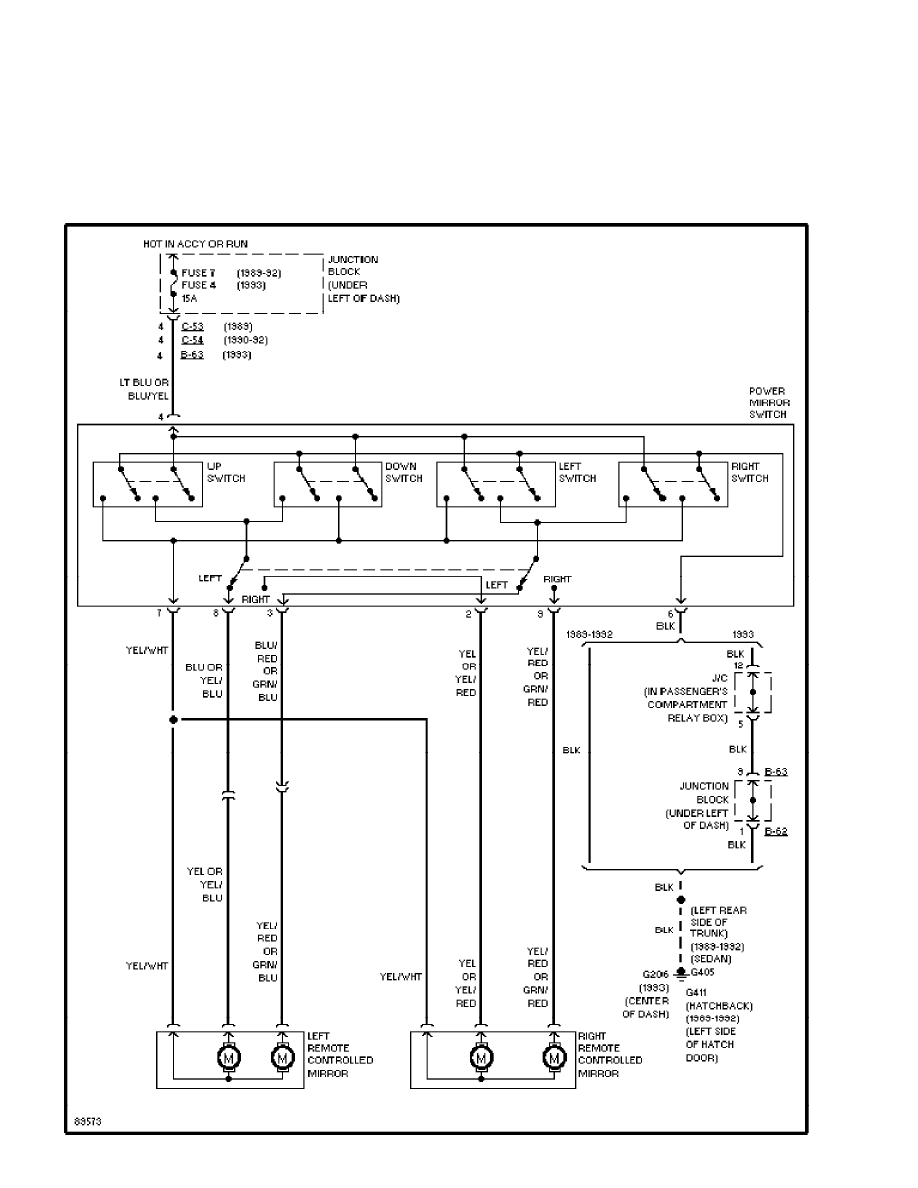

Power Mirror Circuit (p. 8)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

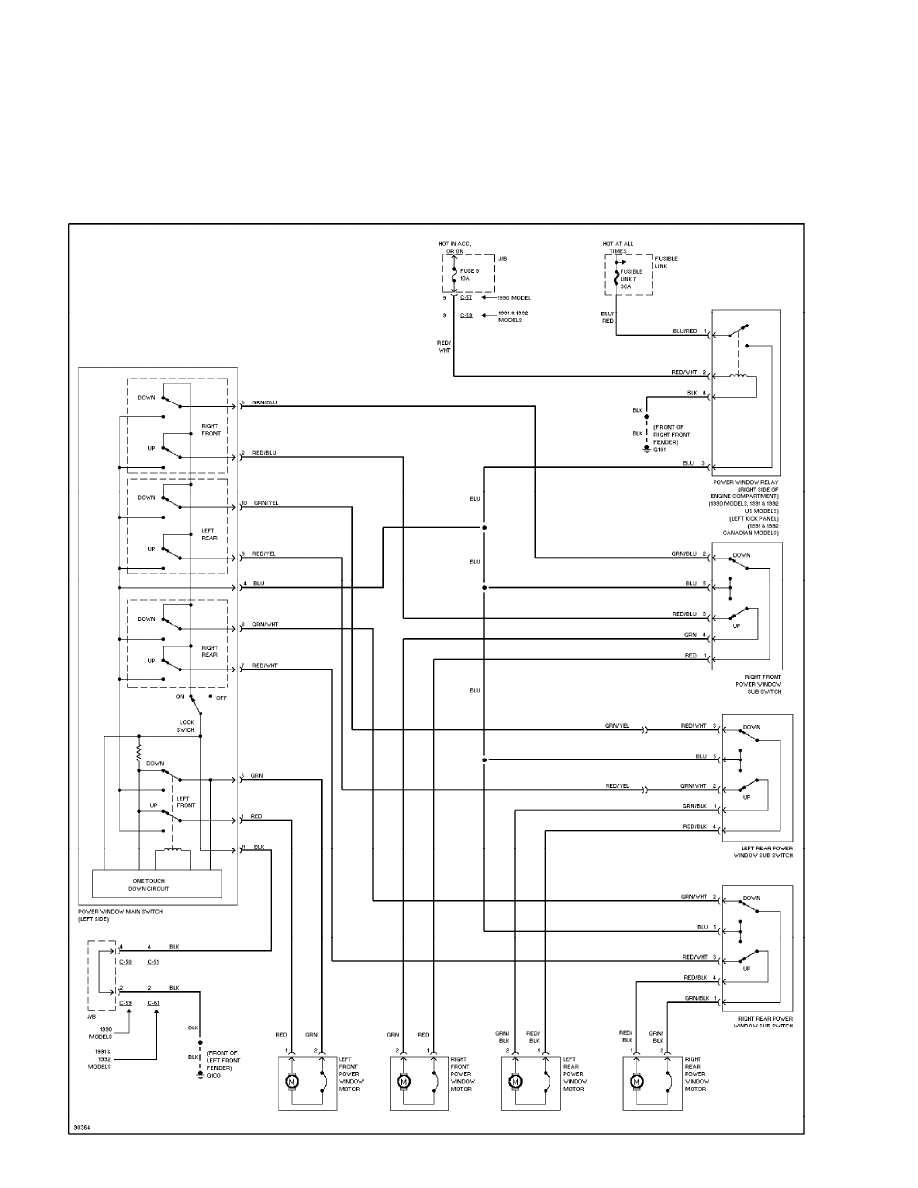

Power Window Circuit (p. 9)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

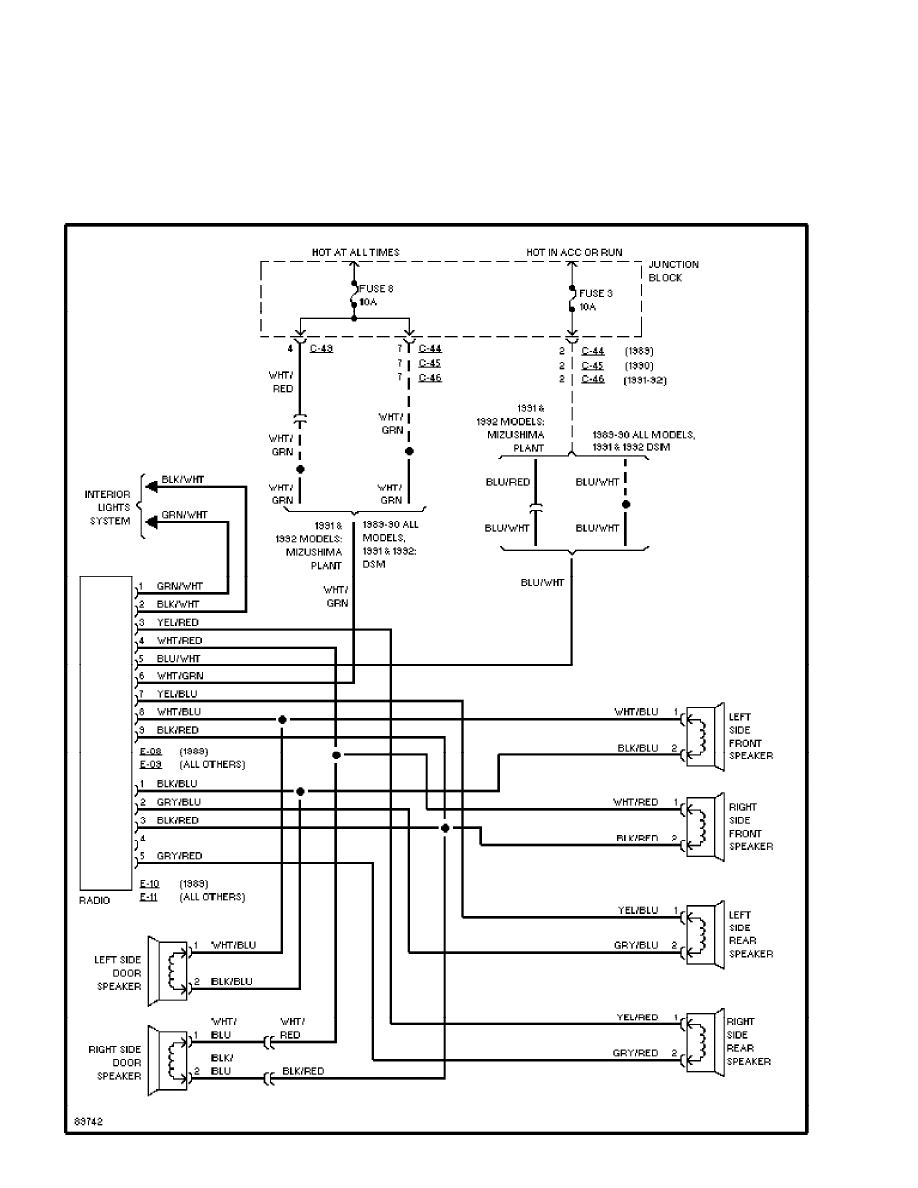

Radio Circuits (p. 10)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

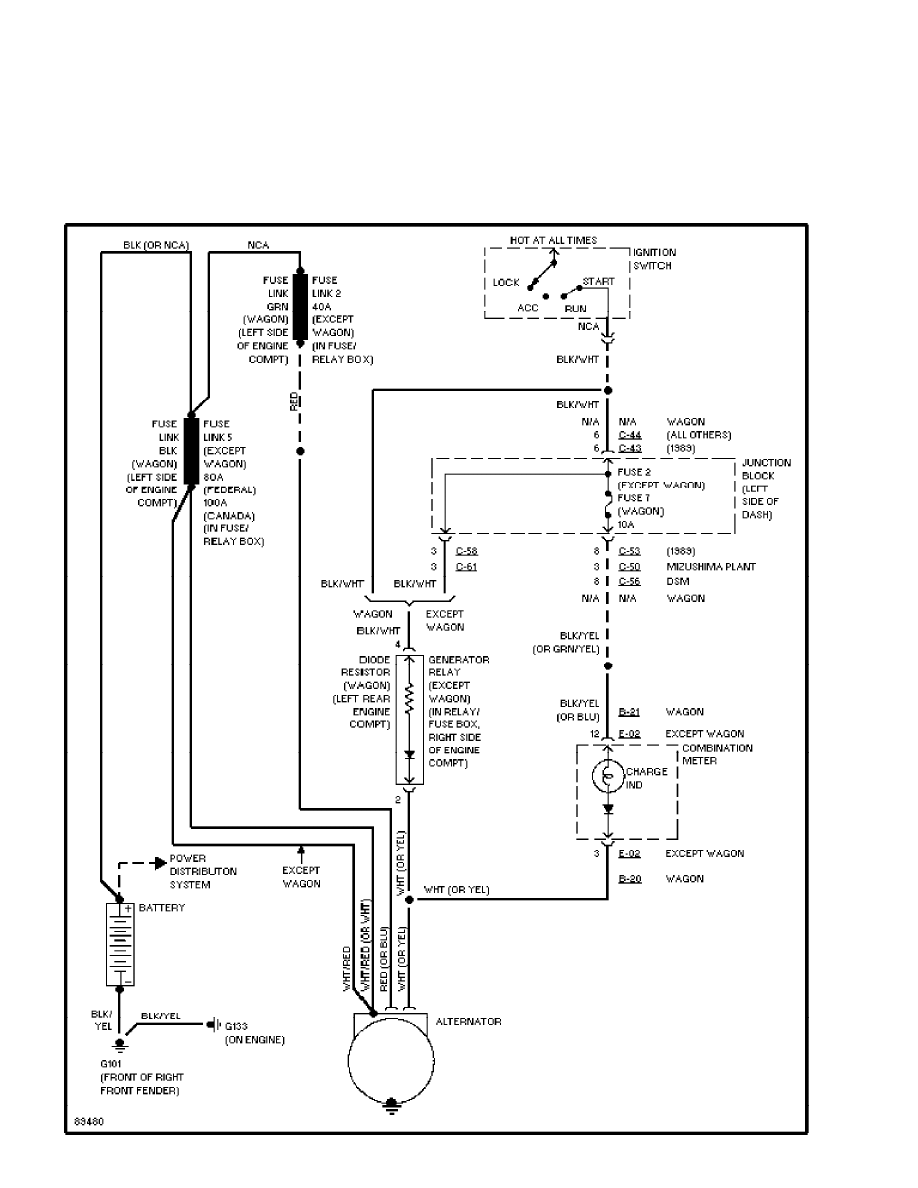

Charging Circuit (p. 11)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

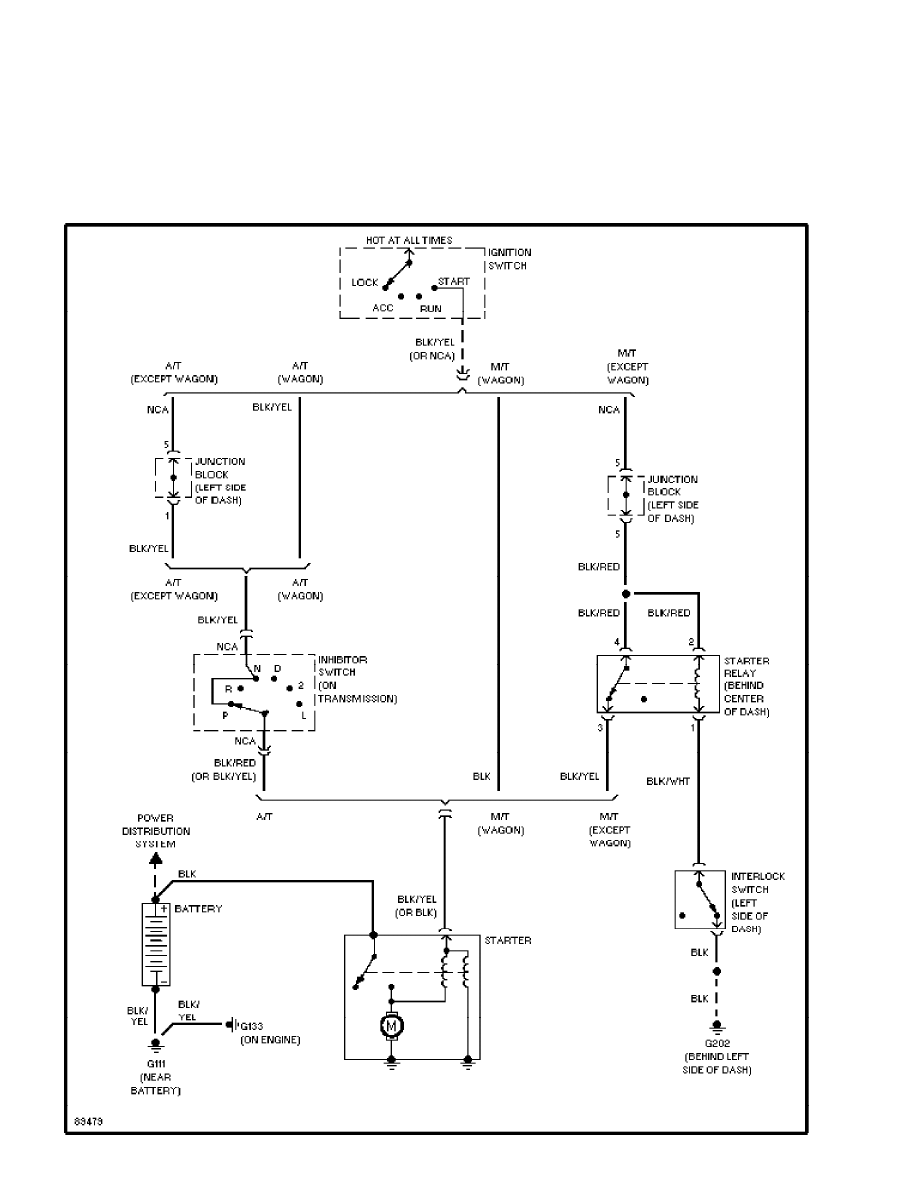

Starting Circuit (p. 12)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

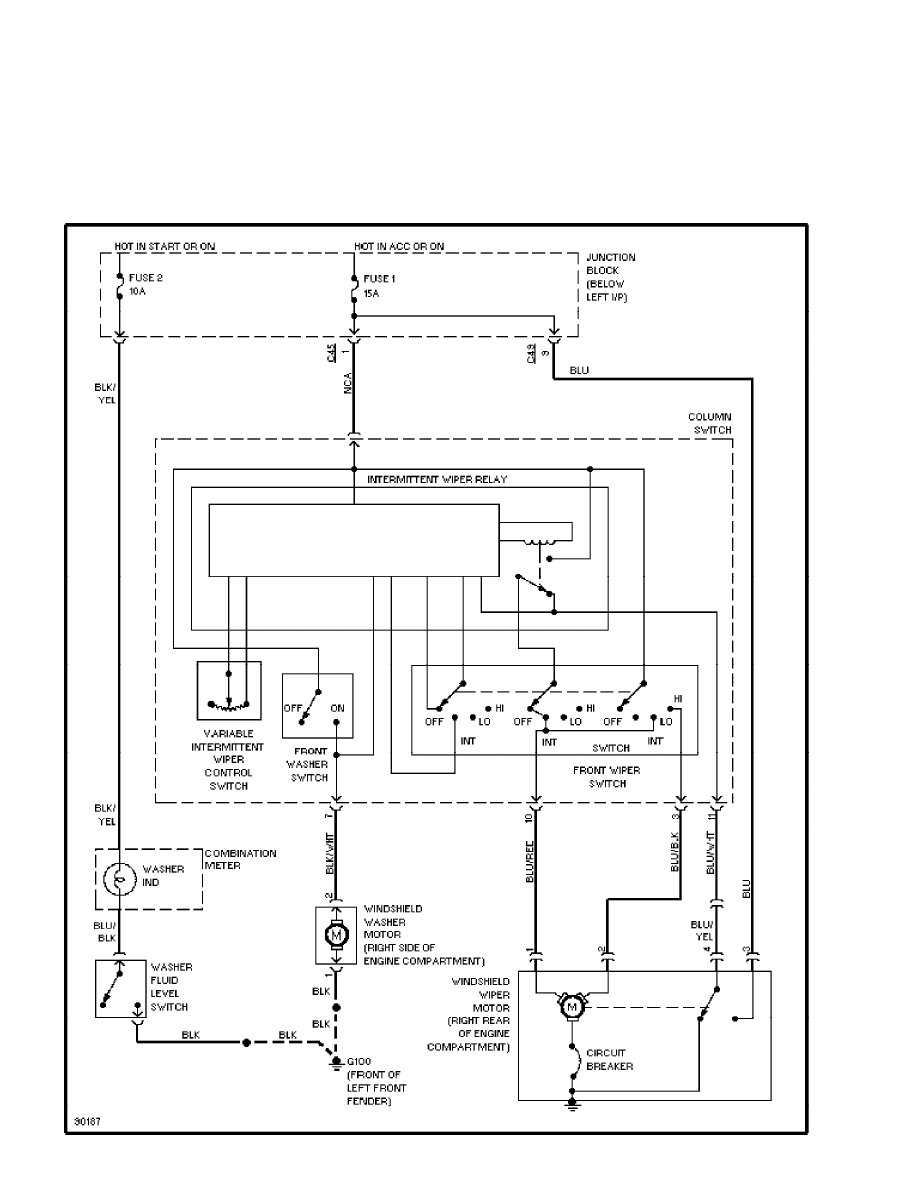

Front Wiper/Washer Circuit (p. 13)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

SYSTEM WIRING DIAGRAMS

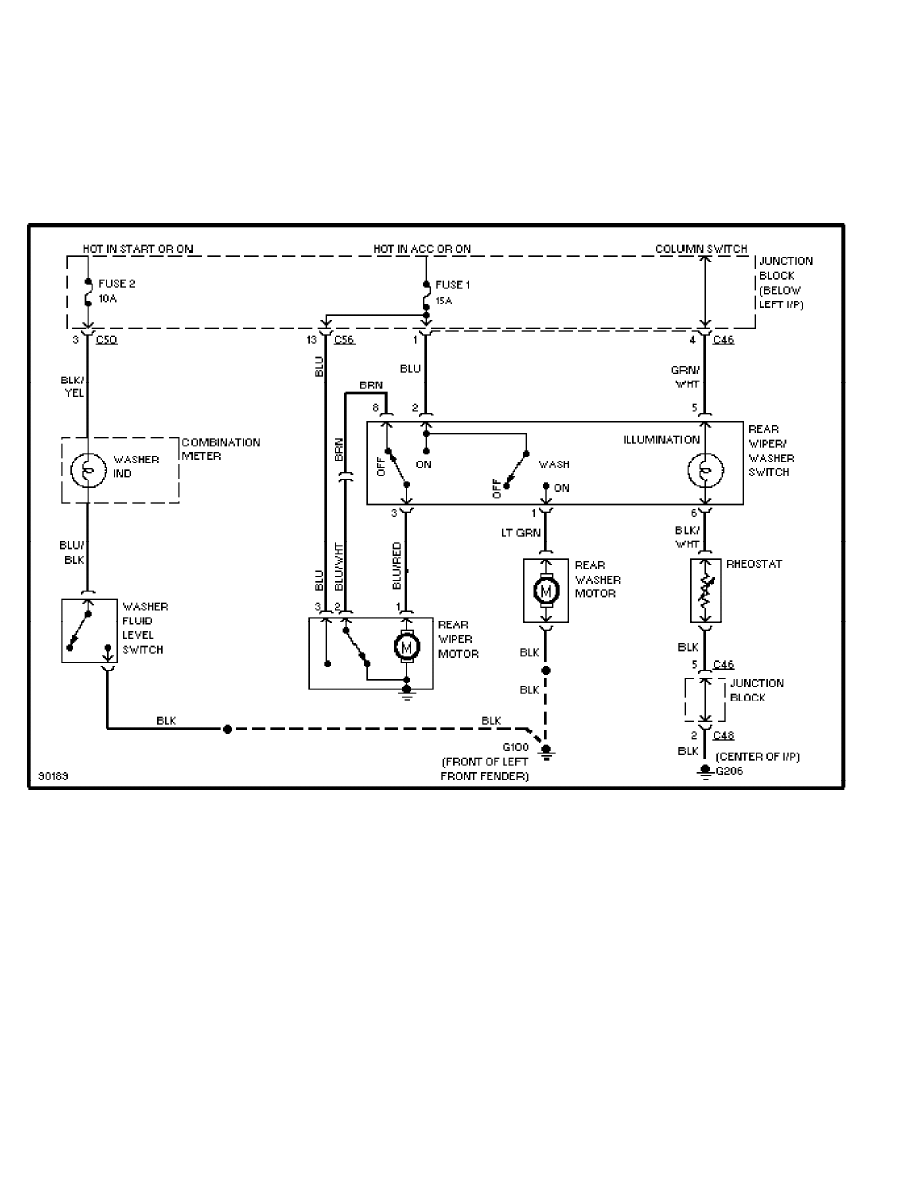

Rear Wiper/Washer Circuit (p. 14)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:52AM

WIRING DIAGRAMS

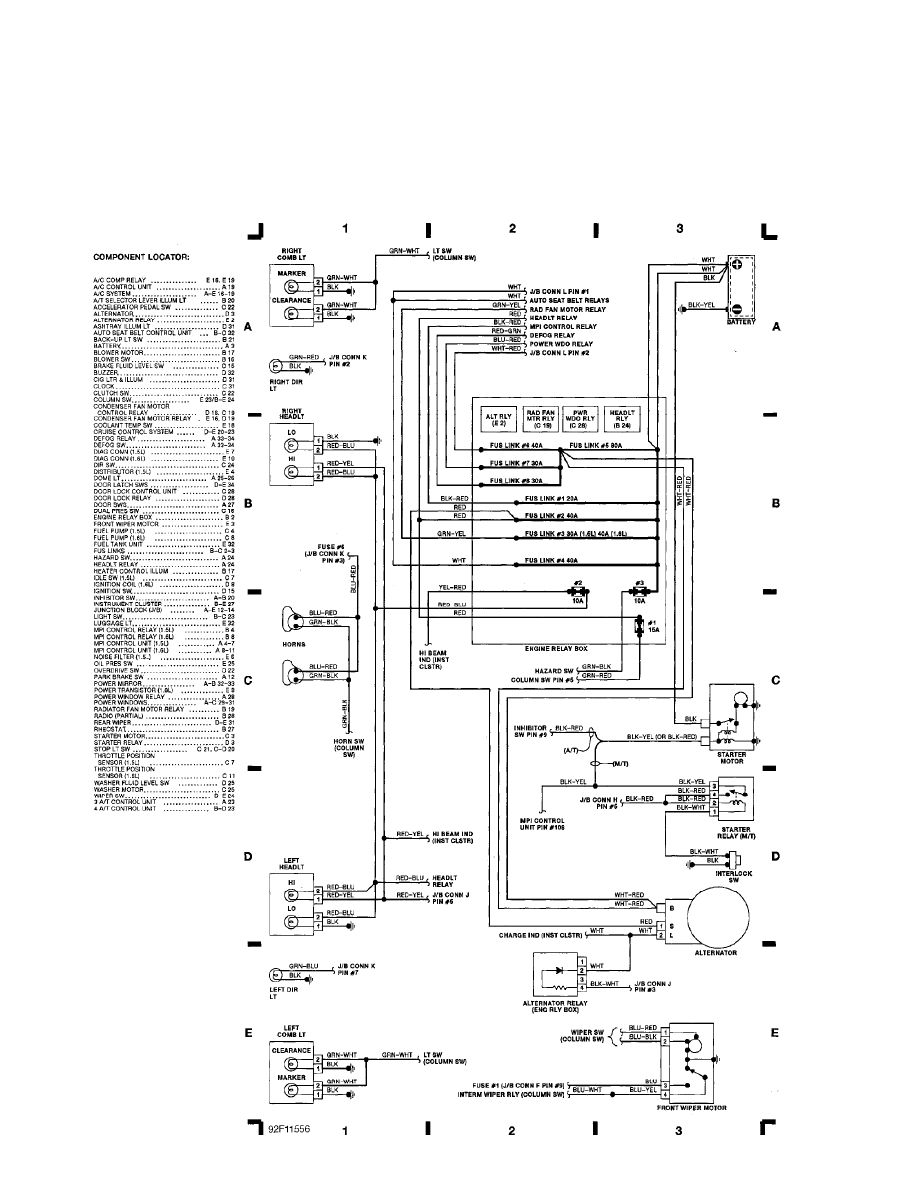

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

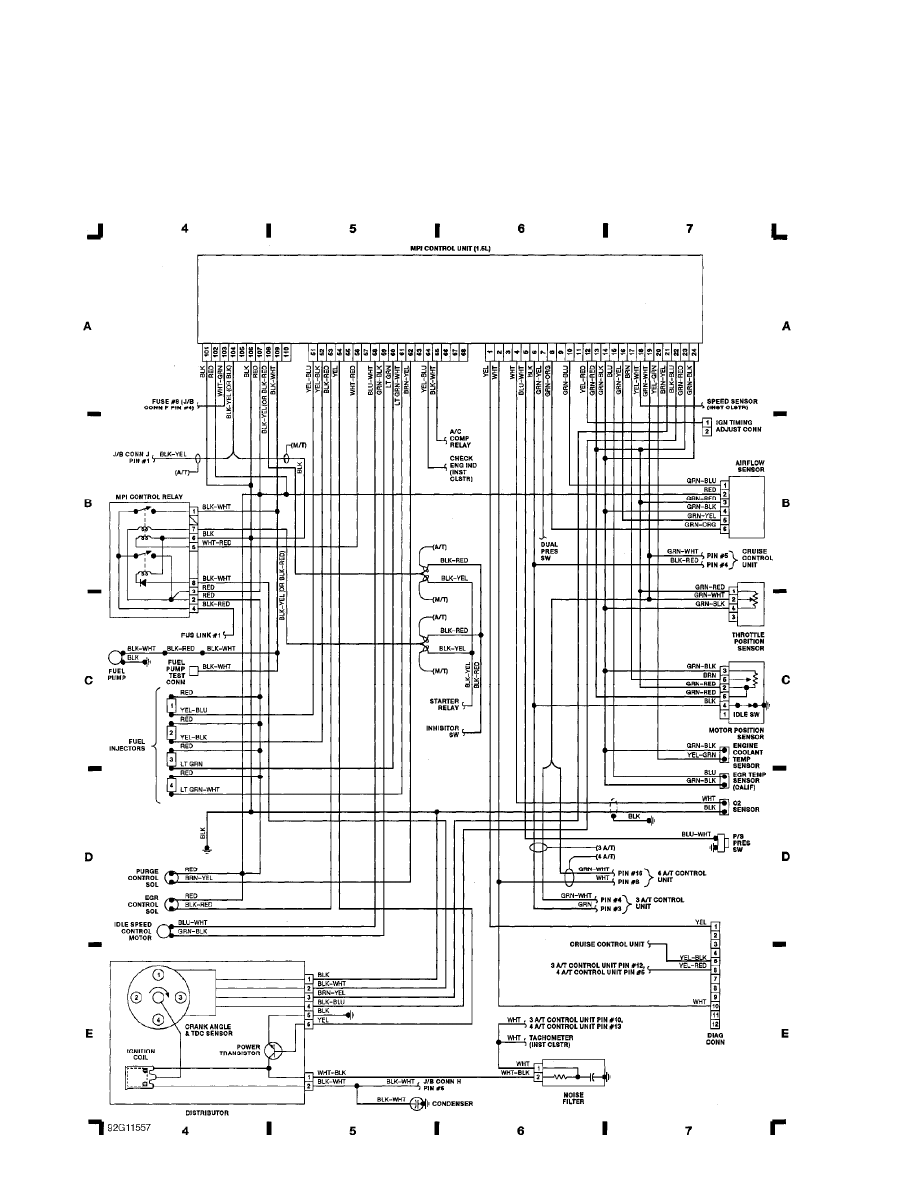

Fig. 2: Computer Engine Control (1.5L) (Grid 4-7) (p. 2)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

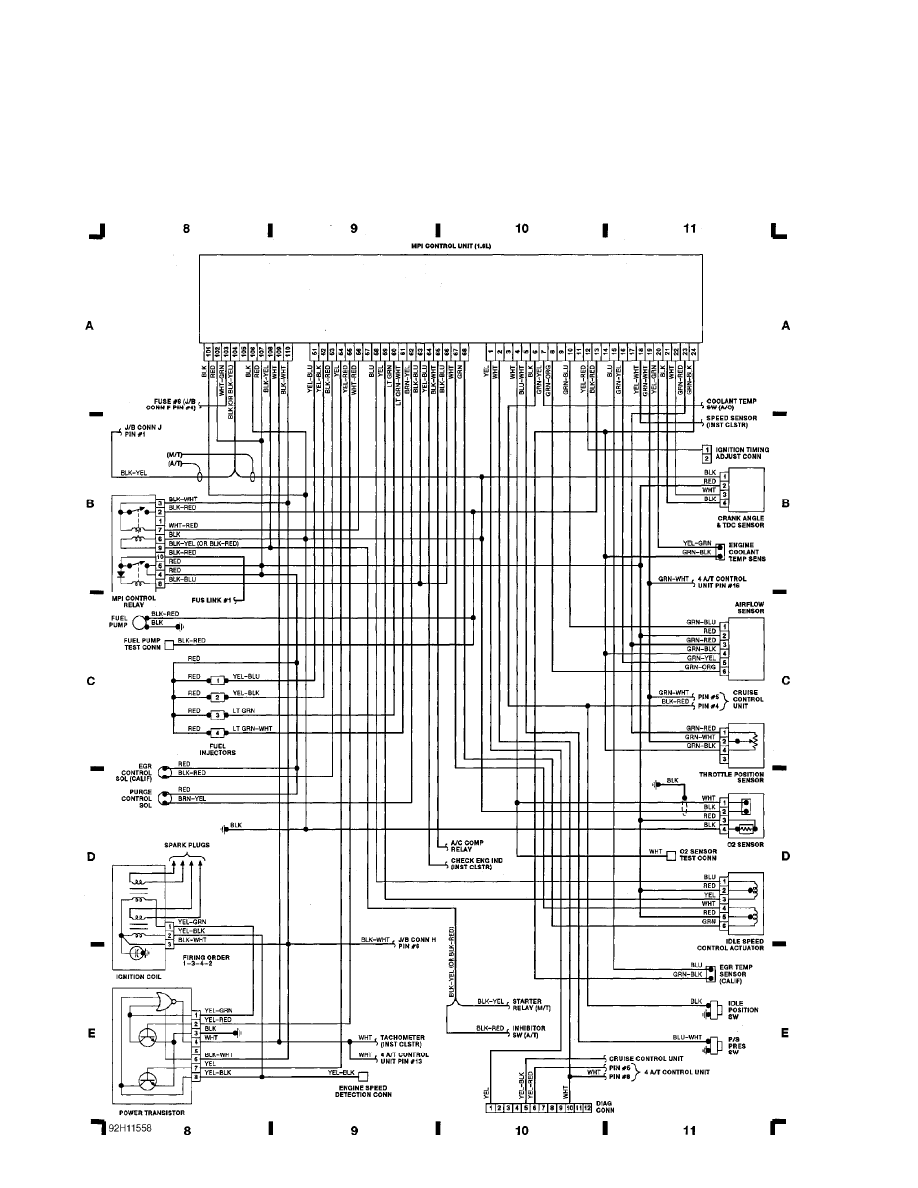

Fig. 3: Computer Engine Control (1.6L) (Grid 8-11) (p. 3)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

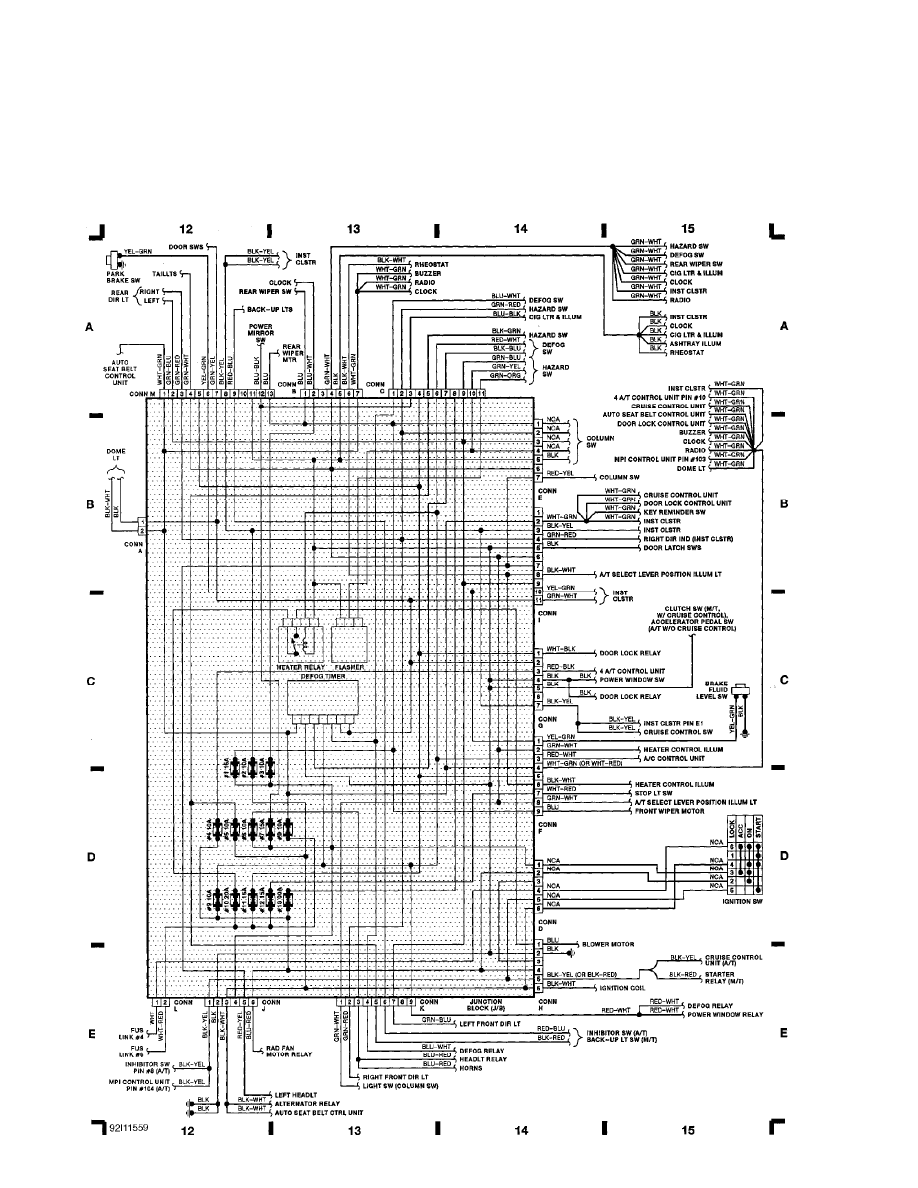

Fig. 4: Junction Block, Ignition Sw (Grid 12-15) (p. 4)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

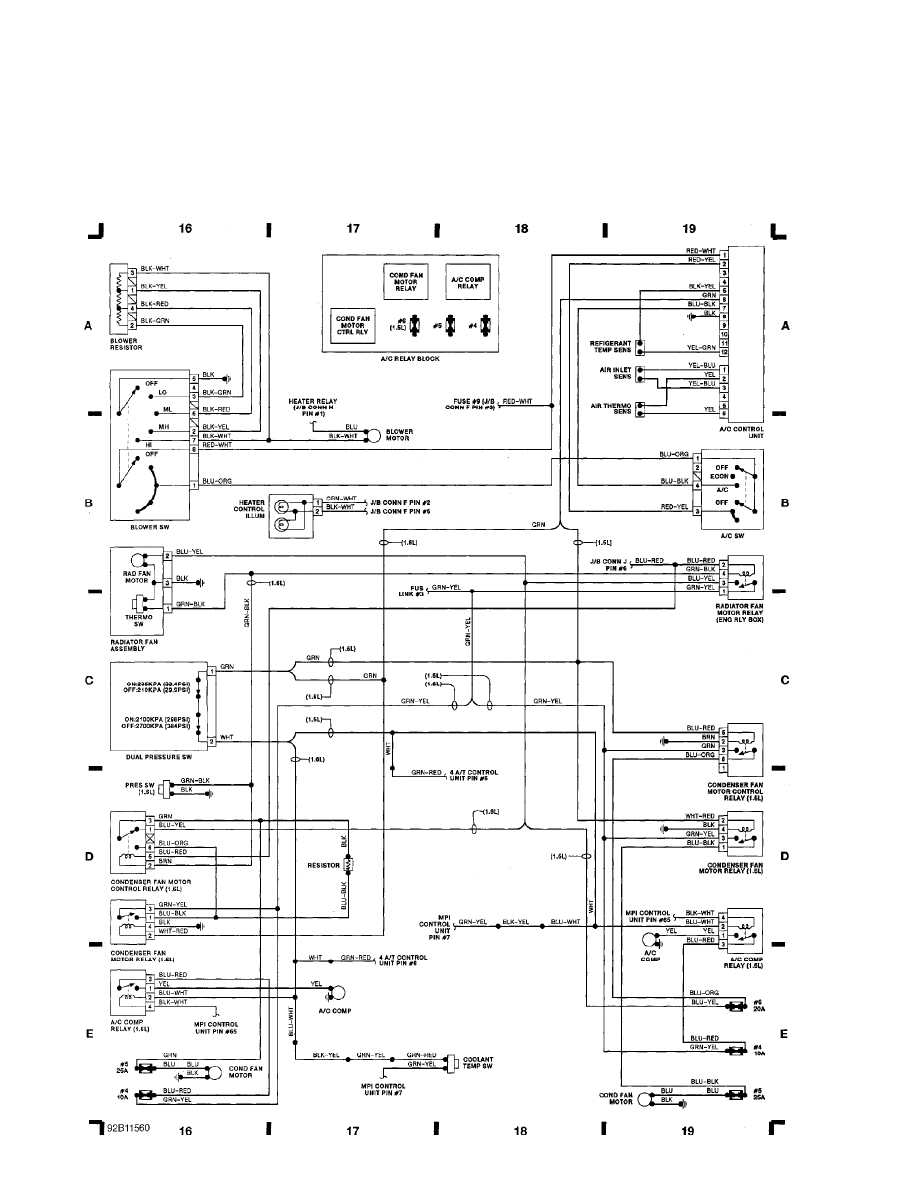

Fig. 5: A/C & Heating (Grid 16-19) (p. 5)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

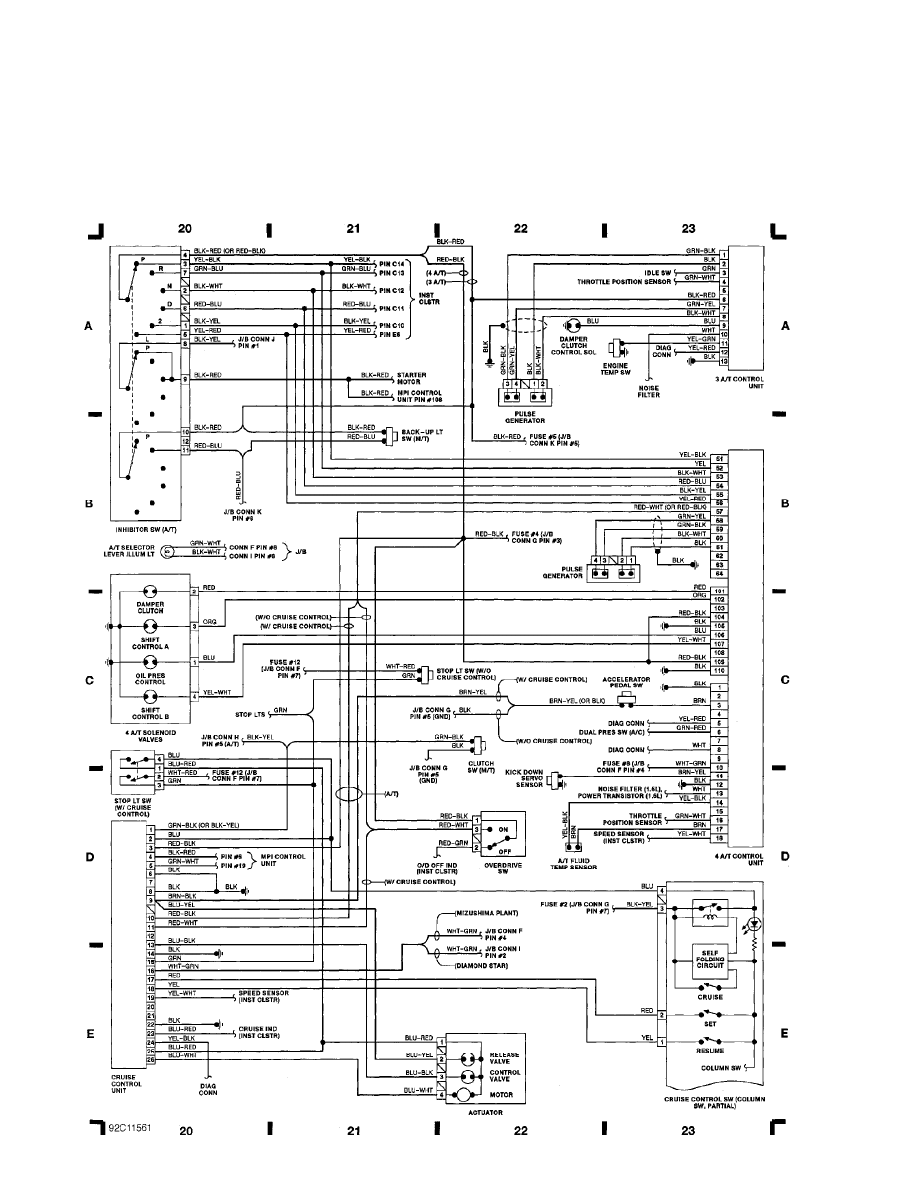

Fig. 6: Cruise Ctrl, 3 & 4 A/T Ctrl Unit, Inhib Sw (Grid 20-23) (p. 6)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

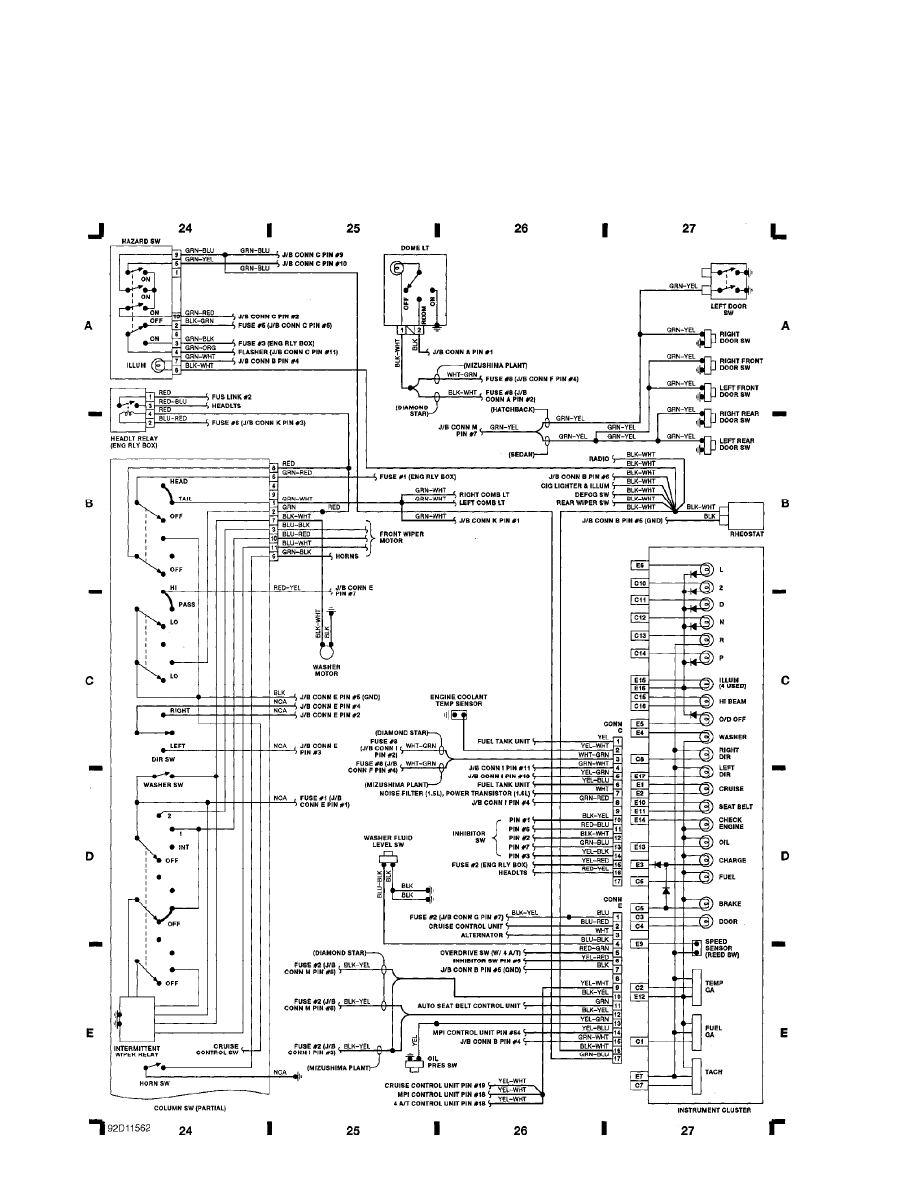

Fig. 7: Inst Clstr, Column SW (Partial), Hazard Sw (Grid 24-27) (p. 7)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

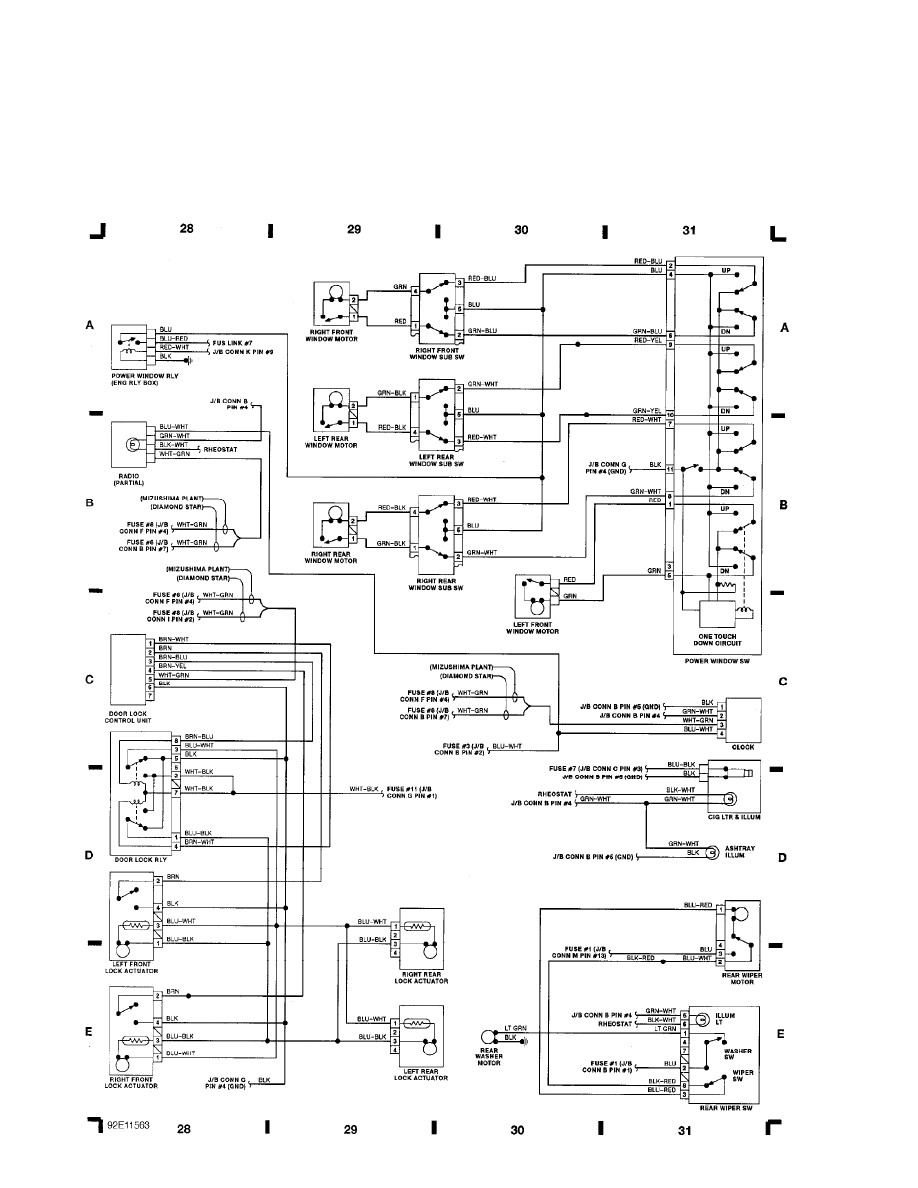

Fig. 8: Power Window/Door, Rear Wiper, Inter Lts (Grid 28-31) (p. 8)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM

WIRING DIAGRAMS

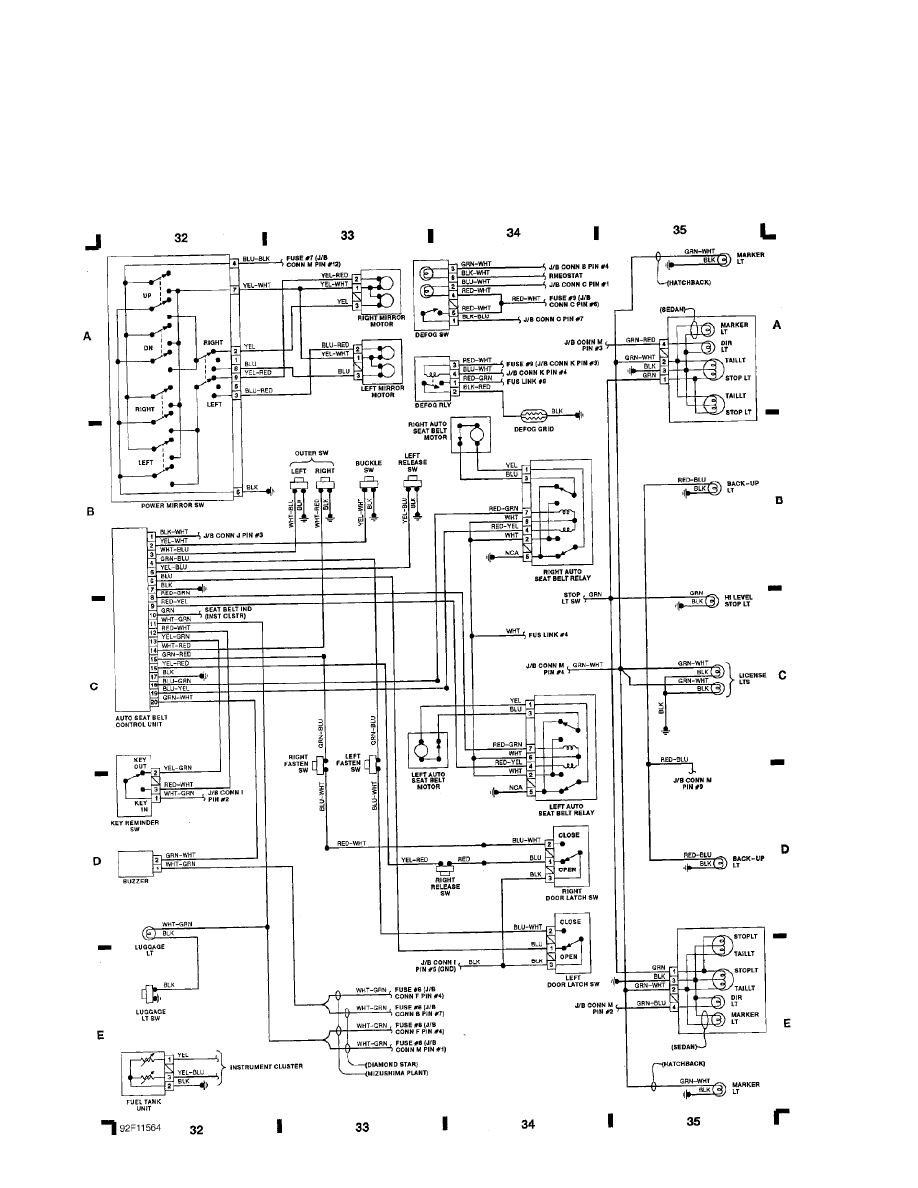

Fig. 9: Pwr Mirror, A/Seat, Seat Belt Rly, Taillts (Grid 32-35) (p. 9)

1991 Mitsubishi Mirage

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 11:53AM
