MITSUBISHI PICKUP 1991

background image

SYSTEM WIRING DIAGRAMS

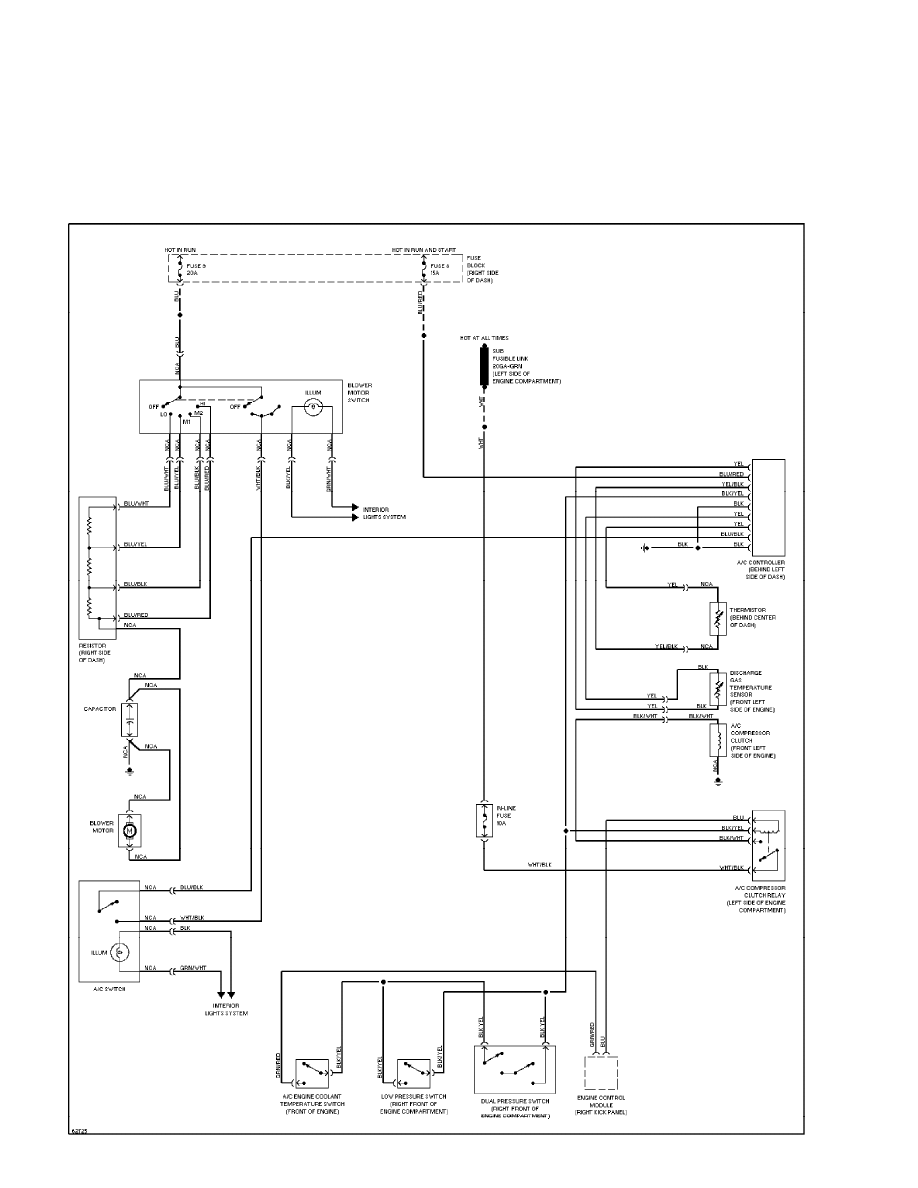

A/C Circuit

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

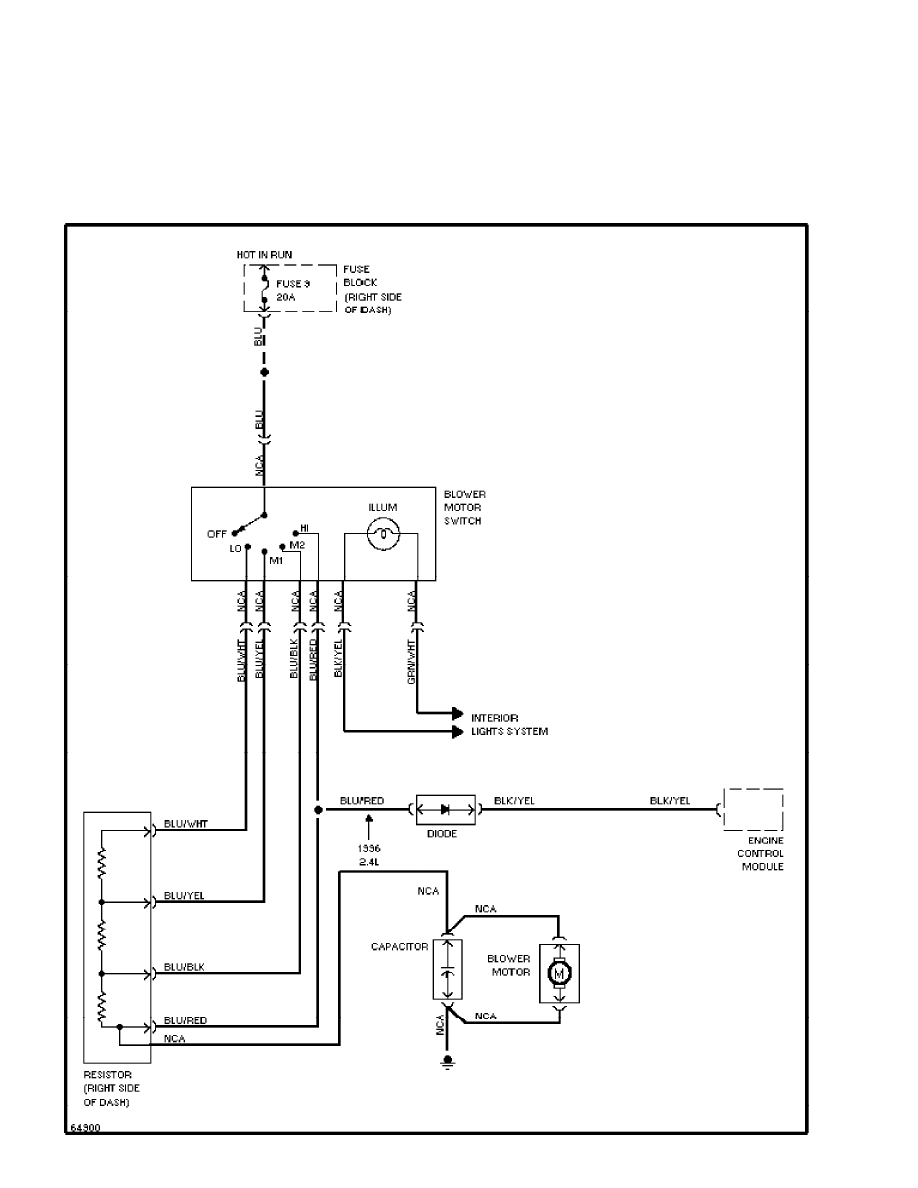

Heater Circuit (p. 2)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

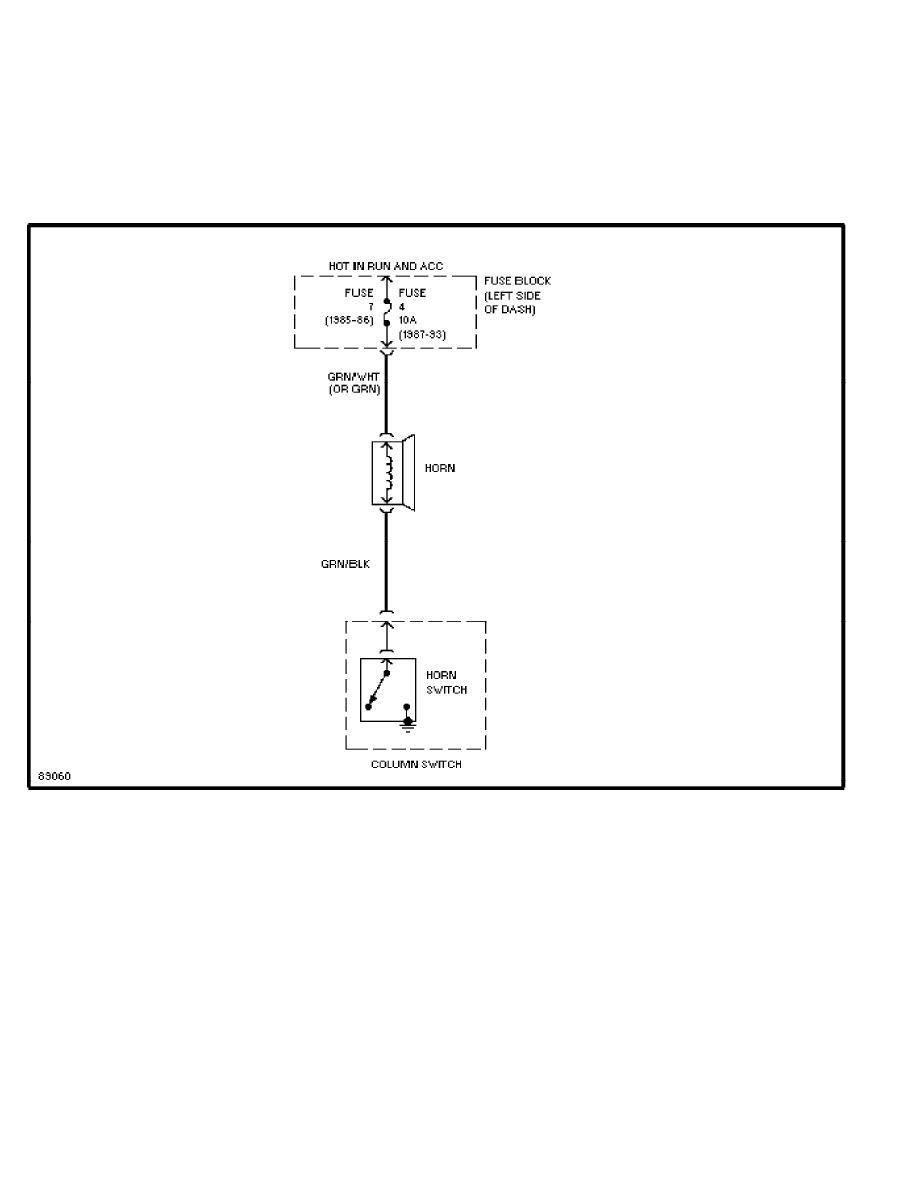

Horn Circuit (p. 3)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

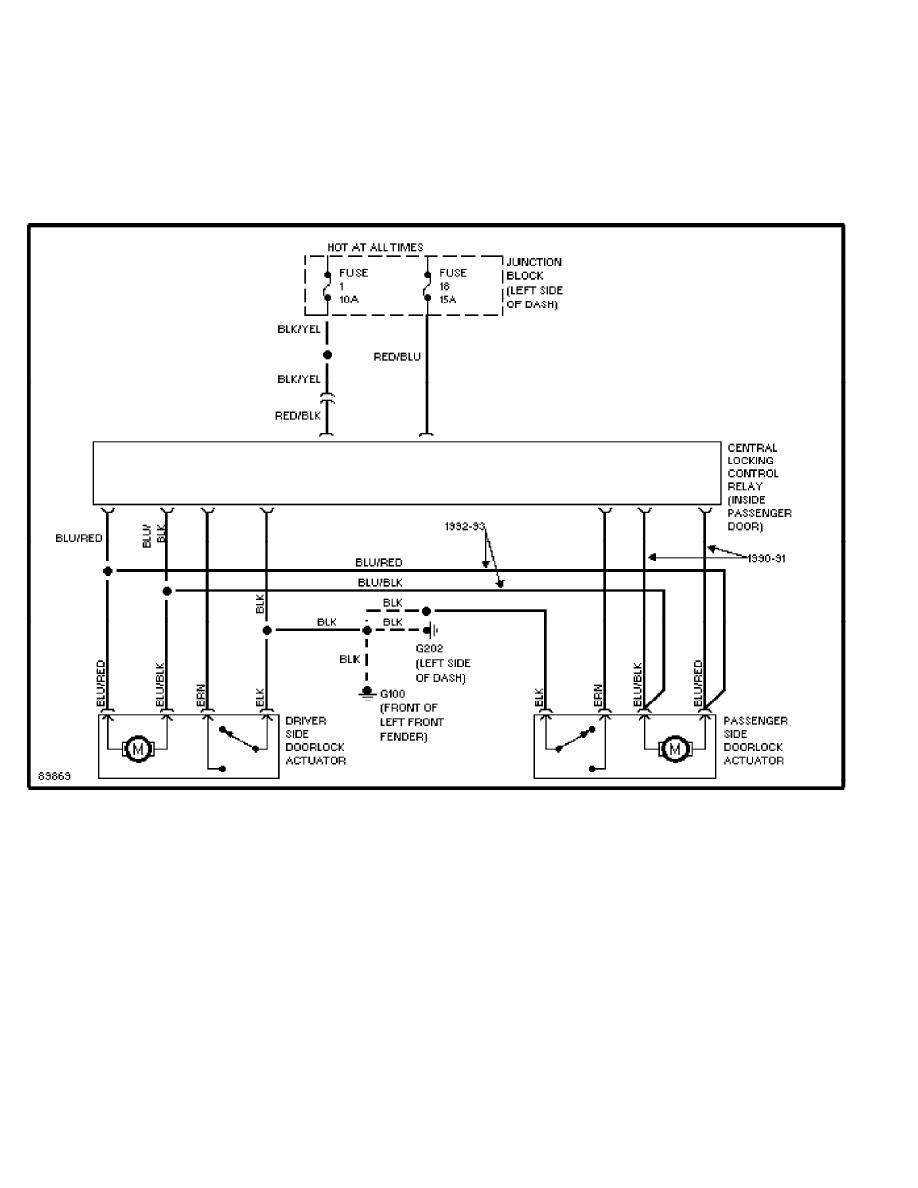

Power Door Lock Circuit (p. 4)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

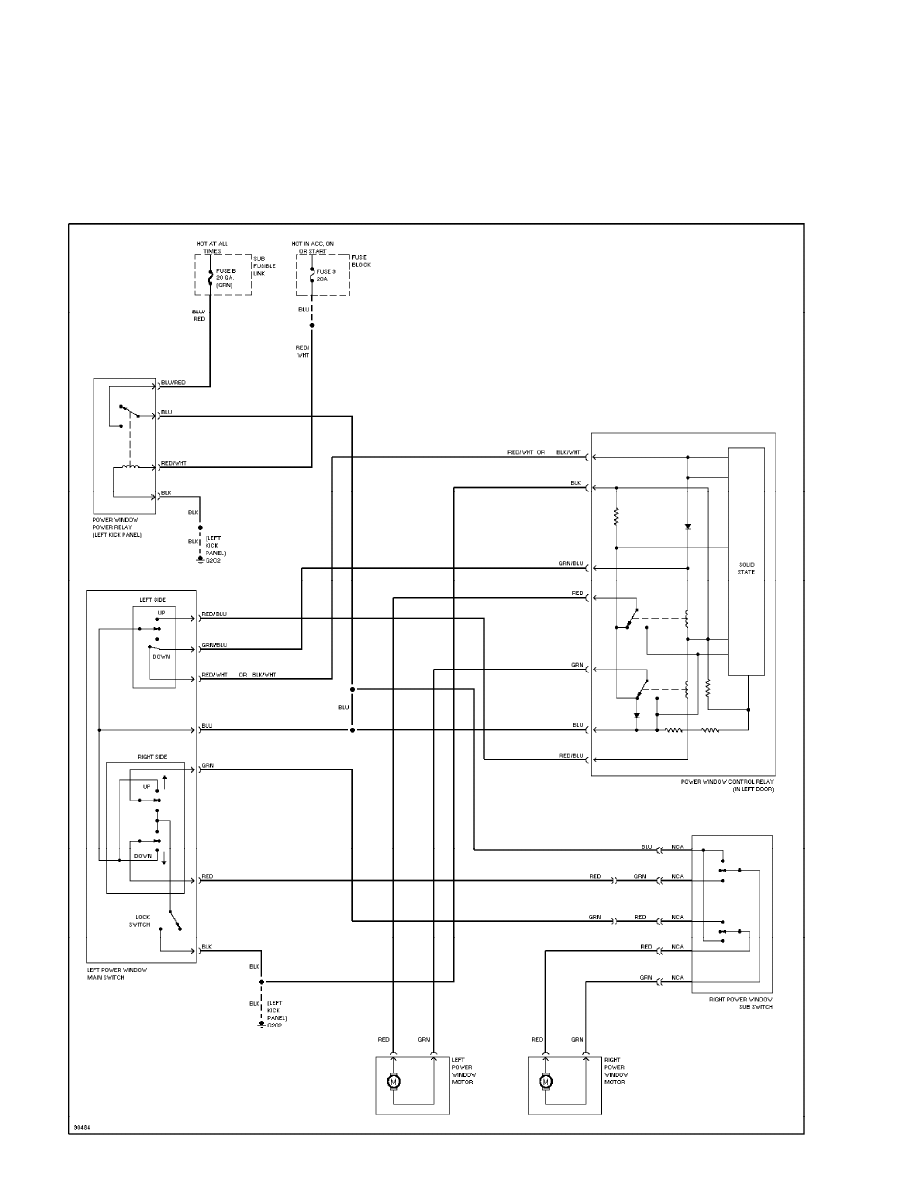

Power Window Circuit (p. 5)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

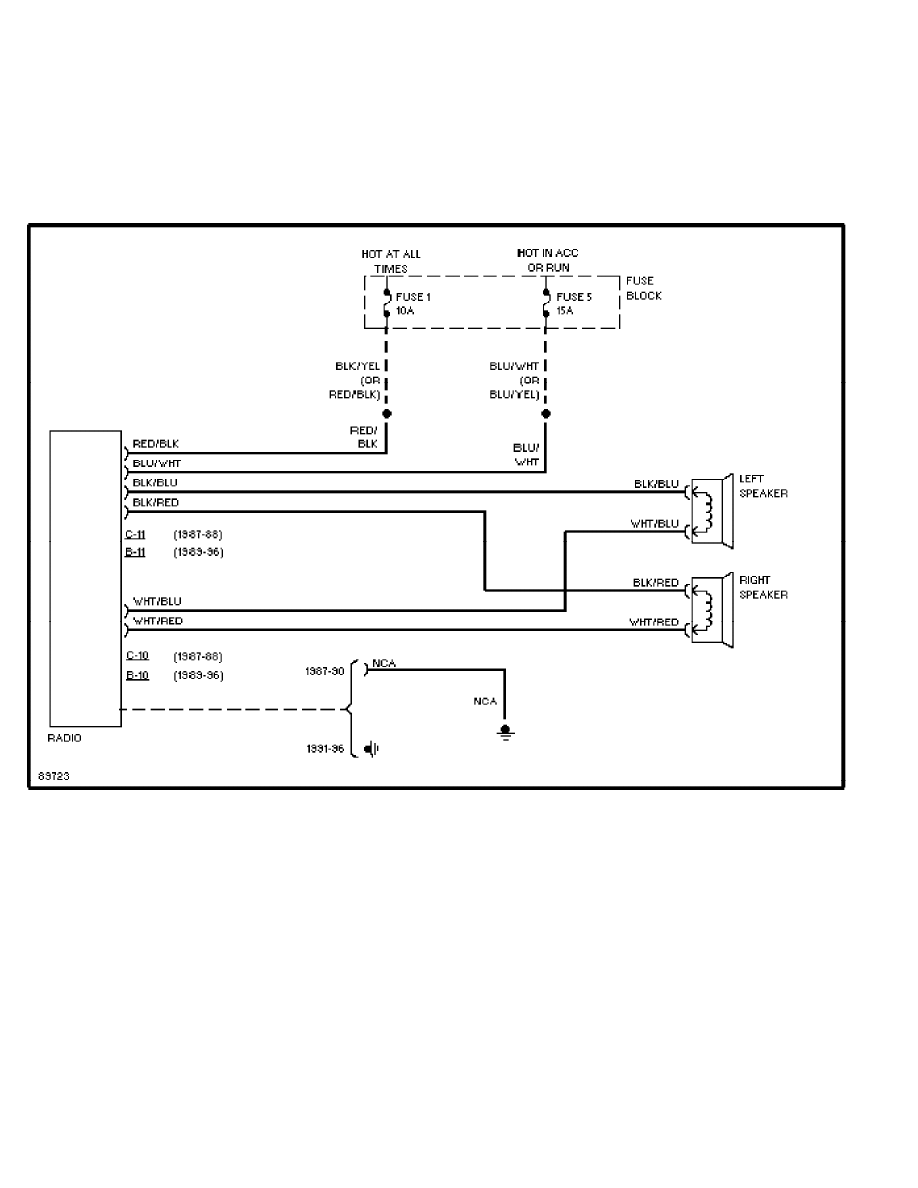

Radio Circuits, 2 Speaker System (p. 6)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

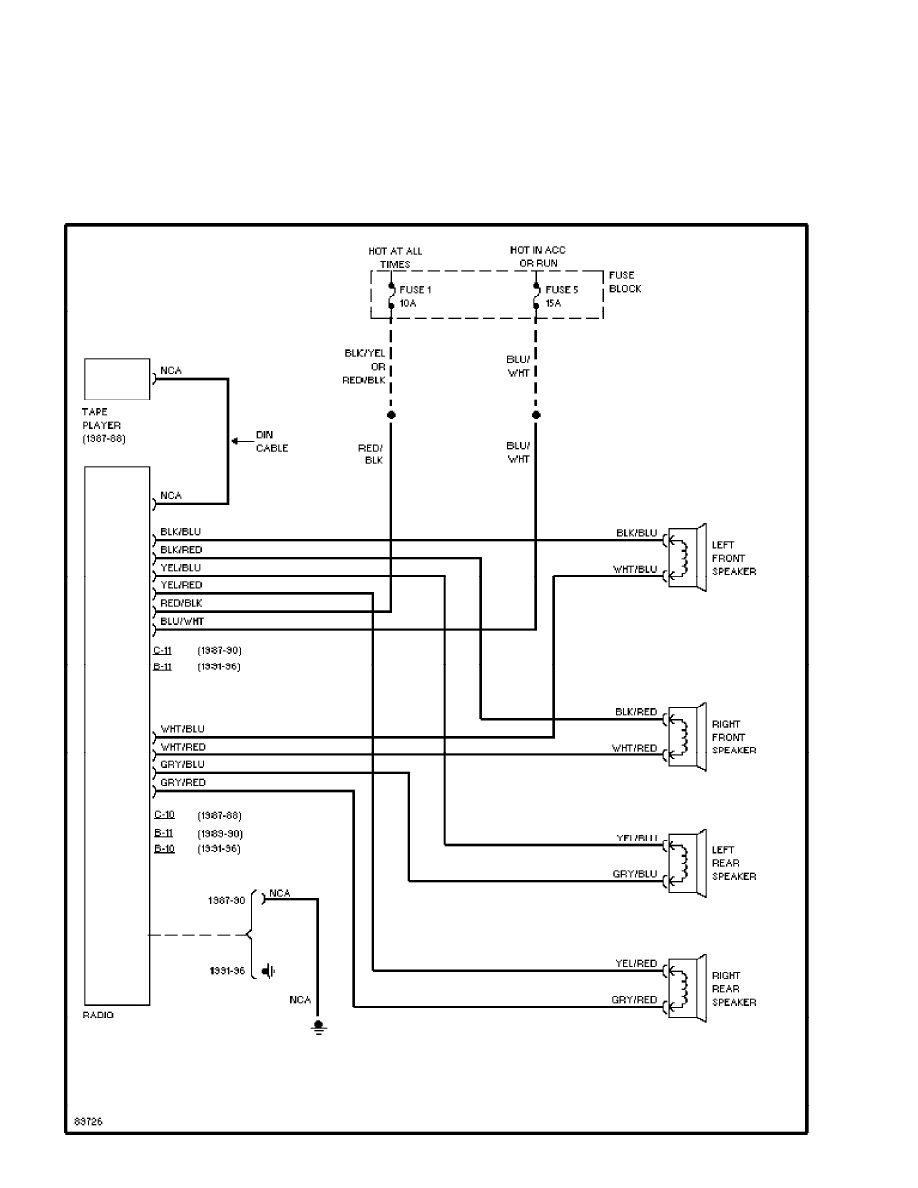

Radio Circuits, 4 Speaker System (p. 7)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

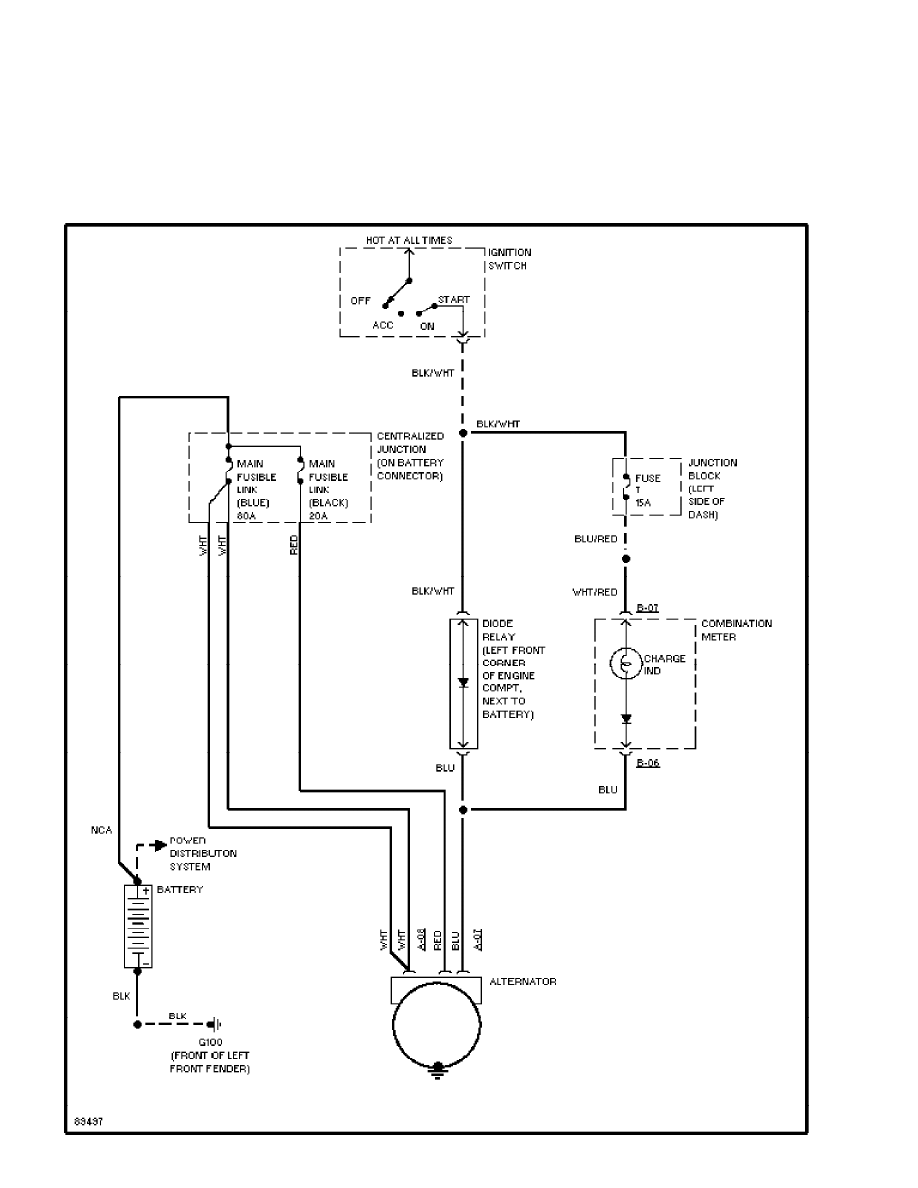

Charging Circuit (p. 8)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

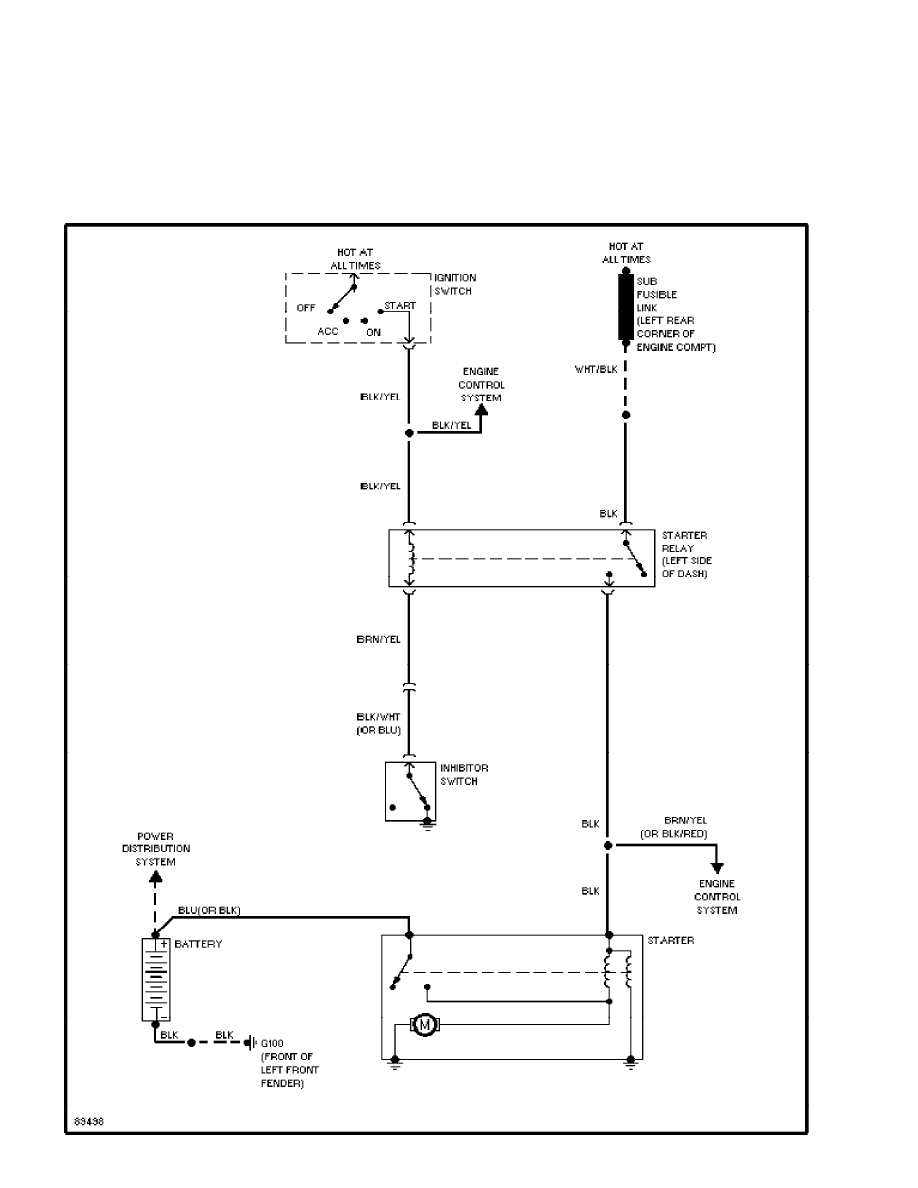

Starting Circuit, W/ A/T (p. 9)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

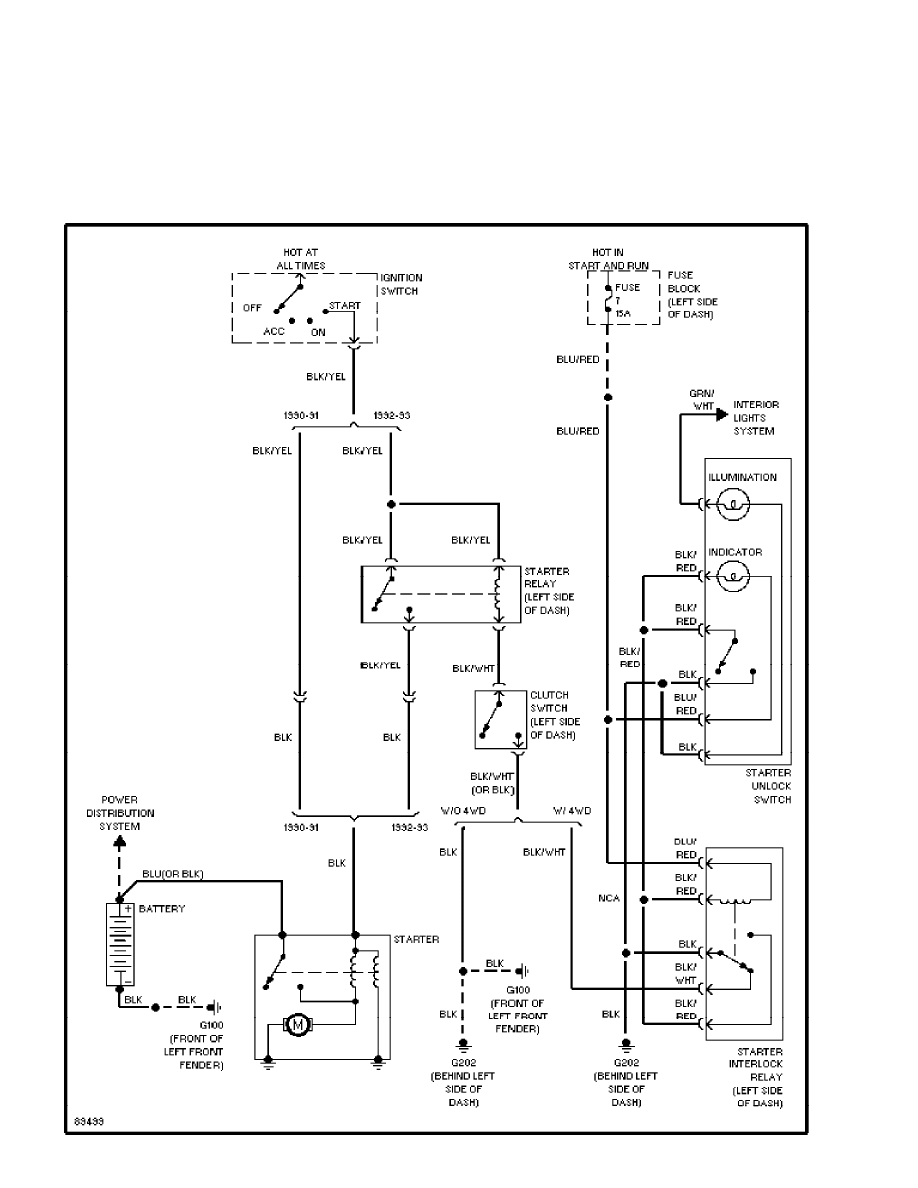

Starting Circuit, W/ M/T (p. 10)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

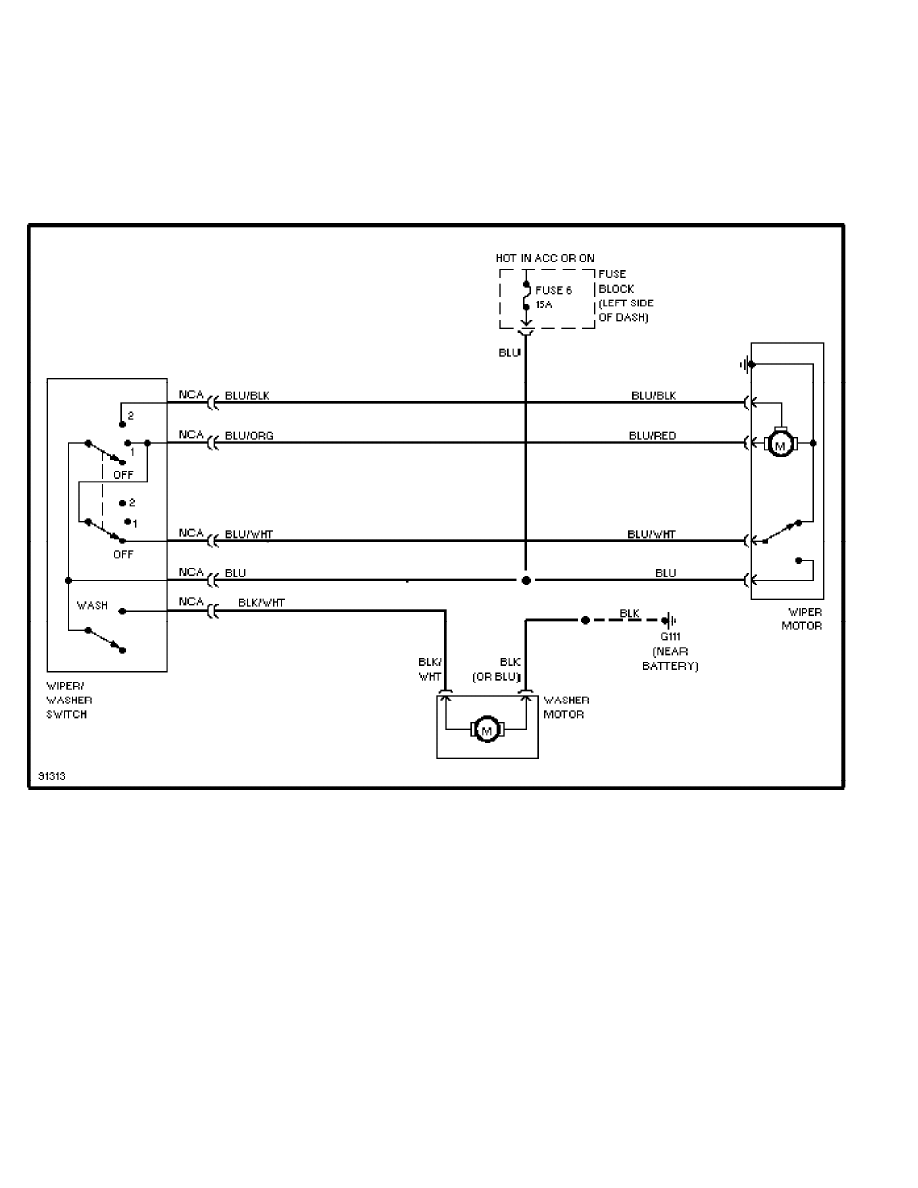

2-Speed Wiper/Washer Circuit (p. 11)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

SYSTEM WIRING DIAGRAMS

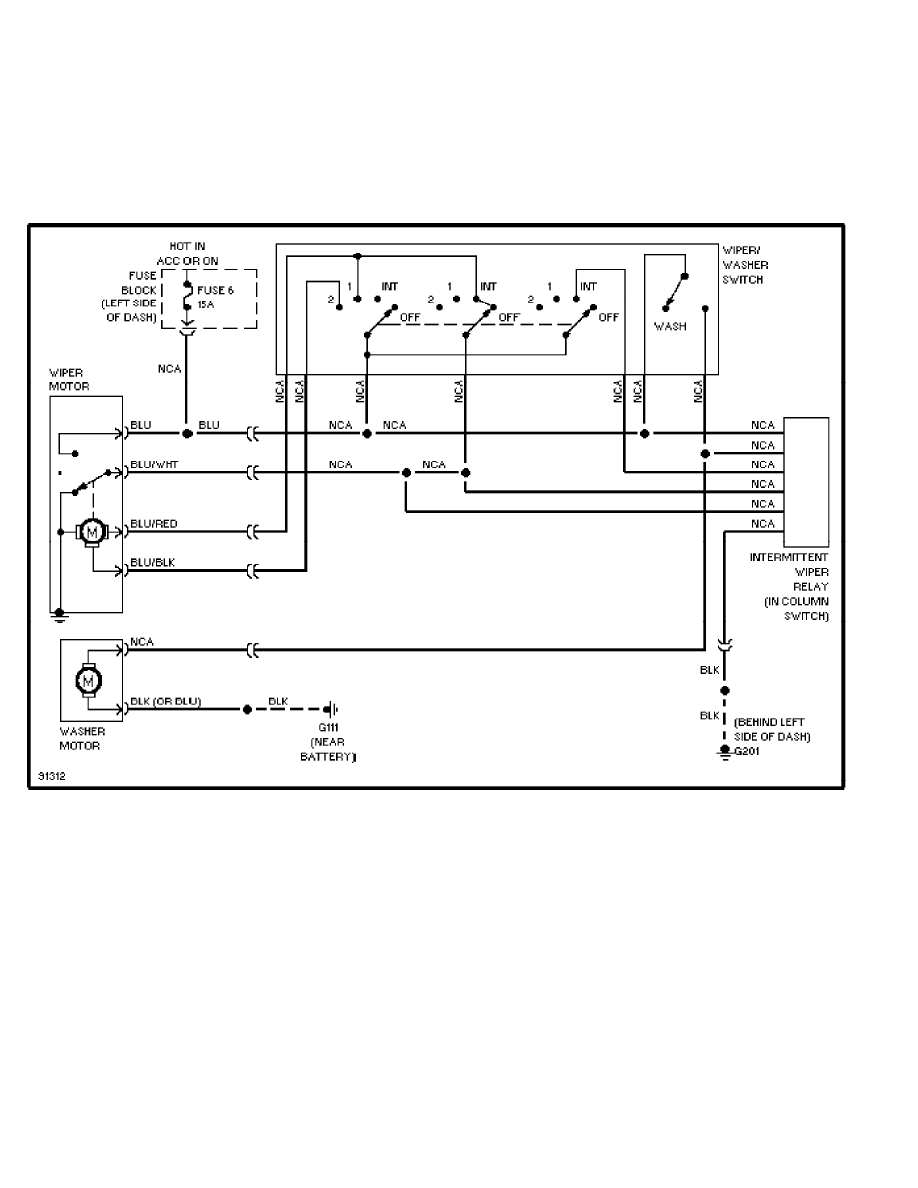

Intermittent Wiper/Washer Circuit (p. 12)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

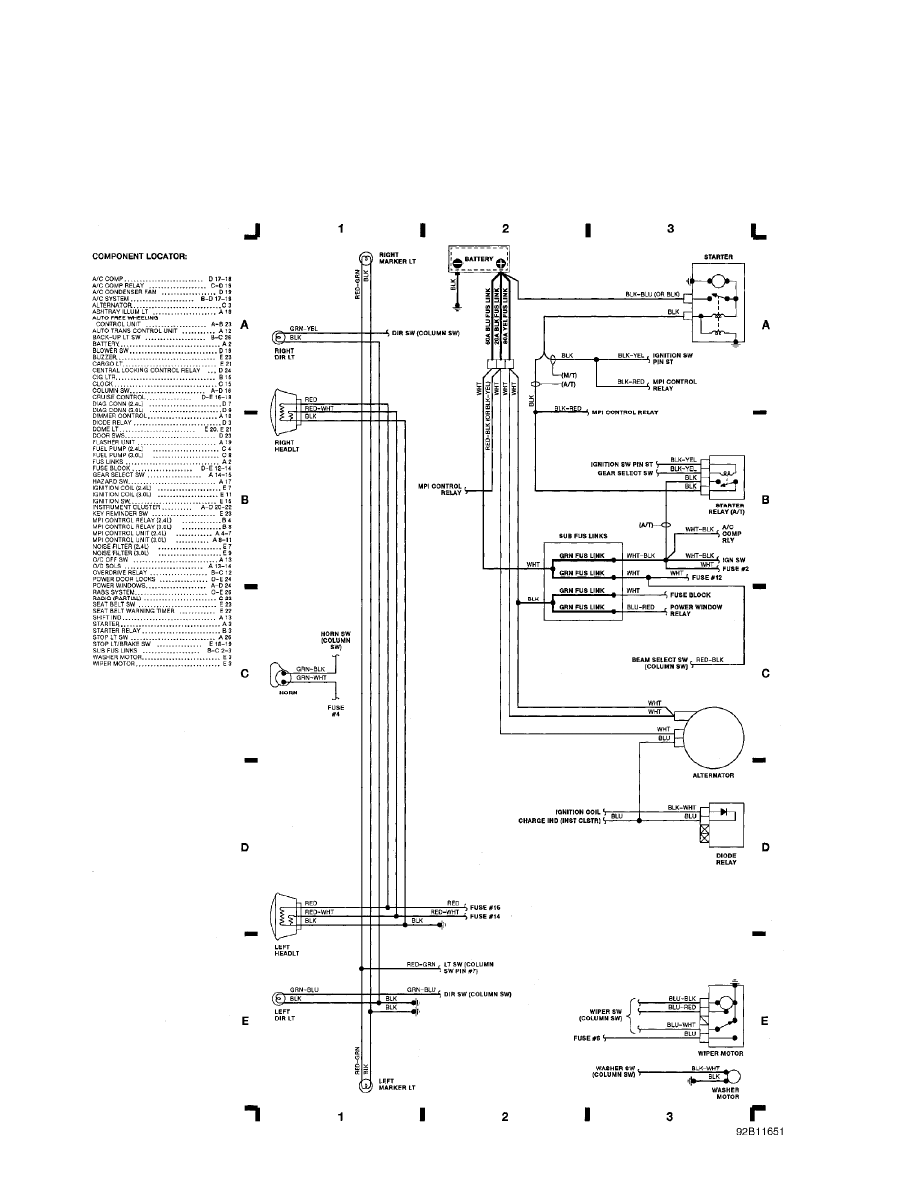

Fig. 1: Engine Compartment, Headlights (Grid 1-3)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

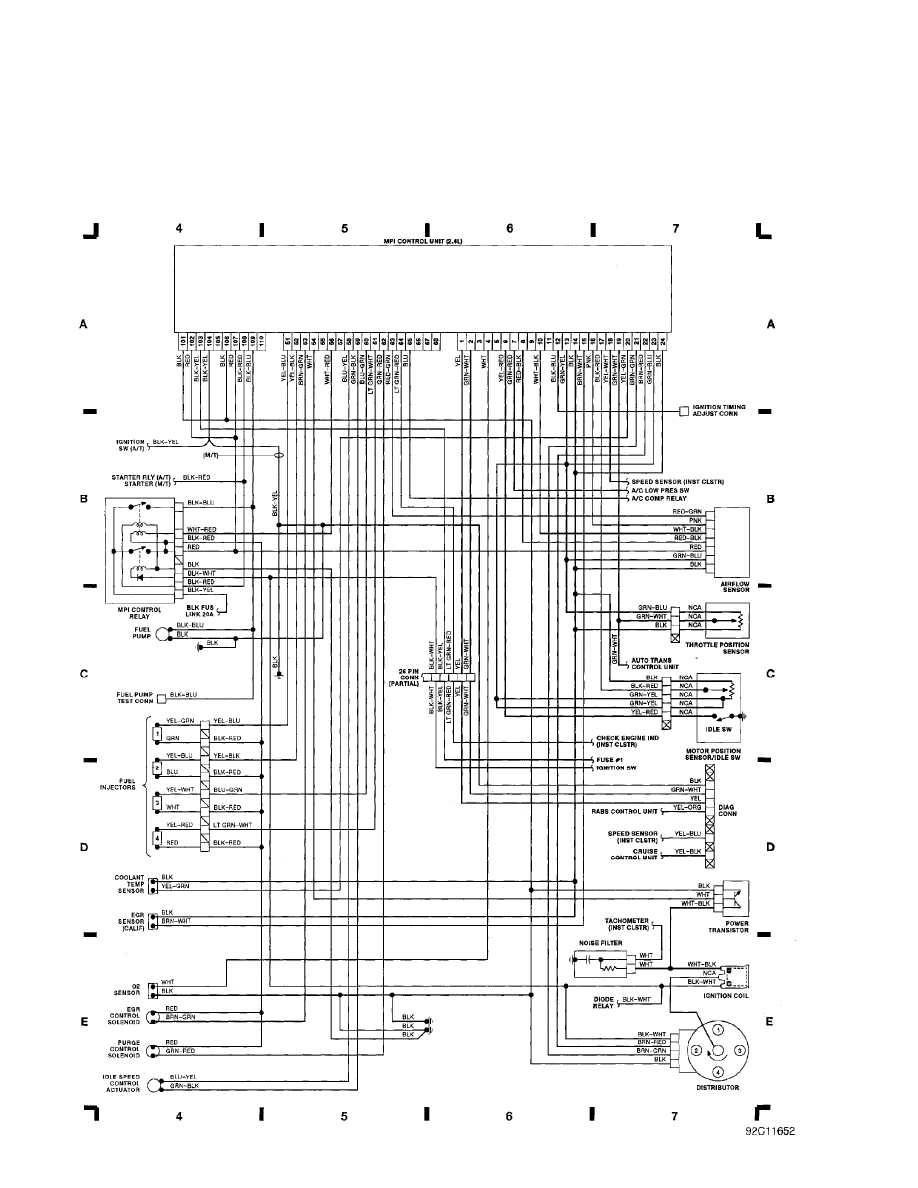

Fig. 2: Computer Engine Control (2.4L) (Grid 4-7) (p. 2)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

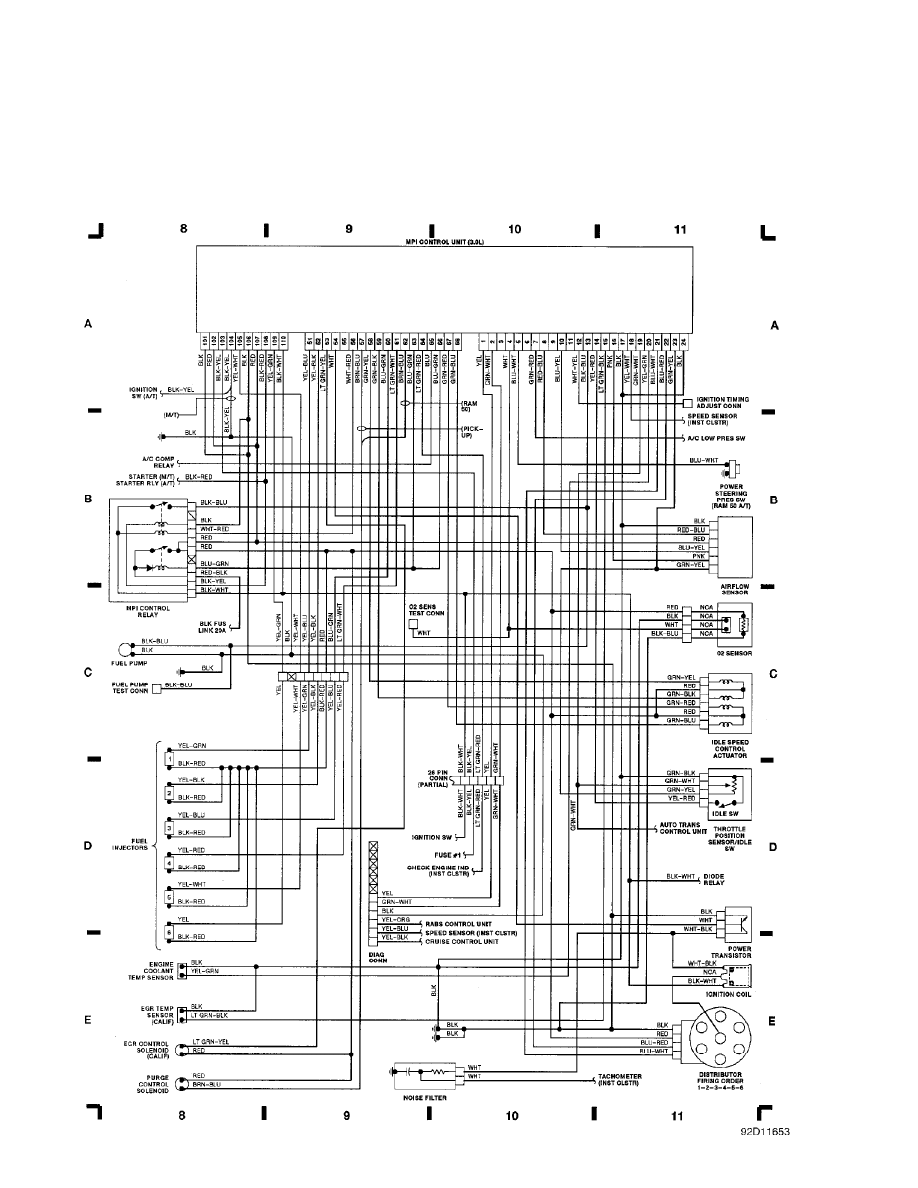

Fig. 3: Computer Engine Control (3.0L) (Grid 8-11) (p. 3)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

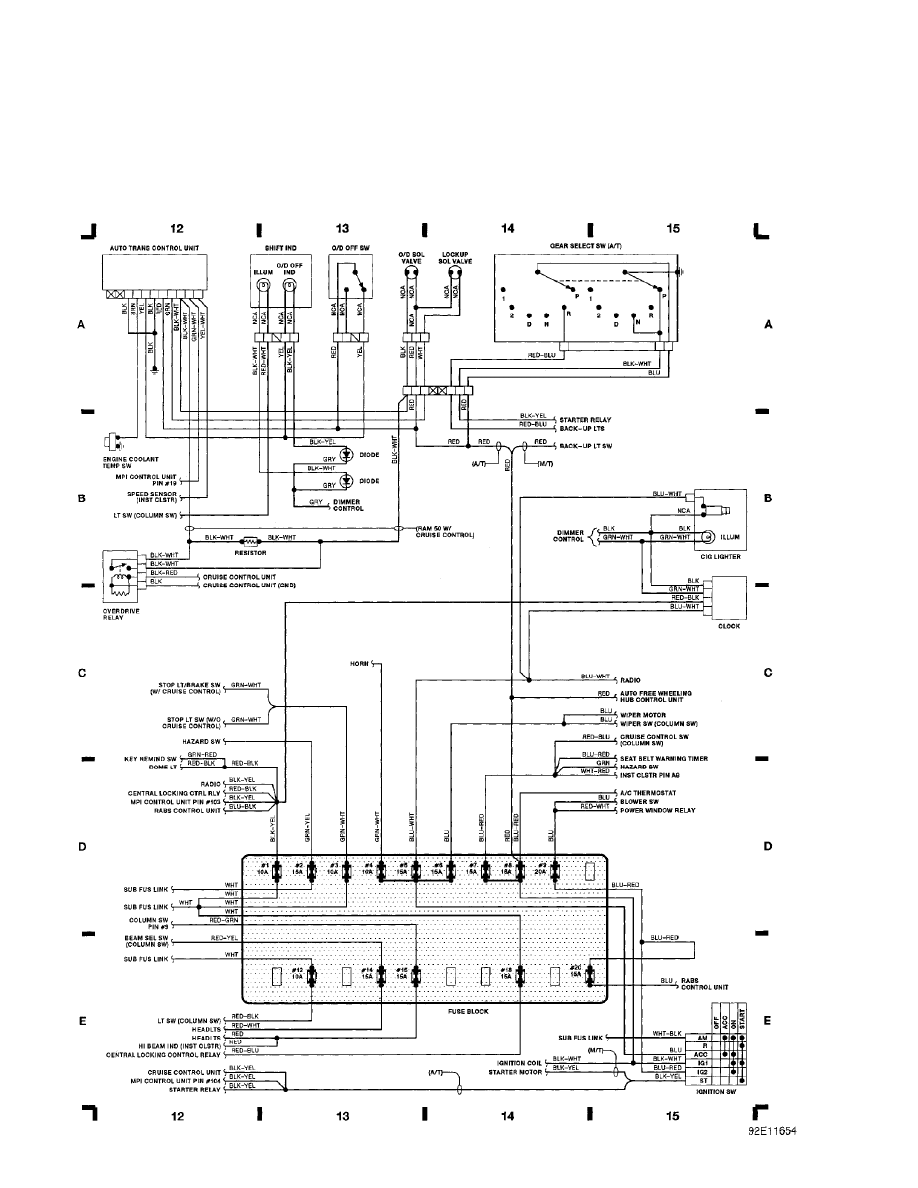

Fig. 4: Fuse Block, A/T Control System, Ignition Sw (Grid 12-15) (p. 4)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

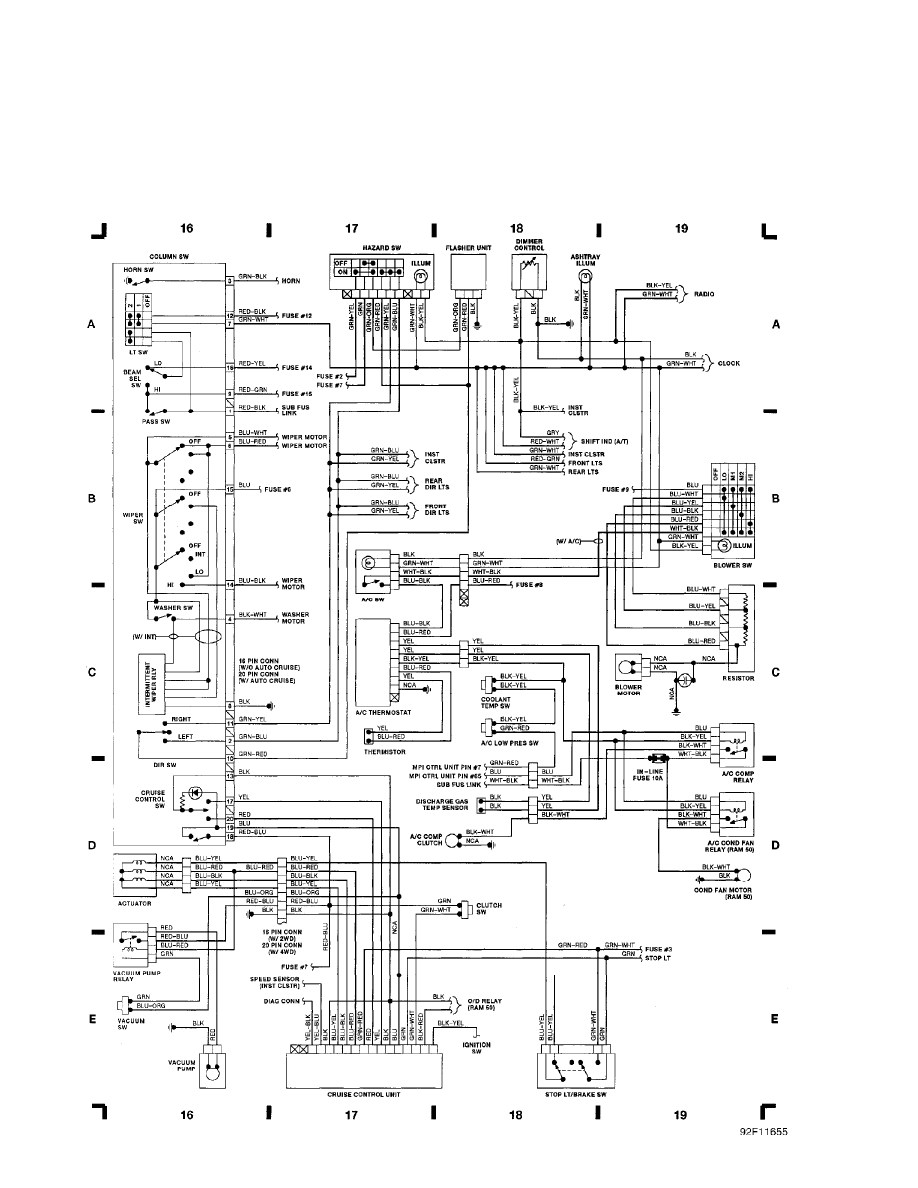

Fig. 5: Column Sw, Cruise Ctrl, A/C & Heating (Grid 16-19) (p. 5)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

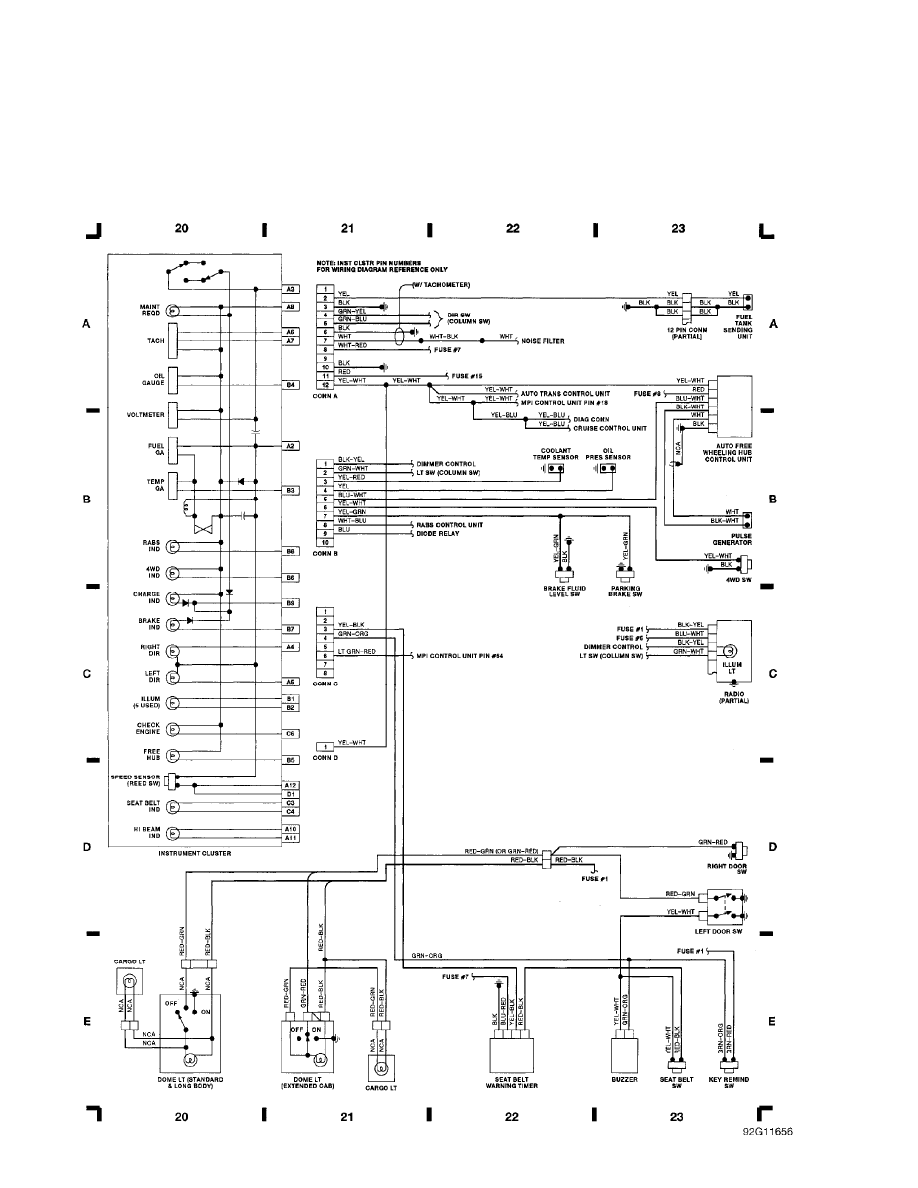

Fig. 6: Instr Cluster, Dome Lights, Seat Belts (Grid 20-23) (p. 6)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM

background image

WIRING DIAGRAMS

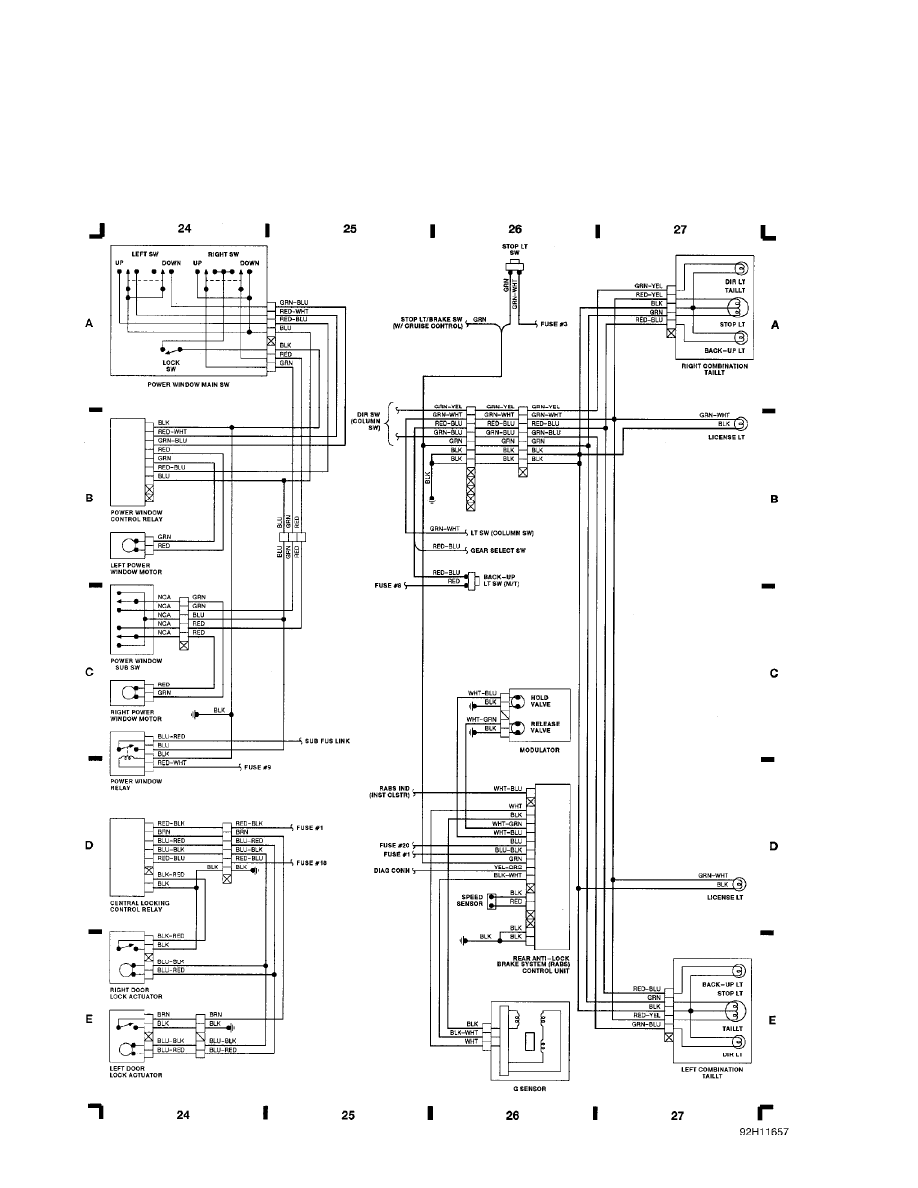

Fig. 7: Power Windows/Door Locks, Taillights (Grid 24-27) (p. 7)

1991 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:06PM
