SYSTEM WIRING DIAGRAMS

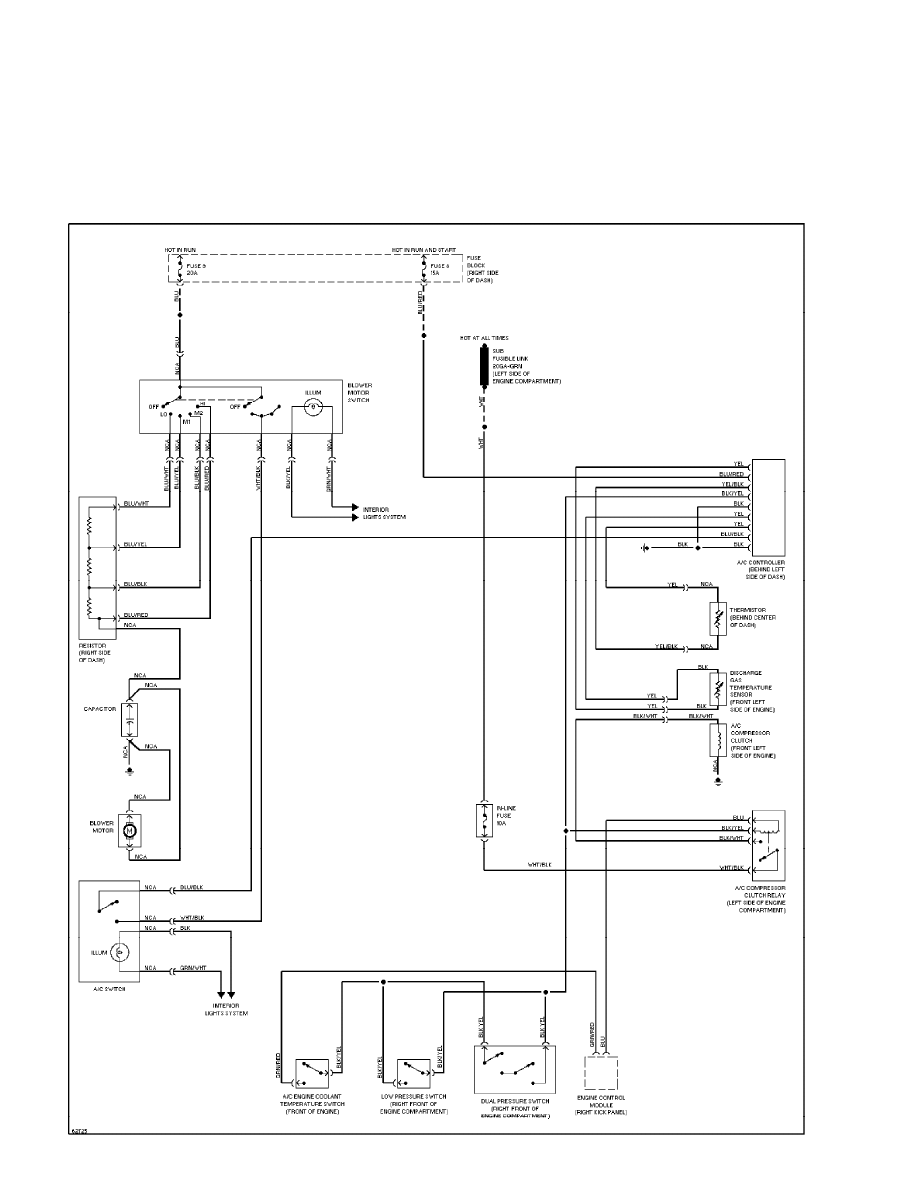

A/C Circuit

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

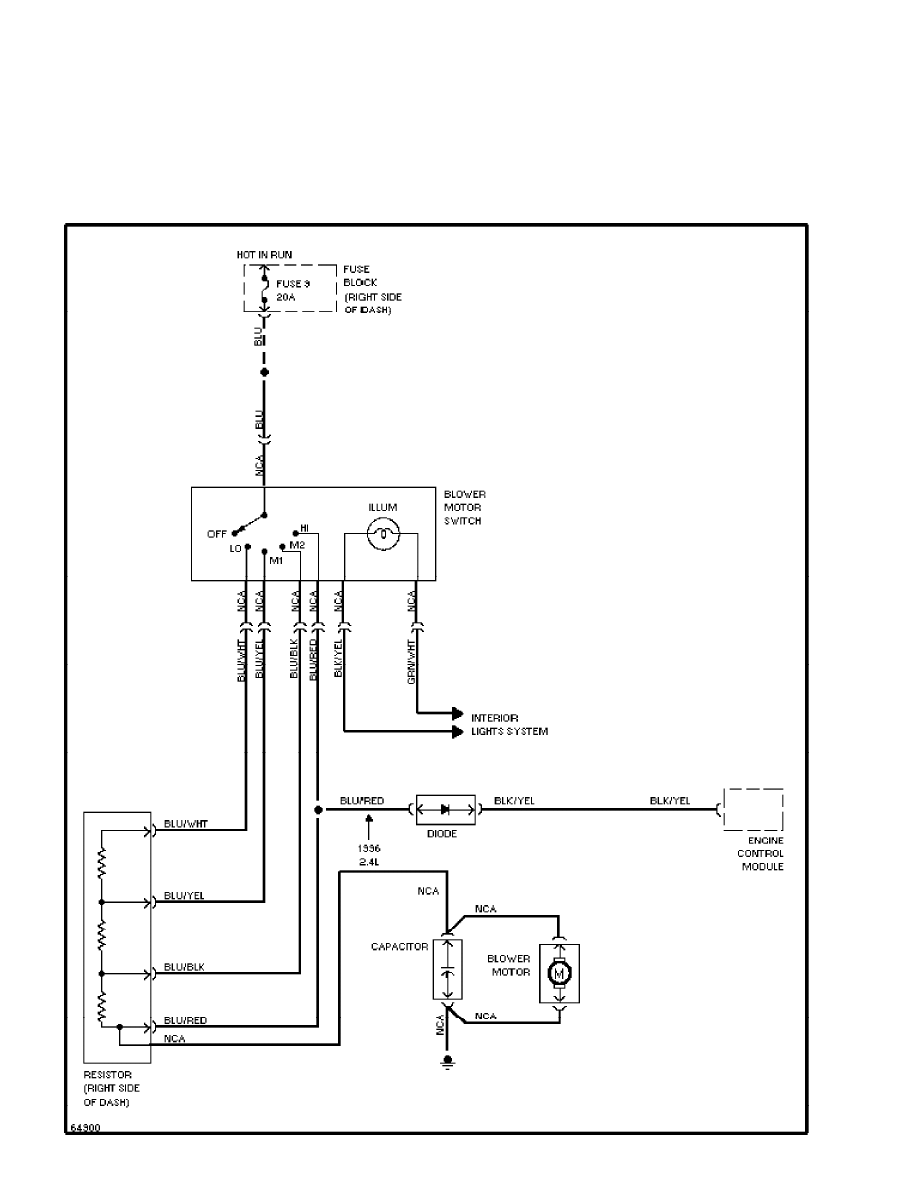

Heater Circuit (p. 2)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

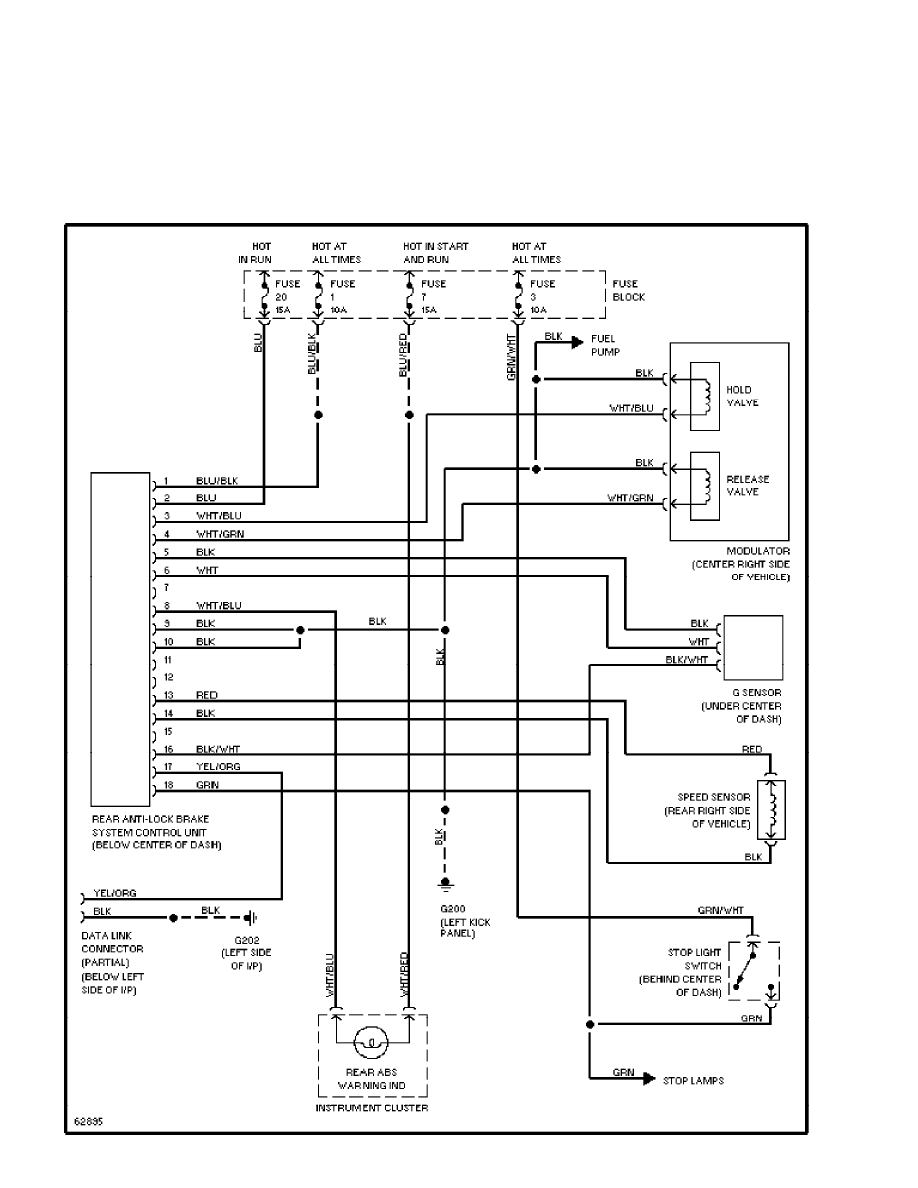

Anti-lock Brake Circuits, Rear Wheel ABS (p. 3)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

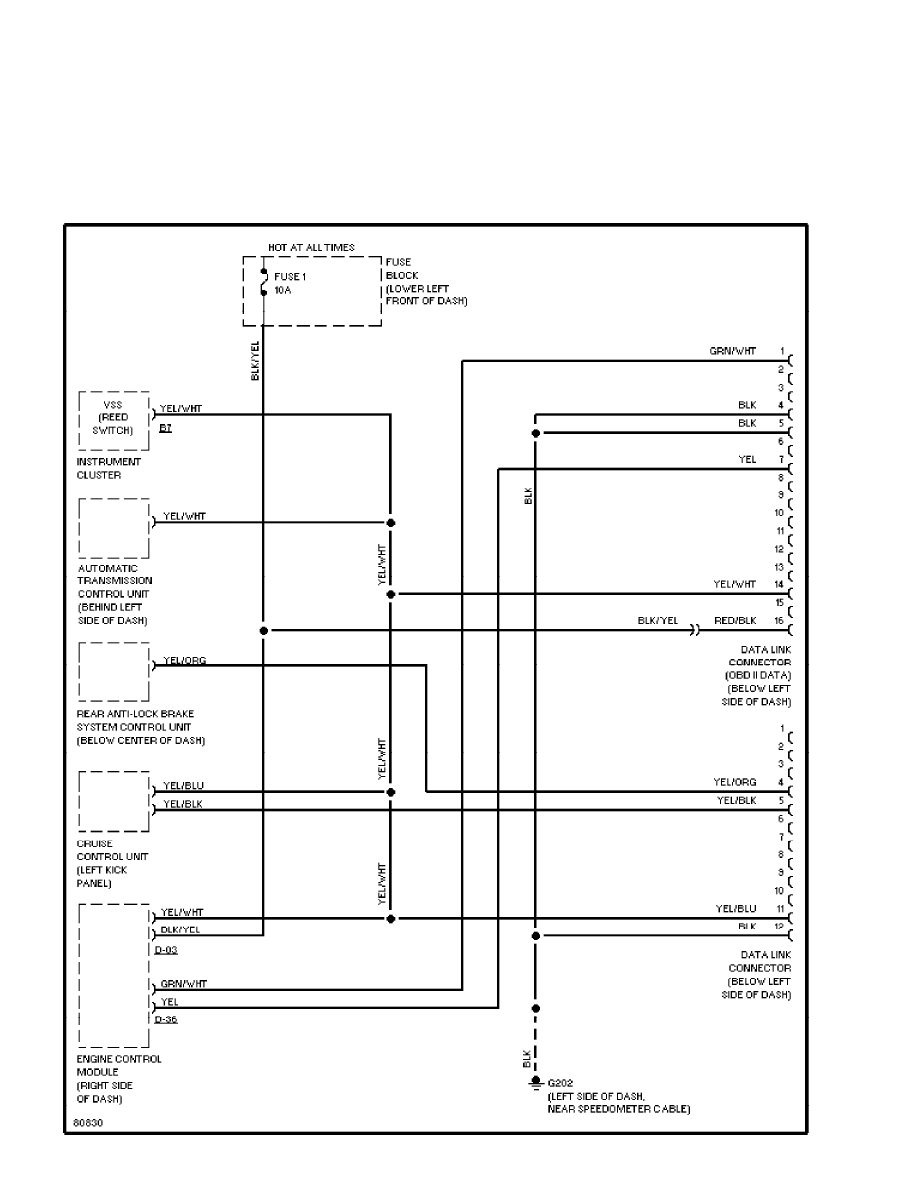

Computer Data Lines (p. 4)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

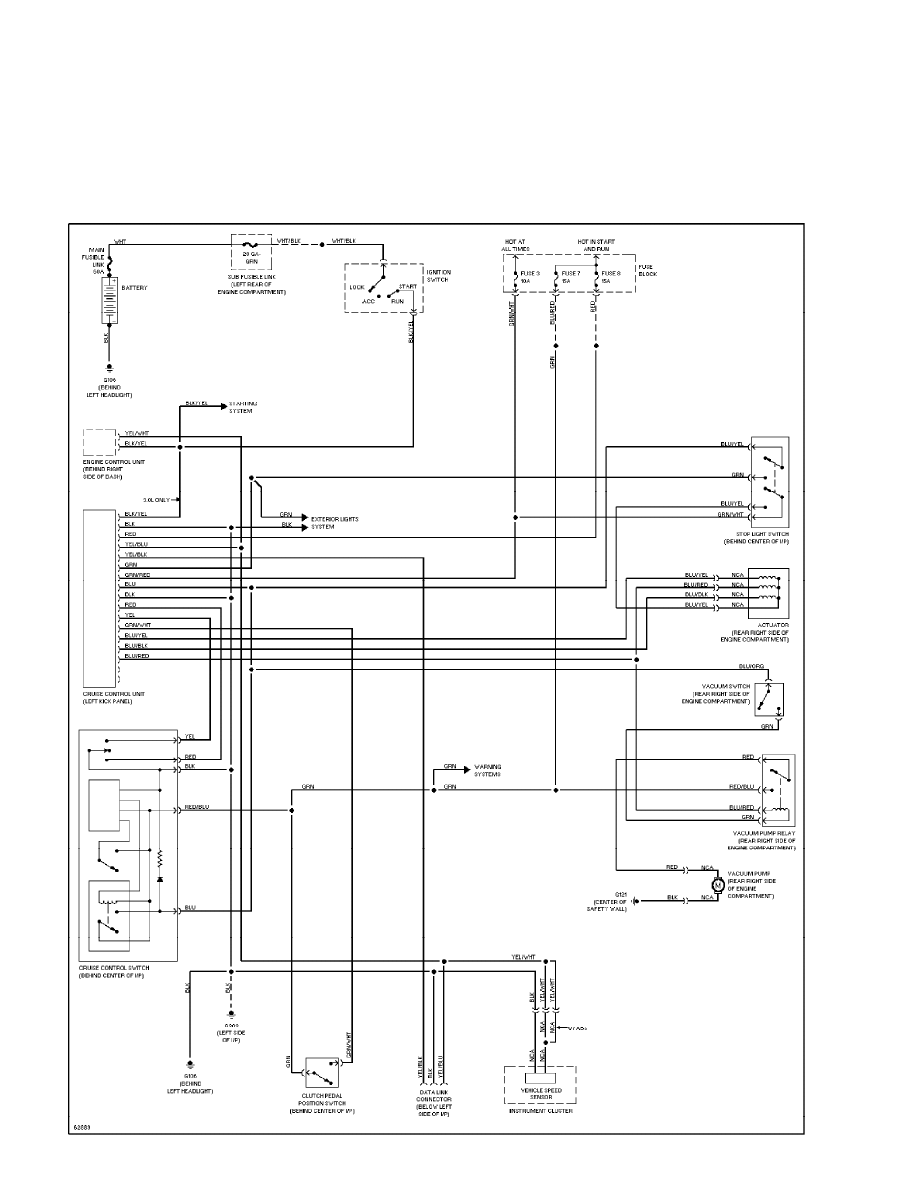

Cruise Control Circuit (p. 5)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

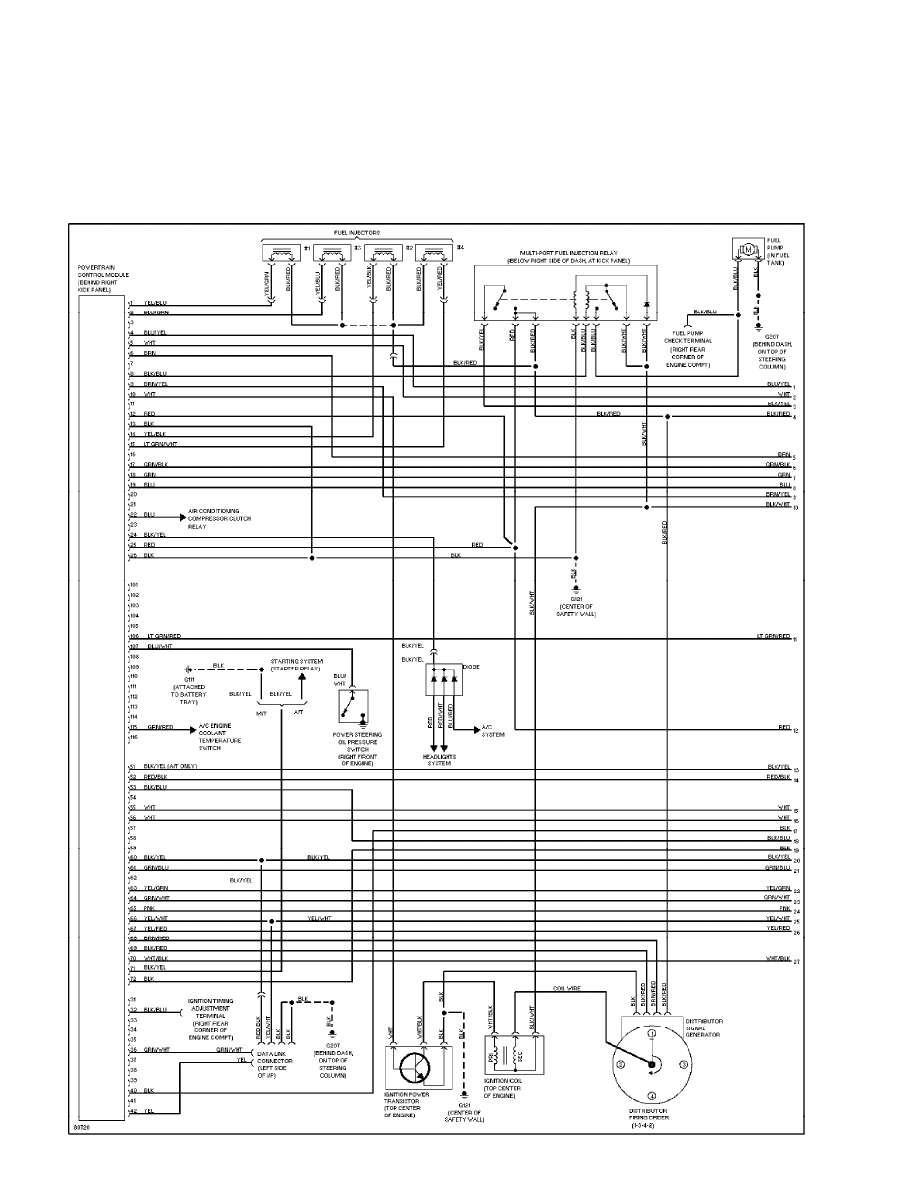

2.4L, Engine Performance Circuits (1 of 2) (p. 6)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

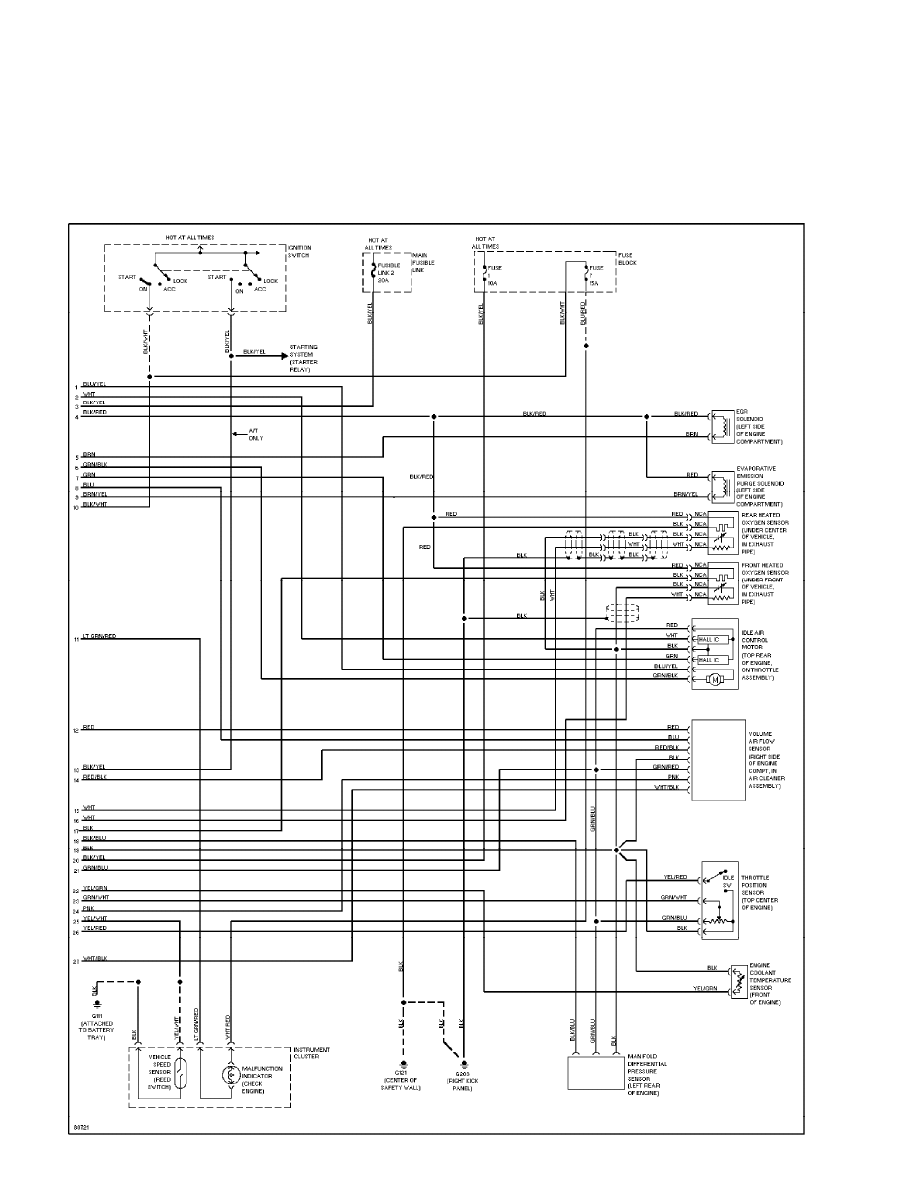

2.4L, Engine Performance Circuits (2 of 2) (p. 7)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

Back-up Lamps Circuit (p. 8)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

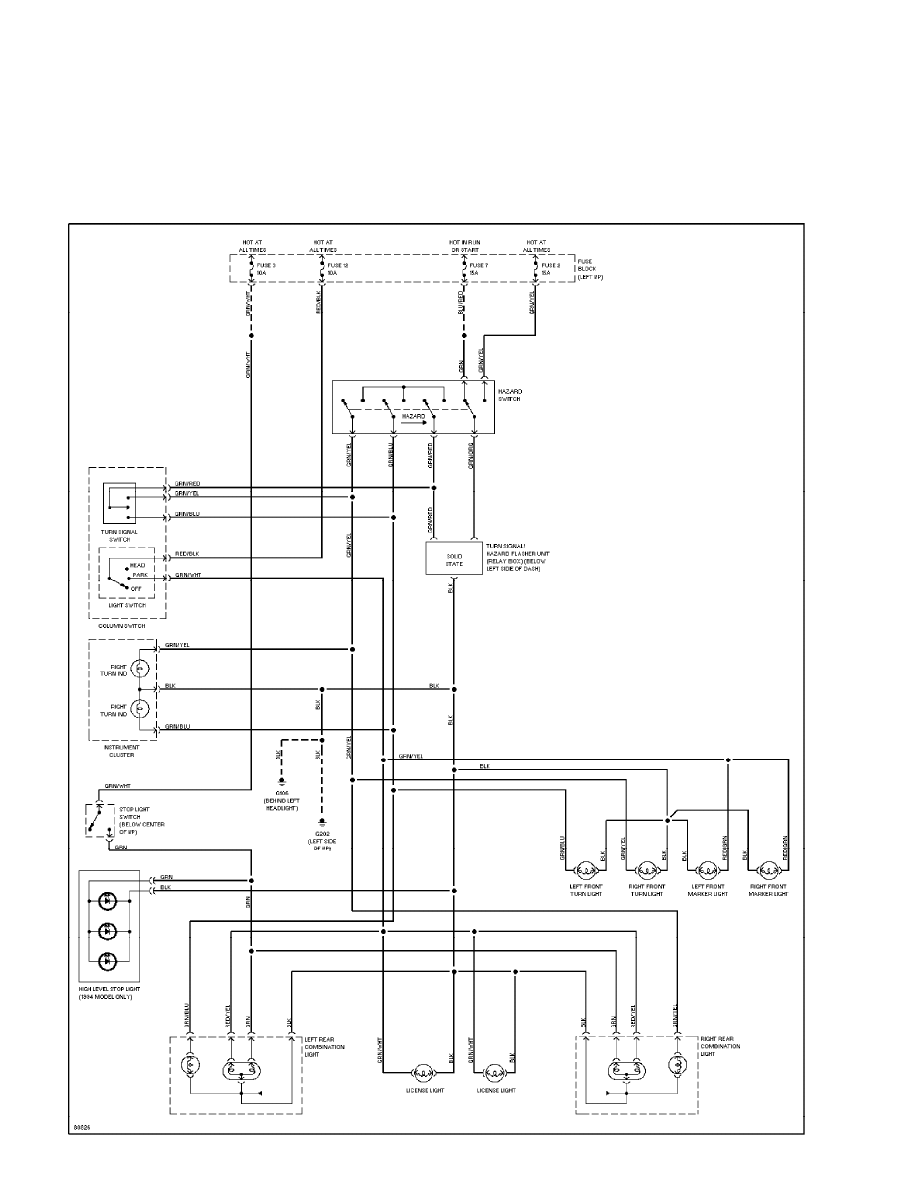

SYSTEM WIRING DIAGRAMS

Exterior Lamps Circuit (p. 9)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

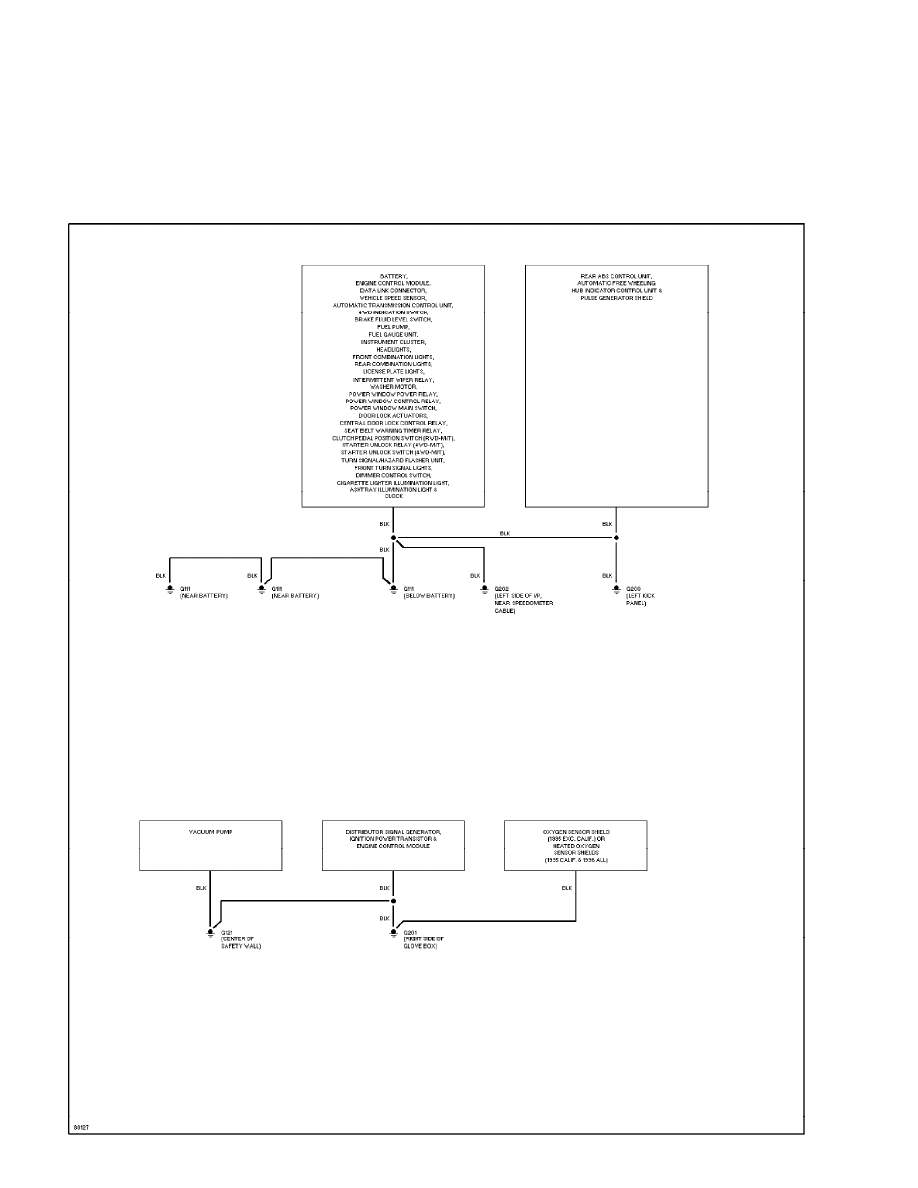

Ground Distribution Circuit (p. 10)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

Headlight Circuit (p. 11)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

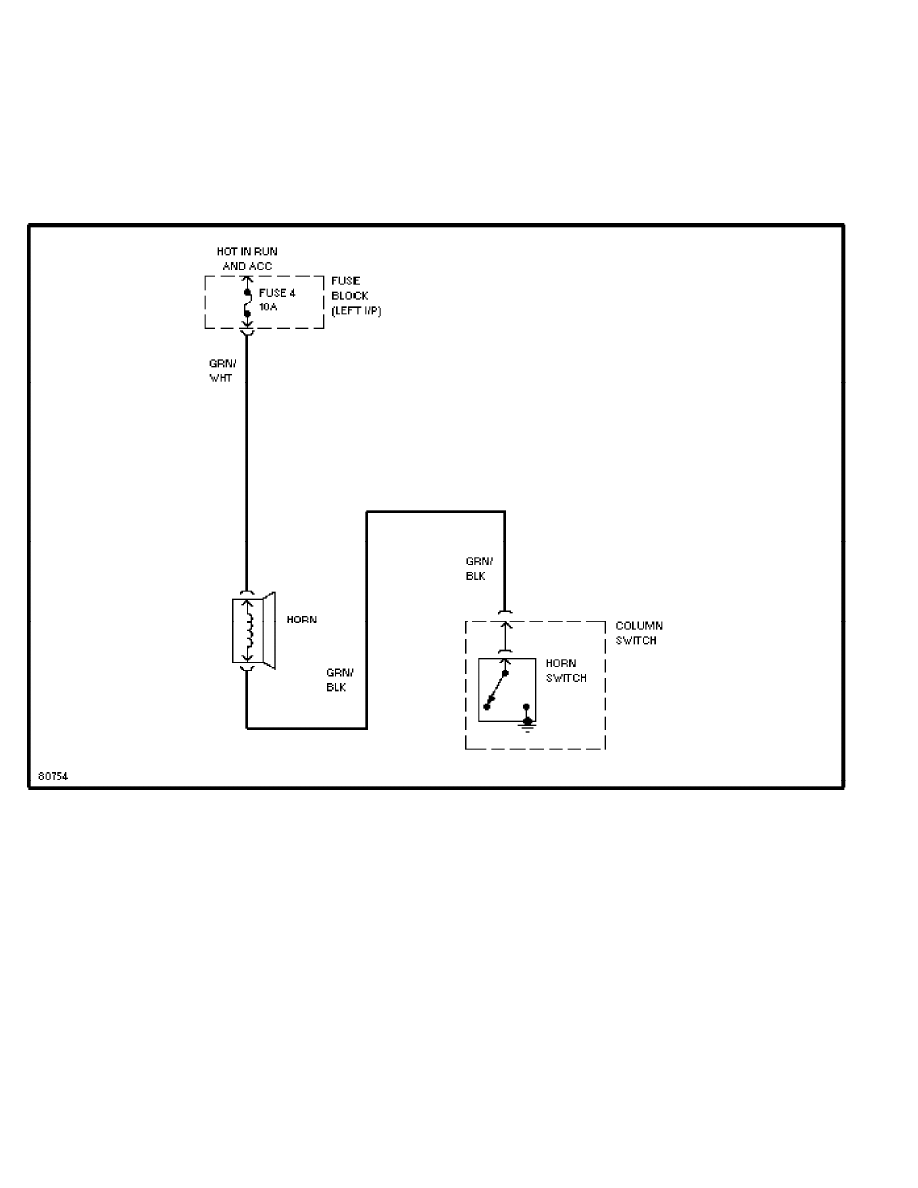

Horn Circuit (p. 12)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

Instrument Cluster Circuit (p. 13)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

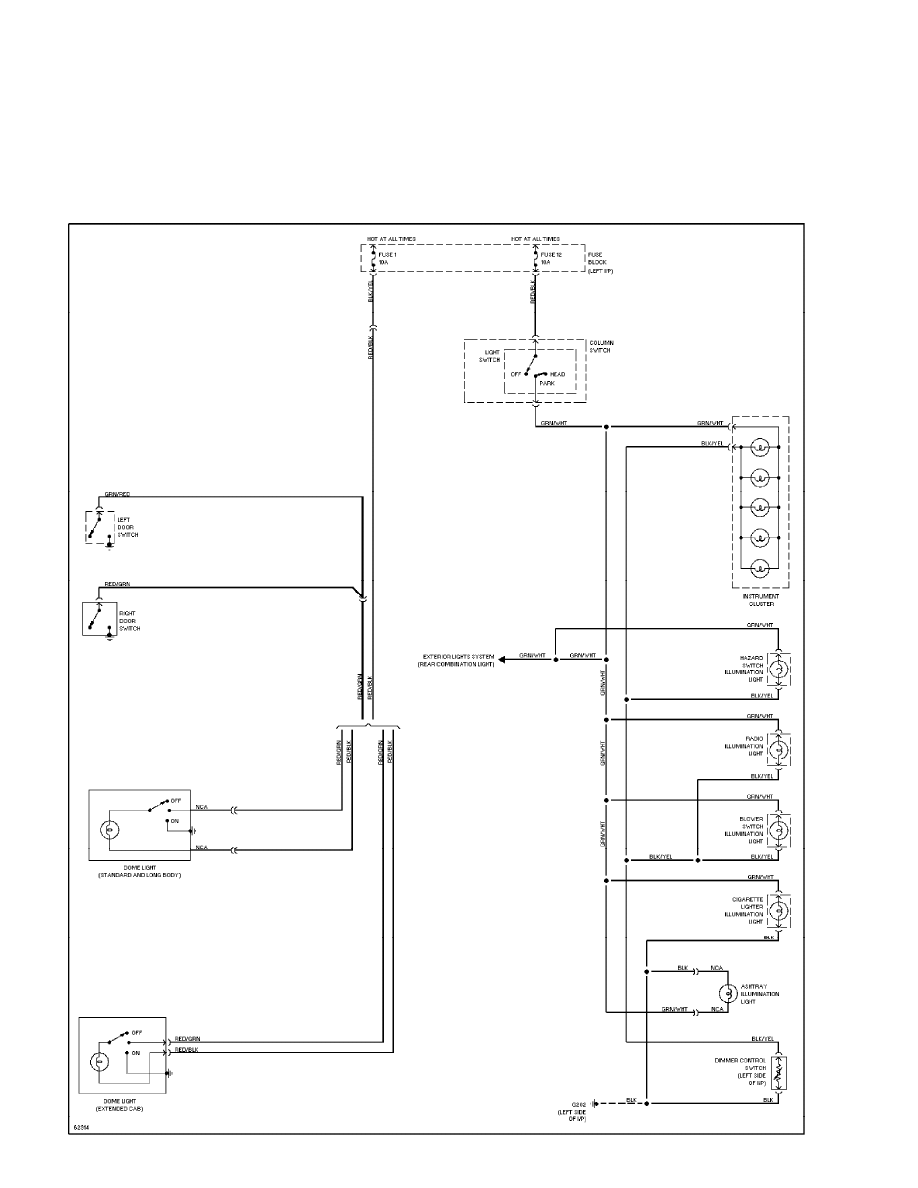

Interior Light Circuit (p. 14)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

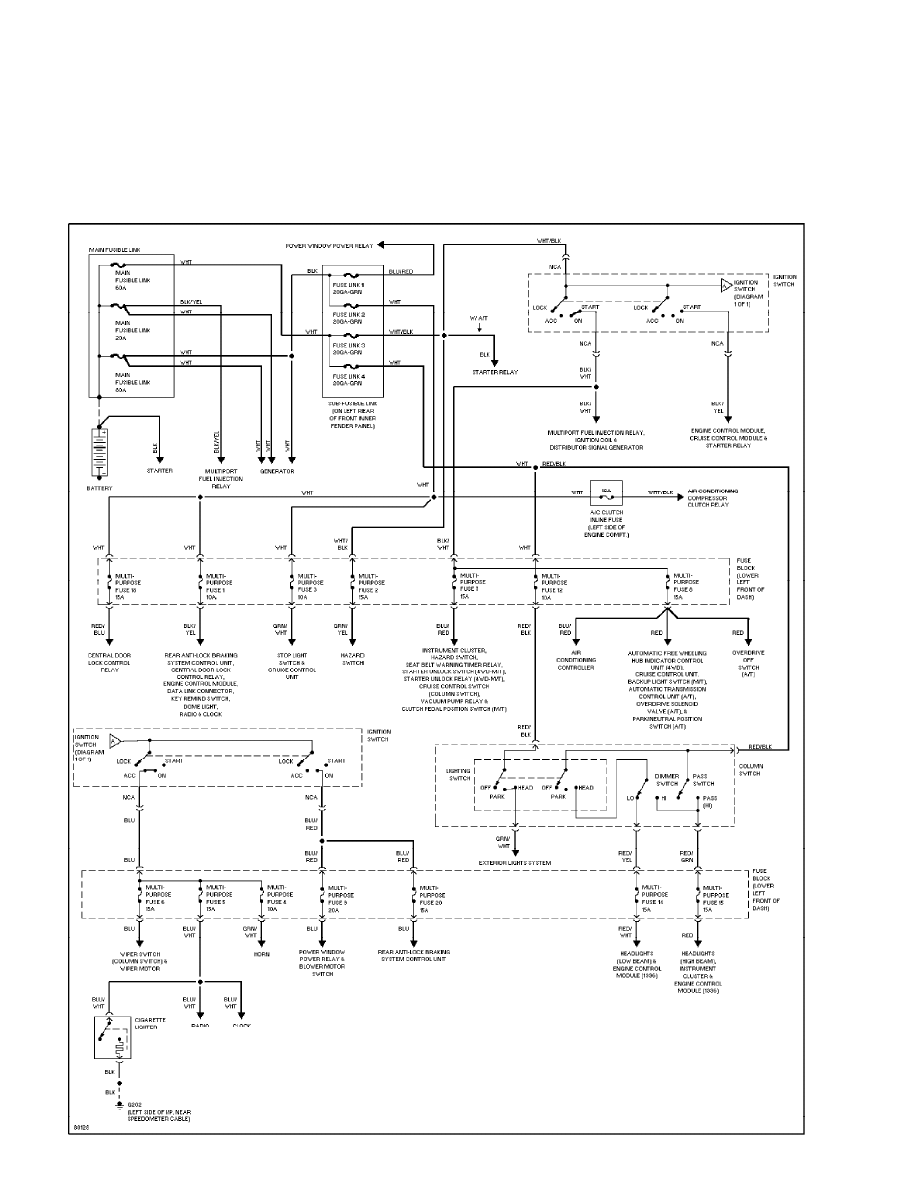

Power Distribution Circuit (p. 15)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

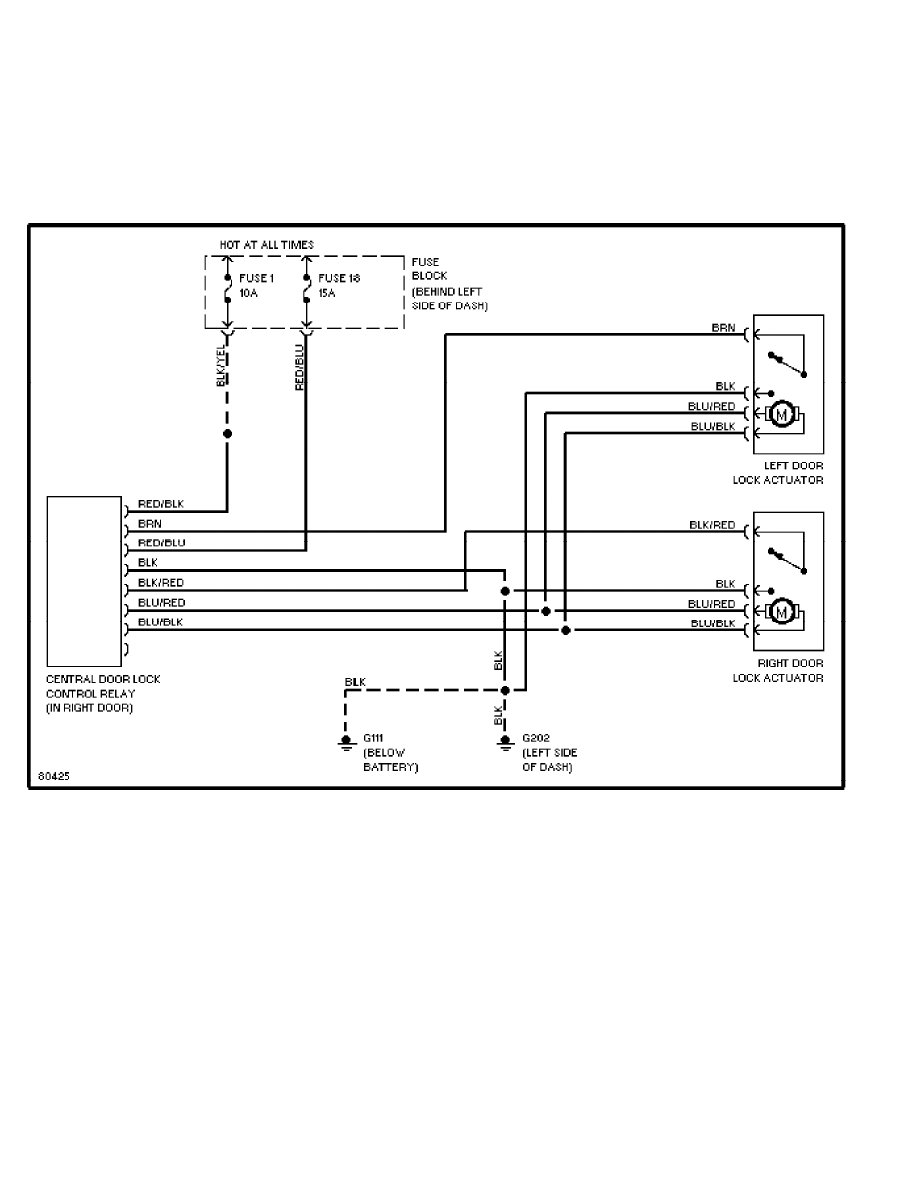

Power Door Lock Circuit (p. 16)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

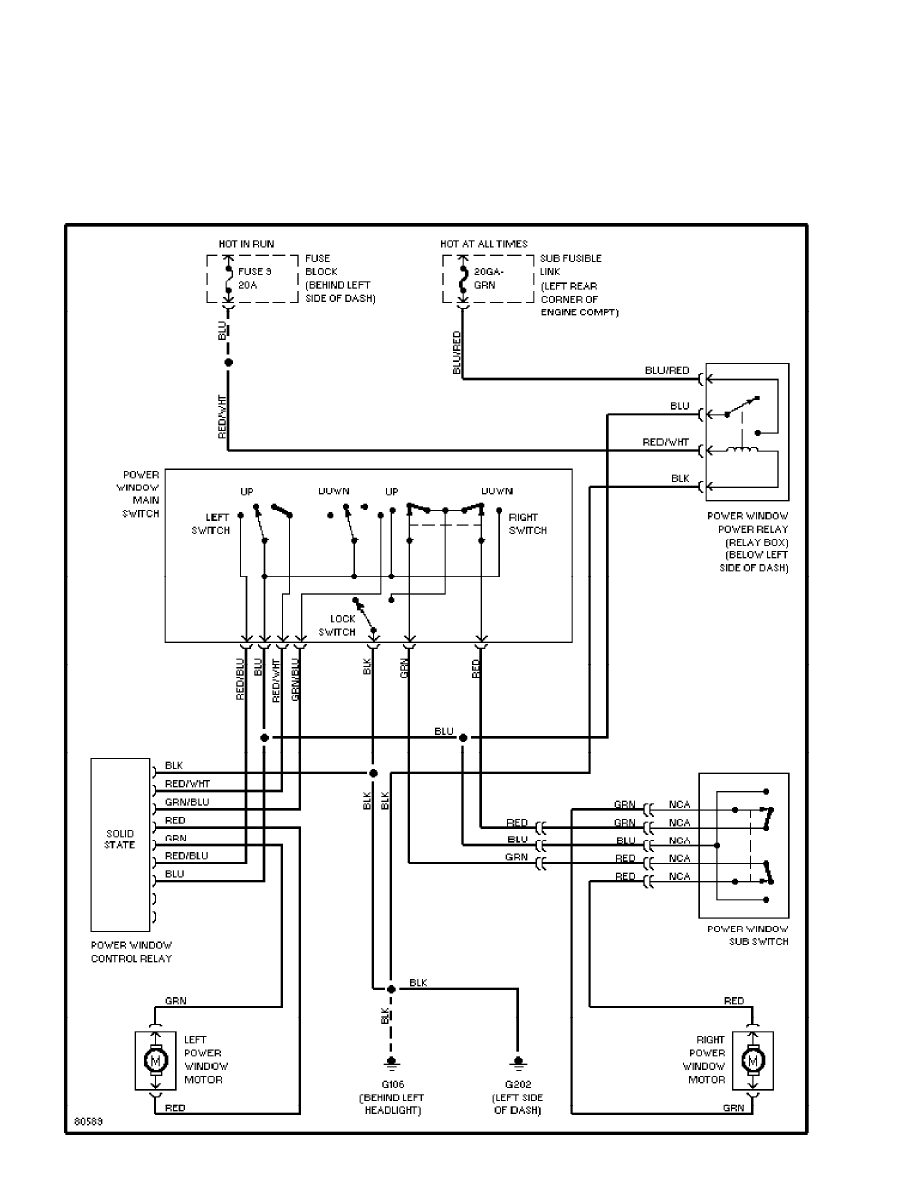

Power Window Circuit (p. 17)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

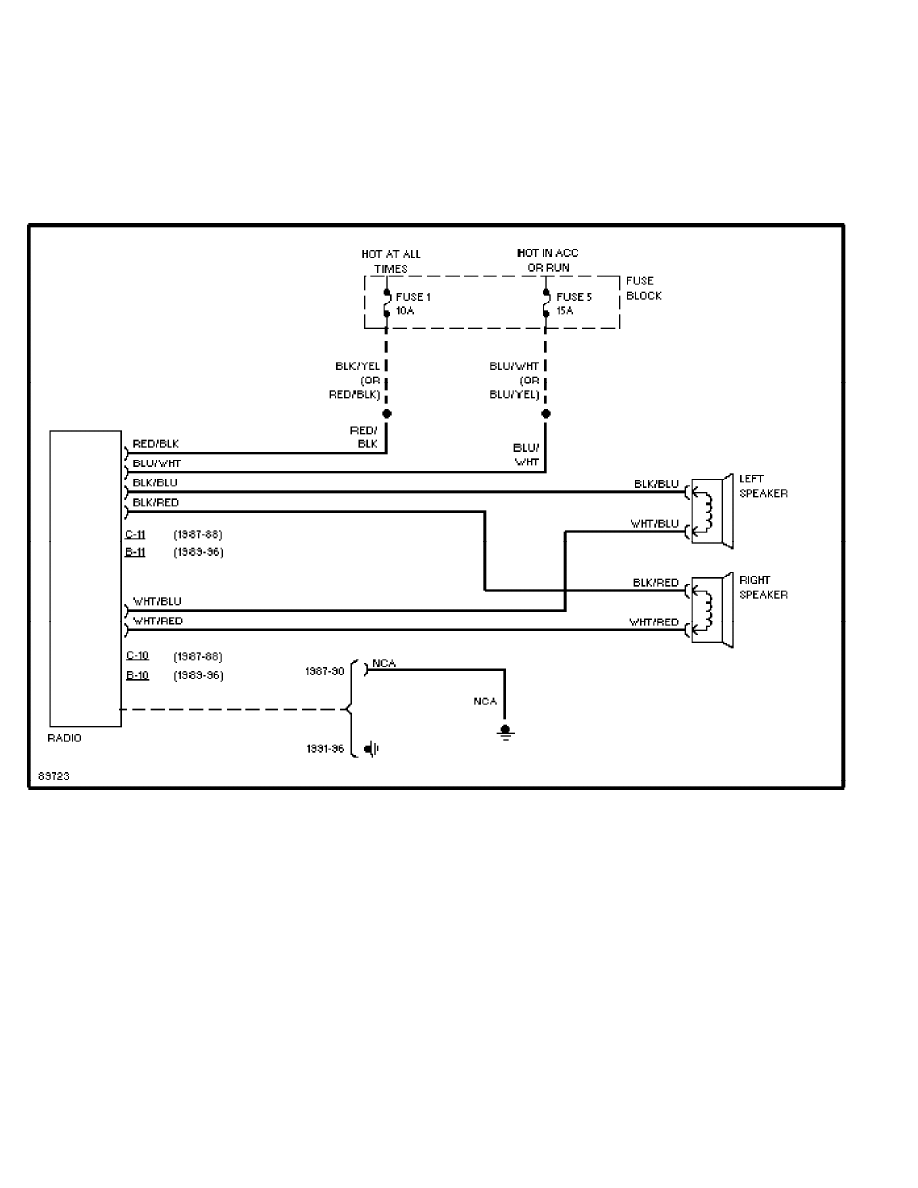

Radio Circuits, 2 Speaker System (p. 18)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

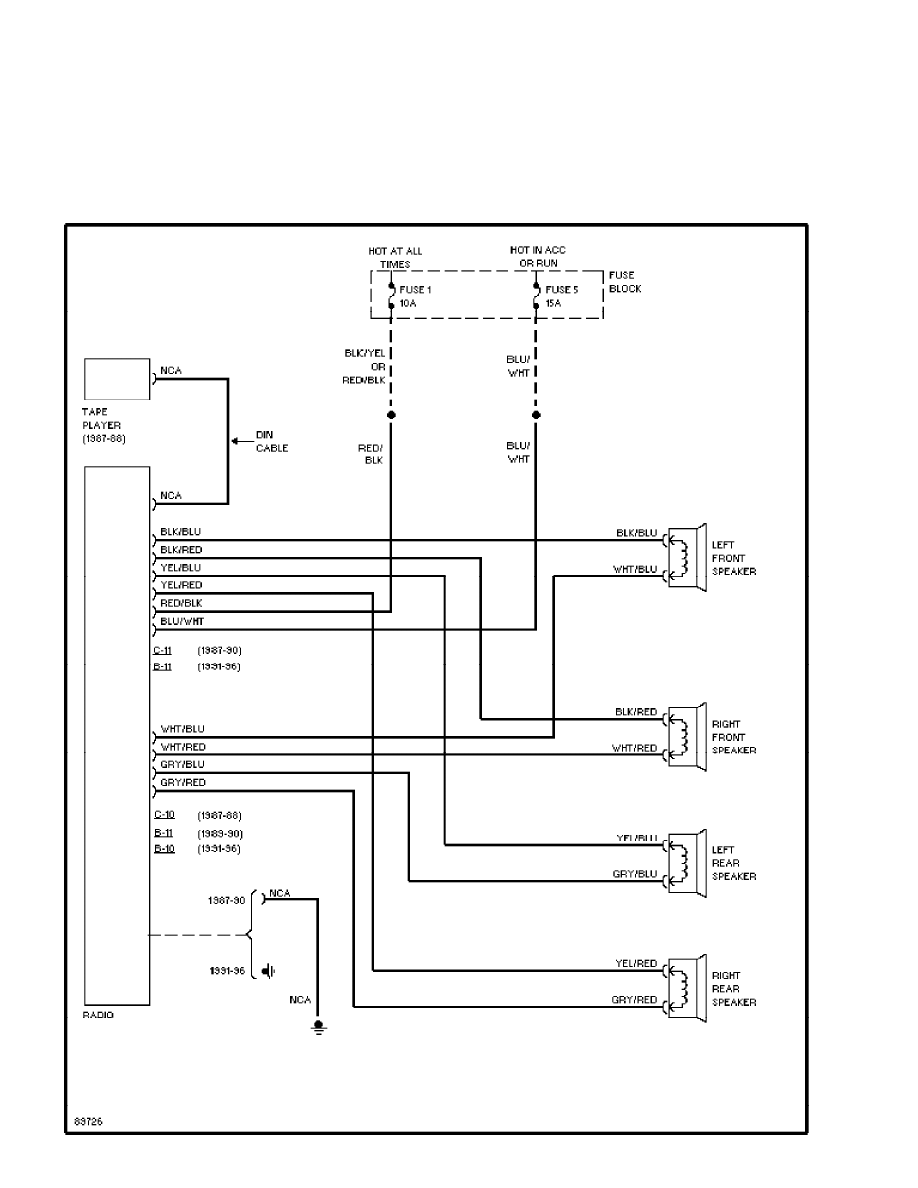

Radio Circuits, 4 Speaker System (p. 19)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 20)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

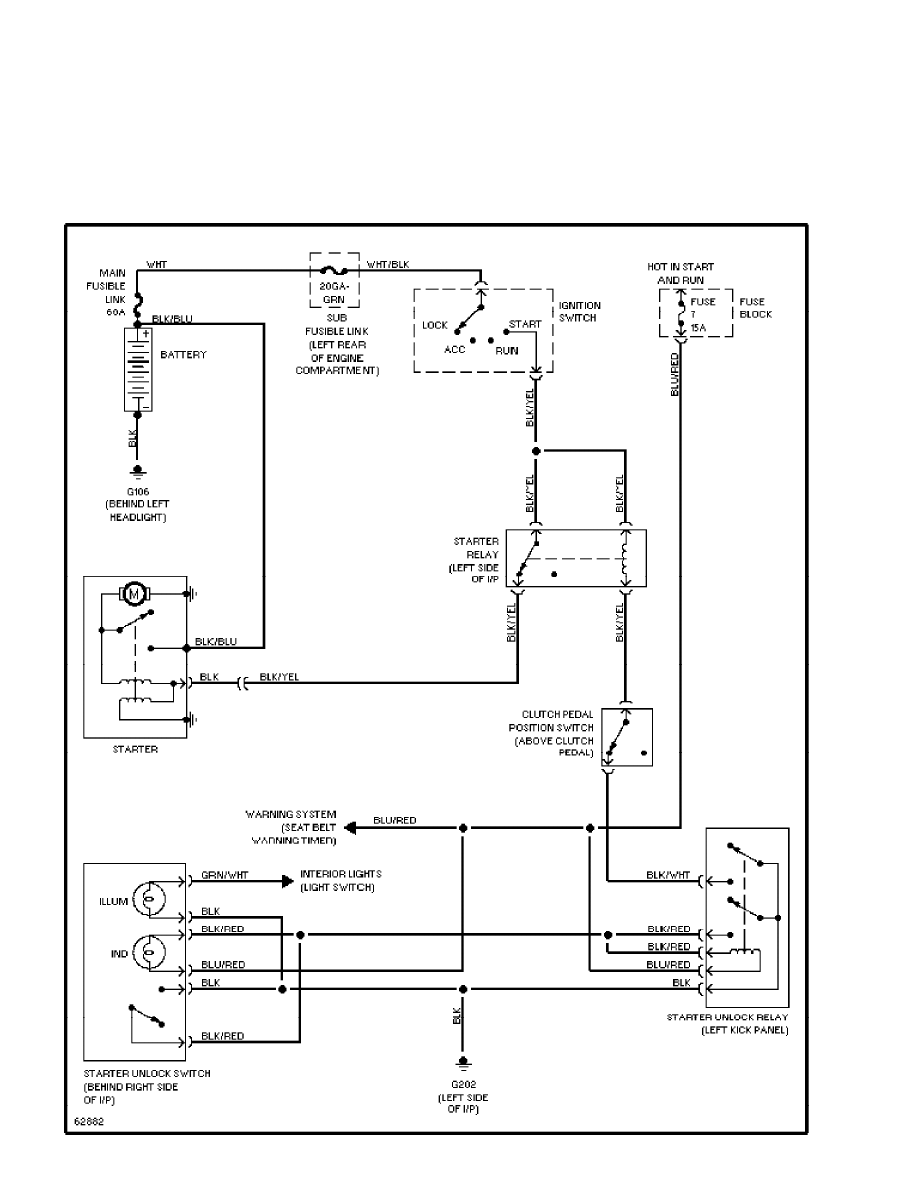

Starting Circuit, Except M/T W/4-Wheel Drive (p. 21)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

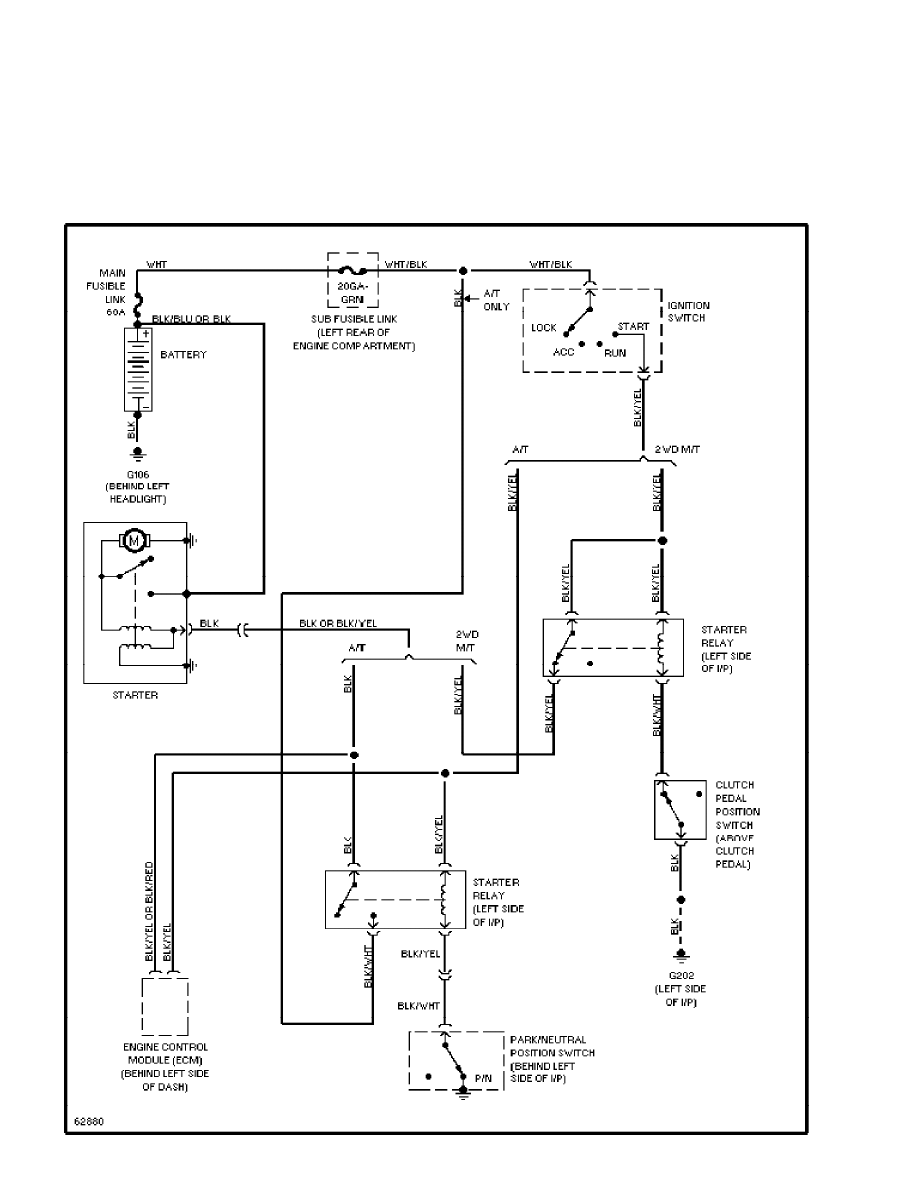

Starting Circuit, M/T W/ 4-Wheel Drive (p. 22)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

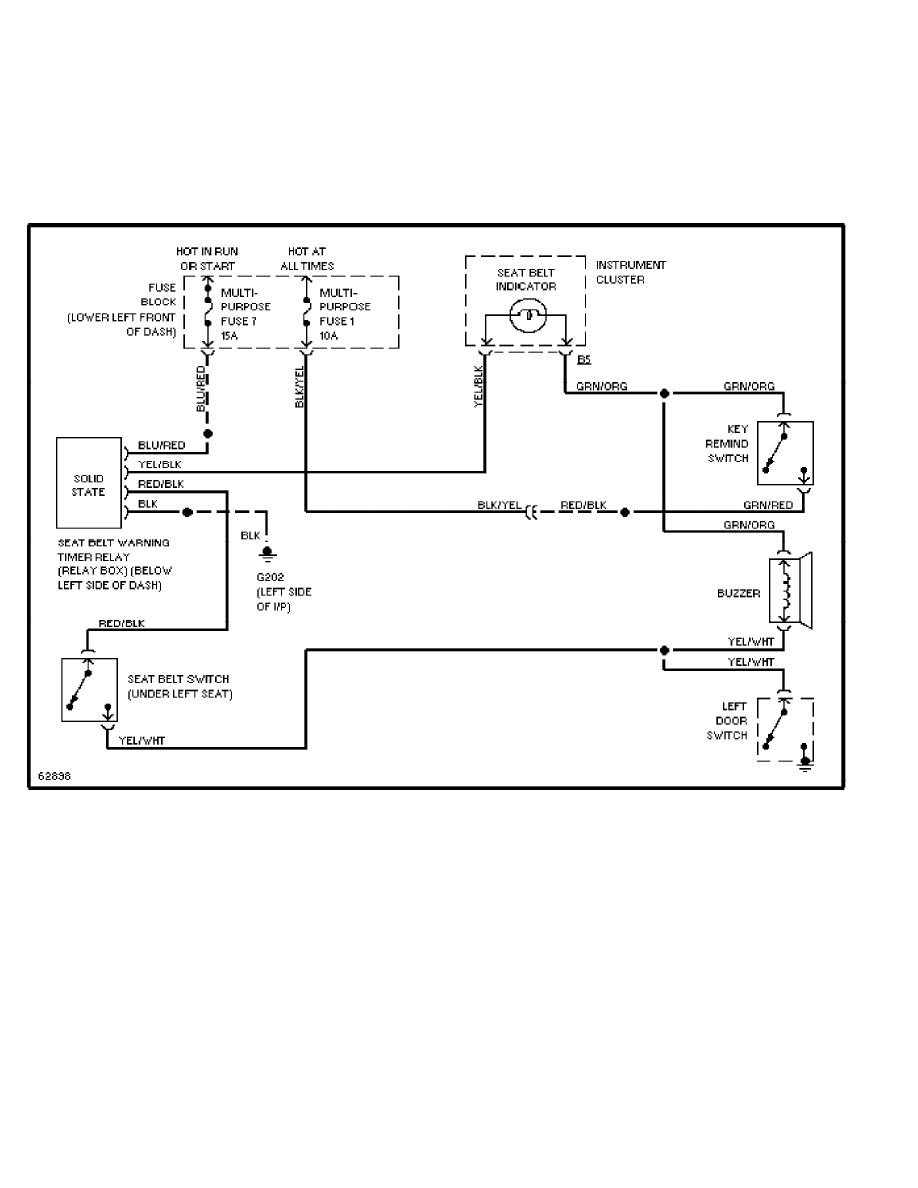

Warning System Circuits (p. 23)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

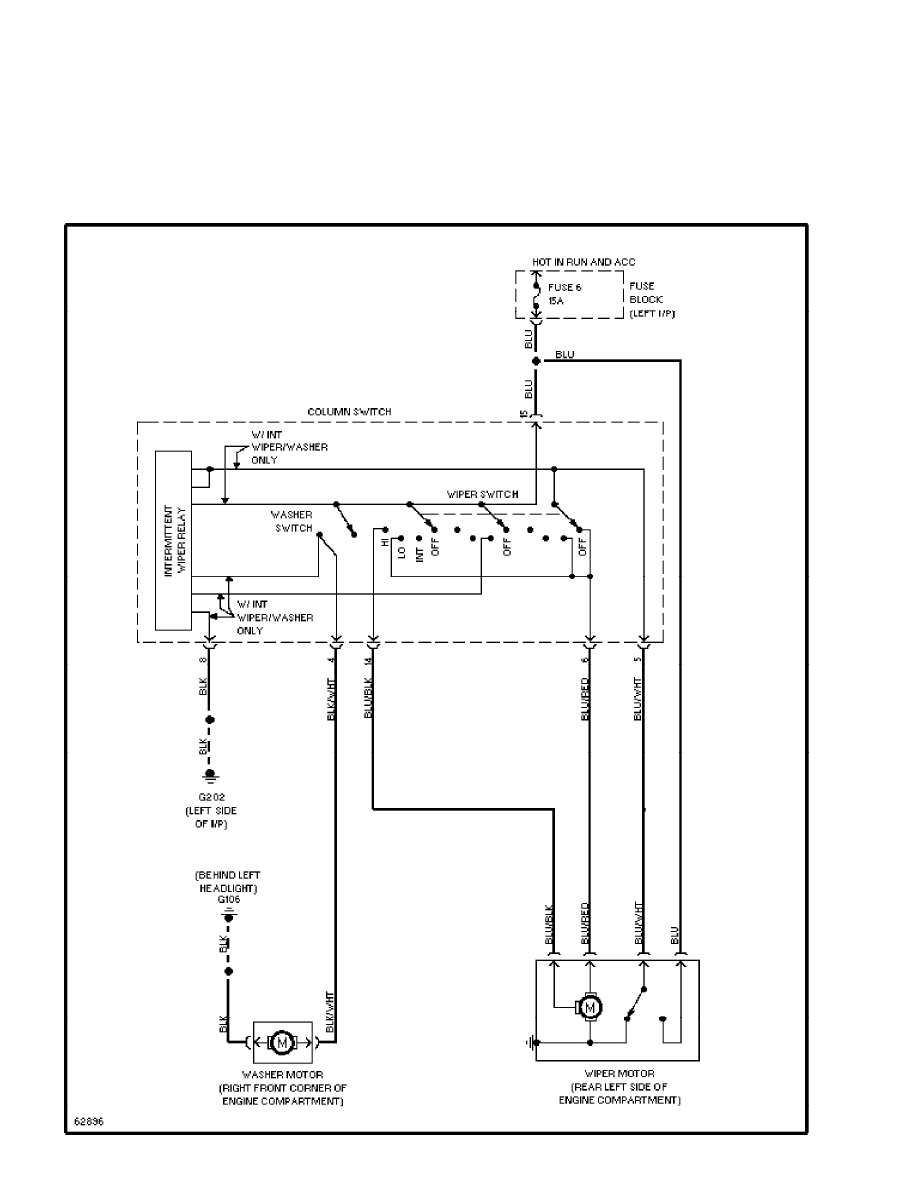

Wiper/Washer Circuit (p. 24)

1996 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 09:46AM
