MITSUBISHI PICKUP 1995

SYSTEM WIRING DIAGRAMS

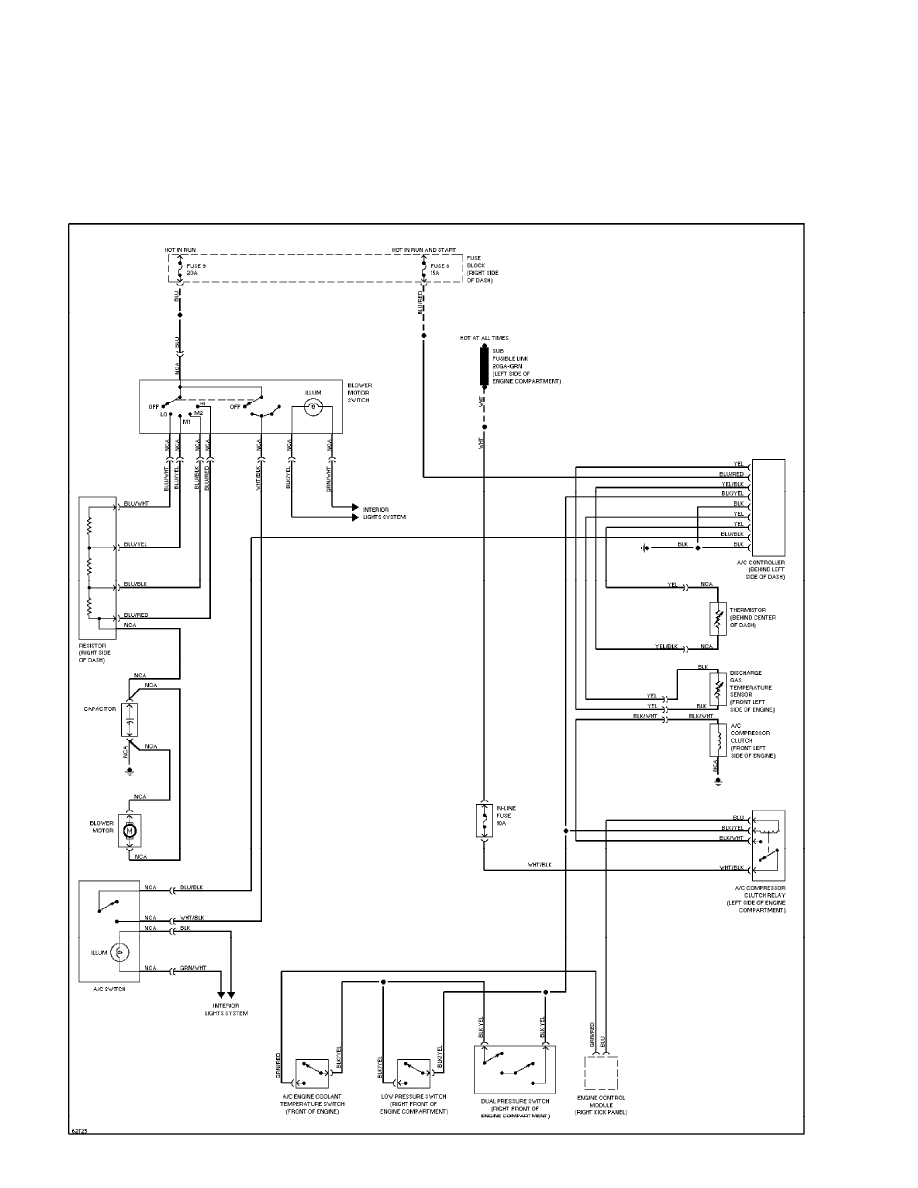

A/C Circuit

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

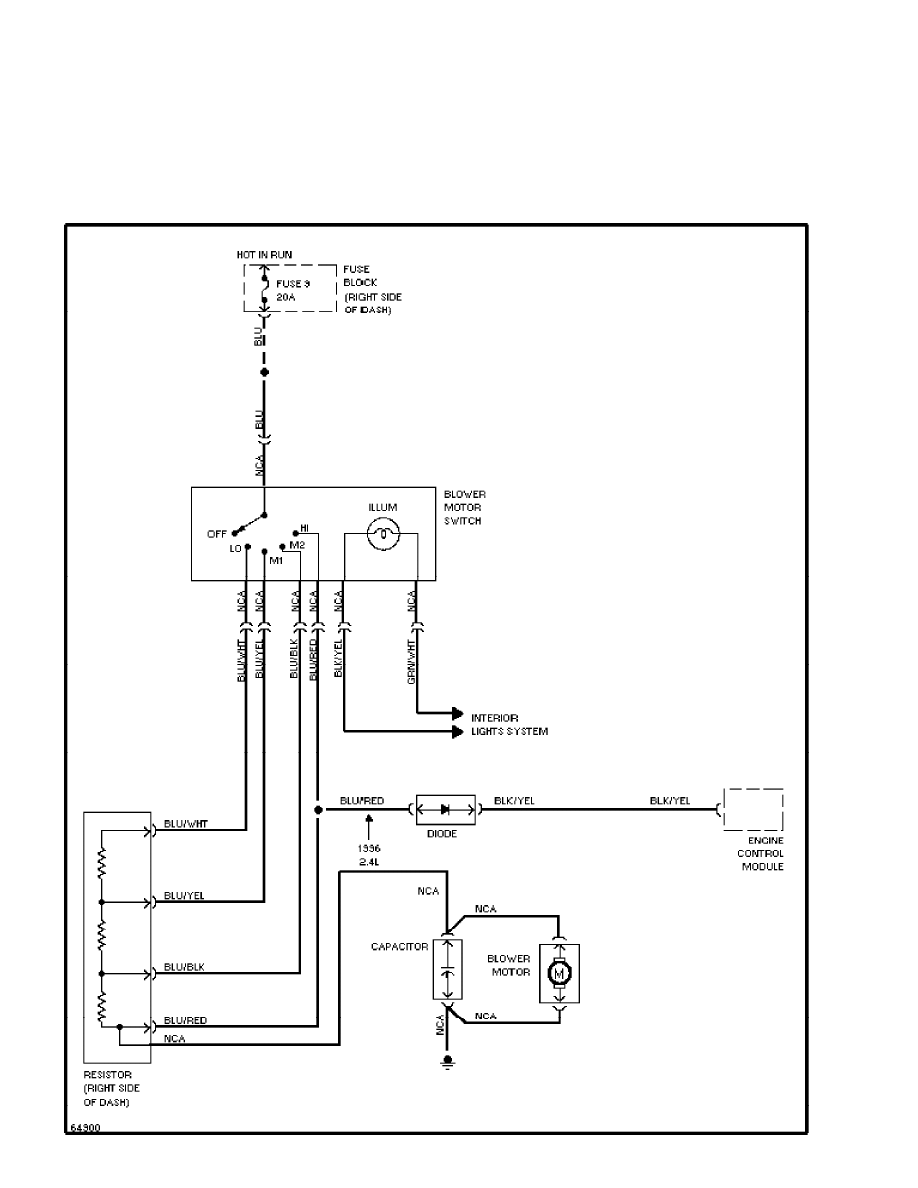

Heater Circuit (p. 2)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

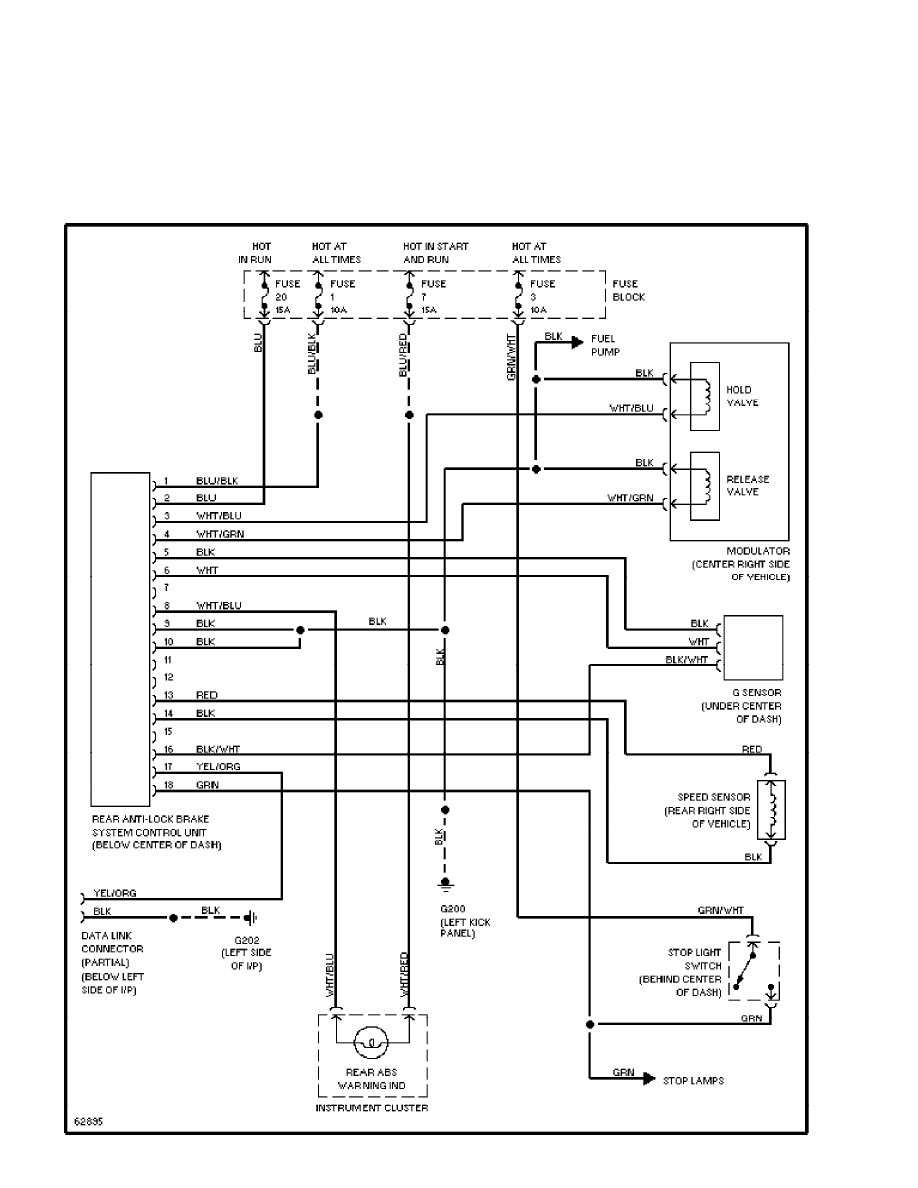

Anti-lock Brake Circuits, Rear Wheel ABS (p. 3)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

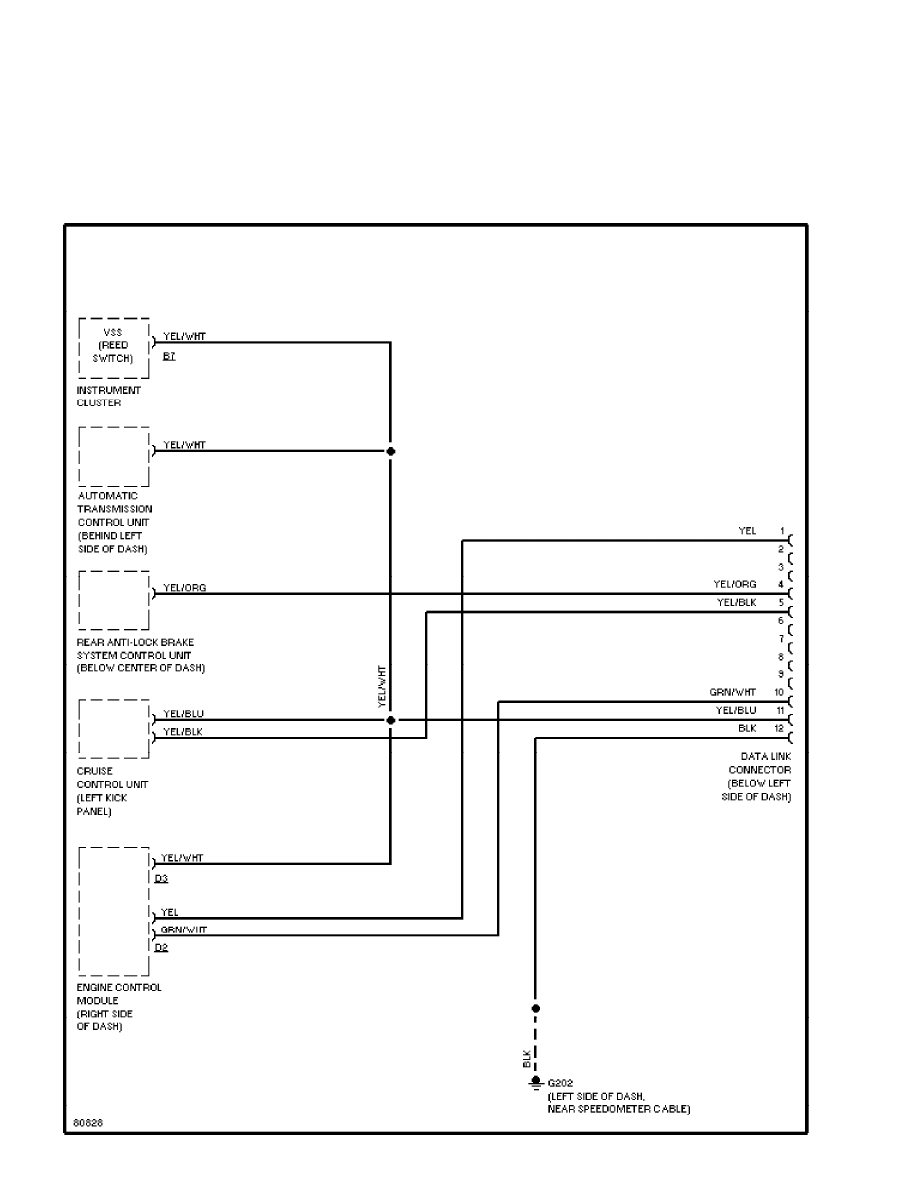

Computer Data Lines (p. 4)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

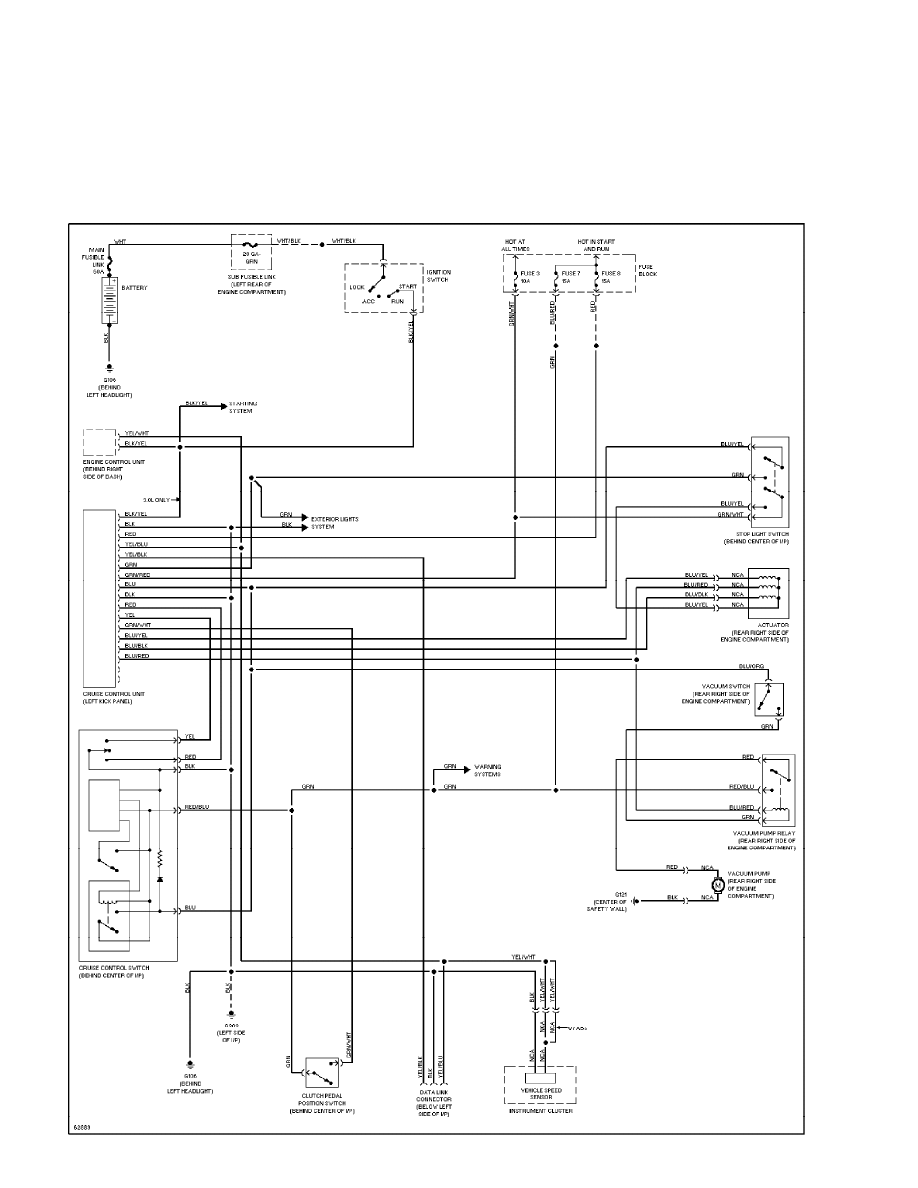

Cruise Control Circuit (p. 5)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

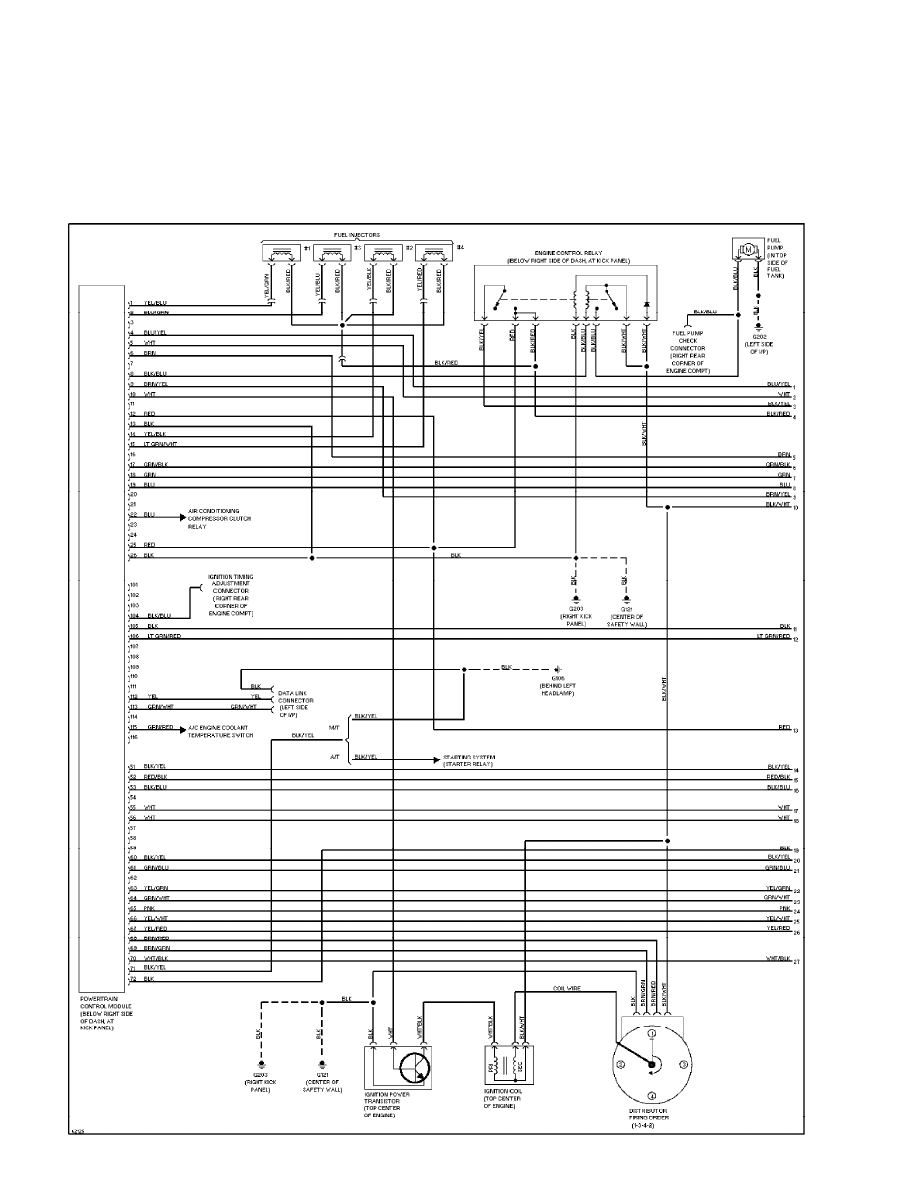

2.4L, Engine Performance Circuits, California (1 of 2) (p. 6)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

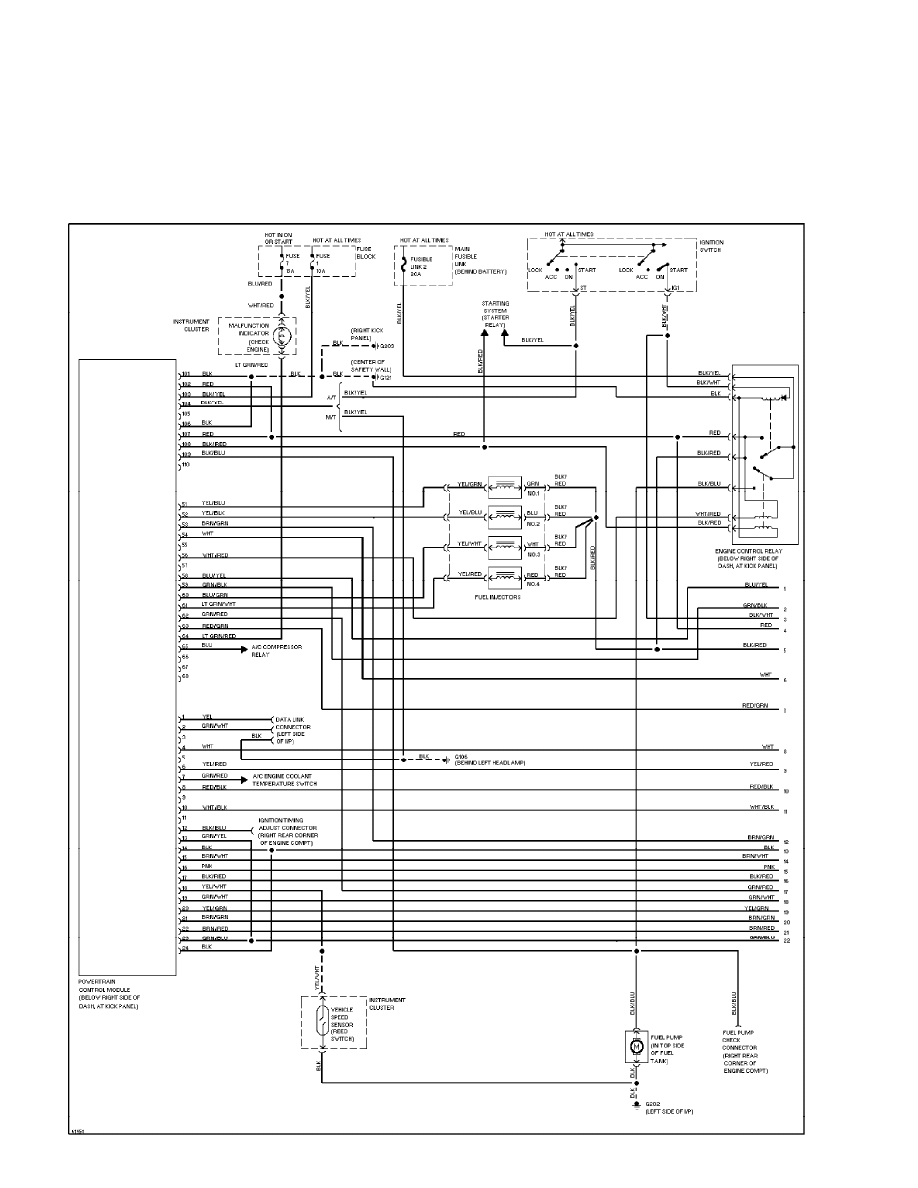

2.4L, Engine Performance Circuits, California (2 of 2) (p. 7)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

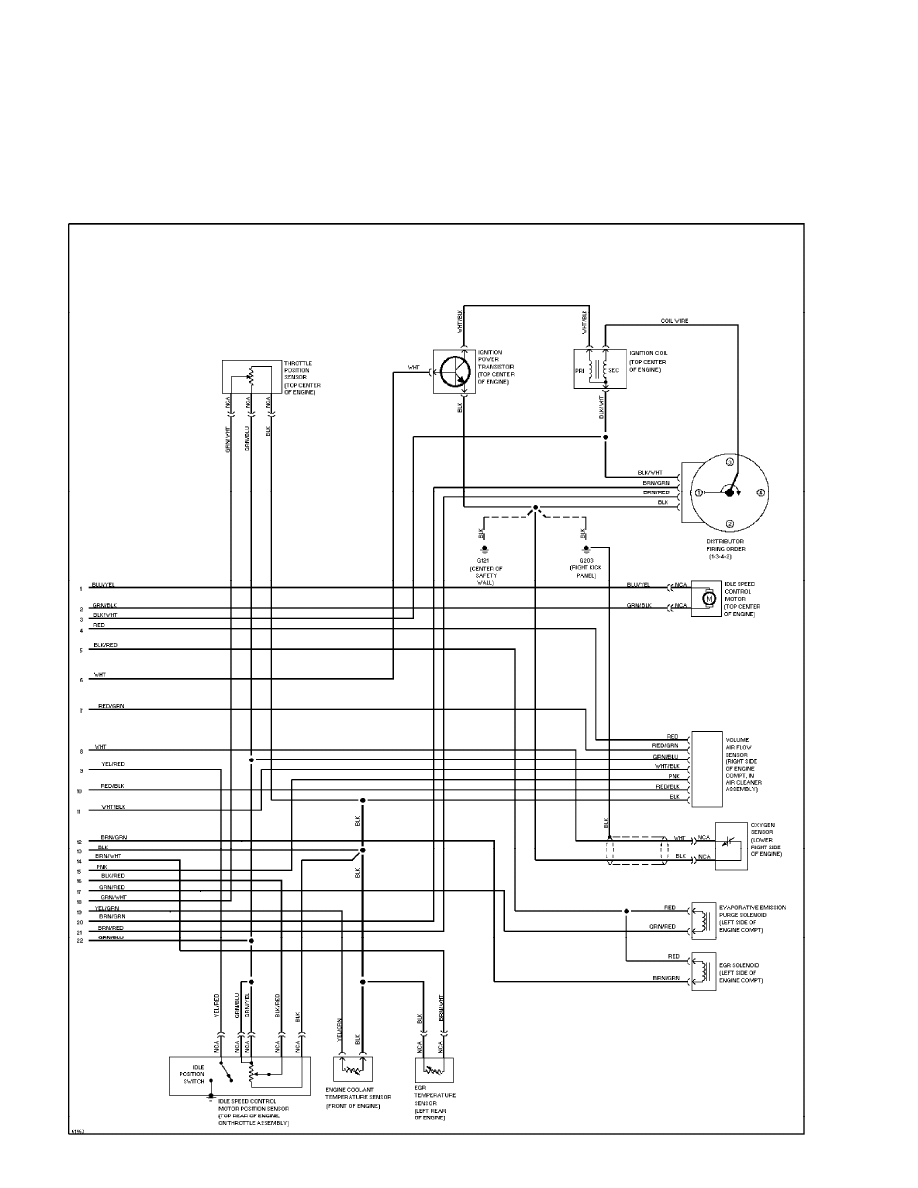

2.4L, Engine Performance Circuits, Federal (1 of 2) (p. 8)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

2.4L, Engine Performance Circuits, Federal (2 of 2) (p. 9)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

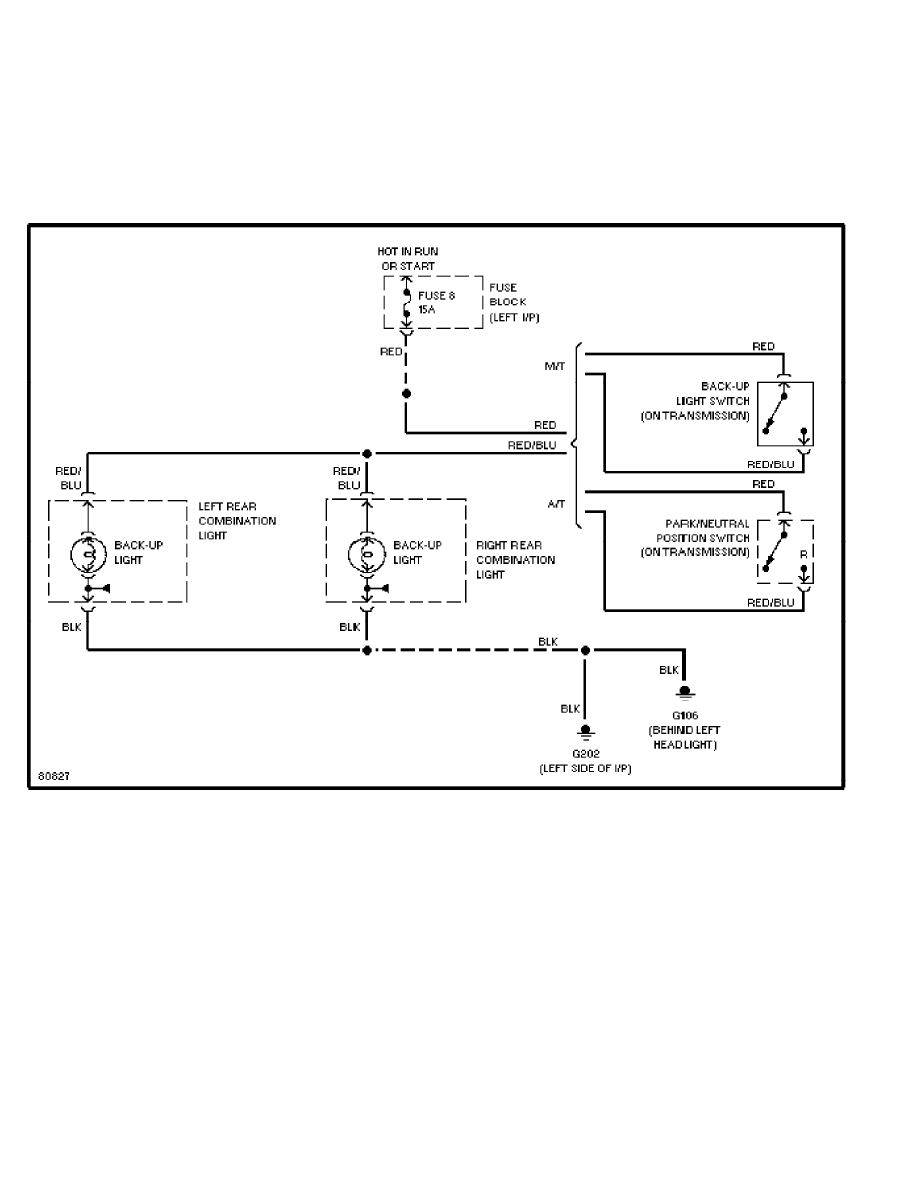

Back-up Lamps Circuit (p. 10)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

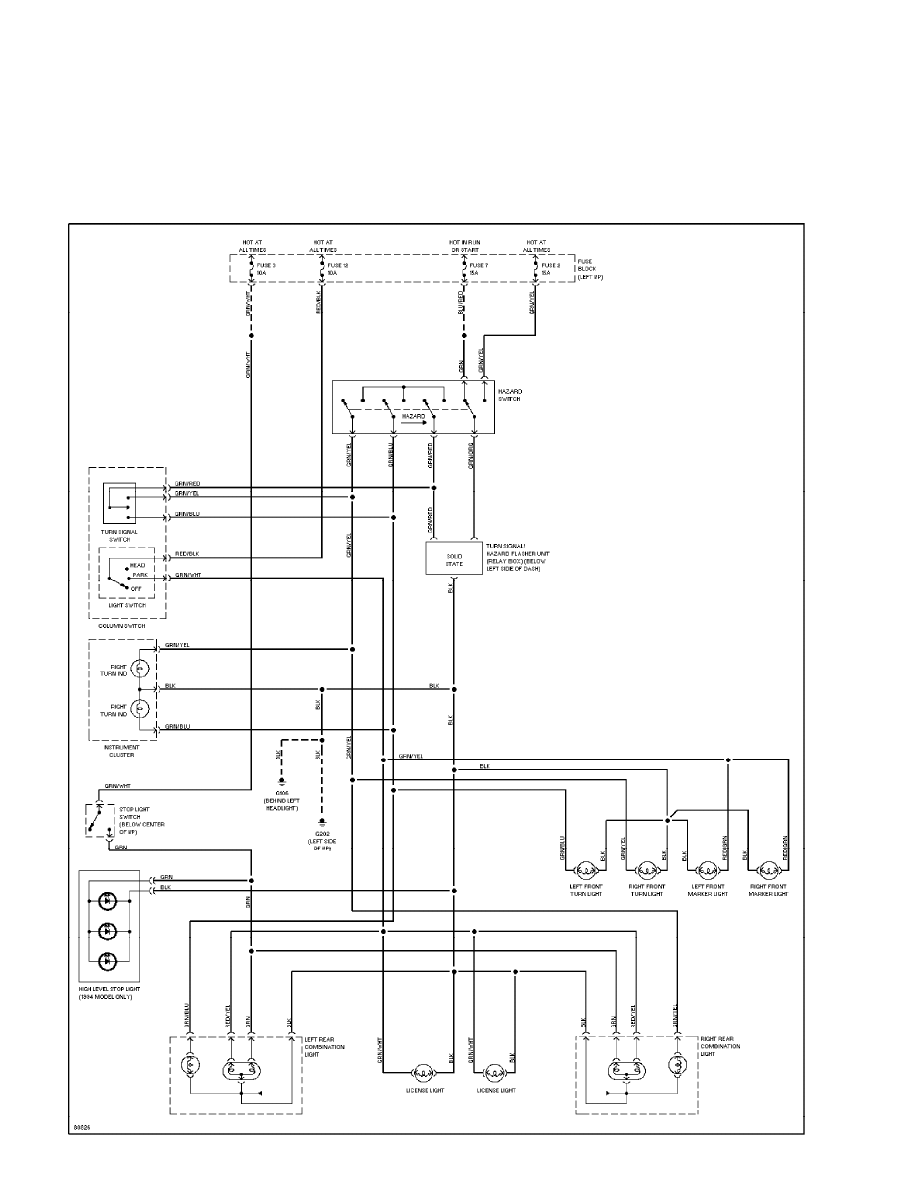

Exterior Lamps Circuit (p. 11)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

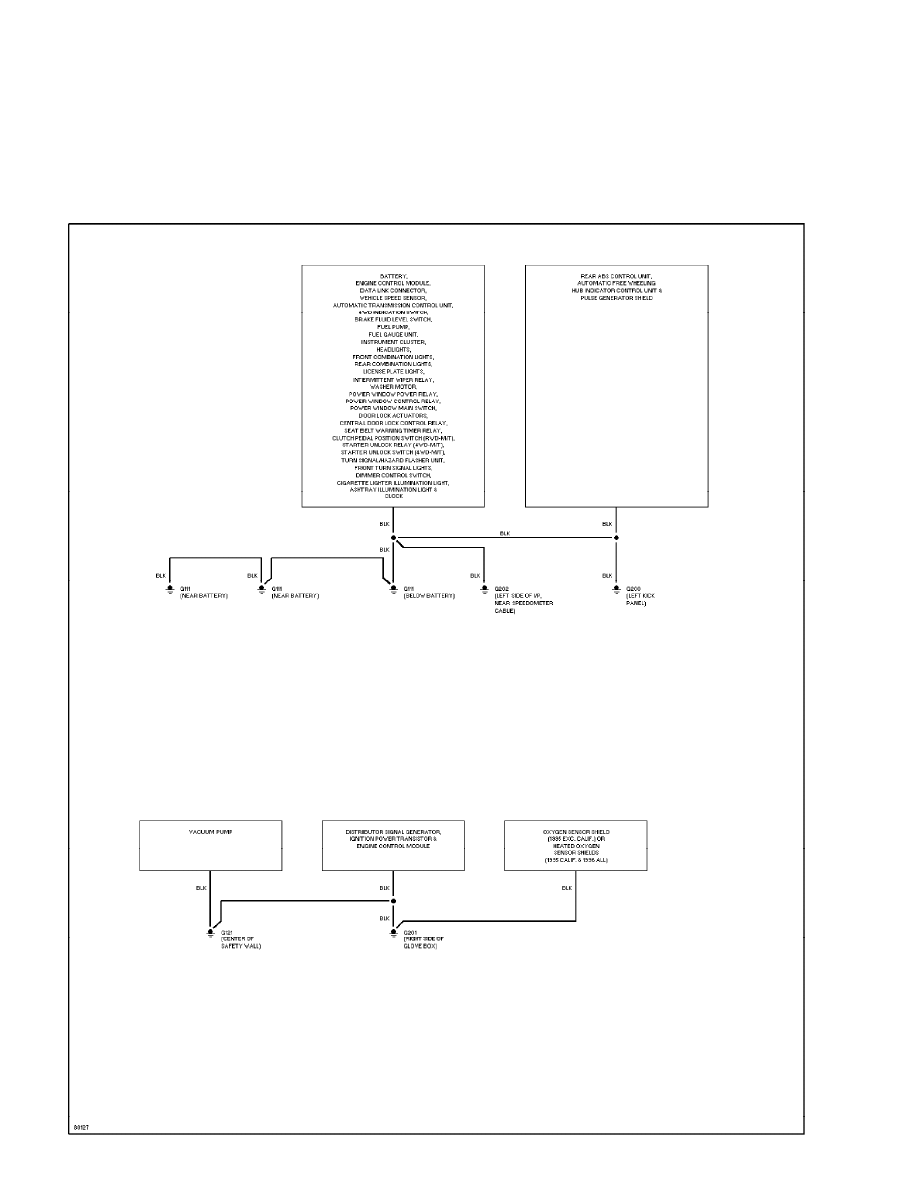

Ground Distribution Circuit (p. 12)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

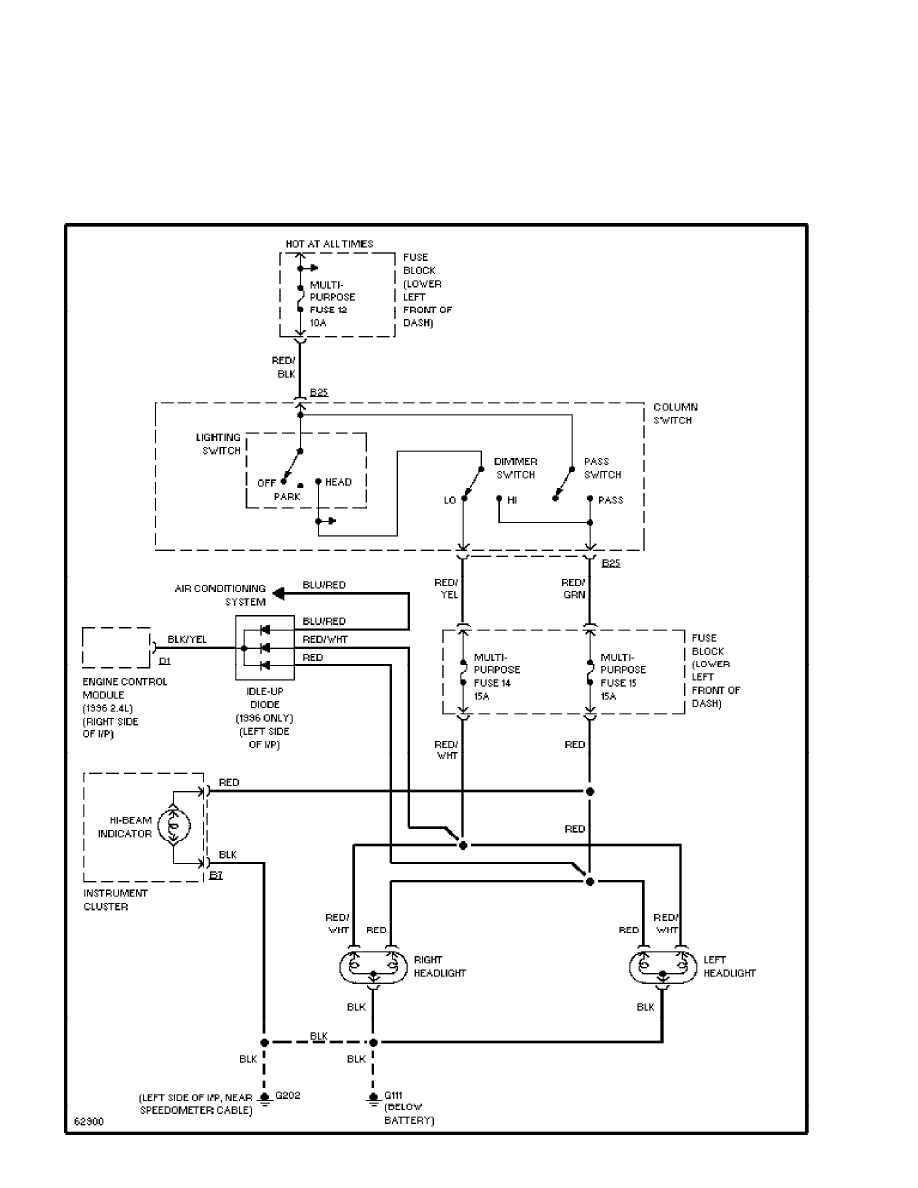

Headlight Circuit (p. 13)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

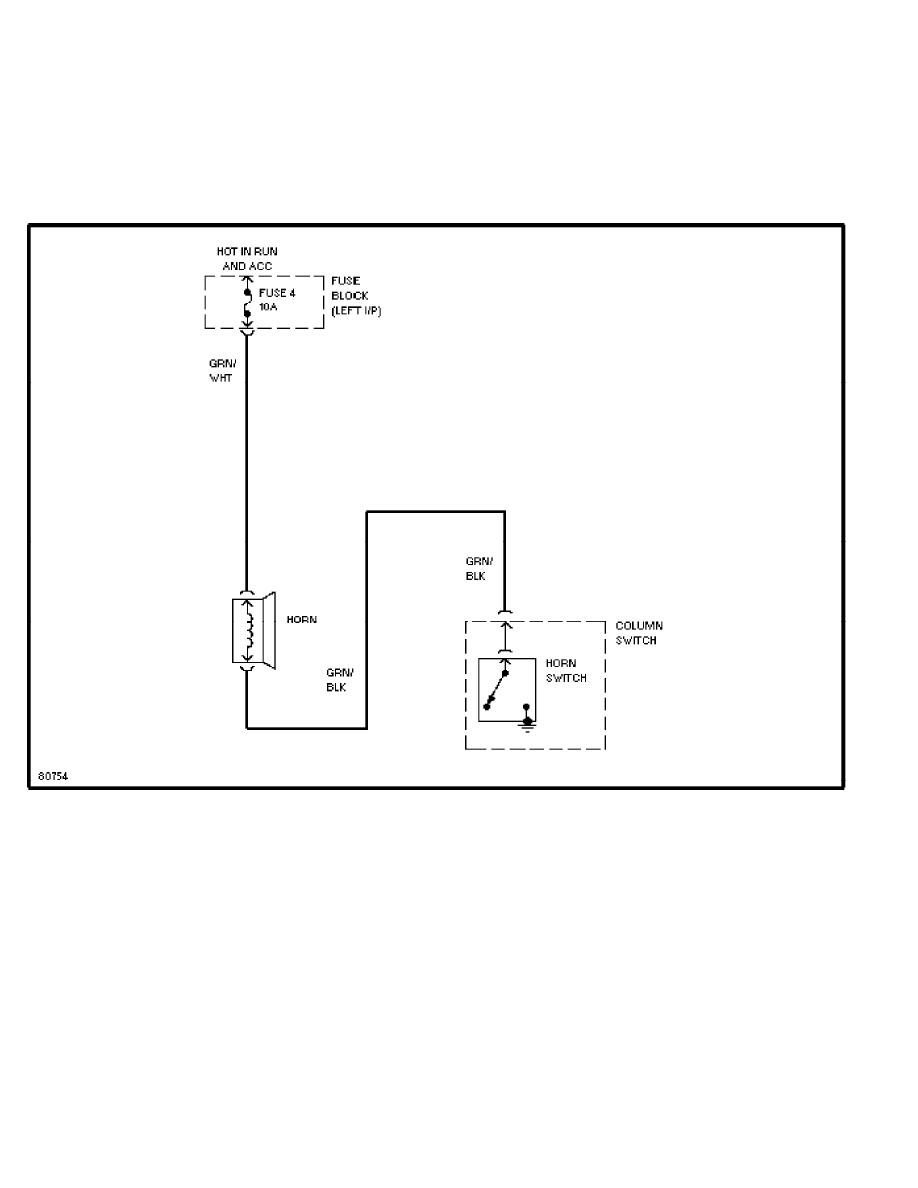

Horn Circuit (p. 14)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

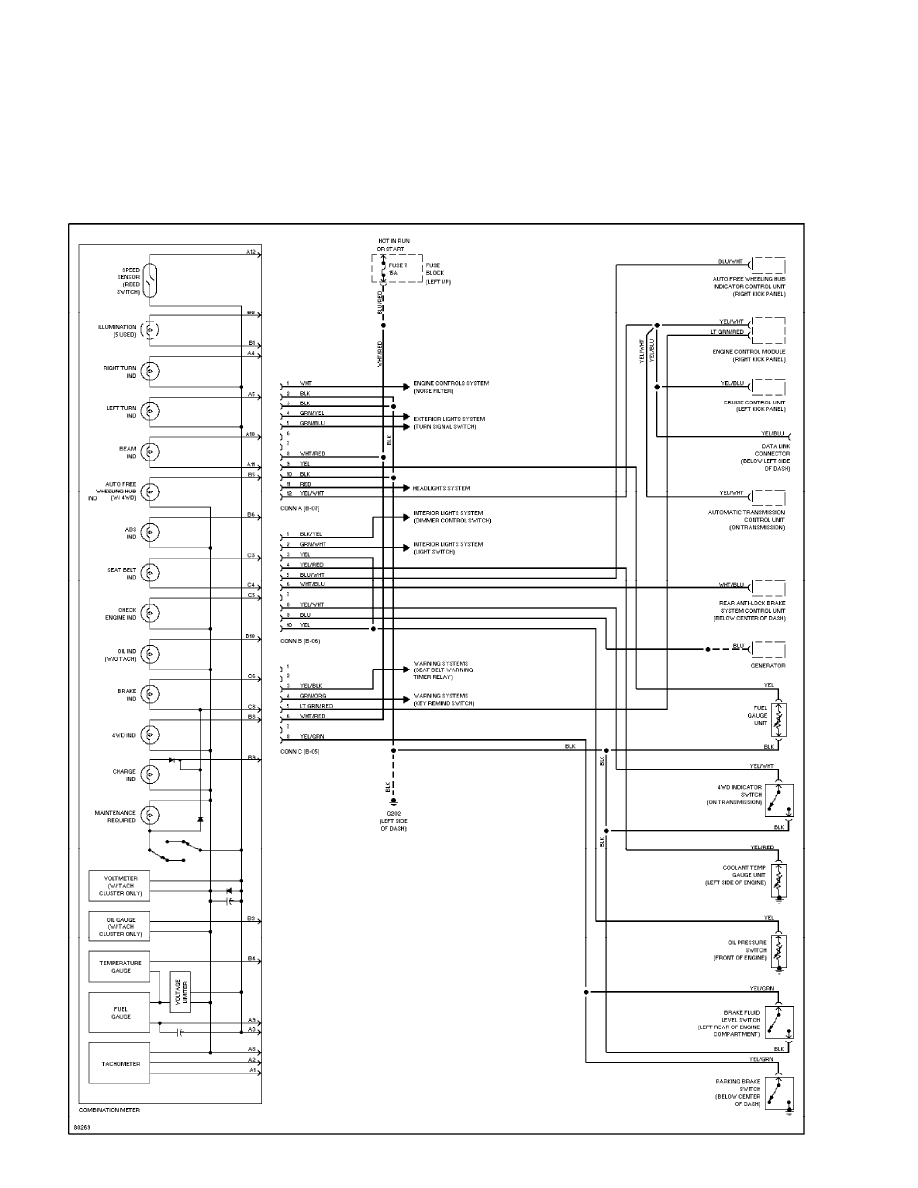

Instrument Cluster Circuit (p. 15)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

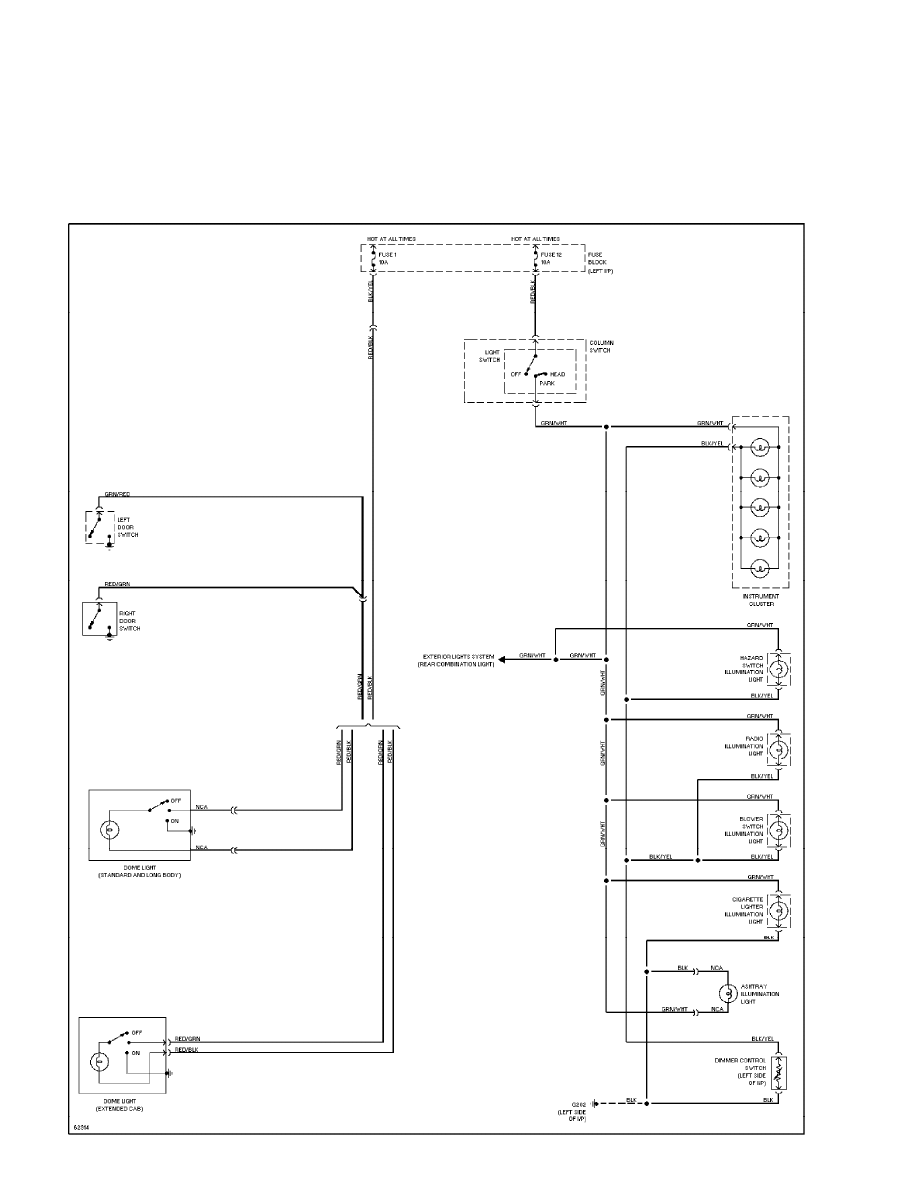

Interior Light Circuit (p. 16)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

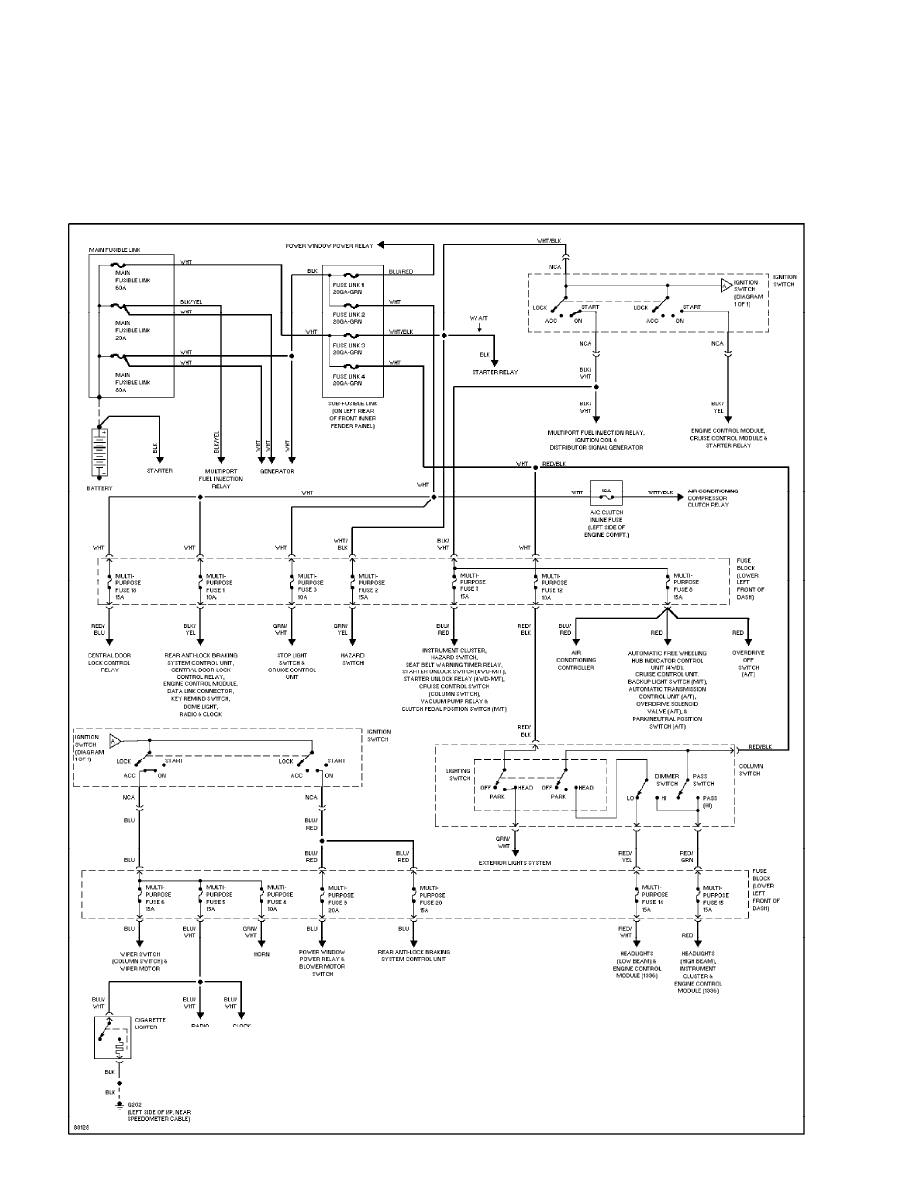

Power Distribution Circuit (p. 17)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

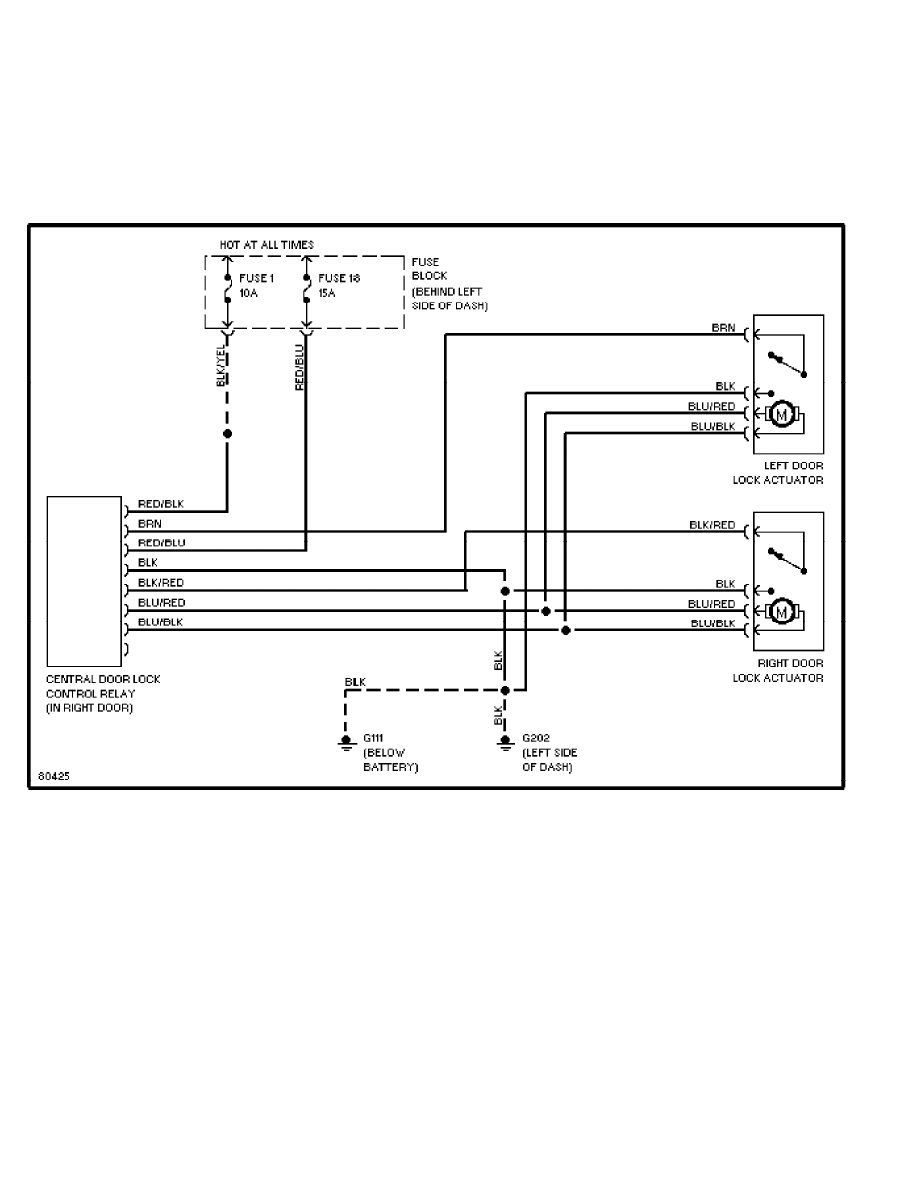

Power Door Lock Circuit (p. 18)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

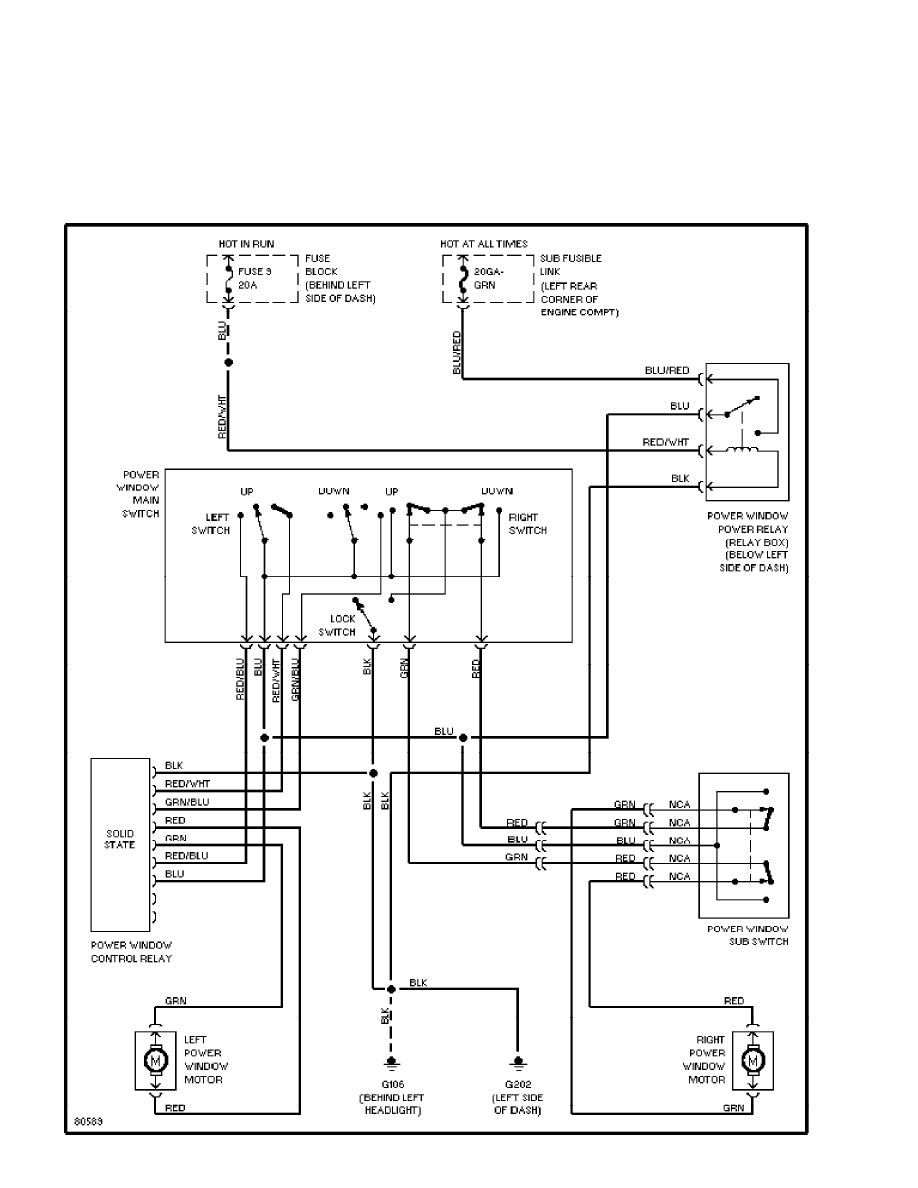

Power Window Circuit (p. 19)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

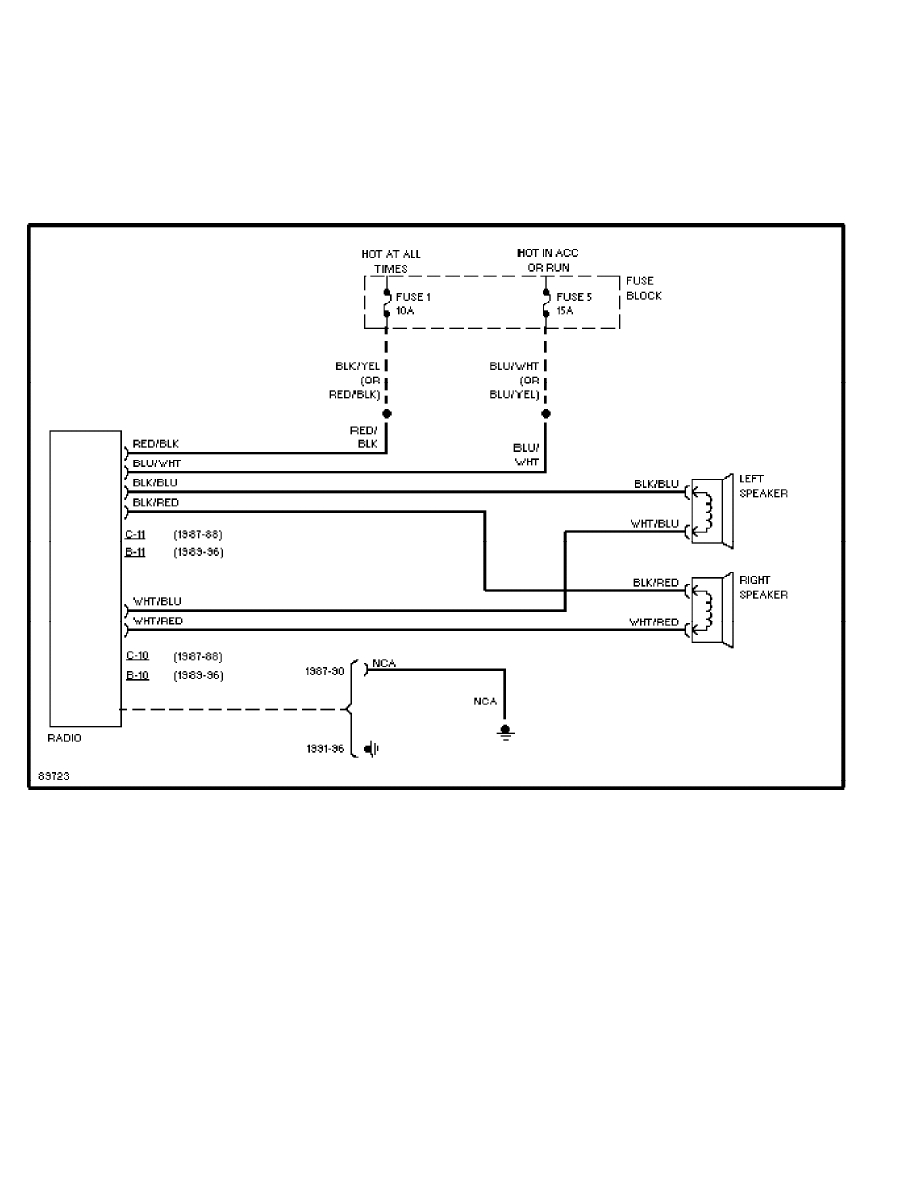

Radio Circuits, 2 Speaker System (p. 20)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

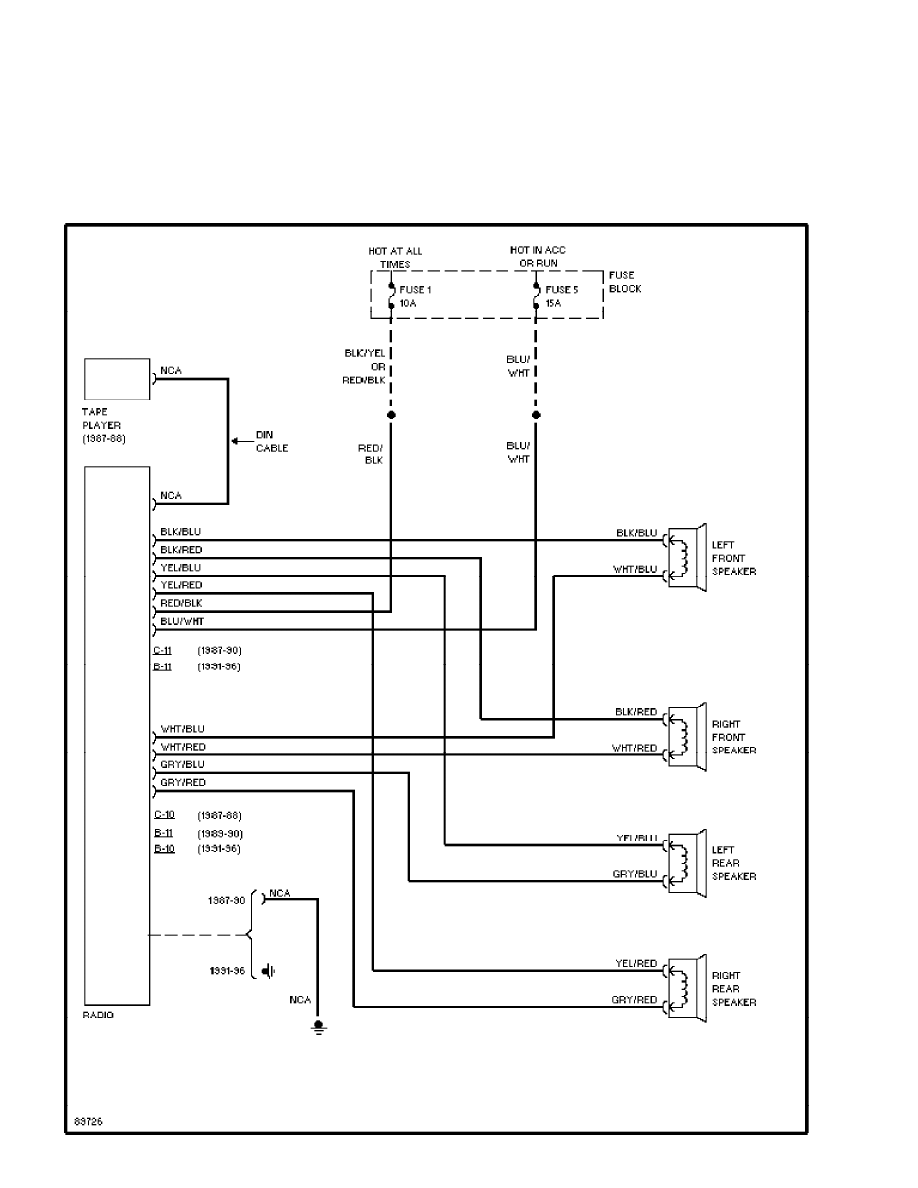

Radio Circuits, 4 Speaker System (p. 21)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

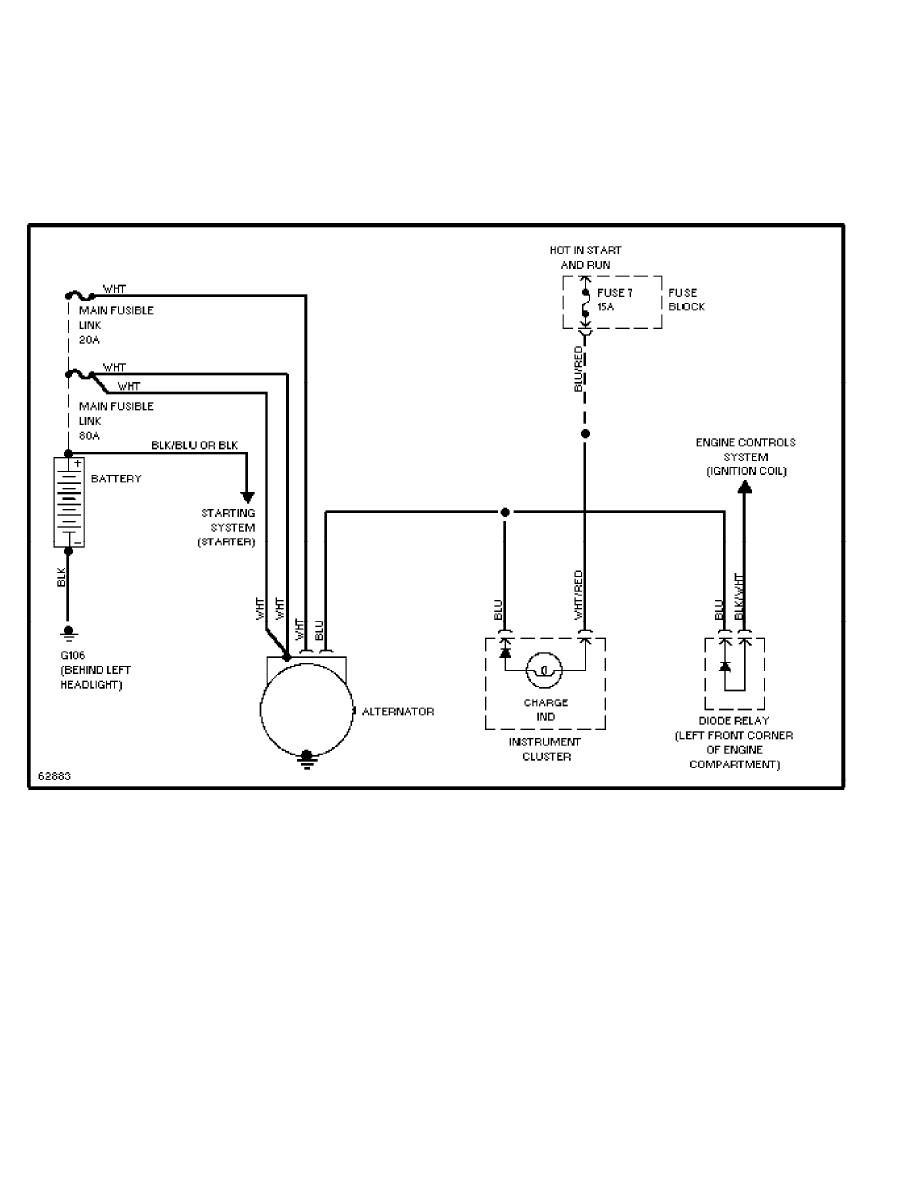

Charging Circuit (p. 22)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

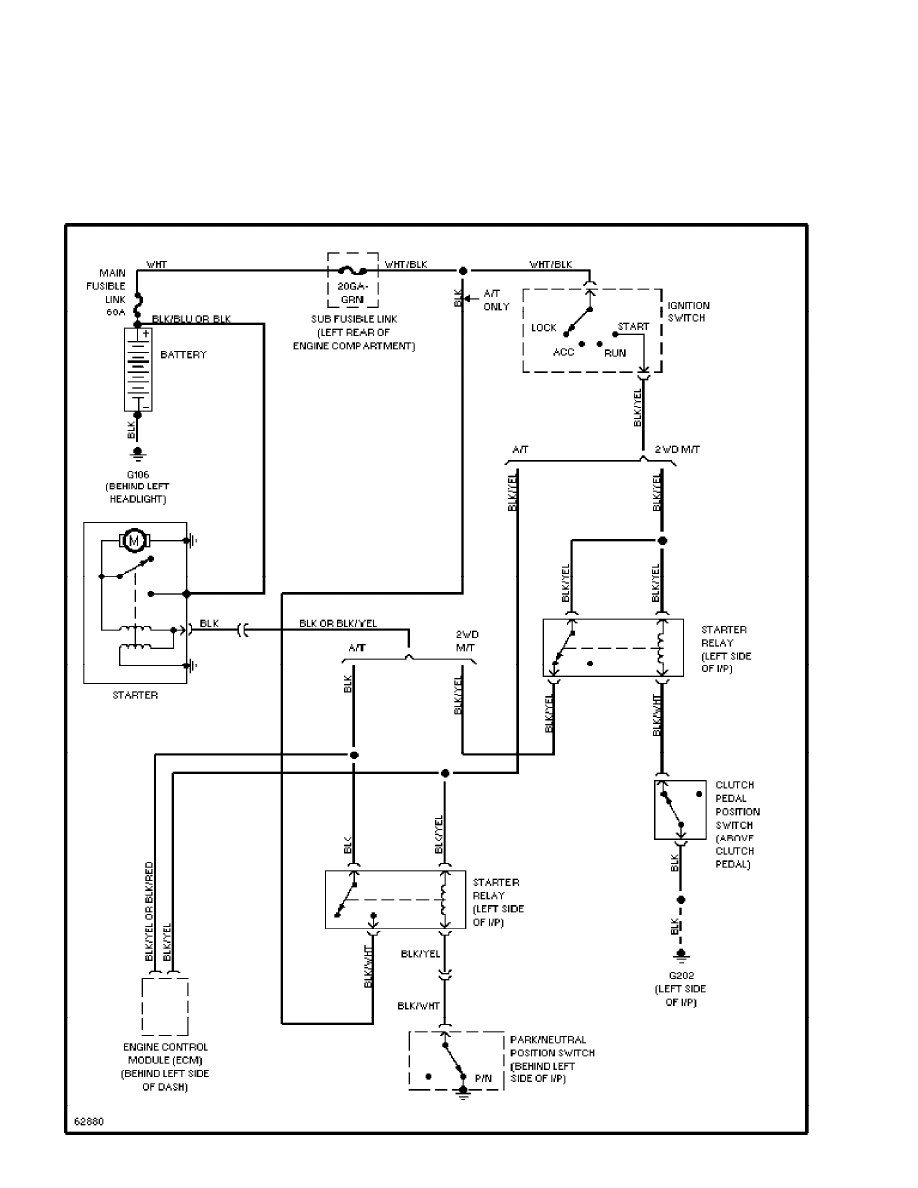

Starting Circuit, Except M/T W/4-Wheel Drive (p. 23)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

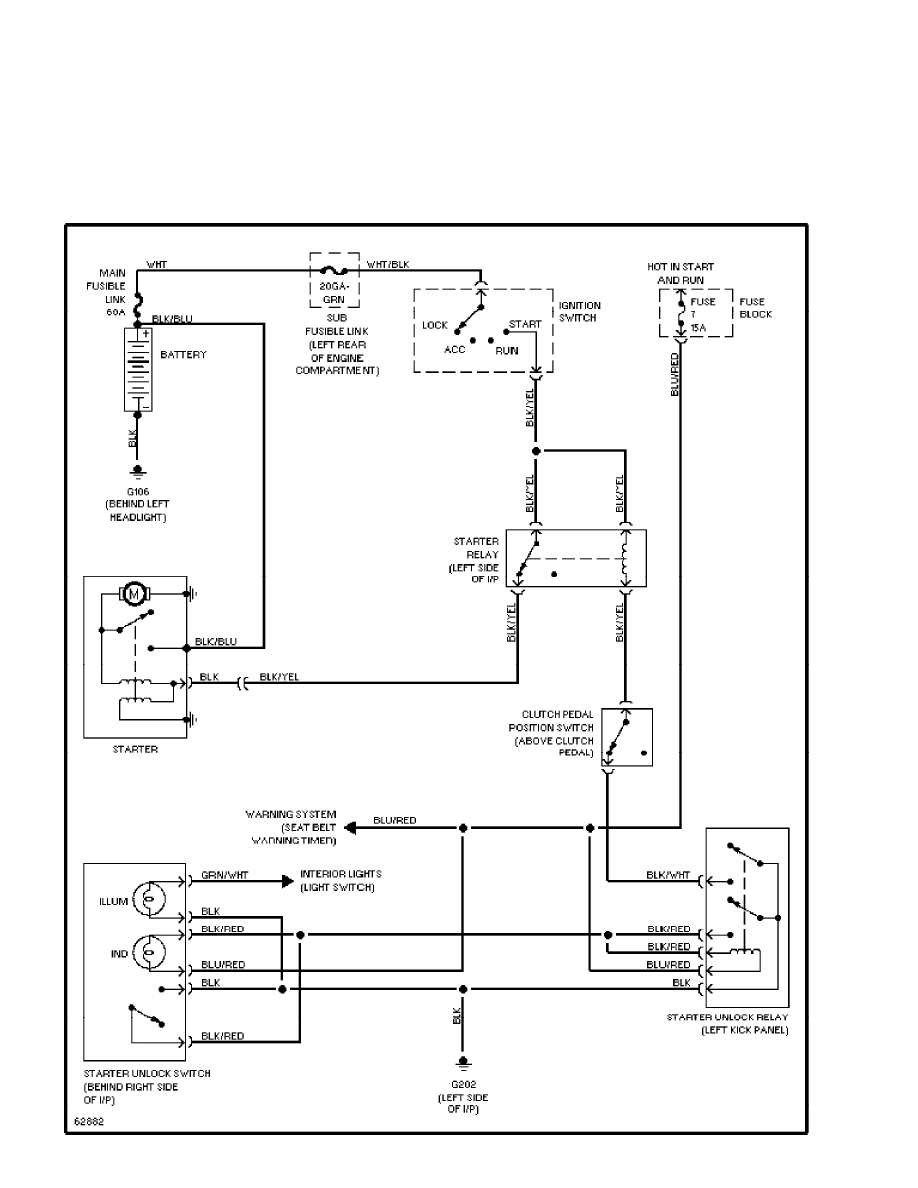

Starting Circuit, M/T W/ 4-Wheel Drive (p. 24)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

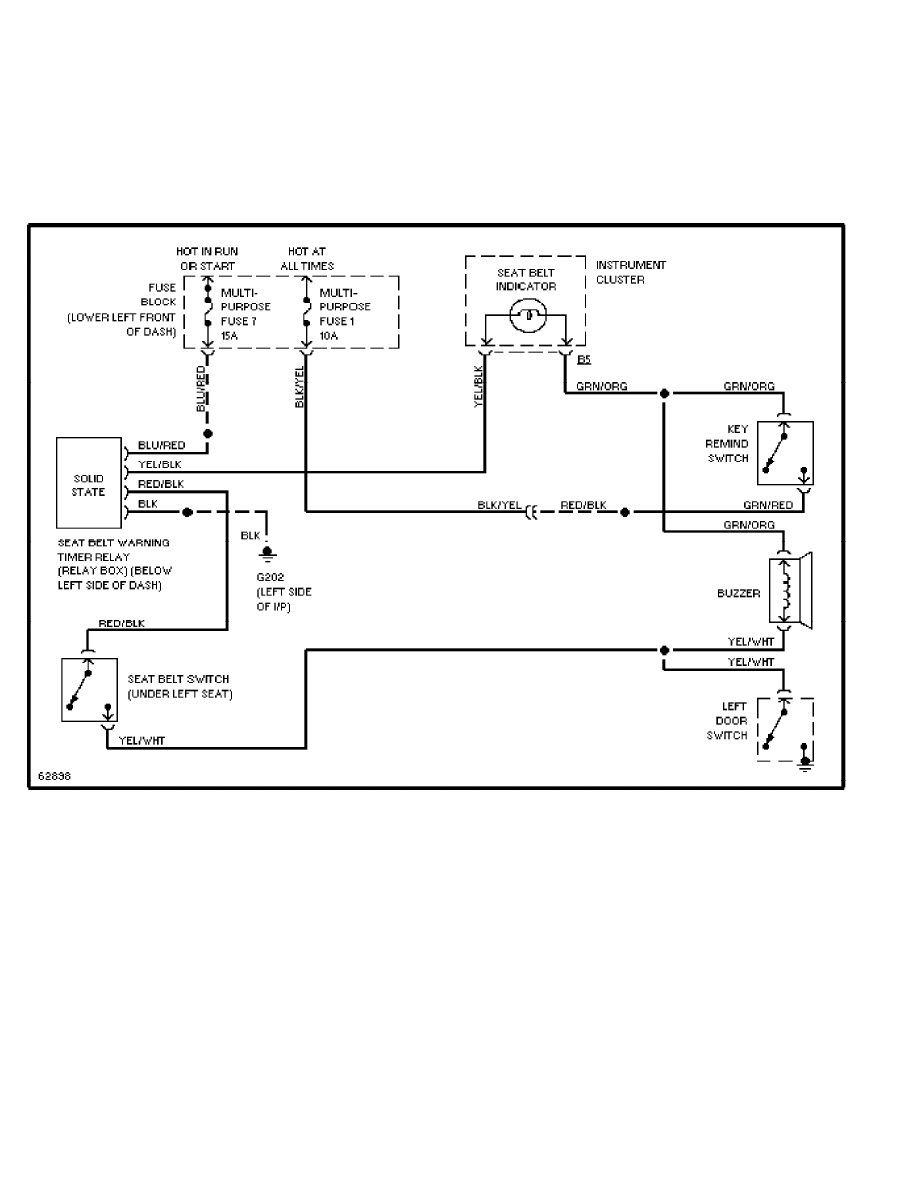

Warning System Circuits (p. 25)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM

SYSTEM WIRING DIAGRAMS

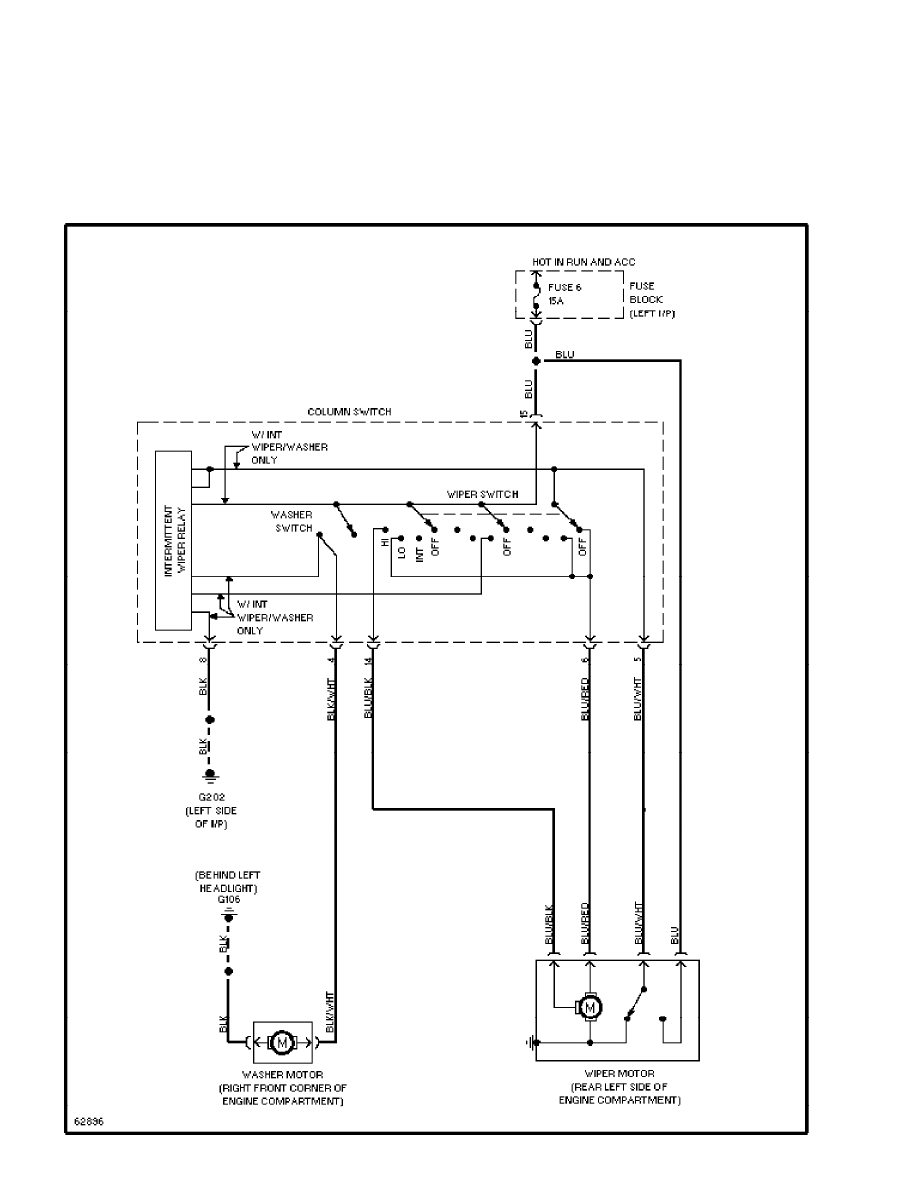

Wiper/Washer Circuit (p. 26)

1995 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:46AM
