MITSUBISHI PICKUP 1994

SYSTEM WIRING DIAGRAMS

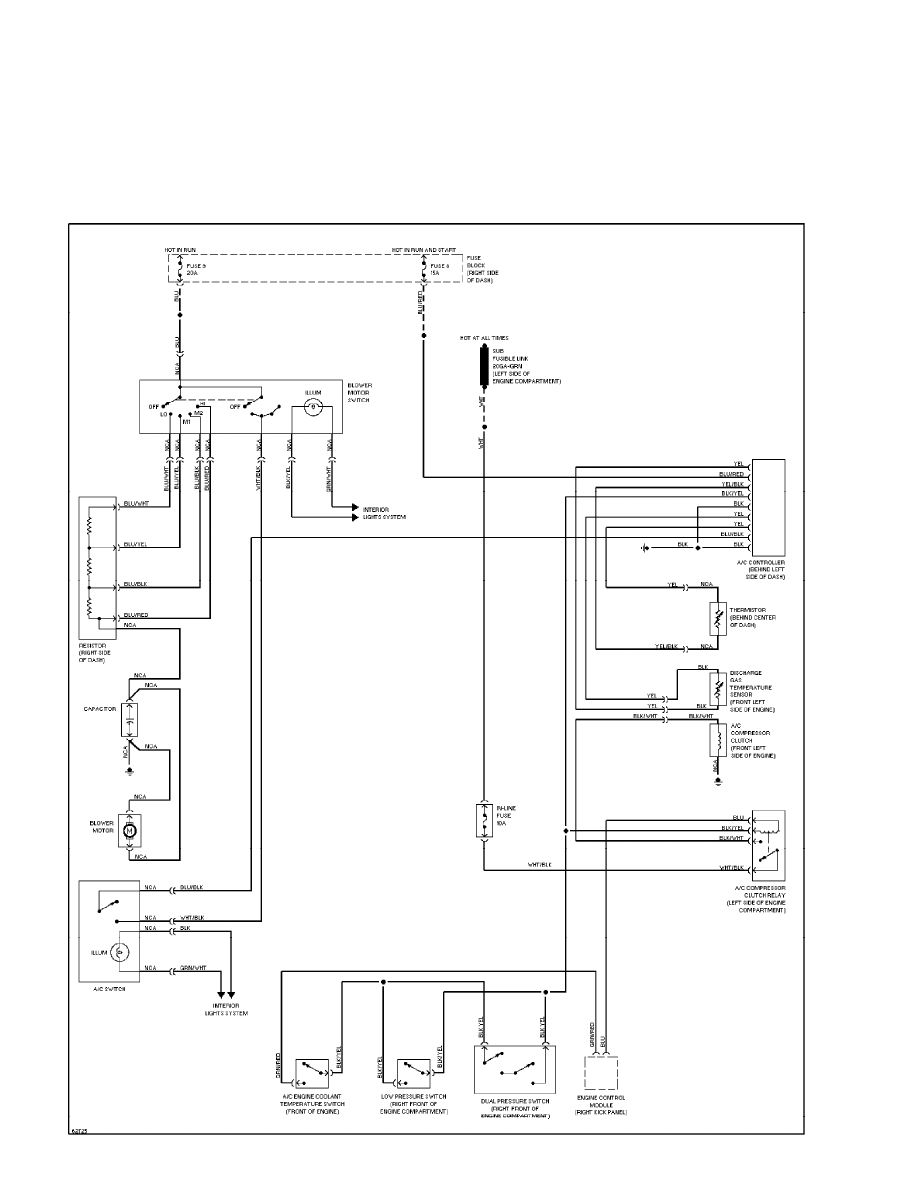

A/C Circuit

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

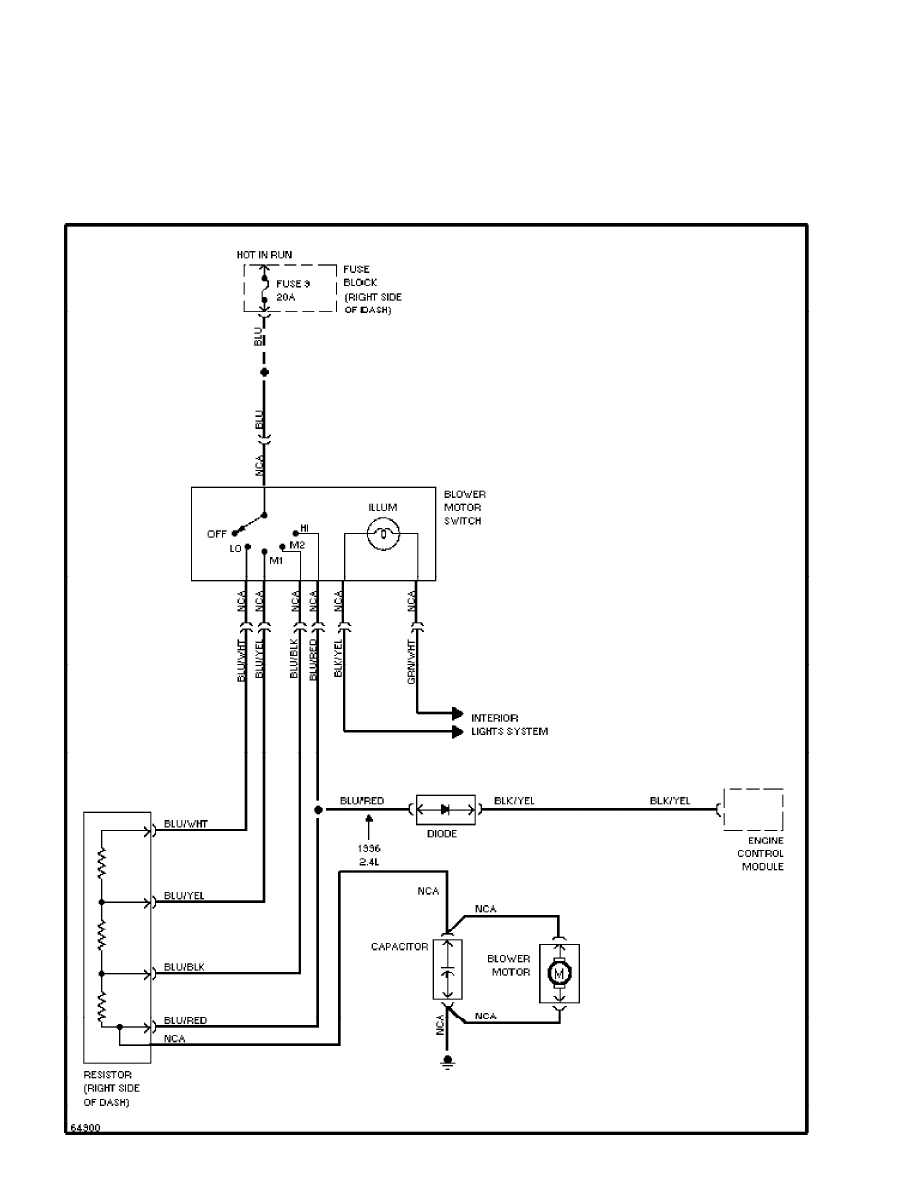

Heater Circuit (p. 2)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

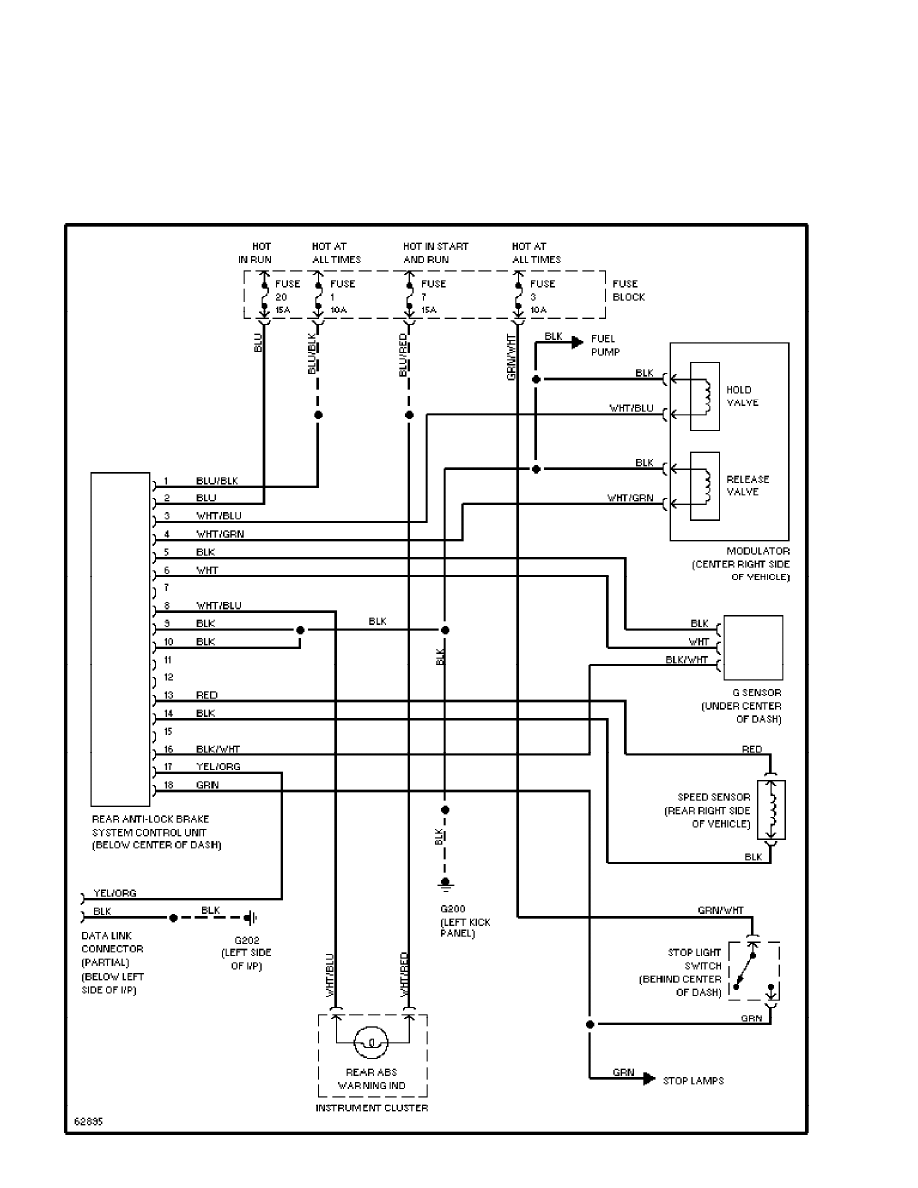

Anti-lock Brake Circuits, Rear Wheel ABS (p. 3)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

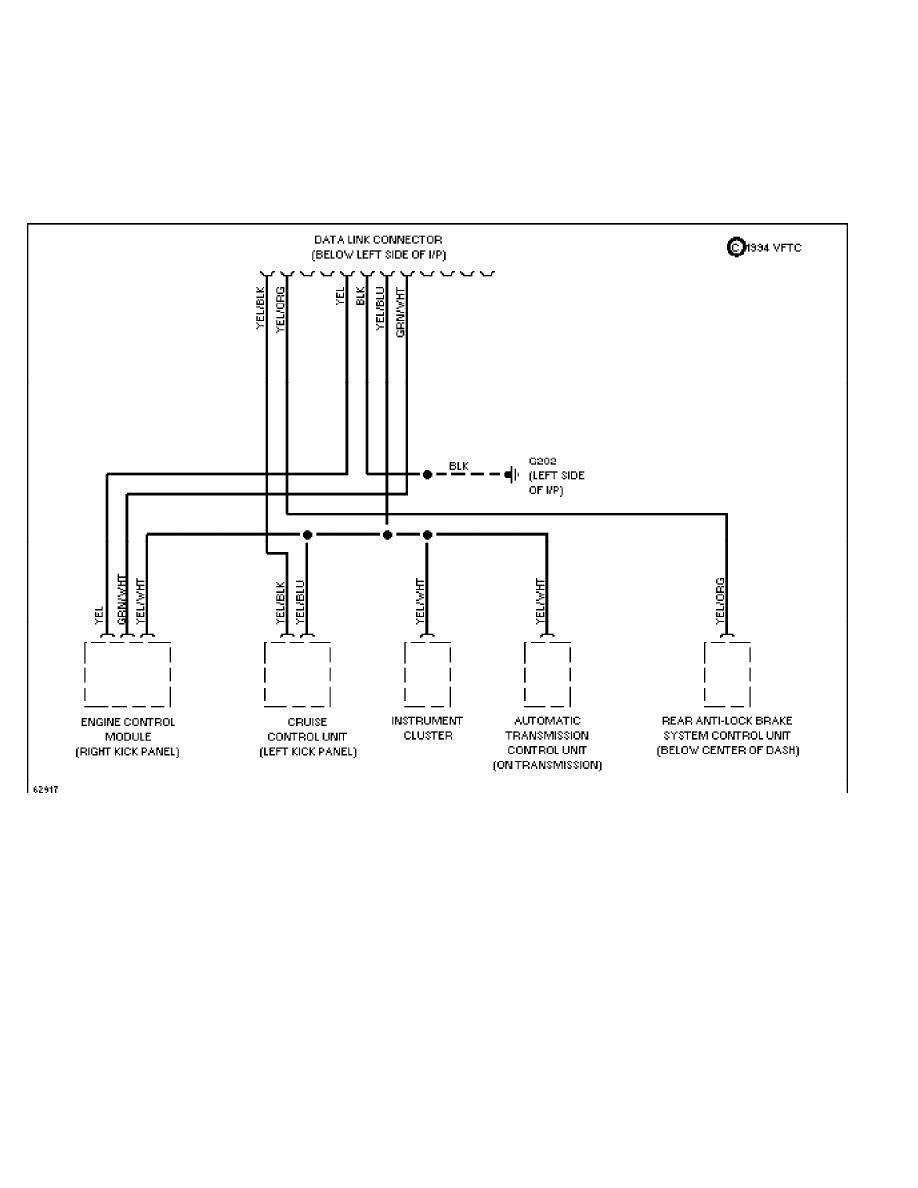

Computer Data Lines (p. 4)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

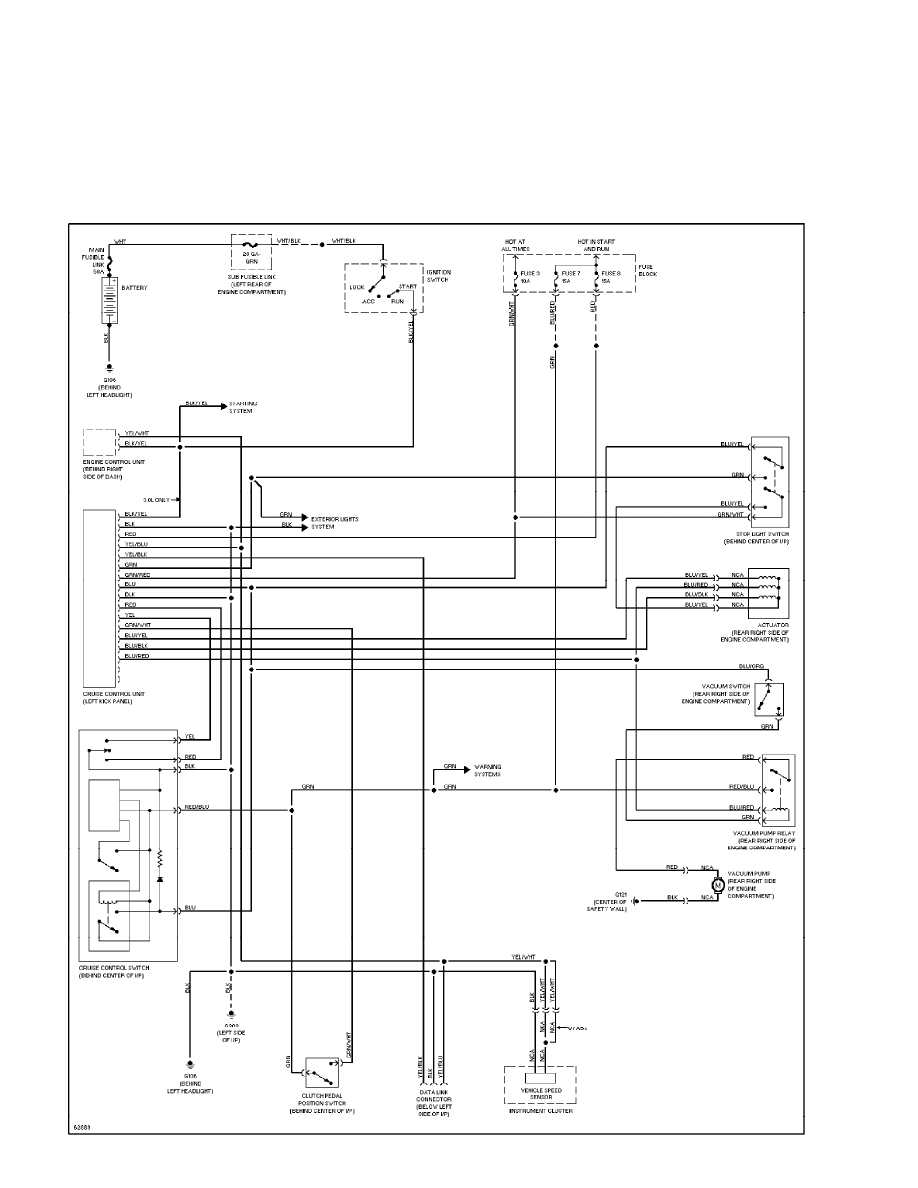

Cruise Control Circuit (p. 5)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

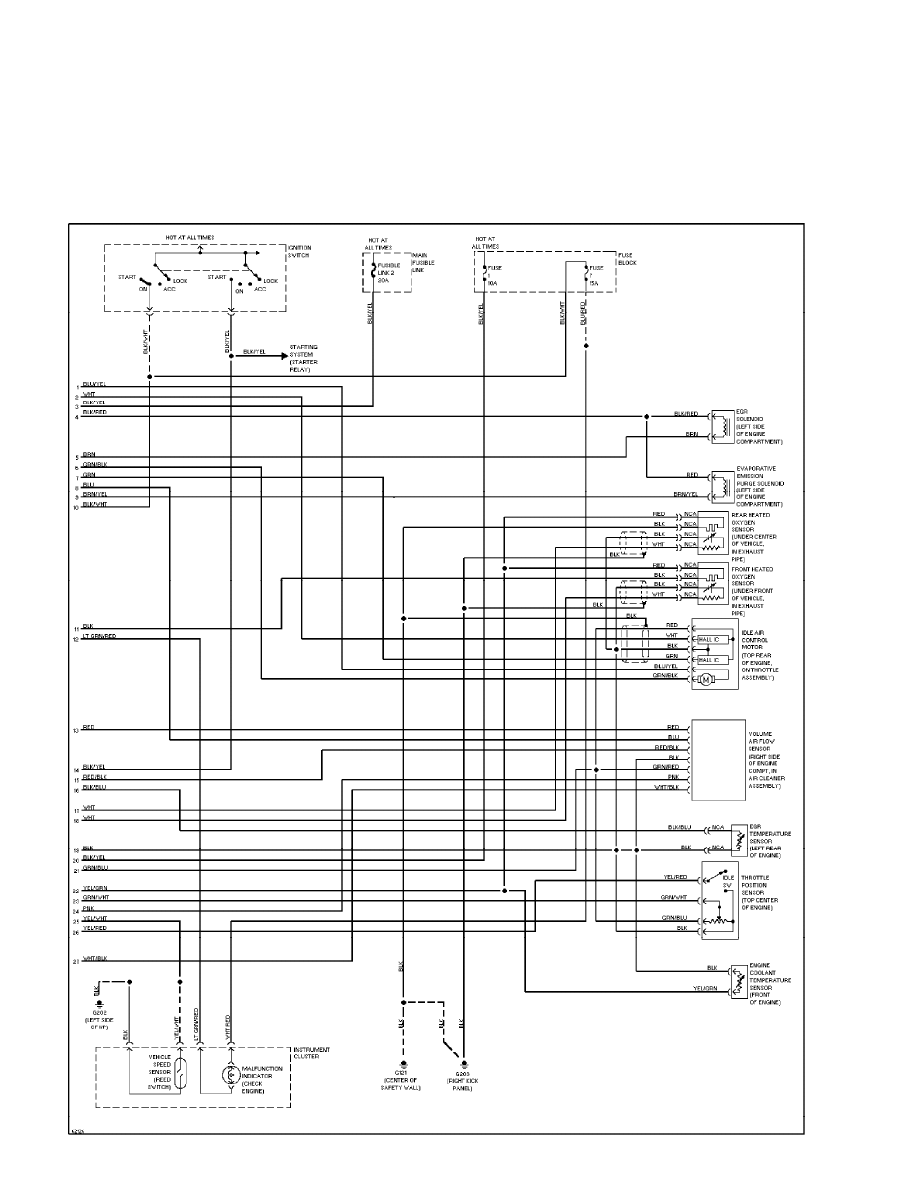

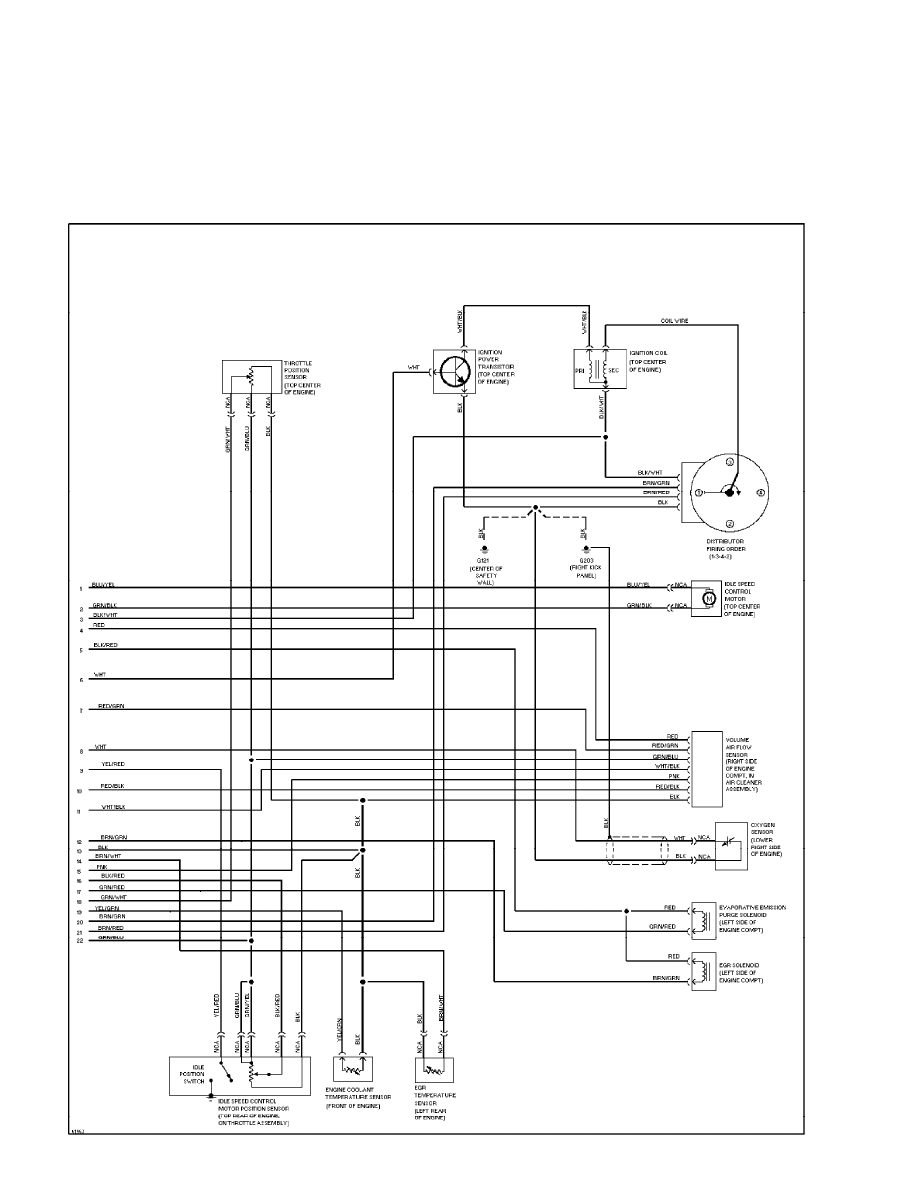

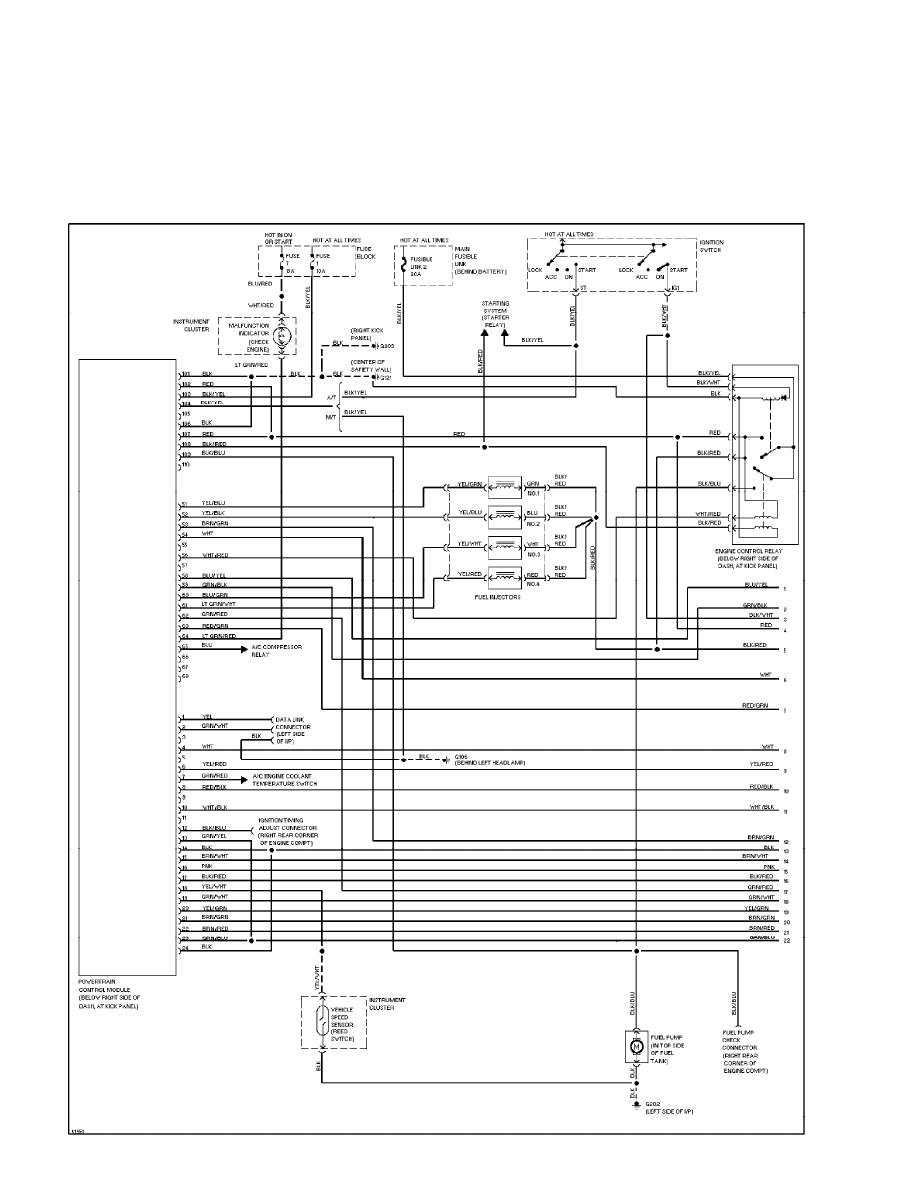

2.4L, Engine Performance Circuits, California (1 of 2) (p. 6)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

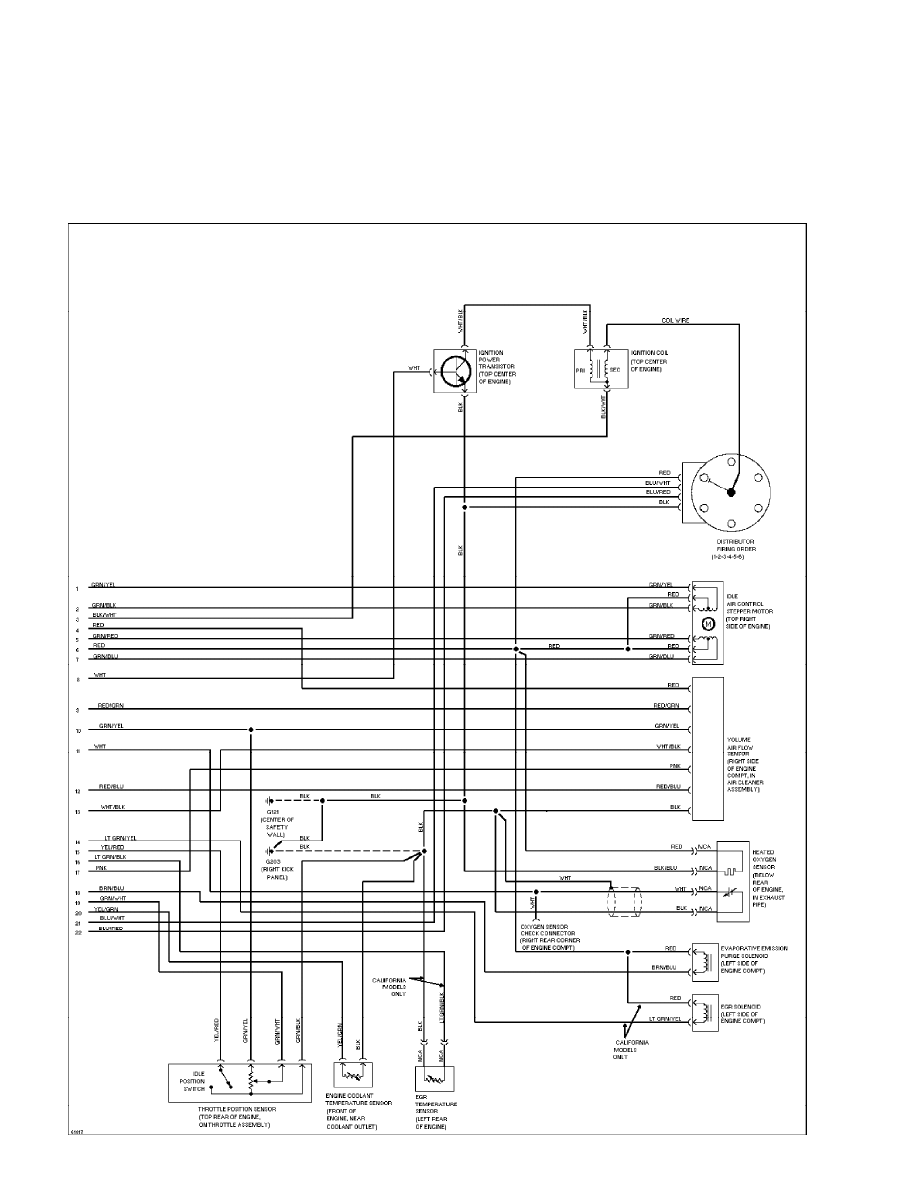

2.4L, Engine Performance Circuits, California (2 of 2) (p. 7)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

2.4L, Engine Performance Circuits, Federal (1 of 2) (p. 8)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

2.4L, Engine Performance Circuits, Federal (2 of 2) (p. 9)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

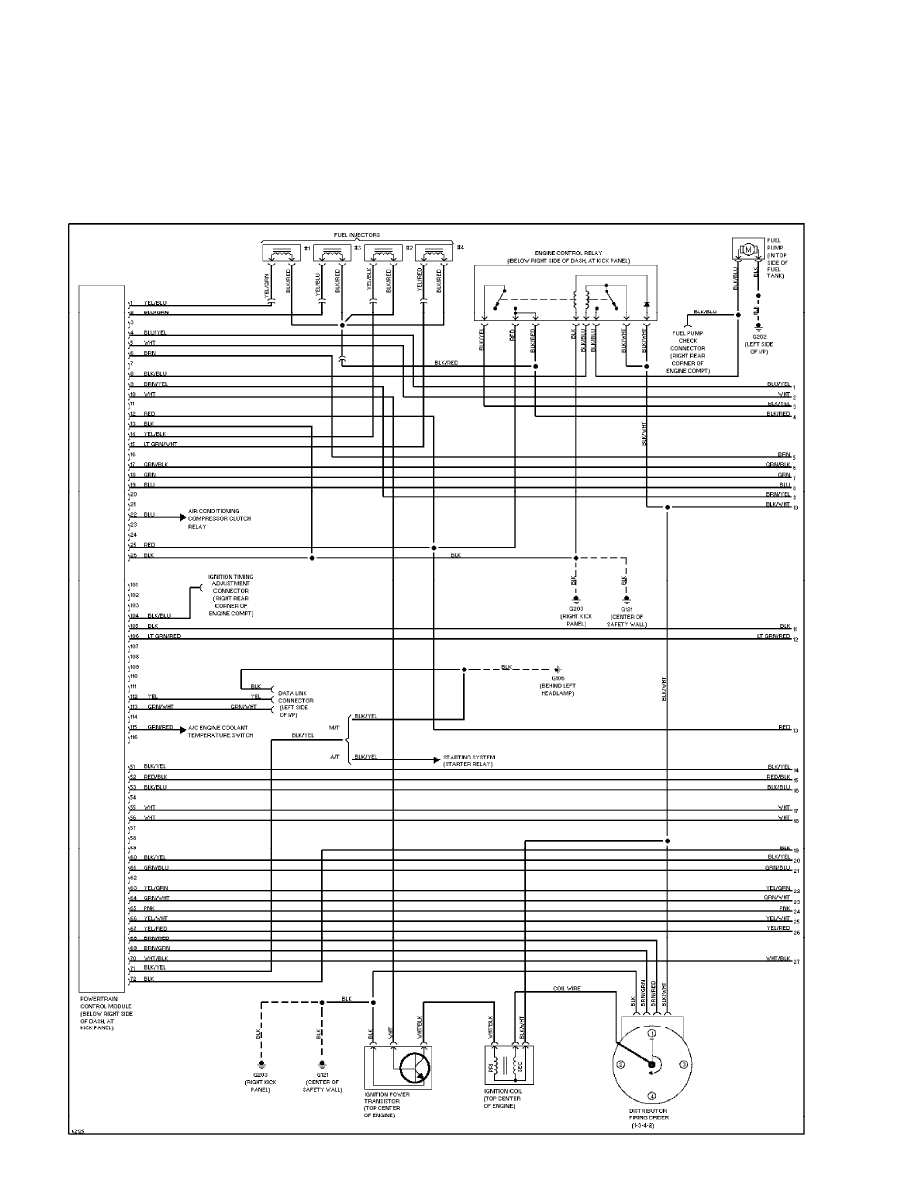

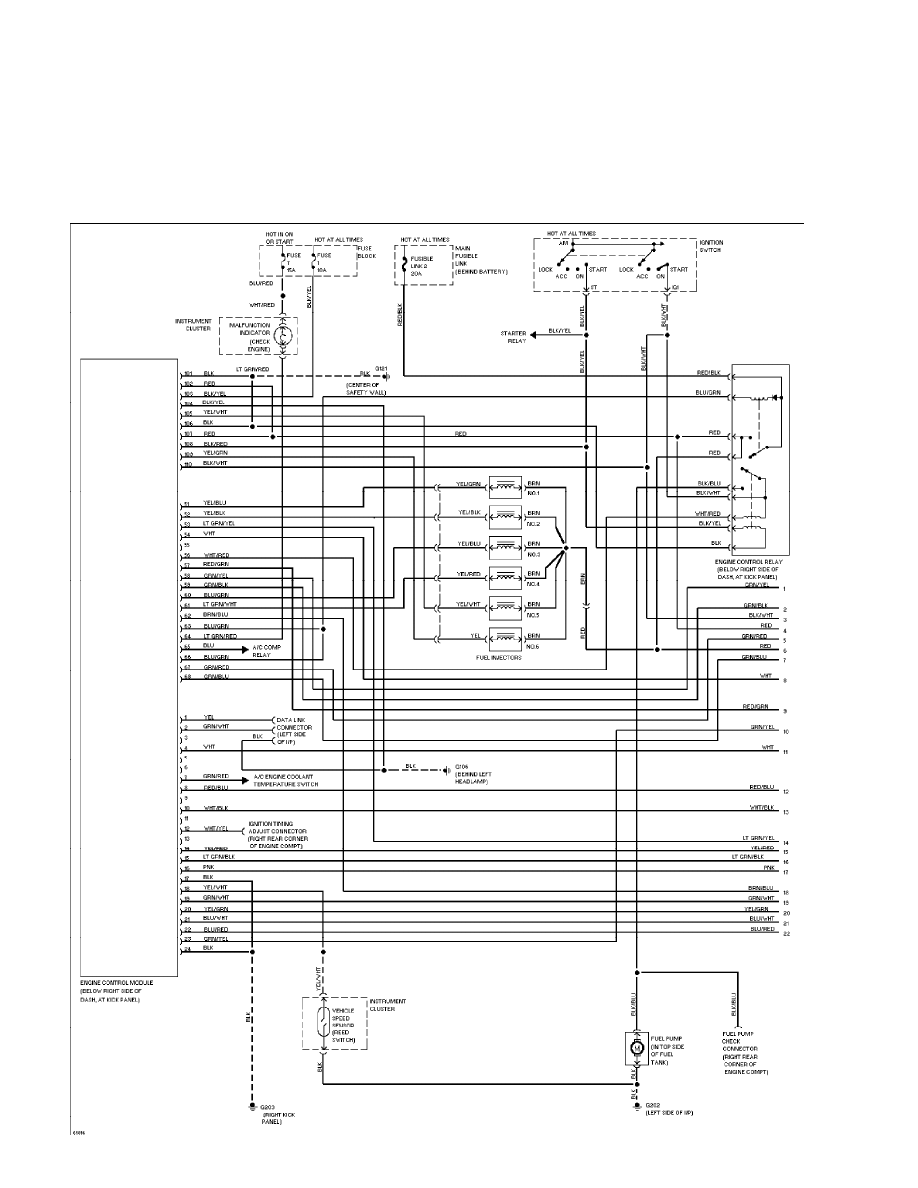

3.0L, Engine Performance Circuits (1 of 2) (p. 10)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

3.0L, Engine Performance Circuits (2 of 2) (p. 11)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

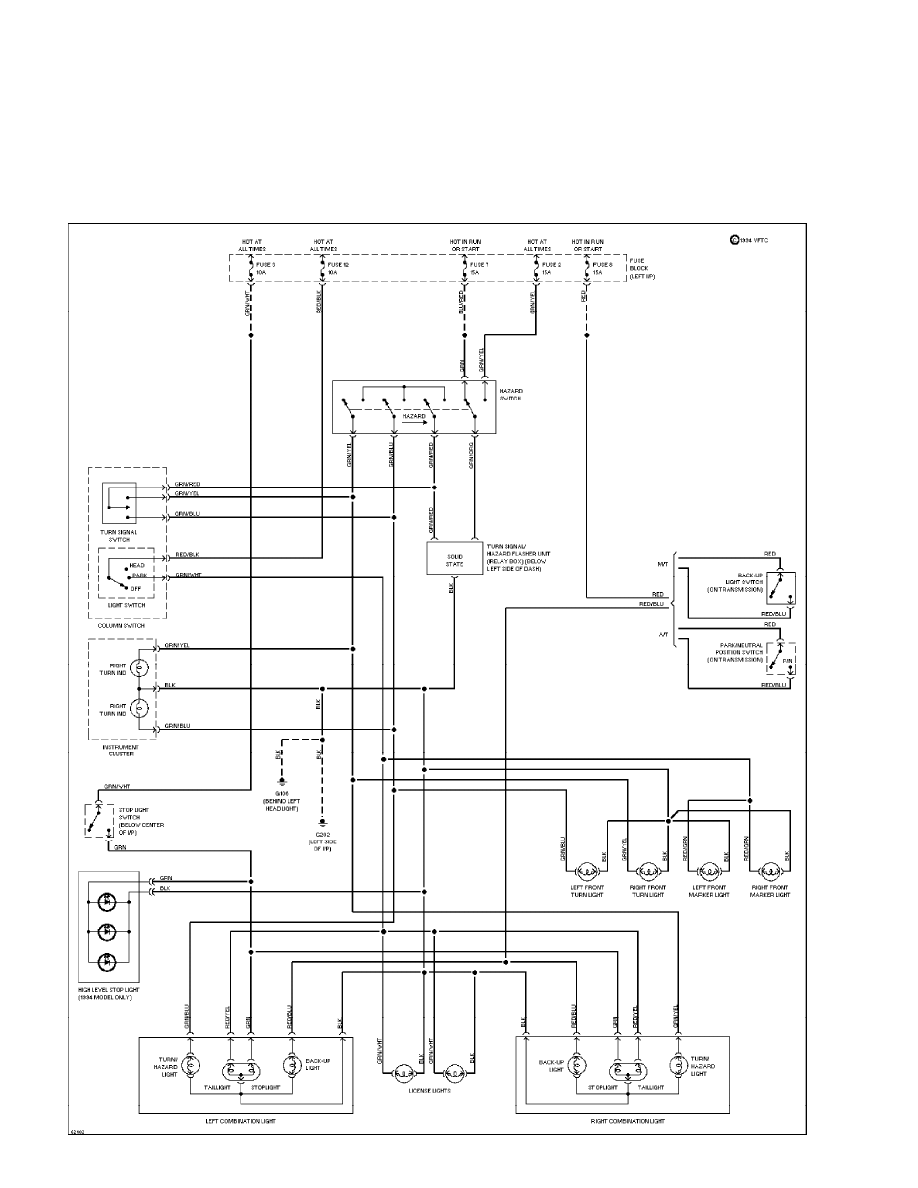

Exterior Light Circuit (p. 12)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

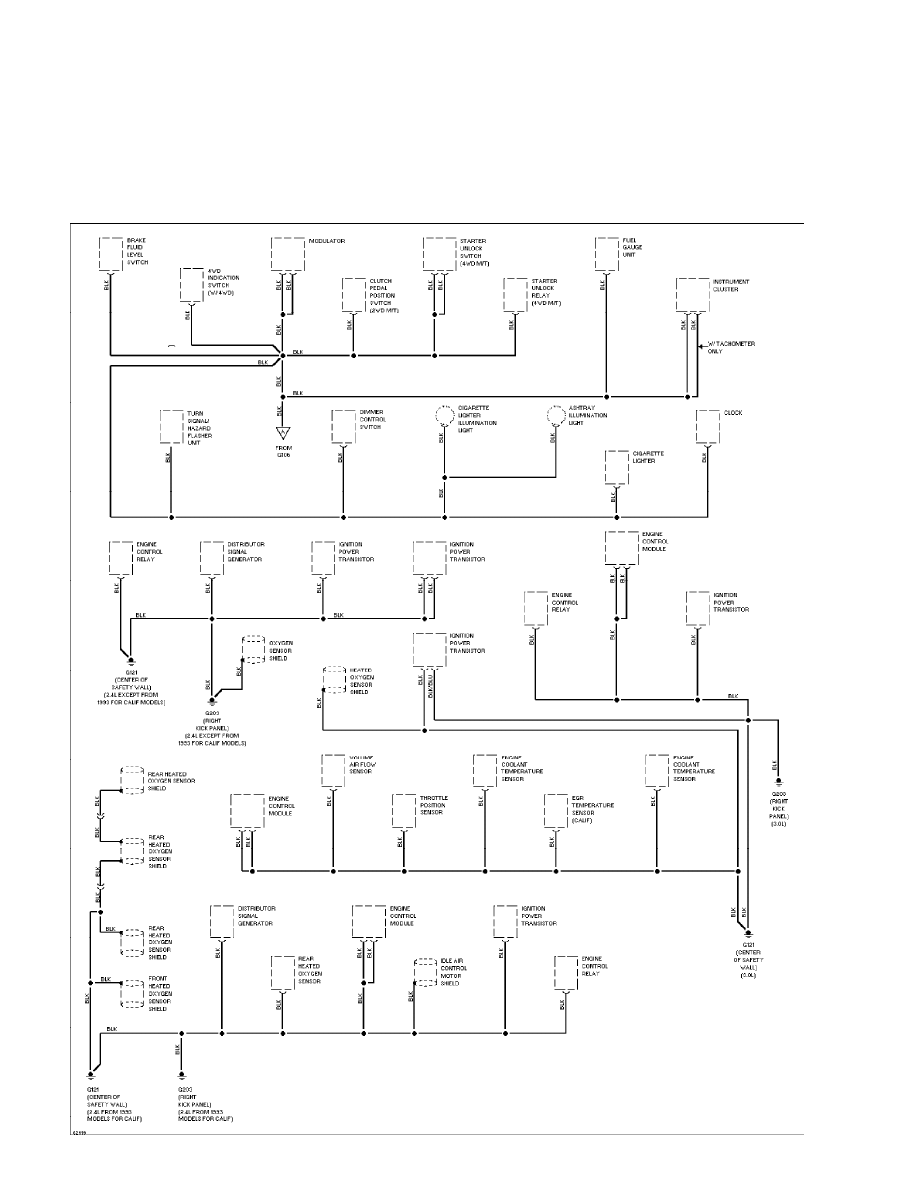

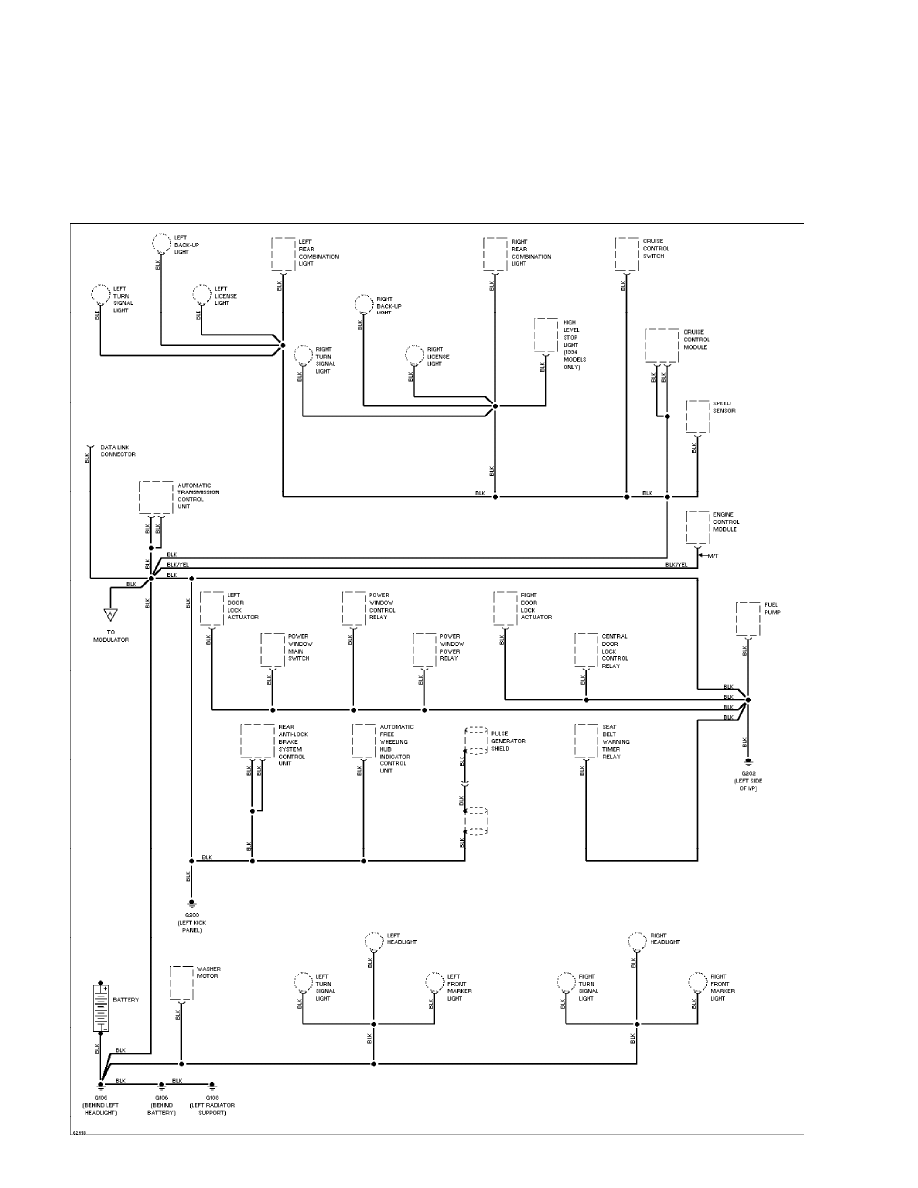

Ground Distribution Circuit (1 of 2) (p. 13)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 2) (p. 14)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

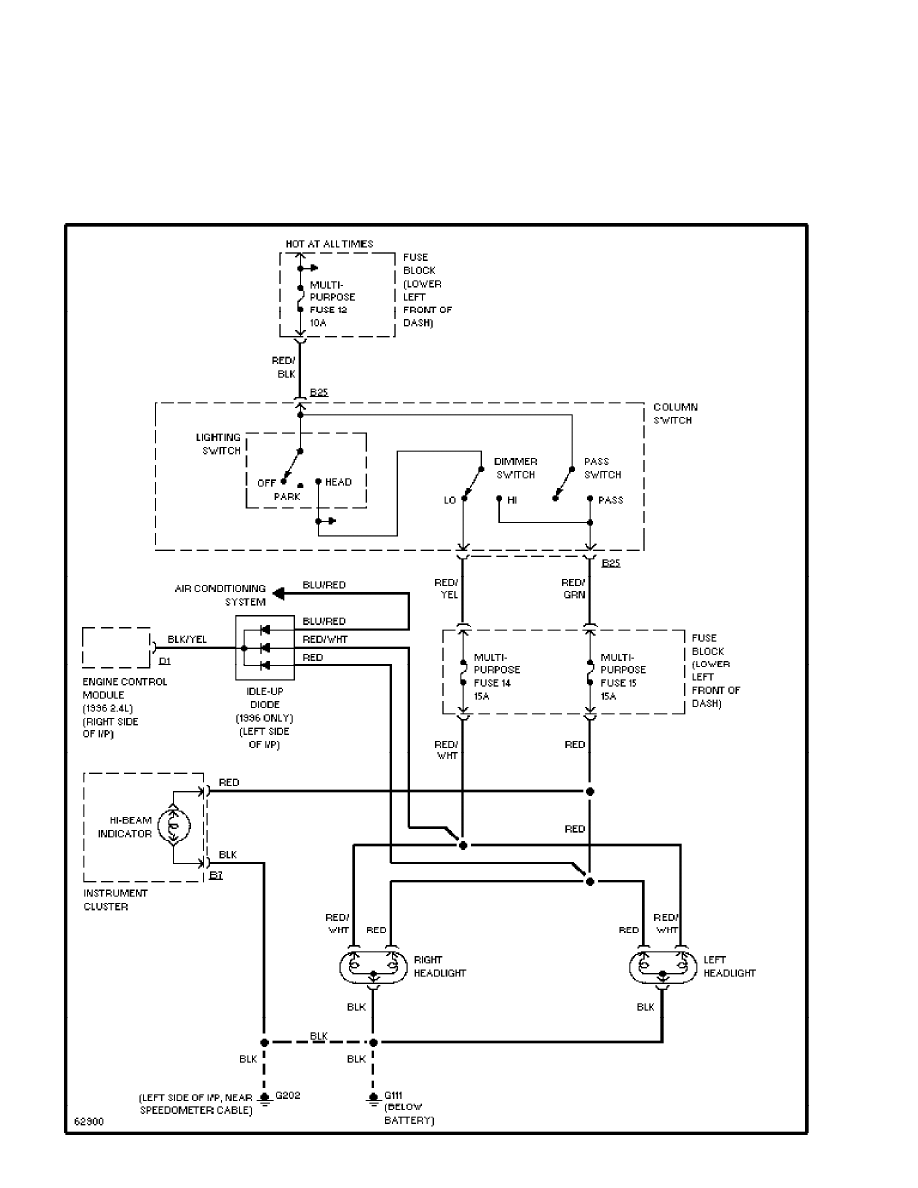

Headlight Circuit (p. 15)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

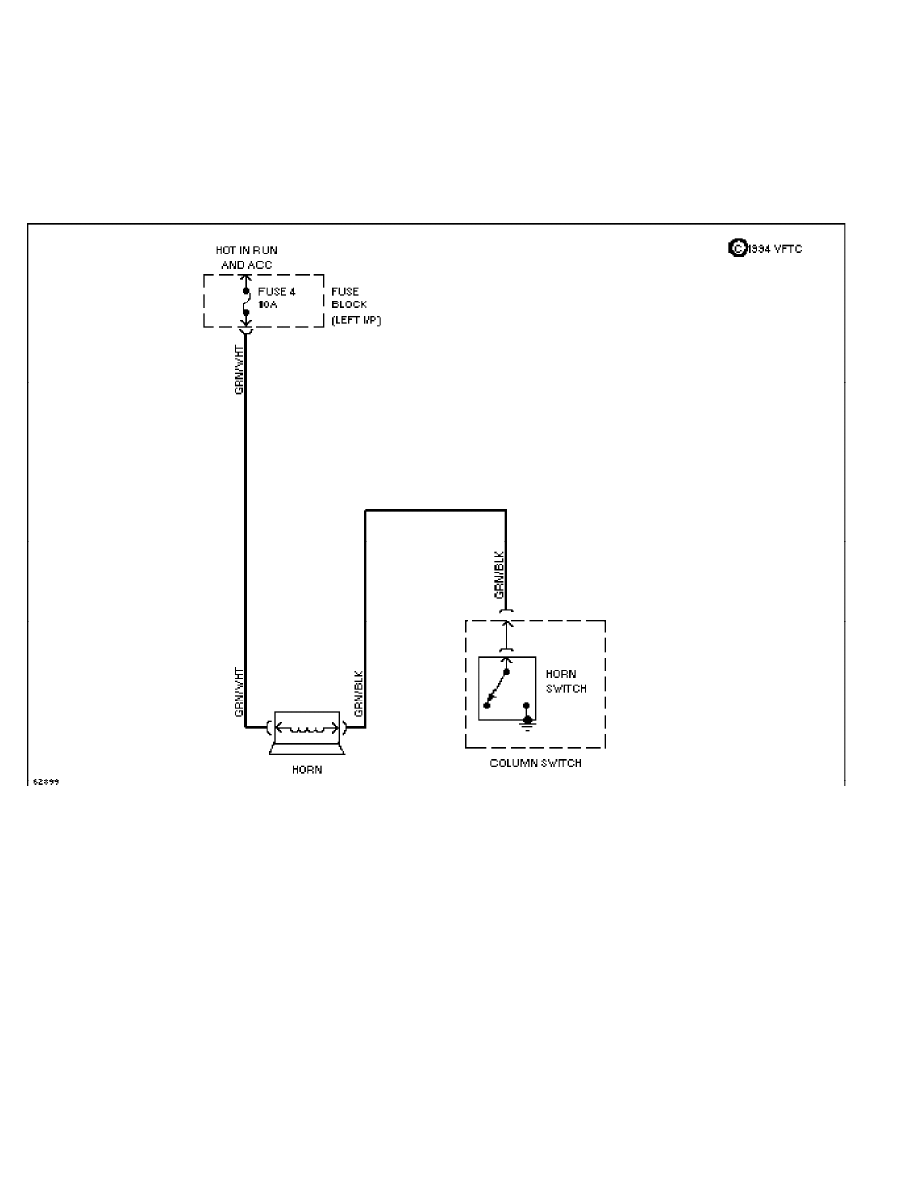

Horn Circuit (p. 16)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

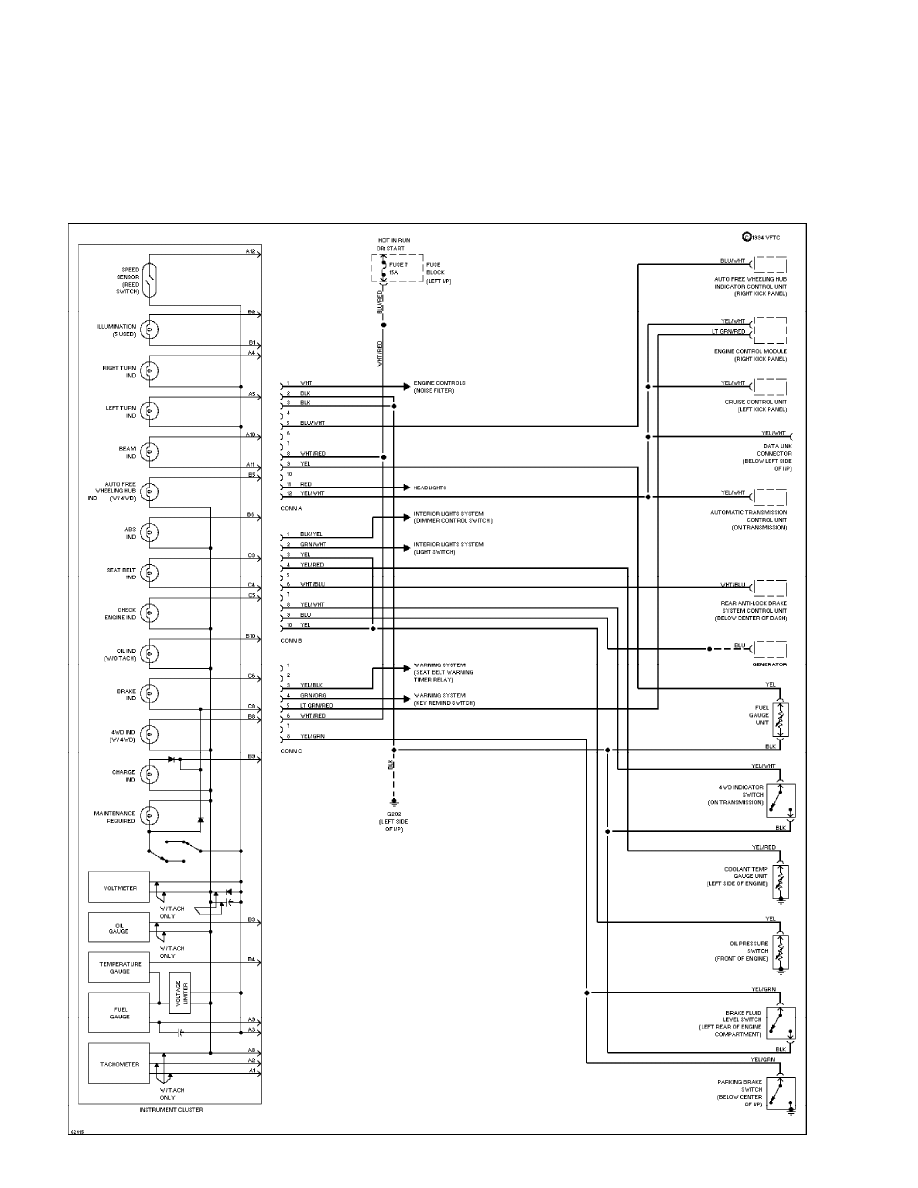

Instrument Cluster Circuit (p. 17)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

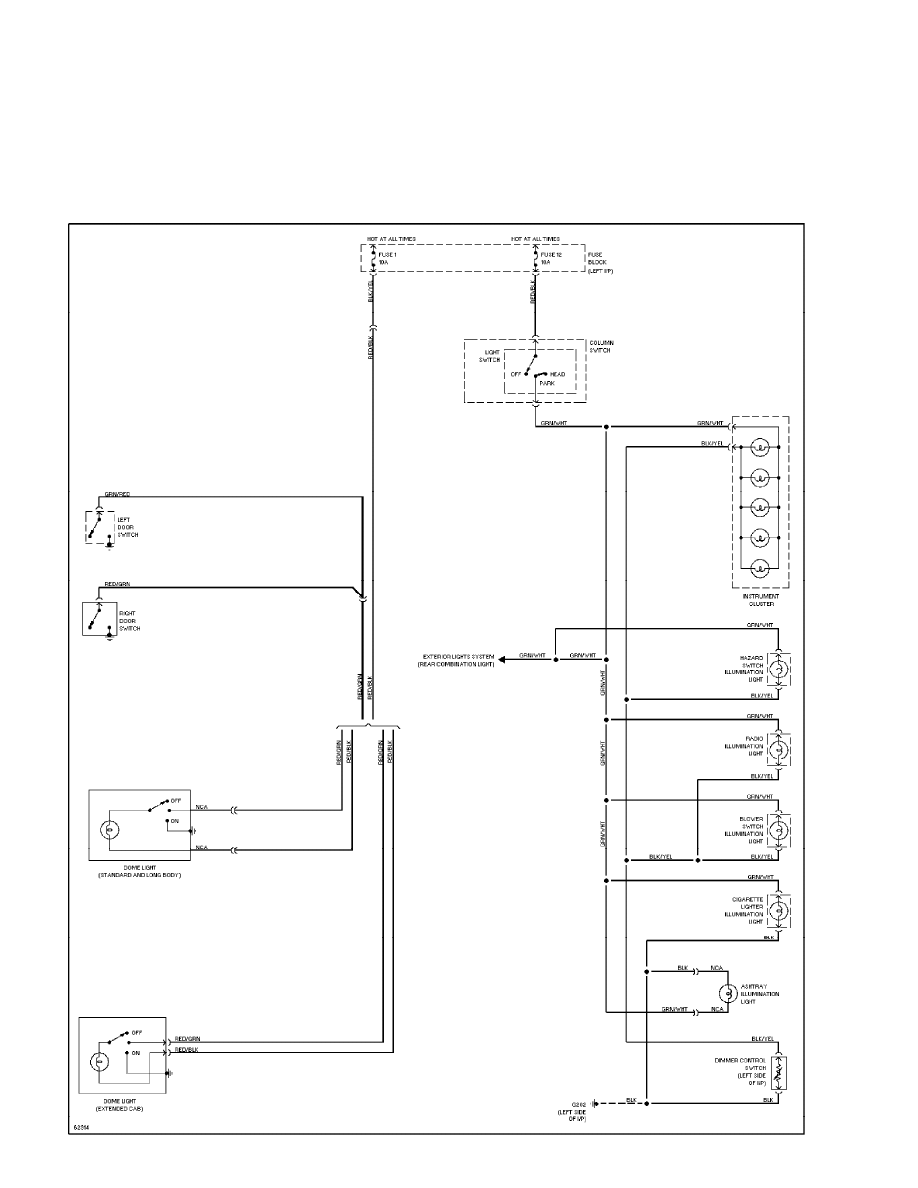

Interior Light Circuit (p. 18)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

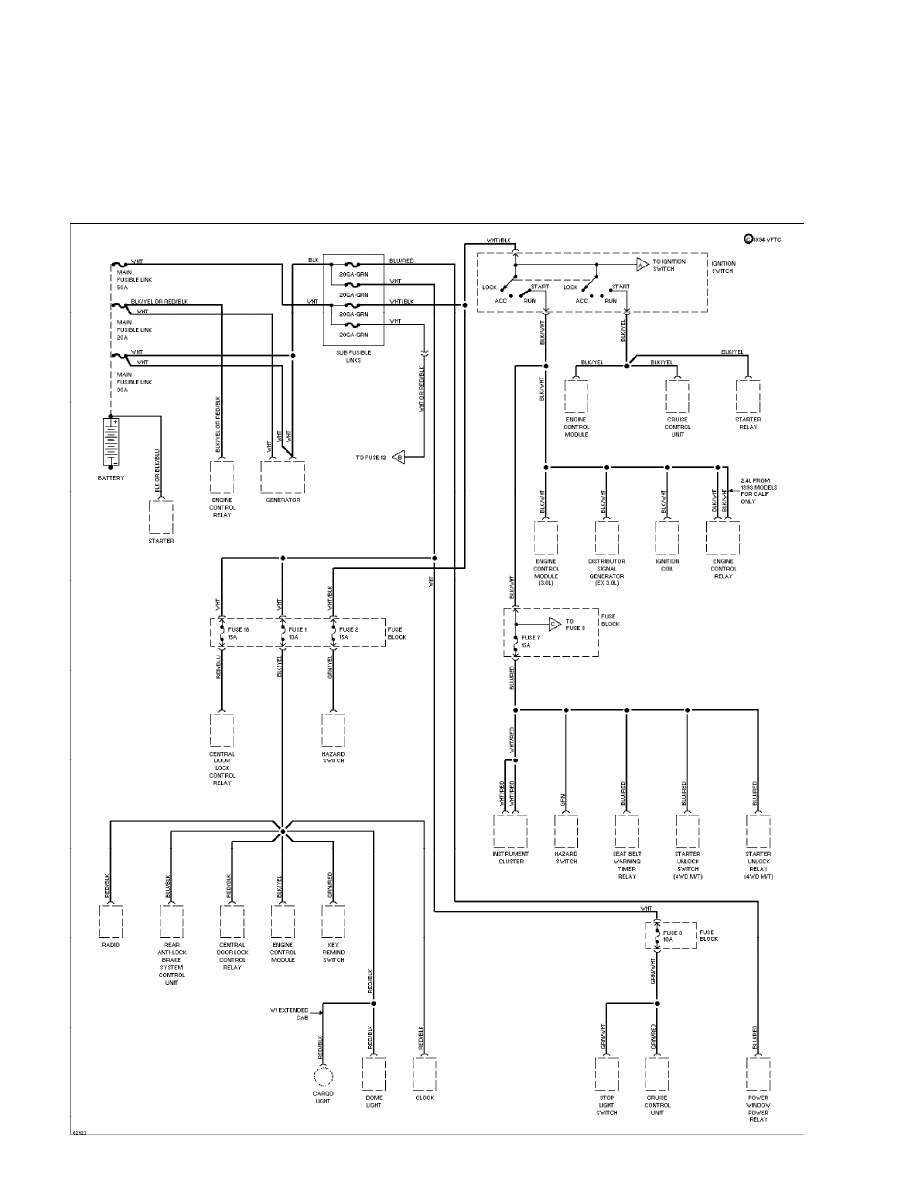

Power Distribution Circuit (1 of 2) (p. 19)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

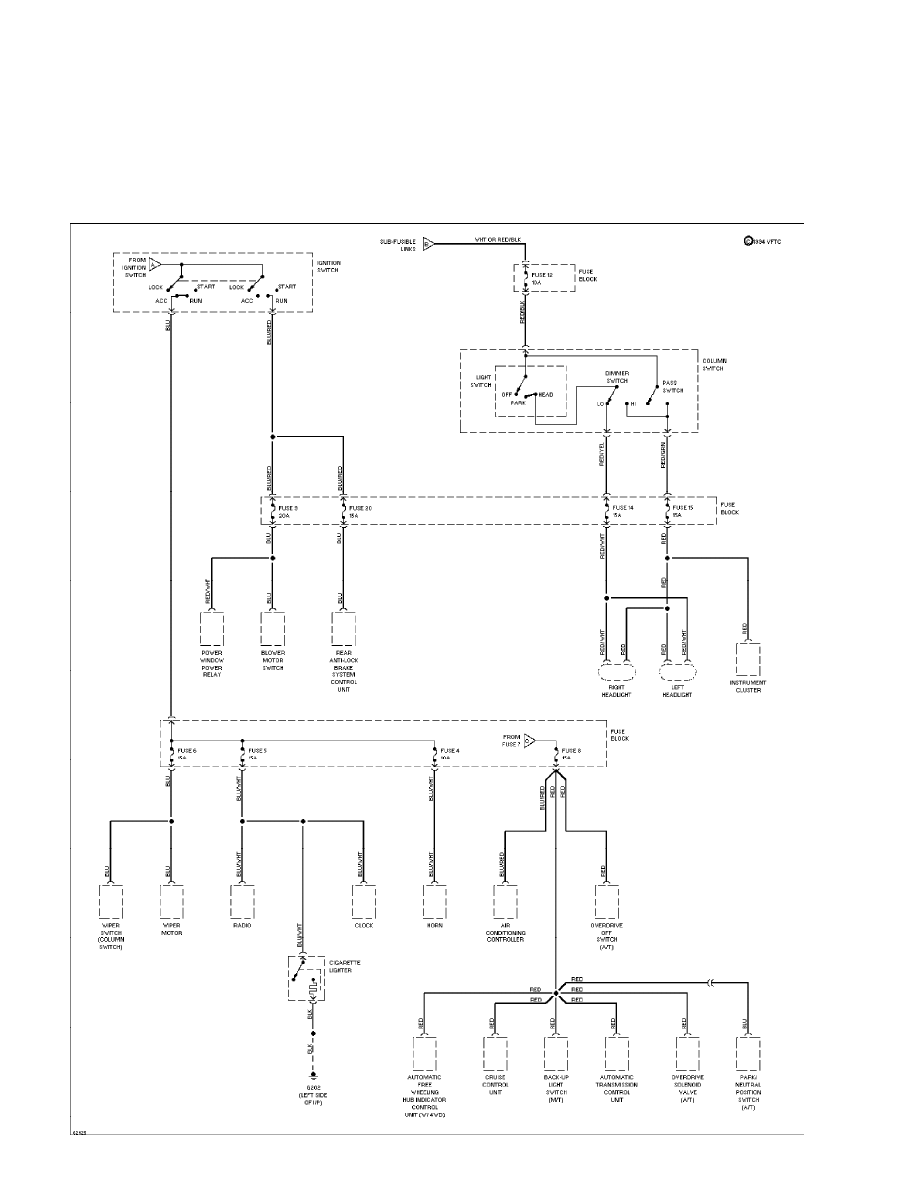

Power Distribution Circuit (2 of 2) (p. 20)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

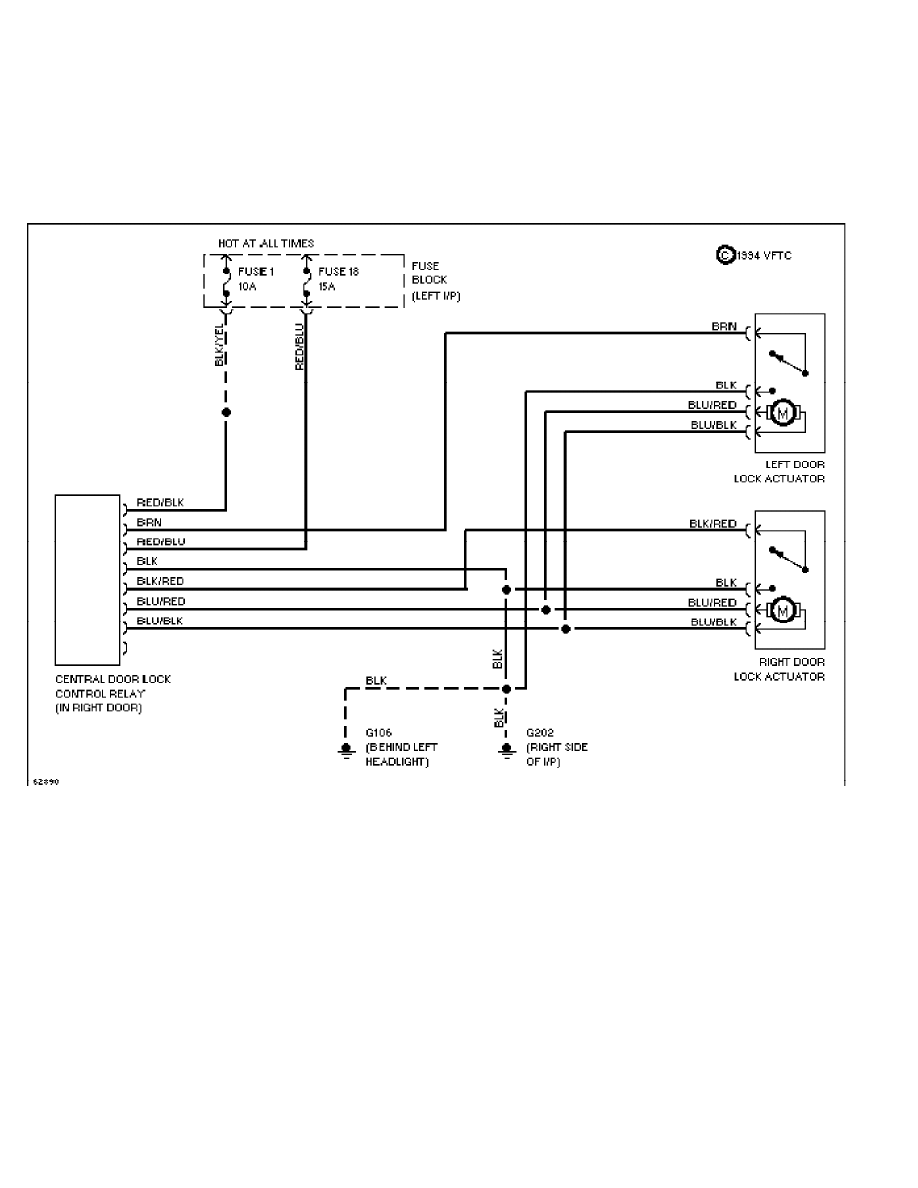

Power Door Lock Circuit (p. 21)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

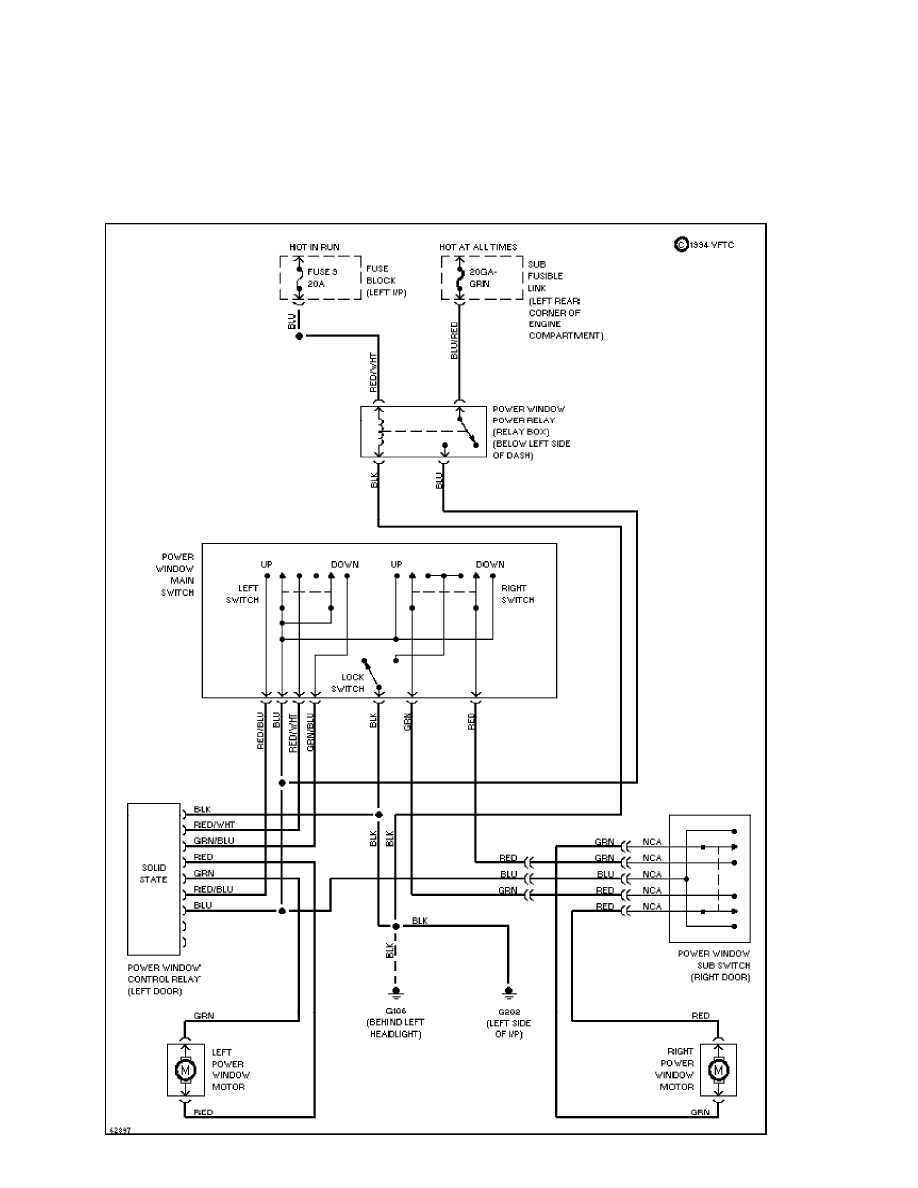

Power Window Circuit (p. 22)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

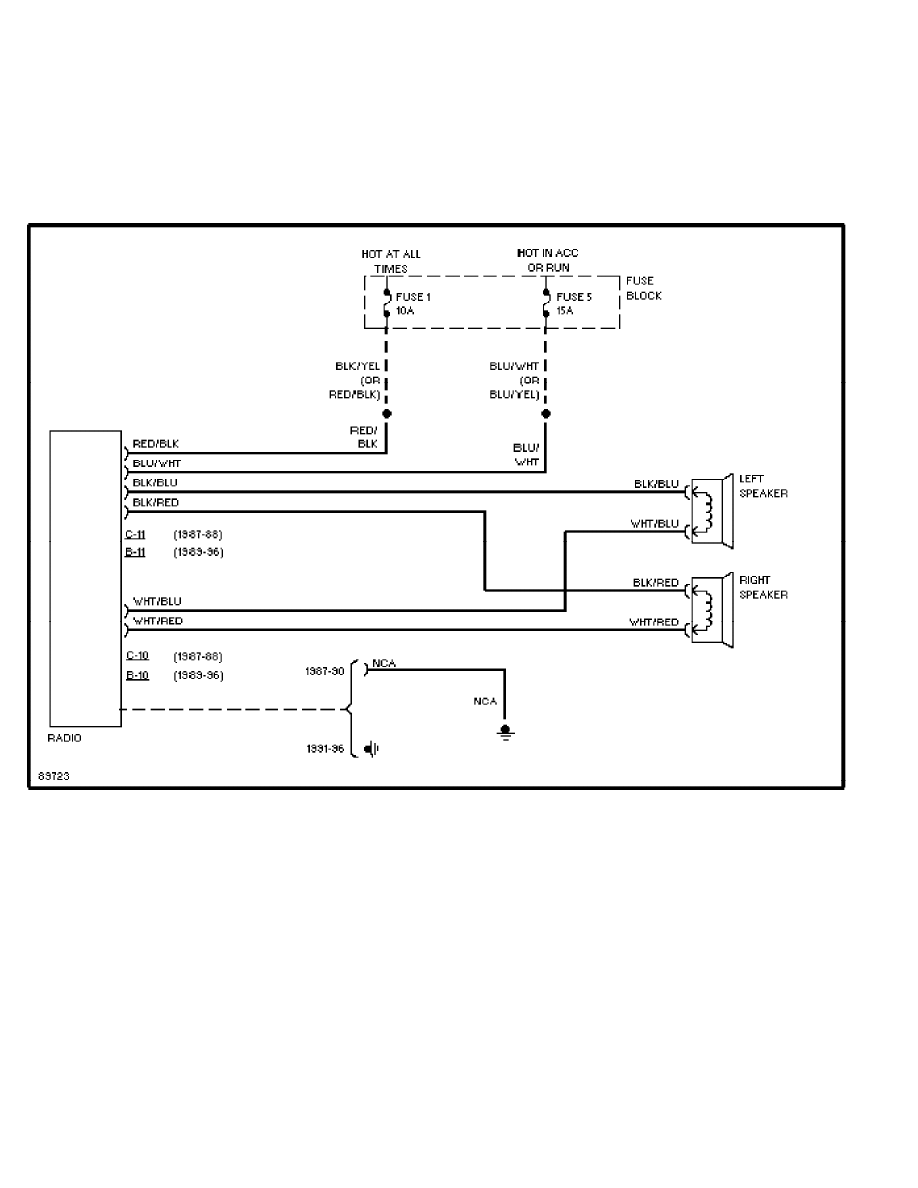

Radio Circuits, 2 Speaker System (p. 23)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

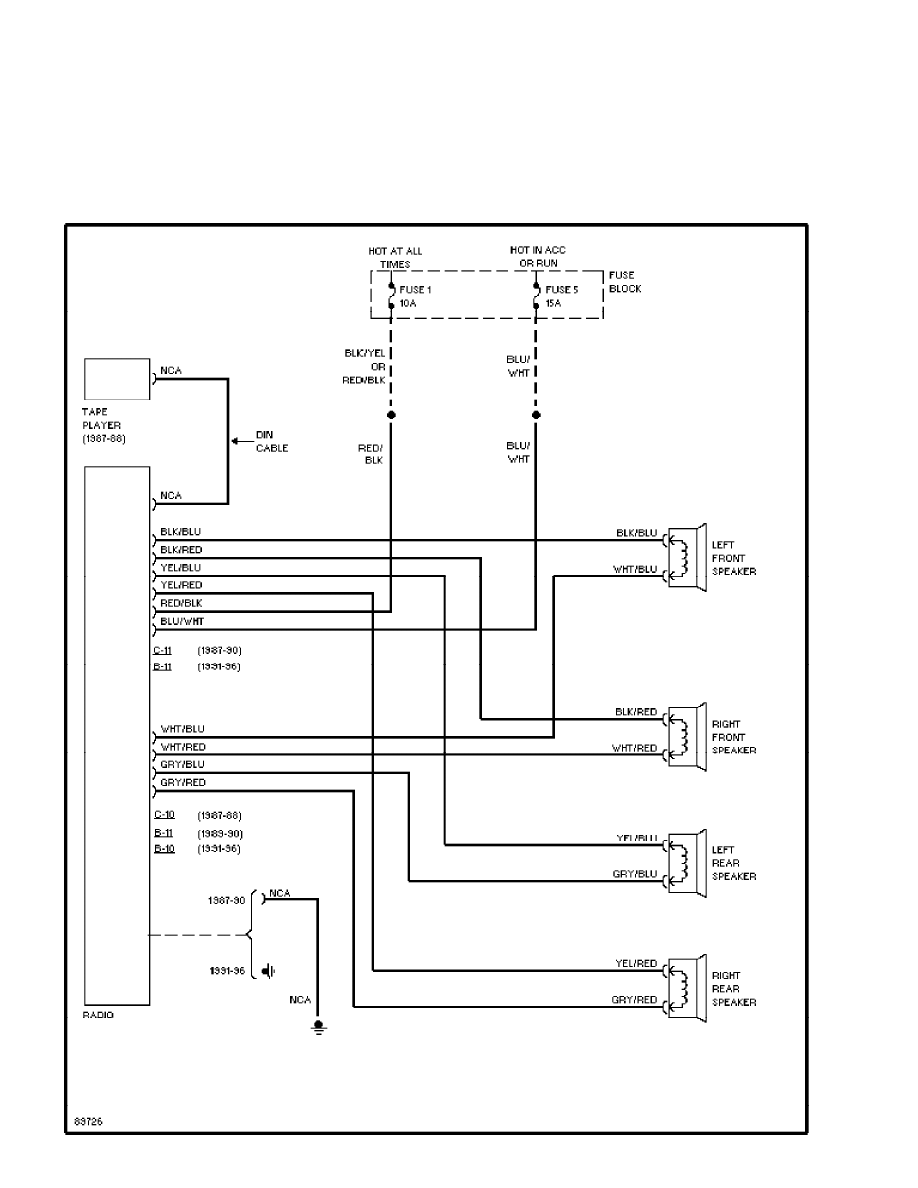

Radio Circuits, 4 Speaker System (p. 24)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

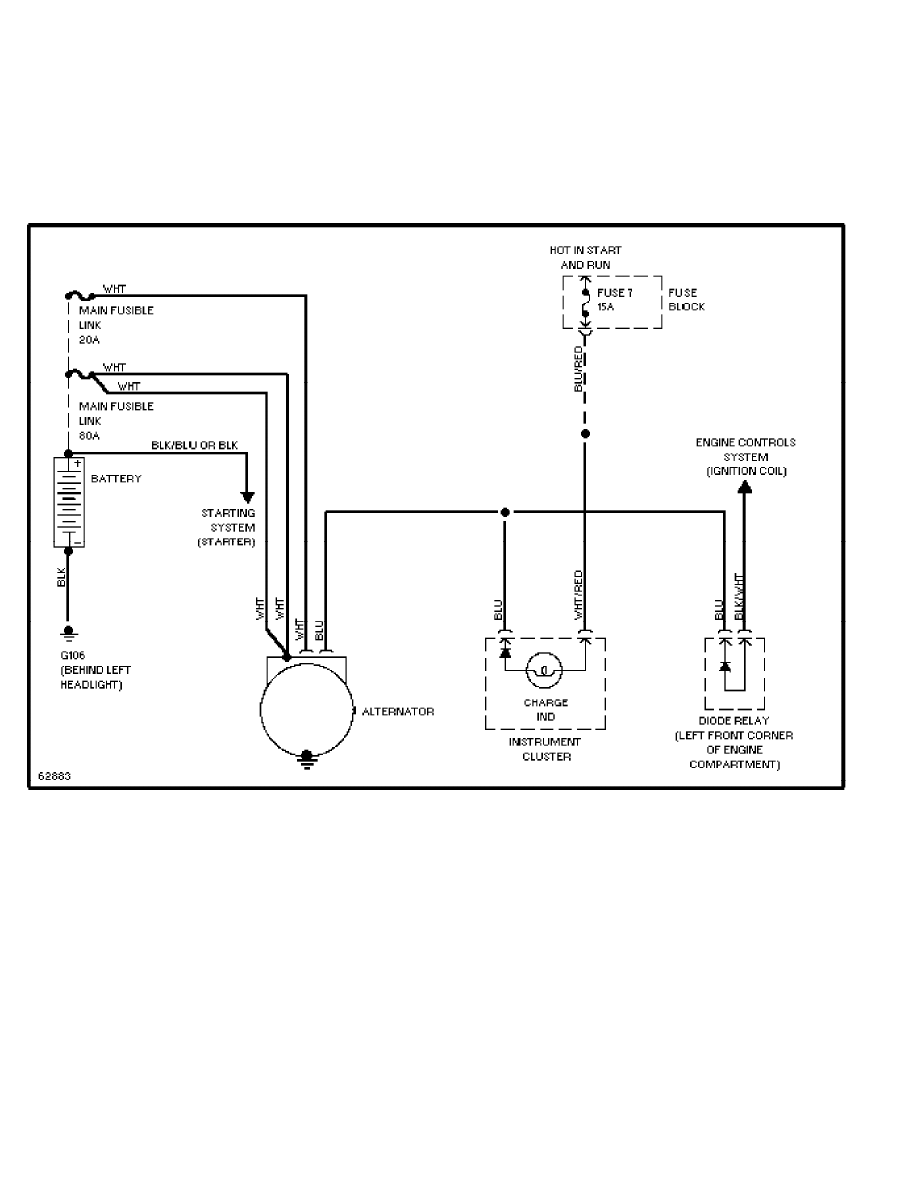

Charging Circuit (p. 25)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

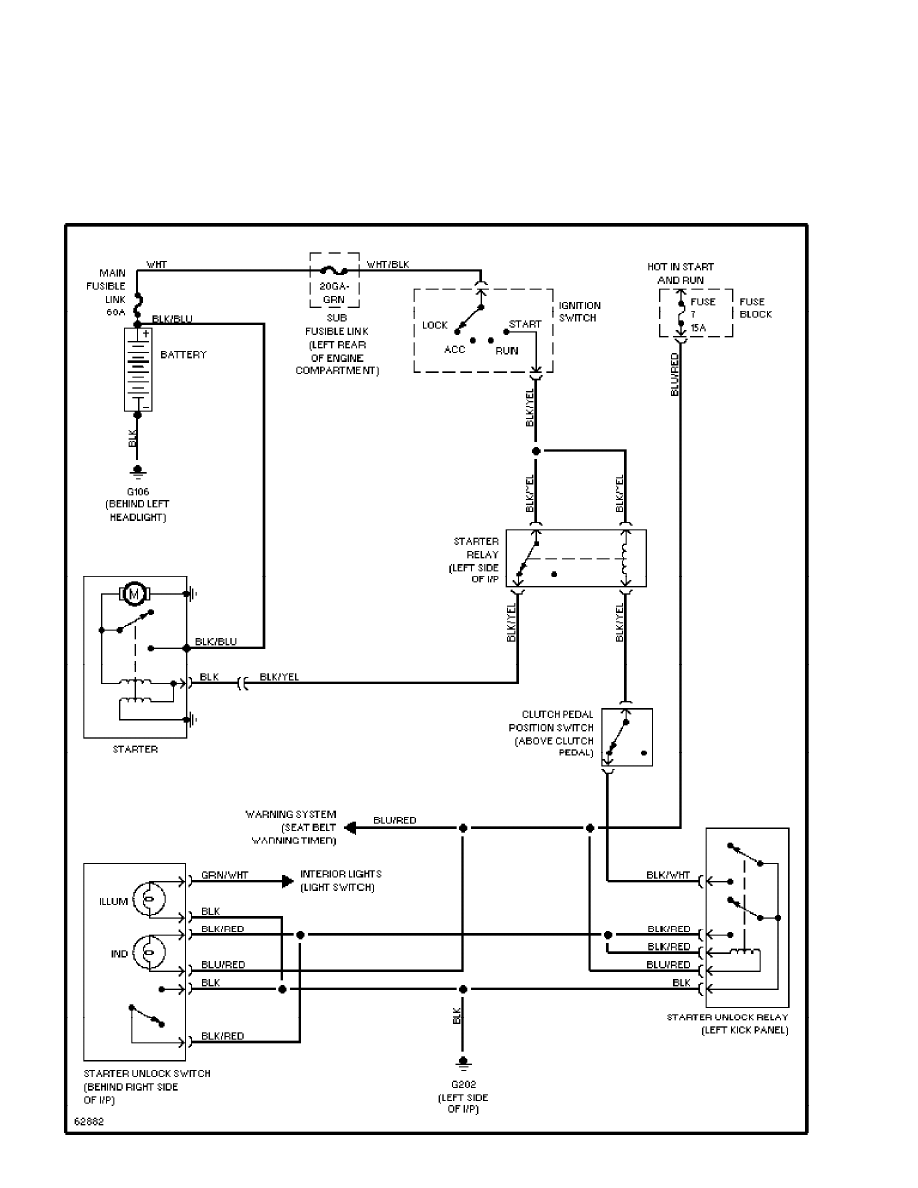

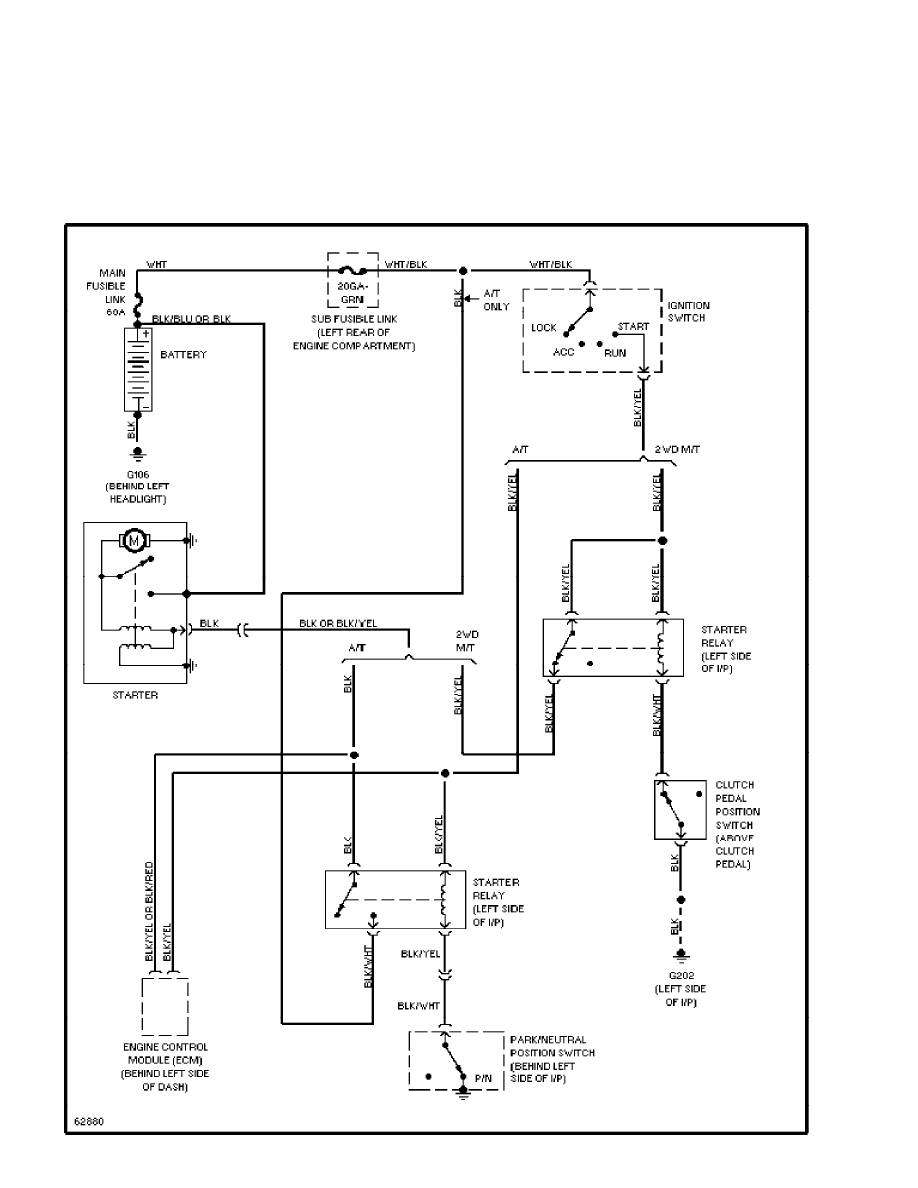

Starting Circuit (1 of 2) (p. 26)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, Except M/T W/4-Wheel Drive (p. 27)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, M/T W/ 4-Wheel Drive (p. 28)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, M/T W/ 4-Wheel Drive (1 of 2) (p. 29)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

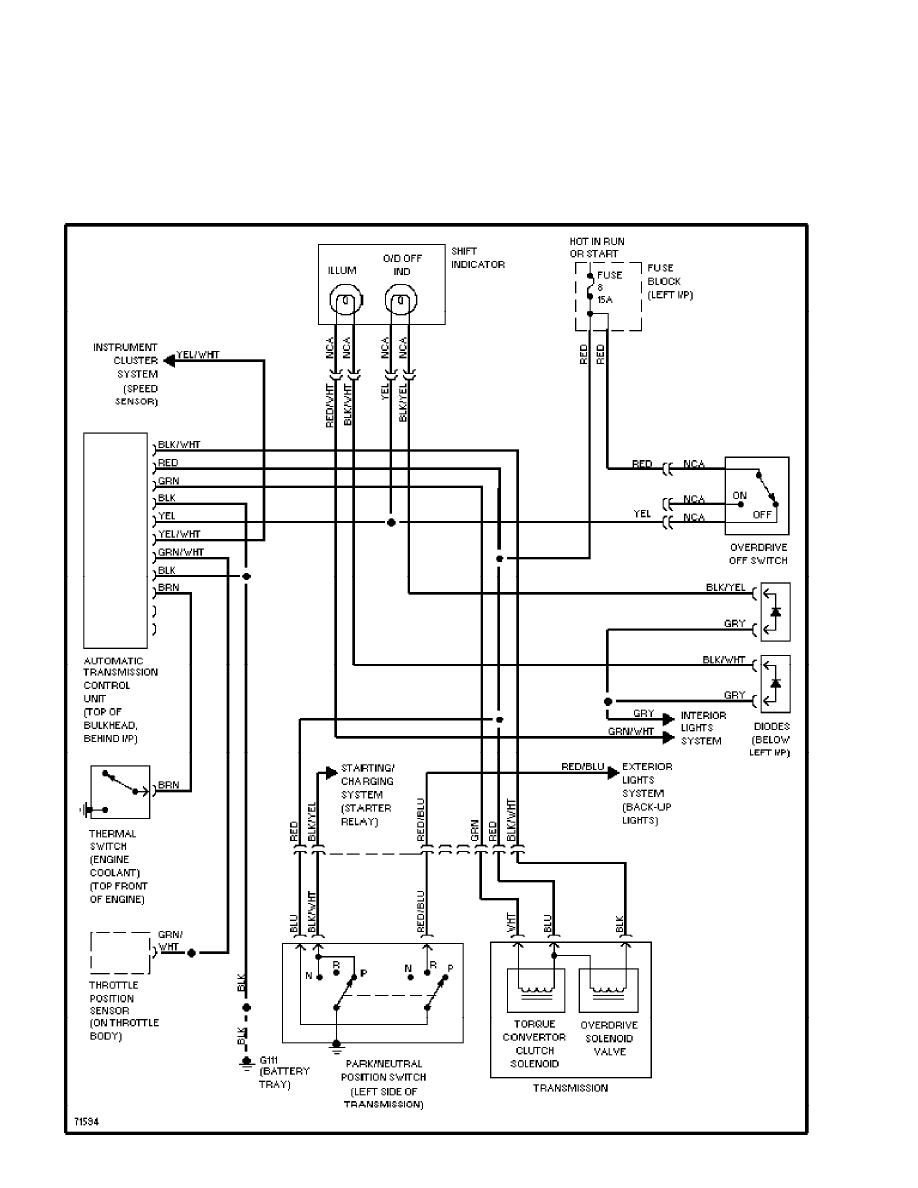

Transmission Circuit (p. 30)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

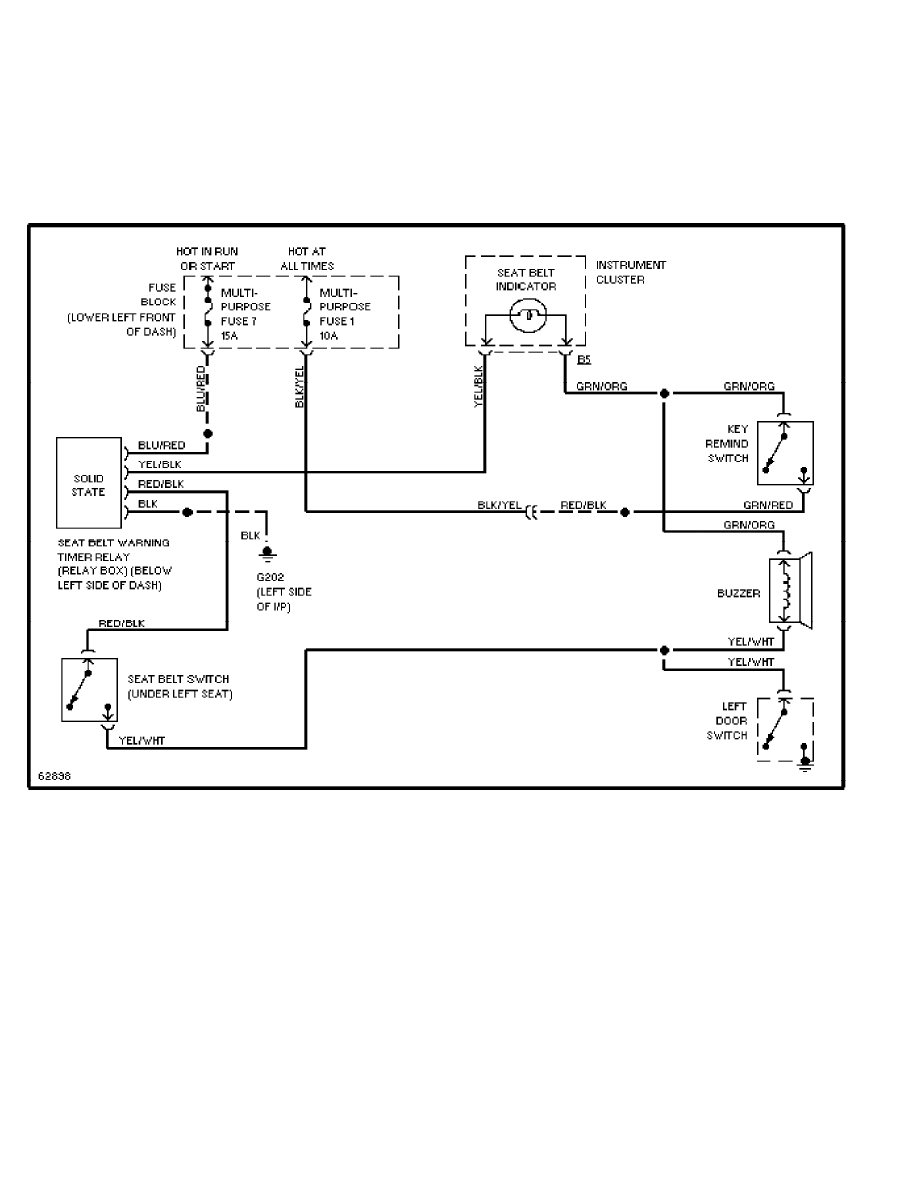

Warning System Circuits (p. 31)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM

SYSTEM WIRING DIAGRAMS

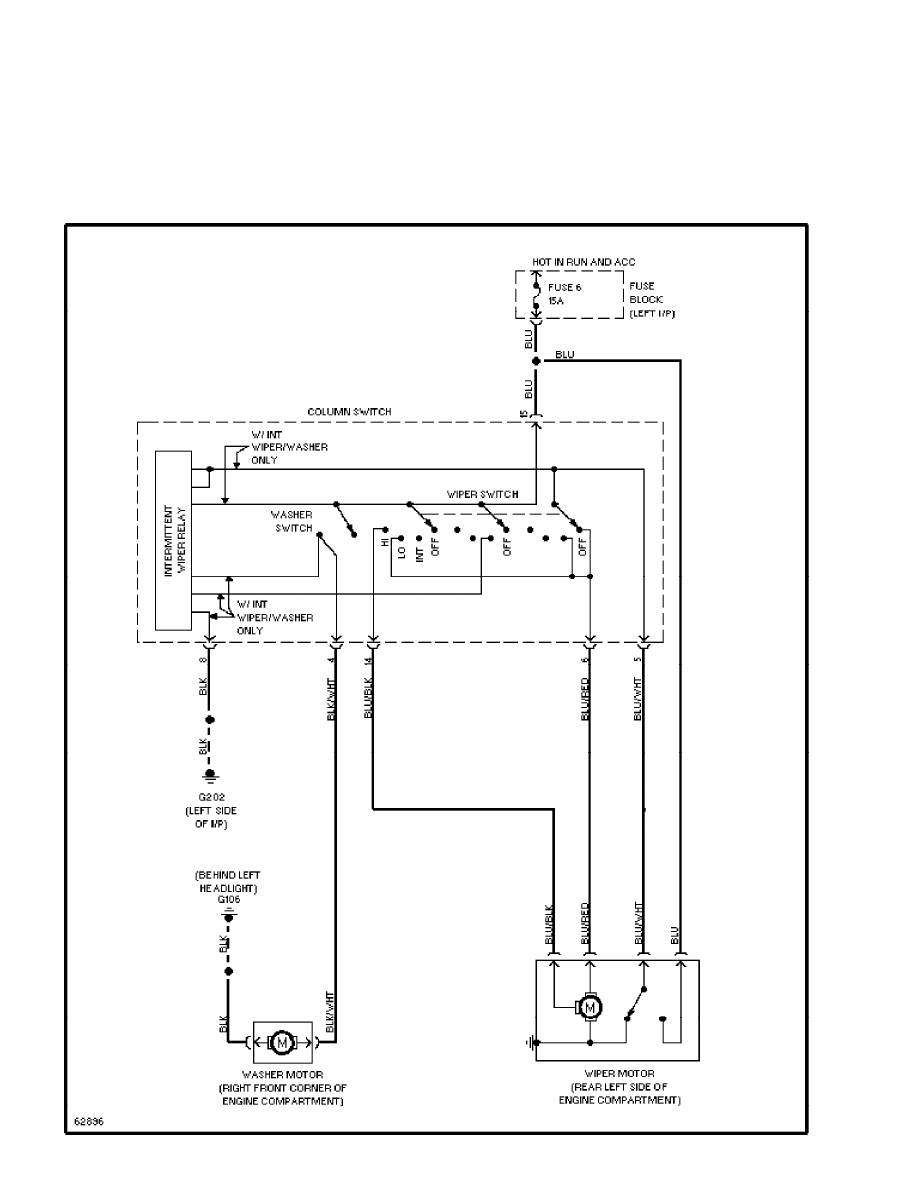

Wiper/Washer Circuit (p. 32)

1994 Mitsubishi Pickup

For x

Thursday, March 17, 2005 09:45AM
