SYSTEM WIRING DIAGRAMS

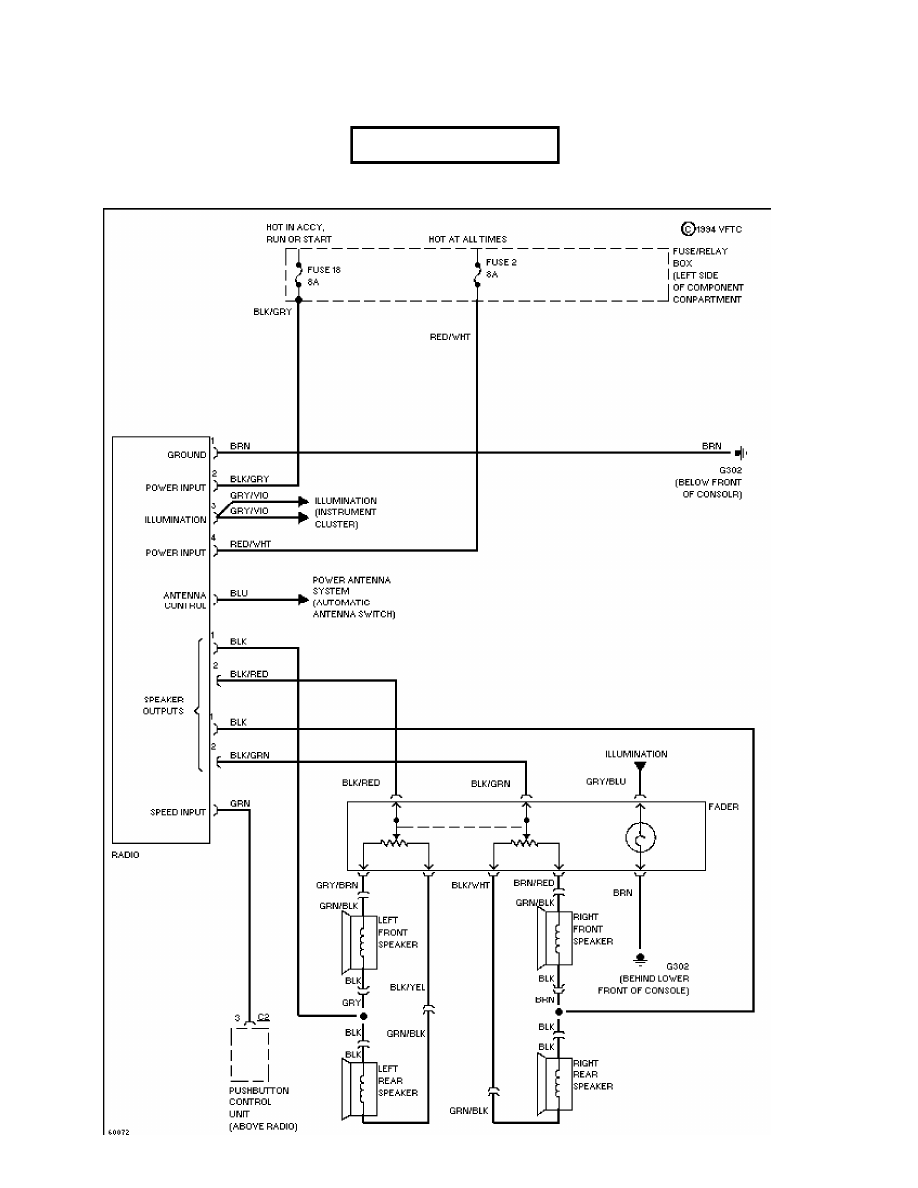

Base Radio

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:33PM

[e-mail]

SYSTEM WIRING DIAGRAMS

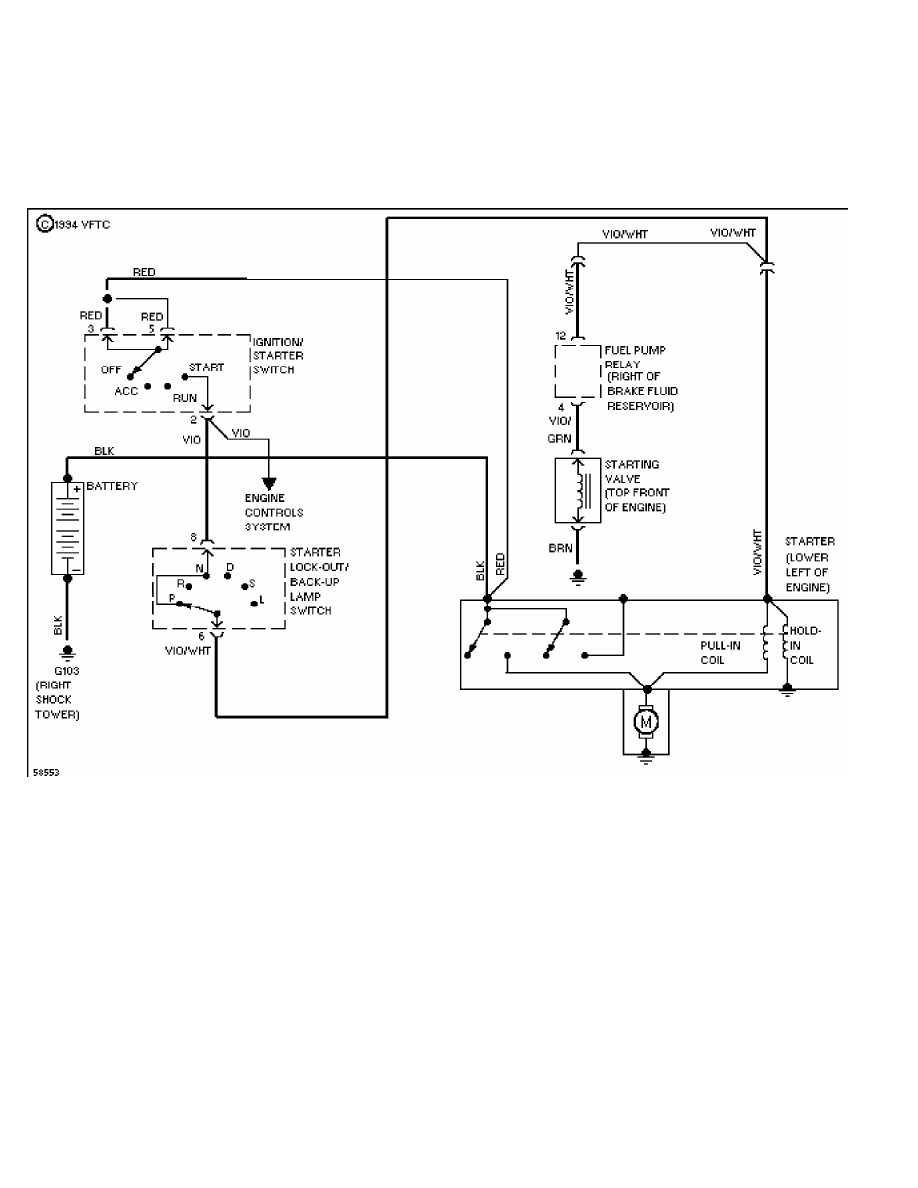

Starting Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:36PM

SYSTEM WIRING DIAGRAMS

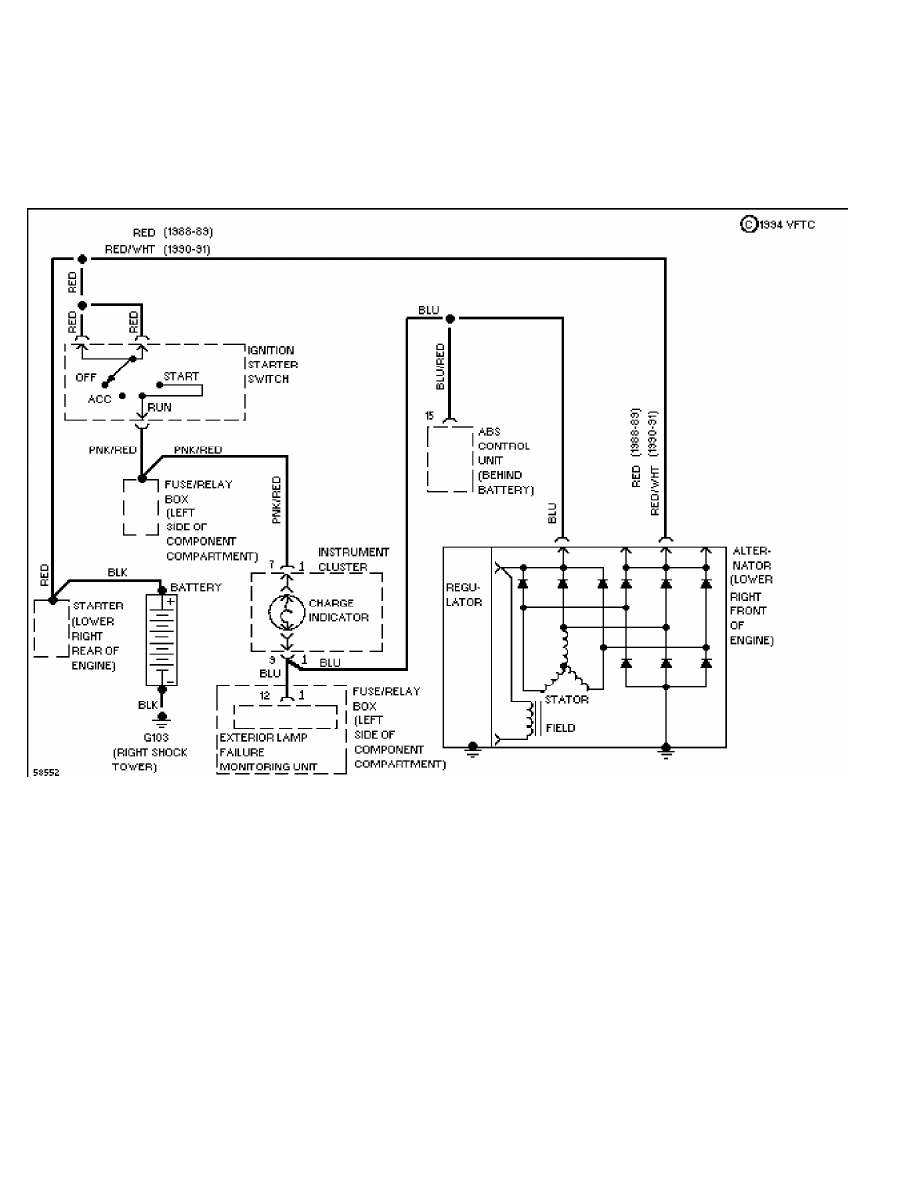

Charging Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:34PM

SYSTEM WIRING DIAGRAMS

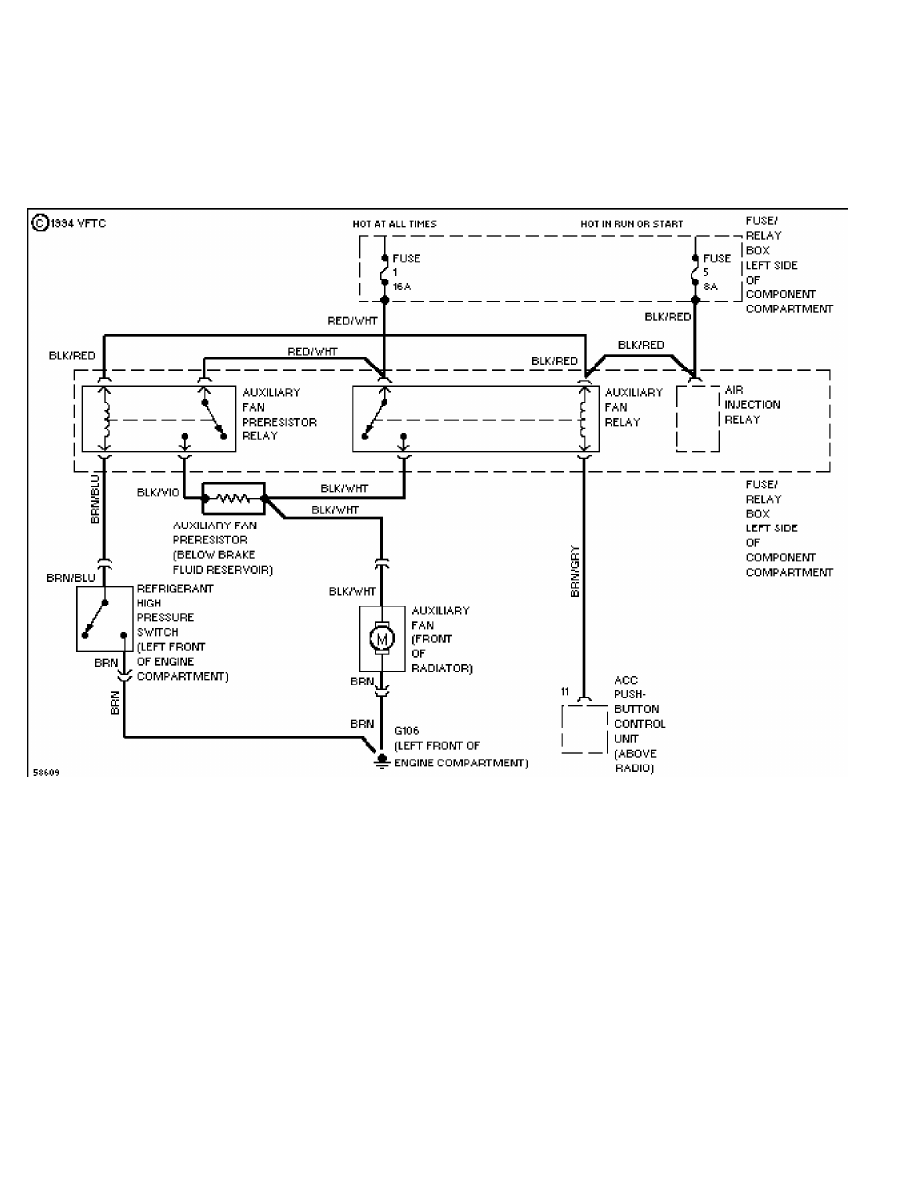

Cooling Fan Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:29PM

SYSTEM WIRING DIAGRAMS

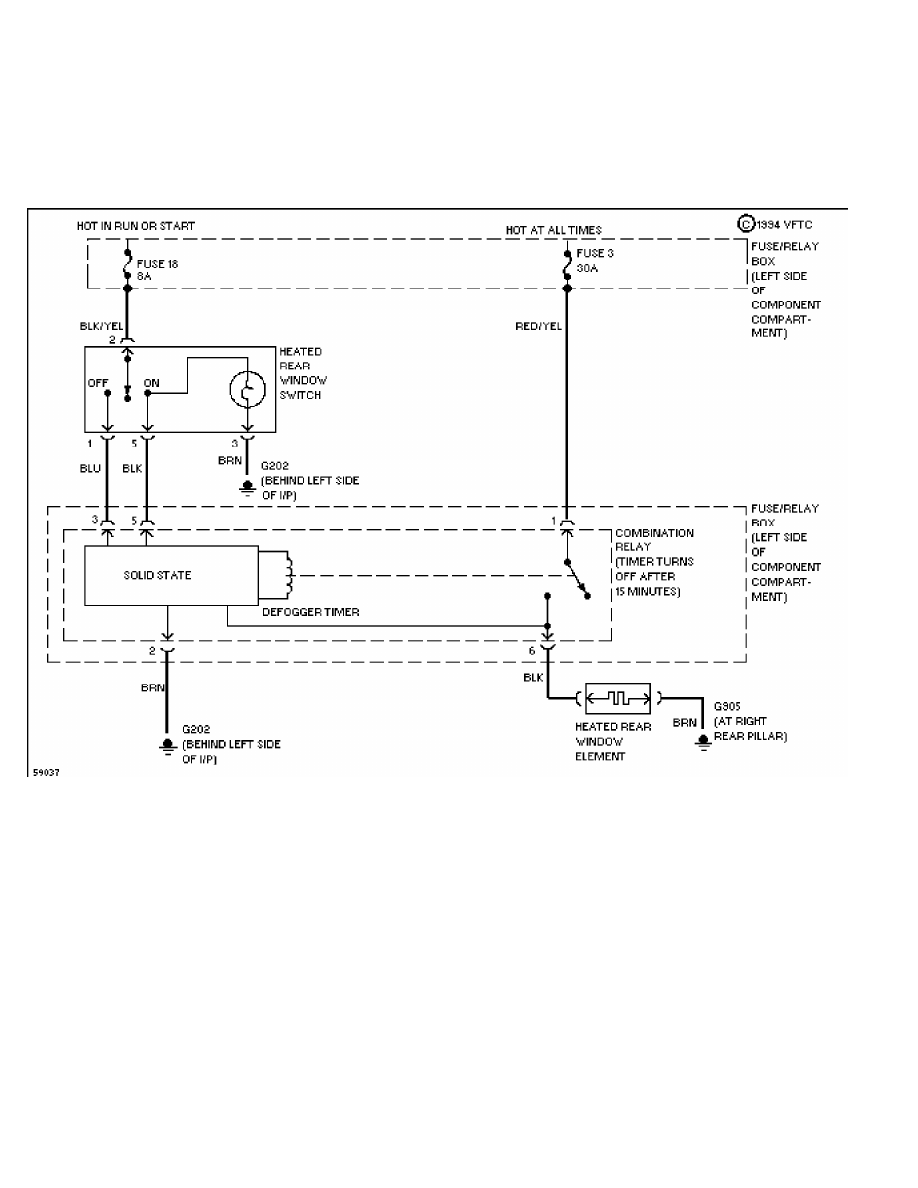

Defogger Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:29PM

SYSTEM WIRING DIAGRAMS

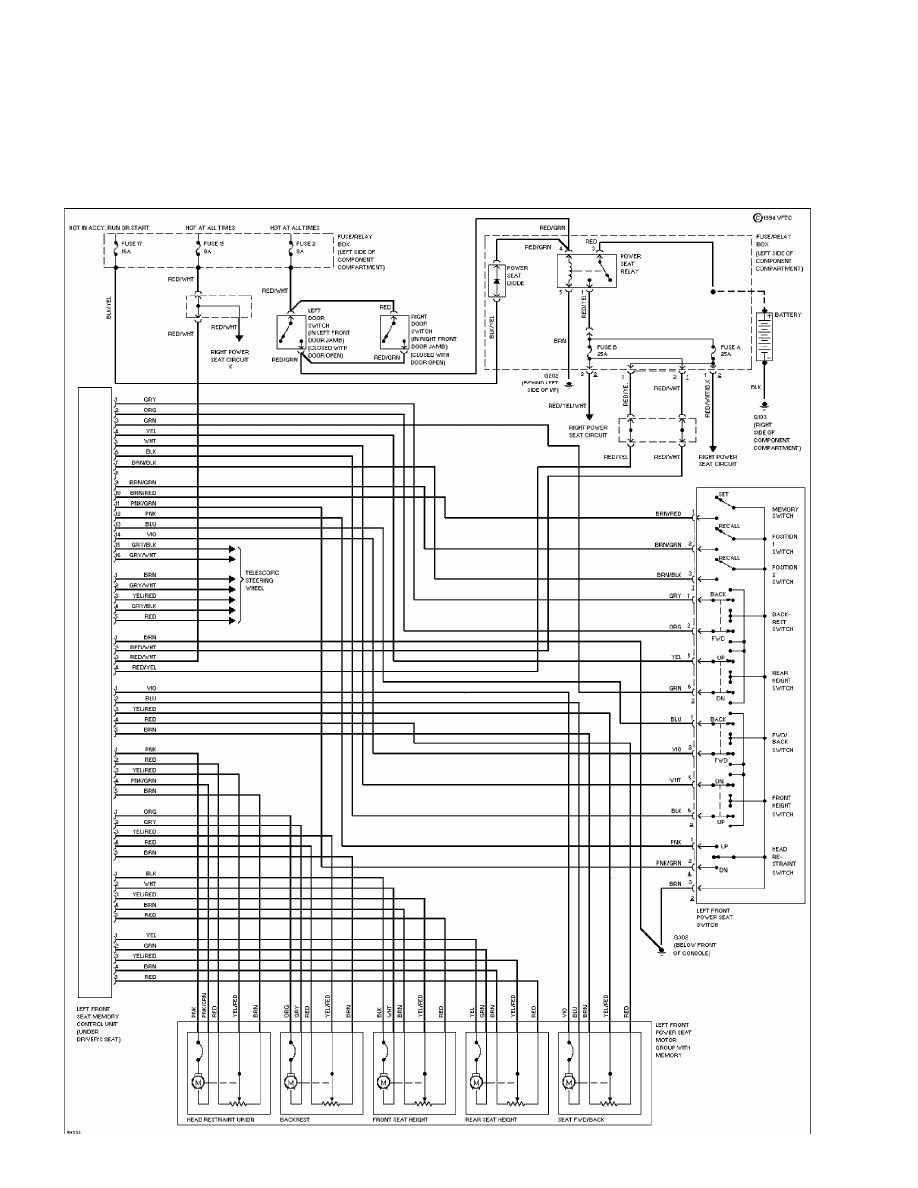

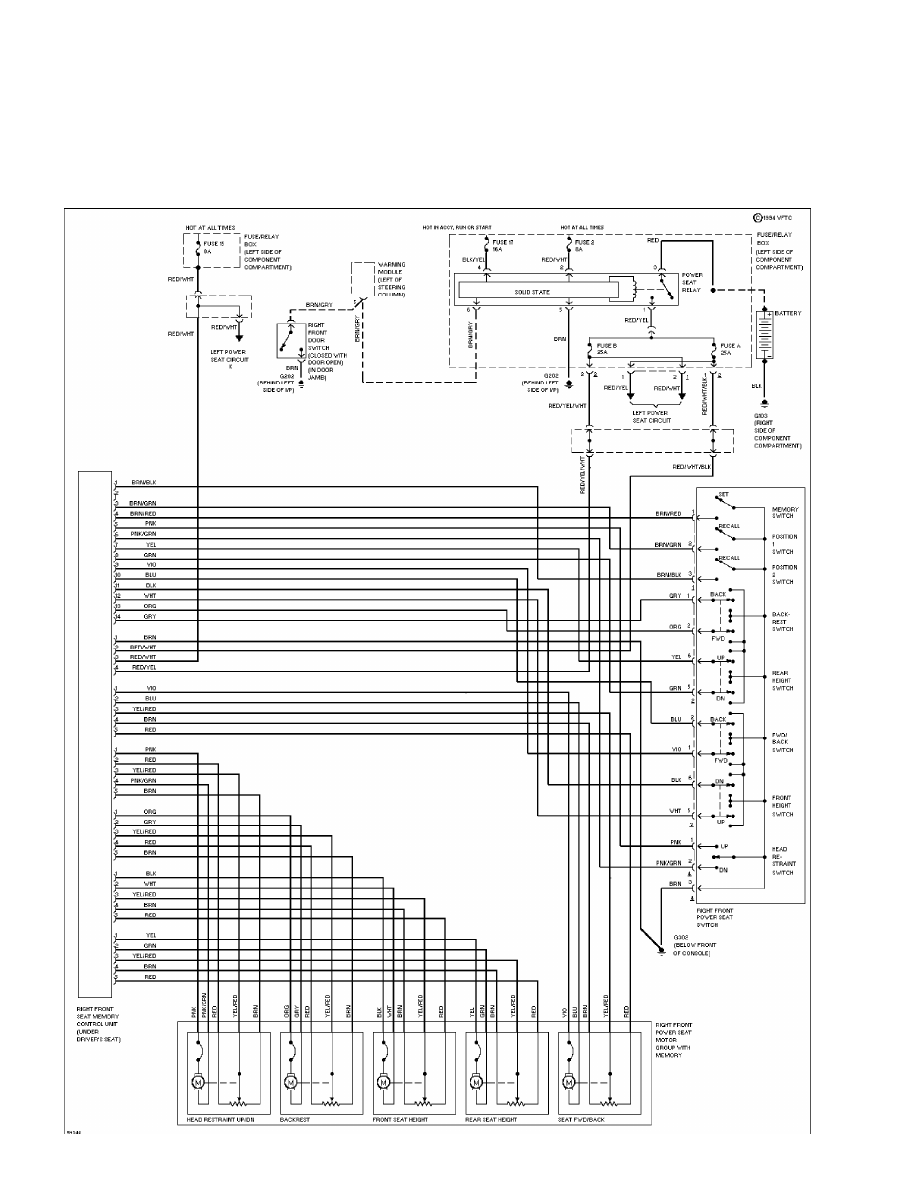

Driver Power Seat Circuit, Early Production

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:31PM

SYSTEM WIRING DIAGRAMS

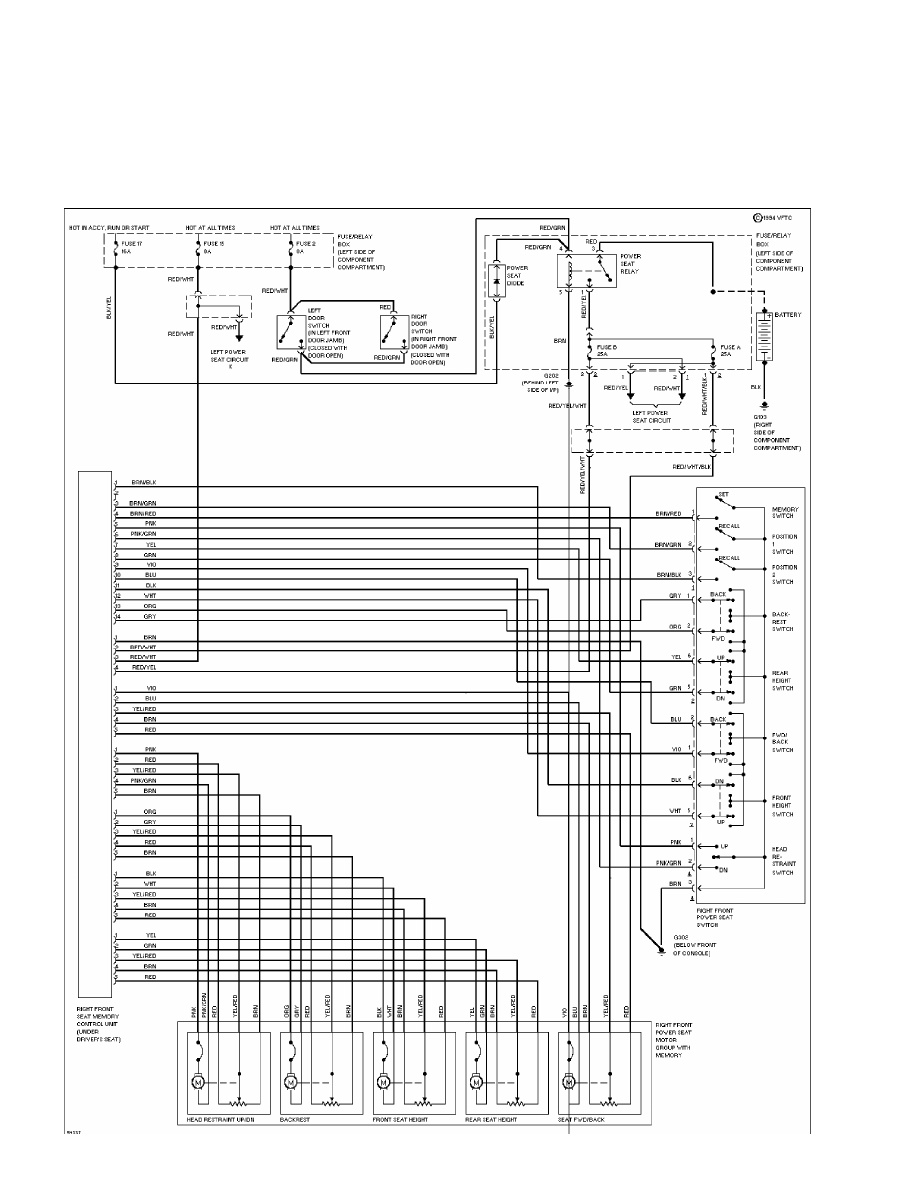

Driver Power Seat Circuit, Late Production

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:31PM

SYSTEM WIRING DIAGRAMS

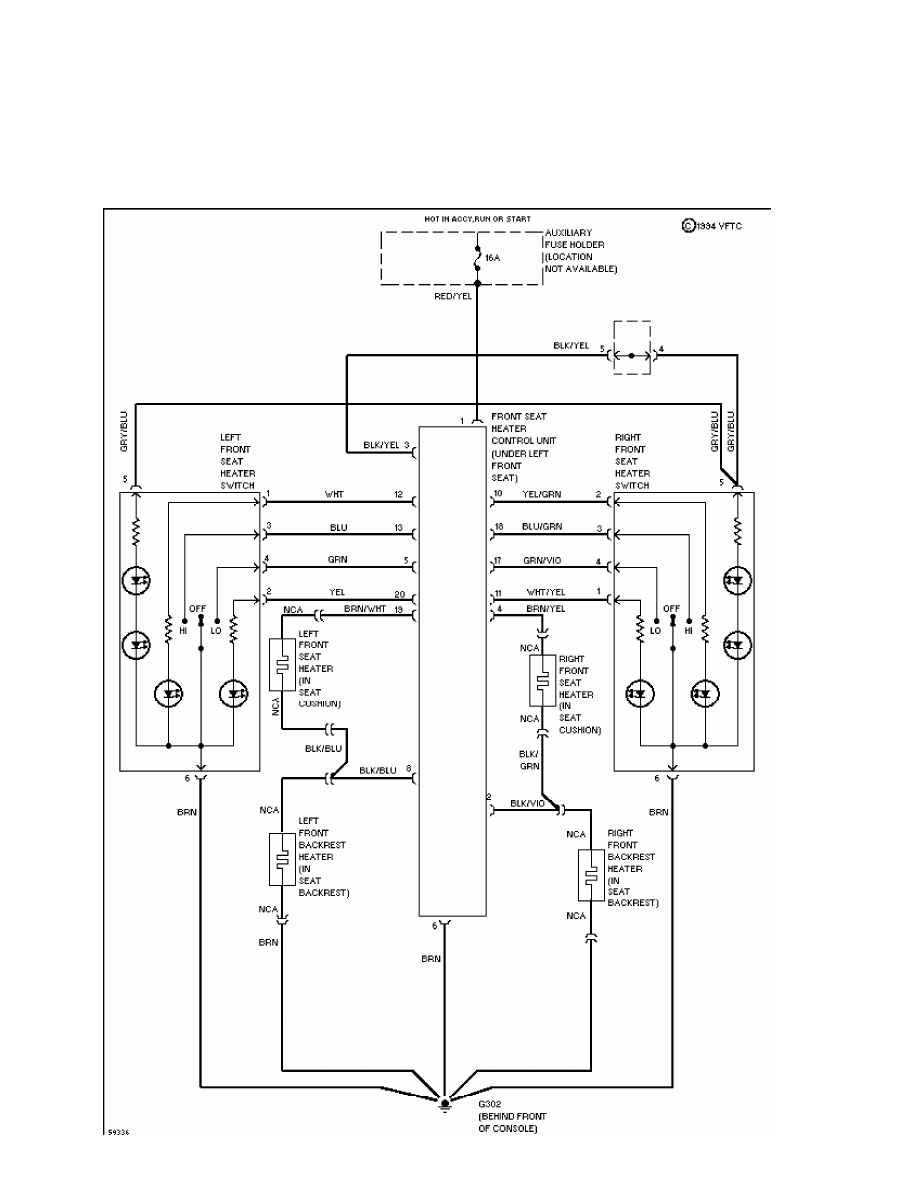

Front Seat Heater Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:32PM

SYSTEM WIRING DIAGRAMS

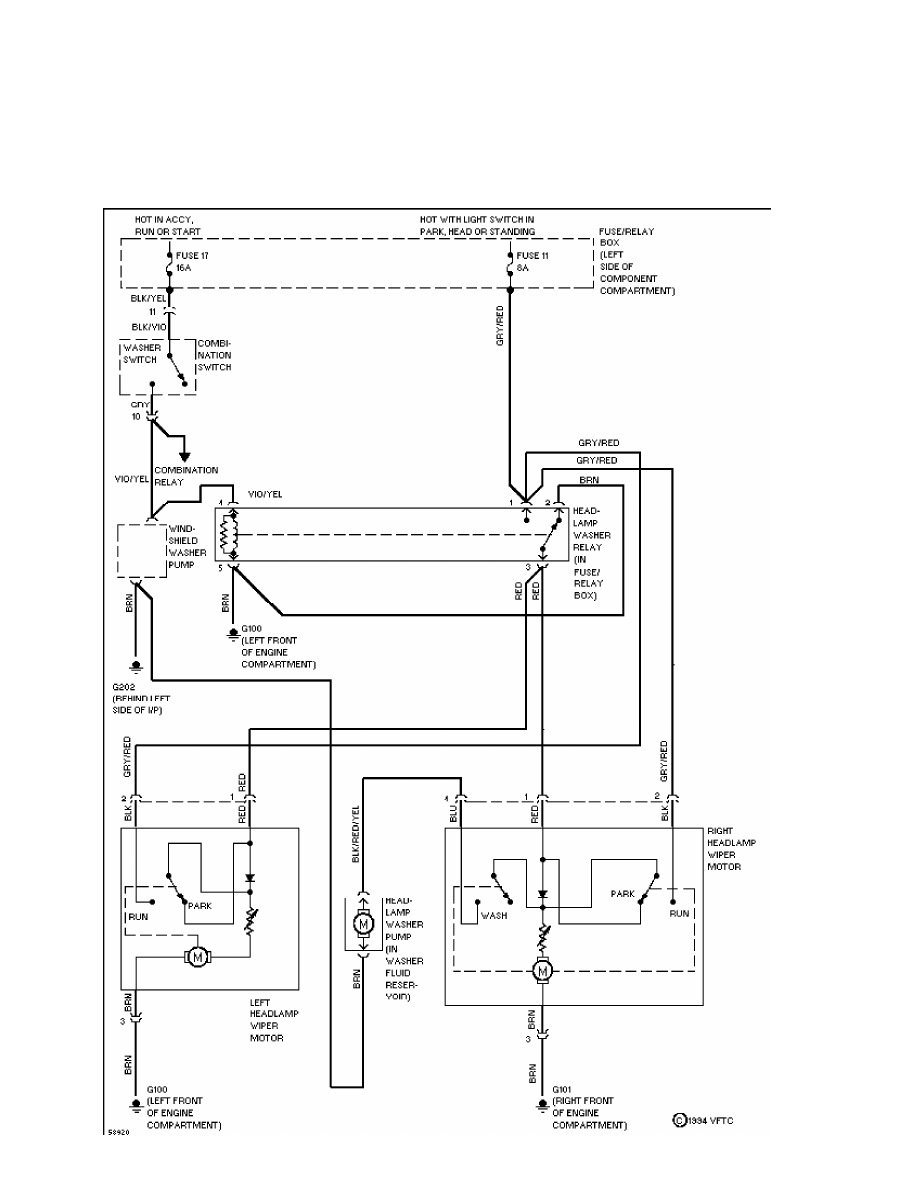

Headlight Washer/Wiper Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:36PM

SYSTEM WIRING DIAGRAMS

Horn Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:29PM

SYSTEM WIRING DIAGRAMS

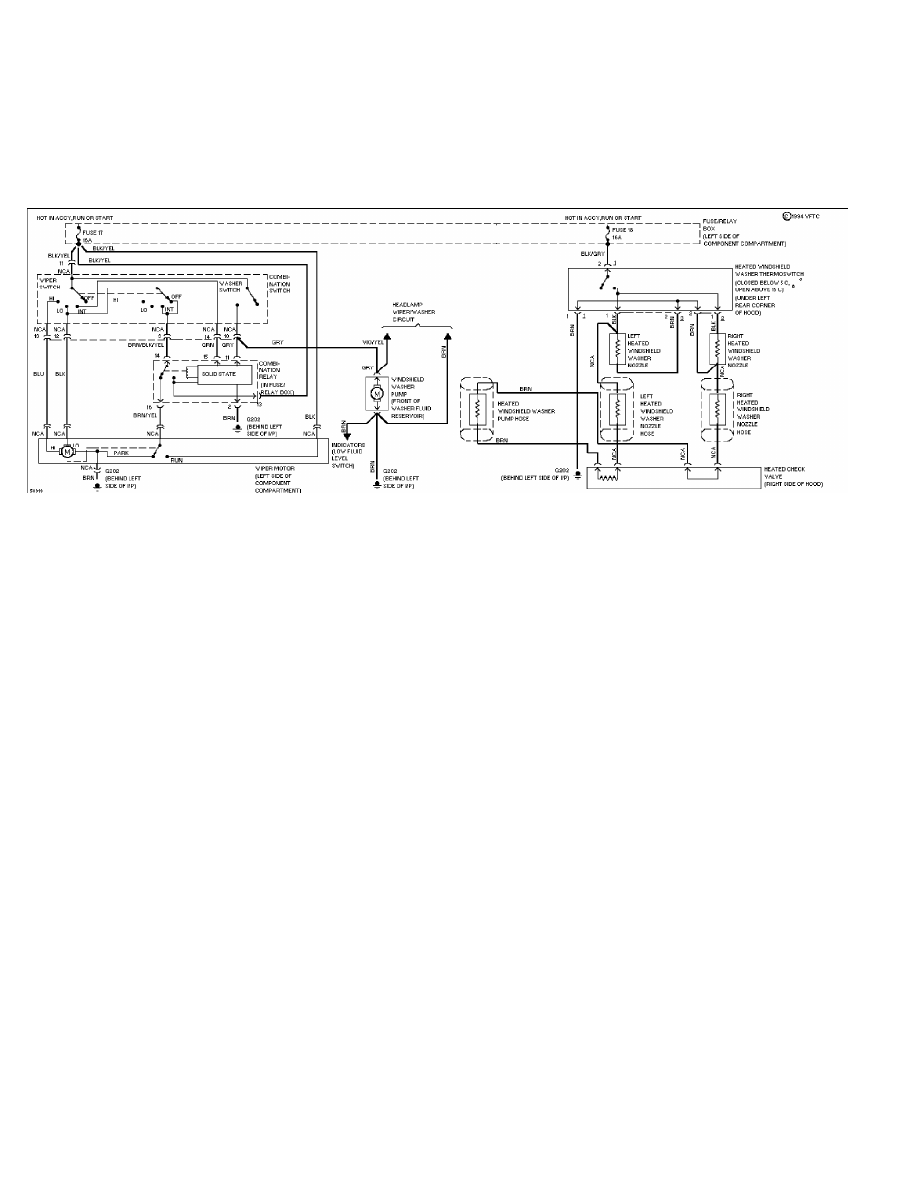

Interval Wiper/Washer Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:36PM

SYSTEM WIRING DIAGRAMS

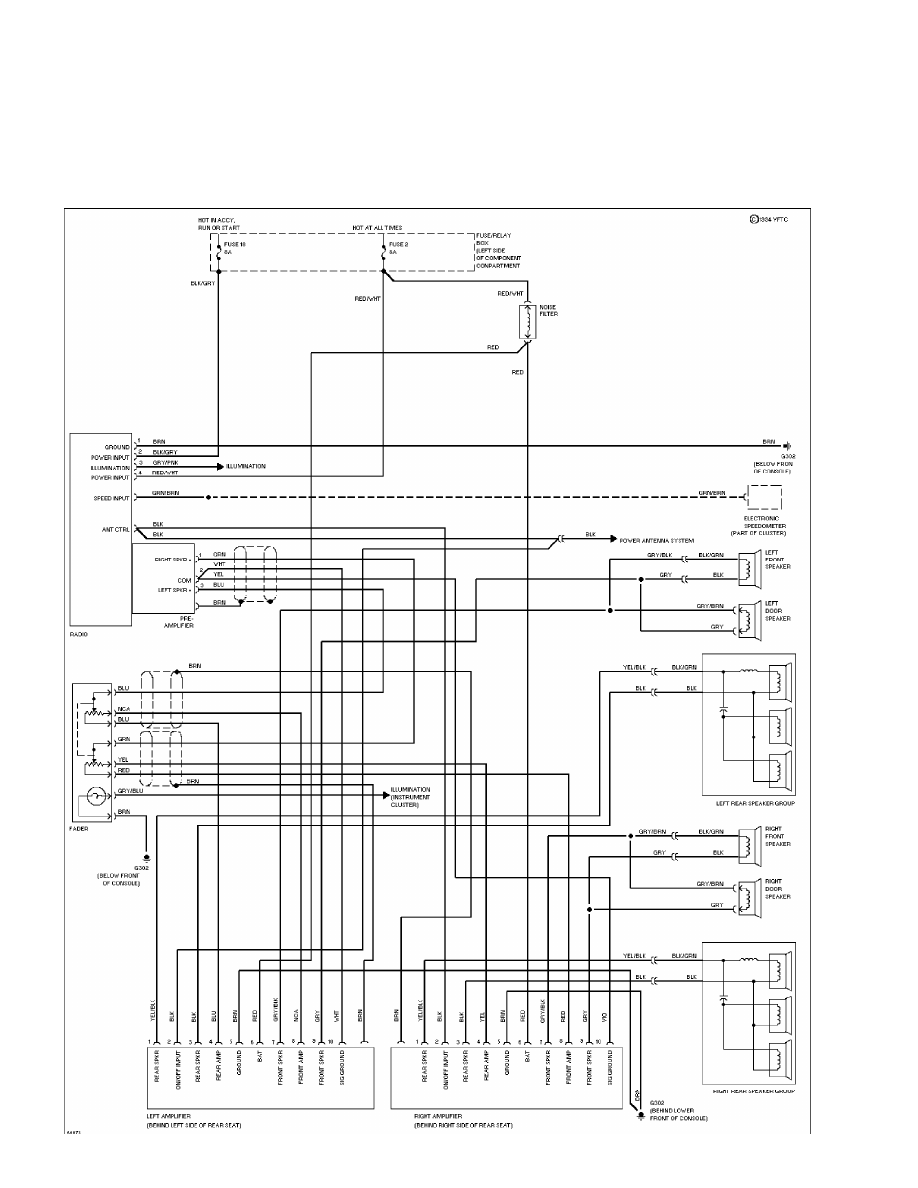

One Piece Radio, W/ Sound System

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:34PM

SYSTEM WIRING DIAGRAMS

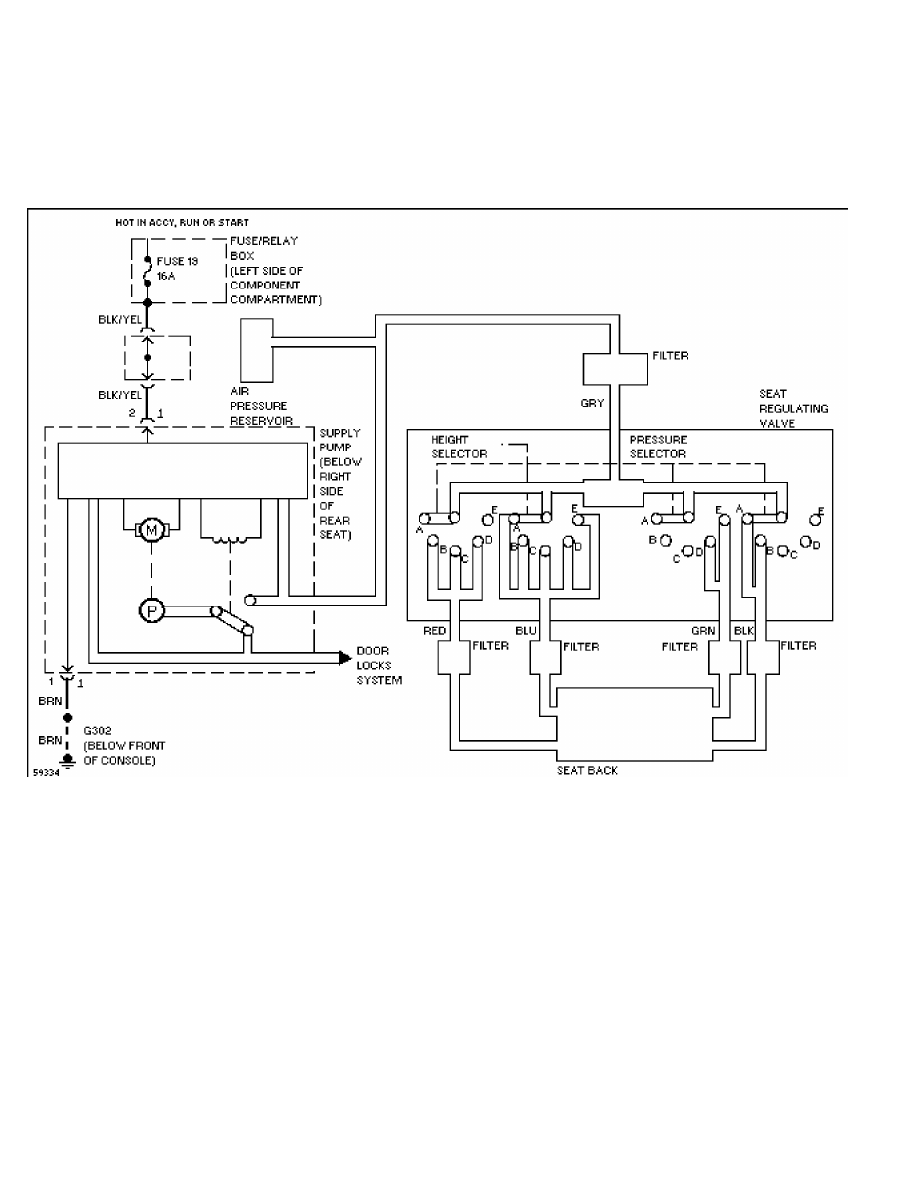

Orthopedic Seats

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:32PM

SYSTEM WIRING DIAGRAMS

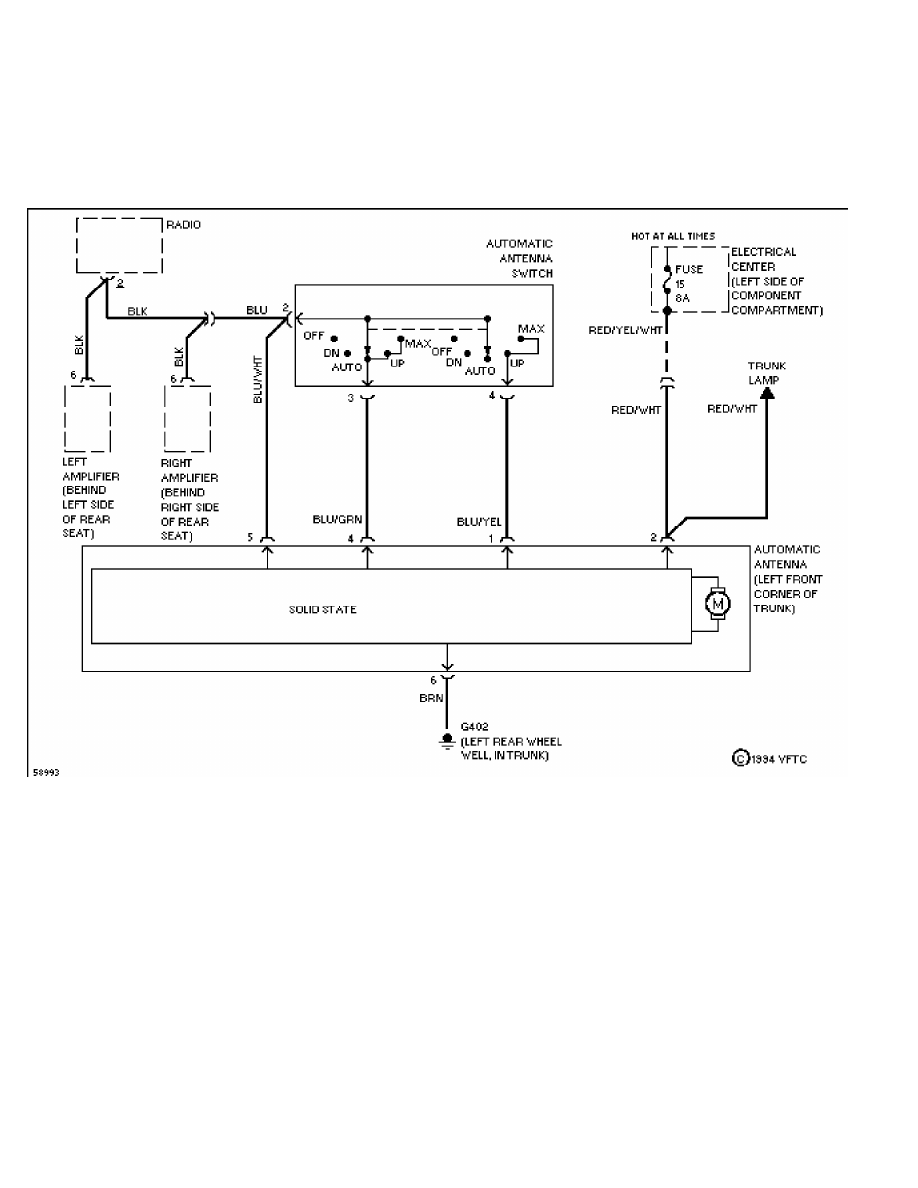

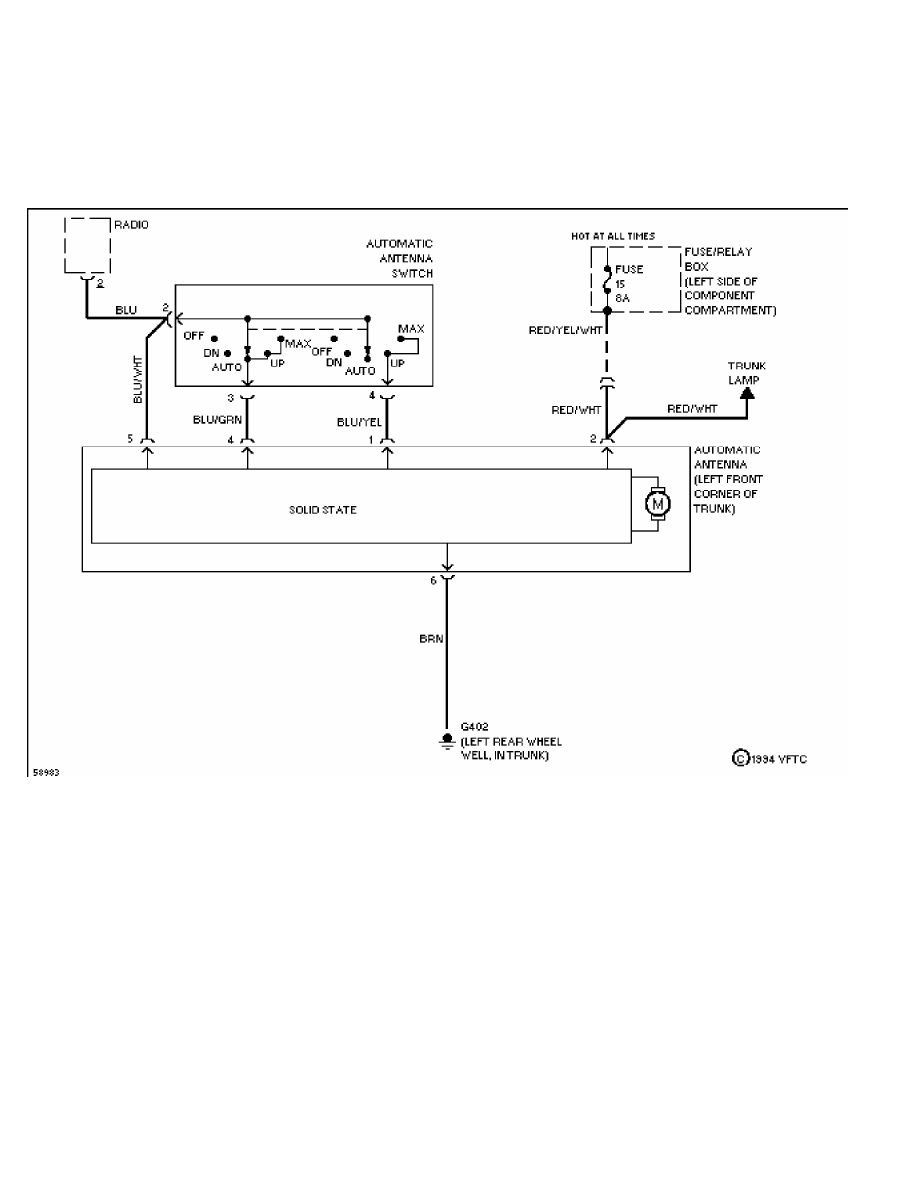

Power Antenna Circuit, Base Radio

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:30PM

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, W/ Sound System

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:30PM

SYSTEM WIRING DIAGRAMS

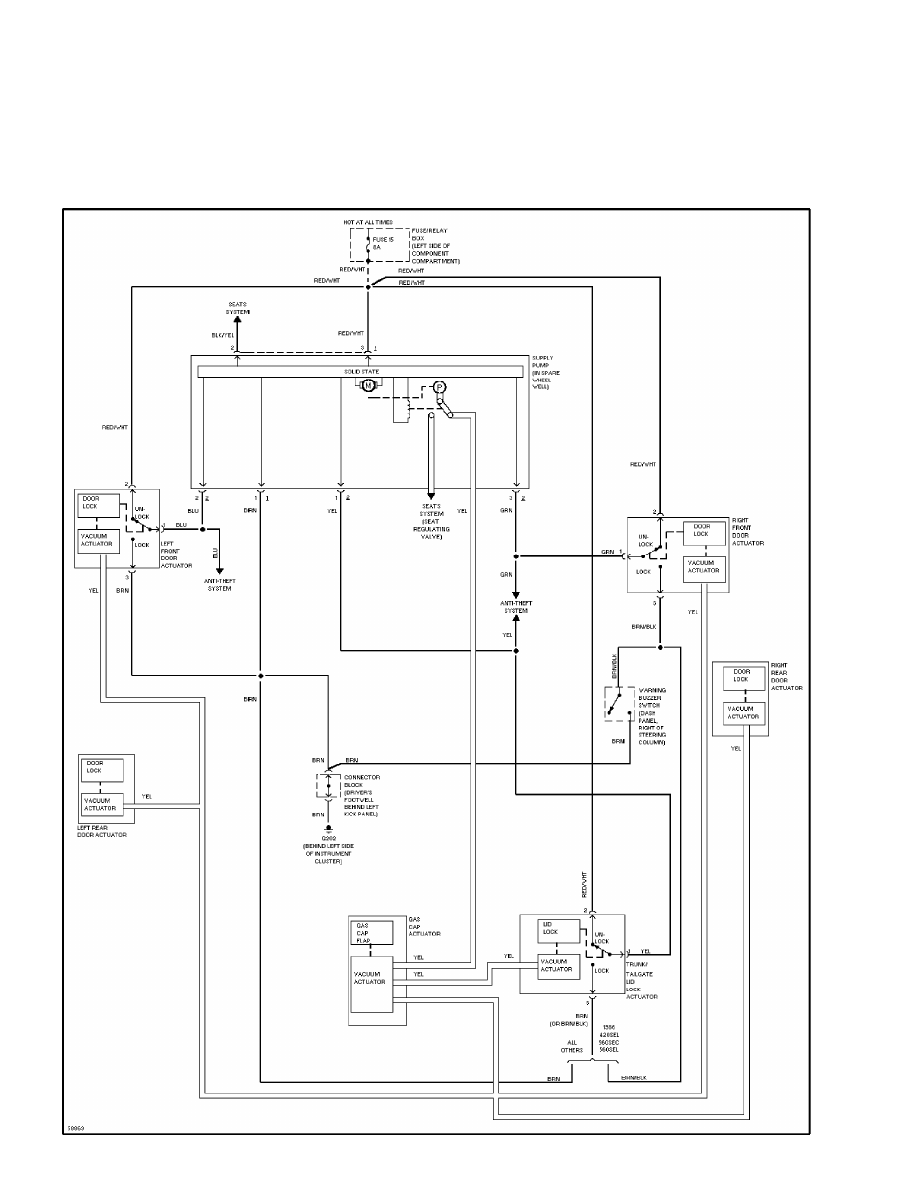

Power Door Lock Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:31PM

SYSTEM WIRING DIAGRAMS

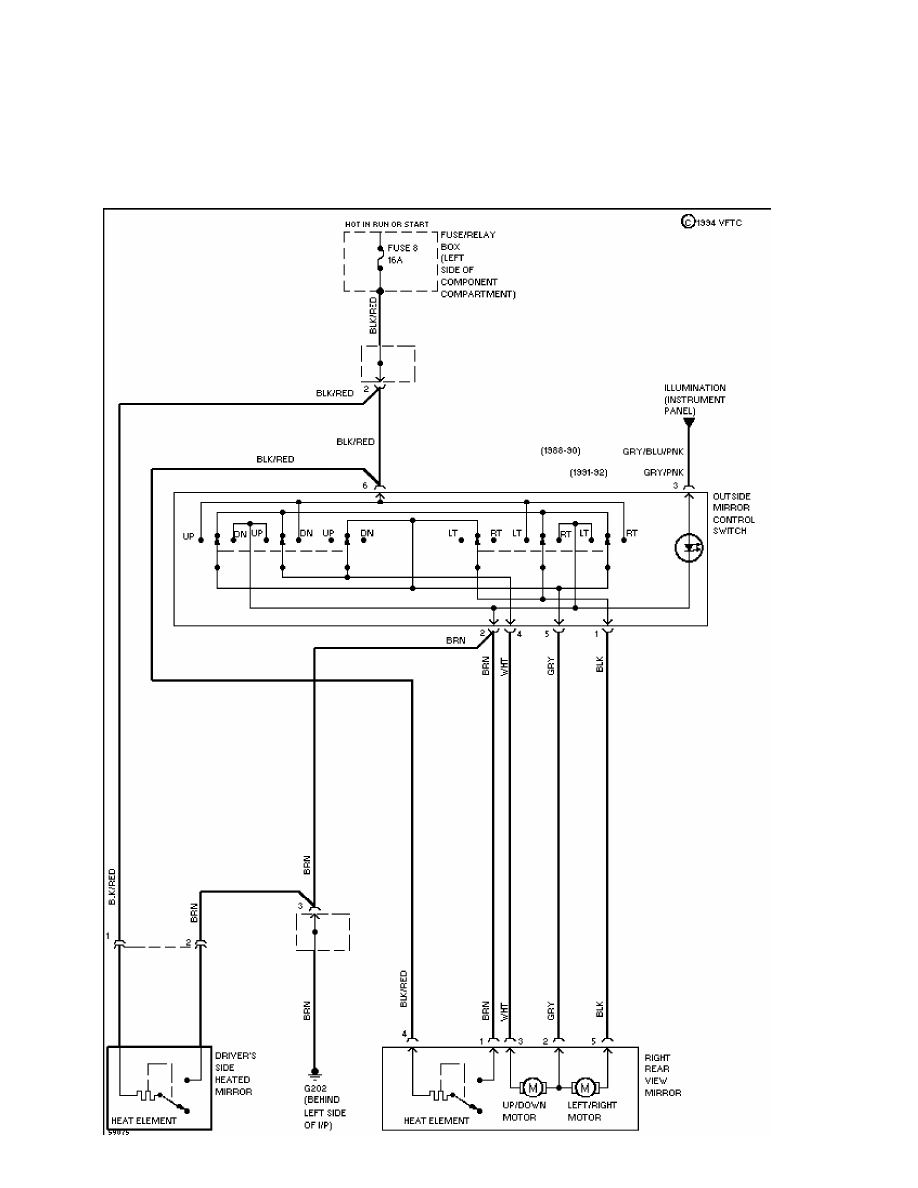

Power Mirror Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:31PM

SYSTEM WIRING DIAGRAMS

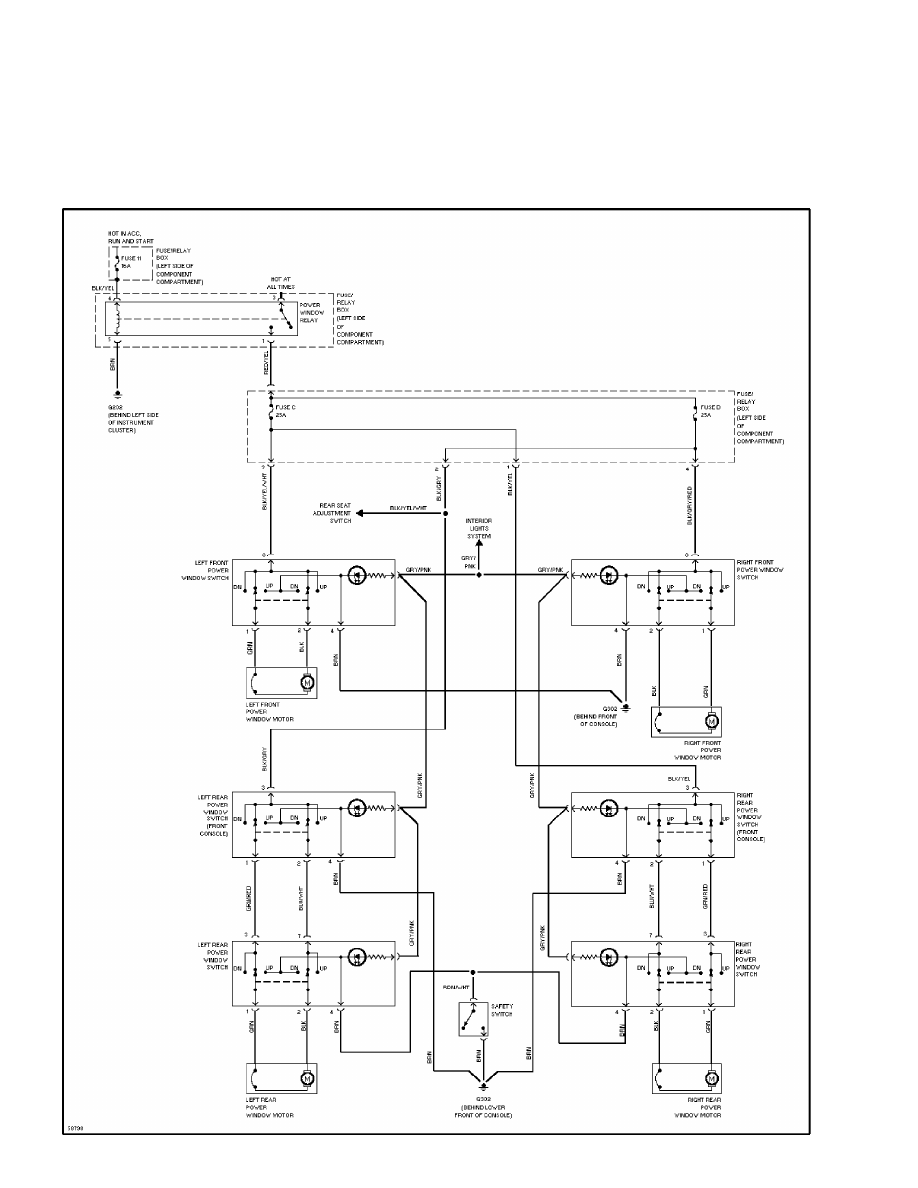

Power Window Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:33PM

SYSTEM WIRING DIAGRAMS

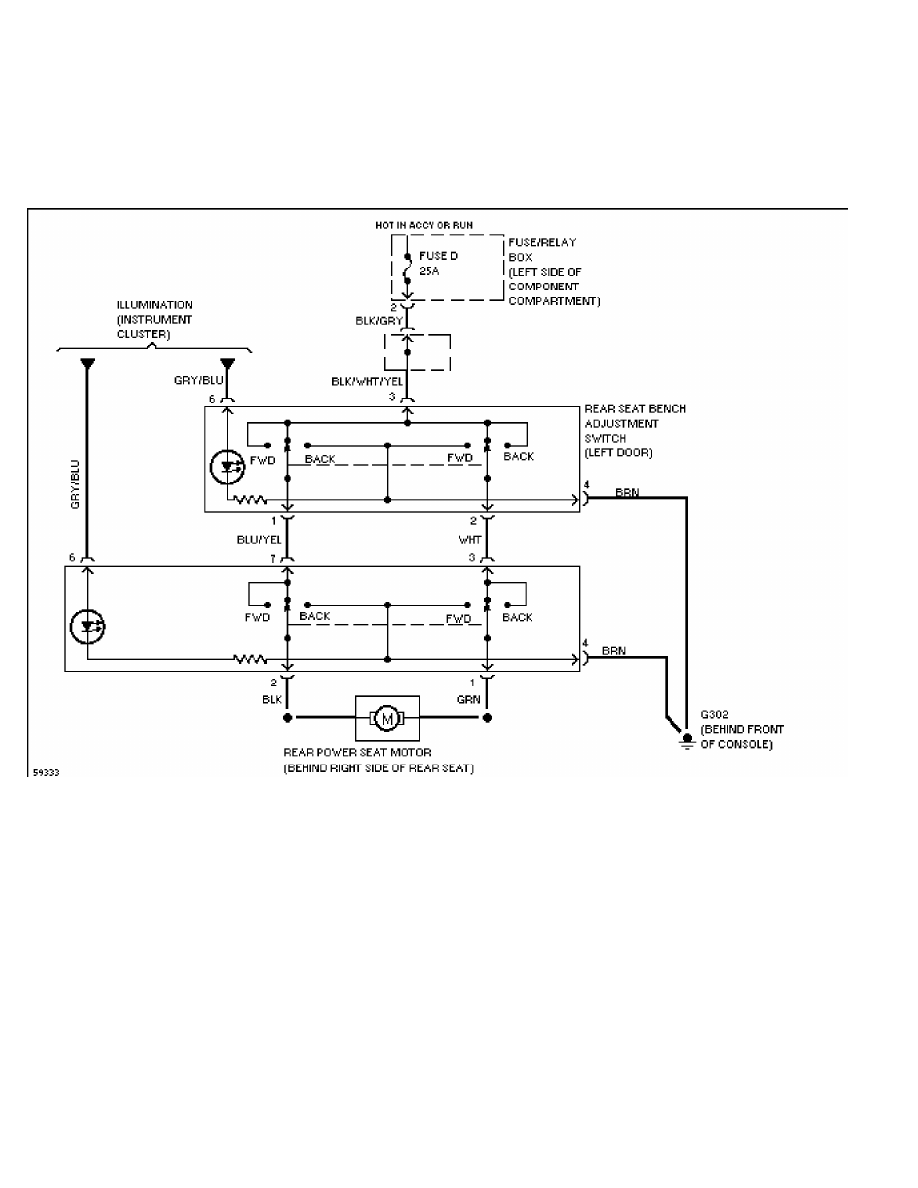

Rear Seat Adjuster Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:32PM

SYSTEM WIRING DIAGRAMS

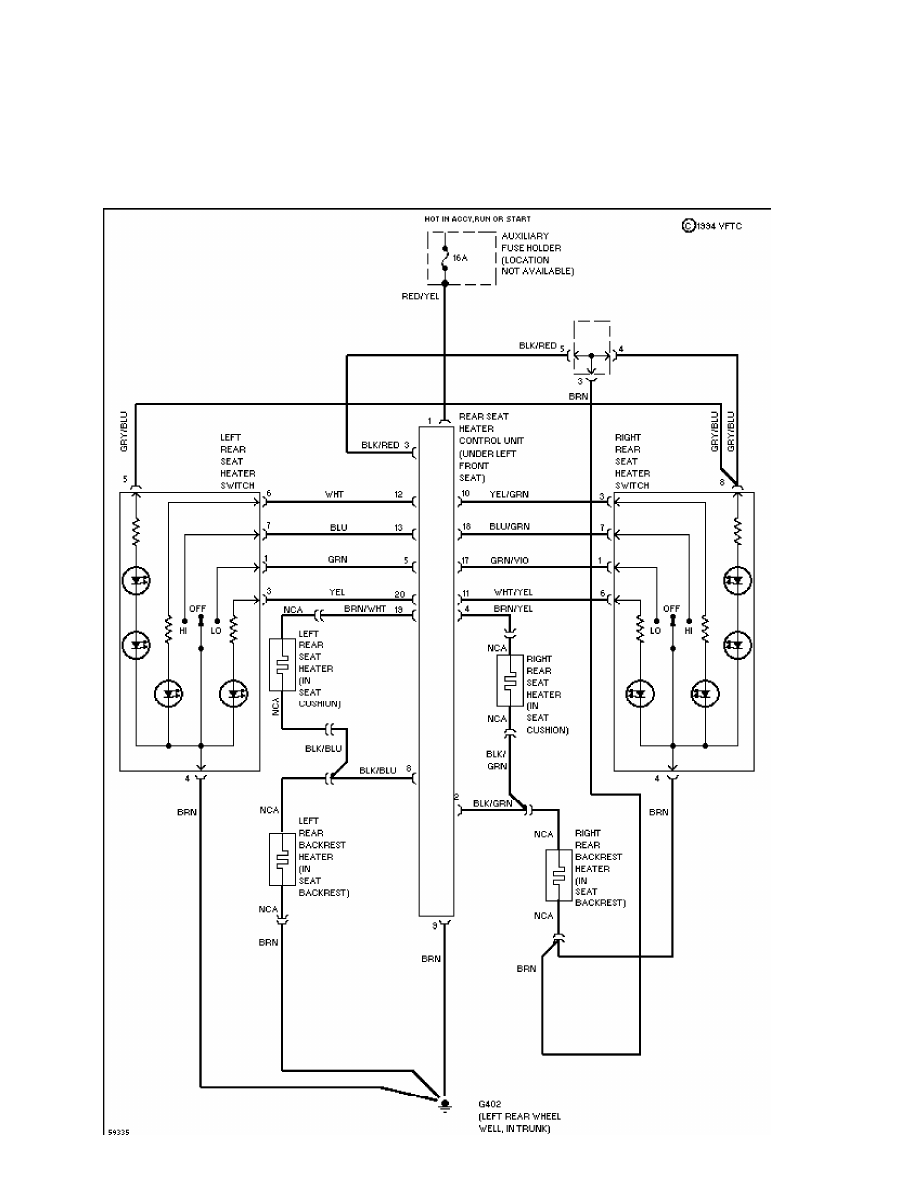

Rear Seat Heater Circuit

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:32PM

SYSTEM WIRING DIAGRAMS

Right Seat Circuit, Early Production

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:33PM

SYSTEM WIRING DIAGRAMS

Right Seat Circuit, Late Production

1989 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:33PM
