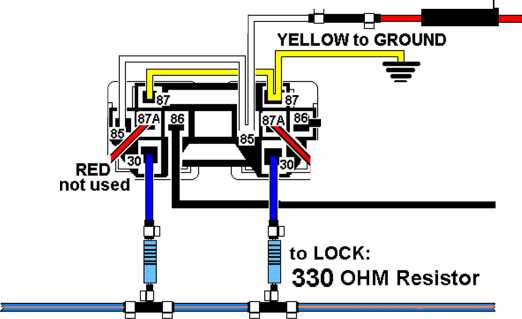

14301 ASPEN CHRYSLER 1 WIRE JBS UNITS
WHITEto 12 volts _ constant fused 120amp
to UNLOCK: 100 OHM Resistor
LIGHT BLUE /ORANGE in Drivers Door
For JBS Units without On-board Door Lock Relays
Requires
(1) 778 or
(2) 775's
BLACiOo(-^OCK outputfrom unit RED not used BLACK to (■) UNLOCK output from unit
GROUND GROUND
