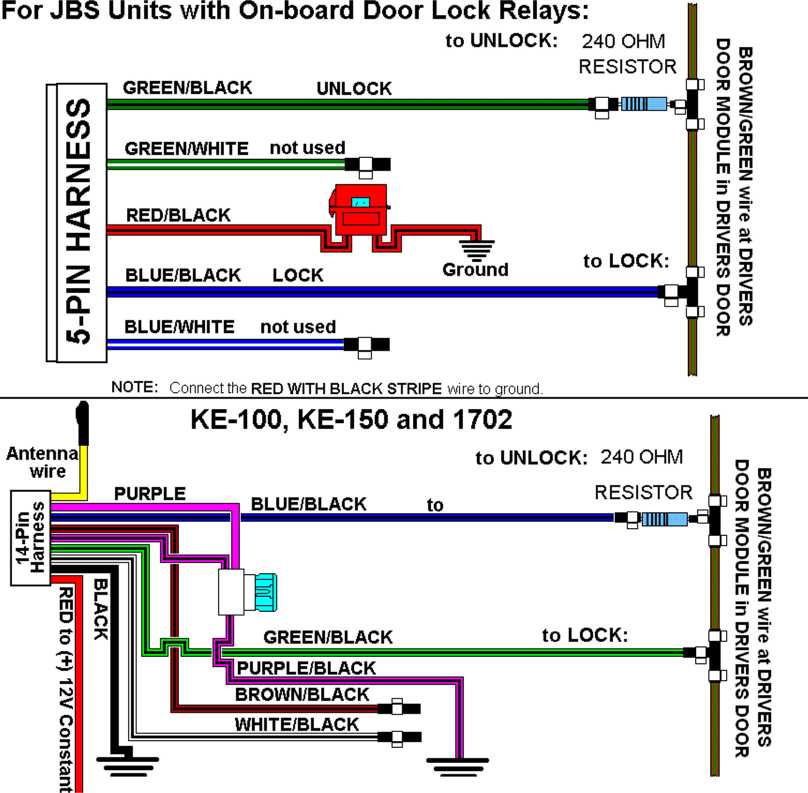

11672 JETTA JBS 1 WIRE VW
|
J | ||
RED not used
to LOCK
BROWN/GREEN wire at DRIVERS DOOR MODULE in DRIVERS DOOR
For JBS Units without On-board Door Lock Relays:
Requires
(1) 778 or
(2) 775's
REDlU^I
not used
to UNLOCK:
240 OHM RESiSTOR
WHITEto 12 volts constant fused
YELLOWtoGROUND
BLACK to(-) LOCK outputfrom unit
BLACK to (■) UNLOCK output from unit
GRÓUND
GROUND
