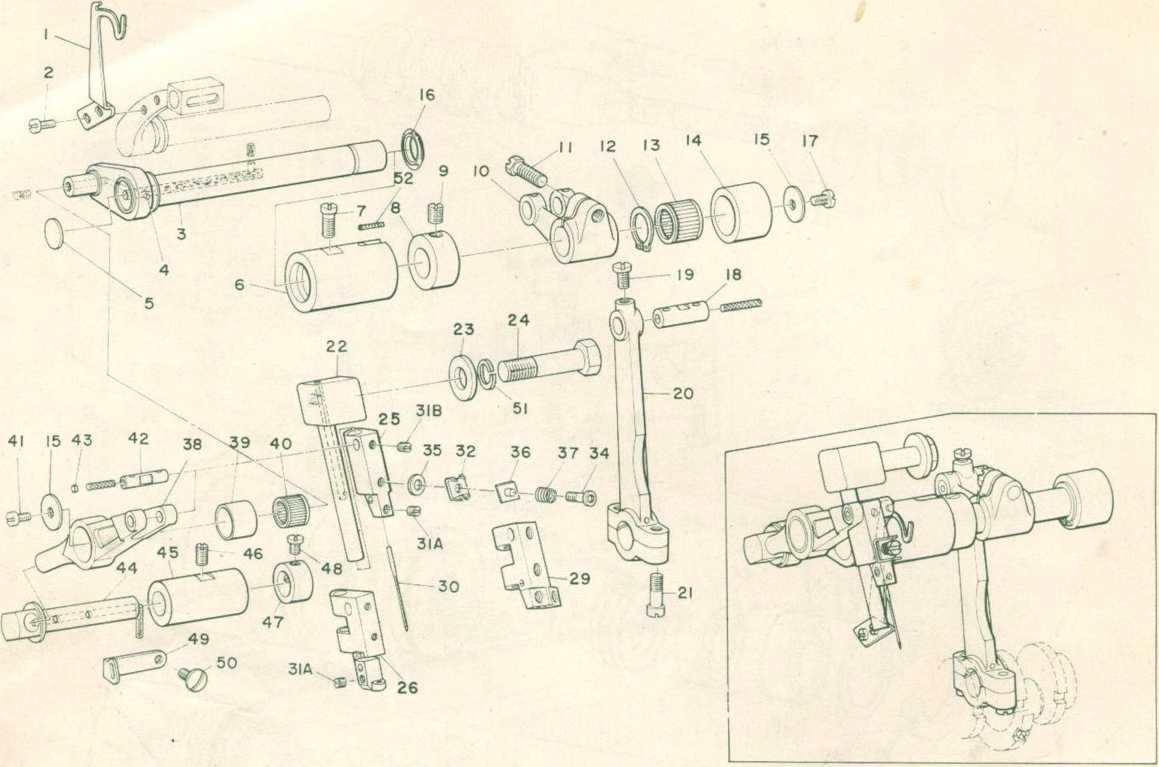

4. NEEDLE CLAMP DRIVING SHAFT COMPONENTS
|
Ref. No. |
Part No. |
Description |
Amt. Req. |
Ref. No. |
Part No. |
Description |
Amt Req. |
|
1 |
B-1428-804-000 |
Needle thread take-up lever |
1 |
29 |
8-1419-814-B00 |
Needle clamp, for MO-814 |
1 |
|
2 |
SS-4080620-TP |
. . . Screw |
2 |
30 |
MDC-270-B11-00 |
Needle (DC x 27 #11) (MO-814, | |
|
3 |
B-1409-804-000A |
Needle clamp driving shaft |
1 |
MO-816 use two needles) |
1 | ||
|
4 |
TA-0180401-MO |
. . . Oil seal pług |
1 |
31A |
SS-8080310-TP |
. . . Screw (MO-814, MO-816 | |
|
5 |
B-1414-804-000 |
. . . Rubber pług |
1 |
use two screws) |
1 | ||
|
6 |
B-1403-804-000A |
. . . Bushing, front |
1 |
32 |
B-1425-704-000 |
Needle thread tension disc |
1 |
|
7 |
SS-6121020-SP |
......Screw |
1 |
34 |
B-1427-804-000 |
. . . Hinge screw |
1 |
|
8 |
CS-1201011-SH |
. . . Thrust collar |
1 |
35 |
WP-0371016-SD |
. . . Washer, |
1 |
|
9 |
SS-8660610-TP |
2 |
36 |
B-1423-704-000 |
Needle thread presser |
1 | |
|
10 |
B-1402-804-000 |
. . . Crank |
1 |
37 |
B-1424-804-000 |
Tension spring, for thread take-up | |
|
11 |
SS-9151210-TP |
1 |
lever |
1 | |||
|
12 |
B-1406-804-000 |
. . . Stop ring |
1 |
38 |
B-1410-804-000 |
Needle clamp driving lever |
1 |
|
13 |
B-1404-804-000 |
. . . Bearing |
1 |
39 |
B-1412-804-000 |
. . . Outer sleeve |
1 |
|
14 |
B-1405-804-000 |
. . . Outer sleeve |
1 |
40 |
B-1411-804-000 |
. . . Bearing |
1 |
|
15 |
B-1413-804-000 |
. : . Washer |
2 |
41 |
SS-6090420-SP |
1 | |
|
16 |
B-1433-804-000 |
... Oil seal |
1 |
42 |
B-1422-804-000 |
... Pin |
1 |
|
17 |
SS-6090630-SP |
. . . End screw |
1 |
31B |
SS-8080310-TP |
1 | |
|
18 |
B-1612-804-000 |
. . . Crank pin |
1 |
43 |
B-1432-804-000 |
. . . Pin cover |
2 |
|
19 |
SS-7110710-SP |
1 |
44 |
B-1416-804-000 |
. . .Shaft |
1 | |
|
*20 |
B-1401-804-0A0 |
Needle clamp driving rod asm. |
1 |
45 |
B-1417-804-000 |
1 | |
|
21 |
SD-0460701-TP |
. . . Clamp screw |
(D |
46 |
SS-81 51550-SP |
. . . Screw |
1 |
|
{22) |
B-1421-704-000 |
Needle clamp guide shaft |
t |
47 |
CS-0870811-SH |
. . . Shaft collar |
1 |
|
23 |
WP-0850002-SP |
. . . Washer |
1 |
48 |
SS-6110420-TP |
. . . Screw |
2 |
|
24 |
SS-9703413-CP |
... Screw |
1 |
49 |
B-1422-816-000 y |
Chain needle thread guide (B), | |
|
25 |
B-1419-704-000 |
Needle clamp, for MO-804 |
1 |
for MO-816 |
1 | ||
|
de |
B-1419-816-000 |
Needle clamp, for MO-816 |
1 |
50 |
SS-7090710-SP |
. . . Screw, for MO-816 |
1 |
|
2?r |
SS-8090410-SP |
. . . Screw, for MO-816 |
1 |
WS-0822010-KP |
Spring washer, for needle clamp | ||
|
51 | |||||||
|
52 |
B-3511-704-000 |
guide shaft Felt, for needle clamp driving |
1 |
front bushing 1
- 4 -
