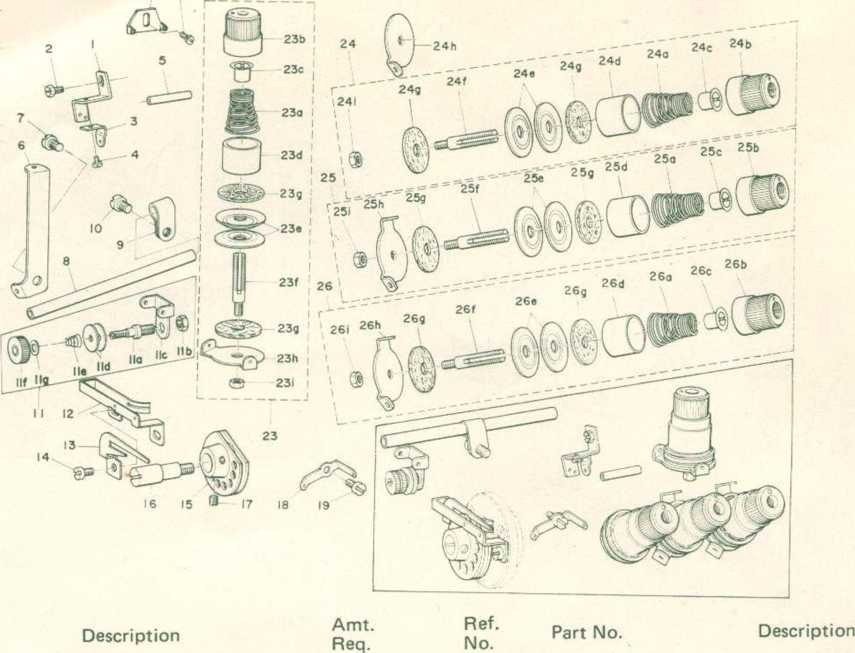

10. THREAD TENSION COMPONENTS

Ref. No.	Part No.
1	B-3110-804-000
2	SS-9090640-SP
3	B-3111-804-000
4	SS-5060410-SP
(5)	B-3109-804-000
6	B-2402-716-000
7	SS-5150510-SP
* 8	B-2401-816-000
9	B-3113-352-000
10	SS-7120640-SP
*11	B-3104-816-0A0
11a	B-3104-816-000
11 b	NS-6120310-SP
11c	B-3105-816-000
11d	B-3148-123-000
11e	B-3149-123-000
11f	B-3106-816-000
iig	WP-0371016-SD
12	B-2203-816-000
13	B-2204-816-000
14	SS-6090670-TP
15	B-2201-816-000
16	B-2202-816-000
17	SS-8110410-TP
18	B-2206-816-000
19	SS-7090610-SP
*23	B-3102-716-0A0
»	B-3102-704-0A0
23a	B-3102-804-000
23b	B-3106-704-000
23c	B-3112-704-000

Chain looper thread tension post asm.,

27 28

Amt.

Req.

Needle thread take-up guide 1

. . . Screw 1

Thread take-up intermediate guide 1 . . . Screw 1

Needle thread guide tube(obsoleted) (1) Looper thread guide tubę guide, for MO-816

. . . Screw, for MO-816 Looper thread guide tubę, for for MO-816

. . . Mounting bracket, for MO-816 . . . Screw, for MO-816

for MO-816

Chain looper thread tension post, for MO-816

. . . Nut, for MO-816

Chain looper thread tension guide, for MO-816

Chain looper thread tension disc, for MO-816

Chain looper thread tension spring, for MO-816

Tension post nut, (large), for for MO-816

. . . Washer, for MO-816

23d B-3107-704-000 23e B-3126-01 2-000

23f B-3105-804-000

23g B-3120-704-000

23h B-3108-804-000

23i NS-6110310-SP

*24 B-3101-704-0A0

B-3102-704-0A0

24a B-3101-804-000

B-3102-804-000

24b B-3106-704-000

24c B-3112-704-000

24d B-3107-704-000

24e B-3126-012-000

24f B-3105-804-000

24g B-3120-704-000

24i NS-6110310-SP

24h B-3102-816-000

*25 B-3103-704-0A0

Tension disc presser tubę Thread tension disc Thread tension post Thread tension spring felt Tension disc thread guide Lock nut, for tension post Needle thread tension post asm., for MO-804, MO-816 Needle thread tension post asm., for MO-814

Needle thread tension spring Needle thread tension spring, for MO-814 Thread tension nut Tension spring bushing Tension disc presser tubę Thread tension disc Thread tension post Thread tension spring felt Lock nut, for tension post Chain needle thread guide (A), for MO-816

Lower looper thread tension post asm.

Chain looper thread cam thread guide, for MO-816 1

. . . Hook, for MO-816 1

. . . Screw, for MO-816 2

Chain looper thread cam,

for MO-816 1

. . . Shaft, for MO-816 1

. . . Screw, for MO-816 2

Chain looper thread guide,

for MO-816 1

. . . Screw, for MO-816 1

Chain needle thread tension post asm., for MO-816 1

Chain needle thread tension post asm., for MO-814 1

Thread tension nut i

25a	B-3103-804-000	Lower looper thread tension
25b	B-3106-704-000	Thread tension nut
25c	B-3112-704-000	Tension spring bushing
25d	B-3107-704-000	Tension disc presser tubę
25e	B-3126-012-000	Tension spring bushing
25f	B-3105-804-000	Thread tension post
25g	B-3120-704-000	Thread tension spring felt
25h	B-3108-804-000	Tension disc thread guide
25i	NS-6110310-SP	Lock nut, for tension post
*26	B-3102-704-0A0	Upper looper thread tension post asm.
26a	B-3102-804-000	Upper looper thread tension
26b	B-3106-704-000	Thread tension nut
26c	B-3112-704-000	Tension spring bushing
26d	B-3107-704-000	Tension disc presser tubę
26e	B-3126-012-000	Thread tension disc
26f	B-3105-804-000	Thread tension post
26g	B-3120-704-000	Thread tension spring felt
26h	B-3108-804-000	Tension disc thread guide
26 i	NS-6110310-SP	Lock nut, for tension post
27	B-1416-704-000	Thread guide
- 28	SS-6090630-SP	. . .. Screw
