4-66 ELECTRICAL WIRING DIAGRAMS

18. CLUSTER

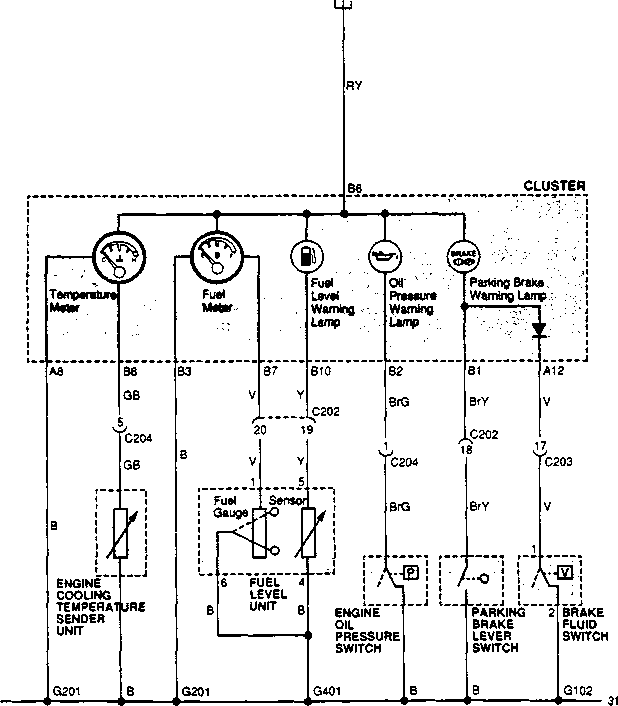

1) METER (TEMPERATURĘ, FUEL), WARNING LAMP (FUEL LEVEL, OIL PRESSURE, PARKING BRAKE)

15

15    | IGN 1 |

Pirh

10A

a. CONNECTOR INFORMATION

CONNEĆTOR(NÓ) (PIN NO. COLOR)	CONNECTING. WIRING HARNESS	CONNECTOR POSITION
C202(24PIN. YELLOW)	W/H I.P • Body	Upper Driver Leg Room
C203(24PIN. GRAY)	W/H Front • I.P	Upper LH Leg Room
C204(16PIN. WHITE)	W/H Engine - I.P	Upper Driver Leg Room
G102	Front	Rear Lower RH Headlamp
G201	I.P	Mounting Bracket of Passenger Room Fuse Box
G401	Body	LH Lower Back Panel in Trunk

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

1	2	><		3	4
5	6	7	8	9	10
11	12	13	14	15	16

C202 W/H I.P

J2L

1

17
18
19
20
21	5
22
23
24

1	2			3	4
5	6	7	8	9	10
11	12	13	14	15	16

C203

W/H FRONT

17
18
19
20	i
21	5
22
23
24

i	2			3	4
5	6	7	8	9	10
11	12	13	14	15	16

C204

W/H ENGINE

pal lai
f 1 I 2	3
kii	iiJ

FUEL PUMP

W/H CLUSTER

CLUSTER

BRAKE FLUID SWITCH
