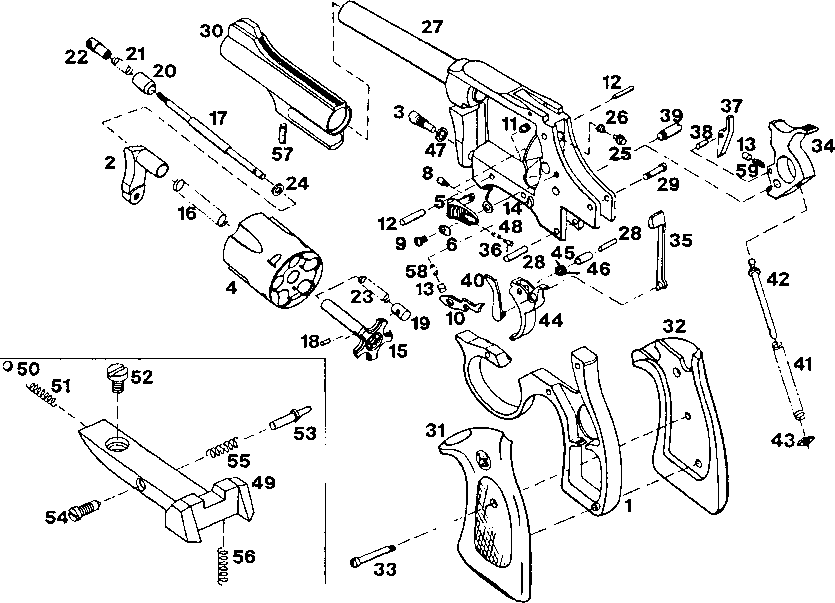

Charter Arms Target Bulldog Revolver

Charter Arms Target Bulldog Revolver




1    Grip i-raifto

2    Crane

3    Crane Screw

4    Cylinder

5    Cylinder Latch

6    Cylinder Latch Cover Platę

7    Cylinder Latch Washer

8    Cylinder Latch Release Screw

9    Cylinder Latch Retaining Screw

10    Cylinder Stop

11    Cylinder Stop Bushing

12    Cylinder Stop and Firing Pin Retaining Pins

13    Cylinder Stop and Hammer Pawi Plungers

14    EjectionStud

15    Ejector

16    Ejector Return Spring

17    Ejector Rod

18    Ejector Rod Assembly Pin

19    Ejector Rod Bushing

20    Ejector Rod Collar

21    Ejector Rod Collar Spring

22    Ejector Rod Head

23    Ejector Rod Lock Spring

24    Ejector Rod Washer

25    Firing Pin

26    Firing Pin Spring

27    Frame and Barrel

28    Frame Assembly and Trigger Pins

29    Frame Assembly Screw

30    Barrel Shroud

31    Left Grip

32    RightGrip

33    Grip Screw

34    Hammer

35    Hammer Błock Assembly

36    Cylinder Latch Plunger

37    Hammer Pawi

38    Hammer Pawi Pin

39    Hammer Screw

40    Hand Assembly

41    Mainspring

42    Mainspring Strut

43    Mainspring Seat

44    Trigger

45    Trigger Spring

46    Trigger Spring Bushing

47    Crane Screw Washer

48    Cylinder Latch Spring

49    Rear Sight Base

50    Sight Detent Bali

51    Sight Detent Spring

52    Sight Elevation Screw

53    Sight Windage Plunger

54    Sight Windage Screw

55    Sight Windage Spring

56    Sight Elevation Spring

57    Barrel Shroud Screw

58    Cylinder Stop Plunger Spring

59    Hammer Pawi Plunger Spring

Parts Not Shown

Grip Escutcheon Grip Escutcheon Nut Grip Locating Pin
