J.F. Allen and N.G. Holmes

lięfł source ]heat filter

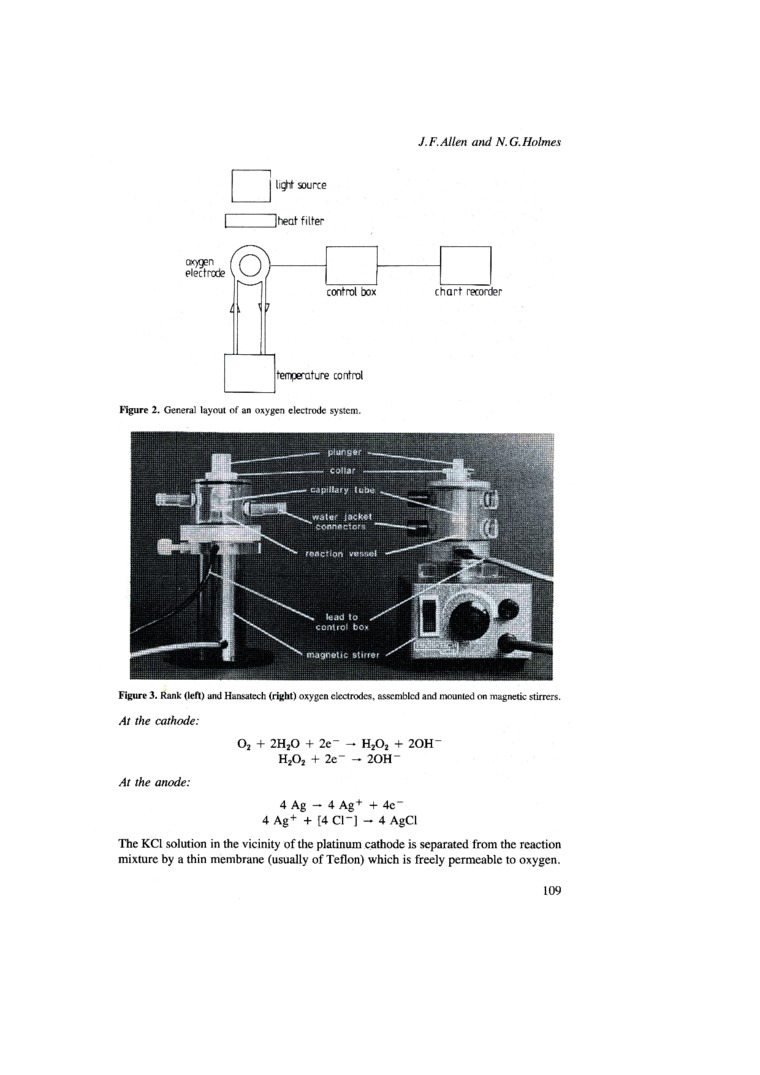

ngnre 2. General laynut of an oxygen clcctrudc system.

Figurę 3. Rank (left) and Hansatcch (right) oxyj.cn clcctrodcs, assemblcd and mounted on magnetk stirrers.

Al the cathode:

0₂ + 2H₂0 + 2e~ - H₂0₂ + 20H" H₂0₂ + 2c" - 20H*

At the anodę:

4 Ag — 4 Ag⁺ + 4c"

4 Ag⁺ + [4 Cl“l - 4 AgCI

The KCł solution in the vicinity of the platinum cathode is separated from the reaction mixturc by a thin membranę (usually of Teflon) which is freely permeablc to oxygcn.
